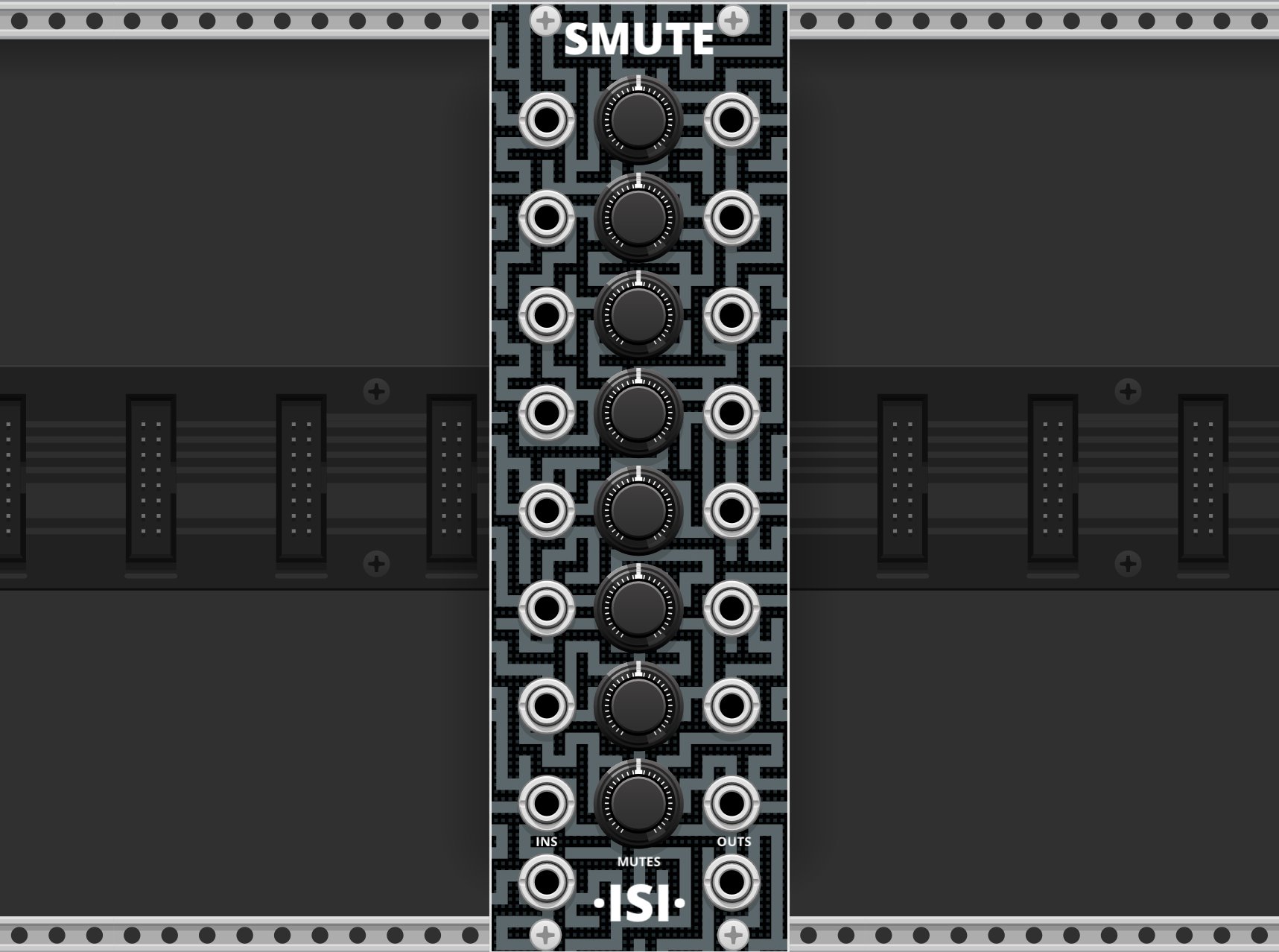

Smute

Mute buttons that sync with the clock.

Parameters

Polyphonic Input Port

Can accept monophonic and polyphonic voltages.

Input Input voltage for the row.

Polyphonic Output

Can output monophonic and polyphonic voltages.

Output The output voltage if the mute is inactive for the row.

Mute When this button is pressed it indicates that you want this row muted. The voltage will be muted when the deisred ratio is met with the clock or immediatly based on the Ratio knob.

Ratio Specify the clock ratio you want to synchronize the mute with. From /32 to X32. By default it is set to immediatly.

Trigger Input

Takes a trigger value as an input. This works as a Schmitt Trigger.

When voltage moves from a low voltage threshold (0.2V) through a high voltage threshhold (2V) the trigger will activate. The trigger wont be able to activate again until it moves back below the low voltage threshhold

Clock Smute will synchronize to this clock value.

Trigger Input

Takes a trigger value as an input. This works as a Schmitt Trigger.

When voltage moves from a low voltage threshold (0.2V) through a high voltage threshhold (2V) the trigger will activate. The trigger wont be able to activate again until it moves back below the low voltage threshhold

Reset Resets the internal clock values and triggers any waiting mutes when this is triggered.

Auto pressing

You can set a button to automatically press by using the Automatically Press option in the buttons context menu. The automatic pressing will begin when the clock ratio is hit. The row will then cycle on and off until the end of time... or until you disable it.

Expanders

Smute can expand another Smute module beside it, this sends the button presses, clock, and reset values to the other smute module. This can be enabled via the Toggle {Left,Right} Expander option in the modules context menu. This is useful for syncing stereo signals.

A connected clock and reset signal will be prioritized over one from a connected Smute. If you want all the clocks to be the same only connect a clock signal to the first Smute in the chain.

Note: Smutes cannot control another Smute that is already controlling it. Trying to do so will just disable the functionality. (for now)
