Anthropogenic CO2 from 1994 to 2007
Jens Daniel Müller
12 May, 2021
Last updated: 2021-05-12
Checks: 7 0
Knit directory: emlr_obs_preprocessing/
This reproducible R Markdown analysis was created with workflowr (version 1.6.2). The Checks tab describes the reproducibility checks that were applied when the results were created. The Past versions tab lists the development history.
Great! Since the R Markdown file has been committed to the Git repository, you know the exact version of the code that produced these results.
Great job! The global environment was empty. Objects defined in the global environment can affect the analysis in your R Markdown file in unknown ways. For reproduciblity it’s best to always run the code in an empty environment.
The command set.seed(20200707) was run prior to running the code in the R Markdown file. Setting a seed ensures that any results that rely on randomness, e.g. subsampling or permutations, are reproducible.
Great job! Recording the operating system, R version, and package versions is critical for reproducibility.
Nice! There were no cached chunks for this analysis, so you can be confident that you successfully produced the results during this run.
Great job! Using relative paths to the files within your workflowr project makes it easier to run your code on other machines.
Great! You are using Git for version control. Tracking code development and connecting the code version to the results is critical for reproducibility.
The results in this page were generated with repository version f091aa5. See the Past versions tab to see a history of the changes made to the R Markdown and HTML files.
Note that you need to be careful to ensure that all relevant files for the analysis have been committed to Git prior to generating the results (you can use wflow_publish or wflow_git_commit). workflowr only checks the R Markdown file, but you know if there are other scripts or data files that it depends on. Below is the status of the Git repository when the results were generated:
Ignored files:
Ignored: .Rhistory
Ignored: .Rproj.user/
Ignored: data/
Unstaged changes:
Modified: code/Workflowr_project_managment.R
Note that any generated files, e.g. HTML, png, CSS, etc., are not included in this status report because it is ok for generated content to have uncommitted changes.
These are the previous versions of the repository in which changes were made to the R Markdown (analysis/read_Sabine_2004_Cant.Rmd) and HTML (docs/read_Sabine_2004_Cant.html) files. If you’ve configured a remote Git repository (see ?wflow_git_remote), click on the hyperlinks in the table below to view the files as they were in that past version.
| File | Version | Author | Date | Message |
|---|---|---|---|---|
| html | ace484d | jens-daniel-mueller | 2021-05-12 | Build site. |
| html | 6ff516e | jens-daniel-mueller | 2021-03-30 | Build site. |
| html | a5846c5 | jens-daniel-mueller | 2020-12-18 | Build site. |
| html | 88967c0 | jens-daniel-mueller | 2020-12-16 | Build site. |
| html | fd1a2c9 | jens-daniel-mueller | 2020-12-15 | cleaned for copying |
| html | ed3e64c | jens-daniel-mueller | 2020-12-15 | Build site. |
| html | 53a6197 | jens-daniel-mueller | 2020-12-15 | Build site. |
| Rmd | ba575b8 | jens-daniel-mueller | 2020-12-15 | code and output cleaning |
| html | 2fdd2a7 | jens-daniel-mueller | 2020-12-14 | Build site. |
| Rmd | 0a3cc05 | jens-daniel-mueller | 2020-12-14 | rebuild with new root folder and basinmask |
| html | 474daac | jens-daniel-mueller | 2020-12-12 | Build site. |
| Rmd | 53d8356 | jens-daniel-mueller | 2020-12-12 | removed basinmask issues |
| html | 5c773fa | jens-daniel-mueller | 2020-12-11 | Build site. |
| html | ca93c87 | jens-daniel-mueller | 2020-12-03 | Build site. |
| Rmd | 7befaf7 | jens-daniel-mueller | 2020-12-03 | rebuild with layered cant inventory function |
| html | 999cd9d | jens-daniel-mueller | 2020-12-02 | Build site. |
| html | e28cc90 | jens-daniel-mueller | 2020-11-30 | Build site. |
| Rmd | cd676e8 | jens-daniel-mueller | 2020-11-30 | created global parameterization file params_global.rds |
| html | 825309e | jens-daniel-mueller | 2020-11-27 | Build site. |
| html | 58359ac | jens-daniel-mueller | 2020-11-27 | Build site. |
| Rmd | 2f37595 | jens-daniel-mueller | 2020-11-27 | first rebuild after splitting the preprocessing part |
| Rmd | 92e10aa | Jens Müller | 2020-11-27 | Initial commit |
| html | 92e10aa | Jens Müller | 2020-11-27 | Initial commit |
path_sabine_2004 <- "/nfs/kryo/work/updata/glodapv1_1/GLODAP_gridded.data/"
path_preprocessing <- paste(path_root, "/observations/preprocessing/", sep = "")1 Data source
- Anthropogenic CO2 estimates (1800-1994) by Sabine et al. (2004) downloaded in August 2020 from NOAA/NCEI Ocean Carbon Data System (OCADS)
2 Read nc files
# read text files
AnthCO2_data <-
read_csv(
paste(path_sabine_2004,
"AnthCO2.data/AnthCO2.data.txt",
sep = ""),
col_names = FALSE,
na = "-999",
col_types = list(.default = "d")
)
# read respective depth layers and convert to vector
Depth_centers <-
read_file(paste(path_sabine_2004,
"Depth.centers.txt",
sep = ""))
Depth_centers <- Depth_centers %>%
str_split(",") %>%
as_vector()
# read respective latitudes and convert to vector
Lat_centers <-
read_file(paste(path_sabine_2004, "Lat.centers.txt",
sep = ""))
Lat_centers <- Lat_centers %>%
str_split(",") %>%
as_vector()
# read respective longitudes and convert to vector
Long_centers <-
read_file(paste(path_sabine_2004, "Long.centers.txt",
sep = ""))
Long_centers <- Long_centers %>%
str_split(",") %>%
as_vector()
# match lon, lat and depth vectors with Cant value file
names(AnthCO2_data) <- Lat_centers
Long_Depth <-
expand_grid(depth = Depth_centers, lon = Long_centers) %>%
mutate(lon = as.numeric(lon),
depth = as.numeric(depth))
cant_3d <- bind_cols(AnthCO2_data, Long_Depth)
# adjust file dimensions
cant_3d <- cant_3d %>%
pivot_longer(1:180, names_to = "lat", values_to = "cant") %>%
mutate(lat = as.numeric(lat))
cant_3d <- cant_3d %>%
drop_na()
# harmonize coordinates
cant_3d <- cant_3d %>%
mutate(lon = if_else(lon < 20, lon + 360, lon))
rm(AnthCO2_data,
Long_Depth,
Depth_centers,
Lat_centers,
Long_centers)3 Apply basin mask
# use only three basin to assign general basin mask
# ie this is not specific to the MLR fitting
basinmask <- basinmask %>%
filter(MLR_basins == "2") %>%
select(lat, lon, basin_AIP)
cant_3d <- inner_join(cant_3d, basinmask)4 Calculation
4.1 Column inventory
cant_3d <- cant_3d %>%
mutate(cant_pos = if_else(cant <= 0, 0, cant),
eras = "1800-1994")
cant_inv_layers <- m_cant_inv(cant_3d)
cant_inv <- cant_inv_layers %>%
filter(inv_depth == params_global$inventory_depth_standard)4.2 Zonal mean section
cant_zonal <- m_zonal_mean_section(cant_3d)5 Plots

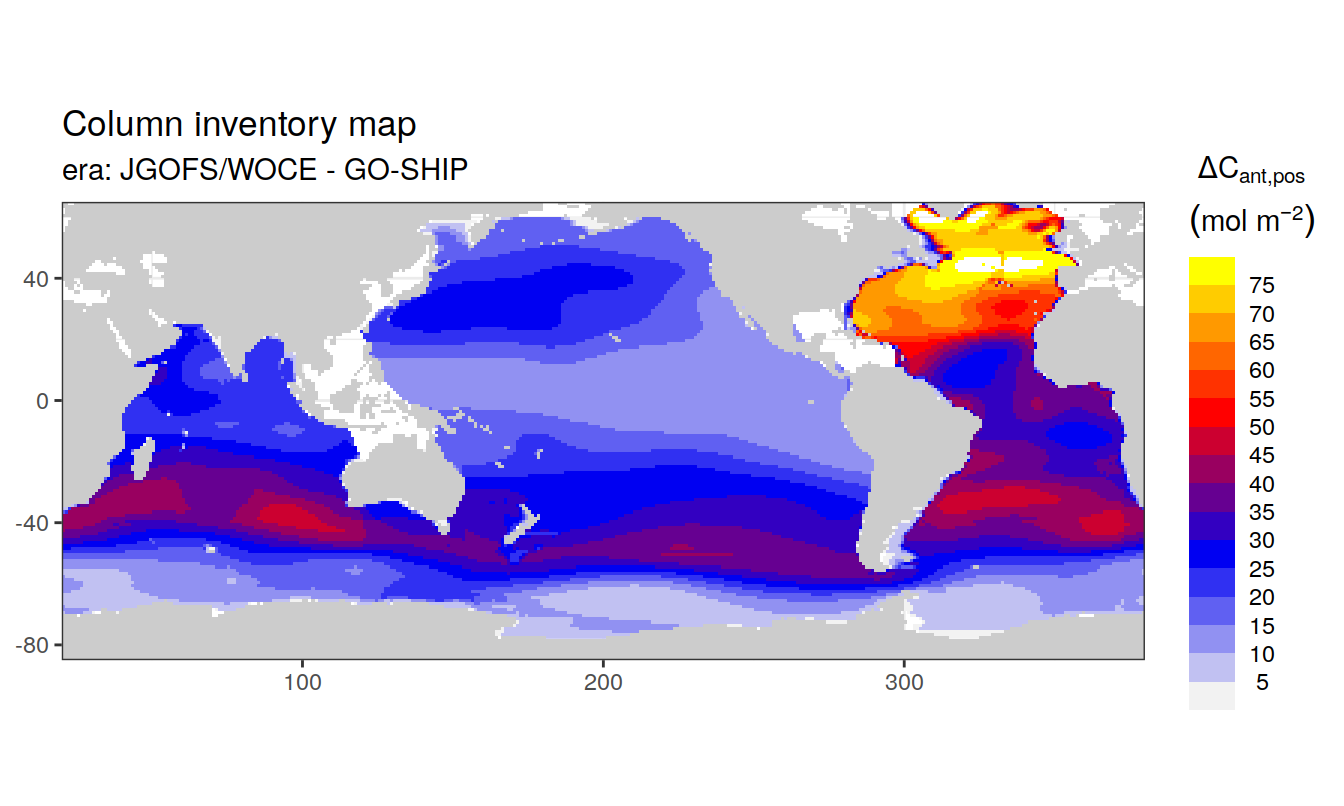

5.1 Inventory map
p_map_cant_inv(
df = cant_inv,
var = "cant_pos_inv",
breaks = seq(0,max(cant_inv$cant_pos_inv),5))
5.2 Horizontal plane maps
p_map_climatology(
df = cant_3d,
var = "cant",
col = "divergent")
5.3 Global section
p_section_global(
df = cant_3d,
var = "cant",
col = "divergent")
5.4 Sections at regular longitudes
p_section_climatology_regular(
df = cant_3d,
var = "cant",
col = "divergent")
5.5 Write files
cant_3d %>%
write_csv(paste(path_preprocessing,
"S04_cant_3d.csv", sep = ""))
cant_inv %>%
write_csv(paste(path_preprocessing,
"S04_cant_inv.csv", sep = ""))
cant_zonal %>%
write_csv(paste(path_preprocessing,
"S04_cant_zonal.csv", sep = ""))
