Drivers - Mixing Depth

Last updated: 2025-02-19

Checks: 7 0

Knit directory: oae_ccs_roms/

This reproducible R Markdown analysis was created with workflowr (version 1.7.1). The Checks tab describes the reproducibility checks that were applied when the results were created. The Past versions tab lists the development history.

R Markdown file: up-to-date

Great! Since the R Markdown file has been committed to the Git repository, you know the exact version of the code that produced these results.

Environment: empty

Great job! The global environment was empty. Objects defined in the global environment can affect the analysis in your R Markdown file in unknown ways. For reproduciblity it’s best to always run the code in an empty environment.

Seed: set.seed(20240919)

The command set.seed(20240919) was run prior to running the code in the R Markdown file. Setting a seed ensures that any results that rely on randomness, e.g. subsampling or permutations, are reproducible.

Session information: recorded

Great job! Recording the operating system, R version, and package versions is critical for reproducibility.

Cache: none

Nice! There were no cached chunks for this analysis, so you can be confident that you successfully produced the results during this run.

File paths: relative

Great job! Using relative paths to the files within your workflowr project makes it easier to run your code on other machines.

Repository version: a36bcfe

Great! You are using Git for version control. Tracking code development and connecting the code version to the results is critical for reproducibility.

The results in this page were generated with repository version a36bcfe. See the Past versions tab to see a history of the changes made to the R Markdown and HTML files.

Note that you need to be careful to ensure that all relevant files for the analysis have been committed to Git prior to generating the results (you can use wflow_publish or wflow_git_commit). workflowr only checks the R Markdown file, but you know if there are other scripts or data files that it depends on. Below is the status of the Git repository when the results were generated:


Ignored files:
    Ignored:    .Rhistory
    Ignored:    .Rproj.user/

Untracked files:
    Untracked:  code/oggrid_surface_data.R
    Untracked:  code/regrid_surface_data.R

Unstaged changes:
    Modified:   analysis/_site.yml
    Modified:   code/Workflowr_project_managment.R
    Modified:   code/dTA_dDIC.R
    Modified:   code/regrid_cdr_eff_molar.R
    Modified:   code/regrid_dTA_dDIC.R

Note that any generated files, e.g. HTML, png, CSS, etc., are not included in this status report because it is ok for generated content to have uncommitted changes.

These are the previous versions of the repository in which changes were made to the R Markdown (analysis/drivers_hbls.Rmd) and HTML (docs/drivers_hbls.html) files. If you’ve configured a remote Git repository (see ?wflow_git_remote), click on the hyperlinks in the table below to view the files as they were in that past version.

File	Version	Author	Date	Message
Rmd	a36bcfe	vgfroh	2025-02-19	Mixing depth and air-sea co2 flux anlaysis

Introduction

Calculate and map maximum mixing depth of each grid cell over first 2 years (all 3 phases)
Map the difference from the 3-phase mean MMD for each grid cell
Map the regional distribution of mixing depth in select months (all 3 phases)
Map the difference from the 3-phase mean MD per grid cell for select months
Load in dTA data and calculate what fraction was beneath the MMD for time series

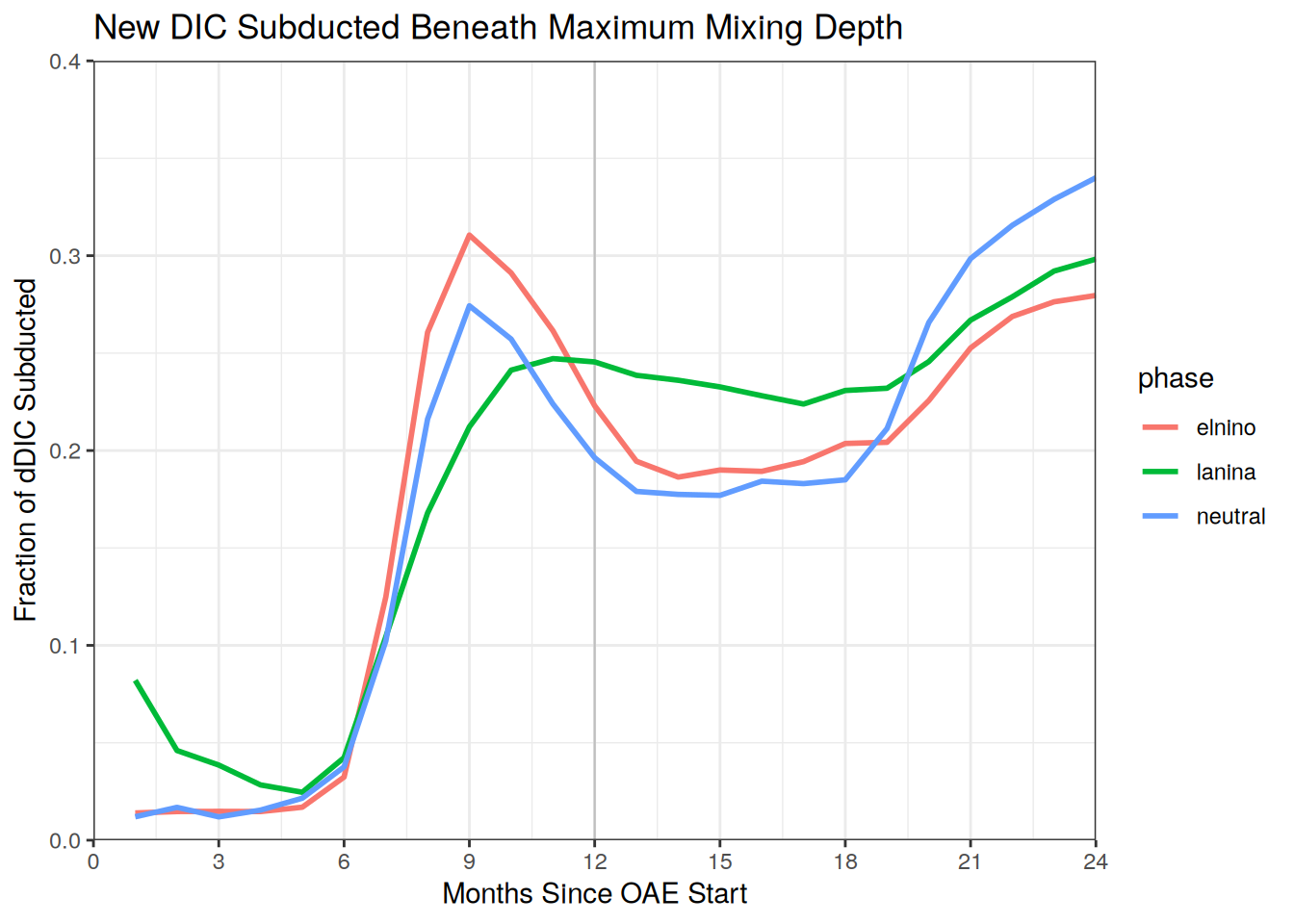

Repeat subducted time series for dDIC data

#loading packages
library(tidyverse)
library(tidync)
library(data.table)
library(arrow)
library(scales)

# Path to intermediate computation outputs
path_outputs <- "/net/sea/work/vifroh/oae_ccs_roms_data/regrid_2/"

# Path to save practice plots when working on them
path_plots <- "/net/sea/work/vifroh/test_plots/"

# loading in previous saved surface variable data
lanina_surf_data <- read_feather(
  paste0(path_outputs, "lanina_surf_dataRG2.feather"))
neutral_surf_data <- read_feather(
  paste0(path_outputs, "neutral_surf_dataRG2.feather"))
elnino_surf_data <- read_feather(
  paste0(path_outputs, "elnino_surf_dataRG2.feather"))

# loading in dTA molar data
lanina_dTA_mol <- read_feather(
  paste0(path_outputs,"lanina_dTA_moldataRG2.feather"))
neutral_dTA_mol <- read_feather(
  paste0(path_outputs,"neutral_dTA_moldataRG2.feather"))
elnino_dTA_mol <- read_feather(
  paste0(path_outputs,"elnino_dTA_moldataRG2.feather"))

phase_data <- list(lanina_surf_data, neutral_surf_data, elnino_surf_data)

# Convert lat/lon to numeric and subset first two years
phase_data <- phase_data %>%
  lapply(function(table) {
    setDT(table)
    setorder(table, time)
    table[, lat := as.numeric(lat)]
    table[, lon := as.numeric(lon)]
    table[, month := .GRP, by = time] # gives index in order to each unique time
    table <- table[month <= 24] # subsets to first two years

    return(table)
  })

# return tables to each item
lanina_surf_data <- phase_data[[1]]
neutral_surf_data <- phase_data[[2]]
elnino_surf_data <- phase_data[[3]]

# for alkalinity subduction: using full grid dTA moles data, subset first 2 years
mol_data <- list(lanina_dTA_mol, neutral_dTA_mol, elnino_dTA_mol)

mol_data <- mol_data %>%
  lapply(function(table) {
    setDT(table)
    setorder(table, time)
    table[, month := .GRP, by = time] # gives index in order to each unique time
    table <- table[month <= 24] # subsets to first two years

    return(table)
  })

# return tables to each item
lanina_dTA_mol <- mol_data[[1]]
neutral_dTA_mol <- mol_data[[2]]
elnino_dTA_mol <- mol_data[[3]]

# plotting names for later
phase_titles <- c("La Niña", "Neutral", "El Niño")
phases <- c("lanina", "neutral", "elnino")

Exploring Mixing Depth

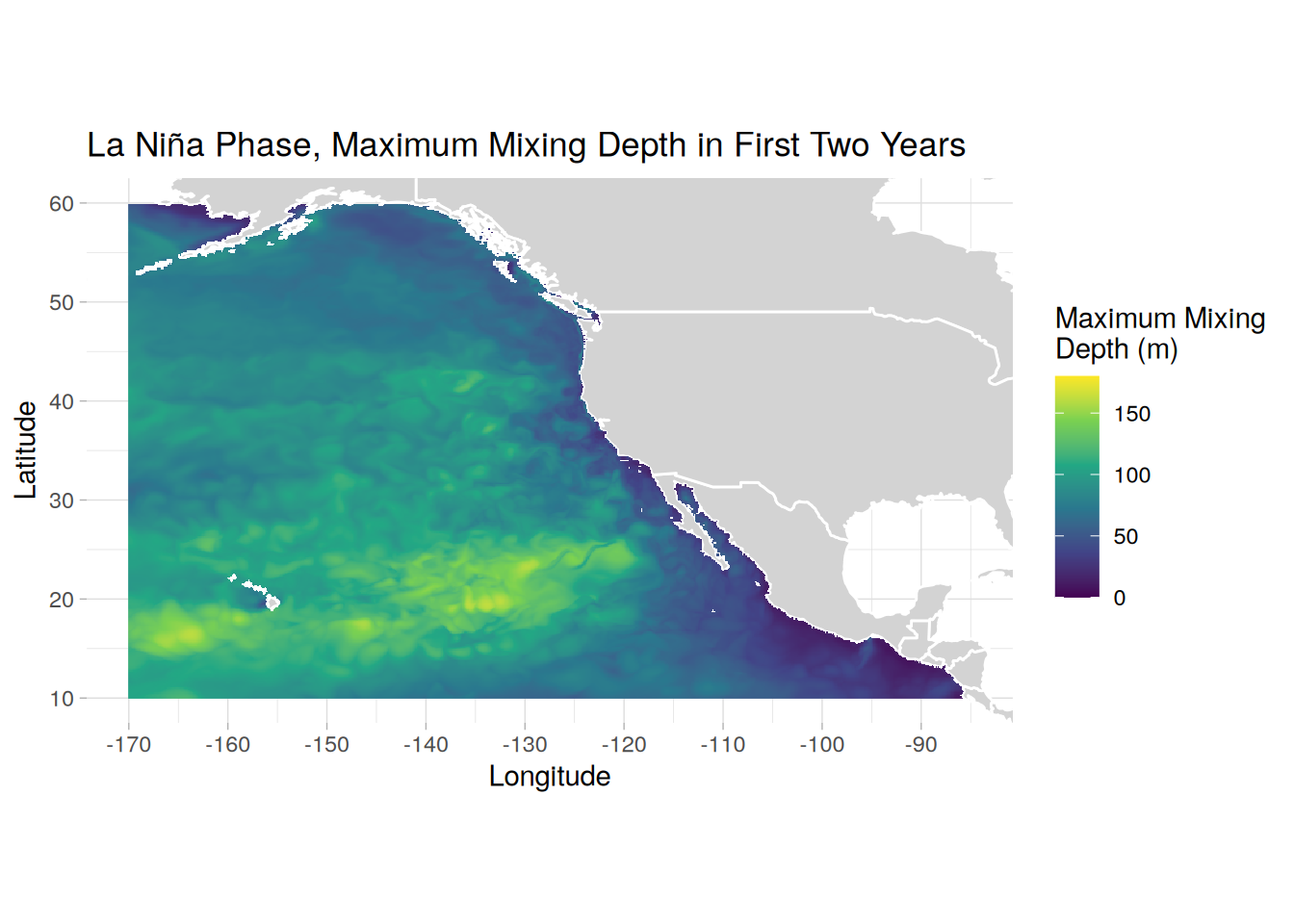

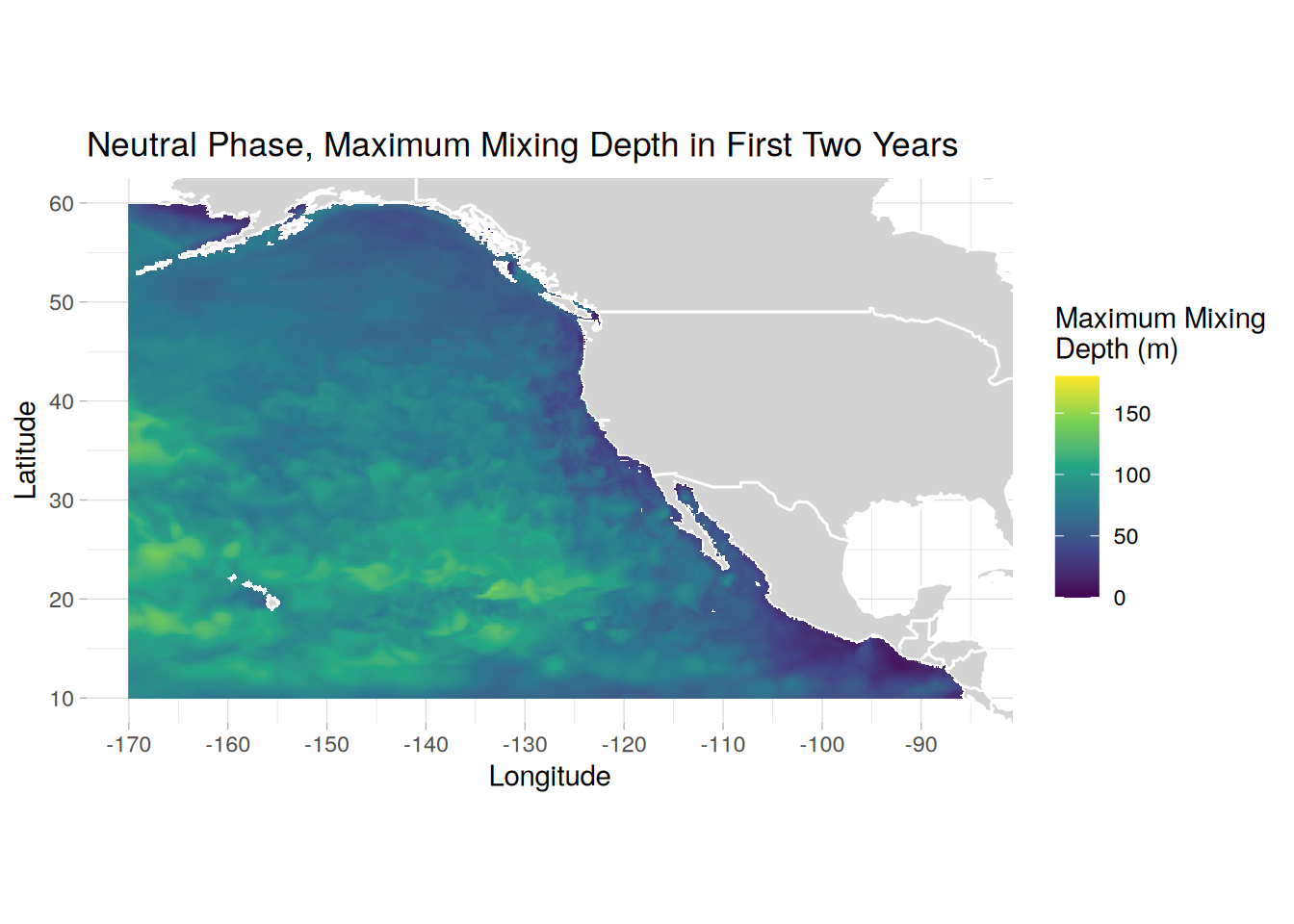

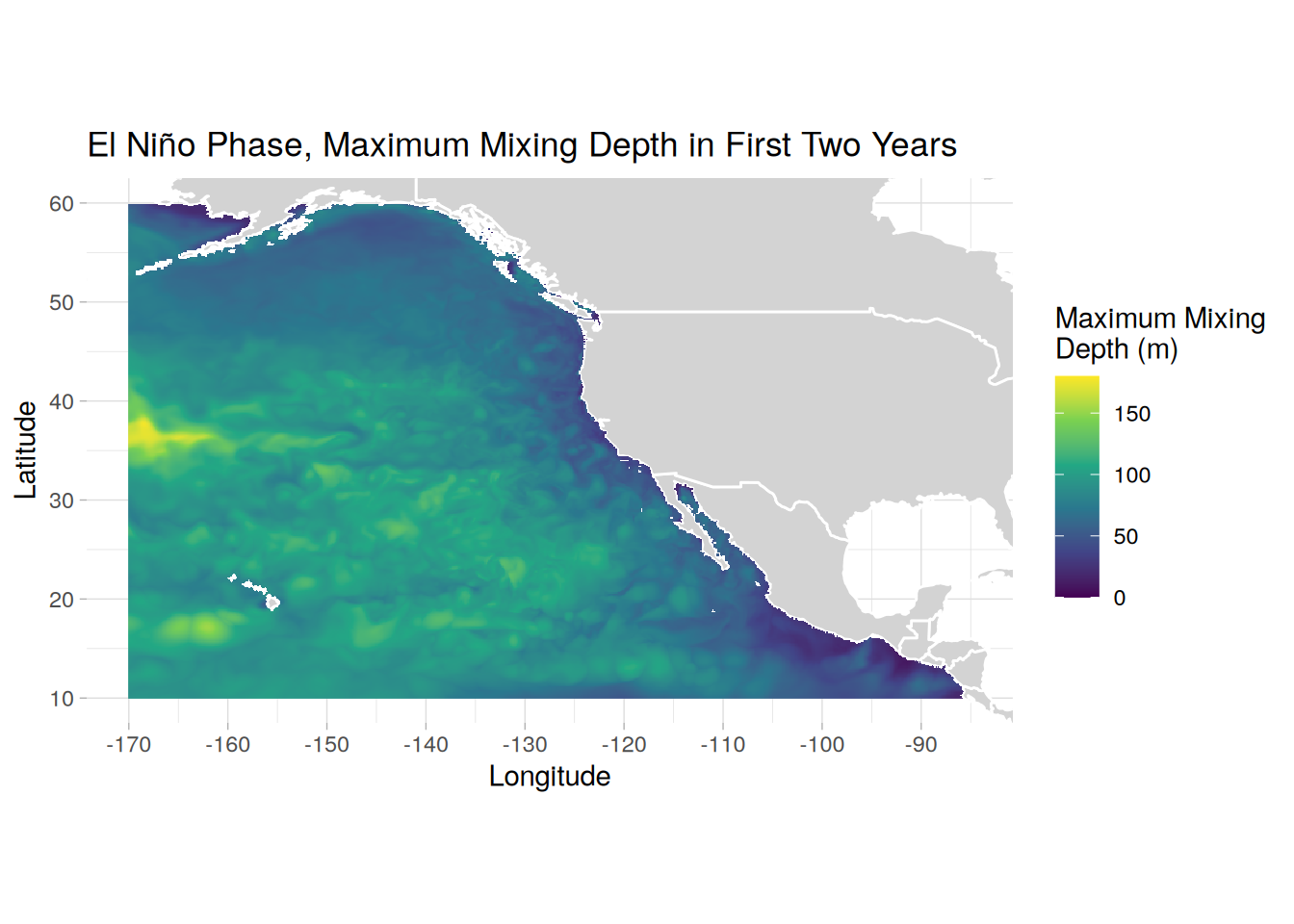

Regional distribution of maximum depths

# finding max mixing depth at each grid cell
phase_data <- phase_data %>%
  lapply(function(table) {
    table[, c("FG_CO2_OAE", "FG_CO2", "dFG") := NULL]
    # removes fugacity columns
    max_table <- table[, .SD[which.max(hbls)], by = .(lat, lon)]
    # subsets by each lat/lon combo, calculates max hbls, keeps that row

    return(max_table)
  })

# return tables to new item
lanina_hblsmax <- phase_data[[1]]
neutral_hblsmax <- phase_data[[2]]
elnino_hblsmax <- phase_data[[3]]

# adding phase and combining all 3 into one table
phase_list <- Map(function(table, phase) {
    table[, phase := phase]
  }, phase_data, phases)

hblsmax_data <- rbindlist(phase_list)

# plotting map of deepest hbls for each point
create_hblsmax_map <- function(phase_name, title_text) {
  phase_dt <- hblsmax_data[hblsmax_data$phase == phase_name,]
  plot <- ggplot(phase_dt, aes(x = lon, y = lat, fill = hbls)) +
    geom_polygon(data = map_data("world"), aes(x = long, y = lat, group = group),
                 fill = "lightgray", color = "white") +
    geom_raster() +
    scale_fill_viridis_c(limit = c(0, 180)) +  # set the color range
    theme_light() +
    coord_fixed(xlim = c(-170, -85),
              ylim = c(10, 60)) +
    scale_x_continuous(breaks = seq(-170, -85, by = 10)) +
    scale_y_continuous(breaks = seq(10, 60, by = 10)) +
    labs(x = "Longitude",
         y = "Latitude",
         fill = "Maximum Mixing\nDepth (m)",
         title = paste0(title_text, " Phase, Maximum Mixing Depth in First Two Years")) +
    theme(panel.border = element_blank())

  print(plot)

  # # save plot
  # ggsave(paste0(path_plots, phase_name, "_hblsmax_map.png"), plot = plot,
  #        width = 8, height = 6, dpi = 300)
}

lapply(seq_along(phases), function(i) {
  create_hblsmax_map(phases[i], phase_titles[i])
})

[[1]]


[[2]]


[[3]]

rm(create_hblsmax_map)
gc()

             used    (Mb)  gc trigger     (Mb)    max used     (Mb)
Ncells    1706587    91.2     2646211    141.4     2646211    141.4
Vcells 5484132796 41840.7 16148457573 123203.0 26697301168 203684.3

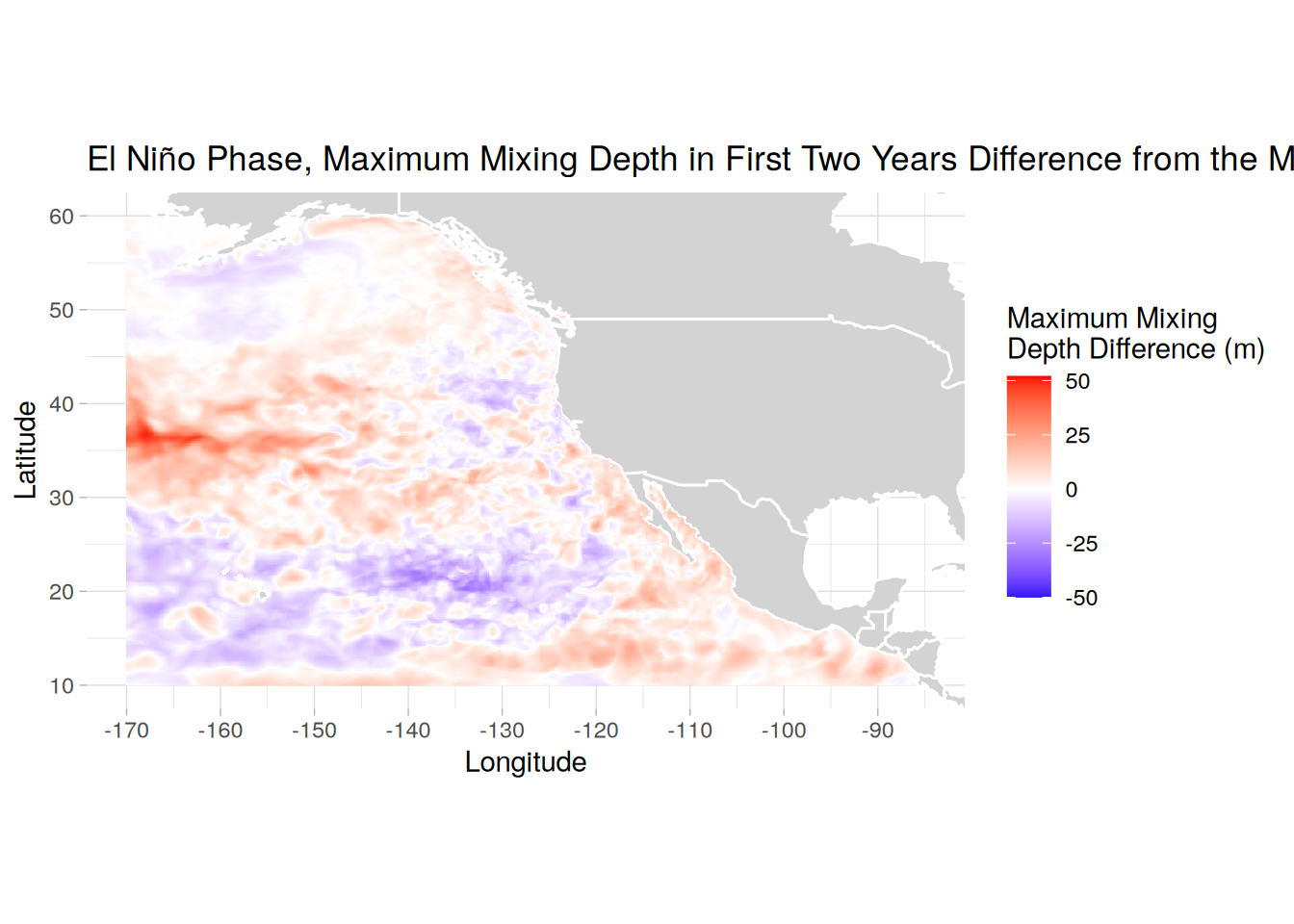

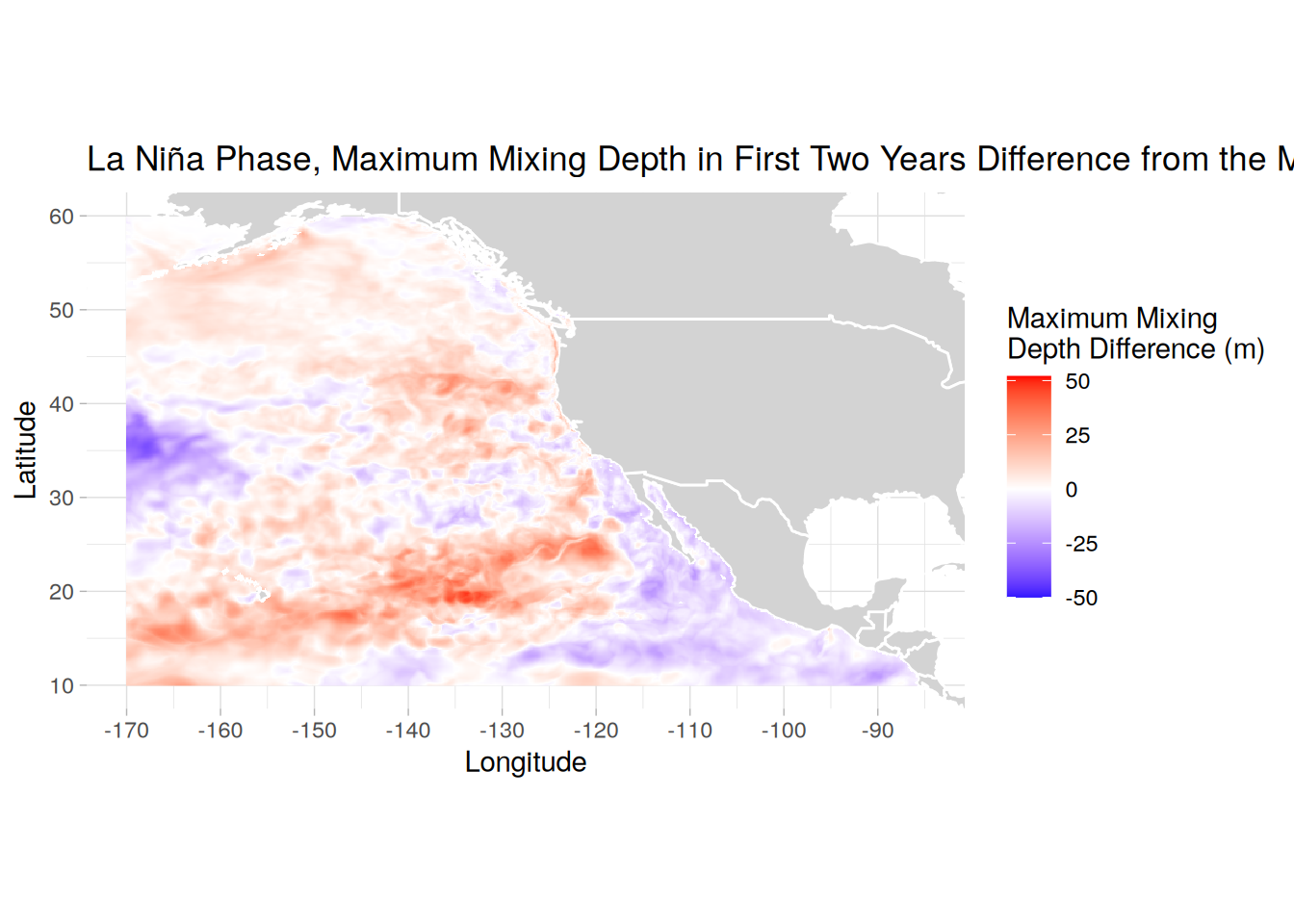

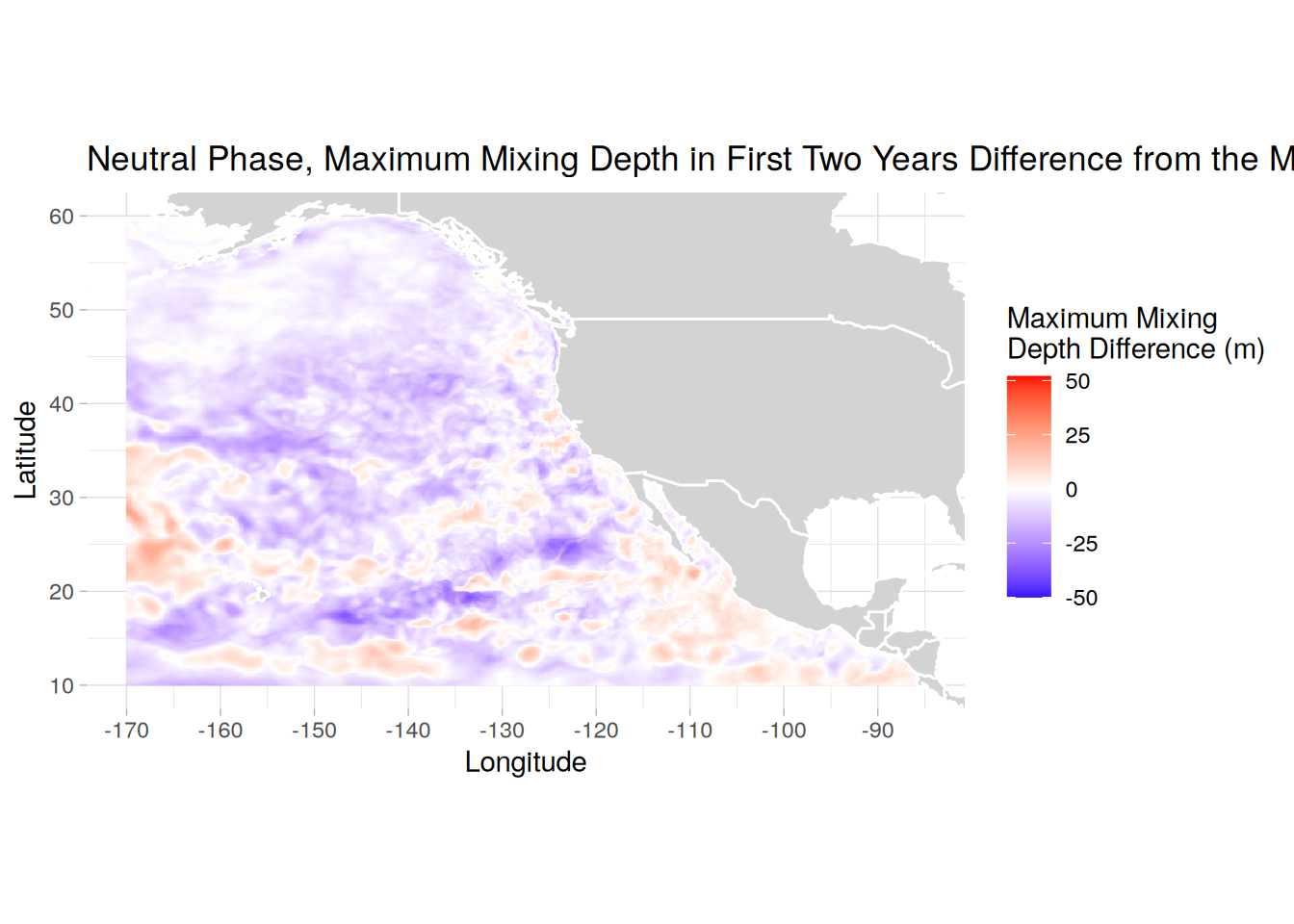

Maximum depth difference from mean

# calculating mean max mixing depth across all 3 phases for each grid cell
hblsmax_data[, ":=" (
  hbls_mean = mean(hbls, na.rm = TRUE)
), by = .(lat, lon)]

# plotting map of deepest hbls for each point
create_hblsmax_meanmap <- function(phase_name, title_text) {
  phase_dt <- hblsmax_data[hblsmax_data$phase == phase_name,]
  plot <- ggplot(phase_dt, aes(x = lon, y = lat, fill = hbls - hbls_mean)) +
    geom_polygon(data = map_data("world"), aes(x = long, y = lat, group = group),
                 fill = "lightgray", color = "white") +
    geom_raster() +
    scale_fill_gradient2(low = "blue", mid = "white", high = "red", midpoint = 0,
                         limits = c(-50, 52)) +
    theme_light() +
    coord_fixed(xlim = c(-170, -85),
              ylim = c(10, 60)) +
    scale_x_continuous(breaks = seq(-170, -85, by = 10)) +
    scale_y_continuous(breaks = seq(10, 60, by = 10)) +
    labs(x = "Longitude",
         y = "Latitude",
         fill = "Maximum Mixing\nDepth Difference (m)",
         title = paste0(title_text, " Phase, Maximum Mixing Depth in First Two Years Difference from the Mean")) +
    theme(panel.border = element_blank())

  print(plot)

  # # save plot
  # ggsave(paste0(path_plots, phase_name, "_hblsmax_meanmap.png"), plot = plot,
  #        width = 8, height = 6, dpi = 300)
}

lapply(seq_along(phases), function(i) {
  create_hblsmax_meanmap(phases[i], phase_titles[i])
})

[[1]]


[[2]]


[[3]]

rm(create_hblsmax_meanmap)
gc()

             used    (Mb)  gc trigger     (Mb)    max used     (Mb)
Ncells    1714170    91.6     2646211    141.4     2646211    141.4
Vcells 5484828802 41846.0 16148457573 123203.0 26697301168 203684.3

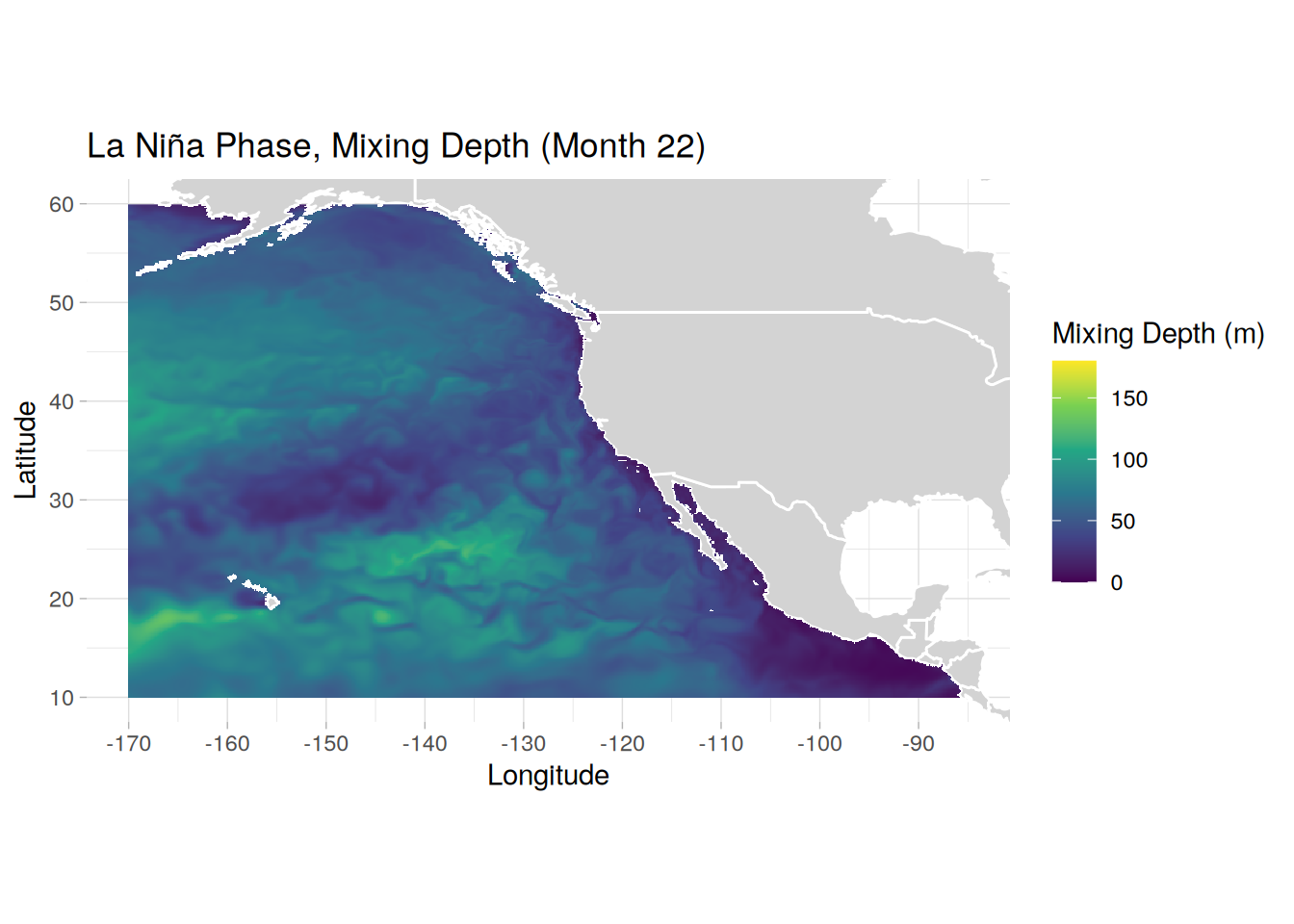

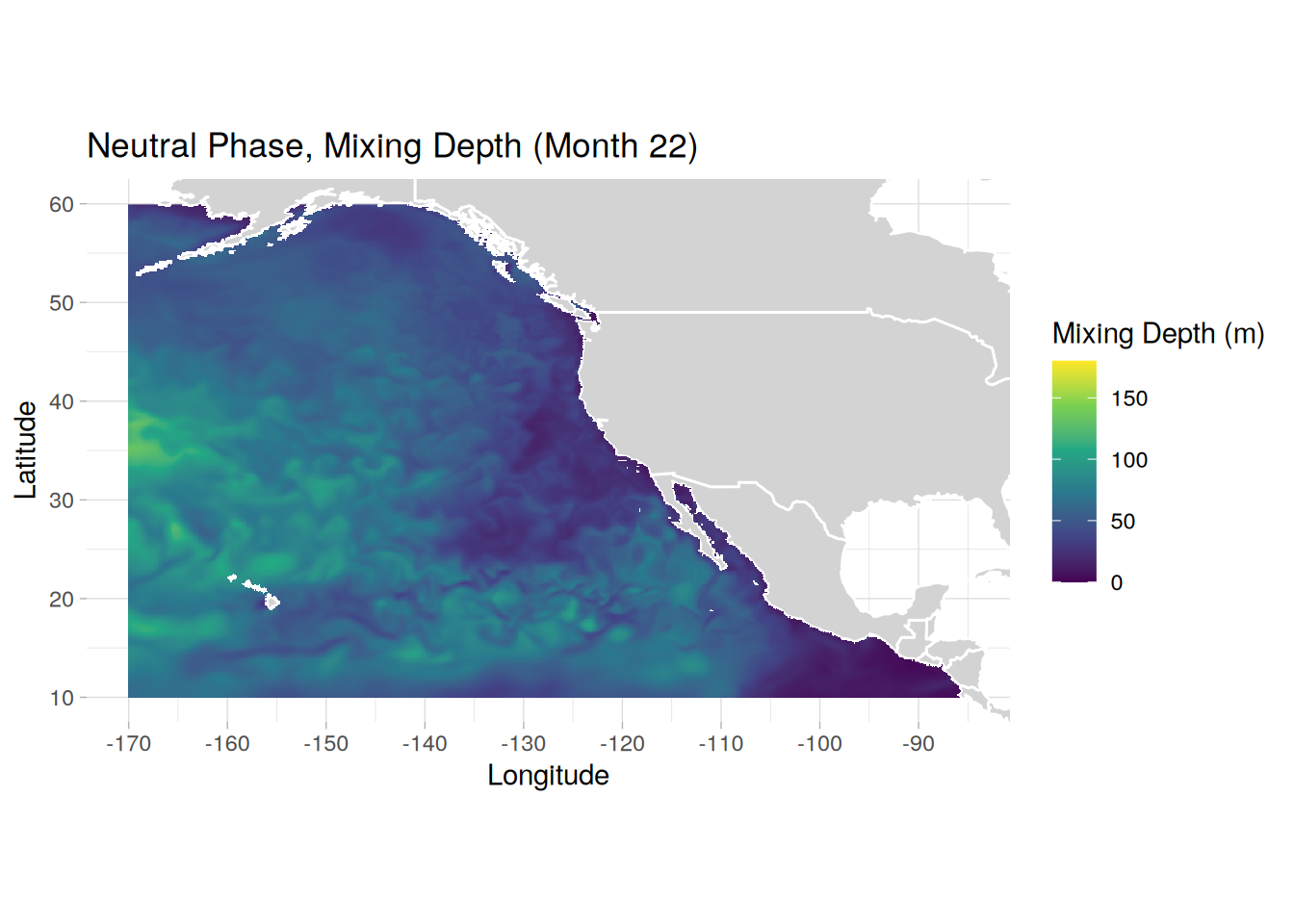

Mixing depth maps during months of interest

phase_data <- list(lanina_surf_data, neutral_surf_data, elnino_surf_data)

# adding phase and combining all 3 into one table
phase_list <- Map(function(table, phase) {
    table[, phase := phase]
  }, phase_data, phases)

hblsfull_data <- rbindlist(phase_list) # now has all hbls data for all phases

# can rerun code for months of choice; 12-16
create_hbls_distmap <- function(phase_name, title_text) {
  phase_dt <- hblsfull_data[hblsfull_data$phase == phase_name & hblsfull_data$month == 22]
  plot <- ggplot(phase_dt, aes(x = lon, y = lat, fill = hbls)) +
    geom_polygon(data = map_data("world"), aes(x = long, y = lat, group = group),
                 fill = "lightgray", color = "white") +
    geom_raster() +
    scale_fill_viridis_c(limit = c(0, 180)) +  # set the color range
    theme_light() +
    coord_fixed(xlim = c(-170, -85),
              ylim = c(10, 60)) +
    scale_x_continuous(breaks = seq(-170, -85, by = 10)) +
    scale_y_continuous(breaks = seq(10, 60, by = 10)) +
    labs(x = "Longitude",
         y = "Latitude",
         fill = "Mixing Depth (m)",
         title = paste0(title_text, " Phase, Mixing Depth (Month 22)")) +
    theme(panel.border = element_blank())

  print(plot)

  # # save plot
  # ggsave(paste0(path_plots, phase_name, "_hblsmap_month22.png"), plot = plot,
  #        width = 8, height = 6, dpi = 300)
}

lapply(seq_along(phases), function(i) {
  create_hbls_distmap(phases[i], phase_titles[i])
})

[[1]]


[[2]]


[[3]]

# write_feather(hblsfull_data, paste0(path_outputs,
#                                       "hblsfull_data.feather"))

rm(create_hbls_distmap)
gc()

             used    (Mb)  gc trigger     (Mb)    max used     (Mb)
Ncells    1713573    91.6     2646211    141.4     2646211    141.4
Vcells 5564184240 42451.4 16148457573 123203.0 26697301168 203684.3

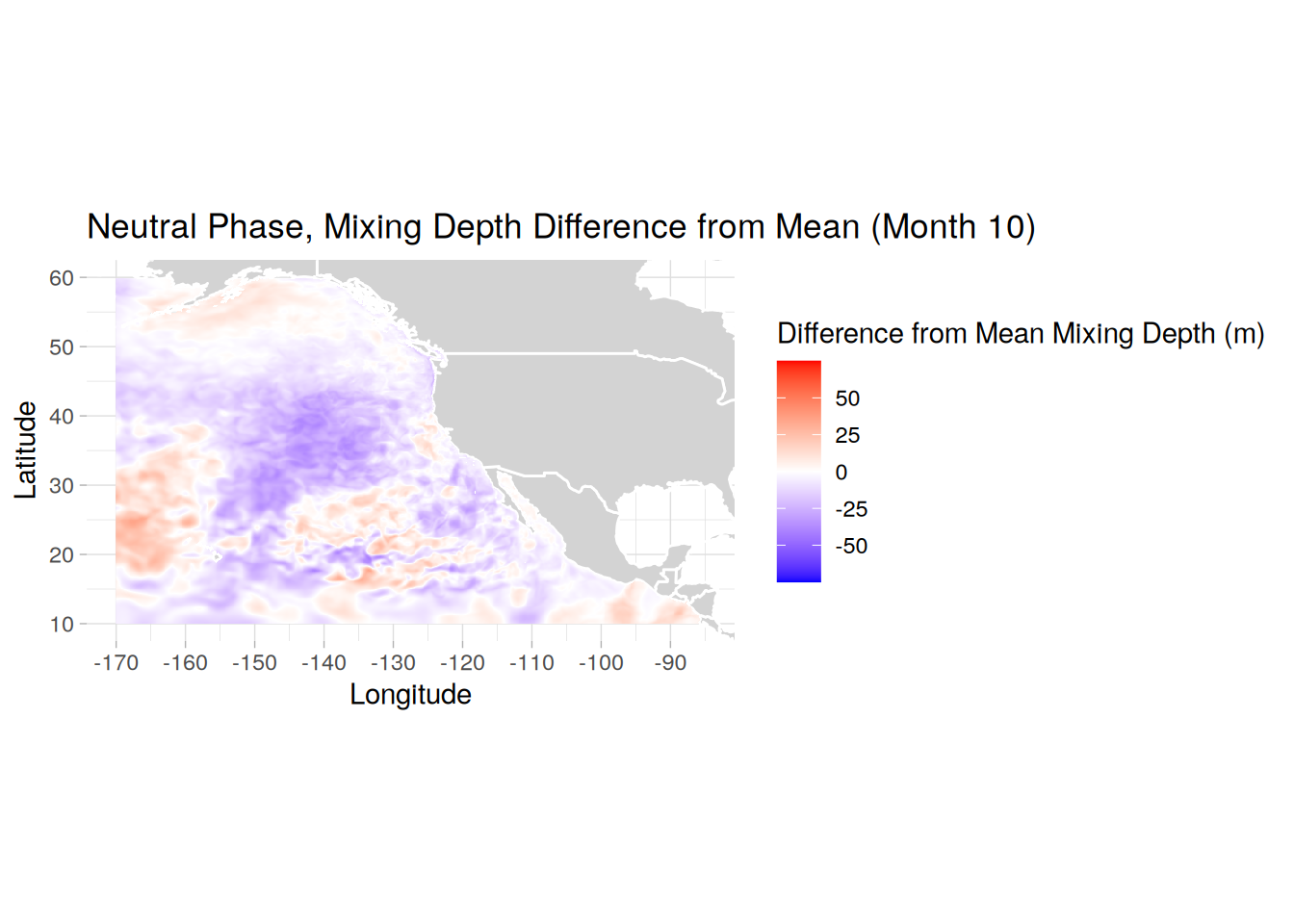

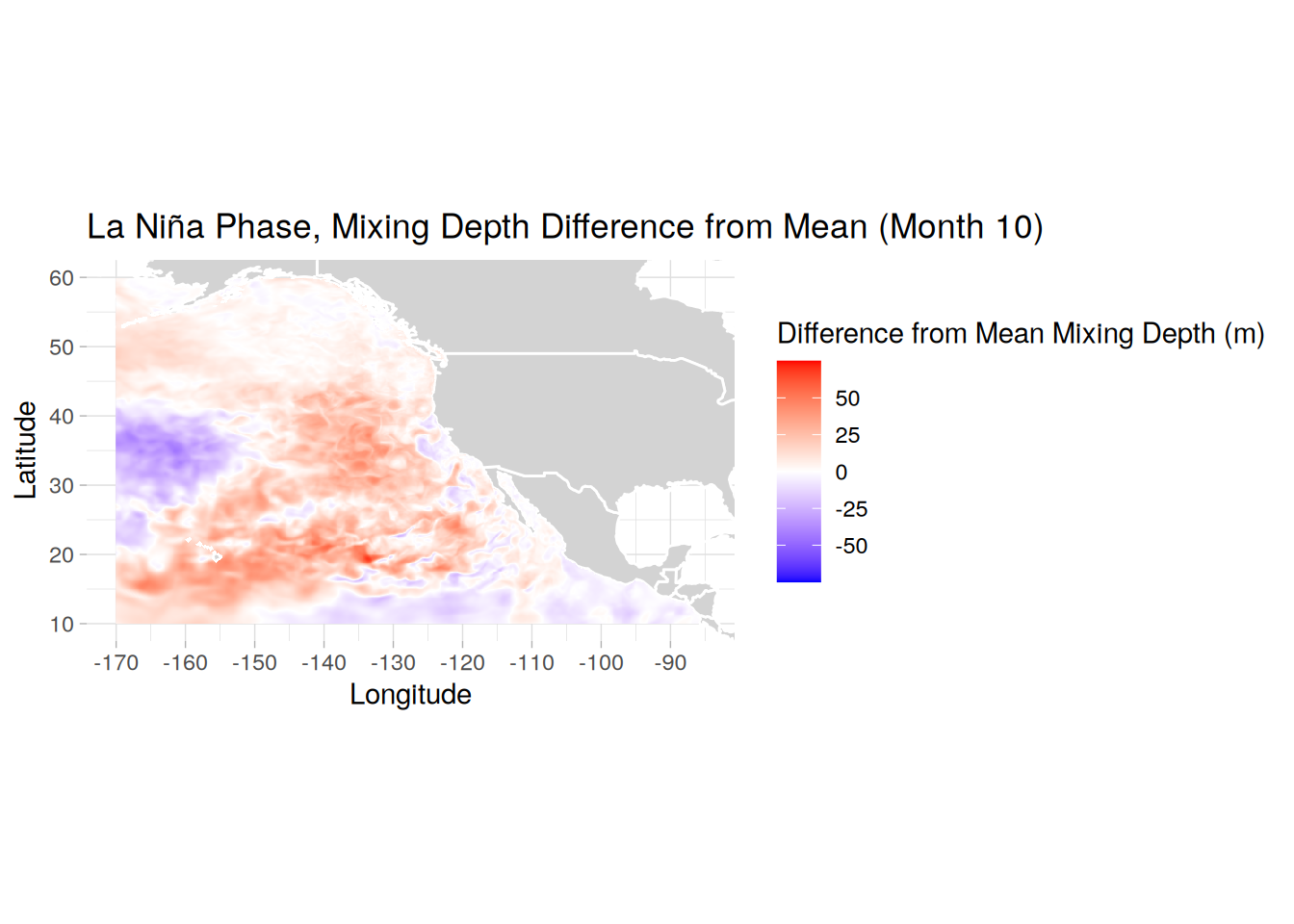

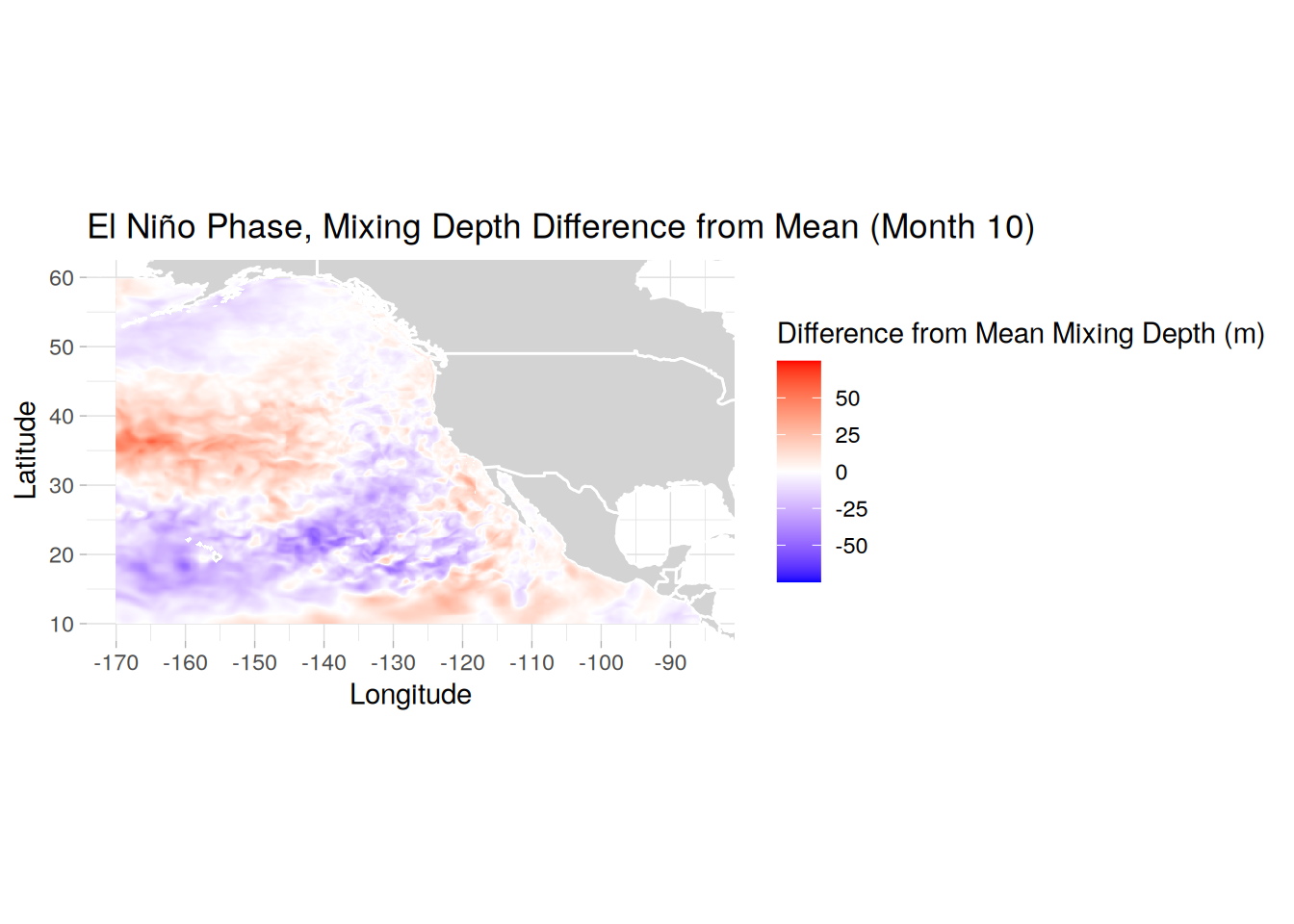

Mixing depth difference from mean maps during months of interest

# calculating mean mixing depth across all 3 phases for each grid cell, 1st 2 years
setDT(hblsfull_data)
hblsfull_data[, ":=" (
  hbls_mean = mean(hbls, na.rm = TRUE)
), by = .(lat, lon, month)]

# can rerun code for months of choice; 12-16
create_hbls_meanmap <- function(phase_name, title_text) {
  phase_dt <- hblsfull_data[hblsfull_data$phase == phase_name & hblsfull_data$month == 10]
                             # & lat > 20 & lat < 40 & lon > -130 & lon < -110]
  plot <- ggplot(phase_dt, aes(x = lon, y = lat, fill = hbls - hbls_mean)) +
    geom_polygon(data = map_data("world"), aes(x = long, y = lat, group = group),
                 fill = "lightgray", color = "white") +
    geom_raster() +
    scale_fill_gradient2(low = "blue", mid = "white", high = "red", midpoint = 0,
                         limits = c(-75, 75), breaks = c(-50, -25, 0, 25, 50)) +
    theme_light() +
    coord_fixed(xlim = c(-170, -85),
              ylim = c(10, 60)) +
    scale_x_continuous(breaks = seq(-170, -85, by = 10)) +
    scale_y_continuous(breaks = seq(10, 60, by = 10)) +
    labs(x = "Longitude",
         y = "Latitude",
         fill = "Difference from Mean Mixing Depth (m)",
         title = paste0(title_text, " Phase, Mixing Depth Difference from Mean (Month 10)")) +
    theme(panel.border = element_blank())

  print(plot)

  # # save plot
  # ggsave(paste0(path_plots, phase_name, "_hblsmapdfm_month10.png"), plot = plot,
  #        width = 8, height = 6, dpi = 300)
}

lapply(seq_along(phases), function(i) {
  create_hbls_meanmap(phases[i], phase_titles[i])
})

[[1]]


[[2]]


[[3]]

# write_feather(hblsfull_data, paste0(path_outputs,
#                                       "hblsfull_meandata.feather"))

rm(create_hbls_meanmap)
gc()

             used    (Mb)  gc trigger     (Mb)    max used     (Mb)
Ncells    1714918    91.6     2646211    141.4     2646211    141.4
Vcells 5576592392 42546.1 16148457573 123203.0 26697301168 203684.3

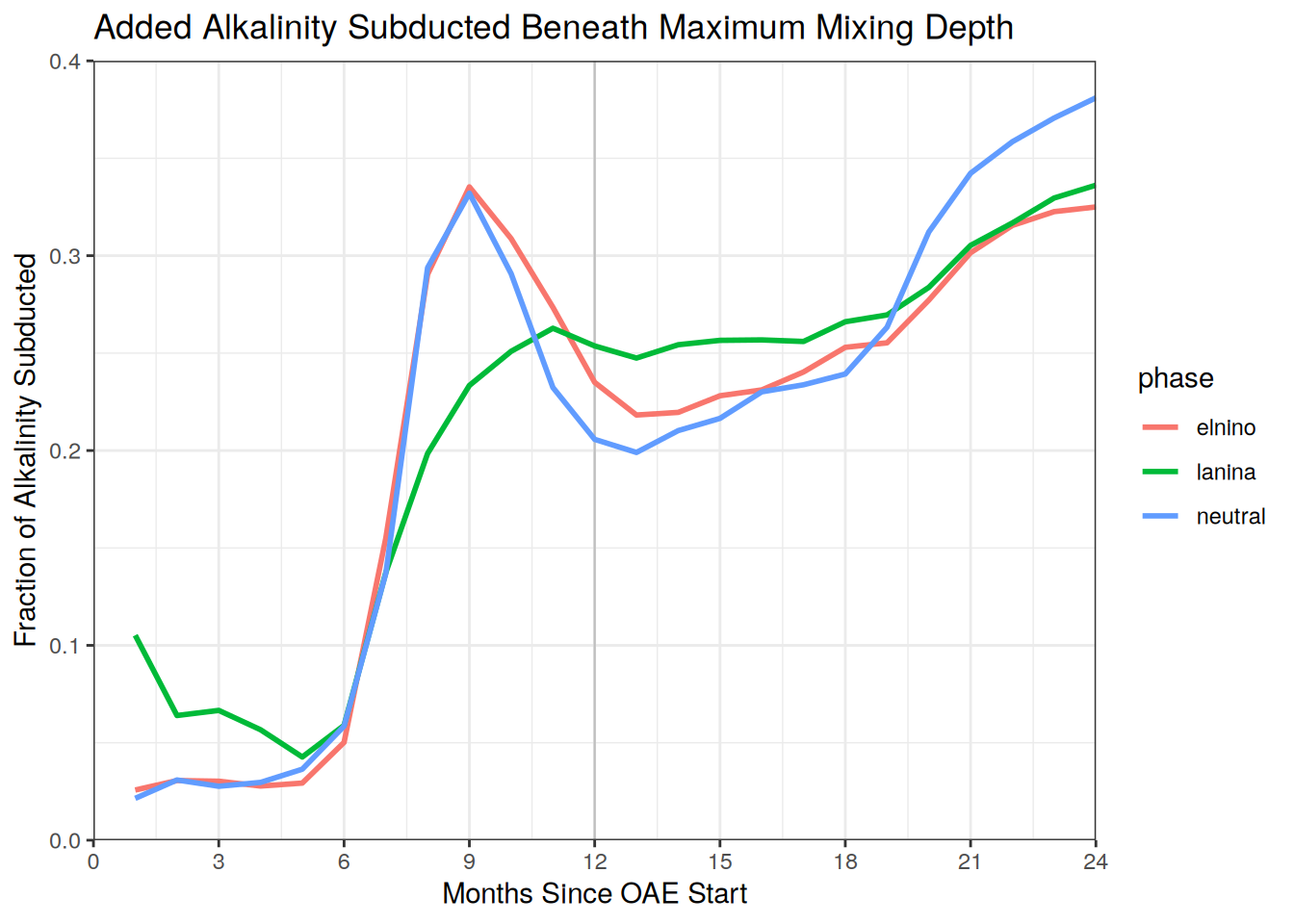

Fraction of dTA subducted under MMD

# merging relevant alk and hbls data
mol_data <- Map(function(mol_table, phase) {
  mol_table <- mol_table[, .SD, .SDcols = c("lon", "lat", "depth", "time", "month",
                                      "dTA_full", "dDIC_full")]
  hbls_table <- get(paste0(phase, "_hblsmax")) # fetch matching hbls table
  new_table <- merge(mol_table, hbls_table[, .(lat, lon, hbls)],
                       by = c("lon", "lat"), all.x = TRUE) # merging
  return(new_table)
  }, mol_data, phases)

# return tables to each item, now mol data has the max mixing depth for each cell
lanina_dTA_mol <- mol_data[[1]]
neutral_dTA_mol <- mol_data[[2]]
elnino_dTA_mol <- mol_data[[3]]

# # setting boundaries of depth bins; only need if going to use boundaries to separate

# depth_ranges <- unique(lanina_dTA_mol[, .(depth)])
# setorder(depth_ranges, depth)
#
# depth_ranges[, ":=" (
#     depth_upper = (shift(depth, type = "lag", fill = 0) + depth) / 2, # set shallower boundary
#     depth_lower = (shift(depth, type = "lead", fill = max(depth)) + depth) / 2
#   )] # deeper bound
#
# # merge depth ranges back to tables
# mol_data <- mol_data %>%
#   lapply(function(table) {
#     table <- merge(table, depth_ranges, by = "depth", all.x = TRUE)
#     return(table)
#   })

# # return tables to each item
# lanina_dTA_mol <- mol_data[[1]]
# neutral_dTA_mol <- mol_data[[2]]
# elnino_dTA_mol <- mol_data[[3]]

# calculating subducted portion; assuming it stays subducted? would it make sense
# here to use the mixing depth at each month rather than the max?
subducted_data <- lapply(mol_data, function(table){
  new_table <- table[, .(dTA_int = sum(dTA_full, na.rm = TRUE), # full int dTA moles/month
            dTA_sub_int = sum(dTA_full[depth > hbls], na.rm = TRUE)),
        # only the dTA subducted below MMD, approx with depth ie middle of bin
            by = .(month)]
  new_table[, frac_sub := dTA_sub_int / dTA_int]
  # calculates approx portion subducted under each cell's 2-year max hbls
  return(new_table)
  })

# return tables to each item
lanina_dTA_subhbls <- subducted_data[[1]]
neutral_dTA_subhbls <- subducted_data[[2]]
elnino_dTA_subhbls <- subducted_data[[3]]

# combining all three tables in to one for ease of plotting
sub_list <- Map(function(table, phase) {
    table[, phase := phase]
  }, subducted_data, phases)

sub_fulldata <- rbindlist(sub_list)

# Plotting time series of all three
ggplot(sub_fulldata, aes(x = month, y = frac_sub, color = phase)) +
  scale_x_continuous(breaks = seq(0, 24, by = 3), limits = c(0,24),
                     expand = c(0,0)) +
  scale_y_continuous(limits = c(0, 0.4), expand = c(0,0)) +
  geom_vline(xintercept = seq(0, 24, by = 12), color = "grey75", linewidth = 0.4) +
  geom_line(linewidth = 1) +
  labs(title = "Added Alkalinity Subducted Beneath Maximum Mixing Depth",
       x = "Months Since OAE Start",
       y = "Fraction of Alkalinity Subducted") +
  theme_bw()

# ggsave(paste0(path_plots, "dTA_sub_hblsmax.png"), plot = last_plot(),
#               width = 10, height = 6, dpi = 300)

rm(depth_ranges, sub_list, subducted_data)

Warning in rm(depth_ranges, sub_list, subducted_data): object 'depth_ranges'
not found

gc()

             used    (Mb)  gc trigger    (Mb)    max used     (Mb)
Ncells    1687643    90.2     2646211   141.4     2646211    141.4
Vcells 2774651881 21169.0 12918766059 98562.4 26697301168 203684.3

# calculating subducted portion; assuming it stays subducted? would it make sense
# here to use the mixing depth at each month rather than the max?
subducted_data <- lapply(mol_data, function(table){
  new_table <- table[, .(dDIC_int = sum(dDIC_full, na.rm = TRUE), # full int dDIC moles/month
            dDIC_sub_int = sum(dDIC_full[depth > hbls], na.rm = TRUE)),
        # only the dTA subducted below MMD, approx with depth ie middle of bin
            by = .(month)]
  new_table[, frac_sub := dDIC_sub_int / dDIC_int]
  # calculates approx portion subducted under each cell's 2-year max hbls
  return(new_table)
  })

# return tables to each item
lanina_dDIC_subhbls <- subducted_data[[1]]
neutral_dDIC_subhbls <- subducted_data[[2]]
elnino_dDIC_subhbls <- subducted_data[[3]]

# combining all three tables in to one for ease of plotting
sub_list <- Map(function(table, phase) {
    table[, phase := phase]
  }, subducted_data, phases)

sub_fulldata <- rbindlist(sub_list)

# Plotting time series of all three, either fraction or moles
ggplot(sub_fulldata, aes(x = month, y = frac_sub, color = phase)) +
  scale_x_continuous(breaks = seq(0, 24, by = 3), limits = c(0,24),
                     expand = c(0,0)) +
  scale_y_continuous(limits = c(0, 0.4), expand = c(0,0)) +
  geom_vline(xintercept = seq(0, 24, by = 12), color = "grey75", linewidth = 0.4) +
  geom_line(linewidth = 1) +
  labs(title = "New DIC Subducted Beneath Maximum Mixing Depth",
       x = "Months Since OAE Start",
       y = "Fraction of dDIC Subducted") +
  theme_bw()

# ggsave(paste0(path_plots, "dDIC_sub_hblsmax.png"), plot = last_plot(),
#               width = 10, height = 6, dpi = 300)

rm(list = ls())
gc()

          used (Mb)  gc trigger    (Mb)    max used     (Mb)
Ncells 1689096 90.3     2646211   141.4     2646211    141.4
Vcells 3002837 23.0 10335012848 78849.9 26697301168 203684.3

sessionInfo()

R version 4.4.2 (2024-10-31)
Platform: x86_64-pc-linux-gnu
Running under: openSUSE Leap 15.6

Matrix products: default
BLAS/LAPACK: /usr/local/OpenBLAS-0.3.28/lib/libopenblas_haswellp-r0.3.28.so;  LAPACK version 3.12.0

locale:
 [1] LC_CTYPE=en_US.UTF-8       LC_NUMERIC=C
 [3] LC_TIME=en_US.UTF-8        LC_COLLATE=en_US.UTF-8
 [5] LC_MONETARY=en_US.UTF-8    LC_MESSAGES=en_US.UTF-8
 [7] LC_PAPER=en_US.UTF-8       LC_NAME=C
 [9] LC_ADDRESS=C               LC_TELEPHONE=C
[11] LC_MEASUREMENT=en_US.UTF-8 LC_IDENTIFICATION=C

time zone: Europe/Zurich
tzcode source: system (glibc)

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

other attached packages:
 [1] scales_1.3.0      arrow_18.1.0.1    data.table_1.16.2 tidync_0.4.0
 [5] lubridate_1.9.3   forcats_1.0.0     stringr_1.5.1     dplyr_1.1.4
 [9] purrr_1.0.2       readr_2.1.5       tidyr_1.3.1       tibble_3.2.1
[13] ggplot2_3.5.1     tidyverse_2.0.0   workflowr_1.7.1

loaded via a namespace (and not attached):
 [1] gtable_0.3.6      xfun_0.49         bslib_0.8.0       processx_3.8.4
 [5] callr_3.7.6       tzdb_0.4.0        vctrs_0.6.5       tools_4.4.2
 [9] ps_1.8.1          generics_0.1.3    fansi_1.0.6       pkgconfig_2.0.3
[13] assertthat_0.2.1  lifecycle_1.0.4   farver_2.1.2      compiler_4.4.2
[17] git2r_0.35.0      munsell_0.5.1     getPass_0.2-4     ncdf4_1.23
[21] httpuv_1.6.15     htmltools_0.5.8.1 maps_3.4.2.1      sass_0.4.9
[25] yaml_2.3.10       later_1.4.1       pillar_1.9.0      jquerylib_0.1.4
[29] whisker_0.4.1     cachem_1.1.0      RNetCDF_2.9-2     ncmeta_0.4.0
[33] tidyselect_1.2.1  digest_0.6.37     stringi_1.8.4     labeling_0.4.3
[37] rprojroot_2.0.4   fastmap_1.2.0     grid_4.4.2        colorspace_2.1-1
[41] cli_3.6.3         magrittr_2.0.3    utf8_1.2.4        withr_3.0.2
[45] promises_1.3.2    bit64_4.5.2       timechange_0.3.0  rmarkdown_2.29
[49] httr_1.4.7        bit_4.5.0         hms_1.1.3         evaluate_1.0.1
[53] knitr_1.49        viridisLite_0.4.2 rlang_1.1.4       Rcpp_1.0.13-1
[57] glue_1.8.0        rstudioapi_0.17.1 jsonlite_1.8.9    R6_2.5.1
[61] fs_1.6.5

Drivers - Mixing Depth

Victoria Froh

19 February, 2025

Introduction

Exploring Mixing Depth
