Read this

Practice working with OAE ROMS data

#loading packages
library(ncdf4)
library(tidync)
library(stars)
library(tidyverse)
library(seacarb)
library(metR)

#For the regridded standard files, path:
path_ROMSv2RG_results <-
 "/net/sea/work/loher/ROMS/Alk_enh_formatted_2024_08/"

#opening specific nc file to get overview (Columbia site, 1x)
view_nc <- nc_open(paste0(path_ROMSv2RG_results,
                     "ColumbiaRiver/ColumbiaRiver_2010-2015_1x.nc"))

print(view_nc)
#filtering for just one variable w/ stars package + time and depth slice
nc_alk <- read_ncdf(paste0(path_ROMSv2RG_results,
                     "ColumbiaRiver/ColumbiaRiver_2010-2015_1x.nc"),
           var = "Alk",
           ncsub = cbind(start = c(1, 1, 1, 1), count = c(96, 88, 1, 1)
             ),
           proxy = FALSE #need this on to override the proxy format
          )
Warning: ignoring unrecognized unit: mMol m-3
nc_dic <- read_ncdf(paste0(path_ROMSv2RG_results,
                     "ColumbiaRiver/ColumbiaRiver_2010-2015_1x.nc"),
           var = "DIC",
           ncsub = cbind(start = c(1, 1, 1, 1), count = c(96, 88, 1, 1)
             ),
           proxy = FALSE #need this on to override the proxy format
          )
Warning: ignoring unrecognized unit: mMol C m-3
#creating a blank plot and loading in the nc data layers

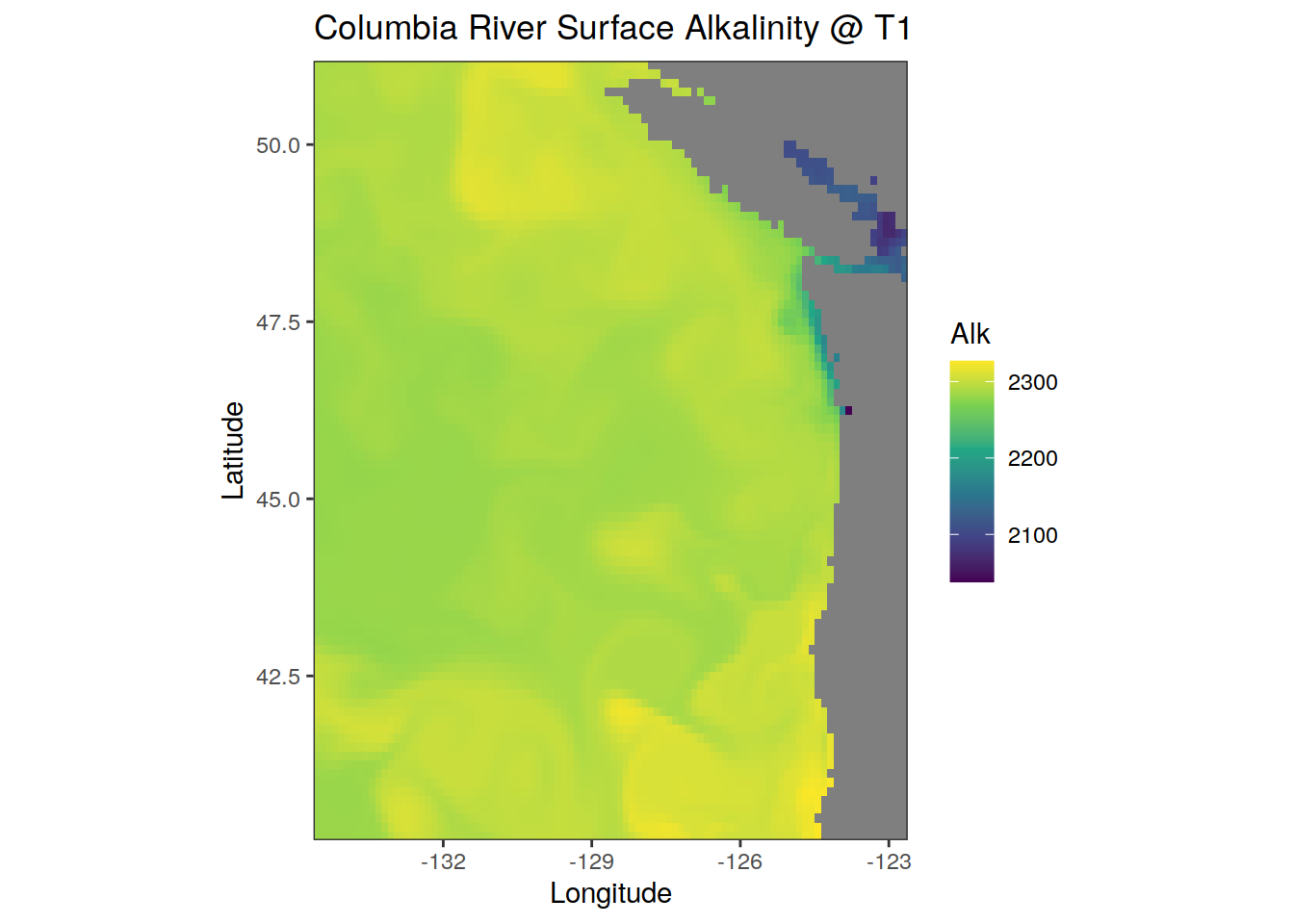

ggplot() +
 geom_stars(data = nc_alk, aes(fill = Alk)) +
  labs(title = "Columbia River Surface Alkalinity @ T1",
       x = "Longitude",
       y = "Latitude") +
  theme_bw() +
  scale_fill_viridis_c() +
  coord_quickmap(expand = 0)

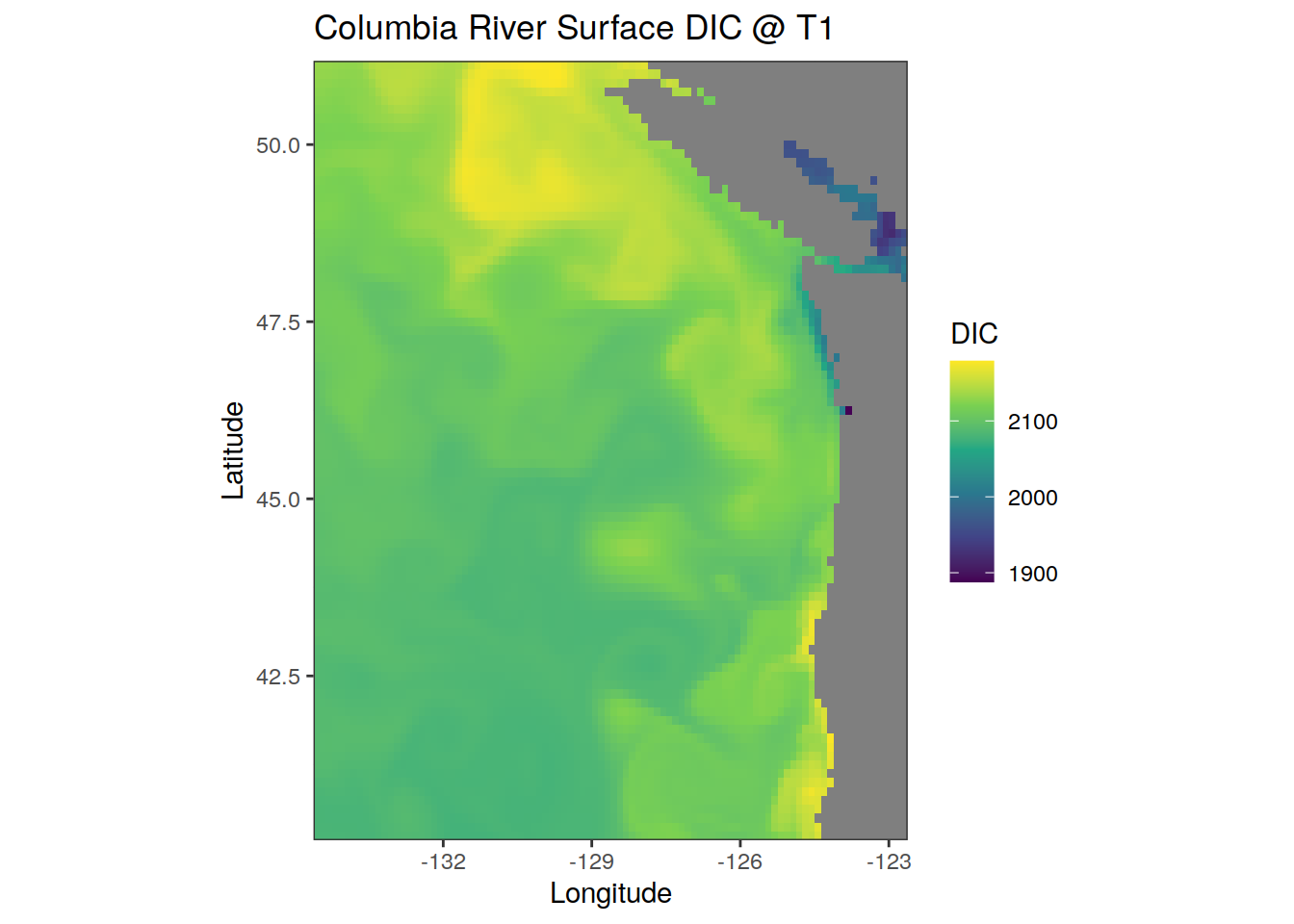

ggplot() +
 geom_stars(data = nc_dic, aes(fill = DIC)) +
  labs(title = "Columbia River Surface DIC @ T1",
       x = "Longitude",
       y = "Latitude") +
  theme_bw() +
  scale_fill_viridis_c() +
  coord_quickmap(expand = 0)

nc <- tidync(paste0(path_ROMSv2RG_results,
                     "ColumbiaRiver/ColumbiaRiver_2010-2015_1x.nc"))

#filtering nc file for just the surface @ the first time index, outputting tbl_df
alk_surface_t1 <- nc %>%
  hyper_filter(depth = index == 1, time = index == 1) %>%
  hyper_tibble(select_var = c("Alk"))

dic_surface_t1 <- nc %>%
  hyper_filter(depth = index == 1, time = index == 1) %>%
  hyper_tibble(select_var = c("DIC"))

#plotting variables

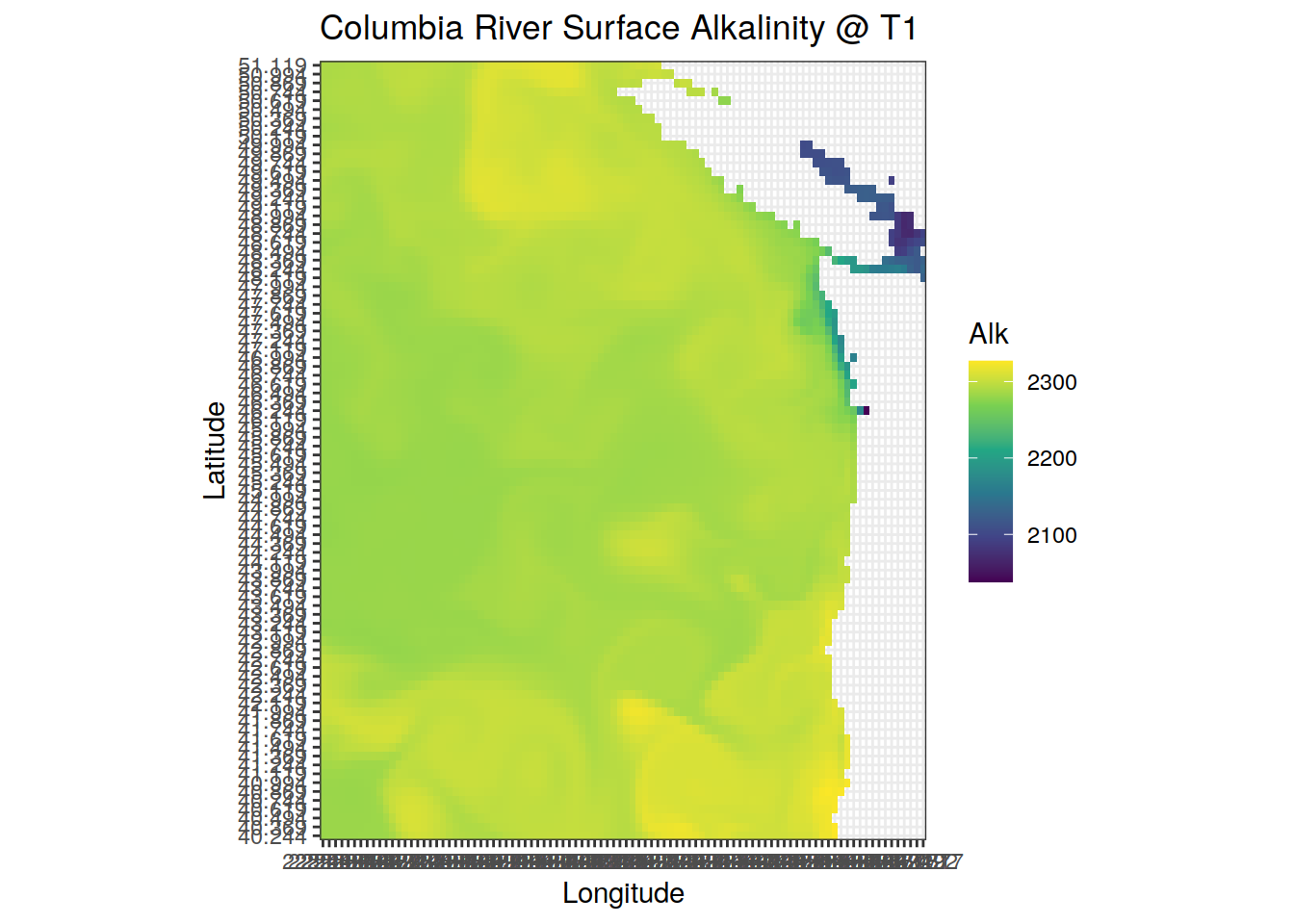

ggplot(data = alk_surface_t1) +
  geom_tile(aes(lon, lat, fill = Alk)) +
  labs(title = "Columbia River Surface Alkalinity @ T1",
       x = "Longitude", y = "Latitude") +
  theme_bw() +
  scale_fill_viridis_c() +
  coord_quickmap(expand = 0)

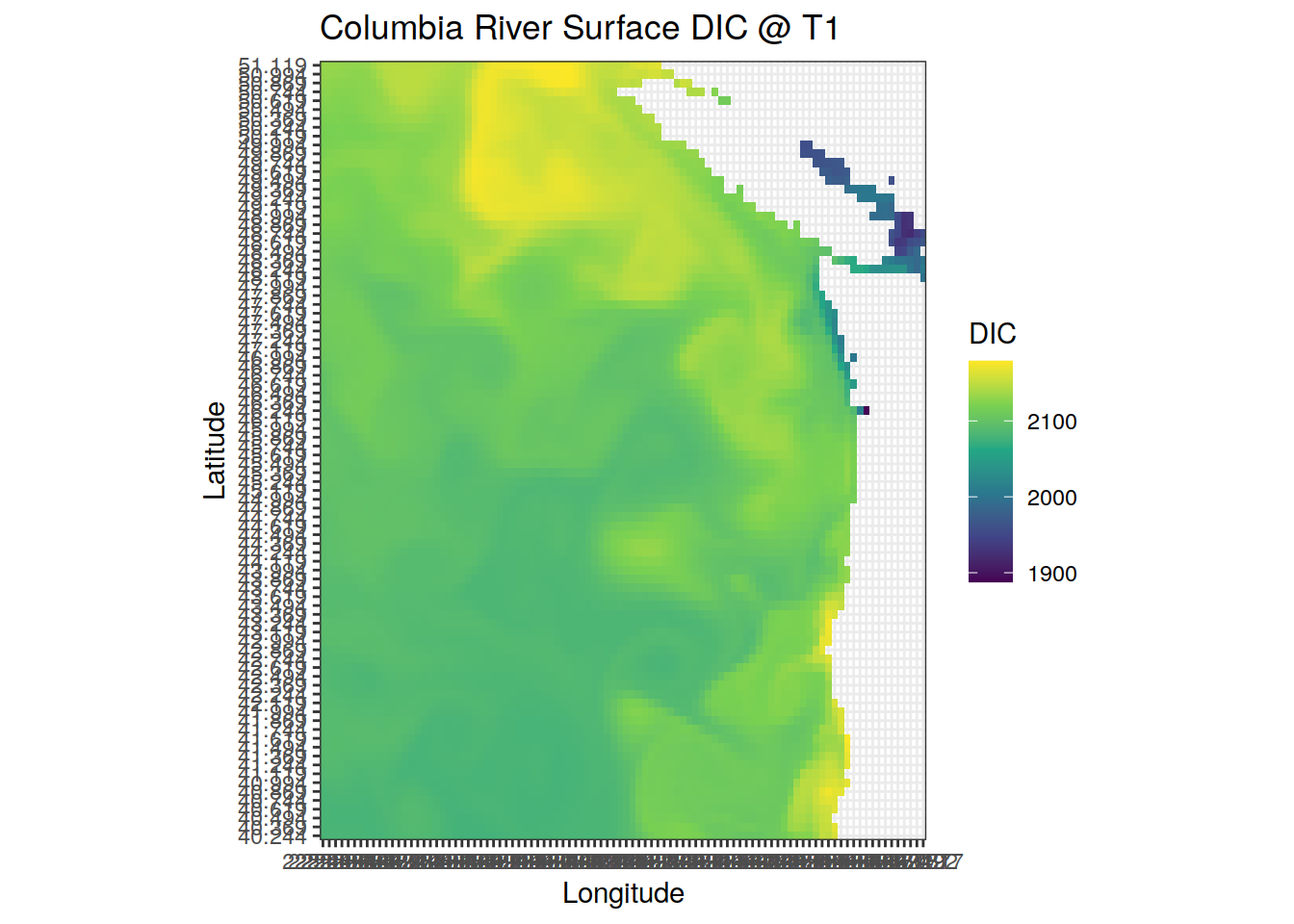

ggplot(data = dic_surface_t1) +
  geom_tile(aes(lon, lat, fill = DIC)) +
  labs(title = "Columbia River Surface DIC @ T1",
       x = "Longitude", y = "Latitude") +
  theme_bw() +
  scale_fill_viridis_c() +
  coord_quickmap(expand = 0)

#load in data from tidync file in main active grid w/ T1 surface slice
surface_data <- nc %>%
     hyper_filter(depth = index == 1, time = index == 1) %>%
     hyper_tibble(force = TRUE)

#loading in data in other grid ie surface variables
surface_data_pco2 <- nc %>%
  activate("D1,D2,D0") %>% #activating surface grid for PCO2OC variable
  hyper_filter(time = index == 1) %>%
  hyper_tibble(select_var = c("PCO2OC"), #  produces a tibble object
                  force = TRUE)

merged_surface <- full_join(surface_data, surface_data_pco2)

#running carb to produce the pCO2 values
merged_surface_orig <-
  merged_surface %>%
  #head(6) %>% #testing subsset
  drop_na() %>% #drops all rows with an NA
  mutate(
    pco2_calc = carb(
      flag = 15,
      var1 = Alk * 1e-6 / 1.02518,
      var2 = DIC * 1e-6 / 1.02518,
      S = salt,
      T = temp,
      P = 0,
      #surface = 0
      Pt = PO4 * 1e-6 / 1.02518,
      Sit = SiO3 * 1e-6 / 1.02518,
      kf="dg",
      k1k2="m06",
      ks="d"
    )$pCO2 #to just save the pco2 output
  )

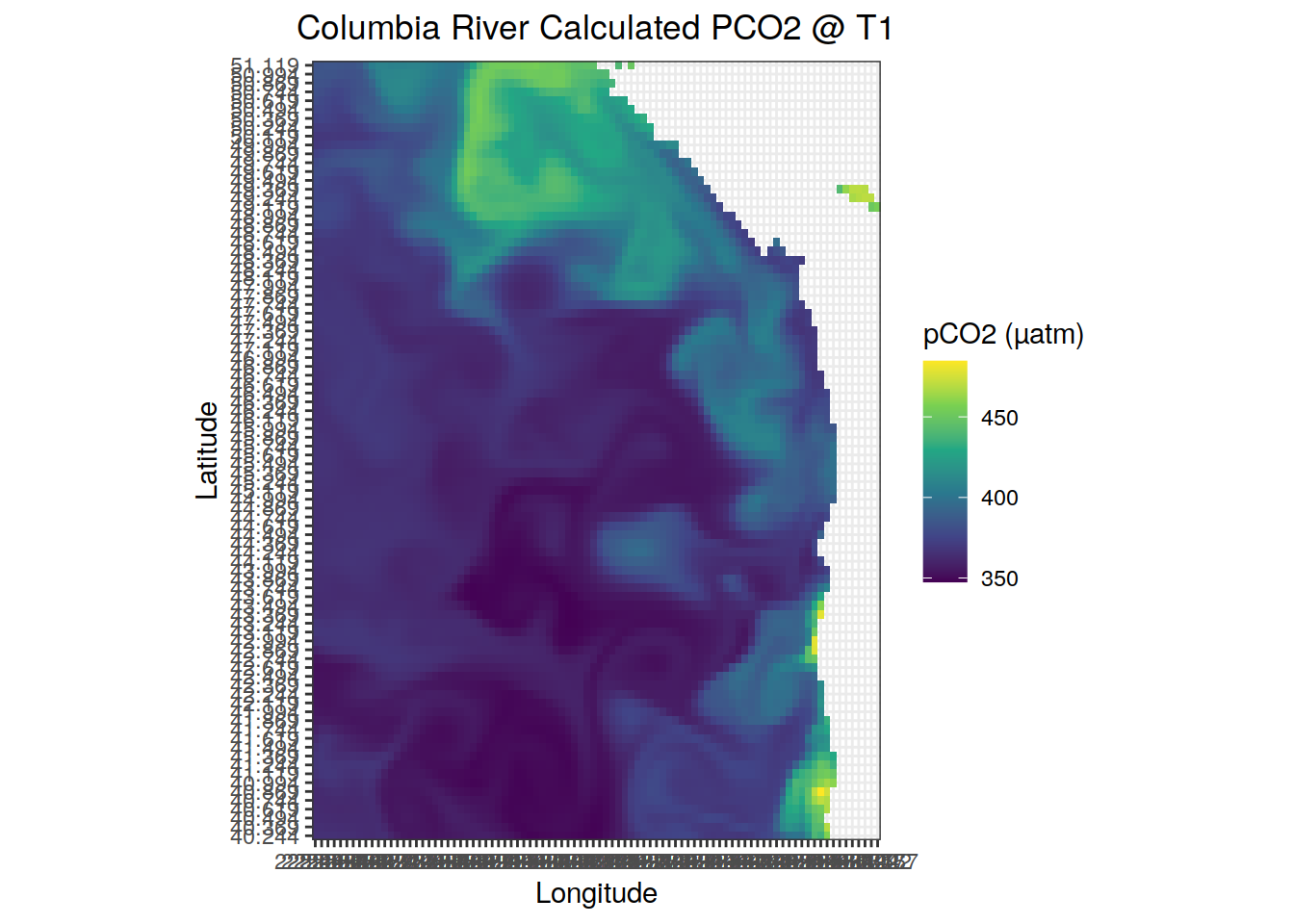

#plotting pco2
ggplot(data = merged_surface_orig) +
  geom_tile(aes(lon, lat, fill = pco2_calc)) +
  labs(title = "Columbia River Calculated PCO2 @ T1",
       x = "Longitude", y = "Latitude", fill = "pCO2 (µatm)") +
  theme_bw() +
  theme(plot.title = element_text(hjust = 0.5)) +
  scale_fill_viridis_c() +
  coord_quickmap(expand = 0)

#Comparing Outputs

#New dataframe w/ reorganized pCO2 data
pco2_compare <- merged_surface_orig %>%
  select(lon, lat, pco2_calc, PCO2OC) %>%
  pivot_longer(
    cols = c(pco2_calc, PCO2OC),
    names_to = "Variant",
    values_to = "pCO2"
  )

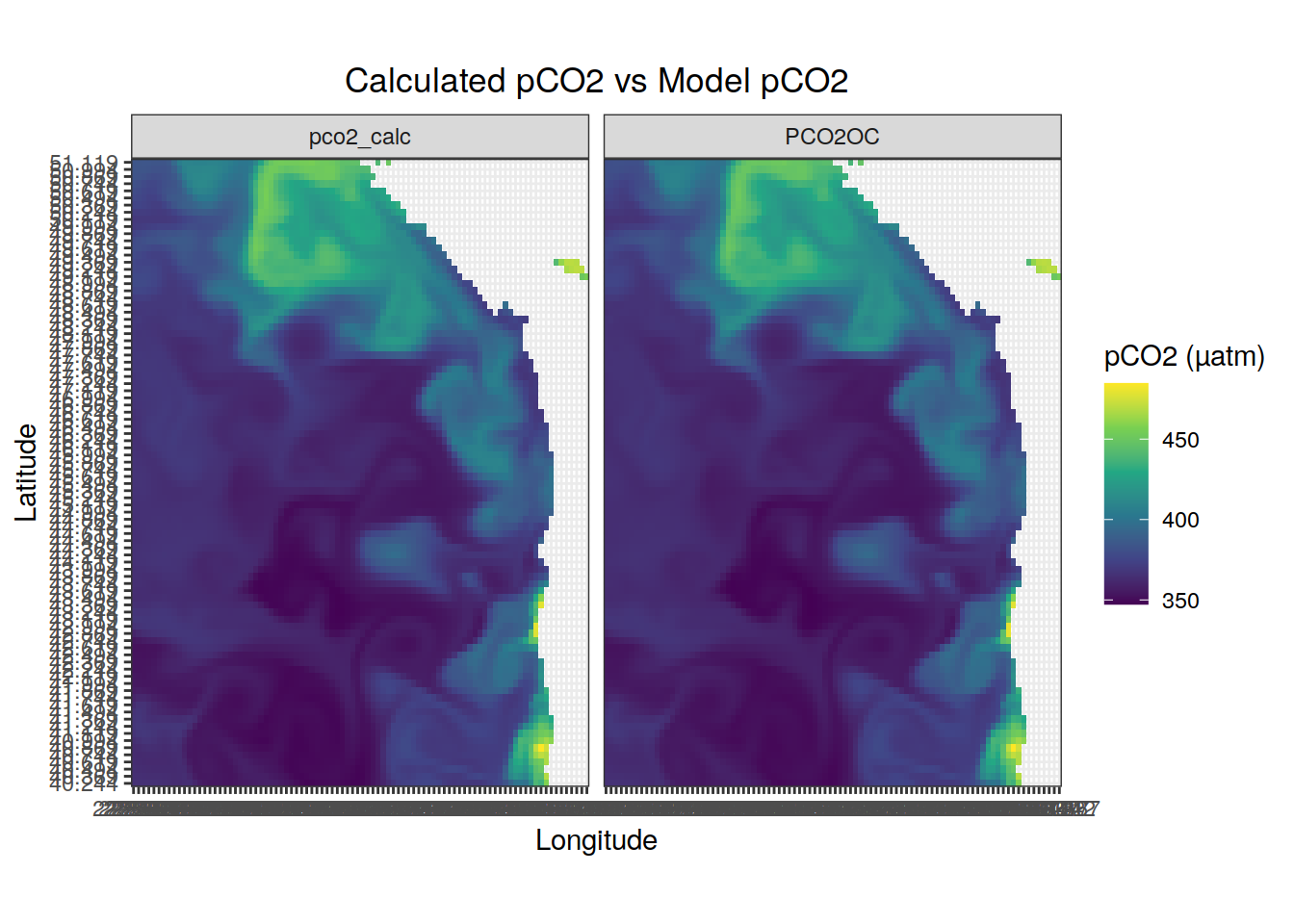

#Plotting side-by-side comparison
ggplot(data = pco2_compare) +
  geom_tile(aes(lon, lat, fill = pCO2)) +
  facet_grid(cols = vars(Variant)) +
  labs(title = "Calculated pCO2 vs Model pCO2",
       x = "Longitude", y = "Latitude", fill = "pCO2 (µatm)") +
  theme_bw() +
  theme(plot.title = element_text(hjust = 0.5)) +
  coord_quickmap(expand = 0) +
  scale_fill_viridis_c()

#New df w/ the difference between model and calculated pCO2
pco2_delta <- merged_surface_orig %>%
  select(lon, lat, pco2_calc, PCO2OC) %>%
  mutate(dpco2 = PCO2OC - pco2_calc)

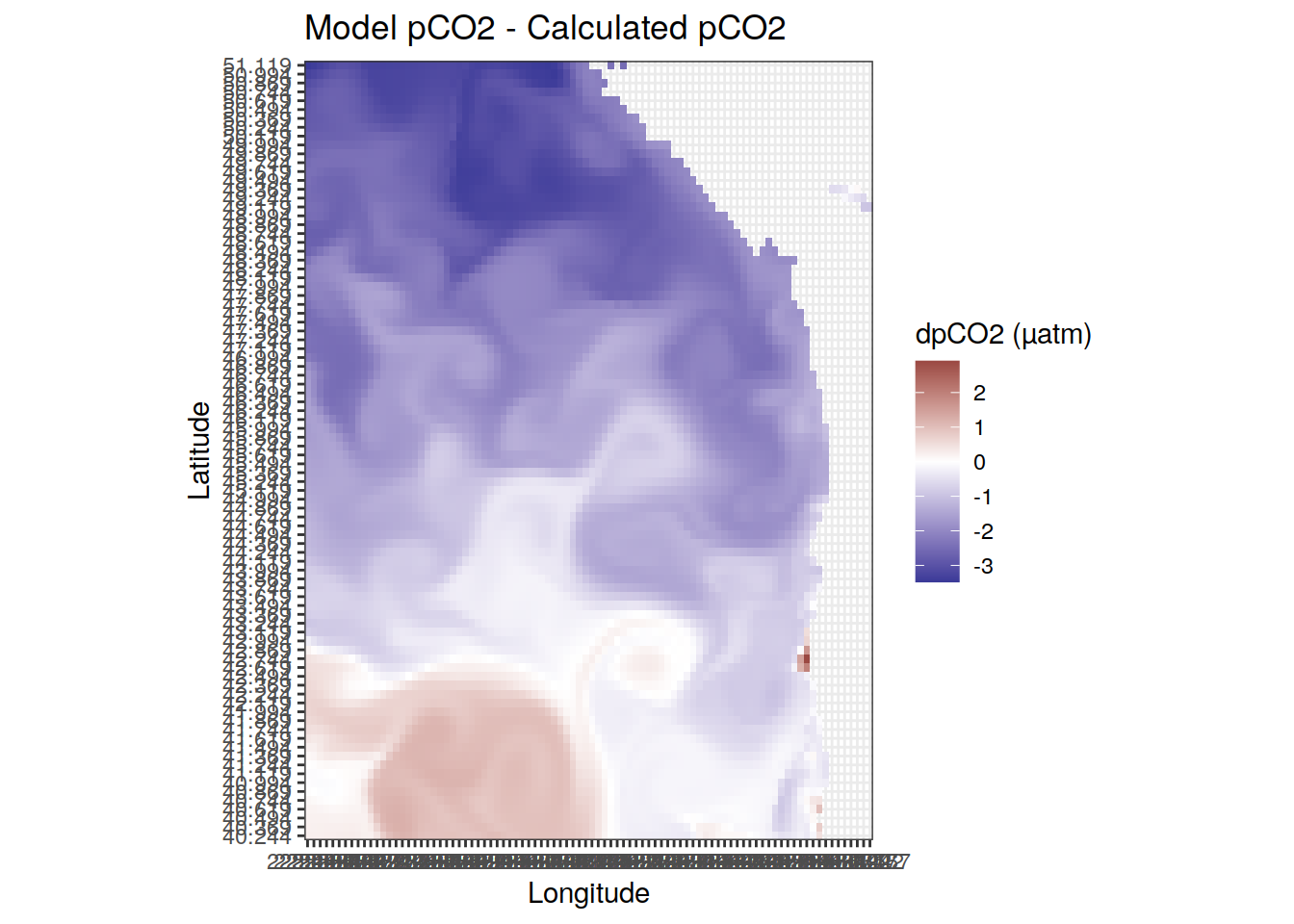

#Plotting difference
ggplot(data = pco2_delta) +
  geom_tile(aes(lon, lat, fill = dpco2)) +
  labs(title = "Model pCO2 - Calculated pCO2",
       x = "Longitude", y = "Latitude", fill = "dpCO2 (µatm)") +
  scale_fill_divergent() +
  coord_quickmap(expand = 0) +
  theme(plot.title = element_text(hjust = 0.5)) +
  theme_bw()

#Perturbation of 10 mmol Alk/m^3 in all grid cells
surface_pert <-
  merged_surface_orig %>%
  #head(6) %>% #testing subsset
  drop_na() %>% #drops all rows with an NA
  mutate(
    pco2_calc_pert = carb(
      flag = 15,
      var1 = (Alk + 10) * 1e-6 / 1.02518,
      var2 = DIC * 1e-6 / 1.02518,
      S = salt,
      T = temp,
      P = 0,
      Pt = PO4 * 1e-6 / 1.02518,
      Sit = SiO3 * 1e-6 / 1.02518,
      kf="dg",
      k1k2="m06",
      ks="d"
    )$pCO2
  )

#New dataframe w/ reorganized pCO2_pert data to compare
pco2_pert_compare <- surface_pert %>%
  select(lon, lat, pco2_calc_pert, pco2_calc) %>%
  pivot_longer(
    cols = c(pco2_calc_pert, pco2_calc),
    names_to = "Variant",
    values_to = "pCO2"
  )

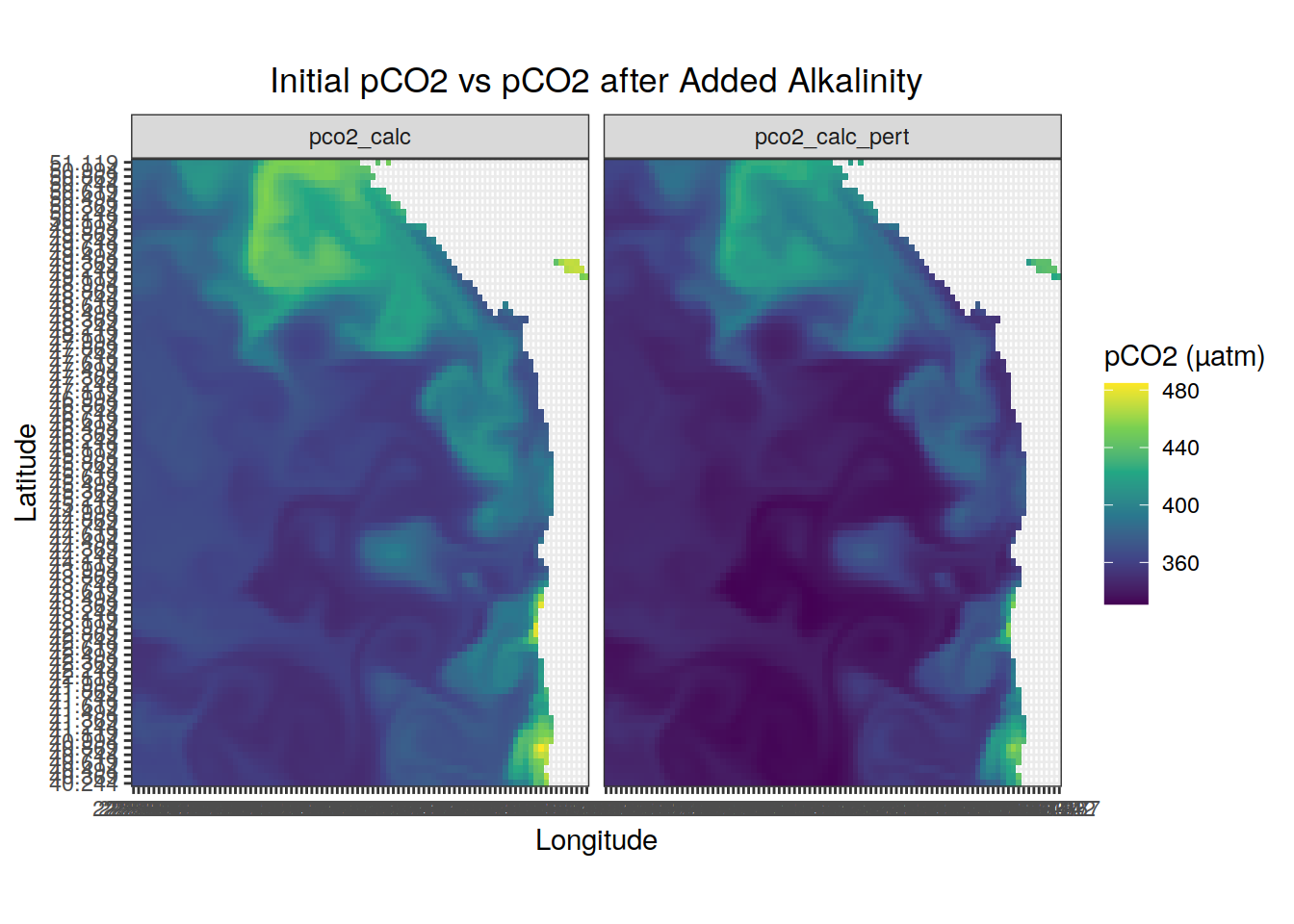

#Plotting side-by-side comparison
ggplot(data = pco2_pert_compare) +
  geom_tile(aes(lon, lat, fill = pCO2)) +
  facet_grid(cols = vars(Variant)) +
  labs(title = "Initial pCO2 vs pCO2 after Added Alkalinity",
       x = "Longitude", y = "Latitude", fill = "pCO2 (µatm)") +
  theme_bw() +
  theme(plot.title = element_text(hjust = 0.5)) +
  coord_quickmap(expand = 0) +
  scale_fill_viridis_c()

#New df w/ the difference in pCO2 after Alk perturbation
pco2_pert_delta <- full_join(surface_pert, pco2_delta) %>%
  select(lon, lat, pco2_calc_pert, pco2_calc) %>%
  mutate(dpco2 = pco2_calc_pert - pco2_calc)

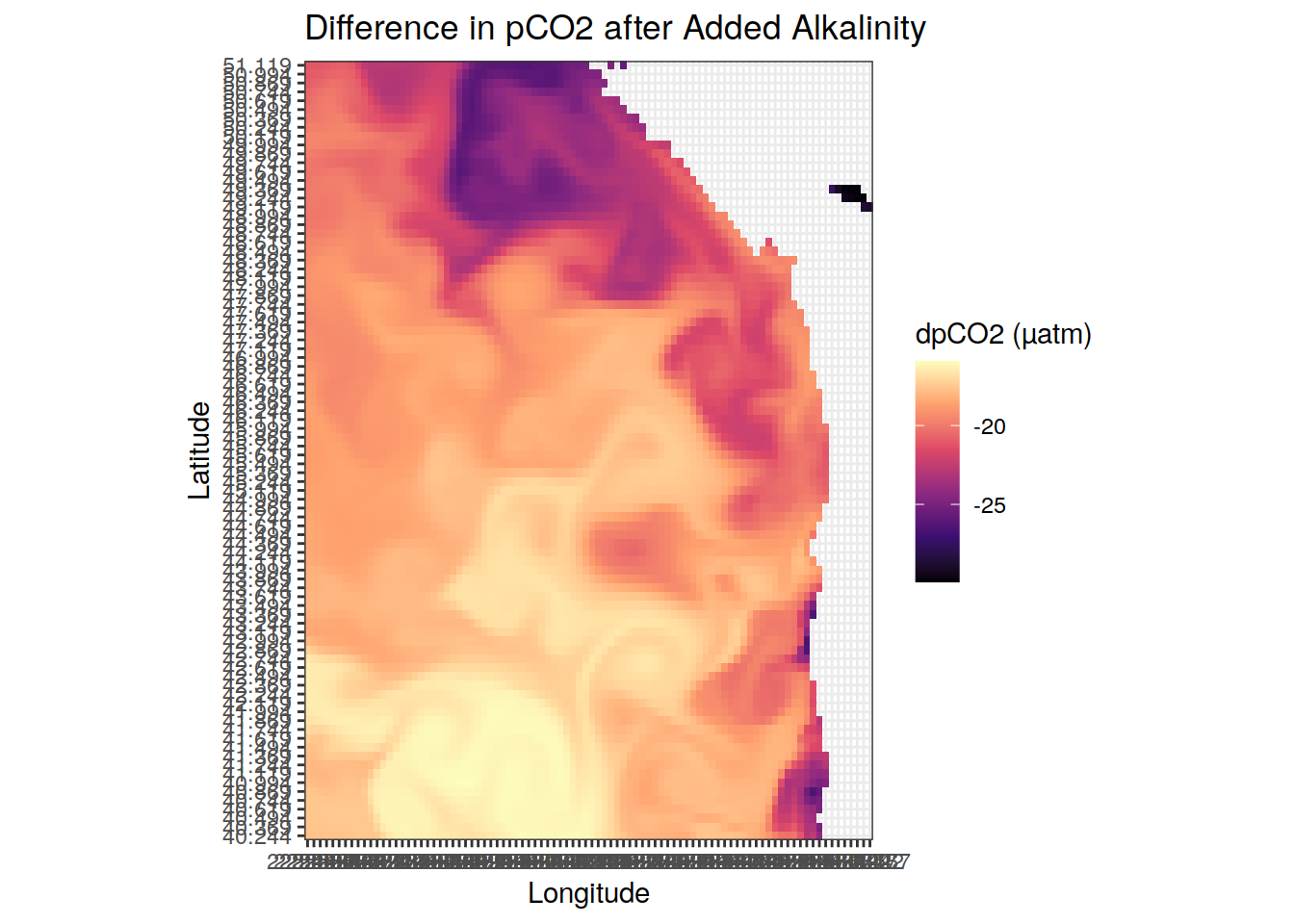

#Plotting difference
ggplot(data = pco2_pert_delta) +
  geom_tile(aes(lon, lat, fill = dpco2)) +
  labs(title = "Difference in pCO2 after Added Alkalinity",
       x = "Longitude", y = "Latitude", fill = "dpCO2 (µatm)") +
  #scale_fill_divergent() +
  scale_fill_viridis_c(option = "magma") +
  coord_quickmap(expand = 0) +
  theme(plot.title = element_text(hjust = 0.5)) +
  theme_bw()

#Alooking at how DIC changes for perturbation with constant pCO2
surface_pert_dic <-
  merged_surface_orig %>%
  #head(6) %>% #testing subsset
  drop_na() %>% #drops all rows with an NA
  mutate(
    DIC_pert = carb(
      flag = 24,
      var1 = pco2_calc, # for consistency, use the calculate pCO2 here,
      #otherwise you compute a DIC perturbation that is partly due to
      #differences in the computational routines (vs the model)
      var2 = (Alk + 10) * 1e-6 / 1.02518,
      S = salt,
      T = temp,
      P = 0,
      #surface = 0
      Pt = PO4 * 1e-6 / 1.02518,
      Sit = SiO3 * 1e-6 / 1.02518,
      kf="dg",
      k1k2="m06",
      ks="d"
    )$DIC #to just save the pco2 output
    * 1.02518 * 1e6 #converting back to model units of mmol/m^3
  )

#New dataframe w/ reorganized DIC data to compare
dic_pert_compare <- surface_pert_dic %>%
  select(lon, lat, DIC_pert, DIC) %>%
  pivot_longer(
    cols = c(DIC_pert, DIC),
    names_to = "Variant",
    values_to = "DIC"
  )

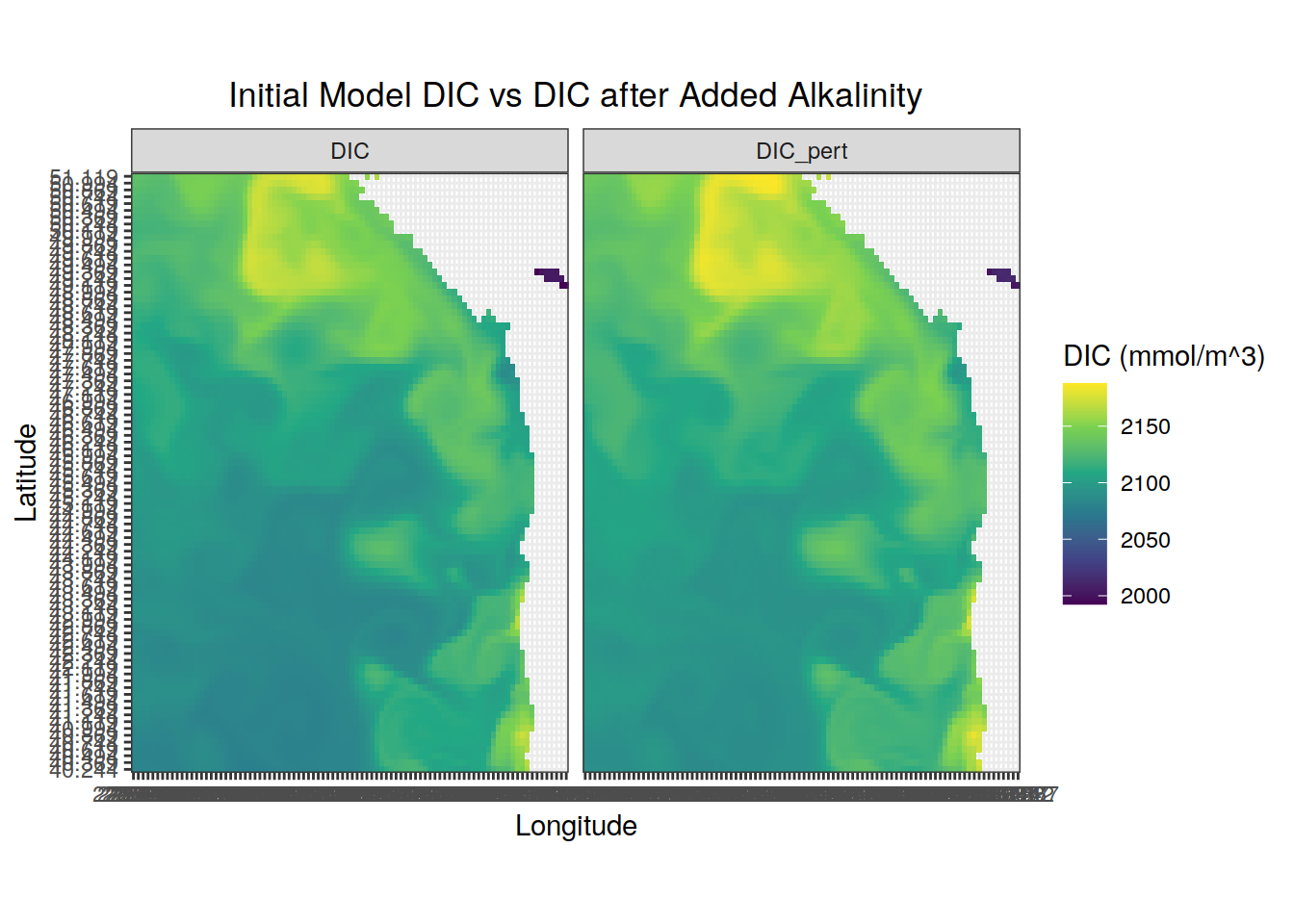

#Plotting side-by-side comparison
ggplot(data = dic_pert_compare) +
  geom_tile(aes(lon, lat, fill = DIC)) +
  facet_grid(cols = vars(Variant)) +
  labs(title = "Initial Model DIC vs DIC after Added Alkalinity",
       x = "Longitude", y = "Latitude", fill = "DIC (mmol/m^3)") +
  theme_bw() +
  theme(plot.title = element_text(hjust = 0.5)) +
  coord_quickmap(expand = 0) +
  scale_fill_viridis_c()

#New df w/ the difference in DIC after Alk perturbation
dic_pert_delta <- surface_pert_dic %>%
  select(lon, lat, DIC_pert, DIC) %>%
  mutate(dDIC = DIC_pert - DIC)

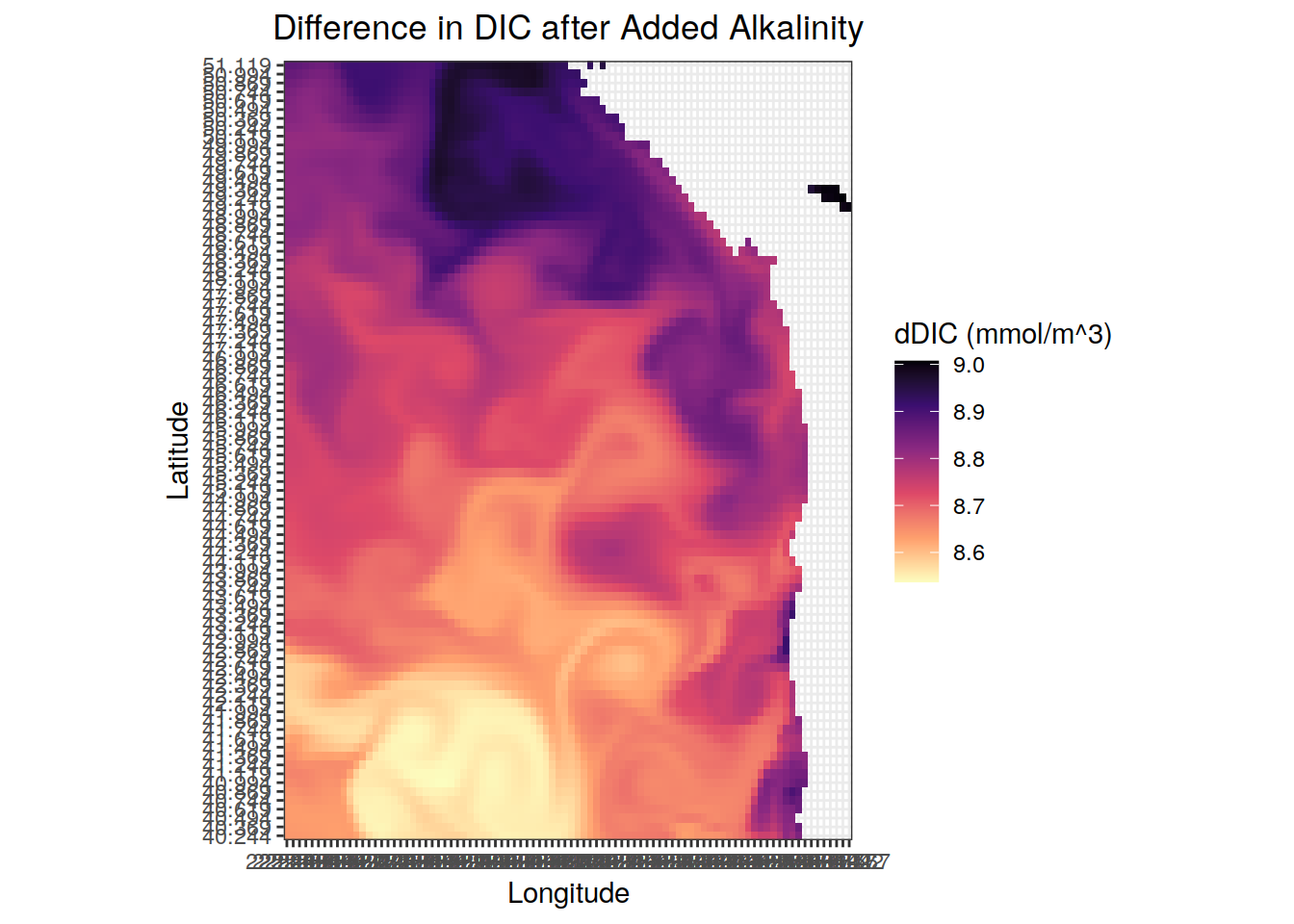

#Plotting difference
ggplot(data = dic_pert_delta) +
  geom_tile(aes(lon, lat, fill = dDIC)) +
  labs(title = "Difference in DIC after Added Alkalinity",
       x = "Longitude", y = "Latitude", fill = "dDIC (mmol/m^3)") +
  #scale_fill_divergent() +
  scale_fill_viridis_c(option = "magma", direction = -1) +
  coord_quickmap(expand = 0) +
  theme_bw() +
  theme(plot.title = element_text(hjust = 0.5))


sessionInfo()
R version 4.2.2 (2022-10-31)
Platform: x86_64-pc-linux-gnu (64-bit)
Running under: openSUSE Leap 15.5

Matrix products: default
BLAS:   /usr/local/R-4.2.2/lib64/R/lib/libRblas.so
LAPACK: /usr/local/R-4.2.2/lib64/R/lib/libRlapack.so

locale:
 [1] LC_CTYPE=en_US.UTF-8       LC_NUMERIC=C
 [3] LC_TIME=en_US.UTF-8        LC_COLLATE=en_US.UTF-8
 [5] LC_MONETARY=en_US.UTF-8    LC_MESSAGES=en_US.UTF-8
 [7] LC_PAPER=en_US.UTF-8       LC_NAME=C
 [9] LC_ADDRESS=C               LC_TELEPHONE=C
[11] LC_MEASUREMENT=en_US.UTF-8 LC_IDENTIFICATION=C

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

other attached packages:
 [1] metR_0.13.0      seacarb_3.3.3    SolveSAPHE_2.1.0 oce_1.7-10
 [5] gsw_1.1-1        forcats_0.5.2    stringr_1.5.0    dplyr_1.1.3
 [9] purrr_1.0.2      readr_2.1.3      tidyr_1.3.0      tibble_3.2.1
[13] ggplot2_3.4.4    tidyverse_1.3.2  stars_0.6-0      sf_1.0-9
[17] abind_1.4-5      tidync_0.4.0     ncdf4_1.19       workflowr_1.7.0

loaded via a namespace (and not attached):
 [1] fs_1.5.2            lubridate_1.9.0     httr_1.4.4
 [4] rprojroot_2.0.3     tools_4.2.2         backports_1.4.1
 [7] bslib_0.4.1         utf8_1.2.2          R6_2.5.1
[10] KernSmooth_2.23-20  DBI_1.1.3           colorspace_2.0-3
[13] withr_2.5.0         tidyselect_1.2.0    processx_3.8.0
[16] compiler_4.2.2      git2r_0.30.1        cli_3.6.1
[19] rvest_1.0.3         RNetCDF_2.6-1       xml2_1.3.3
[22] labeling_0.4.2      sass_0.4.4          checkmate_2.1.0
[25] scales_1.2.1        classInt_0.4-8      callr_3.7.3
[28] proxy_0.4-27        digest_0.6.30       rmarkdown_2.18
[31] pkgconfig_2.0.3     htmltools_0.5.3     highr_0.9
[34] dbplyr_2.2.1        fastmap_1.1.0       rlang_1.1.1
[37] readxl_1.4.1        rstudioapi_0.15.0   PCICt_0.5-4.3
[40] farver_2.1.1        jquerylib_0.1.4     generics_0.1.3
[43] jsonlite_1.8.3      googlesheets4_1.0.1 magrittr_2.0.3
[46] ncmeta_0.3.5        Rcpp_1.0.10         munsell_0.5.0
[49] fansi_1.0.3         lifecycle_1.0.3     stringi_1.7.8
[52] whisker_0.4         yaml_2.3.6          grid_4.2.2
[55] parallel_4.2.2      promises_1.2.0.1    crayon_1.5.2
[58] CFtime_1.4.0        haven_2.5.1         hms_1.1.2
[61] knitr_1.41          ps_1.7.2            pillar_1.9.0
[64] reprex_2.0.2        glue_1.6.2          evaluate_0.18
[67] getPass_0.2-2       data.table_1.14.6   modelr_0.1.10
[70] vctrs_0.6.4         tzdb_0.3.0          httpuv_1.6.6
[73] cellranger_1.1.0    gtable_0.3.1        assertthat_0.2.1
[76] cachem_1.0.6        xfun_0.35           lwgeom_0.2-10
[79] broom_1.0.5         e1071_1.7-12        later_1.3.0
[82] viridisLite_0.4.1   class_7.3-20        googledrive_2.0.0
[85] gargle_1.2.1        memoise_2.0.1       units_0.8-0
[88] timechange_0.1.1    ellipsis_0.3.2
