Introduction
Once BgeeCall generated gene experssion calls it is possible to use them to do downstream analysis. This section contains R code examples of potential analysis to run on present genes.
PCA
# read file with gene as rows and libraries as columns
file <- "PATH_TO_PRESENT_TPMS_FILE"
present_TPMs <- read.table(file = file, header = TRUE, sep = "\t")# transpose data.frame to have genes as columns
data_for_PCA <- t(present_TPMs)
# calculate matrix of dissimilarities
# k = the maximum dimension of the space which the data are to be represented in; must be in {1, 2, …, n-1}
# eig = indicates whether eigenvalues should be returned
mds <- cmdscale(dist(data_for_PCA), k=3, eig=TRUE)
proportion_eig <- mds$eig * 100 / sum(mds$eig)

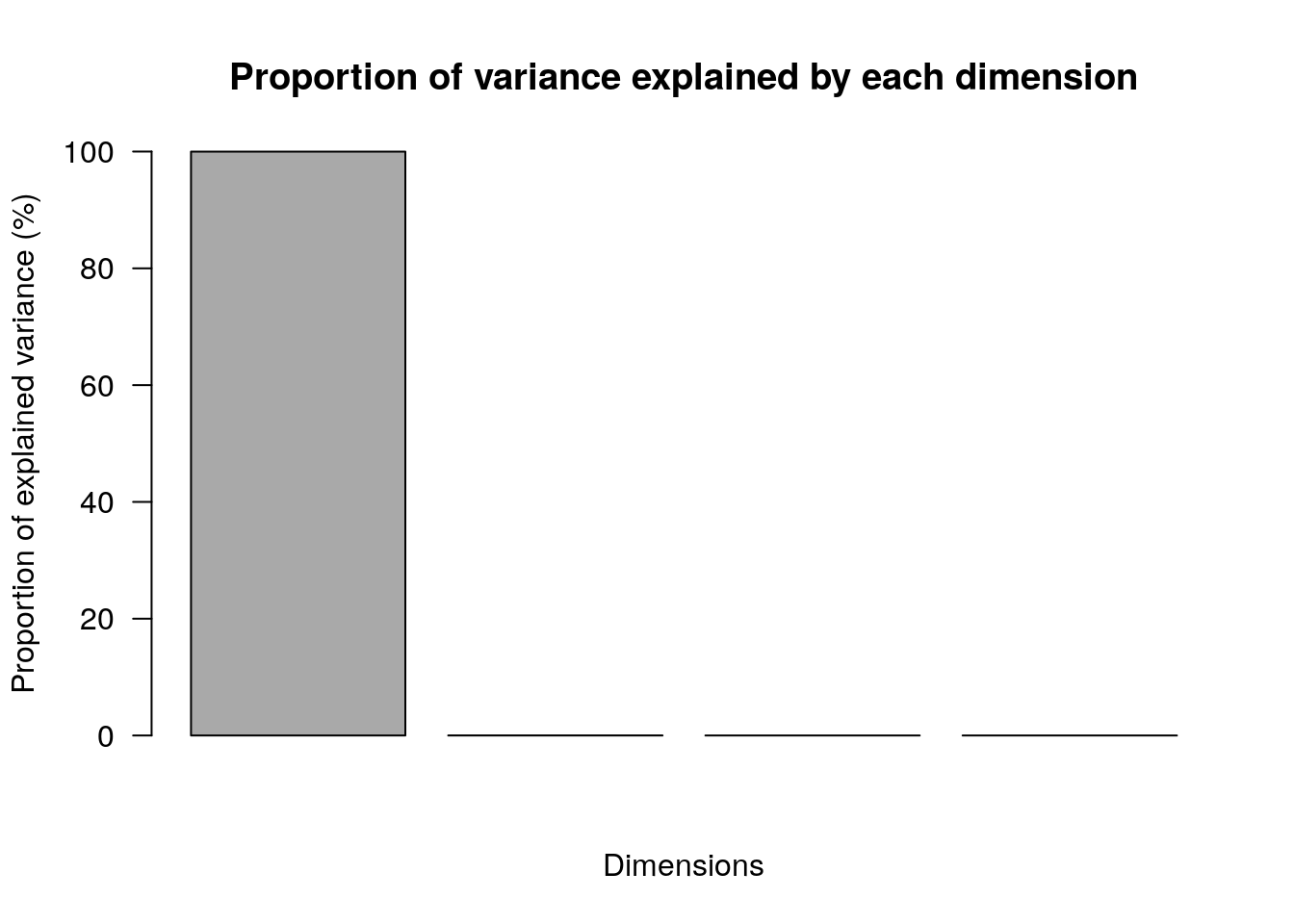

# plot proportion of variance explained by each dimension
barplot(proportion_eig, las=1, ylim=c(0,100), xlab="Dimensions", ylab="Proportion of explained variance (%)",
y.axis=NULL, col="darkgrey", main = "Proportion of variance explained by each dimension")

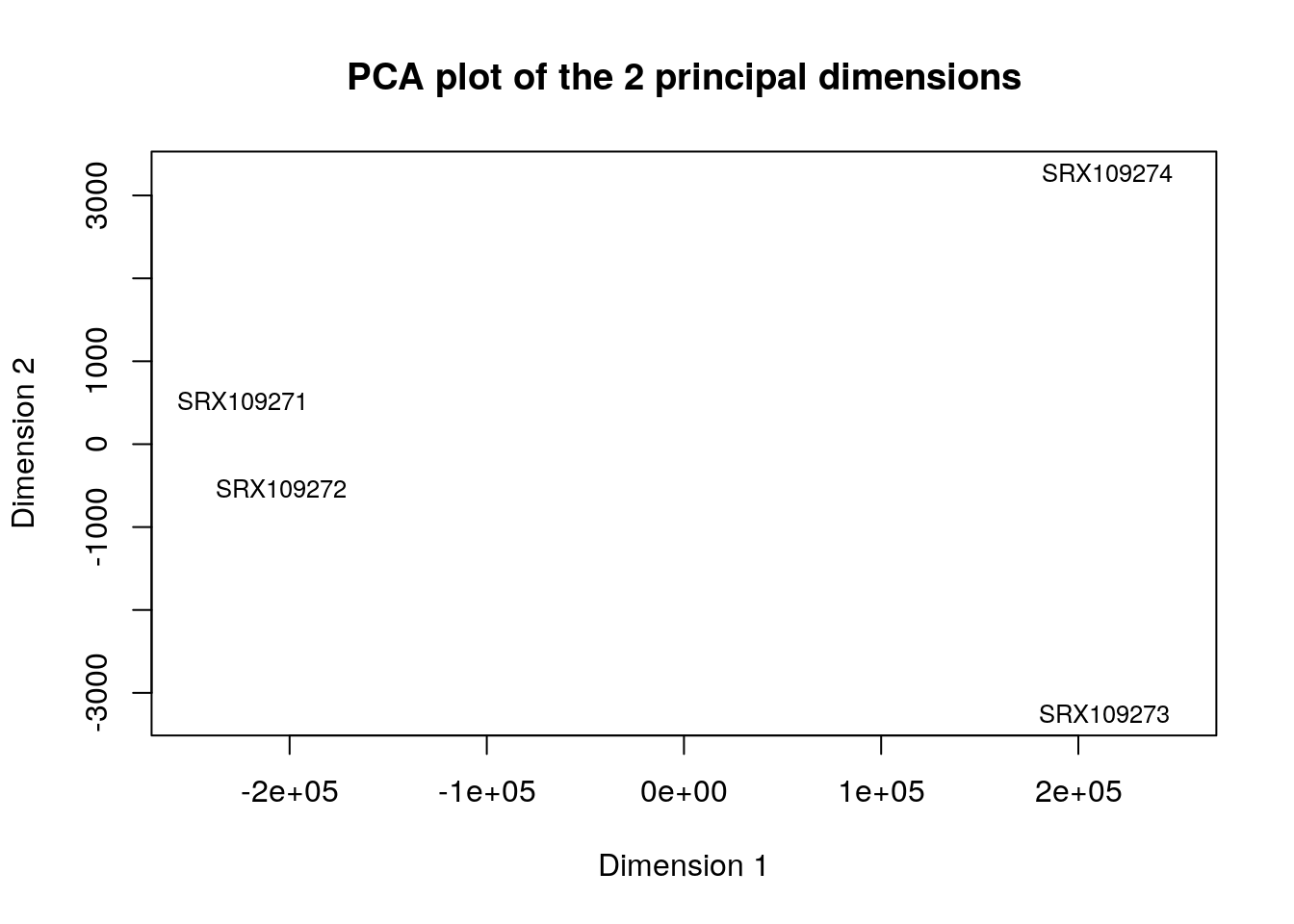

#PCA plot for the 2 first dimensions
#plotMDS(present_TPMs,xlab = "Dimension 1")
plot(mds$points[,1], -mds$points[,2], type="n", xlim=c(-2.5e+05,2.5e+05), xlab="Dimension 1", ylab="Dimension 2",
main="PCA plot of the 2 principal dimensions", )
text(mds$points[,1], -mds$points[,2], rownames(mds$points), cex=0.8)
Diffrential expression
library(edgeR)Loading required package: limma# read file with gene as rows and libraries counts as columns
file_counts <- "PATH_TO_PRESENT_COUNTS_FILE"
present_counts <- read.table(file = file_counts, header = TRUE, sep = "\t")
#read file with library annotations
file_annotations <- "PATH_TO_LIBRARY_ANNOTATIONS_FILE"
library_annotations <- read.table(file = file_annotations, header = TRUE, sep = "\t")# create list of grouping parameters (here sex)
group <- NULL
for(i in seq(colnames(present_counts))){
group[i] <- as.character(library_annotations[library_annotations$Library.ID ==colnames(present_counts)[i],]$Sex)
}
# create DGEList object
dge <- DGEList(present_counts, group=group)
#calculate normalization factor between libraries
dge <- calcNormFactors(dge)
#estimate common and tag wise dispersion
dge <- estimateCommonDisp(dge)
dge <- estimateTagwiseDisp(dge)
#perform an exact test for the difference in expression male-female
dgeTest <- exactTest(dge)
# retrieve all gene differentially expressed with a p-value lower than 0.05
topTags <- topTags(dgeTest, n=nrow(dgeTest$table), p.value = 0.05)
#filter for FDR < 0.05
results <- topTags$table[topTags$table$FDR<0.05,]
write.table(x = results, file = "dif_expressed_genes.tsv", row.names = TRUE, quote = FALSE, sep="\t")

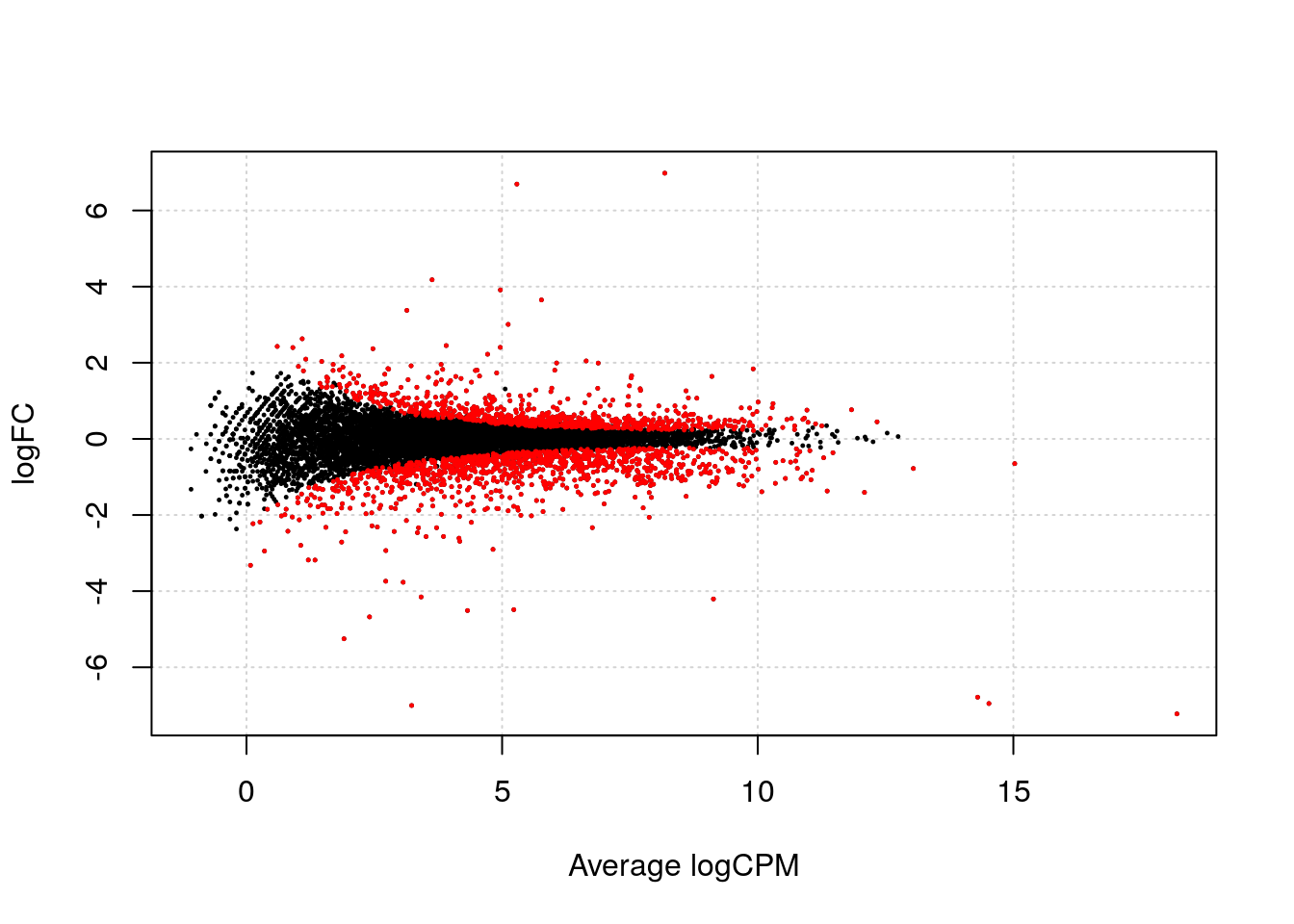

# generate an MA plot with 1% differentially expressed genes
plotSmear(dgeTest, de.tags = rownames(topTags$table)[which(topTags$table$FDR<0.01)],)

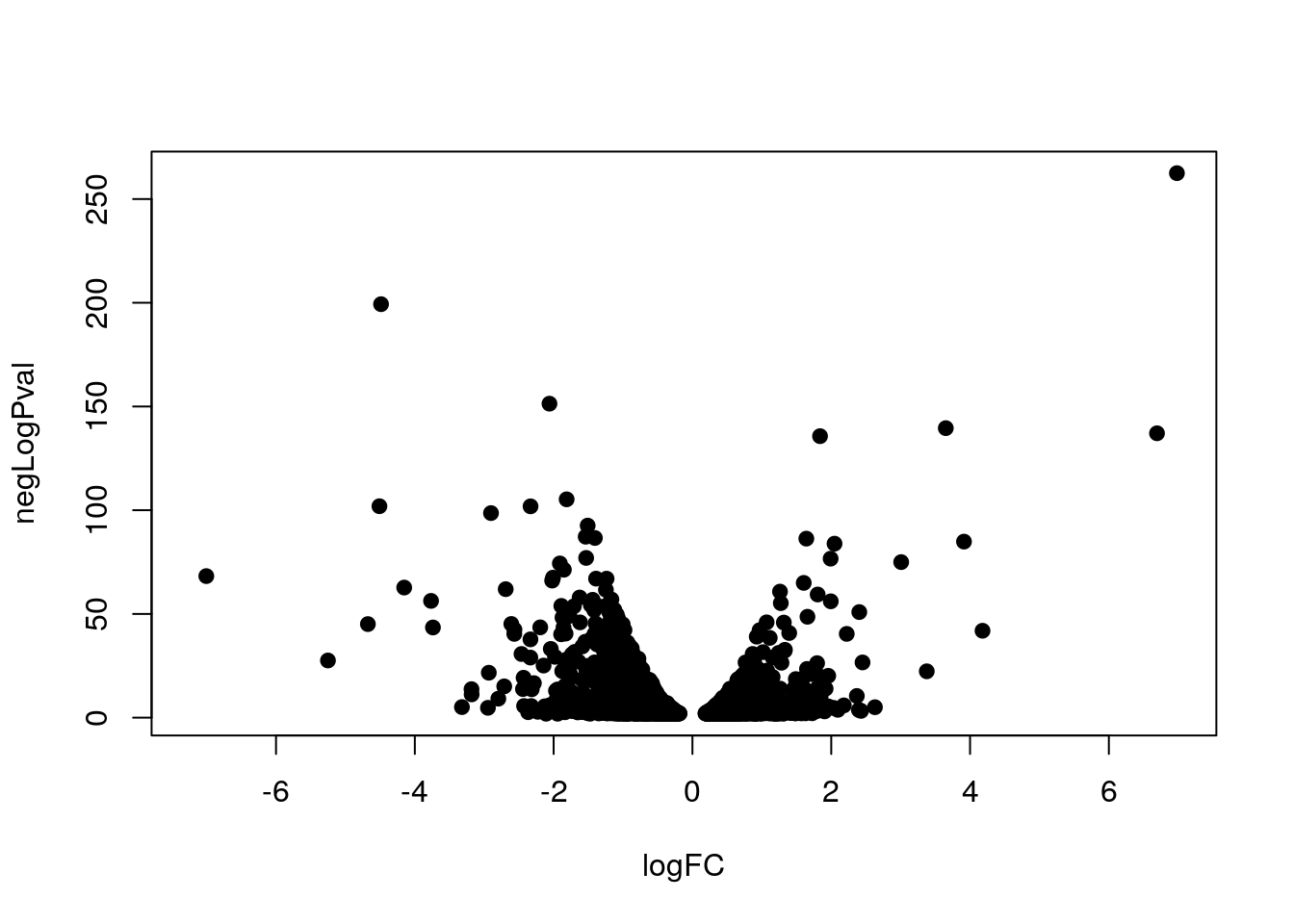

# generate a volcano plot
volcanoData <- cbind(topTags$table$logFC, -log10(topTags$table$PValue))
colnames(volcanoData) <- c("logFC", "negLogPval")
plot(volcanoData, pch=19)
GO analysis
library(biomaRt)
## topGO function of edgeR require entrez IDs. We will use biomaRt to map ensembl Ids to entrez Ids
#query biomaRt
mart <- useDataset("dmelanogaster_gene_ensembl", useMart("ensembl"))
entrez_mapping <- getBM(attributes=c("ensembl_gene_id", "entrezgene_id"), mart=mart, useCache = FALSE)
#update row names of the DGEExact object from edgeR
table <- merge(dgeTest$table, entrez_mapping, by.x="row.names", by.y="ensembl_gene_id", all.x = TRUE)
#looks like mapping from biomaRt has some problems of redundancy. Need hack to remove redundancy (not good practice)
table <- na.omit(table[!duplicated(table[,c('entrezgene_id')]),])
rownames(table) <- table$entrezgene_id
dgeTest$table <- table[,c('logFC','logCPM','PValue')]
#run the GO analysis
go <- goana(dgeTest, species = "Dm")
topGO(go) Term Ont N Up Down P.Up
GO:0022626 cytosolic ribosome CC 91 0 86 1.0000000
GO:0002181 cytoplasmic translation BP 117 0 94 1.0000000
GO:0042254 ribosome biogenesis BP 191 3 123 1.0000000
GO:0022613 ribonucleoprotein complex biogenesis BP 268 6 138 1.0000000
GO:0044445 cytosolic part CC 143 6 93 0.9999738
GO:0022625 cytosolic large ribosomal subunit CC 52 0 51 1.0000000
GO:0006364 rRNA processing BP 124 3 80 0.9999985
GO:0005840 ribosome CC 174 4 96 1.0000000
GO:0016072 rRNA metabolic process BP 142 4 85 0.9999990
GO:0044391 ribosomal subunit CC 165 3 92 1.0000000
GO:0006412 translation BP 367 9 151 1.0000000
GO:0043604 amide biosynthetic process BP 425 16 166 1.0000000
GO:0043043 peptide biosynthetic process BP 401 12 159 1.0000000
GO:1990904 ribonucleoprotein complex CC 556 26 197 1.0000000
GO:0005730 nucleolus CC 185 6 95 0.9999999
GO:0043603 cellular amide metabolic process BP 526 30 186 1.0000000
GO:0003735 structural constituent of ribosome MF 158 4 86 0.9999999
GO:0006518 peptide metabolic process BP 464 23 168 1.0000000
GO:0042273 ribosomal large subunit biogenesis BP 51 0 43 1.0000000
GO:0022627 cytosolic small ribosomal subunit CC 38 0 36 1.0000000
P.Down
GO:0022626 1.966044e-62
GO:0002181 9.423063e-54
GO:0042254 4.884838e-52
GO:0022613 3.330418e-42
GO:0044445 5.653007e-40
GO:0022625 9.007390e-40
GO:0006364 4.019224e-34
GO:0005840 1.061884e-32
GO:0016072 1.223935e-32
GO:0044391 7.403915e-32
GO:0006412 1.165862e-31
GO:0043604 1.531185e-31
GO:0043043 4.264480e-31
GO:1990904 1.069313e-30
GO:0005730 4.486529e-29
GO:0043603 7.974862e-29
GO:0003735 8.356819e-29
GO:0006518 2.293887e-27
GO:0042273 9.169436e-27
GO:0022627 1.126329e-26
