Simulation of STR Pairs and Calculation of Likelihood Ratios

From Weight-of-evidence for forensic DNA profiles book

Likelihood ratio for a single locus is:

$$R=\kappa_0+\kappa_1 / R_X^p+\kappa_2 / R_X^u$$ Where $\kappa$ is the probability of having 0, 1 or 2 alleles IBD for a given relationship.

The $R_X$ terms are quantifying the “surprisingness” of a particular pattern of allele sharing.

The $R_X^p$ terms attached to the $kappa_1$ are defined in the following table:

$$\begin{aligned} &\text { Table 7.2 Single-locus LRs for paternity when } \mathcal{C}_M \text { is unavailable. }\\ &\begin{array}{llc} \hline c & Q & R_X \times\left(1+2 F_{S T}\right) \\ \hline \mathrm{AA} & \mathrm{AA} & 3 F_{S T}+\left(1-F_{S T}\right) p_A \\ \mathrm{AA} & \mathrm{AB} & 2\left(2 F_{S T}+\left(1-F_{S T}\right) p_A\right) \\ \mathrm{AB} & \mathrm{AA} & 2\left(2 F_{S T}+\left(1-F_{S T}\right) p_A\right) \\ \mathrm{AB} & \mathrm{AC} & 4\left(F_{S T}+\left(1-F_{S T}\right) p_A\right) \\ \mathrm{AB} & \mathrm{AB} & 4\left(F_{S T}+\left(1-F_{S T}\right) p_A\right)\left(F_{S T}+\left(1-F_{S T}\right) p_B\right) /\left(2 F_{S T}+\left(1-F_{S T}\right)\left(p_A+p_B\right)\right) \\ \hline \end{array} \end{aligned}$$

For our purposes we will take out the $F_{S T}$ values. So the table will be as follows:

$$\begin{aligned} &\begin{array}{llc} \hline c & Q & R_X \\ \hline \mathrm{AA} & \mathrm{AA} & p_A \\ \mathrm{AA} & \mathrm{AB} & 2 p_A \\ \mathrm{AB} & \mathrm{AA} & 2p_A \\ \mathrm{AB} & \mathrm{AC} & 4p_A \\ \mathrm{AB} & \mathrm{AB} & 4 p_A p_B/(p_A+p_B) \\ \hline \end{array} \end{aligned}$$

If none of the alleles match, then the $\kappa_1 / R_X^p = 0$.

The $R_X^u$ terms attached to the $kappa_2$ are defined as:

If both alleles match and are homozygous the equation is 6.4 (pg 85). Single locus match probability: $\mathrm{CSP}=\mathcal{G}_Q=\mathrm{AA}$ $$\frac{\left(2 F_{S T}+\left(1-F_{S T}\right) p_A\right)\left(3 F_{S T}+\left(1-F_{S T}\right) p_A\right)}{\left(1+F_{S T}\right)\left(1+2 F_{S T}\right)}$$ Simplified to: $$p_A{ }^2$$

If both alleles match and are heterozygous, the equation is 6.5 (pg 85) Single locus match probability: $\mathrm{CSP}=\mathcal{G}_Q=\mathrm{AB}$ $$2 \frac{\left(F_{S T}+\left(1-F_{S T}\right) p_A\right)\left(F_{S T}+\left(1-F_{S T}\right) p_B\right)}{\left(1+F_{S T}\right)\left(1+2 F_{S T}\right)}$$ Simplified to:

$$2 p_A p_B$$ If both alleles do not match then $\kappa_2 / R_X^u = 0$.

LR function

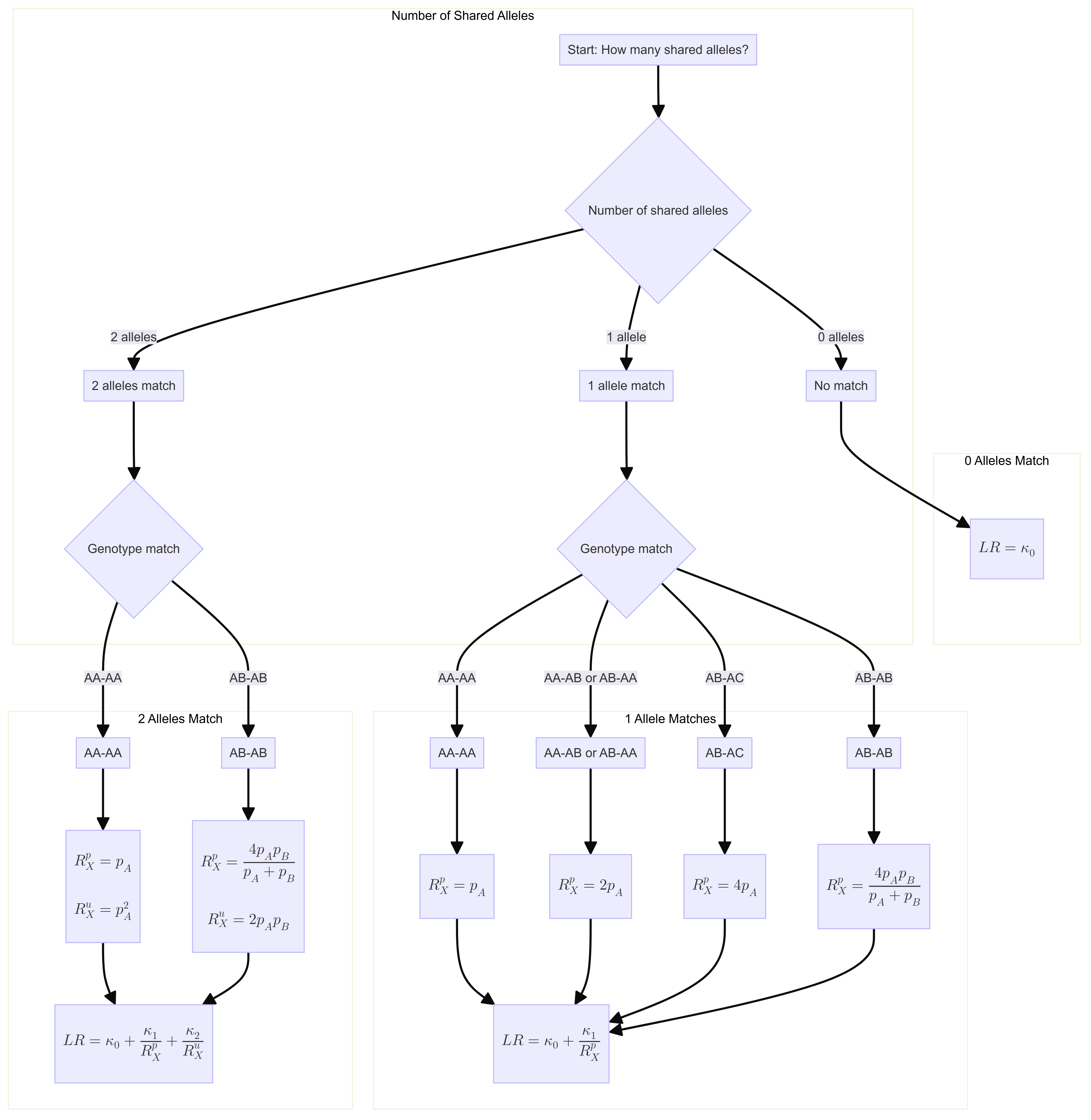

Flowchart

Input for LR function

Rscript for simulation

1. Initialization: Load required R packages and set the working directory.

2. Parameter Configuration: Input parameters for the number of simulations for unrelated and related pairs are specified, allowing adjustable sample sizes.

3. Data Preparation: Aggregate CODIS allele frequency data from CSV files representing different populations into a single dataset.

4. IBD Probability Definitions: Construct a table detailing the probabilities of sharing zero, one, or two alleles identical by descent (IBD) for various relationship types.

5. Allele Frequency Calculation: Calculate allele frequencies within the population for each simulated pair to determine the likelihood of observing specific allele combinations.

6. Likelihood Ratio Computation: Calculate likelihood ratios for each pair using allele frequencies and IBD probabilities, focusing on $R_{Xp}$ and $R_{Xu}$ values.

7. Simulation of Individual Pairs: Generate alleles for individuals based on population-specific allele frequencies to simulate STR pairs.

8. Shared Allele Analysis: Evaluate the number of alleles shared between pairs, categorizing them by their genetic relationship.

9. Aggregate Analysis and Visualization: Summarize the results and generate visual representations, such as box plots and heatmaps, to illustrate the relationship between known and tested relationships across populations.

10. Result Exportation: Export aggregated results as CSV files for further analysis.

Due to the computational cost of simulating large numbers of STR pairs, the script has been run separately and we visualize the results below.

Simulation results

Rows: 360000 Columns: 6
── Column specification ────────────────────────────────────────────────────────
Delimiter: ","
chr (3): population, known_relationship_type, tested_relationship_type
dbl (3): replicate_id, num_shared_alleles_sum, log_R_sum

ℹ Use `spec()` to retrieve the full column specification for this data.
ℹ Specify the column types or set `show_col_types = FALSE` to quiet this message.

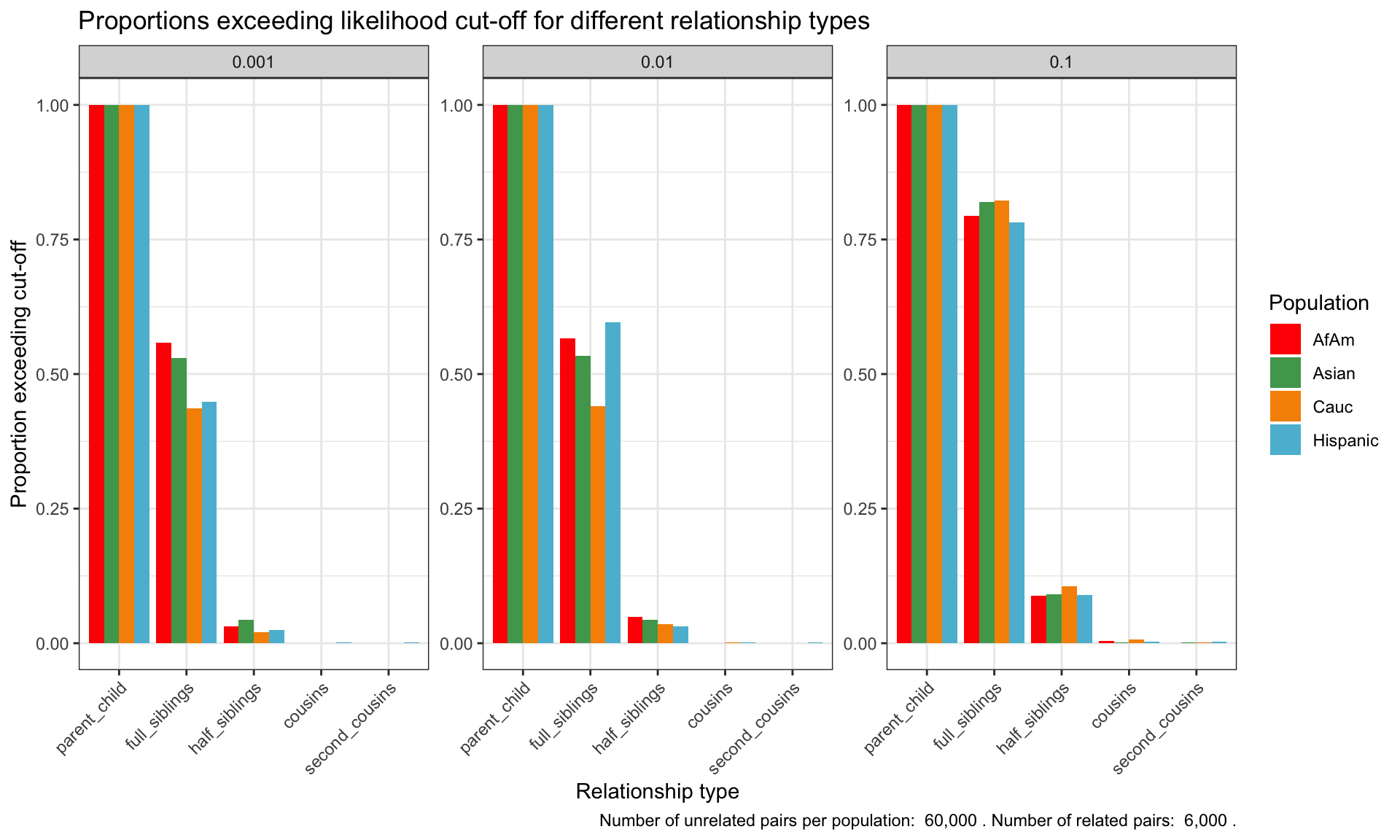

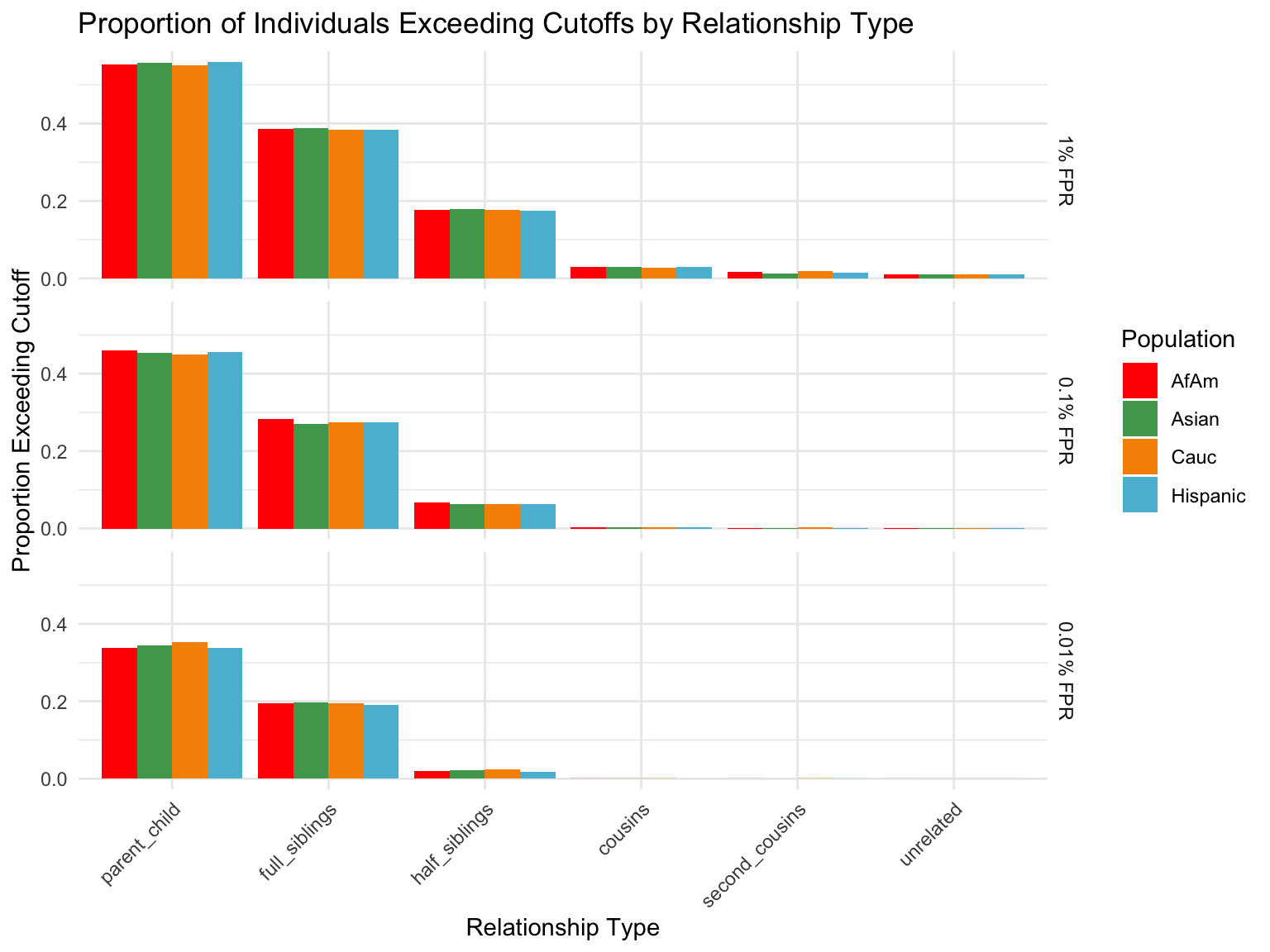

Proportion of individuals of known relationship type exceeding likelihood cut-off

  population relationship_type fp_rate prop_exceeding
1       AfAm      parent_child     0.1          1.000
2      Asian      parent_child     0.1          1.000
3       Cauc      parent_child     0.1          1.000
4   Hispanic      parent_child     0.1          1.000
5       AfAm     full_siblings     0.1          0.794
6      Asian     full_siblings     0.1          0.820

`summarise()` has grouped output by 'population'. You can override using the
`.groups` argument.

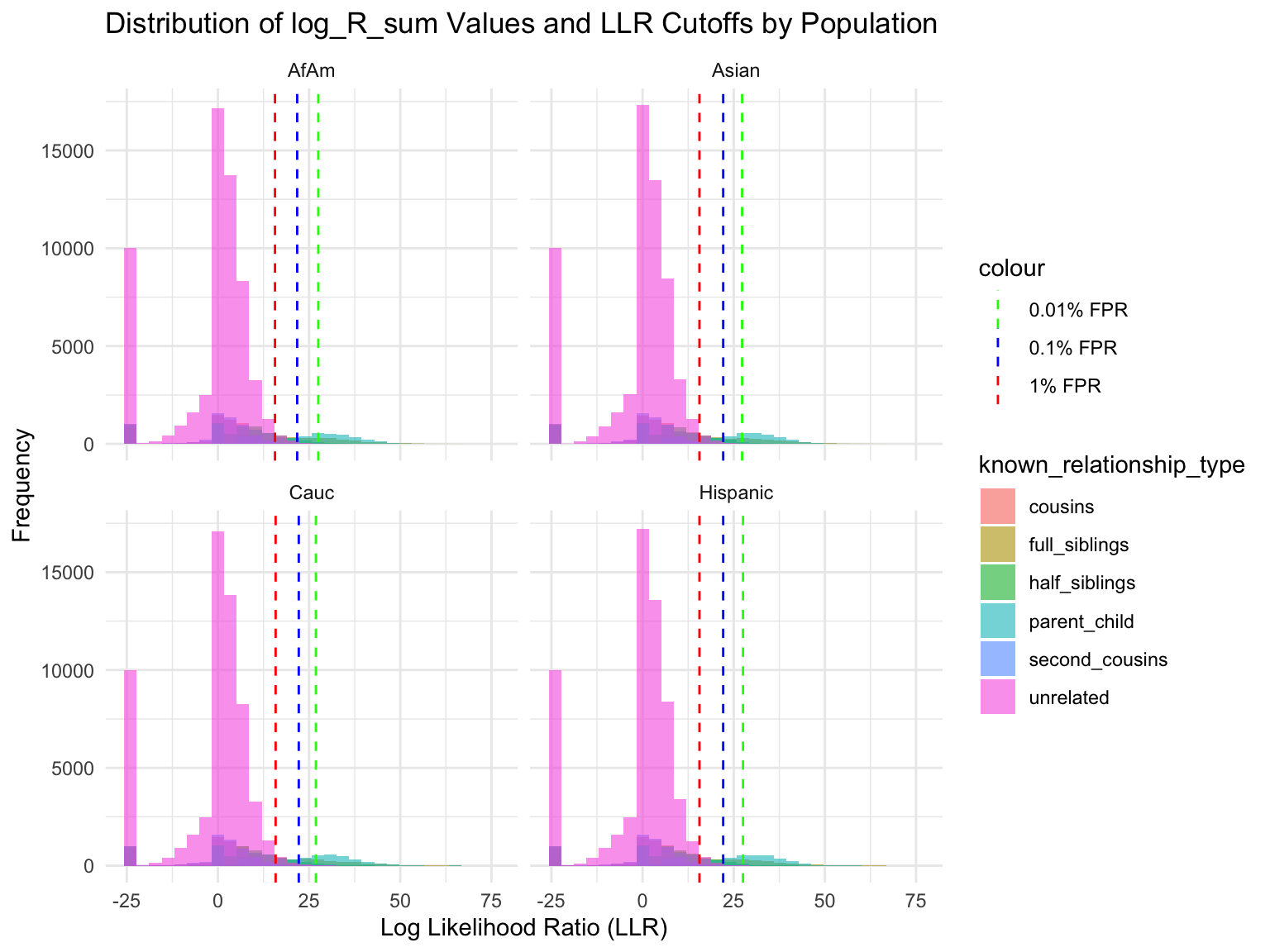

Cut-offs for each FPR

`summarise()` has grouped output by 'population'. You can override using the
`.groups` argument.

# A tibble: 24 × 7
   population known_relationship_type mean_log_R_sum median_log_R_sum
   <chr>      <chr>                            <dbl>            <dbl>
 1 AfAm       cousins                         -0.533            2.42
 2 AfAm       full_siblings                   10.5             11.5
 3 AfAm       half_siblings                    3.85             6.80
 4 AfAm       parent_child                    19.6             19.0
 5 AfAm       second_cousins                  -1.23             1.78
 6 AfAm       unrelated                       -2.00             0.914
 7 Asian      cousins                         -0.538            2.42
 8 Asian      full_siblings                   10.5             11.6
 9 Asian      half_siblings                    3.82             6.78
10 Asian      parent_child                    19.5             18.9
# ℹ 14 more rows
# ℹ 3 more variables: min_log_R_sum <dbl>, max_log_R_sum <dbl>, count <int>
