Load packages, the meta-analysis data, and a helper function.
library(tidyverse)
library(metafor)
library(DT)
library(ggh4x)
library(kableExtra)
# function to make the searchable, exportable HTML table
my_data_table <- function(df){
num_cols <- names(df)[sapply(df, is.numeric)]
num_cols <- num_cols[num_cols != "Generations"]
datatable(
df, rownames = FALSE,
autoHideNavigation = TRUE,
extensions = c("Scroller", "Buttons"),
options = list(
autoWidth = TRUE,
dom = 'Bfrtip',
deferRender = TRUE,
scrollX = TRUE,
scrollY = 1000,
scrollCollapse = TRUE,
buttons = list(
'pageLength', 'colvis', 'csv',
list(
extend = 'pdf',
pageSize = 'A4',
orientation = 'landscape',
filename = 'Trait_data'
)
),
pageLength = 100
)
) %>%
formatRound(
columns = num_cols,
digits = 3
)
}
# Load up the meta-analysis data:
meta_analysis_data <- list.files("effect_sizes/", full.names = T) %>%
lapply(read_csv, show_col_types = FALSE) %>%
bind_rows() %>%
left_join(read_csv("input_data/study_metadata.csv"), by = join_by(Study)) %>%
mutate(year = str_extract(Short_name, "[:digit:]+")) %>%
arrange(year) %>%
mutate(Sex = "Both",
Sex = replace(Sex, str_detect(Trait, "Male"), "Male"),
Sex = replace(Sex, str_detect(Trait, "Female"), "Female"))Data collected for the meta-analysis
This table is searchable and can be exported as a file. You can also hide columns to help read it. There are 56 effect sizes from 11 independent experimental evolution projects, which were published across 16 journal articles.
meta_analysis_data %>%
select(-year, -Short_name) %>%
my_data_table()Meta-analysis without moderators
This meta-analysis can be used to calculate the grand mean effect
size. It’s a mixed effects meta-analysis with the random effects
structure ~ 1 | Origin_of_lines/Study. This means we fit a
random intercept for Origin_of_lines, a variable which
gives the name of the study that first created the experimental
evolution lines being measured. We also fit a random intercept for
Study nested within Origin_of_lines, where
Study is a variable giving the name of the study doing the
measuring (which is often the same study, but not always, since some
studies re-measured lines that were created in an earlier study).
meta_analysis <- rma.mv(
yi = Estimate,
V = Var,
random = ~ 1 | Origin_of_lines/Study,
data = meta_analysis_data,
method = "REML"
)
summary(meta_analysis)
Multivariate Meta-Analysis Model (k = 56; method: REML)
logLik Deviance AIC BIC AICc
-479.4613 958.9226 964.9226 970.9446 965.3931
Variance Components:
estim sqrt nlvls fixed factor
sigma^2.1 0.0192 0.1387 11 no Origin_of_lines
sigma^2.2 0.1198 0.3462 16 no Origin_of_lines/Study
Test for Heterogeneity:
Q(df = 55) = 1273.7759, p-val < .0001
Model Results:
estimate se zval pval ci.lb ci.ub
0.2588 0.1009 2.5653 0.0103 0.0611 0.4565 *
---
Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1The above results table shows that the grand mean effect size is 0.259, with a standard error of 0.101 and 95% CIs of 0.061 to 0.457.
Testing for effects of moderators
Here, I use AICc model selection to compare 7 competing meta-analysis
models, which fit Generations, Sex,
Experiment_type, a combination of 2 or all of these, or the
intercept-only null model. Generations gives the number of
generations of selection at the time the focal trait was measured,
Sex gives the sex of the individuals expressing the trait
(male, female, or both sexes), and Experiment_type is
either “Sex-specific inheritance” or “Sex-specific relaxation of
selection”.
The top model includes the moderator Generations, and it
is ahead of second-best model (which also includes Sex) by
much more than 2 AICc, suggesting that Generations explains
substantial variation in the data but the other moderators do not.
fit_ma <- function(formula){
scaled_meta_analysis_data <-
meta_analysis_data %>%
mutate(Generations = as.numeric(scale(Generations)))
if(formula == "Intercept only"){
return(meta_analysis)
}
rma.mv(
yi = Estimate,
V = Var,
mods = as.formula(formula),
random = ~ 1 | Origin_of_lines/Short_name,
data = scaled_meta_analysis_data,
method = "REML"
)
}
fit_all <- function(formulae){
meta <- lapply(formulae, fit_ma)
get_p <- function(ma) as.numeric(ma$p)
get_logLik <- function(ma) as.numeric(logLik(ma))
get_AICc <- function(ma) as.numeric(AIC(ma, correct = T))
data.frame(
Model = formulae,
k = sapply(meta, get_p),
logLik = sapply(meta, get_logLik),
AICc = sapply(meta, get_AICc)) %>%
arrange(AICc) %>%
mutate(Model = str_remove_all(Model, "~ "),
delta_AICc = round(AICc - AICc[1], 2),
delta_AICc = c(" ", delta_AICc[2:length(delta_AICc)]))
}
fit_all(c("~ Generations + Sex + Experiment_type1",
"~ Generations + Sex",
"~ Sex + Experiment_type1",
"~ Generations",
"~ Sex",
"~ Experiment_type1",
"Intercept only")) %>%
kable() %>%
kable_styling(full_width = FALSE)| Model | k | logLik | AICc | delta_AICc |
|---|---|---|---|---|
| Generations | 2 | -473.1500 | 955.1162 | |
| Generations + Sex | 4 | -474.7394 | 963.3454 | 8.23 |
| Intercept only | 1 | -479.4613 | 965.3931 | 10.28 |
| Generations + Sex + Experiment_type1 | 5 | -474.4188 | 965.4423 | 10.33 |
| Experiment_type1 | 2 | -478.7294 | 966.2752 | 11.16 |
| Sex | 3 | -481.8756 | 975.0279 | 19.91 |
| Sex + Experiment_type1 | 4 | -481.1773 | 976.2212 | 21.1 |

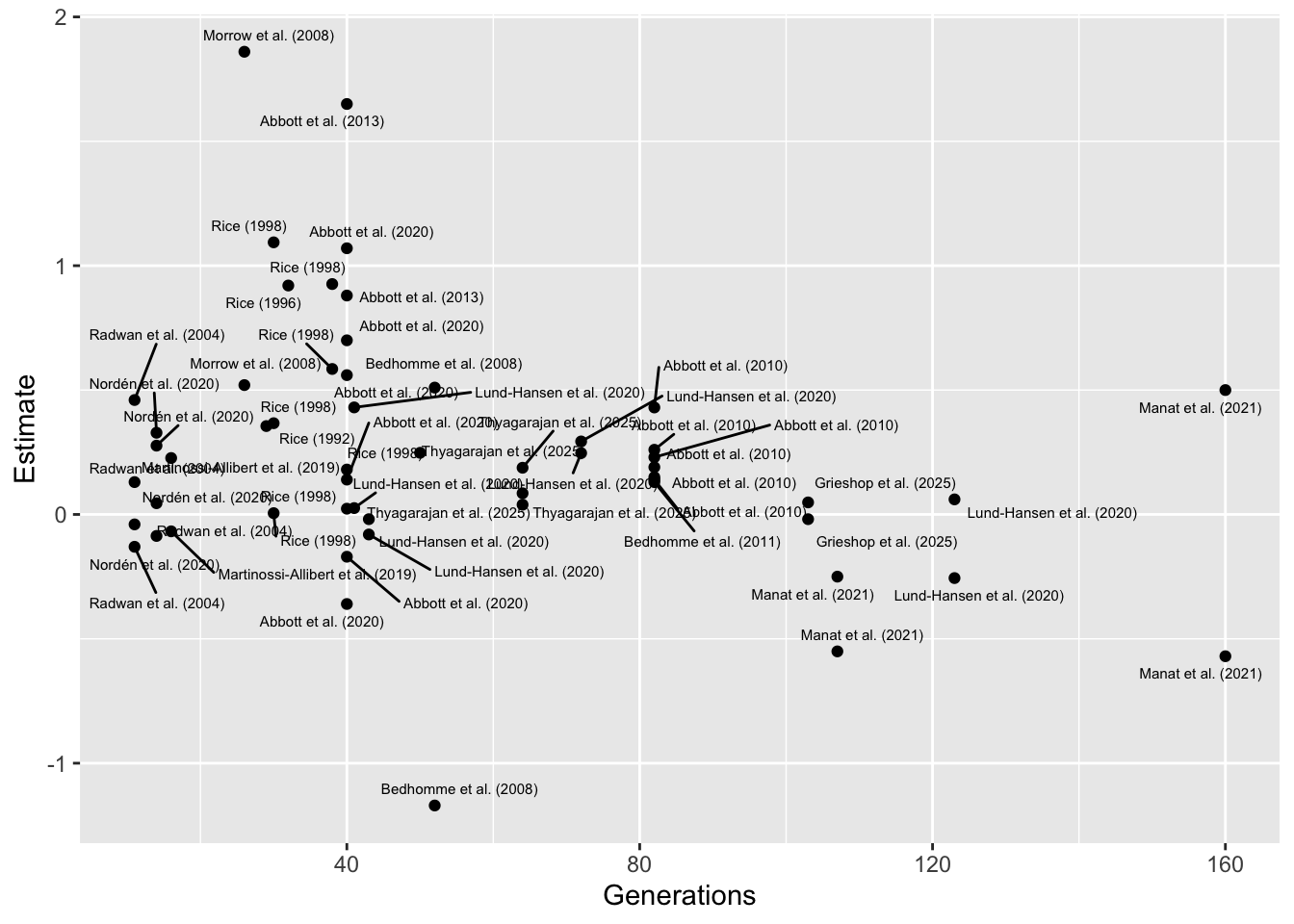

Below are the results of the top model containing moderators, showing
the significant negative effect of the moderator
Generations on effect size (note: Generations
was scaled to have mean 0, SD 1, prior to analysis). This is a
counter-intuitive result since we might expect greater effects after
more generations of selection, but it is not very informative since
Generations is confounded with other factors (e.g. species,
type of experimental design, type of trait being measured, and whether I
used the raw data or summary statistics to calculate effect size). The
grand mean effect size (predicted here for the average value of
Generations, which is 54.1) is much the same after
adjusting for the effect of Generations.
fit_ma("~ Generations")
Multivariate Meta-Analysis Model (k = 56; method: REML)
Variance Components:
estim sqrt nlvls fixed factor
sigma^2.1 0.0000 0.0001 11 no Origin_of_lines
sigma^2.2 0.1183 0.3440 16 no Origin_of_lines/Short_name
Test for Residual Heterogeneity:
QE(df = 54) = 1251.2231, p-val < .0001
Test of Moderators (coefficient 2):
QM(df = 1) = 14.0152, p-val = 0.0002
Model Results:
estimate se zval pval ci.lb ci.ub
intrcpt 0.2512 0.0900 2.7925 0.0052 0.0749 0.4275 **
Generations -0.1151 0.0307 -3.7437 0.0002 -0.1754 -0.0548 ***
---

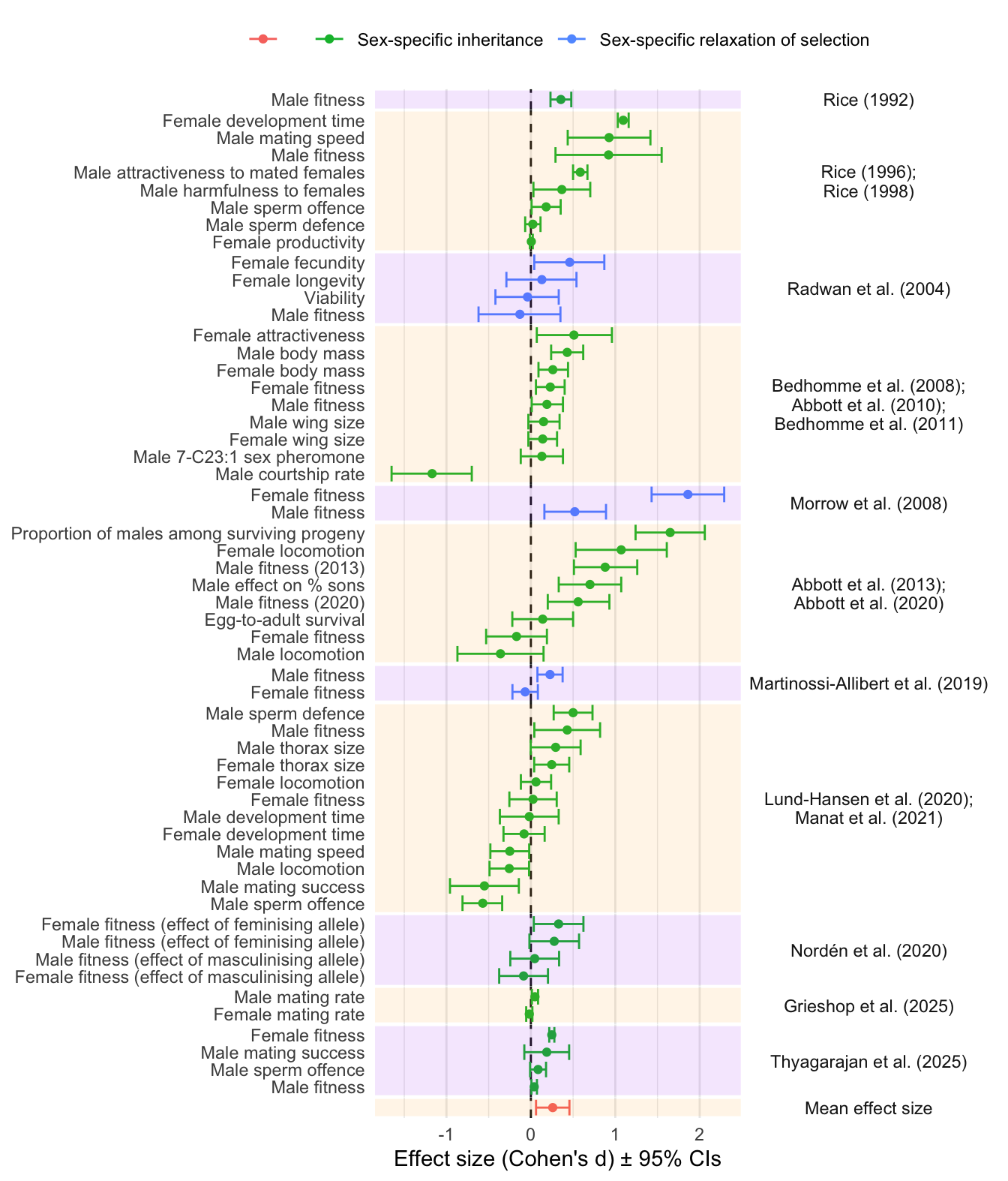

Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1Forest plot of effect sizes (Figure 1)
plot_data <- meta_analysis_data %>%
select(Origin_of_lines, Short_name,
Experiment_type1, Experiment_type2, Trait, Estimate,
Lower_95_CI,
Upper_95_CI)
plot_data$Trait[plot_data$Trait == "Male fitness" & plot_data$Short_name == "Abbott et al. (2013)"] <- "Male fitness (2013)"
plot_data$Trait[plot_data$Trait == "Male fitness" & plot_data$Short_name == "Abbott et al. (2020)"] <- "Male fitness (2020)"
plot_data <- plot_data %>%
group_by(Origin_of_lines) %>%
mutate(Short_name = paste0(unique(Short_name), collapse = ";\n")) %>%
bind_rows(tibble(
Origin_of_lines = " ", Short_name = "Mean effect size",
Experiment_type1 = " ", Trait = " ",
Estimate = as.numeric(meta_analysis$b),
Lower_95_CI = as.numeric(meta_analysis$ci.lb),
Upper_95_CI = as.numeric(meta_analysis$ci.ub)
))
levs <- plot_data$Short_name %>% unique()
plot_data <- plot_data %>%
mutate(Short_name = factor(Short_name, levs))
bands <- plot_data %>%
mutate(y = 1:n()) %>%
group_by(Short_name) %>%
summarise(
ymin = min(y) -0.5,
ymax = max(y) + 0.5,
.groups = "drop") %>%
dplyr::mutate(
stripe = row_number() %% 2
)
# order the traits within studies by effect size
plot_data <- plot_data %>%
mutate(Short_name = factor(Short_name, levs)) %>%
arrange(Estimate) %>%
mutate(Trait_study = factor(paste(Trait, Short_name, sep = "~"),
unique(paste(Trait, Short_name, sep = "~"))))
plot_data %>%
ggplot(aes(y = Trait_study, x = Estimate, colour = Experiment_type1)) +
geom_vline(xintercept = 0, linetype = 2, colour = "grey10") +
geom_errorbar(aes(xmin = Lower_95_CI,
xmax = Upper_95_CI)) +
geom_point() +
scale_y_discrete(labels = function(x) sub("~.*$", "", x)) +
facet_grid2( rows = vars(Short_name),
scales = "free_y",
space = "free_y") +
theme_minimal()+
theme(legend.position = "top",
panel.grid.major.y = element_blank(),
strip.text.y = element_text(angle = 0),
panel.spacing.y=unit(0, "lines"))+
labs(x = "Effect size (Cohen's d) \u00B1 95% CIs",
y = NULL,
colour = NULL) +
# scale_color_brewer(palette = "Set1") +
geom_rect(
data = bands,
aes(ymin = ymin, ymax = ymax, xmin = -Inf, xmax = Inf, fill = factor(stripe)),
alpha = 0.1,
inherit.aes = FALSE,
fill = rep(c("purple", "orange"), 6)
)
Figure 1: Forest plot showing the estimated effect sizes (Cohen’s d \(\pm\) 95% CIs). The y-axis indicates which trait was measured, and the coloured bands group effect sizes that come from the same set of experimental evolution lines (which are covered in one or more publications, named on the right). Positive effect sizes indicate evolutionary change in the direction predicted under IaSC, while negative effects indicate evolution in the opposite direction. Point colour differentiates between studies that manipulated inheritance vs selection. The grand mean effect size, shown at the bottom, is significantly positive.
Plotting effect of moderator Generations
On the right of x-axis (high generation number), this result is driven by a couple of studies, Lund-Hansen et al. (2020) and Manat et al. (2021), which both relate to the same set of experimental evolution lines, and which both focus on female-limited evolution of X chromosomes (uniquely in the full dataset). I also calculated the effect sizes from the raw data for these studies, avoiding issues with falsely inflating them. to the left of the x-axis (short generation number), the trend is driven by a couple of older studies I calculated the effect sizes from summary statistics, possibly inflating them.
Therefore, I don’t feel there is good evidence for a true negative
effect of Generations, and this result instead reflects
confounding.
library(ggrepel)
meta_analysis_data %>%
ggplot(aes(Generations, Estimate)) +
geom_point() +
geom_text_repel(aes(label = Short_name), size = 2, max.overlaps = 1000)
sessionInfo()R version 4.5.2 (2025-10-31)
Platform: aarch64-apple-darwin20
Running under: macOS Tahoe 26.2
Matrix products: default
BLAS: /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vecLib.framework/Versions/A/libBLAS.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/4.5-arm64/Resources/lib/libRlapack.dylib; LAPACK version 3.12.1
locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8
time zone: Europe/London
tzcode source: internal
attached base packages:
[1] stats graphics grDevices utils datasets methods base
other attached packages:
[1] ggrepel_0.9.6 kableExtra_1.4.0 ggh4x_0.3.1
[4] DT_0.34.0 metafor_4.8-0 numDeriv_2016.8-1.1
[7] metadat_1.4-0 Matrix_1.7-4 lubridate_1.9.4
[10] forcats_1.0.1 stringr_1.6.0 dplyr_1.2.0
[13] purrr_1.2.1 readr_2.1.6 tidyr_1.3.2
[16] tibble_3.3.1 ggplot2_4.0.2 tidyverse_2.0.0
[19] workflowr_1.7.2
loaded via a namespace (and not attached):
[1] gtable_0.3.6 xfun_0.56 bslib_0.10.0 htmlwidgets_1.6.4
[5] processx_3.8.6 lattice_0.22-7 callr_3.7.6 mathjaxr_2.0-0
[9] tzdb_0.5.0 crosstalk_1.2.2 vctrs_0.7.1 tools_4.5.2
[13] ps_1.9.1 generics_0.1.4 parallel_4.5.2 pkgconfig_2.0.3
[17] RColorBrewer_1.1-3 S7_0.2.1 lifecycle_1.0.5 compiler_4.5.2
[21] farver_2.1.2 git2r_0.36.2 textshaping_1.0.4 getPass_0.2-4
[25] httpuv_1.6.16 htmltools_0.5.9 sass_0.4.10 yaml_2.3.12
[29] crayon_1.5.3 later_1.4.5 pillar_1.11.1 jquerylib_0.1.4
[33] whisker_0.4.1 cachem_1.1.0 nlme_3.1-168 tidyselect_1.2.1
[37] digest_0.6.39 stringi_1.8.7 labeling_0.4.3 rprojroot_2.1.1
[41] fastmap_1.2.0 grid_4.5.2 cli_3.6.5 magrittr_2.0.4
[45] withr_3.0.2 scales_1.4.0 promises_1.5.0 bit64_4.6.0-1
[49] timechange_0.4.0 rmarkdown_2.30 httr_1.4.7 bit_4.6.0
[53] otel_0.2.0 hms_1.1.4 evaluate_1.0.5 knitr_1.51
[57] viridisLite_0.4.2 rlang_1.1.7 Rcpp_1.1.1 glue_1.8.0
[61] xml2_1.5.2 vroom_1.7.0 svglite_2.2.2 rstudioapi_0.18.0
[65] jsonlite_2.0.0 R6_2.6.1 systemfonts_1.3.1 fs_1.6.6
