lims <- c(1.1*min(apply(predicted_line_means[,2:5], 2, min)),
          1.1*max(apply(predicted_line_means[,2:5], 2, max)))

fix.title <- function(x){
  x[x == "female.fitness.early" | x == "femalefitnessearly"] <- "Female early-life fitness"
  x[x == "male.fitness.early" | x == "malefitnessearly"] <- "Male early-life fitness"
  x[x == "female.fitness.late" | x == "femalefitnesslate"] <- "Female late-life fitness"
  x[x == "male.fitness.late" | x == "malefitnesslate"] <- "Male late-life fitness"
  x
}

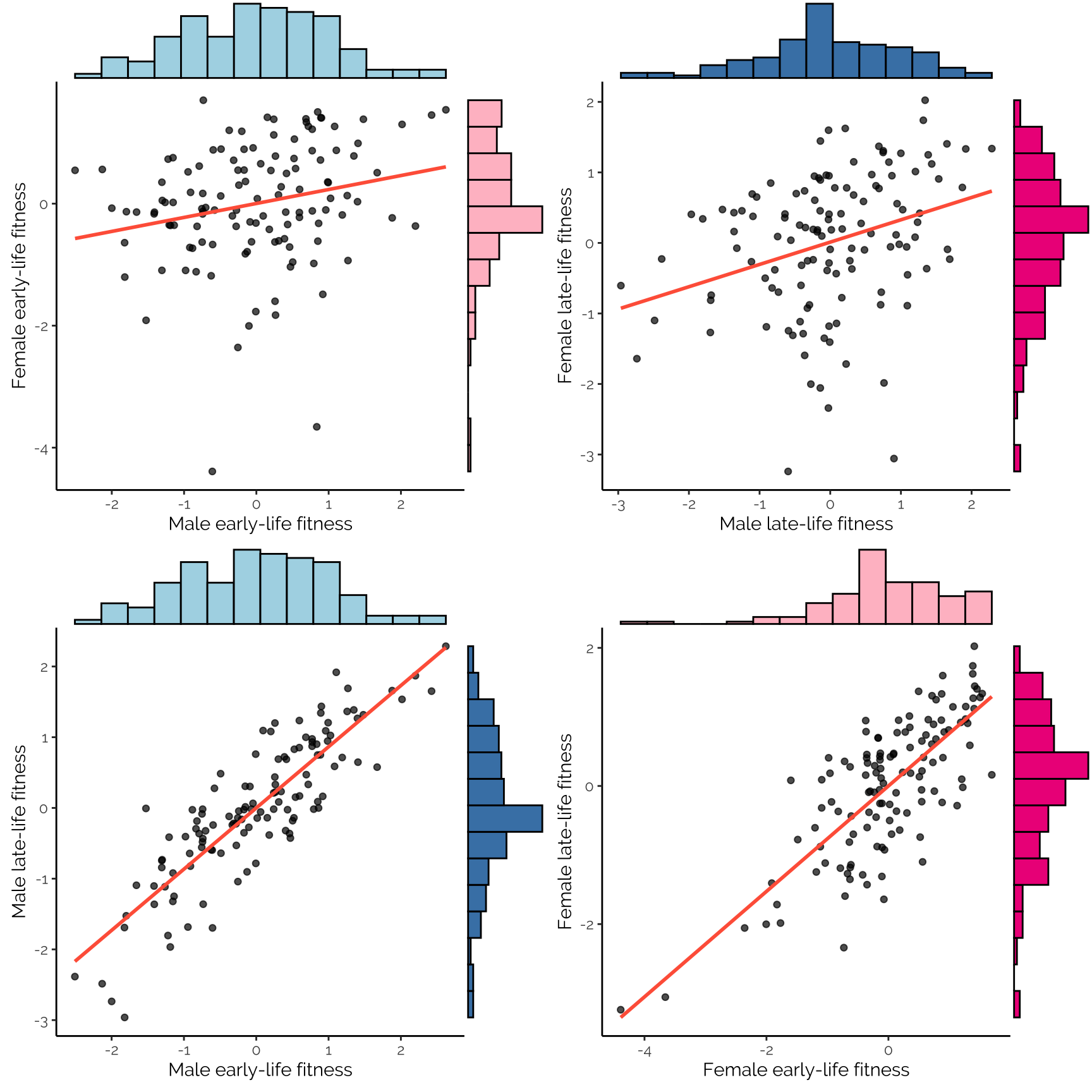

make_figure_1 <- function(){

  nice.plot <- function(df, v1, v2){

    formula <- as.formula(paste(v2, "~", v1))
    model <- summary(lm(formula, data = df))
    r2 <- format(model$r.squared %>% round(2), nsmall = 2)
    slope <- format(model$coefficients[2,1] %>% round(2), nsmall = 2)
    se <- format(model$coefficients[2,2] %>% round(2), nsmall = 2)
    # print(model$coefficients[2,4]) # print p-value of the correlation
    text1 <- paste("R^2 == ", r2, sep = "")
    text2 <- paste("β = ", slope, " \u00B1 ", se, sep = "")

    pp <- df %>%
      ggplot(aes_string(x = v1, y = v2)) +
      annotate("text", x=min(lims) + 0.1, y=max(lims), label = text1, parse = TRUE, hjust= 0) +
      annotate("text", x=min(lims) + 0.1, y=max(lims)-0.4, label = text2, hjust= 0) +
      geom_point(alpha = 0.7) +
      stat_smooth(method = "lm", level = 0, colour = "tomato") +
      xlab(fix.title(v1)) + ylab(fix.title(v2)) +
      theme_classic() +
      theme(text = element_text(family = "Raleway")) +
      scale_x_continuous(limits = lims) +
      scale_y_continuous(limits = lims)

    if(v1 == "male.fitness.early" & v2 == "female.fitness.early") cols <- c("lightblue", "pink")
    if(v1 == "male.fitness.late" & v2 == "female.fitness.late")  cols <- c("steelblue", "deeppink2")
    if(v1 == "male.fitness.early" & v2 == "male.fitness.late") cols <- c("lightblue", "steelblue")
    if(v1 == "female.fitness.early" & v2 == "female.fitness.late") cols <- c("pink", "deeppink2")

    ggExtra::ggMarginal(pp, type = "histogram", bins = 15, xparams = list(fill = cols[1]), yparams = list(fill = cols[2]))
  }

  p1 <- nice.plot(predicted_line_means, "male.fitness.early", "female.fitness.early")
  p2 <- nice.plot(predicted_line_means, "male.fitness.late", "female.fitness.late")
  p3 <- nice.plot(predicted_line_means, "male.fitness.early", "male.fitness.late")
  p4 <- nice.plot(predicted_line_means, "female.fitness.early", "female.fitness.late")
  full_plot <- grid.arrange(p1, p2, p3, p4)

  cairo_ps("figures/figure1.eps", height = 9, width = 9)
  full_plot
  invisible(dev.off())
}
make_figure_1()

make_figure_2 <- function(){
  out.file <- "figures/figure2.eps"

  interaction.plot <- function(predicted_line_means, x1, x2, title, sex.or.age){
    if(sex.or.age == "sex"){
      x.labs <-  c("Female", "Male")
      cols <- c("red", "darkgrey", "blue")
    } else {
      x.labs <- c("Young", "Old")
      cols <- c("green", "darkgrey", "purple")
    }

    df <- predicted_line_means %>% select_(x1, x2)
    df$rank.x1 <- rank(df[,1]) / max(abs(rank(df[,1])))
    df$rank.x2 <- rank(df[,2]) / max(abs(rank(df[,2])))
    df %>% mutate(slope = rank.x1 - rank.x2,
                  line = 1:length(rank.x1)) %>%
      gather(key = sex_or_age, value = fitness, rank.x1, rank.x2) %>%
      mutate(fitness = fitness / max(fitness),
             title = title) %>%
      ggplot(aes(x = sex_or_age, y = fitness, group = line, colour = slope)) +
      geom_line(size=0.8, alpha=.7) +
      scale_color_gradient2(low = cols[1], mid = cols[2], high = cols[3]) +
      scale_x_discrete(expand = c(0.1,0.1), labels = x.labs) +
      theme_classic(15) +
      theme(strip.background = element_blank(),
            strip.text = element_text(hjust =0.1, face = "bold")) +
      xlab(NULL) + ylab(NULL) +
      facet_wrap(~title) +
      theme(legend.position = "none")
  }

  cairo_ps("figures/figure2.eps", height = 9, width = 9)
  grid.arrange(
    interaction.plot(predicted_line_means, "female.fitness.early", "male.fitness.early", "Early-life fitness", "sex"),
    interaction.plot(predicted_line_means, "female.fitness.late", "male.fitness.late", "Late-life fitness", "sex"),
    interaction.plot(predicted_line_means, "female.fitness.early", "female.fitness.late", "Females", "age"),
    interaction.plot(predicted_line_means, "male.fitness.early", "male.fitness.late", "Males", "age"),
    ncol = 2, left = "Fitness rank among the 115 lines (0 is worst, 1 is best)", bottom = "Sex or age category"
  )
  invisible(dev.off())
}
make_figure_2()
