Merge samples

workflowr

• Summary
• Checks
• Past versions

Last updated: 2022-07-27

Checks: 7 0

Knit directory: humanCardiacFibroblasts/

This reproducible R Markdown analysis was created with workflowr (version 1.7.0). The Checks tab describes the reproducibility checks that were applied when the results were created. The Past versions tab lists the development history.

---

R Markdown file: up-to-date

Great! Since the R Markdown file has been committed to the Git repository, you know the exact version of the code that produced these results.

Environment: empty

Great job! The global environment was empty. Objects defined in the global environment can affect the analysis in your R Markdown file in unknown ways. For reproduciblity it’s best to always run the code in an empty environment.

Seed: set.seed(20210903)

The command set.seed(20210903) was run prior to running the code in the R Markdown file. Setting a seed ensures that any results that rely on randomness, e.g. subsampling or permutations, are reproducible.

Session information: recorded

Great job! Recording the operating system, R version, and package versions is critical for reproducibility.

Cache: none

Nice! There were no cached chunks for this analysis, so you can be confident that you successfully produced the results during this run.

File paths: relative

Great job! Using relative paths to the files within your workflowr project makes it easier to run your code on other machines.

Repository version: d46e9ee

Great! You are using Git for version control. Tracking code development and connecting the code version to the results is critical for reproducibility.

The results in this page were generated with repository version d46e9ee. See the Past versions tab to see a history of the changes made to the R Markdown and HTML files.

Note that you need to be careful to ensure that all relevant files for the analysis have been committed to Git prior to generating the results (you can use wflow_publish or wflow_git_commit). workflowr only checks the R Markdown file, but you know if there are other scripts or data files that it depends on. Below is the status of the Git repository when the results were generated:

Ignored files:
    Ignored:    .DS_Store
    Ignored:    .Rhistory
    Ignored:    .Rproj.user/
    Ignored:    data/GSEA/
    Ignored:    data/humanFibroblast/
    Ignored:    figure/DEgenesGZplusSG_Groups.Rmd/.DS_Store

Note that any generated files, e.g. HTML, png, CSS, etc., are not included in this status report because it is ok for generated content to have uncommitted changes.

---

These are the previous versions of the repository in which changes were made to the R Markdown (analysis/DEgenesGZplusSG_Groups.Rmd) and HTML (docs/DEgenesGZplusSG_Groups.html) files. If you’ve configured a remote Git repository (see ?wflow_git_remote), click on the hyperlinks in the table below to view the files as they were in that past version.

File	Version	Author	Date	Message
Rmd	c67d130	mluetge	2022-07-26	update gsea plots
html	c67d130	mluetge	2022-07-26	update gsea plots
Rmd	c5d06fc	mluetge	2022-07-22	vis sel DE genes groups
Rmd	02765dc	mluetge	2022-07-19	GSEA across diff groups
html	02765dc	mluetge	2022-07-19	GSEA across diff groups

---

load packages

suppressPackageStartupMessages({
  library(SingleCellExperiment)
  library(tidyverse)
  library(Seurat)
  library(magrittr)
  library(dplyr)
  library(purrr)
  library(ggplot2)
  library(here)
  library(runSeurat3)
  library(ggsci)
  library(ggpubr)
  library(pheatmap)
  library(viridis)
  library(sctransform)
  library(fgsea)
  library(grid)
  library(gridExtra)
  library(clusterProfiler)
  library(org.Hs.eg.db)
  library(DOSE)
  library(enrichplot)
  library(msigdbr)

})

sign plot funct

## random plotting order
shuf <- function(df){
  return(df[sample(1:dim(df)[1], dim(df)[1]),])
}

## adapted from CellMixS
visGroup_adapt <- function (sce,group,dim_red = "TSNE",col_group=pal_nejm()(8))
{
    if (!is(sce, "SingleCellExperiment")) {
        stop("Error:'sce' must be a 'SingleCellExperiment' object.")
    }
    if (!group %in% names(colData(sce))) {
        stop("Error: 'group' variable must be in 'colData(sce)'")
    }
    cell_names <- colnames(sce)
    if (!dim_red %in% "TSNE") {
        if (!dim_red %in% reducedDimNames(sce)) {
            stop("Please provide a dim_red method listed in reducedDims of sce")
        }
        red_dim <- as.data.frame(reducedDim(sce, dim_red))
    }
    else {
        if (!"TSNE" %in% reducedDimNames(sce)) {
            if ("logcounts" %in% names(assays(sce))) {
                sce <- runTSNE(sce)
            }
            else {
                sce <- runTSNE(sce, exprs_values = "counts")
            }
        }
        red_dim <- as.data.frame(reducedDim(sce, "TSNE"))
    }
    colnames(red_dim) <- c("red_dim1", "red_dim2")
    df <- data.frame(sample_id = cell_names, group_var = colData(sce)[,
        group], red_Dim1 = red_dim$red_dim1, red_Dim2 = red_dim$red_dim2)
    t <- ggplot(shuf(df), aes_string(x = "red_Dim1", y = "red_Dim2")) +
        xlab(paste0(dim_red, "_1")) + ylab(paste0(dim_red, "_2")) +
        theme_void() + theme(aspect.ratio = 1,
                             panel.grid.minor = element_blank(),
        panel.grid.major = element_line(color = "grey", size = 0.3))
    t_group <- t + geom_point(size = 1, alpha = 0.7,
                              aes_string(color = "group_var")) +
        guides(color = guide_legend(override.aes = list(size = 1),
            title = group)) + ggtitle(group)
    if (is.numeric(df$group_var)) {
        t_group <- t_group + scale_color_viridis(option = "D")
    }
    else {
        t_group <- t_group + scale_color_manual(values = col_group)
    }
    t_group
}

integrate data

basedir <- here()
seurat <- readRDS(file = paste0(basedir,
                              "/data/humanHeartsPlusGraz_intPatients_merged",
                              "labeled_seurat.rds"))
myoGrp <- c("GZ1","GZ4","GZ6","SG29","SG32")
myoLTGrp <- c("GZ2","GZ3","GZ5","GZ7","SG31")
CtrlGrp <- c("GZ8","GZ10","GZ11","GZ12")

seurat$cond2 <- "HH"
seurat$cond2[which(seurat$ID %in% myoGrp)] <- "MyocarditisHT"
seurat$cond2[which(seurat$ID %in% myoLTGrp)] <- "MyocarditisLT"

saveRDS(seurat, paste0(basedir, "/data/humanHeartsPlusGraz_intPatients_merged",
                       "labeled_groups_seurat.rds"))

color vectors

colPal <- pal_igv()(length(levels(seurat)))
colTec <- pal_jama()(length(unique(seurat$technique)))
colSmp <- c(pal_uchicago()(8), pal_npg()(8), pal_aaas()(10))[1:length(unique(seurat$dataset))]
colCond <- pal_npg()(length(unique(seurat$cond2)))
colID <- c(pal_jco()(10), pal_npg()(10))[1:length(unique(seurat$ID))]
colOrig <- pal_aaas()(length(unique(seurat$origin)))
colIso <- pal_nejm()(length(unique(seurat$isolation)))
colProc <- pal_aaas()(length(unique(seurat$processing)))
colLab <- pal_futurama()(length(unique(seurat$label)))

names(colPal) <- levels(seurat)
names(colTec) <- unique(seurat$technique)
names(colSmp) <- unique(seurat$dataset)
names(colCond) <- unique(seurat$cond2)
names(colID) <- unique(seurat$ID)
names(colOrig) <- unique(seurat$origin)
names(colIso) <- unique(seurat$isolation)
names(colProc) <- unique(seurat$processing)
names(colLab) <- unique(seurat$label)

vis data

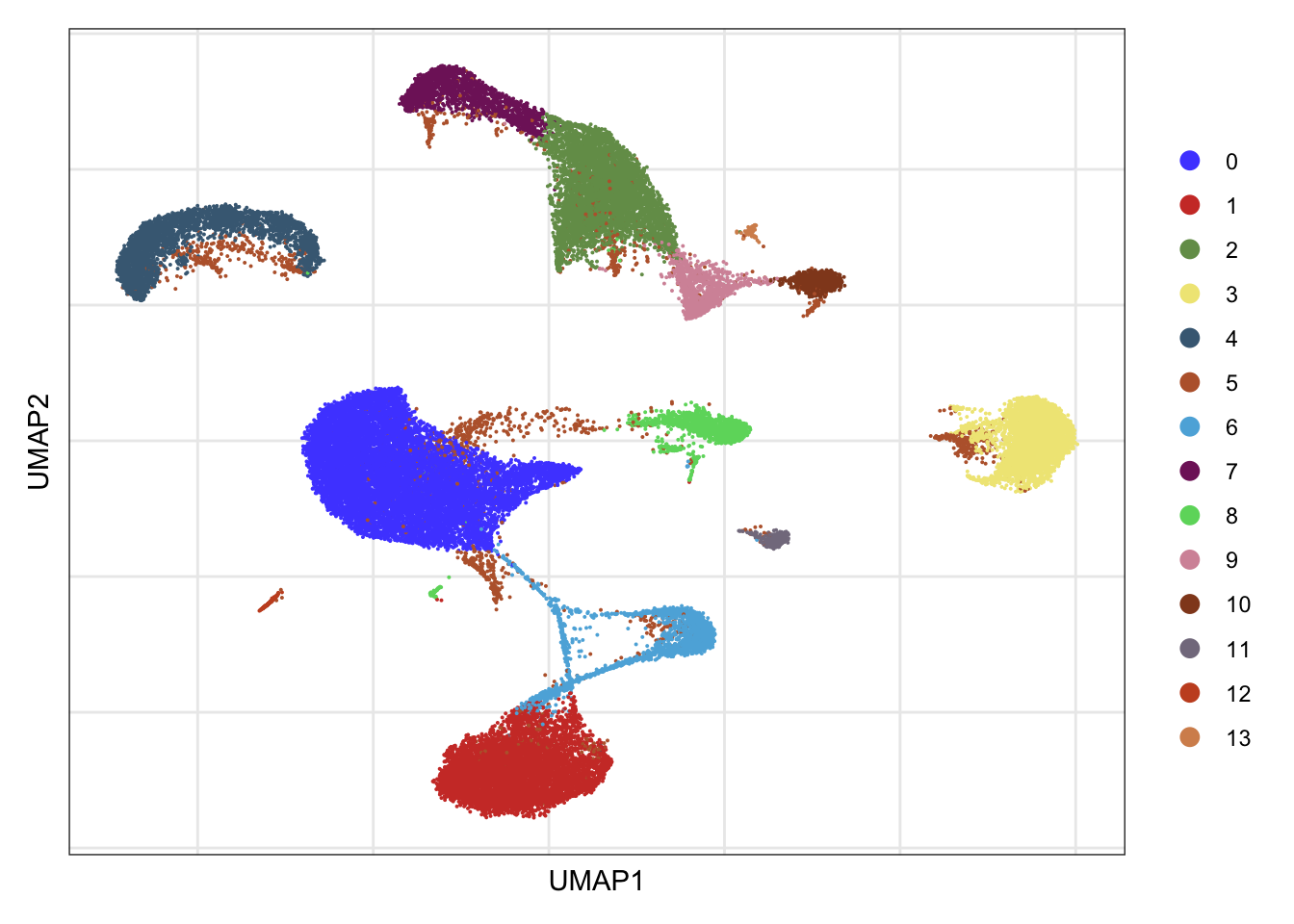

clusters

DimPlot(seurat, reduction = "umap", cols=colPal)+
  theme_bw() +
  theme(axis.text = element_blank(), axis.ticks = element_blank(),
        panel.grid.minor = element_blank()) +
  xlab("UMAP1") +
  ylab("UMAP2")

Past versions of "vis cluster-1.png"

Version	Author	Date
02765dc	mluetge	2022-07-19

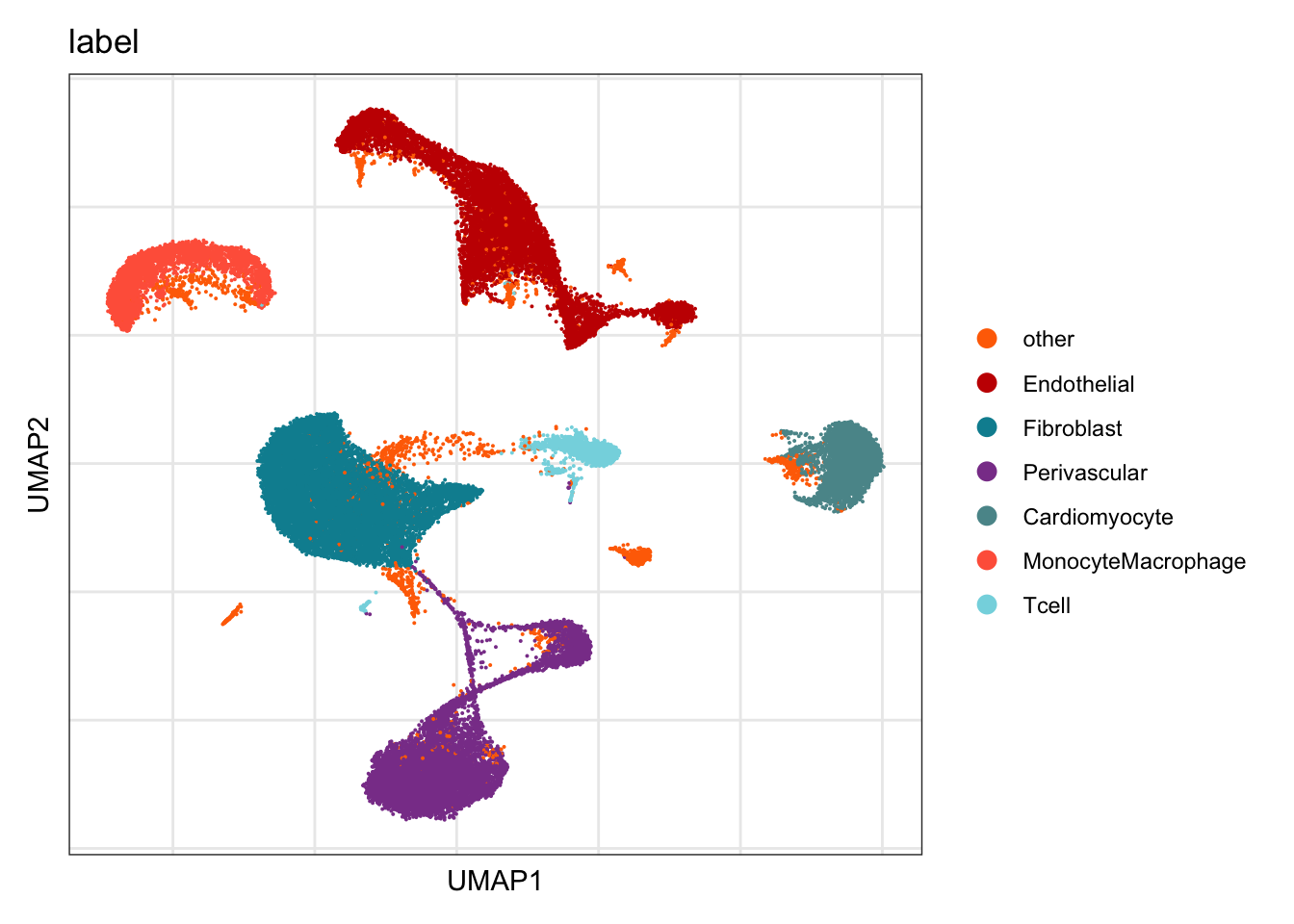

label

DimPlot(seurat, reduction = "umap",  group.by = "label", cols=colLab)+
  theme_bw() +
  theme(axis.text = element_blank(), axis.ticks = element_blank(),
        panel.grid.minor = element_blank()) +
  xlab("UMAP1") +
  ylab("UMAP2")

Past versions of "vis label-1.png"

Version	Author	Date
02765dc	mluetge	2022-07-19

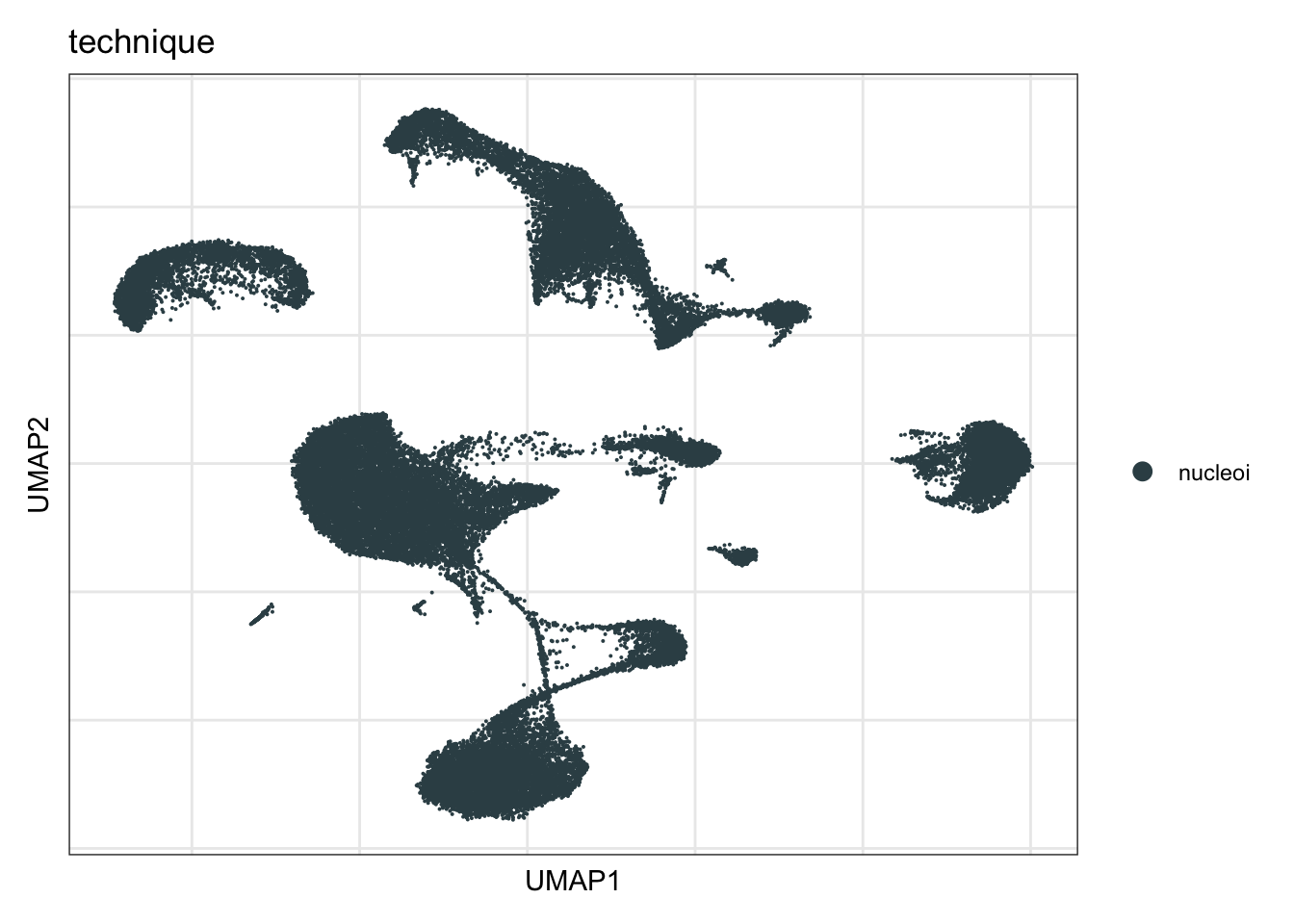

technique

DimPlot(seurat, reduction = "umap", group.by = "technique", cols=colTec)+
  theme_bw() +
  theme(axis.text = element_blank(), axis.ticks = element_blank(),
        panel.grid.minor = element_blank()) +
  xlab("UMAP1") +
  ylab("UMAP2")

Past versions of "vis tecnique-1.png"

Version	Author	Date
02765dc	mluetge	2022-07-19

Sample

DimPlot(seurat, reduction = "umap", group.by = "dataset", cols=colSmp)+
  theme_bw() +
  theme(axis.text = element_blank(), axis.ticks = element_blank(),
        panel.grid.minor = element_blank()) +
  xlab("UMAP1") +
  ylab("UMAP2")

Past versions of "vis sample-1.png"

Version	Author	Date
02765dc	mluetge	2022-07-19

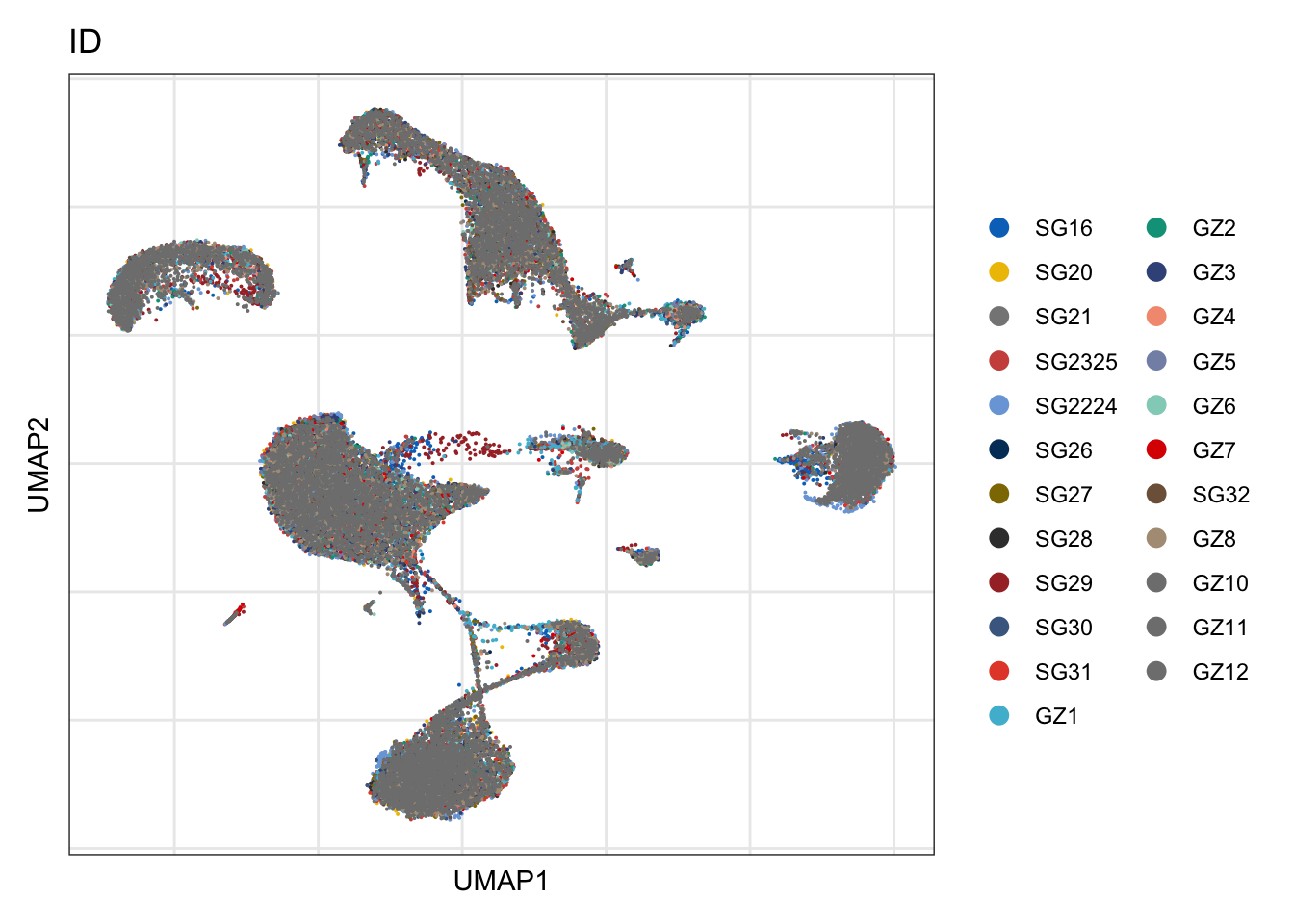

ID

DimPlot(seurat, reduction = "umap", group.by = "ID", cols=colID)+
  theme_bw() +
  theme(axis.text = element_blank(), axis.ticks = element_blank(),
        panel.grid.minor = element_blank()) +
  xlab("UMAP1") +
  ylab("UMAP2")

Past versions of "vis ID-1.png"

Version	Author	Date
02765dc	mluetge	2022-07-19

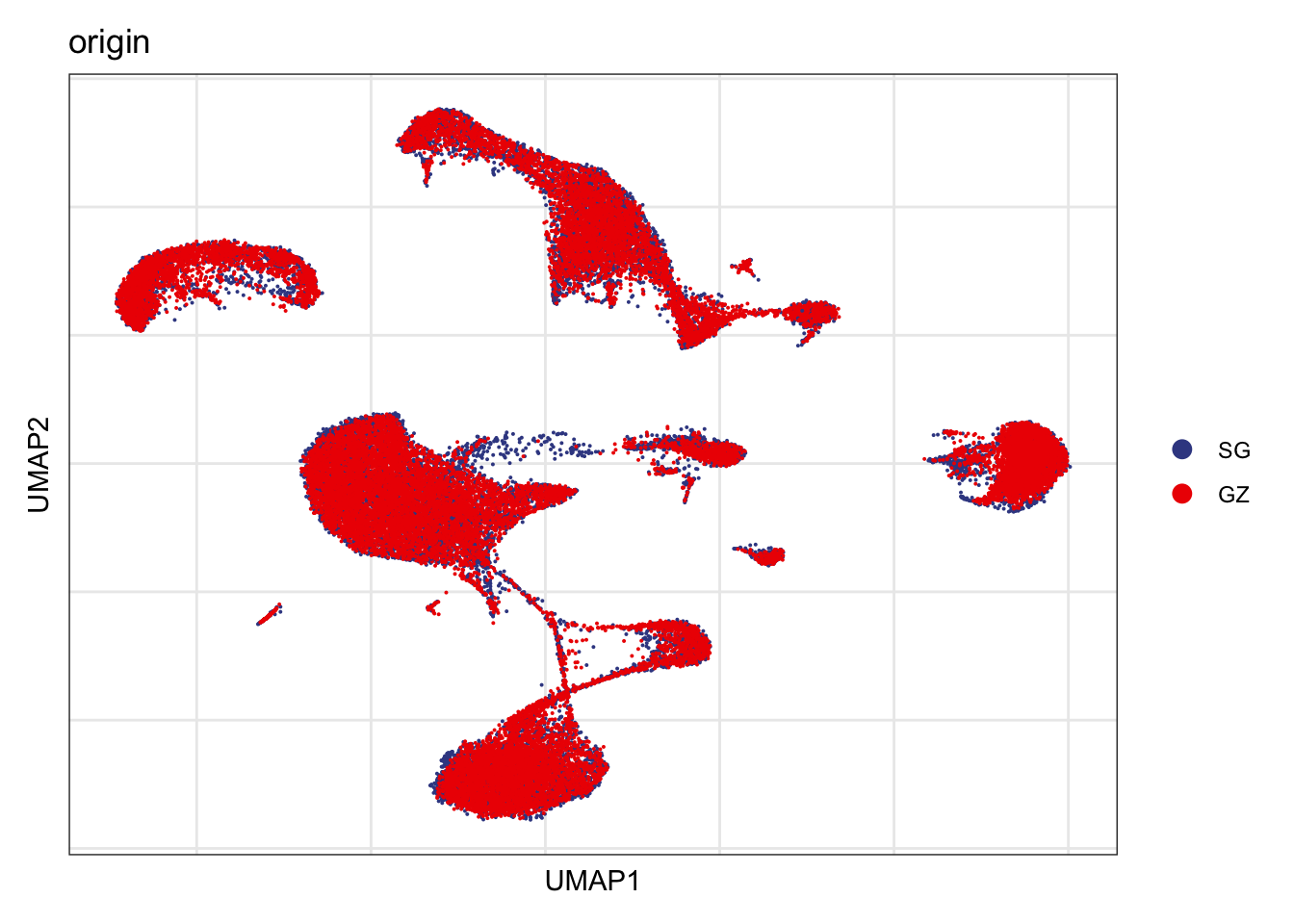

Origin

DimPlot(seurat, reduction = "umap", group.by = "origin", cols=colOrig)+
  theme_bw() +
  theme(axis.text = element_blank(), axis.ticks = element_blank(),
        panel.grid.minor = element_blank()) +
  xlab("UMAP1") +
  ylab("UMAP2")

Past versions of "vis origin-1.png"

Version	Author	Date
02765dc	mluetge	2022-07-19

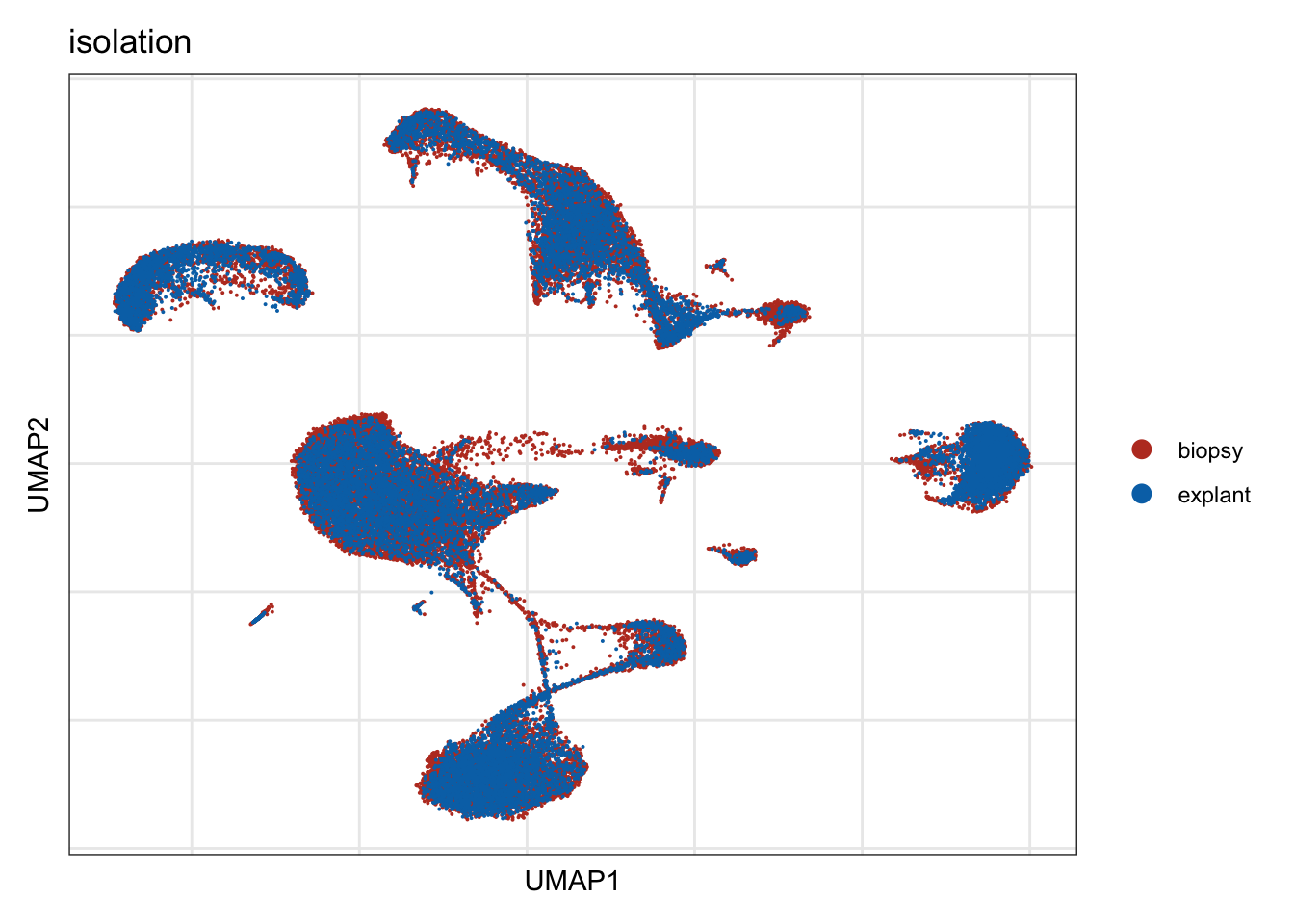

isolation

DimPlot(seurat, reduction = "umap", group.by = "isolation", cols=colIso)+
  theme_bw() +
  theme(axis.text = element_blank(), axis.ticks = element_blank(),
        panel.grid.minor = element_blank()) +
  xlab("UMAP1") +
  ylab("UMAP2")

Past versions of "vis isolation-1.png"

Version	Author	Date
02765dc	mluetge	2022-07-19

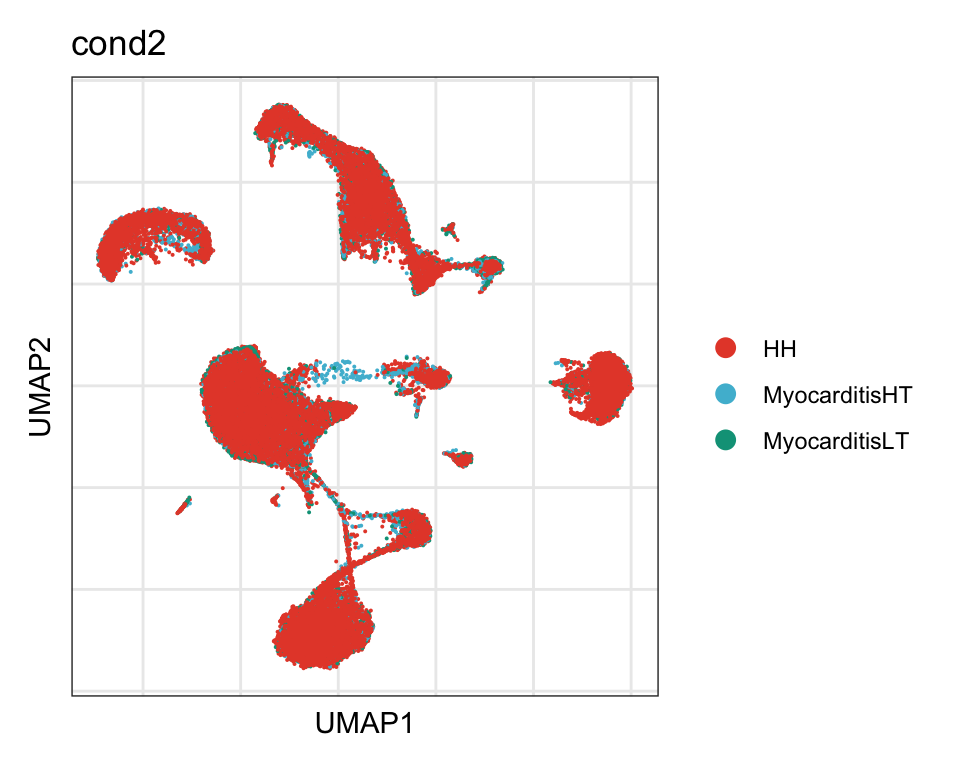

cond

DimPlot(seurat, reduction = "umap", group.by = "cond2", cols=colCond)+
  theme_bw() +
  theme(axis.text = element_blank(), axis.ticks = element_blank(),
        panel.grid.minor = element_blank()) +
  xlab("UMAP1") +
  ylab("UMAP2")

Past versions of "vis cond-1.png"

Version	Author	Date
02765dc	mluetge	2022-07-19

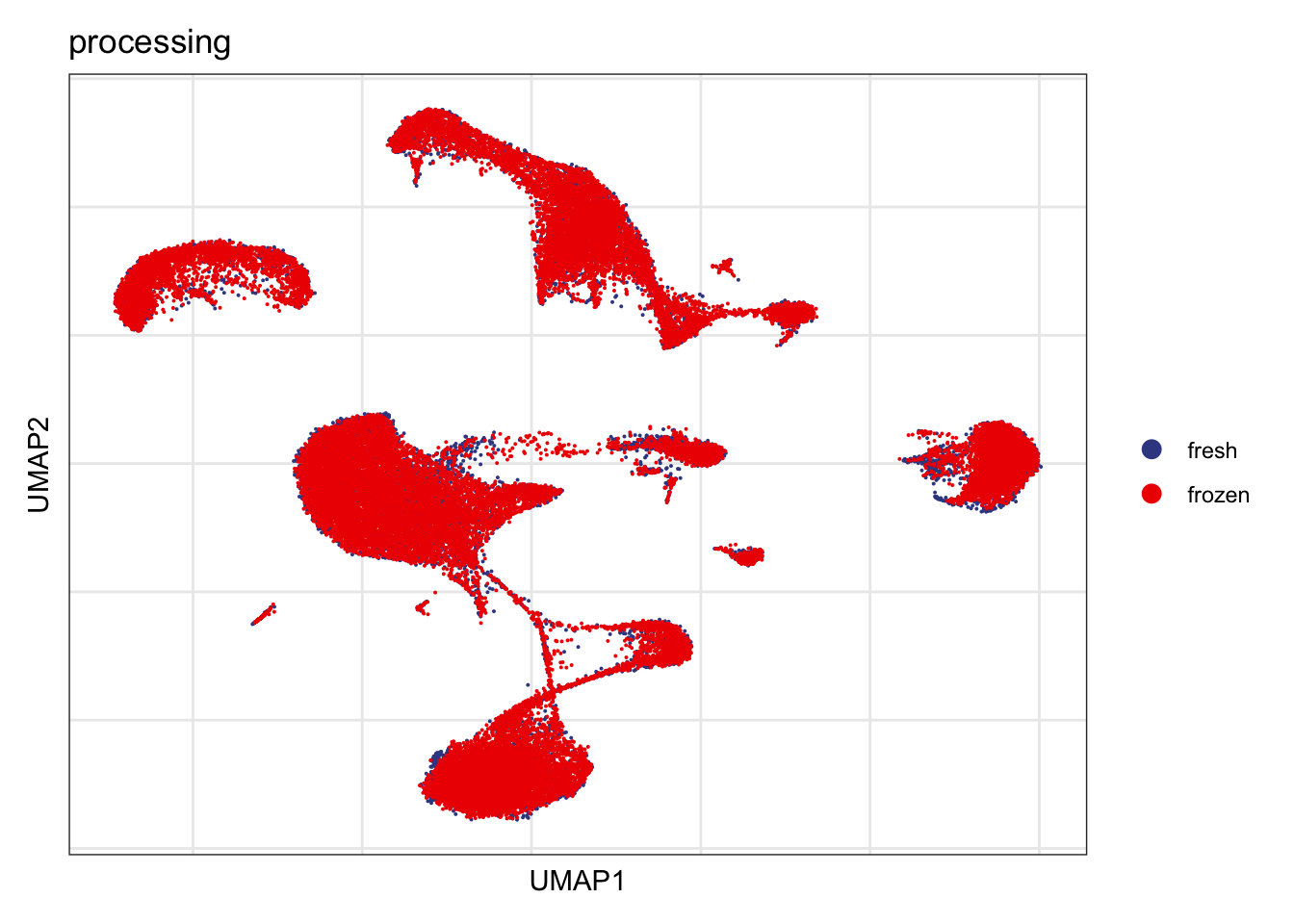

processing

DimPlot(seurat, reduction = "umap", group.by = "processing", cols=colProc)+
  theme_bw() +
  theme(axis.text = element_blank(), axis.ticks = element_blank(),
        panel.grid.minor = element_blank()) +
  xlab("UMAP1") +
  ylab("UMAP2")

Past versions of "vis proc-1.png"

Version	Author	Date
02765dc	mluetge	2022-07-19

overall DE genes

Idents(seurat) <- seurat$cond2
DEgenes <-FindAllMarkers(seurat, only.pos=T, logfc.threshold = 0.1,
                           min.pct = 0.01)


clVec <- unique(seurat$cond2)
GOcons <- lapply(clVec, function(cl){
  clustDE_DatSub <- DEgenes[which(DEgenes$cluster == cl),] %>%
    mutate(ENS=gsub("\\..*$", "", gene)) #%>%
    #slice_min(., max_pval, n=200)
  egoSS <- enrichGO(gene      = unique(clustDE_DatSub$ENS),
                OrgDb         = org.Hs.eg.db,
                keyType       = 'ENSEMBL',
                ont           = "BP",
                pAdjustMethod = "BH",
                pvalueCutoff  = 0.05,
                qvalueCutoff  = 0.05)
  egoSS <- setReadable(egoSS, OrgDb = org.Hs.eg.db)
  egoSSres <- egoSS@result %>% filter(p.adjust < 0.05) %>%
    mutate(subset=cl)
})

names(GOcons) <- clVec

## table to select pathways
GOconsDat <- do.call("rbind", GOcons)

write.table(GOconsDat, quote=F, row.names = T, col.names = T, sep= "\t",
            file = paste0(basedir,"/data/humanHeartsPlusGraz_intPatients_",
                              "merged_Groups_overallDEGO.txt"))

cw DE genes

Idents(seurat) <- seurat$cond2
grpVec <- unique(seurat$label)

clustDE <- lapply(grpVec, function(grp){
  grpSub <- unique(seurat$label)[which(
    unique(seurat$label)==grp)]
  seuratSub <- subset(seurat, label == grpSub)
  DEgenes <-FindAllMarkers(seuratSub, only.pos=T, logfc.threshold = 0.1,
                           min.pct = 0.01)
  if(nrow(DEgenes)>1){
    DEgenes <- DEgenes %>% filter(p_val_adj<0.01) %>%
      mutate(group=paste0(grp, "_", cluster)) %>%
      mutate(geneID=gsub(".*\\.", "",  gene)) %>%
      filter(nchar(geneID)>1)
    }
})

names(clustDE) <- grpVec

clustDE_Dat <- data.frame(do.call("rbind", clustDE))

write.table(clustDE_Dat,
            file=paste0(basedir,
                              "/data/humanHeartsPlusGraz_intPatients_",
                              "merged_Groups_cwDEGenes.txt"),
            row.names = FALSE, col.names = TRUE, quote = FALSE, sep = "\t")

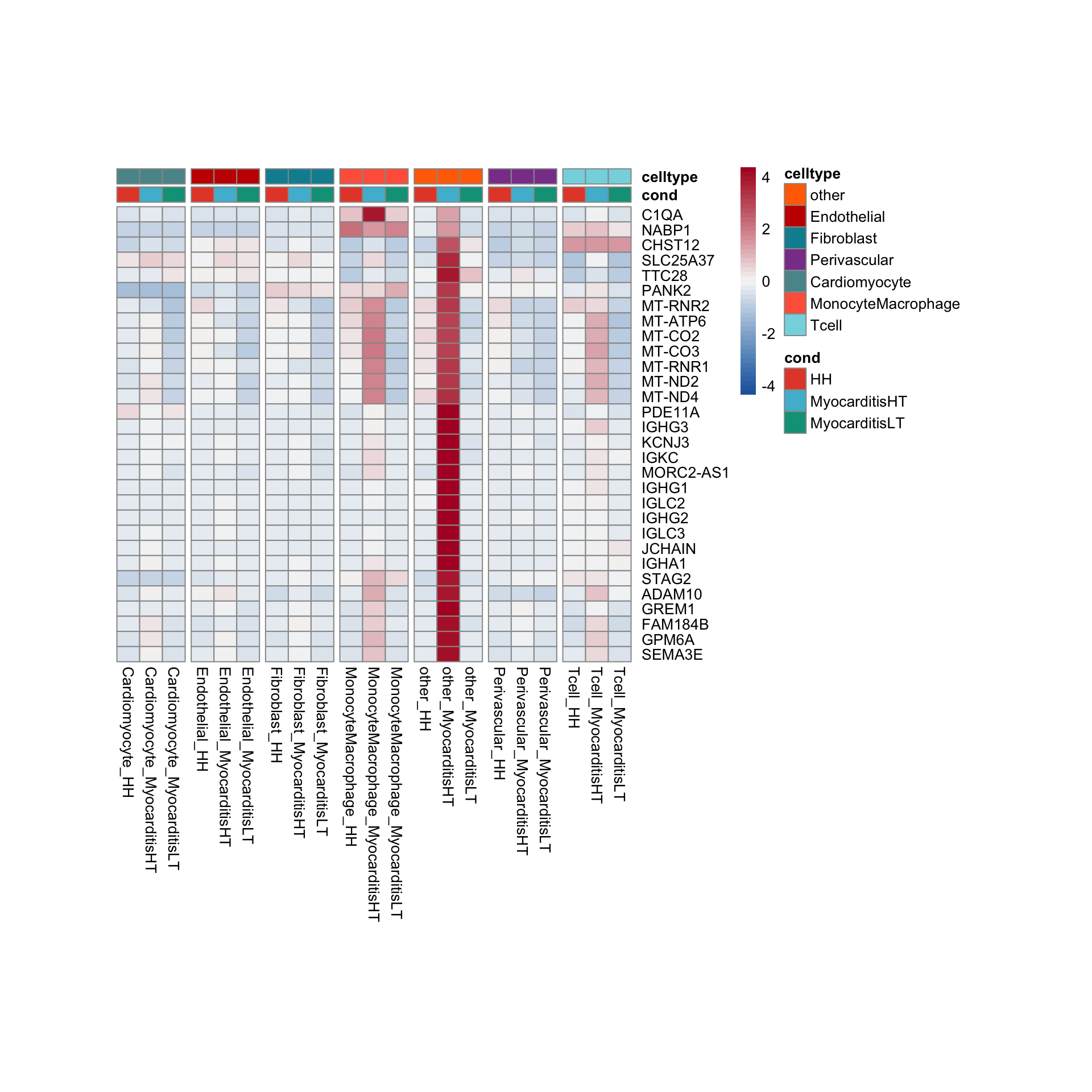

avg Heatmap top cwDE genes

other

Past versions of "avgHeat cwDE other-1.png"

Version	Author	Date
02765dc	mluetge	2022-07-19

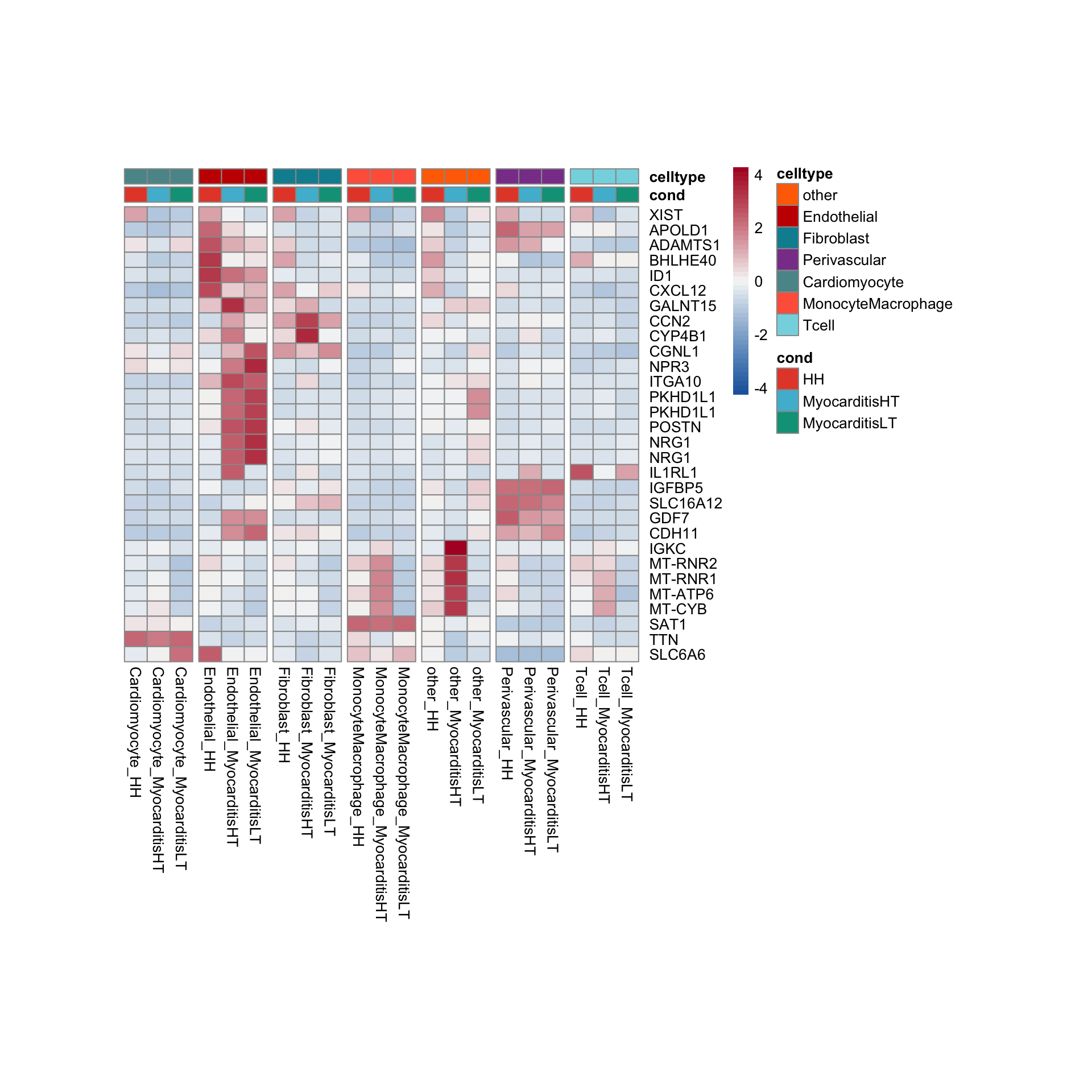

Endothelial

Past versions of "avgHeat cwDE Endothelial-1.png"

Version	Author	Date
02765dc	mluetge	2022-07-19

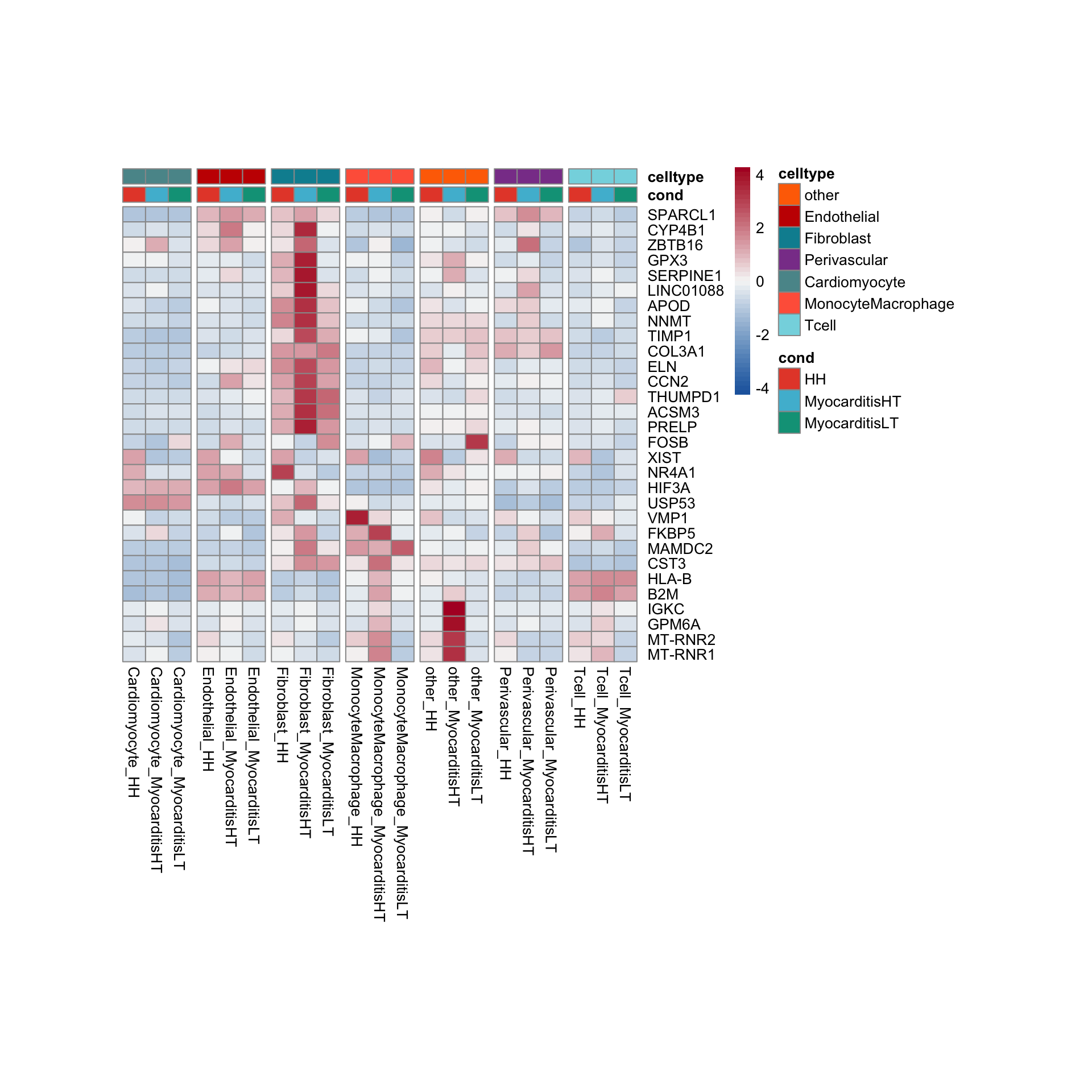

Fibroblast

Past versions of "avgHeat cwDE Fibroblast-1.png"

Version	Author	Date
02765dc	mluetge	2022-07-19

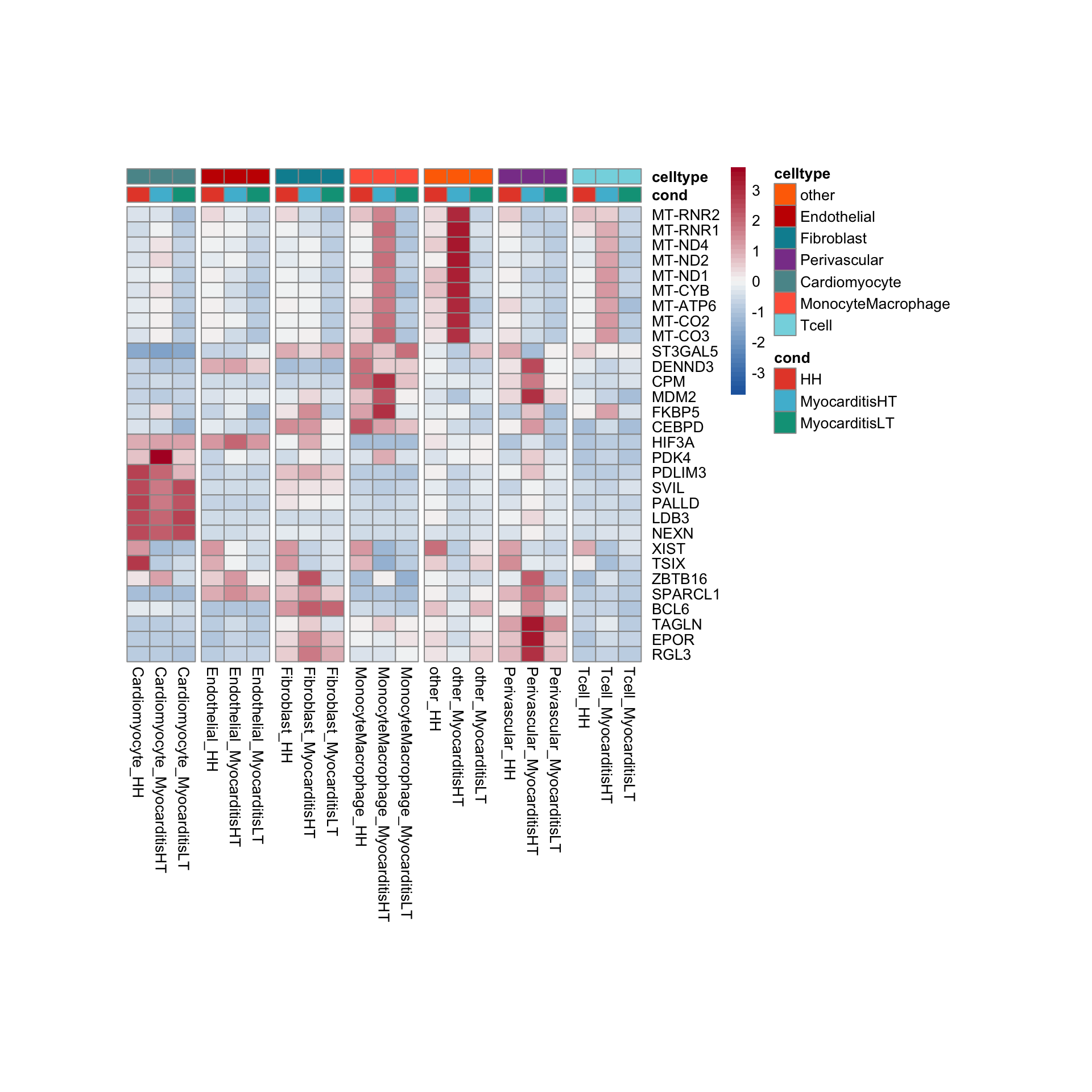

Perivascular

Past versions of "avgHeat cwDE Perivascular-1.png"

Version	Author	Date
02765dc	mluetge	2022-07-19

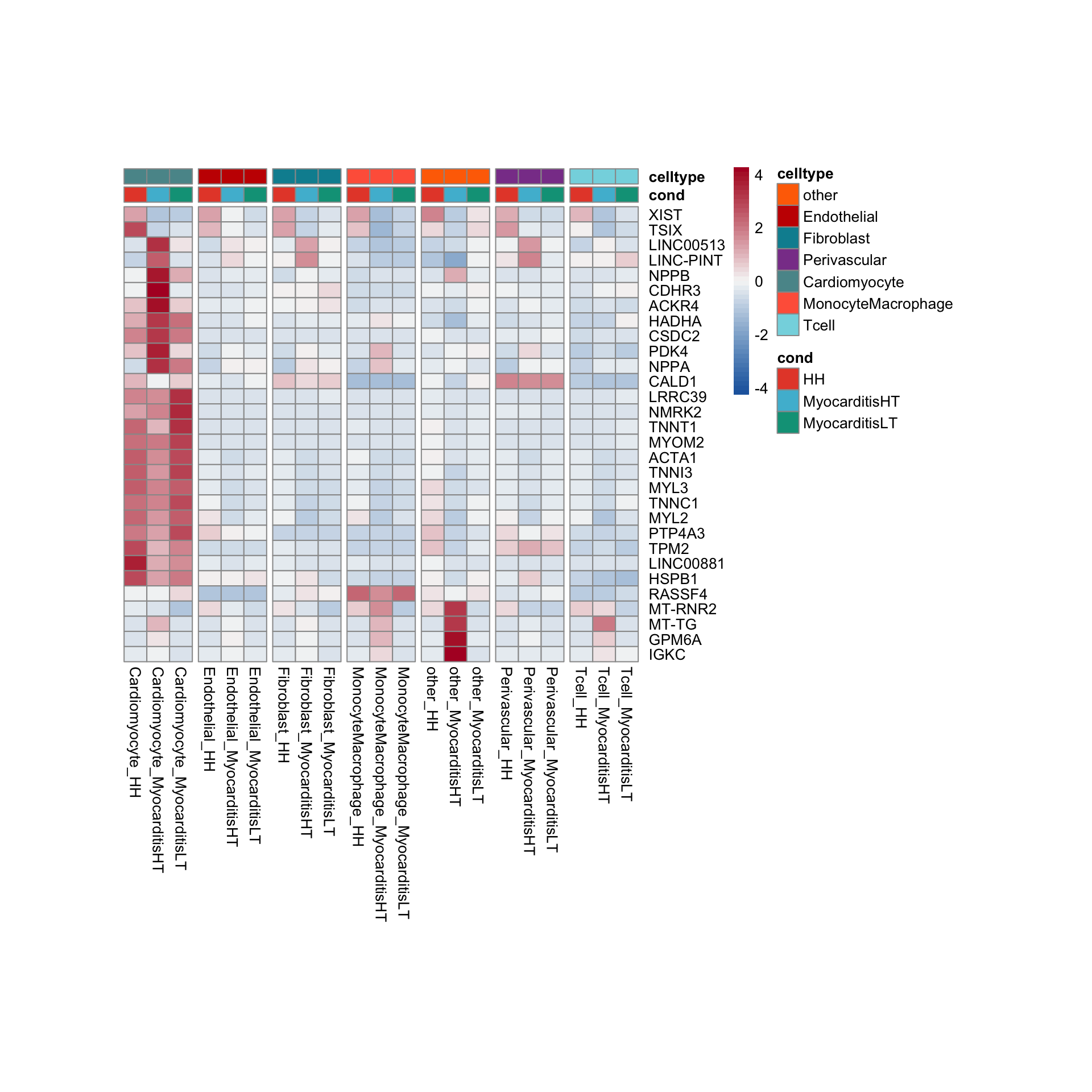

Cardiomyocyte

Past versions of "avgHeat cwDE Cardiomyocyte-1.png"

Version	Author	Date
02765dc	mluetge	2022-07-19

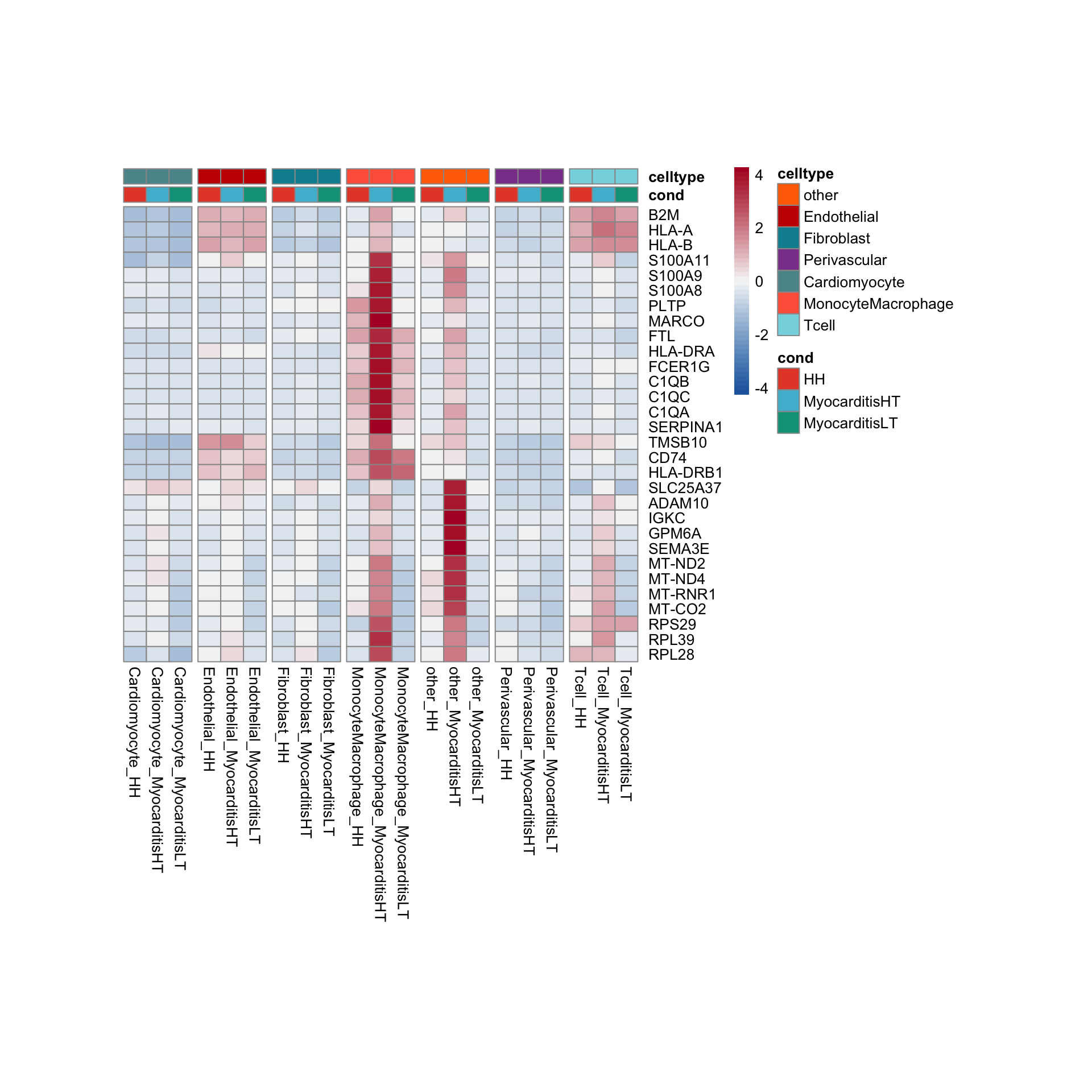

MonocyteMacrophage

Past versions of "avgHeat cwDE MonocyteMacrophage-1.png"

Version	Author	Date
02765dc	mluetge	2022-07-19

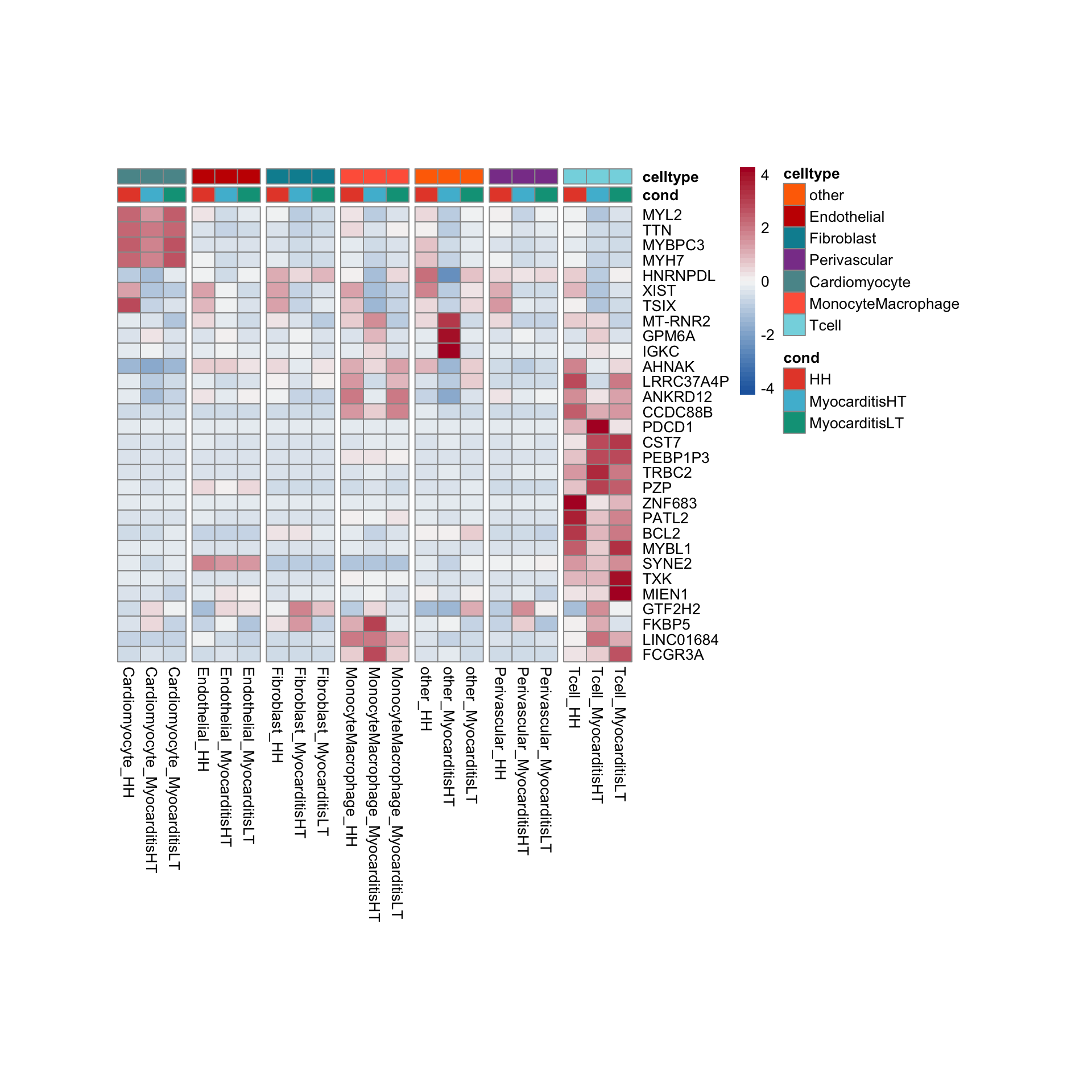

Tcell

Past versions of "avgHeat cwDE Tcell-1.png"

Version	Author	Date
02765dc	mluetge	2022-07-19

GSEA clusterProfiler cw DEgenes

clVec <- levels(seurat$label_plus_cond2)
GOcons <- lapply(clVec, function(cl){
  clustDE_DatSub <- clustDE_Dat[which(clustDE_Dat$group == cl),] %>%
    mutate(ENS=gsub("\\..*$", "", gene)) #%>%
    #slice_min(., max_pval, n=200)
  egoSS <- enrichGO(gene      = unique(clustDE_DatSub$ENS),
                OrgDb         = org.Hs.eg.db,
                keyType       = 'ENSEMBL',
                ont           = "BP",
                pAdjustMethod = "BH",
                pvalueCutoff  = 0.05,
                qvalueCutoff  = 0.05)
  egoSS <- setReadable(egoSS, OrgDb = org.Hs.eg.db)
  egoSSres <- egoSS@result %>% filter(p.adjust < 0.05) %>%
    mutate(subset=cl)
})

names(GOcons) <- clVec

## table to select pathways
GOconsDat <- do.call("rbind", GOcons)

write.table(GOconsDat, quote=F, row.names = T, col.names = T, sep= "\t",
            file = paste0(basedir,"/data/humanHeartsPlusGraz_intPatients_",
                              "merged_Groups_cwDEGO.txt"))

vis sel GO Fibroblasts

selGO <- read_tsv(paste0(basedir,"/data/GSEA/selGO_Fibroblasts.txt"))%>%
  mutate(GO_cond = paste0(GOterm, "_", cond2))
GOconsDatSel <- GOconsDat %>%
  mutate(cond2 = gsub(".*_", "", subset)) %>%
  mutate(label= gsub("_.*", "", subset)) %>%
  filter(label == "Fibroblast") %>%
  mutate(GO_cond = paste0(ID, "_", cond2)) %>%
  filter(GO_cond %in% selGO$GO_cond)

grpVec <- unique(selGO$cond2)
lapply(grpVec, function(grp){
  selGODat <- GOconsDatSel %>% filter(cond2 == grp)
  selGODat <- selGODat %>% mutate(qscore=-log(p.adjust, base=10))
  p <- ggbarplot(selGODat, x = "Description", y = "qscore",
          fill = "cond2",
          color = "cond2",
          palette = colCond,
          sort.val = "asc",
          sort.by.groups = TRUE
          #x.text.angle = 90
          ) +
  rotate()
p
})

[[1]]

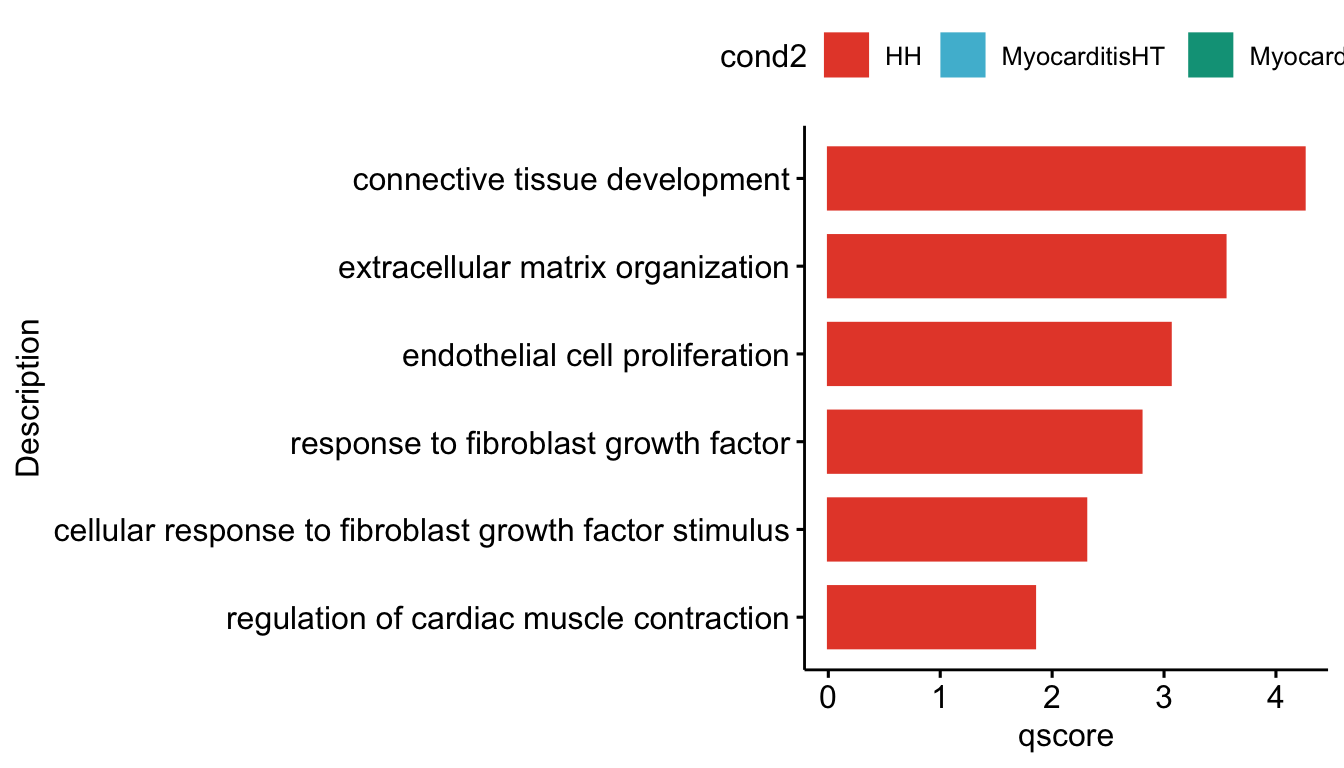

Past versions of "vis sel GO Fibroblasts-1.png"

Version	Author	Date
c67d130	mluetge	2022-07-26
02765dc	mluetge	2022-07-19

[[2]]

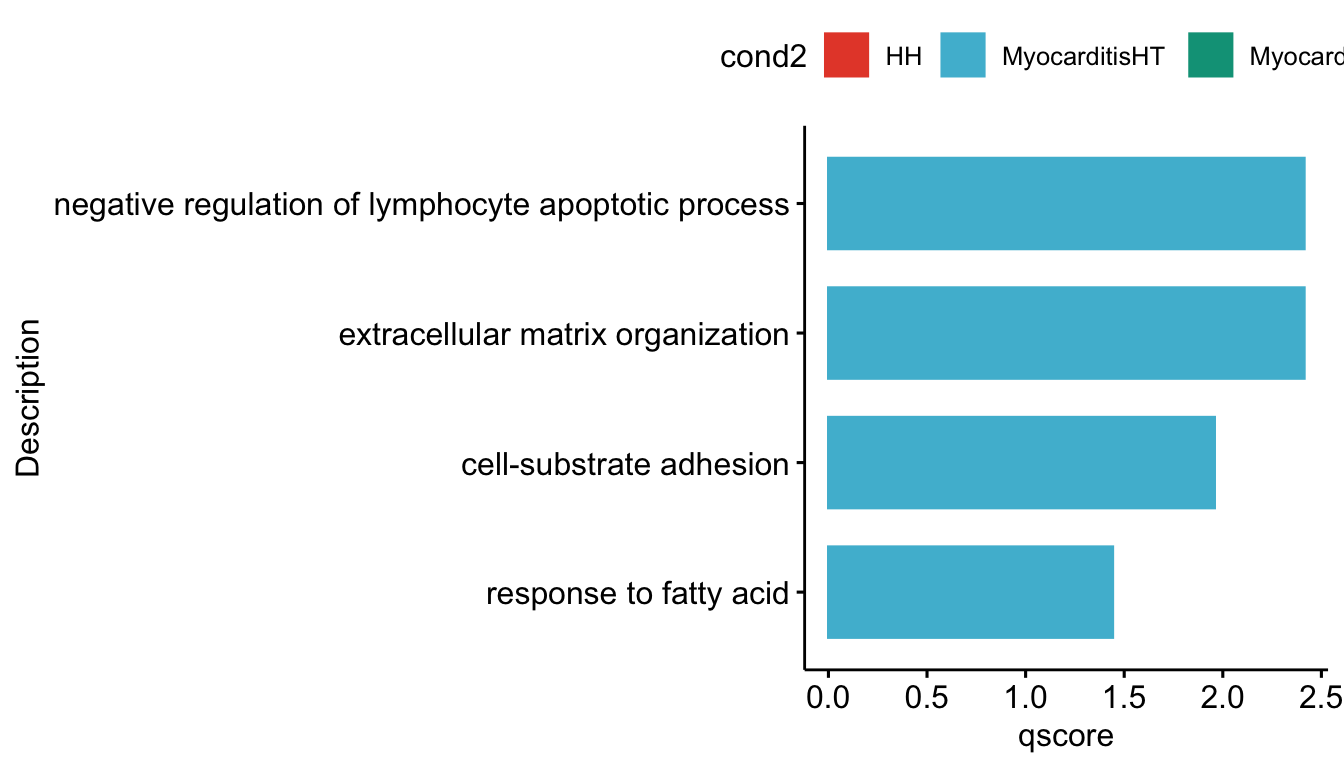

Past versions of "vis sel GO Fibroblasts-2.png"

Version	Author	Date
c67d130	mluetge	2022-07-26
02765dc	mluetge	2022-07-19

[[3]]

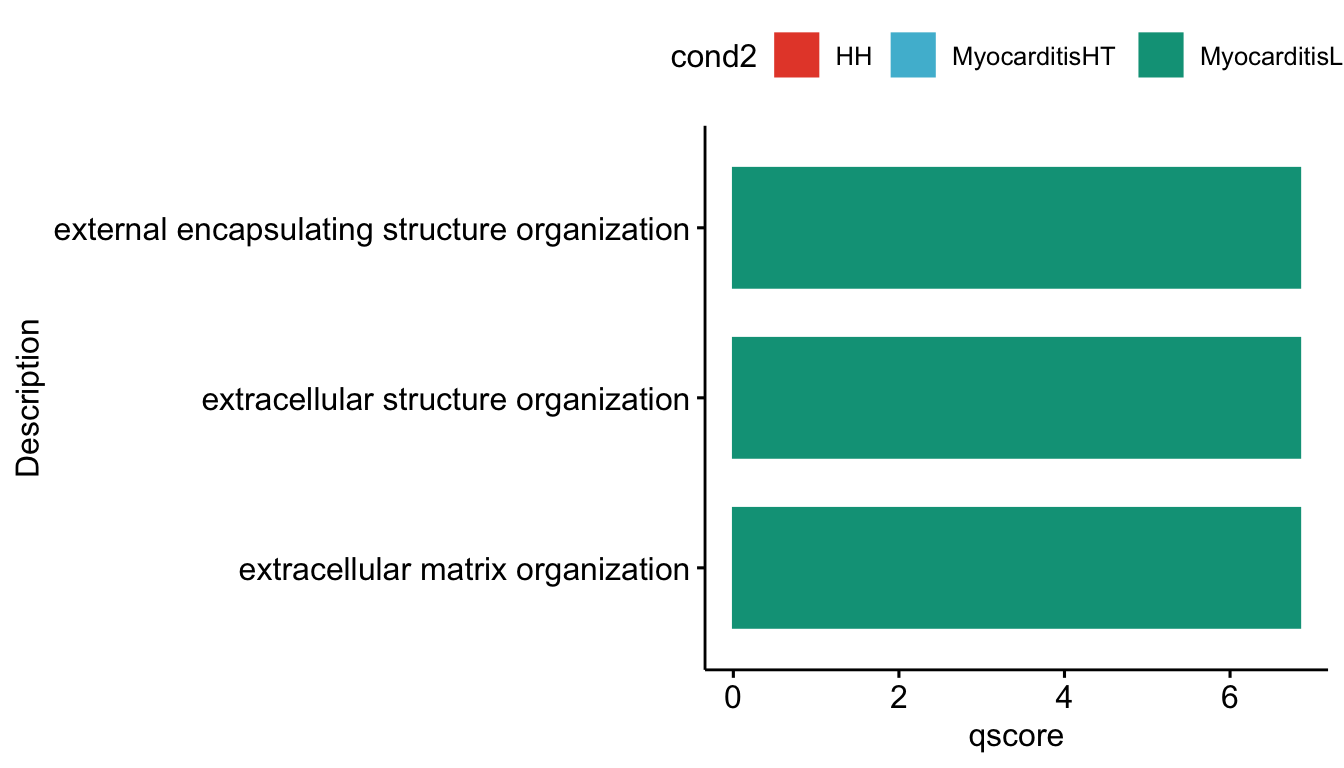

Past versions of "vis sel GO Fibroblasts-3.png"

Version	Author	Date
c67d130	mluetge	2022-07-26

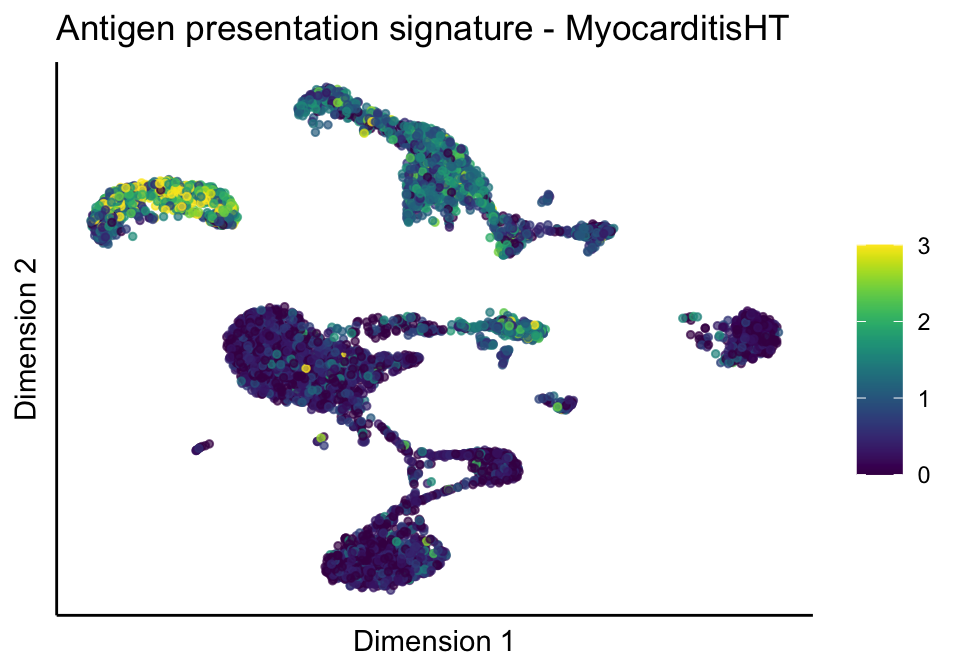

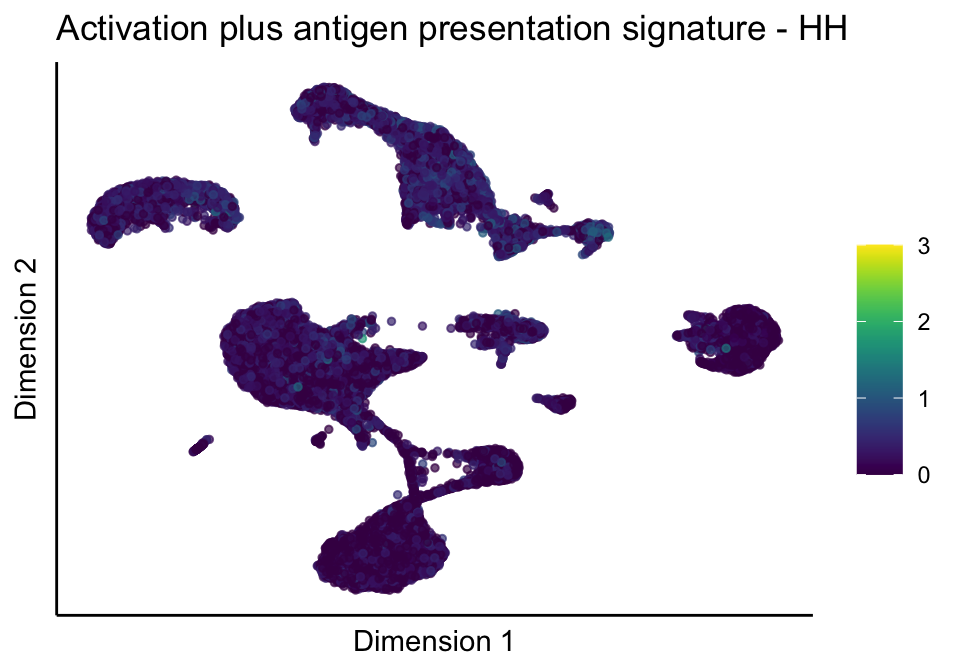

signatures viridis

split by grp

signDat <- read_delim(file = paste0(basedir,
                    "/data/SelSignaturesTreat2.txt"),
                    delim = "\t")
genes <- data.frame(geneID=rownames(seurat)) %>%
  mutate(gene=gsub("^.*\\.", "", geneID))
signDat <- signDat %>% left_join(.,genes, by="gene")
allSign <- unique(signDat$signature)

DefaultAssay(object = seurat) <- "integrated"
sce2 <- as.SingleCellExperiment(seurat)

DefaultAssay(object = seurat) <- "RNA"
sce <- as.SingleCellExperiment(seurat)
reducedDims(sce) <- list(PCA=reducedDim(sce2, "PCA"),
                         TSNE=reducedDim(sce2, "TSNE"),
                         UMAP=reducedDim(sce2, "UMAP"))

treatGrps <- unique(sce$cond2)

cutOff <- 3
pal = viridis(100)
sc <- scale_colour_gradientn(colours = pal, limits=c(0, cutOff))

lapply(unique(signDat$signature), function(sign){
  signGenes <- signDat %>% dplyr::filter(signature == sign)
  sceSub <- sce[which(rownames(sce) %in% signGenes$geneID),]
  cntMat <- rowSums(t(as.matrix(sceSub@assays@data$logcounts)))/nrow(signGenes)
  sceSub$sign <- cntMat
  sceSub$sign[which(sceSub$sign > cutOff)] <- cutOff
  sceSub$sign[which(sceSub$sign < 0)] <- 0
  lapply(treatGrps, function(treat){
    sceSubT <- sceSub[, which(sceSub$cond2 == treat)]
    p <- visGroup_adapt(sceSubT, 'sign', dim_red = 'UMAP') +
    sc +
    guides(colour = guide_colourbar(title = '')) +
    ggtitle(paste0(sign, ' signature - ', treat)) +
    theme_classic() +
    theme(axis.text = element_blank(),
          axis.ticks = element_blank()) +
    labs(x='Dimension 1', y='Dimension 2')
    p
  })
})

[[1]]
[[1]][[1]]

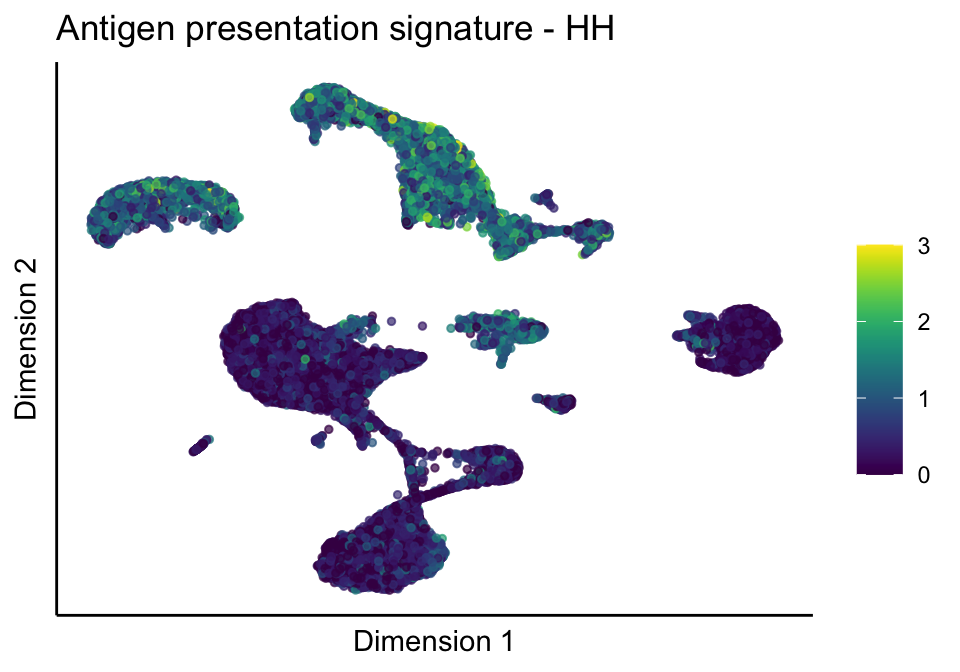

Past versions of "signature cut 1.5-1.png"

Version	Author	Date
02765dc	mluetge	2022-07-19

[[1]][[2]]

Past versions of "signature cut 1.5-2.png"

Version	Author	Date
02765dc	mluetge	2022-07-19

[[1]][[3]]

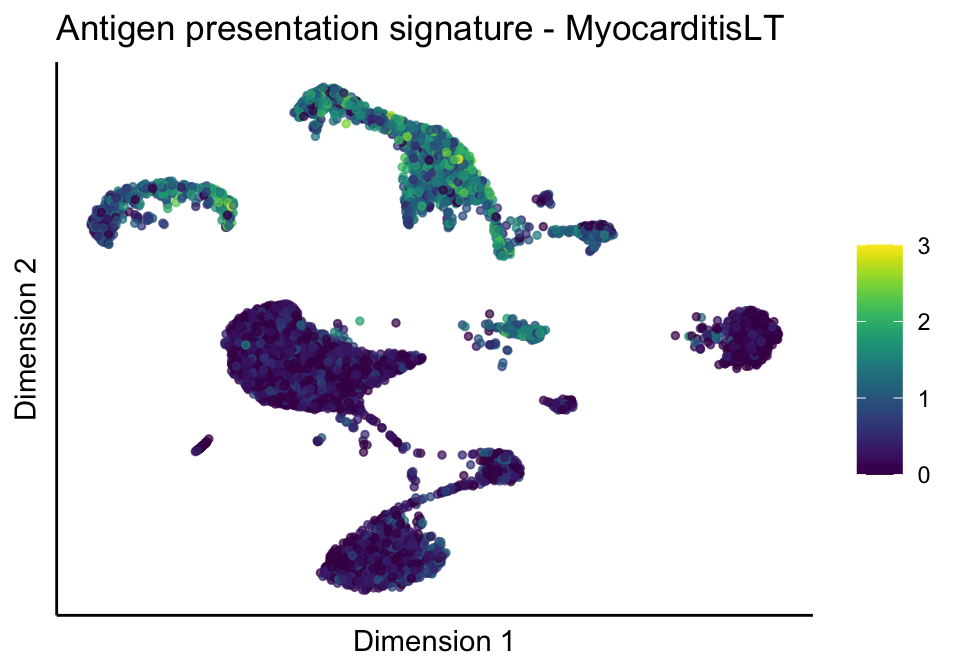

Past versions of "signature cut 1.5-3.png"

Version	Author	Date
02765dc	mluetge	2022-07-19

[[2]]
[[2]][[1]]

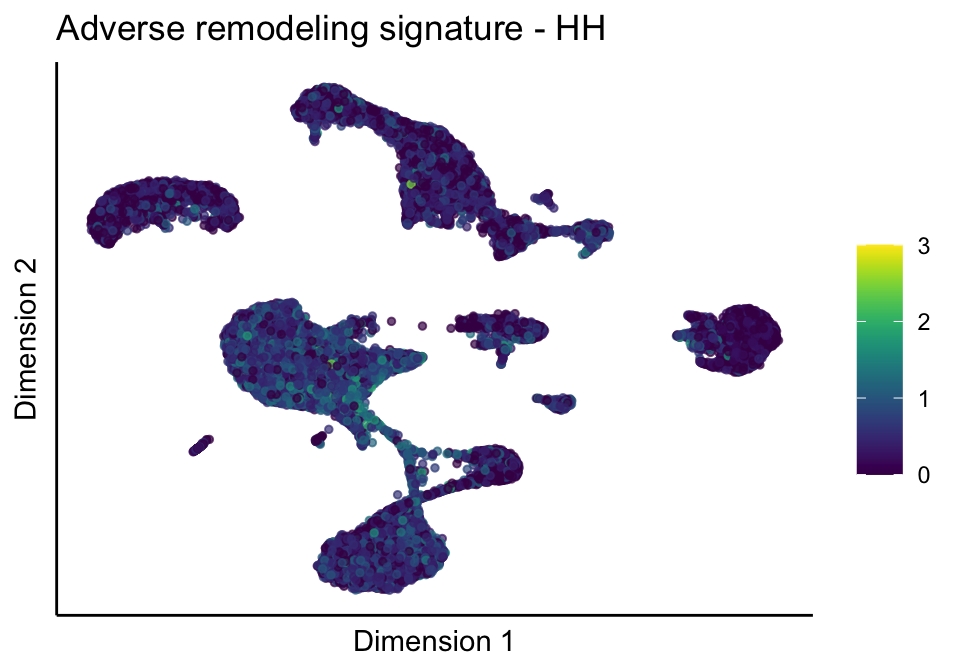

Past versions of "signature cut 1.5-4.png"

Version	Author	Date
02765dc	mluetge	2022-07-19

[[2]][[2]]

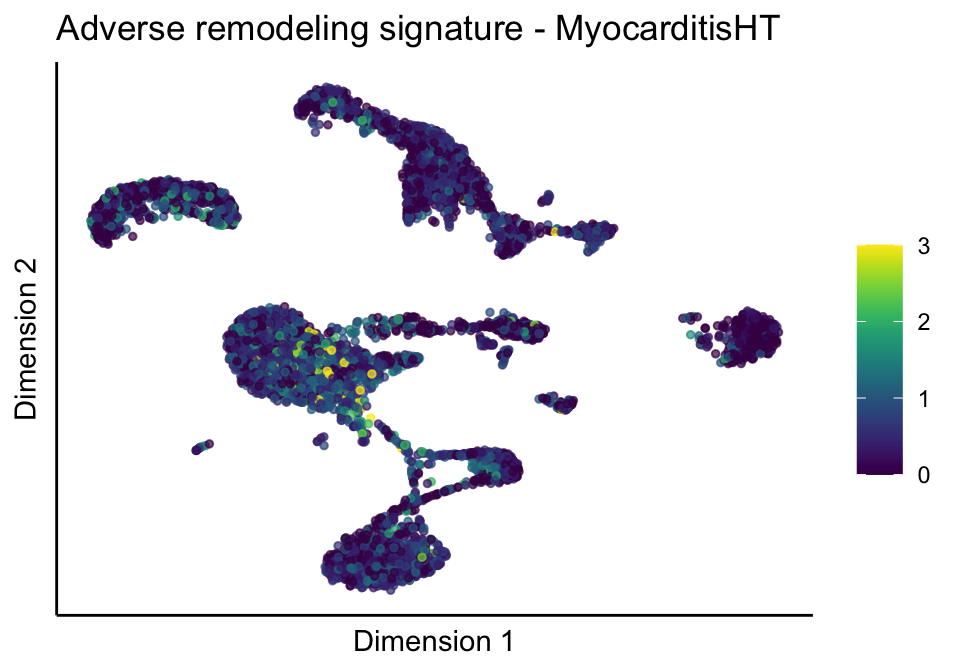

Past versions of "signature cut 1.5-5.png"

Version	Author	Date
02765dc	mluetge	2022-07-19

[[2]][[3]]

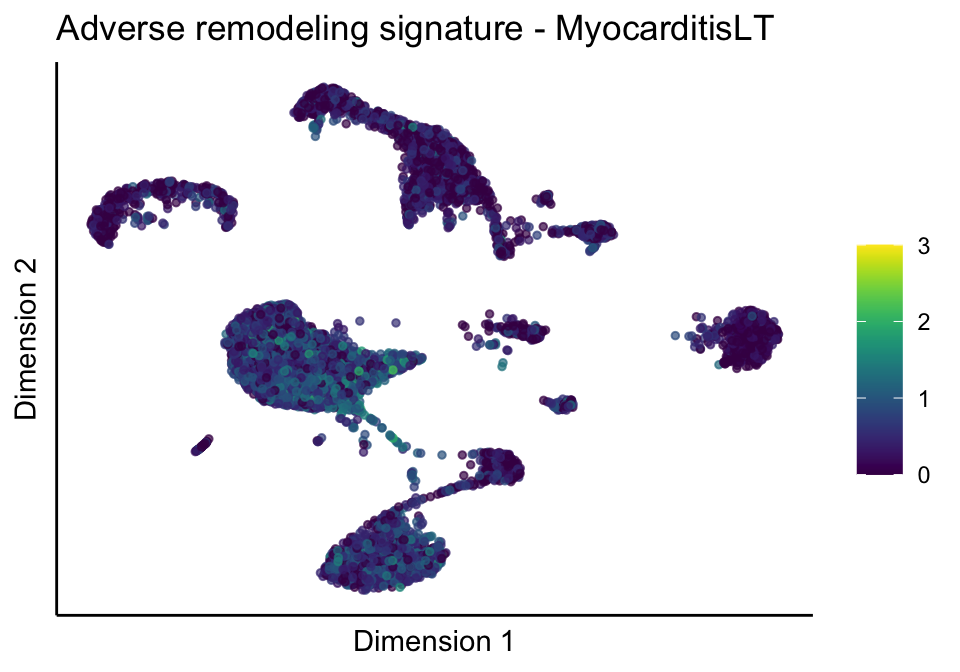

Past versions of "signature cut 1.5-6.png"

Version	Author	Date
02765dc	mluetge	2022-07-19

[[3]]
[[3]][[1]]

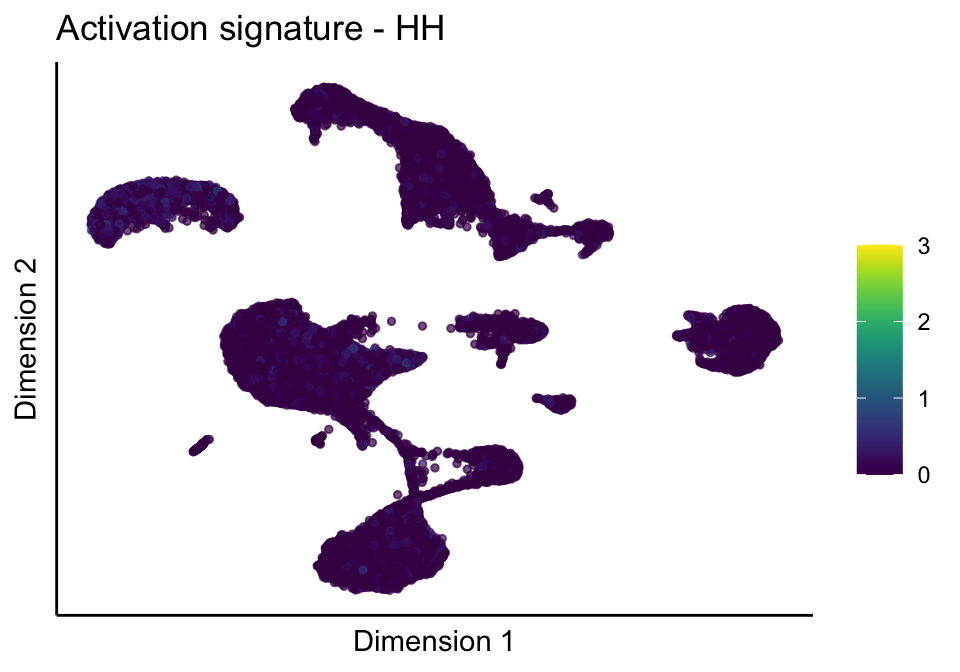

Past versions of "signature cut 1.5-7.png"

Version	Author	Date
02765dc	mluetge	2022-07-19

[[3]][[2]]

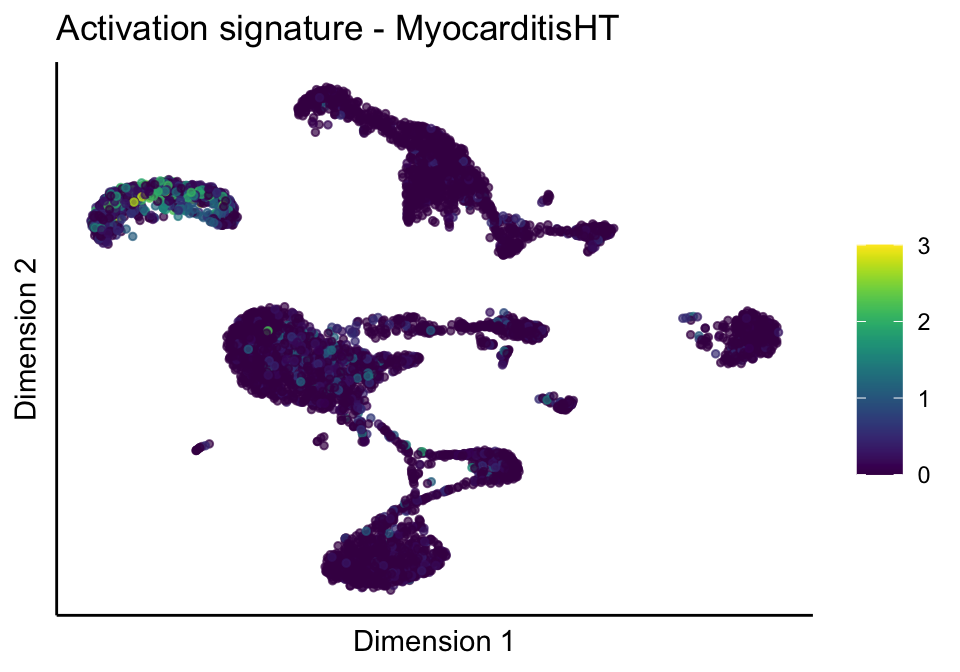

Past versions of "signature cut 1.5-8.png"

Version	Author	Date
02765dc	mluetge	2022-07-19

[[3]][[3]]

Past versions of "signature cut 1.5-9.png"

Version	Author	Date
02765dc	mluetge	2022-07-19

[[4]]
[[4]][[1]]

Past versions of "signature cut 1.5-10.png"

Version	Author	Date
c67d130	mluetge	2022-07-26
02765dc	mluetge	2022-07-19

[[4]][[2]]

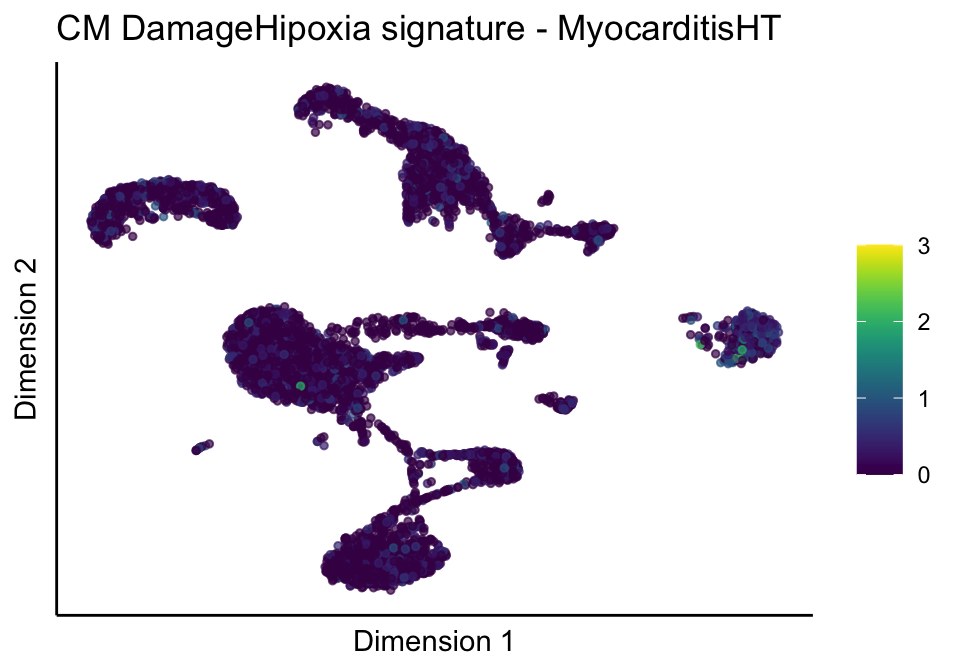

Past versions of "signature cut 1.5-11.png"

Version	Author	Date
c67d130	mluetge	2022-07-26
02765dc	mluetge	2022-07-19

[[4]][[3]]

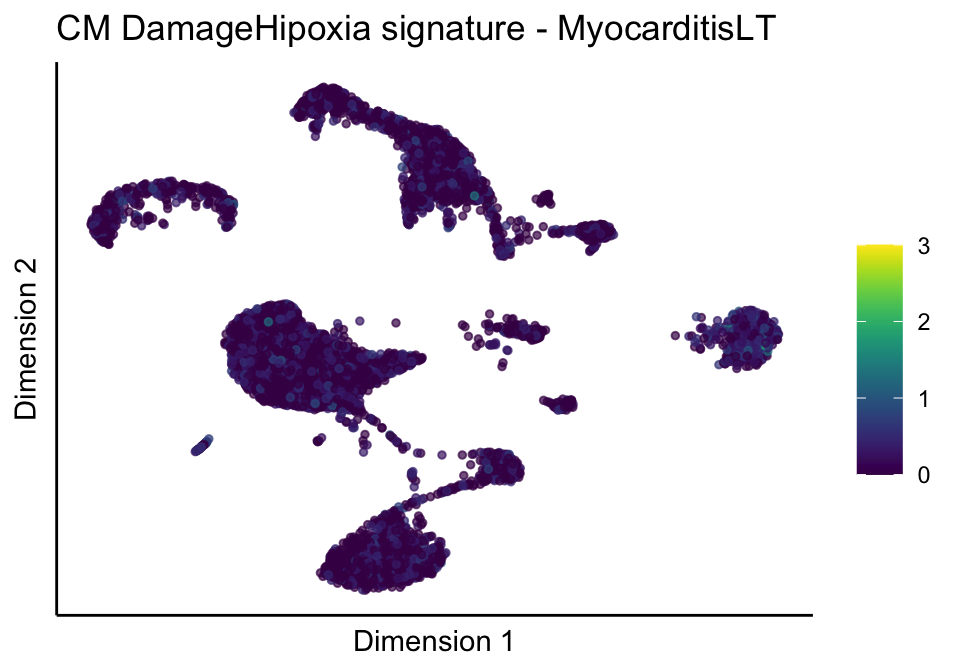

Past versions of "signature cut 1.5-12.png"

Version	Author	Date
c67d130	mluetge	2022-07-26
02765dc	mluetge	2022-07-19

[[5]]
[[5]][[1]]

Past versions of "signature cut 1.5-13.png"

Version	Author	Date
c67d130	mluetge	2022-07-26
02765dc	mluetge	2022-07-19

[[5]][[2]]

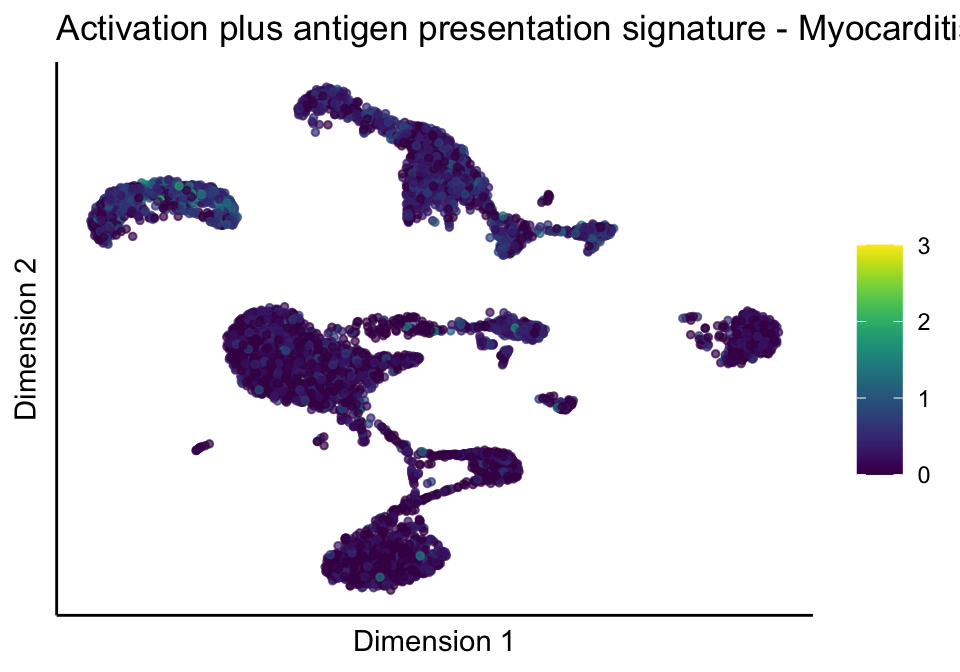

Past versions of "signature cut 1.5-14.png"

Version	Author	Date
c67d130	mluetge	2022-07-26
02765dc	mluetge	2022-07-19

[[5]][[3]]

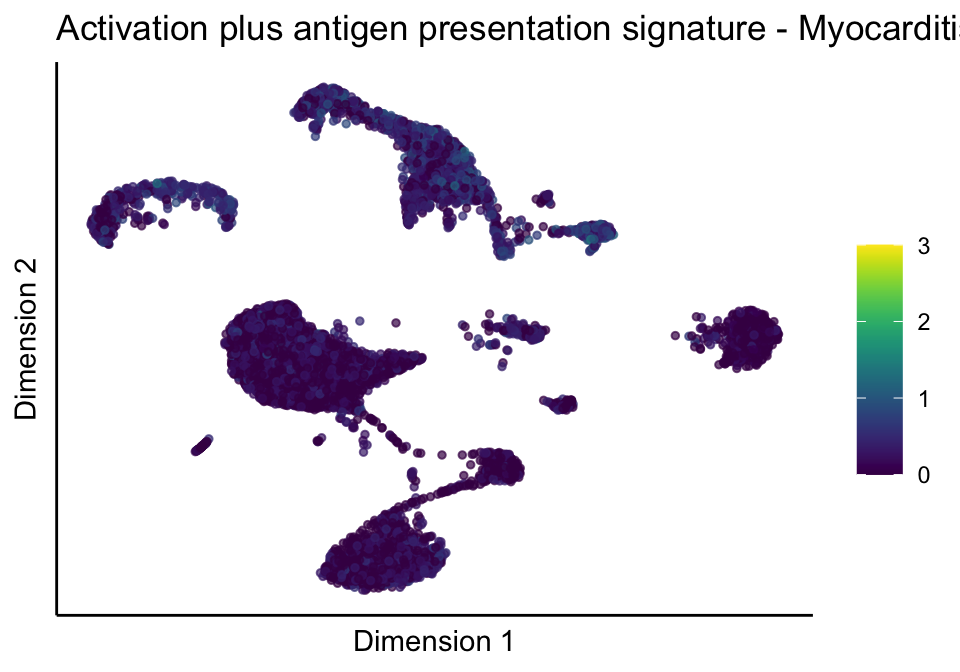

Past versions of "signature cut 1.5-15.png"

Version	Author	Date
c67d130	mluetge	2022-07-26
02765dc	mluetge	2022-07-19

cutOff <- 2
pal = viridis(100)
sc <- scale_colour_gradientn(colours = pal, limits=c(0, cutOff))

lapply(unique(signDat$signature), function(sign){
  signGenes <- signDat %>% dplyr::filter(signature == sign)
  sceSub <- sce[which(rownames(sce) %in% signGenes$geneID),]
  cntMat <- rowSums(t(as.matrix(sceSub@assays@data$logcounts)))/nrow(signGenes)
  sceSub$sign <- cntMat
  sceSub$sign[which(sceSub$sign > cutOff)] <- cutOff
  sceSub$sign[which(sceSub$sign < 0)] <- 0
  lapply(treatGrps, function(treat){
    sceSubT <- sceSub[, which(sceSub$cond2 == treat)]
    p <- visGroup_adapt(sceSubT, 'sign', dim_red = 'UMAP') +
    sc +
    guides(colour = guide_colourbar(title = '')) +
    ggtitle(paste0(sign, ' signature - ', treat)) +
    theme_classic() +
    theme(axis.text = element_blank(),
          axis.ticks = element_blank()) +
    labs(x='Dimension 1', y='Dimension 2')
    p
  })
})

[[1]]
[[1]][[1]]

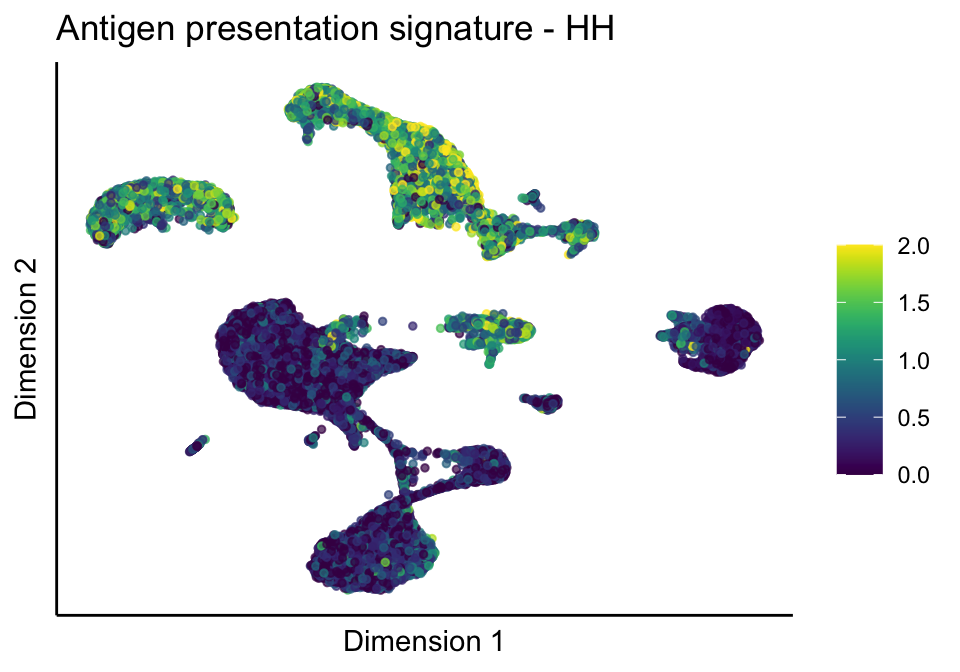

Past versions of "signature cut 1.5-16.png"

Version	Author	Date
c67d130	mluetge	2022-07-26
02765dc	mluetge	2022-07-19

[[1]][[2]]

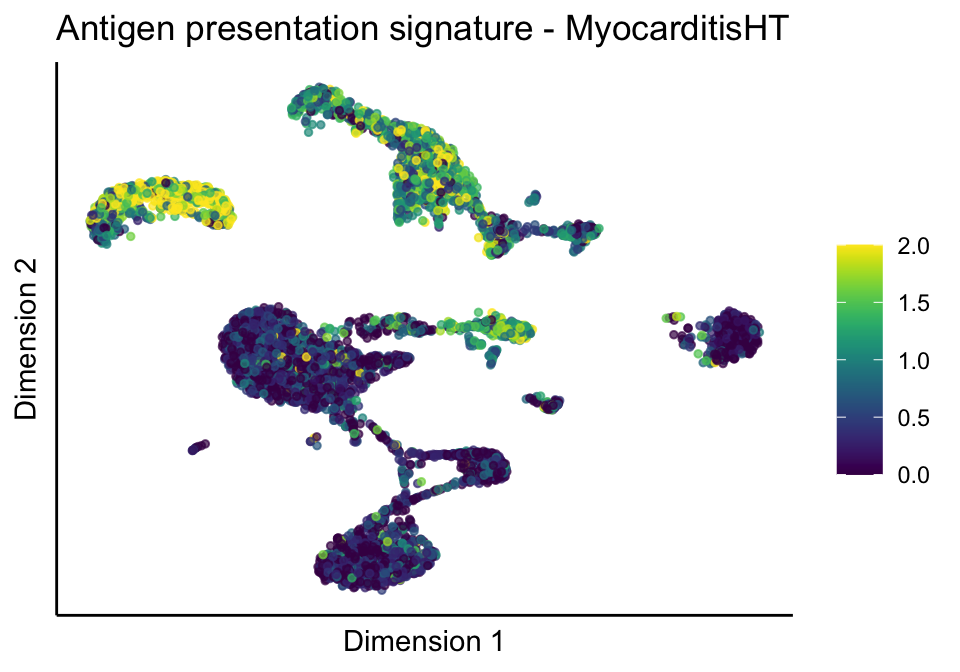

Past versions of "signature cut 1.5-17.png"

Version	Author	Date
c67d130	mluetge	2022-07-26
02765dc	mluetge	2022-07-19

[[1]][[3]]

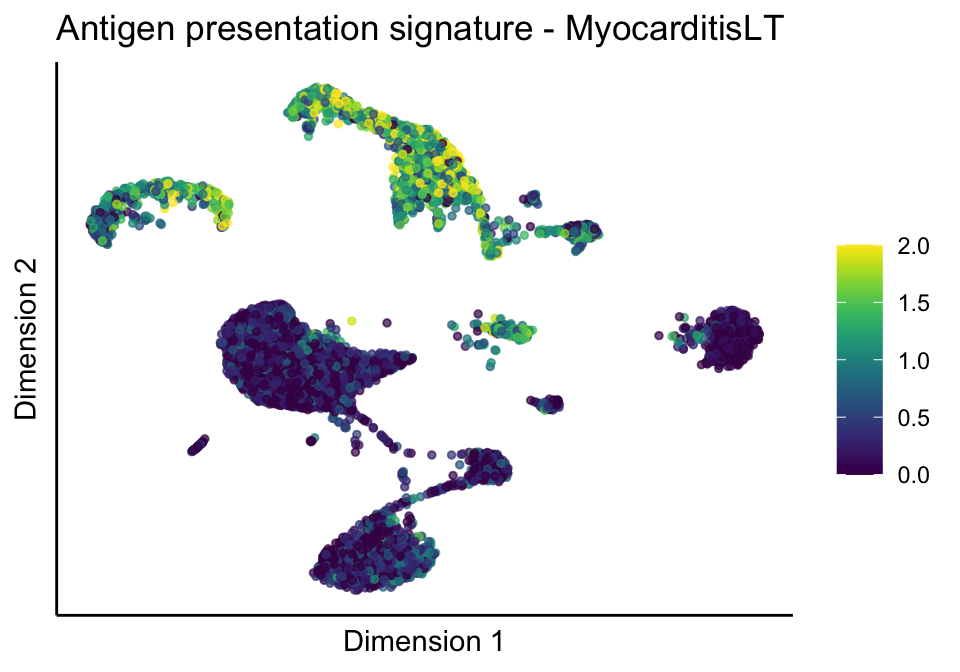

Past versions of "signature cut 1.5-18.png"

Version	Author	Date
c67d130	mluetge	2022-07-26
02765dc	mluetge	2022-07-19

[[2]]
[[2]][[1]]

Past versions of "signature cut 1.5-19.png"

Version	Author	Date
c67d130	mluetge	2022-07-26
02765dc	mluetge	2022-07-19

[[2]][[2]]

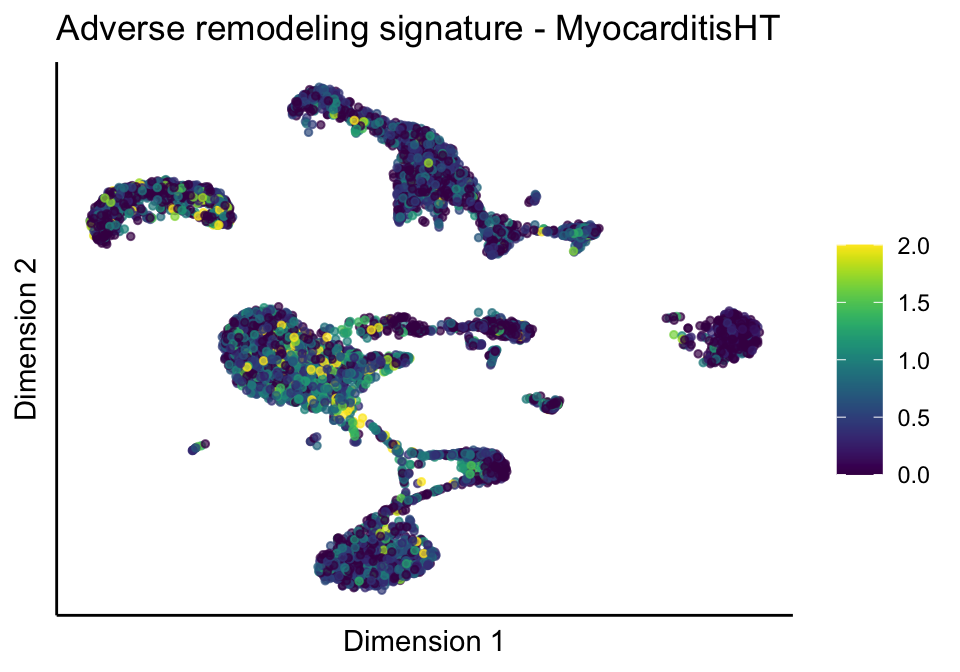

Past versions of "signature cut 1.5-20.png"

Version	Author	Date
c67d130	mluetge	2022-07-26
02765dc	mluetge	2022-07-19

[[2]][[3]]

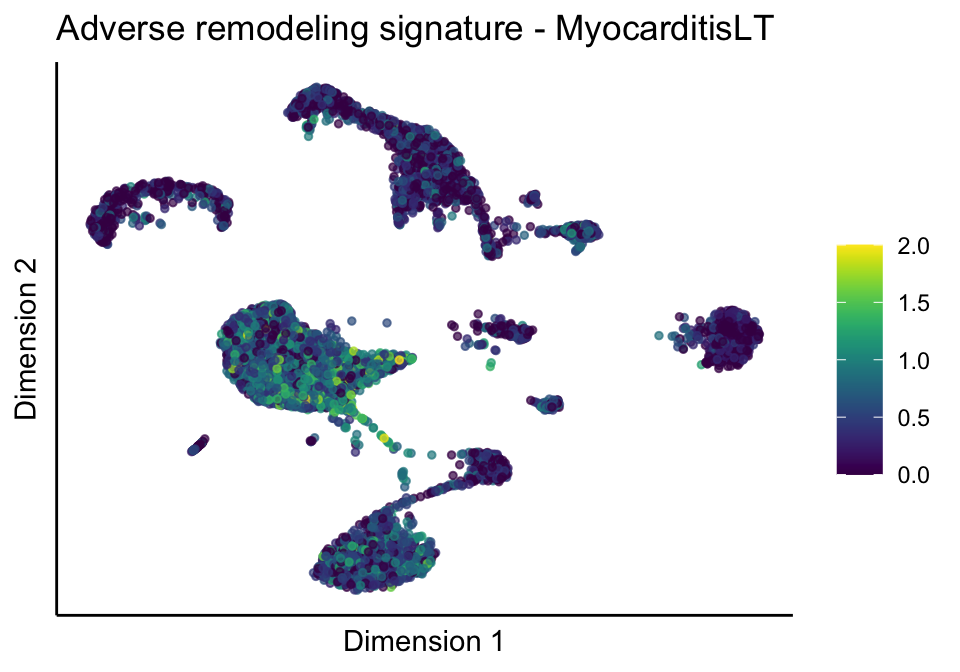

Past versions of "signature cut 1.5-21.png"

Version	Author	Date
c67d130	mluetge	2022-07-26
02765dc	mluetge	2022-07-19

[[3]]
[[3]][[1]]

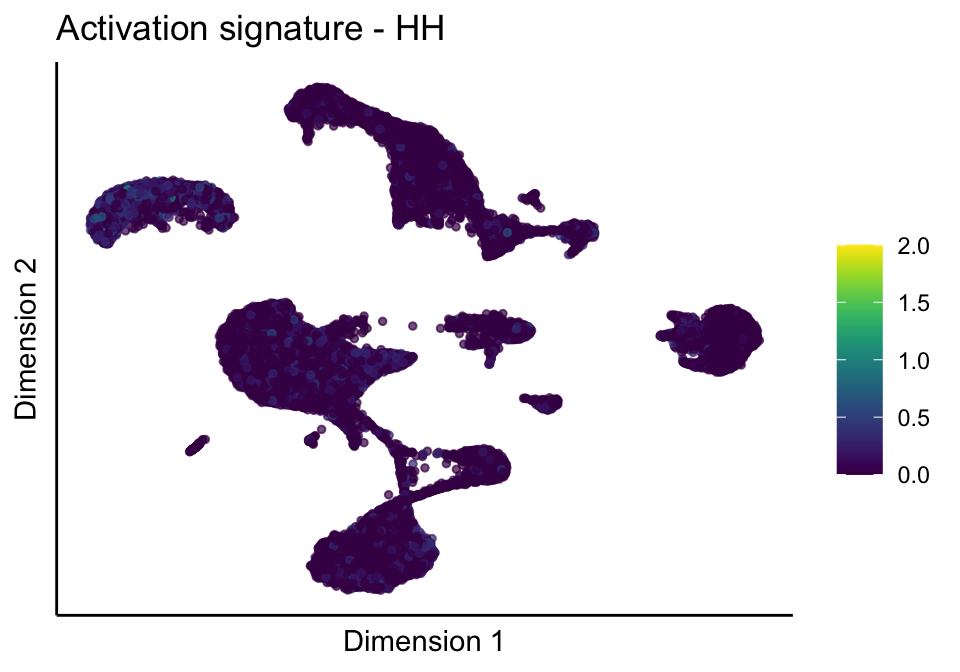

Past versions of "signature cut 1.5-22.png"

Version	Author	Date
c67d130	mluetge	2022-07-26
02765dc	mluetge	2022-07-19

[[3]][[2]]

Past versions of "signature cut 1.5-23.png"

Version	Author	Date
c67d130	mluetge	2022-07-26
02765dc	mluetge	2022-07-19

[[3]][[3]]

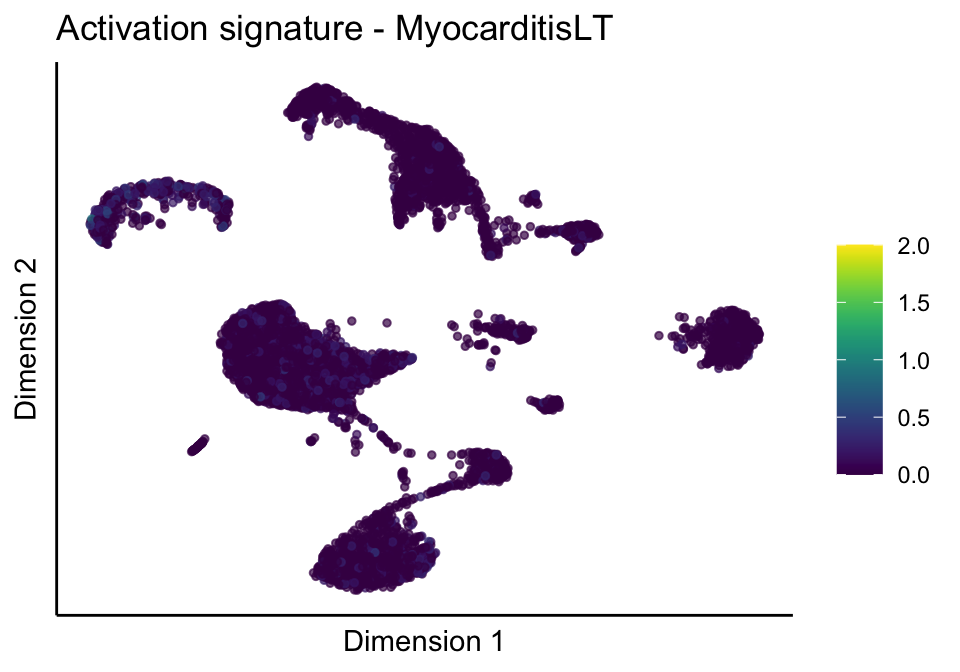

Past versions of "signature cut 1.5-24.png"

Version	Author	Date
c67d130	mluetge	2022-07-26
02765dc	mluetge	2022-07-19

[[4]]
[[4]][[1]]

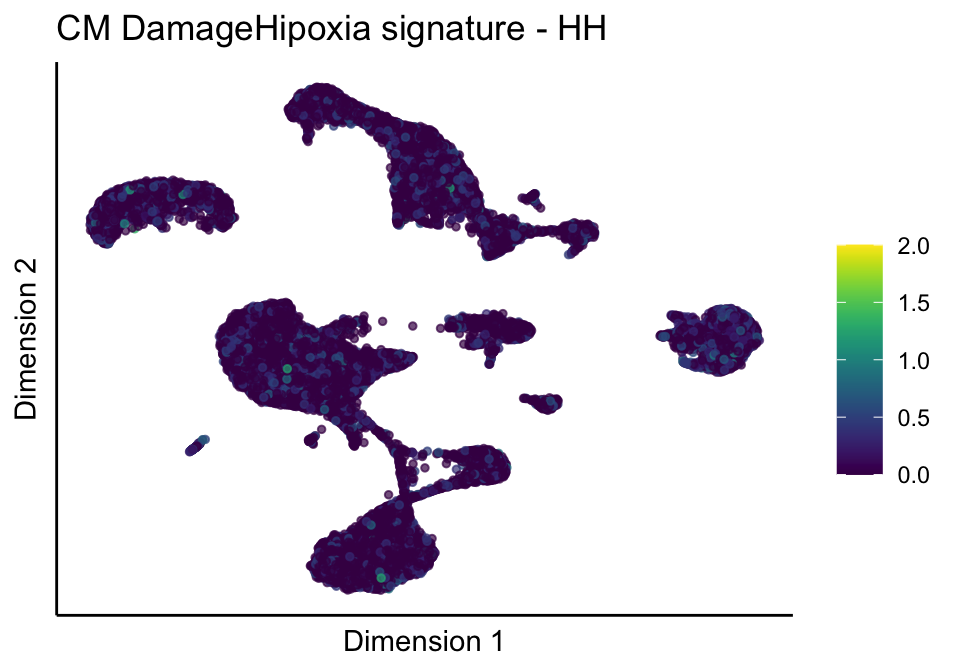

Past versions of "signature cut 1.5-25.png"

Version	Author	Date
c67d130	mluetge	2022-07-26
02765dc	mluetge	2022-07-19

[[4]][[2]]

Past versions of "signature cut 1.5-26.png"

Version	Author	Date
c67d130	mluetge	2022-07-26
02765dc	mluetge	2022-07-19

[[4]][[3]]

Past versions of "signature cut 1.5-27.png"

Version	Author	Date
c67d130	mluetge	2022-07-26
02765dc	mluetge	2022-07-19

[[5]]
[[5]][[1]]

Past versions of "signature cut 1.5-28.png"

Version	Author	Date
c67d130	mluetge	2022-07-26

[[5]][[2]]

Past versions of "signature cut 1.5-29.png"

Version	Author	Date
c67d130	mluetge	2022-07-26

[[5]][[3]]

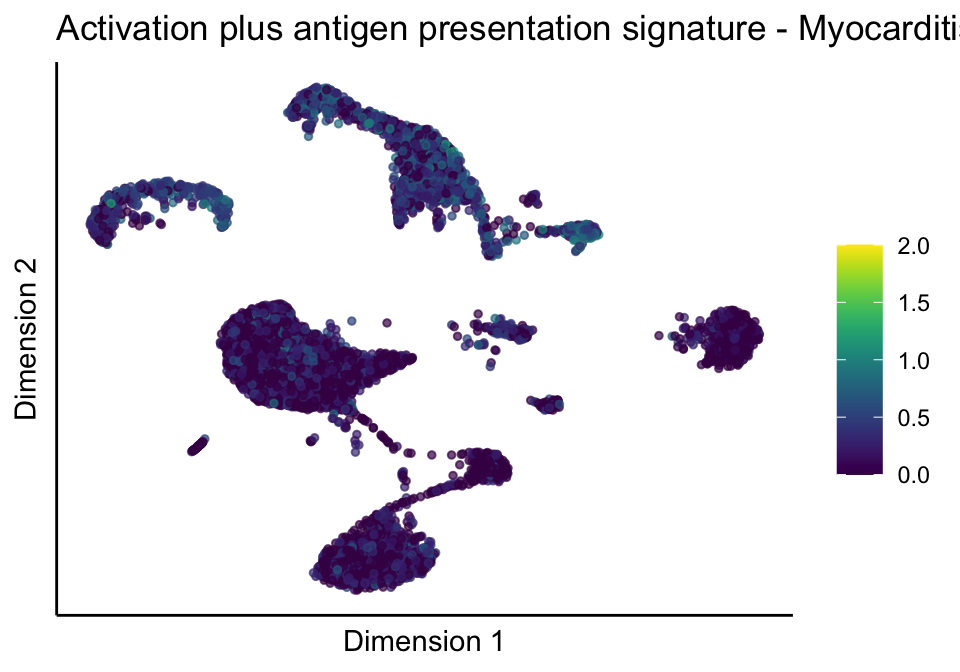

Past versions of "signature cut 1.5-30.png"

Version	Author	Date
c67d130	mluetge	2022-07-26

cutOff <- 1.5
pal = viridis(100)
sc <- scale_colour_gradientn(colours = pal, limits=c(0, cutOff))

lapply(unique(signDat$signature), function(sign){
  signGenes <- signDat %>% dplyr::filter(signature == sign)
  sceSub <- sce[which(rownames(sce) %in% signGenes$geneID),]
  cntMat <- rowSums(t(as.matrix(sceSub@assays@data$logcounts)))/nrow(signGenes)
  sceSub$sign <- cntMat
  sceSub$sign[which(sceSub$sign > cutOff)] <- cutOff
  sceSub$sign[which(sceSub$sign < 0)] <- 0
  lapply(treatGrps, function(treat){
    sceSubT <- sceSub[, which(sceSub$cond2 == treat)]
    p <- visGroup_adapt(sceSubT, 'sign', dim_red = 'UMAP') +
    sc +
    guides(colour = guide_colourbar(title = '')) +
    ggtitle(paste0(sign, ' signature - ', treat)) +
    theme_classic() +
    theme(axis.text = element_blank(),
          axis.ticks = element_blank()) +
    labs(x='Dimension 1', y='Dimension 2')
    p
  })
})

[[1]]
[[1]][[1]]

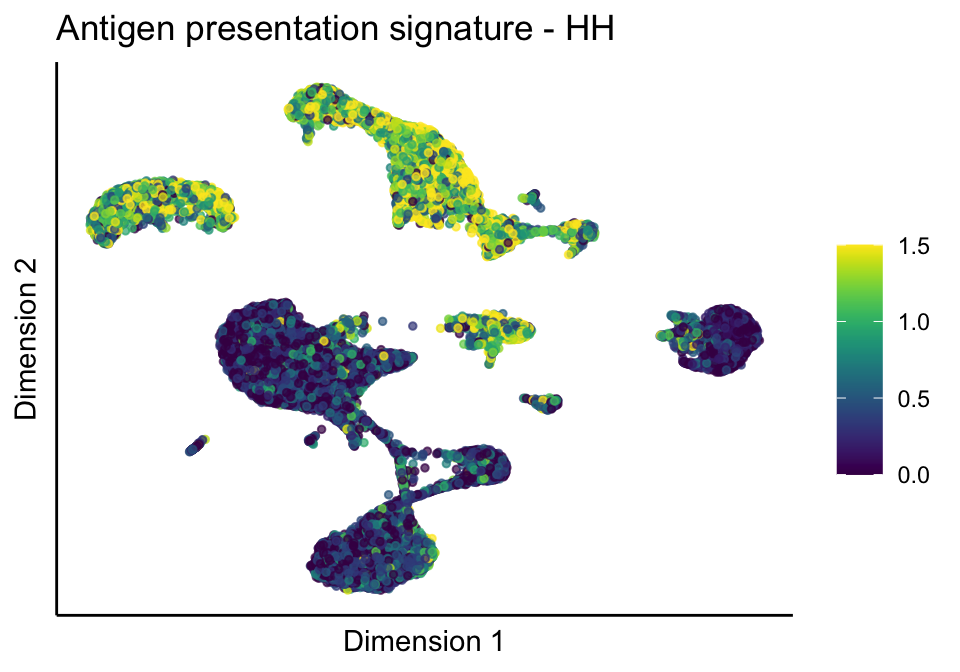

Past versions of "signature cut 1.5-31.png"

Version	Author	Date
c67d130	mluetge	2022-07-26

[[1]][[2]]

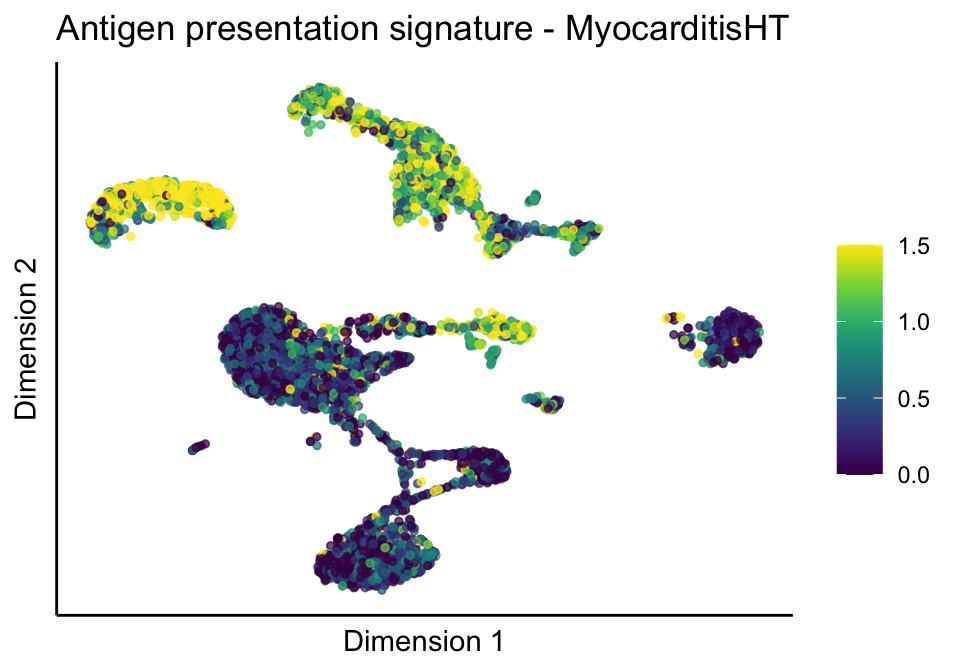

Past versions of "signature cut 1.5-32.png"

Version	Author	Date
c67d130	mluetge	2022-07-26

[[1]][[3]]

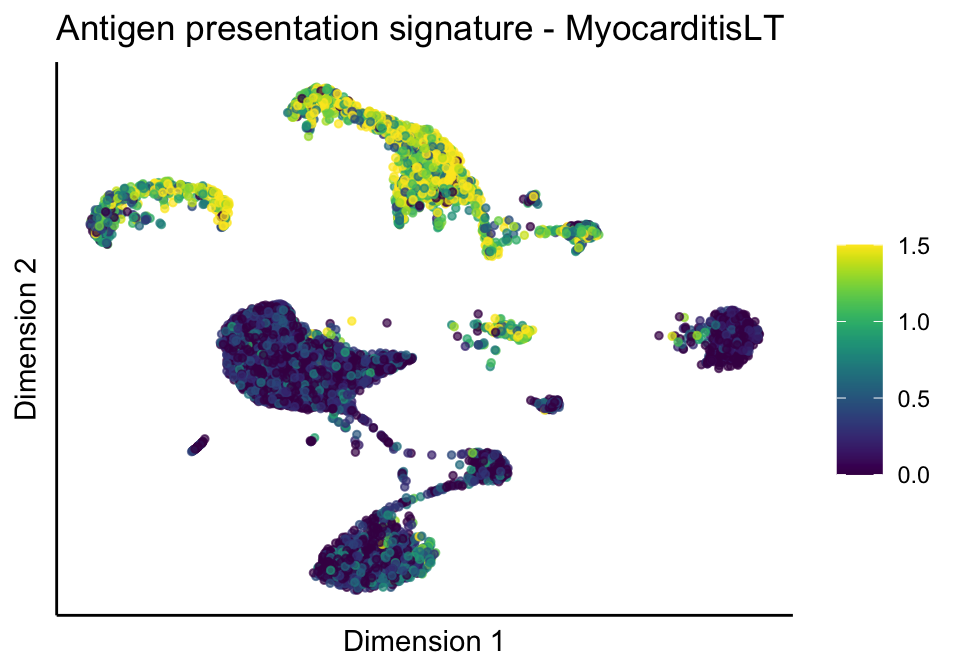

Past versions of "signature cut 1.5-33.png"

Version	Author	Date
c67d130	mluetge	2022-07-26

[[2]]
[[2]][[1]]

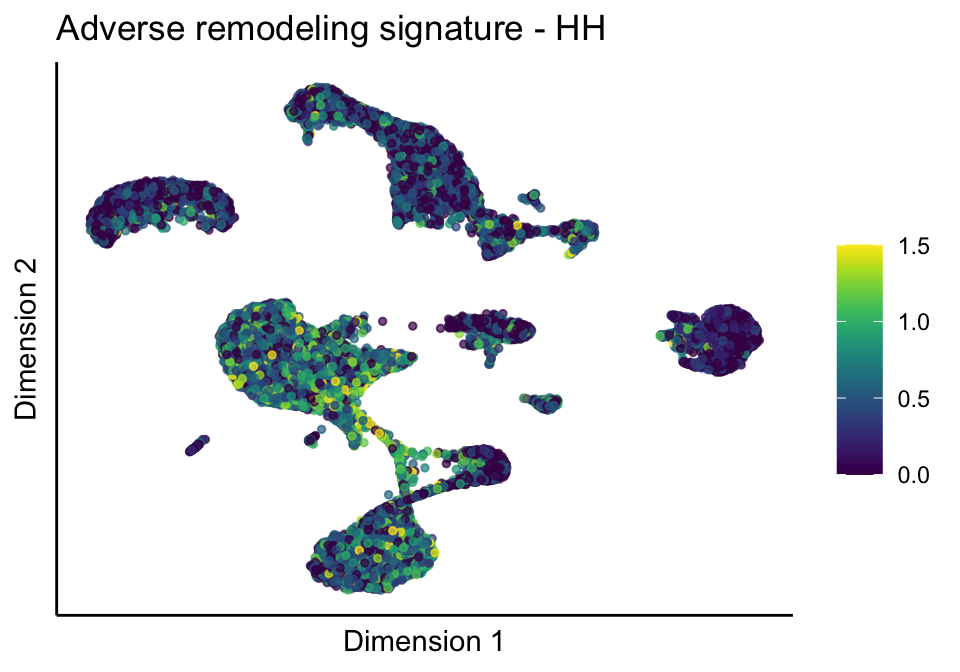

Past versions of "signature cut 1.5-34.png"

Version	Author	Date
c67d130	mluetge	2022-07-26

[[2]][[2]]

Past versions of "signature cut 1.5-35.png"

Version	Author	Date
c67d130	mluetge	2022-07-26

[[2]][[3]]

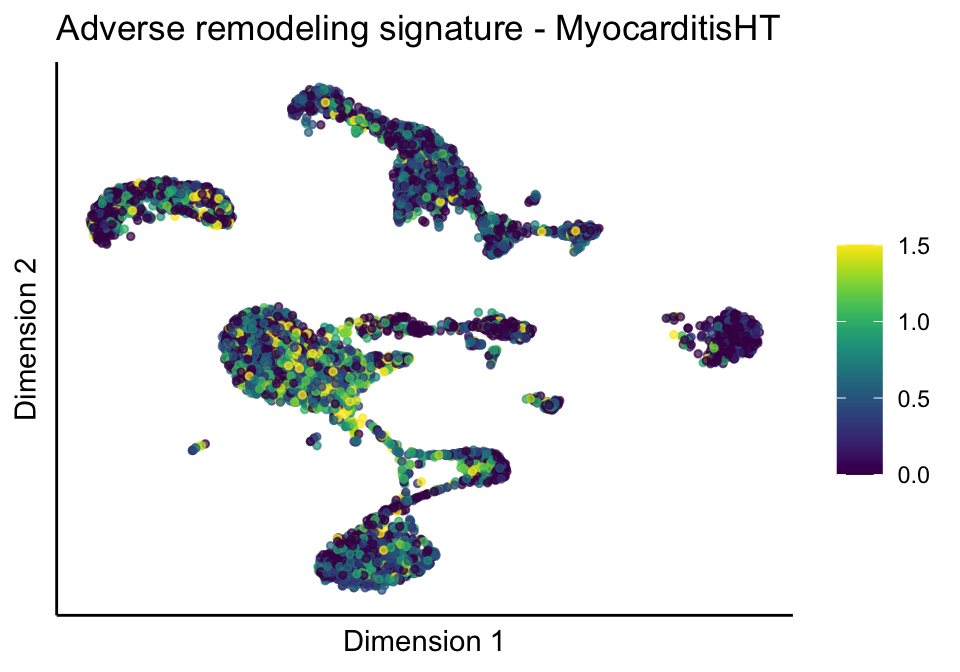

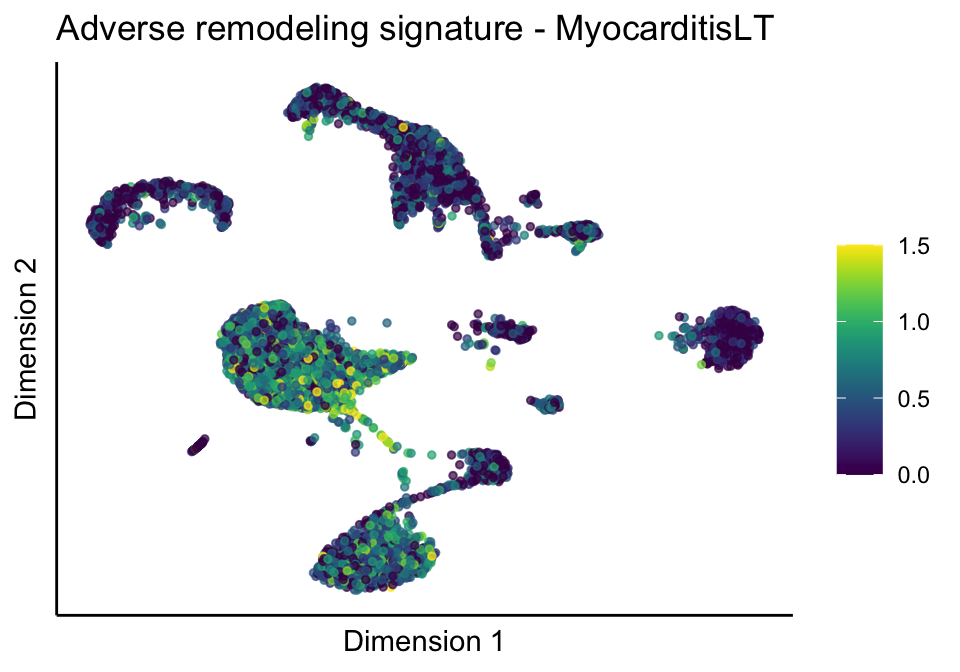

Past versions of "signature cut 1.5-36.png"

Version	Author	Date
c67d130	mluetge	2022-07-26

[[3]]
[[3]][[1]]

Past versions of "signature cut 1.5-37.png"

Version	Author	Date
c67d130	mluetge	2022-07-26

[[3]][[2]]

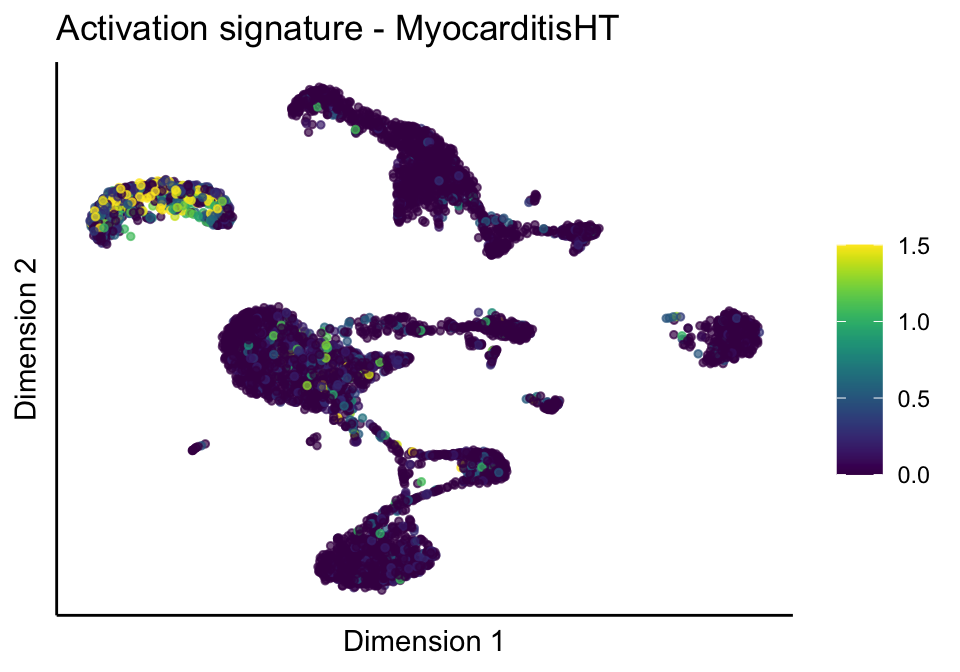

Past versions of "signature cut 1.5-38.png"

Version	Author	Date
c67d130	mluetge	2022-07-26

[[3]][[3]]

Past versions of "signature cut 1.5-39.png"

Version	Author	Date
c67d130	mluetge	2022-07-26

[[4]]
[[4]][[1]]

Past versions of "signature cut 1.5-40.png"

Version	Author	Date
c67d130	mluetge	2022-07-26

[[4]][[2]]

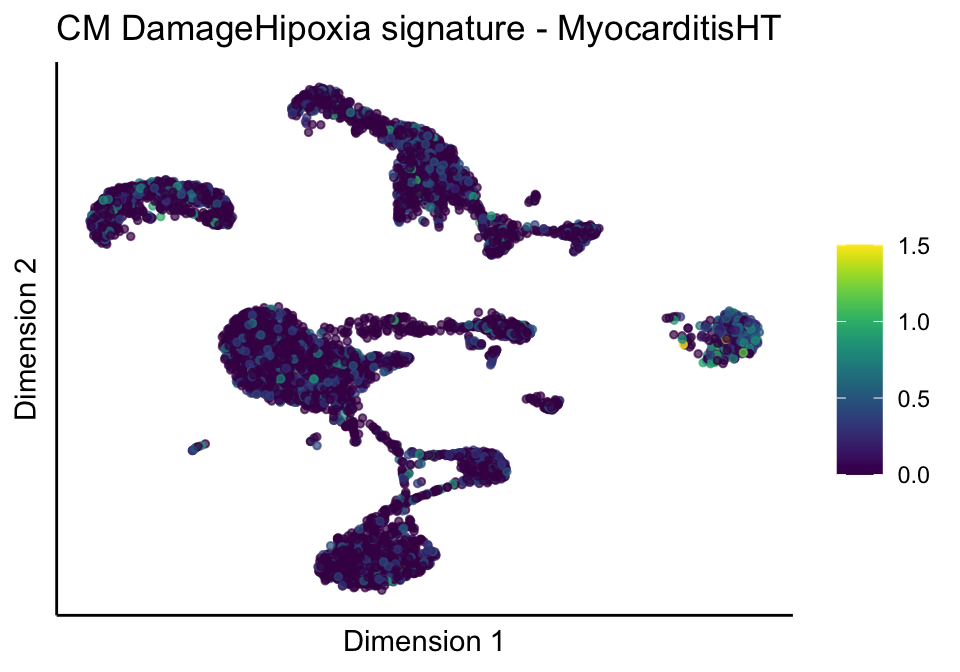

Past versions of "signature cut 1.5-41.png"

Version	Author	Date
c67d130	mluetge	2022-07-26

[[4]][[3]]

Past versions of "signature cut 1.5-42.png"

Version	Author	Date
c67d130	mluetge	2022-07-26

[[5]]
[[5]][[1]]

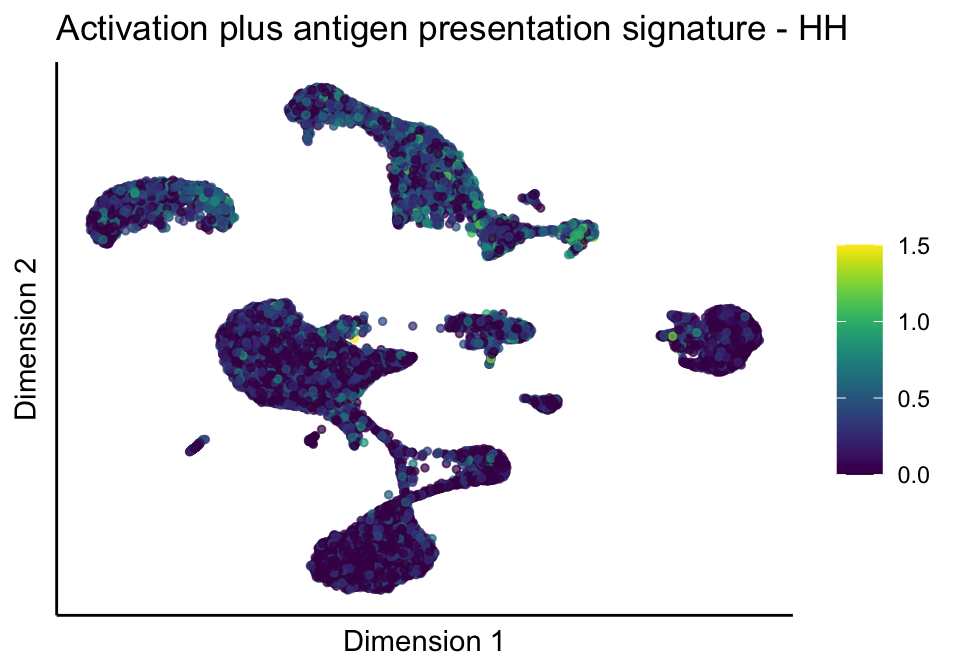

Past versions of "signature cut 1.5-43.png"

Version	Author	Date
c67d130	mluetge	2022-07-26

[[5]][[2]]

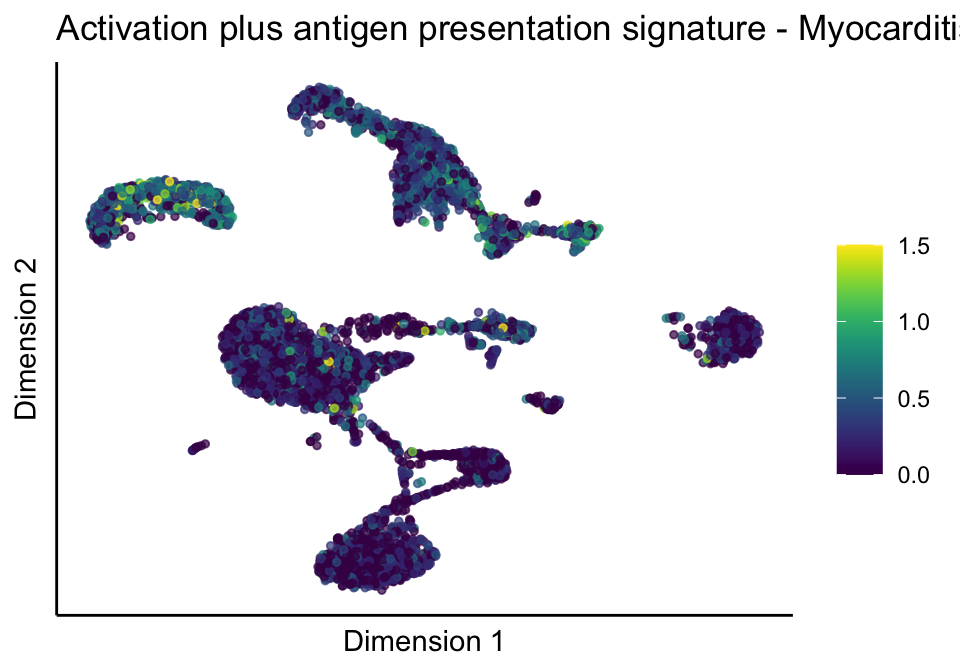

Past versions of "signature cut 1.5-44.png"

Version	Author	Date
c67d130	mluetge	2022-07-26

[[5]][[3]]

Past versions of "signature cut 1.5-45.png"

Version	Author	Date
c67d130	mluetge	2022-07-26

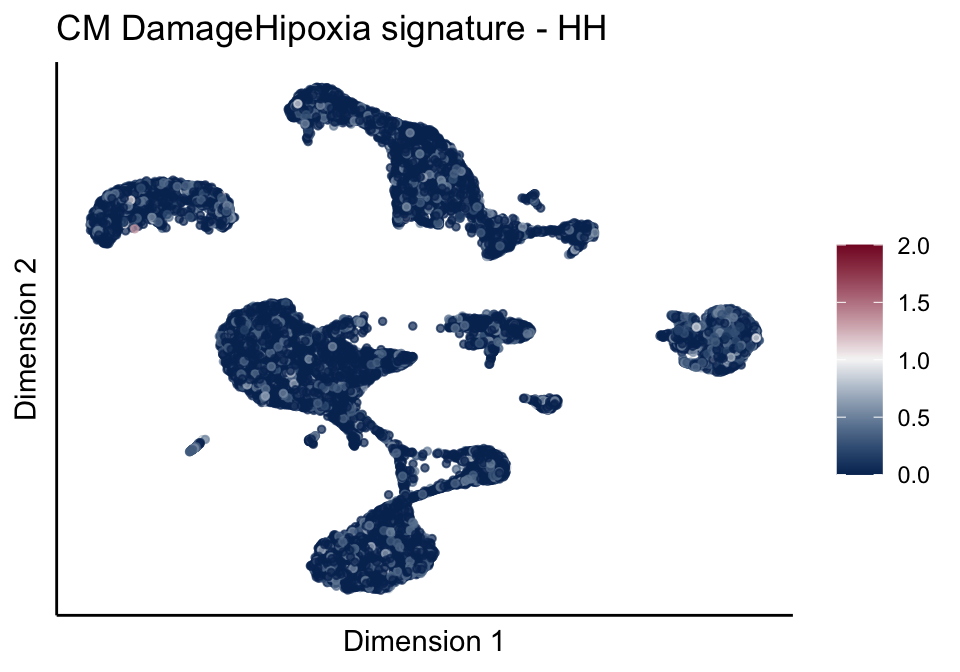

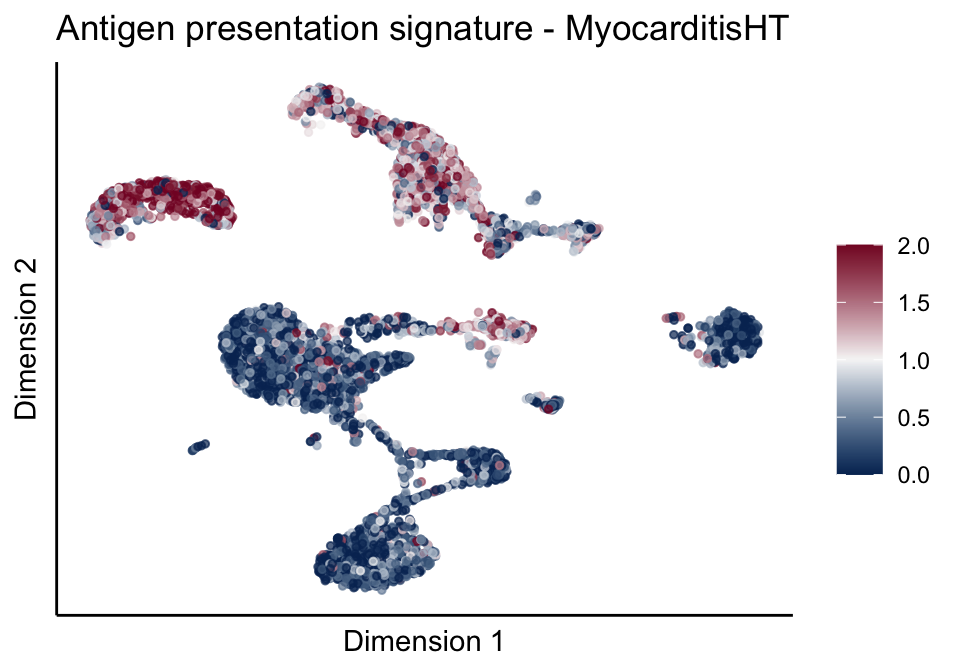

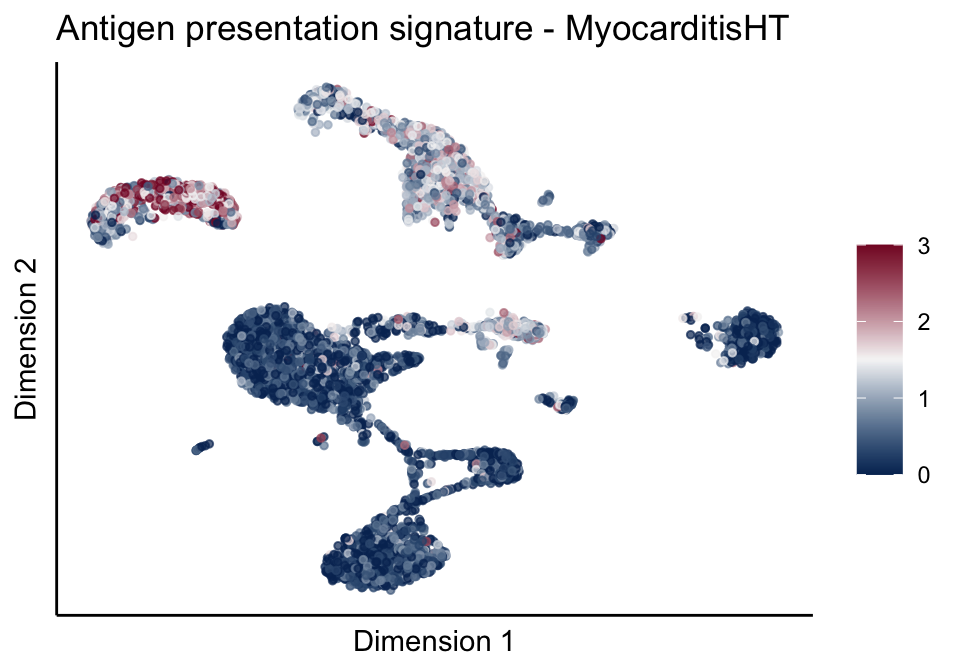

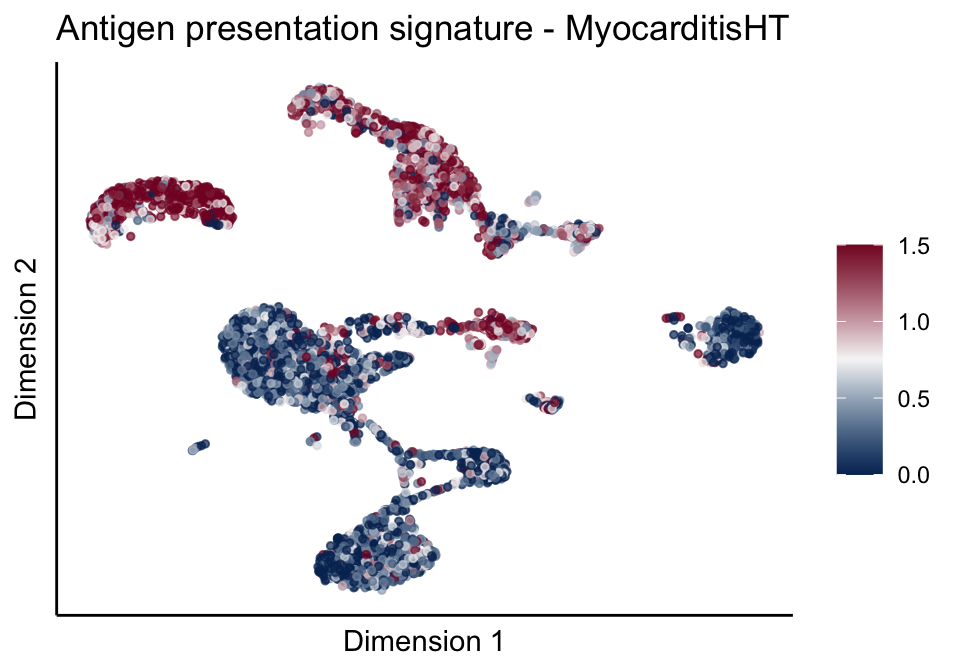

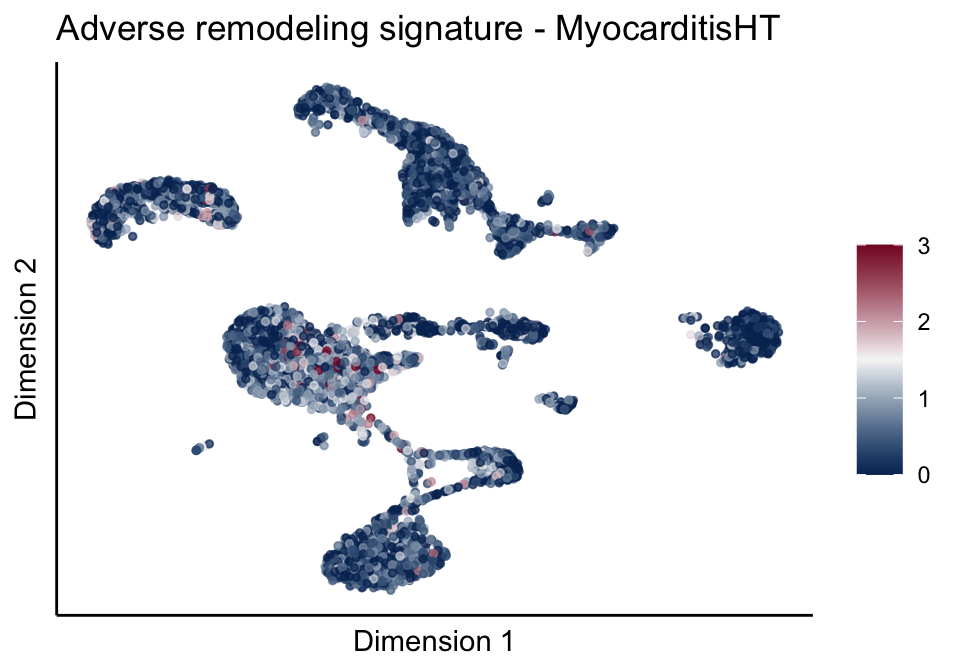

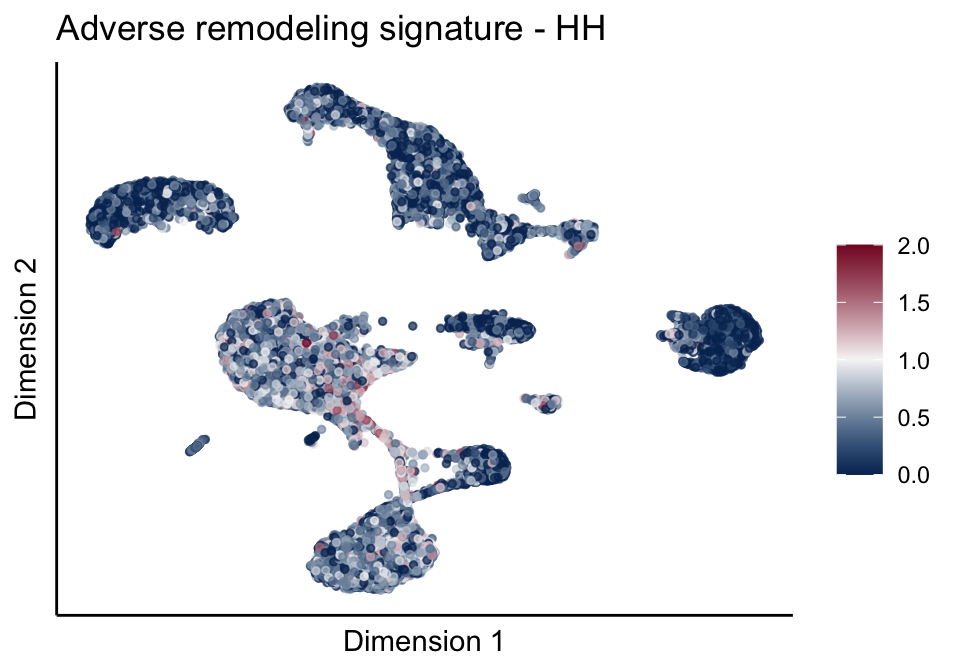

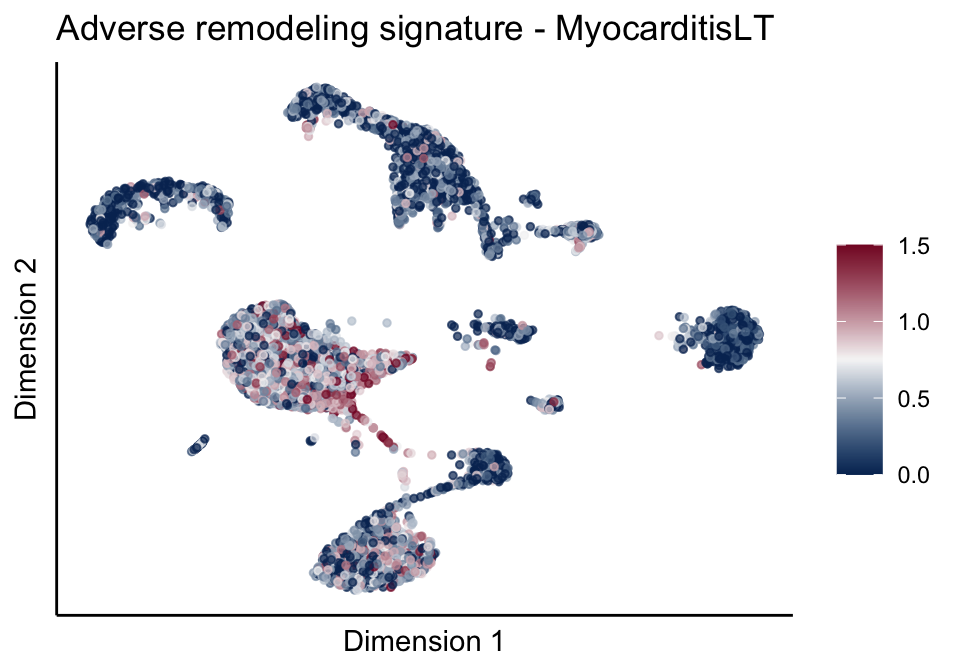

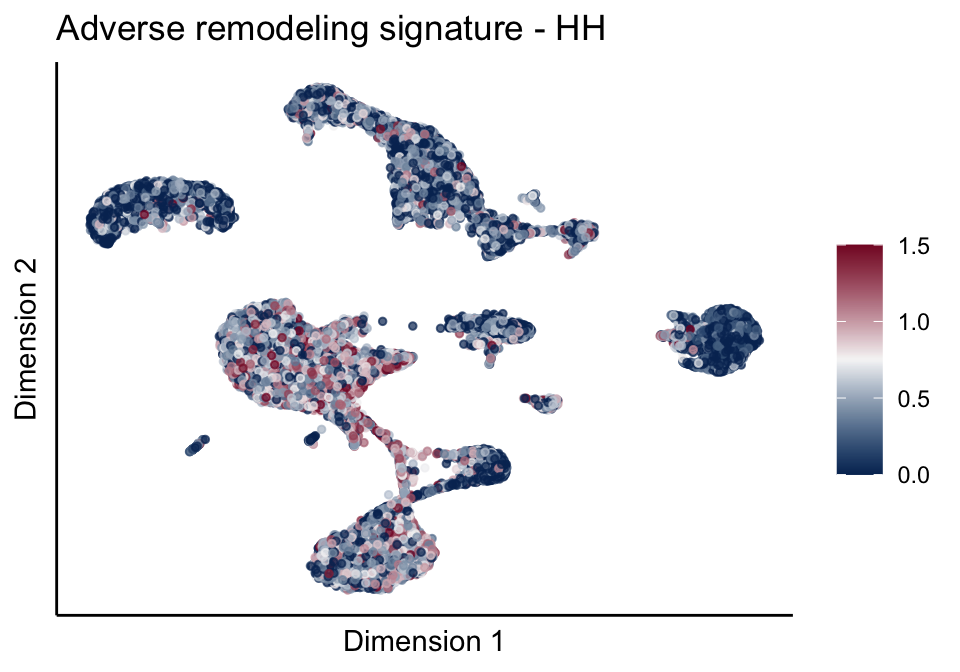

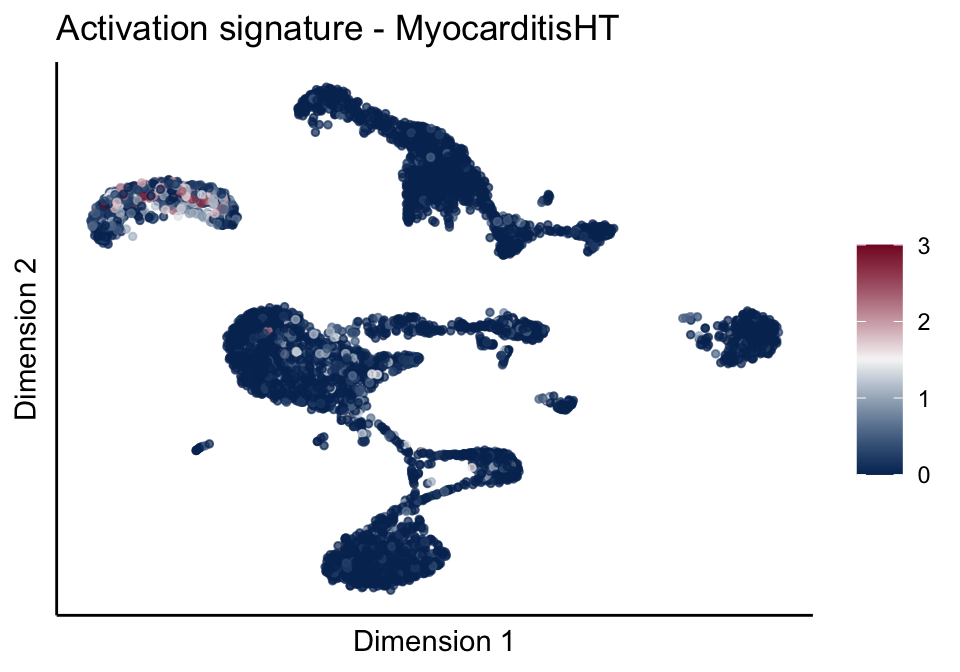

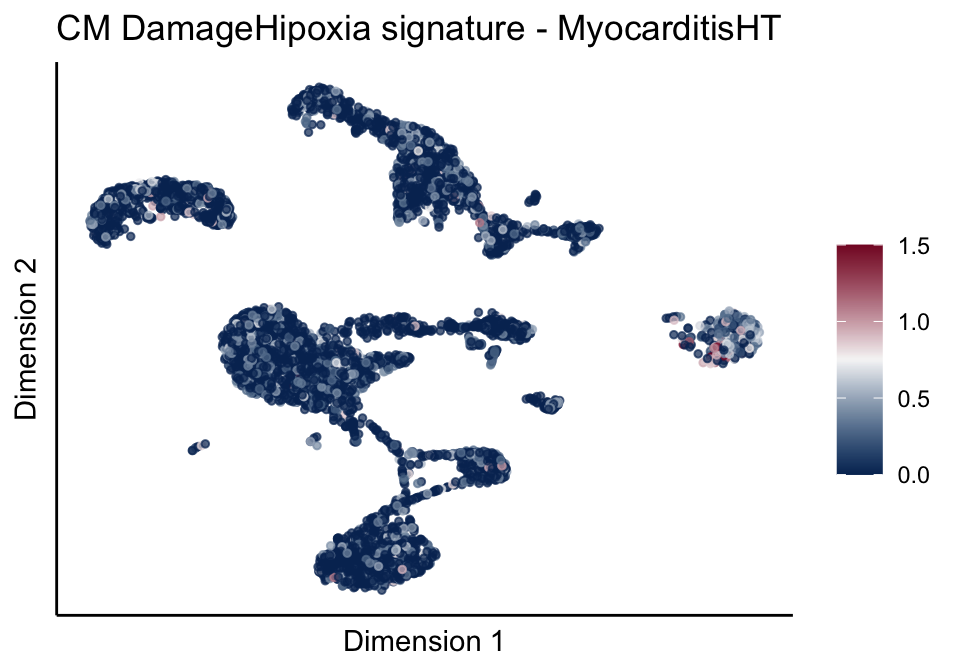

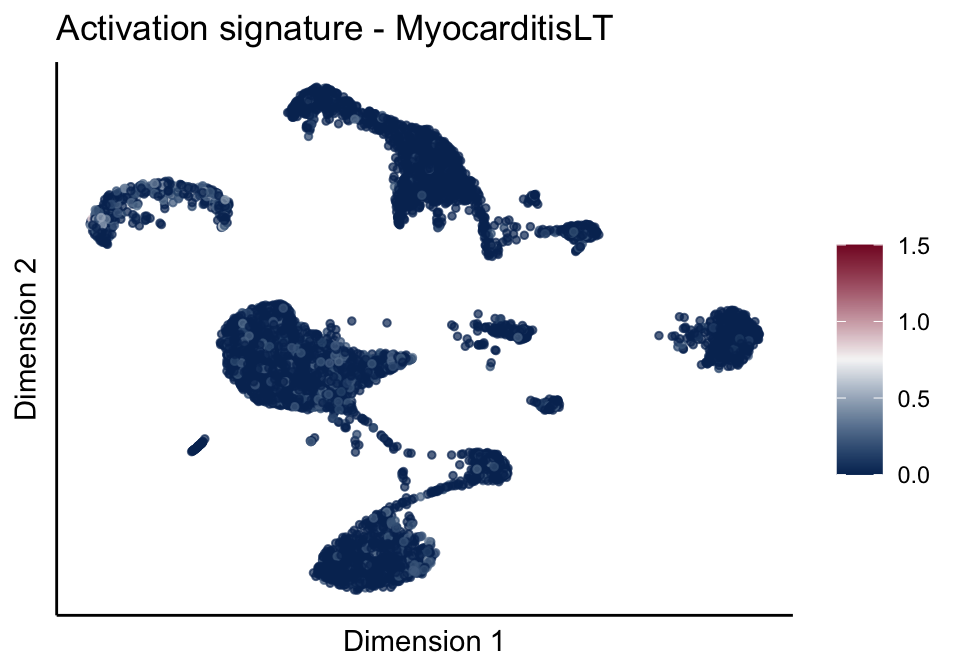

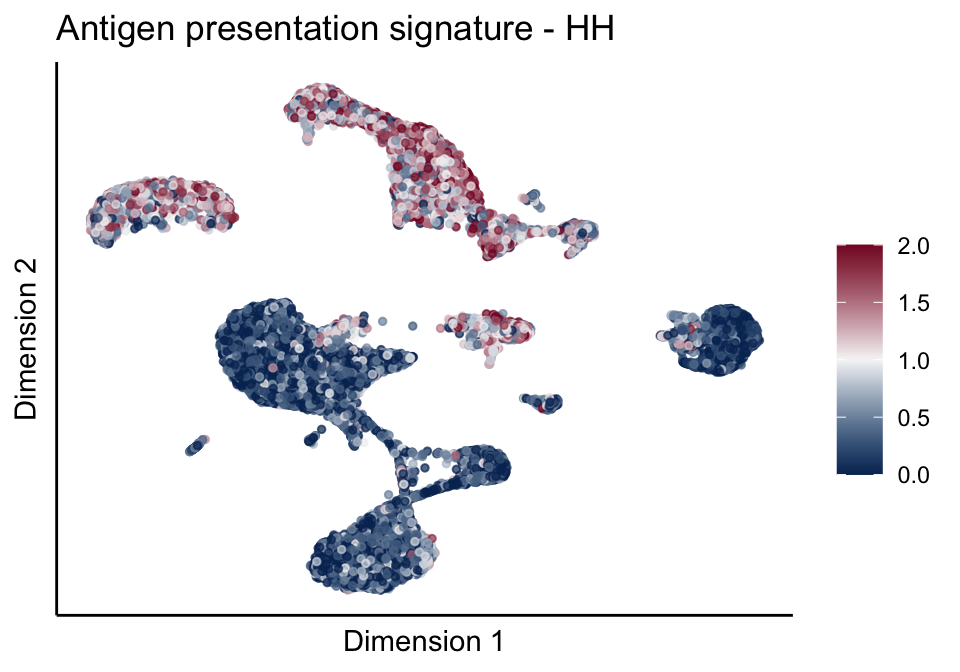

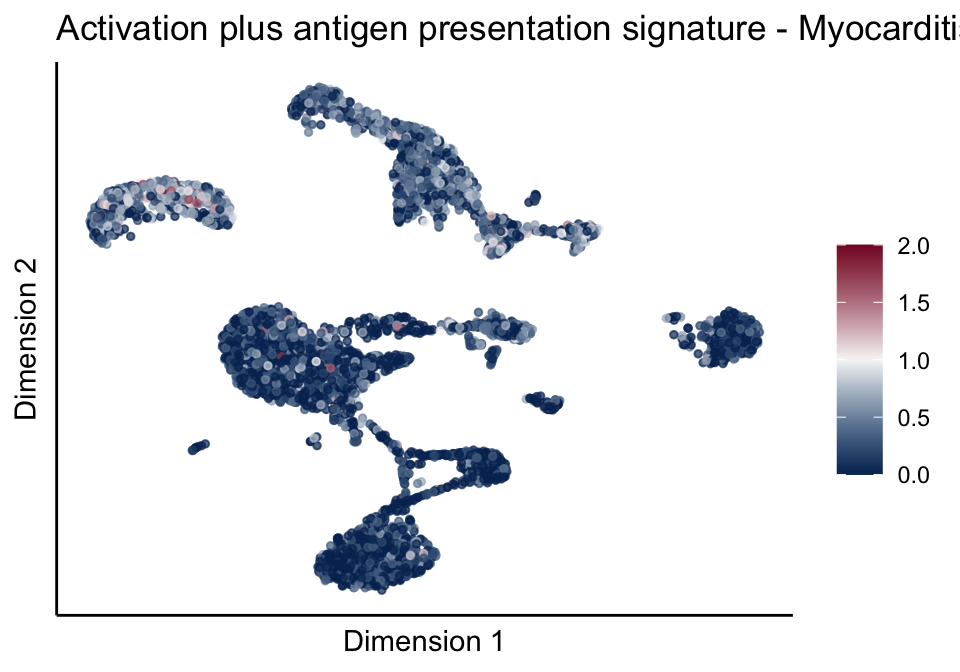

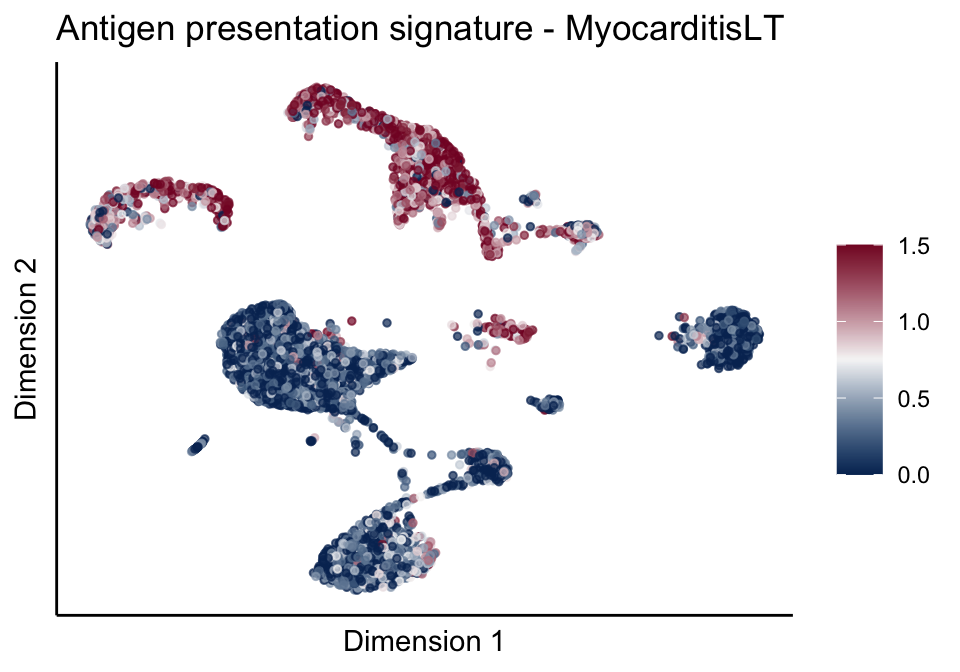

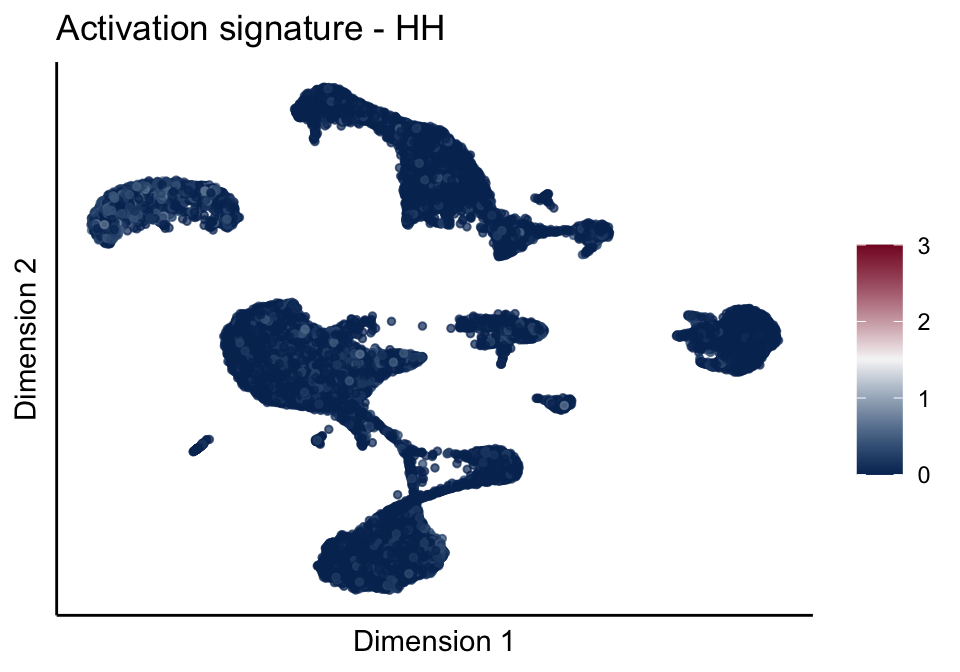

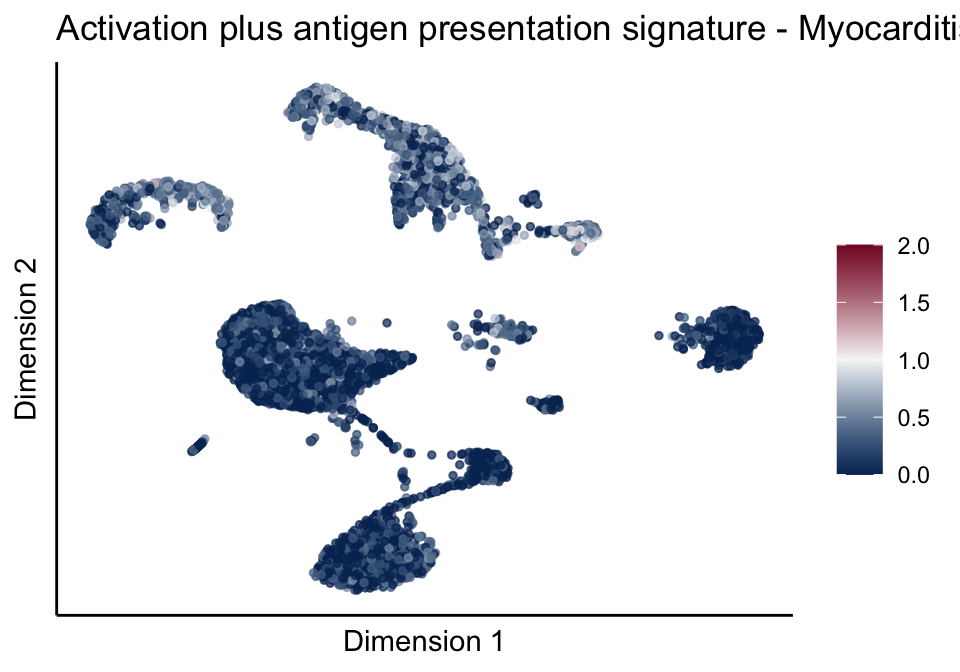

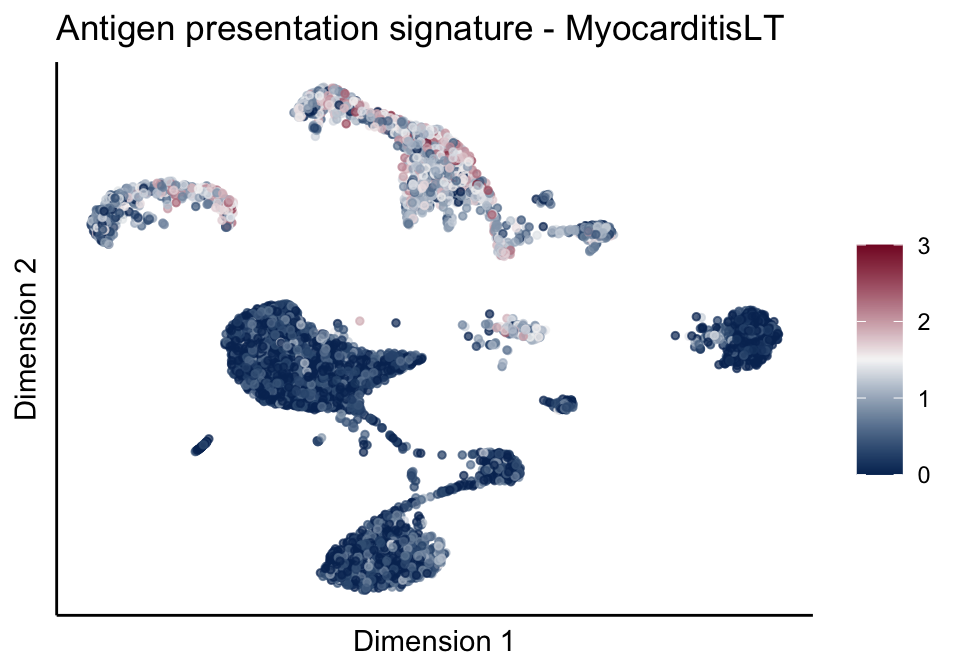

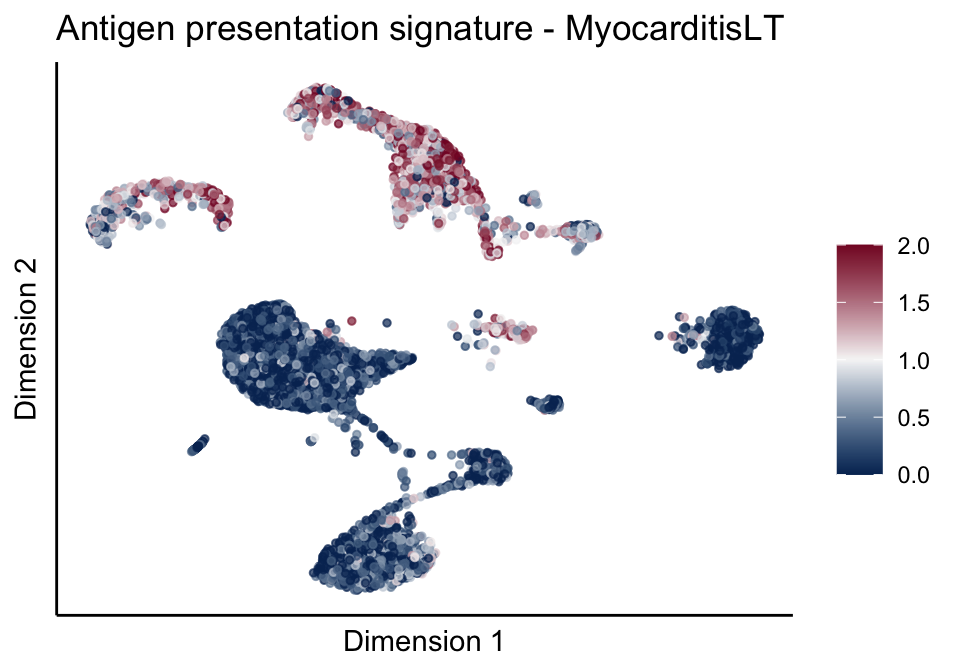

signatures red blue

split by grp

cutOff <- 3
pal = colorRampPalette(c("#053061", "#f7f7f7","#85122d"))(100)
sc <- scale_colour_gradientn(colours = pal, limits=c(0, cutOff))

lapply(unique(signDat$signature), function(sign){
  signGenes <- signDat %>% dplyr::filter(signature == sign)
  sceSub <- sce[which(rownames(sce) %in% signGenes$geneID),]
  cntMat <- rowSums(t(as.matrix(sceSub@assays@data$logcounts)))/nrow(signGenes)
  sceSub$sign <- cntMat
  sceSub$sign[which(sceSub$sign > cutOff)] <- cutOff
  sceSub$sign[which(sceSub$sign < 0)] <- 0
  lapply(treatGrps, function(treat){
    sceSubT <- sceSub[, which(sceSub$cond2 == treat)]
    p <- visGroup_adapt(sceSubT, 'sign', dim_red = 'UMAP') +
    sc +
    guides(colour = guide_colourbar(title = '')) +
    ggtitle(paste0(sign, ' signature - ', treat)) +
    theme_classic() +
    theme(axis.text = element_blank(),
          axis.ticks = element_blank()) +
    labs(x='Dimension 1', y='Dimension 2')
    p
  })
})

[[1]]
[[1]][[1]]

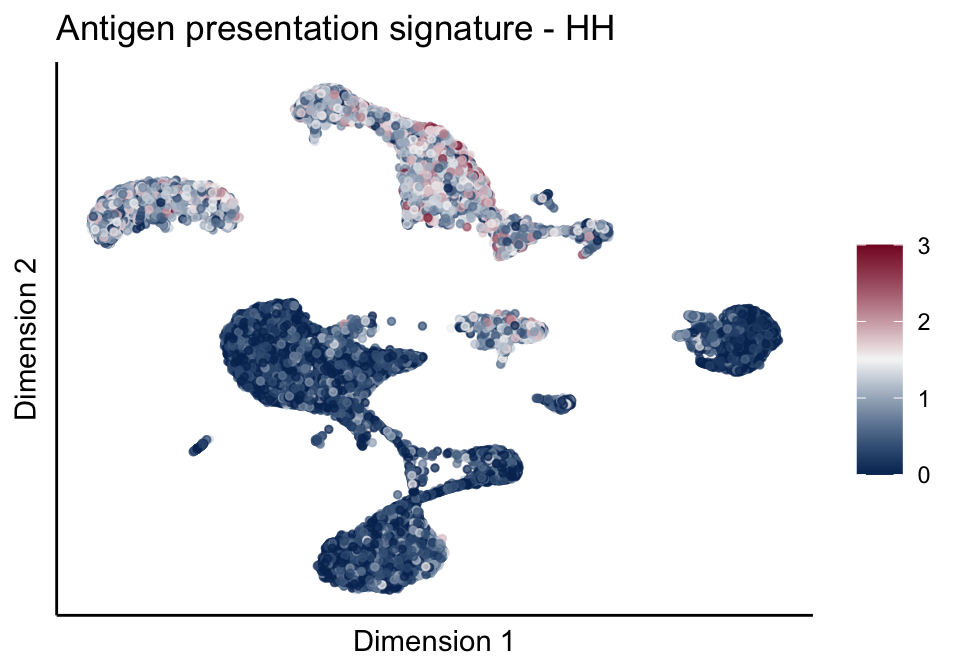

Past versions of "signature rdbl-1.png"

Version	Author	Date
c67d130	mluetge	2022-07-26
02765dc	mluetge	2022-07-19

[[1]][[2]]

Past versions of "signature rdbl-2.png"

Version	Author	Date
c67d130	mluetge	2022-07-26
02765dc	mluetge	2022-07-19

[[1]][[3]]

Past versions of "signature rdbl-3.png"

Version	Author	Date
c67d130	mluetge	2022-07-26
02765dc	mluetge	2022-07-19

[[2]]

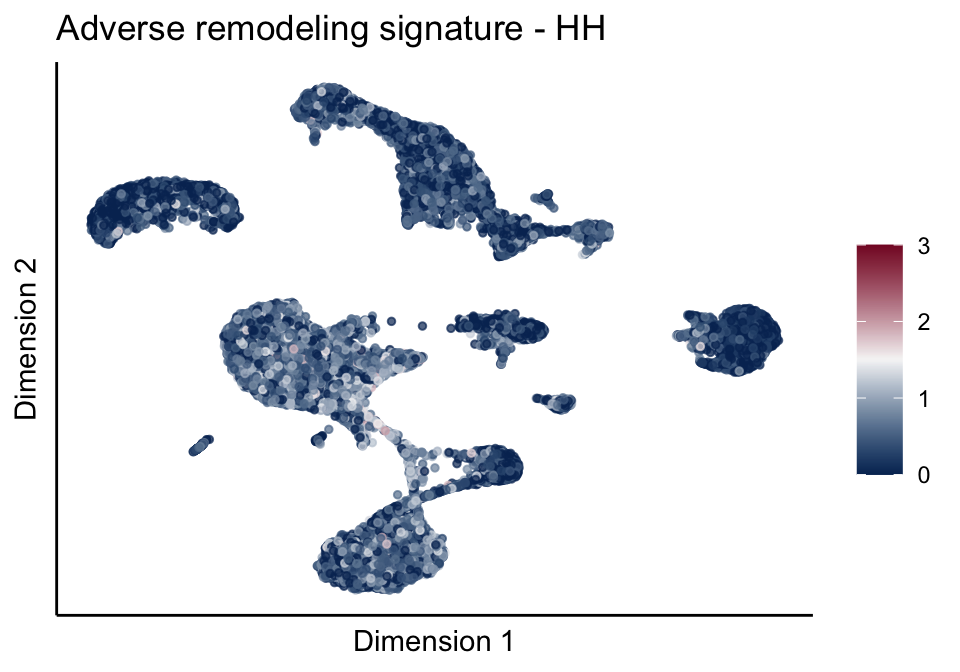

[[2]][[1]]

Past versions of "signature rdbl-4.png"

Version	Author	Date
c67d130	mluetge	2022-07-26
02765dc	mluetge	2022-07-19

[[2]][[2]]

Past versions of "signature rdbl-5.png"

Version	Author	Date
c67d130	mluetge	2022-07-26
02765dc	mluetge	2022-07-19

[[2]][[3]]

Past versions of "signature rdbl-6.png"

Version	Author	Date
c67d130	mluetge	2022-07-26
02765dc	mluetge	2022-07-19

[[3]]
[[3]][[1]]

Past versions of "signature rdbl-7.png"

Version	Author	Date
c67d130	mluetge	2022-07-26
02765dc	mluetge	2022-07-19

[[3]][[2]]

Past versions of "signature rdbl-8.png"

Version	Author	Date
c67d130	mluetge	2022-07-26
02765dc	mluetge	2022-07-19

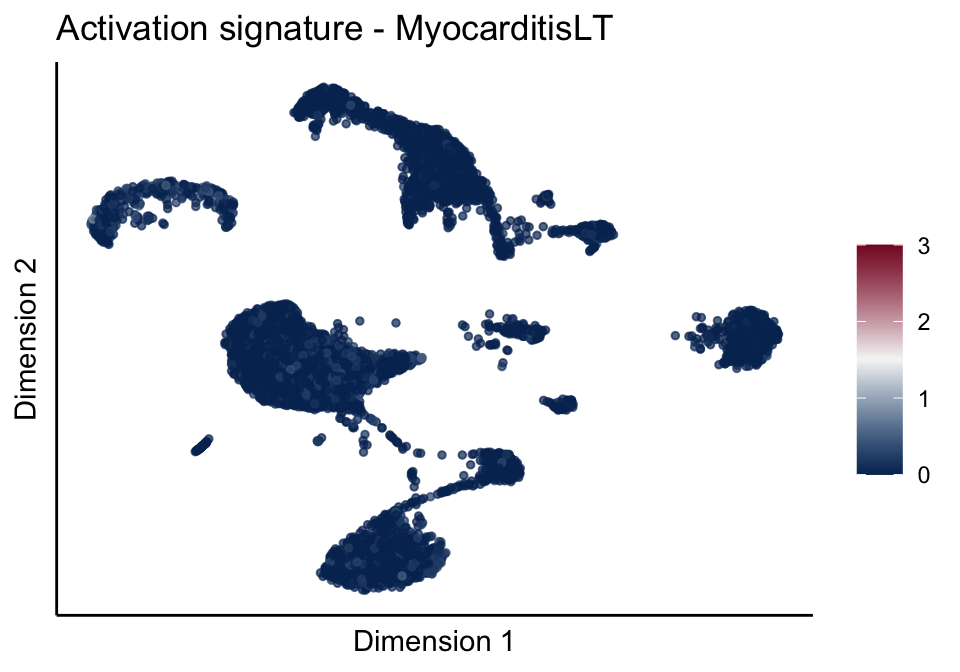

[[3]][[3]]

Past versions of "signature rdbl-9.png"

Version	Author	Date
c67d130	mluetge	2022-07-26
02765dc	mluetge	2022-07-19

[[4]]
[[4]][[1]]

Past versions of "signature rdbl-10.png"

Version	Author	Date
c67d130	mluetge	2022-07-26
02765dc	mluetge	2022-07-19

[[4]][[2]]

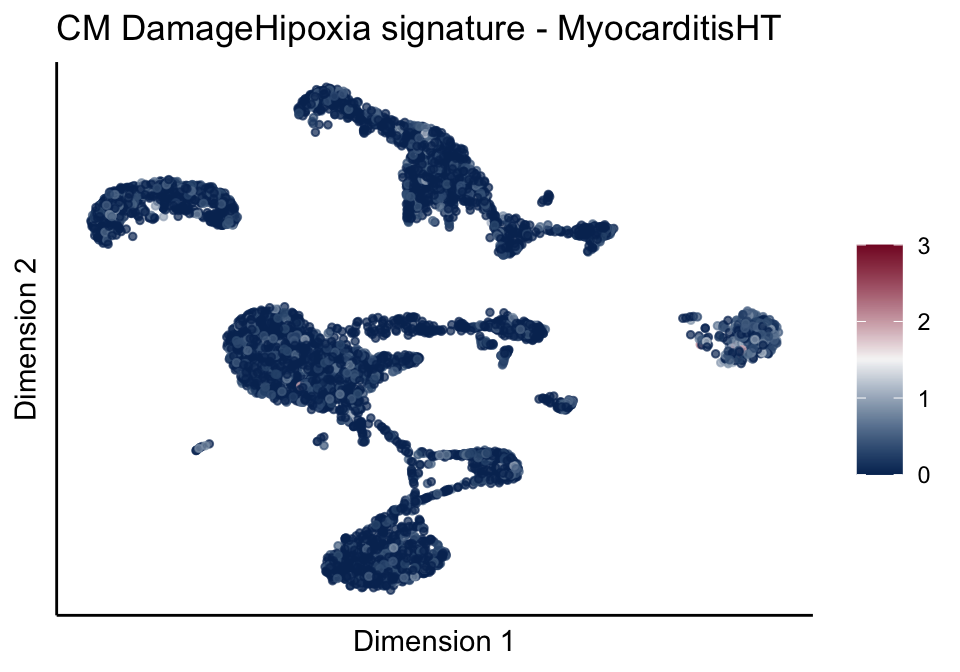

Past versions of "signature rdbl-11.png"

Version	Author	Date
c67d130	mluetge	2022-07-26
02765dc	mluetge	2022-07-19

[[4]][[3]]

Past versions of "signature rdbl-12.png"

Version	Author	Date
c67d130	mluetge	2022-07-26
02765dc	mluetge	2022-07-19

[[5]]
[[5]][[1]]

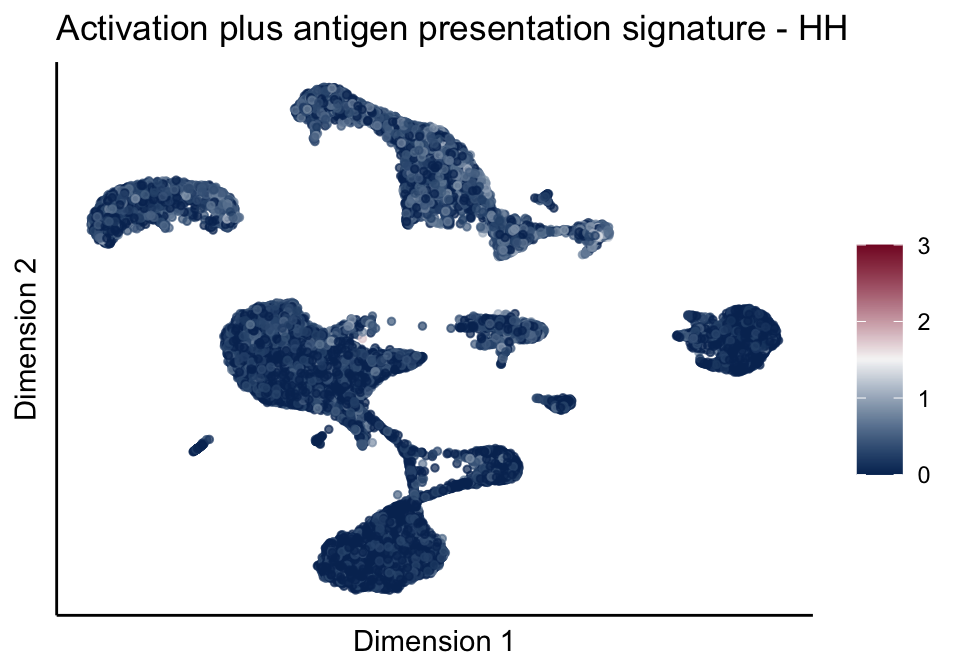

Past versions of "signature rdbl-13.png"

Version	Author	Date
c67d130	mluetge	2022-07-26
02765dc	mluetge	2022-07-19

[[5]][[2]]

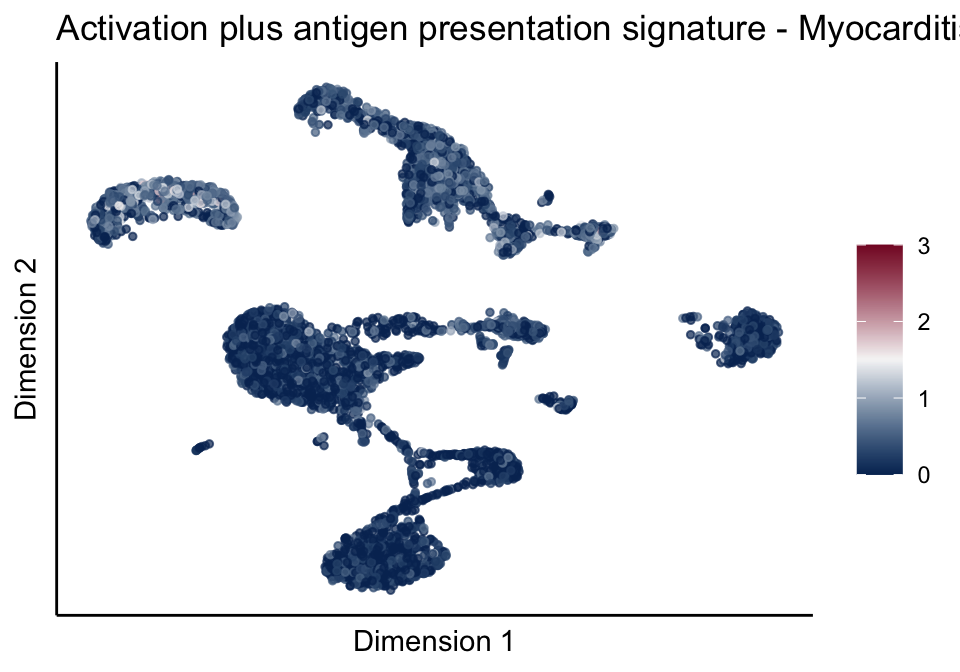

Past versions of "signature rdbl-14.png"

Version	Author	Date
c67d130	mluetge	2022-07-26
02765dc	mluetge	2022-07-19

[[5]][[3]]

Past versions of "signature rdbl-15.png"

Version	Author	Date
c67d130	mluetge	2022-07-26
02765dc	mluetge	2022-07-19

cutOff <- 2
pal = colorRampPalette(c("#053061", "#f7f7f7","#85122d"))(100)
sc <- scale_colour_gradientn(colours = pal, limits=c(0, cutOff))

lapply(unique(signDat$signature), function(sign){
  signGenes <- signDat %>% dplyr::filter(signature == sign)
  sceSub <- sce[which(rownames(sce) %in% signGenes$geneID),]
  cntMat <- rowSums(t(as.matrix(sceSub@assays@data$logcounts)))/nrow(signGenes)
  sceSub$sign <- cntMat
  sceSub$sign[which(sceSub$sign > cutOff)] <- cutOff
  sceSub$sign[which(sceSub$sign < 0)] <- 0
  lapply(treatGrps, function(treat){
    sceSubT <- sceSub[, which(sceSub$cond2 == treat)]
    p <- visGroup_adapt(sceSubT, 'sign', dim_red = 'UMAP') +
    sc +
    guides(colour = guide_colourbar(title = '')) +
    ggtitle(paste0(sign, ' signature - ', treat)) +
    theme_classic() +
    theme(axis.text = element_blank(),
          axis.ticks = element_blank()) +
    labs(x='Dimension 1', y='Dimension 2')
    p
  })
})

[[1]]
[[1]][[1]]

Past versions of "signature rdbl-16.png"

Version	Author	Date
c67d130	mluetge	2022-07-26
02765dc	mluetge	2022-07-19

[[1]][[2]]

Past versions of "signature rdbl-17.png"

Version	Author	Date
c67d130	mluetge	2022-07-26
02765dc	mluetge	2022-07-19

[[1]][[3]]

Past versions of "signature rdbl-18.png"

Version	Author	Date
c67d130	mluetge	2022-07-26
02765dc	mluetge	2022-07-19

[[2]]
[[2]][[1]]

Past versions of "signature rdbl-19.png"

Version	Author	Date
c67d130	mluetge	2022-07-26
02765dc	mluetge	2022-07-19

[[2]][[2]]

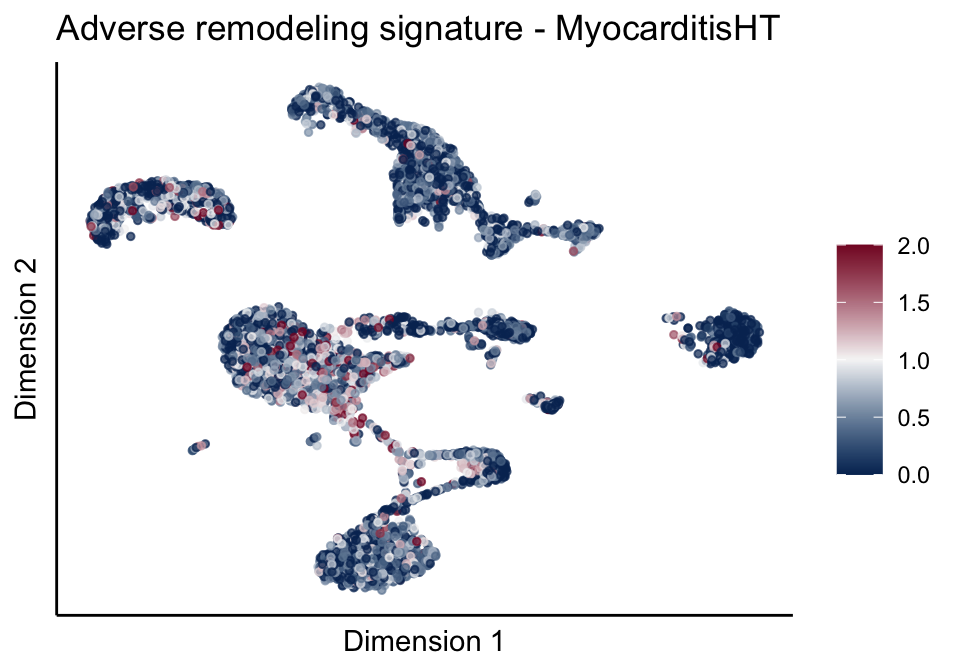

Past versions of "signature rdbl-20.png"

Version	Author	Date
c67d130	mluetge	2022-07-26
02765dc	mluetge	2022-07-19

[[2]][[3]]

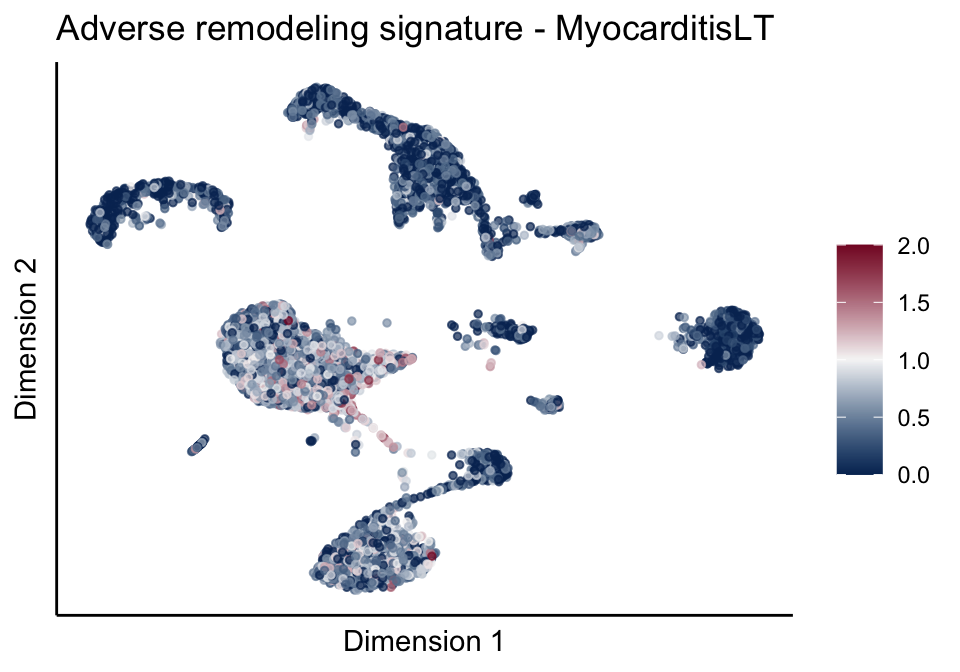

Past versions of "signature rdbl-21.png"

Version	Author	Date
c67d130	mluetge	2022-07-26
02765dc	mluetge	2022-07-19

[[3]]
[[3]][[1]]

Past versions of "signature rdbl-22.png"

Version	Author	Date
c67d130	mluetge	2022-07-26
02765dc	mluetge	2022-07-19

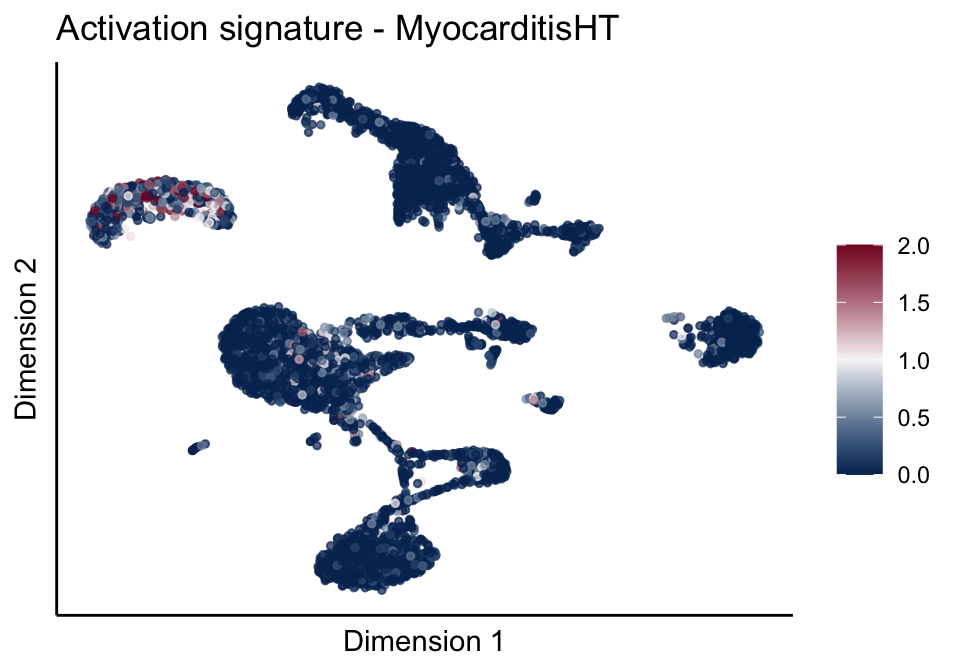

[[3]][[2]]

Past versions of "signature rdbl-23.png"

Version	Author	Date
c67d130	mluetge	2022-07-26
02765dc	mluetge	2022-07-19

[[3]][[3]]

Past versions of "signature rdbl-24.png"

Version	Author	Date
c67d130	mluetge	2022-07-26
02765dc	mluetge	2022-07-19

[[4]]
[[4]][[1]]

Past versions of "signature rdbl-25.png"

Version	Author	Date
c67d130	mluetge	2022-07-26
02765dc	mluetge	2022-07-19

[[4]][[2]]

Past versions of "signature rdbl-26.png"

Version	Author	Date
c67d130	mluetge	2022-07-26
02765dc	mluetge	2022-07-19

[[4]][[3]]

Past versions of "signature rdbl-27.png"

Version	Author	Date
c67d130	mluetge	2022-07-26
02765dc	mluetge	2022-07-19

[[5]]
[[5]][[1]]

Past versions of "signature rdbl-28.png"

Version	Author	Date
c67d130	mluetge	2022-07-26

[[5]][[2]]

Past versions of "signature rdbl-29.png"

Version	Author	Date
c67d130	mluetge	2022-07-26

[[5]][[3]]

Past versions of "signature rdbl-30.png"

Version	Author	Date
c67d130	mluetge	2022-07-26

cutOff <- 1.5
pal = colorRampPalette(c("#053061", "#f7f7f7","#85122d"))(100)
sc <- scale_colour_gradientn(colours = pal, limits=c(0, cutOff))

lapply(unique(signDat$signature), function(sign){
  signGenes <- signDat %>% dplyr::filter(signature == sign)
  sceSub <- sce[which(rownames(sce) %in% signGenes$geneID),]
  cntMat <- rowSums(t(as.matrix(sceSub@assays@data$logcounts)))/nrow(signGenes)
  sceSub$sign <- cntMat
  sceSub$sign[which(sceSub$sign > cutOff)] <- cutOff
  sceSub$sign[which(sceSub$sign < 0)] <- 0
  lapply(treatGrps, function(treat){
    sceSubT <- sceSub[, which(sceSub$cond2 == treat)]
    p <- visGroup_adapt(sceSubT, 'sign', dim_red = 'UMAP') +
    sc +
    guides(colour = guide_colourbar(title = '')) +
    ggtitle(paste0(sign, ' signature - ', treat)) +
    theme_classic() +
    theme(axis.text = element_blank(),
          axis.ticks = element_blank()) +
    labs(x='Dimension 1', y='Dimension 2')
    p
  })
})

[[1]]
[[1]][[1]]

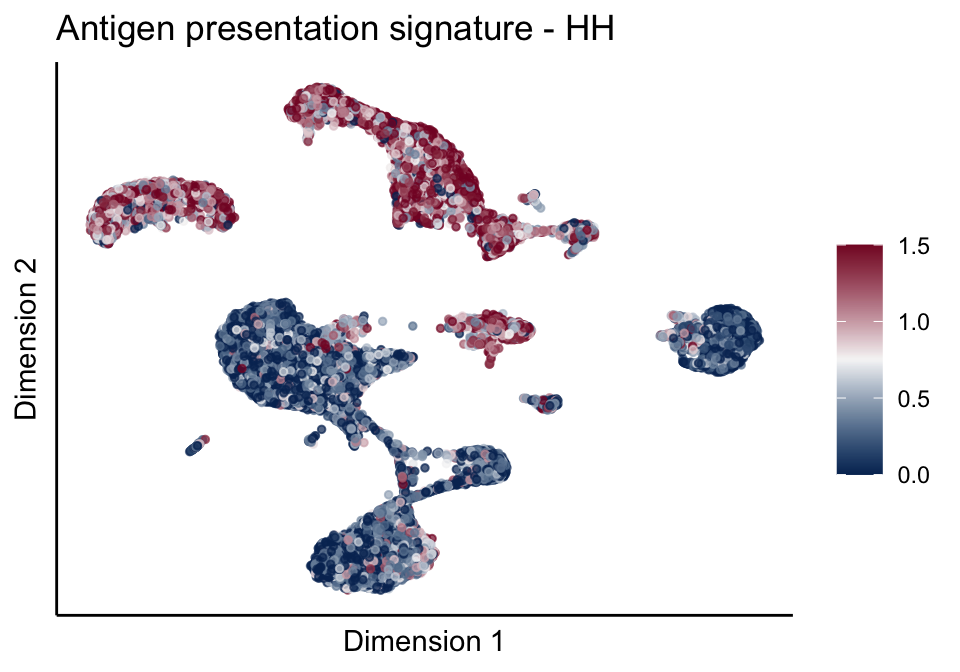

Past versions of "signature rdbl-31.png"

Version	Author	Date
c67d130	mluetge	2022-07-26

[[1]][[2]]

Past versions of "signature rdbl-32.png"

Version	Author	Date
c67d130	mluetge	2022-07-26

[[1]][[3]]

Past versions of "signature rdbl-33.png"

Version	Author	Date
c67d130	mluetge	2022-07-26

[[2]]
[[2]][[1]]

Past versions of "signature rdbl-34.png"

Version	Author	Date
c67d130	mluetge	2022-07-26

[[2]][[2]]

Past versions of "signature rdbl-35.png"

Version	Author	Date
c67d130	mluetge	2022-07-26

[[2]][[3]]

Past versions of "signature rdbl-36.png"

Version	Author	Date
c67d130	mluetge	2022-07-26

[[3]]
[[3]][[1]]

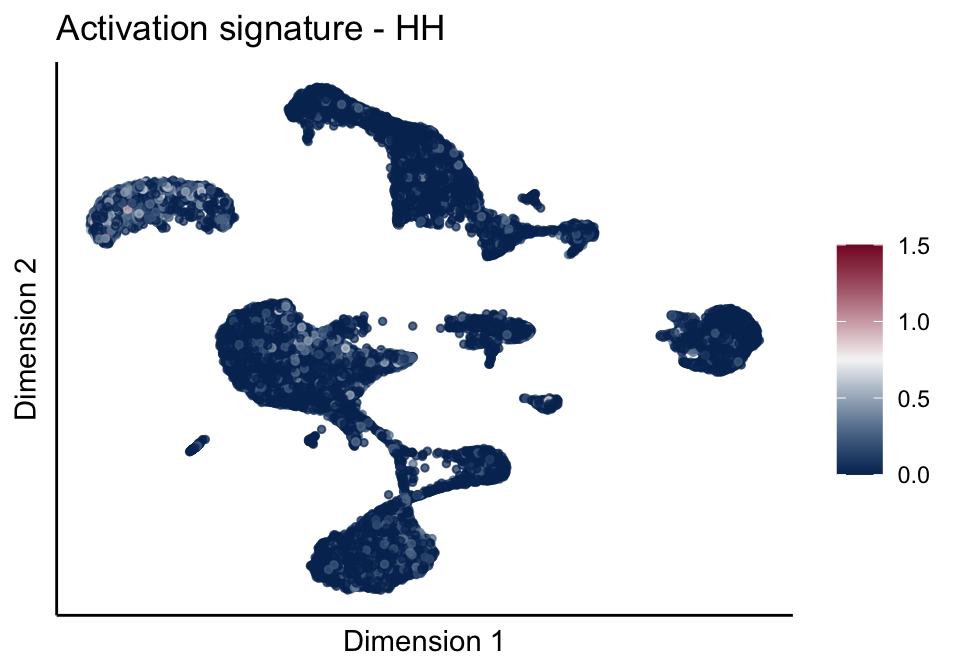

Past versions of "signature rdbl-37.png"

Version	Author	Date
c67d130	mluetge	2022-07-26

[[3]][[2]]

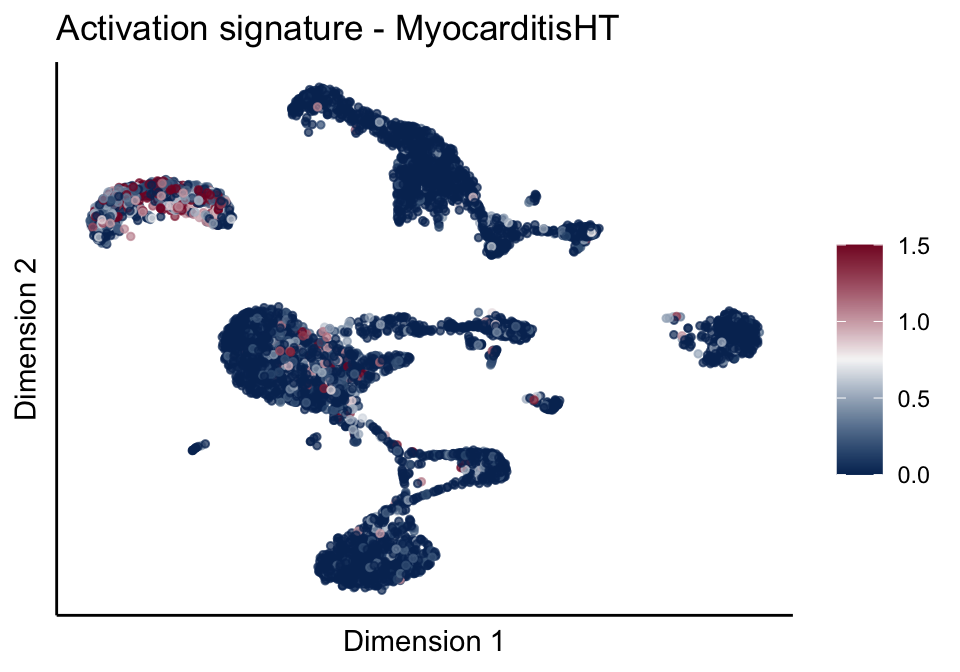

Past versions of "signature rdbl-38.png"

Version	Author	Date
c67d130	mluetge	2022-07-26

[[3]][[3]]

Past versions of "signature rdbl-39.png"

Version	Author	Date
c67d130	mluetge	2022-07-26

[[4]]
[[4]][[1]]

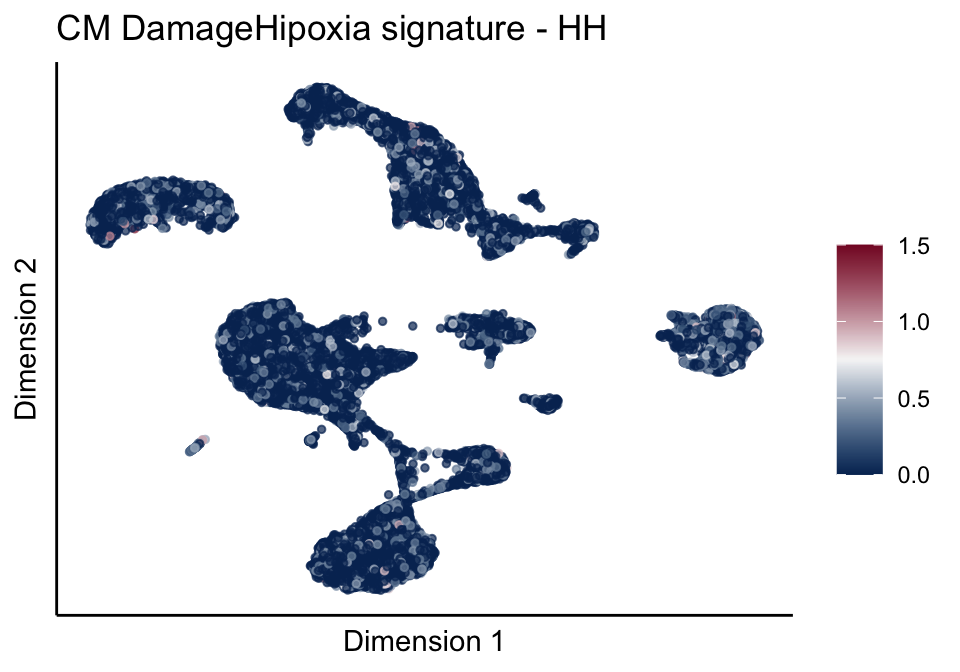

Past versions of "signature rdbl-40.png"

Version	Author	Date
c67d130	mluetge	2022-07-26

[[4]][[2]]

Past versions of "signature rdbl-41.png"

Version	Author	Date
c67d130	mluetge	2022-07-26

[[4]][[3]]

Past versions of "signature rdbl-42.png"

Version	Author	Date
c67d130	mluetge	2022-07-26

[[5]]
[[5]][[1]]

Past versions of "signature rdbl-43.png"

Version	Author	Date
c67d130	mluetge	2022-07-26

[[5]][[2]]

Past versions of "signature rdbl-44.png"

Version	Author	Date
c67d130	mluetge	2022-07-26

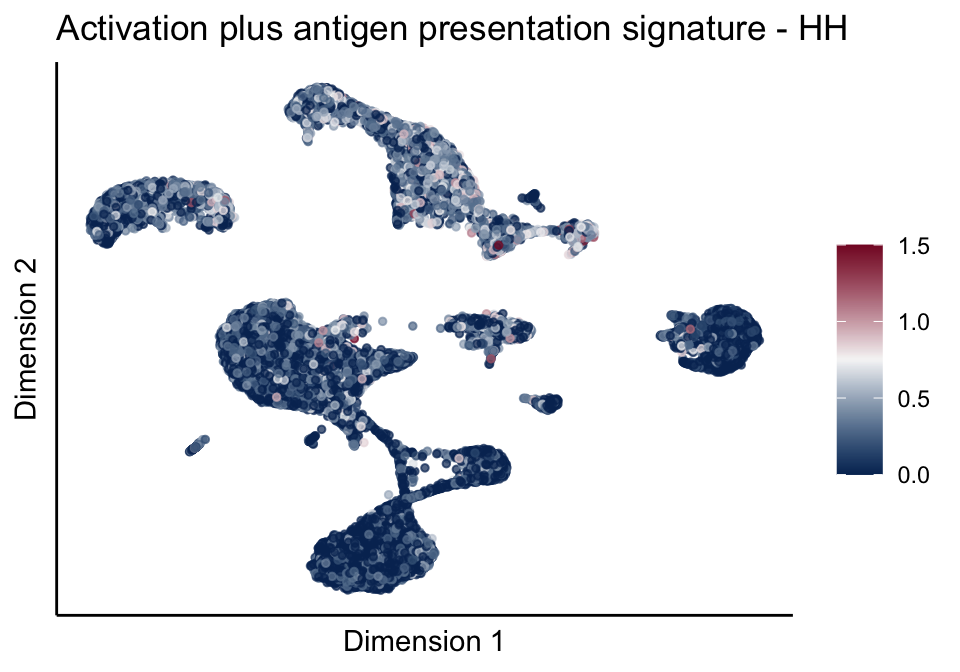

[[5]][[3]]

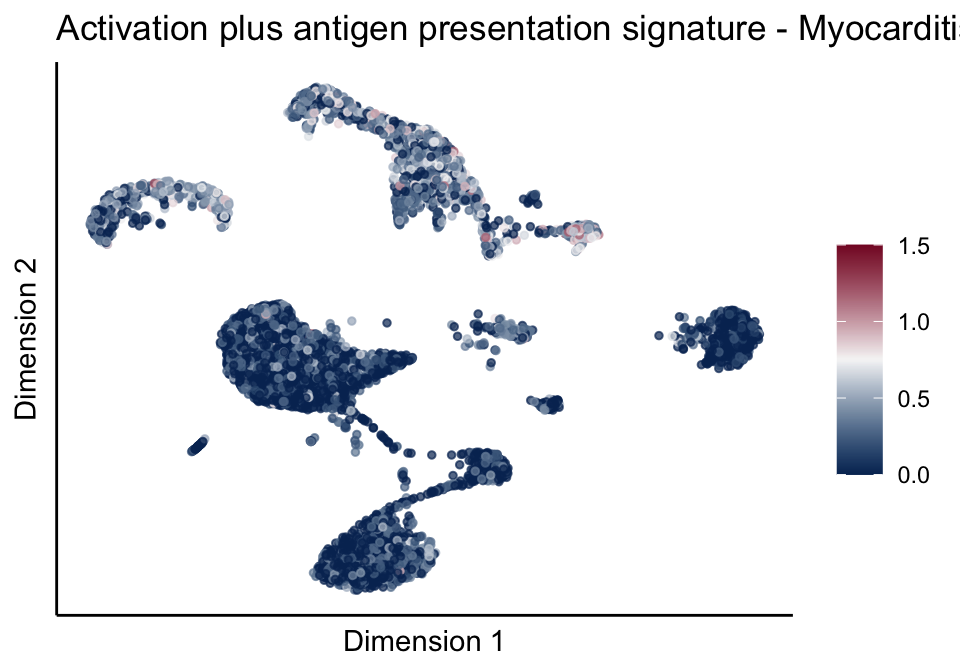

Past versions of "signature rdbl-45.png"

Version	Author	Date
c67d130	mluetge	2022-07-26

vis sel genes violin

genesDat <- data.frame(EnsID=rownames(seurat)) %>%
  mutate(gene=gsub(".*\\.", "", EnsID))
selGenes <- data.frame(gene=c("BMP2", "BMP4", "BMPR1A", "BMPR2")) %>%
  left_join(., genesDat, by="gene")

## subsample to equal number
Idents(seurat) <- seurat$cond2
seuratSub <- subset(seurat, downsample = min(table(seurat$cond2)))

pList <- sapply(selGenes$EnsID, function(x){
  p <- VlnPlot(object = seuratSub, features = x,
               group.by = "cond2",
               cols = colCond, pt.size = 0.2
               )
  plot(p)
})

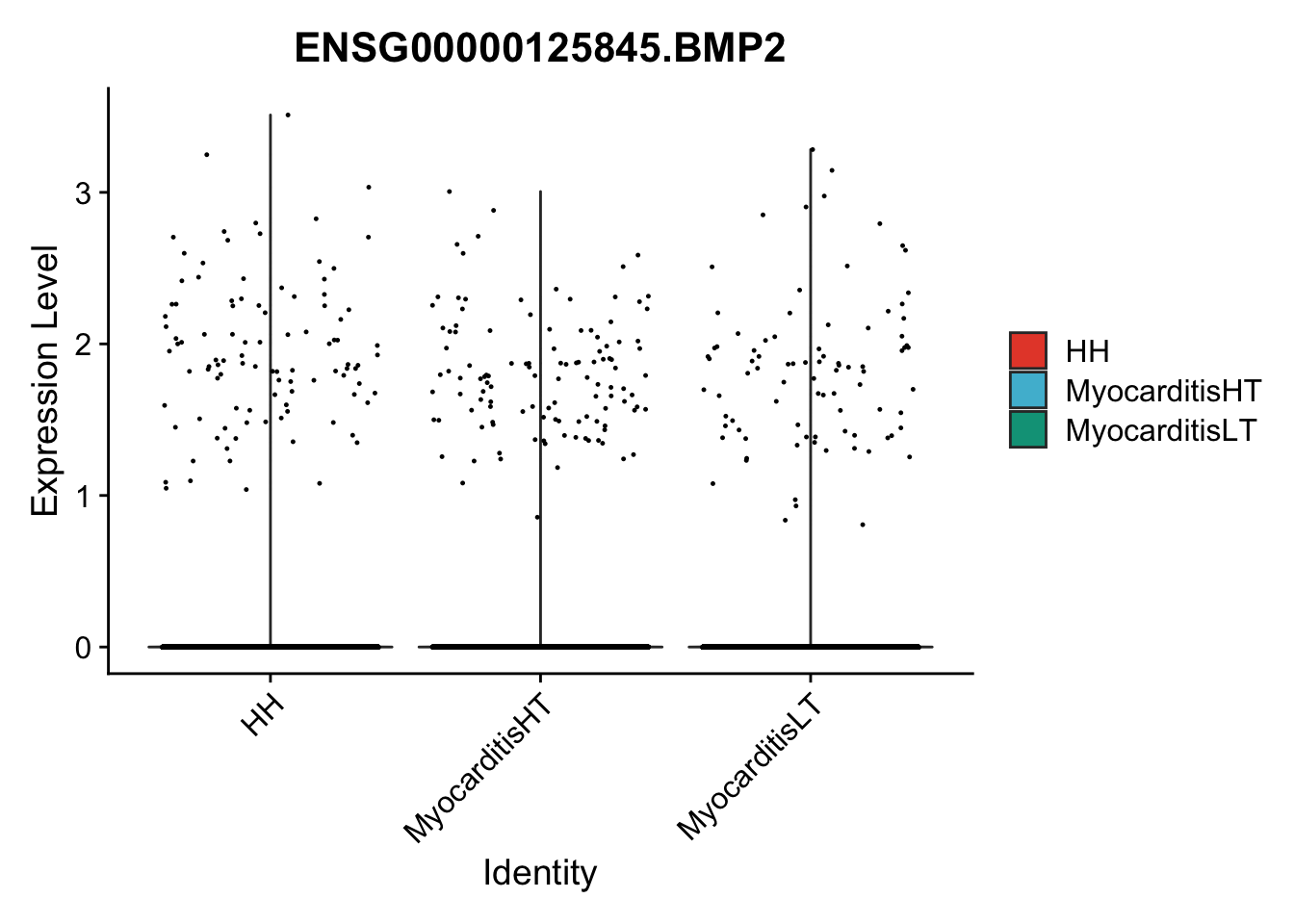

Past versions of "vis sel genes violin-1.png"

Version	Author	Date
c67d130	mluetge	2022-07-26
02765dc	mluetge	2022-07-19

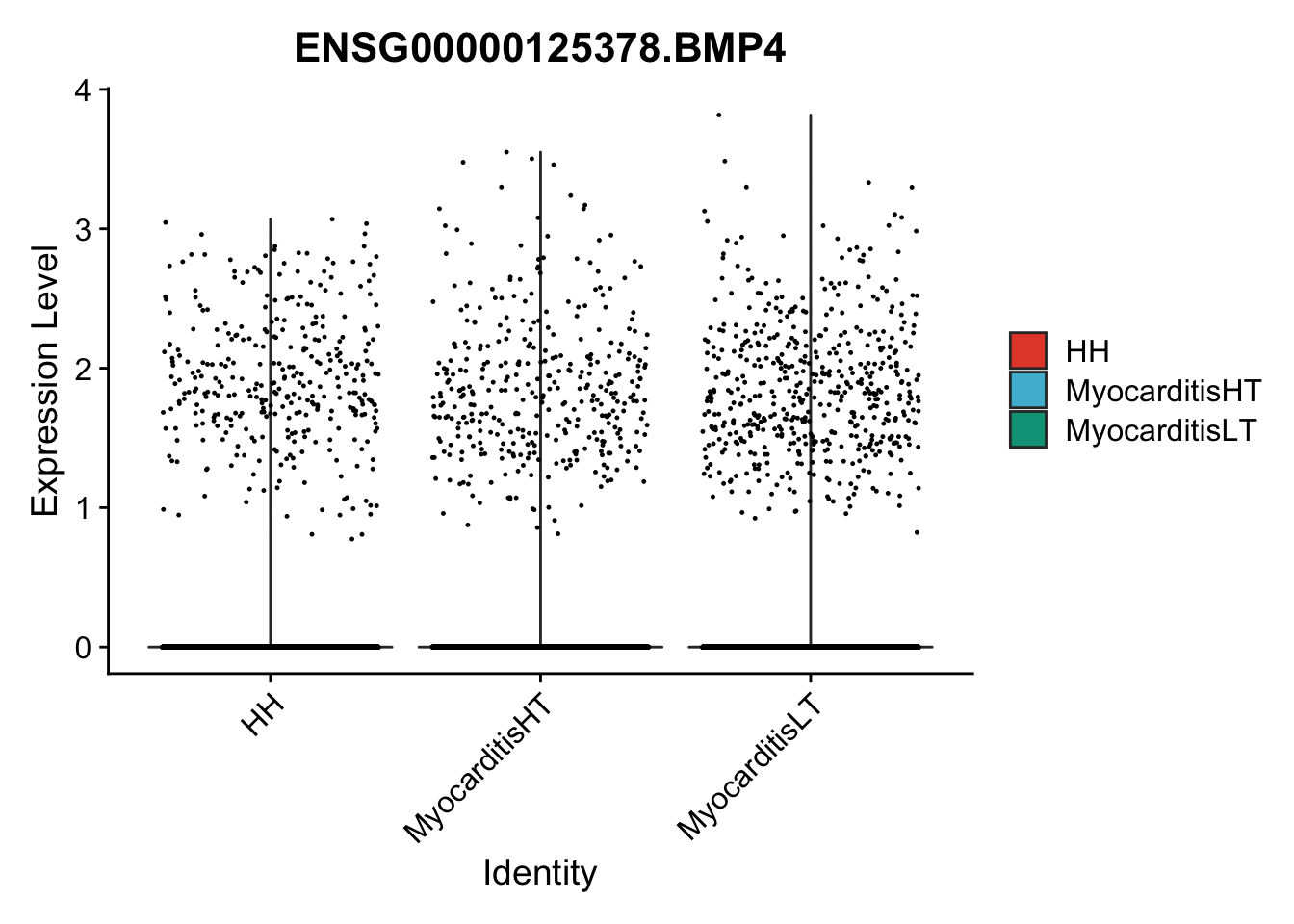

Past versions of "vis sel genes violin-2.png"

Version	Author	Date
c67d130	mluetge	2022-07-26
02765dc	mluetge	2022-07-19

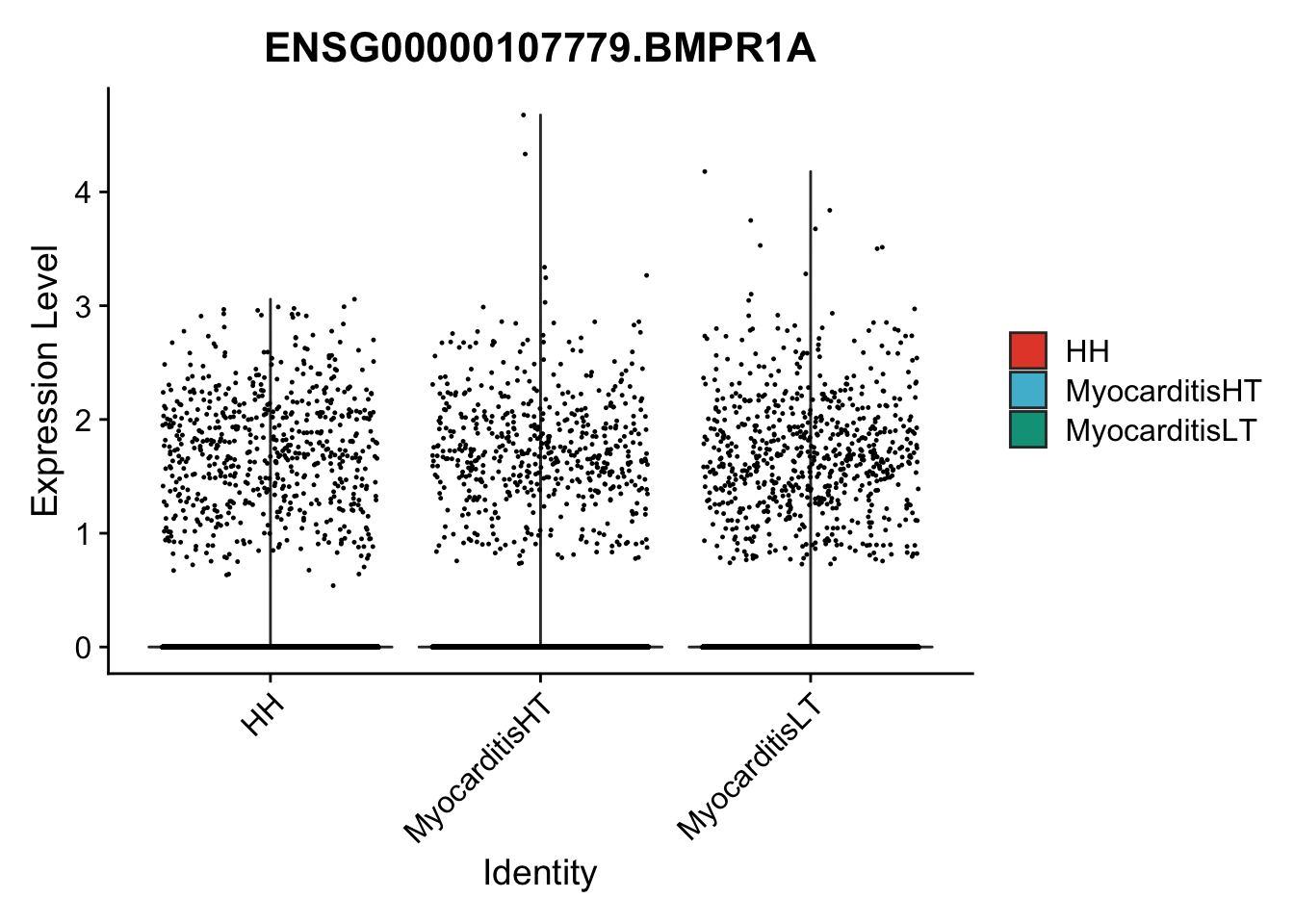

Past versions of "vis sel genes violin-3.png"

Version	Author	Date
c67d130	mluetge	2022-07-26
02765dc	mluetge	2022-07-19

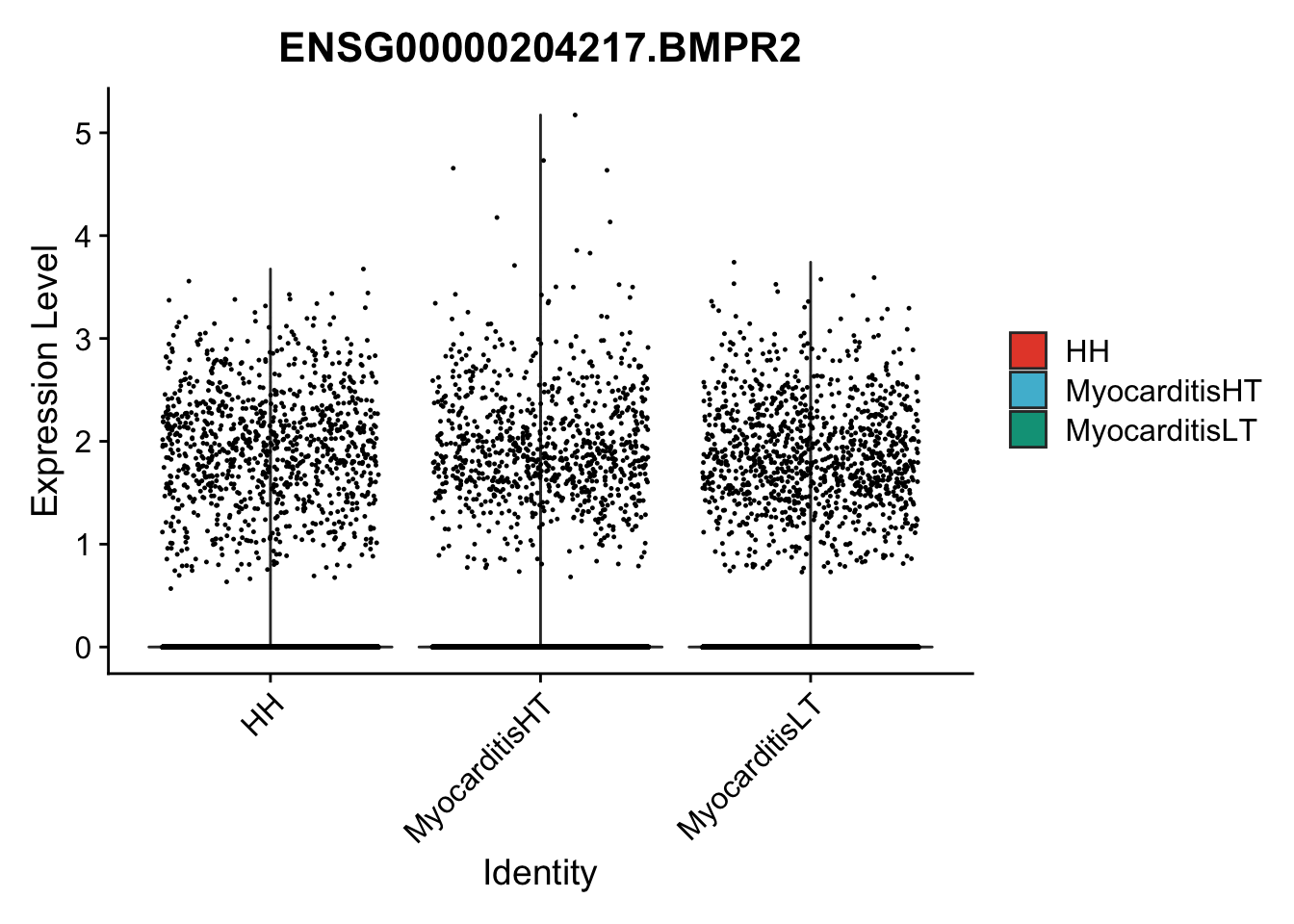

Past versions of "vis sel genes violin-4.png"

Version	Author	Date
c67d130	mluetge	2022-07-26
02765dc	mluetge	2022-07-19

vis sel genes violin Fibroblasts

seuratSub <- subset(seurat, label == "Fibroblast")

## subsample to equal number
seuratSub <- subset(seuratSub, downsample = min(table(seuratSub$cond2)))

pList <- sapply(selGenes$EnsID, function(x){
  p <- VlnPlot(object = seuratSub, features = x,
               group.by = "cond2",
               cols = colCond, pt.size = 0.2
               )
  plot(p)
})

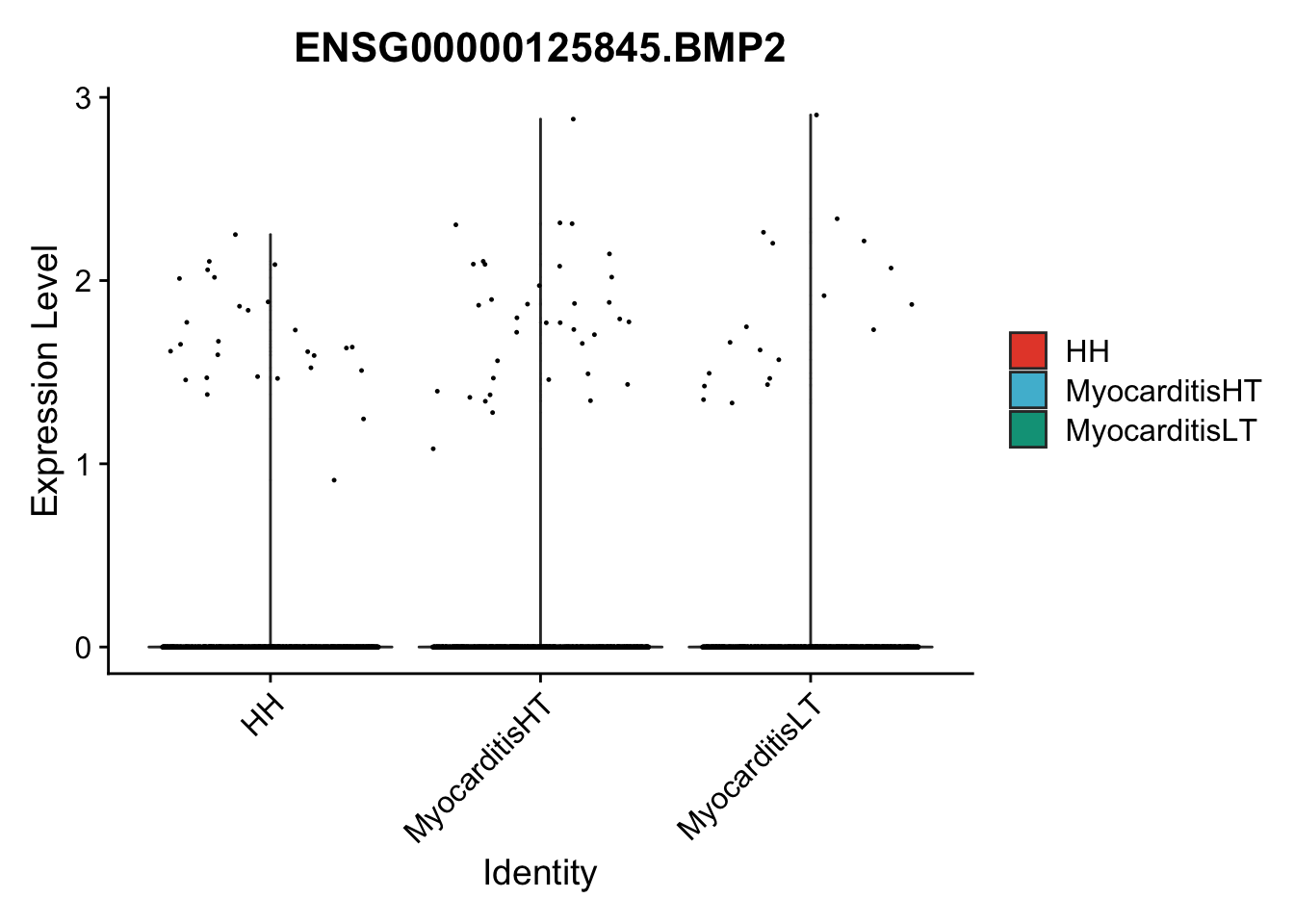

Past versions of "vis sel genes violin Fibroblasts-1.png"

Version	Author	Date
02765dc	mluetge	2022-07-19

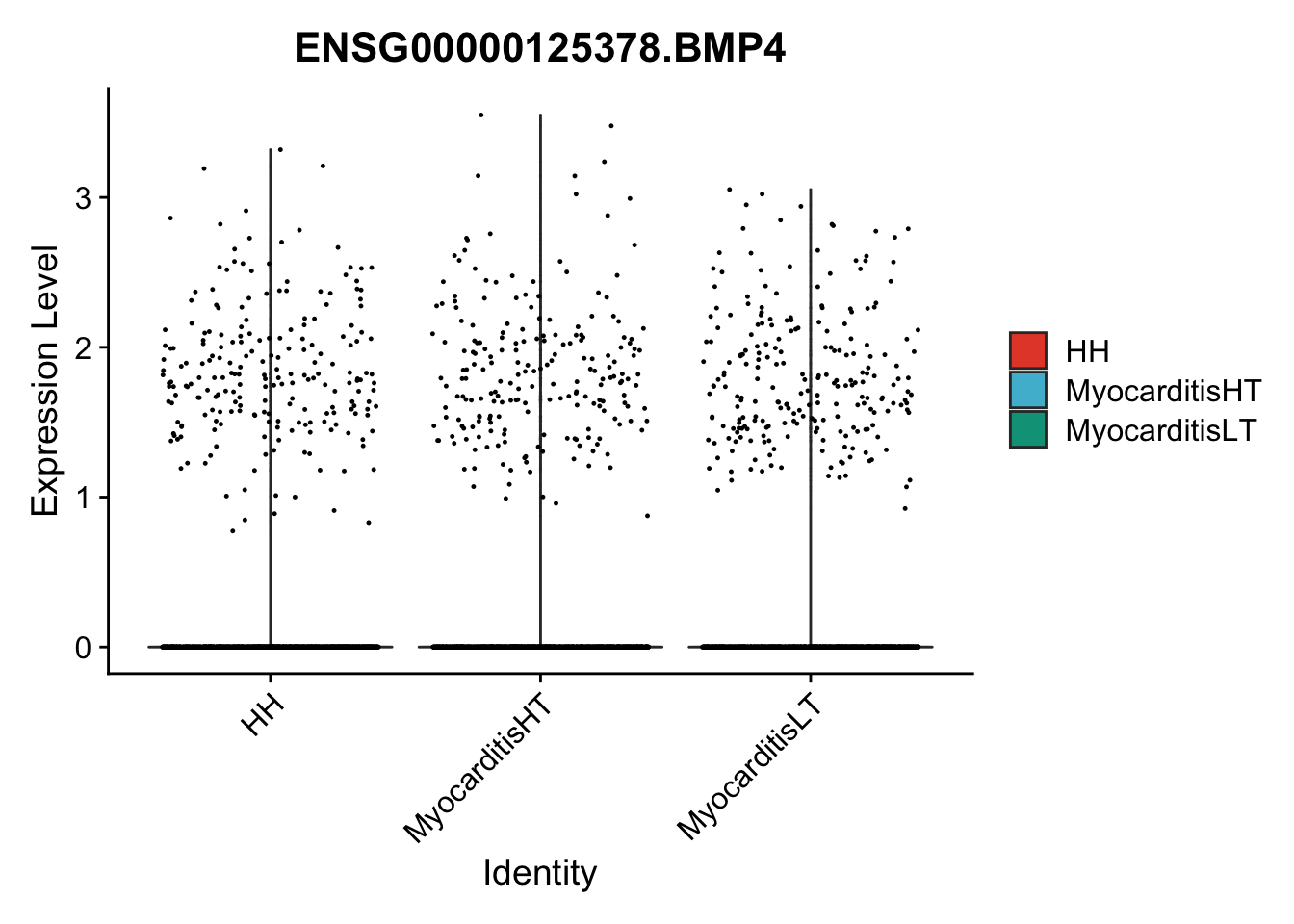

Past versions of "vis sel genes violin Fibroblasts-2.png"

Version	Author	Date
02765dc	mluetge	2022-07-19

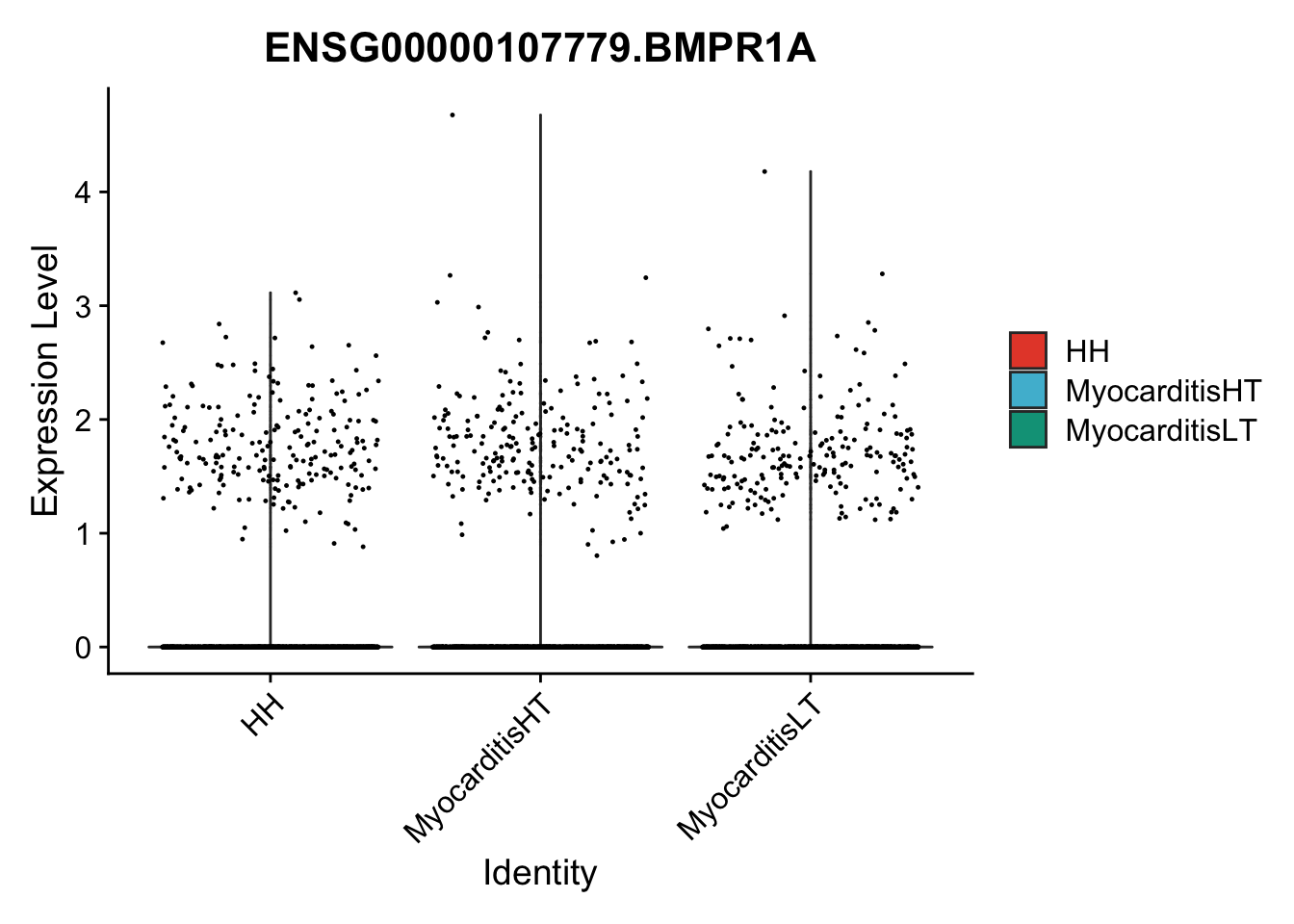

Past versions of "vis sel genes violin Fibroblasts-3.png"

Version	Author	Date
02765dc	mluetge	2022-07-19

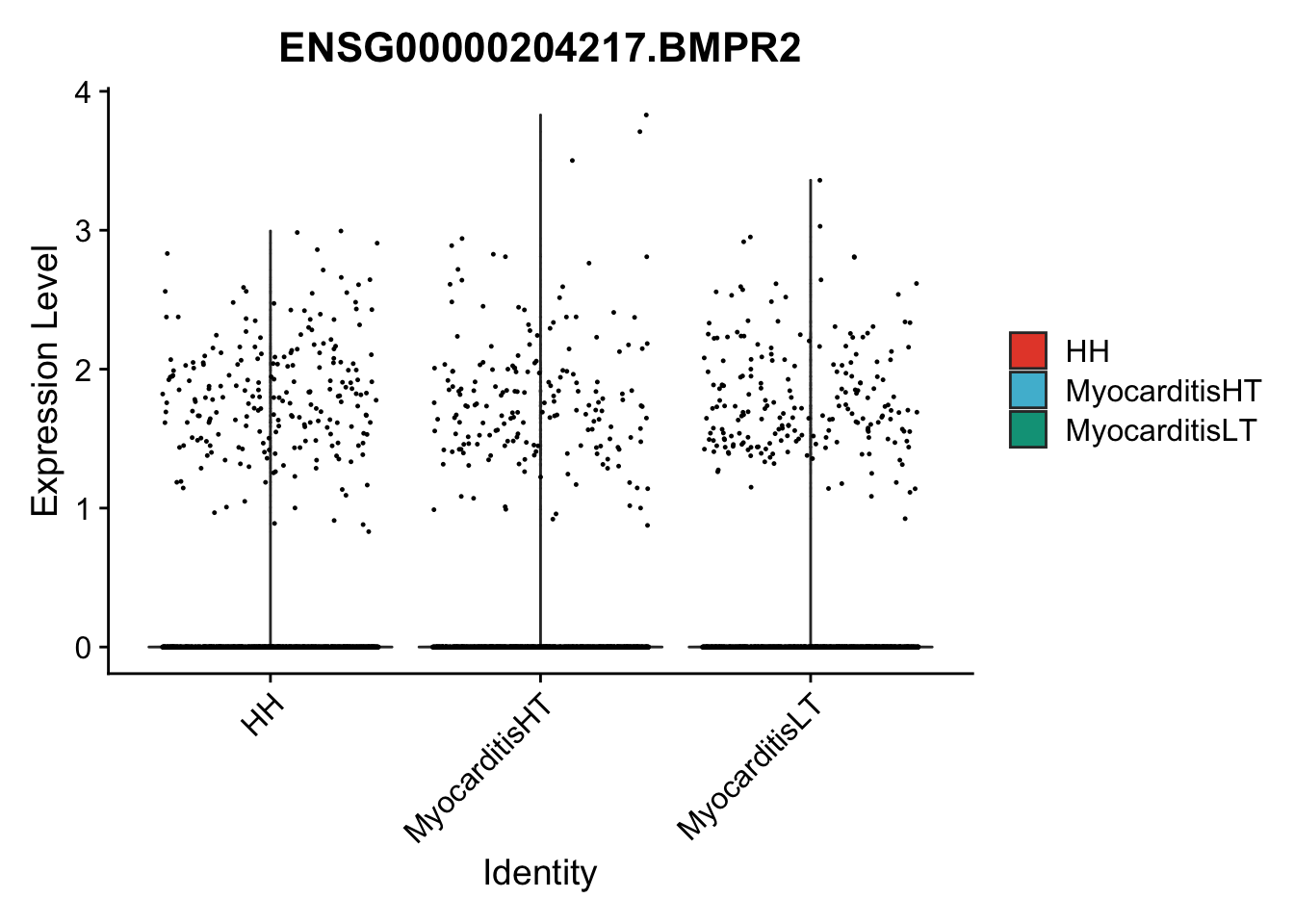

Past versions of "vis sel genes violin Fibroblasts-4.png"

Version	Author	Date
02765dc	mluetge	2022-07-19

session info

sessionInfo()

R version 4.2.1 (2022-06-23)
Platform: x86_64-apple-darwin17.0 (64-bit)
Running under: macOS Big Sur ... 10.16

Matrix products: default
BLAS:   /Library/Frameworks/R.framework/Versions/4.2/Resources/lib/libRblas.0.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/4.2/Resources/lib/libRlapack.dylib

locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8

attached base packages:
[1] grid      stats4    stats     graphics  grDevices utils     datasets
[8] methods   base

other attached packages:
 [1] msigdbr_7.5.1               enrichplot_1.16.1
 [3] DOSE_3.22.0                 org.Hs.eg.db_3.15.0
 [5] AnnotationDbi_1.58.0        clusterProfiler_4.4.4
 [7] gridExtra_2.3               fgsea_1.22.0
 [9] sctransform_0.3.3           viridis_0.6.2
[11] viridisLite_0.4.0           pheatmap_1.0.12
[13] ggpubr_0.4.0                ggsci_2.9
[15] runSeurat3_0.1.0            here_1.0.1
[17] magrittr_2.0.3              sp_1.5-0
[19] SeuratObject_4.1.0          Seurat_4.1.1
[21] forcats_0.5.1               stringr_1.4.0
[23] dplyr_1.0.9                 purrr_0.3.4
[25] readr_2.1.2                 tidyr_1.2.0
[27] tibble_3.1.8                ggplot2_3.3.6
[29] tidyverse_1.3.2             SingleCellExperiment_1.18.0
[31] SummarizedExperiment_1.26.1 Biobase_2.56.0
[33] GenomicRanges_1.48.0        GenomeInfoDb_1.32.2
[35] IRanges_2.30.0              S4Vectors_0.34.0
[37] BiocGenerics_0.42.0         MatrixGenerics_1.8.1
[39] matrixStats_0.62.0

loaded via a namespace (and not attached):
  [1] scattermore_0.8        bit64_4.0.5            knitr_1.39
  [4] irlba_2.3.5            DelayedArray_0.22.0    data.table_1.14.2
  [7] rpart_4.1.16           KEGGREST_1.36.3        RCurl_1.98-1.7
 [10] generics_0.1.3         cowplot_1.1.1          RSQLite_2.2.15
 [13] shadowtext_0.1.2       RANN_2.6.1             future_1.27.0
 [16] bit_4.0.4              tzdb_0.3.0             spatstat.data_2.2-0
 [19] xml2_1.3.3             lubridate_1.8.0        httpuv_1.6.5
 [22] assertthat_0.2.1       gargle_1.2.0           xfun_0.31
 [25] hms_1.1.1              jquerylib_0.1.4        babelgene_22.3
 [28] evaluate_0.15          promises_1.2.0.1       fansi_1.0.3
 [31] dbplyr_2.2.1           readxl_1.4.0           igraph_1.3.4
 [34] DBI_1.1.3              htmlwidgets_1.5.4      spatstat.geom_2.4-0
 [37] googledrive_2.0.0      ellipsis_0.3.2         backports_1.4.1
 [40] deldir_1.0-6           vctrs_0.4.1            ROCR_1.0-11
 [43] abind_1.4-5            cachem_1.0.6           withr_2.5.0
 [46] ggforce_0.3.3          progressr_0.10.1       vroom_1.5.7
 [49] treeio_1.20.1          goftest_1.2-3          cluster_2.1.3
 [52] ape_5.6-2              lazyeval_0.2.2         crayon_1.5.1
 [55] labeling_0.4.2         pkgconfig_2.0.3        tweenr_1.0.2
 [58] nlme_3.1-158           rlang_1.0.4            globals_0.15.1
 [61] lifecycle_1.0.1        miniUI_0.1.1.1         downloader_0.4
 [64] modelr_0.1.8           cellranger_1.1.0       rprojroot_2.0.3
 [67] polyclip_1.10-0        lmtest_0.9-40          Matrix_1.4-1
 [70] aplot_0.1.6            carData_3.0-5          zoo_1.8-10
 [73] reprex_2.0.1           whisker_0.4            ggridges_0.5.3
 [76] googlesheets4_1.0.0    png_0.1-7              bitops_1.0-7
 [79] KernSmooth_2.23-20     Biostrings_2.64.0      blob_1.2.3
 [82] workflowr_1.7.0        qvalue_2.28.0          parallelly_1.32.1
 [85] spatstat.random_2.2-0  rstatix_0.7.0          gridGraphics_0.5-1
 [88] ggsignif_0.6.3         scales_1.2.0           memoise_2.0.1
 [91] plyr_1.8.7             ica_1.0-3              zlibbioc_1.42.0
 [94] scatterpie_0.1.7       compiler_4.2.1         RColorBrewer_1.1-3
 [97] fitdistrplus_1.1-8     cli_3.3.0              XVector_0.36.0
[100] listenv_0.8.0          patchwork_1.1.1        pbapply_1.5-0
[103] MASS_7.3-58            mgcv_1.8-40            tidyselect_1.1.2
[106] stringi_1.7.8          highr_0.9              yaml_2.3.5
[109] GOSemSim_2.22.0        ggrepel_0.9.1          sass_0.4.2
[112] fastmatch_1.1-3        tools_4.2.1            future.apply_1.9.0
[115] parallel_4.2.1         rstudioapi_0.13        git2r_0.30.1
[118] farver_2.1.1           Rtsne_0.16             ggraph_2.0.5
[121] digest_0.6.29          rgeos_0.5-9            shiny_1.7.2
[124] Rcpp_1.0.9             car_3.1-0              broom_1.0.0
[127] later_1.3.0            RcppAnnoy_0.0.19       httr_1.4.3
[130] colorspace_2.0-3       rvest_1.0.2            fs_1.5.2
[133] tensor_1.5             reticulate_1.25        splines_4.2.1
[136] uwot_0.1.11            yulab.utils_0.0.5      tidytree_0.3.9
[139] spatstat.utils_2.3-1   graphlayouts_0.8.0     ggplotify_0.1.0
[142] plotly_4.10.0          xtable_1.8-4           jsonlite_1.8.0
[145] ggtree_3.4.1           tidygraph_1.2.1        ggfun_0.0.6
[148] R6_2.5.1               pillar_1.8.0           htmltools_0.5.3
[151] mime_0.12              glue_1.6.2             fastmap_1.1.0
[154] BiocParallel_1.30.3    codetools_0.2-18       utf8_1.2.2
[157] lattice_0.20-45        bslib_0.4.0            spatstat.sparse_2.1-1
[160] leiden_0.4.2           GO.db_3.15.0           survival_3.3-1
[163] rmarkdown_2.14         munsell_0.5.0          DO.db_2.9
[166] GenomeInfoDbData_1.2.8 haven_2.5.0            reshape2_1.4.4
[169] gtable_0.3.0           spatstat.core_2.4-4

date()

[1] "Wed Jul 27 11:31:40 2022"

Session information

sessionInfo()

R version 4.2.1 (2022-06-23)
Platform: x86_64-apple-darwin17.0 (64-bit)
Running under: macOS Big Sur ... 10.16

Matrix products: default
BLAS:   /Library/Frameworks/R.framework/Versions/4.2/Resources/lib/libRblas.0.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/4.2/Resources/lib/libRlapack.dylib

locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8

attached base packages:
[1] grid      stats4    stats     graphics  grDevices utils     datasets
[8] methods   base

other attached packages:
 [1] msigdbr_7.5.1               enrichplot_1.16.1
 [3] DOSE_3.22.0                 org.Hs.eg.db_3.15.0
 [5] AnnotationDbi_1.58.0        clusterProfiler_4.4.4
 [7] gridExtra_2.3               fgsea_1.22.0
 [9] sctransform_0.3.3           viridis_0.6.2
[11] viridisLite_0.4.0           pheatmap_1.0.12
[13] ggpubr_0.4.0                ggsci_2.9
[15] runSeurat3_0.1.0            here_1.0.1
[17] magrittr_2.0.3              sp_1.5-0
[19] SeuratObject_4.1.0          Seurat_4.1.1
[21] forcats_0.5.1               stringr_1.4.0
[23] dplyr_1.0.9                 purrr_0.3.4
[25] readr_2.1.2                 tidyr_1.2.0
[27] tibble_3.1.8                ggplot2_3.3.6
[29] tidyverse_1.3.2             SingleCellExperiment_1.18.0
[31] SummarizedExperiment_1.26.1 Biobase_2.56.0
[33] GenomicRanges_1.48.0        GenomeInfoDb_1.32.2
[35] IRanges_2.30.0              S4Vectors_0.34.0
[37] BiocGenerics_0.42.0         MatrixGenerics_1.8.1
[39] matrixStats_0.62.0

loaded via a namespace (and not attached):
  [1] scattermore_0.8        bit64_4.0.5            knitr_1.39
  [4] irlba_2.3.5            DelayedArray_0.22.0    data.table_1.14.2
  [7] rpart_4.1.16           KEGGREST_1.36.3        RCurl_1.98-1.7
 [10] generics_0.1.3         cowplot_1.1.1          RSQLite_2.2.15
 [13] shadowtext_0.1.2       RANN_2.6.1             future_1.27.0
 [16] bit_4.0.4              tzdb_0.3.0             spatstat.data_2.2-0
 [19] xml2_1.3.3             lubridate_1.8.0        httpuv_1.6.5
 [22] assertthat_0.2.1       gargle_1.2.0           xfun_0.31
 [25] hms_1.1.1              jquerylib_0.1.4        babelgene_22.3
 [28] evaluate_0.15          promises_1.2.0.1       fansi_1.0.3
 [31] dbplyr_2.2.1           readxl_1.4.0           igraph_1.3.4
 [34] DBI_1.1.3              htmlwidgets_1.5.4      spatstat.geom_2.4-0
 [37] googledrive_2.0.0      ellipsis_0.3.2         backports_1.4.1
 [40] deldir_1.0-6           vctrs_0.4.1            ROCR_1.0-11
 [43] abind_1.4-5            cachem_1.0.6           withr_2.5.0
 [46] ggforce_0.3.3          progressr_0.10.1       vroom_1.5.7
 [49] treeio_1.20.1          goftest_1.2-3          cluster_2.1.3
 [52] ape_5.6-2              lazyeval_0.2.2         crayon_1.5.1
 [55] labeling_0.4.2         pkgconfig_2.0.3        tweenr_1.0.2
 [58] nlme_3.1-158           rlang_1.0.4            globals_0.15.1
 [61] lifecycle_1.0.1        miniUI_0.1.1.1         downloader_0.4
 [64] modelr_0.1.8           cellranger_1.1.0       rprojroot_2.0.3
 [67] polyclip_1.10-0        lmtest_0.9-40          Matrix_1.4-1
 [70] aplot_0.1.6            carData_3.0-5          zoo_1.8-10
 [73] reprex_2.0.1           whisker_0.4            ggridges_0.5.3
 [76] googlesheets4_1.0.0    png_0.1-7              bitops_1.0-7
 [79] KernSmooth_2.23-20     Biostrings_2.64.0      blob_1.2.3
 [82] workflowr_1.7.0        qvalue_2.28.0          parallelly_1.32.1
 [85] spatstat.random_2.2-0  rstatix_0.7.0          gridGraphics_0.5-1
 [88] ggsignif_0.6.3         scales_1.2.0           memoise_2.0.1
 [91] plyr_1.8.7             ica_1.0-3              zlibbioc_1.42.0
 [94] scatterpie_0.1.7       compiler_4.2.1         RColorBrewer_1.1-3
 [97] fitdistrplus_1.1-8     cli_3.3.0              XVector_0.36.0
[100] listenv_0.8.0          patchwork_1.1.1        pbapply_1.5-0
[103] MASS_7.3-58            mgcv_1.8-40            tidyselect_1.1.2
[106] stringi_1.7.8          highr_0.9              yaml_2.3.5
[109] GOSemSim_2.22.0        ggrepel_0.9.1          sass_0.4.2
[112] fastmatch_1.1-3        tools_4.2.1            future.apply_1.9.0
[115] parallel_4.2.1         rstudioapi_0.13        git2r_0.30.1
[118] farver_2.1.1           Rtsne_0.16             ggraph_2.0.5
[121] digest_0.6.29          rgeos_0.5-9            shiny_1.7.2
[124] Rcpp_1.0.9             car_3.1-0              broom_1.0.0
[127] later_1.3.0            RcppAnnoy_0.0.19       httr_1.4.3
[130] colorspace_2.0-3       rvest_1.0.2            fs_1.5.2
[133] tensor_1.5             reticulate_1.25        splines_4.2.1
[136] uwot_0.1.11            yulab.utils_0.0.5      tidytree_0.3.9
[139] spatstat.utils_2.3-1   graphlayouts_0.8.0     ggplotify_0.1.0
[142] plotly_4.10.0          xtable_1.8-4           jsonlite_1.8.0
[145] ggtree_3.4.1           tidygraph_1.2.1        ggfun_0.0.6
[148] R6_2.5.1               pillar_1.8.0           htmltools_0.5.3
[151] mime_0.12              glue_1.6.2             fastmap_1.1.0
[154] BiocParallel_1.30.3    codetools_0.2-18       utf8_1.2.2
[157] lattice_0.20-45        bslib_0.4.0            spatstat.sparse_2.1-1
[160] leiden_0.4.2           GO.db_3.15.0           survival_3.3-1
[163] rmarkdown_2.14         munsell_0.5.0          DO.db_2.9
[166] GenomeInfoDbData_1.2.8 haven_2.5.0            reshape2_1.4.4
[169] gtable_0.3.0           spatstat.core_2.4-4
