Merge samples
Mechthild Lütge
14 May 2020
Last updated: 2021-12-15
Checks: 7 0
Knit directory: humanCardiacFibroblasts/
This reproducible R Markdown analysis was created with workflowr (version 1.6.2). The Checks tab describes the reproducibility checks that were applied when the results were created. The Past versions tab lists the development history.
Great! Since the R Markdown file has been committed to the Git repository, you know the exact version of the code that produced these results.
Great job! The global environment was empty. Objects defined in the global environment can affect the analysis in your R Markdown file in unknown ways. For reproduciblity it’s best to always run the code in an empty environment.
The command set.seed(20210903) was run prior to running the code in the R Markdown file. Setting a seed ensures that any results that rely on randomness, e.g. subsampling or permutations, are reproducible.
Great job! Recording the operating system, R version, and package versions is critical for reproducibility.
Nice! There were no cached chunks for this analysis, so you can be confident that you successfully produced the results during this run.
Great job! Using relative paths to the files within your workflowr project makes it easier to run your code on other machines.
Great! You are using Git for version control. Tracking code development and connecting the code version to the results is critical for reproducibility.
The results in this page were generated with repository version affdfcb. See the Past versions tab to see a history of the changes made to the R Markdown and HTML files.
Note that you need to be careful to ensure that all relevant files for the analysis have been committed to Git prior to generating the results (you can use wflow_publish or wflow_git_commit). workflowr only checks the R Markdown file, but you know if there are other scripts or data files that it depends on. Below is the status of the Git repository when the results were generated:
Ignored files:
Ignored: .DS_Store
Ignored: .Rhistory
Ignored: .Rproj.user/
Ignored: data/humanFibroblast/
Unstaged changes:
Modified: metadata.txt
Note that any generated files, e.g. HTML, png, CSS, etc., are not included in this status report because it is ok for generated content to have uncommitted changes.
These are the previous versions of the repository in which changes were made to the R Markdown (analysis/mergeHumanSamples.Rmd) and HTML (docs/mergeHumanSamples.html) files. If you’ve configured a remote Git repository (see ?wflow_git_remote), click on the hyperlinks in the table below to view the files as they were in that past version.
| File | Version | Author | Date | Message |
|---|---|---|---|---|
| html | c967df3 | mluetge | 2021-11-10 | add two new samples |
| Rmd | 6057189 | mluetge | 2021-09-23 | add samples |
| html | 6057189 | mluetge | 2021-09-23 | add samples |
| Rmd | cf82798 | mluetge | 2021-09-03 | first merge |
| html | cf82798 | mluetge | 2021-09-03 | first merge |
load packages
suppressPackageStartupMessages({
library(SingleCellExperiment)
library(tidyverse)
library(Seurat)
library(magrittr)
library(dplyr)
library(purrr)
library(ggplot2)
library(here)
library(runSeurat3)
library(ggsci)
library(ggpubr)
library(pheatmap)
})set dir
basedir <- here()
metaDat <- read_tsv(paste0(basedir, "/metadata.txt"), col_names = T)load and assign samples
assignSamples <- function(smpNam, basedirSmp, smpTec, smpBatch, smpLoc, smpOri,
smpIso, smpCol){
smpNamFull <- list.files(path = paste0(basedirSmp, "/data/humanFibroblast/"),
pattern = paste0(smpNam, ".*_seurat.rds"))
seuratSmp <- readRDS(paste0(basedirSmp, "/data/humanFibroblast/", smpNamFull))
seuratSmp$technique <- smpTec
seuratSmp$batch <- smpBatch
seuratSmp$location <- smpLoc
seuratSmp$origin <- smpOri
seuratSmp$isolation <- smpIso
seuratSmp$collagenase <- smpCol
return(seuratSmp)
}
####################################################################
for(i in 1:length(metaDat$Sample)){
seuratX <- assignSamples(smpNam = metaDat$Sample[i],
basedirSmp = basedir,
smpTec = metaDat$technique[i],
smpBatch = metaDat$batch[i],
smpLoc = metaDat$location[i],
smpOri = metaDat$origin[i],
smpIso = metaDat$isolation[i],
smpCol = metaDat$collagenase[i])
if(exists("seurat")){
seurat <- merge(x = seurat, y = seuratX, project = "humanCardiacFibro")
}else{
seurat <- seuratX
}
}
remove(seuratX)run clustering and DR and remove contaminating cells
seurat <- rerunSeurat3(seurat)Modularity Optimizer version 1.3.0 by Ludo Waltman and Nees Jan van Eck
Number of nodes: 24437
Number of edges: 916672
Running Louvain algorithm...
Maximum modularity in 10 random starts: 0.9671
Number of communities: 18
Elapsed time: 3 seconds
Modularity Optimizer version 1.3.0 by Ludo Waltman and Nees Jan van Eck
Number of nodes: 24437
Number of edges: 916672
Running Louvain algorithm...
Maximum modularity in 10 random starts: 0.9403
Number of communities: 23
Elapsed time: 3 seconds
Modularity Optimizer version 1.3.0 by Ludo Waltman and Nees Jan van Eck
Number of nodes: 24437
Number of edges: 916672
Running Louvain algorithm...
Maximum modularity in 10 random starts: 0.9262
Number of communities: 26
Elapsed time: 3 seconds
Modularity Optimizer version 1.3.0 by Ludo Waltman and Nees Jan van Eck
Number of nodes: 24437
Number of edges: 916672
Running Louvain algorithm...
Maximum modularity in 10 random starts: 0.9553
Number of communities: 22
Elapsed time: 3 seconds#seuratSub <- subset(seurat1, subset = `MGP-BALBcJ-G0026271.Grem1` >0) ## 5 cells
#seuratSub <- subset(seurat1, subset = `MGP-BALBcJ-G0026527.Bmp2` >0) ## 14104 cells
dat <- data.frame(table(seurat$dataset))
colnames(dat) <- c("dataset", "all")
knitr::kable(dat)| dataset | all |
|---|---|
| 1_20210811_Hu_nucleoi_seq_ECMO_Heart01_Myocardium_NextGEM | 4041 |
| 1_20210930_Hu_nucseq_HTrans_Heart22_24_GEM | 2381 |
| 10_20210817_Hu_nucleoi_seq_ECMO_Heart04_Myocardium_NextGEM | 1549 |
| 10_20210907_Hu_nucseq_iDCM_Heart01_GEM | 826 |
| 11_20210819_Hu_nucleoi_seq_ECMO_Heart01_Myocardium_Frozen_NG | 3162 |
| 12_20210819_Hu_nucleoi_seq_ECMO_Heart03_Myocardium_Frozen_NG | 1469 |
| 13_20210819_Hu_nucleoi_seq_ECMO_Heart04_Myocardium_Frozen_NG | 1819 |
| 2_20210811_Hu_nucleoi_seq_ECMO_Heart01_Septum_NextGEM | 1895 |
| 2_20210930_Hu_nucseq_HTrans_Heart23_25_GEM | 3131 |
| 3_20210811_Hu_cells_seq_ECMO_Heart01_Myocardium_NextGEM | 395 |
| 4_20210811_Hu_cell_seq_ECMO_Heart01_Septum_NextGEM | 244 |
| 8_20210813_Hu_cells_seq_ECMO_Heart03_Myocardium_collagenase_NG | 668 |
| 9_20210817_Hu_nucleoi_seq_cardiac_transplant_Heart17_biopsy_NG | 1321 |
| 9_20210907_Hu_nucseq_HTrans_Heart21_GEM | 1536 |
color vectors
colPal <- pal_igv()(length(levels(seurat)))
colTec <- pal_jama()(length(unique(seurat$technique)))
colSmp <- c(pal_uchicago()(8), pal_npg()(8))[1:length(unique(seurat$dataset))]
colLoc <- pal_npg()(length(unique(seurat$location)))
colBatch <- pal_jco()(length(unique(seurat$batch)))
colOrig <- pal_futurama()(length(unique(seurat$origin)))
colIso <- pal_nejm()(length(unique(seurat$isolation)))
colColl <- pal_aaas()(length(unique(seurat$collagenase)))
names(colPal) <- levels(seurat)
names(colTec) <- unique(seurat$technique)
names(colSmp) <- unique(seurat$dataset)
names(colLoc) <- unique(seurat$location)
names(colBatch) <- unique(seurat$batch)
names(colOrig) <- unique(seurat$origin)
names(colIso) <- unique(seurat$isolation)
names(colColl) <- unique(seurat$collagenase)vis data

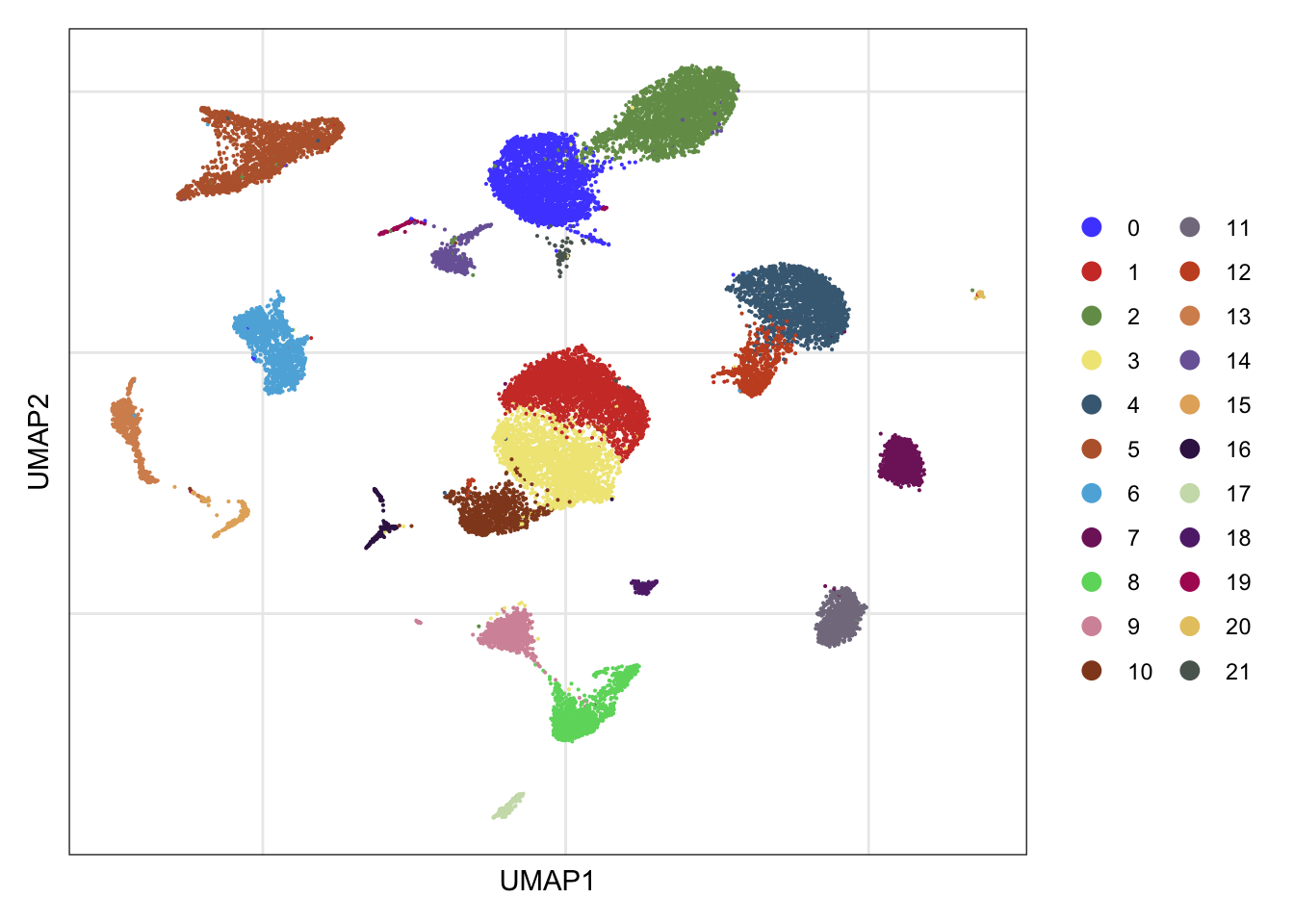

clusters
DimPlot(seurat, reduction = "umap", cols=colPal)+
theme_bw() +
theme(axis.text = element_blank(), axis.ticks = element_blank(),
panel.grid.minor = element_blank()) +
xlab("UMAP1") +
ylab("UMAP2")

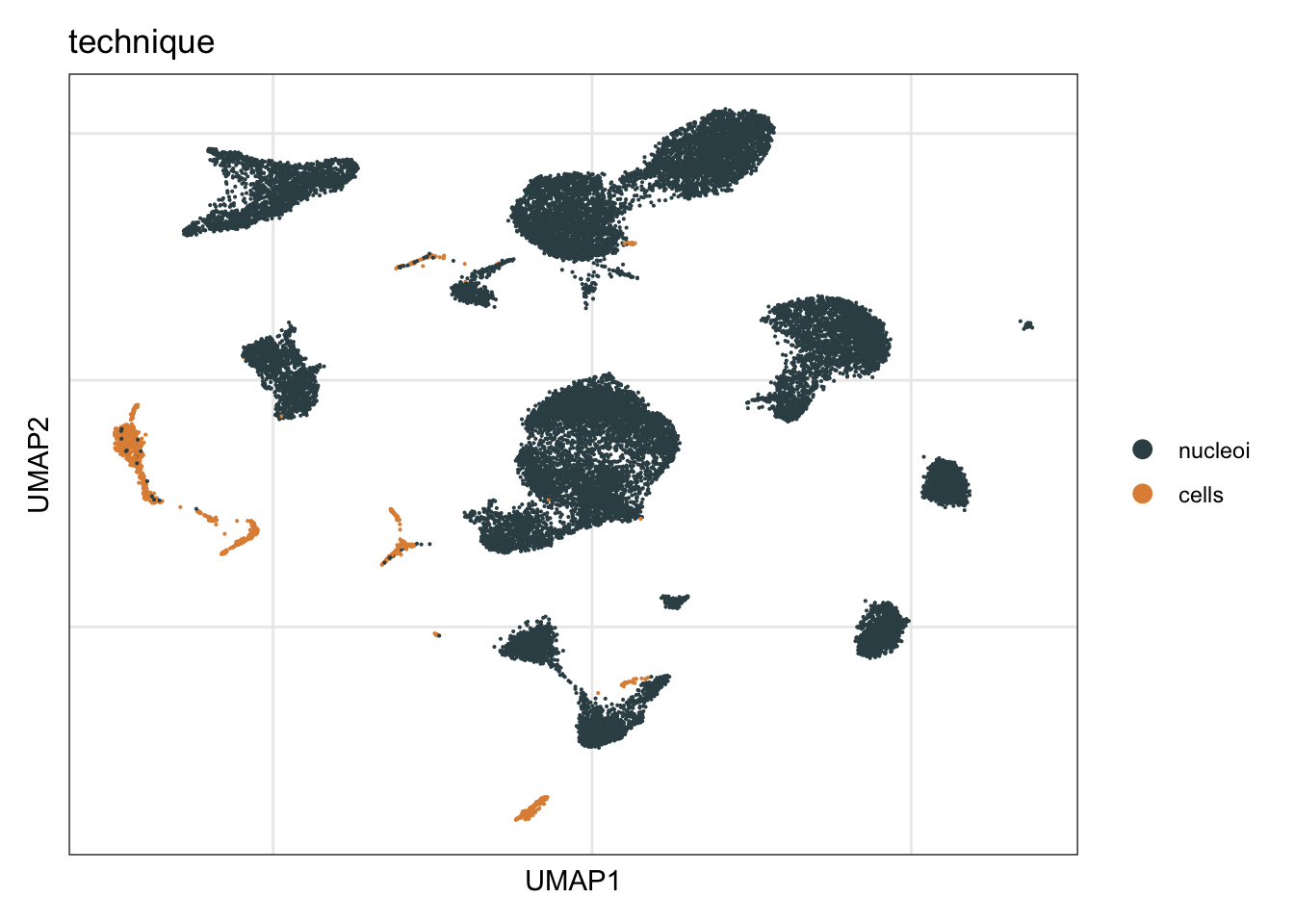

technique
DimPlot(seurat, reduction = "umap", group.by = "technique", cols=colTec)+
theme_bw() +
theme(axis.text = element_blank(), axis.ticks = element_blank(),
panel.grid.minor = element_blank()) +
xlab("UMAP1") +
ylab("UMAP2")

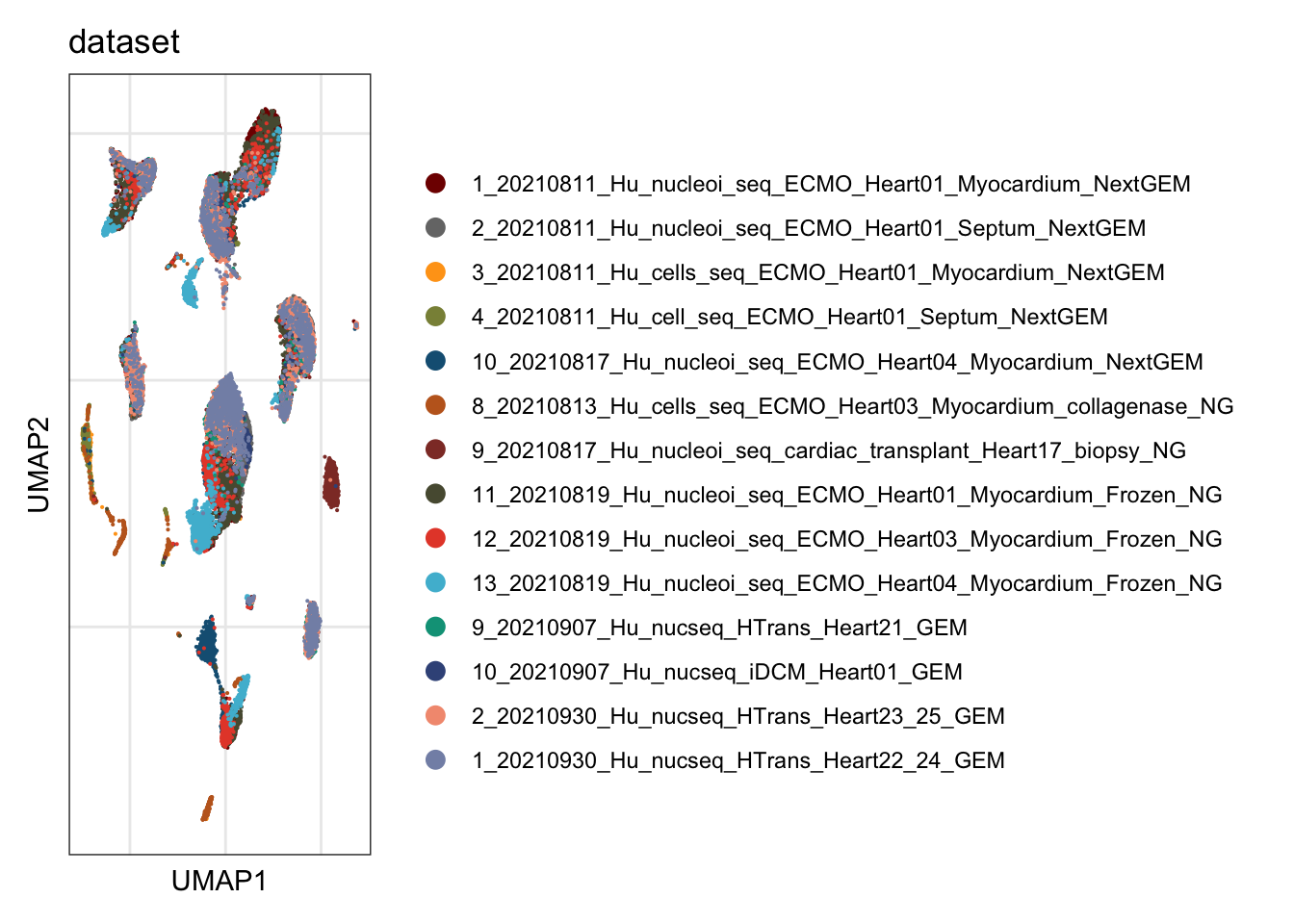

Sample
DimPlot(seurat, reduction = "umap", group.by = "dataset", cols=colSmp)+
theme_bw() +
theme(axis.text = element_blank(), axis.ticks = element_blank(),
panel.grid.minor = element_blank()) +
xlab("UMAP1") +
ylab("UMAP2")

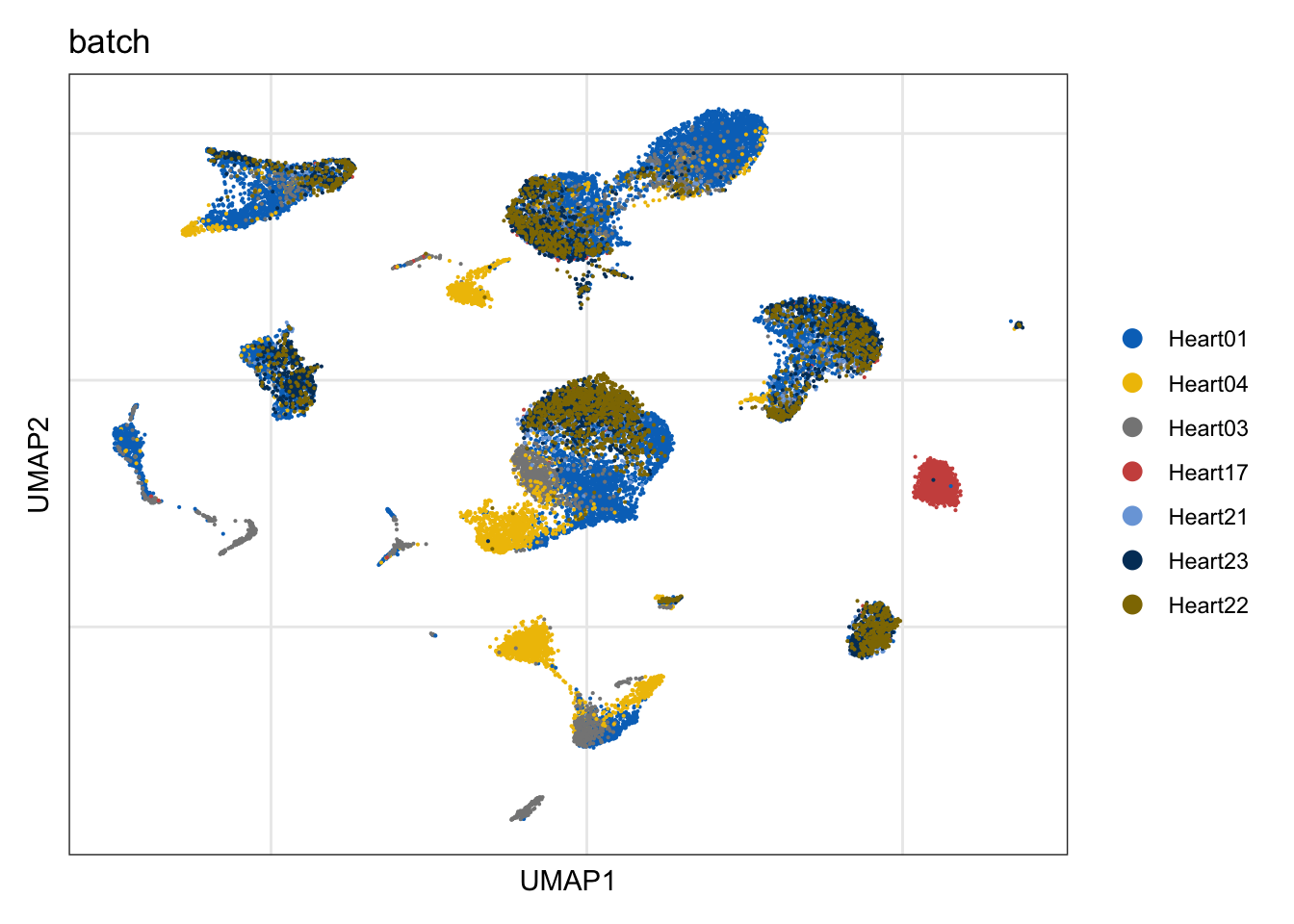

batch
DimPlot(seurat, reduction = "umap", group.by = "batch", cols=colBatch)+
theme_bw() +
theme(axis.text = element_blank(), axis.ticks = element_blank(),
panel.grid.minor = element_blank()) +
xlab("UMAP1") +
ylab("UMAP2")

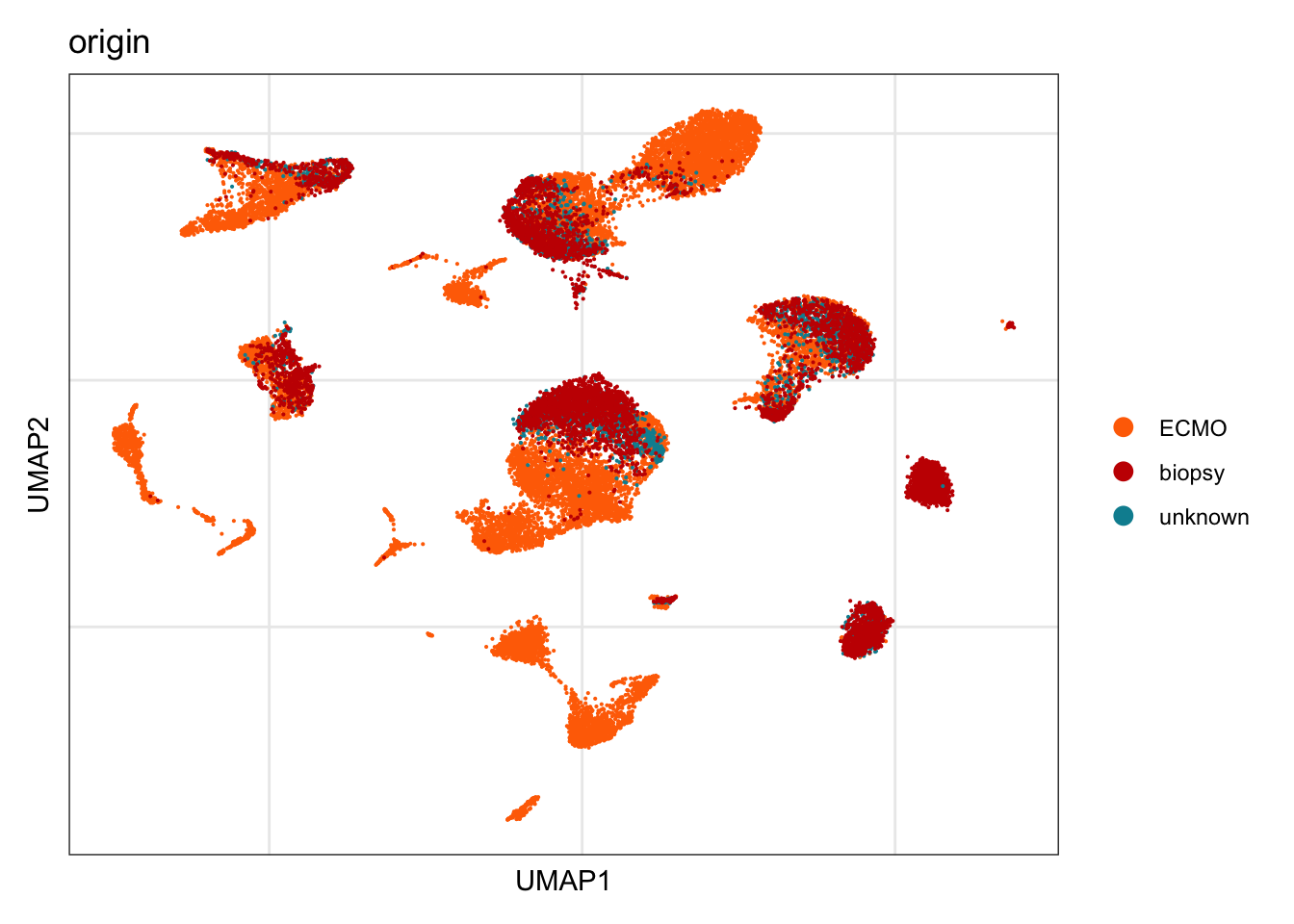

Origin
DimPlot(seurat, reduction = "umap", group.by = "origin", cols=colOrig)+
theme_bw() +
theme(axis.text = element_blank(), axis.ticks = element_blank(),
panel.grid.minor = element_blank()) +
xlab("UMAP1") +
ylab("UMAP2")

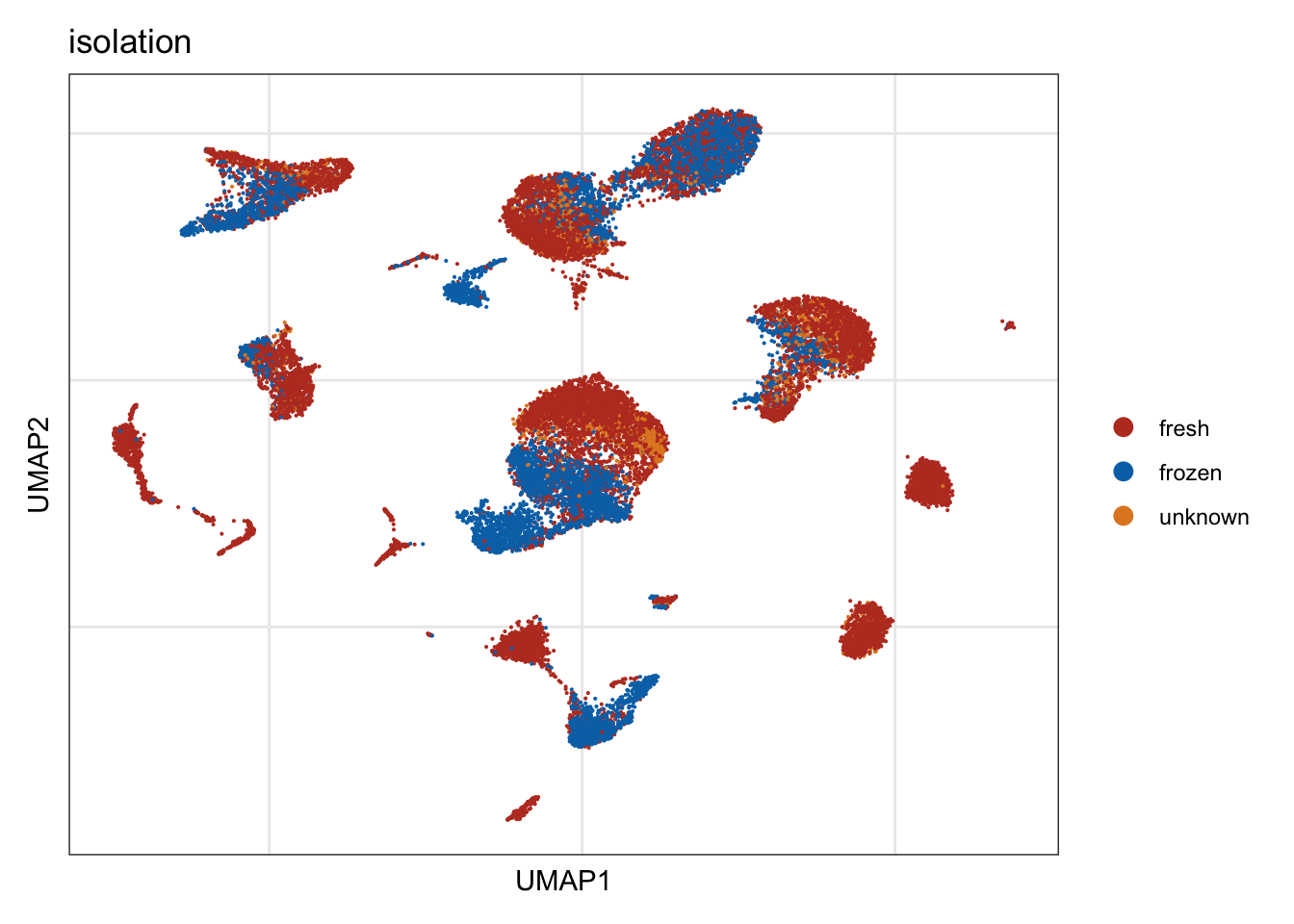

isolation
DimPlot(seurat, reduction = "umap", group.by = "isolation", cols=colIso)+
theme_bw() +
theme(axis.text = element_blank(), axis.ticks = element_blank(),
panel.grid.minor = element_blank()) +
xlab("UMAP1") +
ylab("UMAP2")

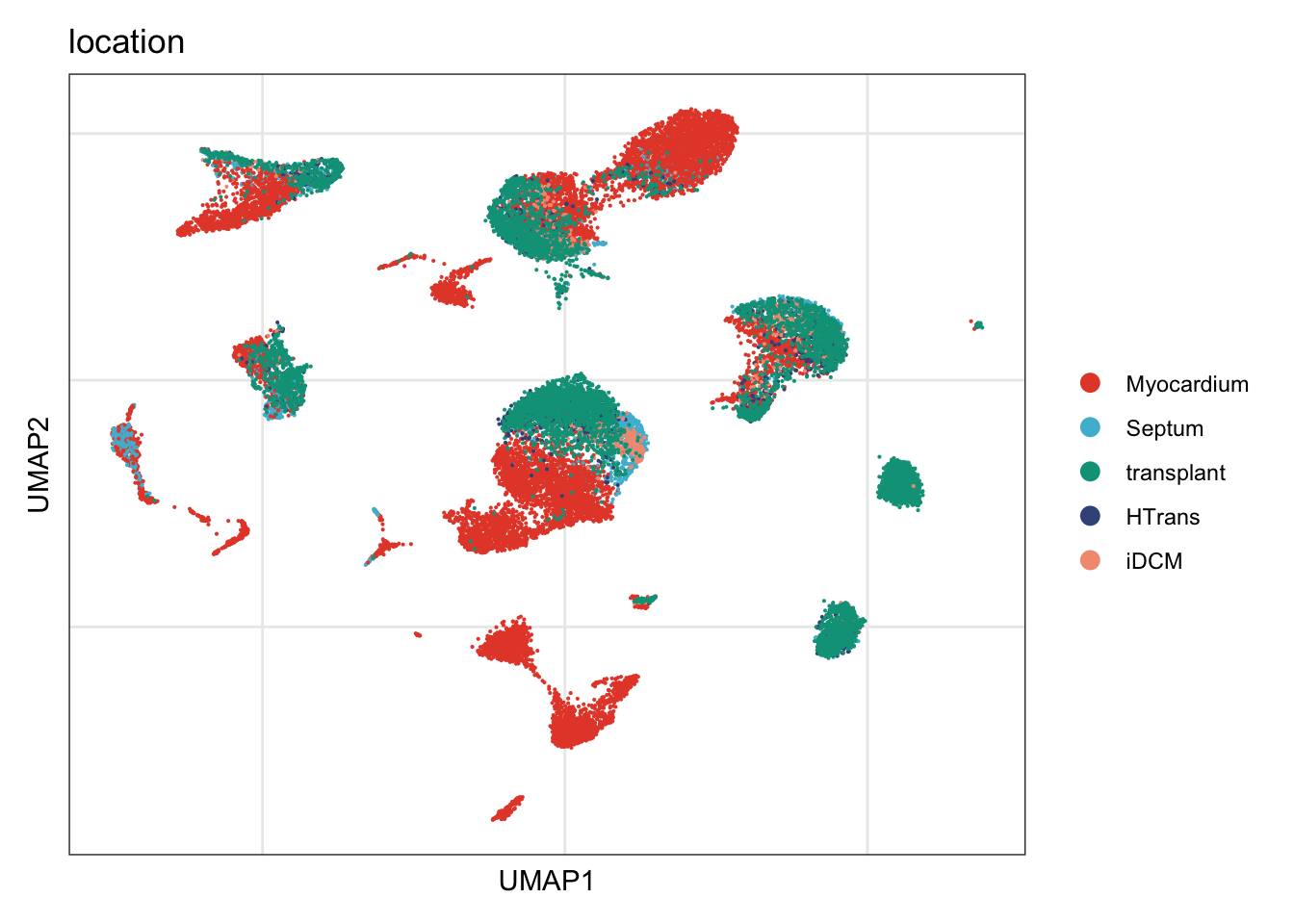

location
DimPlot(seurat, reduction = "umap", group.by = "location", cols=colLoc)+
theme_bw() +
theme(axis.text = element_blank(), axis.ticks = element_blank(),
panel.grid.minor = element_blank()) +
xlab("UMAP1") +
ylab("UMAP2")

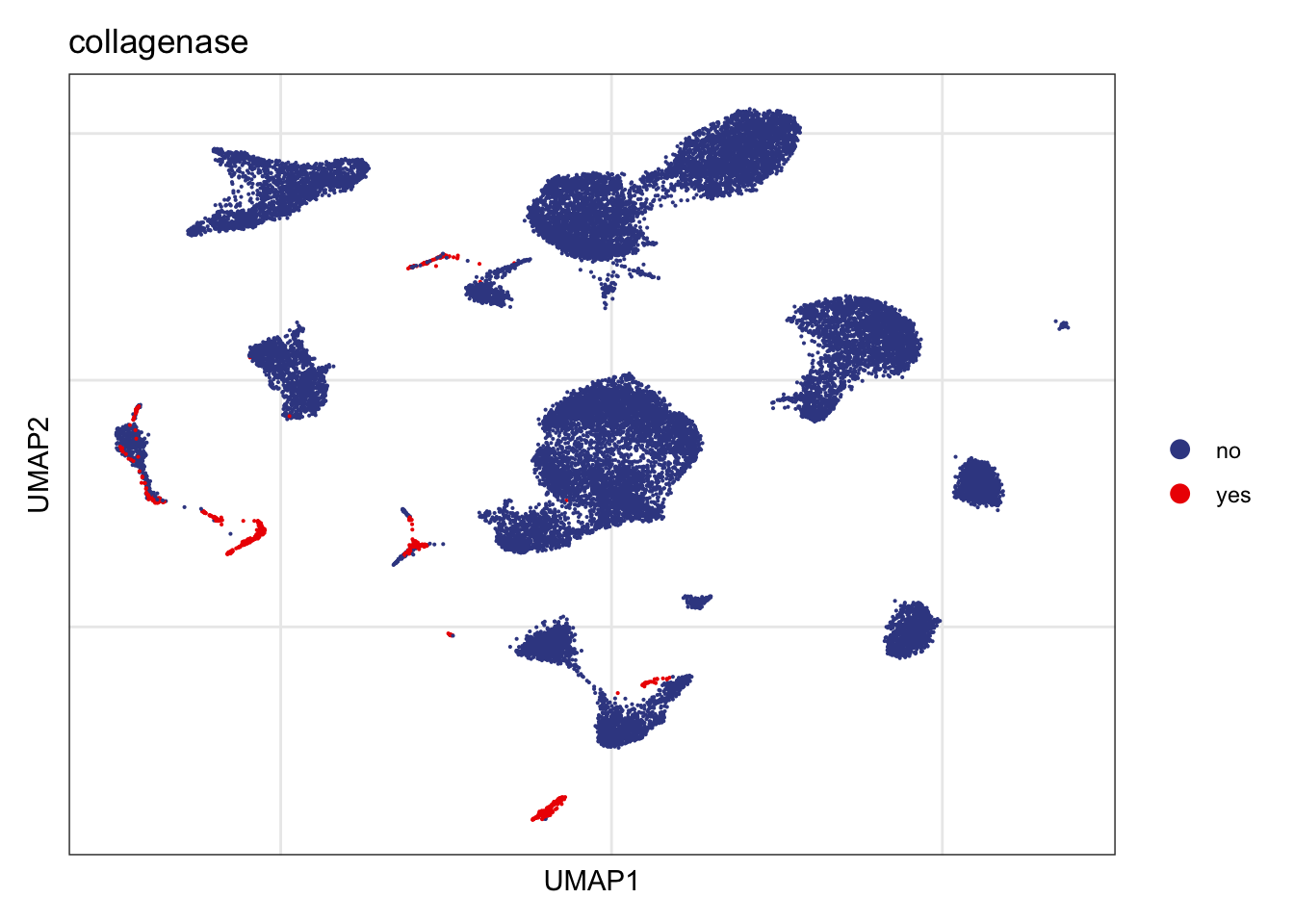

collagenase
DimPlot(seurat, reduction = "umap", group.by = "collagenase", cols=colColl)+
theme_bw() +
theme(axis.text = element_blank(), axis.ticks = element_blank(),
panel.grid.minor = element_blank()) +
xlab("UMAP1") +
ylab("UMAP2")
marker genes
seurat_markers_all <- FindAllMarkers(object = seurat, assay ="RNA",
only.pos = TRUE, min.pct = 0.25,
logfc.threshold = 0.25,

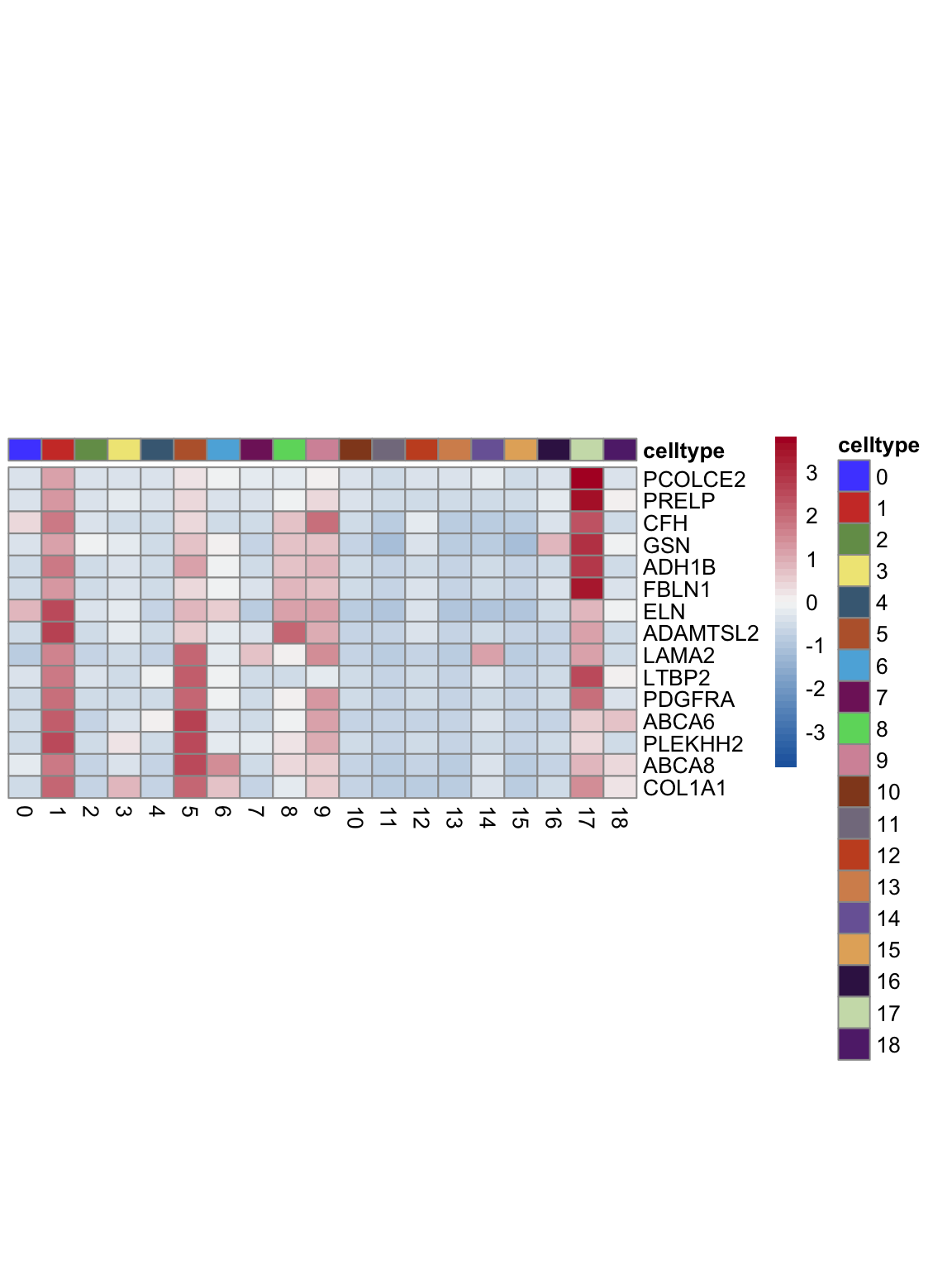

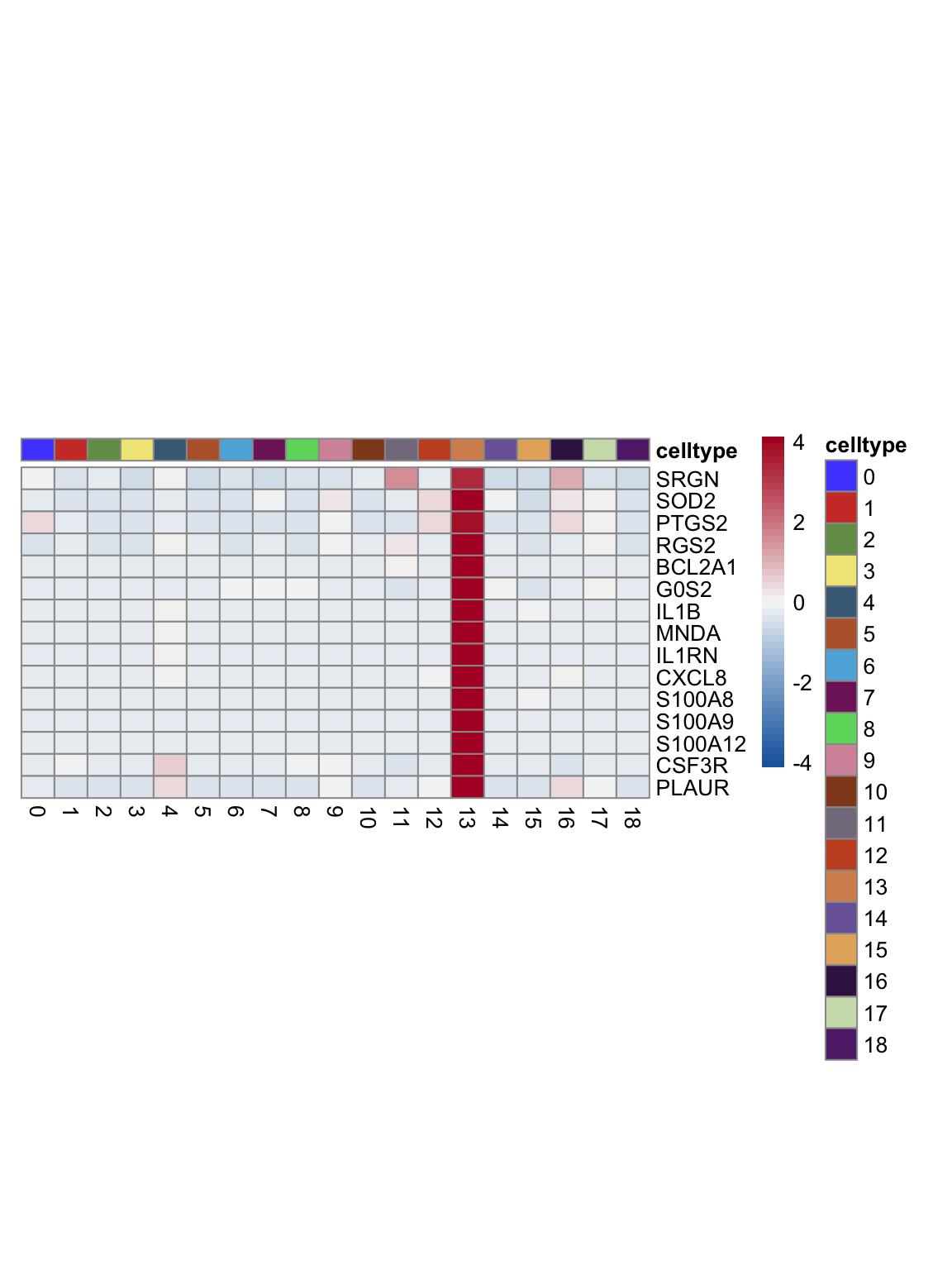

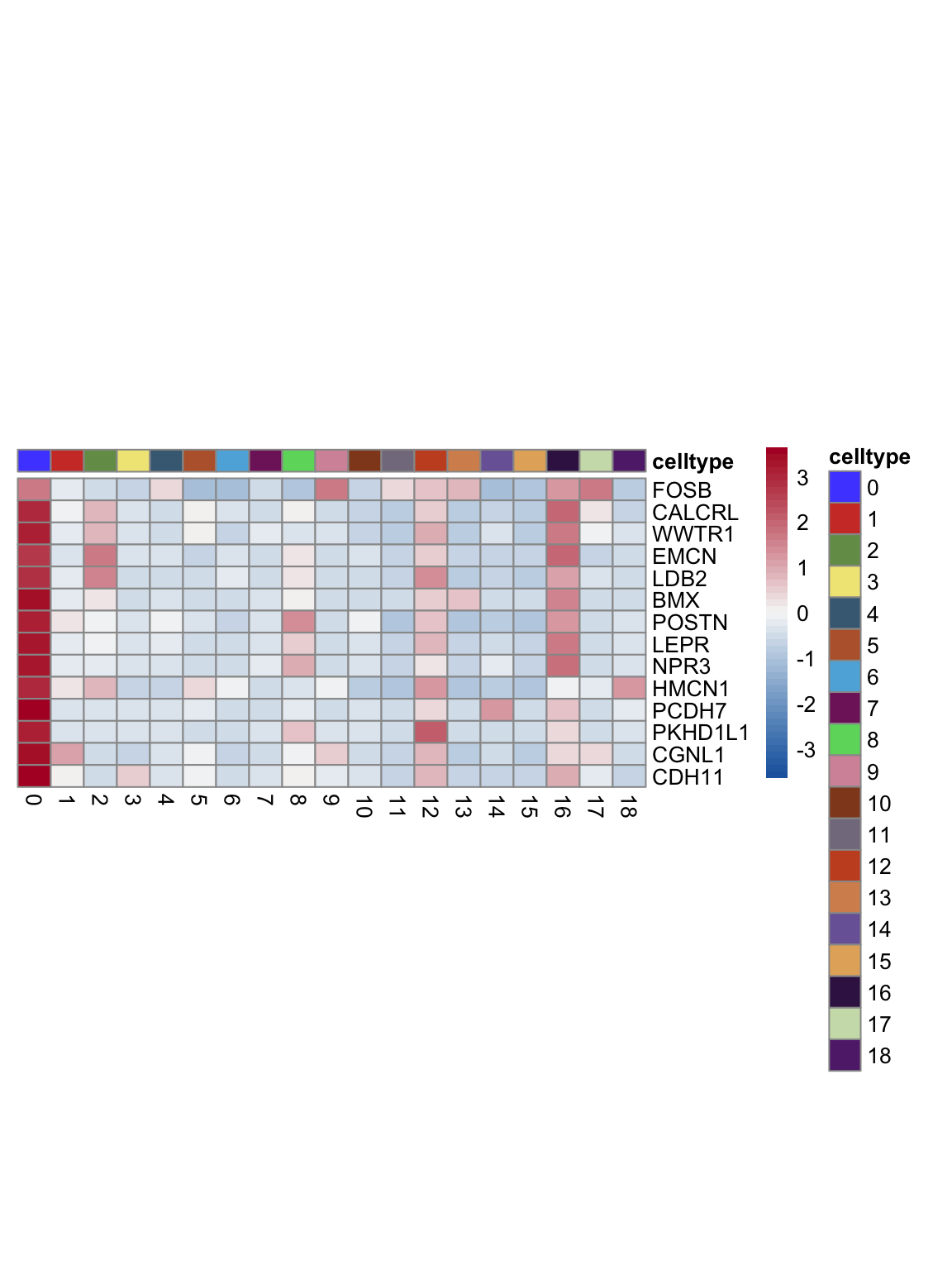

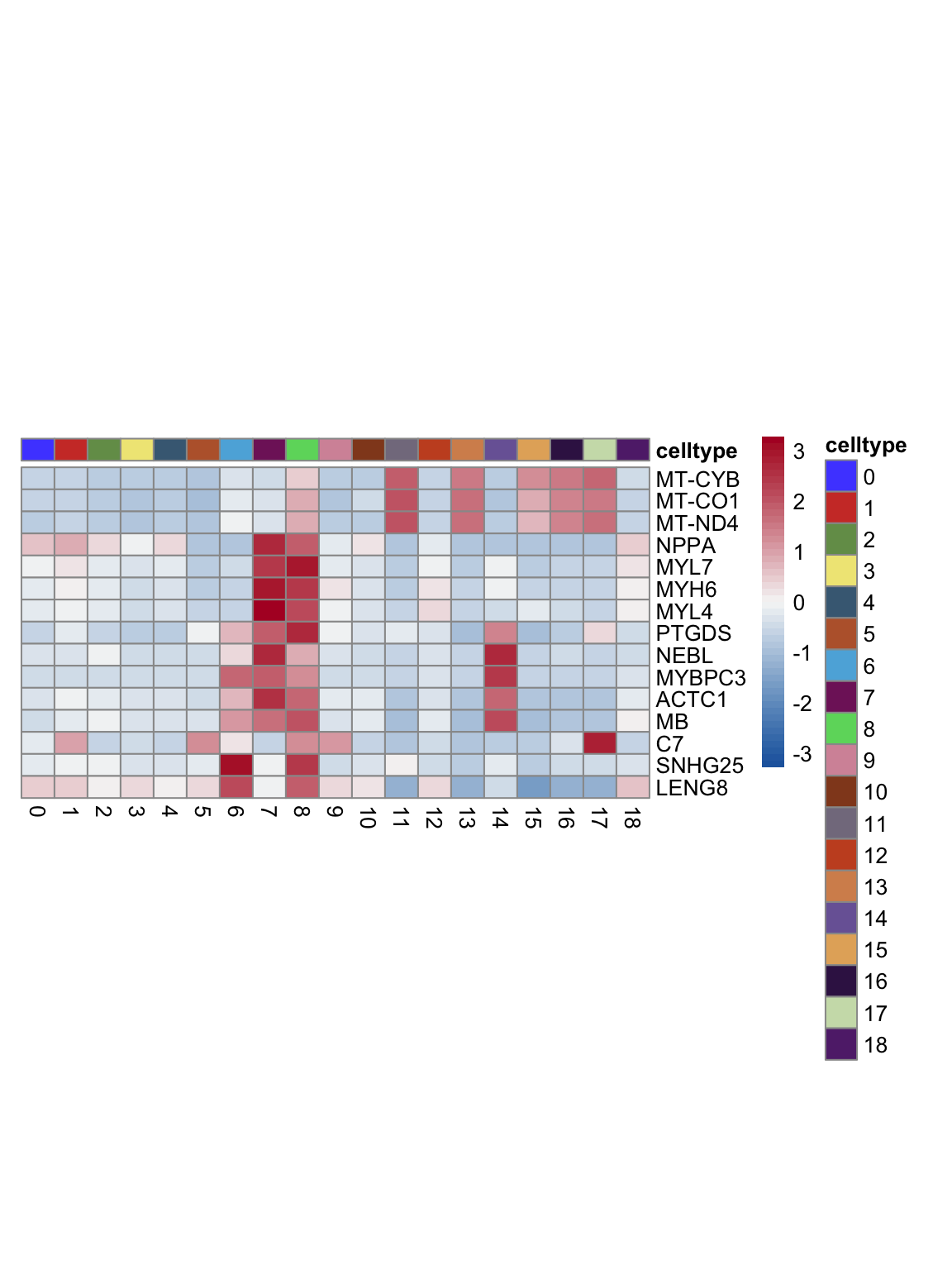

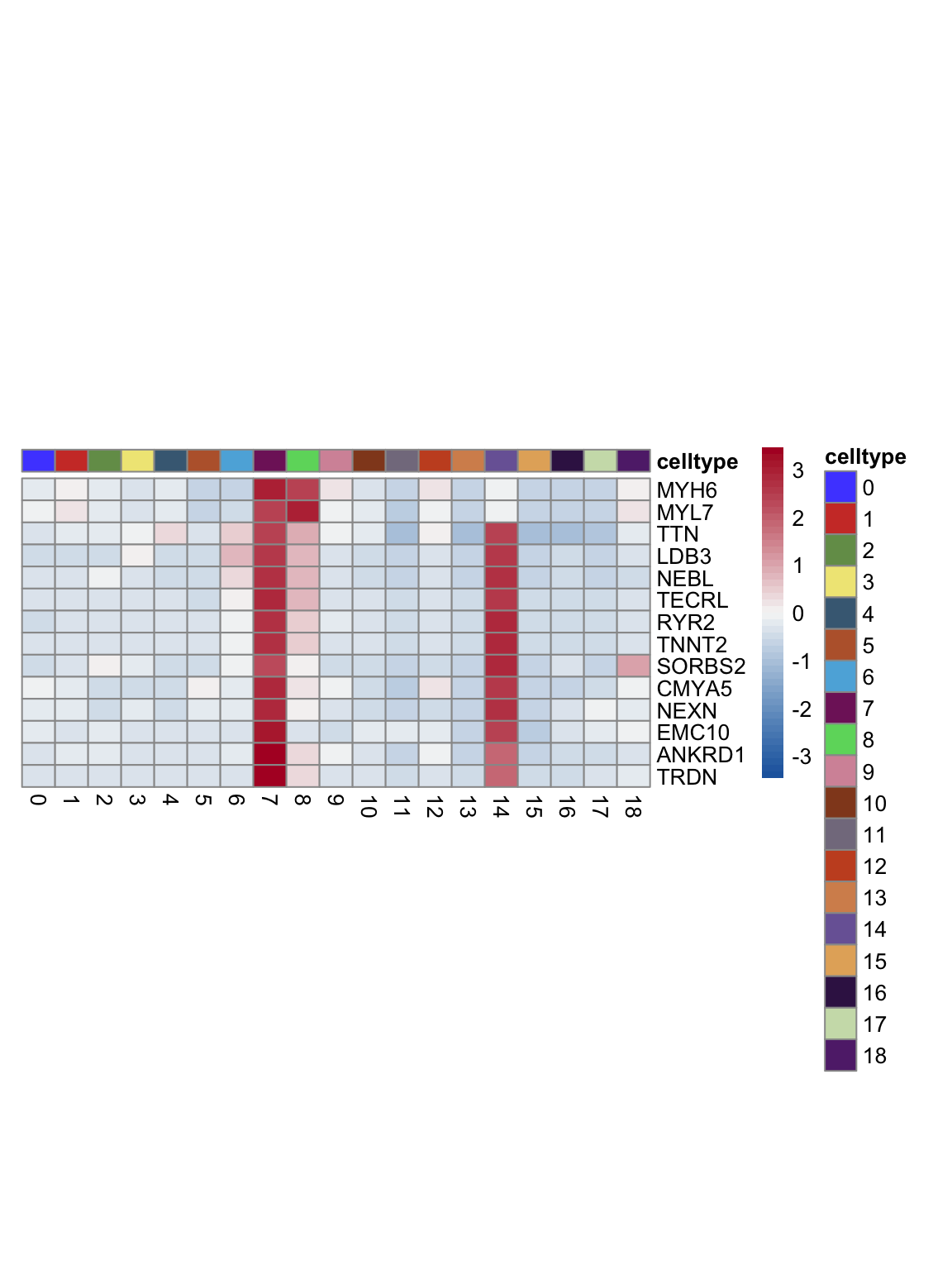

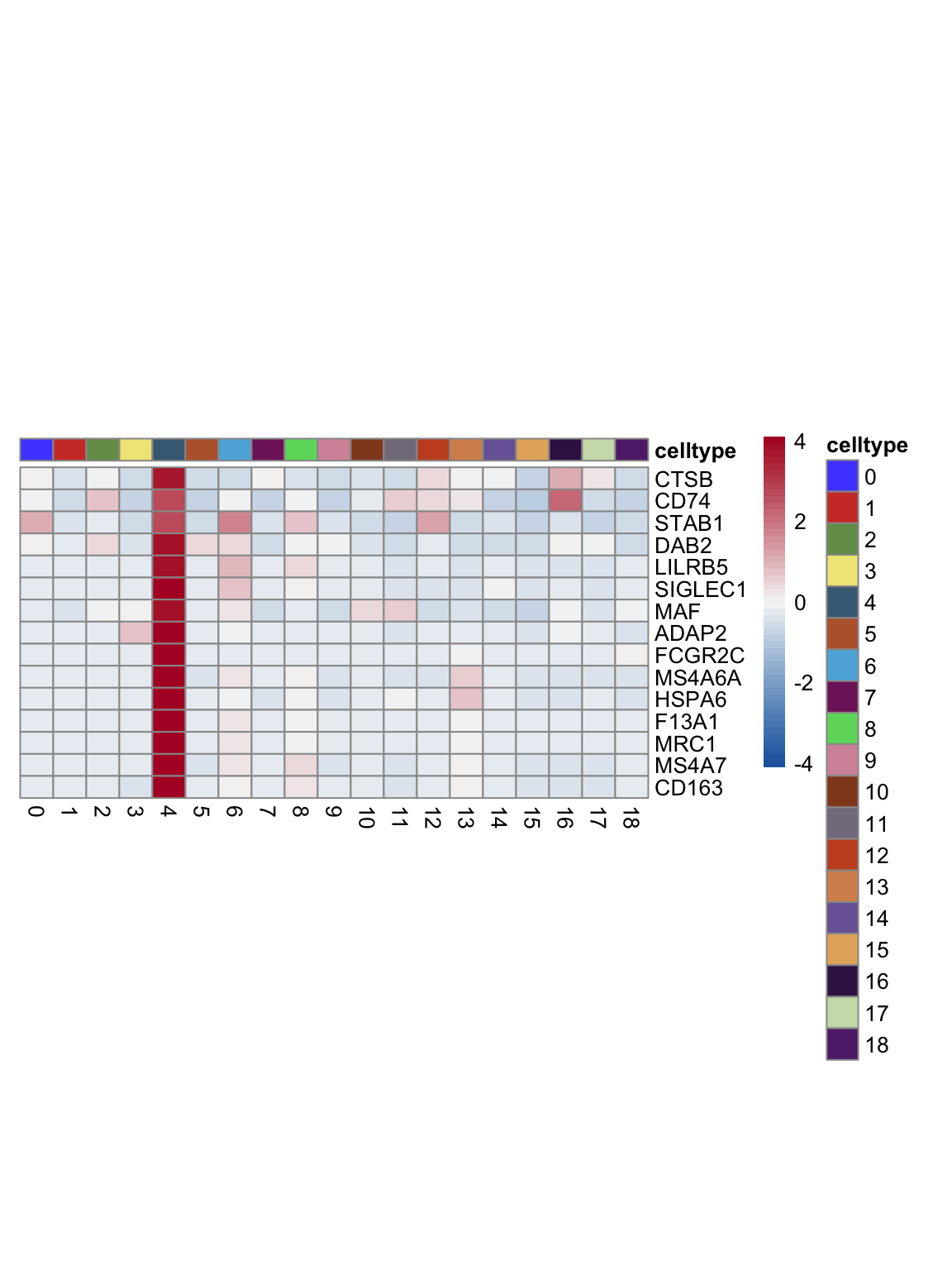

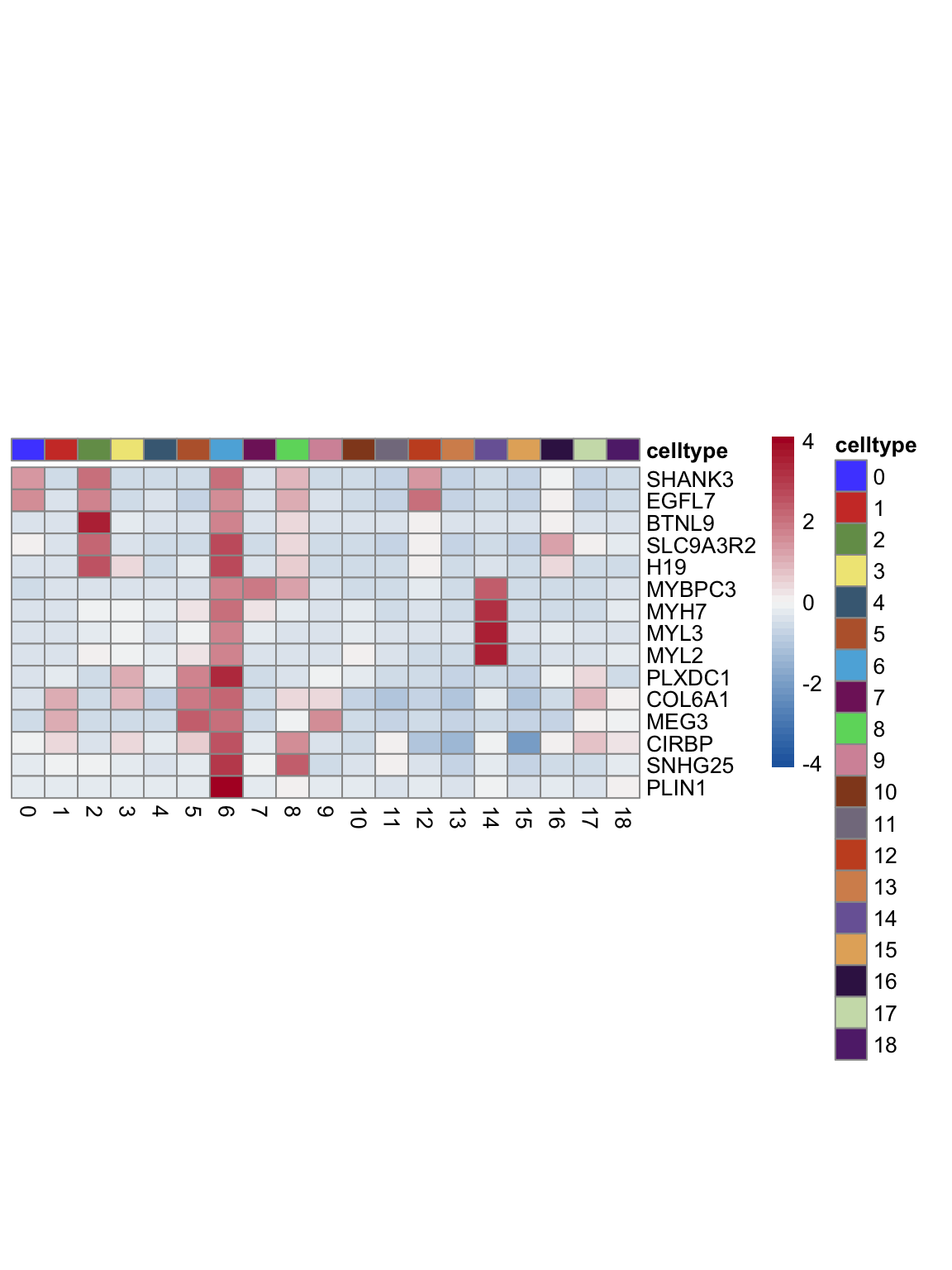

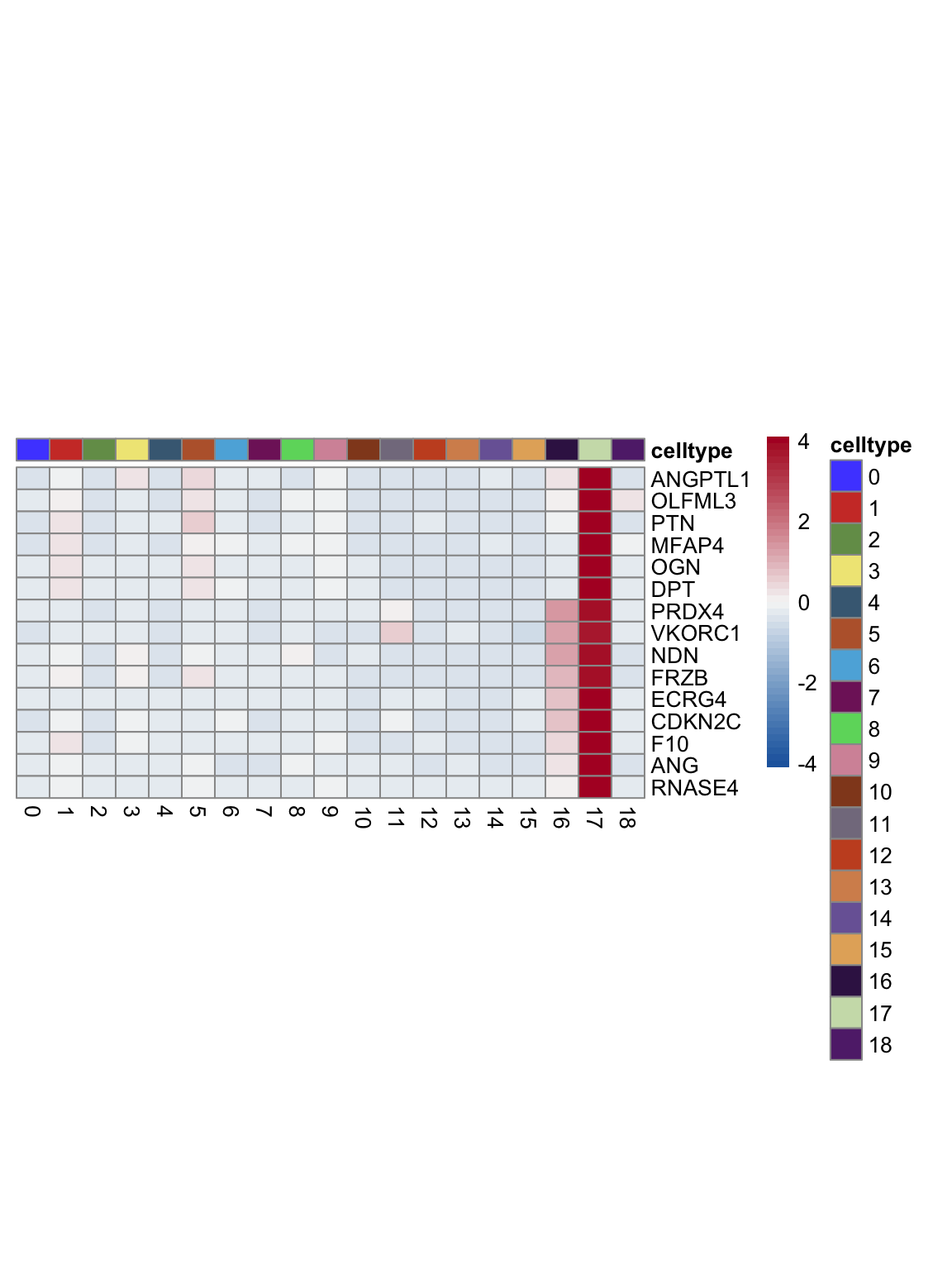

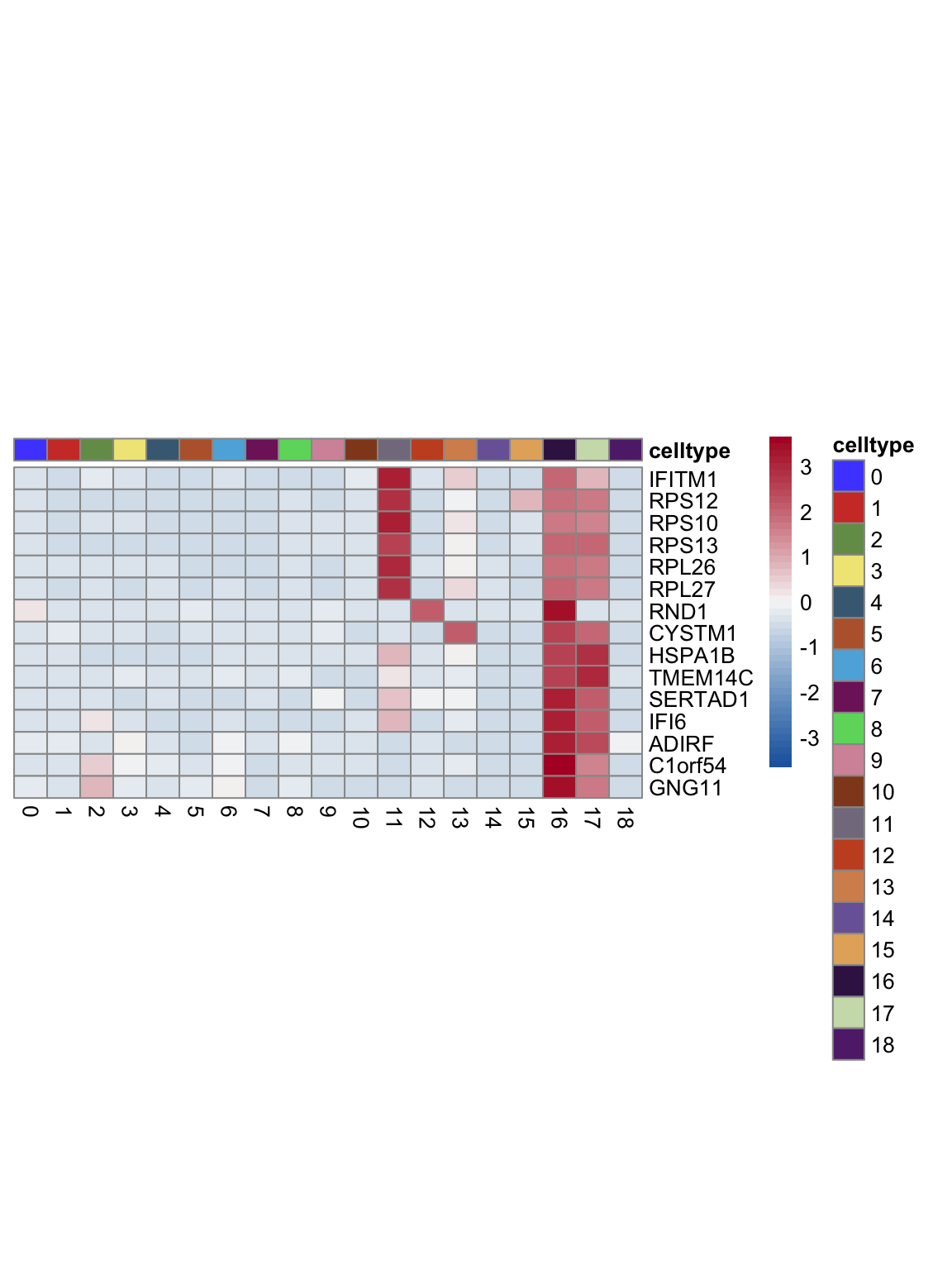

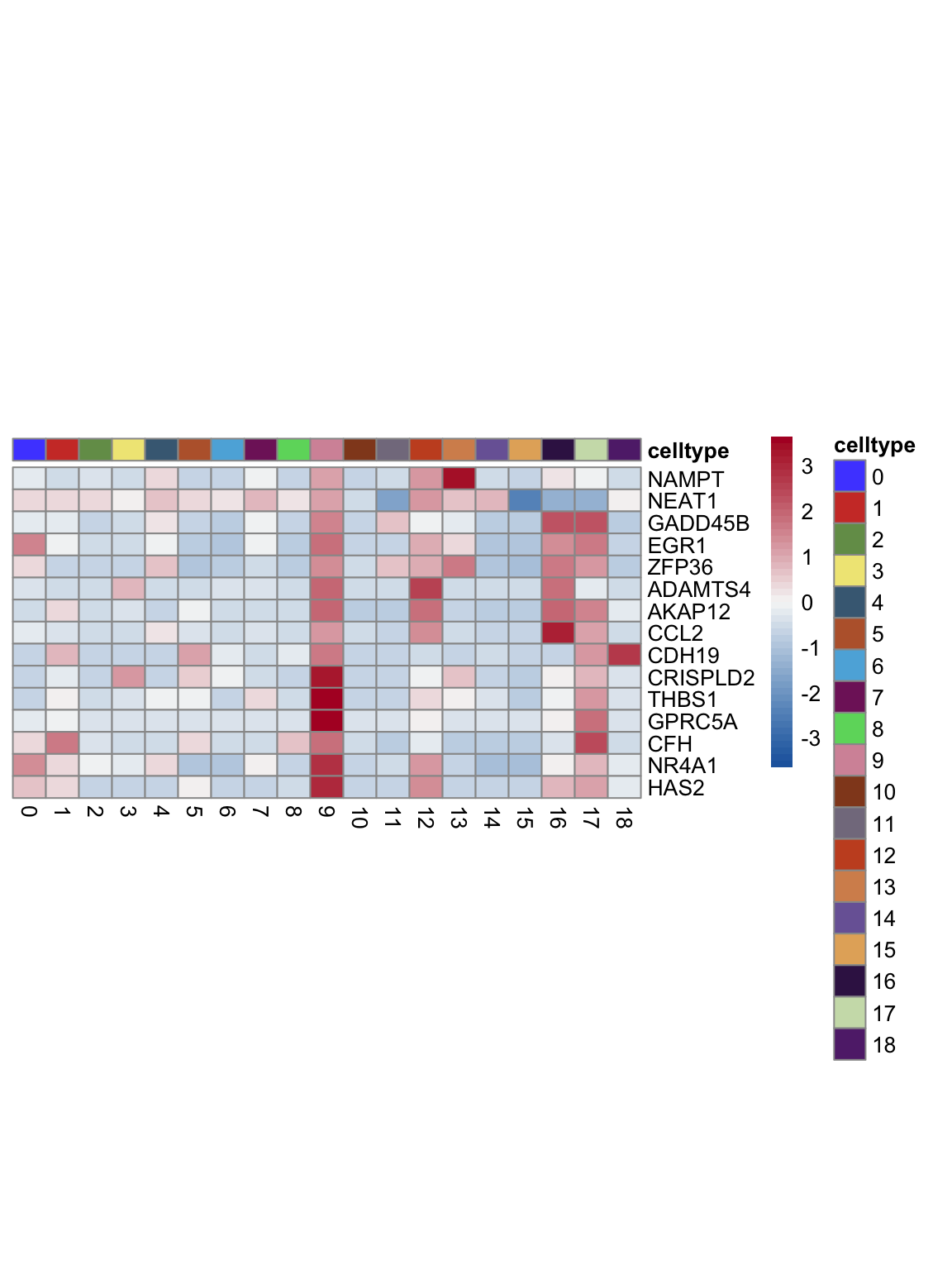

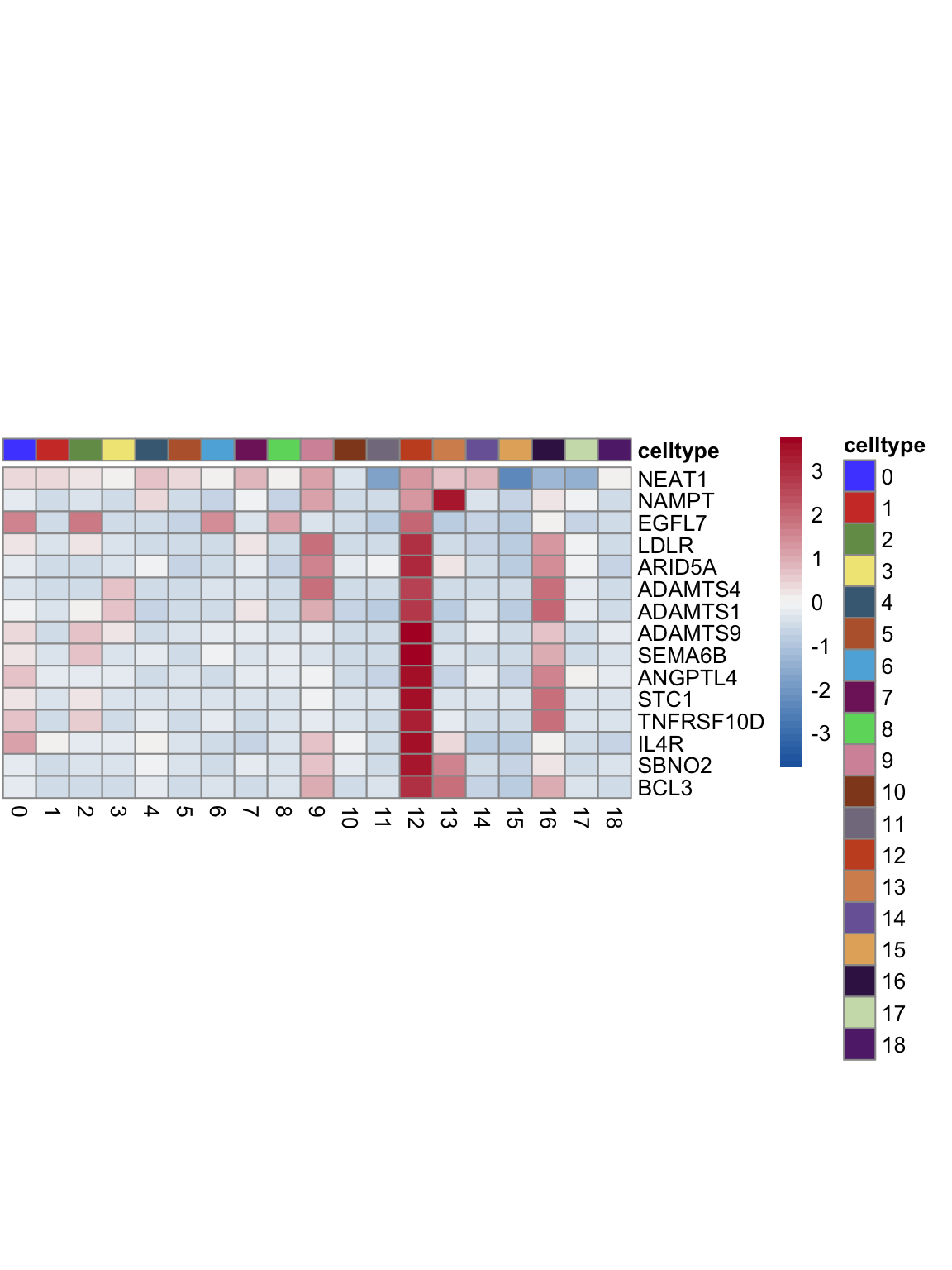

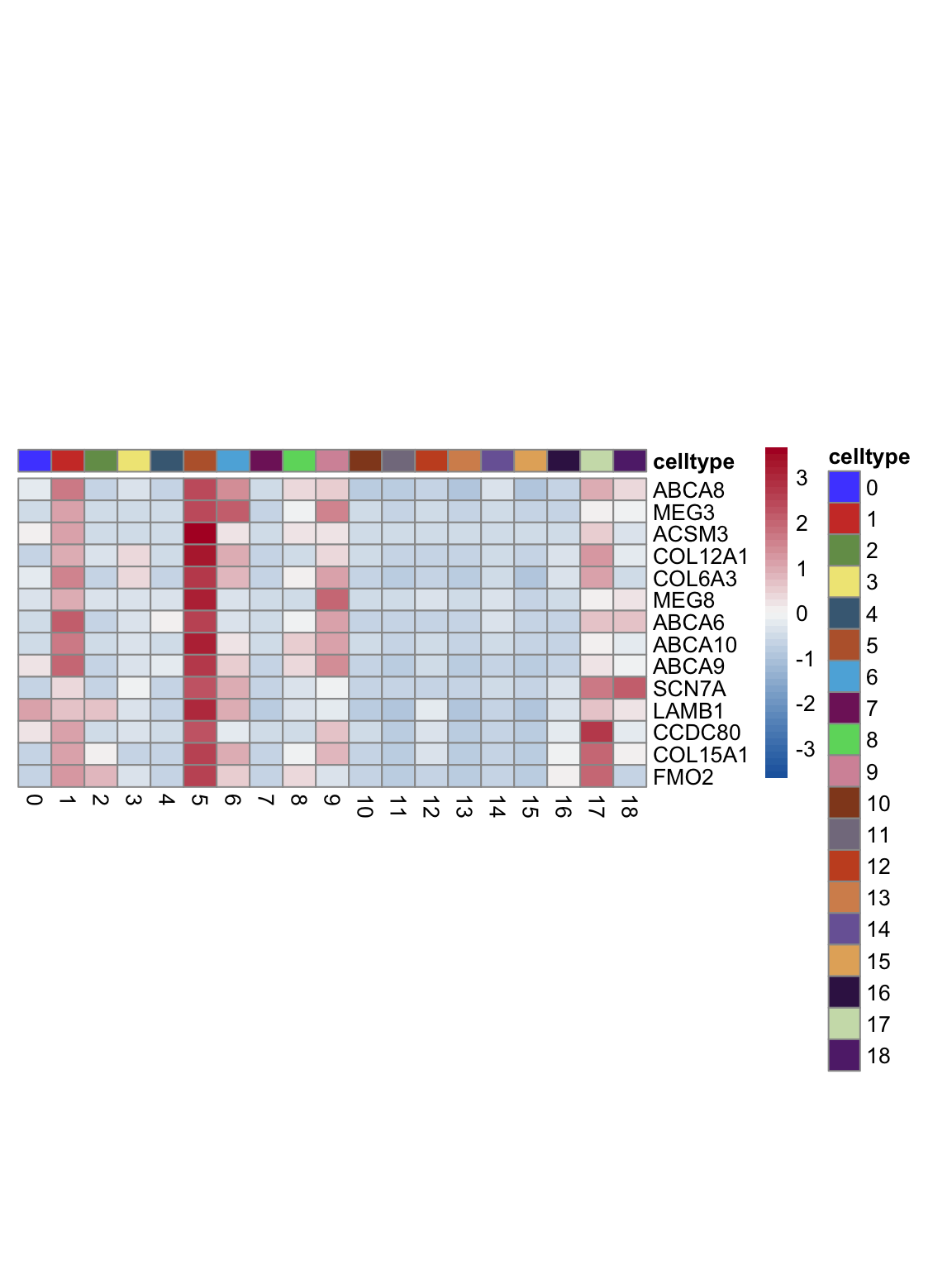

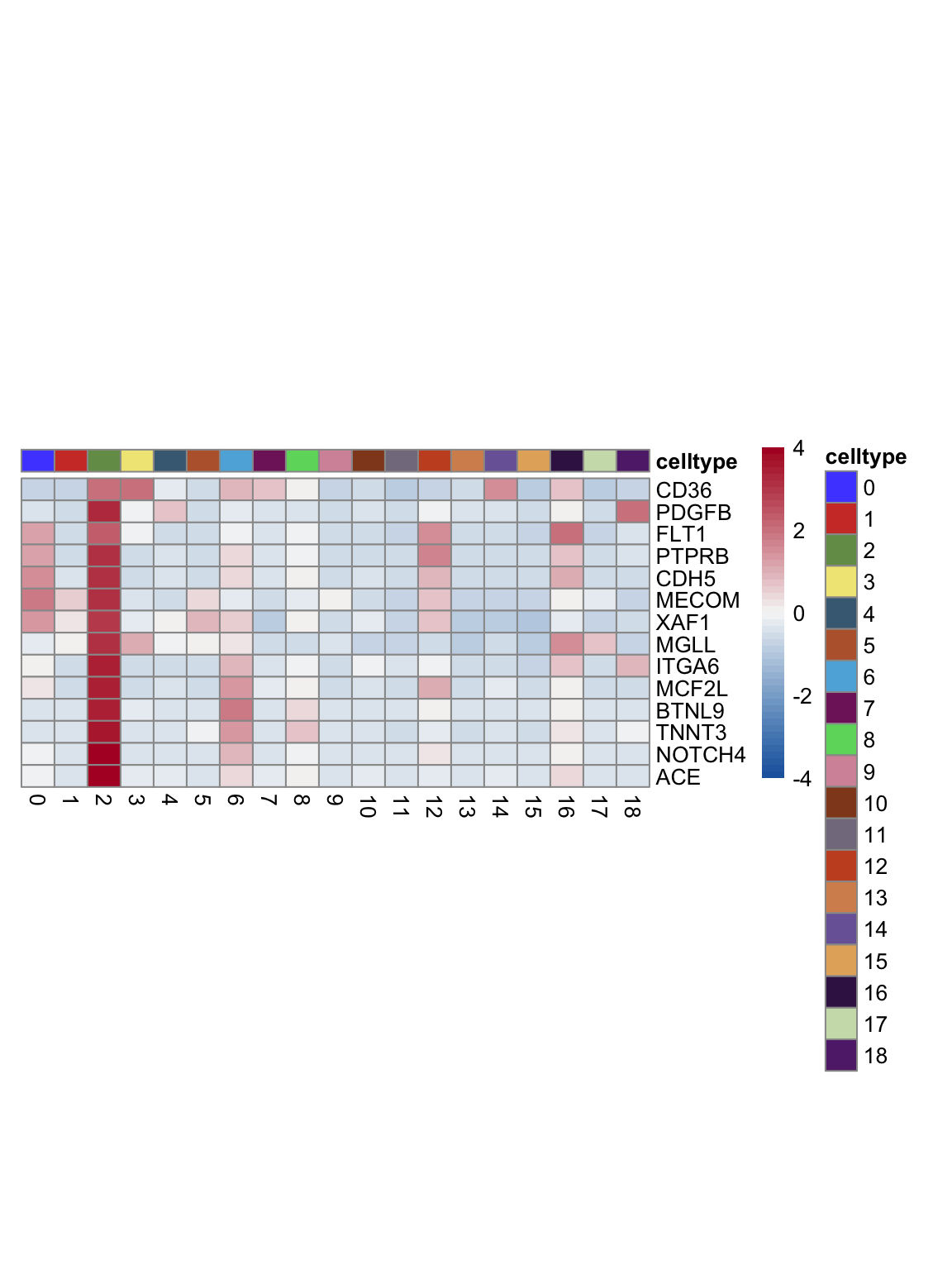

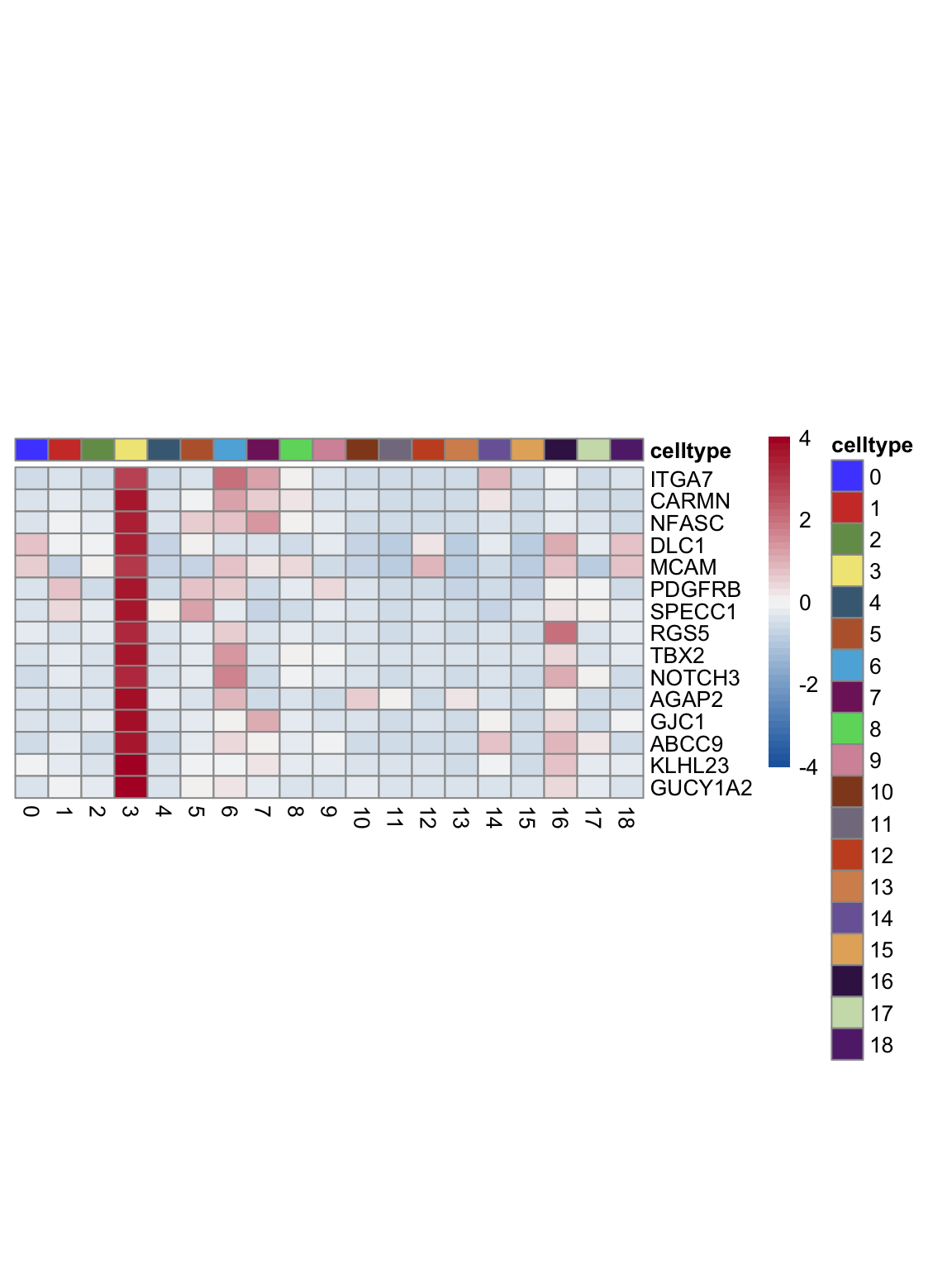

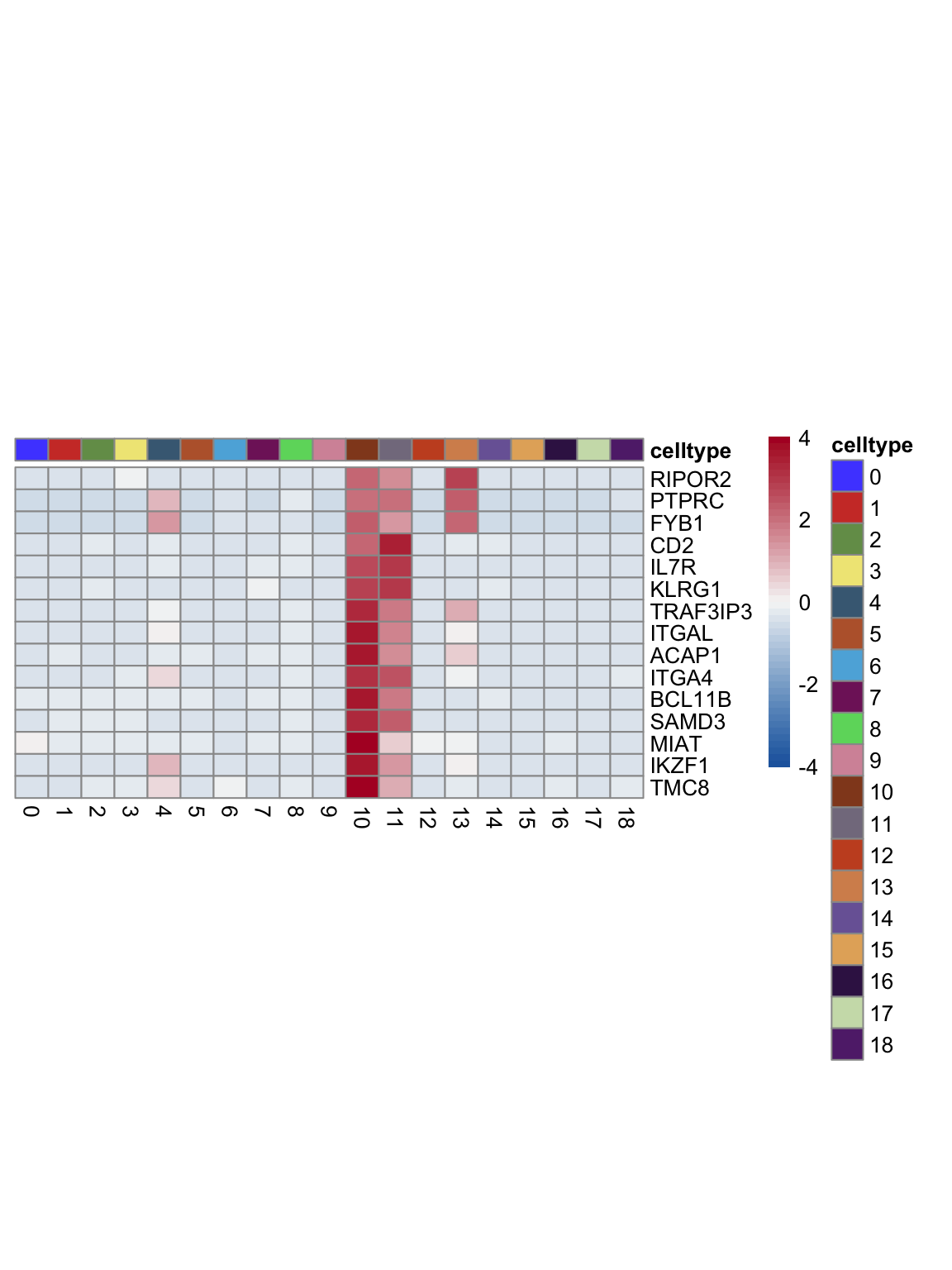

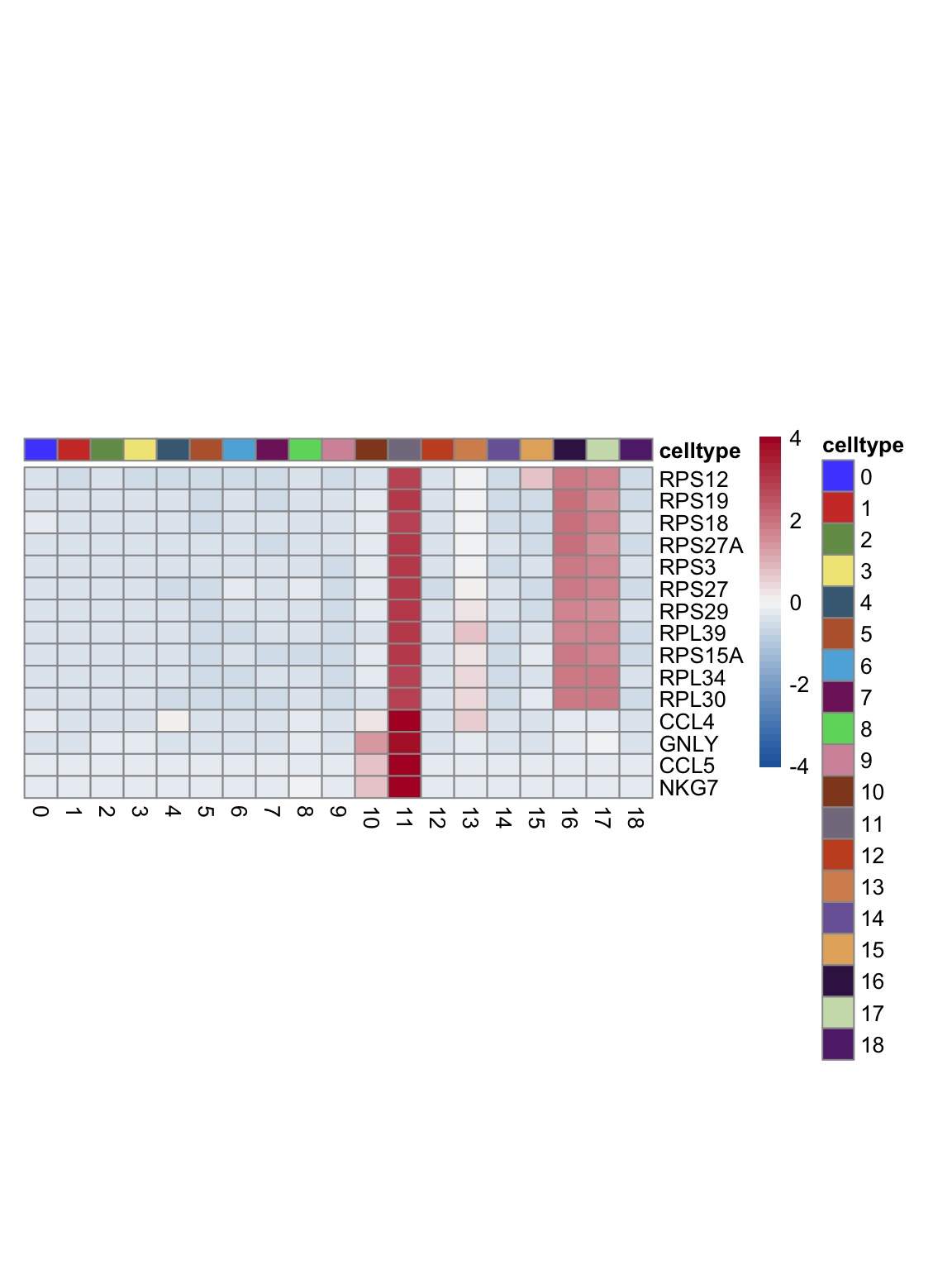

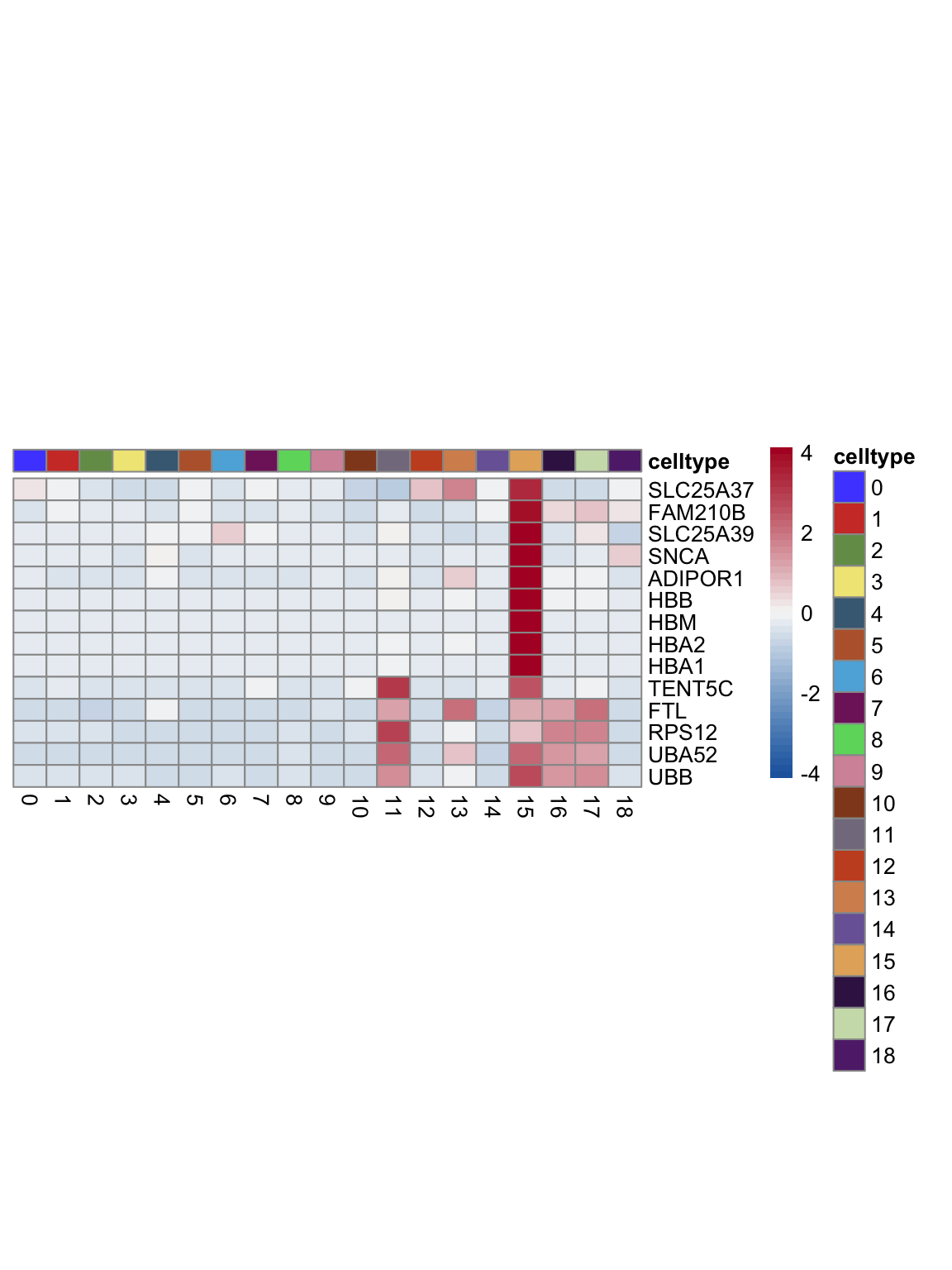

test.use = "wilcox")top 15 marker genes per cluster
cluster <- levels(seurat)
selGenesAll <- seurat_markers_all %>% group_by(cluster) %>%
top_n(-15, p_val_adj) %>%
top_n(15, avg_log2FC)
selGenesAll <- selGenesAll %>% mutate(geneIDval=gsub("^.*\\.", "", gene)) %>% filter(nchar(geneIDval)>1)
template_hm <- c(
"#### {{cl}}\n",
"```{r top marker {{cl}}, fig.height=8, fig.width=6, echo = FALSE}\n",
"selGenes <- selGenesAll %>% filter(cluster=='{{cl}}')",
"pOut <- avgHeatmap(seurat = seurat, selGenes = selGenes,
colVecIdent = colPal,
ordVec=levels(seurat),
gapVecR=NULL, gapVecC=NULL,cc=FALSE,
cr=T, condCol=F)\n",
"```\n",
"\n"
)
plots_gp <- lapply(cluster,
function(cl) knitr::knit_expand(text = template_hm)
)

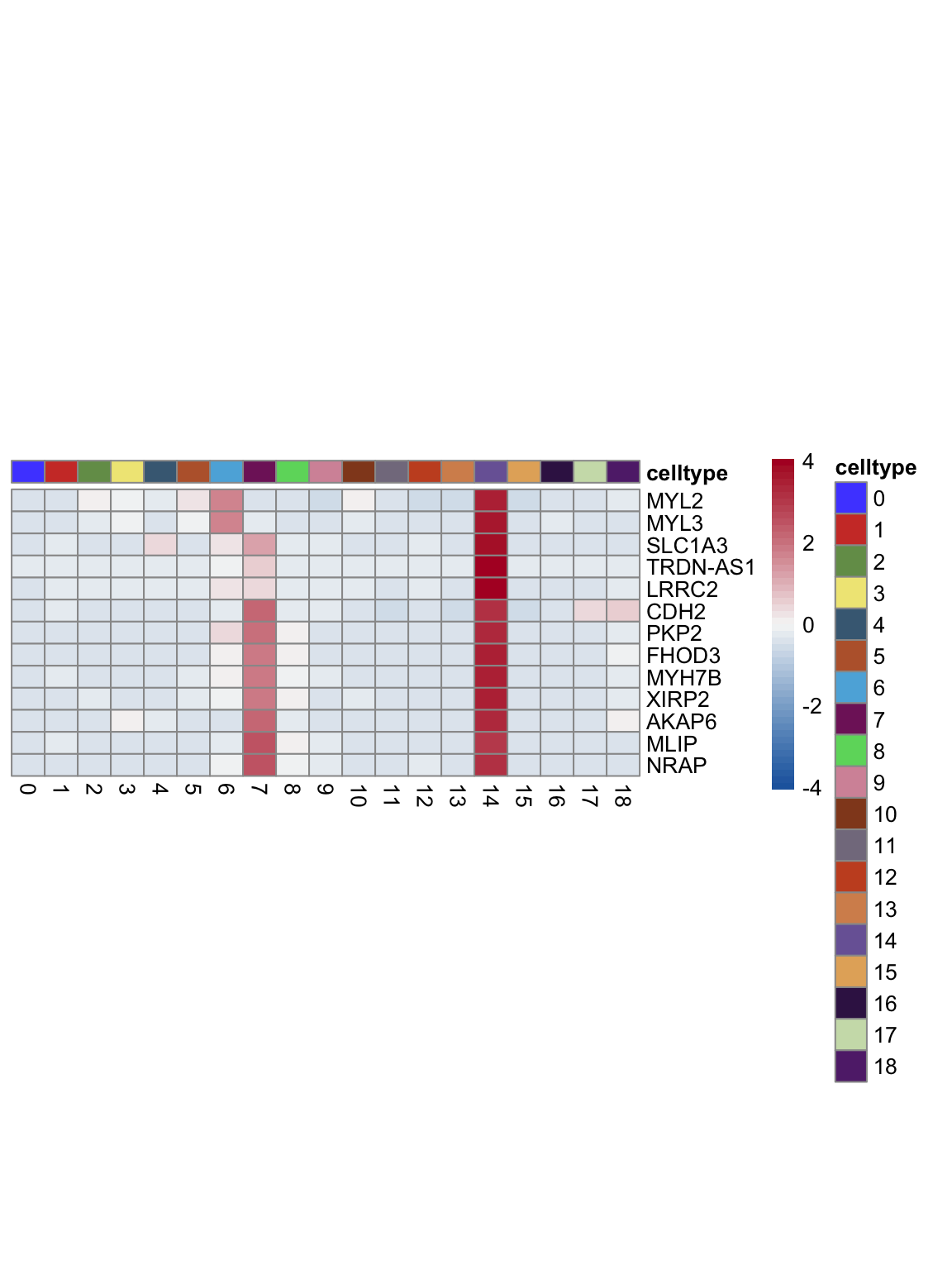

14
15
16
17

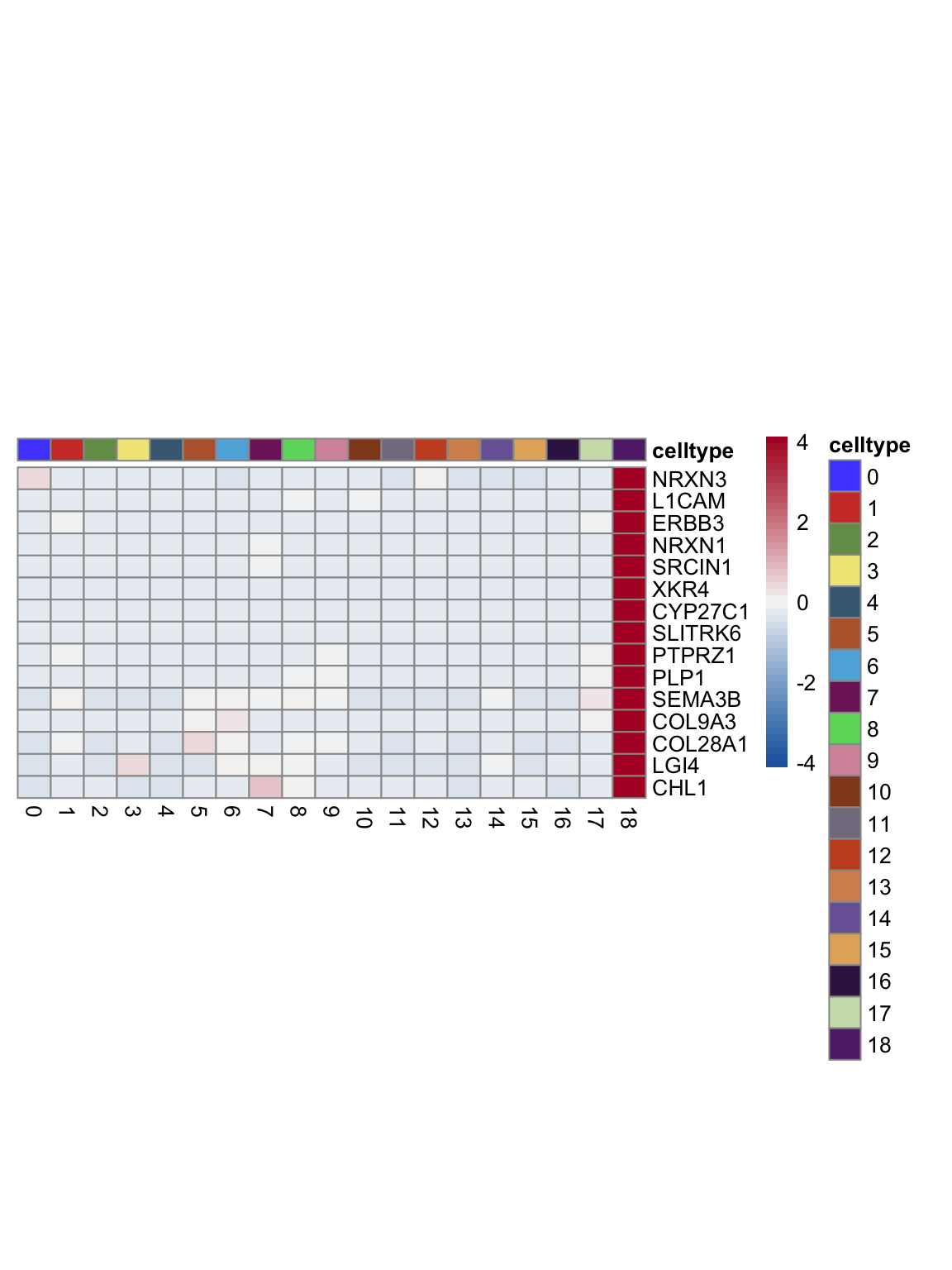

18
19
20
21
save objects
Idents(seurat) <- seurat$seurat_clusters
saveRDS(seurat, file = paste0(basedir,
"/data/humanHearts_merged_seurat.rds"))
write.table(seurat_markers_all,
file=paste0(basedir, "/data/humanHearts_merged_markerGenes.txt"),
row.names = FALSE, col.names = TRUE, quote = FALSE, sep = "\t")session info
sessionInfo()R version 4.1.0 (2021-05-18)
Platform: x86_64-apple-darwin17.0 (64-bit)
Running under: macOS Catalina 10.15.7
Matrix products: default
BLAS: /Library/Frameworks/R.framework/Versions/4.1/Resources/lib/libRblas.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/4.1/Resources/lib/libRlapack.dylib
locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8
attached base packages:
[1] parallel stats4 stats graphics grDevices utils datasets
[8] methods base
other attached packages:
[1] pheatmap_1.0.12 ggpubr_0.4.0
[3] ggsci_2.9 runSeurat3_0.1.0
[5] here_1.0.1 magrittr_2.0.1
[7] SeuratObject_4.0.2 Seurat_4.0.5
[9] forcats_0.5.1 stringr_1.4.0
[11] dplyr_1.0.7 purrr_0.3.4
[13] readr_2.0.2 tidyr_1.1.4
[15] tibble_3.1.6 ggplot2_3.3.5
[17] tidyverse_1.3.1 SingleCellExperiment_1.14.1
[19] SummarizedExperiment_1.22.0 Biobase_2.52.0
[21] GenomicRanges_1.44.0 GenomeInfoDb_1.28.4
[23] IRanges_2.26.0 S4Vectors_0.30.2
[25] BiocGenerics_0.38.0 MatrixGenerics_1.4.3
[27] matrixStats_0.61.0
loaded via a namespace (and not attached):
[1] utf8_1.2.2 reticulate_1.22 tidyselect_1.1.1
[4] htmlwidgets_1.5.4 grid_4.1.0 Rtsne_0.15
[7] munsell_0.5.0 codetools_0.2-18 ica_1.0-2
[10] future_1.23.0 miniUI_0.1.1.1 withr_2.4.2
[13] colorspace_2.0-2 highr_0.9 knitr_1.36
[16] rstudioapi_0.13 ROCR_1.0-11 ggsignif_0.6.3
[19] tensor_1.5 listenv_0.8.0 labeling_0.4.2
[22] git2r_0.28.0 GenomeInfoDbData_1.2.6 polyclip_1.10-0
[25] farver_2.1.0 bit64_4.0.5 rprojroot_2.0.2
[28] parallelly_1.28.1 vctrs_0.3.8 generics_0.1.1
[31] xfun_0.28 R6_2.5.1 bitops_1.0-7
[34] spatstat.utils_2.2-0 DelayedArray_0.18.0 assertthat_0.2.1
[37] promises_1.2.0.1 scales_1.1.1 vroom_1.5.5
[40] gtable_0.3.0 globals_0.14.0 goftest_1.2-3
[43] workflowr_1.6.2 rlang_0.4.12 splines_4.1.0
[46] rstatix_0.7.0 lazyeval_0.2.2 spatstat.geom_2.3-0
[49] broom_0.7.10 yaml_2.2.1 reshape2_1.4.4
[52] abind_1.4-5 modelr_0.1.8 backports_1.3.0
[55] httpuv_1.6.3 tools_4.1.0 ellipsis_0.3.2
[58] spatstat.core_2.3-1 jquerylib_0.1.4 RColorBrewer_1.1-2
[61] ggridges_0.5.3 Rcpp_1.0.7 plyr_1.8.6
[64] zlibbioc_1.38.0 RCurl_1.98-1.5 rpart_4.1-15
[67] deldir_1.0-6 pbapply_1.5-0 cowplot_1.1.1
[70] zoo_1.8-9 haven_2.4.3 ggrepel_0.9.1
[73] cluster_2.1.2 fs_1.5.0 data.table_1.14.2
[76] RSpectra_0.16-0 scattermore_0.7 lmtest_0.9-39
[79] reprex_2.0.1 RANN_2.6.1 whisker_0.4
[82] fitdistrplus_1.1-6 hms_1.1.1 patchwork_1.1.1
[85] mime_0.12 evaluate_0.14 xtable_1.8-4
[88] readxl_1.3.1 gridExtra_2.3 compiler_4.1.0
[91] KernSmooth_2.23-20 crayon_1.4.2 htmltools_0.5.2
[94] mgcv_1.8-38 later_1.3.0 tzdb_0.2.0
[97] lubridate_1.8.0 DBI_1.1.1 dbplyr_2.1.1
[100] MASS_7.3-54 Matrix_1.3-4 car_3.0-12
[103] cli_3.1.0 igraph_1.2.8 pkgconfig_2.0.3
[106] plotly_4.10.0 spatstat.sparse_2.0-0 xml2_1.3.2
[109] bslib_0.3.1 XVector_0.32.0 rvest_1.0.2
[112] digest_0.6.28 sctransform_0.3.2 RcppAnnoy_0.0.19
[115] spatstat.data_2.1-0 rmarkdown_2.11 cellranger_1.1.0
[118] leiden_0.3.9 uwot_0.1.10 shiny_1.7.1
[121] lifecycle_1.0.1 nlme_3.1-153 jsonlite_1.7.2
[124] carData_3.0-4 limma_3.48.3 viridisLite_0.4.0
[127] fansi_0.5.0 pillar_1.6.4 lattice_0.20-45
[130] fastmap_1.1.0 httr_1.4.2 survival_3.2-13
[133] glue_1.5.0 png_0.1-7 bit_4.0.4
[136] stringi_1.7.5 sass_0.4.0 irlba_2.3.3
[139] future.apply_1.8.1 date()[1] "Wed Dec 15 10:48:33 2021"
sessionInfo()R version 4.1.0 (2021-05-18)
Platform: x86_64-apple-darwin17.0 (64-bit)
Running under: macOS Catalina 10.15.7
Matrix products: default
BLAS: /Library/Frameworks/R.framework/Versions/4.1/Resources/lib/libRblas.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/4.1/Resources/lib/libRlapack.dylib
locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8
attached base packages:
[1] parallel stats4 stats graphics grDevices utils datasets
[8] methods base
other attached packages:
[1] pheatmap_1.0.12 ggpubr_0.4.0
[3] ggsci_2.9 runSeurat3_0.1.0
[5] here_1.0.1 magrittr_2.0.1
[7] SeuratObject_4.0.2 Seurat_4.0.5
[9] forcats_0.5.1 stringr_1.4.0
[11] dplyr_1.0.7 purrr_0.3.4
[13] readr_2.0.2 tidyr_1.1.4
[15] tibble_3.1.6 ggplot2_3.3.5
[17] tidyverse_1.3.1 SingleCellExperiment_1.14.1
[19] SummarizedExperiment_1.22.0 Biobase_2.52.0
[21] GenomicRanges_1.44.0 GenomeInfoDb_1.28.4
[23] IRanges_2.26.0 S4Vectors_0.30.2
[25] BiocGenerics_0.38.0 MatrixGenerics_1.4.3
[27] matrixStats_0.61.0
loaded via a namespace (and not attached):
[1] utf8_1.2.2 reticulate_1.22 tidyselect_1.1.1
[4] htmlwidgets_1.5.4 grid_4.1.0 Rtsne_0.15
[7] munsell_0.5.0 codetools_0.2-18 ica_1.0-2
[10] future_1.23.0 miniUI_0.1.1.1 withr_2.4.2
[13] colorspace_2.0-2 highr_0.9 knitr_1.36
[16] rstudioapi_0.13 ROCR_1.0-11 ggsignif_0.6.3
[19] tensor_1.5 listenv_0.8.0 labeling_0.4.2
[22] git2r_0.28.0 GenomeInfoDbData_1.2.6 polyclip_1.10-0
[25] farver_2.1.0 bit64_4.0.5 rprojroot_2.0.2
[28] parallelly_1.28.1 vctrs_0.3.8 generics_0.1.1
[31] xfun_0.28 R6_2.5.1 bitops_1.0-7
[34] spatstat.utils_2.2-0 DelayedArray_0.18.0 assertthat_0.2.1
[37] promises_1.2.0.1 scales_1.1.1 vroom_1.5.5
[40] gtable_0.3.0 globals_0.14.0 goftest_1.2-3
[43] workflowr_1.6.2 rlang_0.4.12 splines_4.1.0
[46] rstatix_0.7.0 lazyeval_0.2.2 spatstat.geom_2.3-0
[49] broom_0.7.10 yaml_2.2.1 reshape2_1.4.4
[52] abind_1.4-5 modelr_0.1.8 backports_1.3.0
[55] httpuv_1.6.3 tools_4.1.0 ellipsis_0.3.2
[58] spatstat.core_2.3-1 jquerylib_0.1.4 RColorBrewer_1.1-2
[61] ggridges_0.5.3 Rcpp_1.0.7 plyr_1.8.6
[64] zlibbioc_1.38.0 RCurl_1.98-1.5 rpart_4.1-15
[67] deldir_1.0-6 pbapply_1.5-0 cowplot_1.1.1
[70] zoo_1.8-9 haven_2.4.3 ggrepel_0.9.1
[73] cluster_2.1.2 fs_1.5.0 data.table_1.14.2
[76] RSpectra_0.16-0 scattermore_0.7 lmtest_0.9-39
[79] reprex_2.0.1 RANN_2.6.1 whisker_0.4
[82] fitdistrplus_1.1-6 hms_1.1.1 patchwork_1.1.1
[85] mime_0.12 evaluate_0.14 xtable_1.8-4
[88] readxl_1.3.1 gridExtra_2.3 compiler_4.1.0
[91] KernSmooth_2.23-20 crayon_1.4.2 htmltools_0.5.2
[94] mgcv_1.8-38 later_1.3.0 tzdb_0.2.0
[97] lubridate_1.8.0 DBI_1.1.1 dbplyr_2.1.1
[100] MASS_7.3-54 Matrix_1.3-4 car_3.0-12
[103] cli_3.1.0 igraph_1.2.8 pkgconfig_2.0.3
[106] plotly_4.10.0 spatstat.sparse_2.0-0 xml2_1.3.2
[109] bslib_0.3.1 XVector_0.32.0 rvest_1.0.2
[112] digest_0.6.28 sctransform_0.3.2 RcppAnnoy_0.0.19
[115] spatstat.data_2.1-0 rmarkdown_2.11 cellranger_1.1.0
[118] leiden_0.3.9 uwot_0.1.10 shiny_1.7.1
[121] lifecycle_1.0.1 nlme_3.1-153 jsonlite_1.7.2
[124] carData_3.0-4 limma_3.48.3 viridisLite_0.4.0
[127] fansi_0.5.0 pillar_1.6.4 lattice_0.20-45
[130] fastmap_1.1.0 httr_1.4.2 survival_3.2-13
[133] glue_1.5.0 png_0.1-7 bit_4.0.4
[136] stringi_1.7.5 sass_0.4.0 irlba_2.3.3
[139] future.apply_1.8.1
