# load the ebnm library and define an ebnm_binormal function

library("ebnm")

dbinormal = function (x,s,s0,lambda,log=TRUE){
  pi0 = 0.5
  pi1 = 0.5
  s2 = s^2
  s02 = s0^2
  l0 = dnorm(x,0,sqrt(lambda^2 * s02 + s2),log=TRUE)
  l1 = dnorm(x,lambda,sqrt(lambda^2 * s02 + s2),log=TRUE)
  logsum = log(pi0*exp(l0) + pi1*exp(l1))

  m = pmax(l0,l1)
  logsum = m + log(pi0*exp(l0-m) + pi1*exp(l1-m))
  if (log) return(sum(logsum))
  else return(exp(sum(logsum)))
}

ebnm_binormal = function(x,s){
  x = drop(x)
  s0 = 0.01
  lambda = optimize(function(lambda){-dbinormal(x,s,s0,lambda,log=TRUE)},
              lower = 0, upper = max(x))$minimum
  g = ashr::normalmix(pi=c(0.5,0.5), mean=c(0,lambda), sd=c(lambda * s0,lambda * s0))
  postmean = ashr::postmean(g,ashr::set_data(x,s))
  postsd = ashr::postsd(g,ashr::set_data(x,s))
  return(list(g = g, posterior = data.frame(mean=postmean,sd=postsd)))
}

Introduction

I want to implement an EB version of the power update for a symmetric data matrix S. I haven’t implemented an update to the residual error yet

Rank 1

# This is just the regular power update, used for initialization
power_update_r1 = function(S,v){
  newv = drop(S %*% v)
  if(!all(newv==0))
    v = newv/sqrt(sum(newv^2))
  return(v)
}

eb_power_update_r1 = function(S,v,ebnm_fn,sigma){
  newv = drop(S %*% v)
  if(!all(newv==0))
    v = ebnm_fn(newv, sigma)$posterior$mean
  if(!all(v==0))
    v = v/sqrt(sum(v^2))
  return(v)
}

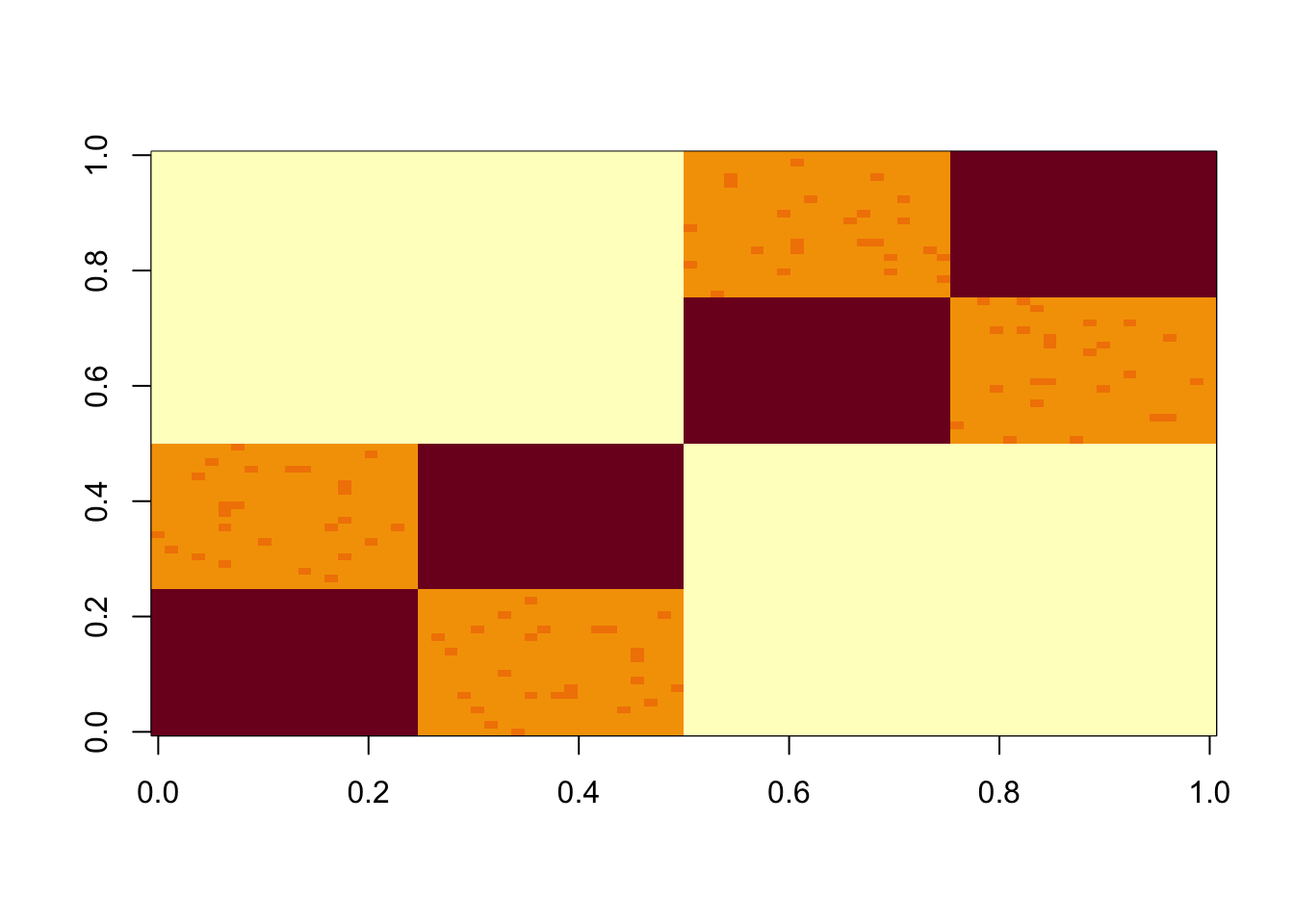

Simulate data under a tree model (with very small errors)

set.seed(1)
n = 40
x = cbind(c(rep(1,n),rep(0,n)), c(rep(0,n),rep(1,n)), c(rep(1,n/2),rep(0,3*n/2)), c(rep(0,n/2), rep(1,n/2), rep(0,n)), c(rep(0,n),rep(1,n/2),rep(0,n/2)), c(rep(0,3*n/2),rep(1,n/2)))
E = matrix(0.01*rexp(2*n*2*n),nrow=2*n)
E = E+t(E) #symmetric errors
S = x %*% diag(c(1,1,1,1,1,1)) %*% t(x) + E
image(S)

Version Author Date
7c17b31 Matthew Stephens 2025-03-15
2956a39 Matthew Stephens 2025-03-12

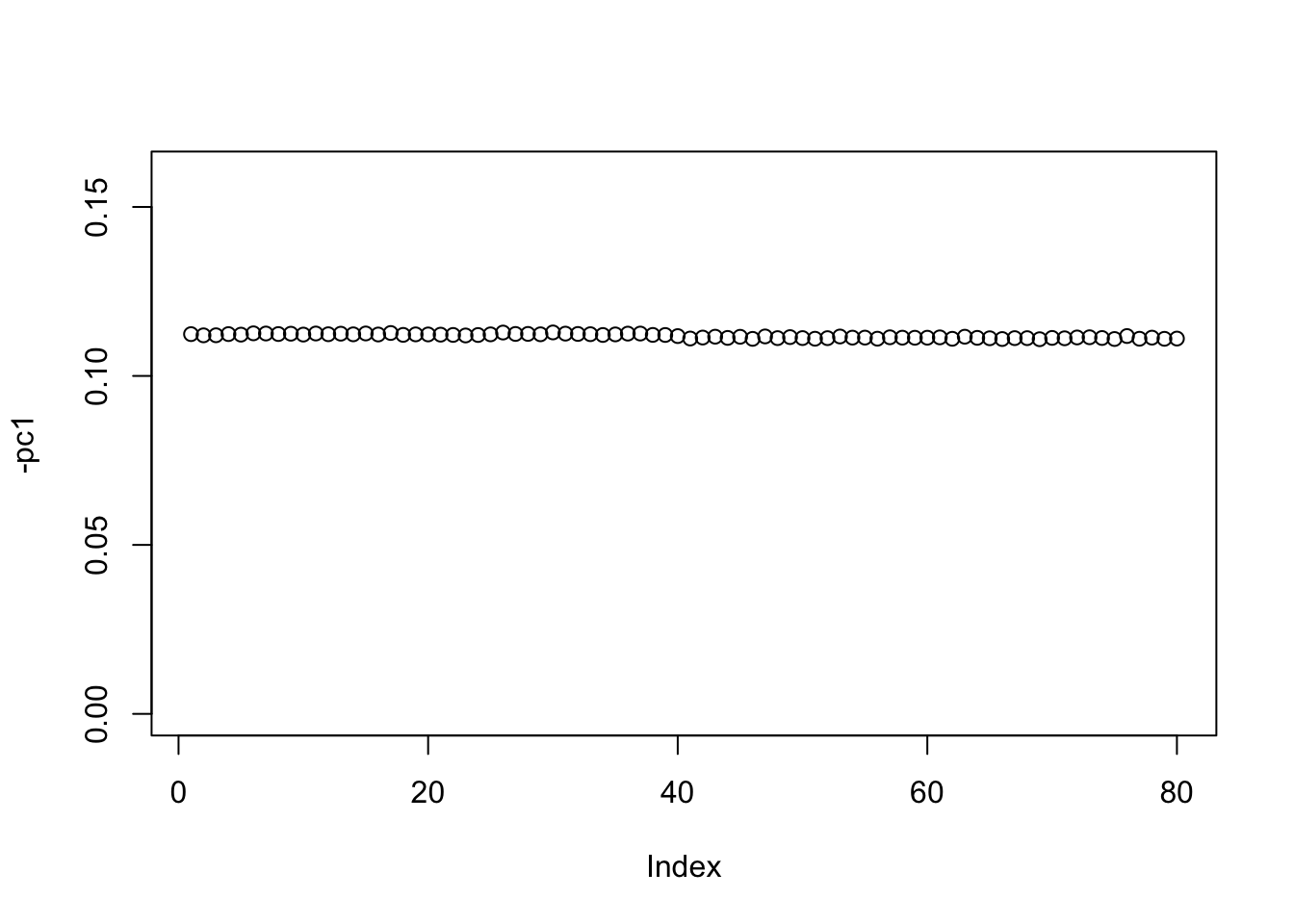

Check the first PC. It is essentially the constant vector.

pc1 = cbind(svd(S)$v[,1])
plot(-pc1,ylim=c(0,0.16))

Version Author Date
7c17b31 Matthew Stephens 2025-03-15
2956a39 Matthew Stephens 2025-03-12

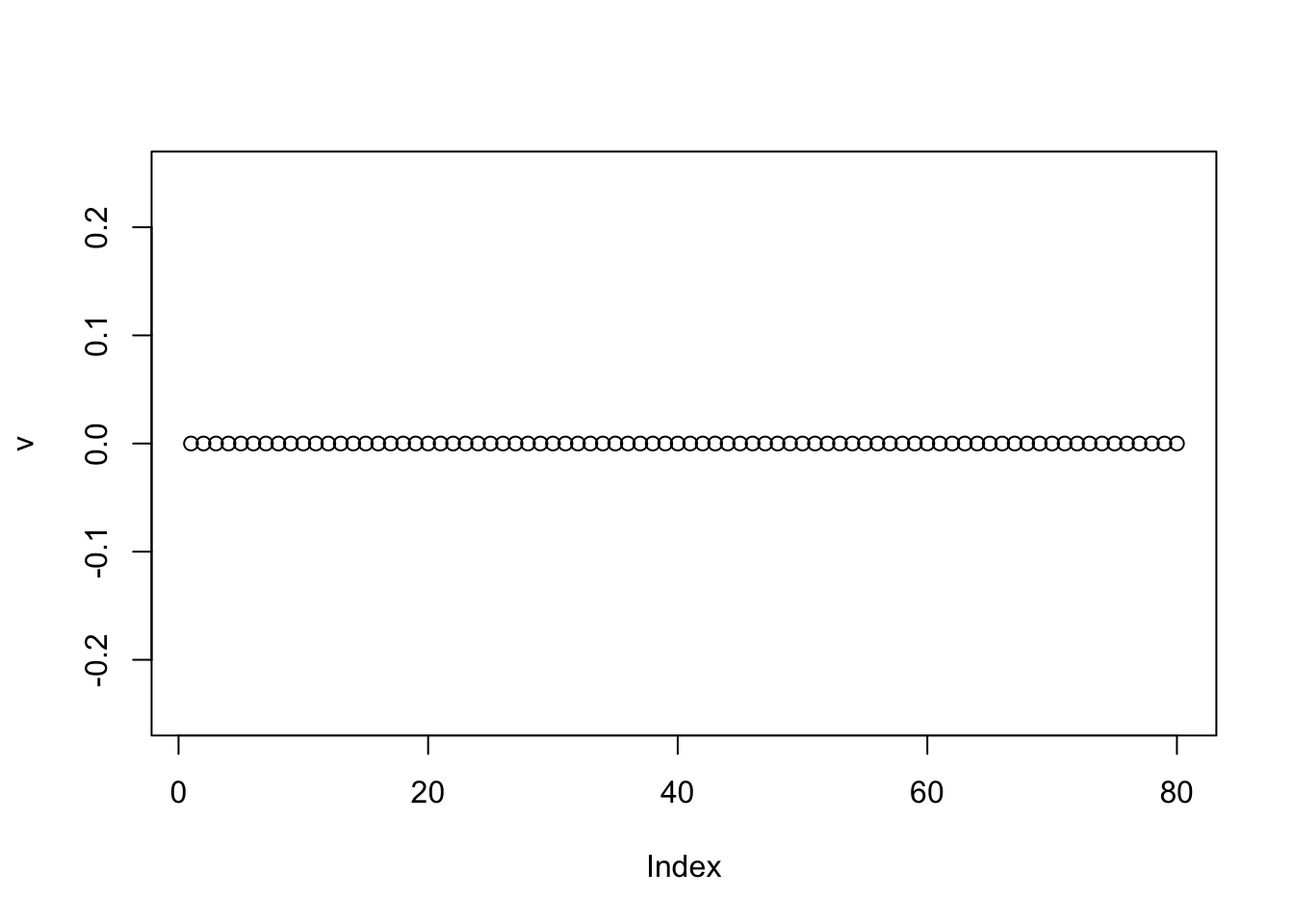

If one uses a completely random initialization then the eb method will often (but not always) zero things out completely on the first iteration:

set.seed(1)
v = cbind(rnorm(2*n))
v= v/sqrt(sum(v^2))
sigma = sqrt(mean(S^2))
v = eb_power_update_r1(S,v,ebnm_point_laplace,sigma)
plot(v,ylim=c(-0.25,0.25))

Version Author Date
7c17b31 Matthew Stephens 2025-03-15
2956a39 Matthew Stephens 2025-03-12

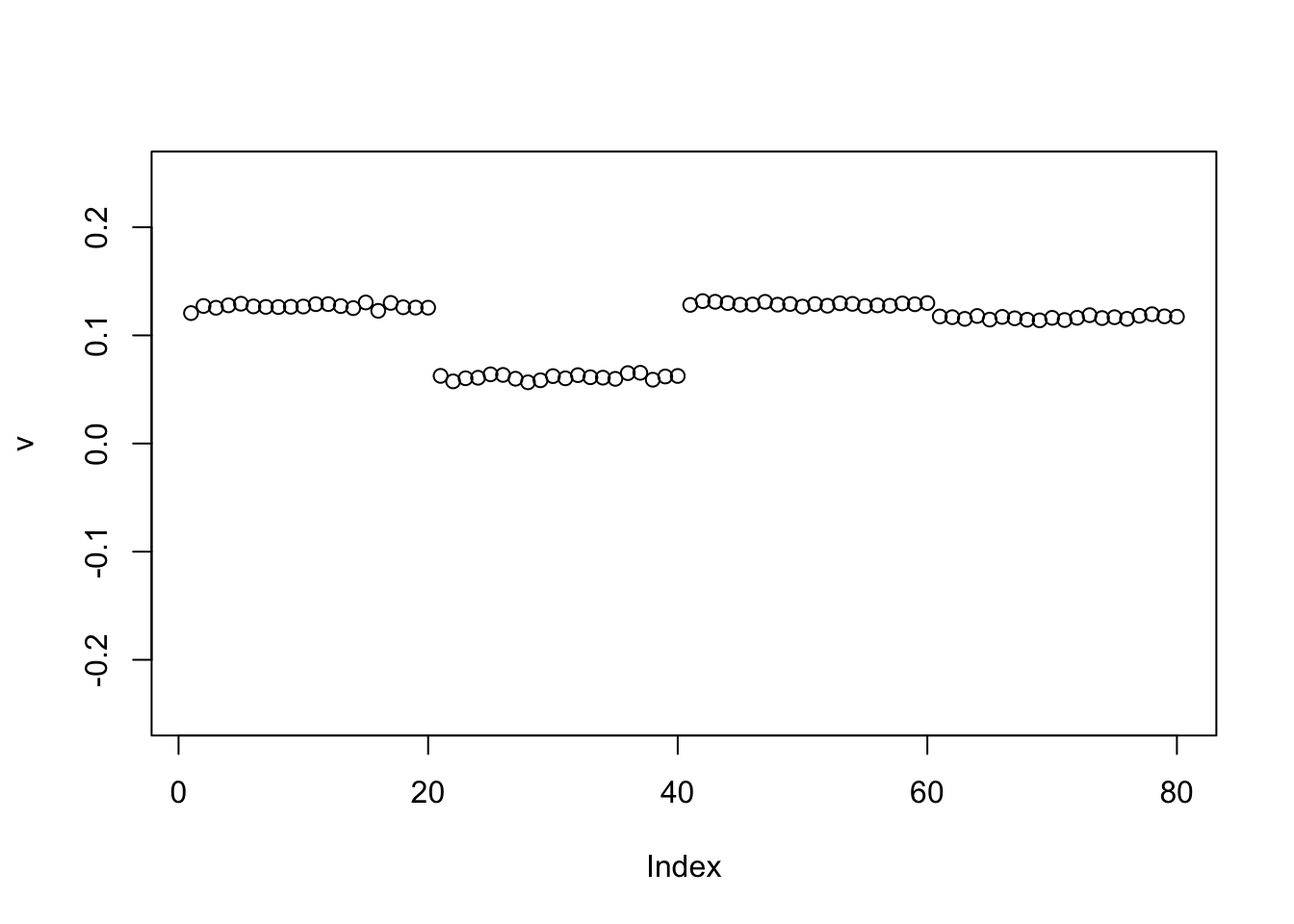

We can help avoid this here by doing a single iteration of the power method before moving to EB (because the matrix is very low rank the single iteration moves us quickly to the right subspace):

set.seed(1)
v = cbind(rnorm(2*n))
v= v/sqrt(sum(v^2))
sigma = sqrt(mean(S^2))

v = power_update_r1(S,v)
plot(v,ylim=c(-0.25,0.25))

Version Author Date
7c17b31 Matthew Stephens 2025-03-15
2956a39 Matthew Stephens 2025-03-12
for(i in 1:100){
  v = eb_power_update_r1(S,v,ebnm_point_laplace,sigma)
}
plot(v,ylim=c(-0.25,0.25))

Version Author Date
7c17b31 Matthew Stephens 2025-03-15
2956a39 Matthew Stephens 2025-03-12

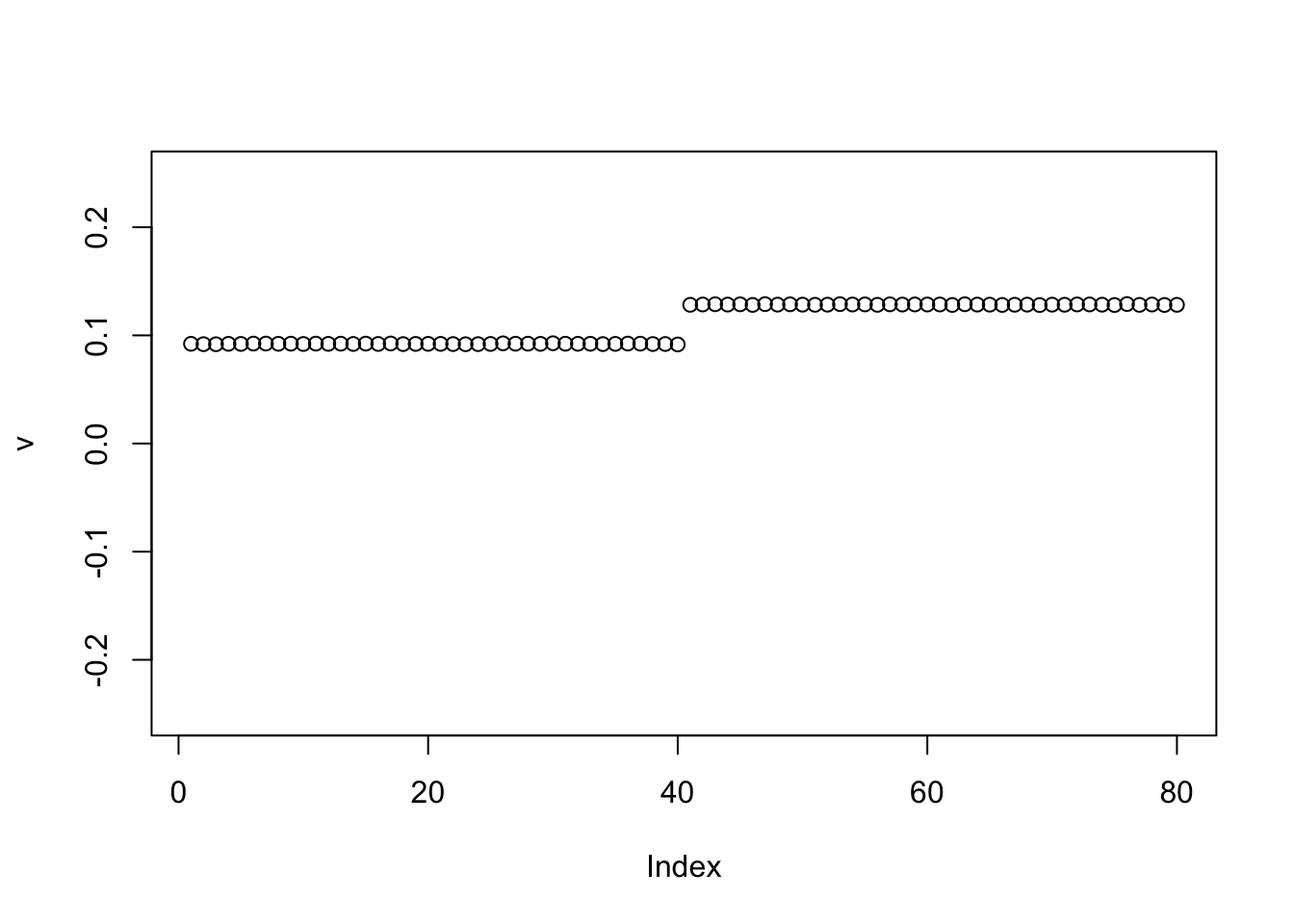

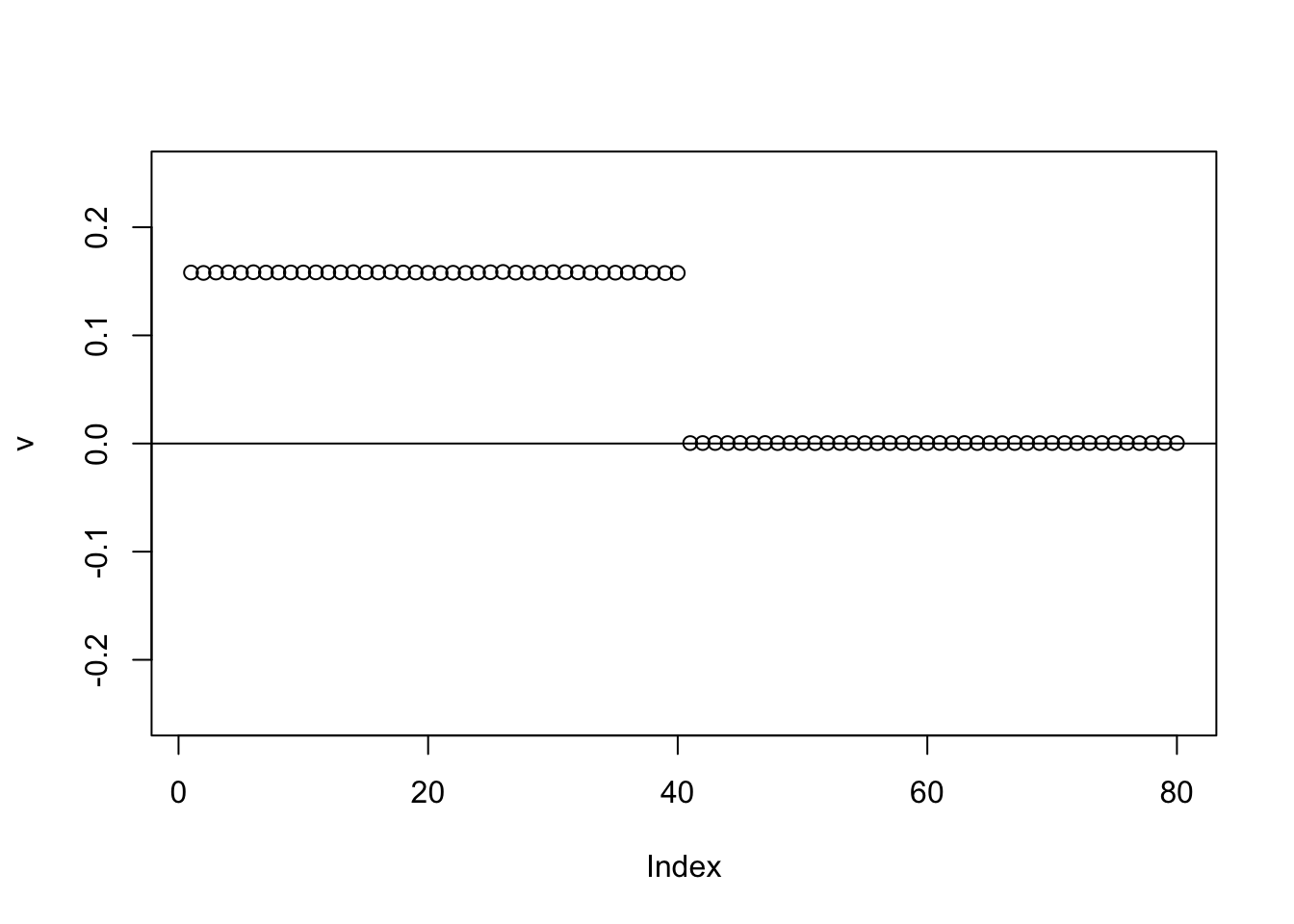

However, if we use a different random init, it can find the first split of the tree (here a 0-1 split rather than +-1 split).

set.seed(4)
v = cbind(rnorm(2*n))
v= v/sqrt(sum(v^2))
sigma = sqrt(mean(S^2))

v = power_update_r1(S,v)
plot(v,ylim=c(-0.25,0.25))

Version Author Date
7c17b31 Matthew Stephens 2025-03-15
2956a39 Matthew Stephens 2025-03-12
for(i in 1:100){
  v = eb_power_update_r1(S,v,ebnm_point_laplace,sigma)
}
plot(v,ylim=c(-0.25,0.25))
abline(h=0)

Version Author Date
7c17b31 Matthew Stephens 2025-03-15
2956a39 Matthew Stephens 2025-03-12

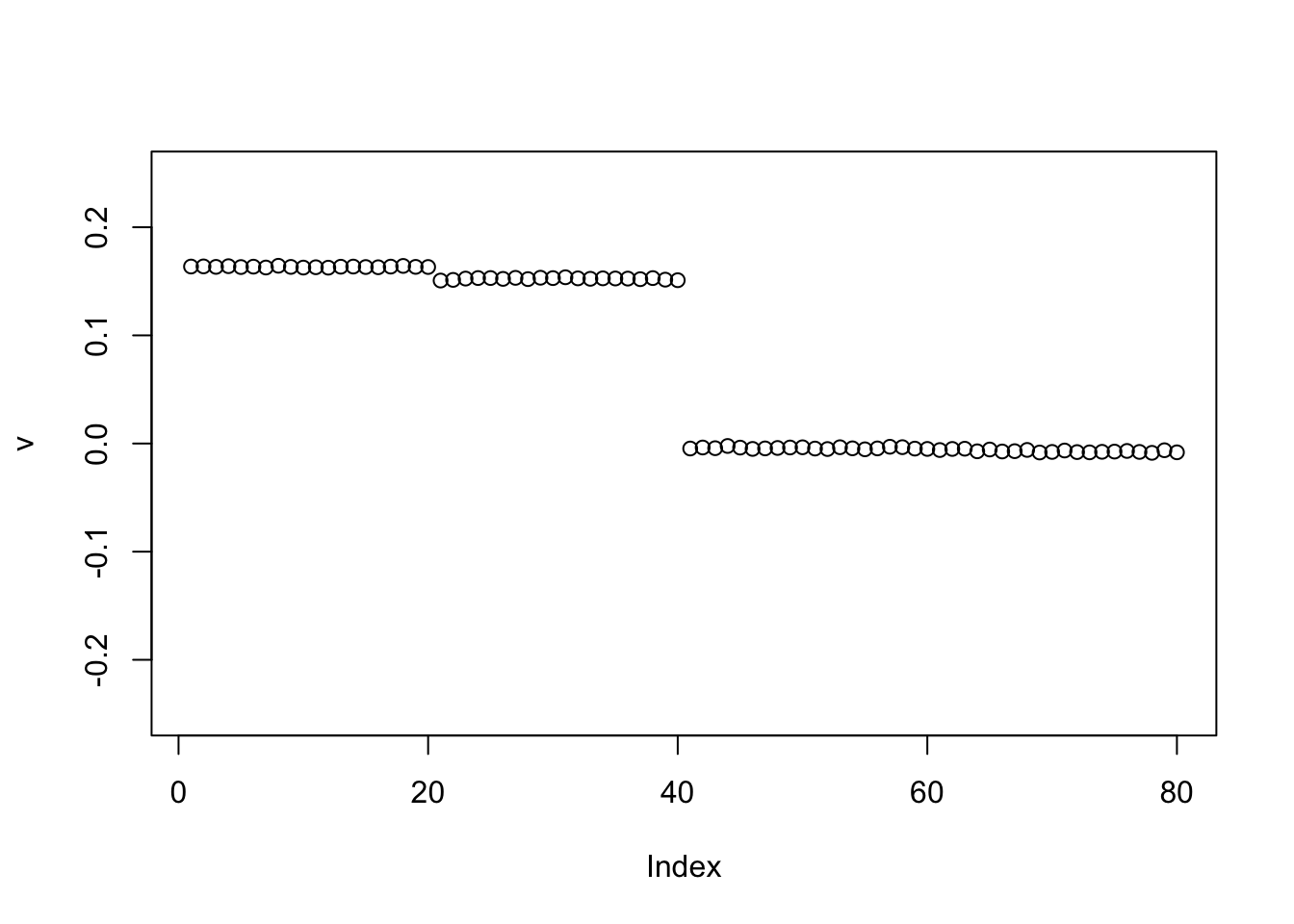

If we initialize to the first PC, it finds something close to the first PC (a bit more split).

v = -pc1
sigma = sqrt(mean(S^2))
for(i in 1:100){
  v = eb_power_update_r1(S,v,ebnm_point_laplace,sigma)
}
plot(v, ylim=c(-0.25,0.25))

Version Author Date
7c17b31 Matthew Stephens 2025-03-15
2956a39 Matthew Stephens 2025-03-12

If we initialize to the (positive version of) the first PC, point-exponential performs similarly (we use the negative because the first PC here is negative).

v = -pc1
sigma = sqrt(mean(S^2))

for(i in 1:100){
  v = eb_power_update_r1(S,v,ebnm_point_exponential,sigma)
}
plot(v, ylim=c(-0.25,0.25))

Version Author Date
7c17b31 Matthew Stephens 2025-03-15
2956a39 Matthew Stephens 2025-03-12

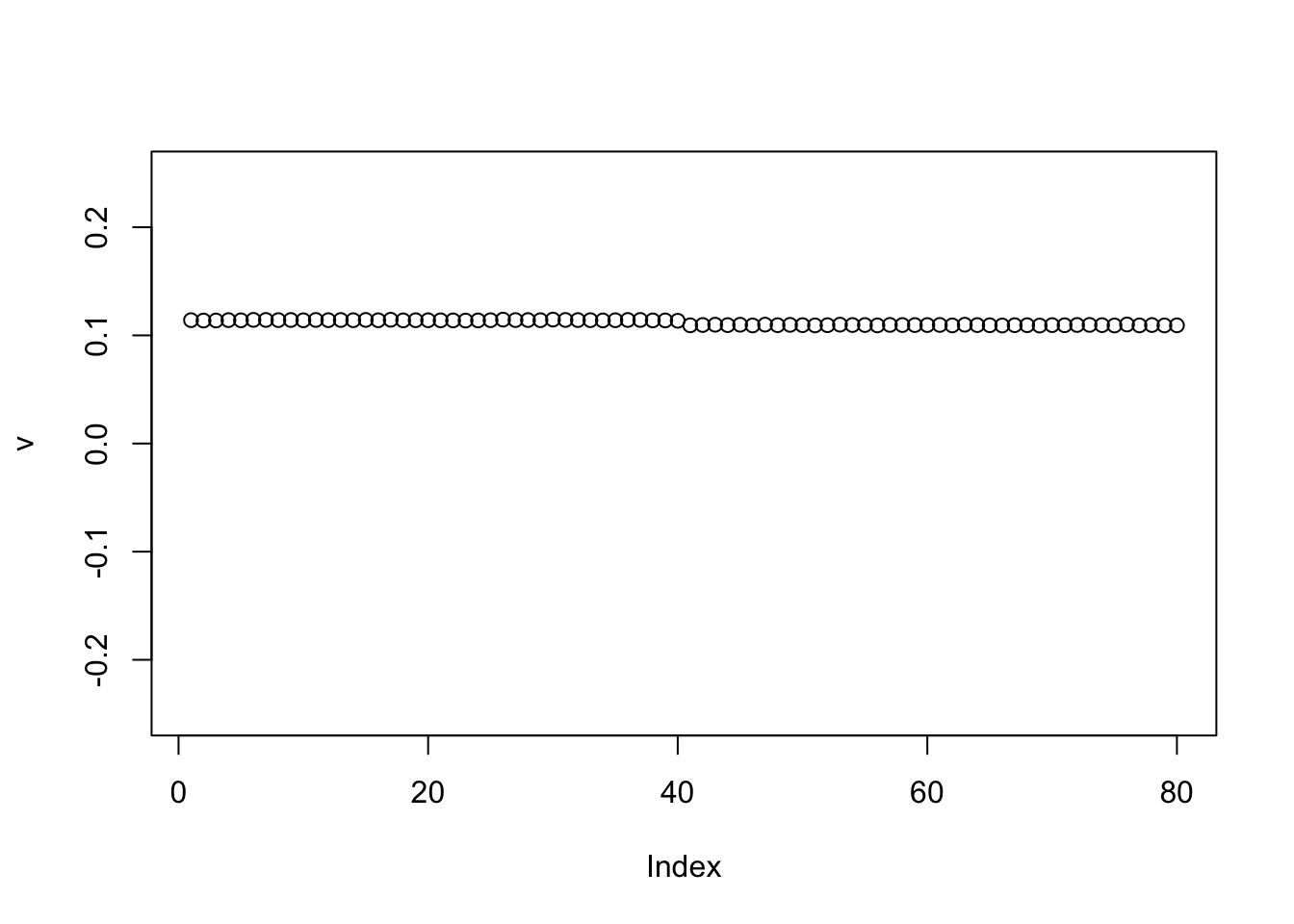

Try further running binormal - it levels things out.

for(i in 1:100){
  v = eb_power_update_r1(S,v,ebnm_binormal,sigma)
}
plot(v, ylim=c(-0.25,0.25))

Version Author Date
7c17b31 Matthew Stephens 2025-03-15
2956a39 Matthew Stephens 2025-03-12

Rank K

# model is  S \sim VDV' + E with eb prior on V
eb_power_update = function(S,v,d,ebnm_fn){
  K = ncol(v)
  sigma2=mean((S-v %*% diag(d,nrow=length(d)) %*% t(v))^2)

  for(k in 1:K){
    U = v[,-k,drop=FALSE]
    D = diag(d[-k],nrow=length(d[-k]))

    newv = (S %*% v[,k,drop=FALSE] - U %*% D %*% t(U) %*% v[,k,drop=FALSE] )
    if(!all(newv==0)){
      fit.ebnm = ebnm_fn(newv,sqrt(sigma2))
      newv = fit.ebnm$posterior$mean
      if(!all(newv==0)){
        newv = newv/sqrt(sum(newv^2 + fit.ebnm$posterior$sd^2))
      }
    }
    v[,k] = newv
    d[k] = t(v[,k]) %*% S %*% v[,k] - t(v[,k]) %*% U %*% D %*% t(U) %*% v[,k]
  }
  return(list(v=v,d=d))
}

#helper function
compute_sqerr = function(S,fit){
  sum((S-fit$v %*% diag(fit$d,nrow=length(fit$d)) %*% t(fit$v))^2)
}

# a random initialization
random_init = function(S,K,nonneg = FALSE){
  n = nrow(S)
  v = matrix(nrow=n,ncol=K)

  for(k in 1:K){
    v[,k] = cbind(rnorm(n)) # initialize v
    if(nonneg)
        v[,k] = pmax(v[,k],0)
    v[,k] = v[,k]/sum(v[,k]^2)
  }
  d = rep(1e-8,K)
  return(list(v=v,d=d))
}

Tree structured data

Simulate data under a tree model (with very small errors)

set.seed(1)
n = 40
x = cbind(c(rep(1,n),rep(0,n)), c(rep(0,n),rep(1,n)), c(rep(1,n/2),rep(0,3*n/2)), c(rep(0,n/2), rep(1,n/2), rep(0,n)), c(rep(0,n),rep(1,n/2),rep(0,n/2)), c(rep(0,3*n/2),rep(1,n/2)))
E = matrix(0.01*rexp(2*n*2*n),nrow=2*n)
E = E+t(E) #symmetric errors
S = x %*% diag(c(1,1,1,1,1,1)) %*% t(x) + E
image(S)

Version Author Date
9006efb Matthew Stephens 2025-03-15
7c17b31 Matthew Stephens 2025-03-15

Run multiple factors

Here I run with K=9 and point-exponential. It finds a rank 4 solution, essentially zeroing out the other 5. One can compare this with non-negative without the EB approach here.

set.seed(2)
fit = random_init(S,9,nonneg=TRUE)
err = rep(0,10)
err[1] = sum((S-fit$v %*% diag(fit$d) %*% t(fit$v))^2)
for(i in 2:100){
  fit = eb_power_update(S,fit$v,fit$d,ebnm_point_exponential)
  err[i] = sum((S-fit$v %*% diag(fit$d) %*% t(fit$v))^2)
}
plot(err)

Version Author Date
9006efb Matthew Stephens 2025-03-15
7c17b31 Matthew Stephens 2025-03-15
par(mfcol=c(3,3),mai=rep(0.3,4))
for(i in 1:9){plot(fit$v[,i],main=paste0(trunc(fit$d[i])))}

Version Author Date
9006efb Matthew Stephens 2025-03-15
7c17b31 Matthew Stephens 2025-03-15

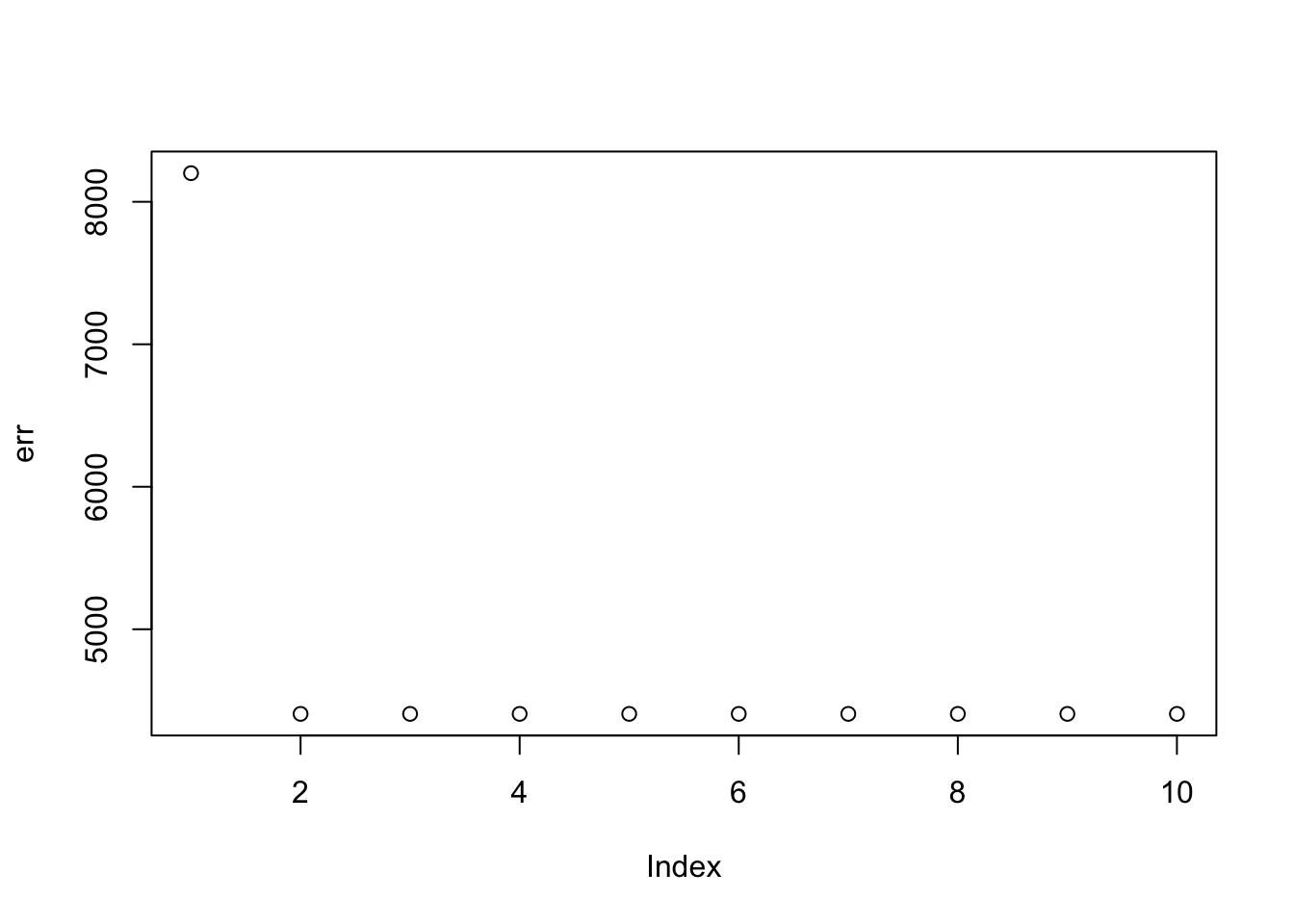

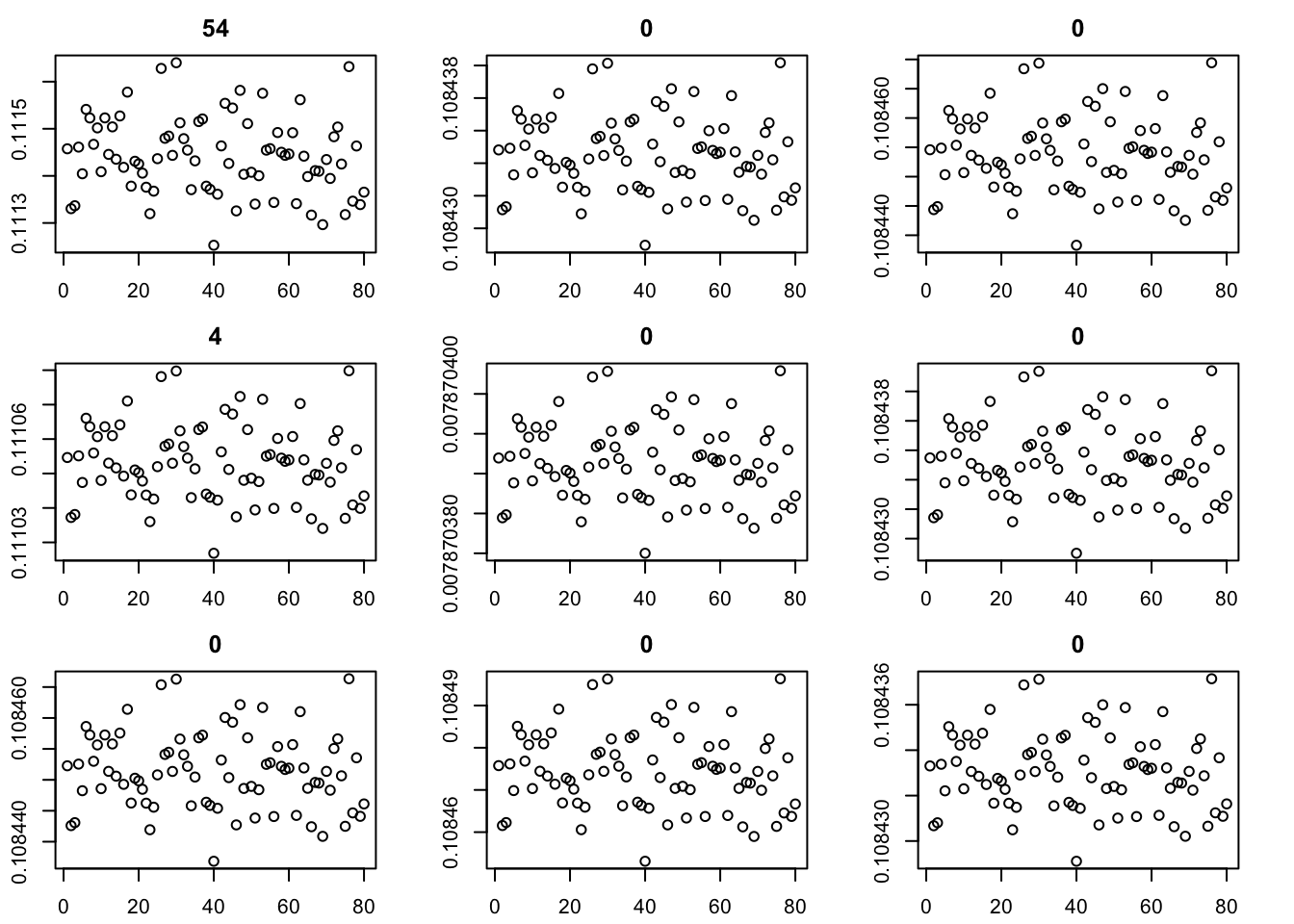

Here I try the generalized binary prior. So far I’m finding this does not work well, especially if started from random starting point. I debugged and found that what happens is that generally the v are bounded away from 0. So the gb prior puts all its weight on the non-null normal component and does not shrink anything. (Is it worth using a laplace for the non-null component?) The point exponential does not have that problem - it shrinks the smallest values towards 0, and eventually gets to a point where everything is 0. It seems clear that using the gb prior from random initialization is not going to work.

set.seed(2)
fit = random_init(S,9, nonneg=TRUE)
err = rep(0,10)
err[1] = sum((S-fit$v %*% diag(fit$d) %*% t(fit$v))^2)

for(i in 2:10){
  fit = eb_power_update(S,fit$v,fit$d,ebnm_generalized_binary)
  err[i] = sum((S-fit$v %*% diag(fit$d) %*% t(fit$v))^2)
}
plot(err)

Version Author Date
9006efb Matthew Stephens 2025-03-15
7c17b31 Matthew Stephens 2025-03-15
par(mfcol=c(3,3),mai=rep(0.3,4))
for(i in 1:9){plot(fit$v[,i],main=paste0(trunc(fit$d[i])))}

Version Author Date
9006efb Matthew Stephens 2025-03-15
7c17b31 Matthew Stephens 2025-03-15

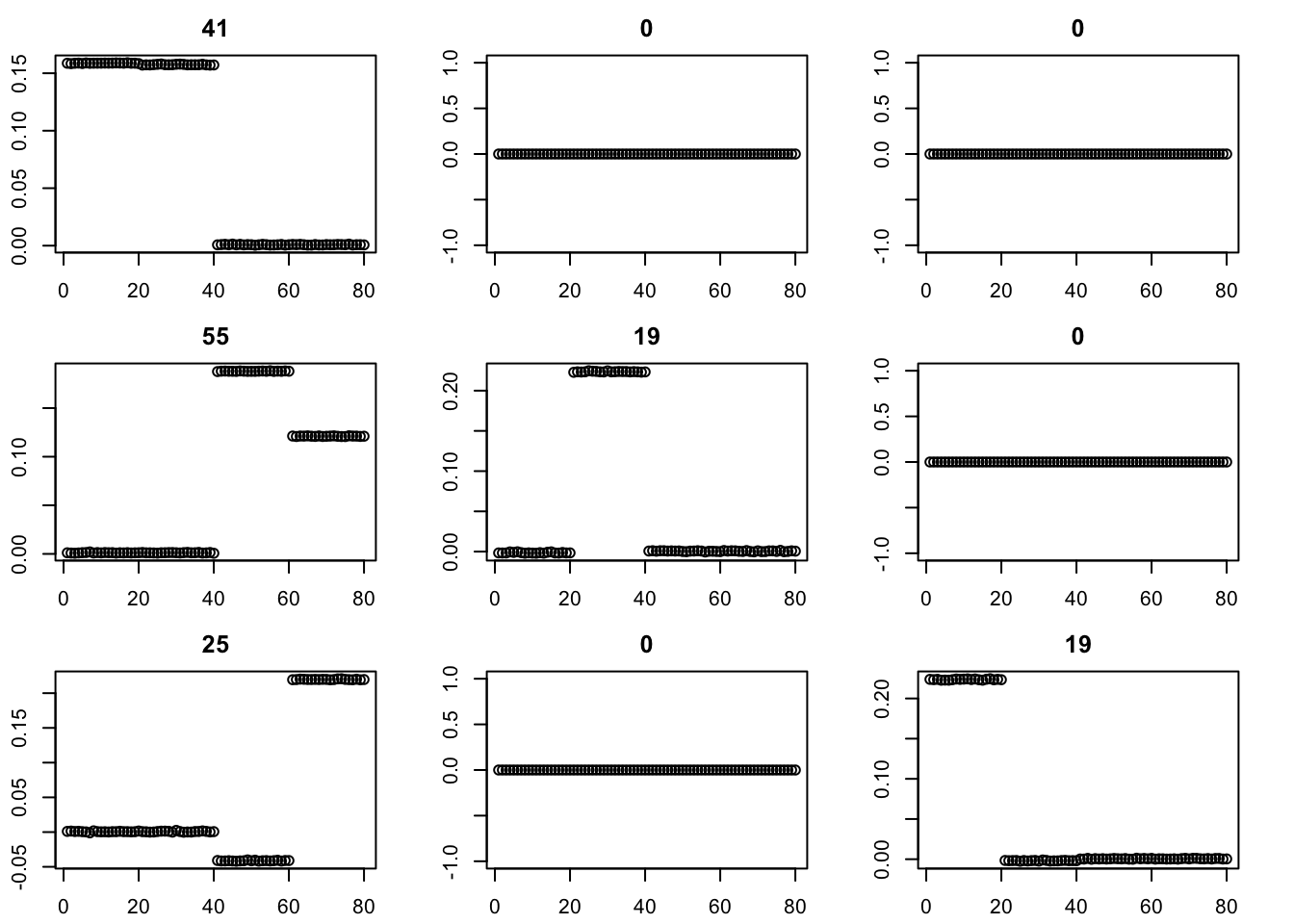

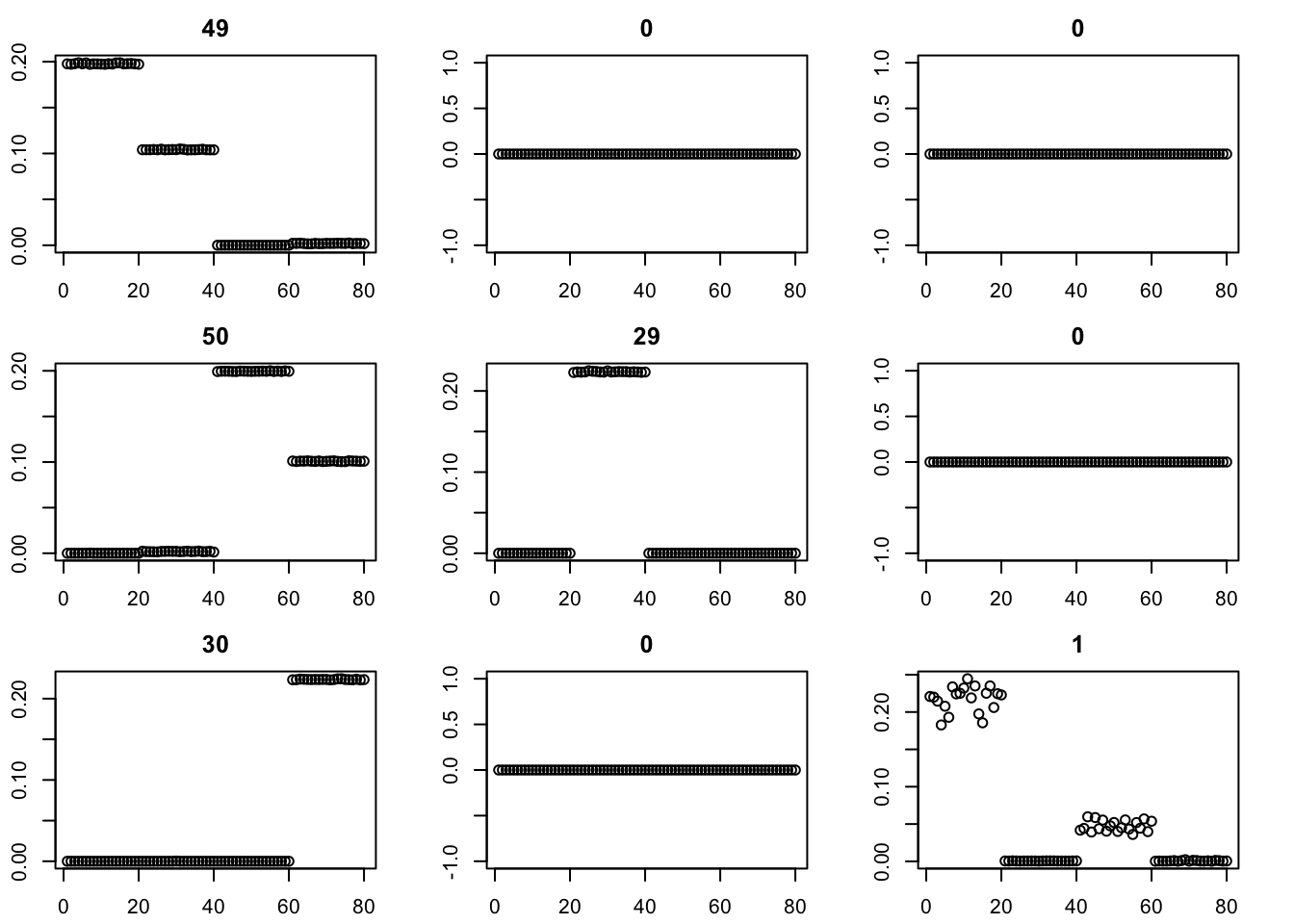

Here we try initializing GB with point-exponential. It only changes the fit very little.

set.seed(2)
fit = random_init(S,9,nonneg=TRUE)

for(i in 1:100){
  fit = eb_power_update(S,fit$v,fit$d,ebnm_point_exponential)
}
par(mfcol=c(3,3),mai=rep(0.3,4))
for(i in 1:9){plot(fit$v[,i],main=paste0(trunc(fit$d[i])))}

Version Author Date
9006efb Matthew Stephens 2025-03-15
7c17b31 Matthew Stephens 2025-03-15
for(i in 1:100){
  fit = eb_power_update(S,fit$v,fit$d,ebnm_generalized_binary)
}
par(mfcol=c(3,3),mai=rep(0.3,4))
for(i in 1:9){plot(fit$v[,i],main=paste0(trunc(fit$d[i])))}

Version Author Date
9006efb Matthew Stephens 2025-03-15

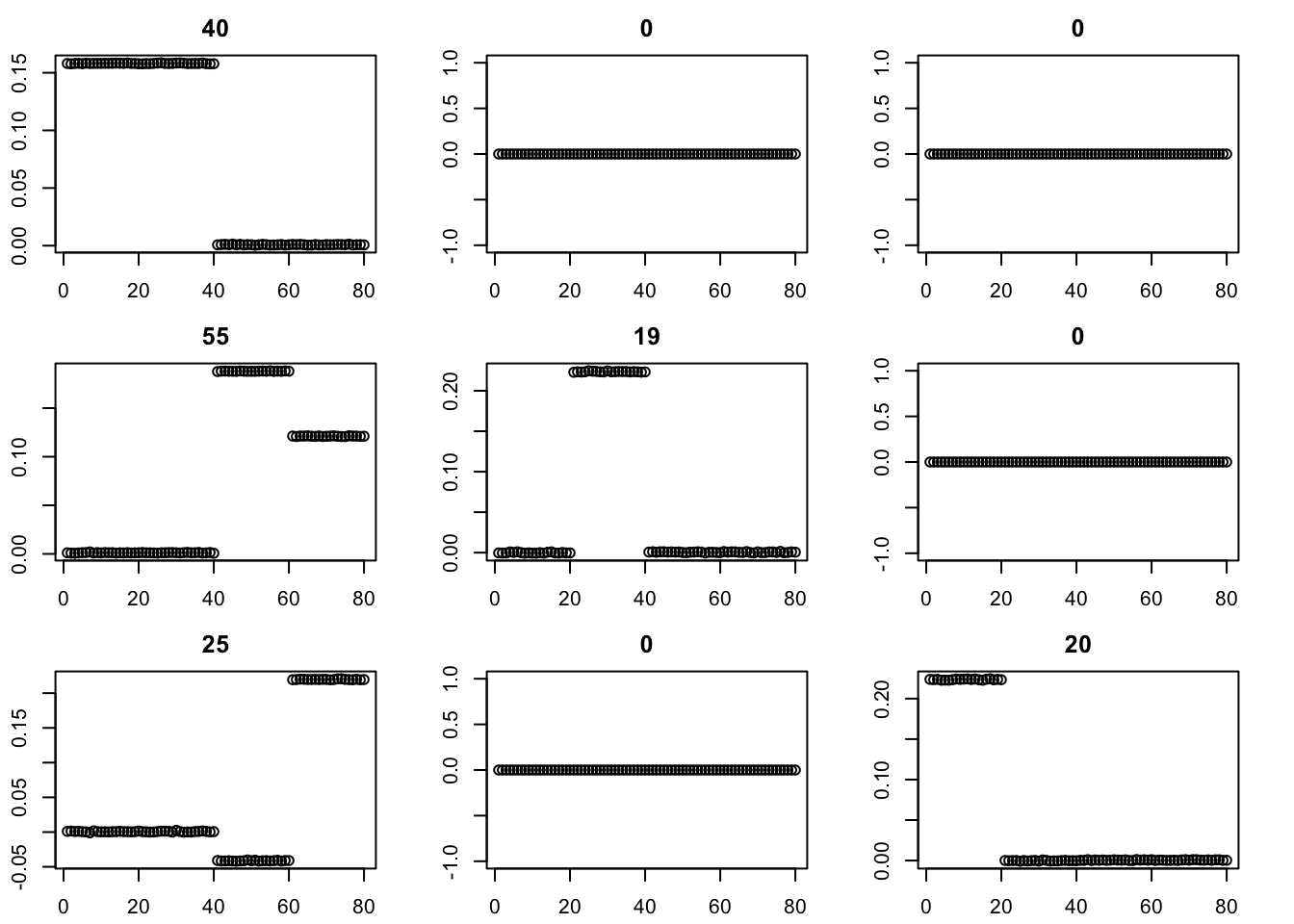

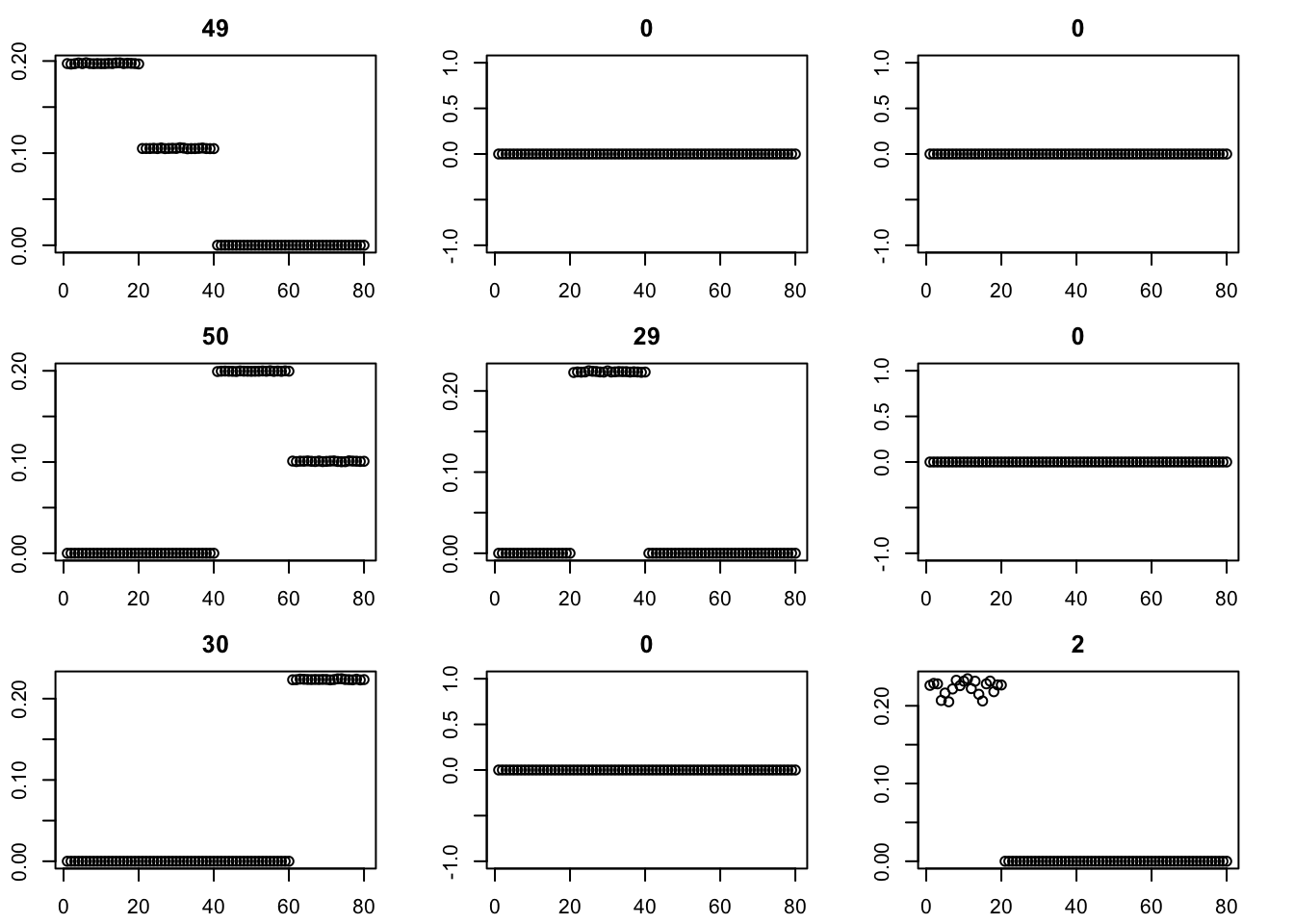

The binormal prior provides a more bimodal solution. (Note: although not seen here, I have seen issues with it including a factor that puts two non-neighboring populations together.)

for(i in 1:100){
  fit = eb_power_update(S,fit$v,fit$d,ebnm_binormal)
  err[i] = compute_sqerr(S,fit)
}
par(mfcol=c(3,3),mai=rep(0.3,4))
for(i in 1:9){plot(fit$v[,i],main=paste0(trunc(fit$d[i])))}

Version Author Date
7c17b31 Matthew Stephens 2025-03-15
for(i in 1:100){
  fit = eb_power_update(S,fit$v,fit$d,ebnm_binormal)
}
par(mfcol=c(3,3),mai=rep(0.3,4))
for(i in 1:9){plot(fit$v[,i],main=paste0(trunc(fit$d[i])))}

SVD initialization

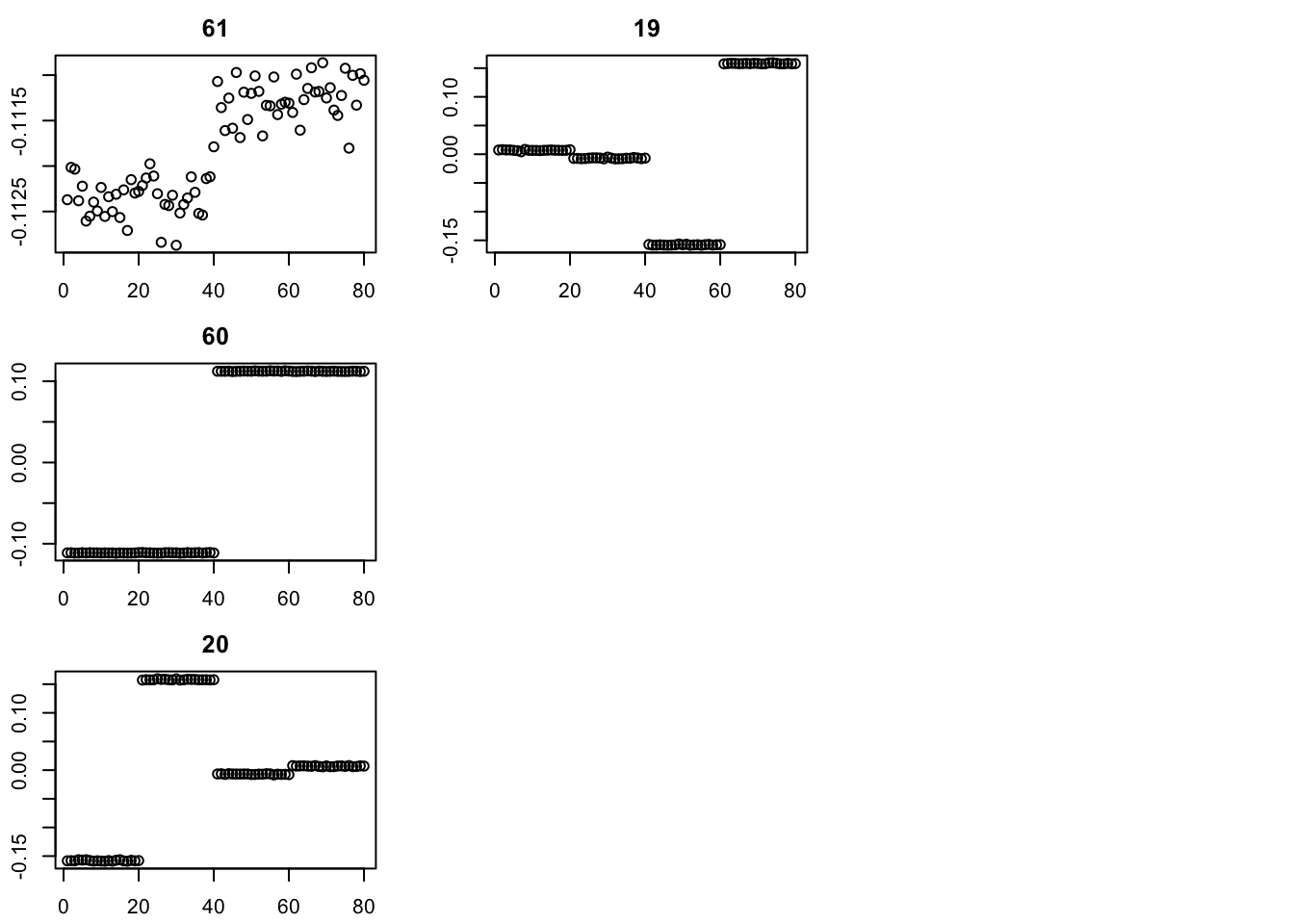

I’m going to try initializing with SVD, then running point-laplace, then running GB, similar to the strategy in the GBCD paper. (Note: here I initialize with the svd values for d; an alternative is to set these to be very small and just use the v from svd to initialize.)

set.seed(2)
S.svd = svd(S)

fit = list(v=S.svd$u[,1:4],d=S.svd$d[1:4]) #rep(1e-8,4)) #init d to be very small

err = rep(0,10)
err[1] = compute_sqerr(S,fit)

for(i in 2:100){
  fit = eb_power_update(S,fit$v,fit$d,ebnm_point_laplace)
  err[i] = compute_sqerr(S,fit)
}
par(mfcol=c(3,3),mai=rep(0.3,4))
for(i in 1:4){plot(fit$v[,i],main=paste0(trunc(fit$d[i])))}

Version Author Date
7c17b31 Matthew Stephens 2025-03-15
split_v = function(v){
  v = cbind(pmax(v,0),pmax(-v,0))
}

fit$v = split_v(fit$v)
fit$d= rep(fit$d/2,2)

for(i in 2:100){
  fit = eb_power_update(S,fit$v,fit$d,ebnm_point_exponential)
  err[i] = compute_sqerr(S,fit)
}
par(mfcol=c(3,3),mai=rep(0.3,4))
for(i in 1:8){plot(fit$v[,i],main=paste0(trunc(fit$d[i])))}
fit.pe = fit # save for later use

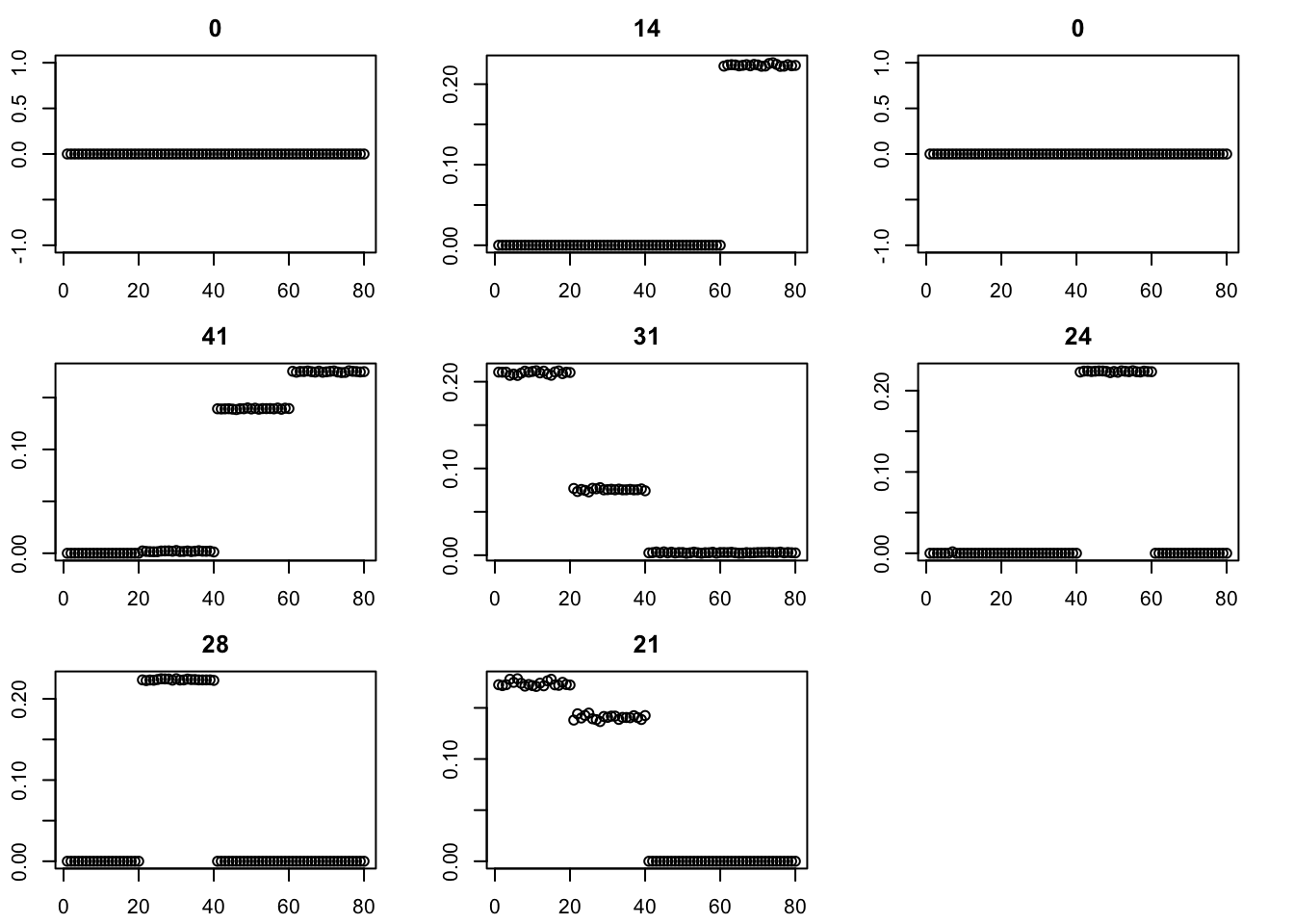

for(i in 2:200){
  fit = eb_power_update(S,fit$v,fit$d,ebnm_generalized_binary)
  err[i] = compute_sqerr(S,fit)
}
par(mfcol=c(3,3),mai=rep(0.3,4))

Version Author Date
7c17b31 Matthew Stephens 2025-03-15
for(i in 1:8){plot(fit$v[,i],main=paste0(trunc(fit$d[i])))}

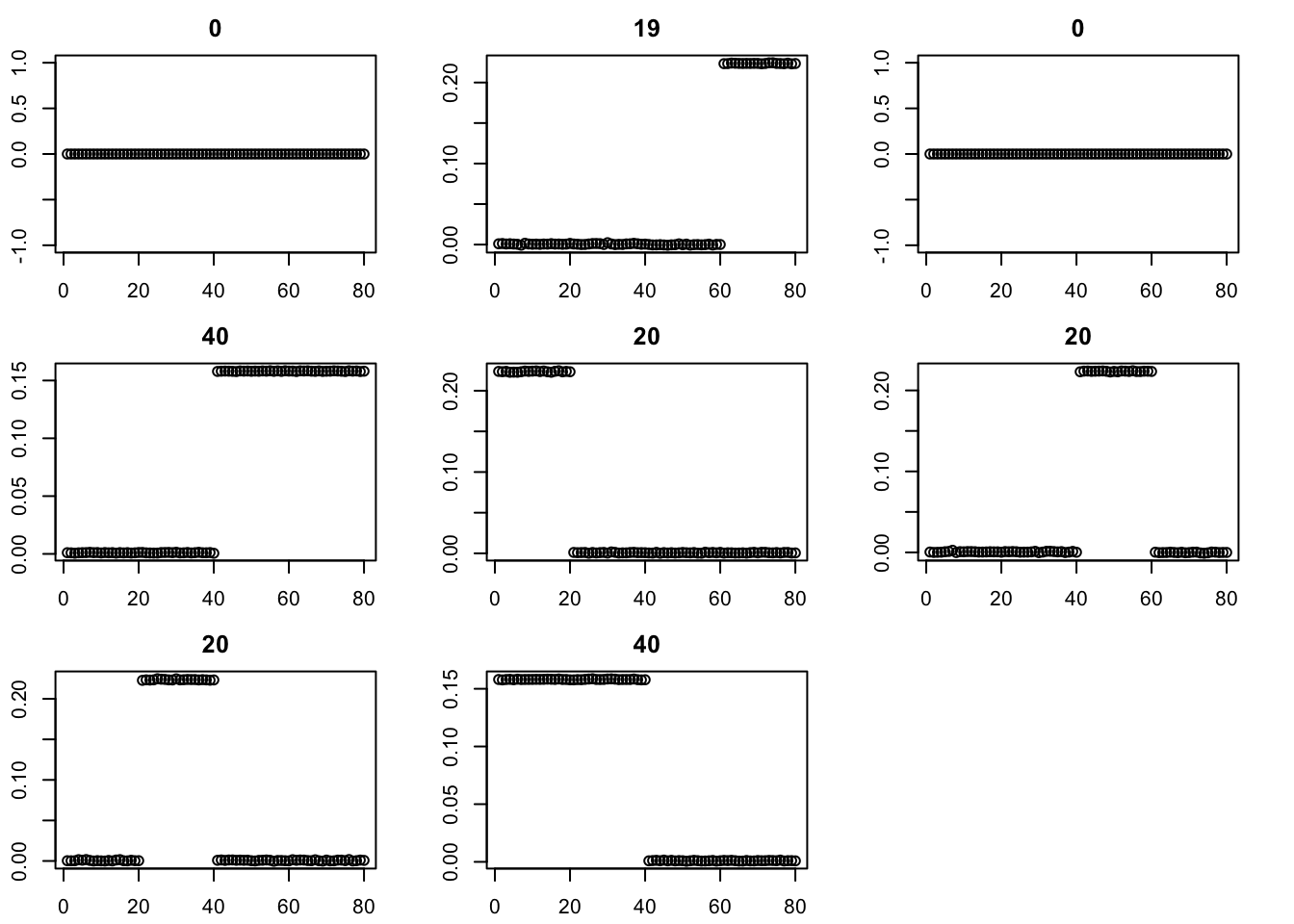

Try binormal instead, initialized from point-exp. This works better.

fit = fit.pe
for(i in 2:200){
  fit = eb_power_update(S,fit$v,fit$d,ebnm_binormal)
  err[i] = compute_sqerr(S,fit)
}
par(mfcol=c(3,3),mai=rep(0.3,4))
for(i in 1:8){plot(fit$v[,i],main=paste0(trunc(fit$d[i])))}


sessionInfo()
R version 4.4.2 (2024-10-31)
Platform: aarch64-apple-darwin20
Running under: macOS Sequoia 15.3.1

Matrix products: default
BLAS:   /Library/Frameworks/R.framework/Versions/4.4-arm64/Resources/lib/libRblas.0.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/4.4-arm64/Resources/lib/libRlapack.dylib;  LAPACK version 3.12.0

locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8

time zone: America/Chicago
tzcode source: internal

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

other attached packages:
[1] ebnm_1.1-2

loaded via a namespace (and not attached):
 [1] sass_0.4.9        generics_0.1.3    ashr_2.2-63       stringi_1.8.4
 [5] lattice_0.22-6    digest_0.6.37     magrittr_2.0.3    evaluate_1.0.3
 [9] grid_4.4.2        fastmap_1.2.0     rprojroot_2.0.4   workflowr_1.7.1
[13] jsonlite_1.8.9    Matrix_1.7-2      whisker_0.4.1     mixsqp_0.3-54
[17] promises_1.3.2    scales_1.3.0      truncnorm_1.0-9   invgamma_1.1
[21] jquerylib_0.1.4   cli_3.6.3         rlang_1.1.5       deconvolveR_1.2-1
[25] munsell_0.5.1     splines_4.4.2     cachem_1.1.0      yaml_2.3.10
[29] tools_4.4.2       SQUAREM_2021.1    dplyr_1.1.4       colorspace_2.1-1
[33] ggplot2_3.5.1     httpuv_1.6.15     vctrs_0.6.5       R6_2.5.1
[37] lifecycle_1.0.4   git2r_0.35.0      stringr_1.5.1     fs_1.6.5
[41] trust_0.1-8       irlba_2.3.5.1     pkgconfig_2.0.3   pillar_1.10.1
[45] bslib_0.9.0       later_1.4.1       gtable_0.3.6      glue_1.8.0
[49] Rcpp_1.0.14       xfun_0.50         tibble_3.2.1      tidyselect_1.2.1
[53] rstudioapi_0.17.1 knitr_1.49        htmltools_0.5.8.1 rmarkdown_2.29
[57] compiler_4.4.2    horseshoe_0.2.0
