source("code/GCTA_functions.R")
source("code/annotation_functions.R")

Simmental

850K envGWAS

Manhattan plots with both p and q values

sim_manhattans =
  unique(sim_envgwas$variable) %>%
    purrr::map(~plot_grid(ggmanhattan2(filter(sim_envgwas, variable == .x & p < 0.1), pcol = p, value = p) + ggtitle(.x),
                          ggmanhattan2(filter(sim_envgwas, variable == .x & p < 0.1), pcol = q, value = q),
                          nrow = 2))

envGWAS Runs

AridPrairie

sim_manhattans[[1]]

Past versions of unnamed-chunk-4-1.png

Version	Author	Date
f56f685	Troy Rowan	2021-06-08

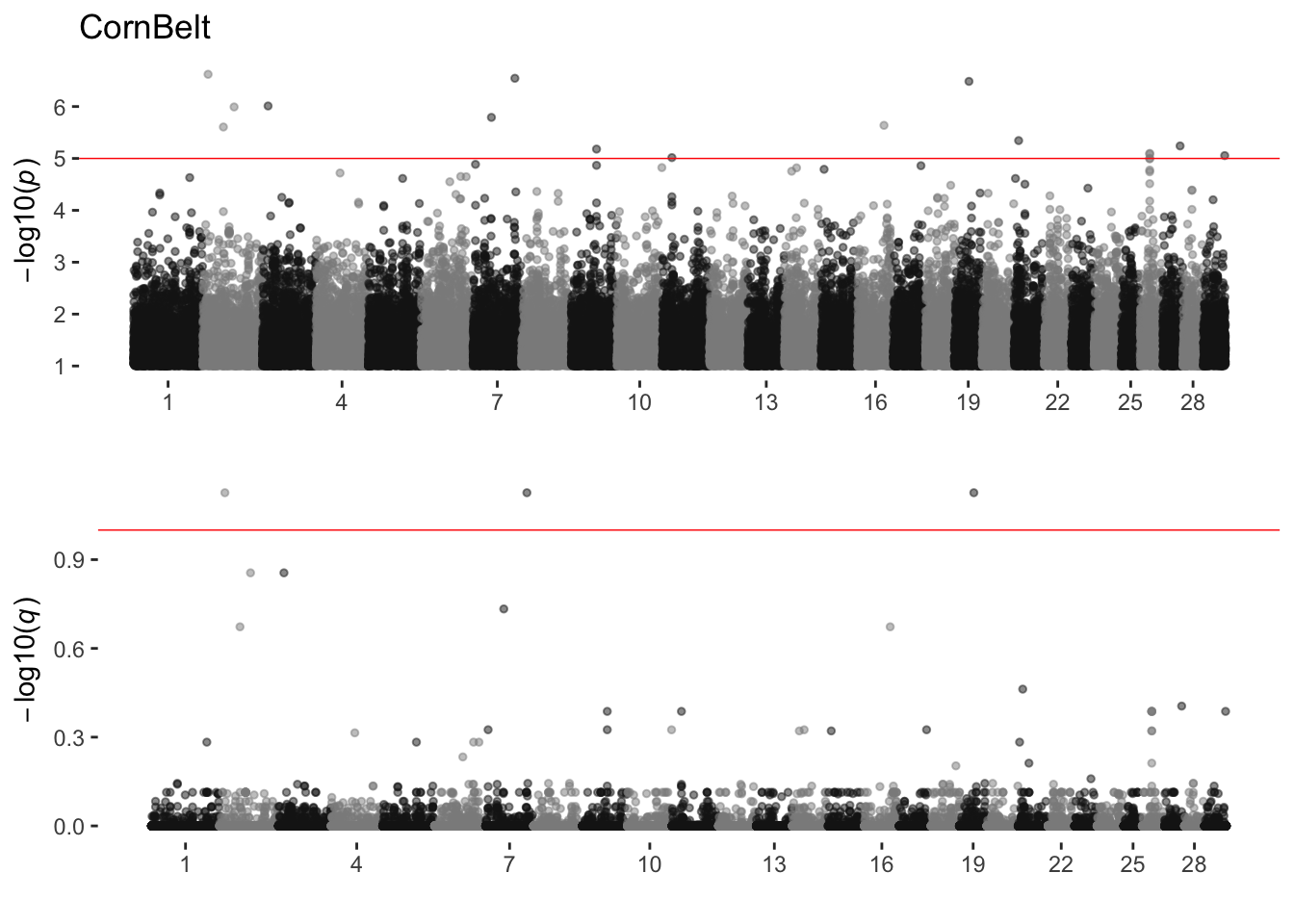

CornBelt

sim_manhattans[[2]]

Past versions of unnamed-chunk-5-1.png

Version	Author	Date
f56f685	Troy Rowan	2021-06-08

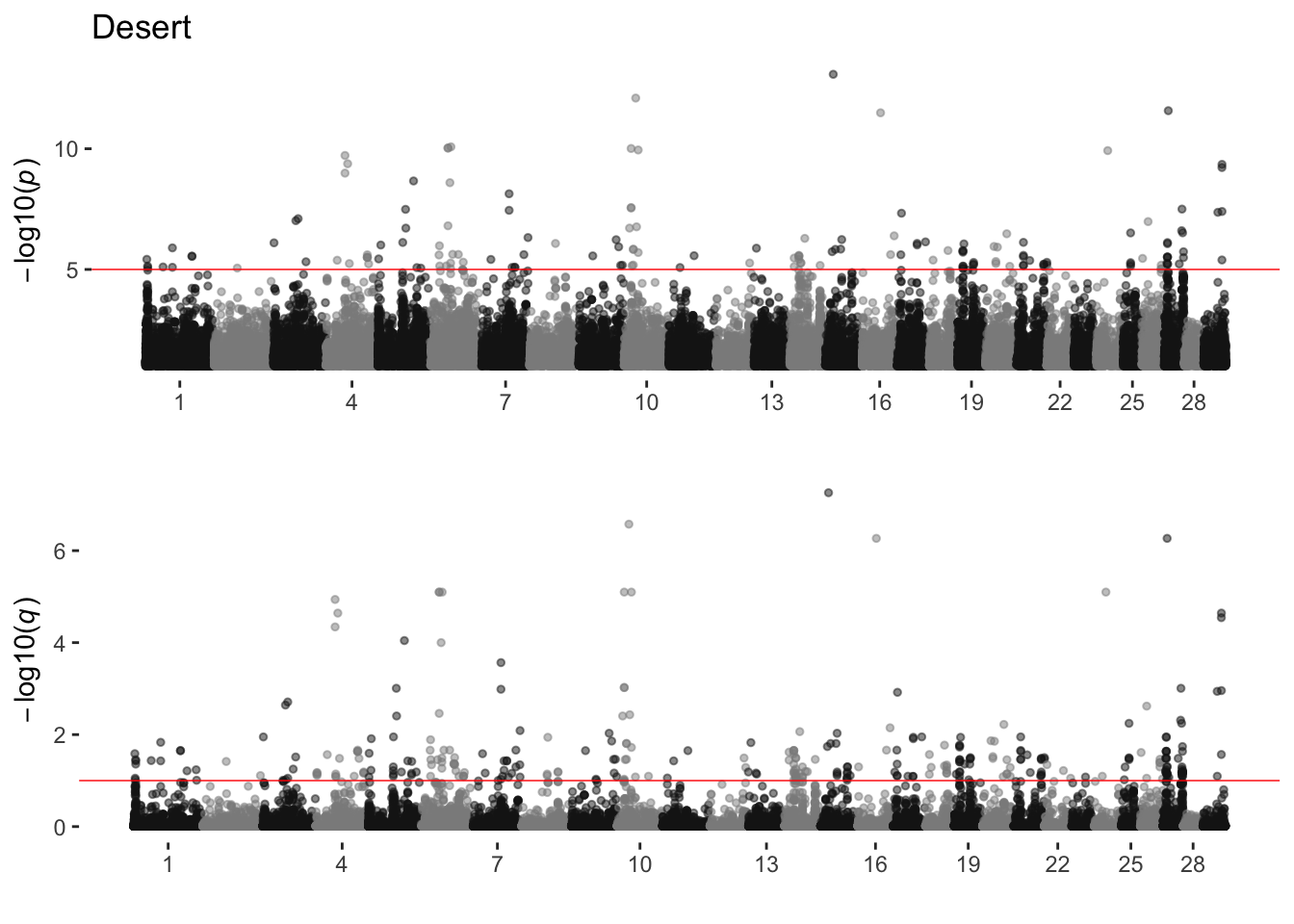

Desert

sim_manhattans[[3]]

Past versions of unnamed-chunk-6-1.png

Version	Author	Date
f56f685	Troy Rowan	2021-06-08

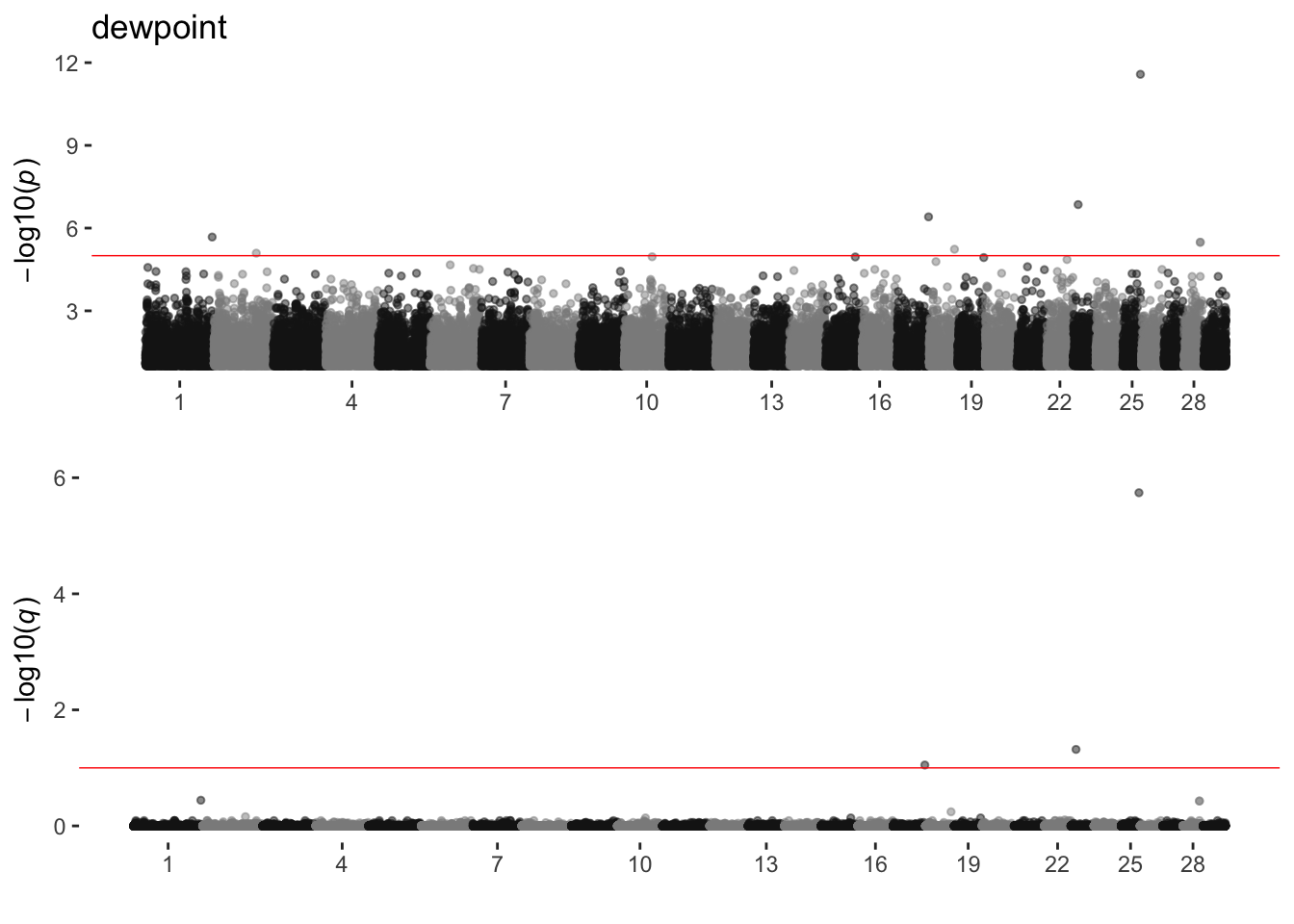

dewpoint

sim_manhattans[[4]]

Past versions of unnamed-chunk-7-1.png

Version	Author	Date
f56f685	Troy Rowan	2021-06-08

elev

sim_manhattans[[5]]

Past versions of unnamed-chunk-8-1.png

Version	Author	Date
f56f685	Troy Rowan	2021-06-08

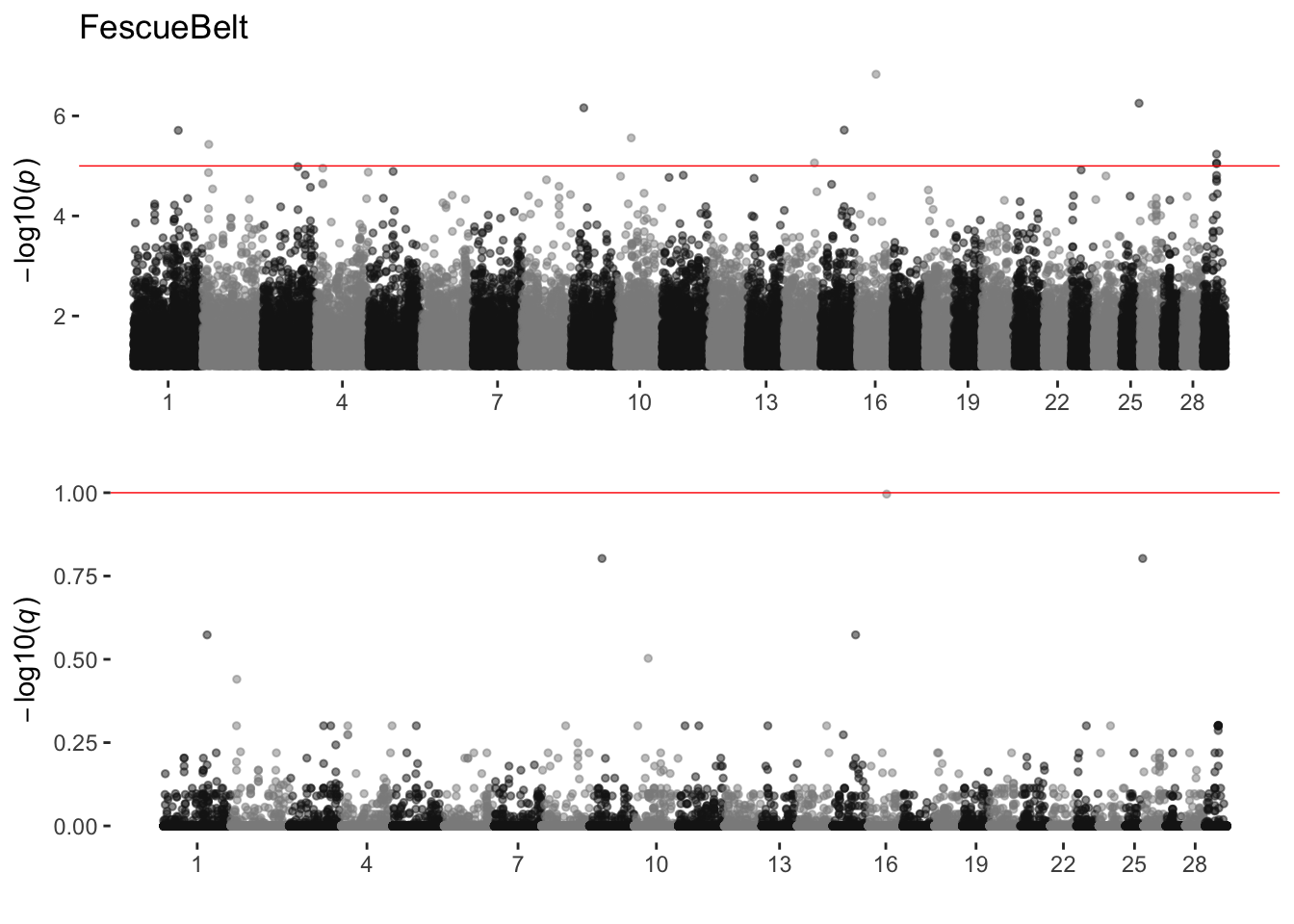

FescueBelt

sim_manhattans[[6]]

Past versions of unnamed-chunk-9-1.png

Version	Author	Date
f56f685	Troy Rowan	2021-06-08

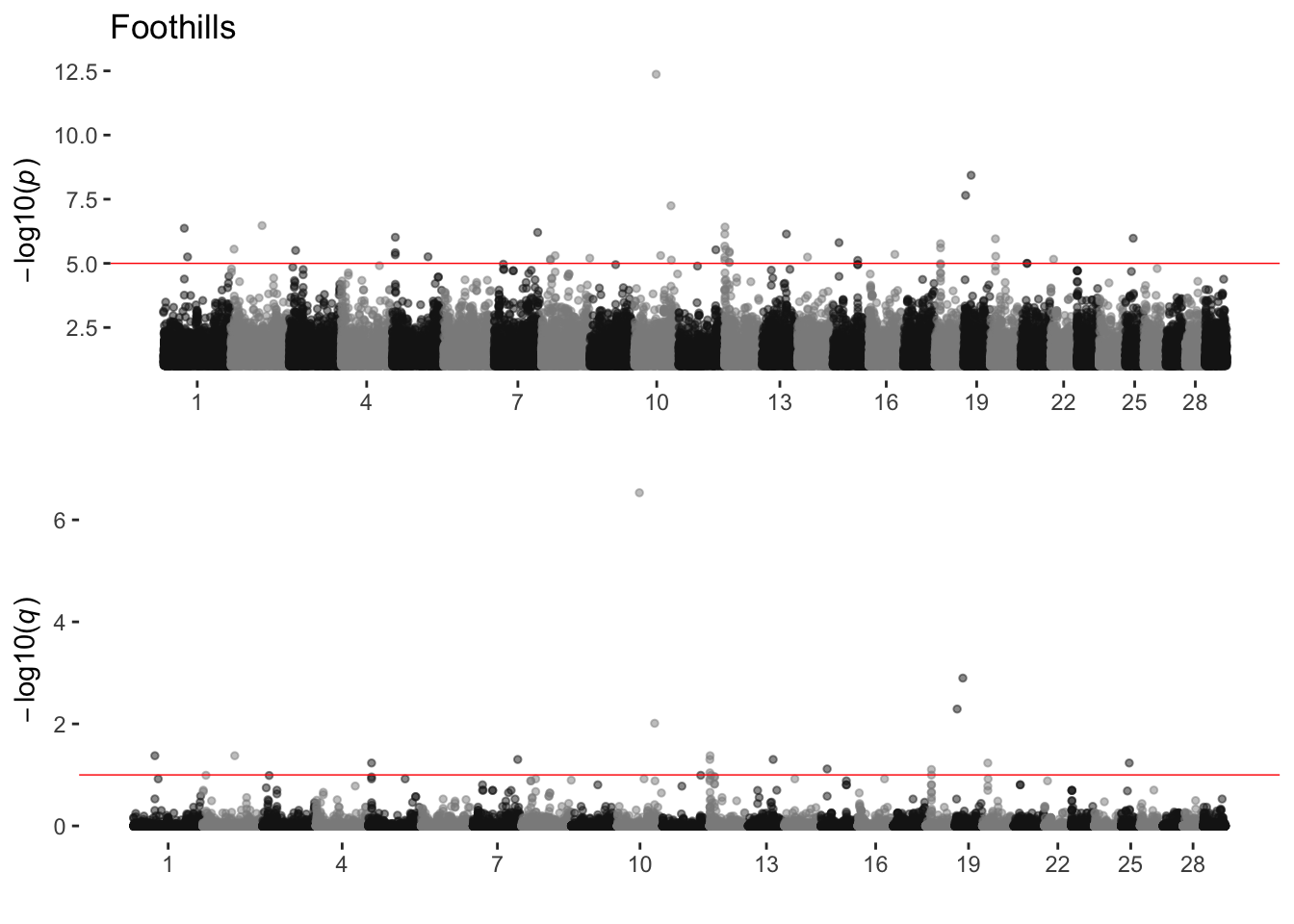

Foothills

sim_manhattans[[7]]

Past versions of unnamed-chunk-10-1.png

Version	Author	Date
f56f685	Troy Rowan	2021-06-08

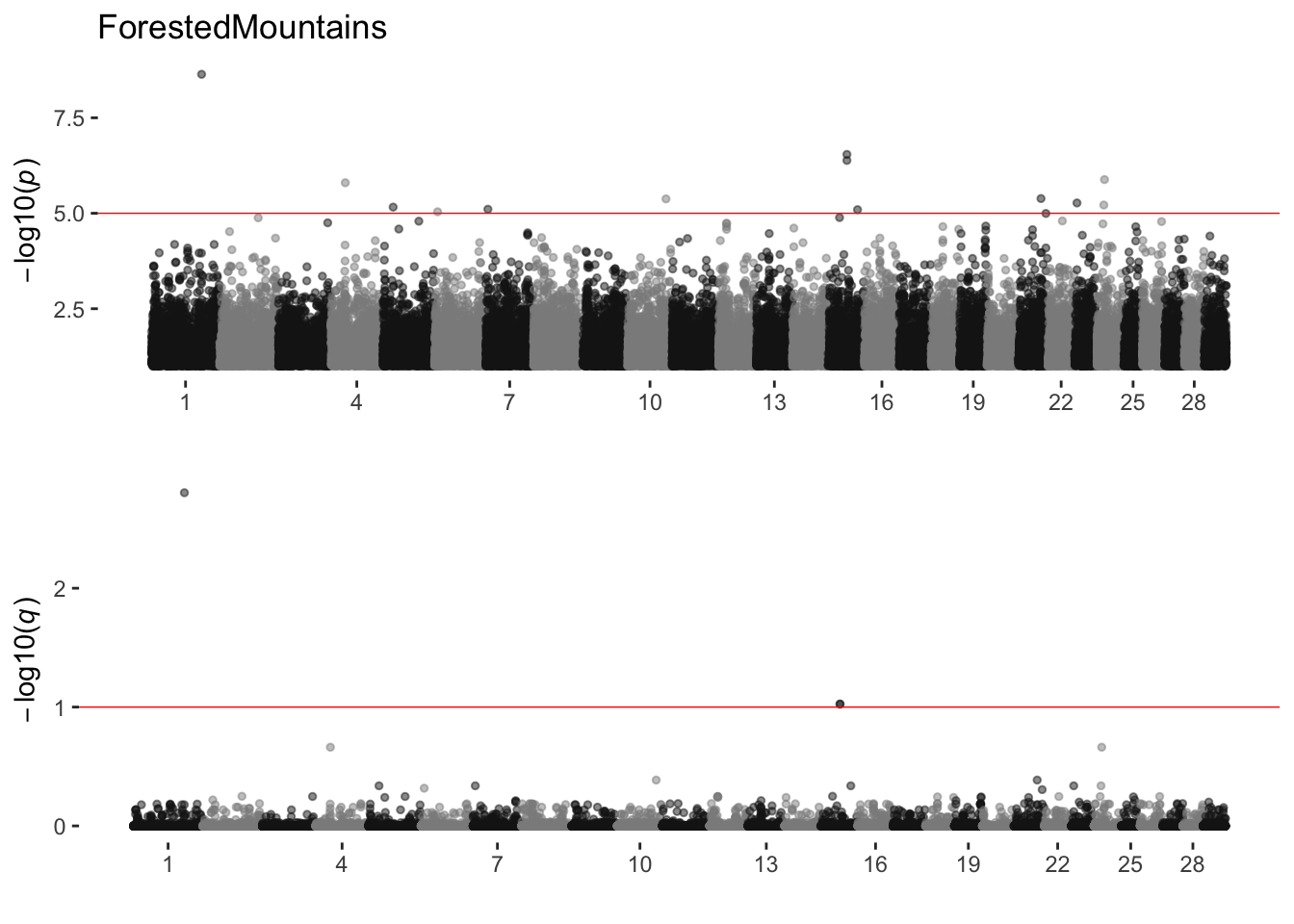

ForestedMountains

sim_manhattans[[8]]

Past versions of unnamed-chunk-11-1.png

Version	Author	Date
f56f685	Troy Rowan	2021-06-08

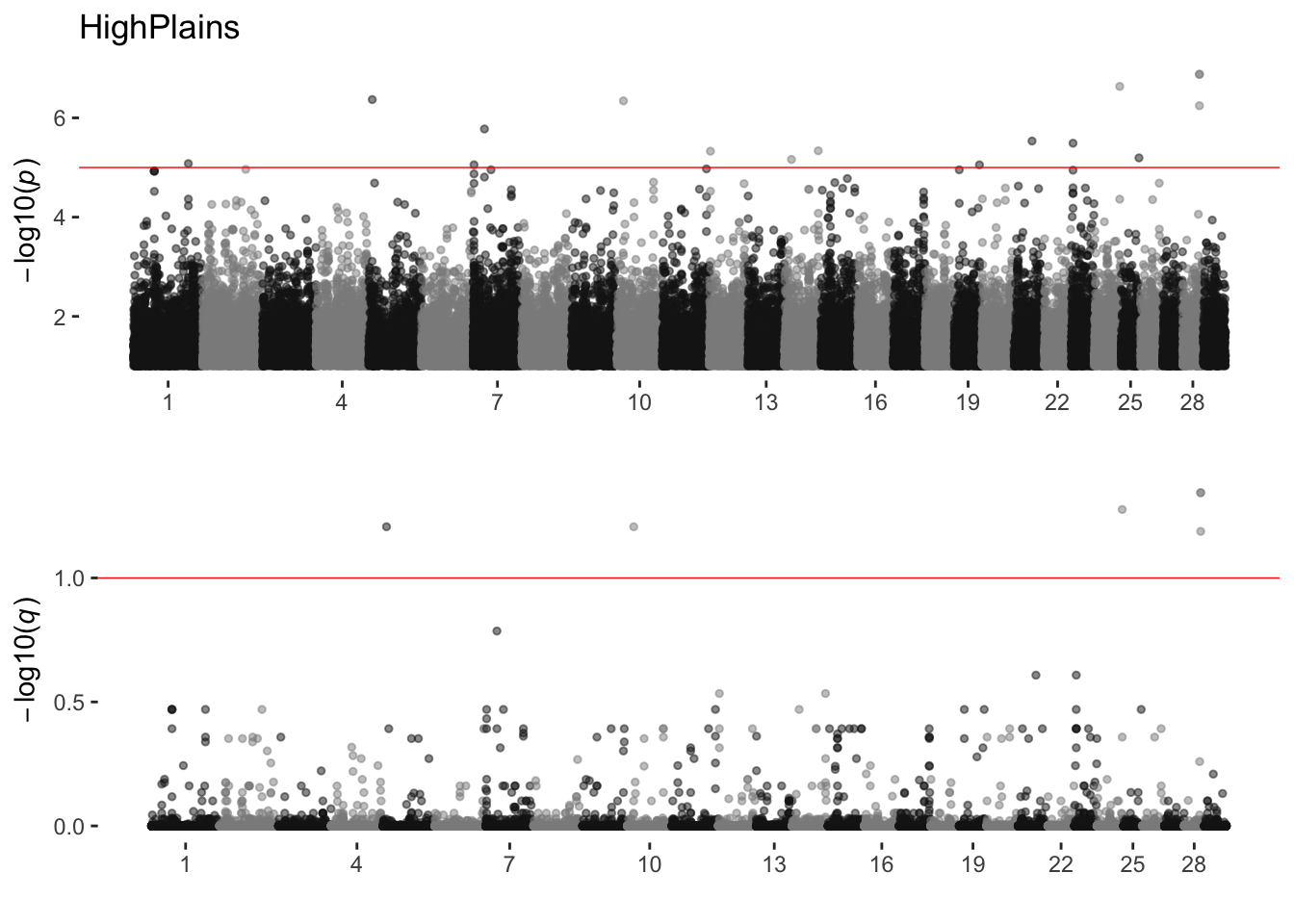

HighPlains

sim_manhattans[[9]]

Past versions of unnamed-chunk-12-1.png

Version	Author	Date
f56f685	Troy Rowan	2021-06-08

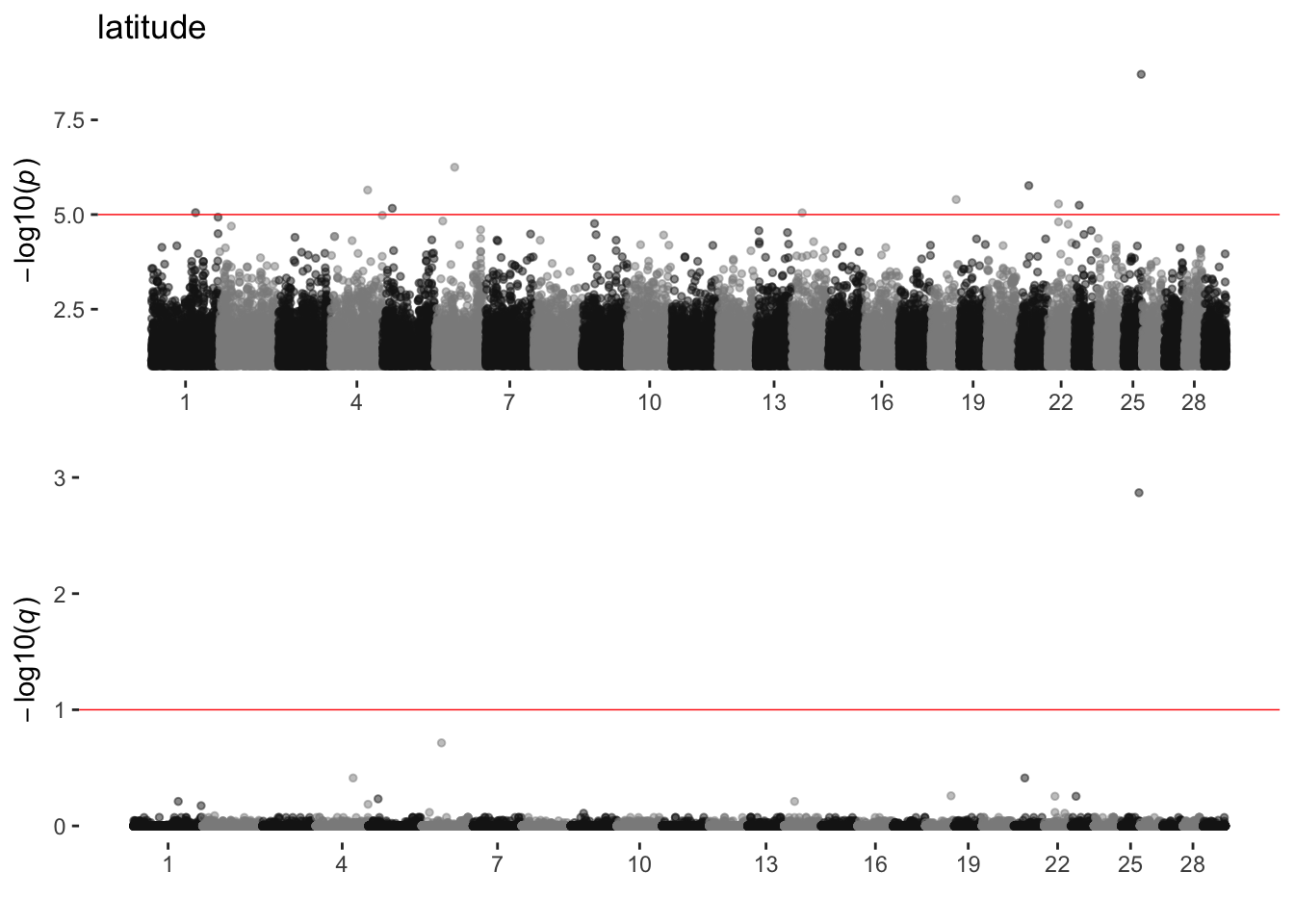

latitude

sim_manhattans[[10]]

Past versions of unnamed-chunk-13-1.png

Version	Author	Date
f56f685	Troy Rowan	2021-06-08

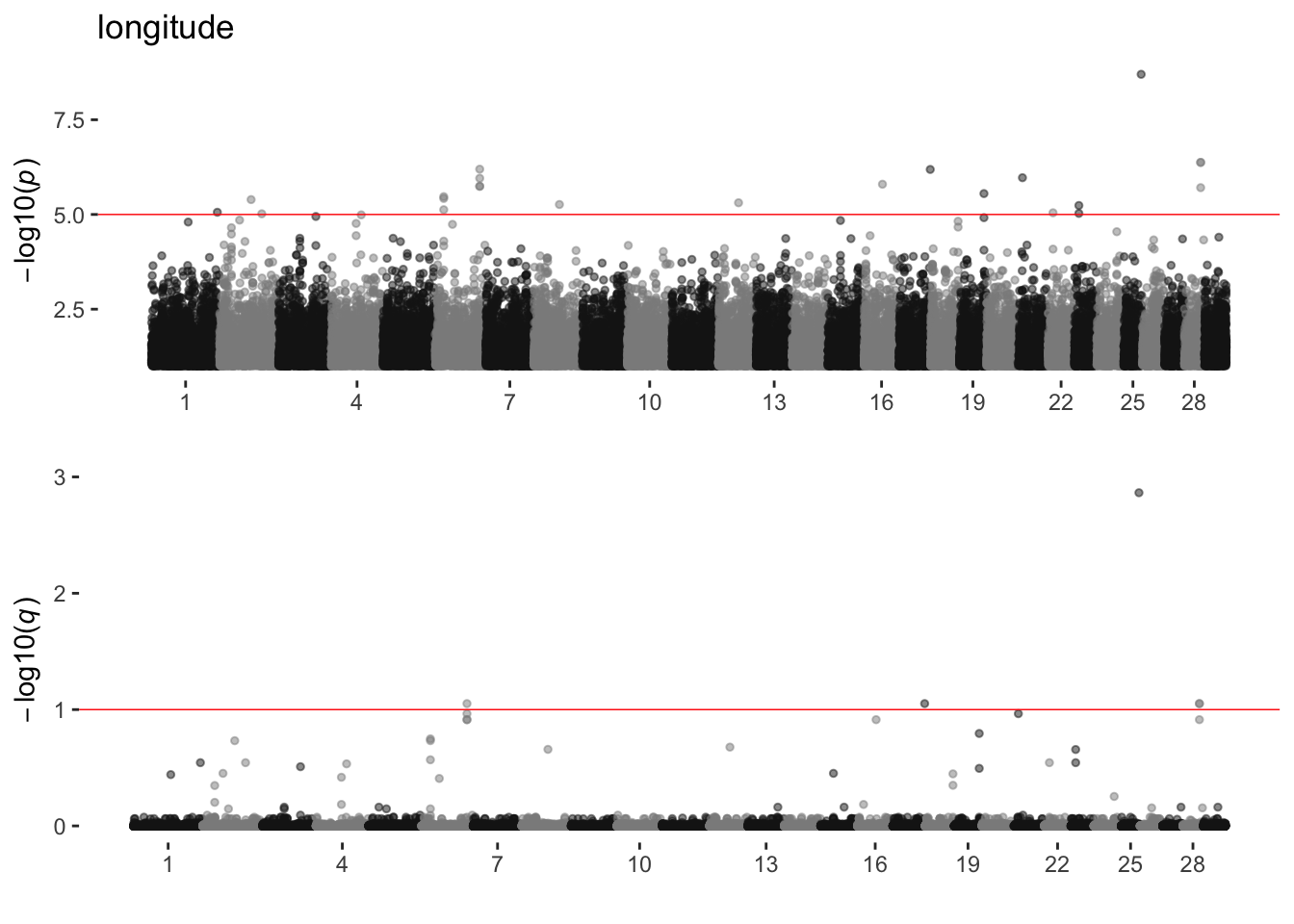

longitude

sim_manhattans[[11]]

Past versions of unnamed-chunk-14-1.png

Version	Author	Date
f56f685	Troy Rowan	2021-06-08

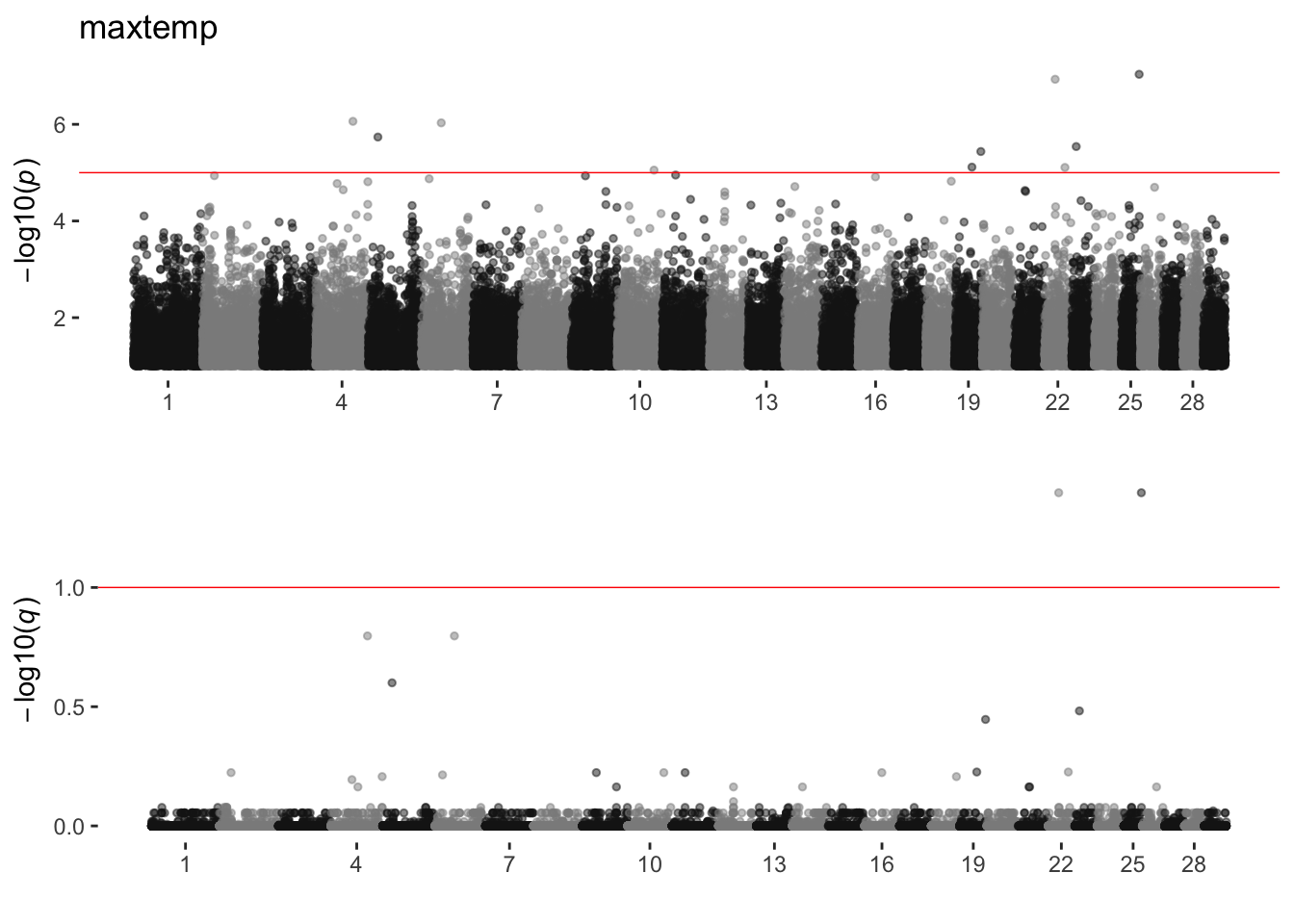

maxtemp

sim_manhattans[[12]]

Past versions of unnamed-chunk-15-1.png

Version	Author	Date
f56f685	Troy Rowan	2021-06-08

maxvap

sim_manhattans[[13]]

Past versions of unnamed-chunk-16-1.png

Version	Author	Date
f56f685	Troy Rowan	2021-06-08

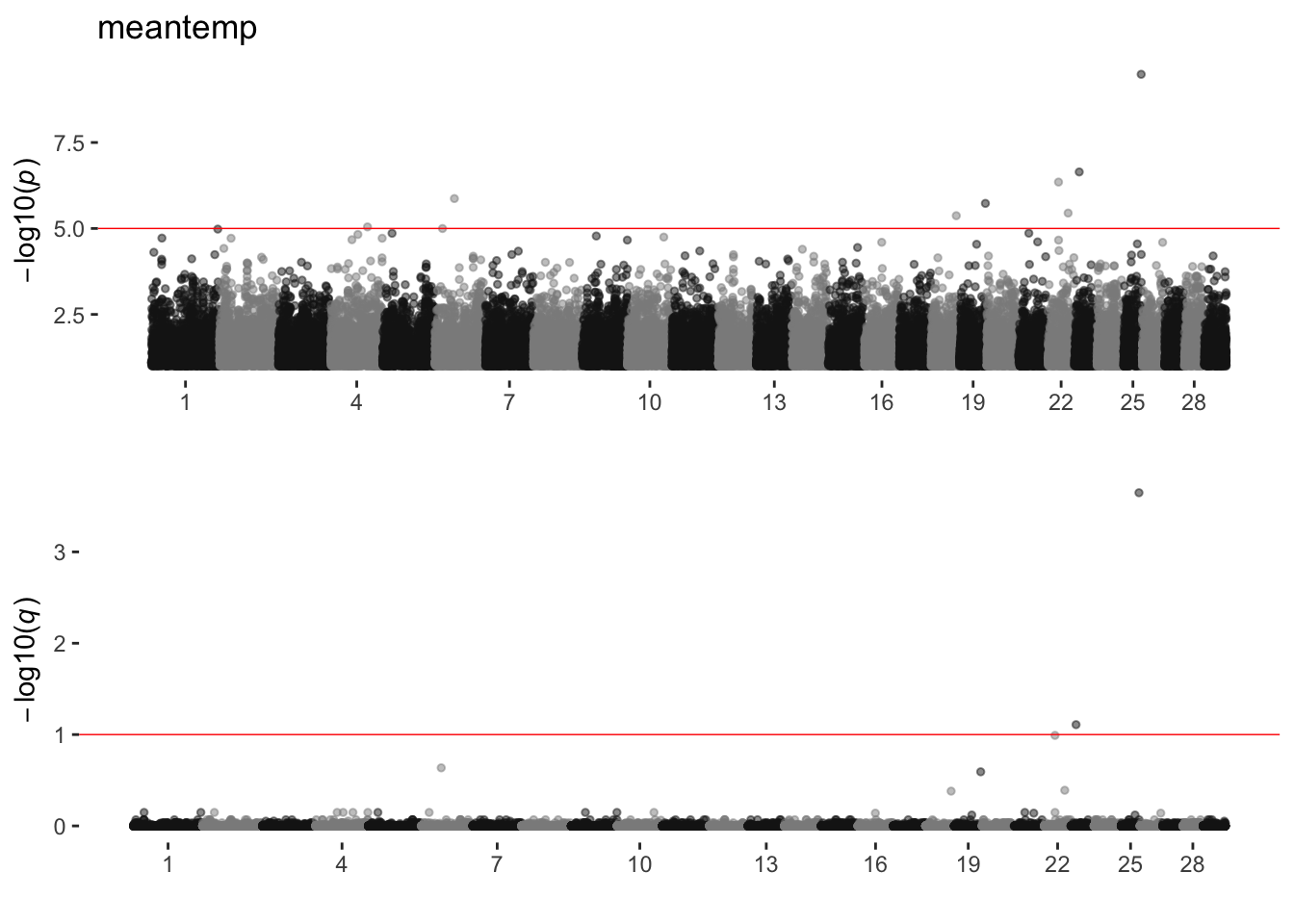

meantemp

sim_manhattans[[14]]

Past versions of unnamed-chunk-17-1.png

Version	Author	Date
f56f685	Troy Rowan	2021-06-08

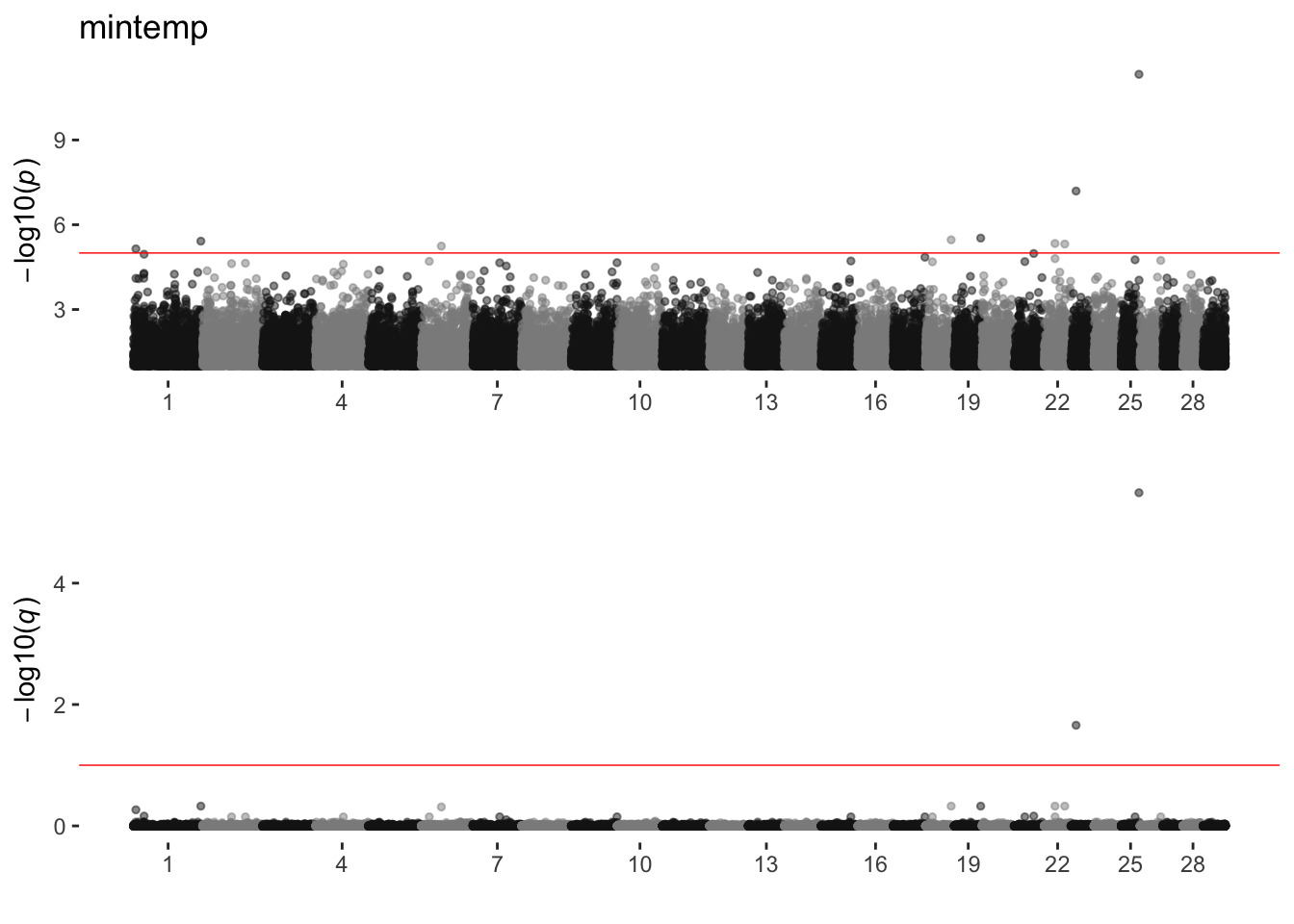

mintemp

sim_manhattans[[15]]

Past versions of unnamed-chunk-18-1.png

Version	Author	Date
f56f685	Troy Rowan	2021-06-08

minvap

sim_manhattans[[16]]

Past versions of unnamed-chunk-19-1.png

Version	Author	Date
f56f685	Troy Rowan	2021-06-08

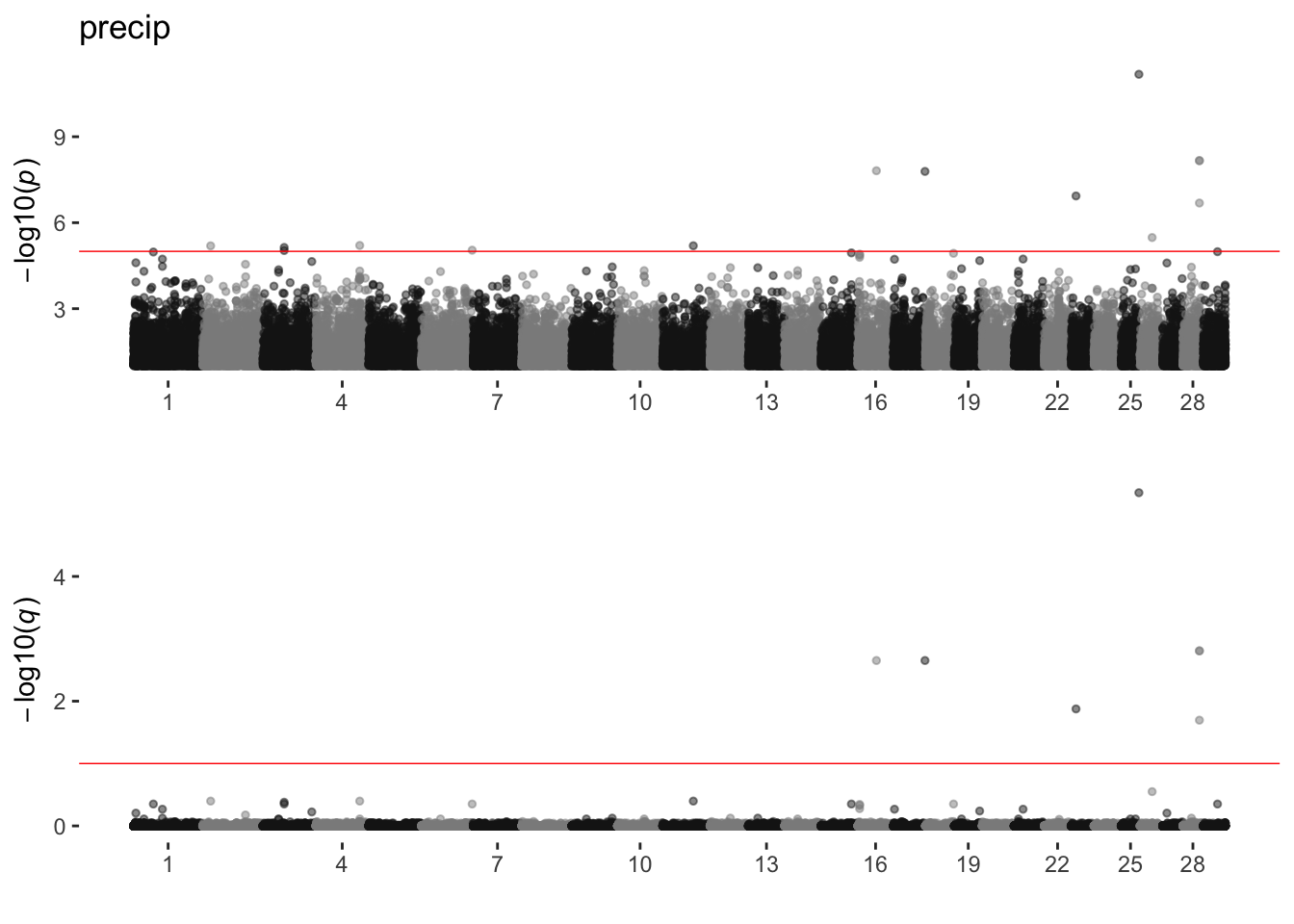

precip

sim_manhattans[[17]]

Past versions of unnamed-chunk-20-1.png

Version	Author	Date
f56f685	Troy Rowan	2021-06-08

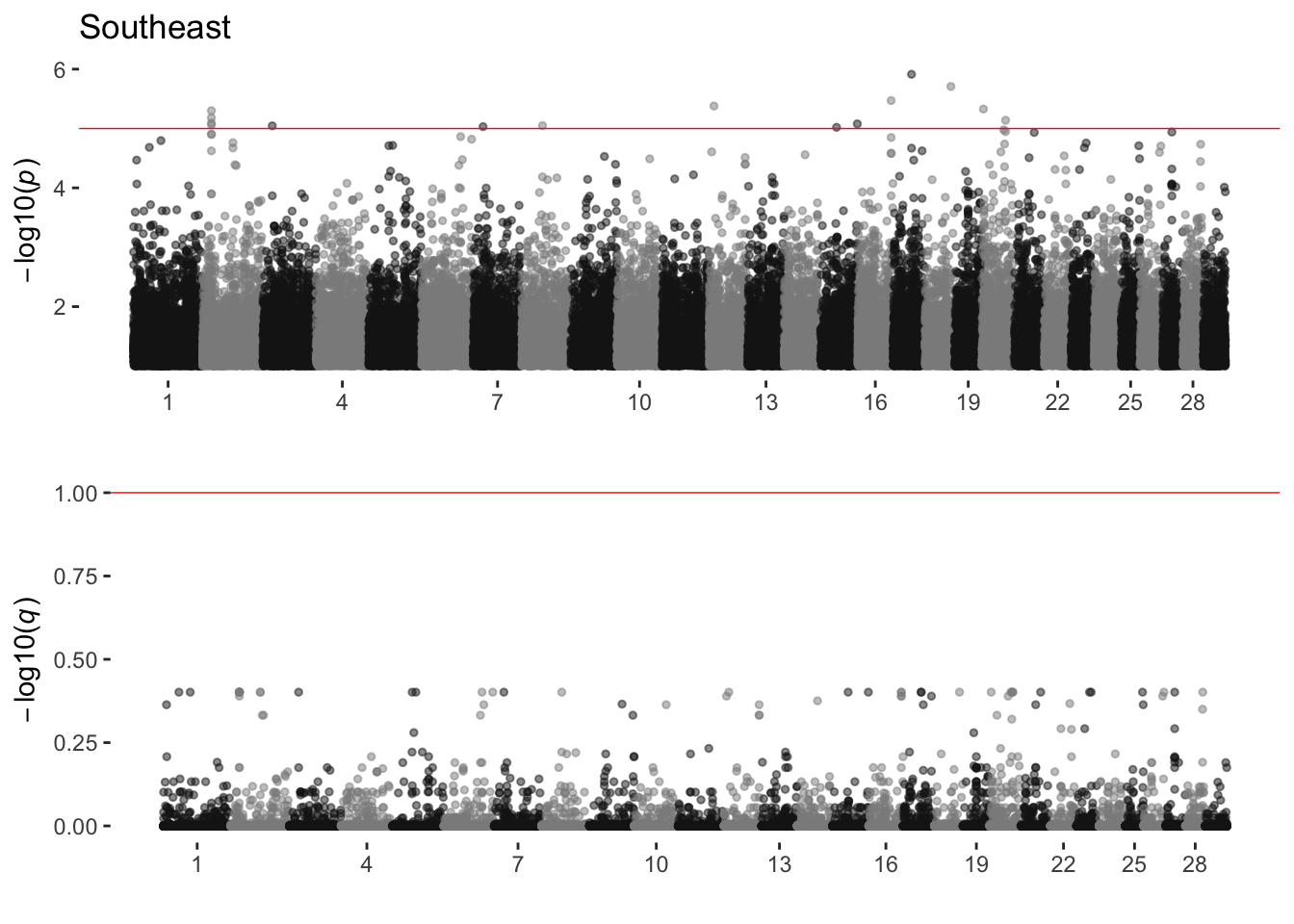

Southeast

sim_manhattans[[18]]

Past versions of unnamed-chunk-21-1.png

Version	Author	Date
f56f685	Troy Rowan	2021-06-08

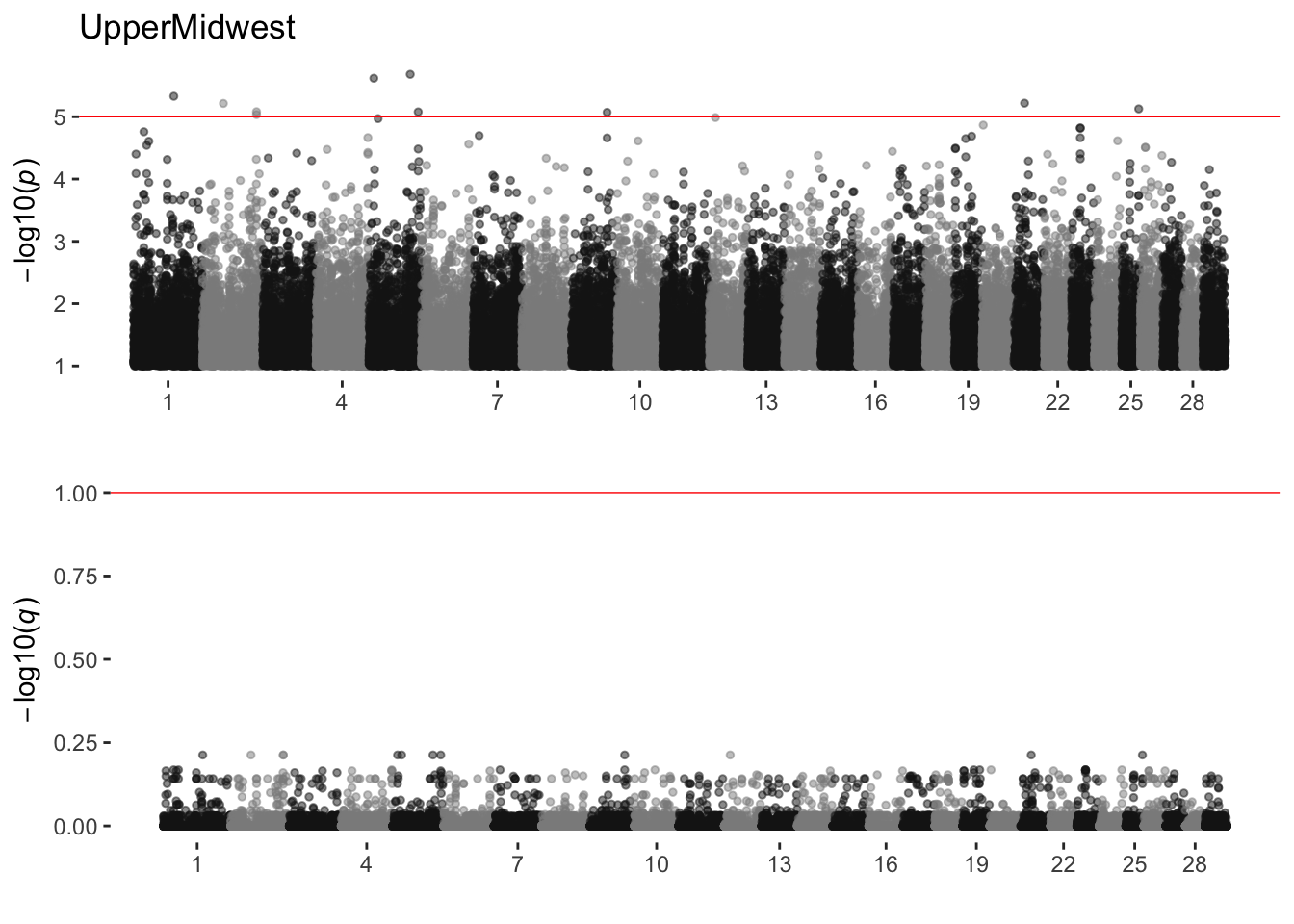

UpperMidwest

sim_manhattans[[19]]

Past versions of unnamed-chunk-22-1.png

Version	Author	Date
f56f685	Troy Rowan	2021-06-08

# cat('# # Simmental 850K envGWAS {.tabset}   \n')
# invisible(
#   sim_envgwas %>%
#       dplyr::group_split(variable) %>%
#       purrr::imap(.,~{
#         # create tabset for each group
#         cat('### Tab',.y,'   \n')
#         cat('\n')
#         #p <- ggmanhattan2(filter(.x, p < 0.1), sigsnps = sim_multisig)
#         p <- filter(.x, p < 0.1) %>% ggplot(aes(CHR, BP))+geom_point()
#         cat(as.character(htmltools::tagList(p)))
#       })
# )

Number of significant SNPs in each analysis at 850K level

Number of SNPs in each analysis that reaches genome-wide significance at 1) Bonferroni 2) p < 1e-5 3) q < 0.1

sim_envgwas %>%
  group_by(variable) %>%
  summarize(bonfCount = sum(p < 6e-8),
            pCount = sum(p < 1e-5),
            qCount = sum(q < 0.1))

# A tibble: 19 x 4
   variable          bonfCount pCount qCount
   <chr>                 <int>  <int>  <int>
 1 AridPrairie               0     29     11
 2 CornBelt                  0     16      3
 3 Desert                   26    158    334
 4 dewpoint                  1      8      3
 5 elev                      1     14      3
 6 FescueBelt                0     11      0
 7 Foothills                 4     43     16
 8 ForestedMountains         1     13      3
 9 HighPlains                0     16      6
10 latitude                  1     10      1
11 longitude                 1     23      5
12 maxtemp                   0     10      2
13 maxvap                    0     11      0
14 meantemp                  1      8      2
15 mintemp                   1      9      2
16 minvap                    1     27      1
17 precip                    5     14      7
18 Southeast                 0     15      0
19 UpperMidwest              0     10      0

Number of SNPs that are shared across zones/variables

filter(sim_envgwas, p < 1e-5) %>%
  count(SNP, sort = TRUE)%>%
  filter(n>1) %>%
  kbl() %>%
  kable_styling()

SNP	n
25:40171577:C:T	10
23:11653102:T:G	6
18:58490610:T:G	5
22:24449349:A:G	5
28:37890881:G:A	5
28:37891750:A:C	5
16:42569828:C:T	4
17:72089995:A:G	4
6:45760951:A:G	4
19:59908502:C:T	3
22:46620047:A:G	3
28:37892541:G:A	3
4:84863571:A:G	3
1:102180787:T:C	2
1:116110811:T:C	2
1:153515980:C:T	2
15:17921054:T:C	2
2:72751717:T:C	2
2:97342131:G:A	2
20:8095171:T:C	2
21:11109237:C:T	2
23:1747454:A:C	2
5:21848046:C:T	2
5:83441154:A:C	2

Red Angus

850K envGWAS

ran_envgwas =
  # list.files("output/200910_RAN/gwas") %>%
  #   map(
  #     ~read_gwas2(paste0("output/200910_RAN/gwas/", .x)) %>%
  #       mutate(variable = .x)) %>%
  #   reduce(bind_rows) %>%
  # mutate(variable = str_replace(variable, pattern = "200910_RAN.", ""),
  #        variable = str_replace(variable, pattern = ".850K.mlma.gz", ""),
  #        variable = str_replace(variable, pattern = "_noLSF", ""))

#write_csv(ran_envgwas, "output/200910_RAN/gwas/200910_RAN.AllGWAS.850K.mlma.gz")
  read_csv("output/200910_RAN/gwas/200910_RAN.AllGWAS.850K.mlma.gz",
           col_types = cols(SNP = col_character(), chrbp = col_character())) %>%
  filter(CHR < 30)

ran_multisig =
  filter(ran_envgwas, p < 1e-5) %>%
  count(SNP, sort = TRUE)%>%
  filter(n>1) %>%
  .$SNP

ran_manhattans =
  unique(ran_envgwas$variable) %>%
    purrr::map(~plot_grid(ggmanhattan2(filter(ran_envgwas, variable == .x & p < 0.1),pcol = p)+
                 ggtitle(.x),
                          ggmanhattan2(filter(ran_envgwas, variable == .x & p < 0.1),pcol = p),
                          nrow = 2))

envGWAS Runs

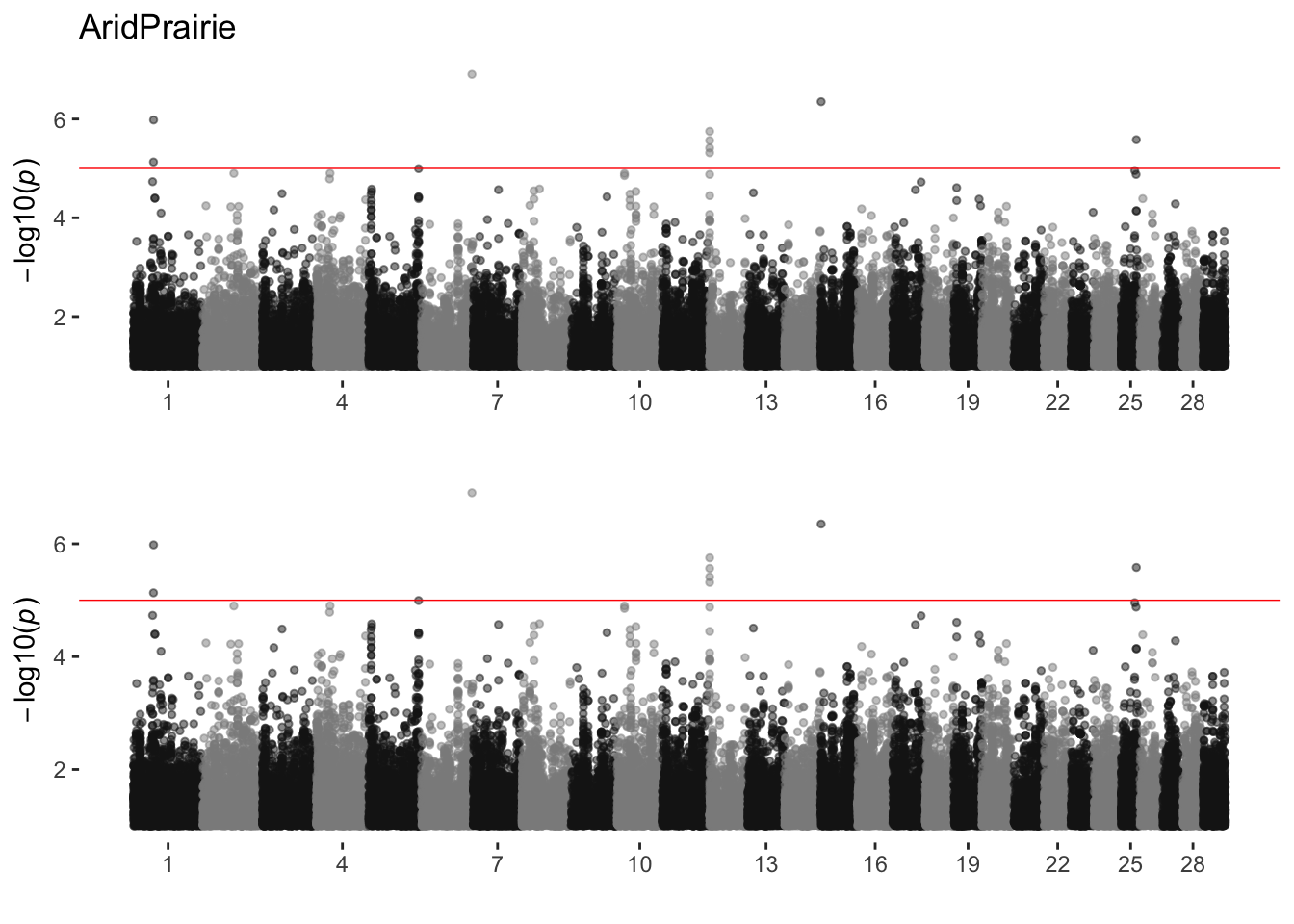

AridPrairie

ran_manhattans[[1]]

Past versions of unnamed-chunk-27-1.png

Version	Author	Date
f56f685	Troy Rowan	2021-06-08

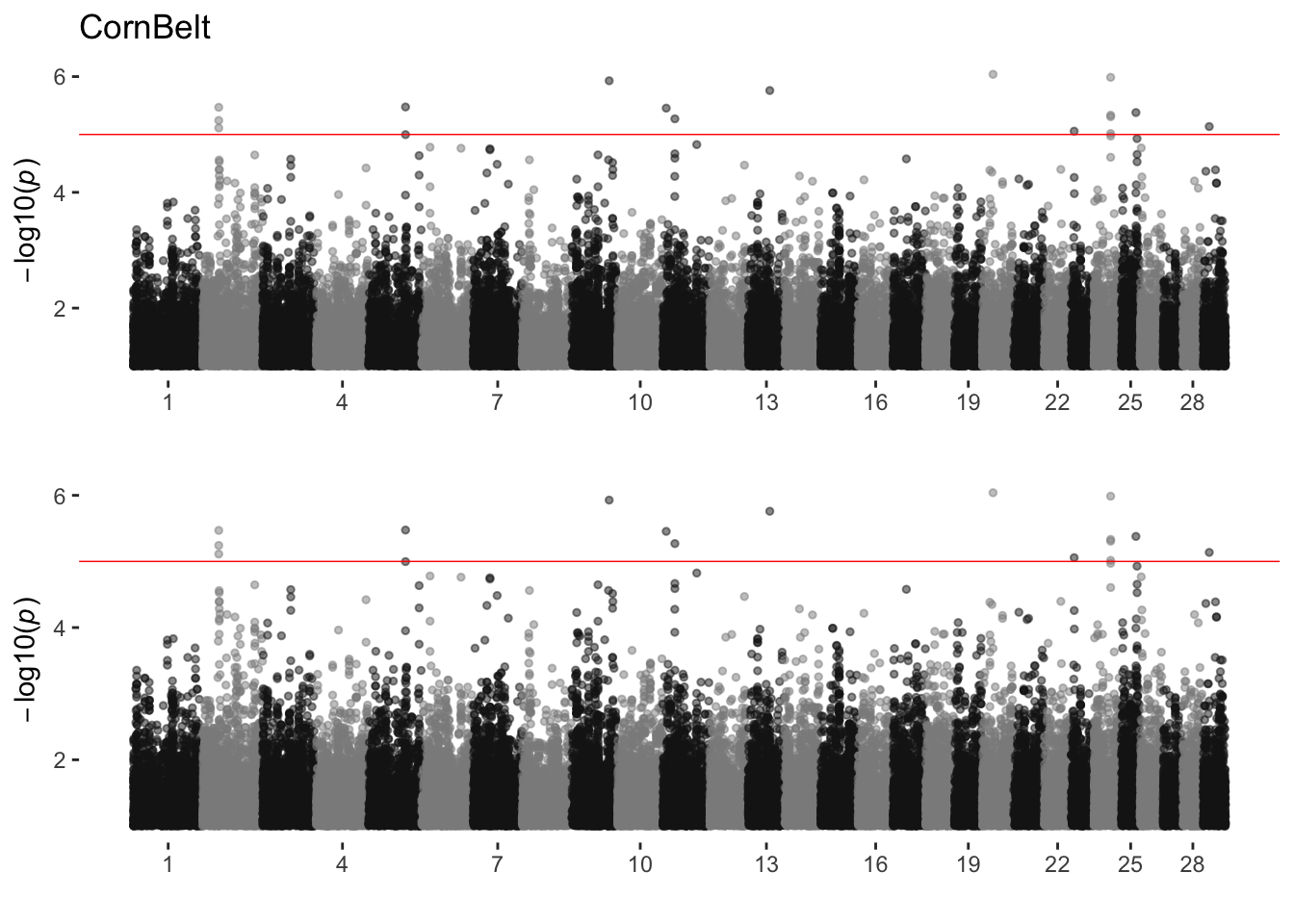

CornBelt

ran_manhattans[[2]]

Past versions of unnamed-chunk-28-1.png

Version	Author	Date
f56f685	Troy Rowan	2021-06-08

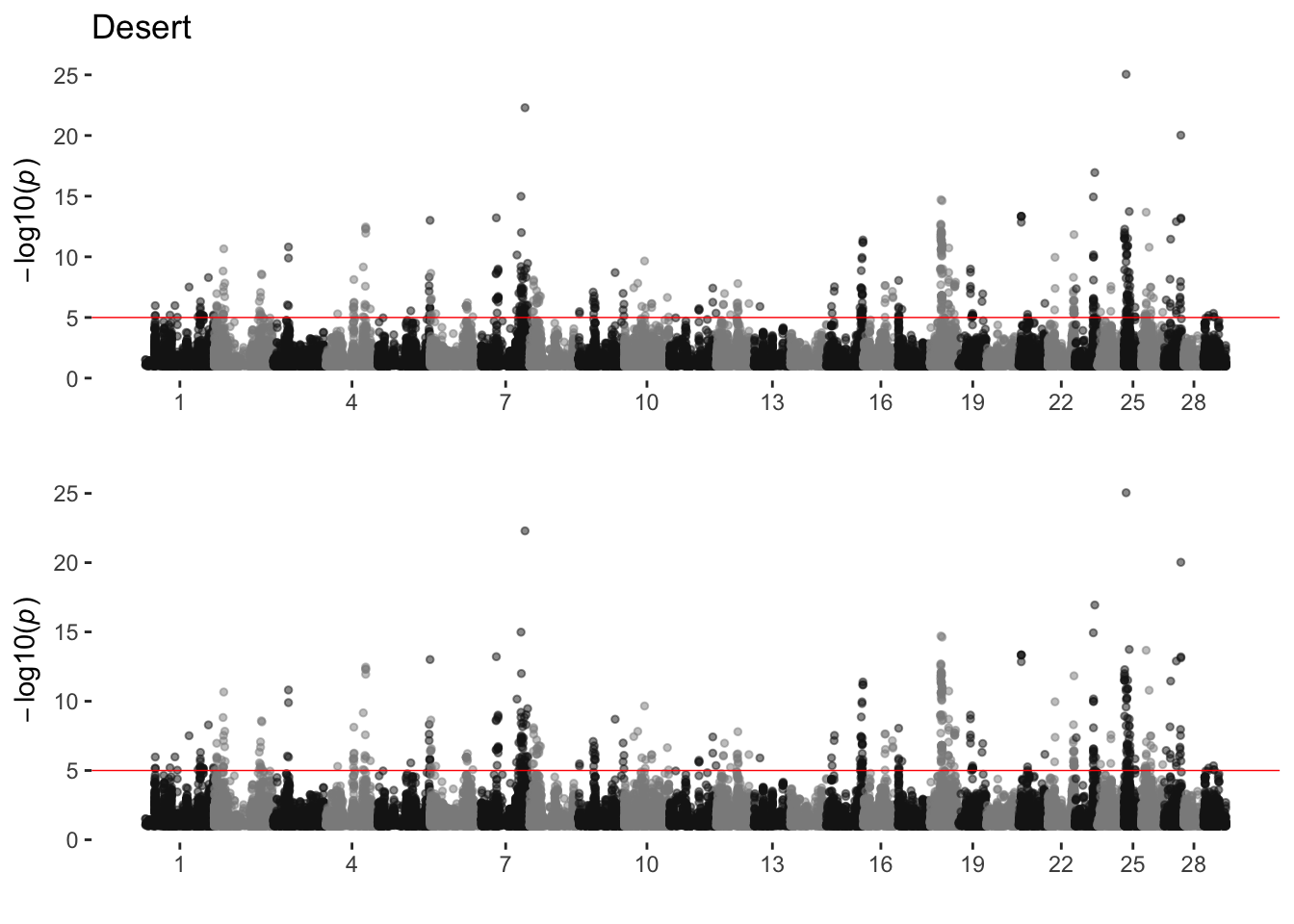

Desert

ran_manhattans[[3]]

Past versions of unnamed-chunk-29-1.png

Version	Author	Date
f56f685	Troy Rowan	2021-06-08

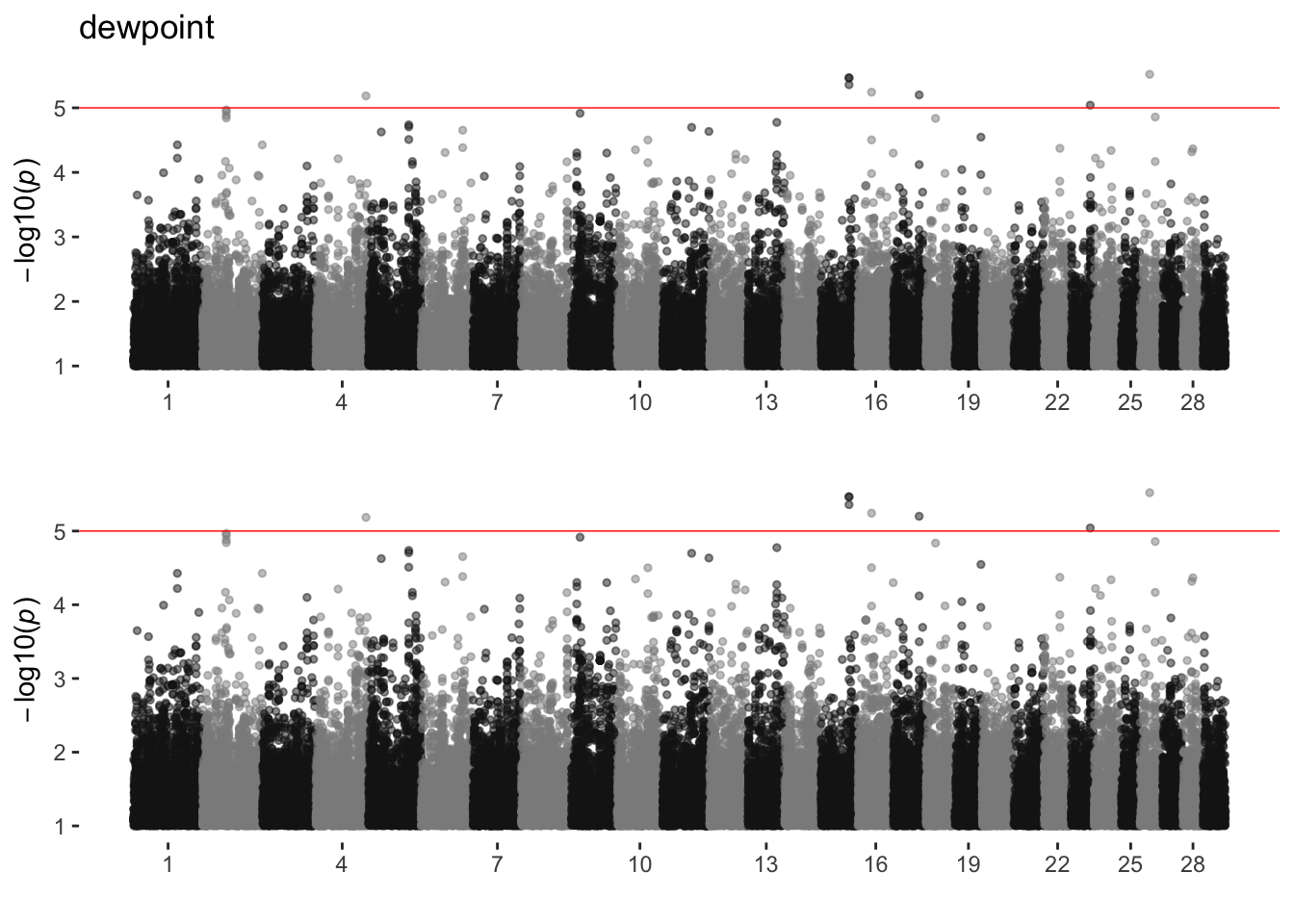

dewpoint

ran_manhattans[[4]]

Past versions of unnamed-chunk-30-1.png

Version	Author	Date
f56f685	Troy Rowan	2021-06-08

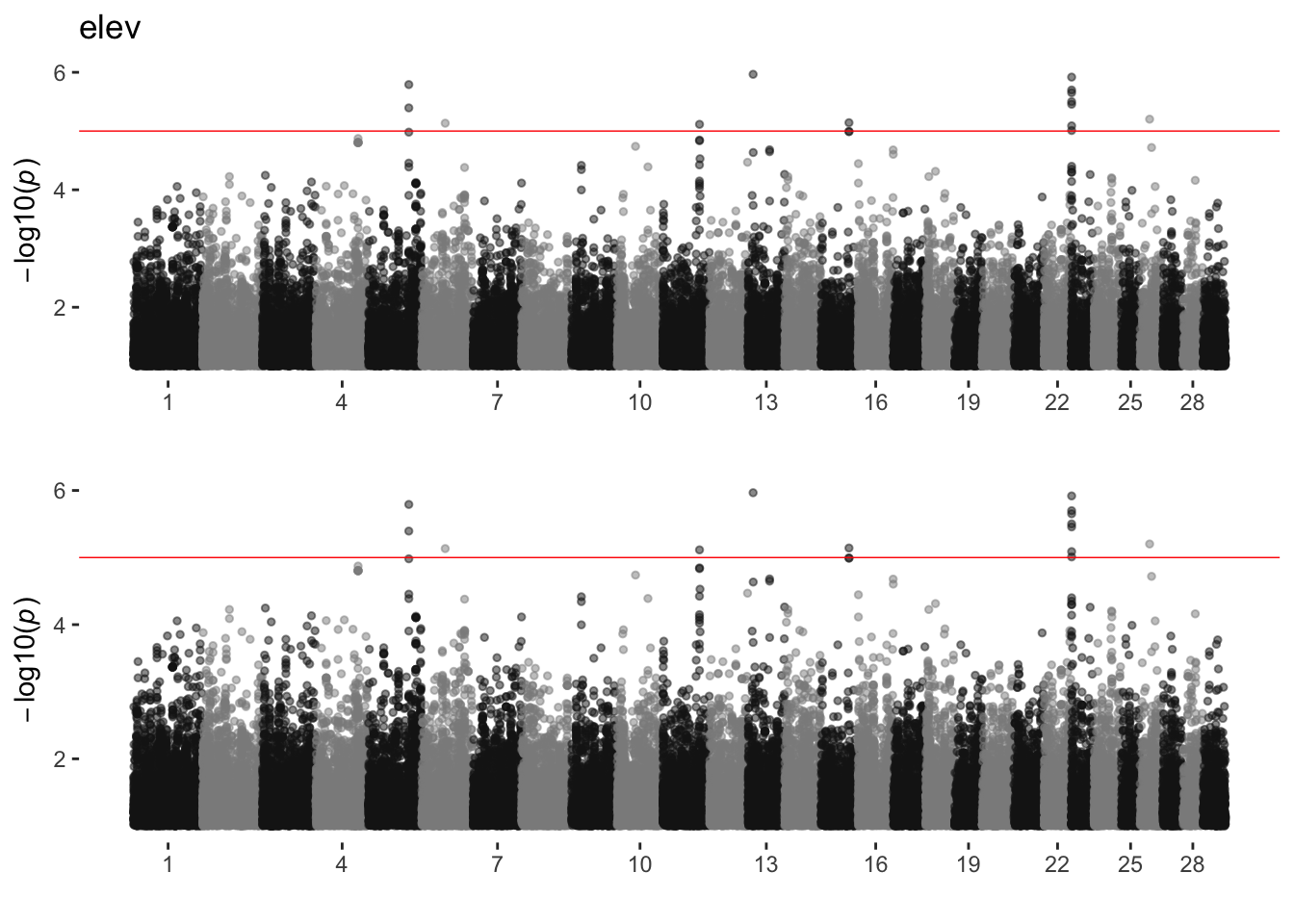

elev

ran_manhattans[[5]]

Past versions of unnamed-chunk-31-1.png

Version	Author	Date
f56f685	Troy Rowan	2021-06-08

FescueBelt

ran_manhattans[[6]]

Past versions of unnamed-chunk-32-1.png

Version	Author	Date
f56f685	Troy Rowan	2021-06-08

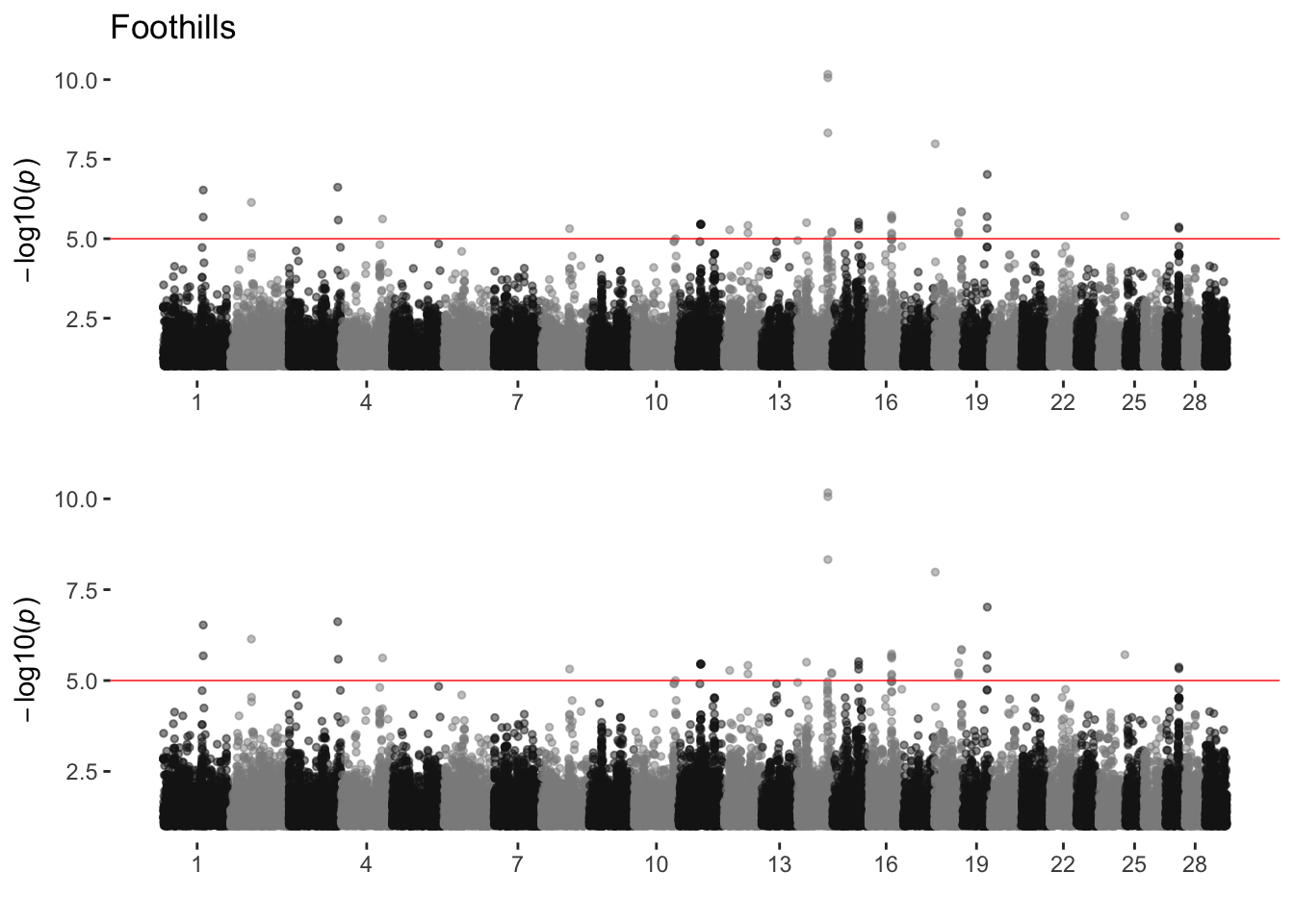

Foothills

ran_manhattans[[7]]

Past versions of unnamed-chunk-33-1.png

Version	Author	Date
f56f685	Troy Rowan	2021-06-08

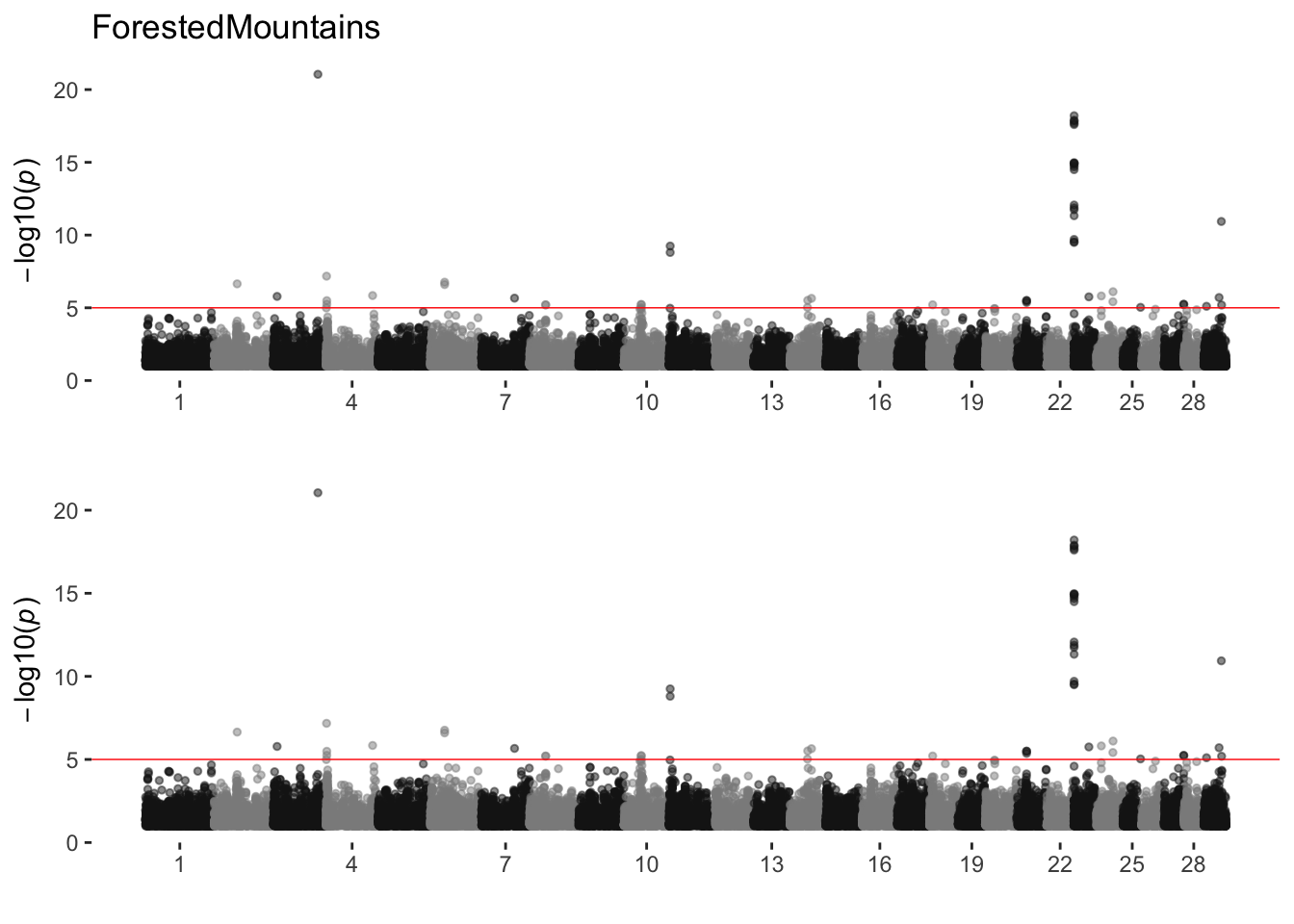

ForestedMountains

ran_manhattans[[8]]

Past versions of unnamed-chunk-34-1.png

Version	Author	Date
f56f685	Troy Rowan	2021-06-08

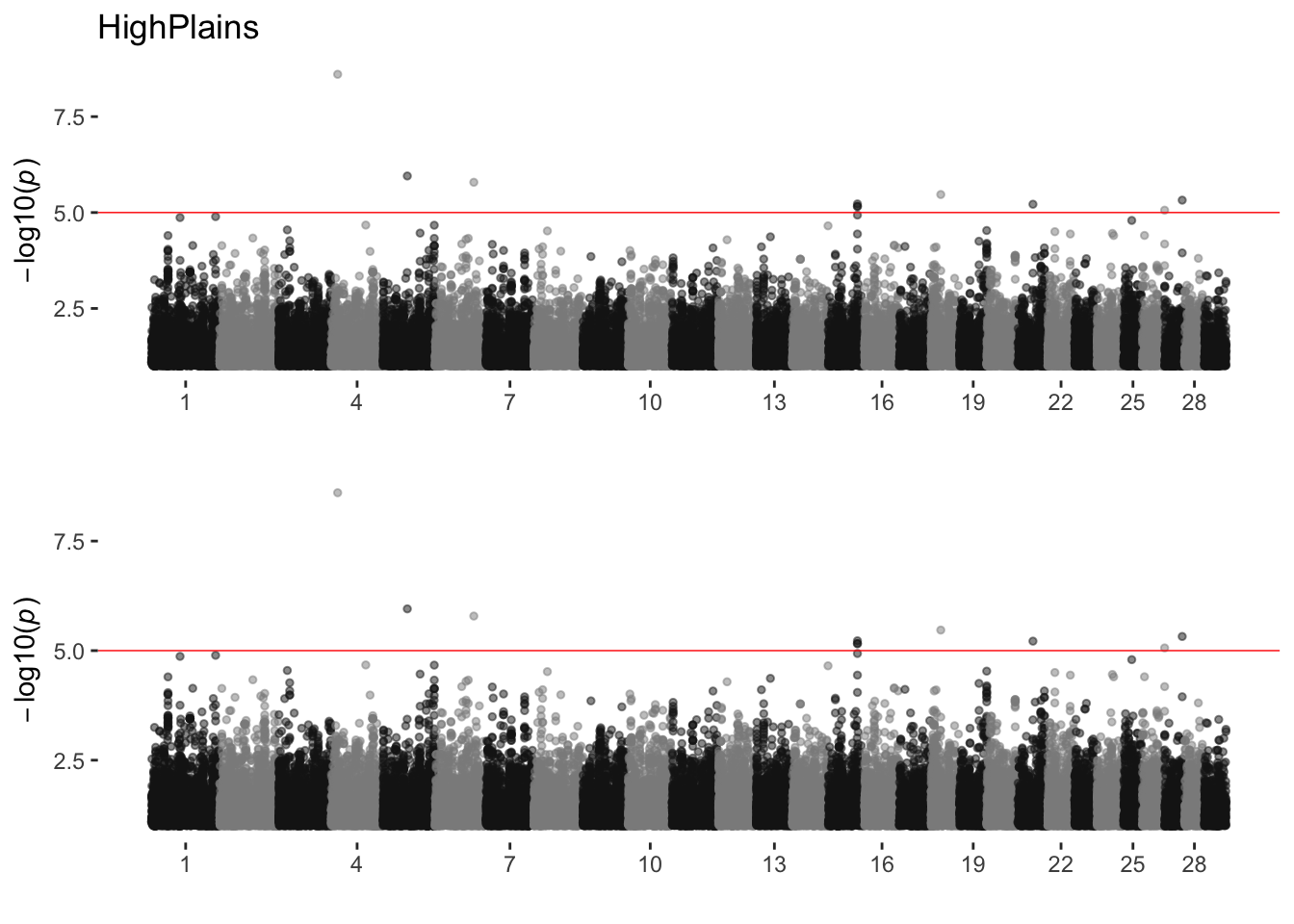

HighPlains

ran_manhattans[[9]]

Past versions of unnamed-chunk-35-1.png

Version	Author	Date
f56f685	Troy Rowan	2021-06-08

latitude

ran_manhattans[[10]]

Past versions of unnamed-chunk-36-1.png

Version	Author	Date
f56f685	Troy Rowan	2021-06-08

longitude

ran_manhattans[[11]]

Past versions of unnamed-chunk-37-1.png

Version	Author	Date
f56f685	Troy Rowan	2021-06-08

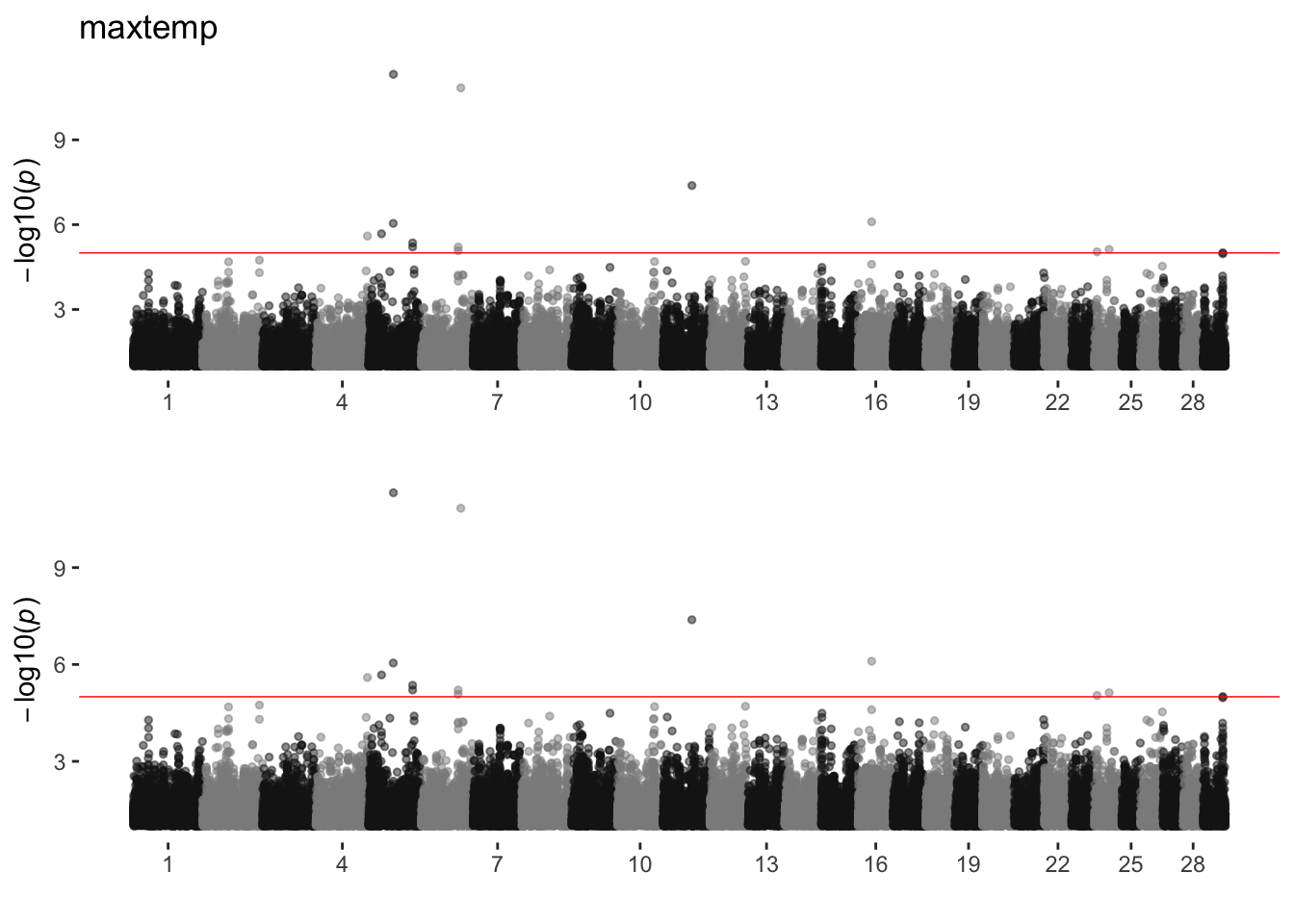

maxtemp

ran_manhattans[[12]]

Past versions of unnamed-chunk-38-1.png

Version	Author	Date
f56f685	Troy Rowan	2021-06-08

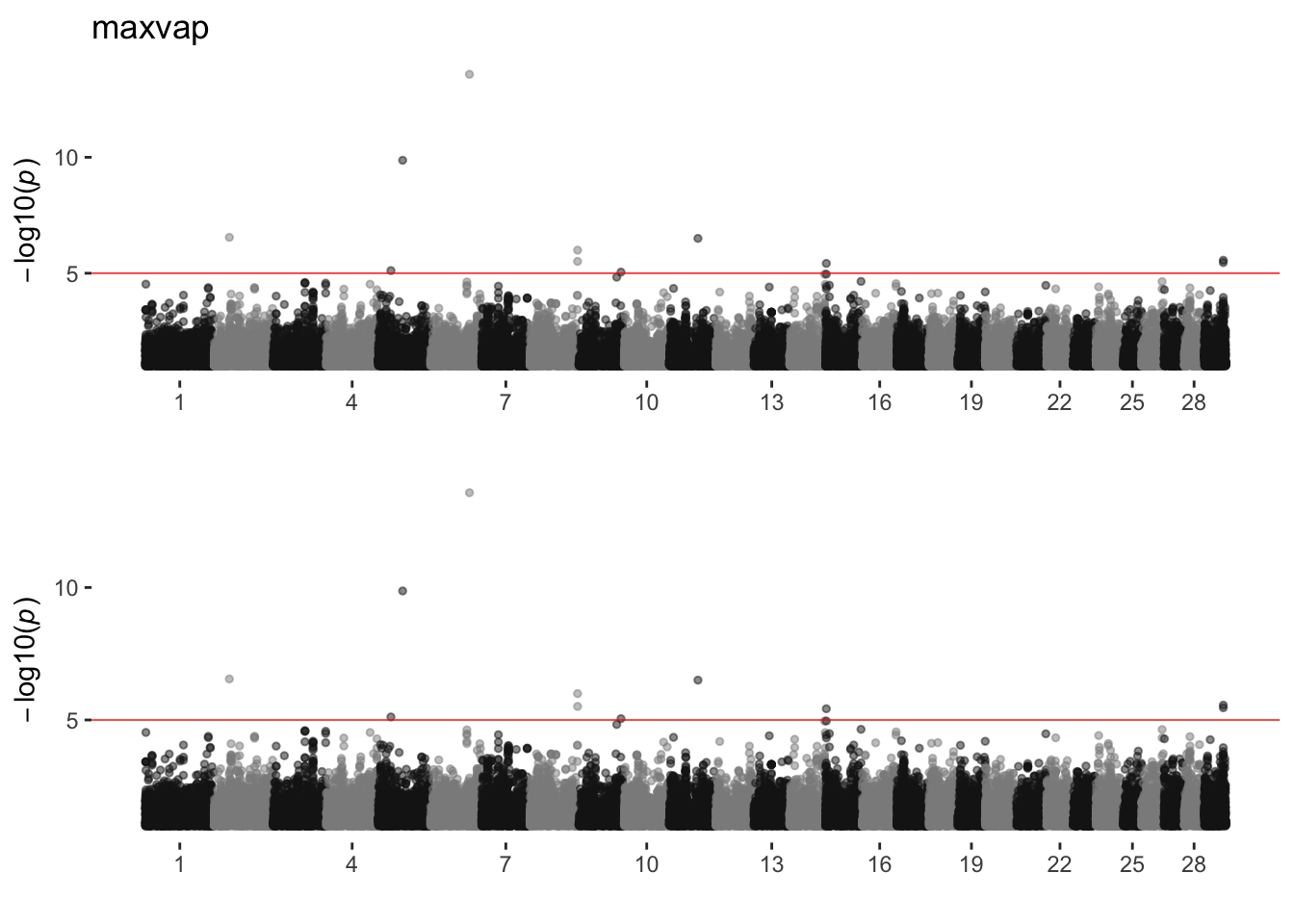

maxvap

ran_manhattans[[13]]

Past versions of unnamed-chunk-39-1.png

Version	Author	Date
f56f685	Troy Rowan	2021-06-08

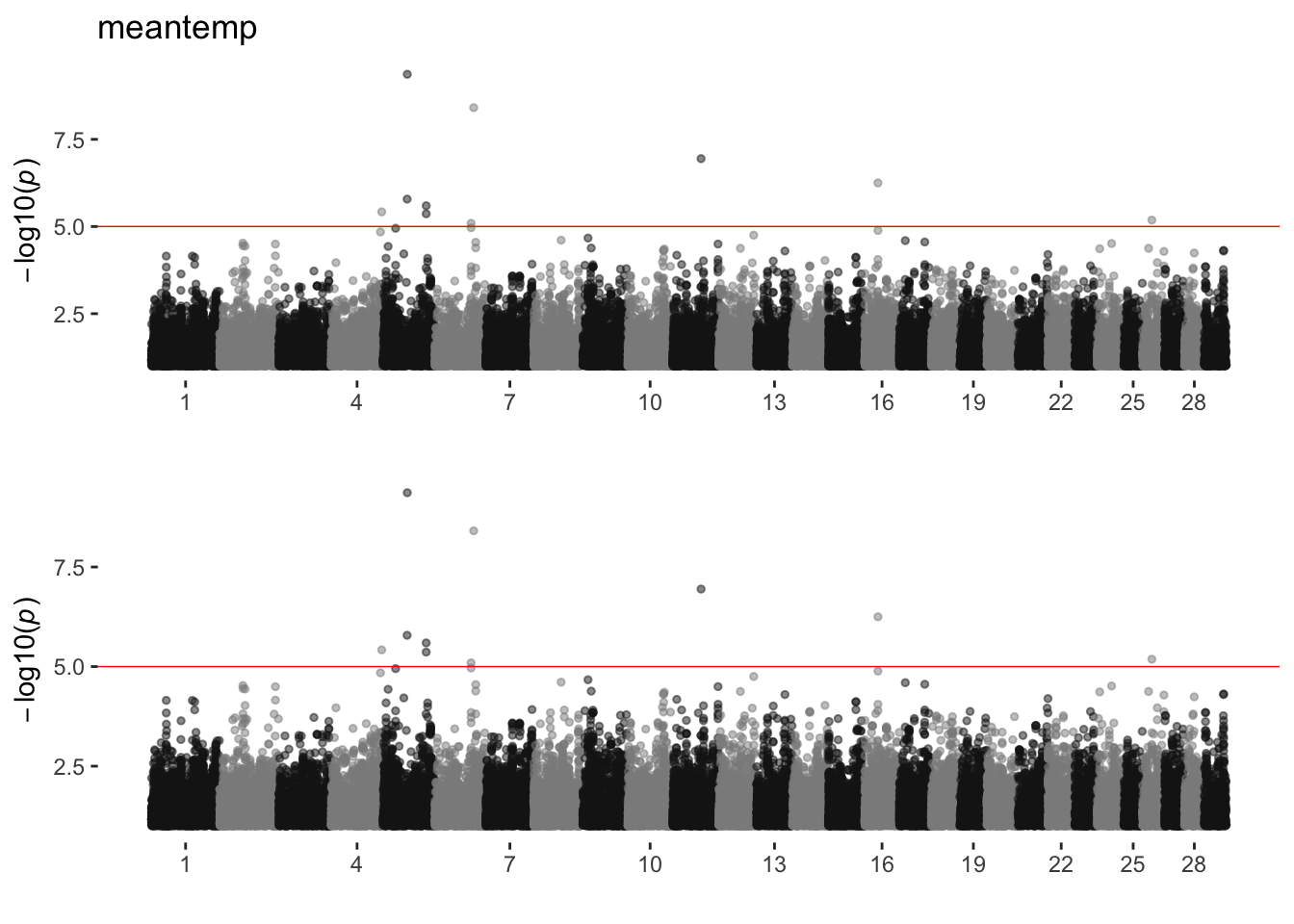

meantemp

ran_manhattans[[14]]

Past versions of unnamed-chunk-40-1.png

Version	Author	Date
f56f685	Troy Rowan	2021-06-08

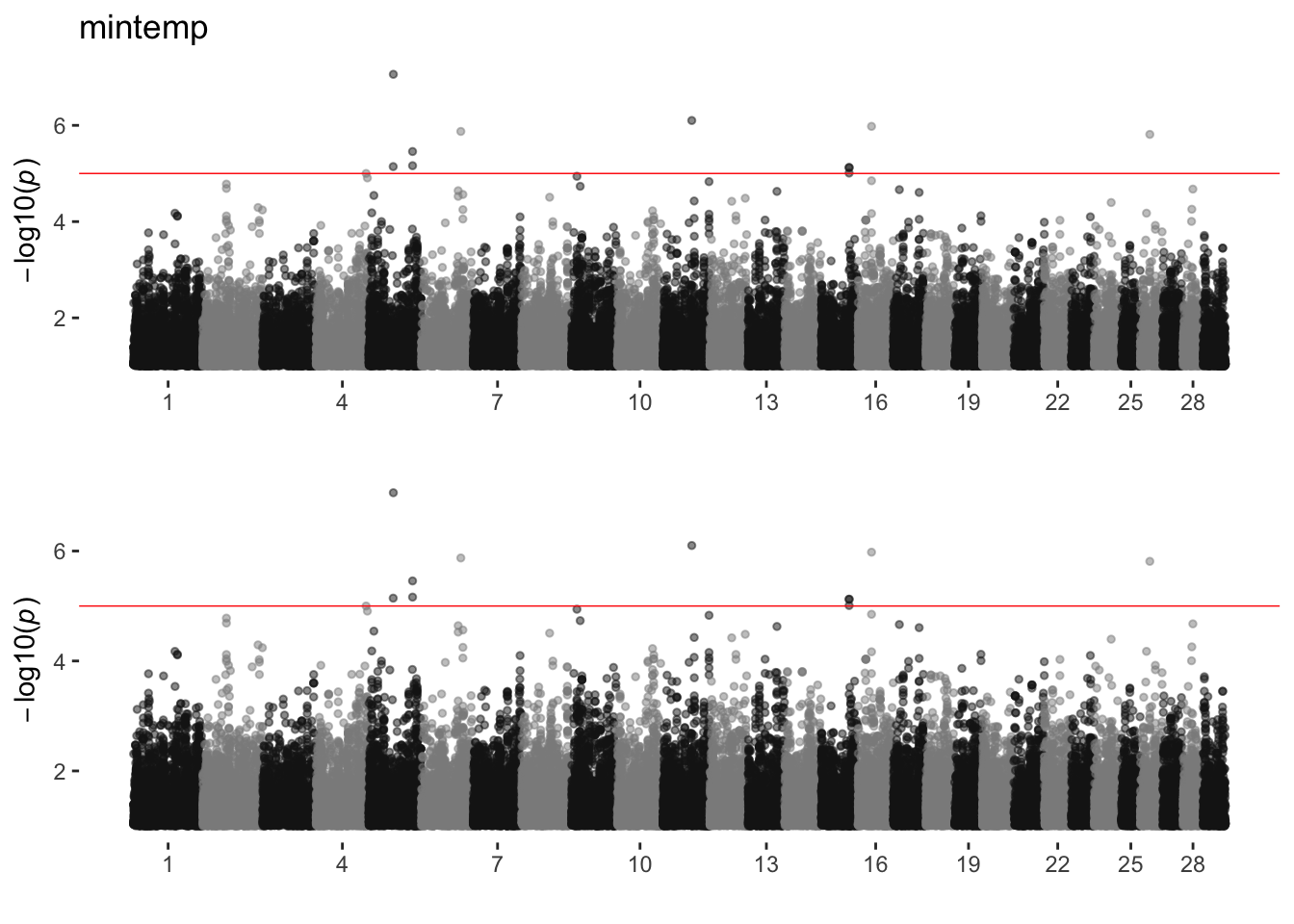

mintemp

ran_manhattans[[15]]

Past versions of unnamed-chunk-41-1.png

Version	Author	Date
f56f685	Troy Rowan	2021-06-08

minvap

ran_manhattans[[16]]

Past versions of unnamed-chunk-42-1.png

Version	Author	Date
f56f685	Troy Rowan	2021-06-08

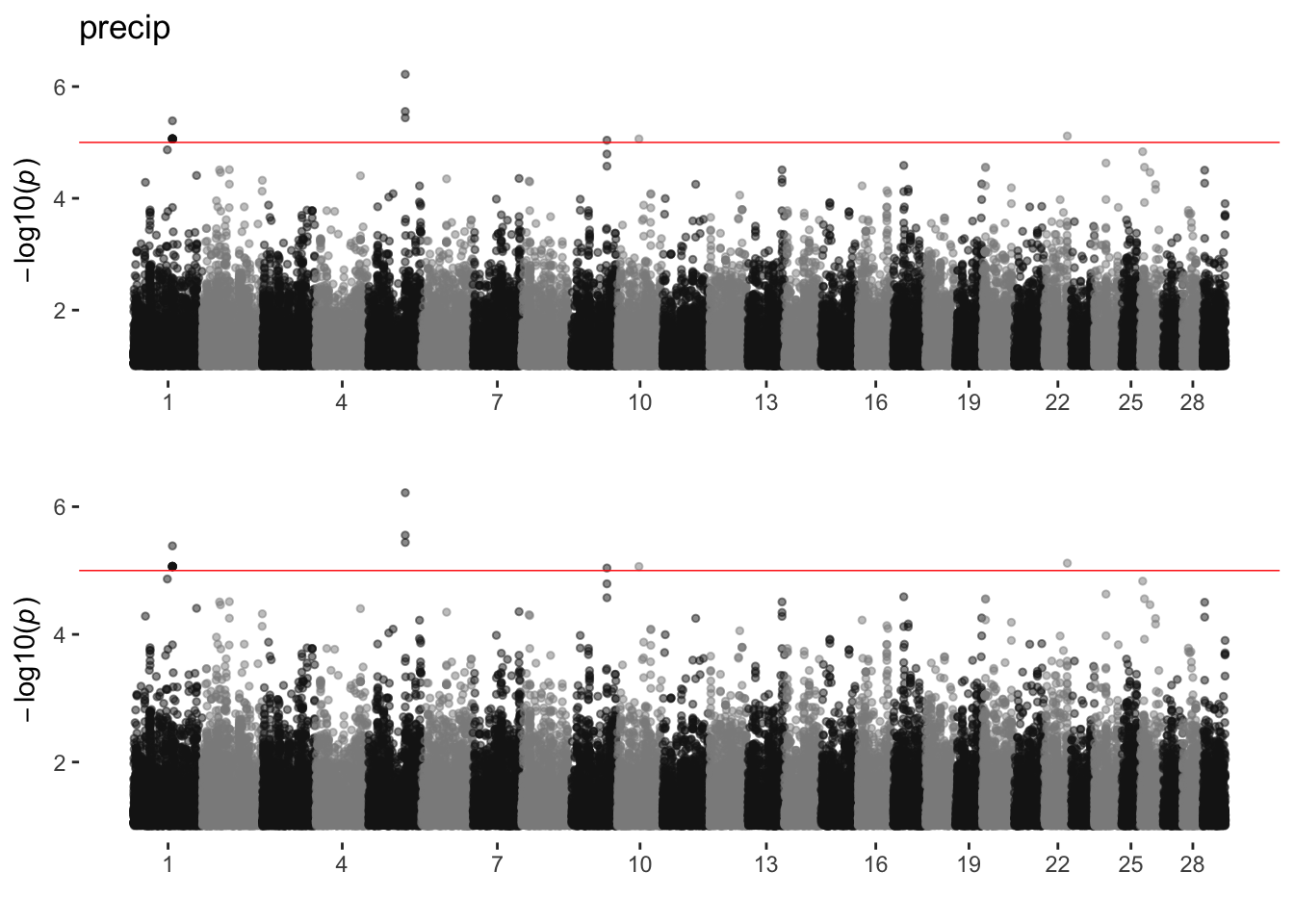

precip

ran_manhattans[[17]]

Past versions of unnamed-chunk-43-1.png

Version	Author	Date
f56f685	Troy Rowan	2021-06-08

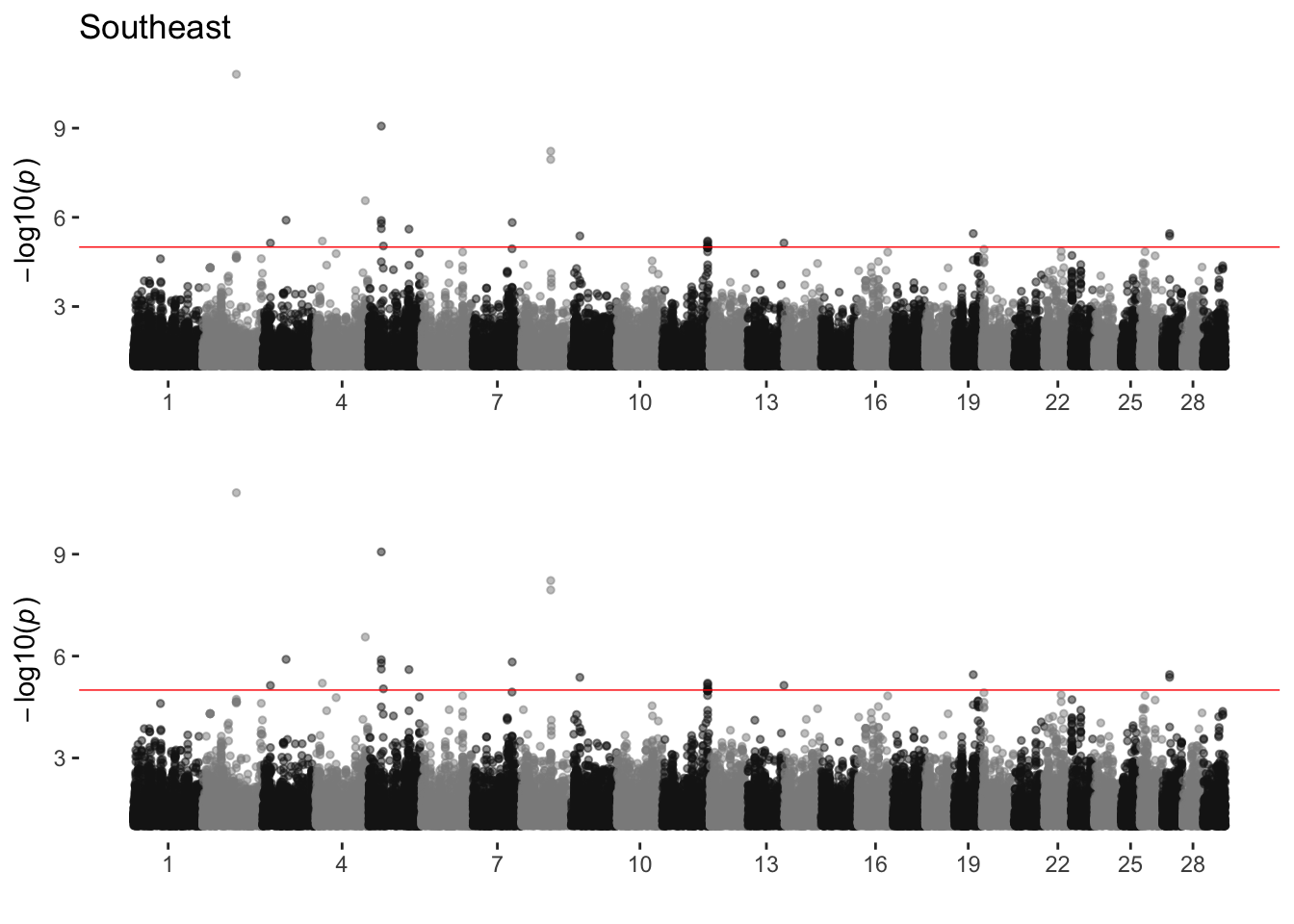

Southeast

ran_manhattans[[18]]

Past versions of unnamed-chunk-44-1.png

Version	Author	Date
f56f685	Troy Rowan	2021-06-08

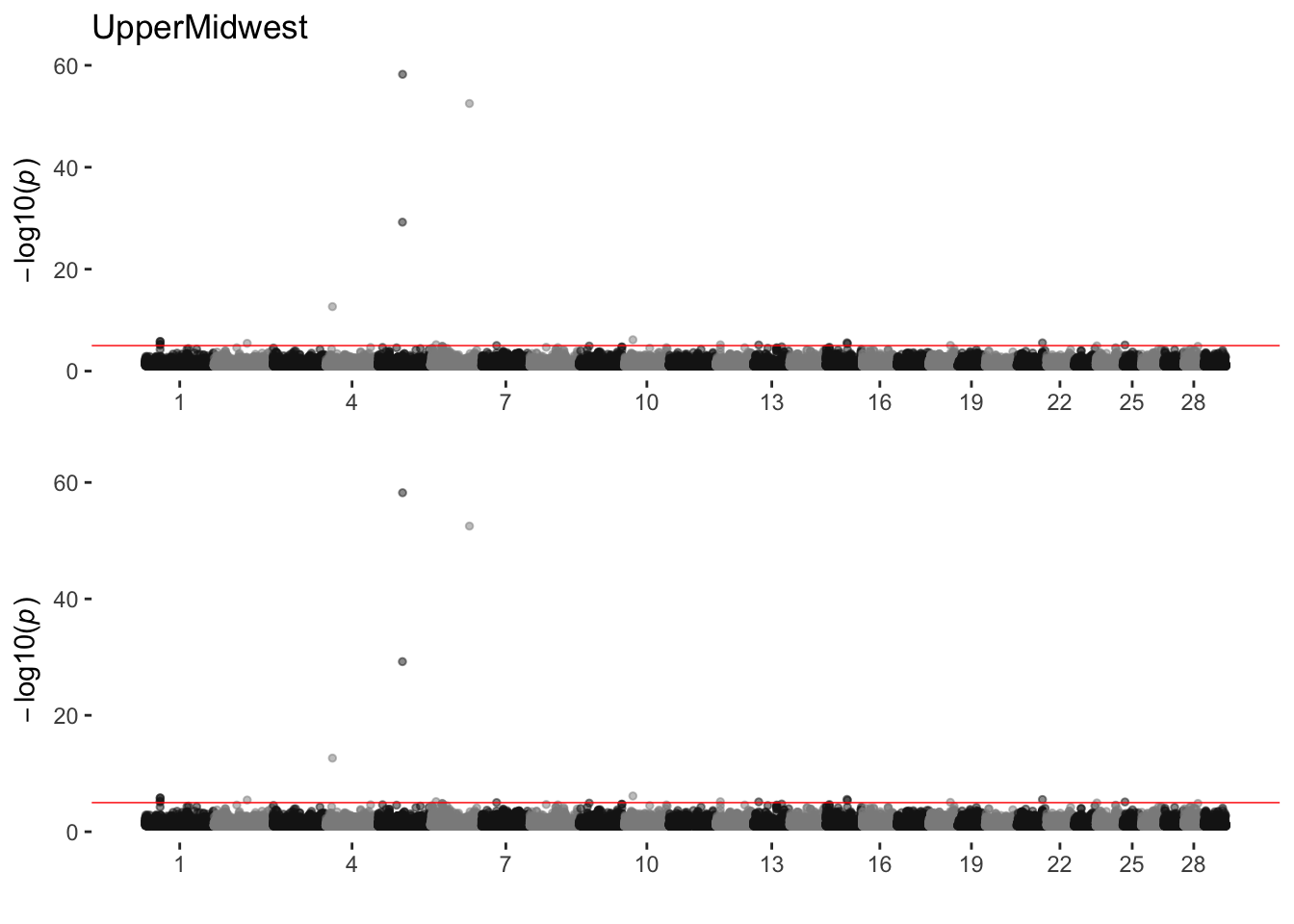

UpperMidwest

ran_manhattans[[19]]

Past versions of unnamed-chunk-45-1.png

Version	Author	Date
f56f685	Troy Rowan	2021-06-08

Annotating Genes

Skipping for now

Number of significant SNPs in each analysis at 850K level

Number of SNPs in each analysis that reaches genome-wide significance at 1) Bonferroni 2) p < 1e-5 3) q < 0.1

ran_envgwas %>%
  group_by(variable) %>%
  summarize(bonfCount = sum(p < 6e-8),
            pCount = sum(p < 1e-5),
            qCount = sum(q < 0.1))

# A tibble: 19 x 4
   variable          bonfCount pCount qCount
   <chr>                 <int>  <int>  <int>
 1 AridPrairie               0      9     11
 2 CornBelt                  0     16     16
 3 Desert                  186    533   1612
 4 dewpoint                  0      8    151
 5 elev                      0     14     81
 6 FescueBelt                1     12      6
 7 Foothills                 4     44    109
 8 ForestedMountains        22     53    181
 9 HighPlains                1     10     34
10 latitude                  0      9    167
11 longitude                 7     31    106
12 maxtemp                   3     14    148
13 maxvap                    2     11    119
14 meantemp                  2     10    167
15 mintemp                   0     12    175
16 minvap                    2     13      8
17 precip                    0     14     60
18 Southeast                 4     23    105
19 UpperMidwest              4     19     94

Number of SNPs that are shared across zones/variables

At p < 1e-5 threshold

filter(ran_envgwas, p < 1e-5) %>%
  count(SNP, sort = TRUE)%>%
  filter(n>1) %>%
  kbl() %>%
  kable_styling()

SNP	n
5:56294803:C:T	8
6:89632622:C:T	8
11:66022330:T:C	5
16:31189754:C:T	5
26:22147551:A:G	5
5:55940985:C:A	4
5:99932542:A:C	4
15:63936462:G:A	3
23:1760296:G:A	3
23:1762985:C:T	3
23:1764305:C:T	3
23:1765645:C:T	3
23:1768070:C:T	3
23:1773893:A:G	3
23:1780836:T:C	3
4:15143313:T:C	3
5:29337648:C:T	3
5:99970391:T:C	3
13:11805638:G:A	2
15:63923159:C:T	2
15:63930524:T:C	2
18:1421130:A:G	2
18:55917363:G:A	2
18:55918169:C:G	2
18:55923037:C:T	2
2:76462949:C:A	2
23:1741368:T:C	2
23:1742961:G:A	2
23:1744435:G:A	2
23:1745568:C:T	2
23:1747454:A:C	2
23:1750999:G:T	2
23:1753411:C:A	2
23:1755721:T:C	2
29:44876613:A:G	2
4:114194176:G:A	2
4:117086624:G:A	2
5:34082134:C:T	2
5:83684035:C:T	2
6:83637243:A:G	2

Session information

sessionInfo()

R version 4.0.4 (2021-02-15)
Platform: x86_64-apple-darwin17.0 (64-bit)
Running under: macOS Big Sur 10.16

Matrix products: default
BLAS:   /Library/Frameworks/R.framework/Versions/4.0/Resources/lib/libRblas.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/4.0/Resources/lib/libRlapack.dylib

locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

other attached packages:
 [1] viridis_0.5.1     viridisLite_0.3.0 kableExtra_1.3.4  UpSetR_1.4.0
 [5] DT_0.17           gprofiler2_0.2.0  cowplot_1.1.1     GALLO_1.1
 [9] qvalue_2.22.0     pedigree_1.4      reshape_0.8.8     HaploSim_1.8.4
[13] Matrix_1.3-2      lubridate_1.7.10  forcats_0.5.1     stringr_1.4.0
[17] dplyr_1.0.5       readr_1.4.0       tidyr_1.1.3       tibble_3.1.0
[21] tidyverse_1.3.0   here_1.0.1        ggcorrplot_0.1.3  corrr_0.4.3
[25] factoextra_1.0.7  ggplot2_3.3.3     purrr_0.3.4       ggthemes_4.2.4
[29] maps_3.3.0        knitr_1.31        workflowr_1.6.2

loaded via a namespace (and not attached):
  [1] colorspace_2.0-0            ellipsis_0.3.1
  [3] rprojroot_2.0.2             circlize_0.4.12
  [5] XVector_0.30.0              GenomicRanges_1.42.0
  [7] GlobalOptions_0.1.2         fs_1.5.0
  [9] rstudioapi_0.13             farver_2.1.0
 [11] ggrepel_0.9.1               fansi_0.4.2
 [13] xml2_1.3.2                  codetools_0.2-18
 [15] splines_4.0.4               doParallel_1.0.16
 [17] jsonlite_1.7.2              Rsamtools_2.6.0
 [19] broom_0.7.5                 dbplyr_2.1.0
 [21] compiler_4.0.4              httr_1.4.2
 [23] backports_1.2.1             assertthat_0.2.1
 [25] lazyeval_0.2.2              cli_2.3.1
 [27] later_1.1.0.1               htmltools_0.5.1.1
 [29] tools_4.0.4                 GenomeInfoDbData_1.2.4
 [31] gtable_0.3.0                glue_1.4.2
 [33] reshape2_1.4.4              Rcpp_1.0.6
 [35] Biobase_2.50.0              cellranger_1.1.0
 [37] Biostrings_2.58.0           vctrs_0.3.6
 [39] svglite_2.0.0               rtracklayer_1.50.0
 [41] iterators_1.0.13            xfun_0.22
 [43] rvest_1.0.0                 lifecycle_1.0.0
 [45] XML_3.99-0.6                zlibbioc_1.36.0
 [47] scales_1.1.1                MatrixGenerics_1.2.1
 [49] hms_1.0.0                   promises_1.2.0.1
 [51] SummarizedExperiment_1.20.0 parallel_4.0.4
 [53] RColorBrewer_1.1-2          yaml_2.2.1
 [55] gridExtra_2.3               stringi_1.5.3
 [57] highr_0.8                   unbalhaar_2.0
 [59] S4Vectors_0.28.1            foreach_1.5.1
 [61] BiocGenerics_0.36.1         BiocParallel_1.24.1
 [63] shape_1.4.5                 GenomeInfoDb_1.26.7
 [65] matrixStats_0.58.0          rlang_0.4.10
 [67] pkgconfig_2.0.3             systemfonts_1.0.1
 [69] bitops_1.0-6                evaluate_0.14
 [71] lattice_0.20-41             labeling_0.4.2
 [73] GenomicAlignments_1.26.0    htmlwidgets_1.5.3
 [75] tidyselect_1.1.0            plyr_1.8.6
 [77] magrittr_2.0.1              R6_2.5.0
 [79] IRanges_2.24.1              generics_0.1.0
 [81] DelayedArray_0.16.3         DBI_1.1.1
 [83] pillar_1.5.1                haven_2.3.1
 [85] whisker_0.4                 withr_2.4.1
 [87] RCurl_1.98-1.3              modelr_0.1.8
 [89] crayon_1.4.1                utf8_1.2.1
 [91] plotly_4.9.3                rmarkdown_2.7
 [93] grid_4.0.4                  readxl_1.3.1
 [95] data.table_1.14.0           git2r_0.28.0
 [97] reprex_1.0.0                digest_0.6.27
 [99] webshot_0.5.2               httpuv_1.5.5
[101] stats4_4.0.4                munsell_0.5.0
