This figure is one stacked panel – seven wide rows, one per T cell lineage – produced by script/FigureS4.R, which assembles the rows itself, so the figure on disk is always the one the script last drew. It is the per-cluster, all-GP counterpart of Fig. 3b, which shows six hand-picked lineage-defining GPs grouped by lineage: here every GP that marks a sub-lineage cluster is shown, and cells are grouped by cluster within each lineage. The GPs are selected from the cluster AUCs published as Extended Data Table 6, and script/verify_structure_plot_gps.R re-derives every row’s GP set from that published table, failing if it disagrees with the figure or with the caption below. The code is shown for reference (not re-executed on this page, since it loads the full cell-by-GP loading matrix); the image is its pre-rendered output.

Setup

library(ggplot2)
library(ggrastr)
library(cowplot)
library(fastTopics) # structure_plot()

if (!file.exists("code/R/structure_plot_panels.R")) {
  stop("Run this script from the immgenT-GP-analysis repository root.")
}
source("code/R/structure_plot_panels.R")

data_path <- "data/"
figure_path <- "figures/final-selected/Figure S4/"
record_path <- "output/FigureS4/"
dir.create(figure_path, recursive = TRUE, showWarnings = FALSE)
dir.create(record_path, recursive = TRUE, showWarnings = FALSE)

# Record when this run started, to assert at the end that the figure is newer.
run_started_at <- Sys.time()

Row definitions and GP selection

The row map, the AUC threshold, the display filters and the assembled geometry live in code/R/structure_plot_panels.R, which the verification script reads as well, so the figure and the check cannot disagree about what is shown:

# Row letter per lineage, in stacking order -- the level-1 lineage order of
# Figure 1D and Figure 3, with thymocytes and DP cells excluded as they are
# there. The letters are the panel labels cowplot::plot_grid() draws on the
# assembled figure. Both consumers iterate over the names of this map, so a
# lineage cannot be drawn, or checked, under another lineage's letter.
structure_plot_panels <- c(
  "CD8" = "a",
  "CD4" = "b",
  "Treg" = "c",
  "gdT" = "d",
  "CD8aa" = "e",
  "Tz" = "f",
  "DN" = "g"
)

# A GP is shown in a lineage's panel when its one-vs-rest AUC for predicting
# membership in at least one of that lineage's annotation_level2 clusters
# exceeds this threshold. Those AUCs are the values published as Extended Data
# Table 6 -- script/ExtendedDataTable6_GP_AUC_cluster.R reads the same file --
# which is what makes the two checkable against each other.
structure_plot_auc_threshold <- 0.9

# Display filters. These apply to the plotted cells only, never to the
# AUC-based GP selection above, which always uses every cluster of the lineage.
structure_plot_min_cluster_cells <- 100      # smaller clusters are not drawn
structure_plot_max_cells_per_cluster <- 2000 # larger clusters are subsampled

# Assembled geometry: each row is drawn wide and short, and the seven are
# stacked into one figure. A row carries up to 21 cluster blocks and their
# labels, so it needs the width; the height then follows from keeping seven
# rows on one page.
structure_plot_width <- 16     # inches, the whole figure
structure_plot_row_height <- 3 # inches per lineage row
# ============================================================
# GP selection
# ============================================================
# Which lineage each cluster belongs to, from the metadata.
cluster_lineage <- cluster_lineage_map(level2_all, level1_all)

auc_clusters <- rownames(auc_level2)
prefix_lineage <- sub("[.].*$", "", auc_clusters)
if (!identical(unname(cluster_lineage[auc_clusters]), prefix_lineage)) {
  disagree <- auc_clusters[unname(cluster_lineage[auc_clusters]) != prefix_lineage]
  stop(sprintf(
    "cluster name prefixes disagree with annotation_level1 for: %s",
    paste(disagree, collapse = ", ")
  ))
}

# One GP set per row. Each row's palette is then assigned inside the loop
# below, independently of the other rows -- see structure_plot_row_colors().
panel_gps <- gps_above_auc_by_lineage(auc_level2, cluster_lineage)

message(sprintf(
  "%d GPs over %d rows (AUC > %.1f): %s",
  length(unique(unlist(panel_gps, use.names = FALSE))), length(panel_gps),
  structure_plot_auc_threshold,
  paste(sprintf("%s %d", names(panel_gps), lengths(panel_gps)), collapse = ", ")
))

(a-g) Cluster-level GP membership by lineage

# ============================================================
# s4: per-lineage rows, stacked into one figure
# ============================================================
# The loop iterates over the names of the row map, so a lineage cannot be drawn
# under another lineage's letter. Each row is kept as a ggplot and the rows are
# assembled below, rather than saved one file per lineage.
lineage_plots <- list()
cluster_records <- list()
gp_records <- list()

for (lineage in names(structure_plot_panels)) {
  panel <- structure_plot_panels[[lineage]]
  gps_lineage <- panel_gps[[lineage]]

  lineage_cells <- healthy_non_thymocyte[level1_all[healthy_non_thymocyte] == lineage]
  cluster_size <- table(droplevels(factor(level2_all[lineage_cells])))
  small_clusters <- names(cluster_size)[cluster_size < structure_plot_min_cluster_cells]
  lineage_cells <- lineage_cells[!level2_all[lineage_cells] %in% small_clusters]

  # Cap each cluster's width so one large cluster cannot crowd out the rest.
  set.seed(1234)
  keep <- unlist(lapply(
    split(seq_along(lineage_cells), level2_all[lineage_cells]),
    function(idx) {
      if (length(idx) > structure_plot_max_cells_per_cluster) {
        sample(idx, structure_plot_max_cells_per_cluster)
      } else {
        idx
      }
    }
  ))
  lineage_cells <- lineage_cells[keep]

  fit_lineage <- L_pm_filtered[lineage_cells, gps_lineage, drop = FALSE]
  grouping_lineage <- factor(level2_all[lineage_cells])

  # This row's colors, assigned from the top of the palette without reference to
  # any other row. structure_plot_row_colors() returns them in ascending GP
  # order, which is the column order here.
  colors_lineage <- structure_plot_row_colors(gps_lineage)
  if (!identical(names(colors_lineage), colnames(fit_lineage))) {
    stop(sprintf("panel %s: palette order does not match its GP columns.", panel))
  }

  set.seed(1234)
  p <- structure_plot(
    fit_lineage,
    topics = gps_lineage,
    gap = 40,
    n = 10000,
    colors = colors_lineage,
    grouping = grouping_lineage,
    ggplot_call = rasterized_structure_plot_call
  ) +
    labs(
      y = "membership",
      color = "",
      fill = "",
      title = sprintf(
        "%s (%d GPs, AUC > %.1f)",
        lineage,
        length(gps_lineage),
        structure_plot_auc_threshold
      )
    ) +
    guides(
      fill = guide_legend(ncol = 2),
      color = guide_legend(ncol = 2)
    ) +
    theme(
      plot.title = element_text(size = 11, face = "bold"),
      axis.text.x = element_text(size = 6, angle = 45, hjust = 1),
      axis.text.y = element_text(size = 9),
      axis.title = element_text(size = 10, face = "bold"),
      legend.position = "right",
      legend.key.size = unit(0.25, "cm"),
      legend.text = element_text(size = 5),
      legend.spacing.y = unit(0.02, "cm")
    )

  lineage_plots[[lineage]] <- p

  # What this row used, for the alignment check. Every cluster of the lineage
  # is listed, drawn or not: the GP selection above uses all of them.
  lineage_clusters <- sort(auc_clusters[prefix_lineage == lineage])
  drawn_size <- table(droplevels(factor(level2_all[lineage_cells])))
  cluster_records[[lineage]] <- data.frame(
    panel = panel,
    lineage = lineage,
    cluster = lineage_clusters,
    n_cells_healthy = as.integer(cluster_size[lineage_clusters]),
    n_cells_drawn = as.integer(ifelse(
      lineage_clusters %in% names(drawn_size),
      drawn_size[lineage_clusters],
      0L
    )),
    stringsAsFactors = FALSE
  )
  gp_records[[lineage]] <- data.frame(
    panel = panel,
    lineage = lineage,
    gp = gps_lineage,
    color = unname(colors_lineage),
    max_auc_in_lineage = unname(apply(
      auc_level2[lineage_clusters, gps_lineage, drop = FALSE], 2,
      max, na.rm = TRUE
    )),
    stringsAsFactors = FALSE
  )
}

# Rows are stacked in the map's order and labelled a-g. align = "v" equalises
# everything outside the plotting panel -- y-axis labels and the per-row legends,
# which differ in width because the rows show 9 to 44 GPs -- so the cluster
# blocks line up down the figure instead of each row starting at its own x.
p_s4 <- cowplot::plot_grid(
  plotlist = lineage_plots[names(structure_plot_panels)],
  nrow = length(structure_plot_panels),
  align = "v",
  labels = "auto",
  label_size = 14
)
ggsave(
  filename = paste0(figure_path, "s4.pdf"),
  plot = p_s4,
  width = structure_plot_width,
  height = structure_plot_row_height * length(structure_plot_panels),
  dpi = 300,
  limitsize = FALSE
)

Version Author Date
5874416 Ziang Zhang 2026-09-10

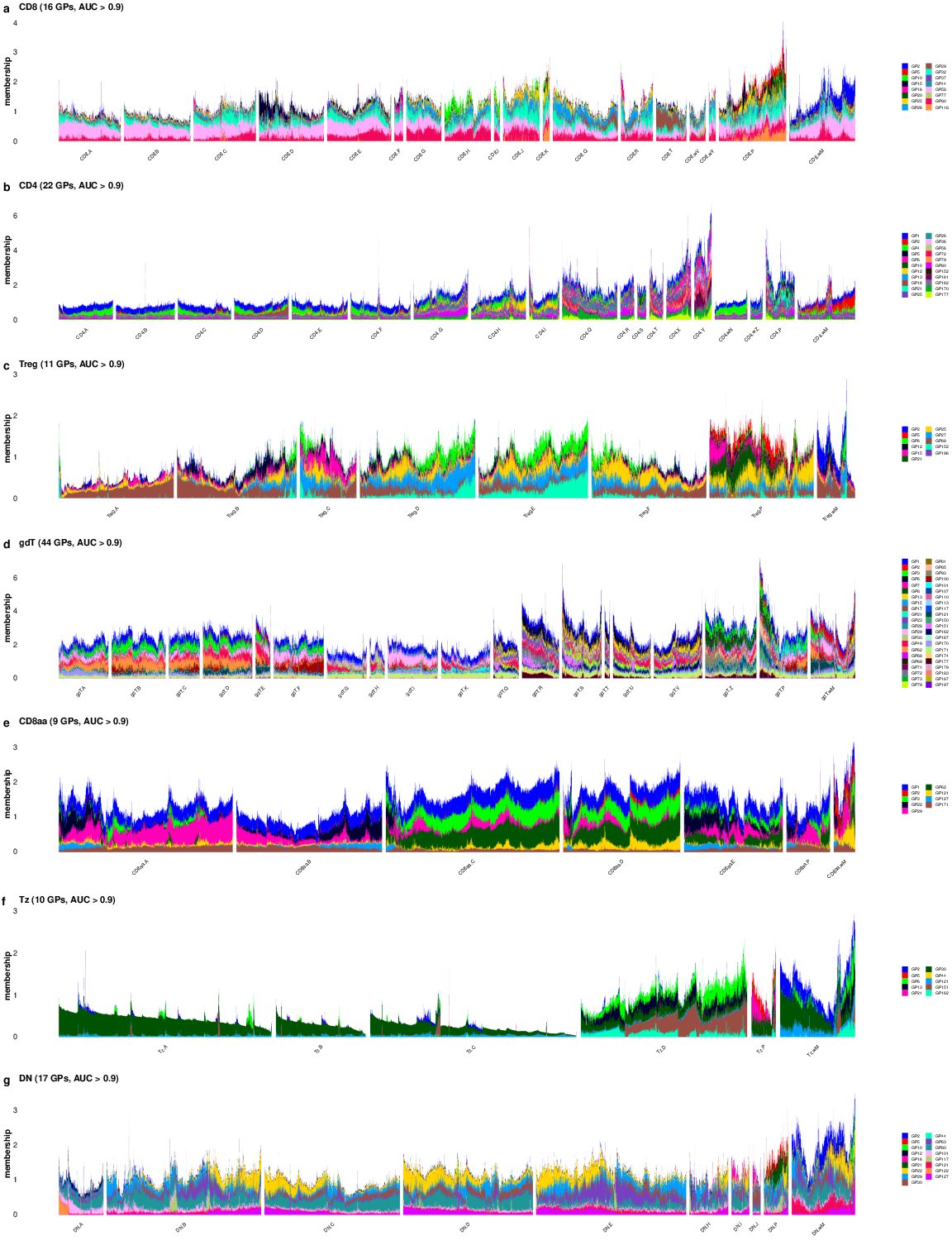

Extended Data Fig. 4a-g. Structure plots showing single-cell GP activity across major clusters of baseline non-thymocyte (a) CD8, (b) CD4, (c) Treg, (d) gdT, (e) CD8aa, (f) Tz, and (g) DN cells, focusing on GPs with cluster-specific AUC > 0.9.

Record of what the rows drew

The GP sets, the palette, and the clusters each row drew or omitted are written out alongside the figure, which is what script/verify_structure_plot_gps.R compares against Extended Data Table 6 and against the caption above:

# ============================================================
# What each panel drew, for the alignment check
# ============================================================
cluster_record <- do.call(rbind, cluster_records)
cluster_record$n_cells_healthy[is.na(cluster_record$n_cells_healthy)] <- 0L
write.csv(
  cluster_record,
  paste0(record_path, "s4_panel_clusters.csv"),
  row.names = FALSE
)
write.csv(
  do.call(rbind, gp_records),
  paste0(record_path, "s4_panel_gps.csv"),
  row.names = FALSE
)

sessionInfo()
R version 4.5.1 (2025-06-13)
Platform: aarch64-apple-darwin20
Running under: macOS Sequoia 15.6.1

Matrix products: default
BLAS:   /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vecLib.framework/Versions/A/libBLAS.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/4.5-arm64/Resources/lib/libRlapack.dylib;  LAPACK version 3.12.1

locale:
[1] en_CA/en_CA/en_CA/C/en_CA/en_CA

time zone: America/Chicago
tzcode source: internal

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

loaded via a namespace (and not attached):
 [1] vctrs_0.7.3     cli_3.6.6       knitr_1.50      rlang_1.2.0
 [5] xfun_0.55       stringi_1.8.9   otel_0.2.0      promises_1.5.0
 [9] jsonlite_2.0.0  workflowr_1.7.2 glue_1.8.1      rprojroot_2.1.1
[13] git2r_0.36.2    htmltools_0.5.9 httpuv_1.6.16   sass_0.4.10
[17] rmarkdown_2.30  evaluate_1.0.5  jquerylib_0.1.4 tibble_3.3.0
[21] fastmap_1.2.0   yaml_2.3.12     lifecycle_1.0.5 whisker_0.4.1
[25] stringr_1.6.0   compiler_4.5.1  fs_1.6.6        Rcpp_1.1.1-1.1
[29] pkgconfig_2.0.3 later_1.4.4     digest_0.6.39   R6_2.6.1
[33] pillar_1.11.1   magrittr_2.0.5  bslib_0.9.0     tools_4.5.1
[37] cachem_1.1.0
