Both panels are produced by script/FigureS5.R. They show the same 32 GPs – every program the manuscript calls tissue-associated – first across the 18 tissues and then across the 8 T cell lineages, so that a program’s tissue distribution can be read against its lineage distribution on the same rows. The analysis uses healthy non-thymocyte cells (condition_broad == "healthy" and annotation_level1 != "thymocyte"). For each GP, its mean loading across the groups shown is subtracted from every group mean, so a row says where a program is more or less active than its own average rather than how large its loading is. It is the tissue counterpart of Extended Data Figure 3, which shows all 200 GPs across the level-2 clusters, and it puts the tissue-associated programs behind Figure 5’s AUC analysis on a single pair of axes.

Setup and the 32 tissue-associated GPs

The rows are the union of the two criteria by which a GP is called tissue-associated:

  • activity – its raw (uncentered) mean loading reaches 0.1 in at least one of the 18 tissues. 31 of the 200 GPs pass. This is a threshold on average activity, so a program carried by a small number of cells fails it.
  • discrimination – its one-vs-rest tissue AUC exceeds 0.9, under the same positivity mask Figure 5 uses (mean loading in the tissue above the GP’s overall mean) and with tissues under 100 cells dropped. Seven GPs pass; these are the seven Figure 5 highlights throughout.

Six GPs satisfy both, so 32 are shown. GP37 is the only one selected by discrimination alone: its mammary-gland AUC is 0.9918, but it is active in 2.5% of mammary gland cells, which dilutes its mean loading there to 0.011 – so its row is near-white in both panels by construction. The AUC criterion is re-derived here and checked against the GP list in script/Figure5.R, and the union is checked against a literal list, so a change in the loadings, the AUCs, the cell filter or either cutoff fails the run rather than quietly redrawing a different figure:

# Figure S5. The tissue-associated GPs, across tissues and across lineages.
#
# Panels produced (see analysis/FigureS5.Rmd for the caption text):

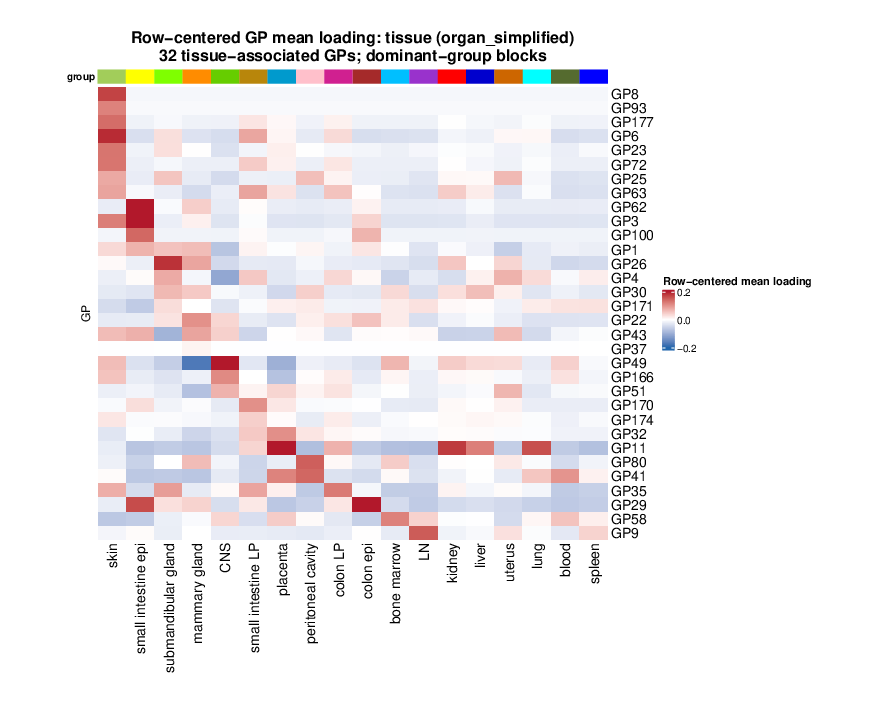

#   s5a  Row-centered mean GP activity across the 18 tissues, restricted to the
#        32 tissue-associated GPs. Blue-white-red scale.

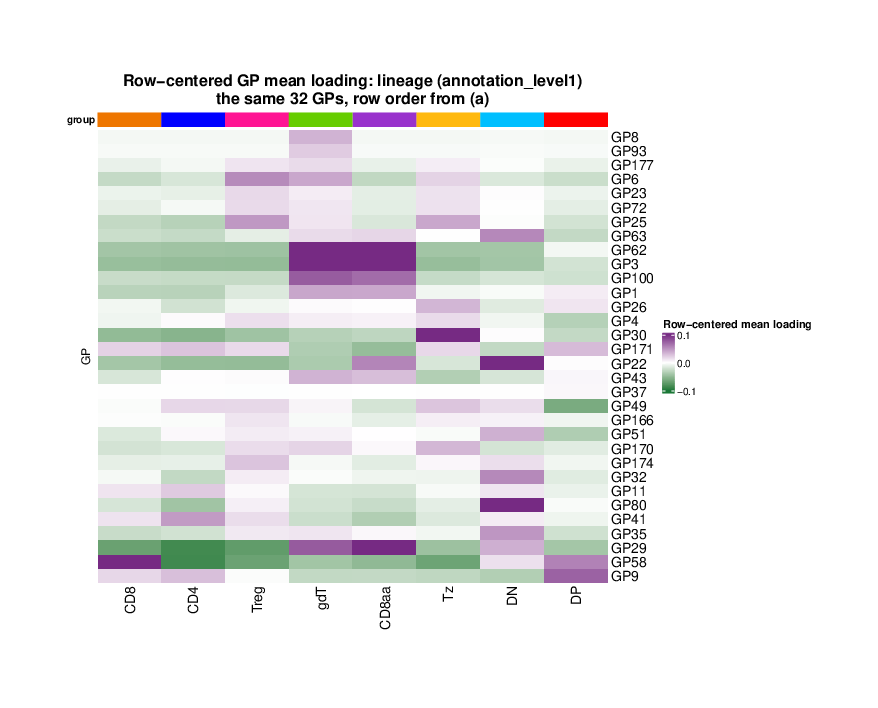

#   s5b  The same 32 GPs in the same row order, but across the 8 T cell
#        lineages. Green-white-purple scale (purple positive), so the two halves
#        of the figure cannot be mistaken for each other.
#
#
# The rows are the union of the two tissue-associated GP sets the manuscript
# names -- see "GP selection" below. The panels then show, per GP, how that
# activity is distributed, by subtracting the GP's mean across the groups
# shown from every group mean. Each panel's centered color scale is fixed:
# [-0.2, 0.2] for (a), matching the retired 200-GP tissue heatmap it comes from,
# and the tighter [-0.1, 0.1] for (b), because spreading a program over eight
# lineages instead of eighteen tissues gives much smaller deviations and (a)'s
# scale renders the lineage panel almost blank. Values outside each range
# saturate at the endpoint colors: 0.9% of (a)'s cells and 3.6% of (b)'s.
#
# Required inputs (data/) -- see code/README.md's "Data provenance" table
# for the full picture:
#   L_pm_filtered.rds                        [code/pipeline/01b_filter_cells.R]
#   igt1_96_..._ADTonly.Rds                  [primary input Seurat object]
#   organ_simplified_AUC_list_figure_no_thymocytes_healthy.rds
#                                            [code/pipeline/02_compute_auc.R]

suppressPackageStartupMessages({
  library(ComplexHeatmap)
  library(circlize)
  library(grid)
  library(ZemmourLib)
})

if (!file.exists("code/R/setup_data.R")) {
  stop("Run this script from the immgenT-GP-analysis repository root.")
}

source("code/R/setup_data.R")
source("code/R/centered_mean_heatmap.R")

figure_path <- "figures/final-selected/Figure S5"
dir.create(figure_path, recursive = TRUE, showWarnings = FALSE)
run_started_at <- Sys.time()

# ============================================================
# Setup: the healthy non-thymocyte tissue and lineage mean matrices
# ============================================================
gp_data <- load_gp_data()
reference <- healthy_nonthymocyte_reference(gp_data)
L_reference <- reference$L
meta_reference <- reference$meta

organ_color_limit <- 0.2
level1_color_limit <- 0.1
level1_order <- c("CD8", "CD4", "Treg", "gdT", "CD8aa", "Tz", "DN", "DP")

organ_raw <- mean_loading_by_group(L_reference, meta_reference$organ_simplified)$matrix
level1_raw <- mean_loading_by_group(L_reference, meta_reference$annotation_level1)$matrix

# ============================================================
# GP selection: the union of the two tissue-associated GP sets
# ============================================================
# The manuscript names two, by different criteria, and this figure shows both:
#
#   A  "31 programs active across tissues" -- raw (uncentered) mean loading
#      reaches 0.1 in at least one of the 18 tissues. The filter from
#      experiments/healthy_nonthymus_mean_loading_heatmaps/. It is a threshold
#      on *average* activity, so a program carried by a few cells fails it.
#   B  "Seven GPs were strongly tissue-associated (AUC > 0.9)" -- Figure 5's
#      rule: one-vs-rest tissue AUC above 0.9 under Figure 5's positivity mask
#      (mean loading in the tissue above the GP's overall mean), with tissues
#      under 100 cells dropped.
#
# Six GPs satisfy both, so the union is 32. GP37 is the only member of B alone:
# its mammary-gland AUC is 0.9918, but it is active in 2.5% of mammary gland
# cells, which dilutes its mean loading there to 0.011 -- an order of magnitude
# under rule A's cutoff. Its row is therefore near-white in (a) by construction.
#
# Rule B is re-derived here rather than retyped, and checked against the literal
# `gps_of_interest` in script/Figure5.R, so the two figures cannot disagree
# about which GPs are the strongly tissue-associated ones. The union is checked
# against a literal list as well, so a change in the loadings, the AUCs, the
# cell filter or either cutoff fails here instead of quietly redrawing a
# different figure.
raw_mean_cutoff <- 0.1
auc_cutoff <- 0.9
min_tissue_cells <- 100L

# --- A: mean activity ---
tissue_active <- rowSums(organ_raw >= raw_mean_cutoff) > 0L

# --- B: tissue discrimination, on Figure 5's terms ---
organ_auc <- readRDS(paste0(
  "data/", "organ_simplified_AUC_list_figure_no_thymocytes_healthy.rds"
))$auc
colnames(organ_auc) <- paste0("GP", seq_len(ncol(organ_auc)))
tissue_counts <- table(meta_reference$organ_simplified)
large_tissues <- setdiff(
  rownames(organ_auc), names(tissue_counts[tissue_counts < min_tissue_cells])
)
organ_auc <- organ_auc[large_tissues, , drop = FALSE]

overall_mean <- colMeans(L_reference, na.rm = TRUE)
tissue_mean <- t(vapply(
  large_tissues,
  function(tissue) {
    colMeans(L_reference[meta_reference$organ_simplified == tissue, , drop = FALSE], na.rm = TRUE)
  },
  numeric(ncol(L_reference))
))
positive_mask <- sweep(tissue_mean, 2L, overall_mean, "-") > 0
tissue_specific <- colSums((organ_auc > auc_cutoff) & positive_mask) > 0L
tissue_specific <- rownames(organ_raw) %in% colnames(organ_auc)[tissue_specific]

# Figure 5 highlights these seven throughout; rule B must reproduce exactly them.
figure5_gps_of_interest <- local({
  lines <- readLines("script/Figure5.R", warn = FALSE)
  hit <- grep("^gps_of_interest <- ", lines, value = TRUE)
  if (length(hit) != 1L) {
    stop("gps_of_interest is not assigned exactly once in script/Figure5.R")
  }
  eval(parse(text = sub("^gps_of_interest <- ", "", hit)))
})
stopifnot(setequal(rownames(organ_raw)[tissue_specific], figure5_gps_of_interest))

selected <- tissue_active | tissue_specific
selected_gps <- rownames(organ_raw)[selected]

expected_gps <- paste0("GP", c(
  1, 3, 4, 6, 8, 9, 11, 22, 23, 25, 26, 29, 30, 32, 35, 37, 41, 43, 49, 51, 58,
  62, 63, 72, 80, 93, 100, 166, 170, 171, 174, 177
))
stopifnot(
  sum(tissue_active) == 31L,
  sum(tissue_specific) == 7L,
  length(expected_gps) == 32L,
  identical(selected_gps, expected_gps)
)

organ_selected_raw <- organ_raw[selected, , drop = FALSE]
level1_selected_raw <- level1_raw[selected, , drop = FALSE]
organ_centered <- center_by_gp_mean(organ_selected_raw)
level1_centered <- center_by_gp_mean(level1_selected_raw)

# ============================================================
# Ordering: (a) sets the row order, (b) reuses it
# ============================================================
# Recomputing the dominant-group order on the 32-row submatrix (rather than
# inheriting the retired 200-GP order) is what makes the tissue columns reflect
# the GPs actually on display. Panel (b) then keeps (a)'s row order, so a GP sits
# on the same line in both halves and can be read across; its columns are
# Figure 1's lineage order rather than a dominant-group order.
organ_order <- dominant_group_order(organ_selected_raw)

level1_groups <- colnames(level1_centered)
if (!setequal(level1_groups, level1_order)) {
  stop("The observed lineages do not match the Figure 1 level1 order.")
}
level1_column_order <- order(match(level1_groups, level1_order))
level1_row_order <- match(
  rownames(organ_centered)[organ_order$row_order],
  rownames(level1_centered)
)

stopifnot(
  nrow(organ_centered) == 32L,
  nrow(level1_centered) == 32L,
  ncol(organ_centered) == 18L,
  ncol(level1_centered) == 8L,
  identical(rownames(organ_centered), rownames(level1_centered)),
  max(abs(rowMeans(organ_centered))) < 1e-12,
  max(abs(rowMeans(level1_centered))) < 1e-12
)

organ_palette <- palette_for_groups(
  colnames(organ_centered),
  ZemmourLib::immgent_colors$organ_simplified,
  "organ_simplified"
)
level1_palette <- palette_for_groups(
  colnames(level1_centered),
  ZemmourLib::immgent_colors$level1,
  "annotation_level1"
)

(a) Tissue mean loading

# ============================================================
# s5a: the 31 tissue-active GPs across the 18 tissues
# ============================================================
render_centered_heatmap(
  organ_centered,
  organ_palette,
  "tissue (organ_simplified)",
  file.path(figure_path, "s5a.pdf"),
  organ_order$row_order,
  organ_order$column_order,
  organ_color_limit,
  "32 tissue-associated GPs; dominant-group blocks",
  palette = heatmap_palettes$blue_red
)

Version Author Date
9fab2f6 Ziang Zhang 2026-09-09
c233cd8 Ziang Zhang 2026-09-09

Extended Data Fig. 5a. Row-centered mean GP activity across 18 tissues, for the 32 tissue-associated GPs. Mean GP activity computed in samples at baseline.

(b) Lineage mean loading

# ============================================================
# s5b: the same 31 GPs across the 8 lineages
# ============================================================
render_centered_heatmap(
  level1_centered,
  level1_palette,
  "lineage (annotation_level1)",
  file.path(figure_path, "s5b.pdf"),
  level1_row_order,
  level1_column_order,
  level1_color_limit,
  "the same 32 GPs, row order from (a)",
  palette = heatmap_palettes$green_purple
)

Version Author Date
9fab2f6 Ziang Zhang 2026-09-09
5be33df Ziang Zhang 2026-09-09
c233cd8 Ziang Zhang 2026-09-09

Extended Data Fig. 5b. The same 32 GPs across the 8 T cell lineages, in the row order of (a). Mean GP activity computed in samples at baseline. Note the different color scale: green-purple rather than blue-red, and -0.1 to 0.1 rather than -0.2 to 0.2, since spreading a program over 8 lineages instead of 18 tissues gives correspondingly smaller deviations.

What the panels drew

The 32 GPs, which criterion selected each, their dominant tissue and lineage, and their row position are written out alongside the figure:

# ============================================================
# What the panels drew
# ============================================================
record_dir <- "output/FigureS5"   # build intermediate (not a manuscript panel)
dir.create(record_dir, recursive = TRUE, showWarnings = FALSE)

write.csv(
  data.frame(
    GP = rownames(organ_centered),
    max_raw_tissue_mean = as.numeric(apply(organ_selected_raw, 1L, max)),
    dominant_tissue = colnames(organ_selected_raw)[max.col(organ_selected_raw, ties.method = "first")],
    dominant_lineage = colnames(level1_selected_raw)[max.col(level1_selected_raw, ties.method = "first")],
    max_masked_tissue_auc = as.numeric(apply(
      ifelse(positive_mask[, selected, drop = FALSE], organ_auc[, selected, drop = FALSE], NA_real_),
      2L, max, na.rm = TRUE
    )),
    rule = ifelse(
      tissue_active[selected] & tissue_specific[selected], "A+B",
      ifelse(tissue_active[selected], "A", "B")
    ),
    row_in_panel = match(rownames(organ_centered), rownames(organ_centered)[organ_order$row_order])
  ),
  file.path(record_dir, "s5_selected_gps.csv"),
  row.names = FALSE,
  quote = FALSE
)

write.csv(
  data.frame(
    panel = c("s5a", "s5b"),
    grouping = c("organ_simplified", "annotation_level1"),
    view = "row-centered mean loading of the 32 tissue-associated GPs",
    gp_count = c(nrow(organ_centered), nrow(level1_centered)),
    group_count = c(ncol(organ_centered), ncol(level1_centered)),
    selection = paste0("raw mean loading >= ", raw_mean_cutoff,
                       " in >= 1 tissue OR masked tissue AUC > ", auc_cutoff),
    centered_definition = "group mean minus mean across groups for each GP",
    palette = c("blue-white-red", "green-white-purple"),
    color_min = c(-organ_color_limit, -level1_color_limit),
    color_mid = 0,
    color_max = c(organ_color_limit, level1_color_limit),
    observed_min = c(min(organ_centered), min(level1_centered)),
    observed_max = c(max(organ_centered), max(level1_centered)),
    frac_saturated = c(mean(abs(organ_centered) > organ_color_limit),
                       mean(abs(level1_centered) > level1_color_limit))
  ),
  file.path(record_dir, "S5_summary.csv"),
  row.names = FALSE,
  quote = FALSE
)

# A panel that fails to write leaves the previous PDF in place and the script
# still exits 0, so check the files rather than the exit code.
expected_panels <- file.path(figure_path, c("s5a.pdf", "s5b.pdf"))
stale <- expected_panels[!file.exists(expected_panels) |
                           file.mtime(expected_panels) < run_started_at |
                           file.size(expected_panels) == 0]
if (length(stale) > 0L) {
  stop("These panels were not written by this run: ", paste(stale, collapse = ", "))
}

message("Wrote Figure S5 to ", normalizePath(figure_path))

sessionInfo()
R version 4.5.1 (2025-06-13)
Platform: aarch64-apple-darwin20
Running under: macOS Sequoia 15.6.1

Matrix products: default
BLAS:   /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vecLib.framework/Versions/A/libBLAS.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/4.5-arm64/Resources/lib/libRlapack.dylib;  LAPACK version 3.12.1

locale:
[1] en_CA/en_CA/en_CA/C/en_CA/en_CA

time zone: America/Chicago
tzcode source: internal

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

loaded via a namespace (and not attached):
 [1] vctrs_0.7.3     cli_3.6.6       knitr_1.50      rlang_1.2.0
 [5] xfun_0.55       stringi_1.8.9   otel_0.2.0      promises_1.5.0
 [9] jsonlite_2.0.0  workflowr_1.7.2 glue_1.8.1      rprojroot_2.1.1
[13] git2r_0.36.2    htmltools_0.5.9 httpuv_1.6.16   sass_0.4.10
[17] rmarkdown_2.30  evaluate_1.0.5  jquerylib_0.1.4 tibble_3.3.0
[21] fastmap_1.2.0   yaml_2.3.12     lifecycle_1.0.5 whisker_0.4.1
[25] stringr_1.6.0   compiler_4.5.1  fs_1.6.6        Rcpp_1.1.1-1.1
[29] pkgconfig_2.0.3 later_1.4.4     digest_0.6.39   R6_2.6.1
[33] pillar_1.11.1   magrittr_2.0.5  bslib_0.9.0     tools_4.5.1
[37] cachem_1.1.0
