Comparative genomics and ortholog genes with OrthoFinder

We wanted to compare the six genomes of Schistocerca to get insights on gene evolution and relationships regarding their numbers, content, function and location. In order to achieve this, we need to identify groups of orthologous genes among our species of interest, considering at least one outgroup.

Orthologs are genes from different species that originated from a single ancestral gene and evolved through speciation events. However since genes can be lost or duplicated during evolution, some genes may not have exactly one orthologue in the genome of another species. Here we will separate the 1:1 orthologs to the the concept of orthogroups. Orthogroups can contain 1:1 orthologs but also several several orthologs from different species, including paralogs and one-to-many orthologs. Paralogs are genes within the same species that have originated from a shared ancestral genes but have diverged over time following gene duplication events.

IMPORTANT
We used OrthoFinder to identify the orthogroups using amino acid sequences from the longest isoform of each gene. For this part, refers to the AMAZINGLY WELL CURATED pipeline FormicidaeMolecularEvolution by Megan Barkdull (PhD Student at Cornell University). We describe below the modifications made and mostly copied the workflow from her Github.

1. Downloading data

We created the file “input-XXX.txt” as described to automatically download the coding sequence, protein sequence, GFF annotation data for each of our six Schistocerca species and annotated outgroups. The outgroups were choosen as close phylogenetic species with a RefSeq genome showing 1) a chromosome length, 2) associated with an annotation, 3) large size and 4) hybrid techniques used for assembly (last NCBI search: 28 April 2024).

Our target species for this study:
* The desert locust Schistocerca gregaria
* The South American locust Schistocerca cancellata
* The Central American locust Schistocerca piceifrons
* The American grasshopper Schistocerca americana
* The bird grasshopper Schistocerca serialis cubense
* The vagrant locust Schistocerca nitens

Our outgroup species:
* The two-spotted cricket Gryllus bimaculatus. Reason: Orthoptera close relative available with chromosome length.
* The Long Cercus Field Cricket Gryllus longicercus. Reason: Orthoptera close relative available with chromosome length.
* The Pacific beetle cockroach Diploptera punctata. Reason: Orthoptera close relative available with chromosome length.
* The walking stick Timema podura. Reason: Polyneoptera close relative available with chromosome length. * The European stick insect Bacillus rossius redtenbacheri. Reason: Polyneoptera close relative available with chromosome length.
* The Lord Howe Island stick insect Dryococelus australis. Reason: Polyneoptera close relative available with chromosome length.
* The American cockroach Periplaneta americana. Reason: Polyneoptera close relative available with chromosome length.
* The drywood termite Cryptotermes secundus. Reason: Eusocial insect with caste determination phenotypic plasticity.
* The Western honey bee Apis mellifera. Reason: Model organsim and eusocial insect with caste determination phenotypic plasticity.
* The red fire ant Solenopsis invicta. Reason: Eusocial insect with caste determination phenotypic plasticity.
* The pea aphid Acyrthosiphon pisum. Reason: Insect with wing phenotypic plasticity in response to density and environment.
* The fruit fly Drosophila melanogaster. Reason: Model organism.

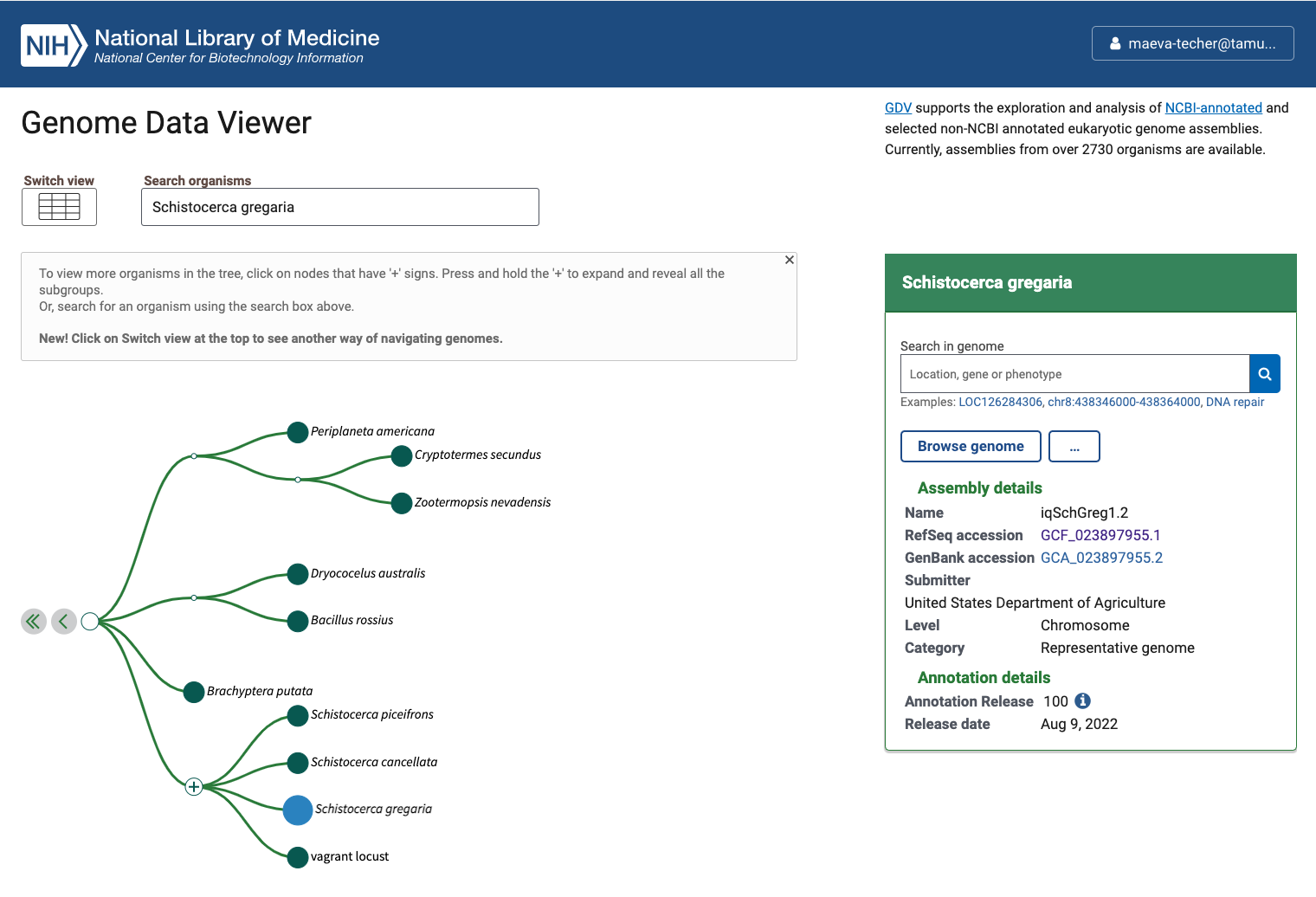

Status of Genome Data Viewer on NCBI for selecting our outgroups

NB: During our search, we identified very valuable genomes but for which no annotation was available (e.g., CAU_Lmig_1.0 for Locusta migratoria , iqMecThal1.2 Meconema thalassinum). However upon request to NCBI team, we were informed that the Locusta genome has not been annotated because of the presence of large bacterial contamination and Meconema does not possess RNA SRAs to help with the annotation.

Using the FTP NCBI link associated with each RefSeq, we created the input file.

./scripts/DataDownload ./scripts/inputurls_18polyneoptera_Nov2024.txt

On the TAMU Grace cluster, when you download do not run it on a node as it does not work. Run it from the login node or transfer the files already preloaded. This will creates a folder ./1_RawData with 3 files for each species.

In summary, below are the details of each RefSeq annotation that we will be using as input for OrthoFinder. It will be important to check that after steps 2-4, the number of protein coding genes OrthoFinder is similar to the initial input.

	Genomic Information of the genomes used as input for OrthoFinder
Species	Order	Status	Genome_Size	Annotated_Genes	Protein_Coding
Schistocerca gregaria	Orthoptera	Locust	8.7 Gb	99467	19799
Schistocerca cancellata	Orthoptera	Locust	8.5 Gb	103533	16907
Schistocerca piceifrons	Orthoptera	Locust	8.7 Gb	96806	17490
Schistocerca americana	Orthoptera	Grasshopper	9.0 Gb	81274	17662
Schistocerca serialis cubense	Orthoptera	Grasshopper	9.1 Gb	75810	17237
Schistocerca nitens	Orthoptera	Grasshopper	8.8 Gb	72560	17500
Gryllus bimaculatus	Orthoptera	Outgroup	1.7 Gb	17871	NA
Gryllus longicercus	Orthoptera	Outgroup	1.9 Gb	14831	NA
Diploptera punctata	Blattodea	Outgroup	1.0 Gb	15413	13170
Timema podura	Phasmatodea	Outgroup	1.1 Gb	16529	NA
Bacillus rossius redtenbacheri	Phasmatodea	Outgroup	1.6 Gb	19298	14448
Dryococelus australis	Phasmatodea	Outgroup	3.4 Gb	33793	NA
Periplaneta americana	Blattodea	Outgroup	3.1 Gb	28416	28414
Cryptotermes secundus	Blattodea	Outgroup	3.1 Gb	27047	NA
Apis mellifera	Hymenoptera	Outgroup	225.2 Mb	12398	9935
Solenopsis invicta	Hymenoptera	Outgroup	378.1 Mb	16996	14790
Acyrthosiphon pisum	Hemiptera	Outgroup	533.6 Mb	20307	17681
Drosophila melanogaster	Diptera	Outgroup	143.7 Mb	17872	13962

2. Selecting longest isoforms

Here again, we will follow the pipeline except that to run it on Grace cluster we will make small modifications. The idea is that we will use only the single longest isoform of each gene to ease the orthology analysis. While this might not always be the principal isoform of said gene, we will apply the same bias to all genes the same way.

To run R without bothering other users, we will claim one interactive node to make sure we can proactively update the package if there are some issues:

srun --ntasks 1 --cpus-per-task 4 --mem 10G --time 01:00:00 --pty bash

Then we will use any package preloaded on the cluster before needed to install our own on our user library if needed. We will need Pandoc for loading orthologr

ml GCC/12.2.0  OpenMPI/4.1.4 R_tamu/4.3.1
export R_LIBS=$SCRATCH/R_LIBS_USER/
ml Pandoc/2.13

We now simply run the script as indicated on the pipeline page:

./scripts/GeneRetrieval.R ./scripts/inputurls_18polyneoptera_Nov2024.txt

---

If the annotated genome is not done by RefSeq but submitted by users:
When downloading genomes from NCBI, we found a few interesting ones that were but annotated by users with a different format than NCBI Gnomon pipeline. For example on the image below (when you zoom in), we can see that the gene= field is present in RefSeq but is not in users submitted but could be created using ID= field.

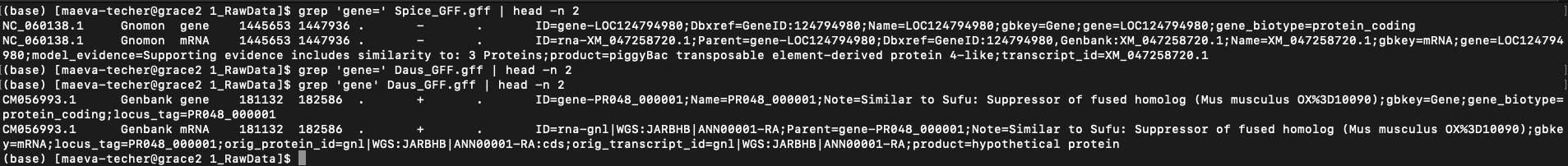

Example of difference in the presence of “gene” field between S. piceifrons and Dryococelus australis (3.4Gb).

To correct, I ran the following parsing code which append a new gene column based on locus_tag:

# we need to modify the GFF, proteins and genome/transcript fasta file
sed -i 's/locus_tag=/gene=/g' {SPECIES}_GFF.gff
sed -i 's/locus_tag=/gene=/g' {SPECIES}_proteins.faa
sed -i 's/locus_tag=/gene=/g' {SPECIES}_transcripts.fasta

# then we check
grep 'gene=' {SPECIES}_GFF.gff | head -n 10

We did it for Daus_GFF.gff, Dpunc_GFF.gff, Gbima_GFF.gff, Glong_GFF.gff, Pamer_GFF.gff and Tpodu_GFF.gff. Then instead of running the GeneRetrieval.R, we computed manually (to check if error) using the following R script:

library(orthologr)
library(tidyverse)
library(biomartr)
library(phylotools)
library(data.table)

# Define the species parameter
species <- "Gbima" # for example
#species <- "Glong"
#species <- "Daus"
#species <- "Dpunc"
#species <- "Pamer"
#species <- "Tpodu"

# Define file paths based on the species parameter
proteomeFile <- paste0("./1_RawData/", species, "_proteins.faa")
annotationFile <- paste0("./1_RawData/", species, "_GFF.gff")
longestIsoformsFile <- paste0("./2_LongestIsoforms/", species, "_longestIsoforms.fasta")
transcriptsFile <- paste0("./1_RawData/", species, "_transcripts.fasta")
filteredTranscriptsOutput <- paste0("./2_LongestIsoforms/", species, "_filteredTranscripts.fasta")


# Step 1: Retrieve the longest isoforms for Glong
retrieve_longest_isoforms(
  proteome_file = proteomeFile,
  annotation_file = annotationFile,
  new_file = longestIsoformsFile,
  annotation_format = "gff"
)

# Step 2: Load longest isoforms and transcript files
isoforms <- phylotools::read.fasta(longestIsoformsFile)
isoform_ids <- isoforms$seq.name  # Get IDs of longest isoforms
isoform_ids
transcripts <- phylotools::read.fasta(transcriptsFile)
head(transcripts$seq.name)

# Step 3: Adjust headers in transcripts to match core identifiers
transcripts$seq.name <- str_extract(transcripts$seq.name, "(?<=cds_)[^ ]+")  # Extract main identifier
transcripts$seq.name <- str_extract(transcripts$seq.name, "^[^_]+")  # Keep only core ID without suffix
transcripts$seq.name

# Step 4: Filter transcripts to keep only those matching isoform IDs
filtered_transcripts <- transcripts %>%
  filter(seq.name %in% isoform_ids)

# Step 5: Write the filtered transcripts to a new FASTA file with simplified headers
phylotools::dat2fasta(filtered_transcripts, outfile = filteredTranscriptsOutput)

message("Filtered transcripts for ", species, " saved to: ", filteredTranscriptsOutput)

---

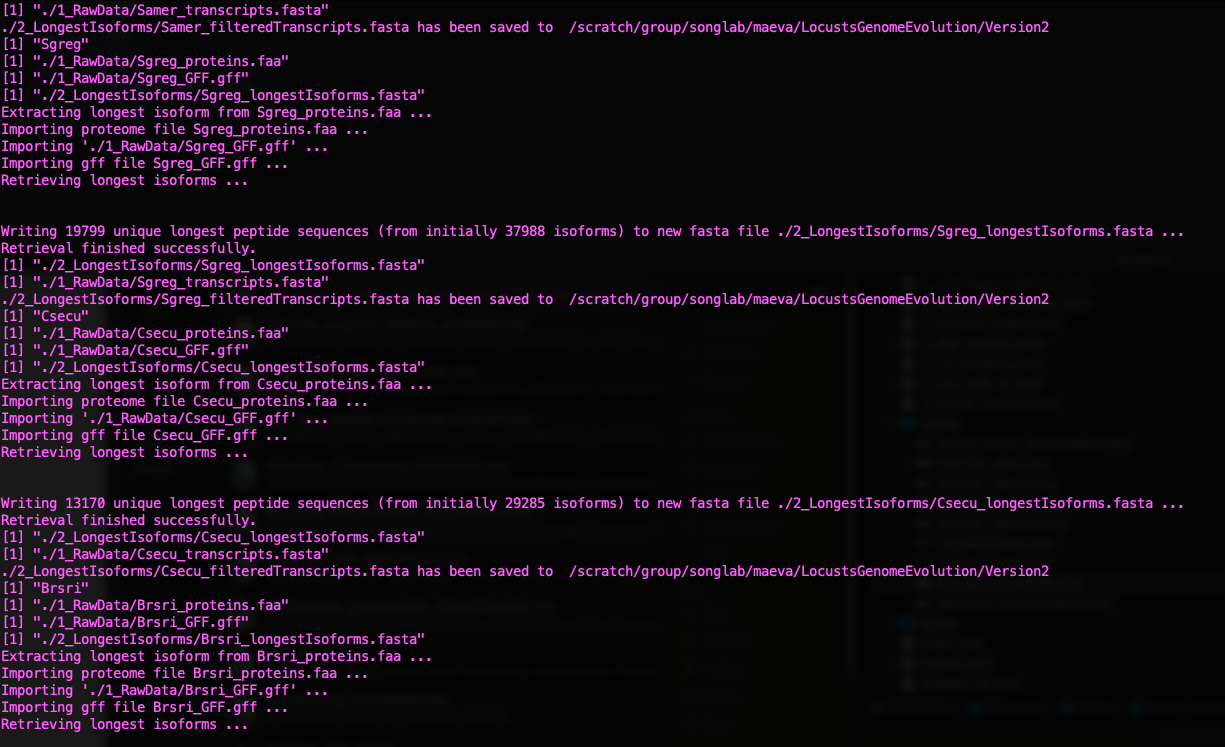

Status of Gene Retrieval script when successful

Longest isoforms kept for each genome following using orthologr
Species	Total_Peptides	Number_Kept_Isoforms
Schistocerca gregaria	37988	19799
Schistocerca cancellata	26362	16907
Schistocerca piceifrons	25717	17490
Schistocerca americana	26125	17662
Schistocerca serialis cubense	27654	17237
Schistocerca nitens	28445	17500
Gryllus bimaculatus	25032	17871
Gryllus longicercus	19656	14730
Diploptera punctata	28414	13170
Timema podura	16656	16493
Bacillus rossius redtenbacheri	29758	14448
Dryococelus australis	33111	33111
Periplaneta americana	27047	27047
Cryptotermes secundus	29285	13170
Apis mellifera	23471	9934
Solenopsis invicta	30910	14790
Acyrthosiphon pisum	27907	17678
Drosophila melanogaster	30802	13986

3. Cleaning the raw data

For the cleaning step of the mbarkdull’s pipeline we simply followed the command line with no modifications.

./scripts/DataCleaning ./scripts/inputurls_18polyneoptera_Nov2024.txt

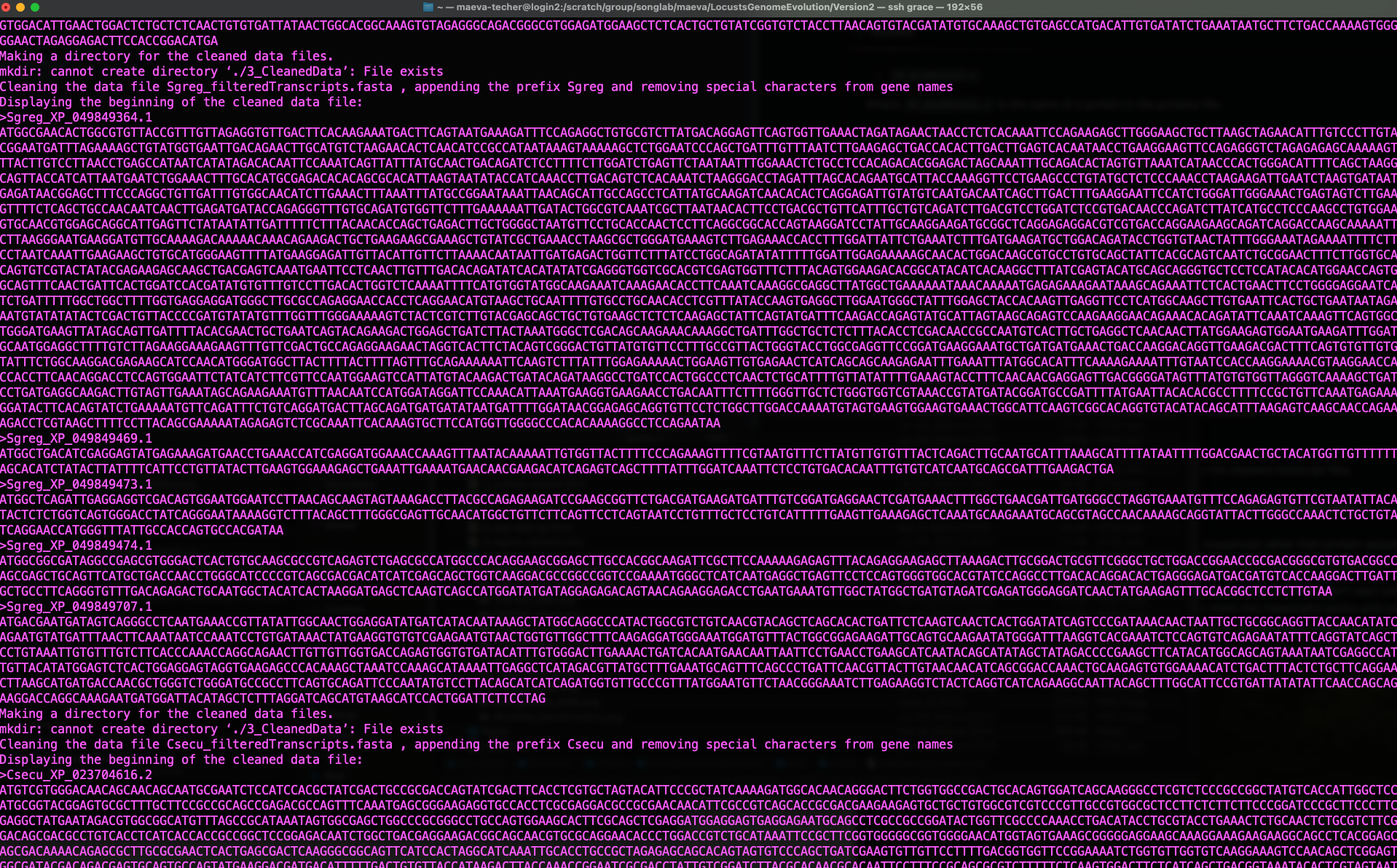

Status of Data Cleaning script when successful

4. Translating nucleotide sequences to amino acid sequences

This step does not seems to be really necessary because Orthofinder can immediately take the XXX_longestIsoforms.fasta files. We just run the scriptDataCleaningIsoforms_modif on it to rename and clean it.:

As mentioned in the pipeline page, we will mostly need to use amino acid sequences rather than protein and we need to translate the data we downloaded. We will be using the Python script from mbarkdull ./scripts/TranscriptFilesTranslateScript.py but before that we will modify our input file to only include only the 12 essential species.

We changed the script in head lines and lines 25-27, to call the module directly from the cluster as follow:

#!/bin/bash

##NECESSARY JOB SPECIFICATIONS
#SBATCH --job-name=Transdecoder         #Set the job name to "JobExample4"
#SBATCH --time=02:00:00         #Set the wall clock limit to 1hr and 30min
#SBATCH --ntasks=2              #Request 2 task
#SBATCH --cpus-per-task=4       #Request 8 task
#SBATCH --mem=20G              #Request 50GB per node

ml GCC/10.2.0 OpenMPI/4.0.5 TransDecoder/5.5.0 Biopython/1.78

   # Now we can run Transdecoder on the cleaned file:
    echo "First, attempting TransDecoder run on $cleanName"
    ml GCC/10.2.0 OpenMPI/4.0.5 TransDecoder/5.5.0
    TransDecoder.LongOrfs -t $cleanName
    TransDecoder.Predict -t $cleanName --single_best_only

and then we launched the script by changing the top lines to put in sbatch:

sbatch ./scripts/DataTranslating_modif ./scripts/inputurls_18polyneoptera_Nov2024.txt

5. Running Orthofinder

Now we will finally run Orthofinder to identify groups of orthologous genones in our translated amino acid sequences. We will also use MAFFT to produce multiple sequence alignment across our six species of Schistocerca and the outgroups.

Instead of using the ./scripts/DataOrthofinder from the pipeline, we will be running our own command line here. Before doing so, we did manually the creating of folders and moving of fasta files as follow:

  mkdir LocustsGenomeEvolution/tmp
  mkdir -p ./5_OrthoFinder/fasta
#  cp ./4_1_TranslatedData/OutputFiles/translated* ./5_OrthoFinder/fasta
  cp ./3_CleanedData/*longestIsoforms.fasta ./5_OrthoFinder/fasta
  cd ./5_OrthoFinder/fasta
#  rename translated '' translated*

  # Loop through files and rename them
for file in cleaned*_longestIsoforms.fasta; do
    # Remove "cleaned" and replace "_longestIsoforms" with "_filteredproteome"
    new_name=$(echo "$file" | sed 's/^cleaned//; s/_longestIsoforms/_filteredproteome/')
    mv "$file" "$new_name"
done
  cd ../

You can also rename them with a simple name like “S_americana.fasta”, this will help ease the visualization later on.

To run orthofinder onto our Grace cluster, I checked the compatibility of the modules required and these are the versions acceptable to run in sbatchorthofinder.sh:

#!/bin/bash

##NECESSARY JOB SPECIFICATIONS
#SBATCH --job-name=orthofinder-blast        #Set the job name to "JobExample4"
#SBATCH --time=2-00:00:00         #Set the wall clock limit to 1hr and 30min
#SBATCH --ntasks=1              #Request 1 task
#SBATCH --cpus-per-task=48       #Request 1 task
#SBATCH --mem=50G              #Request 100GB per node


module purge
ml iccifort/2019.5.281  impi/2018.5.288 OrthoFinder/2.3.11-Python-3.7.4
ml IQ-TREE/1.6.12 FastTree/2.1.11
ml MAFFT/7.453-with-extensions

proteome_dir="/scratch/group/songlab/maeva/LocustsGenomeEvolution/Version3/5_OrthoFinder/fasta"
temporary_dir="/scratch/group/songlab/maeva/LocustsGenomeEvolution/tmp"

# Check if directories exist
if [[ ! -d $proteome_dir ]]; then
    echo "Proteome directory $proteome_dir does not exist. Exiting."
    exit 1
fi

if [[ ! -d $temporary_dir ]]; then
    echo "Temporary directory $temporary_dir does not exist. Creating it now."
    mkdir -p $temporary_dir
fi

# Run OrthoFinder
orthofinder -S diamond \
            -T iqtree \
            -A mafft \
            -a 24 \
            -I 1.5 \
            -t 24 \
            -M msa \
            -f "$proteome_dir" \
            -p "$temporary_dir"

Here we use:
-S diamond DIAMOND as a sequence search program
-T iqtree IQTREE as a tree inference program
-A mafft MAFFT as the multiple sequence alignment (MSA) program
-I 1.5 MCL inflation parameter (default from the pipeline)
-t 32 number of threads

• If you expect tightly conserved orthogroups (e.g., highly conserved core genes), consider a higher inflation value (e.g., -I 2.0 or even -I 3.0). This will favor clusters with tighter connections, reducing the possibility of grouping genes that diverge functionally.

• If you’re studying functionally diverse or rapidly evolving gene families (e.g., gene families with species-specific expansions), a lower inflation value (e.g., -I 1.2 to -I 1.5) may help retain related genes in the same orthogroup, even if they have evolved to some degree.

We will run this analysis with also the -I 3 since we expect close relation among Orthoptera genes.

If we run orthofinder using BLAST as it can give -2% accuracy increase over DIAMOND but will be computationally more heavy. For this we will only change:

ml BLAST+/2.9.0
orthofinder -S blast

and we can run the script with the blast, iqtree and mafft options:

sbatch scripts/orthofinder_blast.sh

Now we are all done, we can explore the results and go on for the next steps.

6. Orthogroups to GeneID

At the end we obtain several folders, for which the content is extremely well explain by the software developer David Emms here.

Briefly, one of the important output in the folder Orthogroups is the actual Orthogroups.txt file. Although other files there are also important as we can use Orthogroups.GeneCount.tsv for CAFE5 later on, for example.

One of the issue with the pipeline we use is that, there will be some suffix in front of our protein coding, so we will remove that by using the following python code:

import re
import csv

# Define the input and output file names
input_file = 'Orthogroups.txt'
output_file = 'Orthogroups_reprocessed.txt'

# Read the input file
with open(input_file, 'r') as file:
    data = file.read()

# Remove all prefixes before any occurrence of "_XP", "_NP", and "_YP"
result = re.sub(r'\b\w+_(XP|NP|YP)', r'\1', data)

# Write the result to the output file
with open(output_file, 'w') as file:
    file.write(result)

print(f"Processed data has been written to {output_file}")

### for tsv instead

# Define the input and output file names
import re
import csv

# Define the input and output file names
input_file = 'Orthogroups.tsv'
output_file = 'Orthogroups_reprocessed.tsv'

# Open the input and output files
with open(input_file, 'r') as infile, open(output_file, 'w', newline='') as outfile:
    # Create CSV reader and writer for TSV
    reader = csv.reader(infile, delimiter='\t')
    writer = csv.writer(outfile, delimiter='\t')

    # Process each row
    for row in reader:
        # Modify each field in the row
        modified_row = [re.sub(r'\b\w+_(XP|NP|YP)', r'\1', field) for field in row]
        # Write the modified row to the output
        writer.writerow(modified_row)

print(f"Processed data has been written to {output_file}")

We used the python script protein2geneid_loop.py written by David to extract the protein_id from each gene_id and make a full table with all species. For this we need to run the script in the folder 1_RawData.

import os
import re

# Get the current working directory
gff_directory = os.getcwd()

# Create a directory to store the output files
output_directory = os.path.join(gff_directory, "output_files")
os.makedirs(output_directory, exist_ok=True)

# List GFF files with "_GFF.gff" extension
species_list = [filename for filename in os.listdir(gff_directory) if filename.endswith("_GFF.gff")]

# Process each species' GFF file
for species_filename in species_list:
    # Extract the species name from the file name
    species_name = re.sub(r"_GFF\.gff$", "", species_filename)

    # Construct input and output file paths
    input_path = os.path.join(gff_directory, species_filename)
    output_filename = f"xp{species_name}.gff"  # Remove the dot before species_name
    output_path = os.path.join(output_directory, output_filename)

    # Use 'grep' to filter lines containing "XP" and save to the output file
    grep_command = f'grep "XP" "{input_path}" > "{output_path}"'
    os.system(grep_command)

    # Print a message indicating the filtering process
    print(f"Filtered {species_filename} to {output_filename}")

    # Construct the output TSV file path
    tsv_output_filename = f'gffKey{species_name}.tsv'  # Remove the dot before species_name
    tsv_output_path = os.path.join(output_directory, tsv_output_filename)
    lol = {}

    # Read and process the contents of the GFF file
    with open(output_path) as gffFile:
        for line in gffFile:
            if re.search(r"product=[^;]+", line):
                gene_match = re.search(r"gene=[^;=]+", line)
                product_match = re.search(r"product=[^;]+", line)
                proteinID_match = re.search(r"protein_id=(.+)", line)

                if gene_match and product_match and proteinID_match:
                    gene = gene_match.group(0)
                    if gene.endswith('product'):
                        gene = gene[5:-7]
                    else:
                        gene = gene[5:]

                    product = product_match.group(0)
                    product = product.replace("product=", "")
                    product = product.rstrip()

                    proteinID = proteinID_match.group(1)

                    if proteinID not in lol.keys():
                        lol[proteinID] = [gene, product, species_name]  # Add species name

    # Write the processed data to the output TSV file
    with open(tsv_output_path, 'w') as output:
        for proID, lis in lol.items():
            output.writelines(proID + '\t' + lis[0] + '\t' + lis[1] + '\t' + lis[2] + '\n')  # Include species name

    # Print a message indicating the processing of the GFF file
    print(f"Processed {output_filename} to {tsv_output_filename}")

# Concatenate all final files into a single file
final_output_filename = "allspecies_protein2geneid.tsv"
final_output_path = os.path.join(output_directory, final_output_filename)

with open(final_output_path, 'w') as final_output:
    for species_filename in species_list:
        species_name = re.sub(r"_GFF\.gff$", "", species_filename)
        tsv_output_filename = f'gffKey{species_name}.tsv'  # Remove the dot before species_name
        tsv_output_path = os.path.join(output_directory, tsv_output_filename)

        with open(tsv_output_path, 'r') as species_output:
            final_output.write(species_output.read())

print(f"Concatenated all species files into {final_output_filename}")

Launch the script as python protein2geneid_loop.py.

Once we have obtained both files, we can join them with R and we will have a correspondence among orthogroups_id, protein_id, gene_id, gene description and species. I had to sort the processed file by hand with excel for the first 6 Orthogroups (too long line, cutting names).

NB: I noticed there are still some small issues with the file allspecies_protein2geneid.tsv so I fixed it by hand afterwards. NB2: We can either filter for Schistocerca only or we can also just run it on the Schistocerca only Orthofinder output (difference is -I 3 vs -I 1.5)

7. Orthofinder Results

Schistocerca only

library(cogeqc)
library(ggtree)
library(treeio)
library(dplyr)
library(ggplot2)

# Set the base directory for your Orthofinder results
ortho_dir <- "/Users/maevatecher/Documents/GitHub/locust-comparative-genomics/data/orthofinder/Schistocerca"

# Load the orthogroup file
orthogroups <- read_orthogroups(file.path(ortho_dir, "/Orthogroups/Orthogroups_reprocessed.tsv"))
head(orthogroups)

  Orthogroup     Species           Gene
1  OG0000000 S_americana XP_046980419.1
2  OG0000000 S_americana XP_046980521.1
3  OG0000000 S_americana XP_046980588.1
4  OG0000000 S_americana XP_046980678.1
5  OG0000000 S_americana XP_046980756.1
6  OG0000000 S_americana XP_046980865.1

# Load the directory with the actual stats from the Orthofinder run
ortho_stats <- read_orthofinder_stats(file.path(ortho_dir, "Comparative_Genomics_Statistics"))
ortho_stats$stats

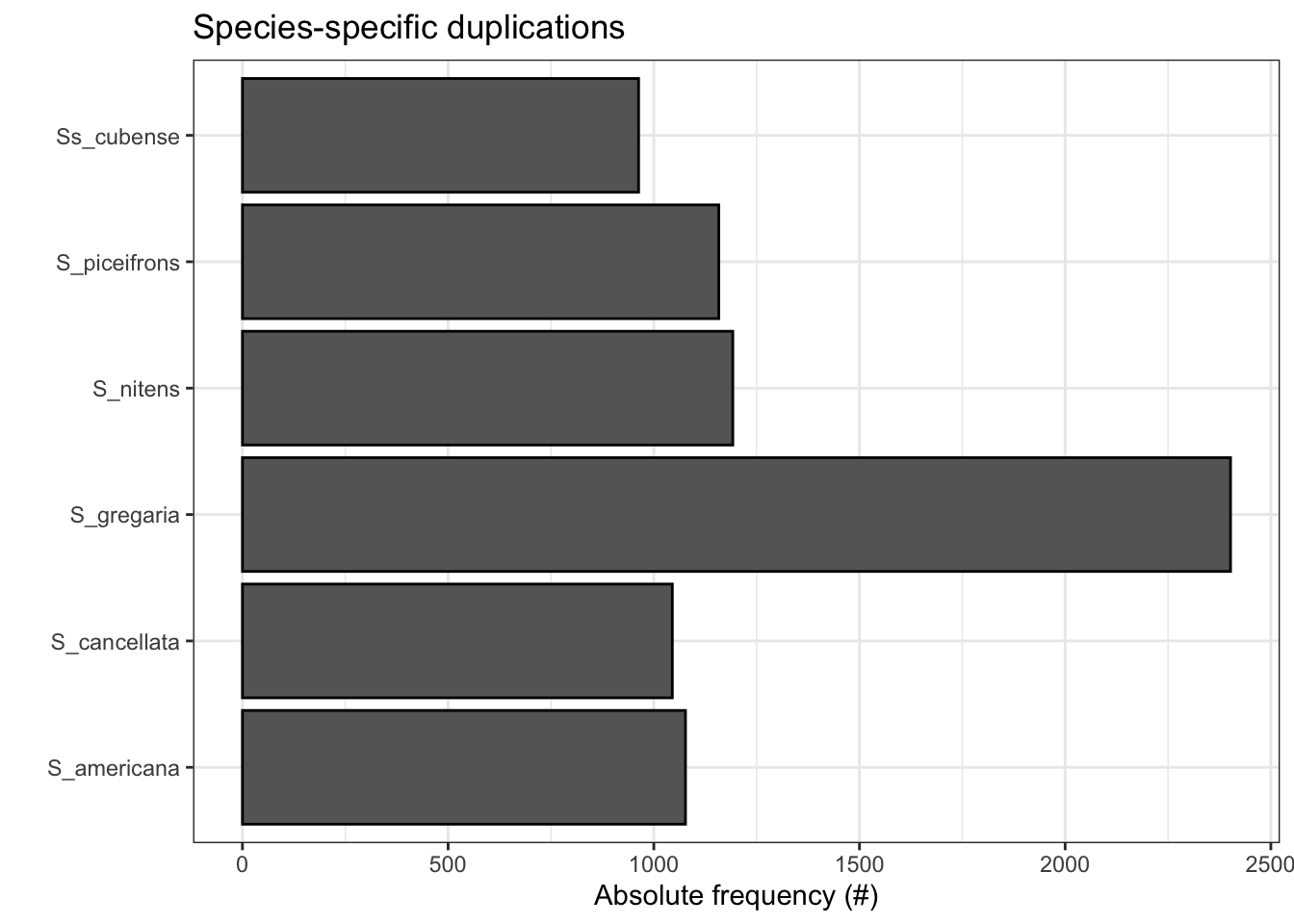

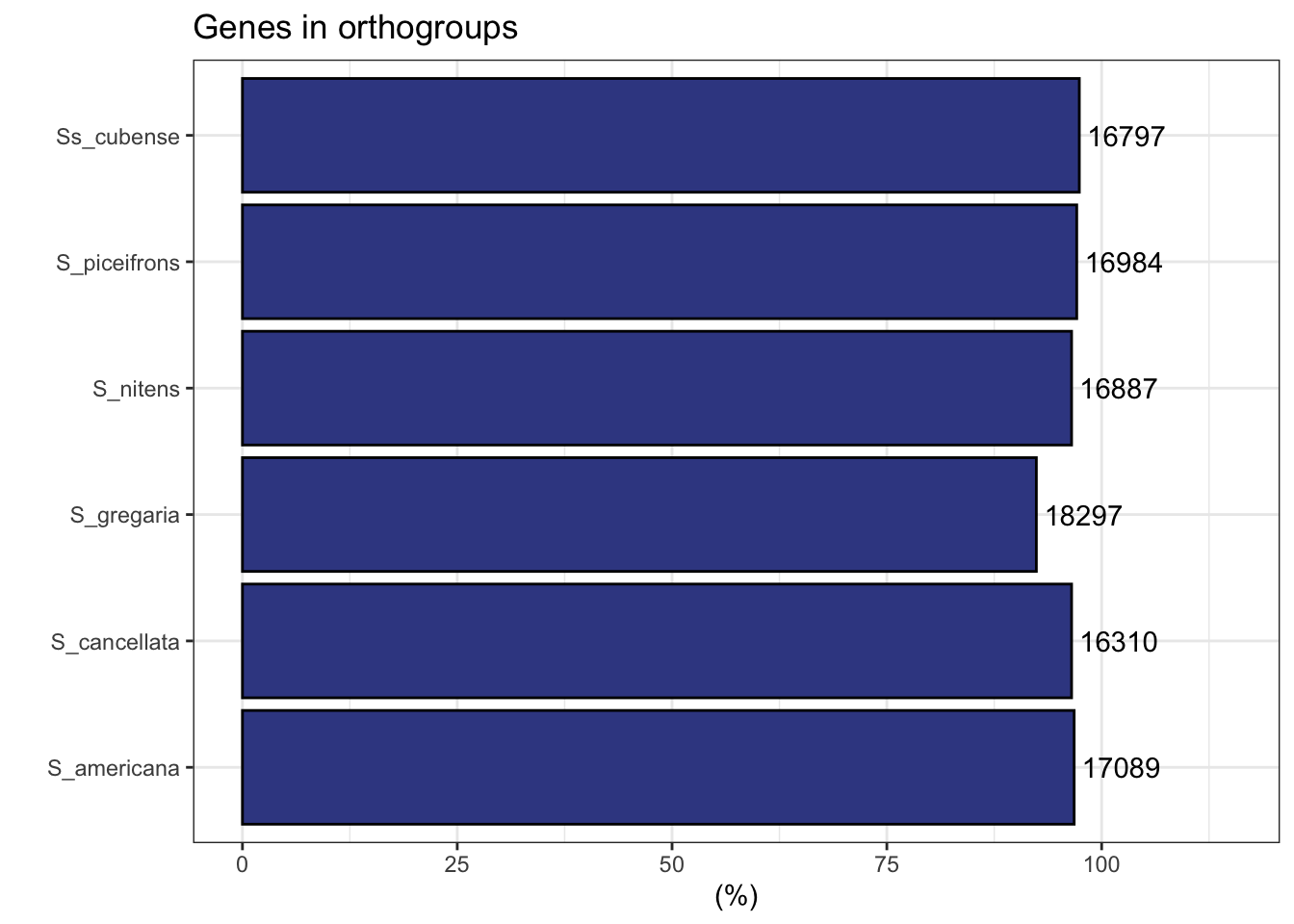

       Species N_genes N_genes_in_OGs Perc_genes_in_OGs N_ssOGs
1  S_americana   17662          17089              96.8     122
2 S_cancellata   16907          16310              96.5     164
3   S_gregaria   19799          18297              92.4     243
4     S_nitens   17500          16887              96.5     102
5 S_piceifrons   17490          16984              97.1     131
6   Ss_cubense   17237          16797              97.4     129
  N_genes_in_ssOGs Perc_genes_in_ssOGs Dups
1              593                 3.4 1077
2              596                 3.5 1045
3              921                 4.7 2402
4              604                 3.5 1192
5              564                 3.2 1158
6              557                 3.2  963

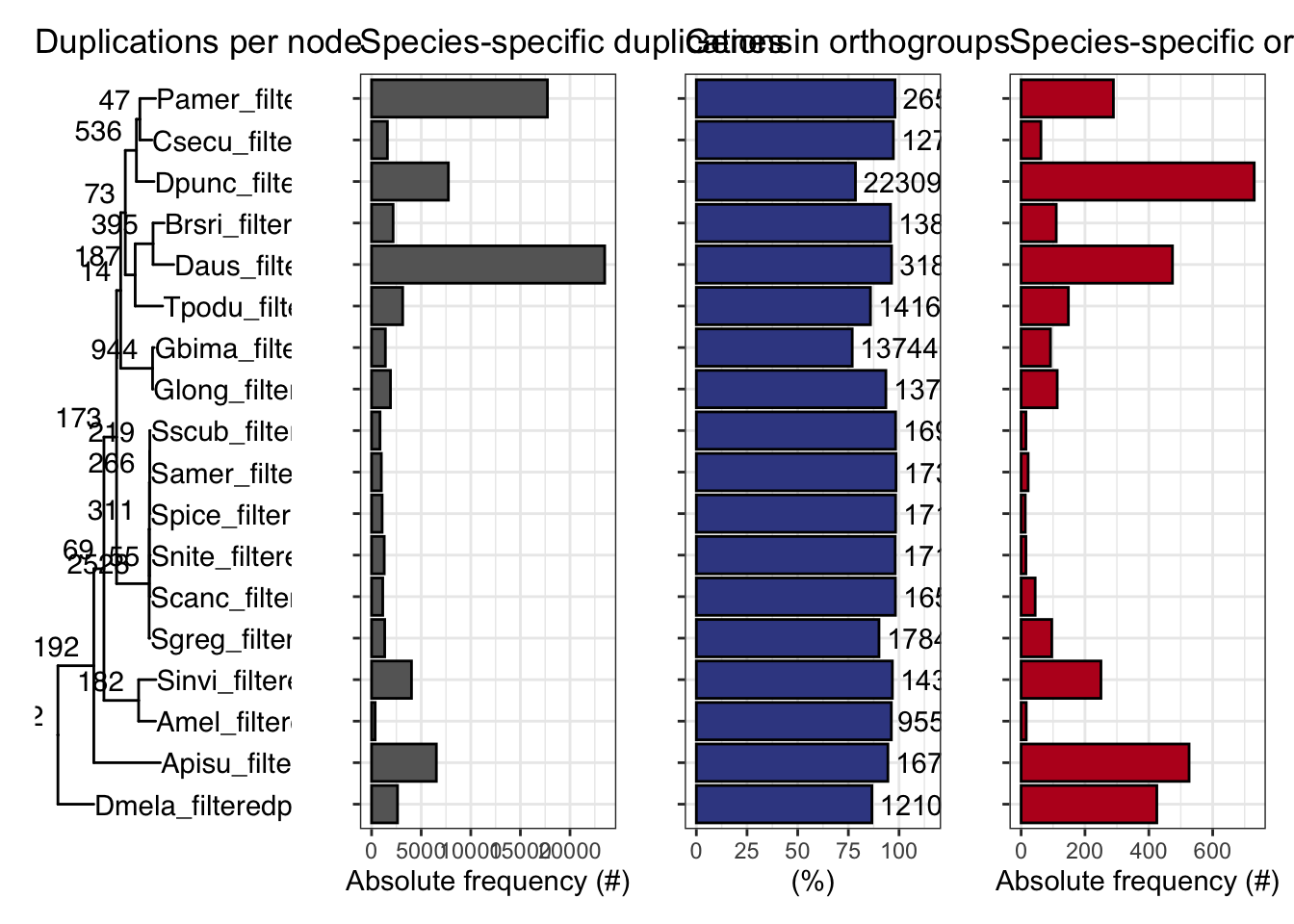

tree <- treeio::read.tree(file.path(ortho_dir, "Species_Tree/SpeciesTree_rooted_node_labels.txt"))
#tree$tip.label

#custom plot_species

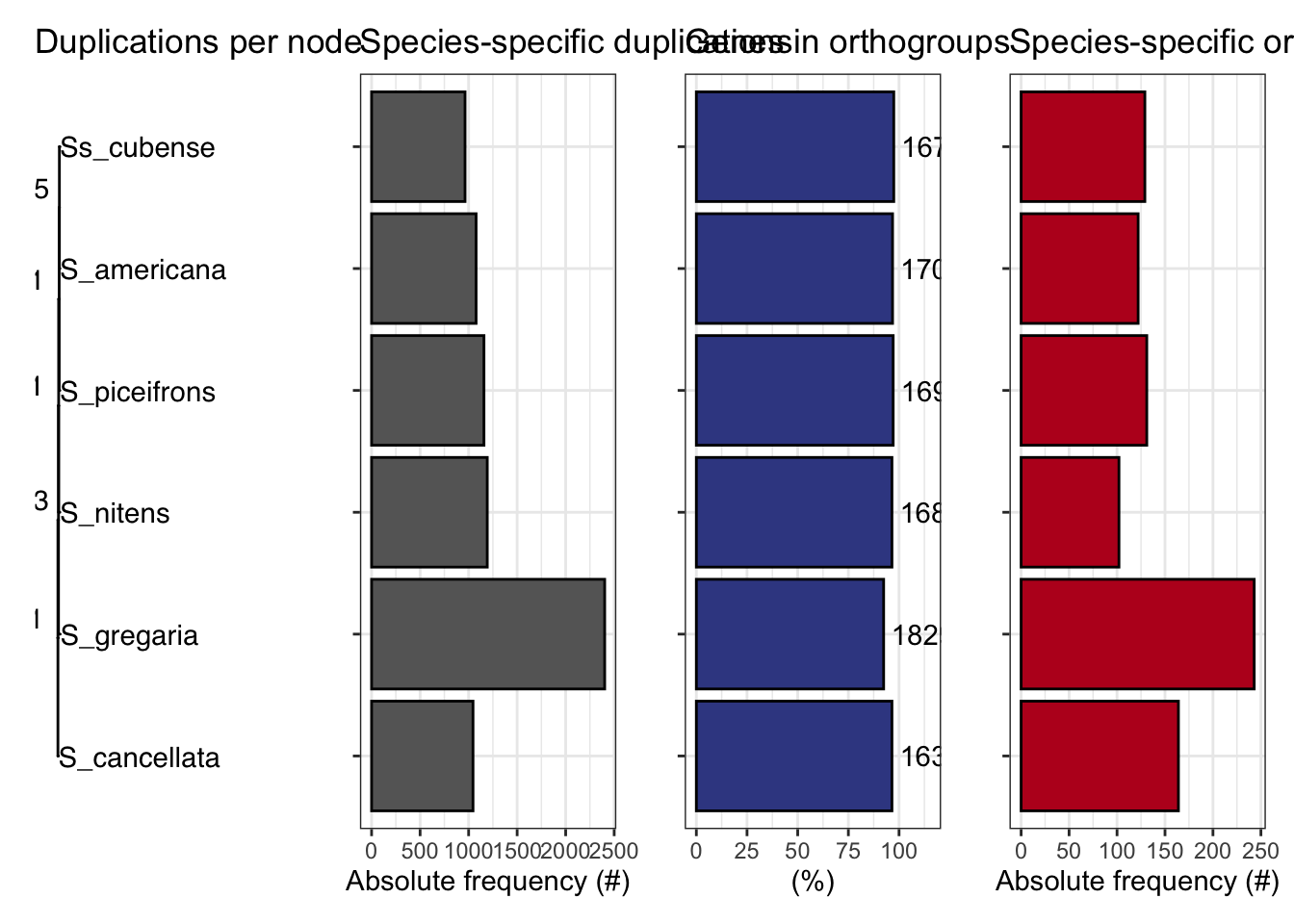

plot_species_tree <- function(tree = NULL, xlim = c(0, 2), stats_list = NULL, custom_labels = NULL) {
    # Basic tree plot with customized theme
    p <- ggtree(tree) +
        xlim(xlim) +
        theme_tree() +  # Use a clean theme
        ggtitle("Species Tree with Duplications") +  # Set a title
        theme(plot.title = element_text(hjust = 0.5))  # Center the title

    # Customize tip labels if provided
    if (!is.null(custom_labels)) {
        # Ensure length of custom_labels matches the number of tree tips
        if (length(custom_labels) == length(tree$tip.label)) {
            p <- p + geom_tiplab(aes(label = custom_labels), size = 4, fontface = "bold.italic", color = "darkblue")
        } else {
            stop("Length of custom_labels must match the number of tip labels in the tree.")
        }
    } else {
        # Default tip labels if no custom labels are provided
        p <- p + geom_tiplab(size = 4, fontface = "bold.italic", color = "darkblue")
    }

    if (!is.null(stats_list)) {
        # Extract duplications
        dups <- stats_list$duplications
        dups <- dups[dups$Node %in% tree$tip.label, ]  # Filter for relevant nodes
        names(dups) <- c("label", "dups")

        # Check for matching nodes
        if (nrow(dups) > 0) {
            p$data <- merge(p$data, dups, by.x = "label", by.y = "label", all.x = TRUE)

            # Add duplications to the plot with larger text
            p <- p +
                ggtree::geom_text2(
                    aes(label = .data$dups),
                    hjust = 1.3, vjust = -0.5,
                    size = 5, color = "red"  # Customize size and color of duplication labels
                ) +
                labs(subtitle = "Number of Duplications per Node")  # Subtitle for clarity
        } else {
            message("No matching nodes found for duplications.")
        }
    }

    # Add circles around the nodes
    p <- p + geom_point(size = 2, shape = 21, color = "black", fill = "black")  # Circle around nodes

    return(p)
}


# Plotting the tree
labels6 <- c("Schistocerca gregaria", "Schistocerca piceifrons", "Schistocerca americana", "Schistocerca serialis cubense", "Schistocerca cancellata", "Schistocerca nitens")

# Call the custom plot function with your species tree, stats, and custom labels
p<- plot_species_tree(tree, xlim = c(0, 1.5), stats_list = ortho_stats)

plot_duplications(ortho_stats)

Past versions of "orthofinder cogeqc-1.png"

Version	Author	Date
b80db34	Maeva TECHER	2025-01-13
3fa8e62	Maeva TECHER	2024-11-09

plot_genes_in_ogs(ortho_stats)

Past versions of "orthofinder cogeqc-2.png"

Version	Author	Date
b80db34	Maeva TECHER	2025-01-13
3fa8e62	Maeva TECHER	2024-11-09

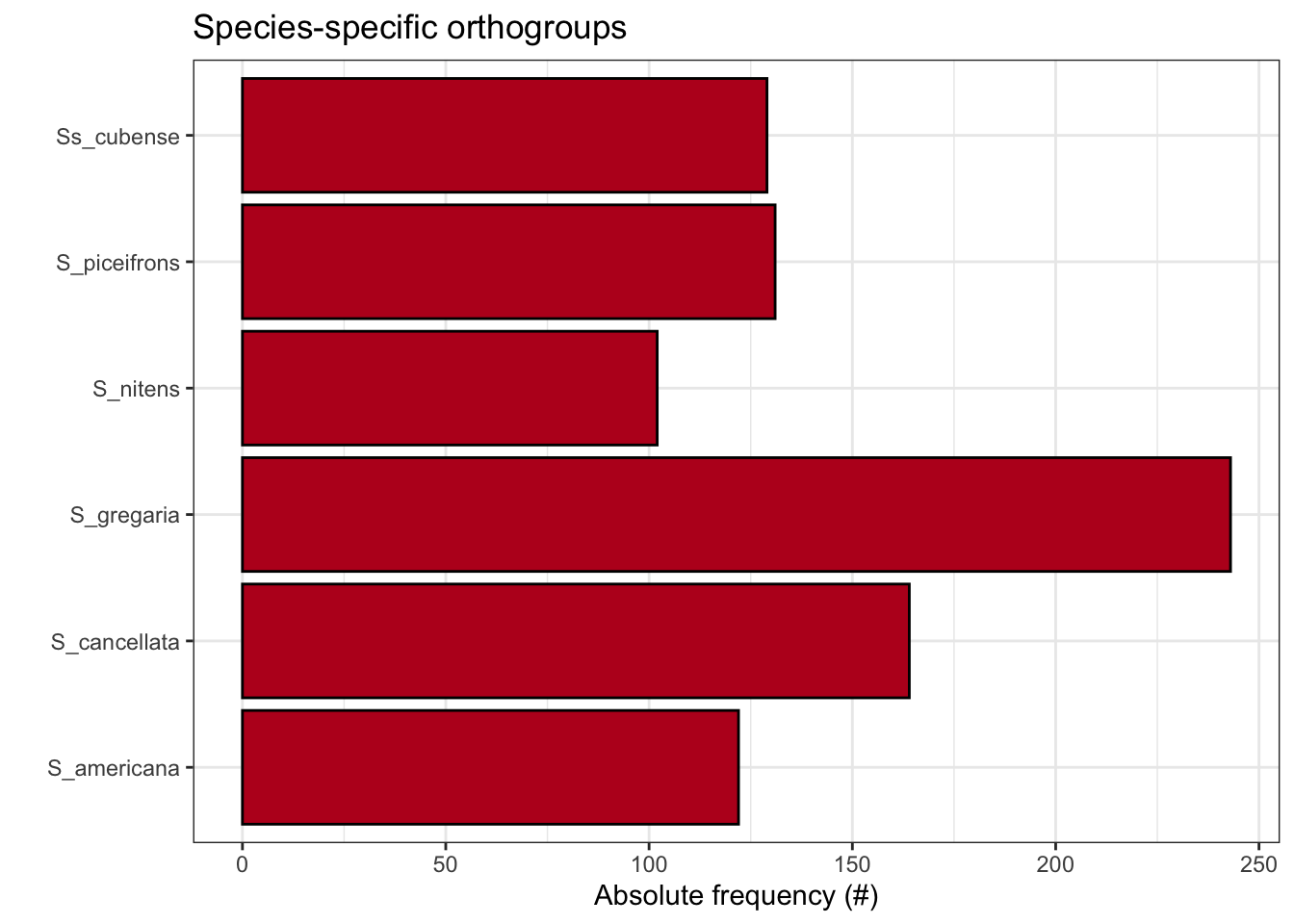

plot_species_specific_ogs(ortho_stats)

Past versions of "orthofinder cogeqc-3.png"

Version	Author	Date
b80db34	Maeva TECHER	2025-01-13
3fa8e62	Maeva TECHER	2024-11-09

plot_orthofinder_stats(
  tree = tree,
  xlim = c(-0.1, 2),
  stats_list = ortho_stats
)

Past versions of "orthofinder cogeqc-4.png"

Version	Author	Date
b80db34	Maeva TECHER	2025-01-13
3fa8e62	Maeva TECHER	2024-11-09

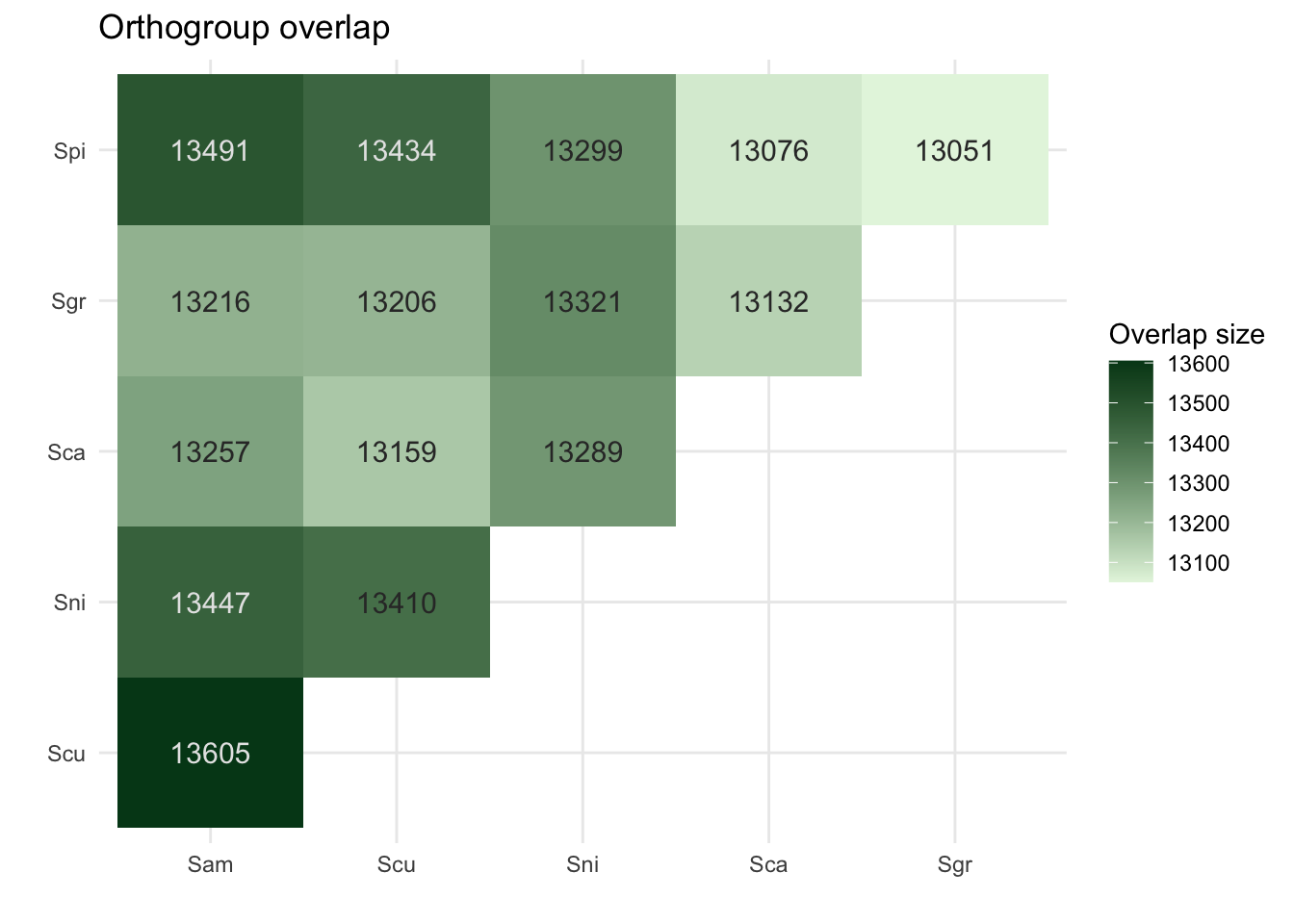

plot_og_overlap(ortho_stats)

Past versions of "orthofinder cogeqc-5.png"

Version	Author	Date
b80db34	Maeva TECHER	2025-01-13
3fa8e62	Maeva TECHER	2024-11-09

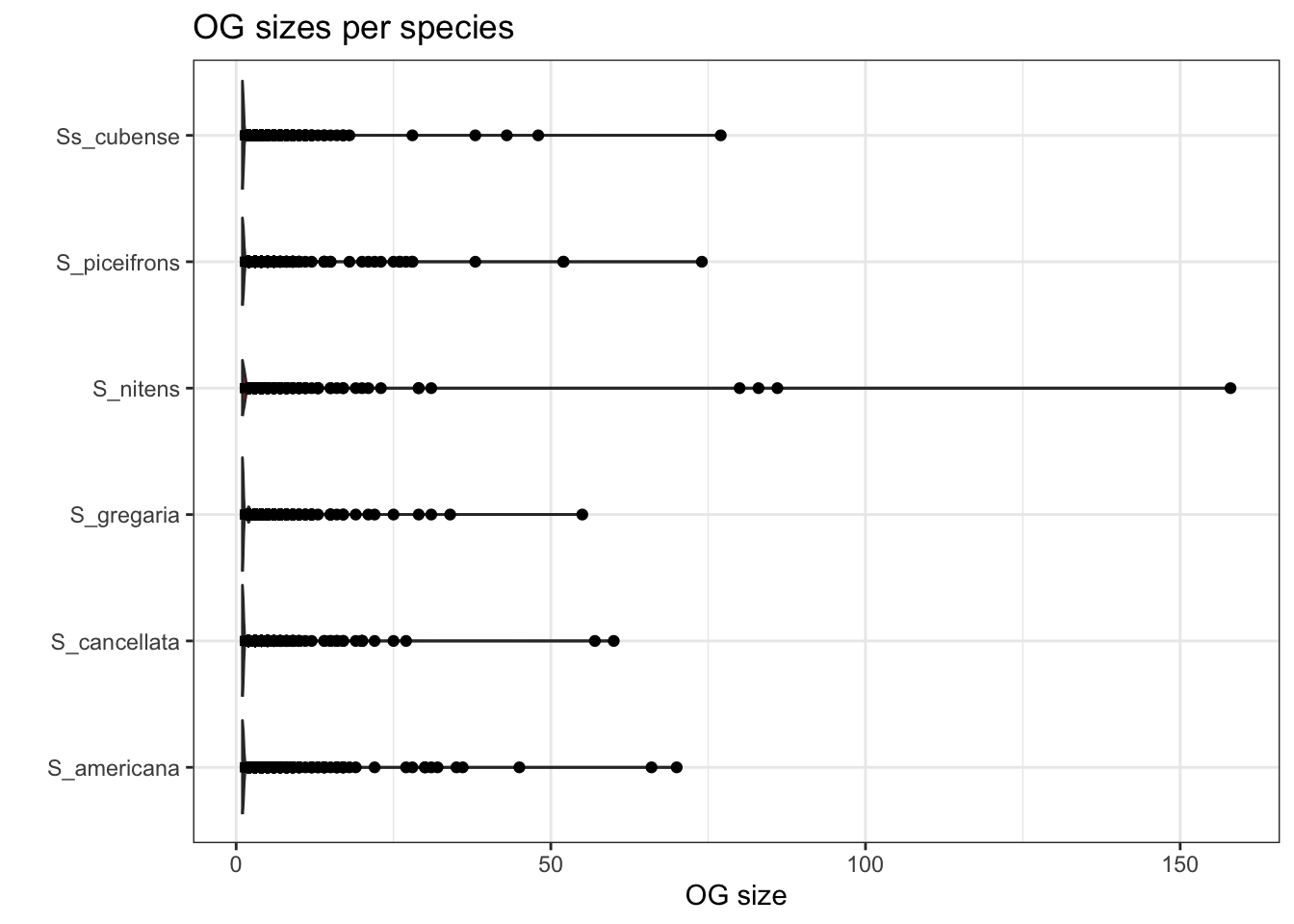

plot_og_sizes(orthogroups)

Past versions of "orthofinder cogeqc-6.png"

Version	Author	Date
b80db34	Maeva TECHER	2025-01-13
3fa8e62	Maeva TECHER	2024-11-09

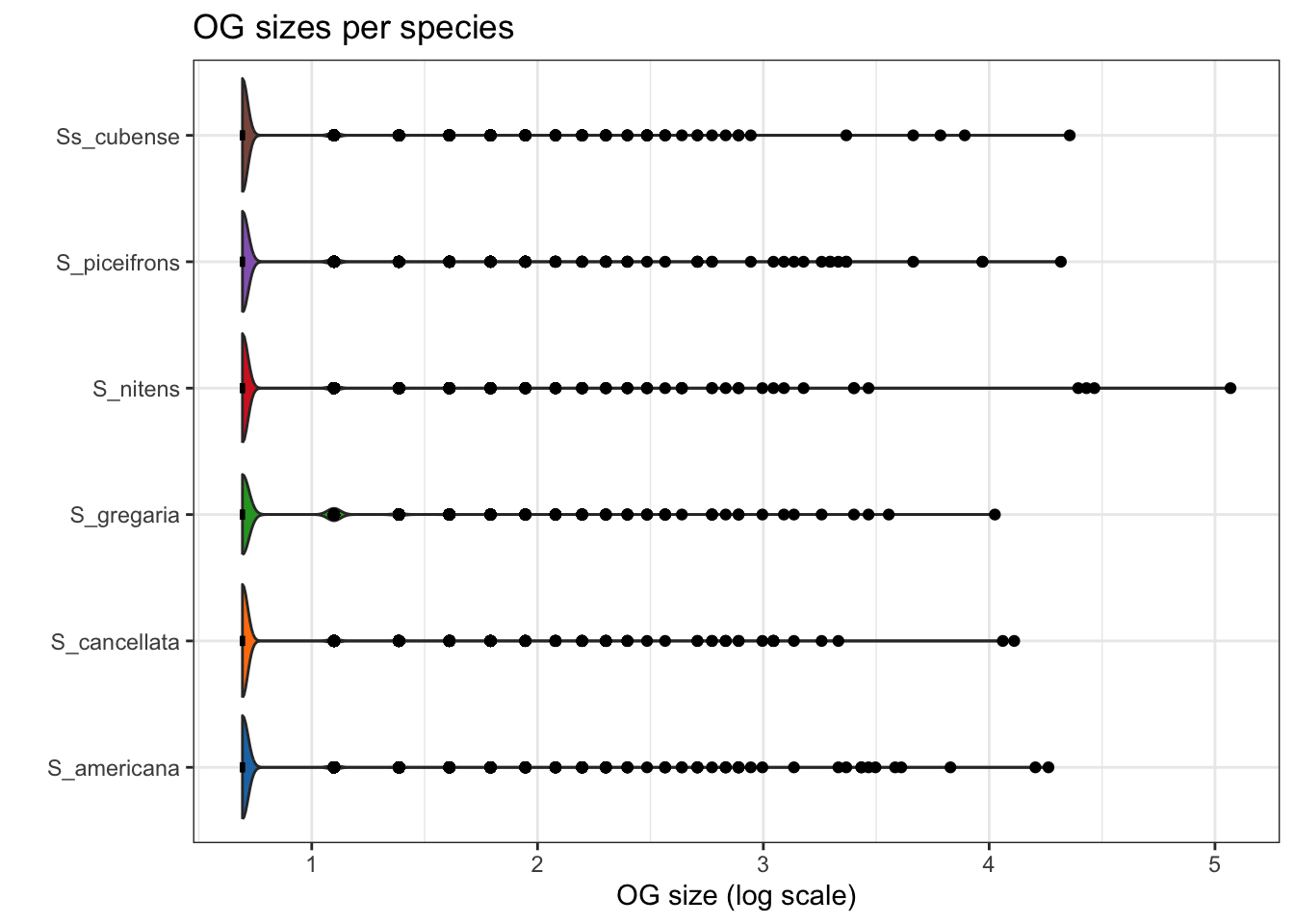

plot_og_sizes(orthogroups, log = TRUE)

Past versions of "orthofinder cogeqc-7.png"

Version	Author	Date
b80db34	Maeva TECHER	2025-01-13
3fa8e62	Maeva TECHER	2024-11-09

library(readr)

# rename for future merging
names(orthogroups)[names(orthogroups) == "Gene"] <- "protein_id"
# Optional if you did not rename fasta sequence before
orthogroups$Species <- gsub("_filteredproteome", "", orthogroups$Species)
# Export the table to  tab-separated text file (you can change the delimiter if needed)
output_file <- file.path(ortho_dir, "Orthogroups_6species_Jan2025.txt")

# Write the transformed data to the file
write.table(orthogroups,
            file = output_file,
            sep = "\t",
            quote = FALSE,
            row.names = FALSE)

proteingene_path <- file.path(ortho_dir, "../../list/allspecies_protein2geneid.tsv")
proteingeneid <- read_tsv(proteingene_path, col_names = TRUE )
head(proteingeneid)

# A tibble: 6 × 4
  protein_id     gene_id      gene_description                           species
  <chr>          <chr>        <chr>                                      <chr>
1 XP_008178278.2 LOC100569061 protein ALP1-like                          Acyrth…
2 XP_029341669.1 LOC115033410 uncharacterized protein LOC115033410       Acyrth…
3 XP_016656080.1 LOC107882353 major centromere autoantigen B-like        Acyrth…
4 XP_016656355.1 LOC107882485 uncharacterized protein LOC107882485 isof… Acyrth…
5 XP_029341671.1 LOC107882485 uncharacterized protein LOC107882485 isof… Acyrth…
6 XP_016656356.2 LOC107882485 uncharacterized protein LOC107882485 isof… Acyrth…

final_orthotable <- left_join(orthogroups, proteingeneid, by = "protein_id")
output_file <- file.path(ortho_dir, "Orthogroups_genesprotein_6species_Jan2025.csv")
write.table(final_orthotable, file = output_file,  sep = ",", quote = FALSE, row.names = FALSE)

There we have it, the final table with all the corresponding IDs. This table is too big and have all species in it, so we want to reduce to only single copy orthologs and remove entries with other species than Schistocerca for now.

# Filter the final_orthotable to keep only rows with species 'Schistocerca'
filtered_final_orthotable <- final_orthotable %>%
  filter(species %in% c("Schistocerca gregaria", "Schistocerca piceifrons", "Schistocerca americana", "Schistocerca cancellata", "Schistocerca serialis cubense", "Schistocerca nitens"))


# Optionally, save the filtered data
output_file <- file.path(ortho_dir, "Orthogroups_genesprotein_Schisto_Jan2025.txt")
write.table(filtered_final_orthotable, file = output_file, sep = "\t", quote = FALSE, row.names = FALSE)

# Step 1: Read the single copy orthologs table
single_copy_orthologs_path <- file.path(ortho_dir, "Orthogroups/Orthogroups_SingleCopyOrthologues.txt")
single_copy_orthologs <- read.table(single_copy_orthologs_path, header = FALSE, stringsAsFactors = FALSE)

# Step 2: Ensure the column name for orthogroups matches in both data frames
# If necessary, rename the column in single_copy_orthologs to match
colnames(single_copy_orthologs) <- c("Orthogroup")  # Replace with the actual name if different

# Step 3: Perform the intersection
scopy_final_orthotable <- final_orthotable[final_orthotable$Orthogroup %in% single_copy_orthologs$Orthogroup, ]

# Step 4: Optionally, save the filtered table
output_file <- file.path(ortho_dir, "SingleCopyOrthogroups_genesprotein_6species_Jan2025.txt")
write.table(scopy_final_orthotable, file = output_file, sep = "\t", quote = FALSE, row.names = FALSE)

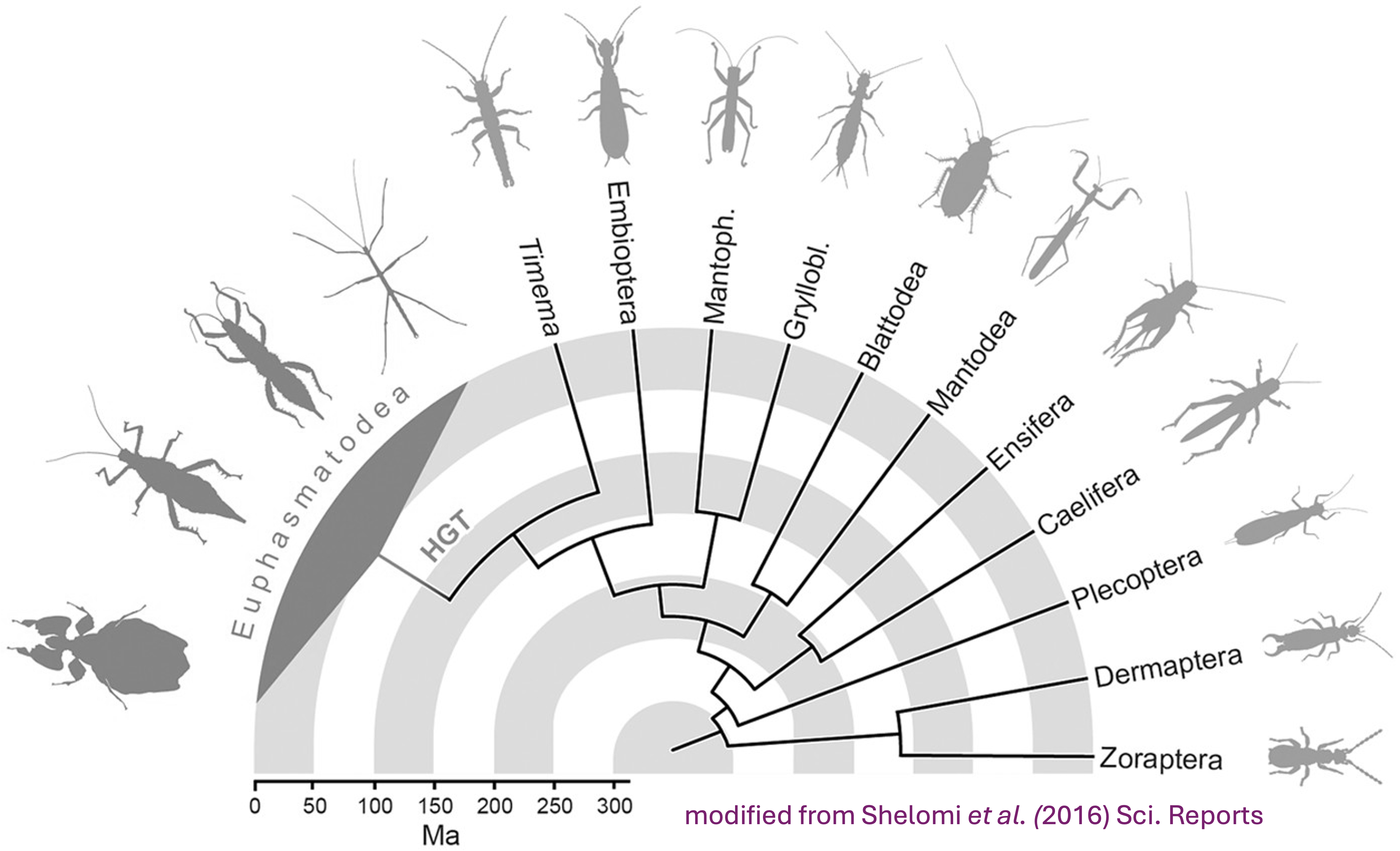

Polyneoptera and outgroups

library(cogeqc)
library(ggtree)
library(treeio)
library(dplyr)
library(ggplot2)

# Set the base directory for your Orthofinder results
ortho_dir <- "/Users/maevatecher/Documents/GitHub/locust-comparative-genomics/data/orthofinder/Polyneoptera/"

# Load the orthogroup file
orthogroups <- read_orthogroups(file.path(ortho_dir, "Orthogroups/Orthogroups_reprocessed.tsv"))
head(orthogroups)

  Orthogroup               Species           Gene
1  OG0000000 Amel_filteredproteome XP_001119836.2
2  OG0000000 Amel_filteredproteome XP_006568900.1
3  OG0000000 Amel_filteredproteome XP_016769943.1
4  OG0000000 Amel_filteredproteome XP_026299104.1
5  OG0000000 Amel_filteredproteome    XP_393467.3
6  OG0000000 Amel_filteredproteome    XP_395948.5

# Load the directory with the actual stats from the Orthofinder run
ortho_stats <- read_orthofinder_stats(file.path(ortho_dir, "Comparative_Genomics_Statistics"))
ortho_stats$stats

                  Species N_genes N_genes_in_OGs Perc_genes_in_OGs N_ssOGs
1   Amel_filteredproteome    9934           9556              96.2      16
2  Apisu_filteredproteome   17678          16711              94.5     526
3  Brsri_filteredproteome   14448          13835              95.8     110
4  Csecu_filteredproteome   13170          12795              97.2      62
5   Daus_filteredproteome   33111          31890              96.3     474
6  Dmela_filteredproteome   13986          12109              86.6     425
7  Dpunc_filteredproteome   28414          22309              78.5     730
8  Gbima_filteredproteome   17871          13744              76.9      92
9  Glong_filteredproteome   14730          13769              93.5     113
10 Pamer_filteredproteome   27047          26507              98.0     289
11 Samer_filteredproteome   17662          17393              98.5      22
12 Scanc_filteredproteome   16907          16597              98.2      44
13 Sgreg_filteredproteome   19799          17845              90.1      96
14 Sinvi_filteredproteome   14790          14308              96.7     250
15 Snite_filteredproteome   17500          17166              98.1      15
16 Spice_filteredproteome   17490          17194              98.3      13
17 Sscub_filteredproteome   17237          16952              98.3      15
18 Tpodu_filteredproteome   16493          14167              85.9     148
   N_genes_in_ssOGs Perc_genes_in_ssOGs  Dups
1                74                 0.7   358
2              2473                14.0  6527
3               485                 3.4  2169
4               219                 1.7  1591
5              2899                 8.8 23496
6              1659                11.9  2613
7              3254                11.5  7739
8               254                 1.4  1389
9               471                 3.2  1905
10             2105                 7.8 17726
11              104                 0.6   981
12              178                 1.1  1123
13              341                 1.7  1321
14             1532                10.4  4022
15              197                 1.1  1274
16               58                 0.3  1060
17               40                 0.2   848
18              528                 3.2  3132

tree <- treeio::read.tree(file.path(ortho_dir, "Species_Tree/SpeciesTree_rooted_node_labels.txt"))
#tree$tip.label

#custom plot_species
plot_species_tree <- function(tree = NULL, xlim = c(0, 2), stats_list = NULL, custom_labels = NULL) {
    # Basic tree plot with customized theme
    p <- ggtree(tree) +
        xlim(xlim) +
        theme_tree() +  # Use a clean theme
        ggtitle("Species Tree with Duplications") +  # Set a title
        theme(plot.title = element_text(hjust = 0.5))  # Center the title

    # Customize tip labels if provided
    if (!is.null(custom_labels)) {
        # Ensure length of custom_labels matches the number of tree tips
        if (length(custom_labels) == length(tree$tip.label)) {
            p <- p + geom_tiplab(aes(label = custom_labels), size = 4, fontface = "bold.italic", color = "darkblue")
        } else {
            stop("Length of custom_labels must match the number of tip labels in the tree.")
        }
    } else {
        # Default tip labels if no custom labels are provided
        p <- p + geom_tiplab(size = 4, fontface = "bold.italic", color = "darkblue")
    }

    if (!is.null(stats_list)) {
        # Extract duplications
        dups <- stats_list$duplications
        dups <- dups[dups$Node %in% tree$tip.label, ]  # Filter for relevant nodes
        names(dups) <- c("label", "dups")

        # Check for matching nodes
        if (nrow(dups) > 0) {
            p$data <- merge(p$data, dups, by.x = "label", by.y = "label", all.x = TRUE)

            # Add duplications to the plot with larger text
            p <- p +
                ggtree::geom_text2(
                    aes(label = .data$dups),
                    hjust = 1.3, vjust = -0.5,
                    size = 5, color = "red"  # Customize size and color of duplication labels
                ) +
                labs(subtitle = "Number of Duplications per Node")  # Subtitle for clarity
        } else {
            message("No matching nodes found for duplications.")
        }
    }

    # Add circles around the nodes
    p <- p + geom_point(size = 2, shape = 21, color = "black", fill = "black")  # Circle around nodes

    return(p)
}


# Plotting the tree
labels18 <- c("Drosophila melanogaster", "Acyrthosiphon pisum", "Gryllus longicercus", "Gryllus bimaculatus",
                   "Timema podura", "Dryococelus australis", "Bacillus rossius redtenbacheri", "Diploptera punctata",
                   "Cryptotermes secundus", "Periplaneta americana", "Schistocerca gregaria", "Schistocerca piceifrons",
                   "Schistocerca americana", "Schistocerca serialis cubense", "Schistocerca cancellata", "Schistocerca nitens",  "Apis mellifera", "Solenopsis invicta")

# Call the custom plot function with your species tree, stats, and custom labels
p<- plot_species_tree(tree, xlim = c(0, 1.5), stats_list = ortho_stats)

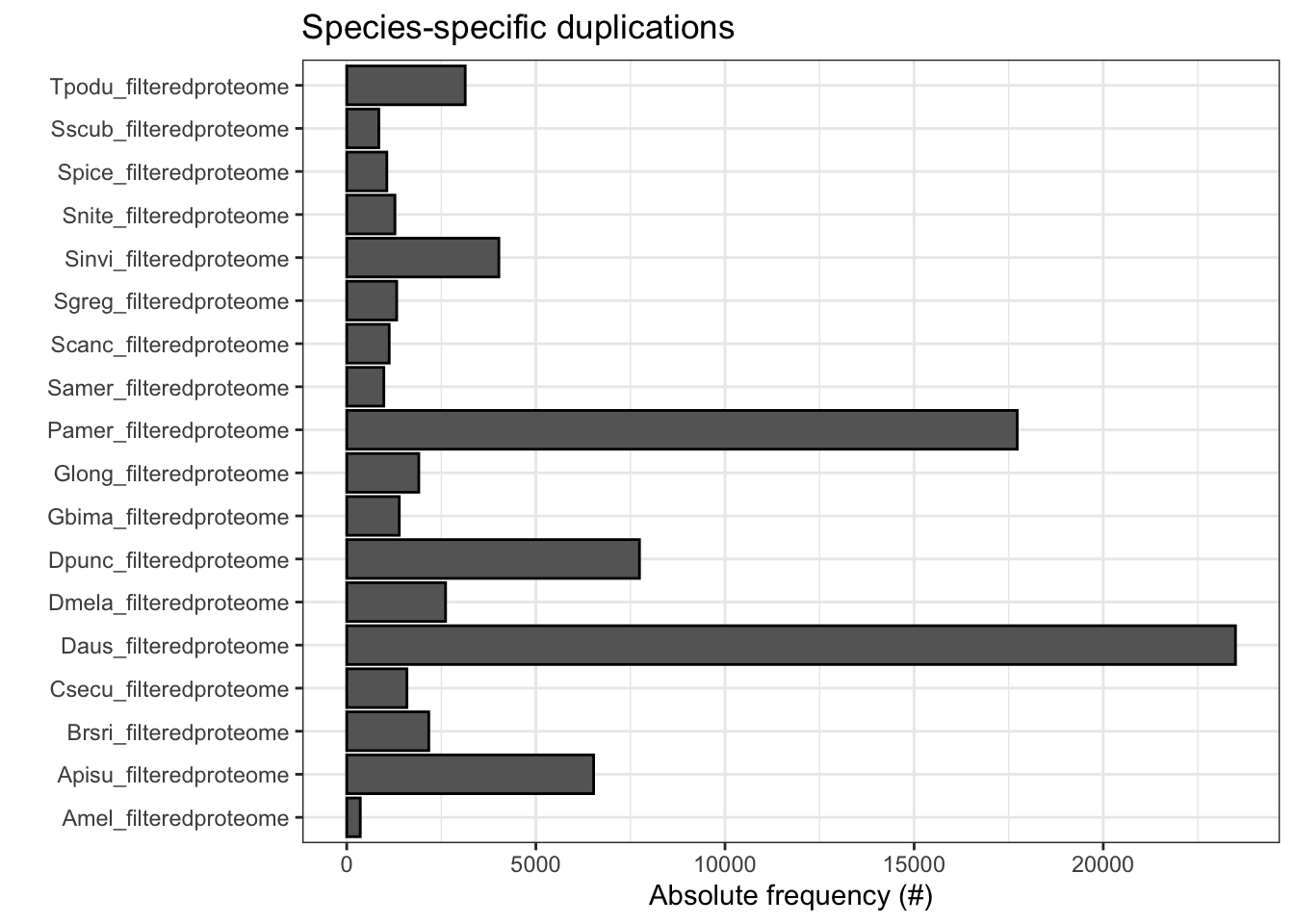

plot_duplications(ortho_stats)

Past versions of "orthofinder cogeqc2-1.png"

Version	Author	Date
b80db34	Maeva TECHER	2025-01-13

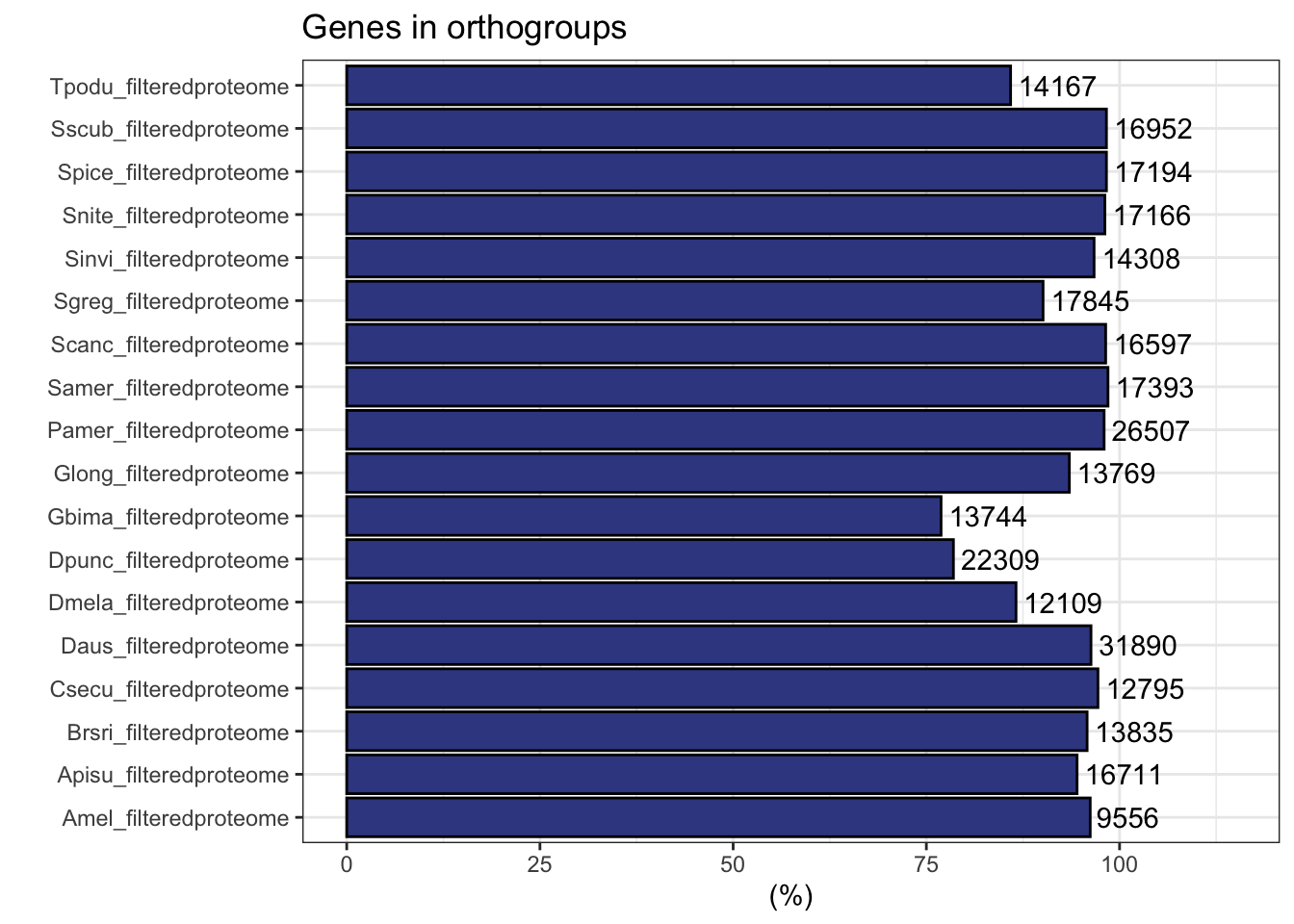

plot_genes_in_ogs(ortho_stats)

Past versions of "orthofinder cogeqc2-2.png"

Version	Author	Date
b80db34	Maeva TECHER	2025-01-13

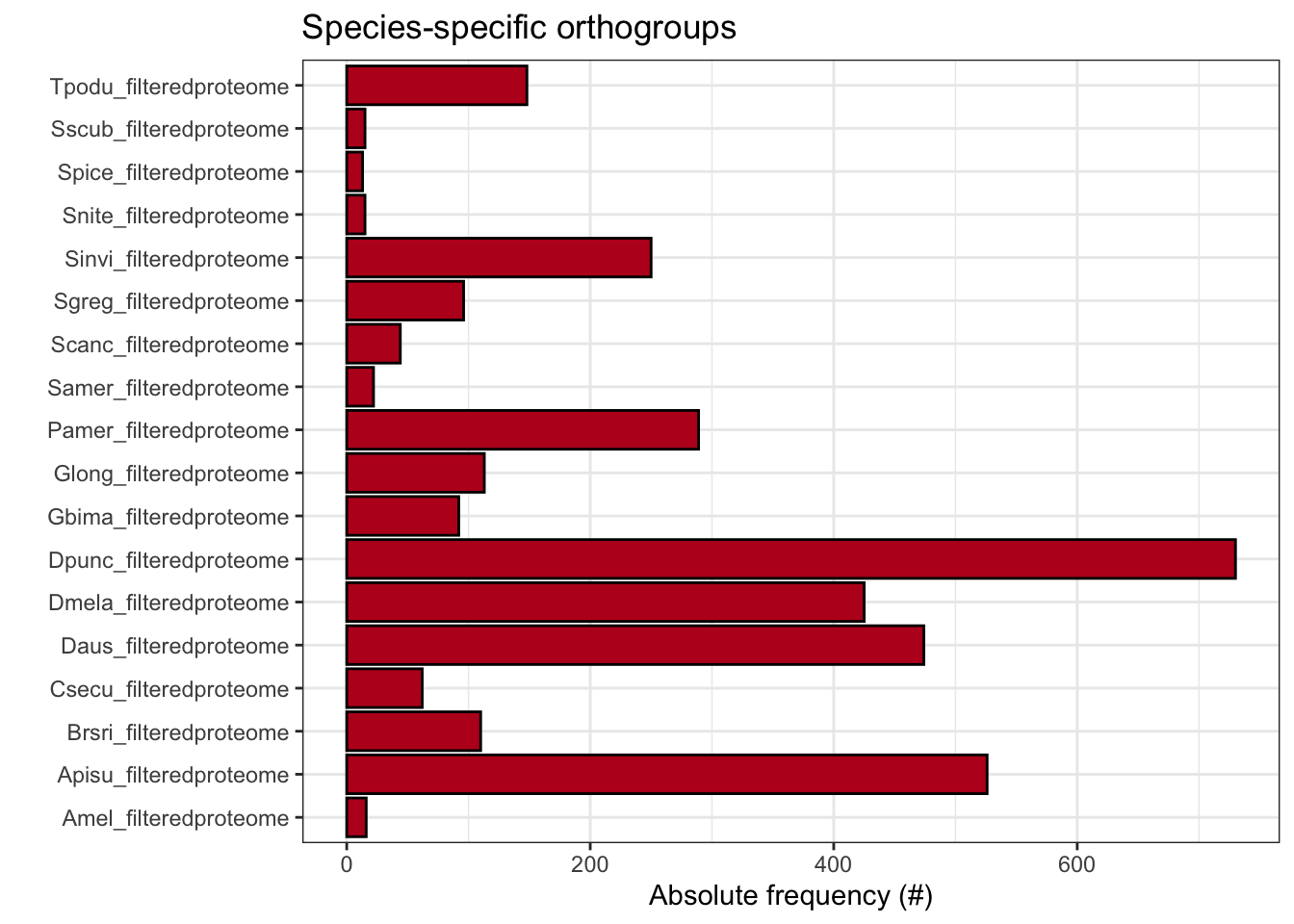

plot_species_specific_ogs(ortho_stats)

Past versions of "orthofinder cogeqc2-3.png"

Version	Author	Date
b80db34	Maeva TECHER	2025-01-13

plot_orthofinder_stats(
  tree = tree,
  xlim = c(-0.1, 2),
  stats_list = ortho_stats
)

Past versions of "orthofinder cogeqc2-4.png"

Version	Author	Date
b80db34	Maeva TECHER	2025-01-13

plot_og_overlap(ortho_stats)

Past versions of "orthofinder cogeqc2-5.png"

Version	Author	Date
b80db34	Maeva TECHER	2025-01-13

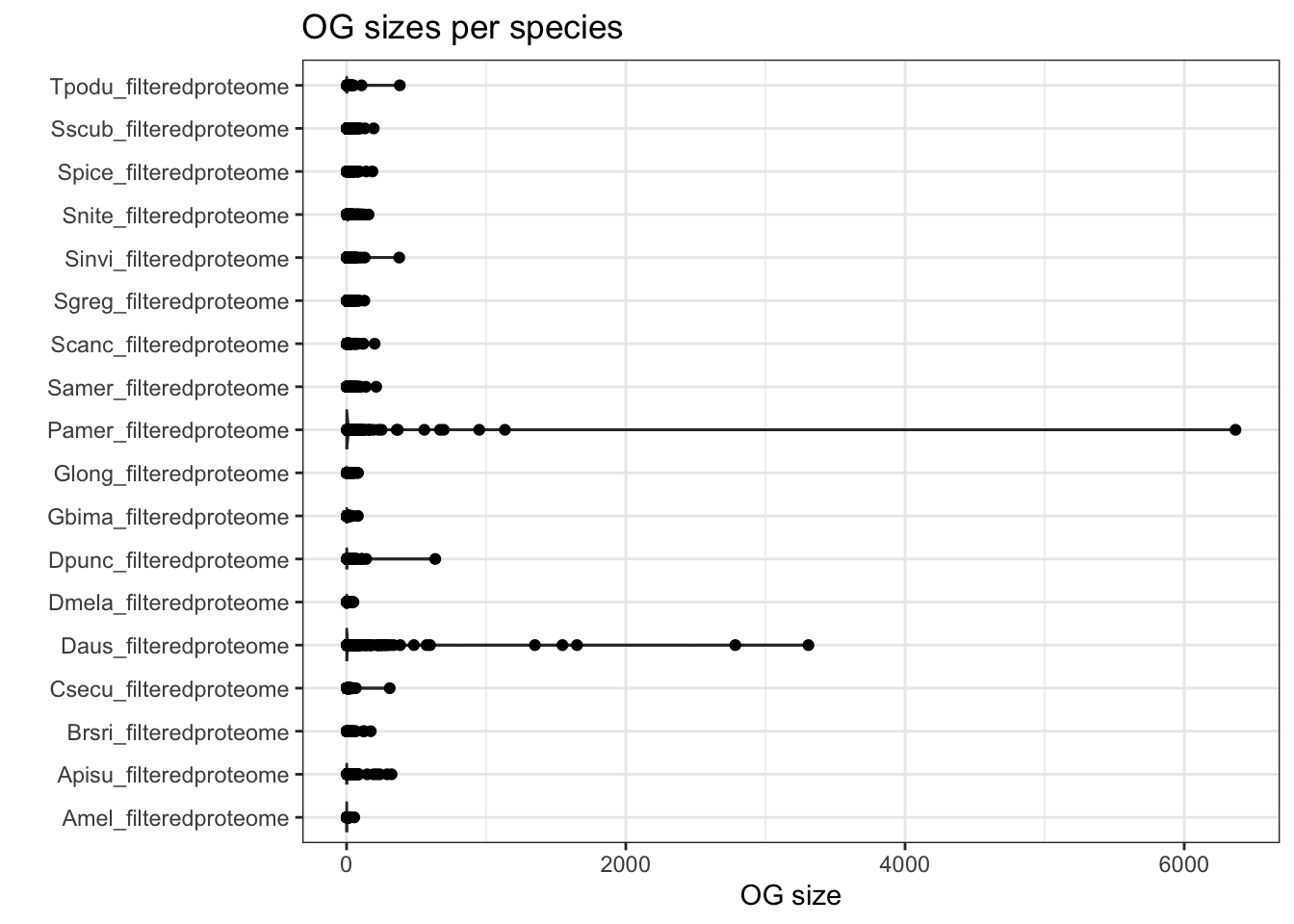

plot_og_sizes(orthogroups)

Past versions of "orthofinder cogeqc2-6.png"

Version	Author	Date
b80db34	Maeva TECHER	2025-01-13

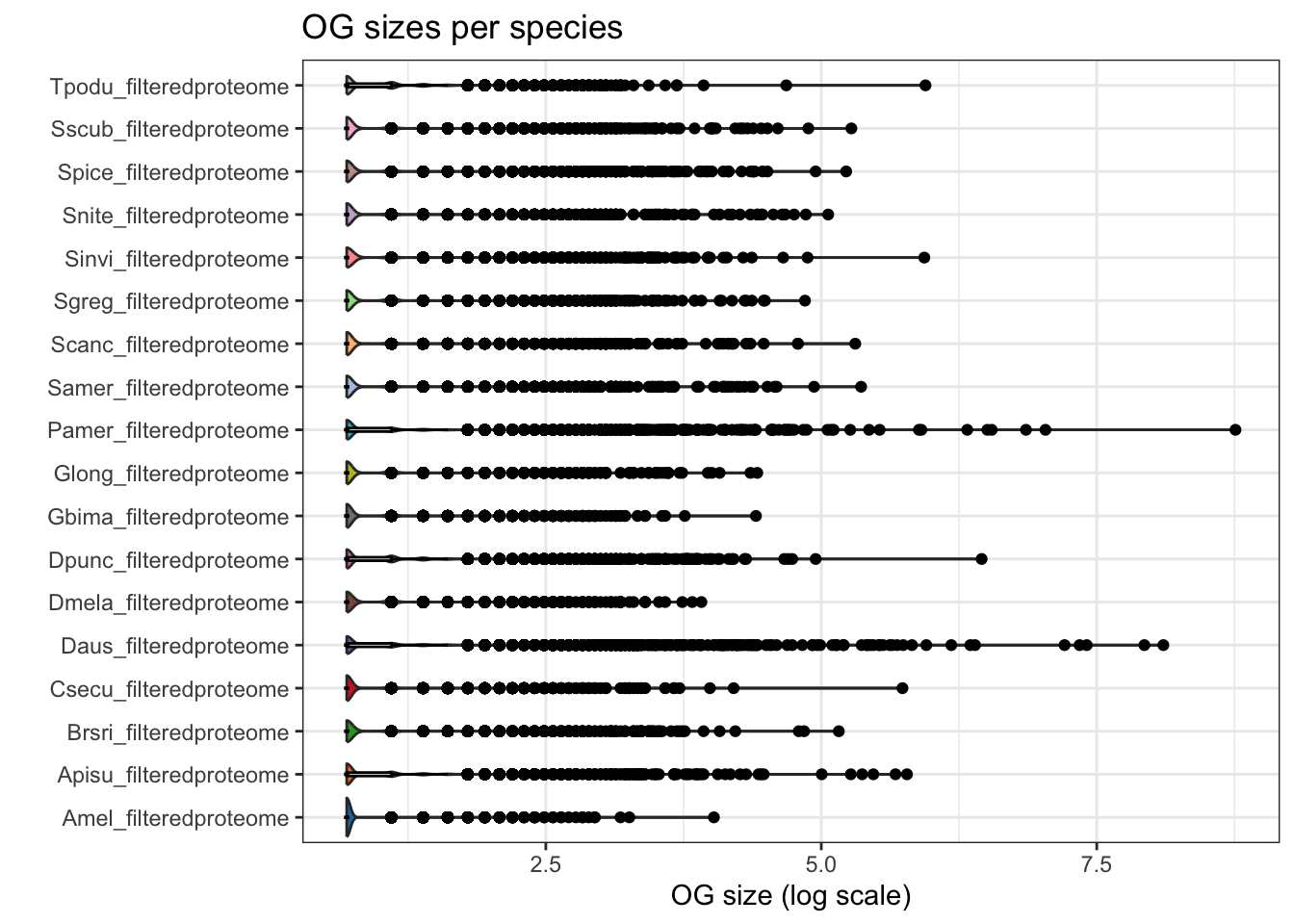

plot_og_sizes(orthogroups, log = TRUE)

Past versions of "orthofinder cogeqc2-7.png"

Version	Author	Date
b80db34	Maeva TECHER	2025-01-13

library(readr)

# rename for future merging
names(orthogroups)[names(orthogroups) == "Gene"] <- "protein_id"
# Optional if you did not rename fasta sequence before
orthogroups$Species <- gsub("_filteredproteome", "", orthogroups$Species)
# Export the table to  tab-separated text file (you can change the delimiter if needed)
output_file <- file.path(ortho_dir, "Orthogroups_18species_Jan2025.txt")

# Write the transformed data to the file
write.table(orthogroups,
            file = output_file,
            sep = "\t",
            quote = FALSE,
            row.names = FALSE)

proteingene_path <- file.path(ortho_dir, "../../list/allspecies_protein2geneid.tsv")
proteingeneid <- read_tsv(proteingene_path, col_names = TRUE )
head(proteingeneid)

# A tibble: 6 × 4
  protein_id     gene_id      gene_description                           species
  <chr>          <chr>        <chr>                                      <chr>
1 XP_008178278.2 LOC100569061 protein ALP1-like                          Acyrth…
2 XP_029341669.1 LOC115033410 uncharacterized protein LOC115033410       Acyrth…
3 XP_016656080.1 LOC107882353 major centromere autoantigen B-like        Acyrth…
4 XP_016656355.1 LOC107882485 uncharacterized protein LOC107882485 isof… Acyrth…
5 XP_029341671.1 LOC107882485 uncharacterized protein LOC107882485 isof… Acyrth…
6 XP_016656356.2 LOC107882485 uncharacterized protein LOC107882485 isof… Acyrth…

final_orthotable <- left_join(orthogroups, proteingeneid, by = "protein_id")
output_file <- file.path(ortho_dir, "Orthogroups_genesprotein_18species_Jan2025.csv")
write.table(final_orthotable, file = output_file,  sep = ",", quote = FALSE, row.names = FALSE)

There we have it, the final table with all the corresponding IDs. This table is too big and have all species in it, so we want to reduce to only single copy orthologs and remove entries with other species than Schistocerca for now.

# Filter the final_orthotable to keep only rows with species 'Schistocerca'
filtered_final_orthotable <- final_orthotable %>%
  filter(species %in% c("Schistocerca gregaria", "Schistocerca piceifrons", "Schistocerca americana", "Schistocerca cancellata", "Schistocerca serialis cubense", "Schistocerca nitens"))


# Optionally, save the filtered data
output_file <- file.path(ortho_dir, "Orthogroups_genesprotein_Schisto_Jan2025.txt")
write.table(filtered_final_orthotable, file = output_file, sep = "\t", quote = FALSE, row.names = FALSE)

# Step 1: Read the single copy orthologs table
single_copy_orthologs_path <- file.path(ortho_dir, "Orthogroups/Orthogroups_SingleCopyOrthologues.txt")
single_copy_orthologs <- read.table(single_copy_orthologs_path, header = FALSE, stringsAsFactors = FALSE)

# Step 2: Ensure the column name for orthogroups matches in both data frames
# If necessary, rename the column in single_copy_orthologs to match
colnames(single_copy_orthologs) <- c("Orthogroup")  # Replace with the actual name if different

# Step 3: Perform the intersection
scopy_final_orthotable <- final_orthotable[final_orthotable$Orthogroup %in% single_copy_orthologs$Orthogroup, ]

# Step 4: Optionally, save the filtered table
output_file <- file.path(ortho_dir, "SingleCopyOrthogroups_genesprotein_18species_Jan2025.txt")
write.table(scopy_final_orthotable, file = output_file, sep = "\t", quote = FALSE, row.names = FALSE)

References

If you use this script, and orthologr please cite:

Drost et al. 2015. Evidence for Active Maintenance of Phylotranscriptomic Hourglass Patterns in Animal and Plant Embryogenesis. Mol. Biol. Evol. 32 (5): 1221-1231. doi:10.1093/molbev/msv012

If you use Transdecoder, please cite it as:

Haas, B., and A. Papanicolaou. “TransDecoder.” (2017).

If you use Orthofinder, please cite it:

OrthoFinder’s orthogroup and ortholog inference are described here:

Emms, D.M., Kelly, S. OrthoFinder: solving fundamental biases in whole genome comparisons dramatically improves orthogroup inference accuracy. Genome Biol 16, 157 (2015).

Emms, D.M., Kelly, S. OrthoFinder: phylogenetic orthology inference for comparative genomics. Genome Biol 20, 238 (2019).

If you use the OrthoFinder species tree then also cite:

Emms D.M. & Kelly S. STRIDE: Species Tree Root Inference from Gene Duplication Events (2017), Mol Biol Evol 34(12): 3267-3278.

Emms D.M. & Kelly S. STAG: Species Tree Inference from All Genes (2018), bioRxiv https://doi.org/10.1101/267914.

Please also cite MAFFT:

K. Katoh, K. Misawa, K. Kuma, and T. Miyata. 2002. MAFFT: a novel method for rapid multiple sequence alignment based on fast Fourier transform. Nucleic Acids Res. 30(14): 3059-3066.

Session information

sessionInfo()

R version 4.4.1 (2024-06-14)
Platform: aarch64-apple-darwin20
Running under: macOS 15.2

Matrix products: default
BLAS:   /Library/Frameworks/R.framework/Versions/4.4-arm64/Resources/lib/libRblas.0.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/4.4-arm64/Resources/lib/libRlapack.dylib;  LAPACK version 3.12.0

locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8

time zone: Asia/Tokyo
tzcode source: internal

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

other attached packages:
[1] readr_2.1.5      ggplot2_3.5.1    dplyr_1.1.4      treeio_1.28.0
[5] ggtree_3.12.0    cogeqc_1.8.0     kableExtra_1.4.0 knitr_1.49

loaded via a namespace (and not attached):
 [1] tidyselect_1.2.1        viridisLite_0.4.2       vipor_0.4.7
 [4] farver_2.1.2            Biostrings_2.72.1       fastmap_1.2.0
 [7] lazyeval_0.2.2          promises_1.3.2          digest_0.6.37
[10] lifecycle_1.0.4         tidytree_0.4.6          magrittr_2.0.3
[13] compiler_4.4.1          rlang_1.1.4             sass_0.4.9
[16] tools_4.4.1             igraph_2.1.1            utf8_1.2.4
[19] yaml_2.3.10             labeling_0.4.3          bit_4.5.0.1
[22] plyr_1.8.9              xml2_1.3.6              aplot_0.2.3
[25] workflowr_1.7.1         withr_3.0.2             purrr_1.0.2
[28] BiocGenerics_0.50.0     grid_4.4.1              stats4_4.4.1
[31] fansi_1.0.6             git2r_0.35.0            colorspace_2.1-1
[34] scales_1.3.0            cli_3.6.3               rmarkdown_2.29
[37] crayon_1.5.3            generics_0.1.3          rstudioapi_0.17.1
[40] tzdb_0.4.0              httr_1.4.7              reshape2_1.4.4
[43] ggbeeswarm_0.7.2        ape_5.8                 cachem_1.1.0
[46] stringr_1.5.1           zlibbioc_1.50.0         parallel_4.4.1
[49] ggplotify_0.1.2         XVector_0.44.0          vctrs_0.6.5
[52] yulab.utils_0.1.8       jsonlite_1.8.9          gridGraphics_0.5-1
[55] IRanges_2.38.1          hms_1.1.3               patchwork_1.3.0
[58] S4Vectors_0.42.1        bit64_4.5.2             beeswarm_0.4.0
[61] systemfonts_1.1.0       jquerylib_0.1.4         tidyr_1.3.1
[64] glue_1.8.0              stringi_1.8.4           gtable_0.3.6
[67] later_1.4.1             GenomeInfoDb_1.40.1     UCSC.utils_1.0.0
[70] munsell_0.5.1           tibble_3.2.1            pillar_1.9.0
[73] htmltools_0.5.8.1       GenomeInfoDbData_1.2.12 R6_2.5.1
[76] rprojroot_2.0.4         vroom_1.6.5             evaluate_1.0.1
[79] lattice_0.22-6          httpuv_1.6.15           ggfun_0.1.8
[82] bslib_0.8.0             Rcpp_1.0.13-1           svglite_2.1.3
[85] nlme_3.1-166            whisker_0.4.1           xfun_0.49
[88] fs_1.6.5                pkgconfig_2.0.3
