Anthropogenic CO2 from 1994 to 2007
Jens Daniel Müller
27 November, 2020
Last updated: 2020-11-27
Checks: 7 0
Knit directory: emlr_obs_preprocessing/
This reproducible R Markdown analysis was created with workflowr (version 1.6.2). The Checks tab describes the reproducibility checks that were applied when the results were created. The Past versions tab lists the development history.
Great! Since the R Markdown file has been committed to the Git repository, you know the exact version of the code that produced these results.
Great job! The global environment was empty. Objects defined in the global environment can affect the analysis in your R Markdown file in unknown ways. For reproduciblity it’s best to always run the code in an empty environment.
The command set.seed(20200707) was run prior to running the code in the R Markdown file. Setting a seed ensures that any results that rely on randomness, e.g. subsampling or permutations, are reproducible.
Great job! Recording the operating system, R version, and package versions is critical for reproducibility.
Nice! There were no cached chunks for this analysis, so you can be confident that you successfully produced the results during this run.
Great job! Using relative paths to the files within your workflowr project makes it easier to run your code on other machines.
Great! You are using Git for version control. Tracking code development and connecting the code version to the results is critical for reproducibility.
The results in this page were generated with repository version 2f37595. See the Past versions tab to see a history of the changes made to the R Markdown and HTML files.
Note that you need to be careful to ensure that all relevant files for the analysis have been committed to Git prior to generating the results (you can use wflow_publish or wflow_git_commit). workflowr only checks the R Markdown file, but you know if there are other scripts or data files that it depends on. Below is the status of the Git repository when the results were generated:
Ignored files:
Ignored: .Rhistory
Ignored: .Rproj.user/
Ignored: data/
Unstaged changes:
Modified: analysis/_site.yml
Deleted: analysis/analysis_this_study.Rmd
Deleted: analysis/analysis_this_study_vs_Gruber_2019.Rmd
Deleted: analysis/child/setup.Rmd
Deleted: analysis/eMLR_assumption_testing.Rmd
Deleted: analysis/eMLR_data_preparation.Rmd
Deleted: analysis/eMLR_model_fitting.Rmd
Deleted: analysis/mapping_cant_calculation.Rmd
Deleted: analysis/mapping_cstar_calculation.Rmd
Deleted: analysis/mapping_predictor_preparation.Rmd
Deleted: code/README.md
Modified: code/Workflowr_project_managment.R
Deleted: code/biogeochemical_functions.R
Deleted: code/eda.R
Deleted: code/mapping_functions.R
Deleted: code/plotting_functions.R
Deleted: code/python_scripts/Gamma_GLODAP_python.py
Deleted: code/test_scripts/analysis_previous_studies.Rmd
Deleted: code/test_scripts/analysis_this_study_3d.Rmd
Deleted: code/test_scripts/model_nested_df.R
Deleted: code/test_scripts/raster_interpolation.R
Deleted: code/test_scripts/read_WOCE.Rmd
Deleted: code/test_scripts/read_World_Ocean_Atlas_2013_Clement.Rmd
Deleted: code/test_scripts/read_dclement_nc.Rmd
Note that any generated files, e.g. HTML, png, CSS, etc., are not included in this status report because it is ok for generated content to have uncommitted changes.
These are the previous versions of the repository in which changes were made to the R Markdown (analysis/read_Gruber_2019_Cant.Rmd) and HTML (docs/read_Gruber_2019_Cant.html) files. If you’ve configured a remote Git repository (see ?wflow_git_remote), click on the hyperlinks in the table below to view the files as they were in that past version.
| File | Version | Author | Date | Message |
|---|---|---|---|---|
| Rmd | 2f37595 | jens-daniel-mueller | 2020-11-27 | first rebuild after splitting the preprocessing part |
| Rmd | 92e10aa | Jens Müller | 2020-11-27 | Initial commit |
| html | 92e10aa | Jens Müller | 2020-11-27 | Initial commit |
path_functions <- "/nfs/kryo/work/updata/emlr_cant/utilities/functions/"
path_files <- "/nfs/kryo/work/updata/emlr_cant/utilities/files/"path_gruber_2019 <- "/nfs/kryo/work/updata/cant_gruber_2019/"
path_preprocessing <- "/nfs/kryo/work/updata/emlr_cant/observations/preprocessing/"1 Libraries
Loading libraries specific to the the analysis performed in this section.
library(tidync)2 Data source
- Anthropogenic CO2 estimates (1994-2007) by Gruber et al. (2019) downloaded in August 2020 from NOAA/NCEI Ocean Carbon Data System (OCADS)
3 Read ncdfs
3.1 Public data sets
The publicly available data sets contain only positive Cant estimates.
dcant <- tidync(paste(
path_gruber_2019,
"dcant_emlr_cstar_gruber_94-07_vs1.nc",
sep = ""
))
dcant <- dcant %>% activate(DCANT_01)
dcant <- dcant %>% hyper_tibble()
# harmonize column names and coordinates
dcant <- dcant %>%
rename(lon = LONGITUDE,
lat = LATITUDE,
depth = DEPTH,
cant_pos = DCANT_01) %>%
mutate(lon = if_else(lon < 20, lon + 360, lon))dcant_inv <- tidync(paste(
path_gruber_2019,
"inv_dcant_emlr_cstar_gruber_94-07_vs1.nc",
sep = ""
))
dcant_inv <- dcant_inv %>% activate(DCANT_INV01)
dcant_inv <- dcant_inv %>% hyper_tibble()
# harmonize column names and coordinates
dcant_inv <- dcant_inv %>%
rename(lon = LONGITUDE,
lat = LATITUDE,
cant_pos_inv = DCANT_INV01) %>%
mutate(lon = if_else(lon < 20, lon + 360, lon)) %>%
mutate(eras = "JGOFS_GO")3.2 Raw data
Internally available data sets also contain negative Cant estimates, as they are contained in the “raw” output of the eMLR mapping step.
V101 <- tidync(paste(path_gruber_2019,
"Cant_V101new.nc",
sep = ""))
V101 <- V101 %>% activate(Cant)
V101 <- V101 %>% hyper_tibble()
# harmonize column names and coordinates
V101 <- V101 %>%
rename(lon = longitude,
lat = latitude,
cant = Cant) %>%
filter(cant != -999) %>%
mutate(lon = if_else(lon < 20, lon + 360, lon))4 Apply basin mask
dcant <- inner_join(dcant, basinmask)
dcant_inv <- inner_join(dcant_inv, basinmask)
V101 <- inner_join(V101, basinmask)5 Join pos and all Cant
cant_3d <- inner_join(dcant, V101)
cant_3d <- cant_3d %>%
mutate(eras = "JGOFS_GO")
rm(dcant, V101)6 Zonal mean section
cant_zonal <- m_zonal_mean_section(cant_3d %>% select(-basin))7 Column inventory
7.1 From 3d fields

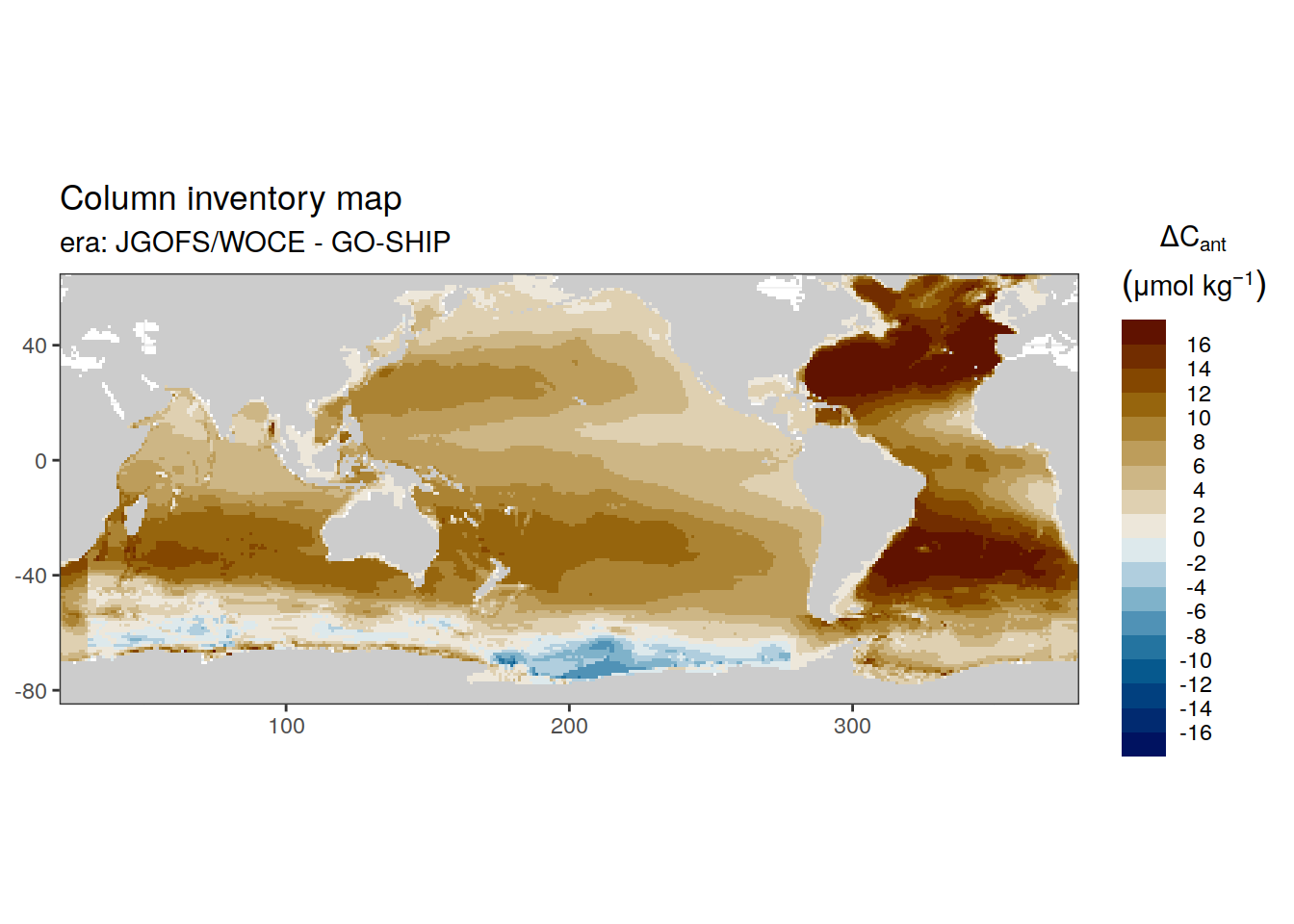

cant_inv <- m_cant_inv(cant_3d)7.1.1 Cant - all
p_map_cant_inv(
df = cant_inv,
var = "cant_inv",
col = "divergent")
| Version | Author | Date |
|---|---|---|
| 92e10aa | Jens Müller | 2020-11-27 |
7.1.2 Cant - pos
p_map_cant_inv(
df = cant_inv,
var = "cant_pos_inv")
| Version | Author | Date |
|---|---|---|
| 92e10aa | Jens Müller | 2020-11-27 |

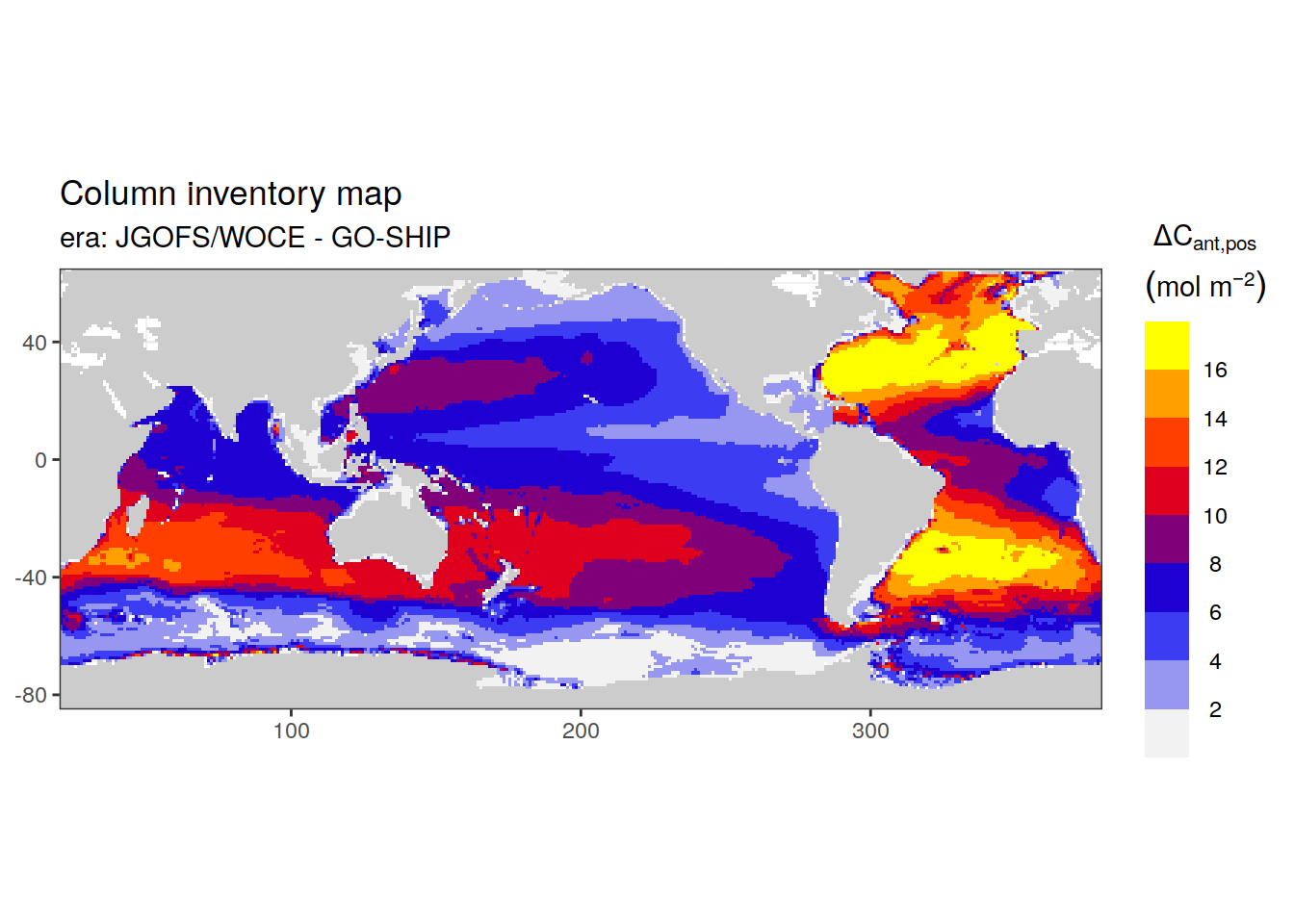

7.2 From pubished inventory data
p_map_cant_inv(
df = dcant_inv,
var = "cant_pos_inv")
| Version | Author | Date |
|---|---|---|
| 92e10aa | Jens Müller | 2020-11-27 |

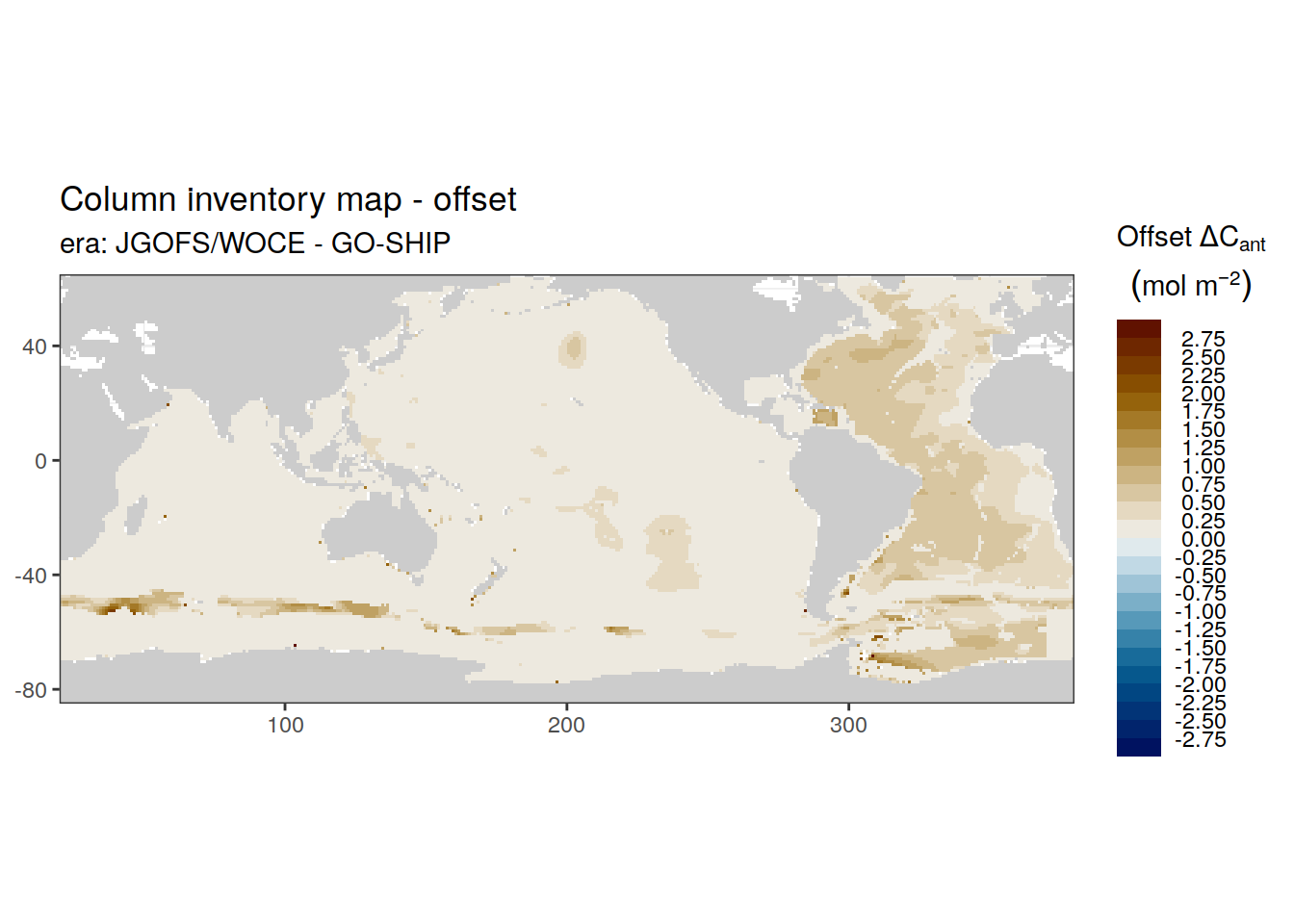

7.3 Published - 3d
cant_offset <- inner_join(
cant_inv %>% rename(cant_re = cant_pos_inv),
dcant_inv %>% rename(cant_pub = cant_pos_inv)
)
cant_offset <- cant_offset %>%
mutate(delta_cant = cant_re - cant_pub)
p_map_cant_inv_offset(df = cant_offset,
var = "delta_cant",
breaks = seq(-3,3,0.25))
| Version | Author | Date |
|---|---|---|
| 92e10aa | Jens Müller | 2020-11-27 |
rm(cant_offset, dcant_inv)8 Cant plots
Below, following subsets of the climatologies are plotted for all relevant parameters:
- Horizontal planes at 0, 150, 500, 2000m
- Meridional sections at longitudes: 335.5, 190.5, 70.5
Section locations are indicated as white lines in maps.
8.1 Horizontal plane maps
8.1.1 All values
p_map_climatology(
df = cant_3d,
var = "cant",
col = "divergent")
| Version | Author | Date |
|---|---|---|
| 92e10aa | Jens Müller | 2020-11-27 |
8.1.2 Positive values
p_map_climatology(
df = cant_3d,
var = "cant_pos")
| Version | Author | Date |
|---|---|---|
| 92e10aa | Jens Müller | 2020-11-27 |
8.2 Sections basin
8.2.1 All values
p_section_global(
df = cant_3d,
var = "cant",
col = "divergent")
| Version | Author | Date |
|---|---|---|
| 92e10aa | Jens Müller | 2020-11-27 |
8.2.2 Positive values
p_section_global(
df = cant_3d,
var = "cant_pos")
| Version | Author | Date |
|---|---|---|
| 92e10aa | Jens Müller | 2020-11-27 |

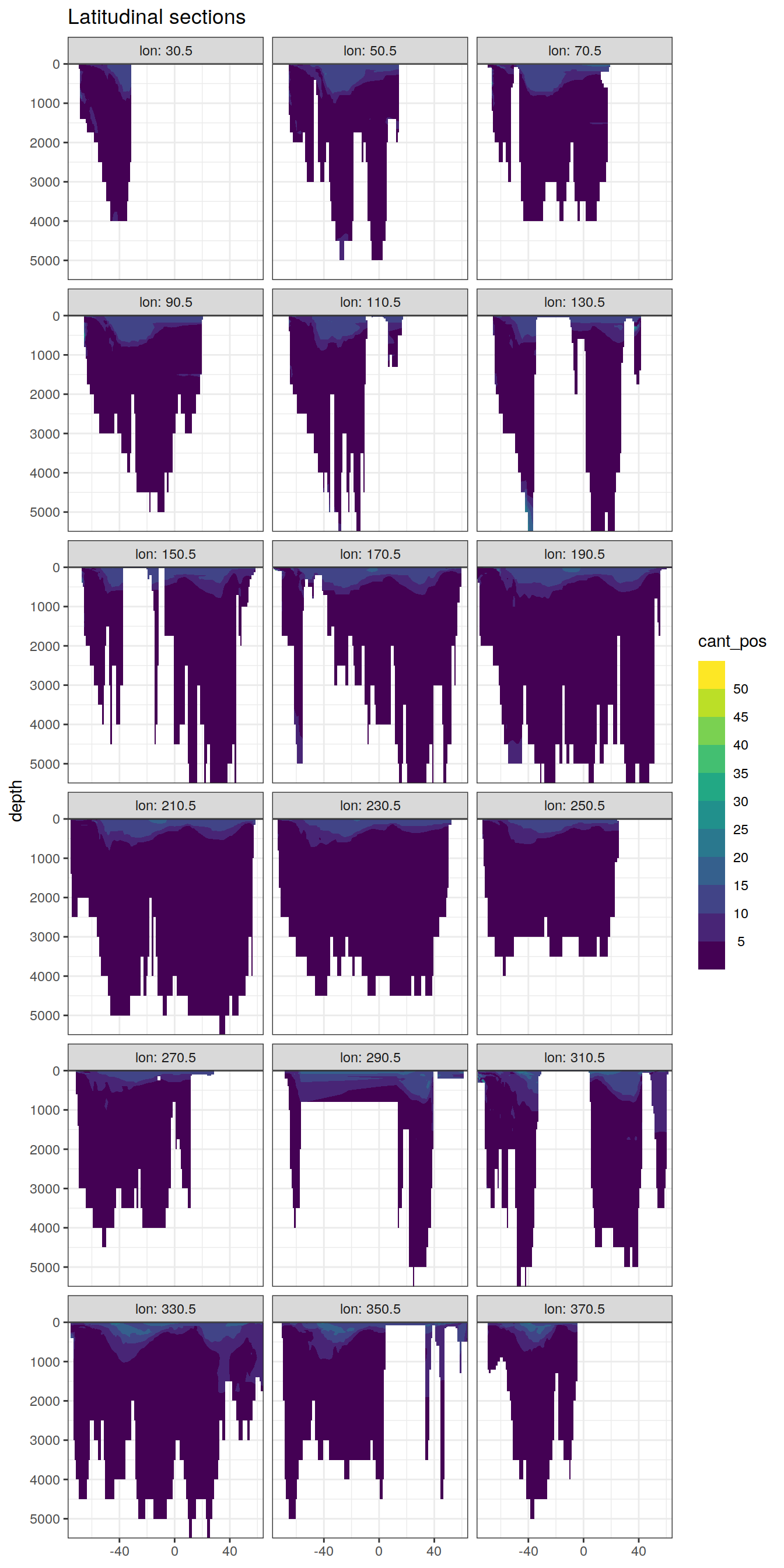

8.3 Sections at regular longitudes
8.3.1 All values
p_section_climatology_regular(
df = cant_3d,
var = "cant",
col = "divergent")
| Version | Author | Date |
|---|---|---|
| 92e10aa | Jens Müller | 2020-11-27 |
8.3.2 Positive values
p_section_climatology_regular(
df = cant_3d,
var = "cant_pos")
| Version | Author | Date |
|---|---|---|
| 92e10aa | Jens Müller | 2020-11-27 |
9 Write files
cant_3d %>%
write_csv(paste(path_preprocessing,
"G19_cant_3d.csv",
sep = ""))
cant_inv %>%
write_csv(paste(path_preprocessing,
"G19_cant_inv.csv",
sep = ""))
cant_zonal %>%
write_csv(paste(path_preprocessing,
"G19_cant_zonal.csv",
sep = ""))
