1 Read data
1.1 fgco2 global integrals
1.1.1 RECCAP2
products <- list.files(path_reccap2_surface_co2)
products <-
products[!str_detect(products, pattern = "\\.")]
# Remove data sets that do not meet formatting requirements
products <-
products[!str_detect(products, pattern = "JMAMLR_v20210312")]
products <-
products[!str_detect(products, pattern = "JMAMLR_v20211202")]
products <-
products[!str_detect(products, pattern = "LDEO_2021_clim_RECCAP2_v20210702")]
products <-
products[!str_detect(products, pattern = "spco2_LDEO_HPD_1985-2018_v20211210")]
products <-
products[!str_detect(products, pattern = "NIES-nn_v202011")]
products <-
products[!str_detect(products, pattern = "SOMFFN_v20211121")]
products <-
products[!str_detect(products, pattern = "AOML_EXTRAT_v20211130")]
products <-
products[!str_detect(products, pattern = "archive")]
### loop
for (i_products in products) {
# i_products <- products[5]
path_product <- paste(path_reccap2_surface_co2,
i_products,
sep = "/")
product_file_name <-
list.files(path_product, pattern = "fgco2_glob")
RECCAP2 <-
tidync(paste(path_product,
product_file_name,
sep = "/"))
RECCAP2 <- RECCAP2 %>%
hyper_tibble()
RECCAP2 <- RECCAP2 %>%
mutate(product = i_products)
if (exists("RECCAP2_all")) {
RECCAP2_all <- bind_rows(RECCAP2_all, RECCAP2)
}
if (!exists("RECCAP2_all")) {
RECCAP2_all <- RECCAP2
}
}1.1.2 Seaflux
SeaFlux_file_name <- paste0(path_seaflux_surface_co2,
"SeaFlux_v2021.04_fgco2_global.nc")
SeaFlux <-
tidync(SeaFlux_file_name) %>%
hyper_tibble()
ncmeta::nc_atts(SeaFlux_file_name)# A tibble: 9 × 4
id name variable value
<int> <chr> <chr> <named list>
1 0 units time <chr [1]>
2 1 calendar time <chr [1]>
3 0 description wind <chr [1]>
4 0 description product <chr [1]>
5 0 _FillValue fgco2_global <dbl [1]>
6 1 units fgco2_global <chr [1]>
7 2 long_name fgco2_global <chr [1]>
8 3 product fgco2_global <chr [1]>
9 4 description fgco2_global <chr [1]> ncmeta::nc_atts(SeaFlux_file_name, "time") %>% tidyr::unnest(cols = c(value))# A tibble: 2 × 4
id name variable value
<int> <chr> <chr> <chr>
1 0 units time days since 1982-01-15
2 1 calendar time proleptic_gregorian SeaFlux <- SeaFlux %>%
mutate(date = as.Date(time, origin = '1982-01-15'),
year = year(date))2 Timeseries
2.1 RECCAP2
RECCAP2_all <- RECCAP2_all %>%
mutate(date = as.Date(time, origin = '1980-01-01'),
year = year(date)) %>%
select(product, year, date, fgco2_glob)

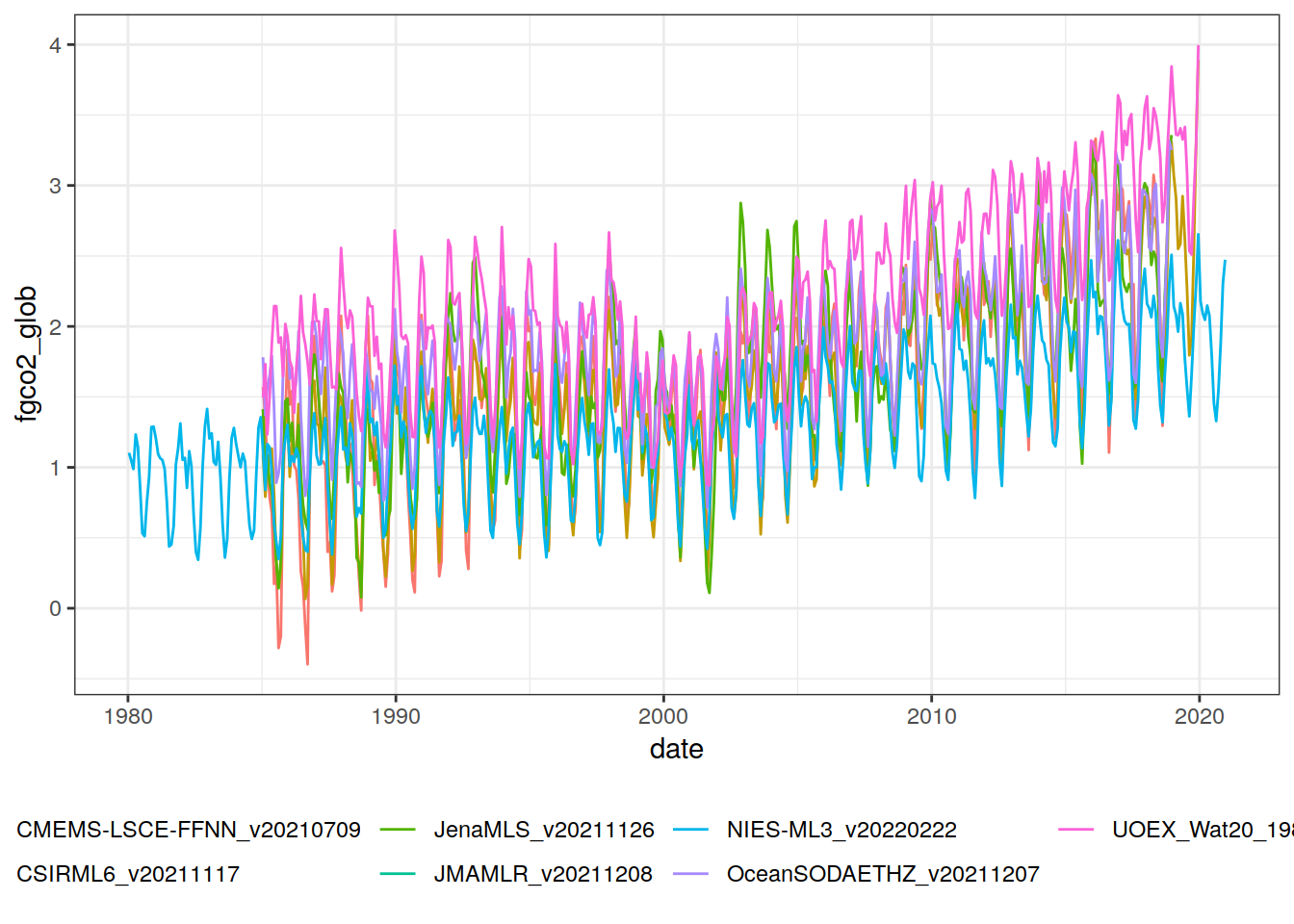

RECCAP2_all %>%
ggplot(aes(date, fgco2_glob, col=product)) +
geom_line() +
theme(legend.position = "bottom")

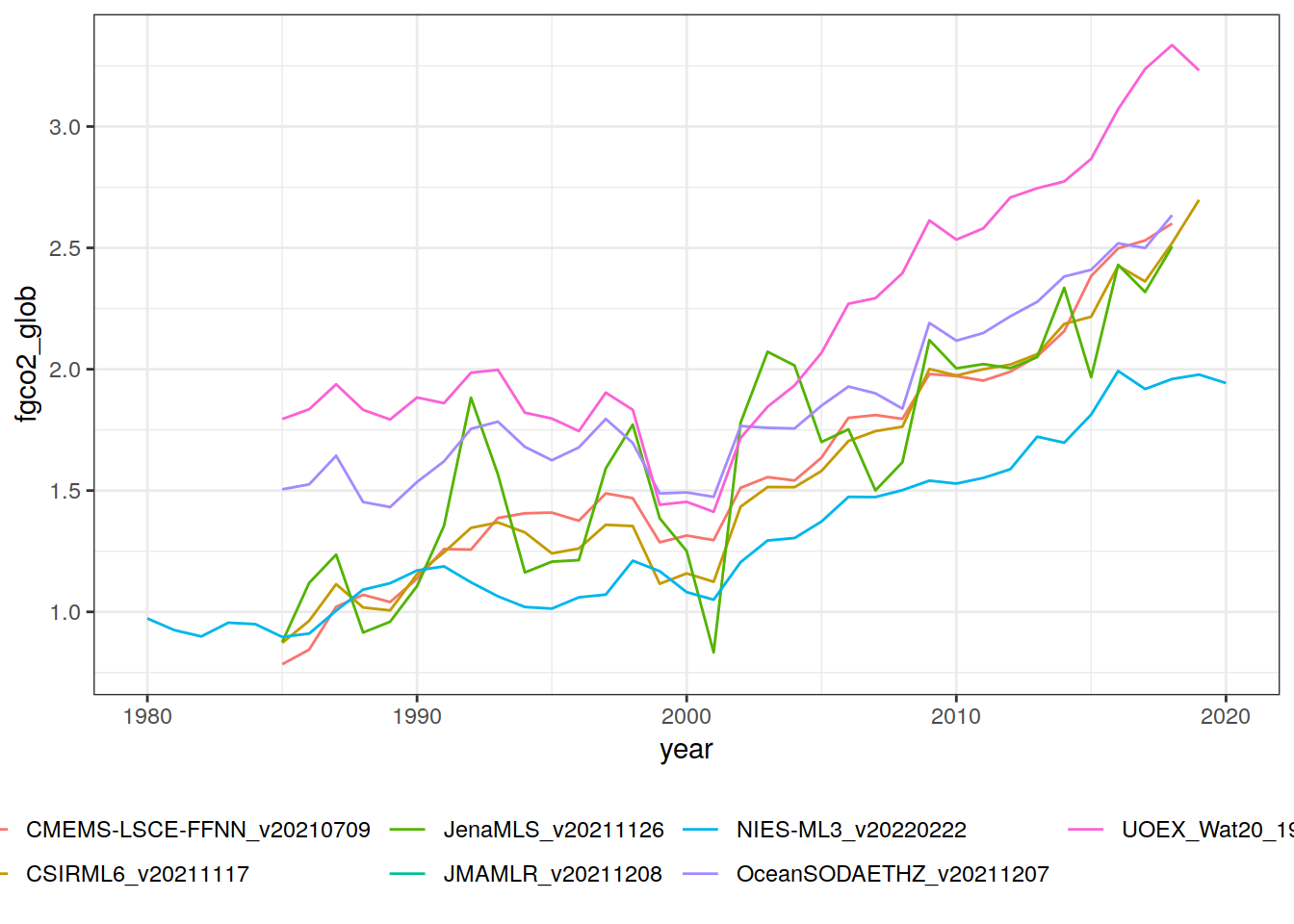

RECCAP2_all_annual <- RECCAP2_all %>%
group_by(year, product) %>%
summarise(fgco2_glob = mean(fgco2_glob)) %>%
ungroup()
RECCAP2_all_annual %>%
ggplot(aes(year, fgco2_glob, col=product)) +
geom_line() +
theme(legend.position = "bottom")

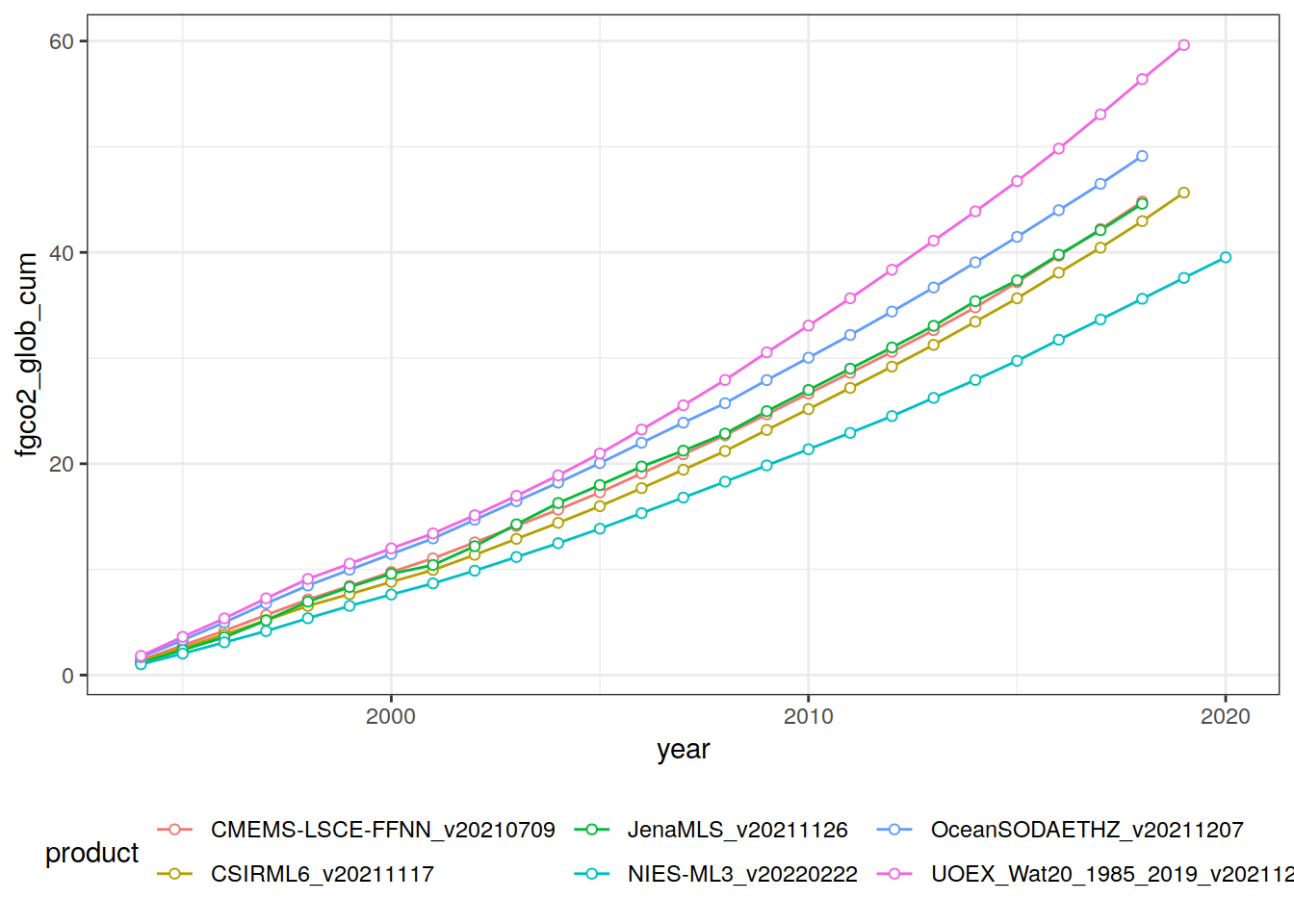

RECCAP2_all_annual_cum_1994 <- RECCAP2_all_annual %>%
filter(year >= 1994) %>%
arrange(year) %>%
group_by(product) %>%
mutate(fgco2_glob_cum = cumsum(fgco2_glob)) %>%
ungroup()
RECCAP2_all_annual_cum_1994 %>%
ggplot(aes(year, fgco2_glob_cum, col = product)) +
geom_line() +
geom_point(shape = 21, fill = "white") +
theme(legend.position = "bottom")

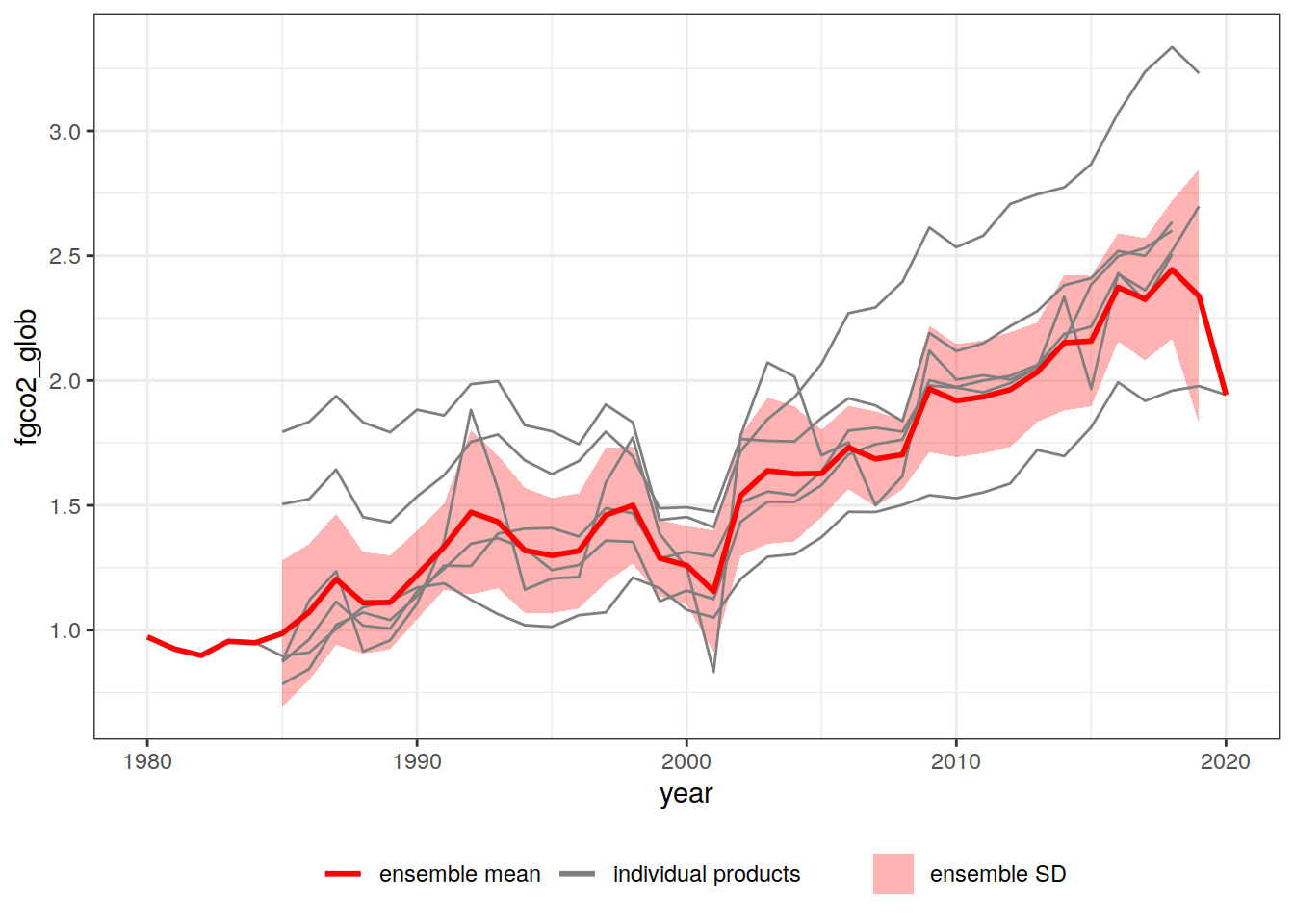

RECCAP2_all_annual_ensemble <- RECCAP2_all_annual %>%
filter(product != "UOEX_Wat20_1985_2019_v20211204") %>%
group_by(year) %>%
summarise(fgco2_glob_sd = sd(fgco2_glob),
fgco2_glob = mean(fgco2_glob)) %>%
ungroup()
ggplot() +
geom_ribbon(
data =
RECCAP2_all_annual_ensemble,
aes(
year,
ymax = fgco2_glob + fgco2_glob_sd,
ymin = fgco2_glob - fgco2_glob_sd,
fill = "ensemble SD"
), alpha = 0.3
) +
geom_line(data =
RECCAP2_all_annual,
aes(year, fgco2_glob, group = product, col = "individual products")) +
geom_line(data =
RECCAP2_all_annual_ensemble,
aes(year, fgco2_glob, col = "ensemble mean"), size = 1) +
scale_fill_manual(values = "red") +
scale_color_manual(values = c("red", "grey50")) +
theme(legend.position = "bottom",
legend.title = element_blank())
2.2 Seaflux
SeaFlux <- SeaFlux %>%
mutate(fgco2_glob = -fgco2_global) %>%
select(product, wind, year, date, fgco2_glob)

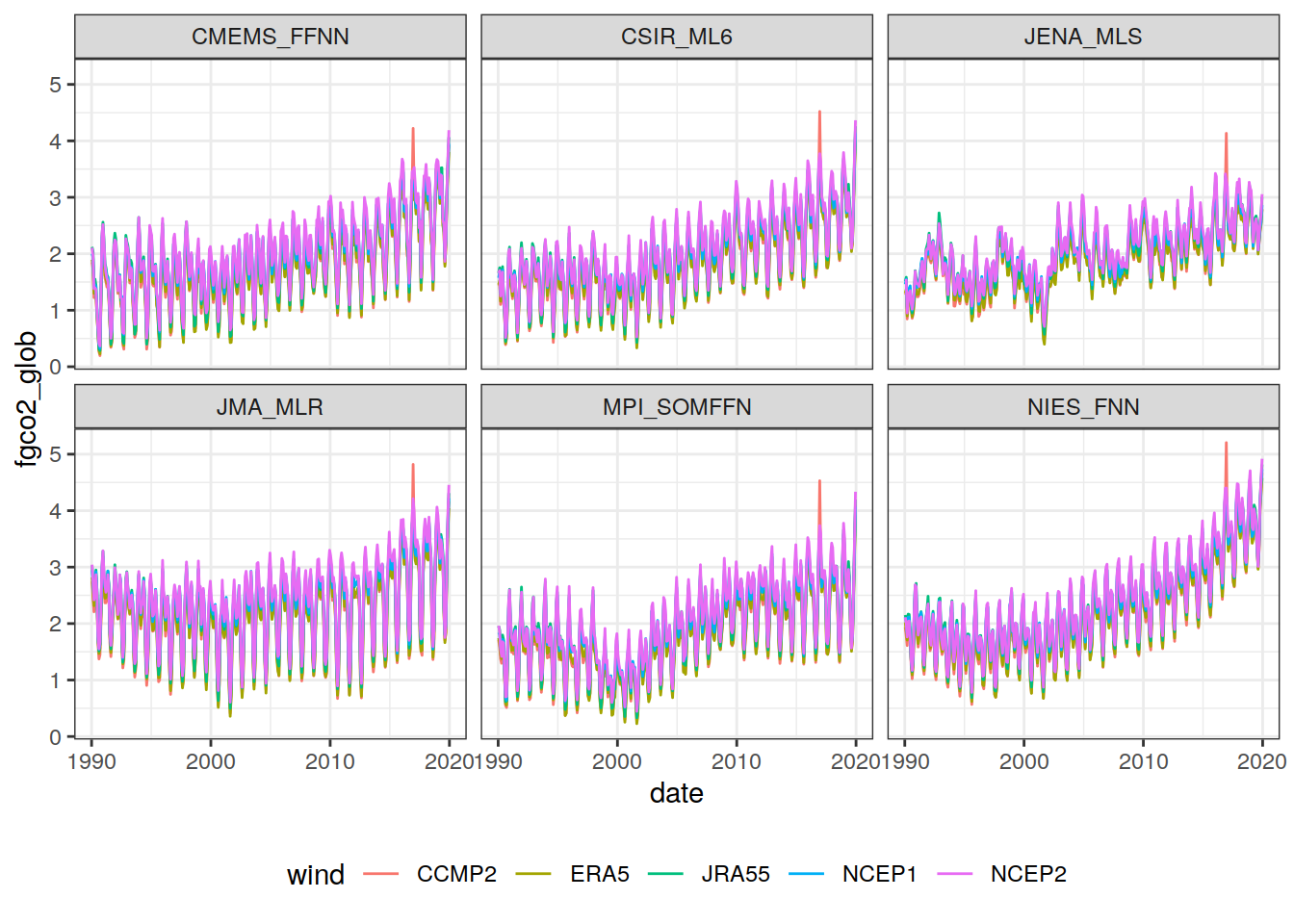

SeaFlux %>%
ggplot(aes(date, fgco2_glob, col=wind)) +
geom_line() +
theme(legend.position = "bottom") +
facet_wrap(~ product)
| Version | Author | Date |
|---|---|---|
| 163d599 | jens-daniel-mueller | 2022-02-17 |
SeaFlux_annual <- SeaFlux %>%
filter(wind %in% c("CCMP2", "ERA5", "JRA55")) %>%
group_by(year, product) %>%
summarise(fgco2_glob = mean(fgco2_glob)) %>%
ungroup()

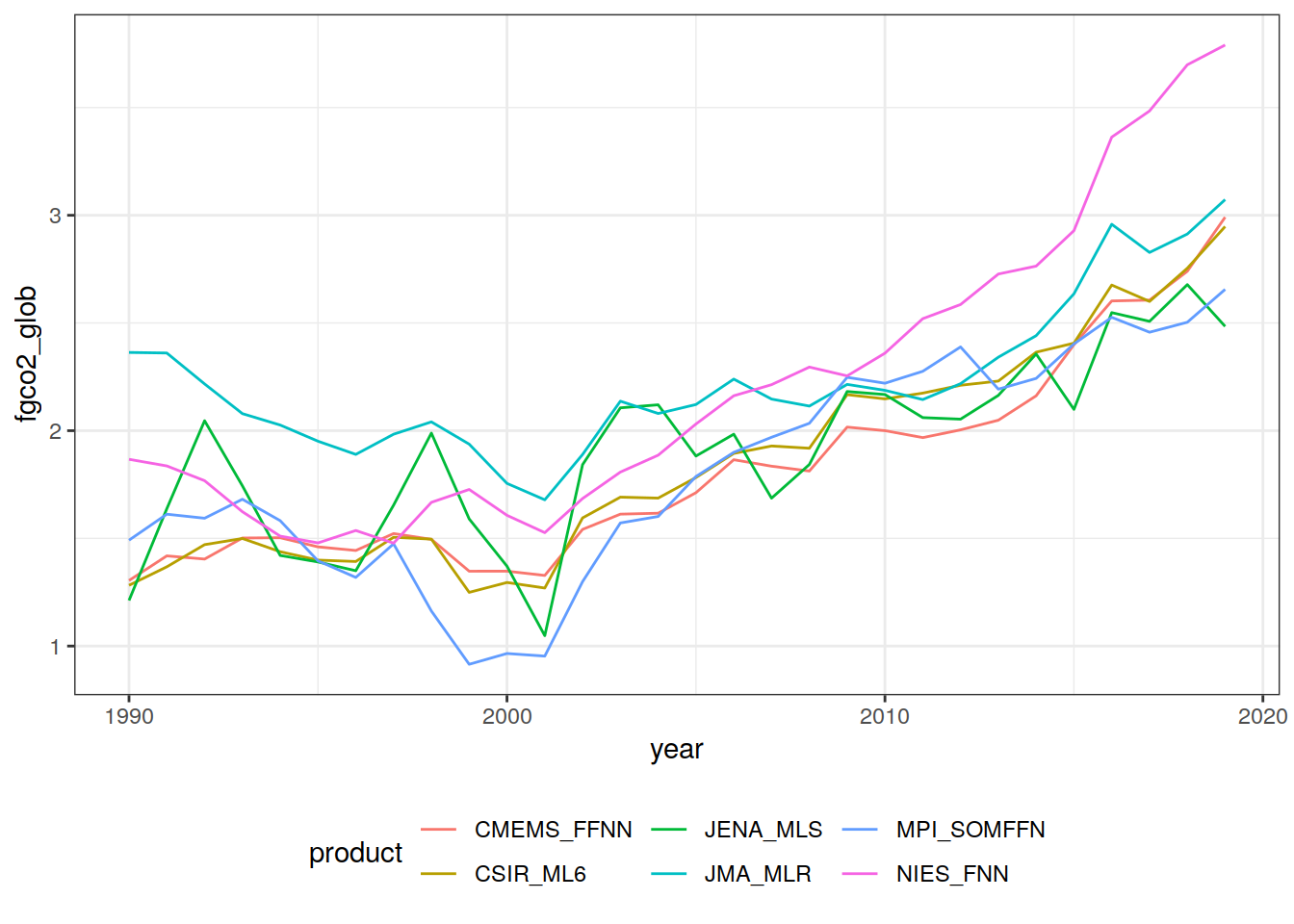

SeaFlux_annual %>%
ggplot(aes(year, fgco2_glob, col=product)) +
geom_line() +
theme(legend.position = "bottom")
| Version | Author | Date |
|---|---|---|
| 163d599 | jens-daniel-mueller | 2022-02-17 |

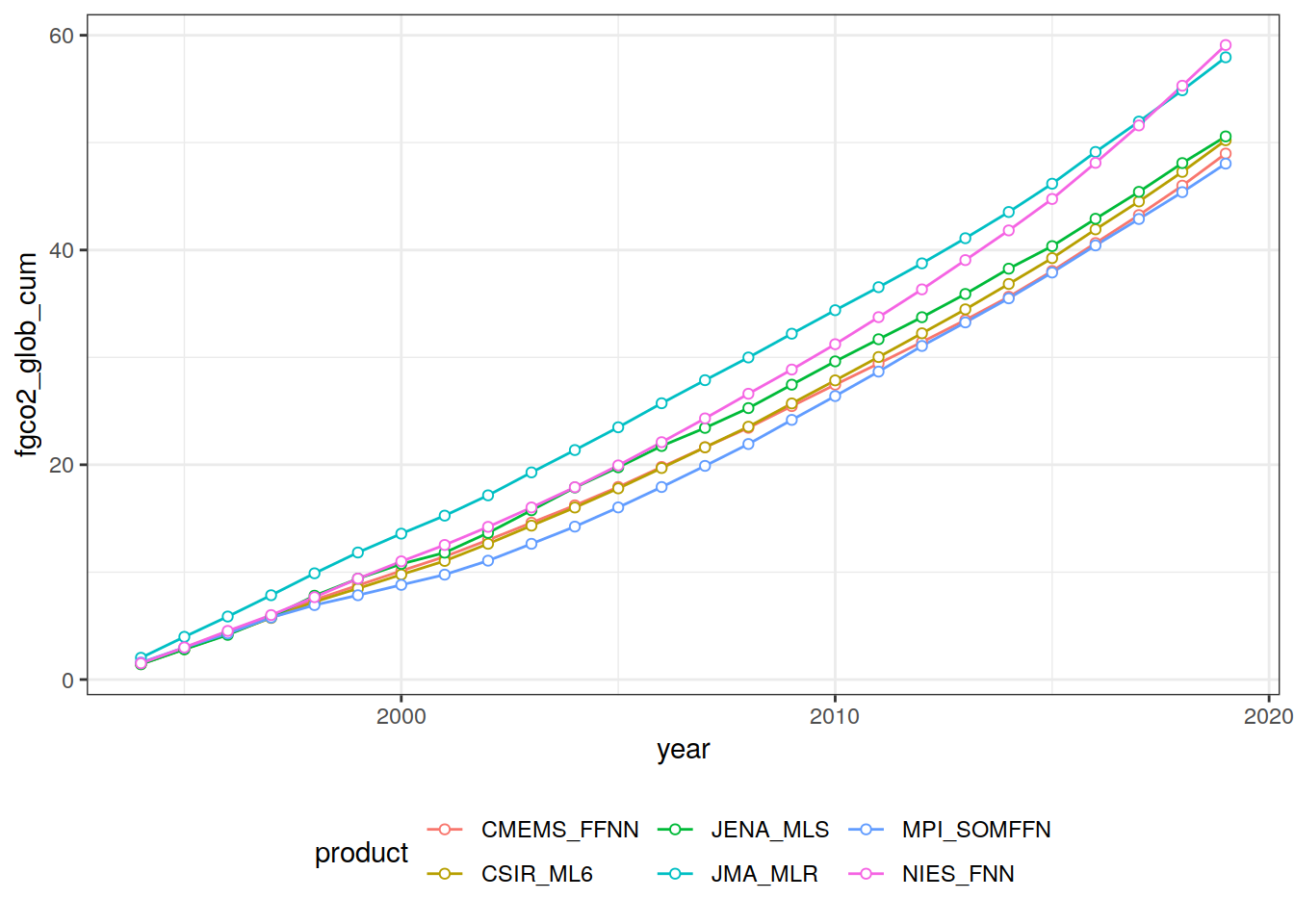

SeaFlux_annual_cum_1994 <- SeaFlux_annual %>%
filter(year >= 1994) %>%
arrange(year) %>%
group_by(product) %>%
mutate(fgco2_glob_cum = cumsum(fgco2_glob)) %>%
ungroup()
SeaFlux_annual_cum_1994 %>%
ggplot(aes(year, fgco2_glob_cum, col = product)) +
geom_line() +
geom_point(shape = 21, fill = "white") +
theme(legend.position = "bottom")
| Version | Author | Date |
|---|---|---|
| 163d599 | jens-daniel-mueller | 2022-02-17 |

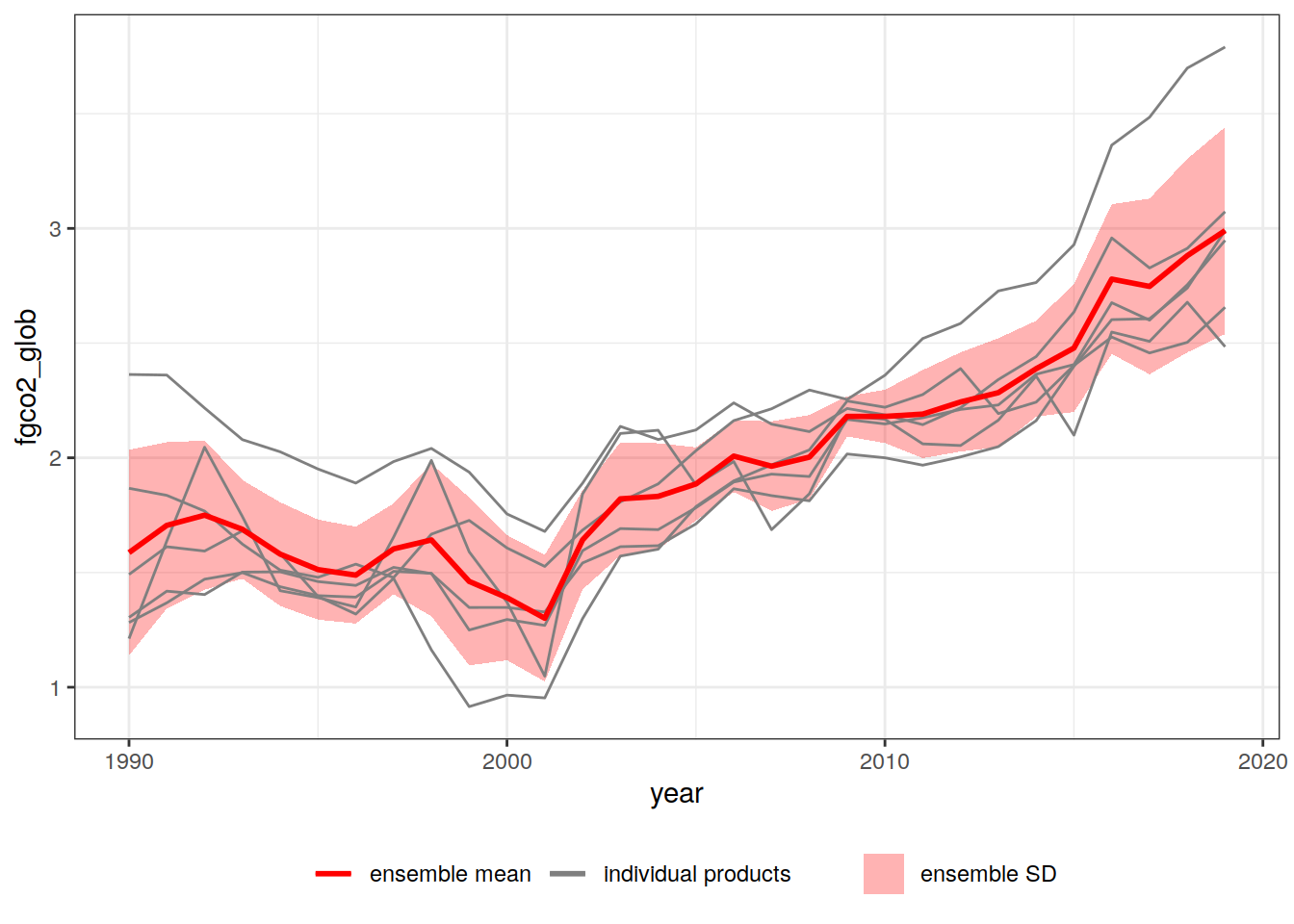

SeaFlux_annual_ensemble <- SeaFlux_annual %>%
group_by(year) %>%
summarise(fgco2_glob_sd = sd(fgco2_glob),
fgco2_glob = mean(fgco2_glob)) %>%
ungroup()
ggplot() +
geom_ribbon(
data =
SeaFlux_annual_ensemble,
aes(
year,
ymax = fgco2_glob + fgco2_glob_sd,
ymin = fgco2_glob - fgco2_glob_sd,
fill = "ensemble SD"
), alpha = 0.3
) +
geom_line(data =
SeaFlux_annual,
aes(year, fgco2_glob, group = product, col = "individual products")) +
geom_line(data =
SeaFlux_annual_ensemble,
aes(year, fgco2_glob, col = "ensemble mean"), size = 1) +
scale_fill_manual(values = "red") +
scale_color_manual(values = c("red", "grey50")) +
theme(legend.position = "bottom",
legend.title = element_blank())
| Version | Author | Date |
|---|---|---|
| 163d599 | jens-daniel-mueller | 2022-02-17 |

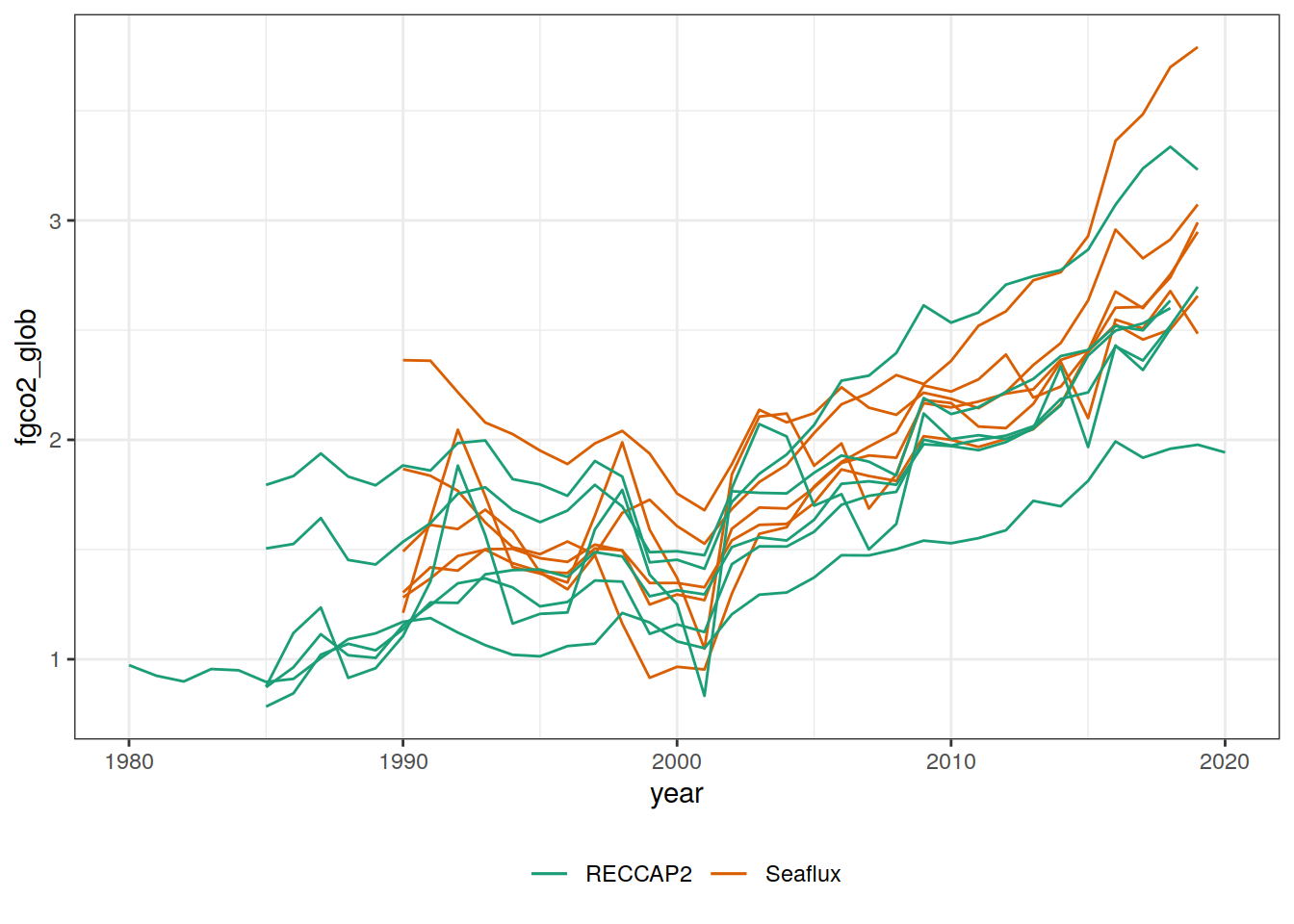

2.3 Comparison
ggplot() +
geom_line(data = SeaFlux_annual,
aes(year, fgco2_glob, group = product,
col = "Seaflux")) +
geom_line(data = RECCAP2_all_annual,
aes(year, fgco2_glob, group = product,
col = "RECCAP2")) +
scale_color_brewer(palette = "Dark2") +
theme(legend.position = "bottom",
legend.title = element_blank())

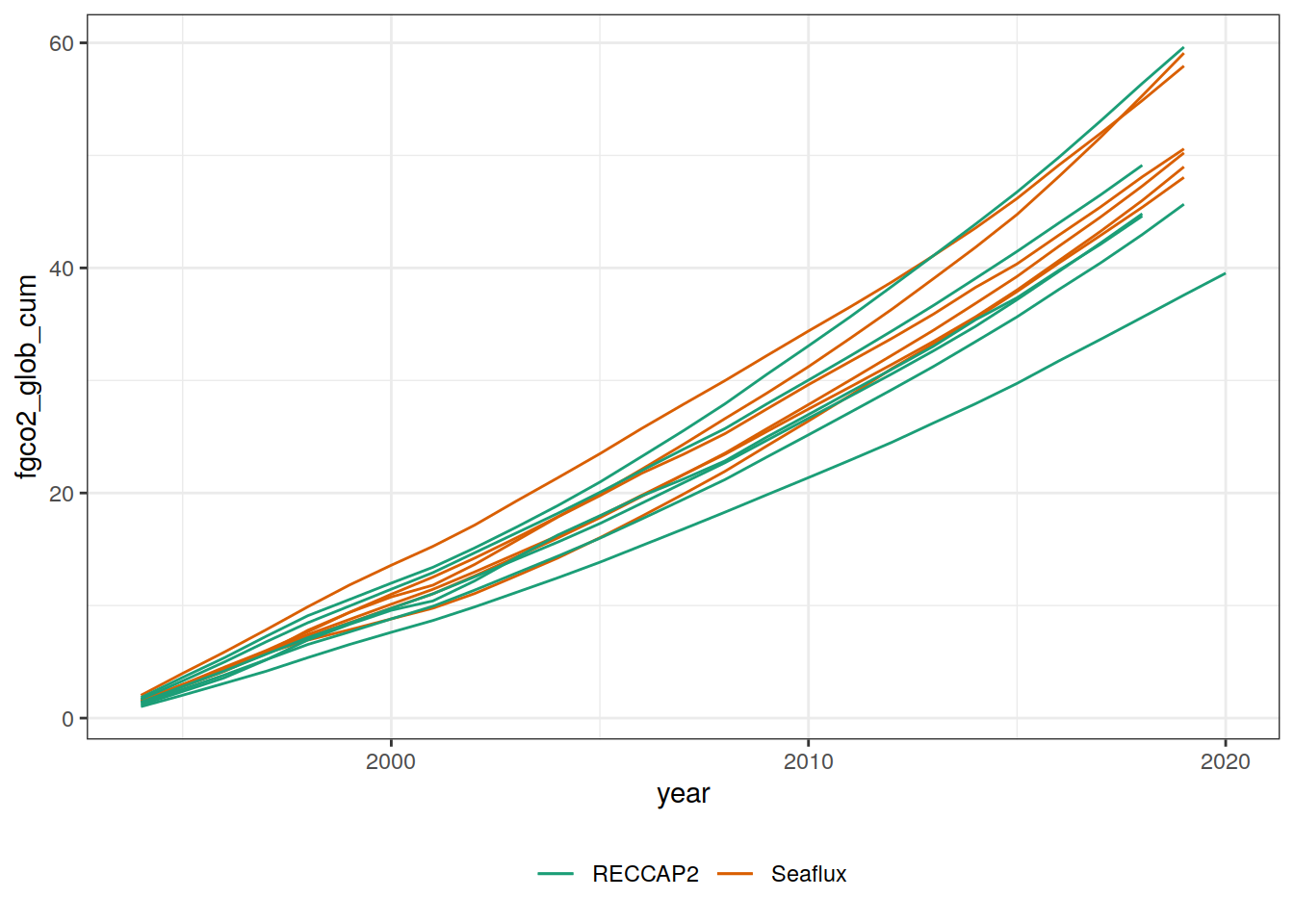

ggplot() +
geom_line(data = SeaFlux_annual_cum_1994,
aes(year, fgco2_glob_cum, group = product,
col = "Seaflux")) +
geom_line(data = RECCAP2_all_annual_cum_1994,
aes(year, fgco2_glob_cum, group = product,
col = "RECCAP2")) +
scale_color_brewer(palette = "Dark2") +
theme(legend.position = "bottom",
legend.title = element_blank())
3 Write files
RECCAP2_all %>%
write_csv(paste0(path_preprocessing,
"fgco2_glob_RECCAP2_all.csv"))
RECCAP2_all_annual %>%
write_csv(paste0(path_preprocessing,
"fgco2_glob_RECCAP2_all_annual.csv"))
SeaFlux %>%
write_csv(paste0(path_preprocessing,
"fgco2_glob_Seaflux.csv"))
SeaFlux_annual %>%
write_csv(paste0(path_preprocessing,
"fgco2_glob_Seaflux_annual.csv"))
