Data Preparation
Libraries
library(tidyverse)
library(DT)
library(ggplot2)
kwh_yearly<-read.csv("./output/kwh_annual_2026-03-04.csv")
dailyfix<-read.csv("./output/kwh_daily_2026-03-04.csv")Annual Electricity Data
community_yearly <- kwh_yearly %>%
filter(type=="Community")%>%
mutate(dollar_cost=round(kwh_corr*0.08138507,digits=2),
ghg_emissions=round(kwh_corr*(0.30082405/1000),digits=4),
kwh_per_sqft=round(kwh_corr/sqft, digits=4),
kwh_per_person=round(kwh_corr/occupants, digits=4))%>%
arrange(desc(kwh_corr))%>%
select(-type)
str(community_yearly)Daily Electricity Data
comm_dailyfix <- filter(dailyfix, type == "Community")%>%
filter(days_perc>=95)%>%
mutate(date = ymd(date),
month = lubridate::month(date, label = TRUE),
day = lubridate::wday(date, label = TRUE)) %>%
mutate(kwh_sqft = kwh*100/sqft)
str(comm_dailyfix)Building Type Summary
Descriptive Table

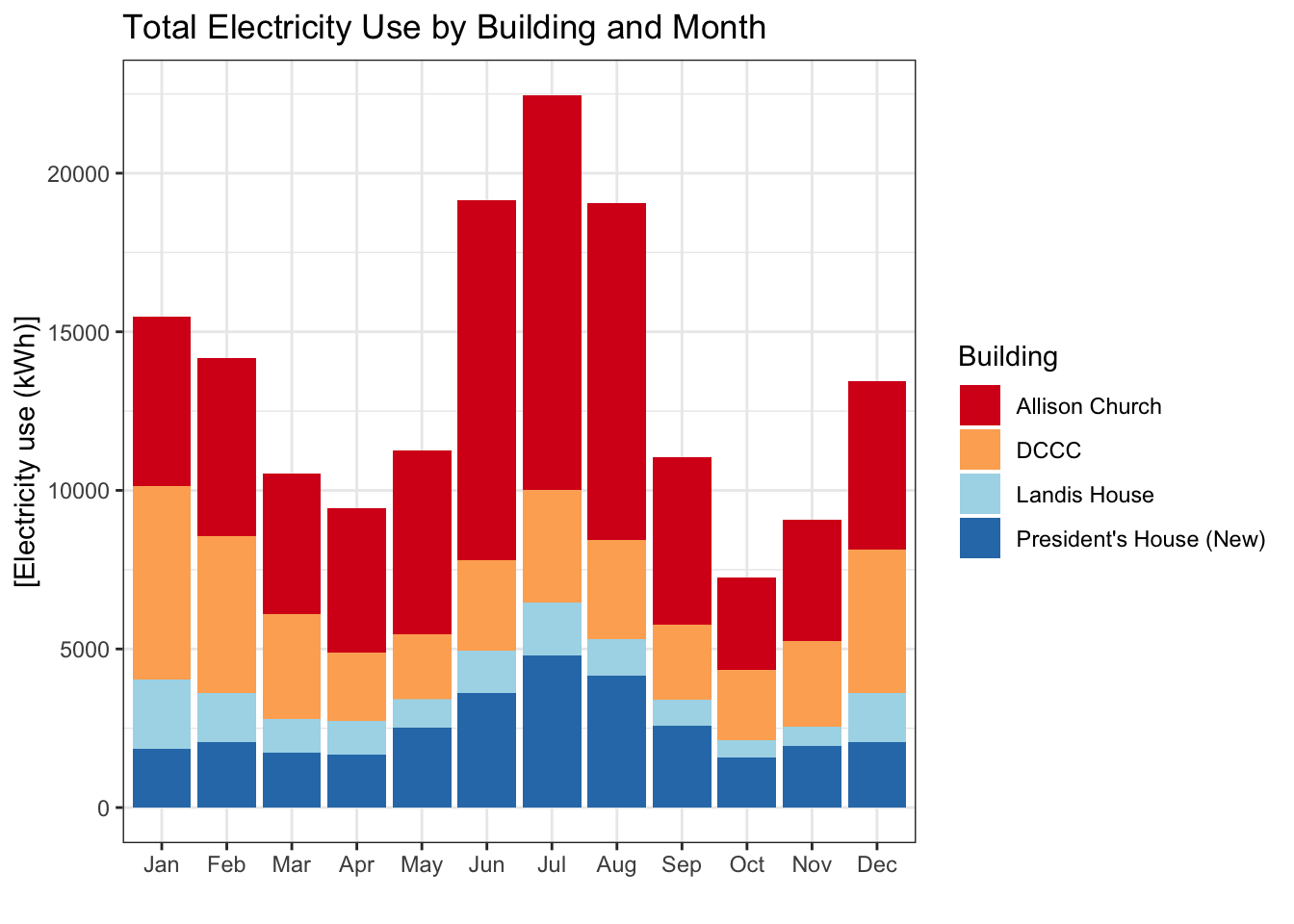

datatable(community_yearly, caption="Community Building Annual Electricity Use Indicators")Electricity Use Over Year
ggplot(comm_dailyfix, aes(x = month, y = kwh, fill = NAME)) +
geom_bar(position = "stack", stat = "identity") +
scale_fill_brewer(palette = "RdYlBu")+
theme_bw()+
labs(x = "",
y = "[Electricity use (kWh)]",
title = "Total Electricity Use by Building and Month",
fill = "Building")
| Version | Author | Date |
|---|---|---|
| 38132bb | maggiedouglas | 2026-03-11 |

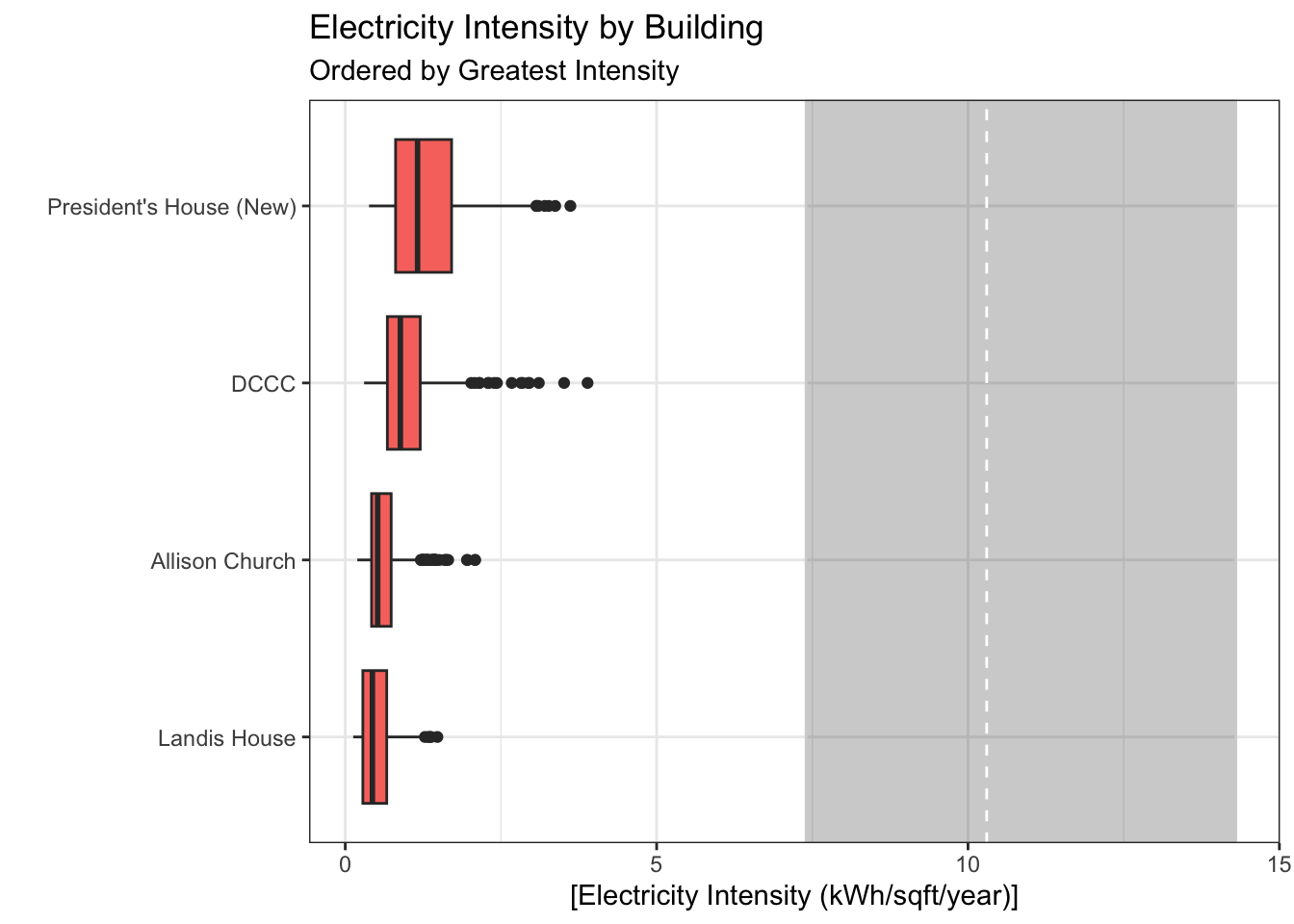

Electricity Intensity
ggplot(comm_dailyfix, aes(x = reorder(NAME, kwh/sqft, FUN = median), y=kwh_sqft, fill=type))+
geom_boxplot(show.legend=FALSE)+
annotate("rect",xmin=-Inf, xmax=Inf, ymin=7.4, ymax=14.3, color="lightgray",alpha=0.3)+
geom_hline(yintercept=10.3,linetype="dashed", color="white")+
coord_flip()+
theme_bw()+
labs(x="",y="[Electricity Intensity (kWh/sqft/year)]",title="Electricity Intensity by Building",subtitle= "Ordered by Greatest Intensity")
| Version | Author | Date |
|---|---|---|
| 38132bb | maggiedouglas | 2026-03-11 |
Partner Contributions
I, Dinela D., contributed to the code by transforming the annual electricity data and creating a table summarizing annual electricity use.
I, Emma K., worked on the daily subset of our data. I contributed to creating the stacked bar graph with total electricity use by building and month.
