Note: If you would like to run this analysis on your computer, you will first need to download the fine-mapping outputs. They can be downloaded from here. Once you have downloaded the files, copy each file to the “data” or “outputs” subdirectory.

Load some packages and custom functions used in the code below:

library(data.table)
library(dplyr)
library(ggplot2)
library(cowplot)
source("../code/rosmap_functions_more.R")

Load the gene annotations used in some of the analyses below.

gene_file <-
  file.path("../data/genome_annotations",
    "Homo_sapiens.GRCh38.103.chr.reformatted.collapse_only.gene.gtf.gz")
genes <- get_gene_annotations(gene_file)

Load the allele frequencies computed by PLINK:

load("../data/afreq.RData")

Next I load methylation SNP results generated by SuSiE-topPC, fSuSiE and the SNP-CpG association testing:

assoc_file       <- "../outputs/ROSMAP_mQTL_qtl_snp_qval0.05.tsv.gz"
snps_susie_file  <- "../outputs/ROSMAP_mQTL_cs_snp_toppc1_annotation.tsv.gz"
snps_fsusie_file <- "../outputs/ROSMAP_mQTL_cs_snp_annotation.tsv.gz"
snps_susie  <- read_enrichment_results(snps_susie_file,n = 6)
snps_fsusie <- read_enrichment_results(snps_fsusie_file,n = 7)
assoc       <- read_enrichment_results(assoc_file,n = 8)
snps_susie  <- snps_susie[1:6]
snps_fsusie <- snps_fsusie[1:7]
snps_susie$region <-
  sapply(strsplit(snps_susie$cs,":",fixed = TRUE),"[[",2)
snps_susie  <- transform(snps_susie,
                         region = factor(region),
                         cs     = factor(cs),
                         pc     = factor(pc))
snps_fsusie <- transform(snps_fsusie,
                         cs     = factor(cs),
                         region = factor(region),
                         study  = factor(study))

Add the allele frequencies to the methylation fine-mapping results:

ids  <- with(snps_susie,paste(chr,pos,sep = "_"))
rows <- match(ids,afreq$id)
snps_susie$maf <- afreq[rows,"maf"]
ids  <- with(snps_fsusie,paste(chr,pos,sep = "_"))
rows <- match(ids,afreq$id)
snps_fsusie$maf <- afreq[rows,"maf"]

Also load the CpG-level results generated by fSuSiE:

cpg_fsusie_file    <- "../outputs/ROSMAP_mQTL_cs_effect_cpg_annotation.tsv.gz"
cpgs_fsusie        <- read_enrichment_results(cpg_fsusie_file,n = 9)
cpgs_fsusie        <- cpgs_fsusie[1:9]
cpgs_fsusie$region <- sapply(strsplit(cpgs_fsusie$cs,":",fixed = TRUE),"[[",2)
cpgs_fsusie <- transform(cpgs_fsusie,
                         cs      = factor(cs),
                         region  = factor(region),
                         context = factor(context))

Keep only CSs if the MAF of the sentinel SNP is >5%:

keep        <- tapply(snps_susie[c("pip","maf")],snps_susie$cs,
                      function (x) x[which.max(x$pip),"maf"] >= 0.05)
keep_cs     <- names(which(keep))
snps_susie  <- subset(snps_susie,is.element(cs,keep_cs))
snps_susie  <- transform(snps_susie,
                         region = factor(region),
                         cs     = factor(cs))
keep        <- tapply(snps_fsusie[c("pip","maf")],snps_fsusie$cs,
                      function (x) x[which.max(x$pip),"maf"] >= 0.05)
keep_cs     <- names(which(keep))
snps_fsusie <- subset(snps_fsusie,is.element(cs,keep_cs))
snps_fsusie <- transform(snps_fsusie,
                         region = factor(region),
                         cs     = factor(cs))

Apply this same MAF filter to the SNP-CpG association tests and the fSuSiE CpG-level results:

ids         <- with(assoc,paste(chr,pos,sep = "_"))
rows        <- match(ids,afreq$id)
assoc$maf   <- afreq[rows,"maf"]
assoc       <- subset(assoc,maf >= 0.05)
cpgs_fsusie <- subset(cpgs_fsusie,is.element(cs,keep_cs))
cpgs_fsusie <- transform(cpgs_fsusie,
                         region = factor(region),
                         cs     = factor(cs))

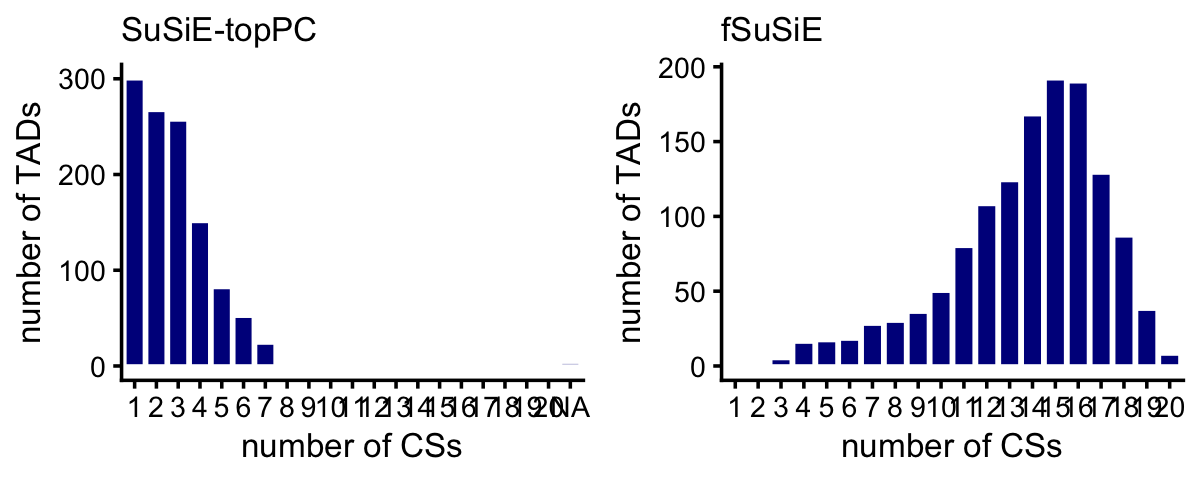

Let’s now get an overview of the TADs. This is the number of fine-mapping regions (TADs) that contained at least one CS in each of the analyses:

nlevels(snps_susie$region)
nlevels(snps_fsusie$region)
# [1] 1145
# [1] 1327

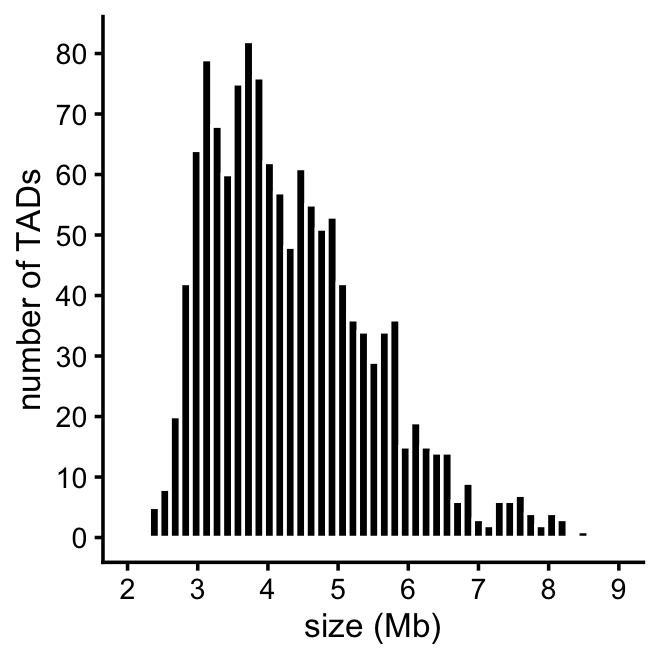

This plot summarizes the sizes of the TADs that were analyzed by SuSiE-topPC and fSuSiE:

plot_tad_sizes <- function (tads) {
  tad_size <- get_tad_sizes(tads)
  pdat <- data.frame(tad_size = tad_size)
  return(ggplot(pdat,aes(x = tad_size)) +
         geom_histogram(color = "white",fill = "black",bins = 48) +
         labs(x = "size (Mb)",y = "number of TADs") +
         theme_cowplot(font_size = 10))
}
tads <- levels(snps_fsusie$region)
p <- plot_tad_sizes(tads) +
  scale_x_continuous(limits = c(2,9),breaks = 1:10) +
  scale_y_continuous(breaks = seq(0,100,10))
print(p)

Some other useful statistics on the TAD sizes:

tad_size <- get_tad_sizes(tads)
length(tad_size)
range(tad_size)
mean(tad_size)
median(tad_size)
sum(tad_size > 9)
# [1] 1327
# [1]  2.320952 34.727189
# [1] 4.54465
# [1] 4.154266
# [1] 19

There are some technical concerns about fine-mapping mSNPs that overlap with CpGs, so these SNPs (and the CSs that include these SNPs) should be removed from the results.

For the SNP-CpG association tests, it turns out that there are no SNPs to “blacklist”:

sum(with(assoc,pos == molecular_trait_id_pos))
# [1] 0

Now identify the blacklisted mSNPs as the mSNPs that have the same position as a CpG (I will use both “peak start” and “peak end”):

ids_snp <- c(with(snps_susie,paste(chr,pos,sep = "_")),
             with(snps_fsusie,paste(chr,pos,sep = "_")))
ids_cpg <- with(cpgs_fsusie,
                c(paste(chr,peak_start,sep = "_"),
                  paste(chr,peak_end,sep = "_")))
blacklisted_ids <- intersect(ids_snp,ids_cpg)

Now remove all SuSiE and fSuSiE CSs containing one or more blacklisted SNPs:

ids            <- with(snps_susie,paste(chr,pos,sep = "_"))
rows           <- which(is.element(ids,blacklisted_ids))
blacklisted_cs <- unique(snps_susie[rows,]$cs)
snps_susie     <- subset(snps_susie,!is.element(cs,blacklisted_cs))
ids            <- with(snps_fsusie,paste(chr,pos,sep = "_"))
rows           <- which(is.element(ids,blacklisted_ids))
blacklisted_cs <- unique(snps_fsusie[rows,]$cs)
snps_fsusie    <- subset(snps_fsusie,!is.element(cs,blacklisted_cs))
snps_susie     <- transform(snps_susie,cs = factor(cs))
snps_fsusie    <- transform(snps_fsusie,cs = factor(cs))

These histograms summarize the number of CSs per TAD:

pdat1 <- get_cs_vs_tad_size(snps_susie)
pdat2 <- get_cs_vs_tad_size(snps_fsusie)
pdat1 <- transform(pdat1,num_cs = factor(num_cs,1:20))
pdat2 <- transform(pdat2,num_cs = factor(num_cs,1:20))
p1 <- ggplot(pdat1,aes(x = num_cs)) +
  geom_histogram(stat = "count",color = "white",fill = "darkblue") +
  scale_x_discrete(drop = FALSE) +
  labs(x = "number of CSs",y = "number of TADs",title = "SuSiE-topPC") +
  theme_cowplot(font_size = 10) +
  theme(plot.title = element_text(size = 10,face = "plain"))
p2 <- ggplot(pdat2,aes(x = num_cs)) +
  geom_histogram(stat = "count",color = "white",fill = "darkblue") +
  scale_x_discrete(drop = FALSE) +
  labs(x = "number of CSs",y = "number of TADs",title = "fSuSiE") +
  theme_cowplot(font_size = 10) +
  theme(plot.title = element_text(size = 10,face = "plain"))
plot_grid(p1,p2,nrow = 1,ncol = 2)

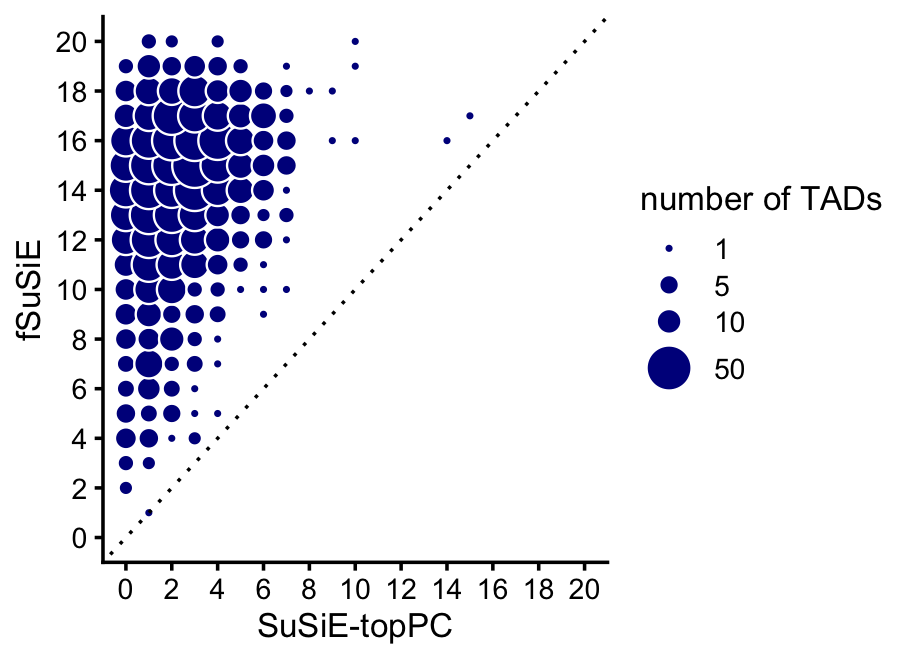

Compare discovery of causal SNPs (number of CSs) in the SuSiE-topPC and fSuSiE analyses:

dat1 <- get_cs_vs_tad_size(snps_susie)
dat2 <- get_cs_vs_tad_size(snps_fsusie)
dat1 <- dat1[c(1,3)]
dat2 <- dat2[c(1,3)]
names(dat1) <- c("tad","num_cs_susie")
names(dat2) <- c("tad","num_cs_fsusie")
dat <- merge(dat1,dat2,all = TRUE)
rows <- which(is.na(dat$num_cs_susie))
dat[rows,"num_cs_susie"] <- 0
pdat <- melt(with(dat,table(num_cs_susie,num_cs_fsusie)))
rows <- which(pdat$value == 0)
pdat[rows,"value"] <- NA
p <- ggplot(pdat,aes(x = num_cs_susie,y = num_cs_fsusie,size = value)) +
  geom_point(color = "white",fill = "darkblue",shape = 21) +
  geom_abline(intercept = 0,slope = 1,color = "black",linetype = "dotted") +
  scale_x_continuous(breaks = seq(0,20,2),limits = c(0,20)) +
  scale_y_continuous(breaks = seq(0,20,2),limits = c(0,20)) +
  scale_size(breaks = c(1,5,10,50,100)) +
  labs(x = "SuSiE-topPC",y = "fSuSiE",size = "number of TADs") +
  theme_cowplot(font_size = 10)
print(p)

Flag the “duplicate” CSs:

root_cs_susie  <- create_cs_maps(snps_susie)$root
root_cs_fsusie <- create_cs_maps(snps_fsusie)$root

Warning: The above code chunk cached its results, but it won’t be re-run if previous chunks it depends on are updated. If you need to use caching, it is highly recommended to also set knitr::opts_chunk$set(autodep = TRUE) at the top of the file (in a chunk that is not cached). Alternatively, you can customize the option dependson for each individual chunk that is cached. Using either autodep or dependson will remove this warning. See the knitr cache options for more details.

Then remove the duplicate CSs:

snps_susie  <- subset(snps_susie,is.element(cs,root_cs_susie))
snps_fsusie <- subset(snps_fsusie,is.element(cs,root_cs_fsusie))
snps_susie  <- transform(snps_susie,cs = factor(cs))
snps_fsusie <- transform(snps_fsusie,cs = factor(cs))

Also remove the duplicate CSs from the fSuSiE CpG-level results:

nodup_cs    <- levels(snps_fsusie$cs)
cpgs_fsusie <- subset(cpgs_fsusie,is.element(cs,nodup_cs))
cpgs_fsusie <- transform(cpgs_fsusie,cs = factor(cs))

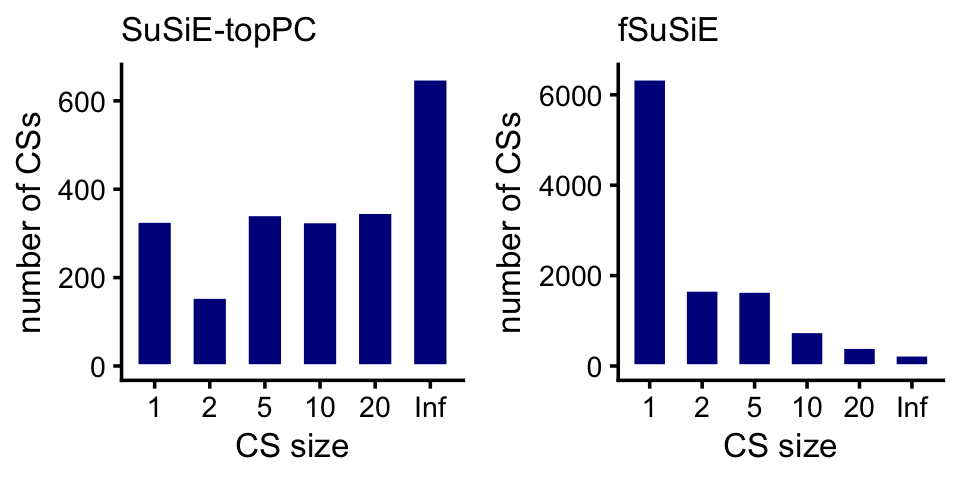

Compare the sizes of the CSs in the SuSiE-topPC and fSuSiE analyses:

bins <- c(0,1,2,5,10,20,Inf)
snps_susie     <- transform(snps_susie,cs = factor(cs))
snps_fsusie    <- transform(snps_fsusie,cs = factor(cs))
cs_size_susie  <- as.numeric(table(snps_susie$cs))
cs_size_fsusie <- as.numeric(table(snps_fsusie$cs))
cs_size_susie  <- cut(cs_size_susie,bins)
cs_size_fsusie <- cut(cs_size_fsusie,bins)
levels(cs_size_susie) <- bins[-1]
levels(cs_size_fsusie) <- bins[-1]
p1 <- ggplot(data.frame(cs_size = cs_size_susie),aes(x = cs_size)) +
  geom_histogram(stat = "count",color = "white",fill = "darkblue",
                 width = 0.65) +
  labs(x = "CS size",y = "number of CSs",title = "SuSiE-topPC") +
  theme_cowplot(font_size = 10) +
  theme(plot.title = element_text(size = 10,face = "plain"))
p2 <- ggplot(data.frame(cs_size = cs_size_fsusie),aes(x = cs_size)) +
  geom_histogram(stat = "count",color = "white",fill = "darkblue",
                 width = 0.65) +
  scale_y_continuous(breaks = seq(0,1e4,2000)) +
  labs(x = "CS size",y = "number of CSs",title = "fSuSiE") +
  theme_cowplot(font_size = 10) +
  theme(plot.title = element_text(size = 10,face = "plain"))
plot_grid(p1,p2,nrow = 1,ncol = 2)

Here are the exact numbers:

table(cs_size_susie)
table(cs_size_fsusie)
# cs_size_susie
#   1   2   5  10  20 Inf
# 328 156 343 327 348 650
# cs_size_fsusie
#    1    2    5   10   20  Inf
# 6355 1683 1658  766  417  248

We expect that most of the causal SNPs to be very close to the nearest TSS. Let’s check this. This will involve a couple of intermediate calculations.

snps_assoc  <- get_top_snp_per_location(assoc)
snps_assoc  <- add_min_dist_to_tss(snps_assoc,genes)
snps_susie  <- add_min_dist_to_tss(snps_susie,genes)
snps_fsusie <- add_min_dist_to_tss(snps_fsusie,genes)

For SuSiE-topPC and fSuSiE, we calculate “weighted” counts of SNPs, in which the weights are given by the PIPs.

bin_size <- 10000
bins <- c(-Inf,seq(-2e5,2e5,bin_size),Inf)
bins <- bins + bin_size/2
counts_assoc <- as.numeric(table(cut(snps_assoc$min_dist_to_tss,bins)))
counts_susie <- tapply(snps_susie$pip,
                       cut(snps_susie$min_dist_to_tss,bins),
                       function (x) sum(x,na.rm = TRUE))
counts_fsusie <- tapply(snps_fsusie$pip,
                        cut(snps_fsusie$min_dist_to_tss,bins),
                        function (x) sum(x,na.rm = TRUE))

Now we can plot the result:

n <- length(bins)
i <- seq(2,n-2)
bin_centers   <- bins[i] + bin_size/2
counts_assoc  <- counts_assoc[i]
counts_susie  <- counts_susie[i]
counts_fsusie <- counts_fsusie[i]
counts_assoc  <- counts_assoc/sum(counts_assoc)
counts_susie  <- counts_susie/sum(counts_susie)
counts_fsusie <- counts_fsusie/sum(counts_fsusie)
pdat <- data.frame(method = rep(c("assoc","susie","fsusie"),
                                each = length(bin_centers)),
                   dist   = rep(bin_centers/1000,times = 3),
                   freq   = c(counts_assoc,counts_susie,counts_fsusie),
                   stringsAsFactors = TRUE)
p <- ggplot(pdat,aes(x = dist,y = freq,color = method)) +
  geom_line(linewidth = 0.5) +
  geom_point(size = 1) +
  scale_x_continuous(breaks = seq(-200,200,50)) +
  scale_y_continuous(breaks = seq(0,1,0.05)) +
  scale_color_manual(values = c("darkblue","darkorange","dodgerblue")) +
  labs(x = "distance to TSS (kb)",y = "proportion of SNPs") +
  theme_cowplot(font_size = 10)
print(p)

Now let’s look closely at the 1-SNP CSs.

cs1snp_susie  <- table(snps_susie$cs)
cs1snp_susie  <- names(cs1snp_susie)[cs1snp_susie == 1]
cs1snp_susie  <- subset(snps_susie,is.element(cs,cs1snp_susie))
cs1snp_fsusie <- table(snps_fsusie$cs)
cs1snp_fsusie <- names(cs1snp_fsusie)[cs1snp_fsusie == 1]
cs1snp_fsusie <- subset(snps_fsusie,is.element(cs,cs1snp_fsusie))

Many of the PIPs in the 1-SNP CSs are 1 or very close to 1:

table(cut(1 - cs1snp_susie$pip,c(0,0.0001,0.001,0.01,1)))
table(cut(1 - cs1snp_fsusie$pip,c(0,0.0001,0.001,0.01,1)))
#
#     (0,0.0001] (0.0001,0.001]   (0.001,0.01]       (0.01,1]
#            122             33             59             77
#
#     (0,0.0001] (0.0001,0.001]   (0.001,0.01]       (0.01,1]
#           1989            477            638            638

Now let’s turn to the recovery of affected CpGs.

Counting the number of CpGs per TAD is quite simple from the way the fSuSiE results were compiled. It involves counting the number of unique CpGs in each TAD:

cpgs_per_tad_fsusie <-
  with(cpgs_fsusie,tapply(ID,region,function (x) length(unique(x))))

Counting the number of CpGs per TAD from the SNP-CpG association tests is a little more complicated because the CpGs were not assigned to TADs in the results.

tads <- get_tad_info(levels(cpgs_fsusie$region))
cpgs_per_tad_assoc <- count_features_per_tad(assoc,tads)

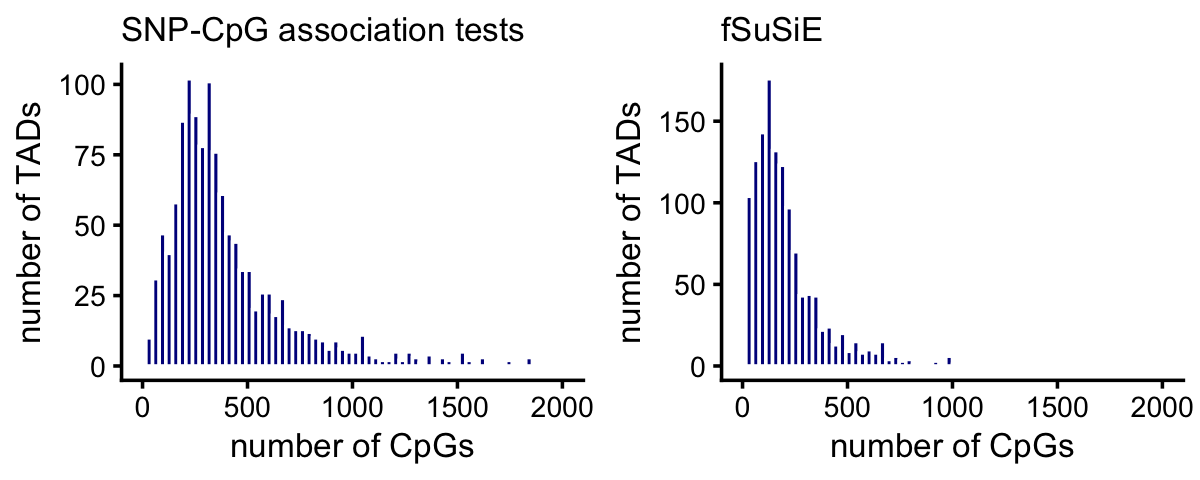

These plots summarize the number of affected CpGs per TAD:

cpgs_per_tad_assoc[cpgs_per_tad_assoc == 0] <- NA
cpgs_per_tad_fsusie[cpgs_per_tad_fsusie == 0] <- NA
pdat1 <- data.frame(x = cpgs_per_tad_assoc)
pdat2 <- data.frame(x = cpgs_per_tad_fsusie)
p1 <- ggplot(pdat1,aes(x = x)) +
  geom_histogram(color = "white",fill = "darkblue",bins = 64) +
  xlim(0,2000) +
  labs(x = "number of CpGs",y = "number of TADs",
       title = "SNP-CpG association tests") +
  theme_cowplot(font_size = 10) +
  theme(plot.title = element_text(size = 10,face = "plain"))
p2 <- ggplot(pdat2,aes(x = x)) +
  geom_histogram(color = "white",fill = "darkblue",bins = 64) +
  xlim(0,2000) +
  labs(x = "number of CpGs",y = "number of TADs",title = "fSuSiE") +
  theme_cowplot(font_size = 10) +
  theme(plot.title = element_text(size = 10,face = "plain"))
plot_grid(p1,p2,nrow = 1,ncol = 2)

Version Author Date
aece910 Peter Carbonetto 2025-03-24

A small number of TADs have more than 2,000 affected CpGs:

sum(cpgs_per_tad_assoc > 2000,na.rm = TRUE)
sum(cpgs_per_tad_fsusie > 2000,na.rm = TRUE)
# [1] 13
# [1] 5

This plot compares the number of affected CpGs identified by fSuSiE and the SNP-CpG association tests:

pdat <- data.frame(assoc  = cpgs_per_tad_assoc,
                   fsusie = cpgs_per_tad_fsusie)
p <- ggplot(pdat,aes(x = assoc,y = fsusie)) +
  geom_point(color = "darkblue") +
  geom_abline(intercept = 0,slope = 1,color = "magenta",linetype = "dotted") +
  labs(x = "SNP-CpG association tests",y = "fSusiE") +
  xlim(0,4100) +
  ylim(0,4100) +
  theme_cowplot(font_size = 10)
print(p)

Version Author Date
aece910 Peter Carbonetto 2025-03-24

One advantage of fSuSiE is that it is able to tell us which molecular features are affected by which SNPs, and therefore it provides a more coherent summary of how the SNPs affect methylation levels at a locus. To examine this quantitatively, we compare the number of affected CpGs per CS for fSuSiE to the number of affected CpGs per SNP from the association tests. The result is much fewer CSs and many more affected CpGs per CS:

x <- factor(assoc$variant_id)
cpgs_per_snp_assoc <- tapply(assoc$molecular_trait_id,x,
                             function (x) length(unique(x)))
rm(x)
cpgs_per_snp_fsusie <-
  with(cpgs_fsusie,tapply(ID,cs,function (x) length(unique(x))))
pdat1 <- data.frame(x = cpgs_per_snp_assoc)
pdat2 <- data.frame(x = cpgs_per_snp_fsusie)
pdat1 <- subset(pdat1,x <= 25)
pdat2 <- subset(pdat2,x <= 150)
p1 <- ggplot(pdat1,aes(x = x)) +
  geom_histogram(color = "white",fill = "darkblue",bins = 25) +
  labs(x = "number of CpGs",y = "number of SNPs",
       title = "SNP-CpG association tests") +
  theme_cowplot(font_size = 10) +
  theme(plot.title = element_text(size = 10,face = "plain"))
p2 <- ggplot(pdat2,aes(x = x)) +
  geom_histogram(color = "white",fill = "darkblue",bins = 25) +
  labs(x = "number of CpGs",y = "number of CSs",title = "fSuSiE") +
  theme_cowplot(font_size = 10) +
  theme(plot.title = element_text(size = 10,face = "plain"))
plot_grid(p1,p2,nrow = 1,ncol = 2)

Version Author Date
4adf2dd Peter Carbonetto 2025-04-29
dade7d2 Peter Carbonetto 2025-04-16
618cae4 Peter Carbonetto 2025-04-03
aece910 Peter Carbonetto 2025-03-24

A small proportion of the SNPs and CSs are not plotted because they have an unusually large number of CpGs:

mean(cpgs_per_snp_assoc > 25)
mean(cpgs_per_snp_fsusie > 150)
# [1] 0.01052395
# [1] 0.02068903

Finally, this plot shows the distribution of the distances between the mSNP and the nearest CpG affected by that SNP:

cpgs_fsusie_cs1snp <- subset(cpgs_fsusie,
                             is.element(cs,cs1snp_fsusie$cs))
rows <- match(cpgs_fsusie_cs1snp$cs,cs1snp_fsusie$cs)
cpgs_fsusie_cs1snp$variant_pos <- cs1snp_fsusie[rows,"pos"]
cpgs_fsusie_cs1snp <- transform(cpgs_fsusie_cs1snp,
                                cs = factor(cs),
                                dist = peak_start - variant_pos)
pdat <- tapply(cpgs_fsusie_cs1snp$dist,cpgs_fsusie_cs1snp$cs,
               function (x) {
                 i <- which.min(abs(x))
                 return(x[i])
               })
pdat <- data.frame(dist = pdat/1000)
p <- ggplot(subset(pdat,abs(dist) < 100),aes(x = dist)) +
  geom_histogram(bins = 128,color = "tomato",fill = "tomato") +
  labs(x = "CpG - mSNP pos. (kb)",
       y = "number of mSNPs") +
  theme_cowplot(font_size = 10)
print(p)

table(abs(pdat$dist) < 100)
#
# FALSE  TRUE
#   256  6093

sessionInfo()
# R version 4.3.3 (2024-02-29)
# Platform: aarch64-apple-darwin20 (64-bit)
# Running under: macOS 15.4.1
#
# Matrix products: default
# BLAS:   /Library/Frameworks/R.framework/Versions/4.3-arm64/Resources/lib/libRblas.0.dylib
# LAPACK: /Library/Frameworks/R.framework/Versions/4.3-arm64/Resources/lib/libRlapack.dylib;  LAPACK version 3.11.0
#
# locale:
# [1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8
#
# time zone: America/Chicago
# tzcode source: internal
#
# attached base packages:
# [1] stats     graphics  grDevices utils     datasets  methods   base
#
# other attached packages:
# [1] cowplot_1.1.3     ggplot2_3.5.0     dplyr_1.1.4       data.table_1.15.2
#
# loaded via a namespace (and not attached):
#  [1] sass_0.4.9        utf8_1.2.4        generics_0.1.3    stringi_1.8.3
#  [5] digest_0.6.34     magrittr_2.0.3    evaluate_1.0.3    grid_4.3.3
#  [9] fastmap_1.1.1     plyr_1.8.9        R.oo_1.26.0       rprojroot_2.0.4
# [13] workflowr_1.7.1   jsonlite_1.8.8    R.utils_2.12.3    whisker_0.4.1
# [17] promises_1.2.1    fansi_1.0.6       scales_1.3.0      textshaping_0.3.7
# [21] jquerylib_0.1.4   cli_3.6.4         rlang_1.1.5       R.methodsS3_1.8.2
# [25] munsell_0.5.0     withr_3.0.2       cachem_1.0.8      yaml_2.3.8
# [29] tools_4.3.3       reshape2_1.4.4    colorspace_2.1-0  httpuv_1.6.14
# [33] vctrs_0.6.5       R6_2.5.1          lifecycle_1.0.4   git2r_0.33.0
# [37] stringr_1.5.1     fs_1.6.5          ragg_1.2.7        pkgconfig_2.0.3
# [41] pillar_1.9.0      bslib_0.6.1       later_1.3.2       gtable_0.3.4
# [45] glue_1.8.0        Rcpp_1.0.12       systemfonts_1.0.6 xfun_0.42
# [49] tibble_3.2.1      tidyselect_1.2.1  highr_0.10        knitr_1.45
# [53] farver_2.1.1      htmltools_0.5.8.1 labeling_0.4.3    rmarkdown_2.26
# [57] compiler_4.3.3
