Here we take a close look at a selection of the susie and fsusie fine-mapping results for the ROSMAP data.

Note: build the workflowr page, I ran these commands on midway2:

sinteractive -c 4 --mem=24G --time=20:00:00
module load R/4.1.0-no-openblas
module load pandoc/3.0.1
R
> .libPaths()[1]
# [1] "/home/pcarbo/R_libs_4_10_no_openblas"
> getwd()
# [1] "../analysis"
> workflowr::wflow_build("rosmap.Rmd",local=TRUE,view=FALSE,verbose=TRUE)

Load the packages as well as some additional custom functions used in the analysis below.

library(data.table)
library(ggplot2)
library(cowplot)
source("../code/rosmap_functions.R")
setDTthreads(1)

Load the susie fine-mapping results on the DLPFC bulk RNA-seq data.

datadir <- file.path("/project2/mstephens/fungen_xqtl/ftp_fgc_xqtl",
                     "analysis_result/finemapping_twas/prepared_results")
load(file.path(datadir,"susie_dlpfc_dejager_eQTL.RData"))
susie <- list(regions = regions,cs = cs,pips = pips)
susie$cs <- transform(susie$cs,pos = get_pos_from_id(id))
rm(regions,cs,pips)

Load the fsusie fine-mapping results on the DLPFC methylation data.

load(file.path(datadir,"fsusie_ROSMAP_DLPFC_mQTL.RData"))
fsusie_mqtl <- list(regions = regions,cs = cs,pips = pips)
rm(regions,cs,pips)

Load the fsusie fine-mapping results on the DLPFC histone acetylation (H3K9ac ChIP-seq) data.

load(file.path(datadir,"fsusie_ROSMAP_DLPFC_haQTL.RData"))
fsusie_haqtl <- list(regions = regions,cs = cs,pips = pips)
rm(regions,cs,pips)

Load the gene annotations. Specifically I extract here only the annotated gene transcripts for protein-coding genes as defined in the Ensembl/Havana database.

gene_file <-
  file.path("../data/genome_annotations",
    "Homo_sapiens.GRCh38.103.chr.reformatted.collapse_only.gene.gtf.gz")
genes <- get_gene_annotations(gene_file)

SuSiE fine-mapping of RNA-seq

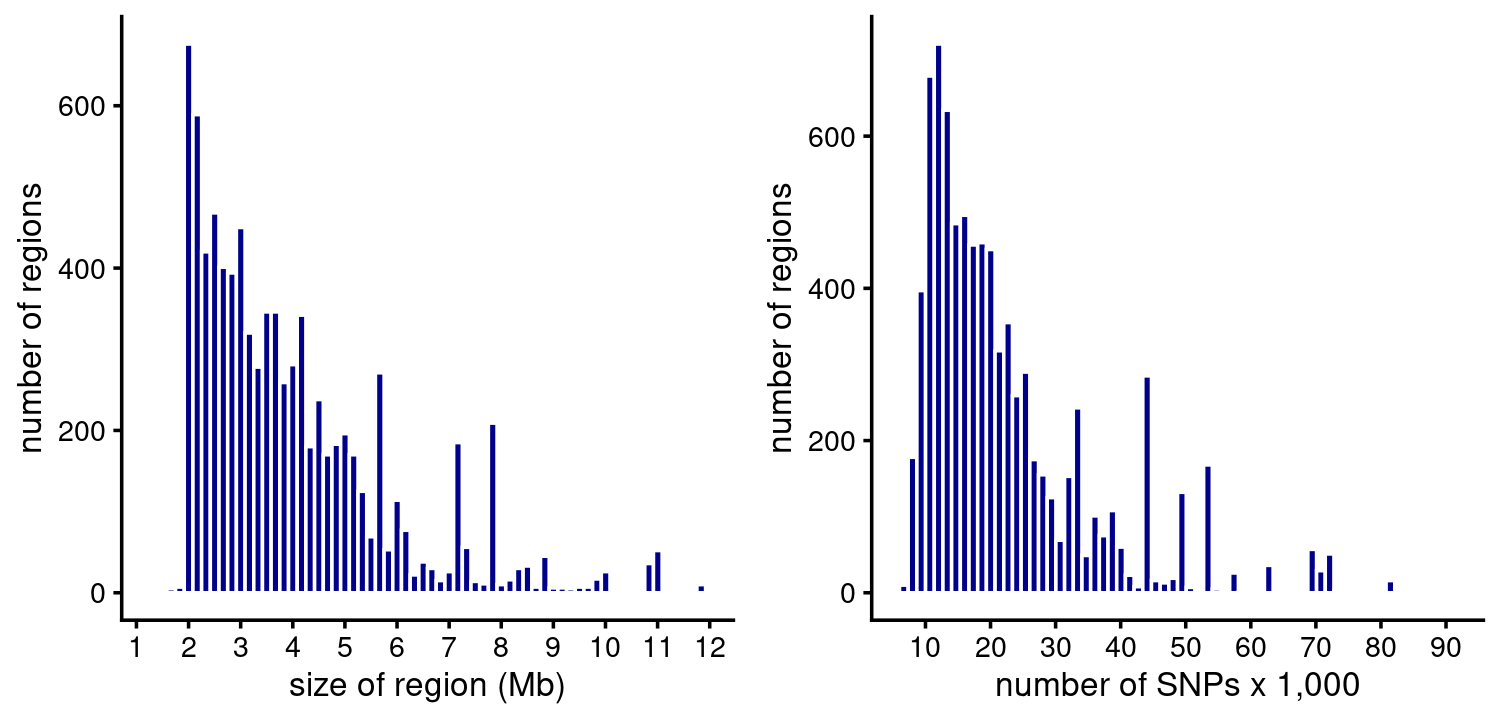

Region sizes in base-pairs and SNPs:

p1 <- region_sizes_histogram(susie$regions,susie$pips,max_mb = 12)
p2 <- num_snps_histogram(susie$regions)
plot_grid(p1,p2)

Version Author Date
b25a0af Peter Carbonetto 2024-06-18
ef4a009 Peter Carbonetto 2024-04-26
# 54 regions are larger than 12 Mb.

Most of the fine-mapping regions do not contain any CSs. Among the ones that have at least 1 CS, most contain 1 CS:

num_cs <- susie$regions$num_cs
table(CSs = num_cs)
num_cs <- num_cs[num_cs > 0]
pdat <- data.frame(num_cs = factor(num_cs))
ggplot(pdat,aes(num_cs)) +
  geom_bar(color = "white",fill = "darkblue",width = 0.5) +
  labs(x = "number of CSs",y = "number of regions") +
  theme_cowplot(font_size = 10)

Version Author Date
b25a0af Peter Carbonetto 2024-06-18
# CSs
#    0    1    2    3    4    5    6    7    8    9   10   13
# 4937 2508  725  144   47   18   10    9    3    1    1    1

A large number of the CSs predict a single causal SNP:

susie_cs_sizes <- get_cs_sizes_by_region(susie$cs)
cs_sizes_histogram(susie_cs_sizes,x_breaks = c(1:5,10,100,1000))

Version Author Date
b25a0af Peter Carbonetto 2024-06-18
ef4a009 Peter Carbonetto 2024-04-26

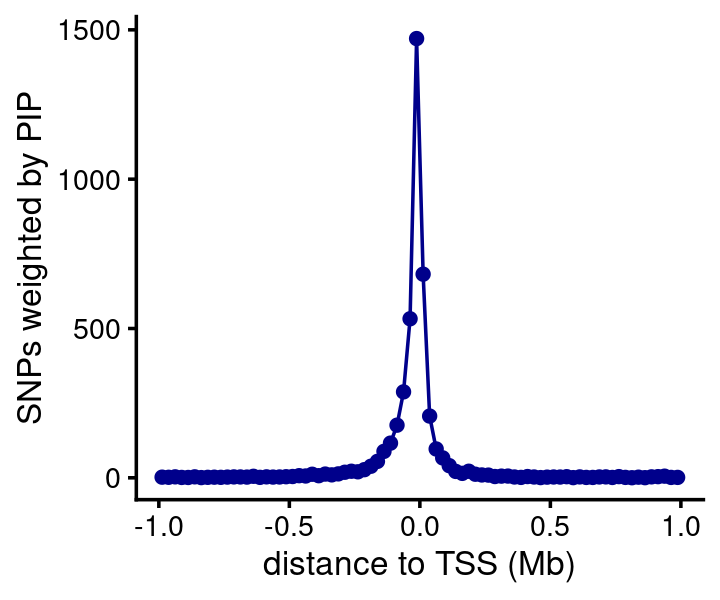

Plot showing distance between the susie SNP and the gene’s TSS, in which the distances are weighted by the PIPs (this is based only on SNPs that are in CSs). As expected, most of the predicted causal SNPs are very close to the nearest TSS.

susie$regions <- add_tss_to_regions(susie$regions,genes)
bin_size <- 25000
bins   <- c(-Inf,seq(-1e6,1e6,bin_size),Inf)
counts <- compute_weighted_distance_to_tss(susie$regions,susie$cs,bins)
n      <- length(bins)
bins   <- bins[seq(2,n-2)]
counts <- counts[seq(2,n-2)]
pdat <- data.frame(pos = (bins + bin_size/2)/1e6,count = counts)
ggplot(pdat,aes(x = pos,y = count)) +
  geom_point(color = "darkblue") +
  geom_line(color = "darkblue") +
  labs(x = "distance to TSS (Mb)",
       y = "SNPs weighted by PIP") +
  theme_cowplot(font_size = 10)

Version Author Date
0e7ea2e Peter Carbonetto 2024-06-20
b25a0af Peter Carbonetto 2024-06-18

fSuSiE fine-mapping of haQTLs

The fSuSiE analyses typically involve much larger regions than the SuSiE analyses. The fSuSiE regions contain thousands of SNPs spanning several Mb:

p1 <- region_sizes_histogram(fsusie_haqtl$regions,fsusie_haqtl$pips,
                             max_mb = 10)
p2 <- num_snps_histogram(fsusie_haqtl$regions,max_snps = 50000)
plot_grid(p1,p2)

Version Author Date
b25a0af Peter Carbonetto 2024-06-18
b5b3427 Peter Carbonetto 2024-04-29
# 8 regions are larger than 10 Mb.
# 8 regions have more than 50000 SNPs.

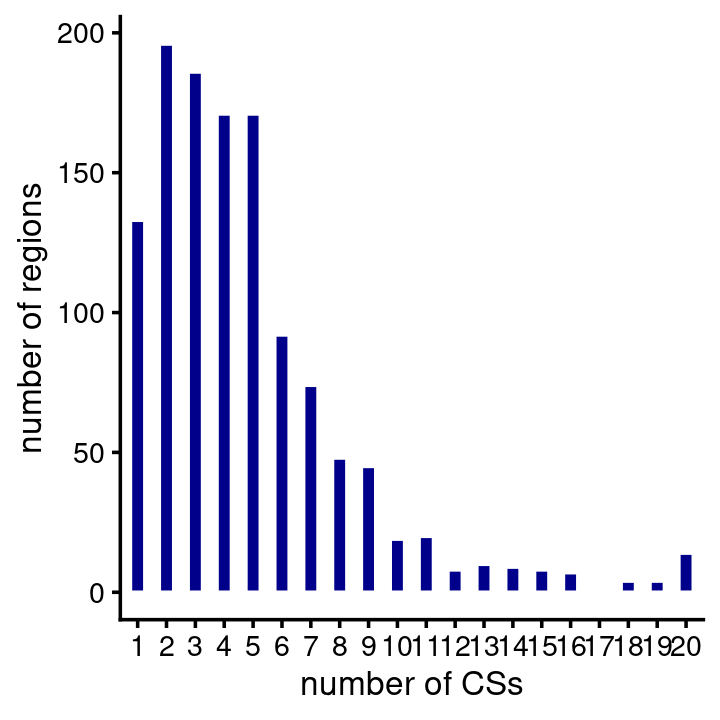

fSuSiE usually identified at least one CS in a region, and most regions contain several CSs:

num_cs <- fsusie_haqtl$regions$num_cs
table(CSs = num_cs)
num_cs <- num_cs[num_cs > 0]
pdat <- data.frame(num_cs = factor(num_cs))
ggplot(pdat,aes(num_cs)) +
  geom_bar(color = "white",fill = "darkblue",width = 0.5) +
  labs(x = "number of CSs",y = "number of regions") +
  theme_cowplot(font_size = 10)

Version Author Date
b25a0af Peter Carbonetto 2024-06-18
# CSs
#   0   1   2   3   4   5   6   7   8   9  10  11  12  13  14  15  16  17  18  19
#  85 133 196 186 171 171  92  74  48  45  19  20   8  10   9   8   7   1   4   4
#  20
#  14

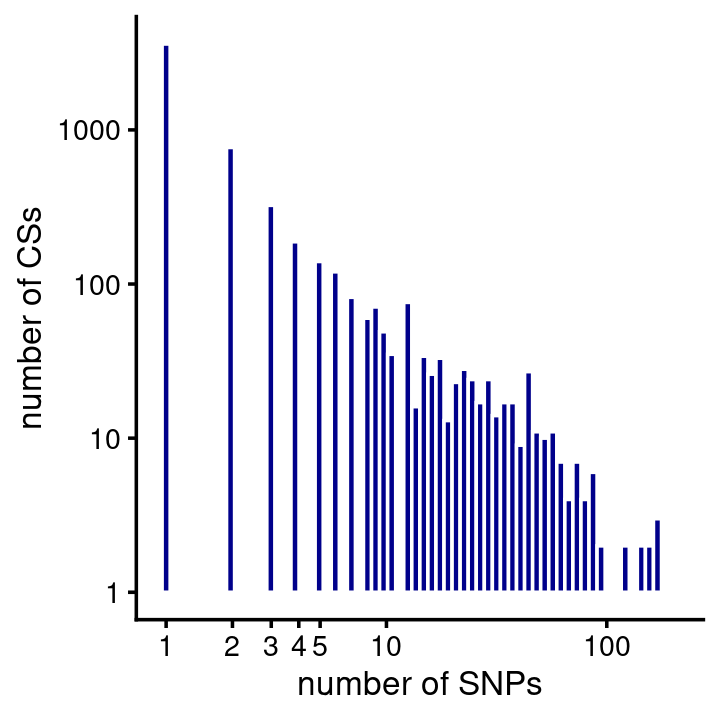

The majority of the CSs predict a single causal SNP (note both the X and Y axes are on the log-scale):

fsusie_haqtl_cs_sizes <- get_cs_sizes_by_region(fsusie_haqtl$cs)
cs_sizes_histogram(fsusie_haqtl_cs_sizes,x_breaks = c(1:5,10,100,1000)) +
  scale_y_continuous(trans = "log10")

Version Author Date
b5b3427 Peter Carbonetto 2024-04-29

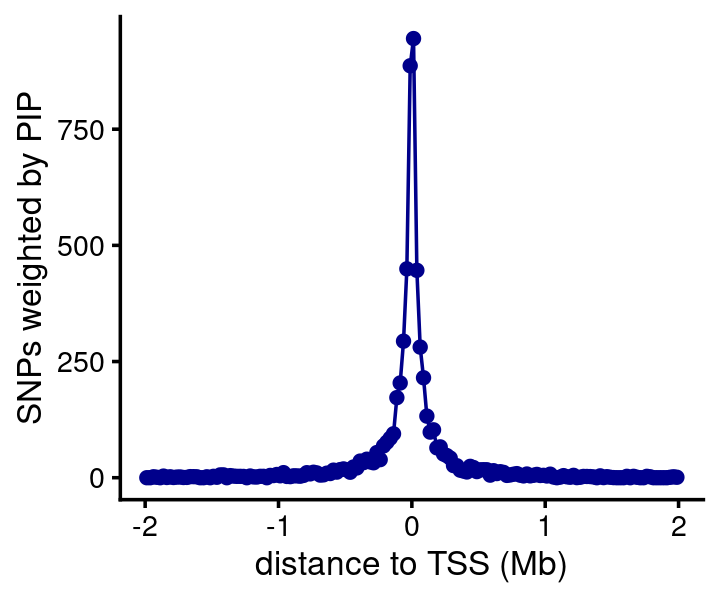

The HA SNPs are strongly concentrated near gene TSSs. I couldn’t find any hard data showing a similar result, although this seems to be suggested by the McVicker et al (2013) paper.

bin_size <- 25000
bins   <- c(-Inf,seq(-2e6,2e6,bin_size),Inf)
counts <- compute_weighted_distance_to_tss_nogene(fsusie_haqtl$cs,genes,bins)
n      <- length(bins)
bins   <- bins[seq(2,n-2)]
counts <- counts[seq(2,n-2)]
pdat <- data.frame(pos = (bins + bin_size/2)/1e6,count = counts)
ggplot(pdat,aes(x = pos,y = count)) +
  geom_point(color = "darkblue") +
  geom_line(color = "darkblue") +
  labs(x = "distance to TSS (Mb)",
       y = "SNPs weighted by PIP") +
  theme_cowplot(font_size = 10)

fSuSiE fine-mapping of mQTLs

Now let’s examine the fSuSiE methylation fine-mapping results. The regions are similar (but not exactly the same) as the fSuSiE analyses of HA:

p1 <- region_sizes_histogram(fsusie_mqtl$regions,fsusie_mqtl$pips,
                             max_mb = 10)
p2 <- num_snps_histogram(fsusie_mqtl$regions,max_snps = 50000)
plot_grid(p1,p2)

Version Author Date
b25a0af Peter Carbonetto 2024-06-18
b5b3427 Peter Carbonetto 2024-04-29
# 8 regions are larger than 10 Mb.
# 5 regions have more than 50000 SNPs.

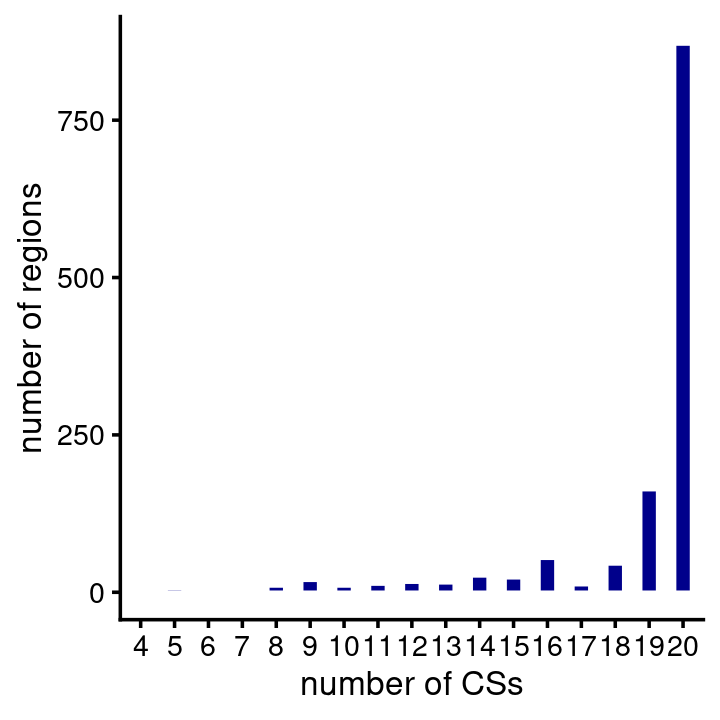

In contrast to HA, a region typically contains many CSs, and all regions contain at least one CS. (Probably we could have identified more CSs if we had not limited the fSuSiE analyses to 20 CSs.)

num_cs <- fsusie_mqtl$regions$num_cs
table(CSs = num_cs)
num_cs <- num_cs[num_cs > 0]
pdat <- data.frame(num_cs = factor(num_cs))
ggplot(pdat,aes(num_cs)) +
  geom_bar(color = "white",fill = "darkblue",width = 0.5) +
  labs(x = "number of CSs",y = "number of regions") +
  theme_cowplot(font_size = 10)

Version Author Date
b25a0af Peter Carbonetto 2024-06-18
# CSs
#   4   5   6   7   8   9  10  11  12  13  14  15  16  17  18  19  20
#   3   6   2   5  10  19  10  13  16  15  26  23  54  12  45 163 871

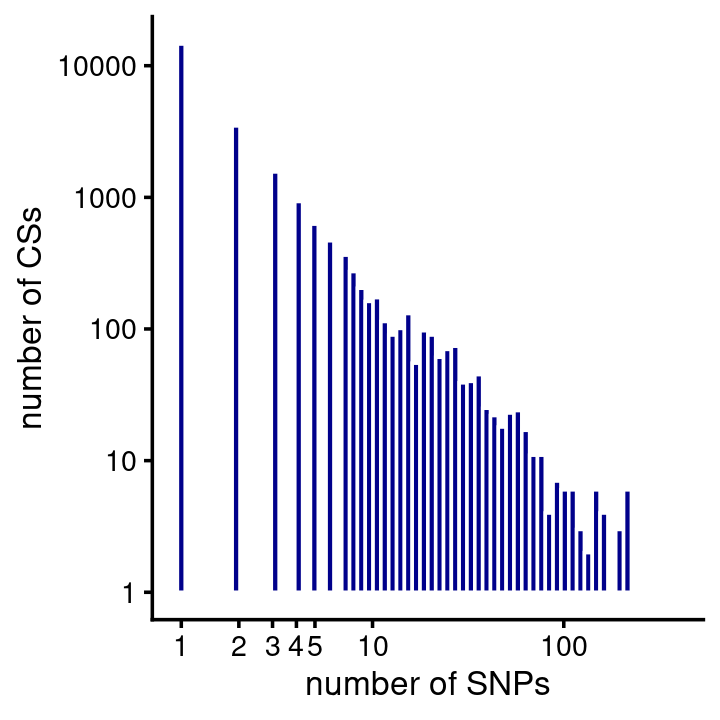

Similar to HA, most of the CSs contained just a single putative causal SNP (note again both the X and Y axes are on the log-scale):

fsusie_mqtl_cs_sizes <- get_cs_sizes_by_region(fsusie_mqtl$cs)
cs_sizes_histogram(fsusie_mqtl_cs_sizes,x_breaks = c(1:5,10,100,1000)) +
  scale_y_continuous(trans = "log10")

Version Author Date
b5b3427 Peter Carbonetto 2024-04-29

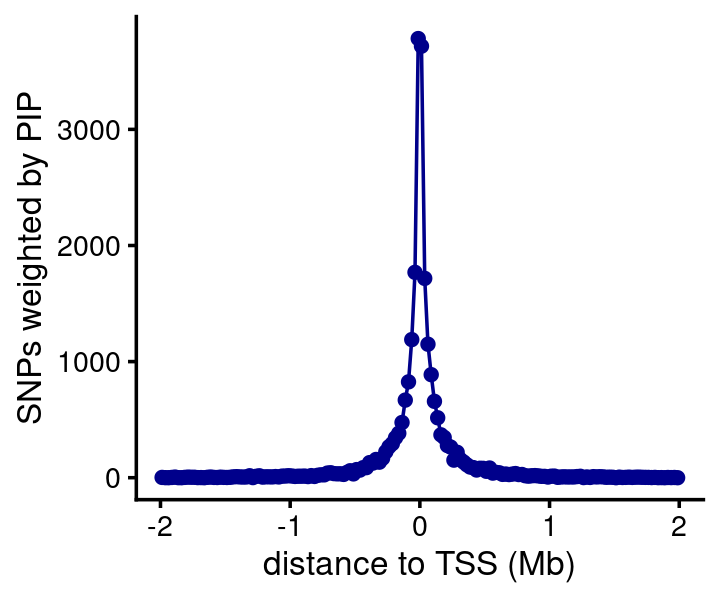

The methylation SNPs are also strongly concentrated near the gene TSSs, in agreement with Fig. 3 of Ng et al 2017 (noting that our result is more convincing because we actually fine-mapped the SNPs, whereas Ng et al simply chose the top SNP in each region).

bin_size <- 25000
bins   <- c(-Inf,seq(-2e6,2e6,bin_size),Inf)
counts <- compute_weighted_distance_to_tss_nogene(fsusie_mqtl$cs,genes,bins)
n      <- length(bins)
bins   <- bins[seq(2,n-2)]
counts <- counts[seq(2,n-2)]
pdat <- data.frame(pos = (bins + bin_size/2)/1e6,count = counts)
ggplot(pdat,aes(x = pos,y = count)) +
  geom_point(color = "darkblue") +
  geom_line(color = "darkblue") +
  labs(x = "distance to TSS (Mb)",
       y = "SNPs weighted by PIP") +
  theme_cowplot(font_size = 10)

Examine overlap among expression, methylation and histone acetylation SNPs

Let’s now examine overlap between expression, methylation and histone acetylation SNPs simply by extracting the SNPs with PIP > 0.5 that are also in a CS.

highconf_susie <- get_highconf_snps(susie$pips,level = 0.5)
highconf_haqtl <- get_highconf_snps(fsusie_haqtl$pips,level = 0.5)
highconf_mqtl  <- get_highconf_snps(fsusie_mqtl$pips,level = 0.5)
ids <- unique(c(highconf_susie$id,highconf_mqtl$id,highconf_haqtl$id))
dat <- data.frame(id = ids,
                  eqtl  = is.element(ids,highconf_susie$id),
                  haqtl = is.element(ids,highconf_haqtl$id),
                  mqtl  = is.element(ids,highconf_mqtl$id))
table(dat[c("haqtl","mqtl","eqtl")])
# , , eqtl = FALSE
#
#        mqtl
# haqtl   FALSE  TRUE
#   FALSE     0 11668
#   TRUE   4155   100
#
# , , eqtl = TRUE
#
#        mqtl
# haqtl   FALSE  TRUE
#   FALSE  2085    29
#   TRUE     11     4

Put this information together into a table, and save this as a CSV file for later use.

dat <- subset(dat,eqtl + haqtl + mqtl > 1)
ids <- dat$id
highconf_susie <- subset(highconf_susie,is.element(id,ids))
highconf_haqtl <- subset(highconf_haqtl,is.element(id,ids))
highconf_mqtl  <- subset(highconf_mqtl,is.element(id,ids))
highconf_overlap <- merge(highconf_susie,highconf_haqtl,by = "id",all = TRUE)
highconf_overlap <- merge(highconf_overlap,highconf_mqtl,by = "id",all = TRUE)
names(highconf_overlap) <-
  c("id","region_eqtl","pos_eqtl","pip_eqtl","region_haqtl","pos_haqtl",
    "pip_haqtl","region_mqtl","pos_mqtl","pip_mqtl")
highconf_overlap$chr <- get_chr_from_id(highconf_overlap$id)
highconf_overlap$pos <- get_pos_from_id(highconf_overlap$id)
highconf_overlap <-
  highconf_overlap[c("id","chr","pos","region_eqtl","region_haqtl",
                     "region_mqtl","pip_eqtl","pip_haqtl","pip_mqtl")]
highconf_overlap <- transform(highconf_overlap,
                              pip_eqtl  = round(pip_eqtl,digits = 4),
                              pip_haqtl = round(pip_haqtl,digits = 4),
                              pip_mqtl  = round(pip_mqtl,digits = 4))
write.csv(highconf_overlap,"rosmap_highconf_overlap.csv",
          quote = FALSE,row.names = FALSE)

sessionInfo()
# R version 4.1.0 (2021-05-18)
# Platform: x86_64-pc-linux-gnu (64-bit)
# Running under: CentOS Linux 7 (Core)
#
# Matrix products: default
# BLAS:   /software/R-4.1.0-no-openblas-el7-x86_64/lib64/R/lib/libRblas.so
# LAPACK: /software/R-4.1.0-no-openblas-el7-x86_64/lib64/R/lib/libRlapack.so
#
# locale:
#  [1] LC_CTYPE=en_US.UTF-8       LC_NUMERIC=C
#  [3] LC_TIME=en_US.UTF-8        LC_COLLATE=en_US.UTF-8
#  [5] LC_MONETARY=en_US.UTF-8    LC_MESSAGES=en_US.UTF-8
#  [7] LC_PAPER=en_US.UTF-8       LC_NAME=C
#  [9] LC_ADDRESS=C               LC_TELEPHONE=C
# [11] LC_MEASUREMENT=en_US.UTF-8 LC_IDENTIFICATION=C
#
# attached base packages:
# [1] stats     graphics  grDevices utils     datasets  methods   base
#
# other attached packages:
# [1] cowplot_1.1.1     ggplot2_3.5.1     data.table_1.14.0
#
# loaded via a namespace (and not attached):
#  [1] tidyselect_1.1.1  xfun_0.24         bslib_0.4.2       purrr_0.3.4
#  [5] colorspace_2.0-2  vctrs_0.6.5       generics_0.1.0    htmltools_0.5.5
#  [9] yaml_2.2.1        utf8_1.2.1        rlang_1.1.1       R.oo_1.24.0
# [13] jquerylib_0.1.4   later_1.2.0       pillar_1.6.1      glue_1.4.2
# [17] withr_2.5.0       DBI_1.1.1         R.utils_2.10.1    lifecycle_1.0.3
# [21] stringr_1.4.0     munsell_0.5.0     gtable_0.3.0      workflowr_1.7.1.1
# [25] R.methodsS3_1.8.1 evaluate_0.14     labeling_0.4.2    knitr_1.33
# [29] fastmap_1.1.0     httpuv_1.6.1      fansi_0.5.0       highr_0.9
# [33] Rcpp_1.0.12       promises_1.2.0.1  scales_1.3.0      cachem_1.0.5
# [37] jsonlite_1.7.2    farver_2.1.0      fs_1.5.0          digest_0.6.27
# [41] stringi_1.6.2     dplyr_1.0.7       rprojroot_2.0.2   grid_4.1.0
# [45] cli_3.6.1         tools_4.1.0       magrittr_2.0.1    sass_0.4.0
# [49] tibble_3.1.2      crayon_1.4.1      whisker_0.4       pkgconfig_2.0.3
# [53] ellipsis_0.3.2    assertthat_0.2.1  rmarkdown_2.9     R6_2.5.0
# [57] git2r_0.28.0      compiler_4.1.0
