Extended Data Figure 5: Protein programs across GPs
Ziang Zhang
Last updated: 2026-09-10
Checks: 7 0
Knit directory:
immgenT-GP-analysis/analysis/
This reproducible R Markdown analysis was created with workflowr (version 1.7.2). The Checks tab describes the reproducibility checks that were applied when the results were created. The Past versions tab lists the development history.
Great! Since the R Markdown file has been committed to the Git repository, you know the exact version of the code that produced these results.
Great job! The global environment was empty. Objects defined in the global environment can affect the analysis in your R Markdown file in unknown ways. For reproduciblity it’s best to always run the code in an empty environment.
The command set.seed(1) was run prior to running the
code in the R Markdown file. Setting a seed ensures that any results
that rely on randomness, e.g. subsampling or permutations, are
reproducible.
Great job! Recording the operating system, R version, and package versions is critical for reproducibility.
Nice! There were no cached chunks for this analysis, so you can be confident that you successfully produced the results during this run.
Great job! Using relative paths to the files within your workflowr project makes it easier to run your code on other machines.
Great! You are using Git for version control. Tracking code development and connecting the code version to the results is critical for reproducibility.
The results in this page were generated with repository version 284d321. See the Past versions tab to see a history of the changes made to the R Markdown and HTML files.
Note that you need to be careful to ensure that all relevant files for
the analysis have been committed to Git prior to generating the results
(you can use wflow_publish or
wflow_git_commit). workflowr only checks the R Markdown
file, but you know if there are other scripts or data files that it
depends on. Below is the status of the Git repository when the results
were generated:
Ignored files:
Ignored: .DS_Store
Ignored: .claude/
Ignored: analysis/.DS_Store
Ignored: analysis/.Rhistory
Ignored: analysis/assets/.DS_Store
Ignored: captions/
Ignored: code/.DS_Store
Ignored: code/other/topic_flashier_20250212.R
Ignored: code/other/topic_wrapper_20250215_alldata_backfit.sh
Ignored: data
Ignored: experiments/
Ignored: figures/.DS_Store
Ignored: figures/final-selected/.DS_Store
Ignored: figures/final-selected/Figure 1/.DS_Store
Ignored: figures/final-selected/Figure 2/.DS_Store
Ignored: figures/final-selected/Figure 5/.DS_Store
Ignored: figures/final-selected/Figure S1/.DS_Store
Ignored: internal/
Ignored: log/
Ignored: output/.DS_Store
Ignored: output/Figure2/
Ignored: plan/
Ignored: tables/
Ignored: tmp/
Note that any generated files, e.g. HTML, png, CSS, etc., are not included in this status report because it is ok for generated content to have uncommitted changes.
These are the previous versions of the repository in which changes were
made to the R Markdown (analysis/FigureS5.Rmd) and HTML
(docs/FigureS5.html) files. If you’ve configured a remote
Git repository (see ?wflow_git_remote), click on the
hyperlinks in the table below to view the files as they were in that
past version.
| File | Version | Author | Date | Message |
|---|---|---|---|---|
| html | 5874416 | Ziang Zhang | 2026-09-10 | Build site: main Figure 4 inserted, Extended Data back to 1-7 |
| Rmd | 4307b28 | Ziang Zhang | 2026-09-10 | New main Figure 4, and fold the cluster heatmap into Extended Data Figure 2 |
| html | bf4f612 | Ziang Zhang | 2026-09-09 | Build site: Extended Data back to 1-8 |
| Rmd | 6f01135 | Ziang Zhang | 2026-09-09 | Pull the tissue figure back out of Extended Data; ED is 1-8 again |
| html | 6f01135 | Ziang Zhang | 2026-09-09 | Pull the tissue figure back out of Extended Data; ED is 1-8 again |
| html | 8c0c07f | Ziang Zhang | 2026-09-09 | Build site: Extended Data Figure 5 on the 32-GP union |
| Rmd | 9fab2f6 | Ziang Zhang | 2026-09-09 | Extended Data Figure 5: show the union of both tissue-associated GP sets |
| html | b0c1d19 | Ziang Zhang | 2026-09-09 | Build site: Extended Data Figure 5b recoloured |
| Rmd | 5be33df | Ziang Zhang | 2026-09-09 | Extended Data Figure 5b: purple is the positive end, green the negative |
| html | a7a481f | Ziang Zhang | 2026-09-09 | Build site: the rebuilt Figure 1d and the Extended Data renumbering |
| Rmd | c233cd8 | Ziang Zhang | 2026-09-09 | Extended Data reorganisation: split the tissue/cluster figure, renumber 3-8 |
| html | 1e88d7e | Ziang Zhang | 2026-09-04 | Build site: published captions and titles across all 24 pages |
| Rmd | 0267e5b | Ziang Zhang | 2026-09-04 | Captions from the published manuscript; trim editor notes off the page code |
| html | 5d3b86c | Ziang Zhang | 2026-09-03 | Build site: Extended Data Figure 5 page rebuilt after the recolouring |
| Rmd | 2101847 | Ziang Zhang | 2026-09-03 | Extended Data Figure 5: colour each lineage row on its own |
| html | 19c977f | Ziang Zhang | 2026-09-02 | Build site: Extended Data 5-7 renumbered, Figure S5 page rebuilt |
| Rmd | 1e5721a | Ziang Zhang | 2026-09-02 | Extended Data 5-7 renumbered, and Figure S5 assembled as one stacked figure |
| html | ae03072 | Ziang Zhang | 2026-08-19 | Build site: six pages rebuilt after the prose cleanup |
| Rmd | adc2327 | Ziang Zhang | 2026-08-19 | Site prose: finish taking internal notes off the pages |
| html | eeca07b | Ziang Zhang | 2026-08-05 | Keep pre-refactor provenance in panel comments off the published pages |
| Rmd | 5651d0e | Ziang Zhang | 2026-08-05 | Extended Data tables: reorder to six, rebuild Table 1, drop internal notes |
| html | cbcec52 | Ziang Zhang | 2026-07-30 | Build site: Extended Data Figure naming |
| Rmd | 66aa029 | Ziang Zhang | 2026-07-30 | Name the Extended Data figures as published on the site |
| html | ac650a0 | Ziang Zhang | 2026-07-30 | Build site: Figure S5 (ex-S6a) and Figure S6 as a-f |
| Rmd | c9b020f | Ziang Zhang | 2026-07-30 | Split Figure S6’s protein-program heatmap out as Figure S5 |
| html | d538aa2 | Ziang Zhang | 2026-07-28 | Build site: reordered Figures 6 / S6 / S3 and the new Figure 7b page |
| Rmd | 4c07670 | Ziang Zhang | 2026-07-28 | Reorder Figures 6, S6 and S3; make the ex-S5 figure Figure 7b |
| html | 029b0ae | Ziang Zhang | 2026-07-28 | Build site. |
| Rmd | 0f5b5da | Ziang Zhang | 2026-07-28 | Align all figure captions with captions_20260728_final.docx |
| html | 3fc3789 | Ziang Zhang | 2026-07-27 | Republish all 24 pages |
| html | 1390a03 | Ziang Zhang | 2026-07-27 | Republish all 24 pages |
| html | adaef21 | Ziang Zhang | 2026-07-27 | Build site: panel fixes and PDF-derived assets |
| html | 5b19858 | Ziang Zhang | 2026-07-27 | Build site. |
| Rmd | ffe285c | Ziang Zhang | 2026-07-27 | Reorganize figures/ and untrack local-only exploration notes |
| html | f7d90e7 | Ziang Zhang | 2026-07-26 | Build site. |
| Rmd | b0b2b2f | Ziang Zhang | 2026-07-26 | Tidy Figure S5 page: name the S5a/S5b/colorbar panels |
| html | fe93d0d | Ziang Zhang | 2026-07-23 | Build site. |
| Rmd | 61de7cb | Ziang Zhang | 2026-07-23 | Reflect single-matching pipeline on the Figure S5 page |
| html | 9862b6d | Ziang Zhang | 2026-07-23 | Build site. |
| Rmd | 98d2924 | Ziang Zhang | 2026-07-23 | Reword Figure S5 page for a publication audience |
| html | 7ddbdb4 | Ziang Zhang | 2026-07-23 | Build site. |
| Rmd | b138063 | Ziang Zhang | 2026-07-23 | Reformat Figure S5 page: lead with the figure, concise methods, link |
| html | 9398c72 | Ziang Zhang | 2026-07-23 | Publish Figure S5 workflowr page |
| Rmd | b9f4f58 | Ziang Zhang | 2026-07-23 | Add Figure S5: EBMF vs matched-RQVI level2-cluster comparison |
This single-panel figure is produced by script/FigureS5.R,
which shares its CITE-seq setup and protein filters with Figure 7 and Extended
Data Figure 6 via code/R/citeseq_shared_setup.R. The
code below is shown for reference (not re-executed on this page, since
the shared setup takes about a minute to load); the image is its
pre-rendered output.
Setup
library(dplyr)
library(pheatmap)
library(Matrix) # protein matrices are dgCMatrix; must be attached for `[` to dispatch
data_path <- "data/"
figure_path <- "figures/final-selected/Figure S5/"
source("code/R/citeseq_shared_setup.R")
# Record when this run started, to assert at the end that the panel is newer.
run_started_at <- Sys.time()Protein-program heatmap
# ============================================================
# s5: sparse protein-program heatmap, contamination GPs removed
# ============================================================
# The normalized protein matrix is derived here rather than in
# citeseq_shared_setup.R because this is its only consumer among the figures.
Protein_F_pm <- Protein_F_pm_raw[!rownames(Protein_F_pm_raw) %in% isotype_proteins, ]
Protein_F_pm <- Protein_F_pm[rownames(Protein_F_pm) %in% good_proteins, ]
Protein_F_pm <- Protein_F_pm[!rownames(Protein_F_pm) %in% exclude_proteins, ]
Protein_F_pm <- Protein_F_pm[!rownames(Protein_F_pm) %in% thy11_proteins, ]
D_lognorm <- diag(1 / apply(Protein_F_pm, 2, function(x) max(abs(x))))
Protein_F_pm <- Protein_F_pm %*% D_lognorm
colnames(Protein_F_pm) <- paste0("GP", 1:ncol(Protein_F_pm))
Protein_F_pm[is.na(Protein_F_pm)] <- 0
threshold_simplified <- 0
keep_rows_simplified <- apply(Protein_F_pm, 1, function(v) any(abs(v) > threshold_simplified, na.rm = TRUE))
Protein_F_pm_simplified <- Protein_F_pm[keep_rows_simplified, , drop = FALSE]
keep_cols_simplified <- apply(Protein_F_pm_simplified, 2, function(v) any(abs(v) > threshold_simplified, na.rm = TRUE))
Protein_F_pm_simplified <- Protein_F_pm_simplified[, keep_cols_simplified, drop = FALSE]
GP_contamination <- c("GP40", "GP50", "GP55", "GP188")
Protein_F_pm_simplified_no_contamination <- Protein_F_pm_simplified[, !colnames(Protein_F_pm_simplified) %in% GP_contamination, drop = FALSE]
sparse_cutoff <- 0.5
bk_sparse <- unique(c(seq(-1, -sparse_cutoff, length.out = 26), seq(-sparse_cutoff, sparse_cutoff, length.out = 51), seq(sparse_cutoff, 1, length.out = 26)))
cols_sparse <- c(colorRampPalette(c("#4575B4", "white"))(25), rep("white", 50), colorRampPalette(c("white", "#D73027"))(25))
# Display proteins as rows and GPs as columns. Order GP columns from most to
# fewest visible proteins. Order protein rows by their rightmost visible GP, so
# proteins extending into the sparse right side appear first and form a
# triangular boundary. Visible count and a rarity-weighted support score provide
# deterministic secondary ordering.
wide_matrix_s5 <- as.matrix(Protein_F_pm_simplified_no_contamination)
wide_visible_mask_s5 <- abs(wide_matrix_s5) >= sparse_cutoff
wide_gp_visible_count_s5 <- colSums(wide_visible_mask_s5)
wide_protein_visible_count_s5 <- rowSums(wide_visible_mask_s5)
wide_gp_number_s5 <- as.integer(sub("^GP", "", colnames(wide_matrix_s5)))
wide_gp_order_s5 <- order(-wide_gp_visible_count_s5, wide_gp_number_s5)
wide_mask_ordered_cols_s5 <- wide_visible_mask_s5[
,
wide_gp_order_s5,
drop = FALSE
]
wide_rightmost_visible_gp_s5 <- apply(
wide_mask_ordered_cols_s5,
1,
function(values) max(which(values))
)
wide_rarity_weights_s5 <- seq_len(ncol(wide_mask_ordered_cols_s5))^2
wide_protein_rarity_score_s5 <- as.numeric(
wide_mask_ordered_cols_s5 %*% wide_rarity_weights_s5
)
wide_protein_order_s5 <- order(
-wide_rightmost_visible_gp_s5,
-wide_protein_visible_count_s5,
-wide_protein_rarity_score_s5,
rownames(wide_matrix_s5)
)
wide_ordered_matrix_s5 <- wide_matrix_s5[
wide_protein_order_s5,
wide_gp_order_s5,
drop = FALSE
]
pdf(paste0(figure_path, "s5.pdf"), width = 48, height = 14)
pheatmap::pheatmap(
wide_ordered_matrix_s5,
main = sprintf(
paste0(
"Protein programs - GP columns, triangular-first protein rows ",
"(|score| >= %.1f; protein-row sparsity is not monotone)"
),
sparse_cutoff
),
color = cols_sparse,
breaks = bk_sparse,
cluster_rows = FALSE,
cluster_cols = FALSE,
border_color = "grey75",
fontsize = 16,
fontsize_row = 16,
fontsize_col = 16,
angle_col = 90,
legend_breaks = c(-1, -sparse_cutoff, 0, sparse_cutoff, 1),
legend_labels = c("-1", "-0.5", "0 (white)", "0.5", "1")
)
dev.off()

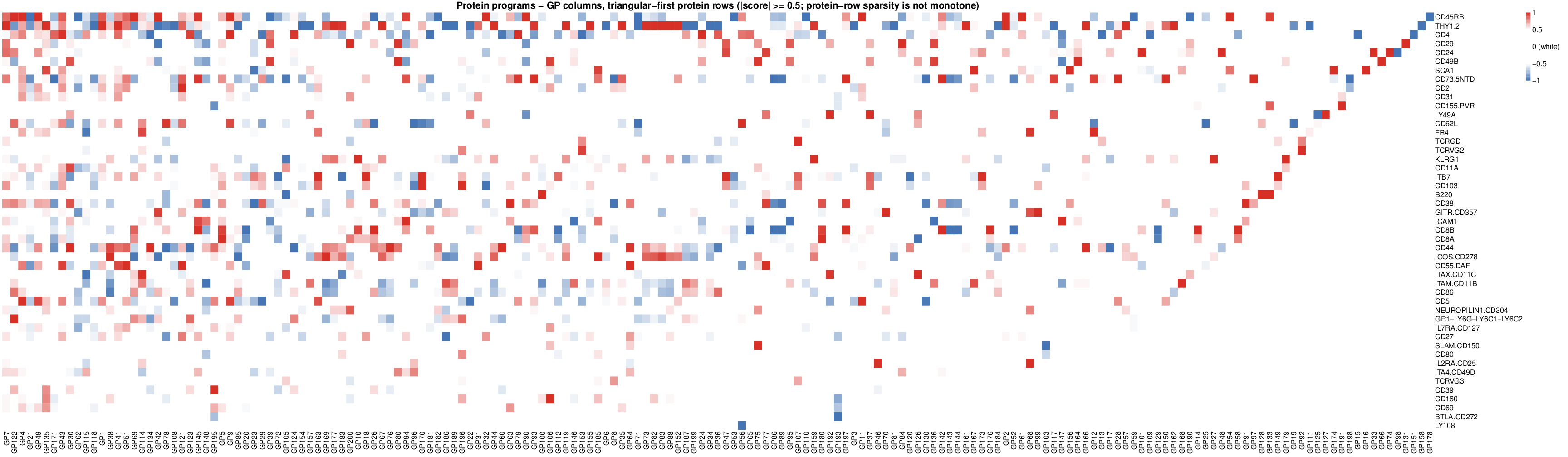

Extended Data Fig. 5. Heatmap of scaled protein scores for each GP. We focused on the 47 proteins that performed best in the immgenT CITE-seq dataset.
