Purpose:
- Compile past assay results.
- Provide dose-response curves for each toxin.
Analysis Date: March 23, 2021

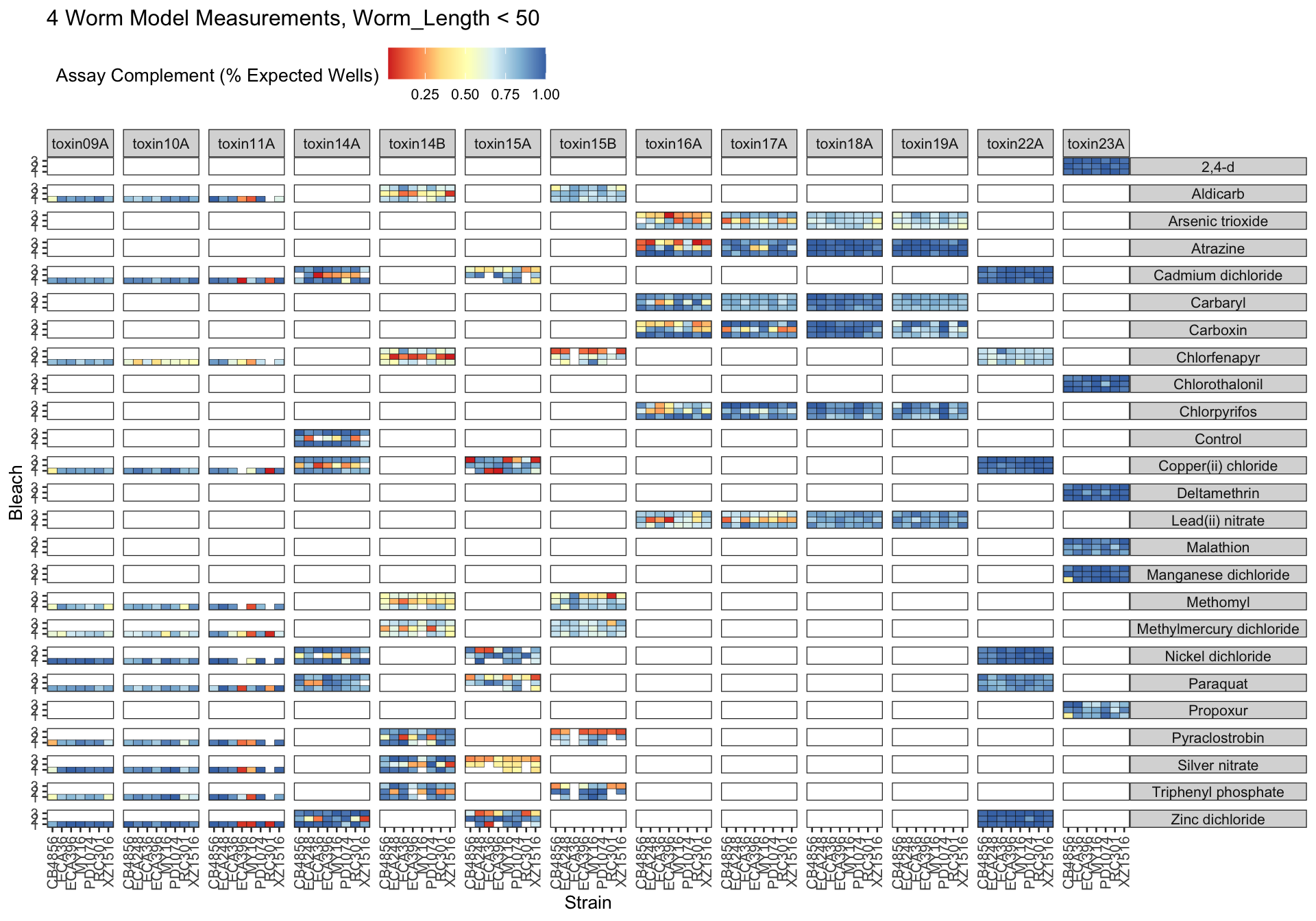

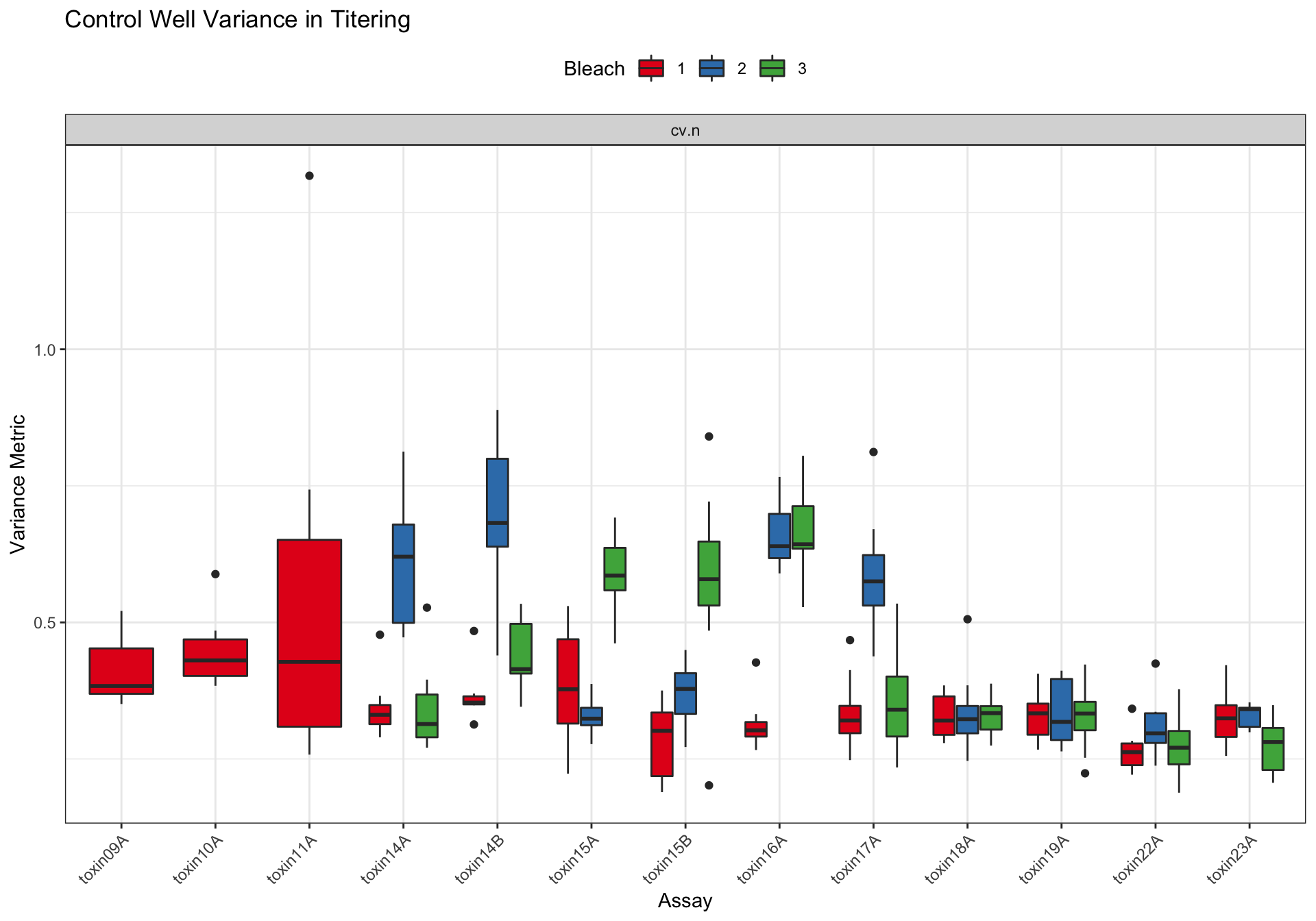

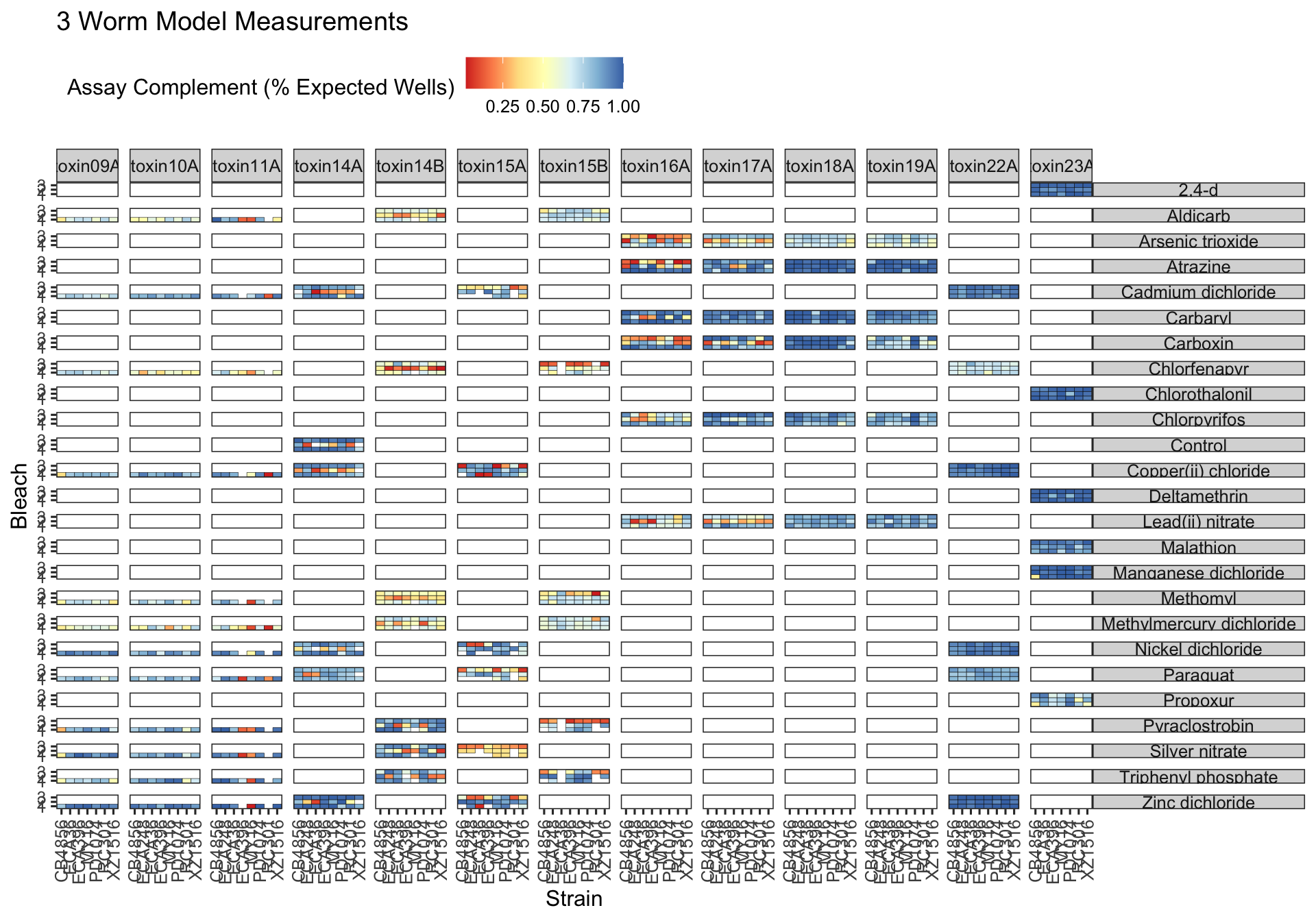

Assay Summary
Metadata_Experiment bleach median cv.censor
1 toxin09A 1 0.3836145 0
2 toxin10A 1 0.4305145 0
3 toxin11A 1 0.4277093 0
4 toxin14A 1 0.3309190 0
5 toxin14A 2 0.6202207 1
6 toxin14A 3 0.3139512 0
7 toxin14B 1 0.3531075 0
8 toxin14B 2 0.6821373 1
9 toxin14B 3 0.4144394 0
10 toxin15A 1 0.3776043 0
11 toxin15A 2 0.3237794 0
12 toxin15A 3 0.5858180 1
13 toxin15B 1 0.3014705 0
14 toxin15B 2 0.3782805 0
15 toxin15B 3 0.5791055 1
16 toxin16A 1 0.3024091 0
17 toxin16A 2 0.6394078 1
18 toxin16A 3 0.6430524 1
19 toxin17A 1 0.3203867 0
20 toxin17A 2 0.5750981 1
21 toxin17A 3 0.3401813 0
22 toxin18A 1 0.3202607 0
23 toxin18A 2 0.3228881 0
24 toxin18A 3 0.3338709 0
25 toxin19A 1 0.3333869 0
26 toxin19A 2 0.3179010 0
27 toxin19A 3 0.3330344 0
28 toxin22A 1 0.2625332 0
29 toxin22A 2 0.2967801 0
30 toxin22A 3 0.2706957 0
31 toxin23A 1 0.3243216 0
32 toxin23A 2 0.3411546 0
33 toxin23A 3 0.2809086 0 Df Sum Sq Mean Sq F value Pr(>F)
assay 12 1.8077 0.1506 14.987 < 2e-16 ***
as.factor(bleach) 2 0.6899 0.3450 34.318 1.1e-13 ***
strain 7 0.0920 0.0131 1.307 0.248
assay:as.factor(bleach) 18 1.8073 0.1004 9.989 < 2e-16 ***
Residuals 218 2.1913 0.0101
---

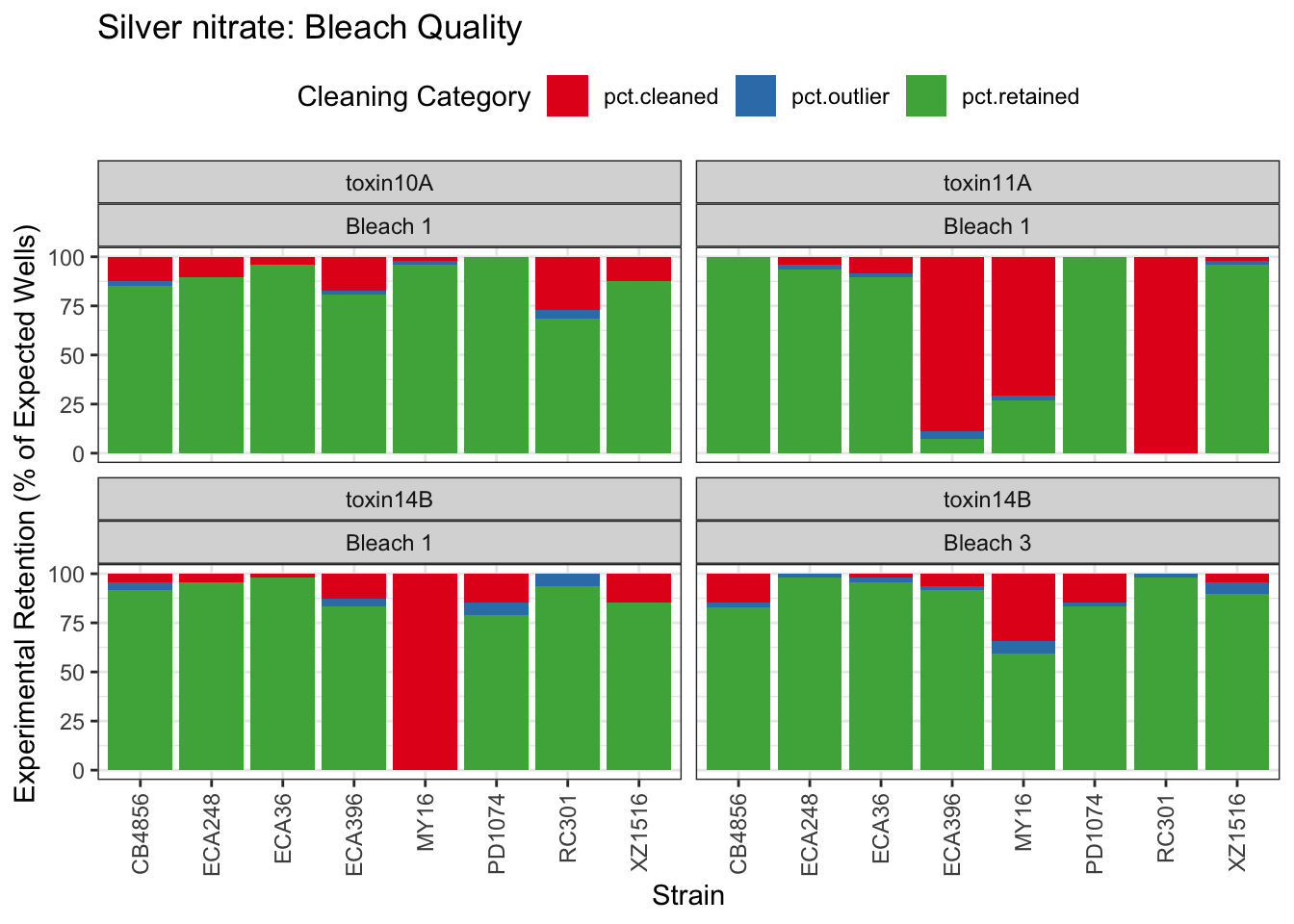

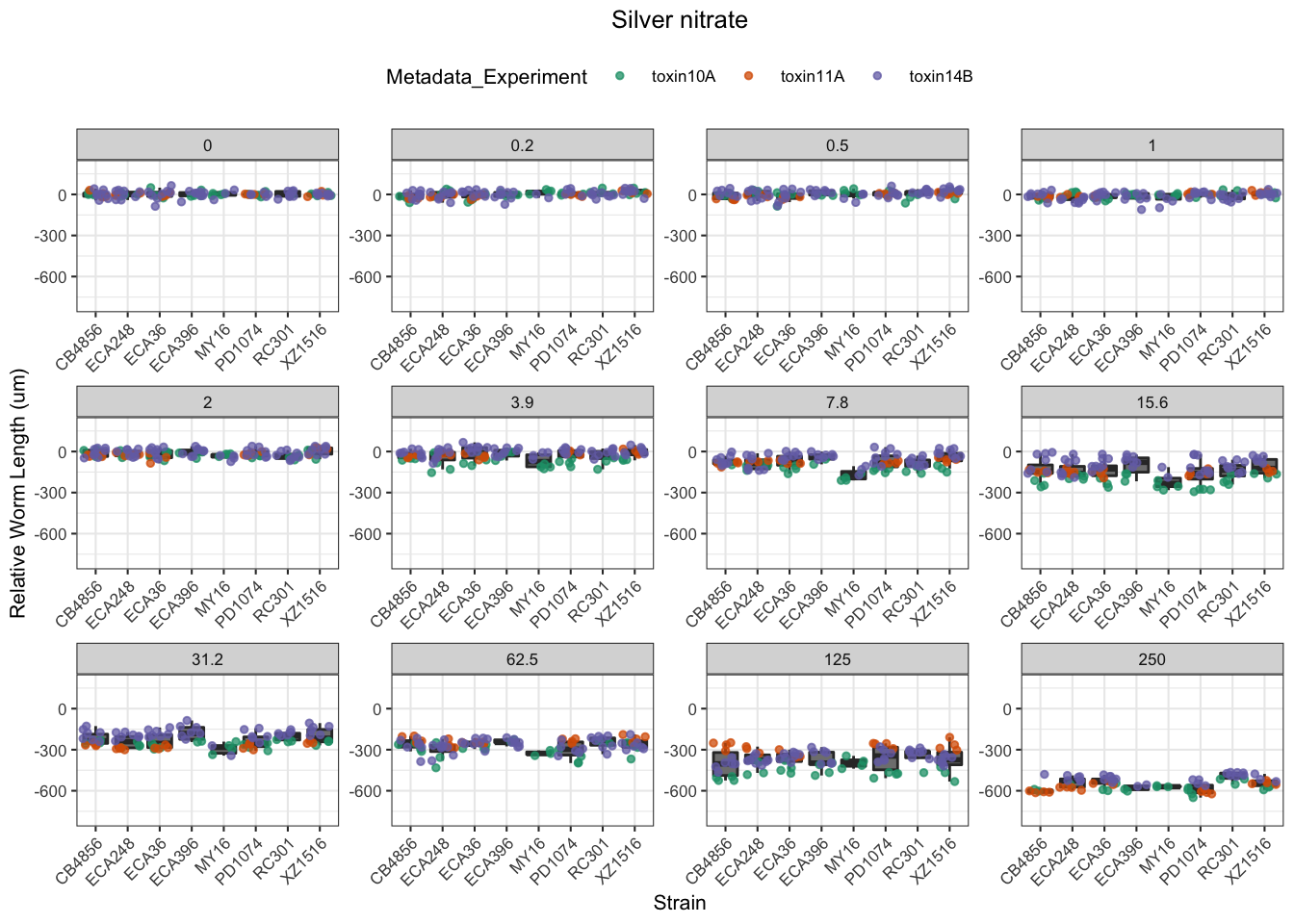

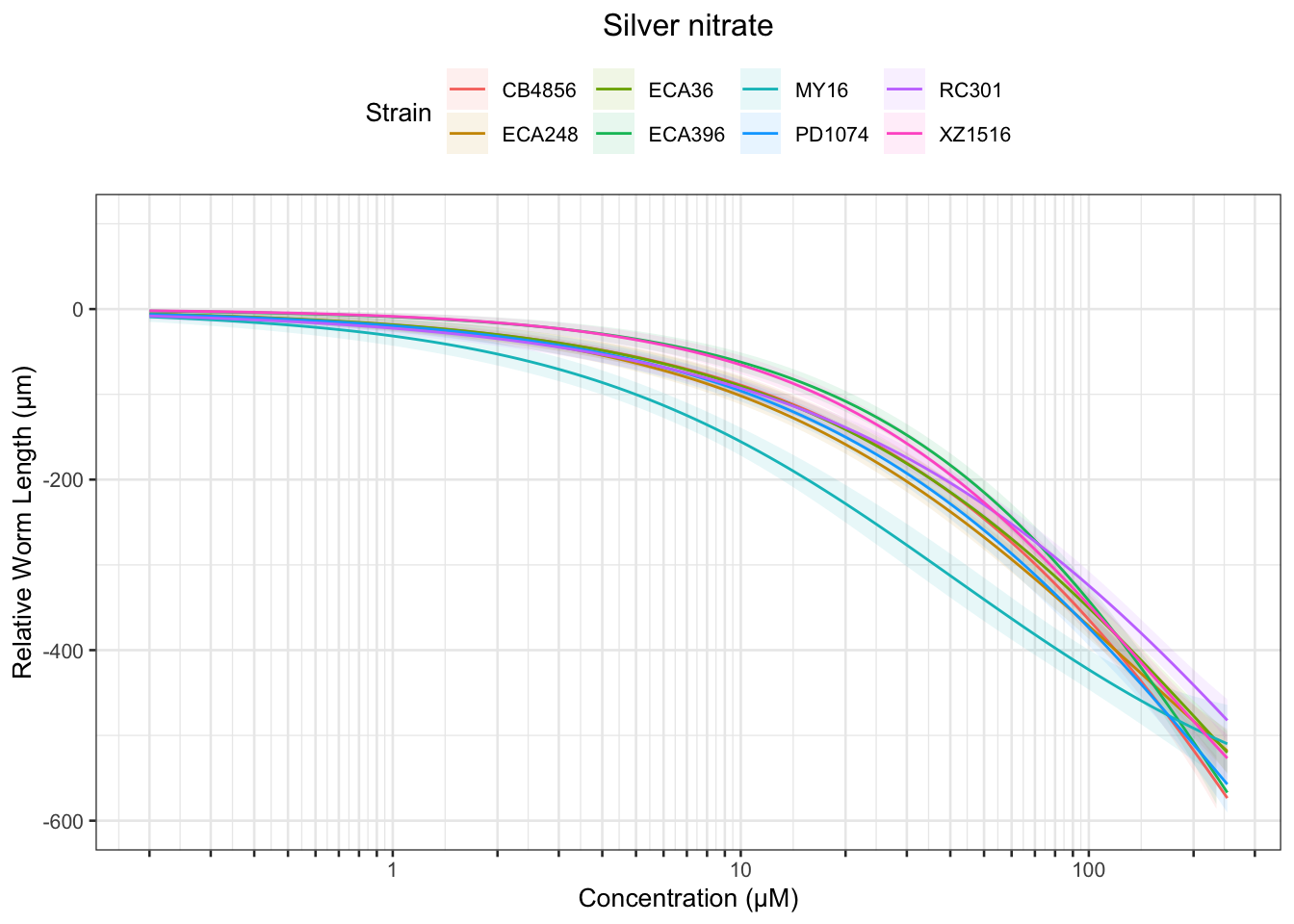

Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1Silver

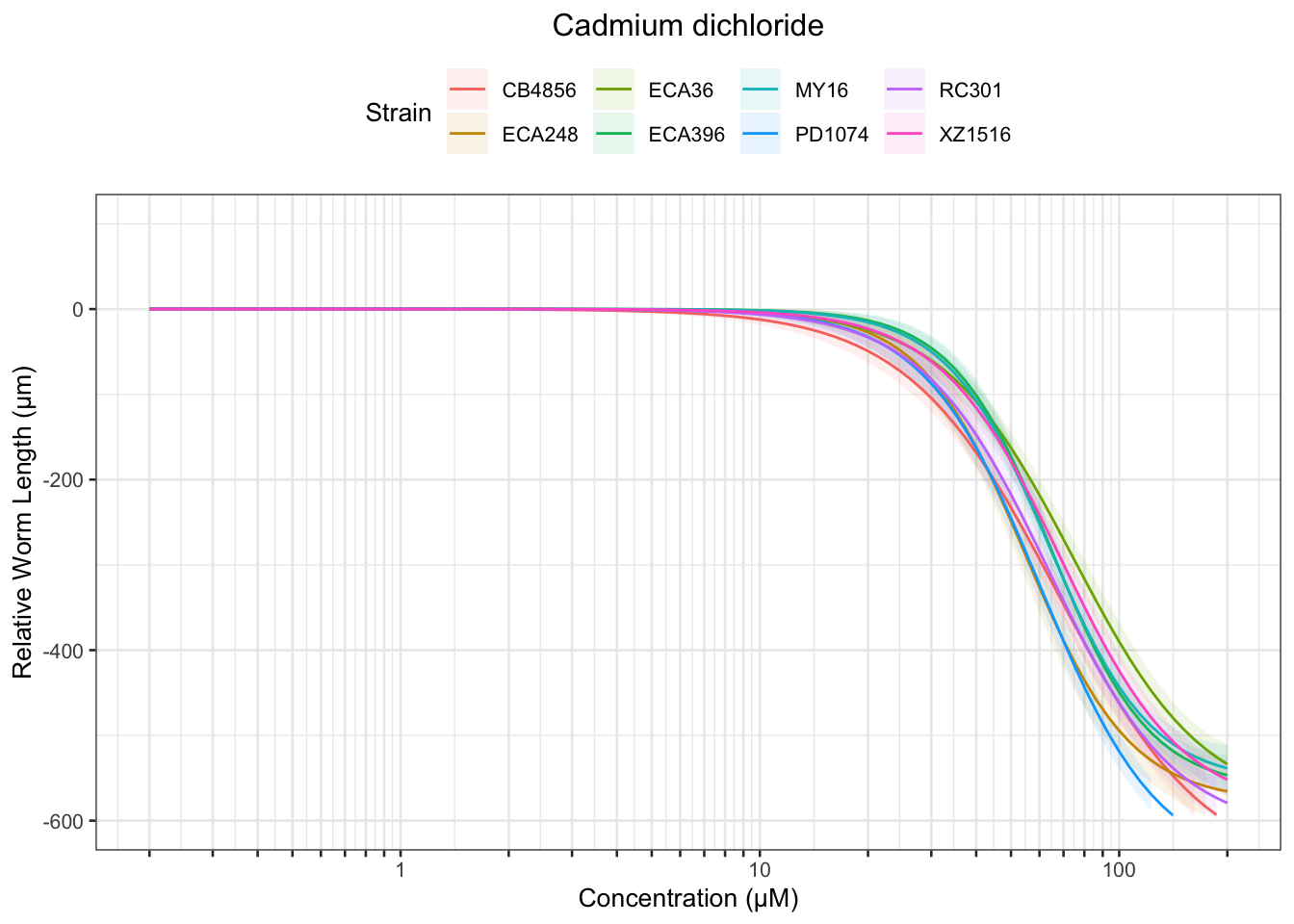

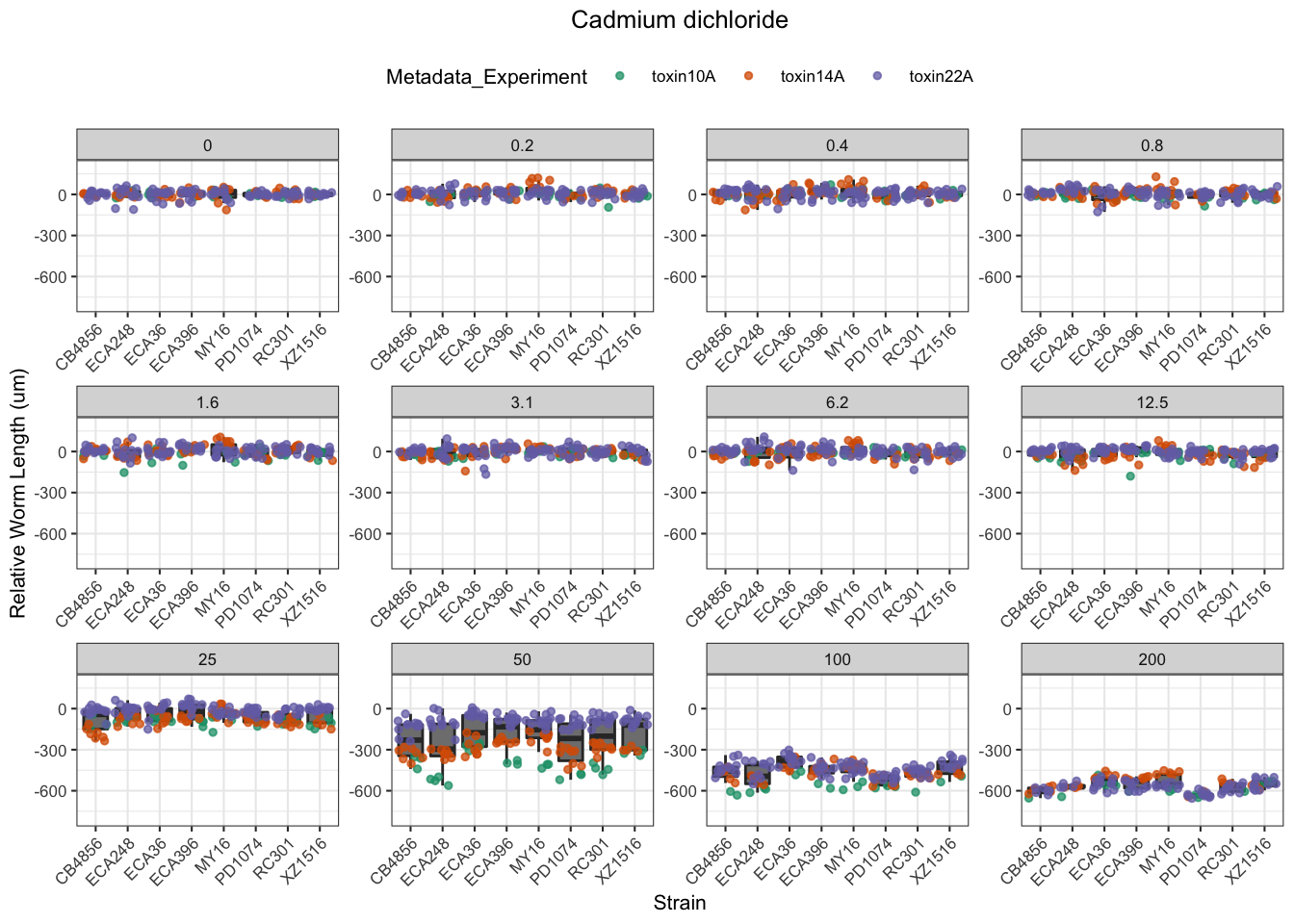

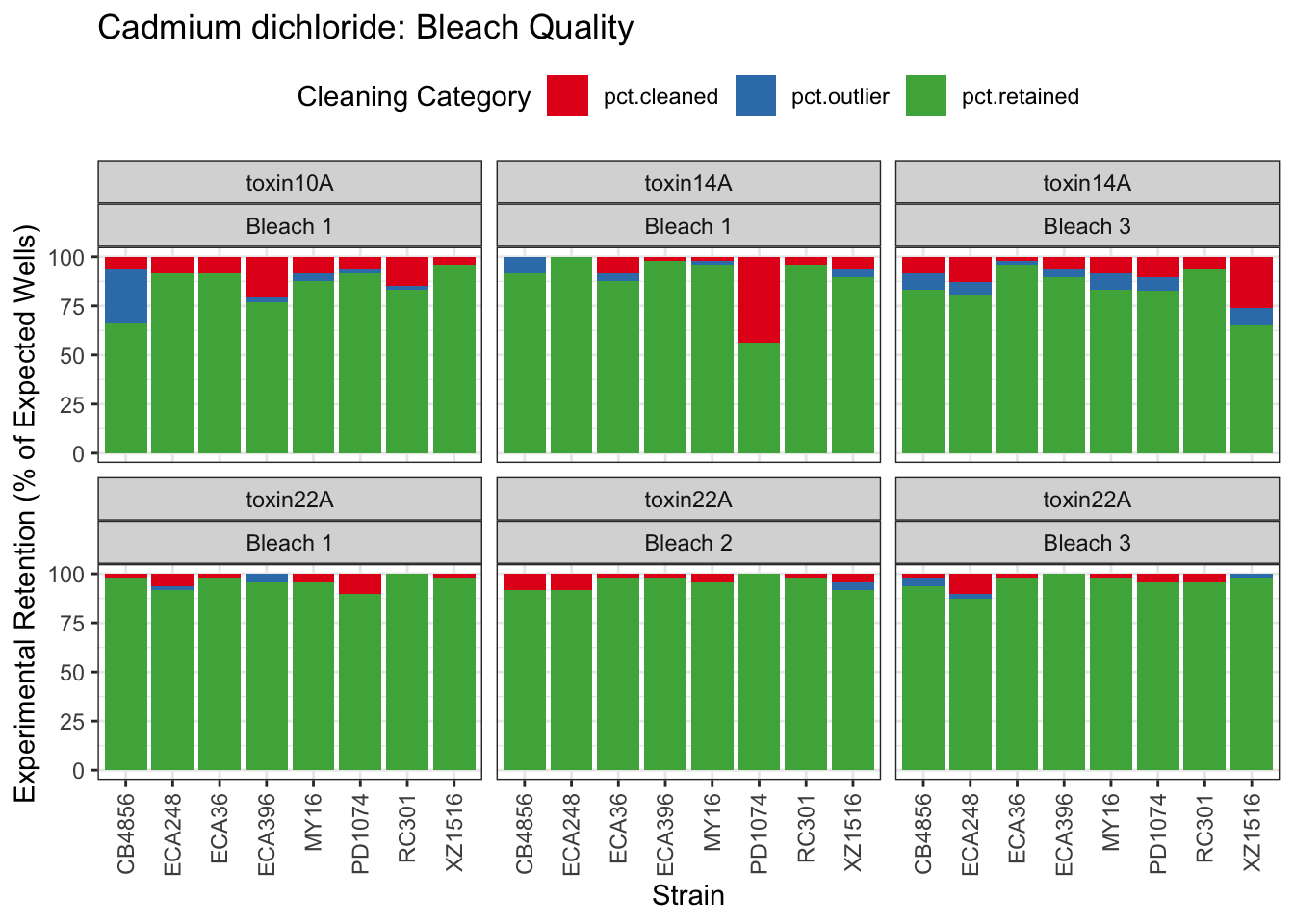

Cadmium
[1] "Excluding toxin09A: Inconsistent Response"

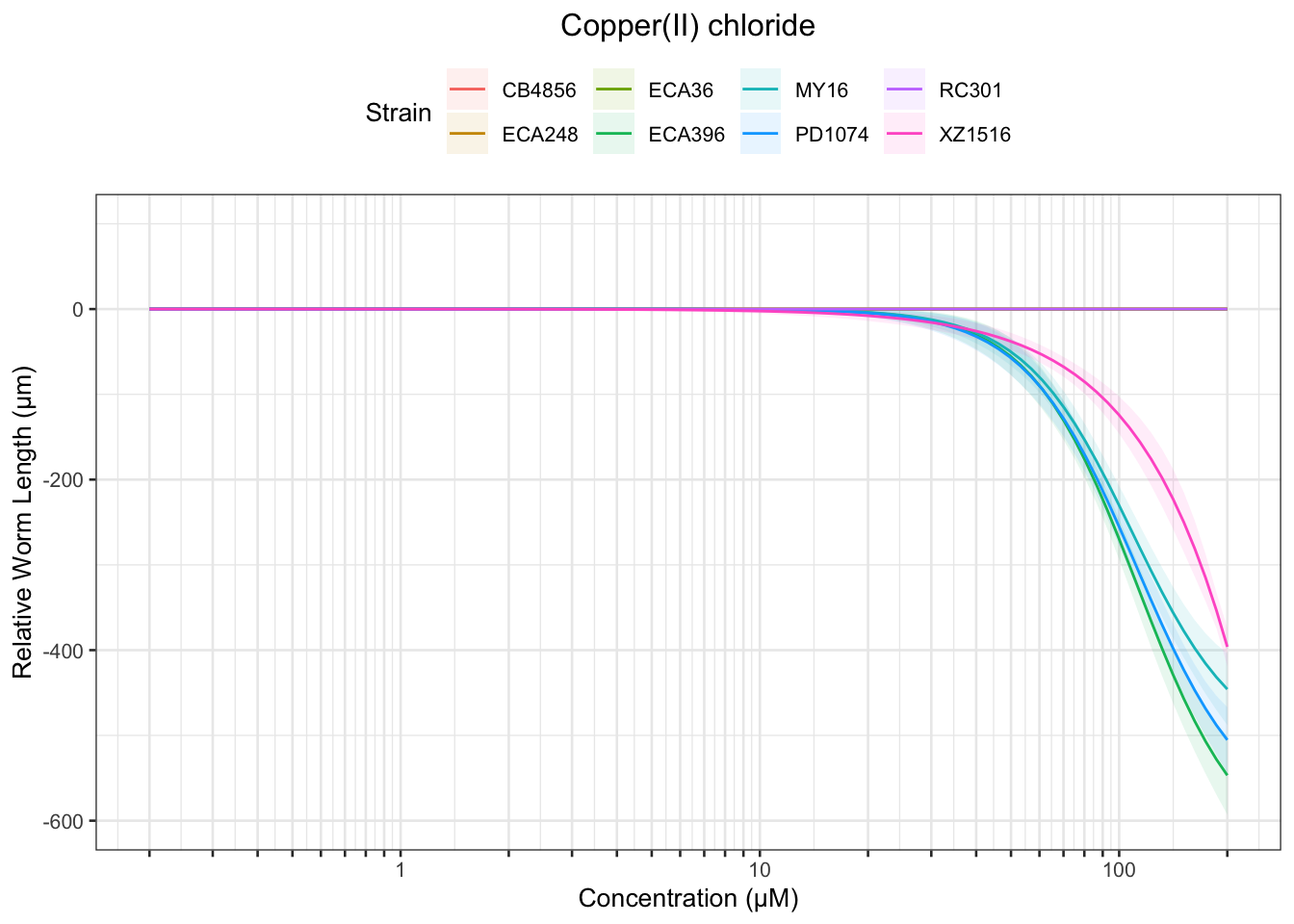

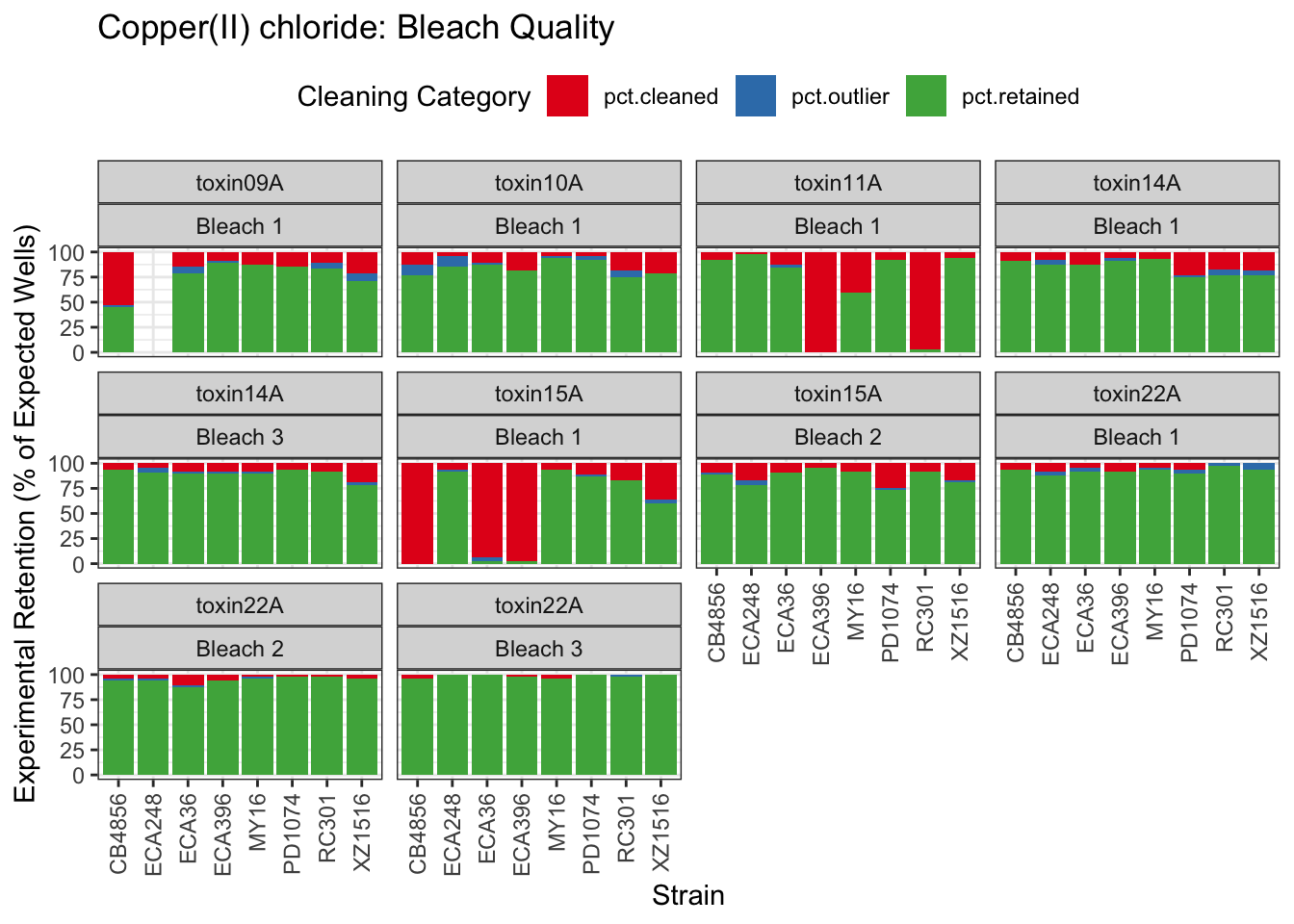

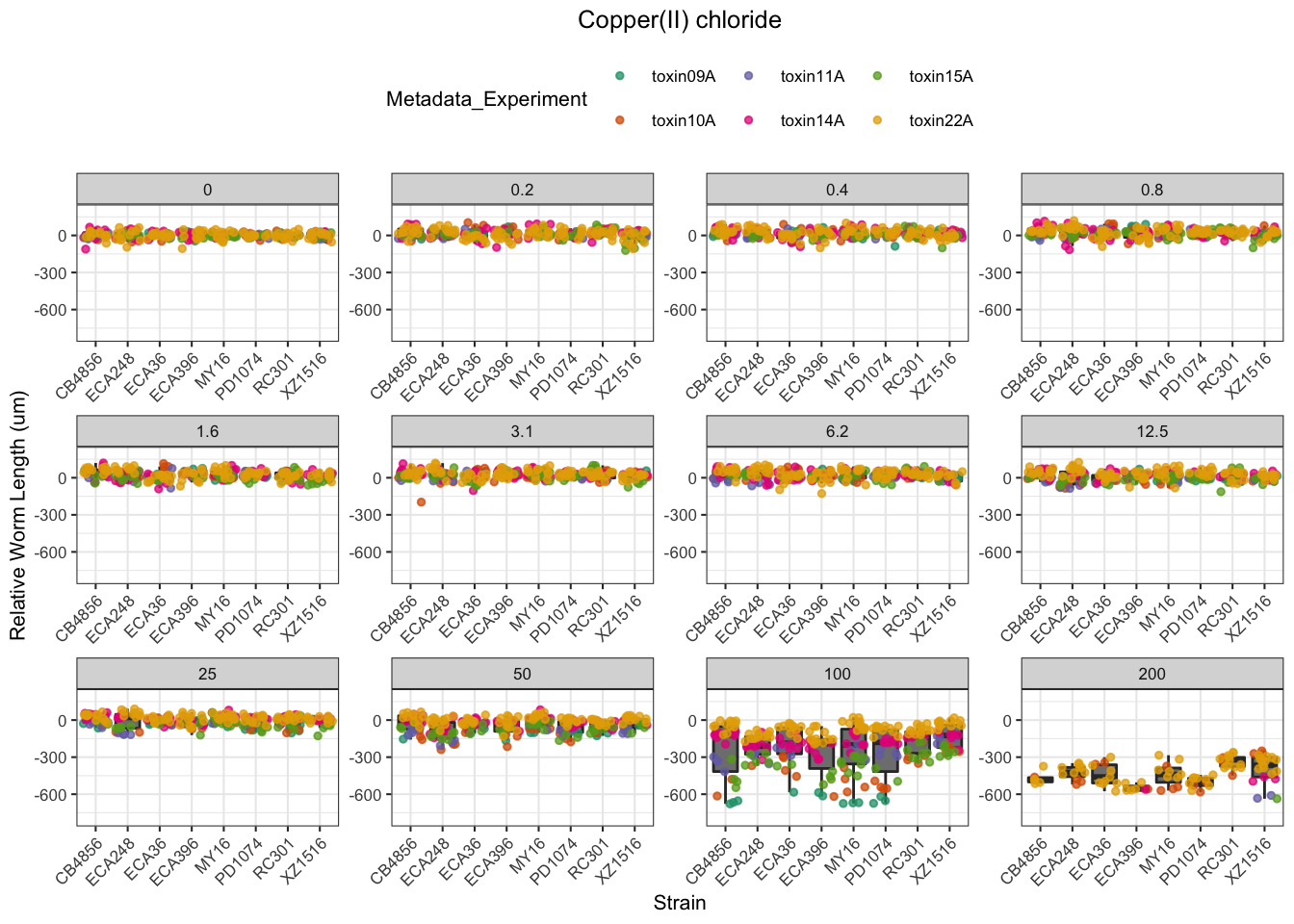

Copper

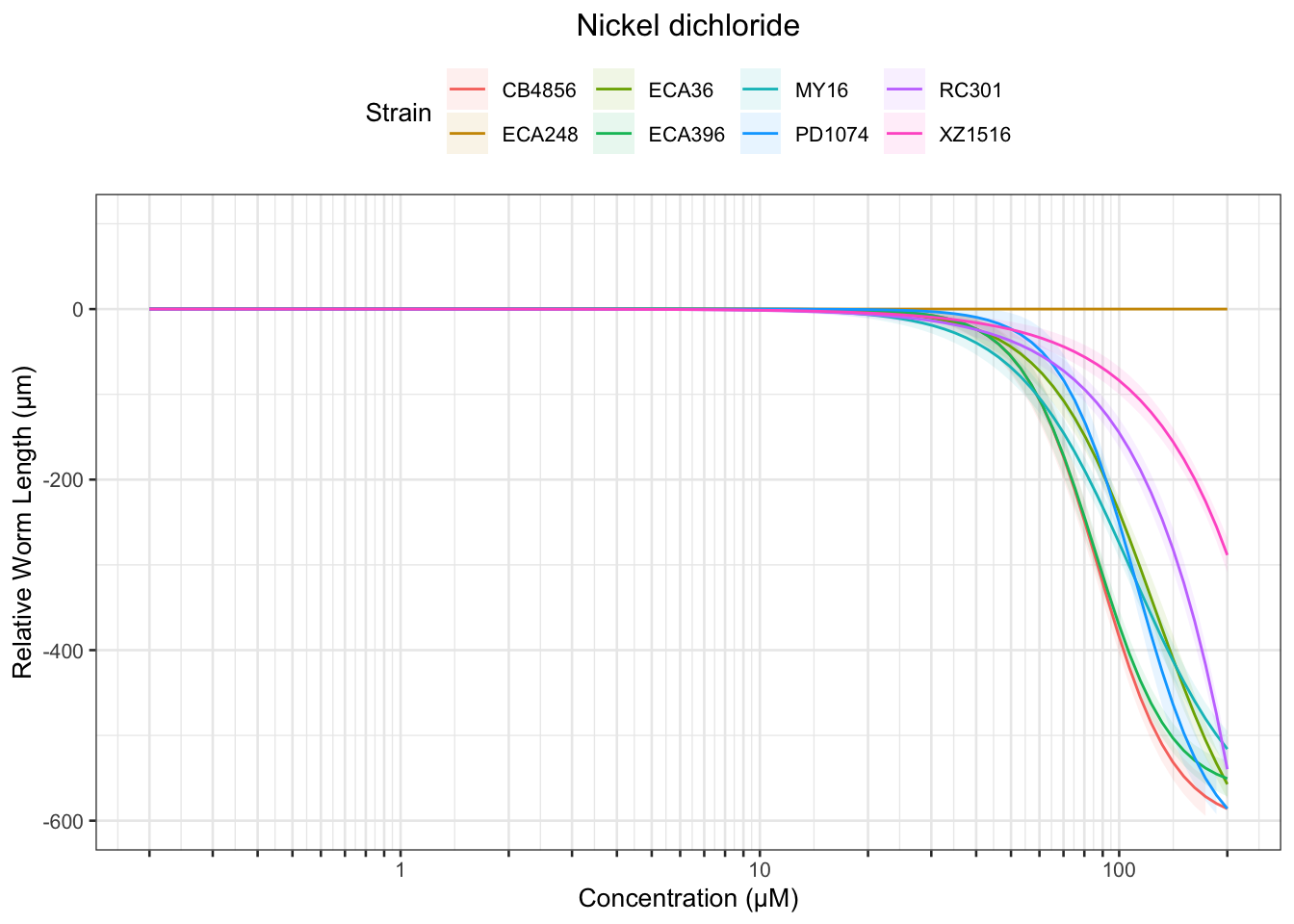

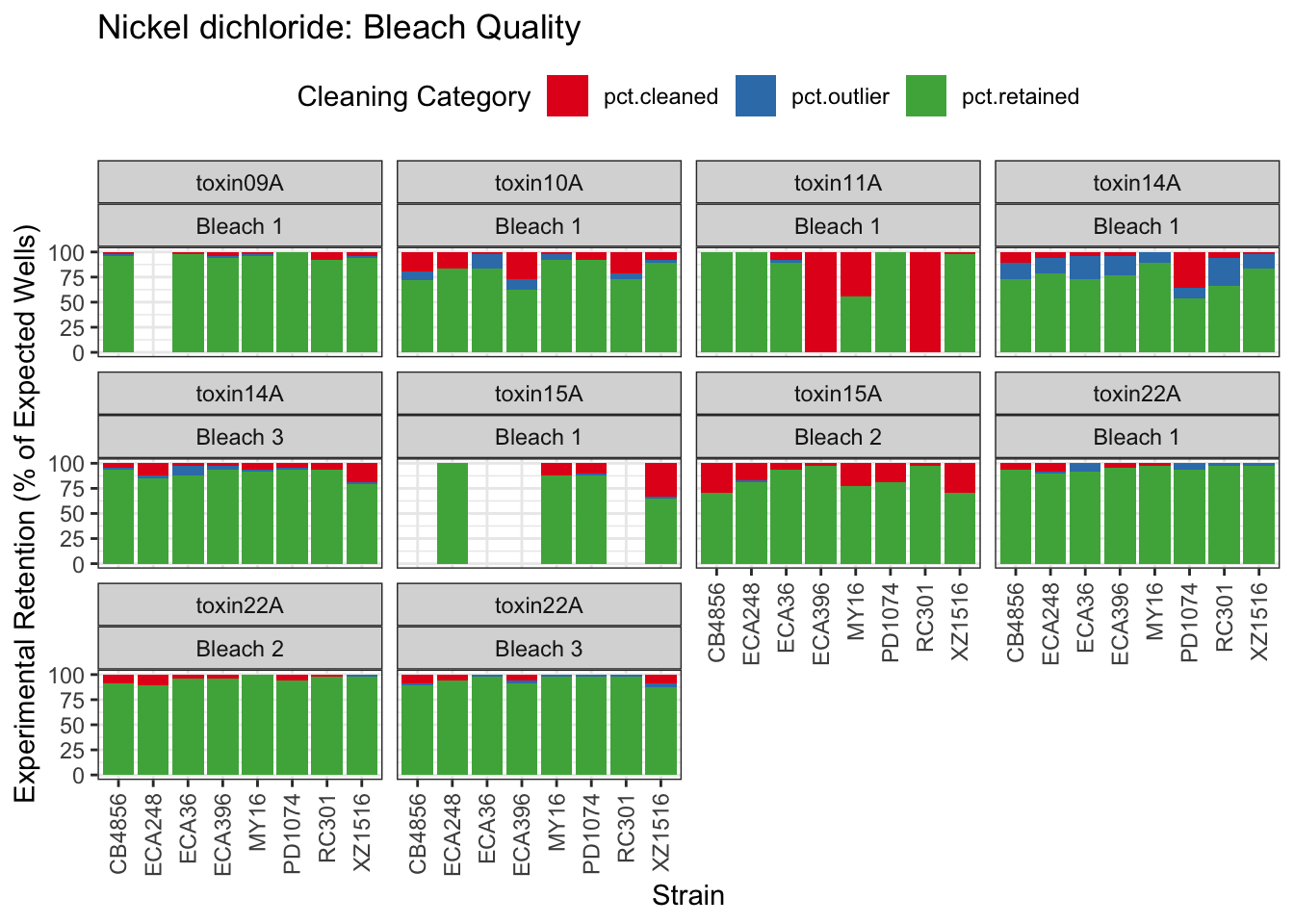

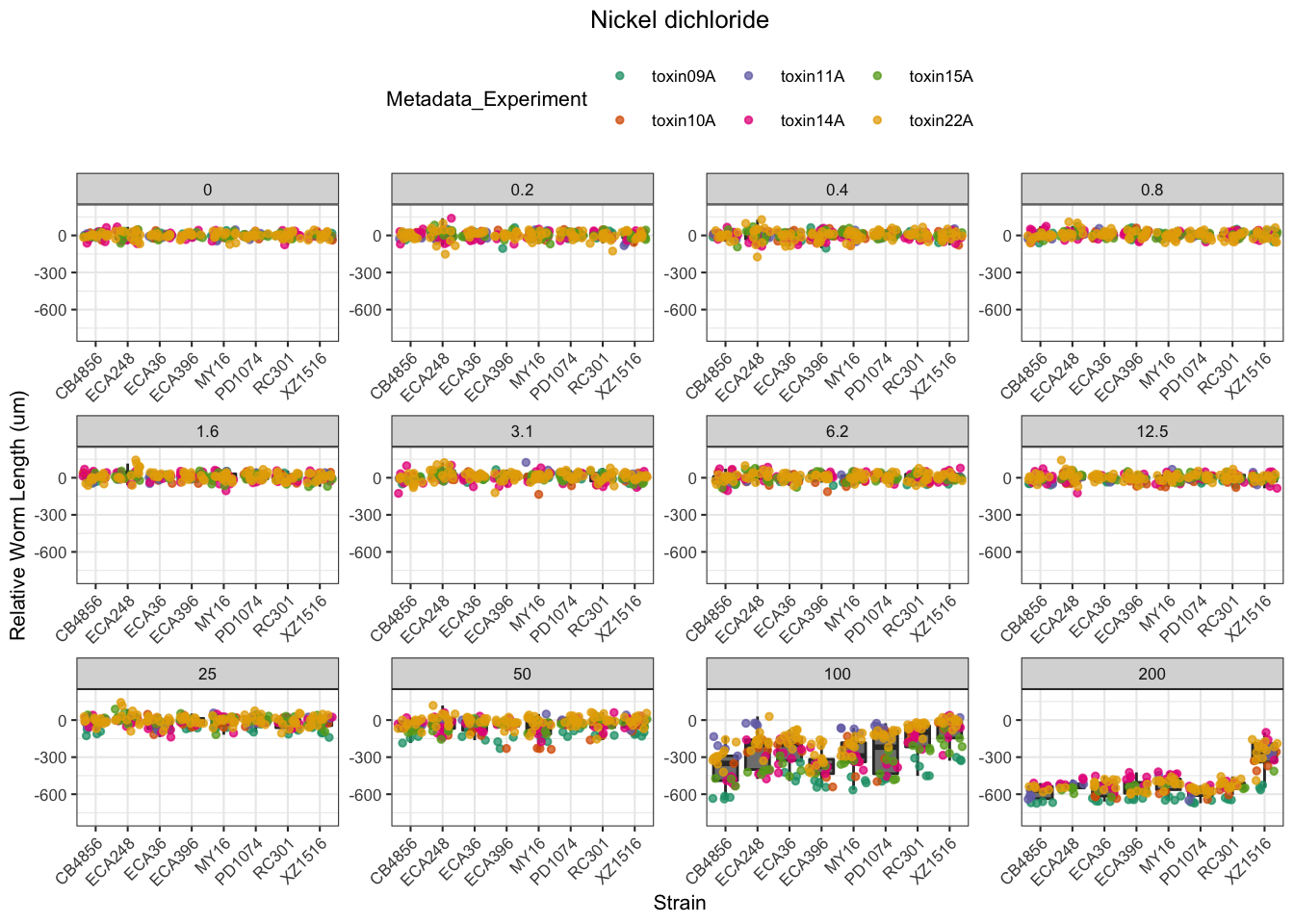

Nickel

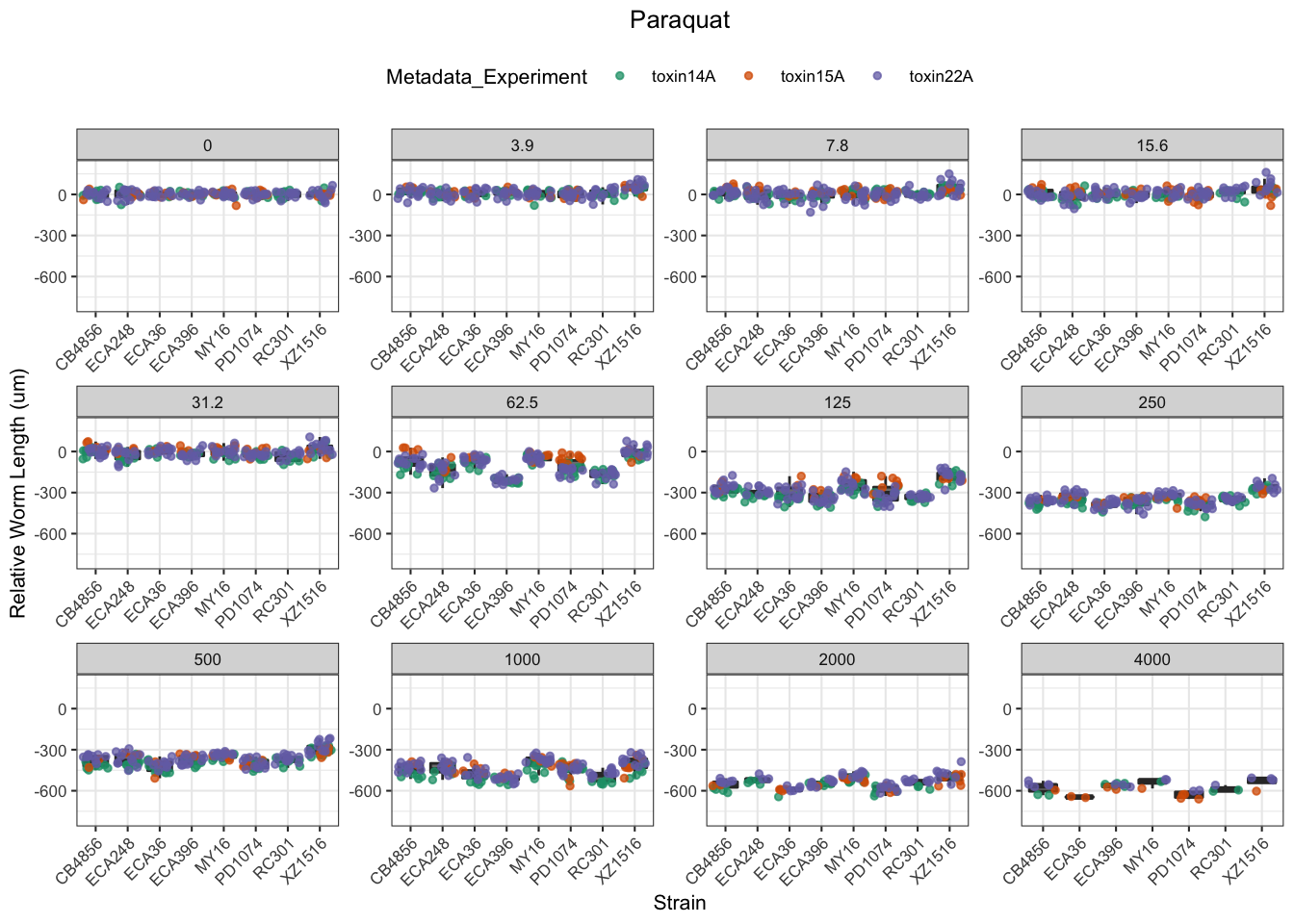

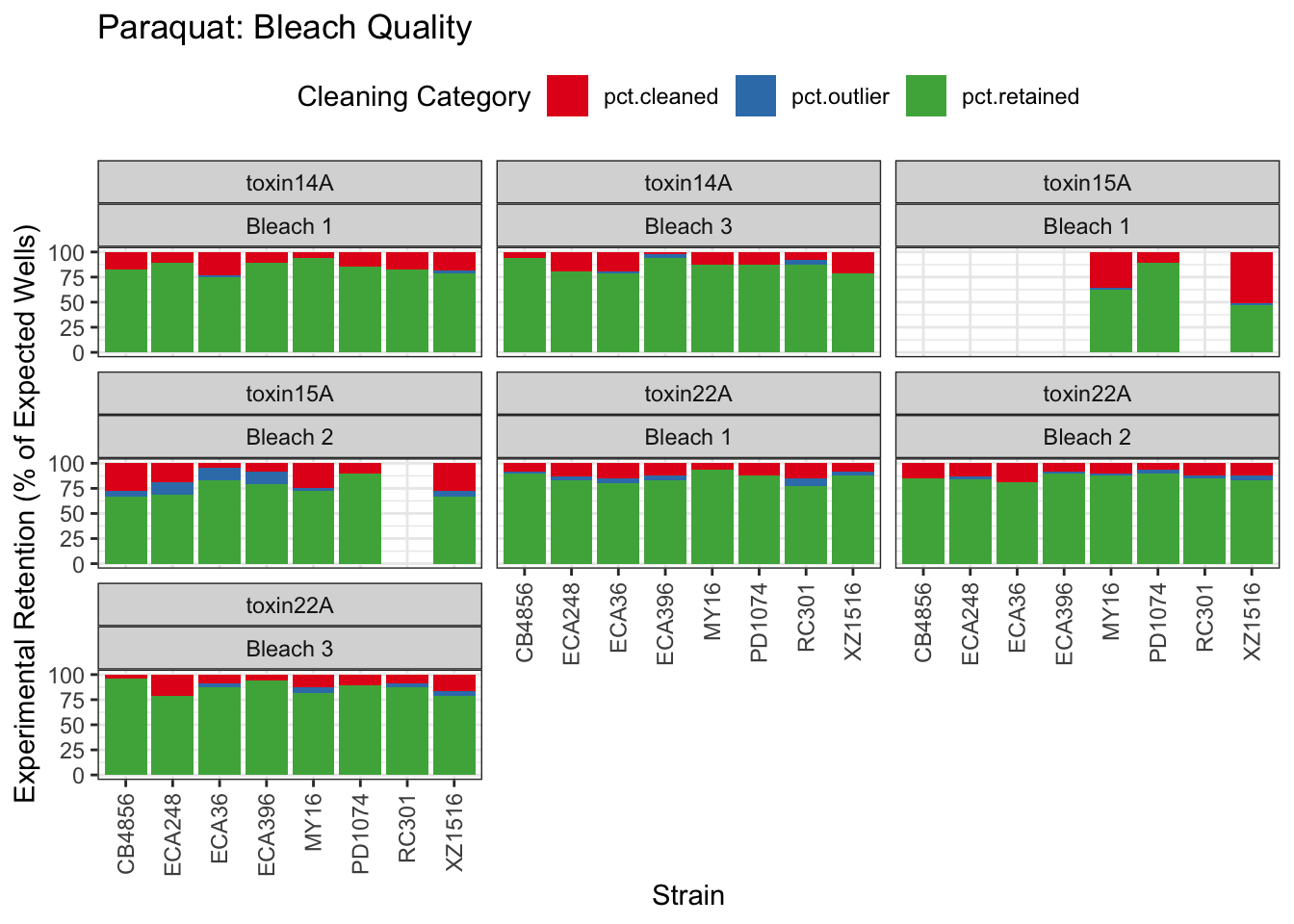

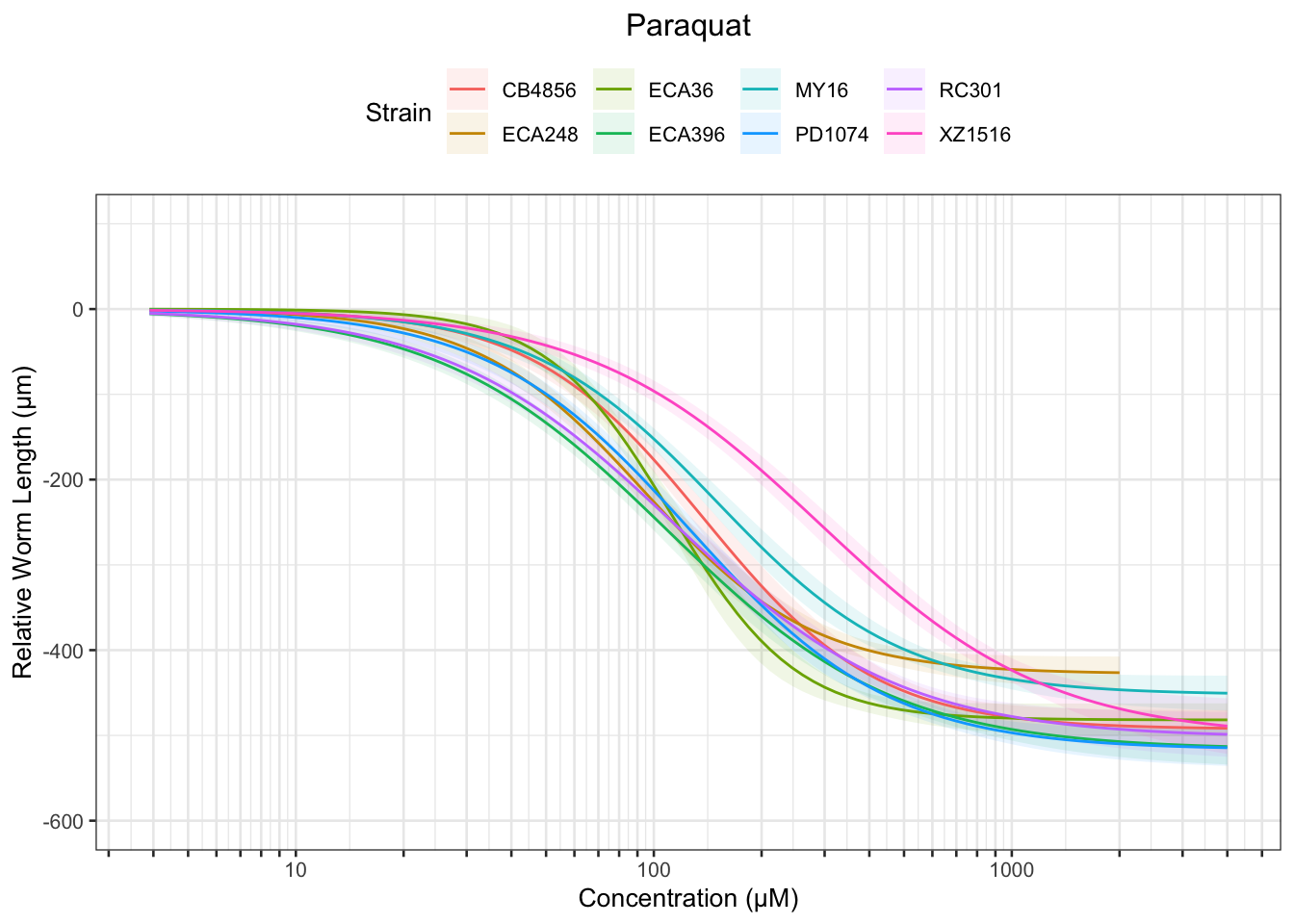

Paraquat

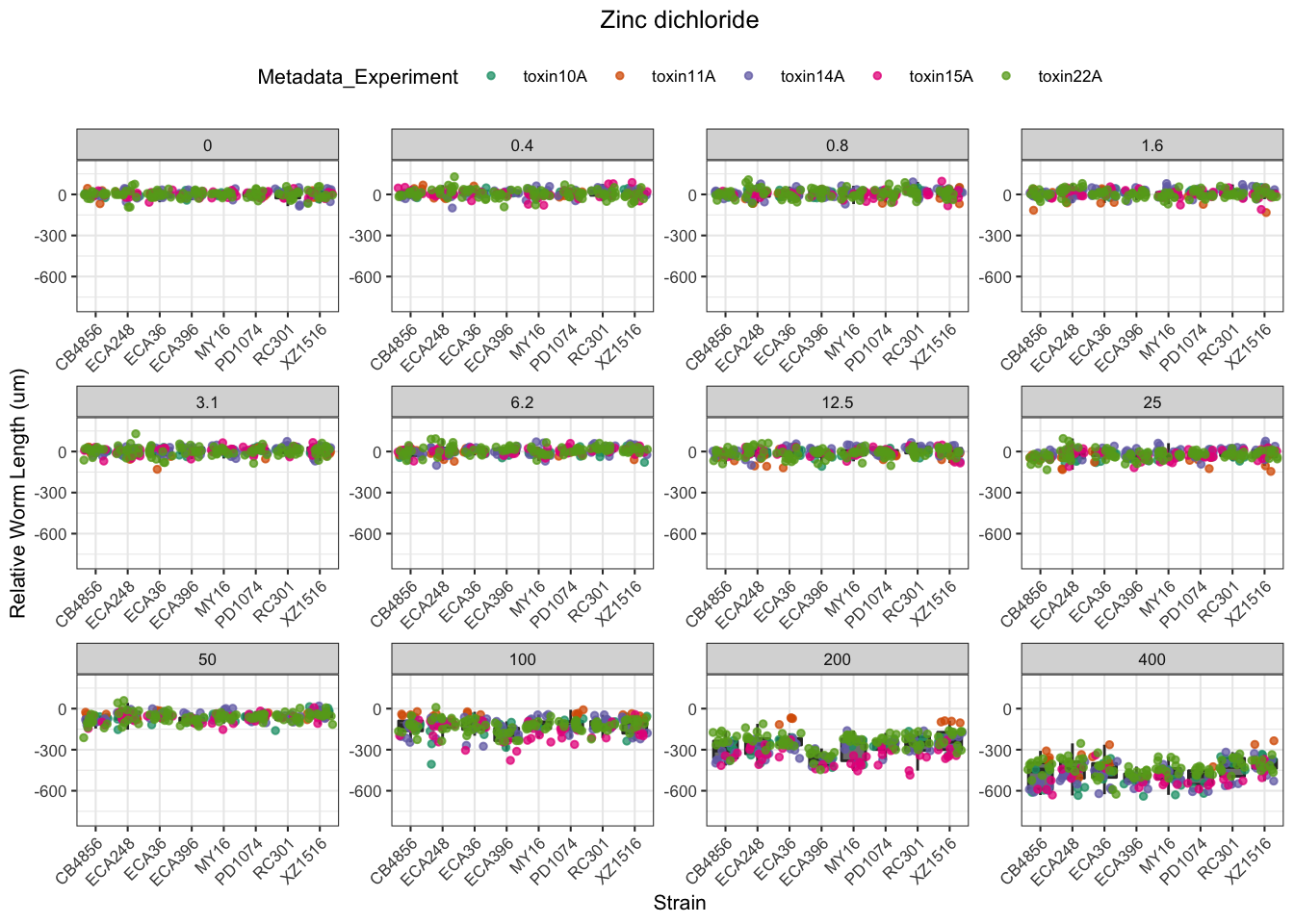

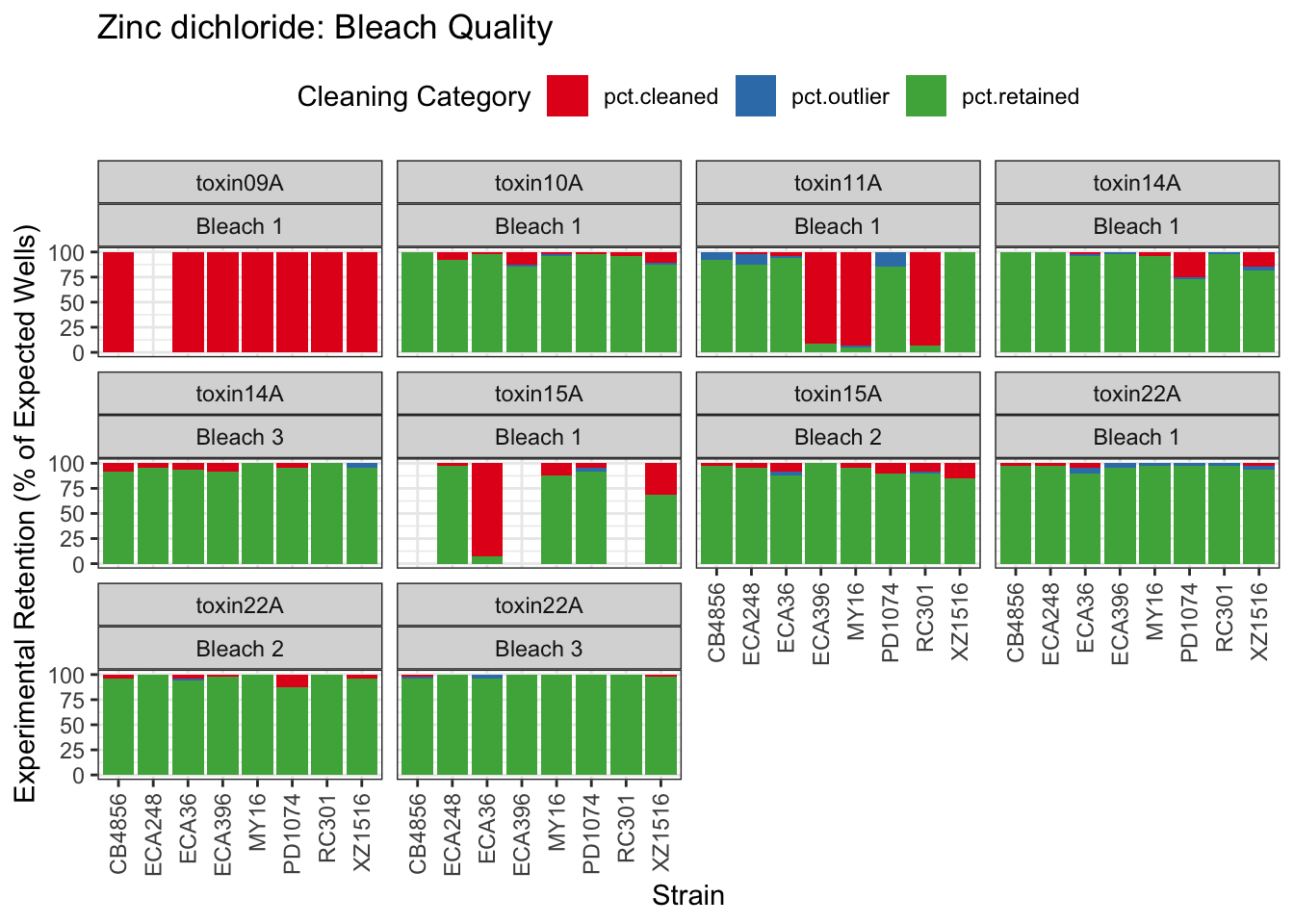

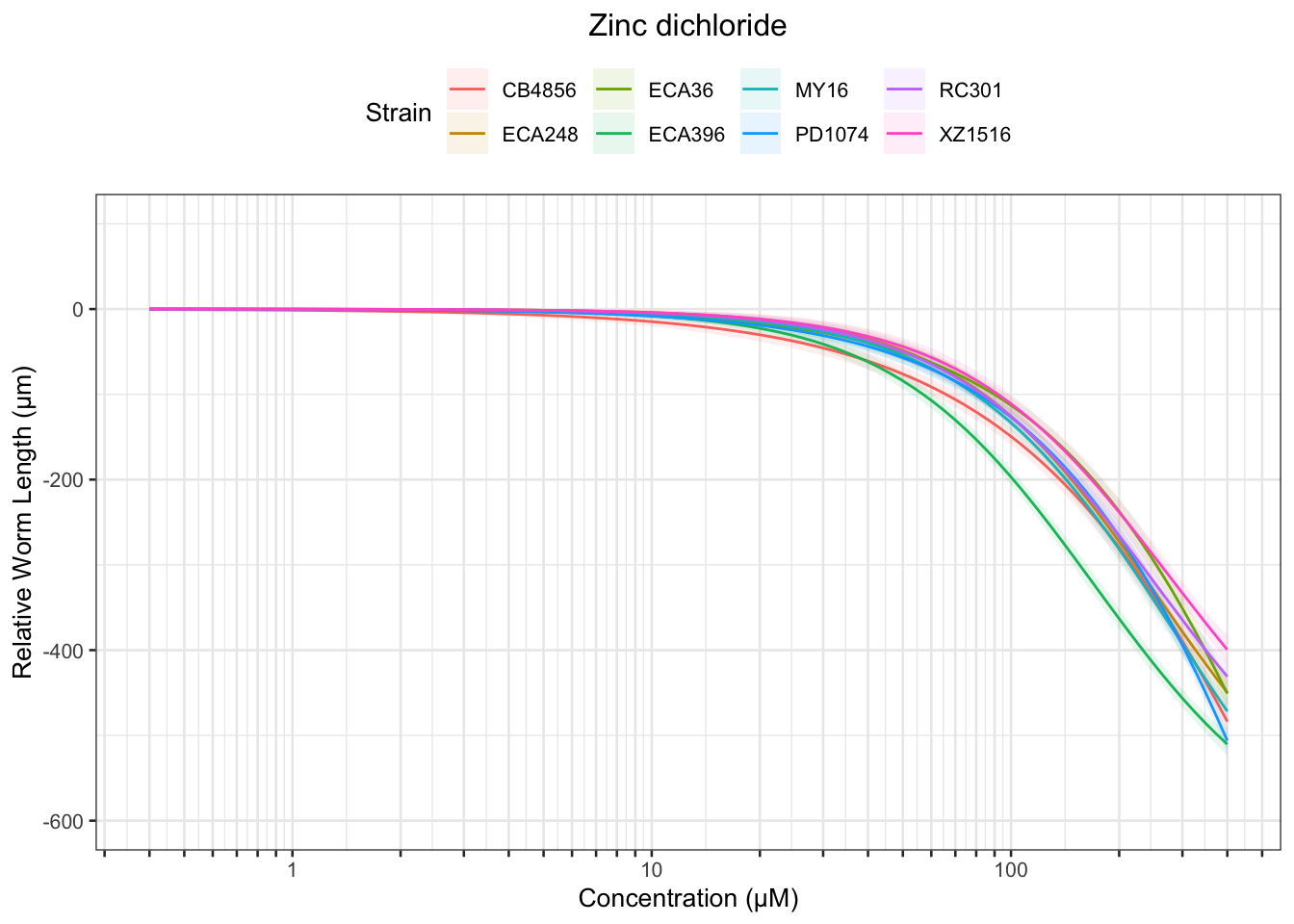

Zinc

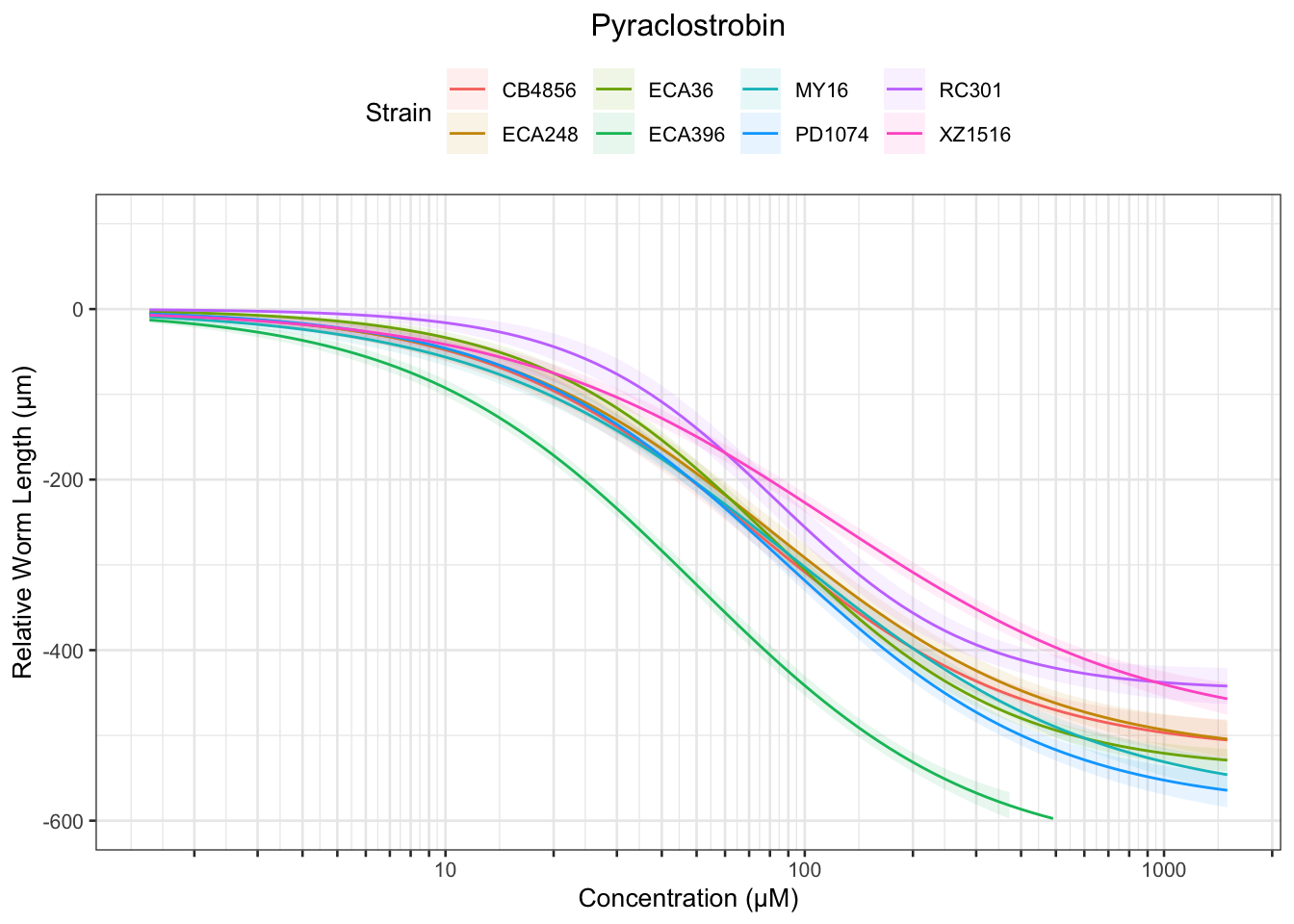

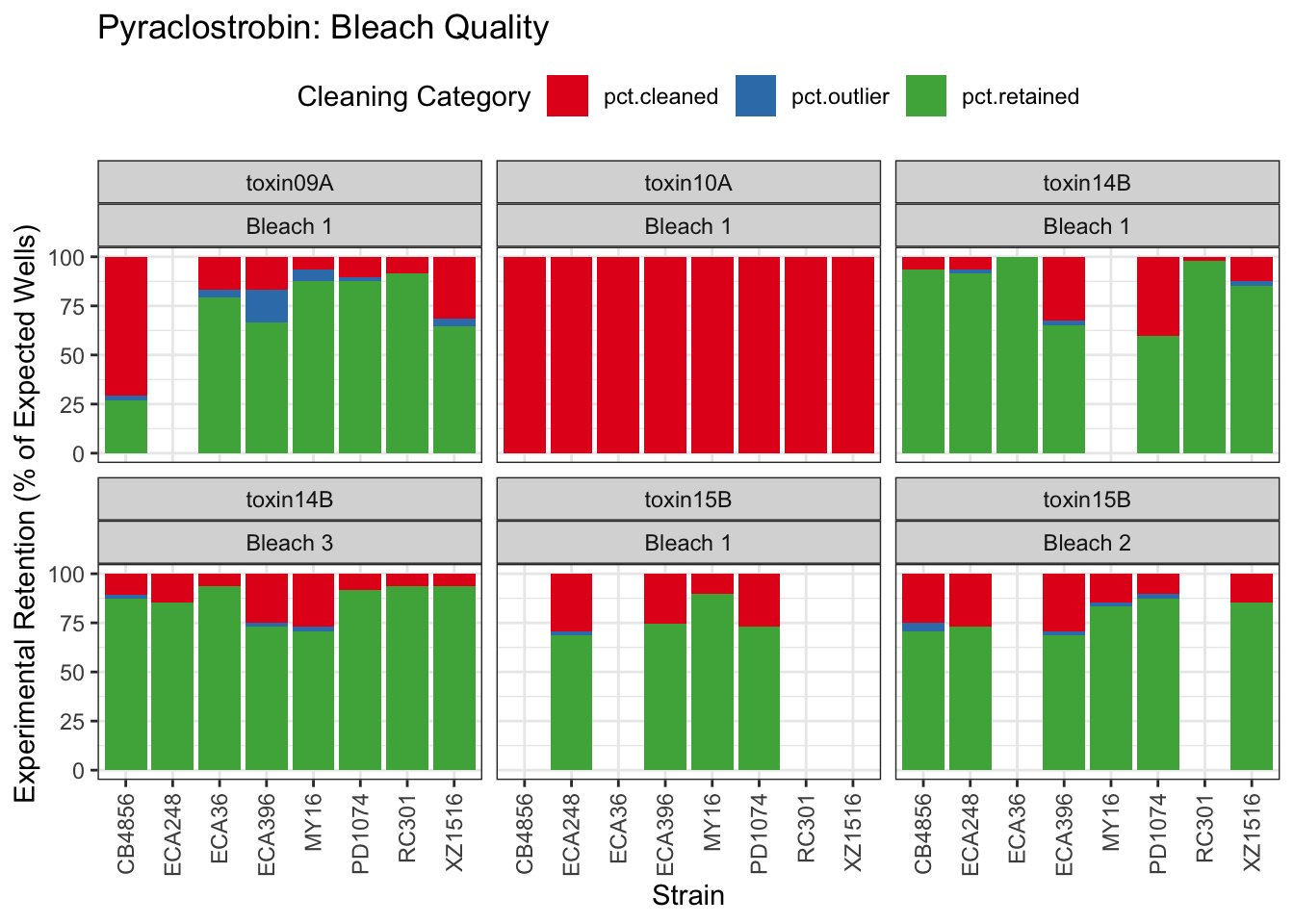

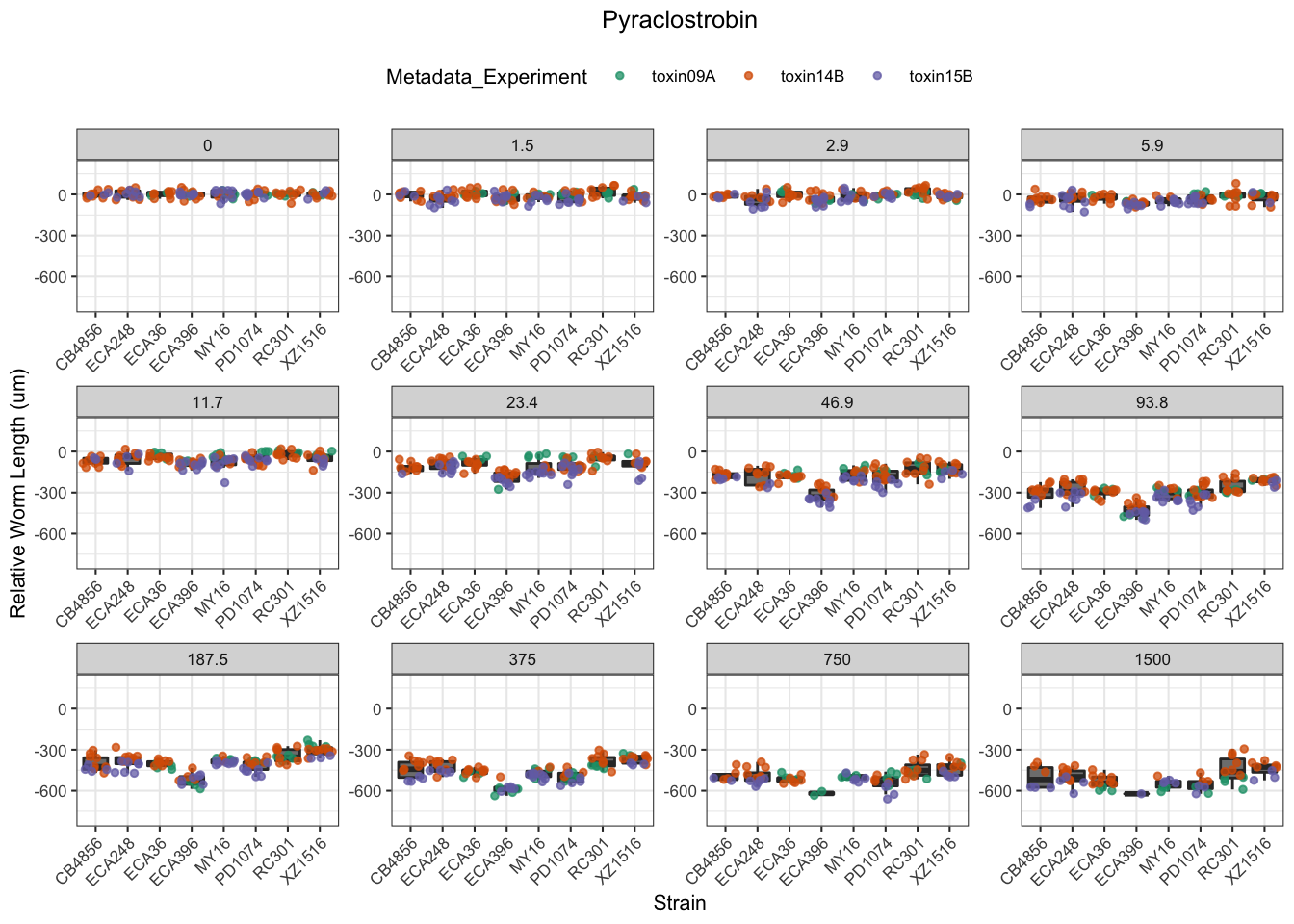

Pyraclostrobin
[1] "Excluding toxin11A: Inconsistent Response"

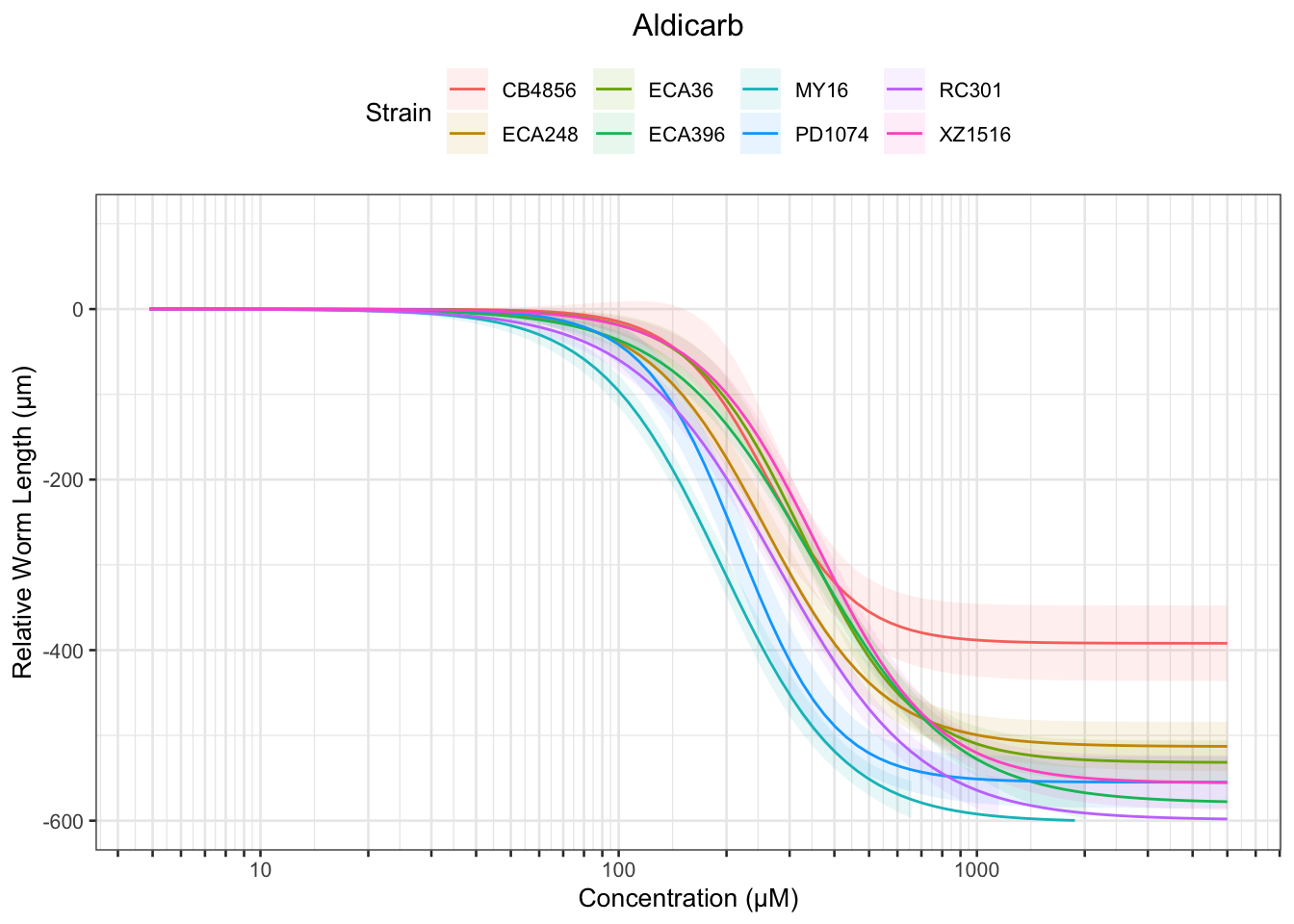

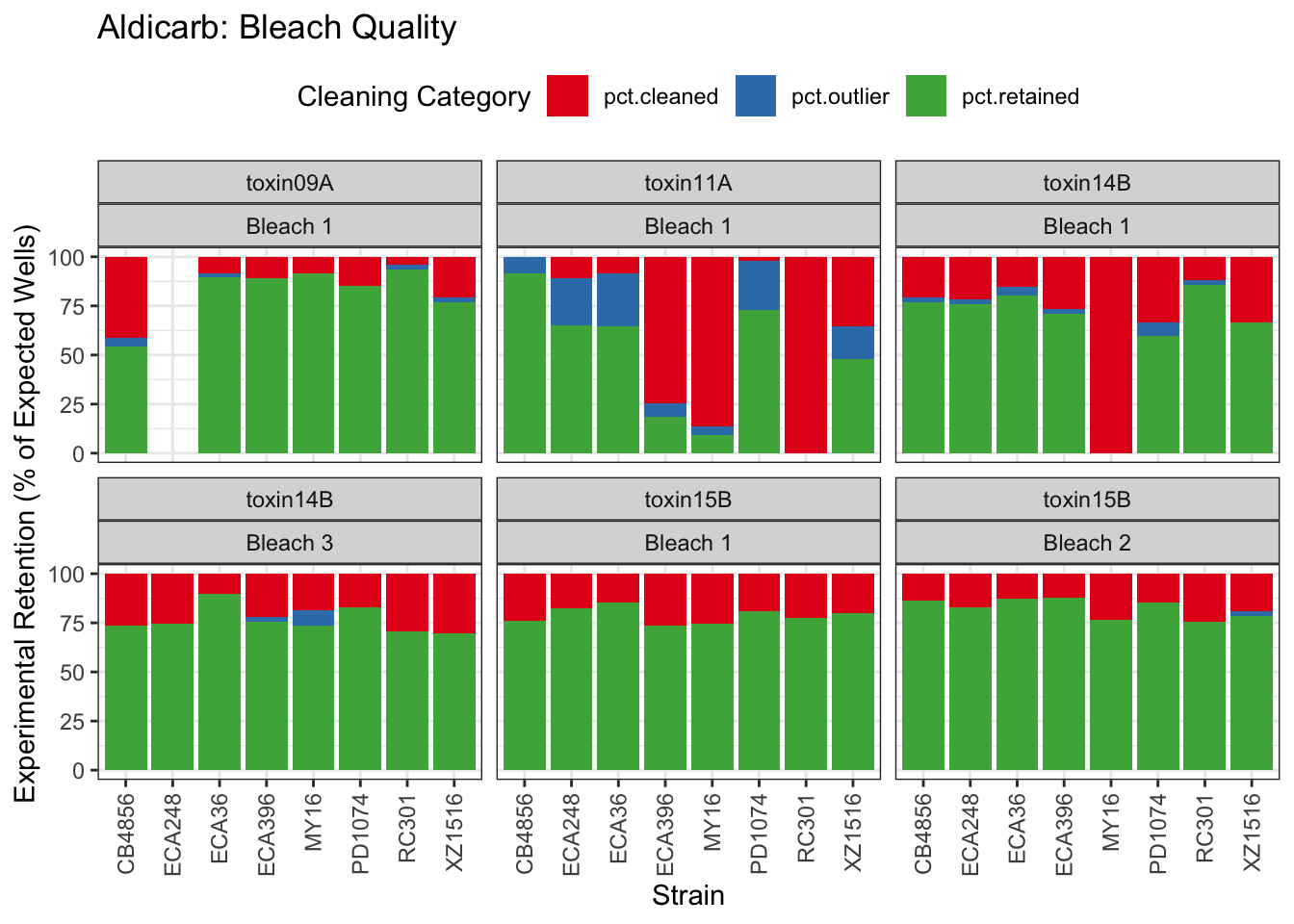

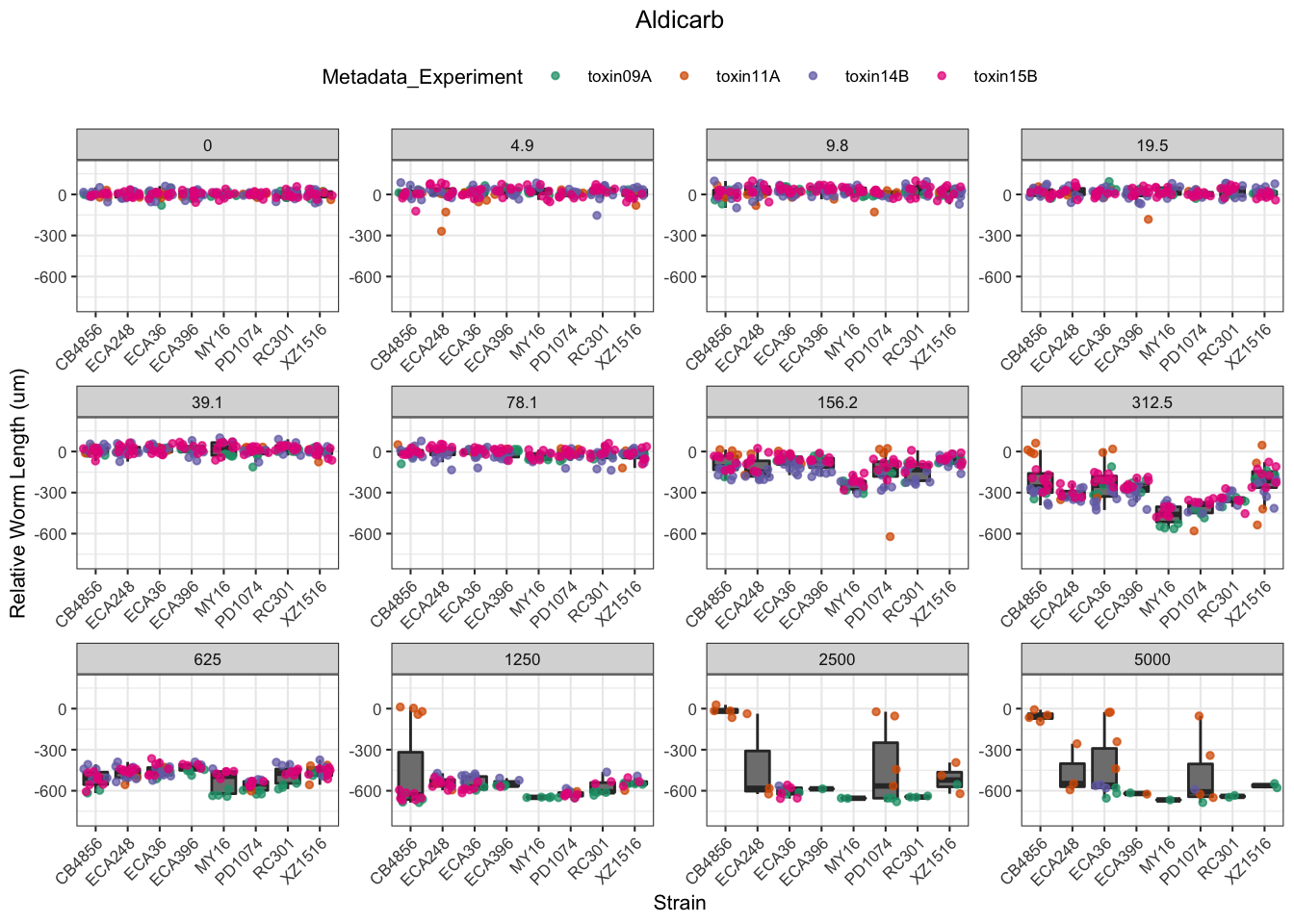

Aldicarb

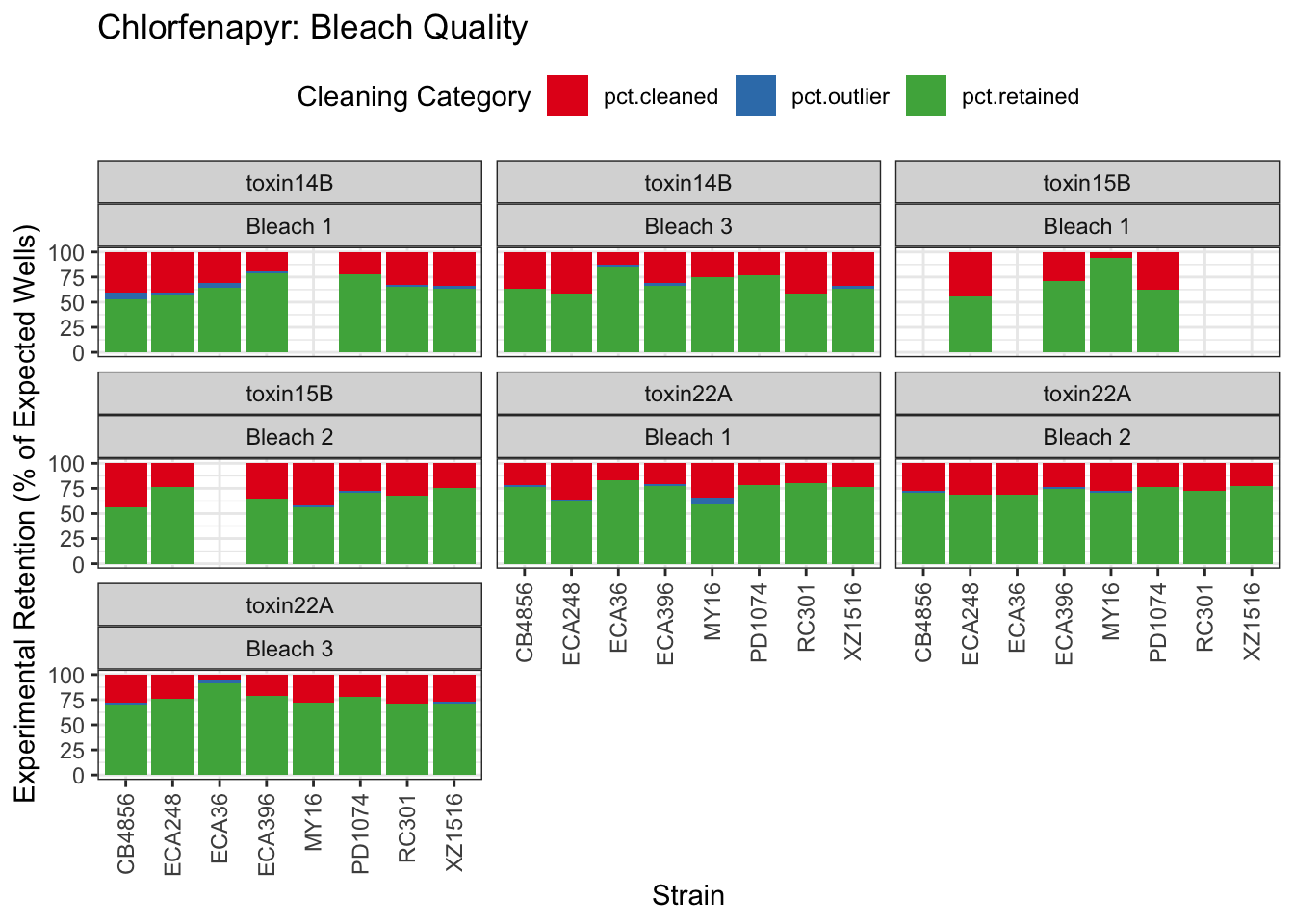

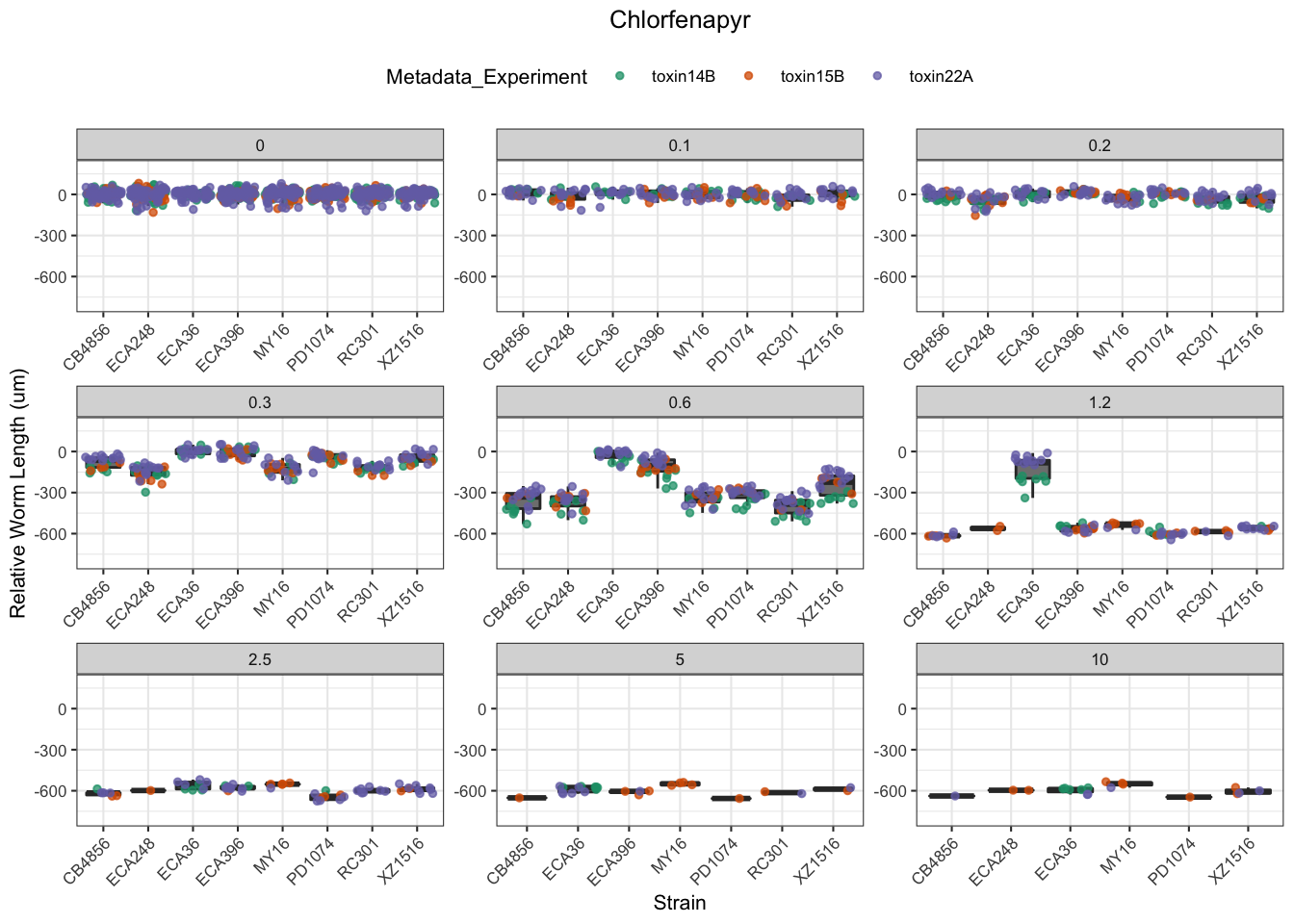

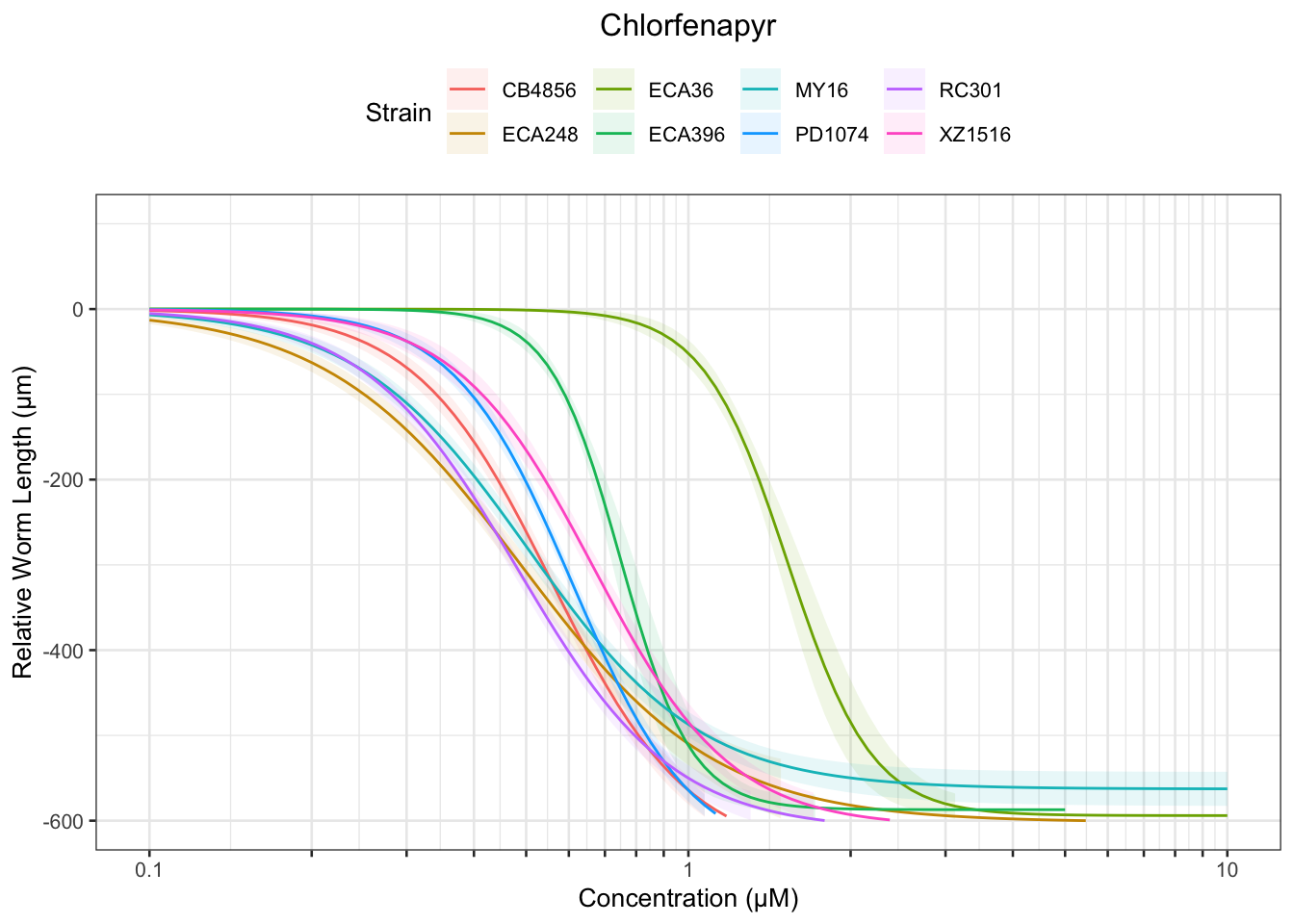

Chlorfenapyr
[1] "Excluding toxin09A, toxin10A, toxin11A, toxin12A: No Response/Variable Dilution"

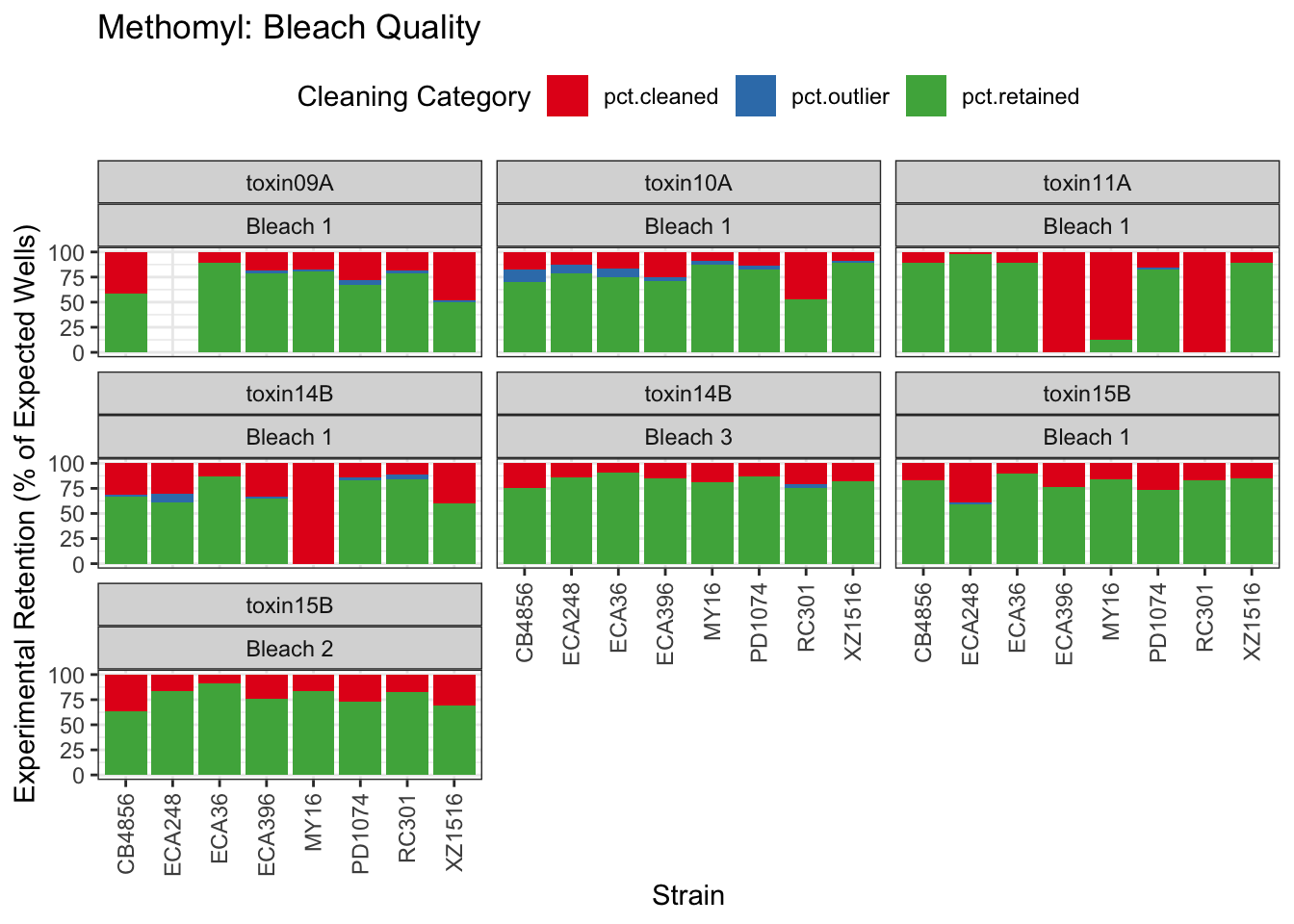

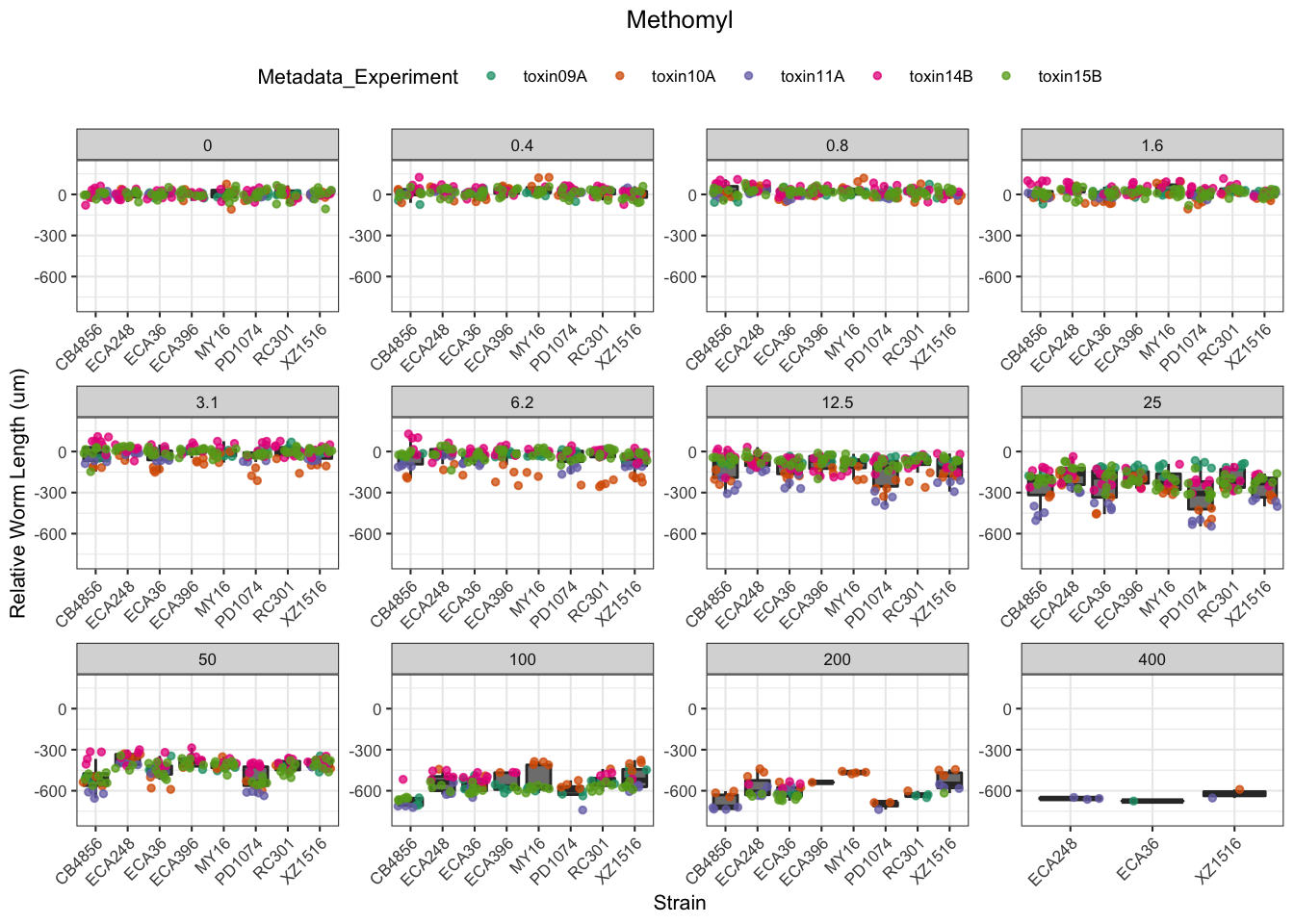

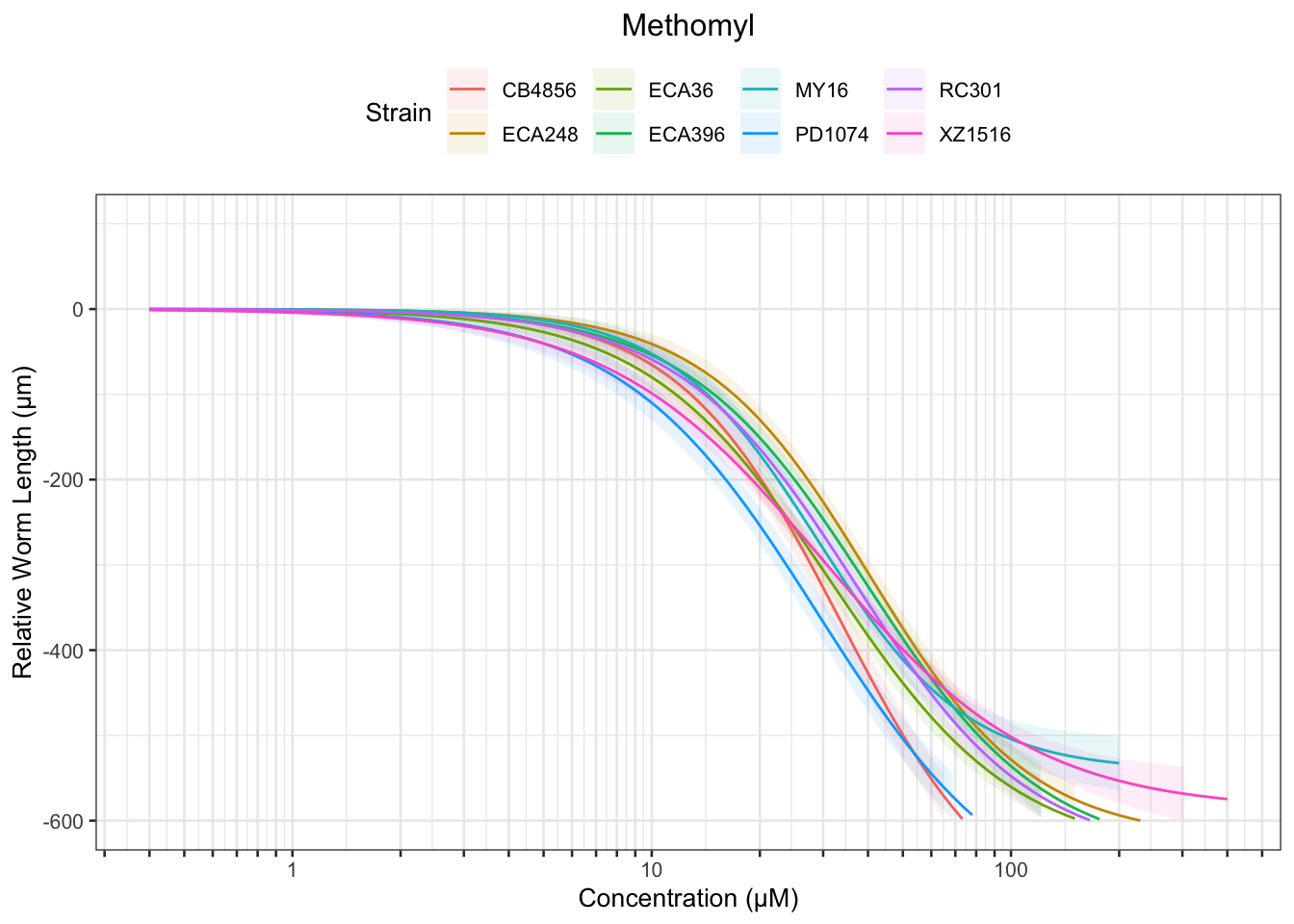

Methomyl

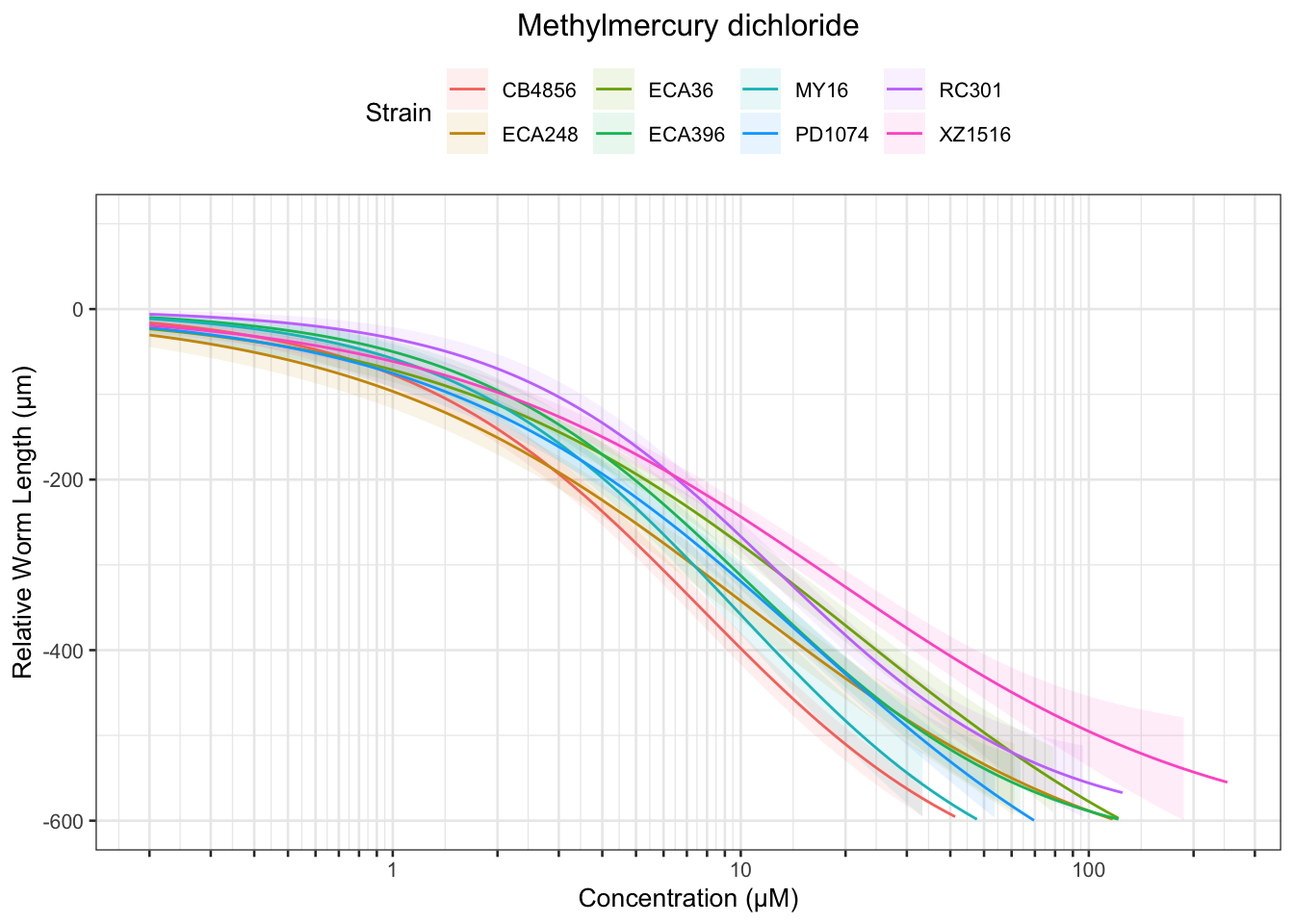

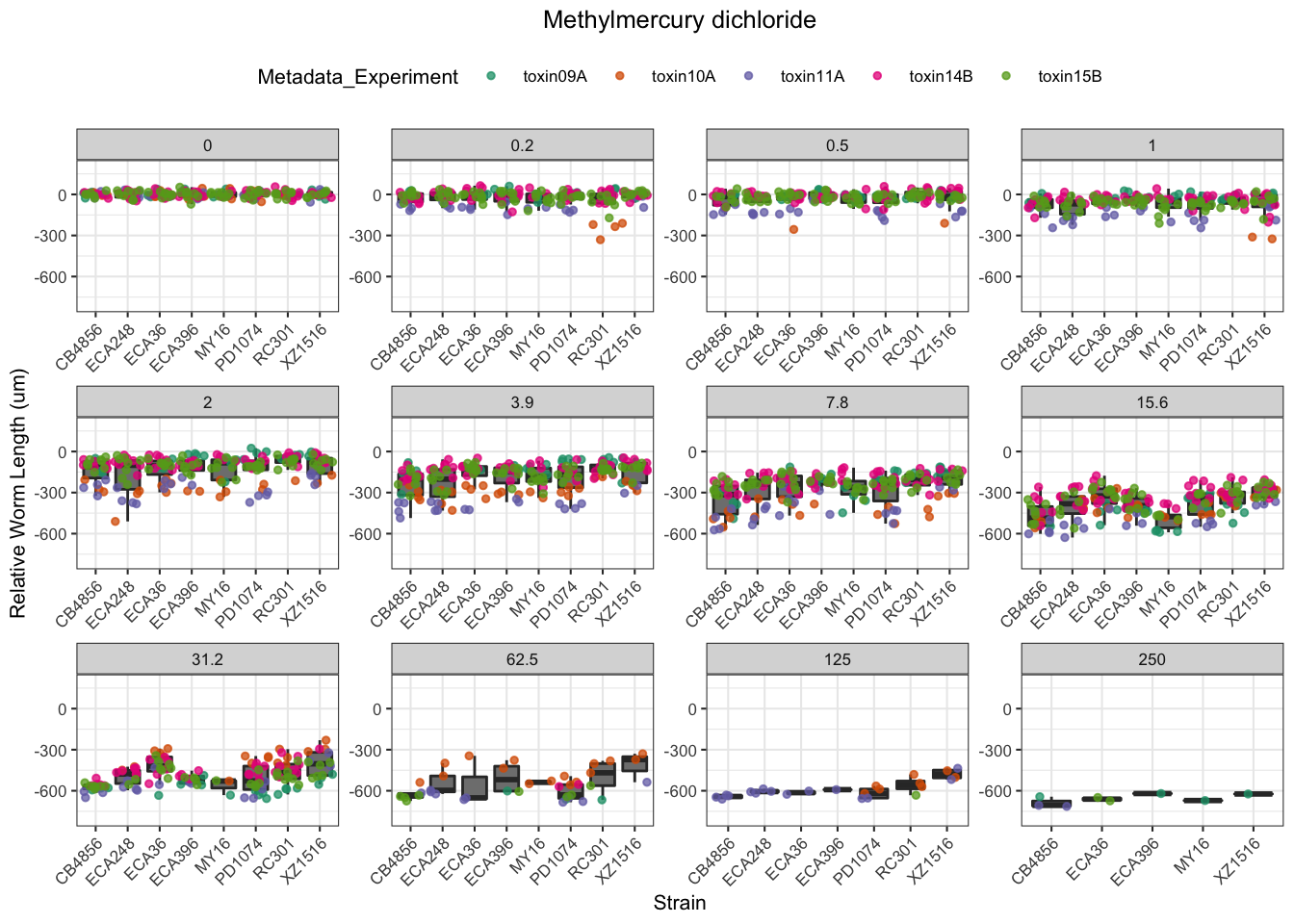

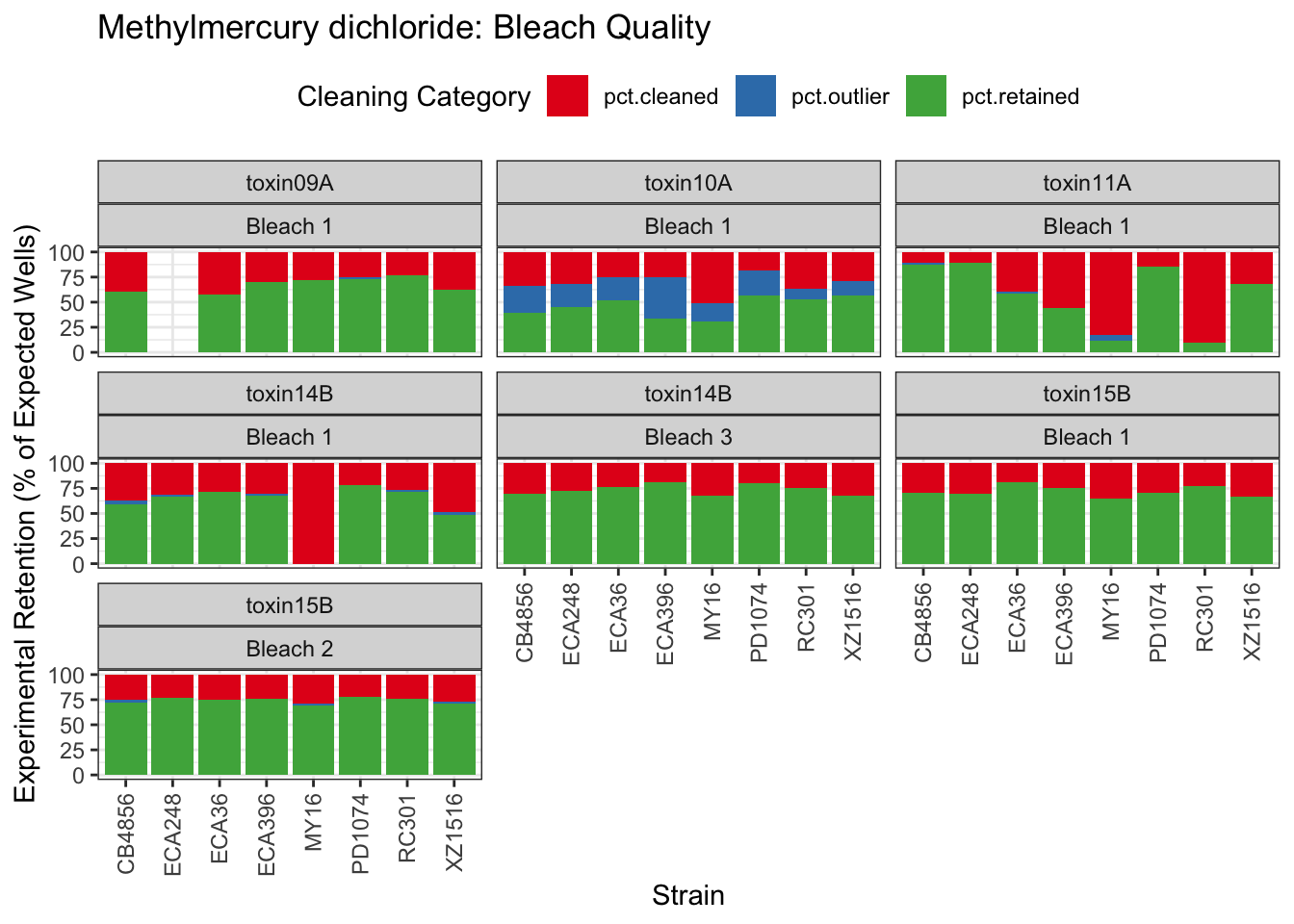

Methyl Mercury

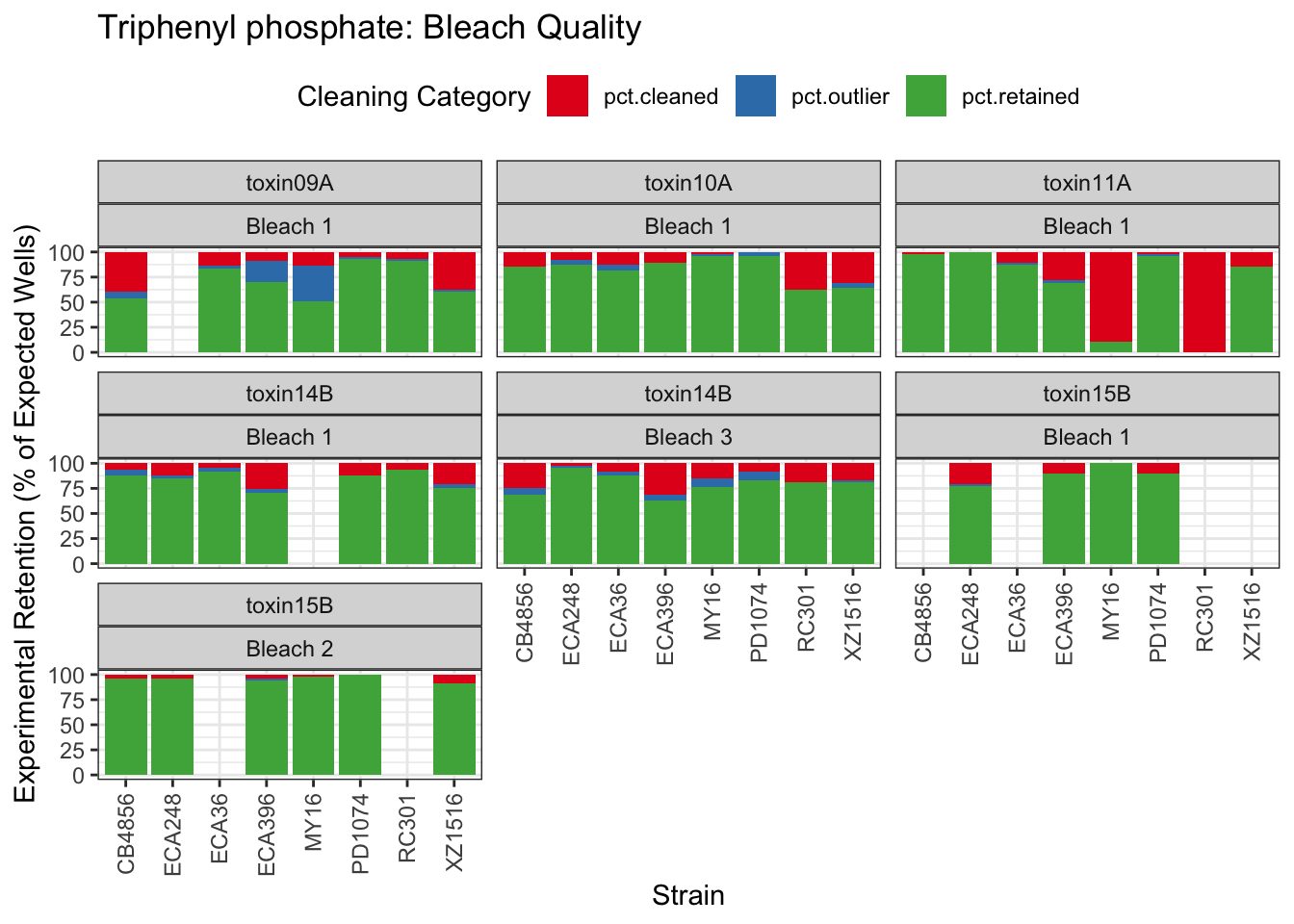

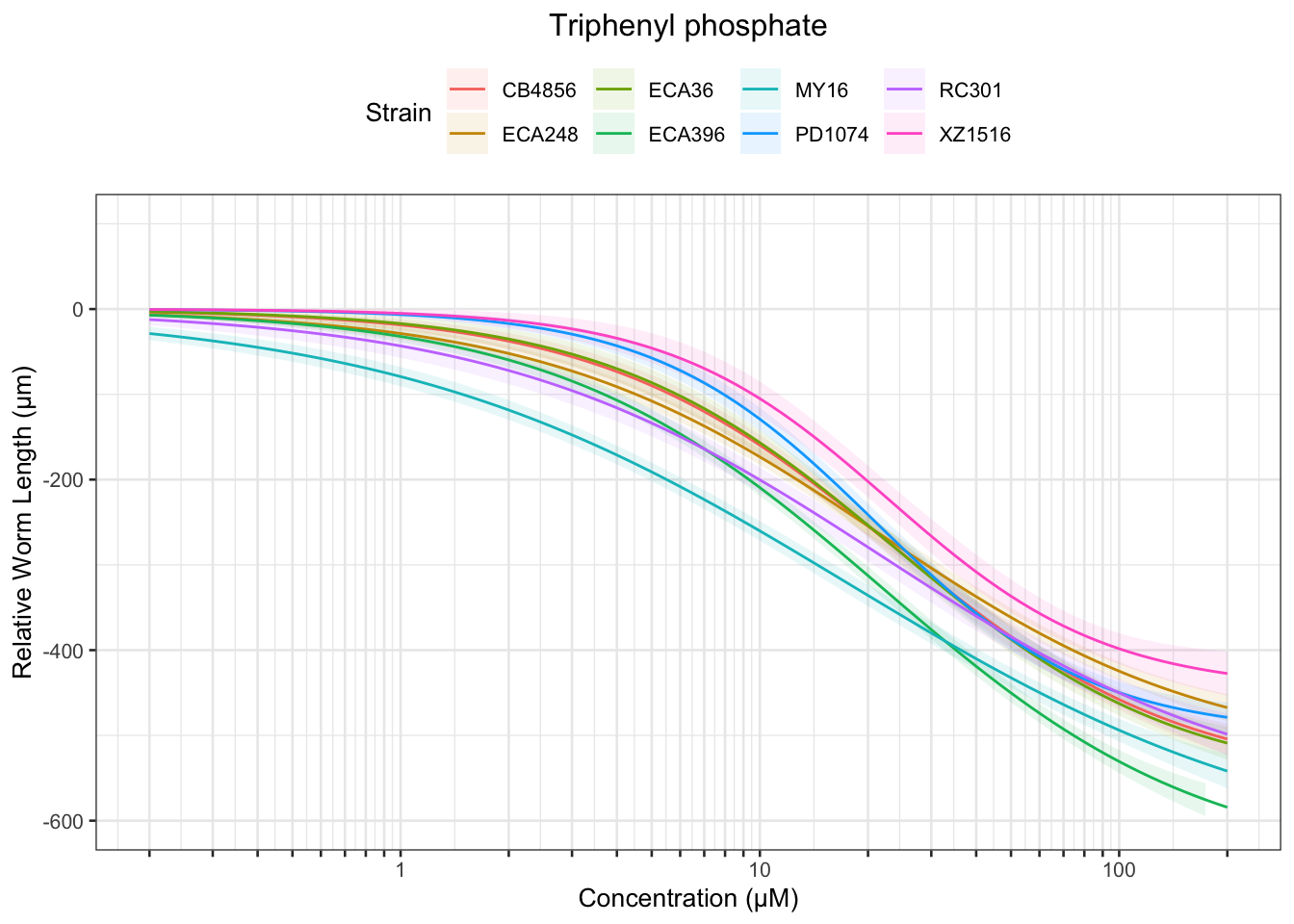

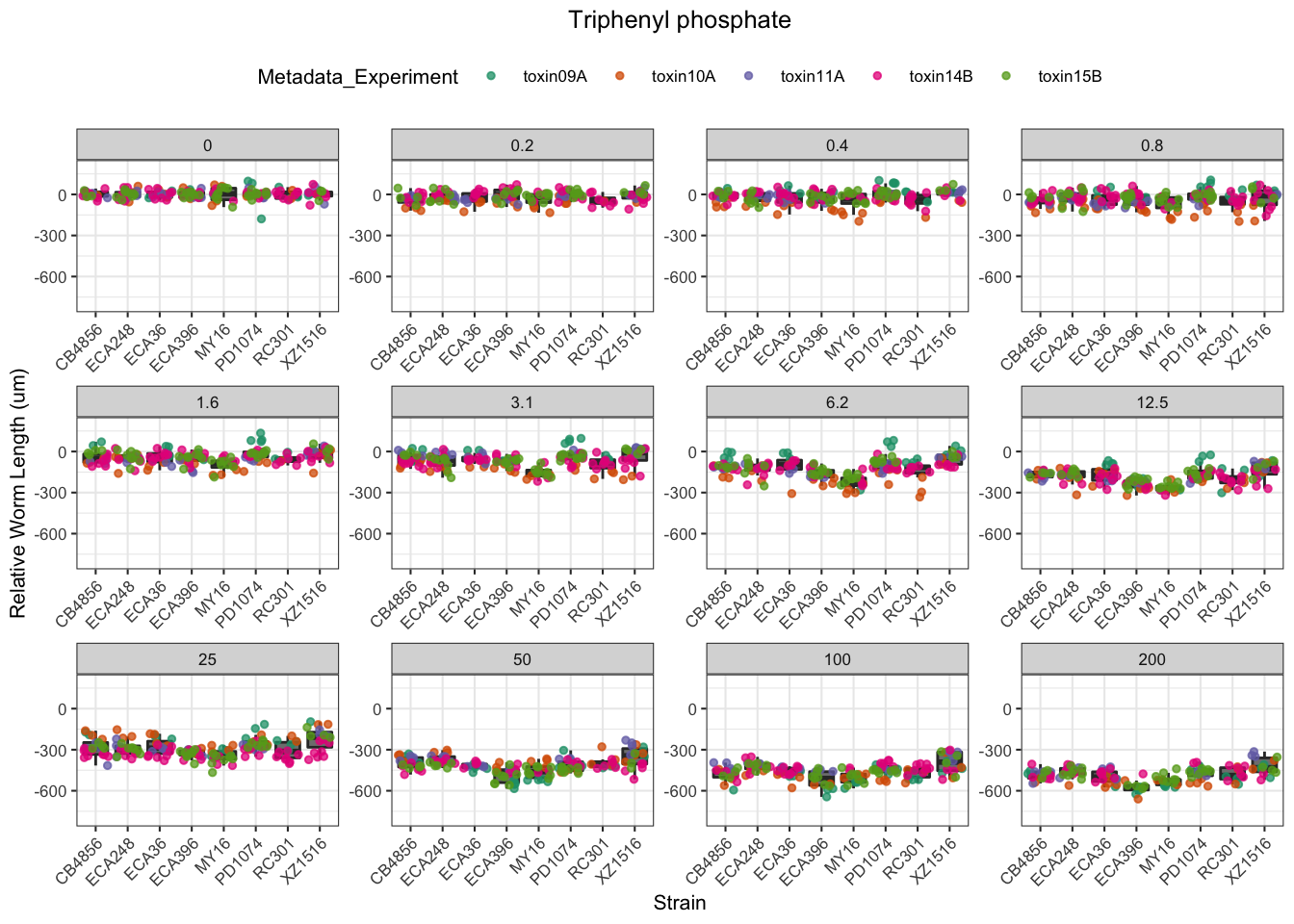

Triphenyl phosphate

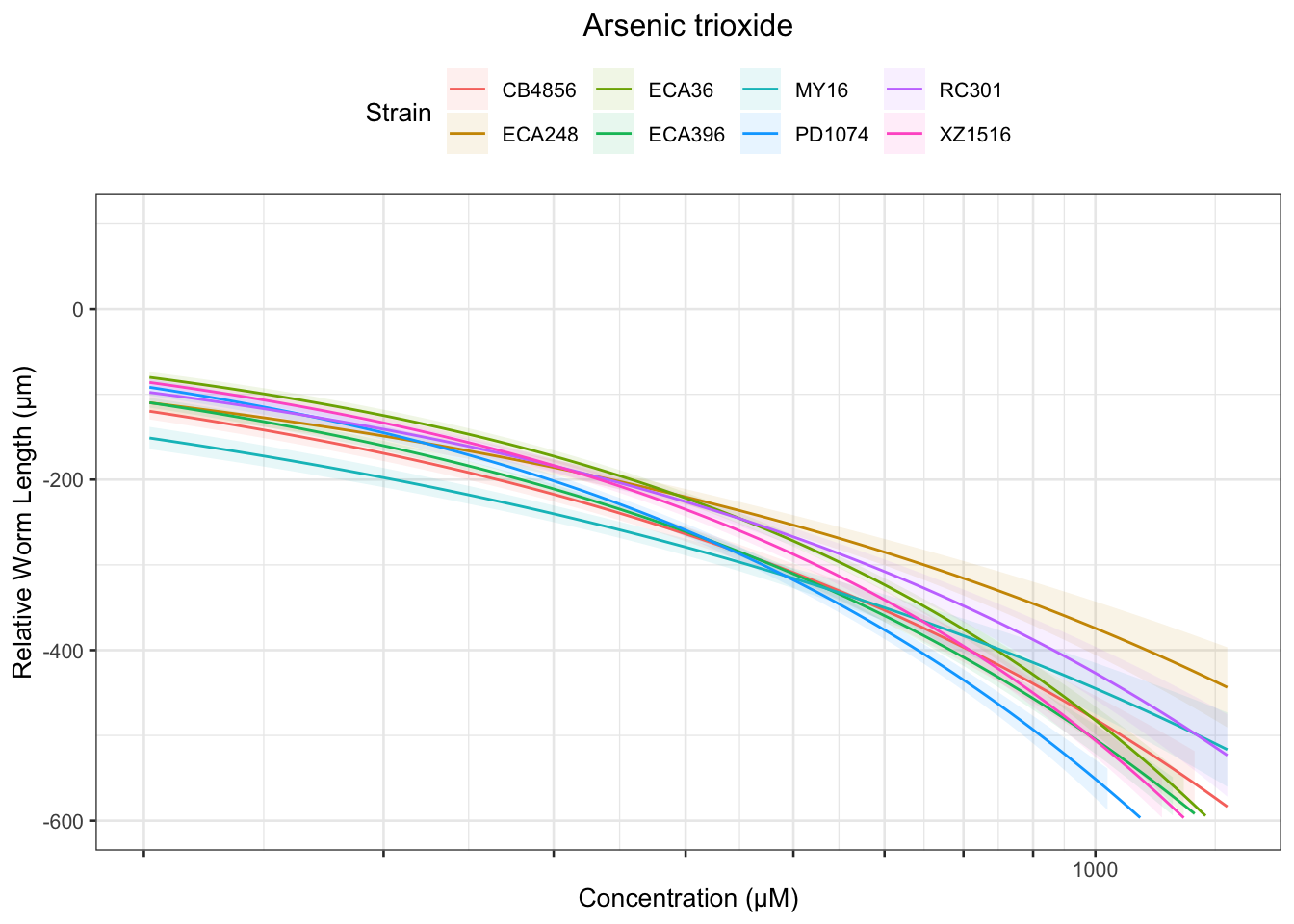

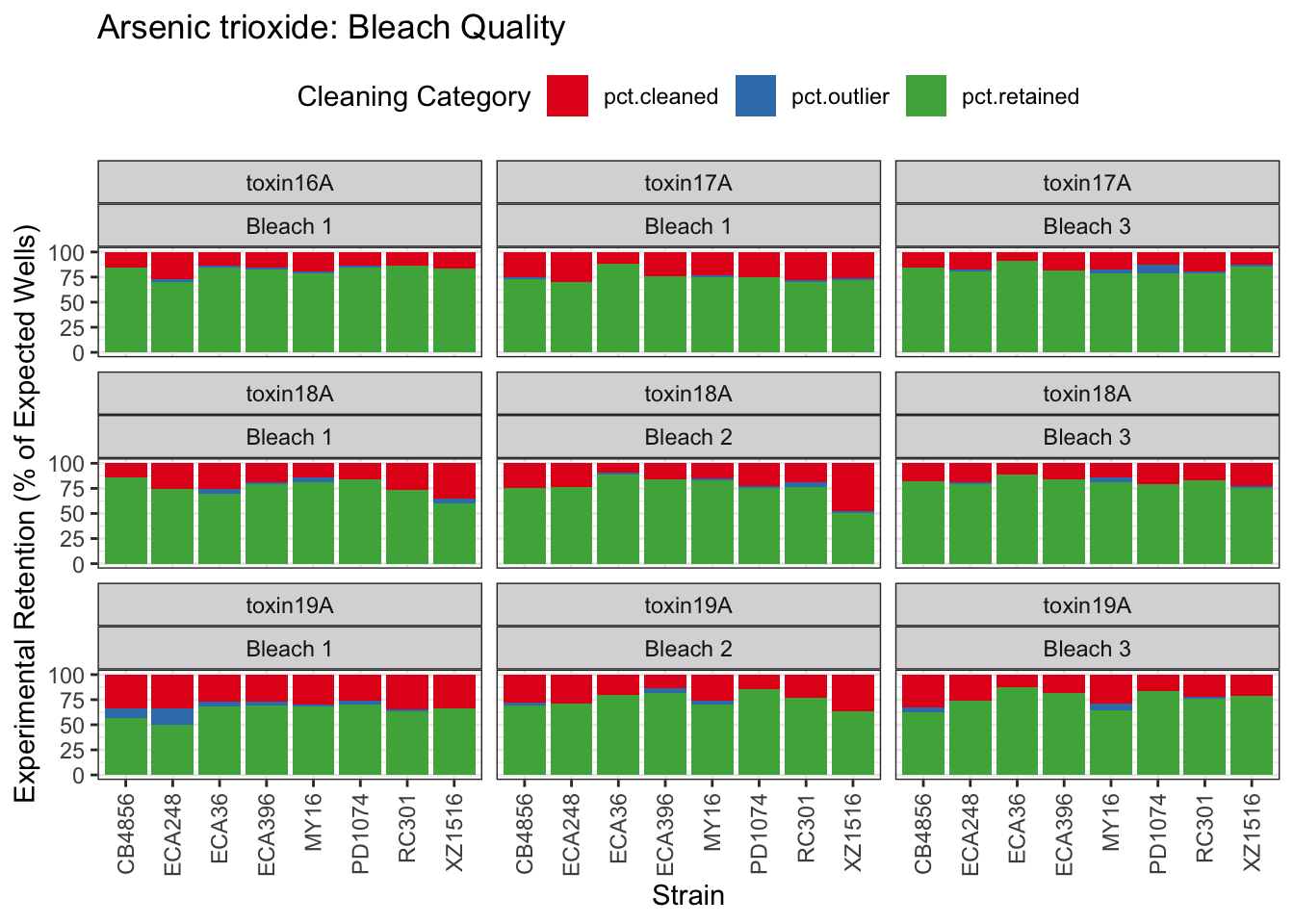

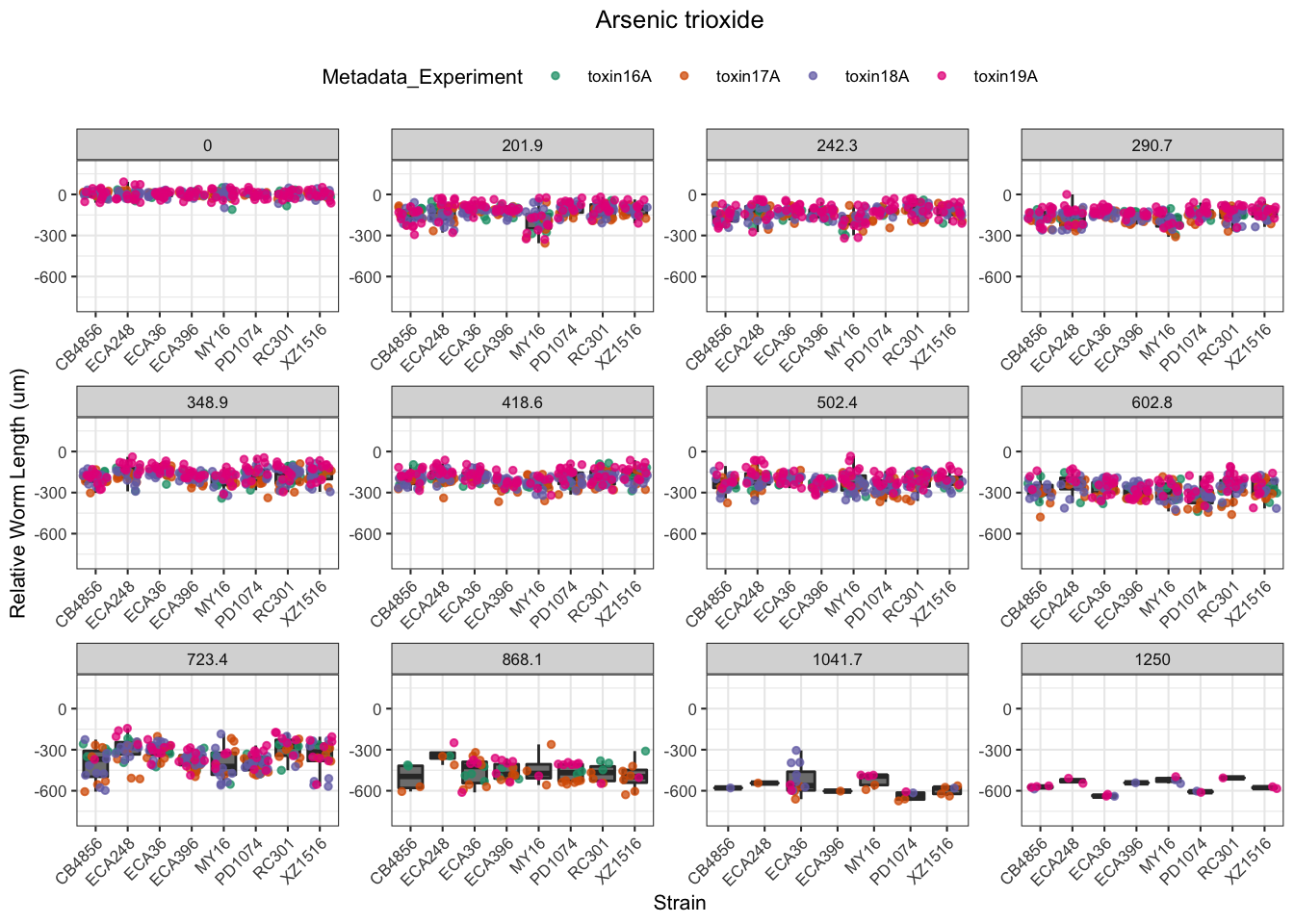

Arsenic trioxide

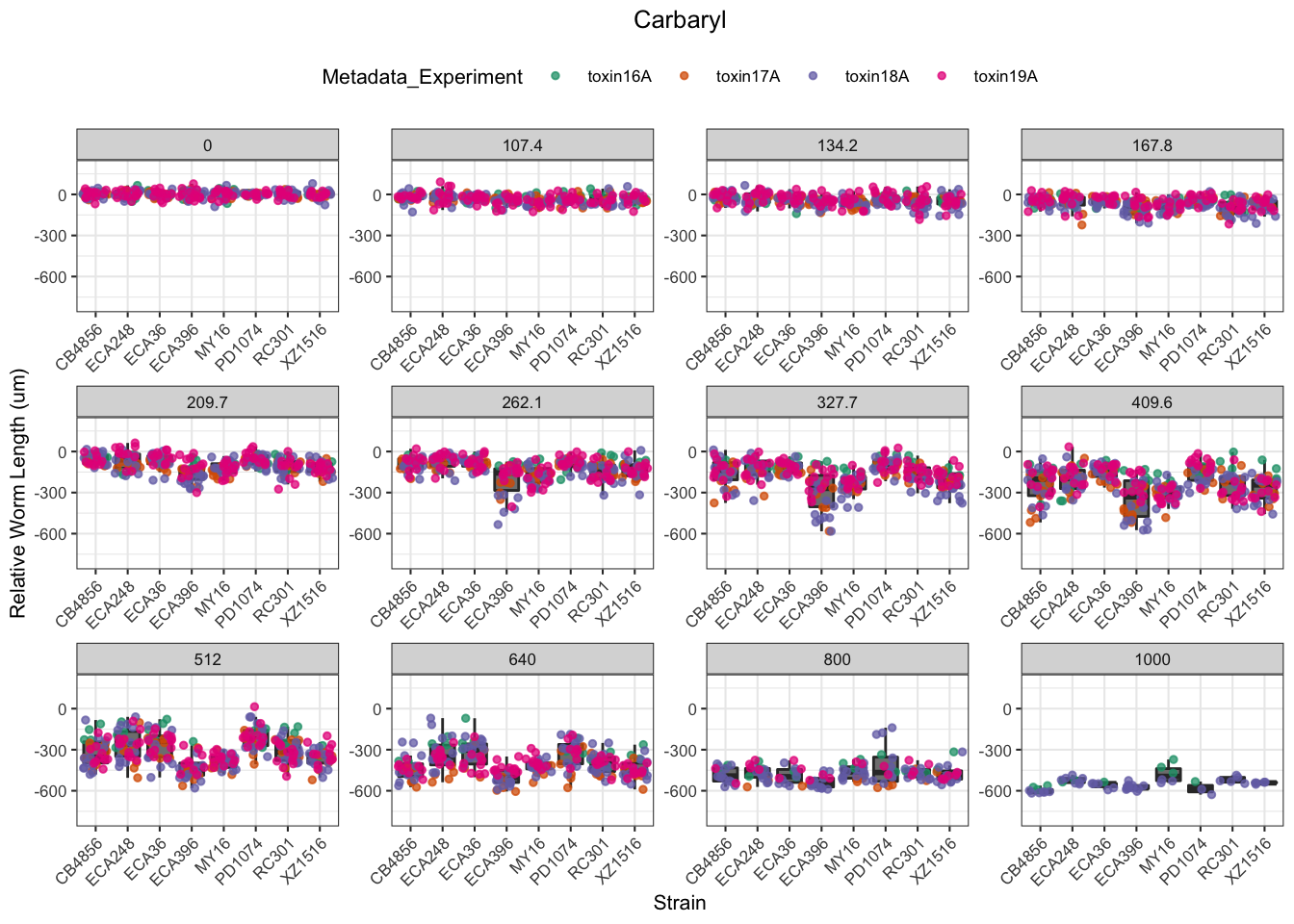

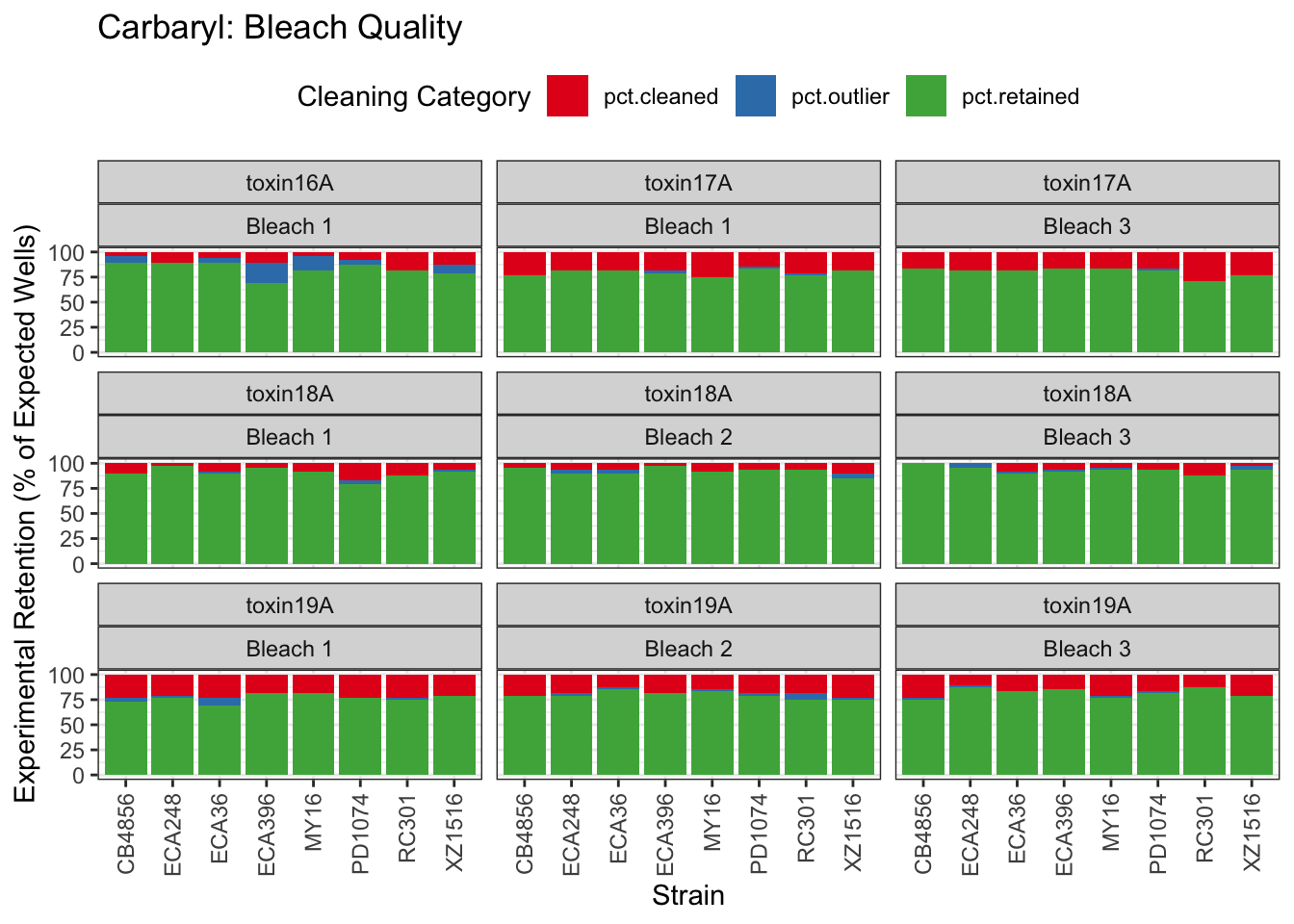

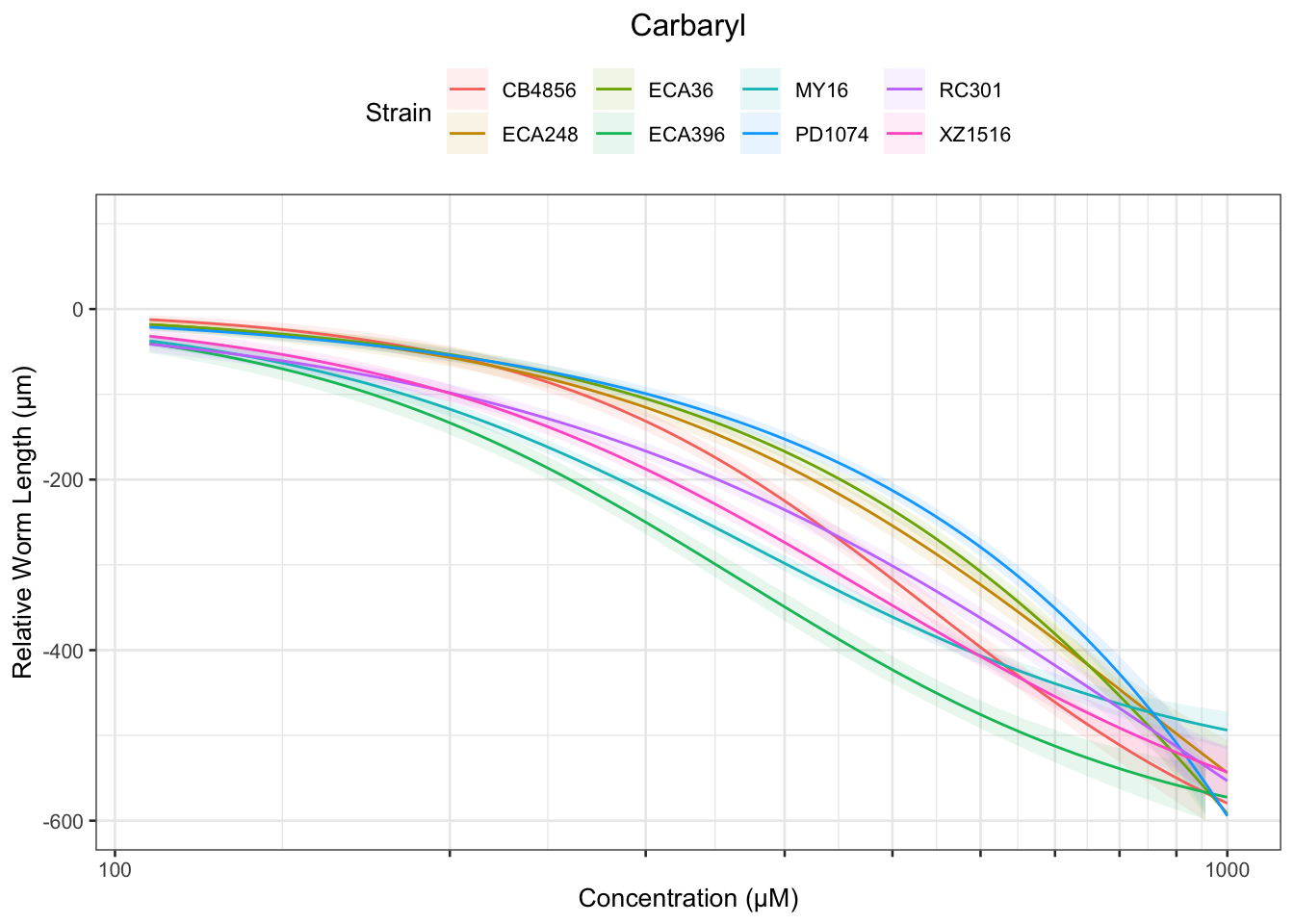

Carbaryl

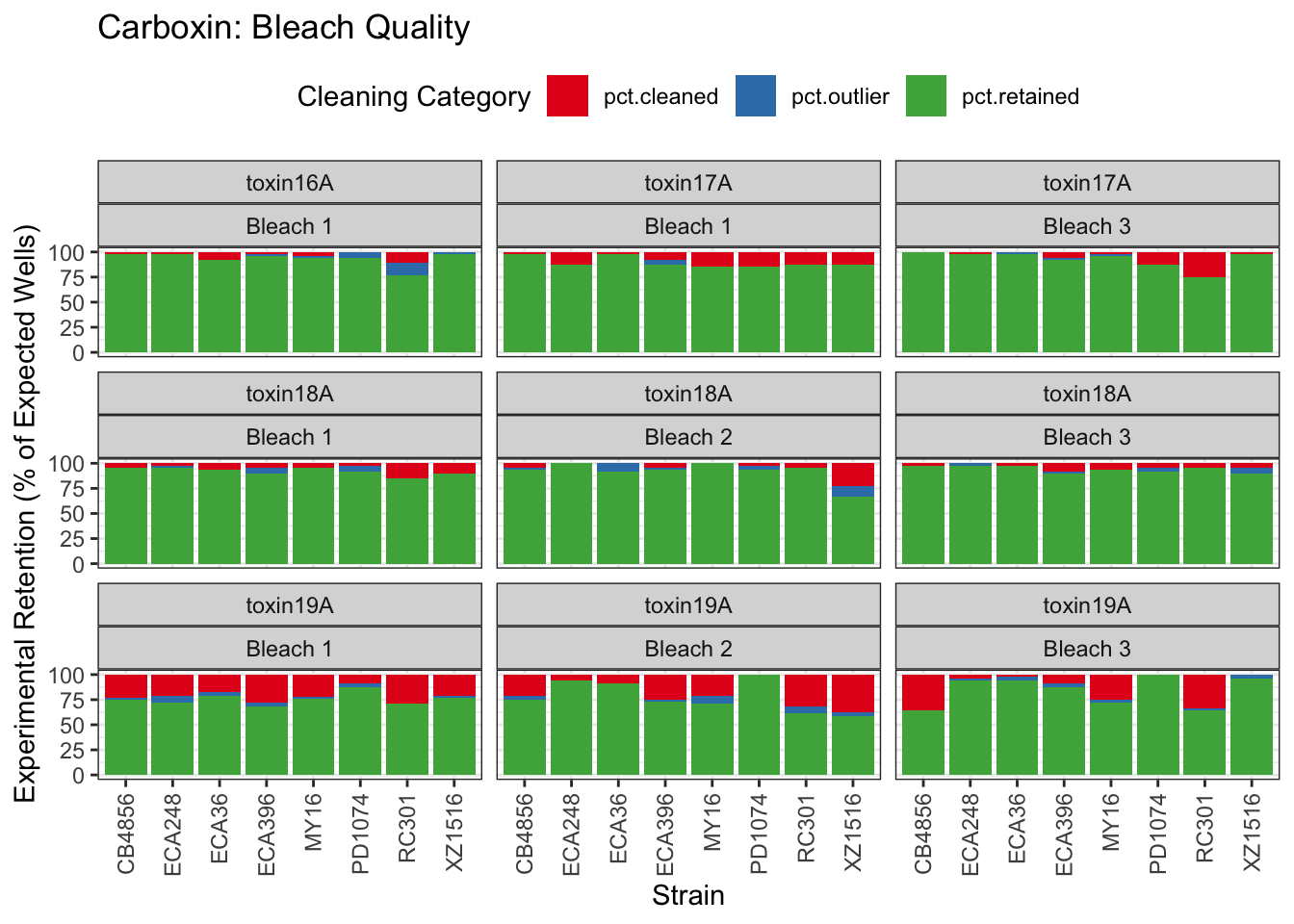

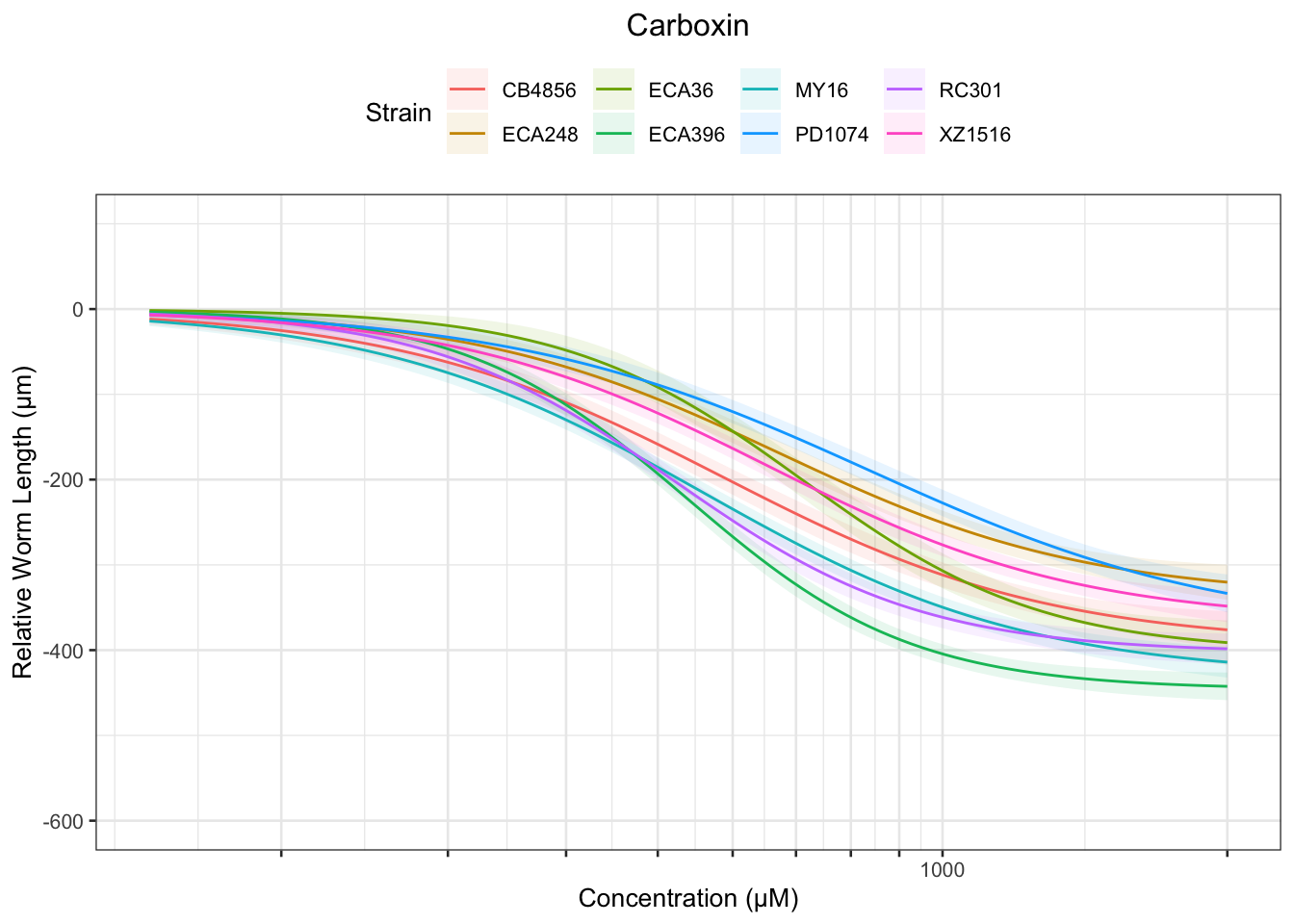

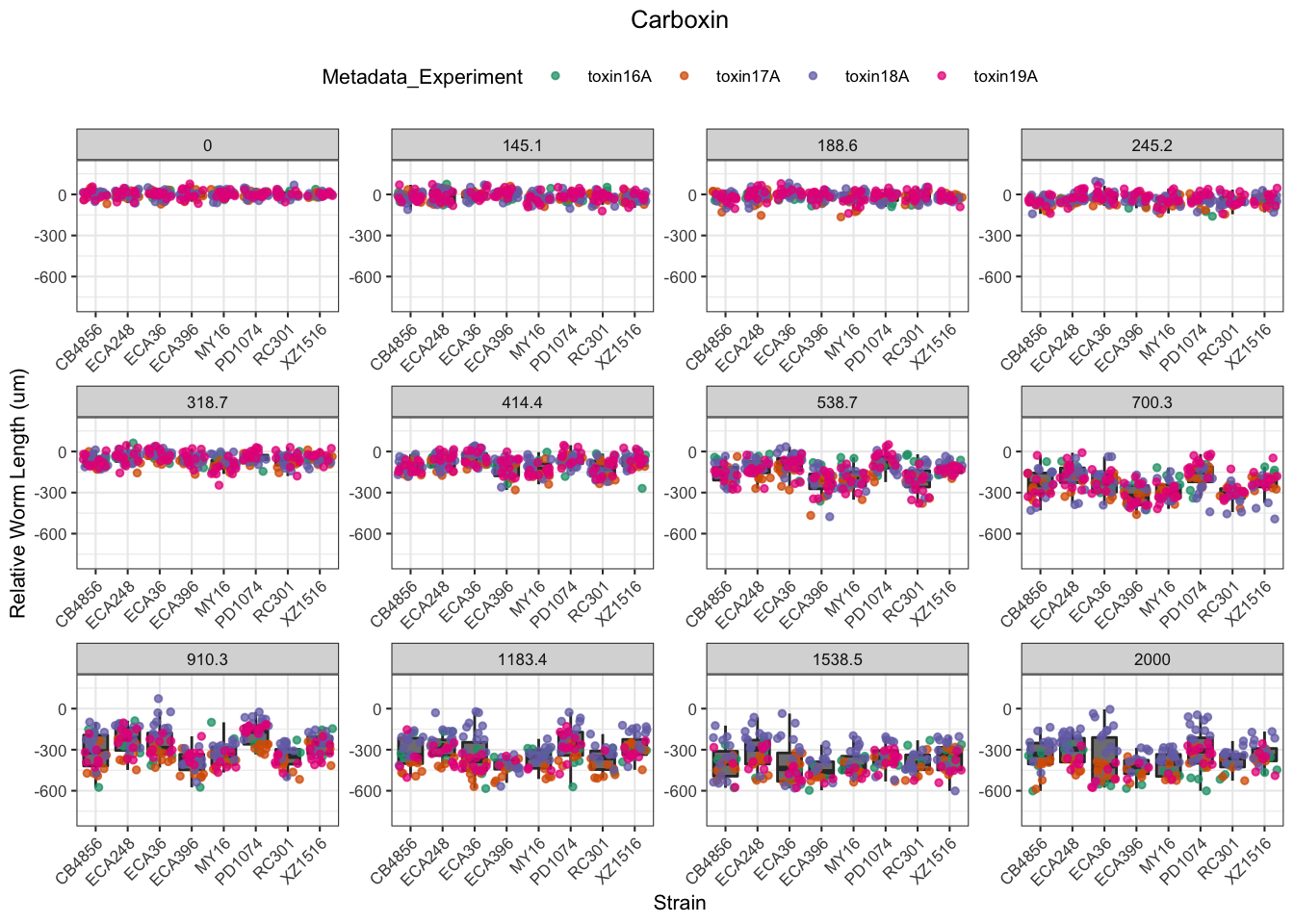

Carboxin

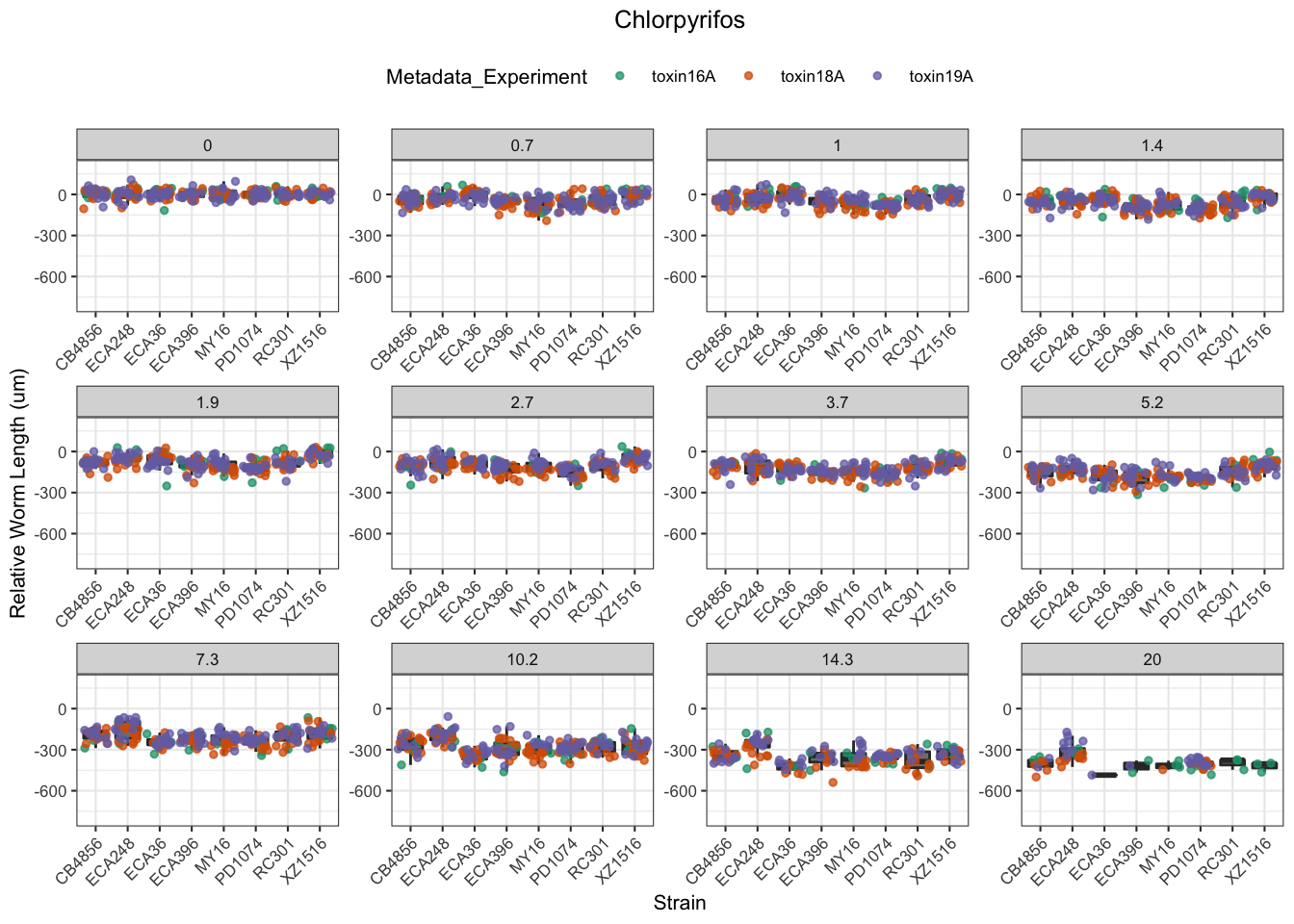

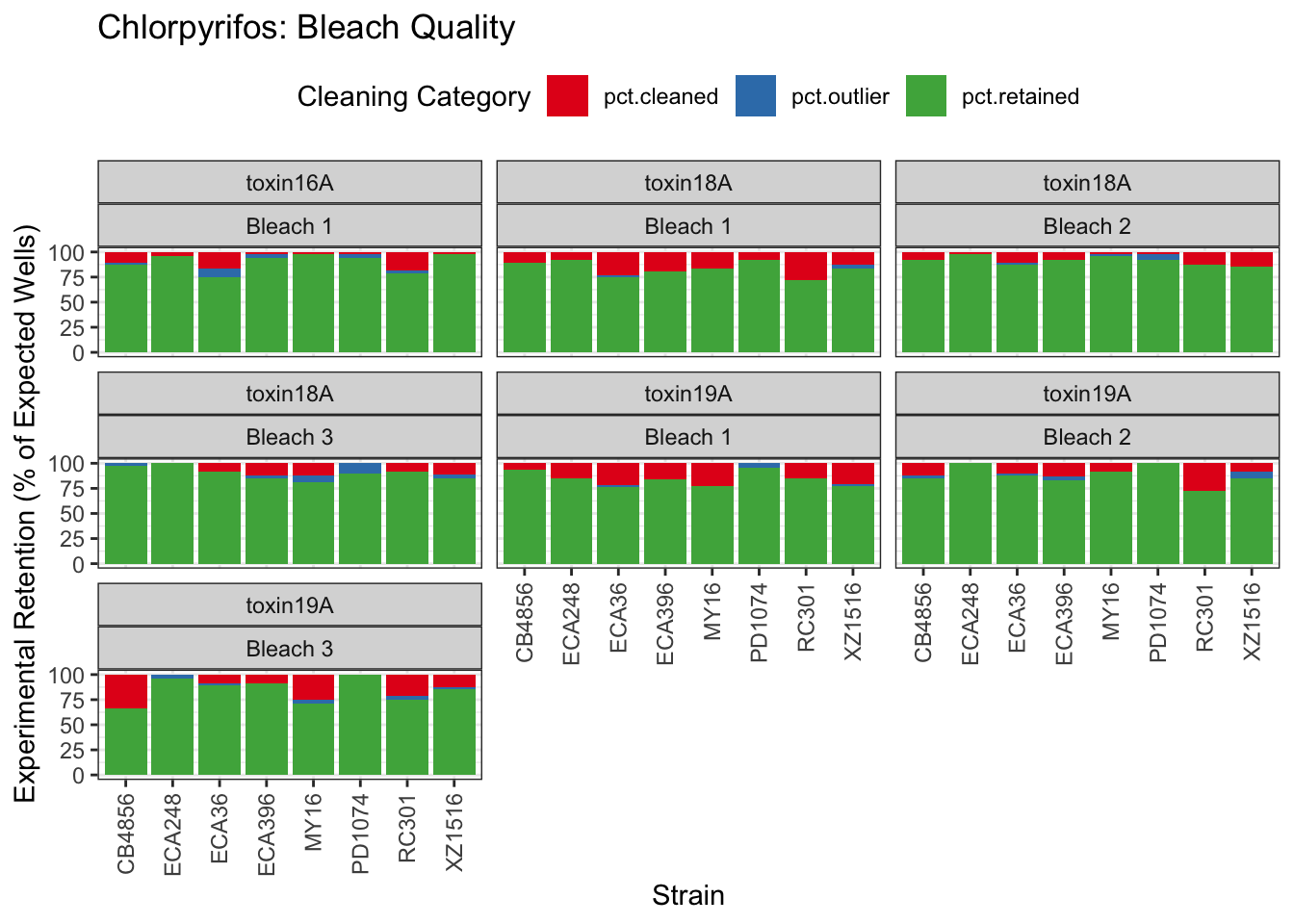

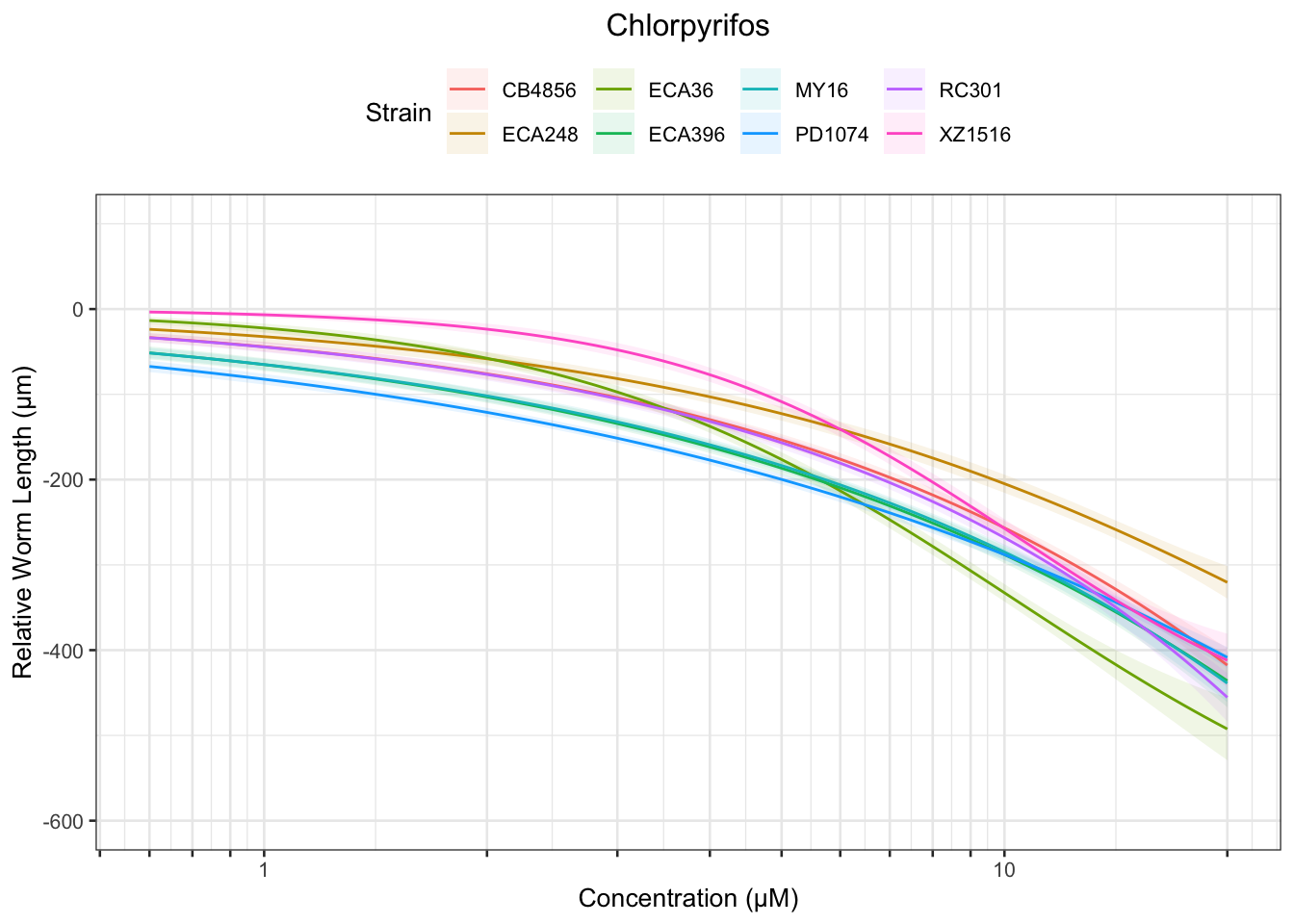

Chlorpyrifos
[1] "Excluding toxin17A: No Response"
Lead (II) nitrate
%20nitrate-1.png)
%20nitrate-2.png)
%20nitrate-3.png)

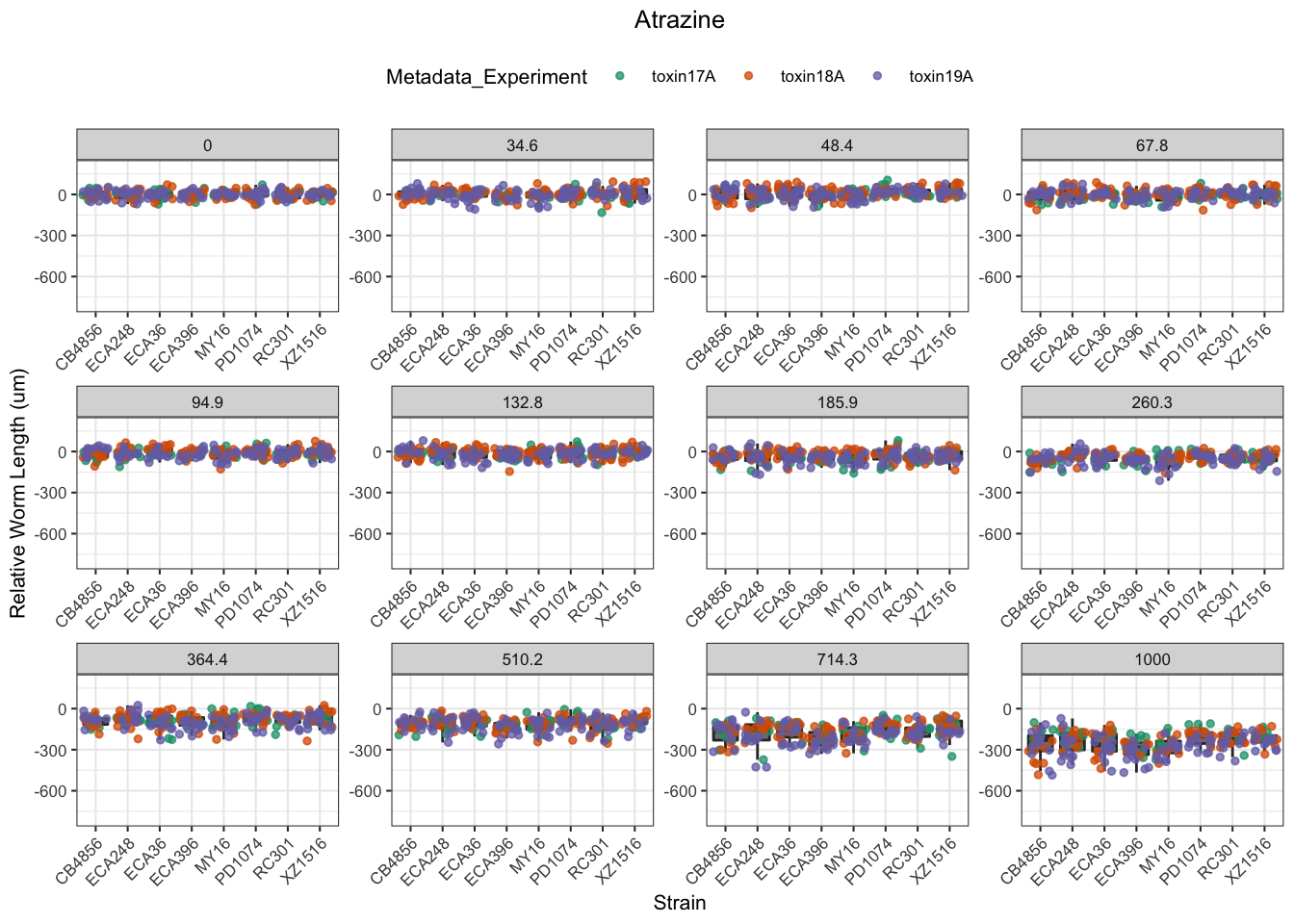

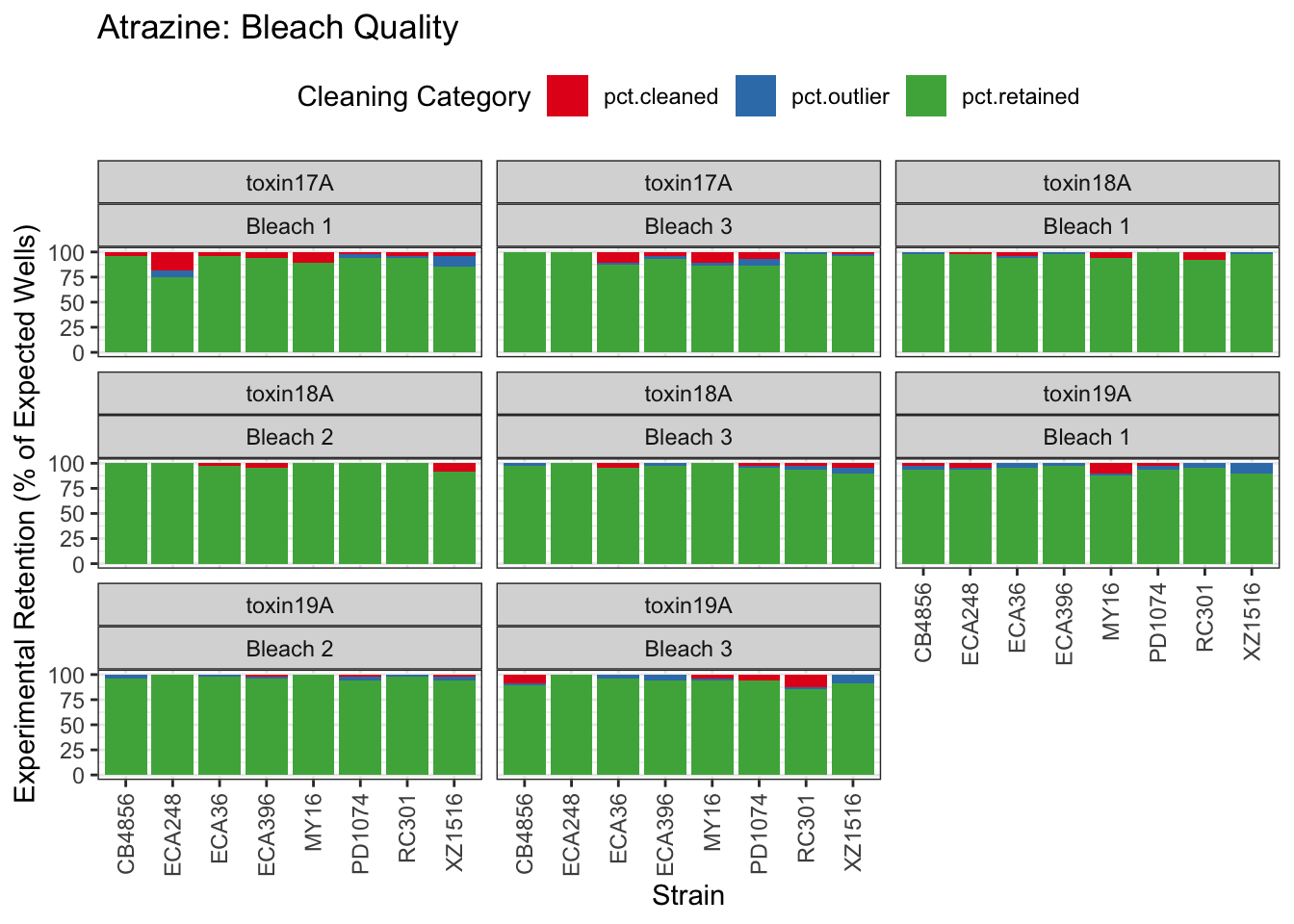

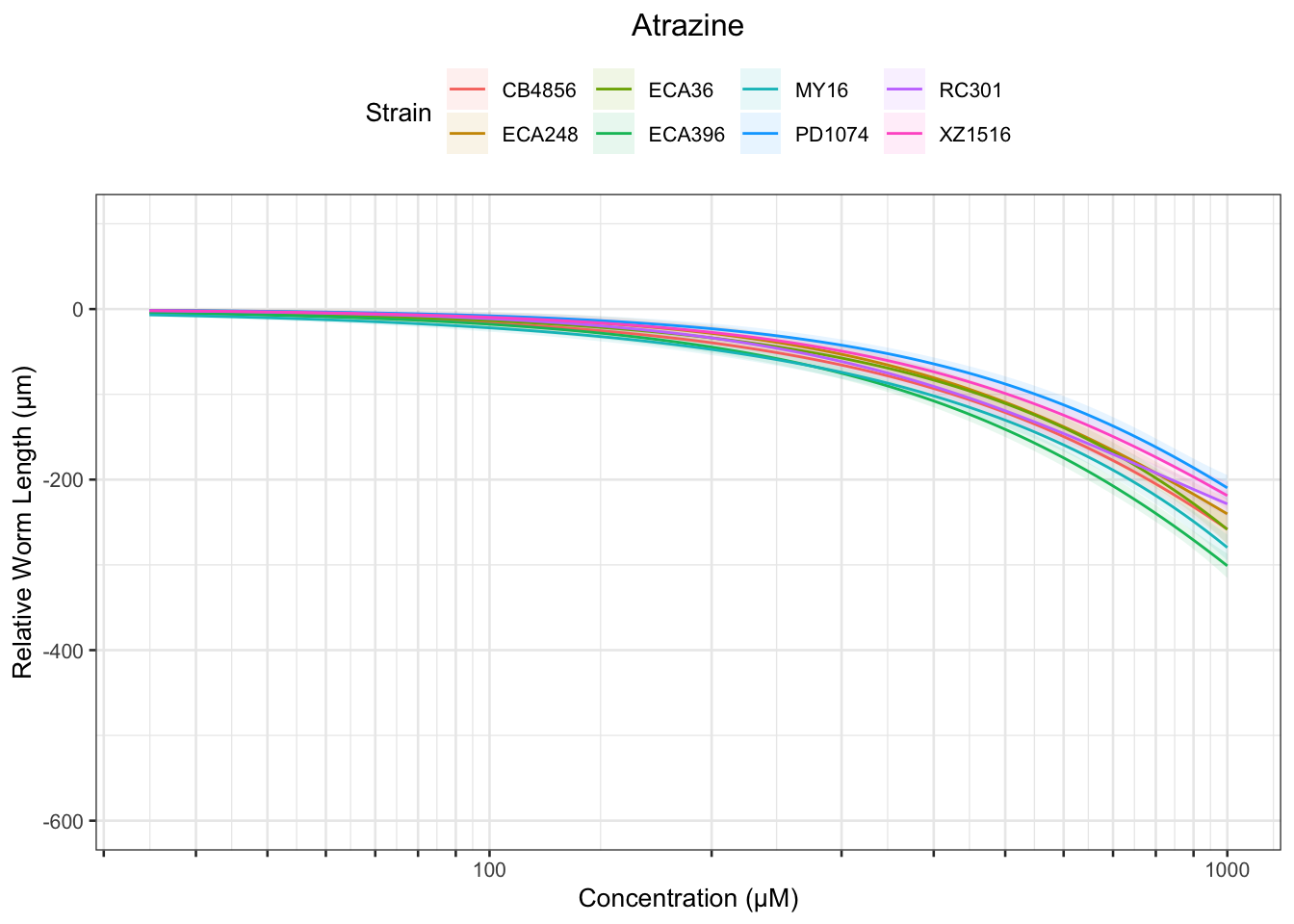

Atrazine
[1] "Excluding toxin16A: Inaccurate Dilution Series"

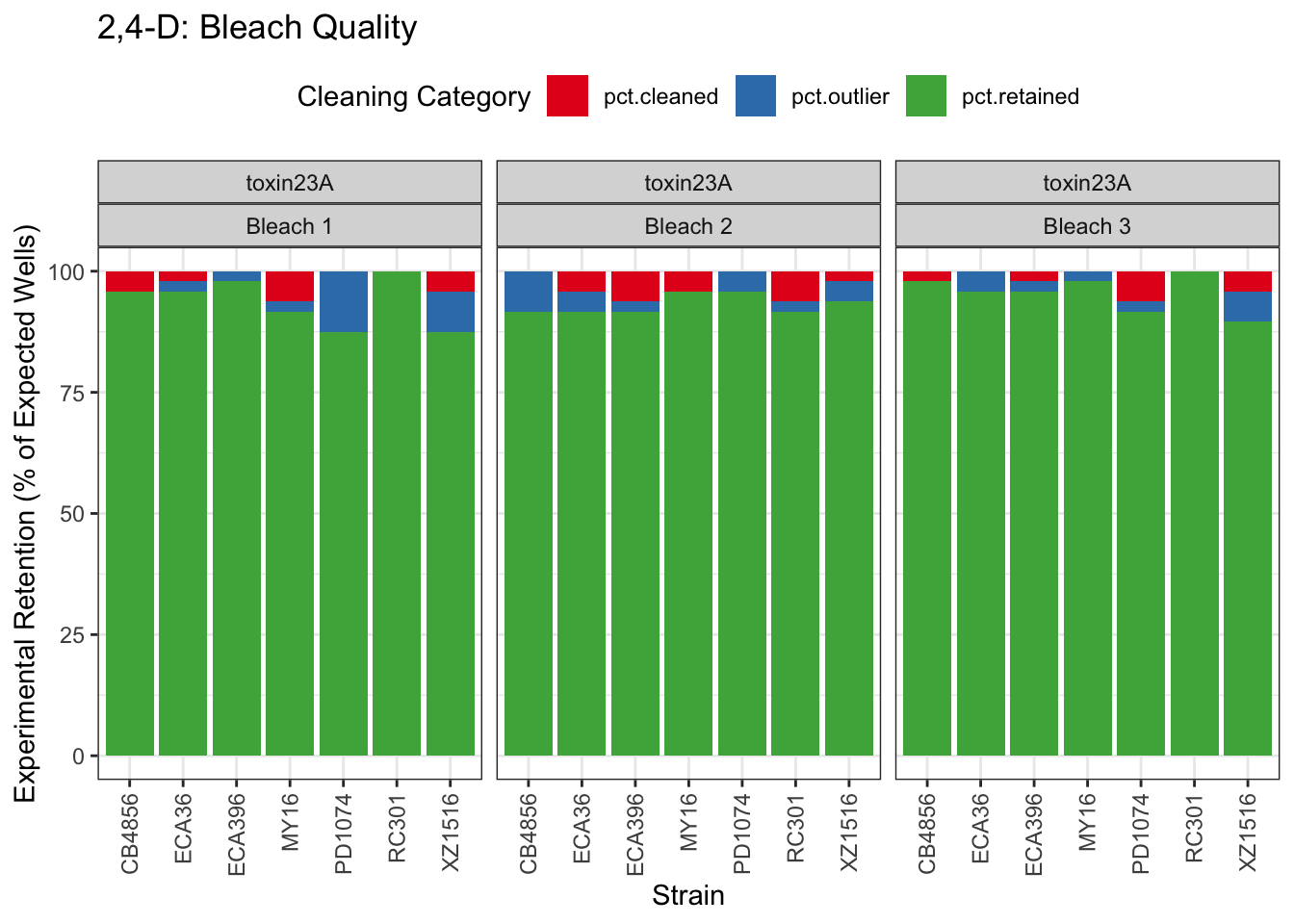

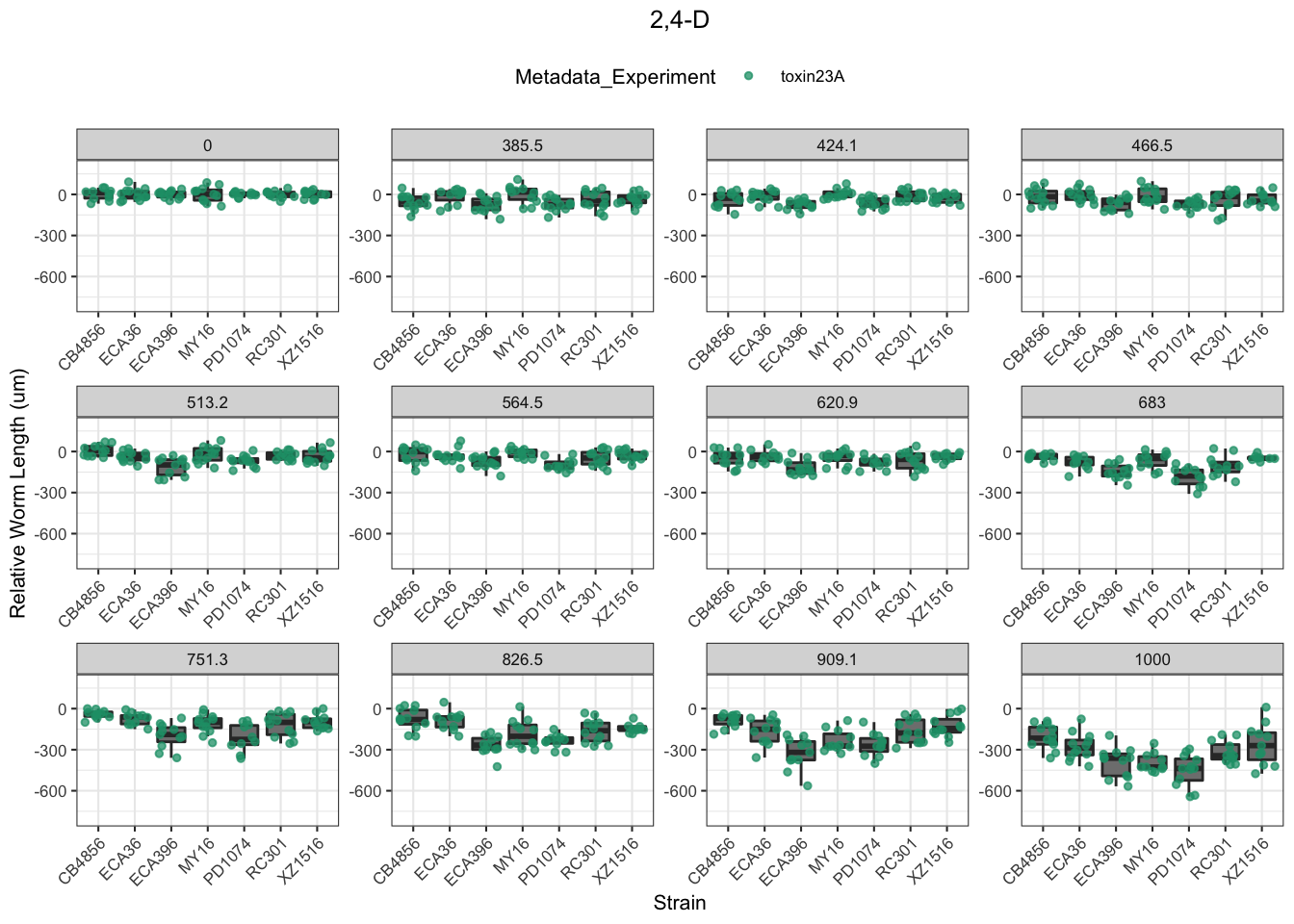

2,4-D
| Version | Author | Date |
|---|---|---|
| deb1df5 | sam-widmayer | 2021-03-21 |
| Version | Author | Date |
|---|---|---|
| deb1df5 | sam-widmayer | 2021-03-21 |
| Version | Author | Date |
|---|---|---|
| deb1df5 | sam-widmayer | 2021-03-21 |

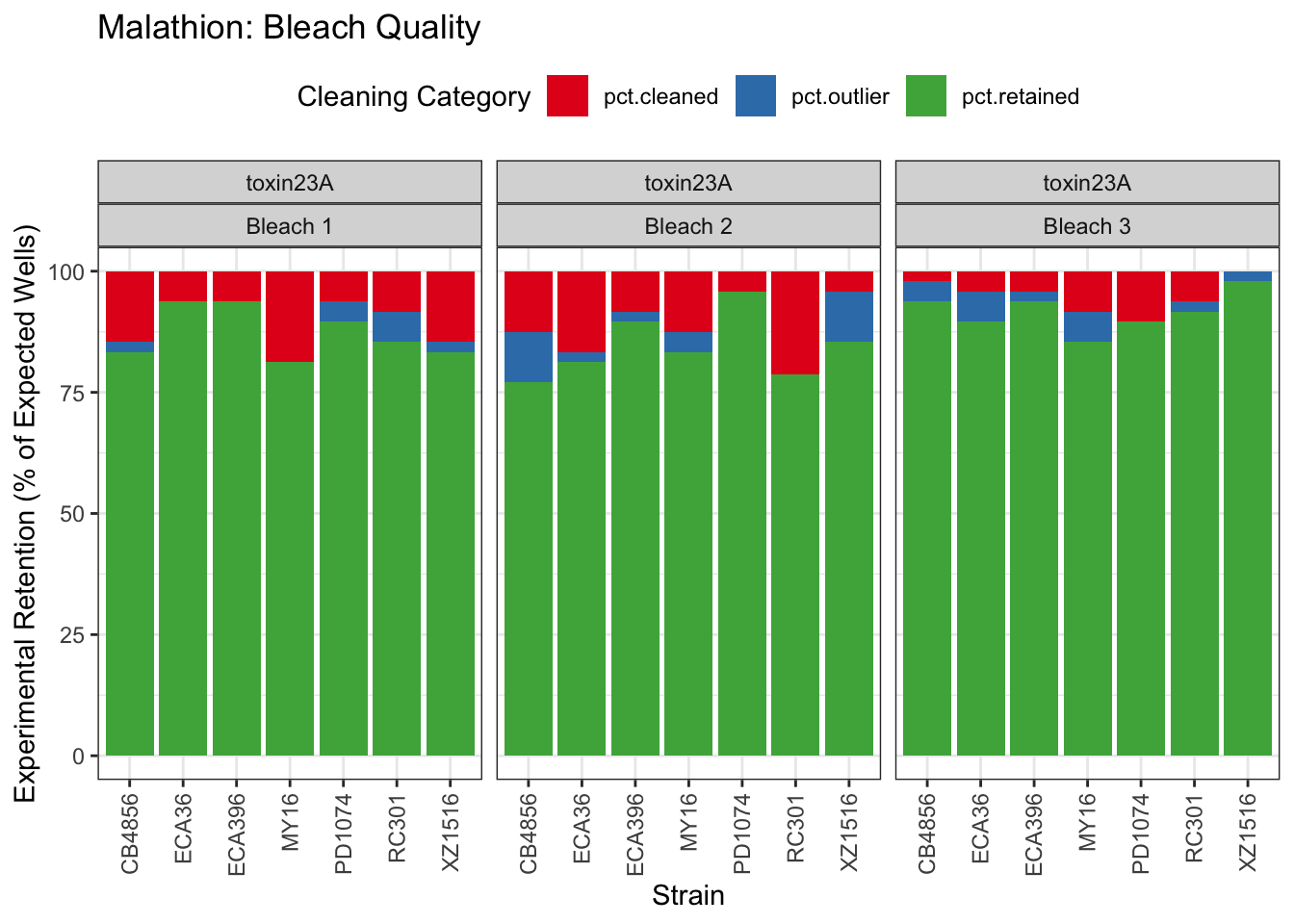

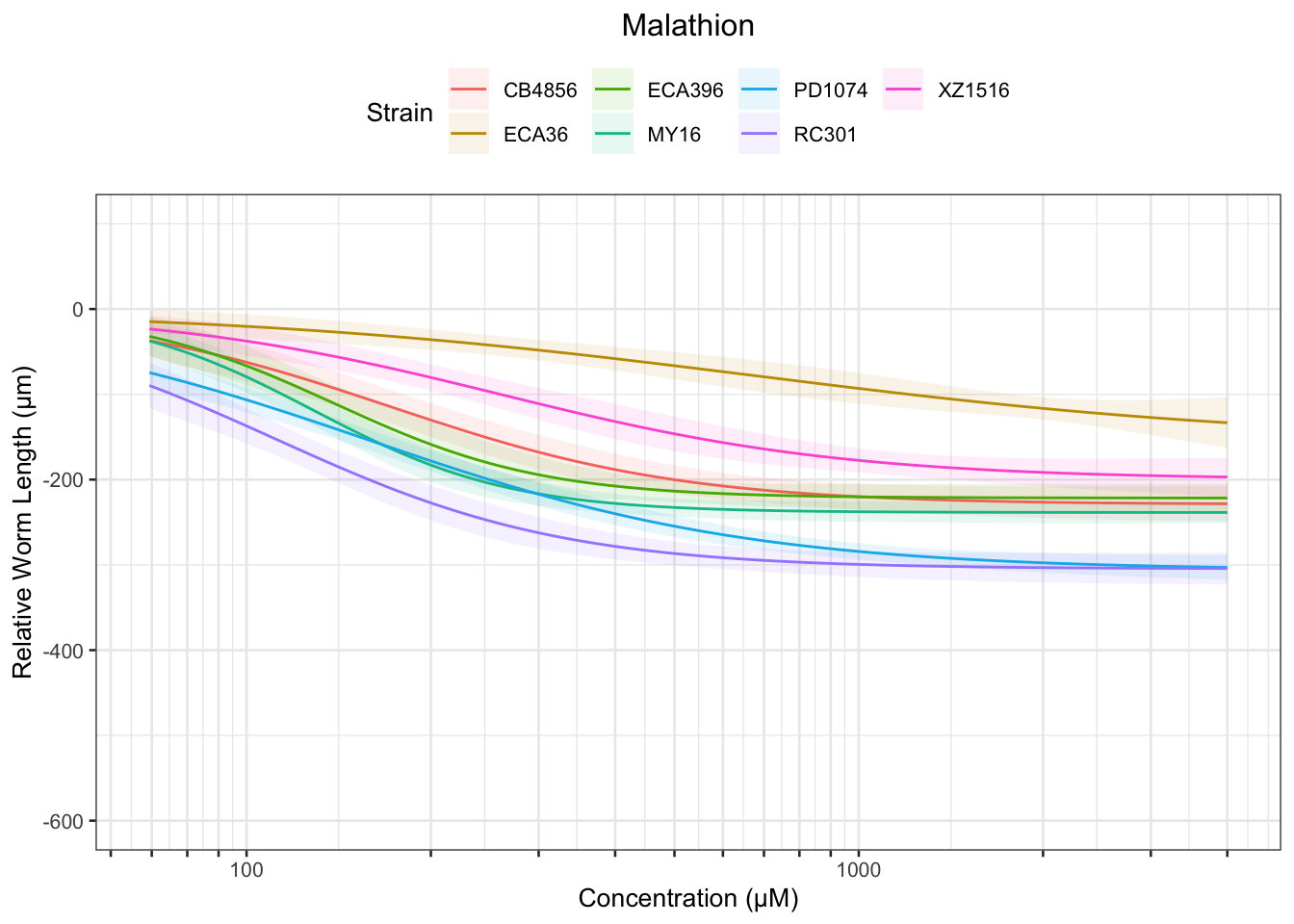

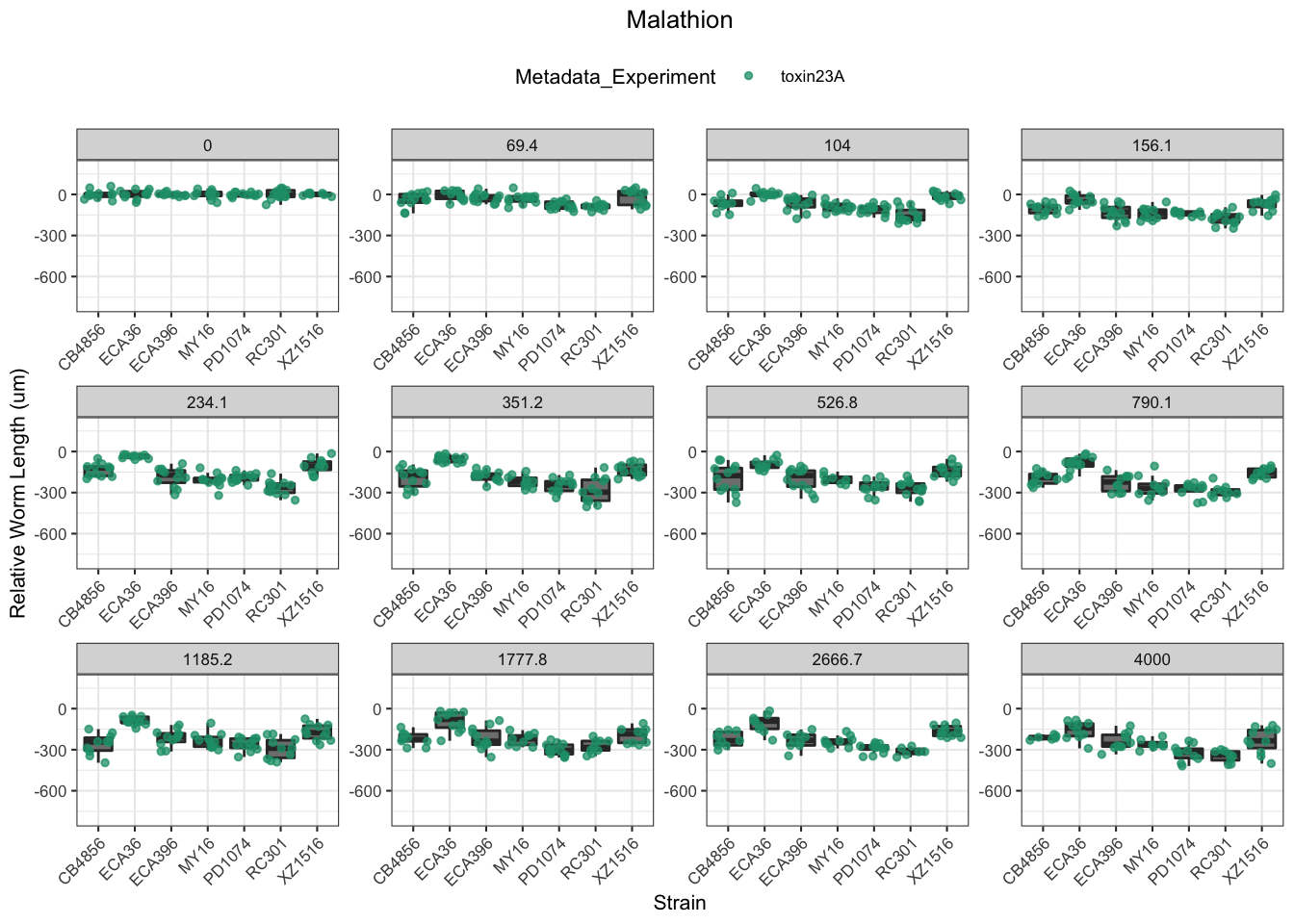

Malathion
| Version | Author | Date |
|---|---|---|
| deb1df5 | sam-widmayer | 2021-03-21 |
| Version | Author | Date |
|---|---|---|
| deb1df5 | sam-widmayer | 2021-03-21 |
| Version | Author | Date |
|---|---|---|
| deb1df5 | sam-widmayer | 2021-03-21 |

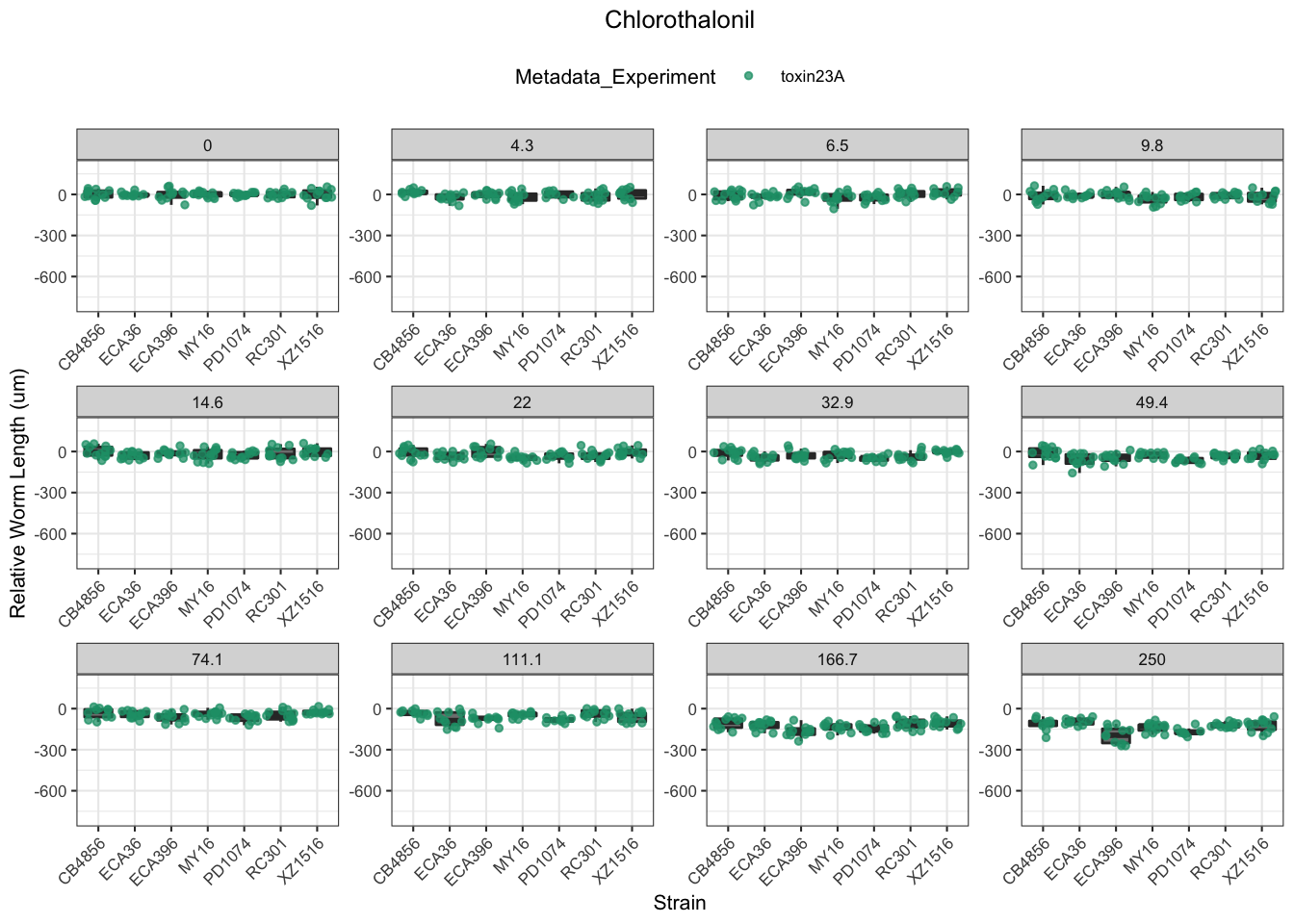

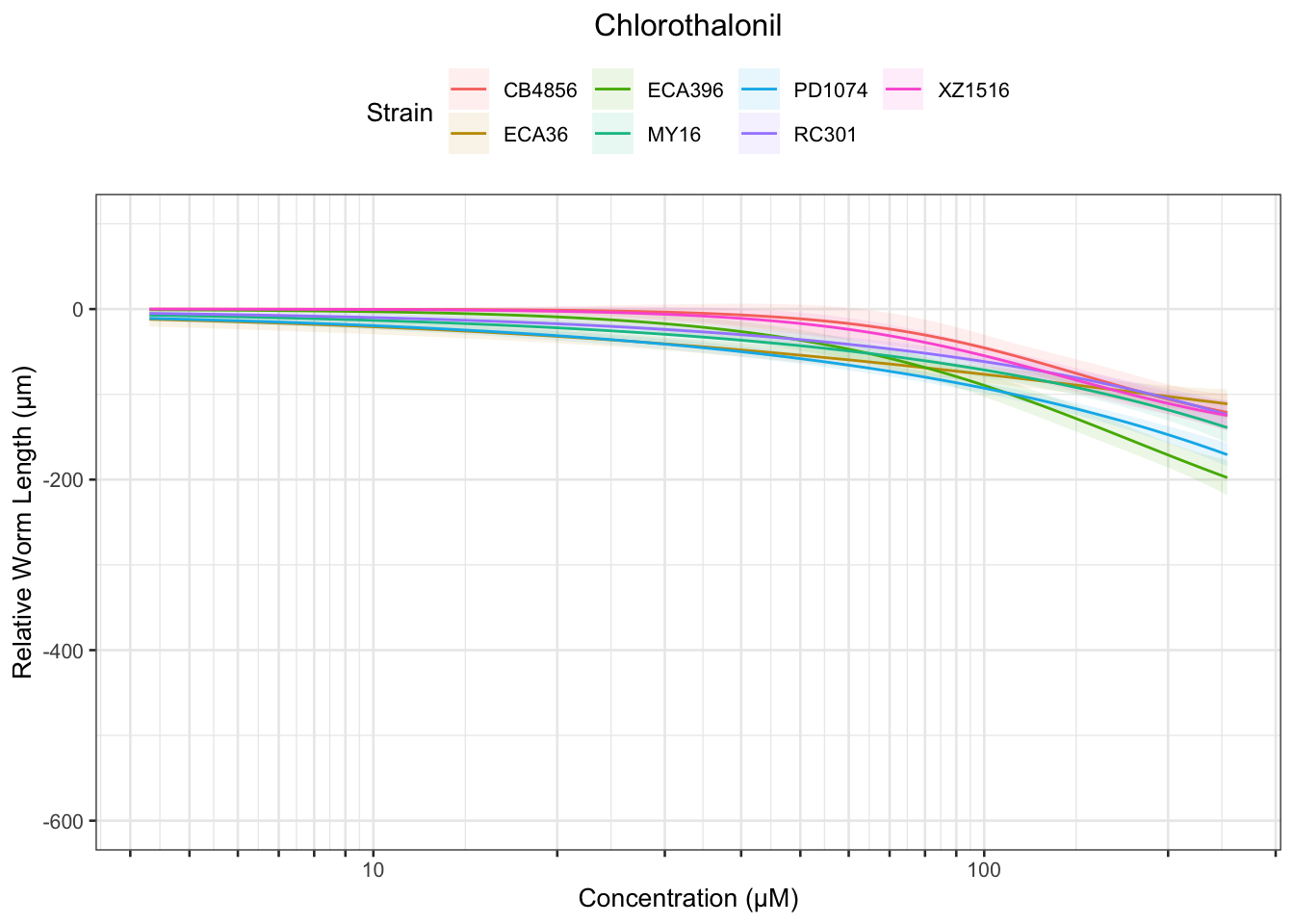

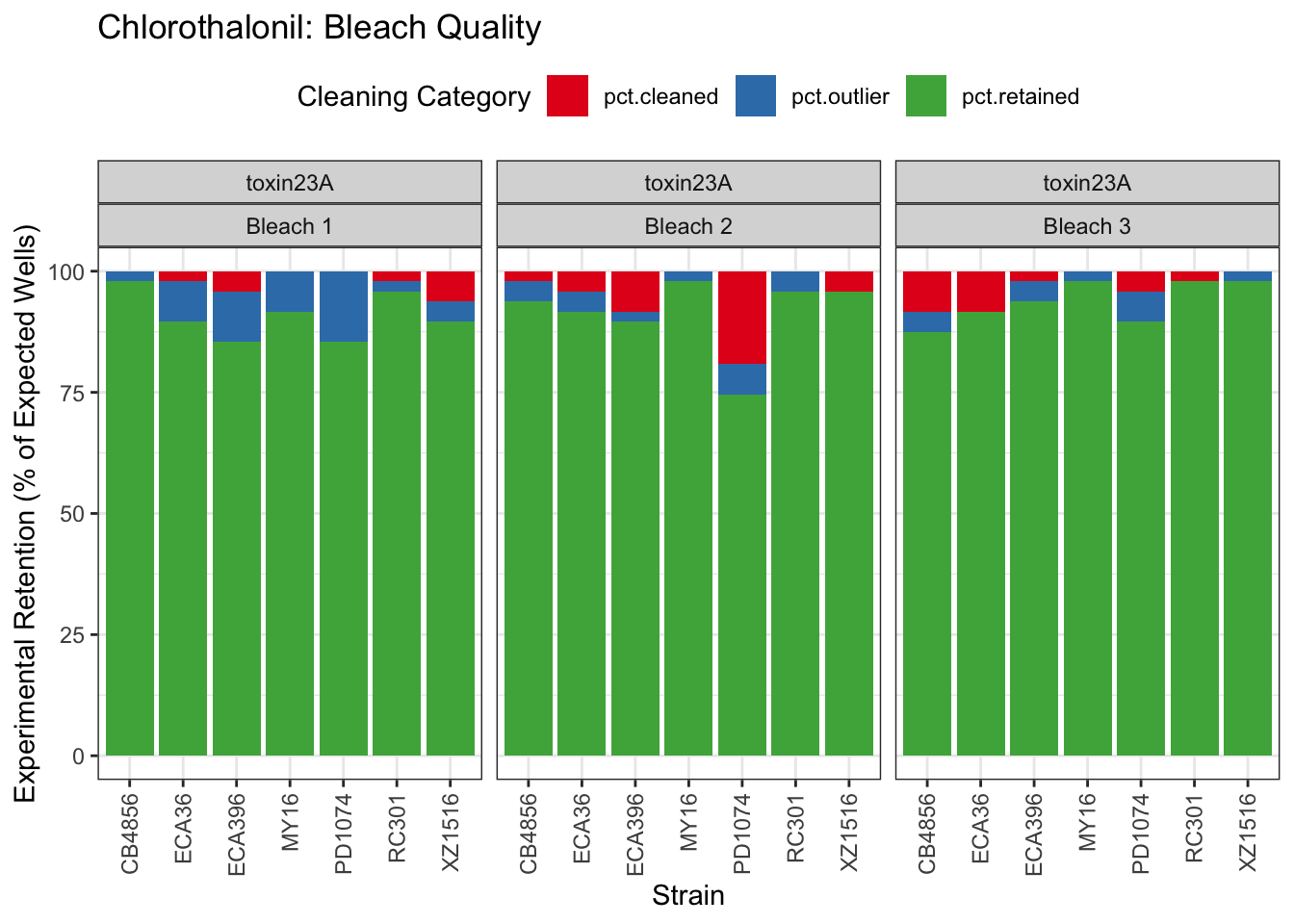

Chlorothalonil
| Version | Author | Date |
|---|---|---|
| deb1df5 | sam-widmayer | 2021-03-21 |
| Version | Author | Date |
|---|---|---|
| deb1df5 | sam-widmayer | 2021-03-21 |
| Version | Author | Date |
|---|---|---|
| deb1df5 | sam-widmayer | 2021-03-21 |

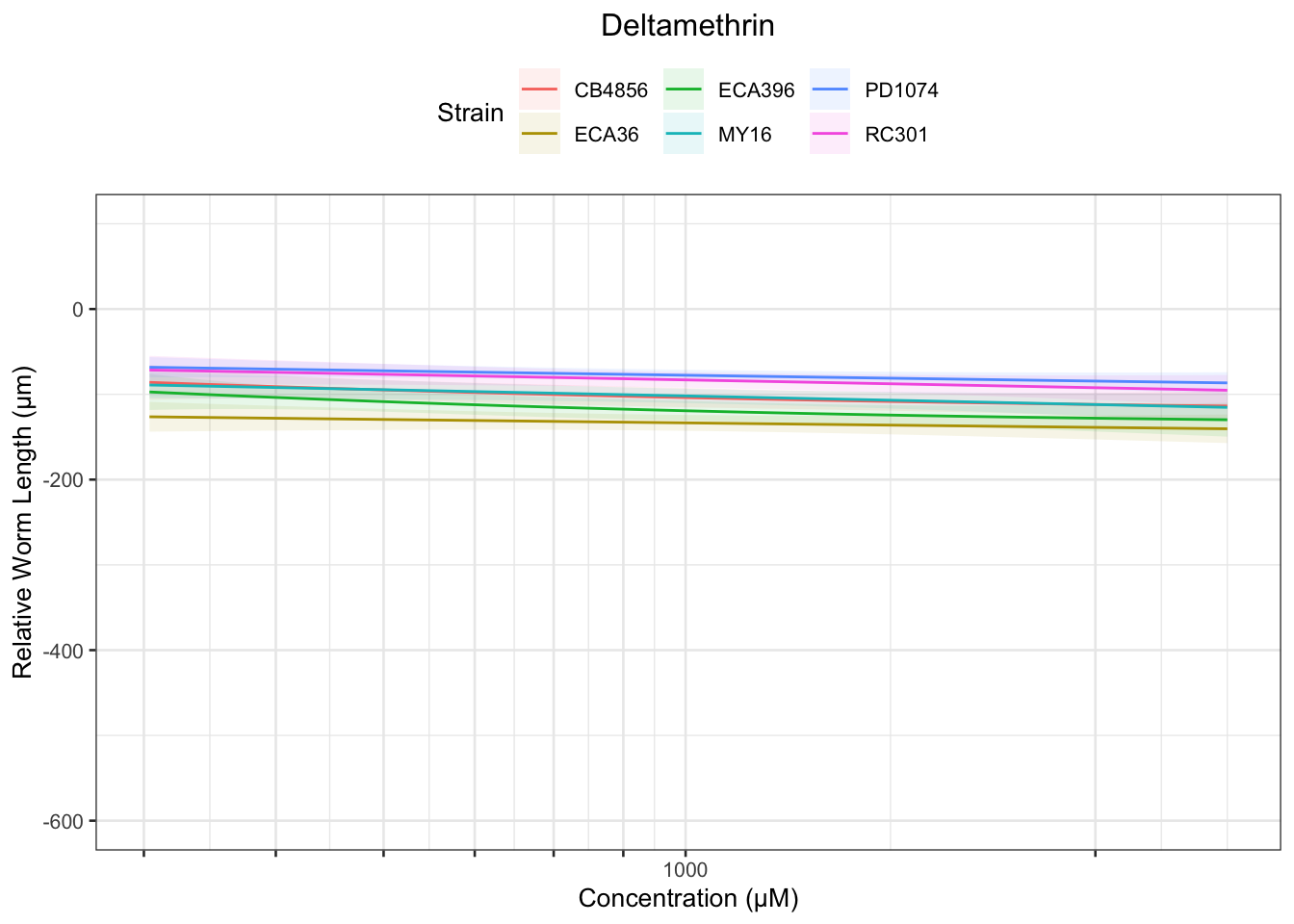

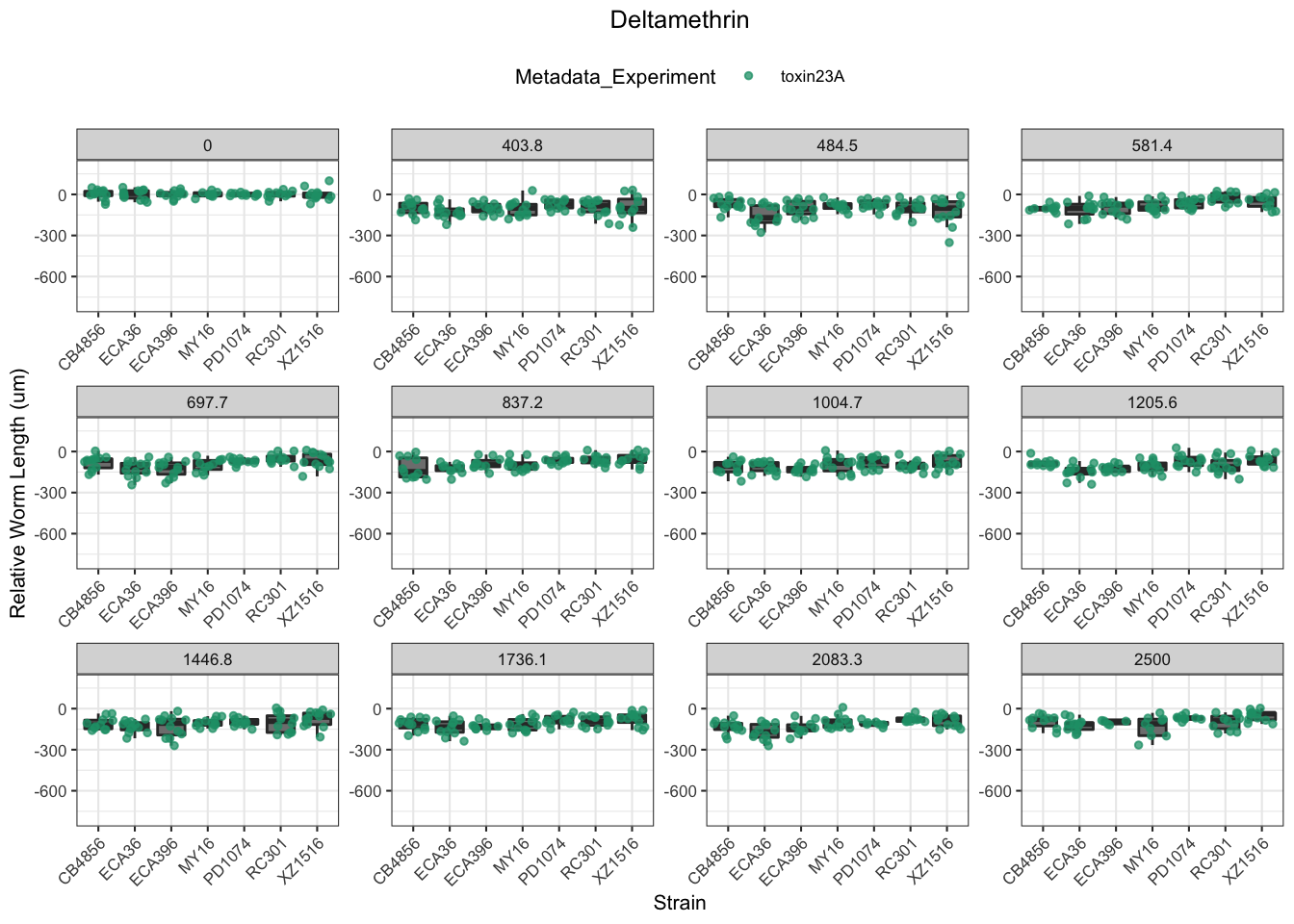

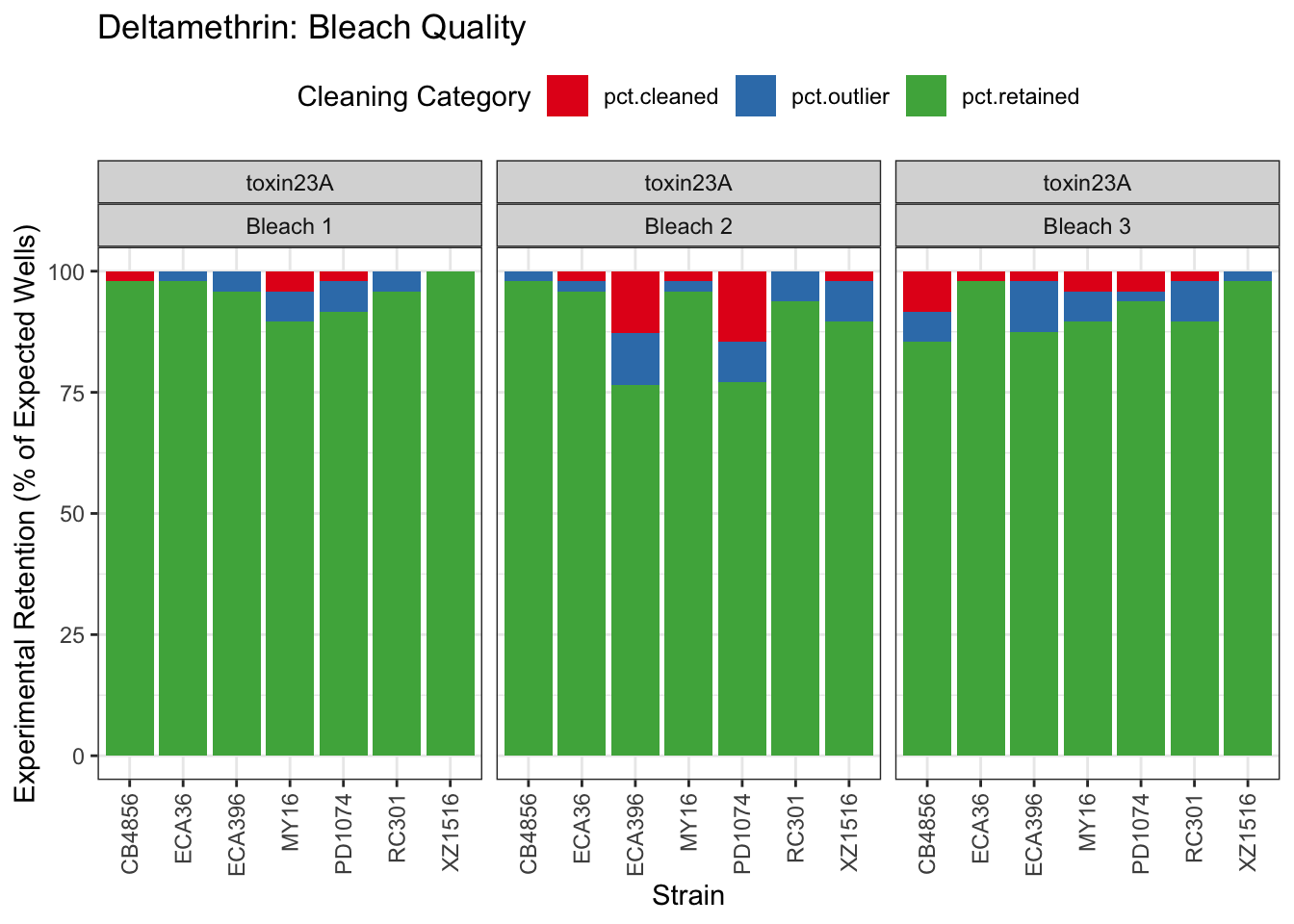

Deltamethrin
| Version | Author | Date |
|---|---|---|
| deb1df5 | sam-widmayer | 2021-03-21 |
| Version | Author | Date |
|---|---|---|
| deb1df5 | sam-widmayer | 2021-03-21 |
Error in optim(startVec, opfct, hessian = TRUE, method = optMethod, control = list(maxit = maxIt, :
non-finite finite-difference value [3]
[1] "Unable to optimize model"
[1] "Unable to optimize model"
| Version | Author | Date |
|---|---|---|
| deb1df5 | sam-widmayer | 2021-03-21 |

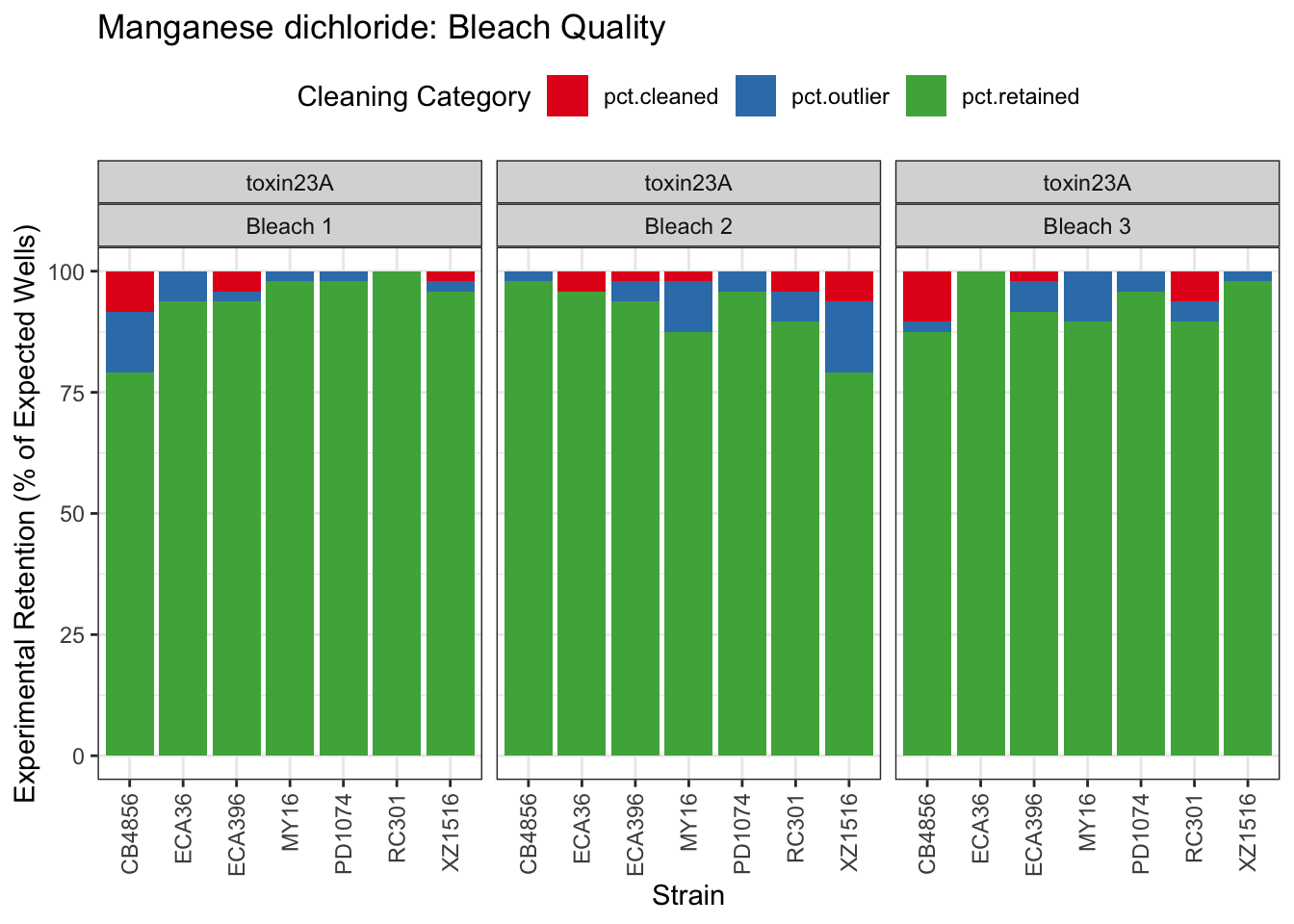

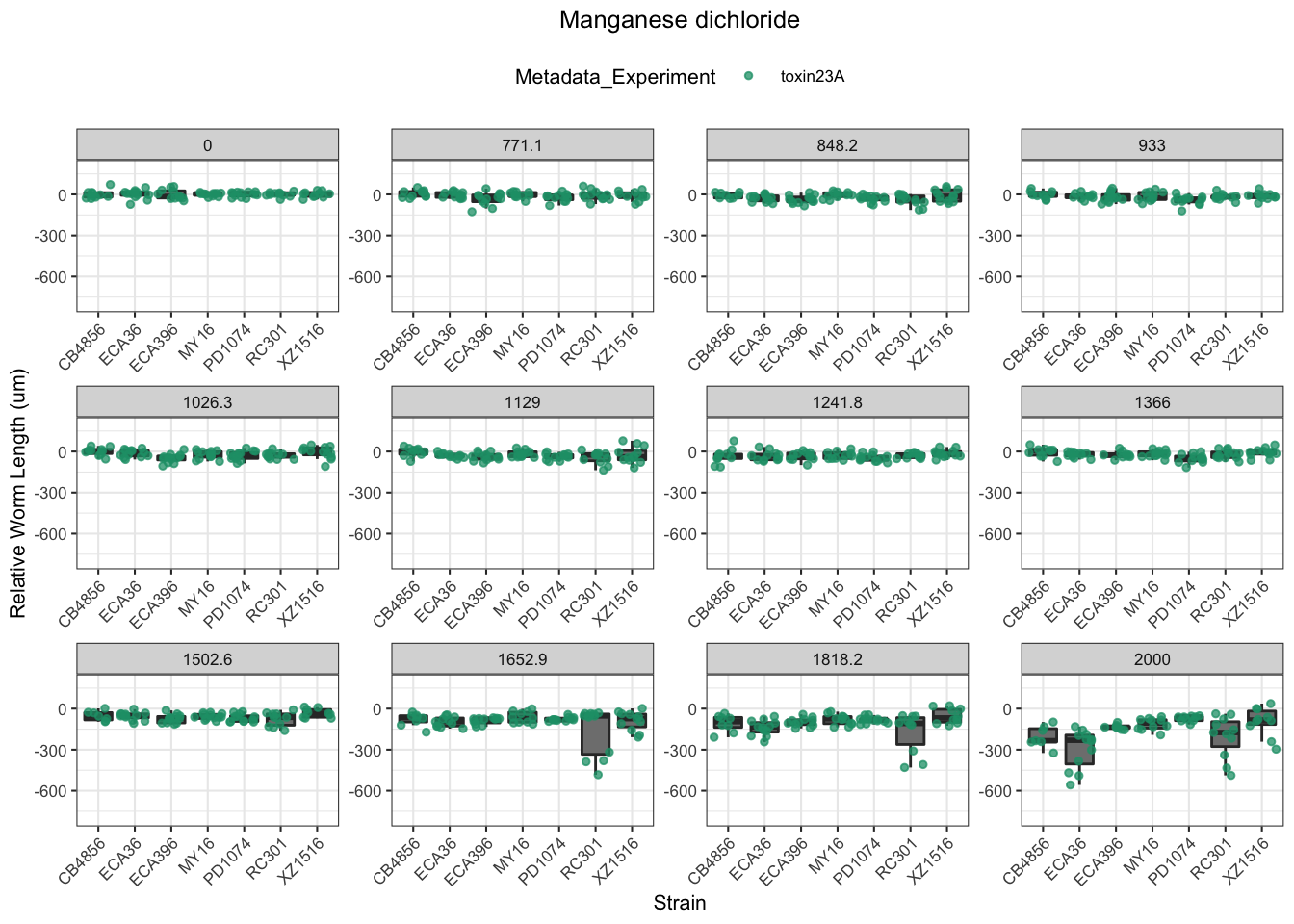

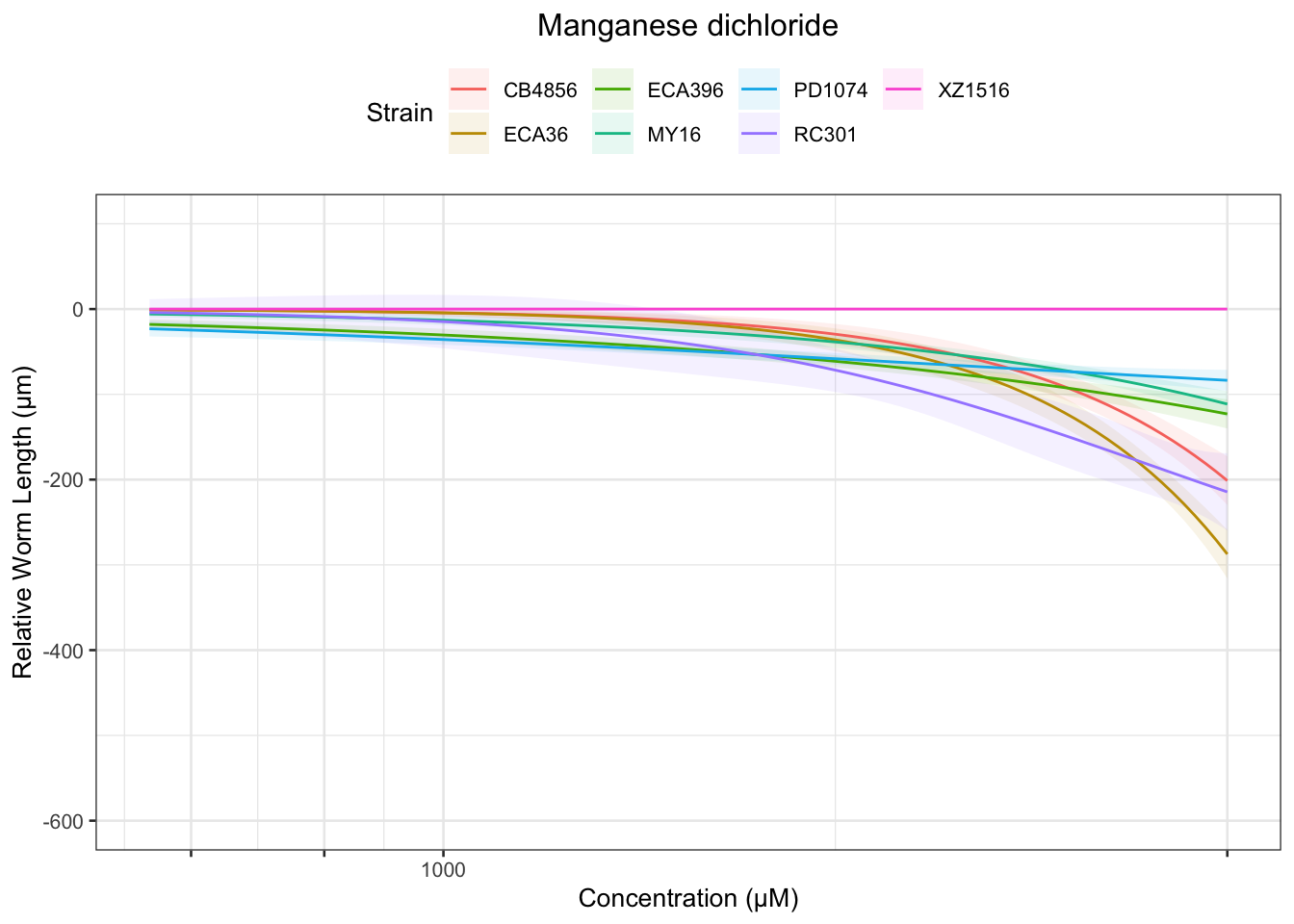

Manganese dichloride
| Version | Author | Date |
|---|---|---|
| deb1df5 | sam-widmayer | 2021-03-21 |
| Version | Author | Date |
|---|---|---|
| deb1df5 | sam-widmayer | 2021-03-21 |
| Version | Author | Date |
|---|---|---|
| deb1df5 | sam-widmayer | 2021-03-21 |

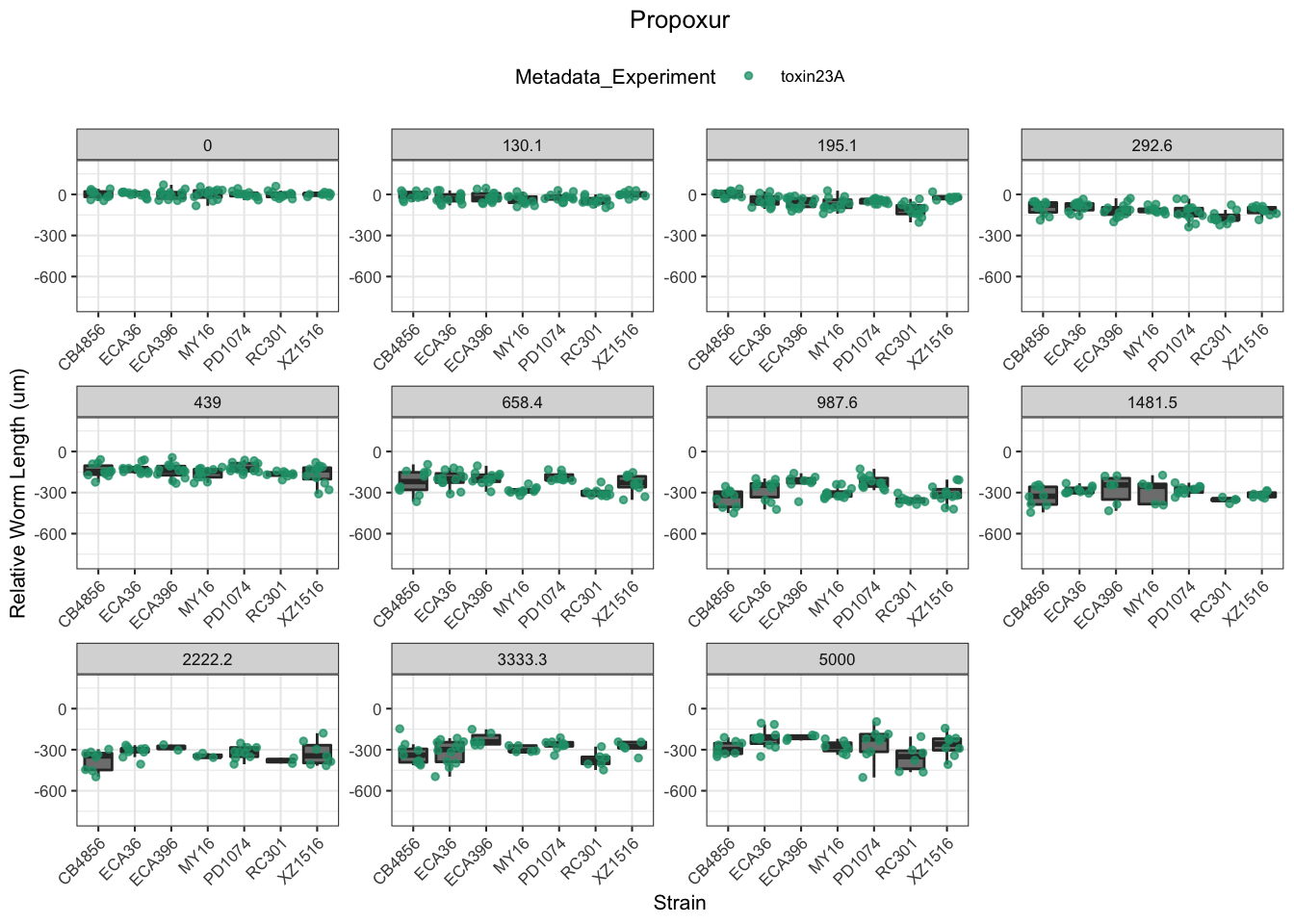

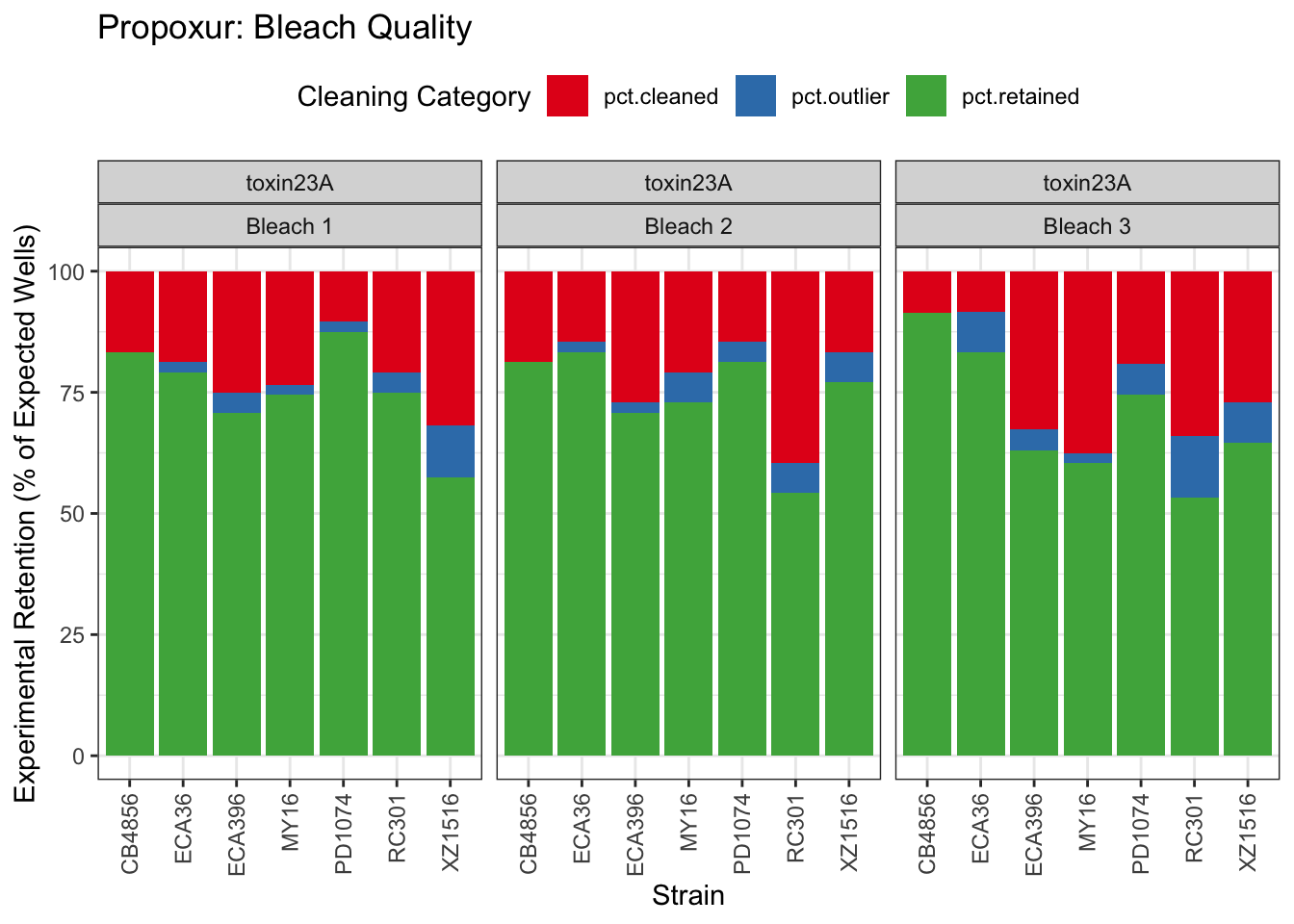

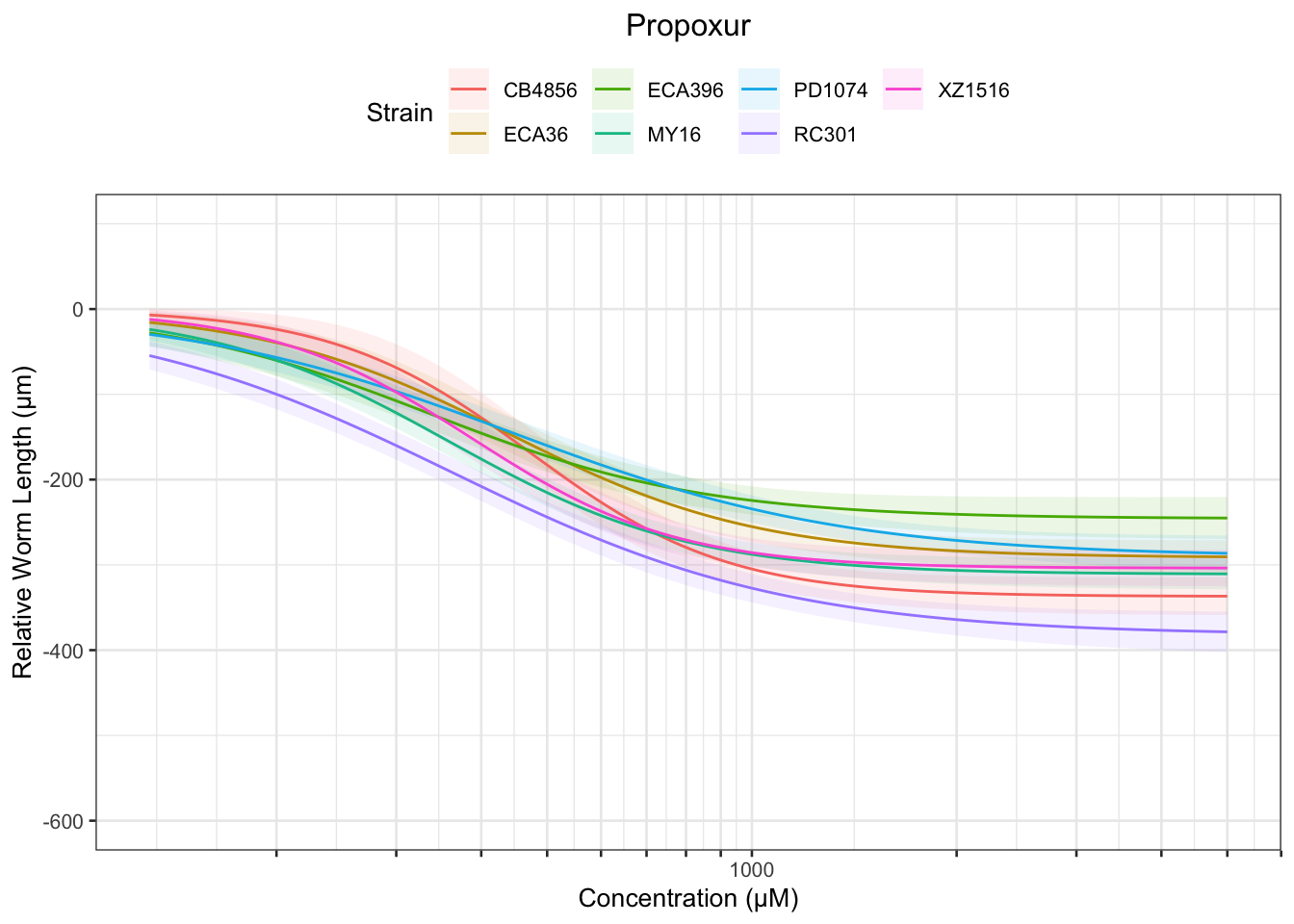

Propoxur
| Version | Author | Date |
|---|---|---|
| deb1df5 | sam-widmayer | 2021-03-21 |
| Version | Author | Date |
|---|---|---|
| deb1df5 | sam-widmayer | 2021-03-21 |
| Version | Author | Date |
|---|---|---|
| deb1df5 | sam-widmayer | 2021-03-21 |

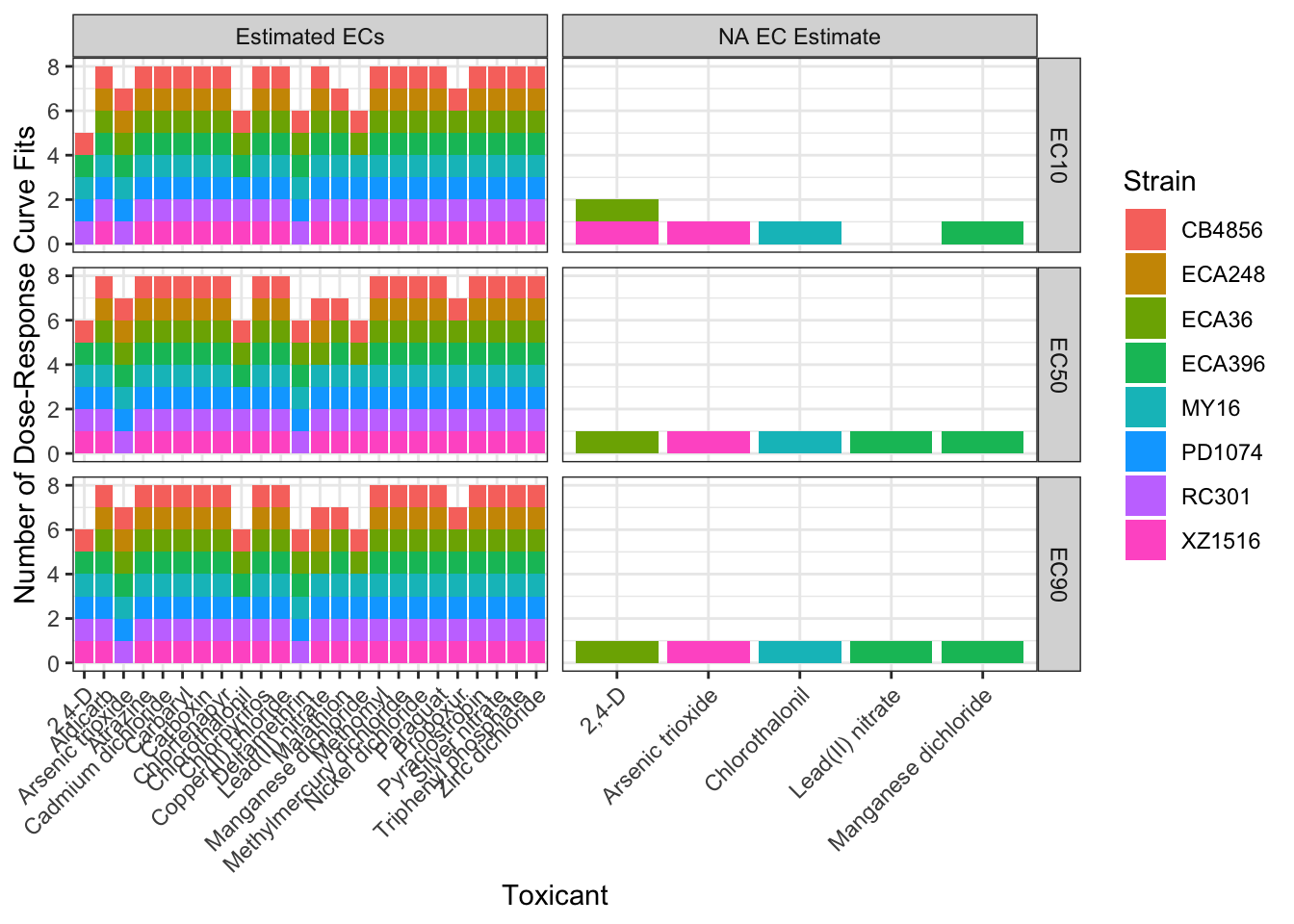

EC Estimates

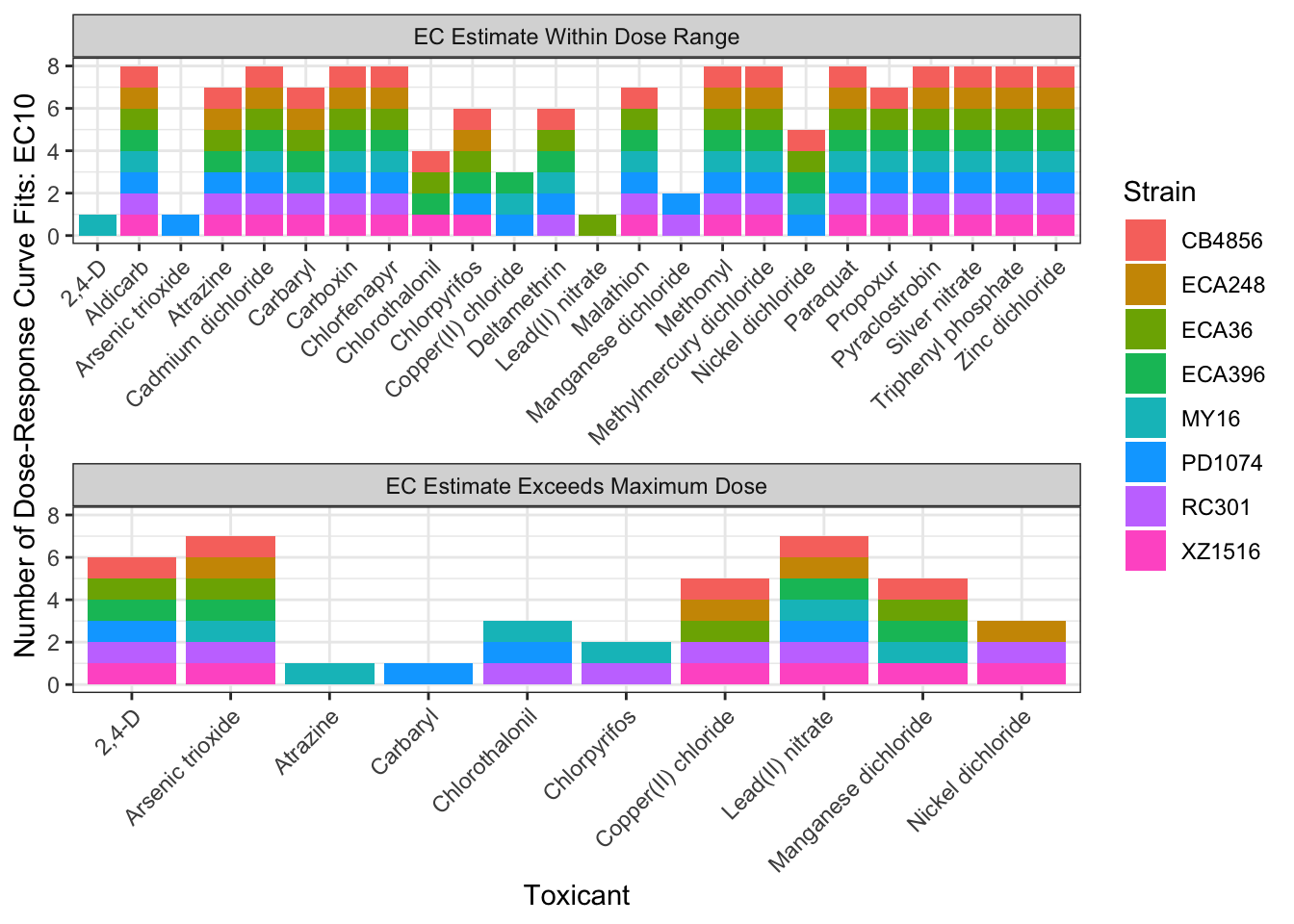

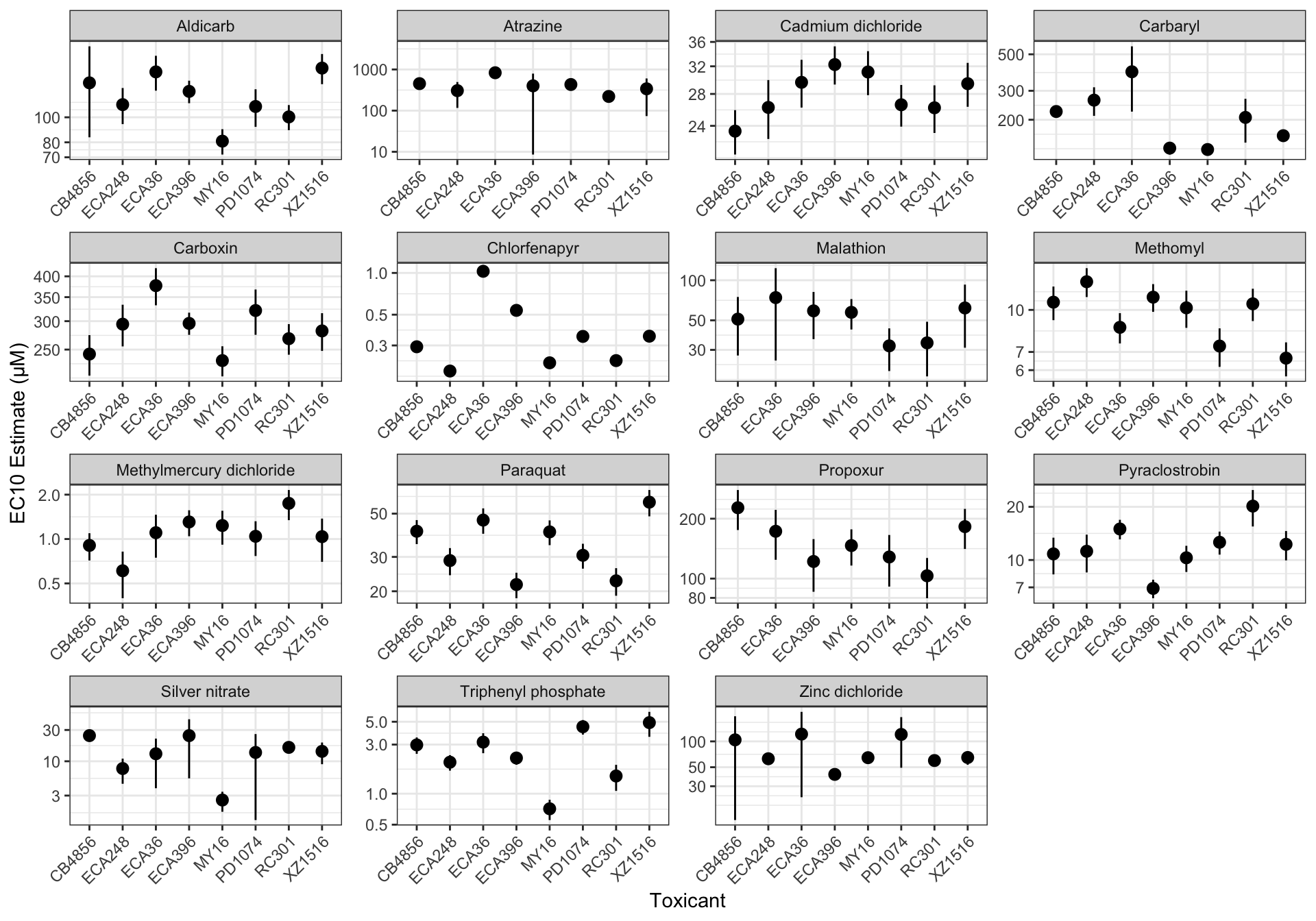

EC10
EC50
EC90
Summary Tables
Table: Aldicarb Estimates
Strain Weibull Log-Logistic Lognormal
------- ------------- ------------- -------------
ECA396 112.12±6.55 126.01±6.39 126.59±6.09
CB4856 124.11±23.91 135.99±26.53 133.08±22.25
ECA36 129.21±10.9 149.93±11.74 148.64±11.04
MY16 74.86±4.91 80.84±4.6 81.03±4.53
XZ1516 135.86±9.43 155.1±10.51 157.17±10.39
RC301 91.18±6.87 100.35±5.66 99.9±5.37
PD1074 99.62±10.59 110.12±9.27 111.48±9.37
ECA248 102.21±10.69 111.97±9.05 112.18±8.55
Table: Aldicarb Estimates
Strain Weibull Log-Logistic Lognormal
------- ------------- ------------- -------------
ECA396 343.77±15.91 344.41±16.9 350.5±18
CB4856 277.31±23.53 258.2±27.9 252.71±24.74
ECA36 341.46±15.6 327±14.07 326.36±14.27
MY16 194.49±7.58 193.41±8.81 194.99±9.12
XZ1516 363.37±13.79 358.51±14.65 355.04±14.38
RC301 271.04±15.97 276.53±13.81 280.95±14.65
PD1074 227.68±10.98 216.37±11.45 216.59±10.98
ECA248 261.96±13.08 256.49±13.34 254.59±13.06
Table: Aldicarb Estimates
Strain Weibull Log-Logistic Lognormal
------- ------------- -------------- -------------
ECA396 702.05±55.35 941.37±103.34 970.5±107.62
CB4856 462.87±43.69 490.26±63.07 479.87±58.5
ECA36 634.32±48.97 713.19±70.11 716.57±65.63
MY16 357.41±22.4 462.74±49.16 469.25±50.66
XZ1516 680.19±42.77 828.69±84 802.02±75.75
RC301 542.7±62.63 762.04±84.34 790.13±88.88
PD1074 385.57±28.83 425.11±45.82 420.81±43.49
ECA248 477.21±46.82 587.58±63.39 577.76±59.72
Table: Arsenic trioxide Estimates
Strain Weibull Log-Logistic Lognormal
------- -------------- ------------- --------------
PD1074 424.78±310.18 852.9±932.35 639.16±201.42
Table: Atrazine Estimates
Strain Weibull Log-Logistic Lognormal
------- -------------- --------------- --------------
ECA248 231.03±45.22 305.76±96.3 610.18±710.96
PD1074 323.78±159.61 430.95±237.65 NA
XZ1516 259.56±83.83 338.98±134.82 604.71±670.12
RC301 180.06±17.9 221.04±30.53 279.45±92.4
CB4856 302.15±214.96 452.74±379.63 NA
ECA36 551.13±889.49 832.27±1429.92 NA
ECA396 259.49±90.99 400.28±199.19 NA
Table: Atrazine Estimates
Strain Weibull Log-Logistic Lognormal
------- -------------- -------------- ----------
ECA248 740.46±247.7 NA NA
XZ1516 914.35±412.62 NA NA
RC301 603.8±106.15 824.22±223.15 NA
Table: Cadmium dichloride Estimates
Strain Weibull Log-Logistic Lognormal
------- ----------- ------------- -----------
MY16 28.14±1.64 31.13±1.67 31.59±1.72
XZ1516 26.6±1.6 29.42±1.58 30.05±1.6
PD1074 23.53±1.31 26.57±1.35 27.06±1.33
ECA36 26.9±1.84 29.62±1.73 30.16±1.7
ECA396 29.31±1.55 32.27±1.51 32.85±1.53
RC301 23.34±1.43 26.19±1.52 26.79±1.54
ECA248 22.65±1.73 26.23±1.88 26.63±1.75
CB4856 20.86±1.29 23.39±1.27 23.74±1.23
Table: Cadmium dichloride Estimates
Strain Weibull Log-Logistic Lognormal
------- ----------- ------------- -----------
MY16 64.99±2.21 63.75±2.62 63.21±2.44
XZ1516 68.01±2.06 69.01±3.08 67.94±3.02
PD1074 61.28±1.93 60.8±2.43 60.08±2.3
ECA36 71.73±2.59 74.71±4.46 73.75±4.71
ECA396 66.46±1.97 64.6±2.33 64.11±2.13
RC301 62.37±2.07 63.72±2.98 62.59±2.91
ECA248 55.81±3.09 54.95±2.94 54.87±2.85
CB4856 63.35±2.51 67.13±4.23 66.89±4.73
Table: Cadmium dichloride Estimates
Strain Weibull Log-Logistic Lognormal
------- ------------ ------------- -------------
MY16 110.8±5.68 130.56±12.6 126.51±11.24
XZ1516 123.7±6.08 161.83±17.21 153.63±16.17
PD1074 112.75±5.64 139.09±13.24 133.39±11.7
ECA36 134±8.18 188.45±25.35 180.32±25.7
ECA396 111.97±4.91 129.34±10.75 125.14±9.36
RC301 116.68±6.33 155.04±17.73 146.24±16.32
ECA248 99.15±9.98 115.09±15.76 113.06±13.81
CB4856 128.58±8.32 192.63±26.29 188.48±28.18
Table: Carbaryl Estimates
Strain Weibull Log-Logistic Lognormal
------- ------------- ------------- --------------
RC301 153.86±13.45 206.66±31.25 318.49±148.7
MY16 115.77±4.5 131.85±4.29 135.52±4.16
XZ1516 138.51±5.63 160.03±6.16 167.91±8.08
ECA248 215.06±13.53 263.15±26.42 350.16±107.75
CB4856 200.77±7.47 224.45±7.79 232.64±9.74
ECA396 118.25±6.19 134.47±5.88 138.17±5.63
ECA36 282.12±38.73 391.53±85.12 NA
Table: Carbaryl Estimates
Strain Weibull Log-Logistic Lognormal
------- -------------- -------------- -------------
RC301 560.72±88.19 899.1±242.48 NA
MY16 329.43±10.08 372.72±19.75 377.73±25.18
XZ1516 396.9±19.22 480.15±41.68 527.38±71.69
ECA248 599.91±67.03 828.28±158.41 NA
CB4856 477.83±21.16 543.72±40.07 589.88±68.61
ECA396 334.69±14.2 365.03±24.39 365.57±28.19
ECA36 823.29±165.63 NA NA
Table: Carbaryl Estimates
Strain Weibull Log-Logistic Lognormal
------- ------------- ------------- -----------
MY16 641.47±34.4 NA NA
XZ1516 776.32±60.67 NA NA
CB4856 830.35±58.18 NA NA
ECA396 649.51±47.04 990.92±136.9 967.21±149
Table: Carboxin Estimates
Strain Weibull Log-Logistic Lognormal
------- ------------- ------------- -------------
RC301 245.37±13.69 268.12±13.33 271.54±13.17
MY16 208.99±11.87 232.92±11.41 236.38±11.06
XZ1516 246.6±16.77 281.8±17.27 286.26±17.03
PD1074 294.44±24.48 321.2±23.59 326.03±23.43
ECA248 264.83±20 294.25±19.9 298.93±19.58
CB4856 218.08±16.13 242.89±15.96 246.14±15.48
ECA396 270.53±11.22 295.77±10.69 298.53±10.38
ECA36 343.43±23.11 376.82±22.71 382.09±22.25
Table: Carboxin Estimates
Strain Weibull Log-Logistic Lognormal
------- ------------- ------------- -------------
RC301 518.27±12.99 520.48±15.19 514.66±14.85
MY16 542.31±16.17 559.04±22.25 551.86±22.67
XZ1516 634.1±24.55 652.59±34.08 647.19±35.34
PD1074 762.58±35.12 837.75±72.34 829.67±86.63
ECA248 653.85±27.45 672.27±39.66 662.19±40.07
CB4856 567.38±22.5 585.55±31.62 575.34±31.85
ECA396 543.23±11.13 538.19±12.02 534.45±11.71
ECA36 721.61±27.71 712.59±33.79 705.55±31.94
Table: Carboxin Estimates
Strain Weibull Log-Logistic Lognormal
------- --------------- --------------- ---------------
RC301 834.65±39.4 1010.37±74.89 975.44±68.53
MY16 995.79±54.82 1341.73±127.72 1288.38±122.31
XZ1516 1157.57±81.68 1511.25±193.26 1463.19±189.76
PD1074 1398.49±106.11 NA NA
ECA248 1163.1±82.92 1535.93±209.95 1466.89±201.43
CB4856 1043.54±72.96 1411.64±179.5 1344.81±169.67
ECA396 847.09±31.39 979.33±52.28 956.83±47.61
ECA36 1158.26±71.01 1347.56±144.72 1302.84±129.29
Table: Chlorfenapyr Estimates
Strain Weibull Log-Logistic Lognormal
------- ---------- ------------- ----------
ECA248 0.19±0.01 0.2±0.01 0.2±0.01
XZ1516 0.31±0.01 0.35±0.02 0.35±0.02
ECA36 0.94±0.03 1.03±0.03 1.04±0.02
CB4856 0.29±0.01 0.29±0.01 0.29±0.01
PD1074 0.35±0.01 0.35±0.01 0.34±0.01
RC301 0.22±0.01 0.23±0.01 0.24±0.01
MY16 0.21±0.01 0.22±0.01 0.23±0.01
ECA396 NA 0.54±0.01 0.54±0.01
Table: Chlorfenapyr Estimates
Strain Weibull Log-Logistic Lognormal
------- ---------- ------------- ----------
ECA248 0.49±0.02 0.49±0.02 0.49±0.02
XZ1516 0.67±0.01 0.67±0.01 0.67±0.01
ECA36 1.65±0.04 1.53±0.05 1.54±0.04
CB4856 0.56±0.01 0.56±0.01 0.55±0.01
PD1074 0.6±0.01 0.61±0.01 0.61±0.01
RC301 0.49±0.01 0.48±0.01 0.48±0.01
MY16 0.51±0.01 0.5±0.01 0.5±0.01
ECA396 NA 0.75±0.02 0.76±0.02
Table: Chlorfenapyr Estimates
Strain Weibull Log-Logistic Lognormal
------- ---------- ------------- ----------
ECA248 0.92±0.06 1.22±0.11 1.18±0.11
XZ1516 1.1±0.05 1.27±0.08 1.27±0.07
ECA36 2.35±0.1 2.27±0.17 2.26±0.15
CB4856 0.85±0.02 1.06±0.05 1.05±0.04
PD1074 0.84±0.02 1.07±0.04 1.1±0.04
RC301 0.81±0.02 1±0.05 0.96±0.04
MY16 0.89±0.03 1.13±0.06 1.1±0.06
ECA396 NA 1.04±0.06 1.06±0.05
Table: Chlorothalonil Estimates
Strain Weibull Log-Logistic Lognormal
------- ------------ ------------- ------------
CB4856 56.12±15.88 57.18±11.76 58.03±11.27
ECA36 5.77±2.69 10.92±10.63 26.4±69.2
ECA396 36.35±5.25 44.47±8.22 52.94±23.97
XZ1516 43.81±8.96 48.18±7.94 49.29±8.24
Table: Chlorothalonil Estimates
Strain Weibull Log-Logistic Lognormal
------- ------------- -------------- --------------
CB4856 120.03±12.84 143.37±47.58 154.83±101.63
ECA36 81.35±75.96 240.94±452.37 NA
ECA396 121.84±23.79 174.49±69.55 NA
XZ1516 112.35±14.12 134.26±39.1 144.69±70.86
Table: Chlorothalonil Estimates
Strain Weibull Log-Logistic Lognormal
------- ------------- ------------- ----------
CB4856 194.87±42.46 NA NA
XZ1516 204.75±47.75 NA NA
Table: Chlorpyrifos Estimates
Strain Weibull Log-Logistic Lognormal
------- ------------ ------------- ------------
MY16 15.55±39.17 NA NA
XZ1516 2.72±0.14 3.2±0.18 3.53±0.37
PD1074 2.71±4.57 8.49±13.73 NA
ECA248 2.06±0.98 3.57±2.32 12.24±14.97
CB4856 3.88±3.06 10.87±10.59 NA
ECA396 3.79±6.17 10.36±20.26 NA
ECA36 1.81±0.11 2.27±0.18 2.67±0.41
Table: Chlorpyrifos Estimates
Strain Weibull Log-Logistic Lognormal
------- ------------ ------------- -----------
XZ1516 8.19±0.61 10.39±1.32 13.29±3.38
ECA248 17.87±12.12 NA NA
ECA36 7.39±0.76 10.32±1.69 14.8±4.74
Table: Chlorpyrifos Estimates
Strain Weibull Log-Logistic Lognormal
------- ----------- ------------- ----------
XZ1516 16.56±1.87 NA NA
ECA36 18.1±2.6 NA NA
Table: Copper(II) chloride Estimates
Strain Weibull Log-Logistic Lognormal
------- ------------- ------------- -----------
PD1074 173.47±169.3 51.04±2.93 54.15±5.88
ECA396 NA 52.9±3.01 53.22±2.88
MY16 NA 50.75±2.98 59.68±4.3
Table: Copper(II) chloride Estimates
Strain Weibull Log-Logistic Lognormal
------- -------- ------------- -------------
ECA396 NA 112.25±9.11 118.79±15.9
MY16 NA 108.46±8.44 96.73±4.04
PD1074 NA 111.77±9.35 163.21±42.85
Table: Copper(II) chloride Estimates
Strain Weibull Log-Logistic Lognormal
------- -------- ------------- -------------
MY16 NA NA 156.76±16.54
Table: Deltamethrin Estimates
Strain Weibull Log-Logistic Lognormal
------- ---------- ------------- ------------
PD1074 0.04±0.23 0.33±2.41 0.43±2.35
CB4856 0.15±0.58 16.9±76.2 21.17±77.68
ECA36 0±0 0±0 0±0
MY16 0.21±0.46 0.49±2.62 0.91±4.32
ECA396 0.18±0.67 26.52±85.9 1.36±3.48
RC301 0.54±4.71 0.98±4.87 2.43±14.96
XZ1516 0±0 NA 0±0
Table: Deltamethrin Estimates
Strain Weibull Log-Logistic Lognormal
------- --------------- --------------- --------------
ECA36 319.82±7642.14 38.64±432.2 22.07±288.54
XZ1516 0±0 NA 24.67±2748.05
PD1074 NA 306.46±2784.41 466.6±6933.93
CB4856 NA 163.38±158.03 156.8±160.65
ECA396 NA 181.73±145.01 NA
Table: Deltamethrin Estimates
Strain Weibull Log-Logistic Lognormal
------- -------- ---------------- ---------------
CB4856 NA 1579±4811.27 1161.27±2335.7
ECA396 NA 1245.31±2455.33 NA
Table: Lead(II) nitrate Estimates
Strain Weibull Log-Logistic Lognormal
------- -------------- ------------- ----------
ECA36 233.52±141.68 556.99±619.9 NA
Table: Malathion Estimates
Strain Weibull Log-Logistic Lognormal
------- ------------ ------------- ------------
PD1074 23.38±5.57 32.16±5.74 34.37±5.75
CB4856 37.47±12.69 51.06±12.04 52.8±11.44
ECA36 52.21±23.96 74.08±24.82 82.72±26.64
MY16 50.73±8.4 57.44±7.45 59.2±7.24
ECA396 53.66±16.21 58.9±11.51 60.02±11.17
RC301 26.79±7.52 33.87±7.53 36.44±7.55
XZ1516 44.87±15.38 61.94±15.56 64.25±15
Table: Malathion Estimates
Strain Weibull Log-Logistic Lognormal
------- -------------- -------------- --------------
PD1074 154.38±10.86 157.82±12.24 154.06±11.59
CB4856 175.75±20.78 171.94±20.27 169.99±19.63
ECA36 826.08±749.85 673.98±575.97 762.07±748.28
MY16 132.28±8.01 129.05±8.04 128.59±7.92
ECA396 139.32±12.36 139.18±12.39 139.32±12.6
RC301 111.73±8.82 111.5±8.85 110.06±8.54
XZ1516 263.57±42.28 259.64±46.02 261.51±46.06
Table: Malathion Estimates
Strain Weibull Log-Logistic Lognormal
------- -------------- --------------- --------------
PD1074 514.01±81.58 774.58±180.7 690.48±145.59
CB4856 470.6±119.79 578.93±170.64 547.25±144.12
MY16 243.66±28.53 289.95±44.88 279.33±41.09
ECA396 255.9±63.76 328.87±82.9 323.39±79.35
RC301 277.6±44.22 366.99±86.78 332.44±70.03
XZ1516 814.57±288.25 1088.28±513.89 1064.4±475.3
Table: Manganese dichloride Estimates
Strain Weibull Log-Logistic Lognormal
------- ---------------- --------------- --------------
PD1074 493.38±73.5 586.18±125.39 639.75±257.73
MY16 1820.28±1973.15 NA NA
RC301 1141.28±129.55 1212.69±191.27 NA
Table: Manganese dichloride Estimates
Strain Weibull Log-Logistic Lognormal
------- --------------- ---------------- ----------------
PD1074 1220.87±307.8 1655.46±1033.91 1906.81±2140.97
RC301 1575.29±155.27 1871.07±792.42 NA
Table: Manganese dichloride Estimates
Strain Weibull Log-Logistic Lognormal
------- -------------- ------------- ----------
RC301 1934.45±391.2 NA NA
Table: Methomyl Estimates
Strain Weibull Log-Logistic Lognormal
------- ----------- ------------- -----------
ECA396 9.84±0.65 11.14±0.66 11.23±0.66
CB4856 9.52±0.76 10.68±0.77 10.81±0.76
ECA36 7.37±0.55 8.63±0.56 8.8±0.56
MY16 9±0.75 10.18±0.8 10.26±0.8
XZ1516 5.68±0.47 6.64±0.48 6.71±0.47
RC301 9.3±0.77 10.53±0.73 10.53±0.71
PD1074 6.36±0.6 7.36±0.6 7.51±0.6
ECA248 11.36±0.79 12.7±0.78 12.77±0.79
Table: Methomyl Estimates
Strain Weibull Log-Logistic Lognormal
------- ----------- ------------- -----------
ECA396 34.87±1.84 39.44±3.32 40.8±4.46
CB4856 32.53±1.51 33.54±2.07 32.91±2.09
ECA36 30.44±1.18 31.58±1.56 30.96±1.57
MY16 28.98±1.33 28.96±1.66 28.3±1.61
XZ1516 27.78±1.53 29.89±2.22 29.78±2.42
RC301 33.24±1.81 36.71±2.83 37.62±3.53
PD1074 26.35±1.83 29.04±2.83 29.15±3.24
ECA248 39.06±1.59 40.21±2.03 39.87±2.12
Table: Methomyl Estimates
Strain Weibull Log-Logistic Lognormal
------- ----------- ------------- -------------
ECA396 78.11±6.67 139.62±23.51 148.17±31.72
CB4856 71.16±5.49 105.36±14.51 100.13±13.94
ECA36 75.12±5.42 115.61±13.69 108.87±12.94
MY16 61.04±4.27 82.42±10.52 78.1±9.63
XZ1516 76.39±7.1 134.48±21.6 132.25±22.74
RC301 74.82±7.51 127.94±21.66 134.35±26.78
PD1074 65.17±7.62 114.61±23.69 113.17±26.23
ECA248 85.82±6.18 127.32±14.83 124.45±15.16
Table: Methylmercury dichloride Estimates
Strain Weibull Log-Logistic Lognormal
------- ---------- ------------- ----------
ECA396 1.05±0.12 1.31±0.13 1.35±0.13
CB4856 0.68±0.08 0.91±0.1 0.96±0.1
ECA36 0.79±0.13 1.1±0.18 1.23±0.22
MY16 1.03±0.15 1.23±0.16 1.26±0.16
XZ1516 0.74±0.13 1.04±0.17 1.14±0.21
RC301 1.37±0.18 1.75±0.2 1.84±0.21
PD1074 0.75±0.11 1.04±0.14 1.13±0.16
ECA248 0.43±0.09 0.61±0.11 0.66±0.11
Table: Methylmercury dichloride Estimates
Strain Weibull Log-Logistic Lognormal
------- ----------- ------------- ------------
ECA396 8.69±0.85 10.59±1.5 10.53±1.71
CB4856 6.92±0.61 7.66±0.88 7.5±0.9
ECA36 15.07±3.2 21.54±7.13 25.33±11.29
MY16 7.82±0.91 9.85±1.71 9.85±2.02
XZ1516 11.83±2.33 18.22±5.86 22.18±10.44
RC301 10.67±1.12 12.6±1.98 12.3±2.15
PD1074 10.63±1.58 15.58±4.06 17.27±6.2
ECA248 7.46±1.51 10.05±3.23 10.39±4.05
Table: Methylmercury dichloride Estimates
Strain Weibull Log-Logistic Lognormal
------- ------------ -------------- --------------
ECA396 33.31±5.19 85.89±23.96 81.91±25.72
CB4856 30.2±4.65 64.78±16.36 58.97±15.12
ECA36 98.83±30.79 NA NA
MY16 28.46±5.34 78.6±27.08 76.92±30.83
XZ1516 68.94±21.27 NA NA
RC301 39.45±6.9 90.92±29.86 81.99±29.46
PD1074 57.4±13.6 232.51±114.01 NA
ECA248 45.92±14.94 165.72±102.87 162.97±119.71
Table: Nickel dichloride Estimates
Strain Weibull Log-Logistic Lognormal
------- ----------- ------------- -----------
ECA396 49.7±2.61 50.33±2.22 50.28±1.96
CB4856 50.68±2.88 51.22±2.44 51.25±2.14
ECA36 55.05±3 59.22±1.98 60.9±2.14
MY16 44.68±2.65 47.86±2.13 48.35±1.95
PD1074 63.57±3.9 65.07±3.39 63.88±2.57
Table: Nickel dichloride Estimates
Strain Weibull Log-Logistic Lognormal
------- ------------ ------------- -------------
ECA396 86.77±1.57 85.7±1.93 84.36±1.9
CB4856 88.1±1.64 87.41±2.05 86.07±2.05
ECA36 109.91±3.92 125.24±10.24 137.56±20.11
MY16 97.46±2.88 108.47±6.75 112.38±10.43
PD1074 106.19±1.94 111.39±4.78 115.71±7.37
Table: Nickel dichloride Estimates
Strain Weibull Log-Logistic Lognormal
------- ------------- ------------- ------------
ECA396 123.76±3.33 145.93±7.24 141.52±6.56
CB4856 125.33±3.7 149.18±8.14 144.55±7.32
ECA36 170.78±14.03 NA NA
MY16 160.2±10.06 NA NA
PD1074 147.27±8.23 190.66±24.01 NA
Table: Paraquat Estimates
Strain Weibull Log-Logistic Lognormal
------- ----------- ------------- -----------
MY16 42.55±3.71 40.32±2.97 39.4±2.61
XZ1516 48.85±4.7 57.25±4.48 58.59±4.23
CB4856 40.38±3.35 40.62±2.9 39.46±2.7
RC301 15.69±1.75 22.62±1.85 22.84±1.66
PD1074 29.52±2.8 30.58±2.27 29.76±2.09
ECA248 29.11±3.68 28.73±2.32 28.45±2.28
ECA36 56.24±4.19 46.32±3.49 45.9±3.55
ECA396 15±1.59 21.65±1.64 21.82±1.5
Table: Paraquat Estimates
Strain Weibull Log-Logistic Lognormal
------- ------------- ------------- -------------
MY16 128.8±6.47 150.04±10.7 165.36±12.34
XZ1516 314.23±28.05 290.36±31.96 302.27±32.74
CB4856 127.35±6.29 138.36±8.69 149.29±10.9
RC301 132.47±13.53 113.76±9.99 124.26±10.77
PD1074 113.95±5.71 125.91±7.83 135.98±9.95
ECA248 86.06±4.61 94.06±5.71 97.15±6.63
ECA36 105.31±2.6 112.07±5.17 114.49±6.19
ECA396 126±11.04 108.5±7.86 116.76±8.2
Table: Paraquat Estimates
Strain Weibull Log-Logistic Lognormal
------- --------------- --------------- ---------------
MY16 260.88±26.76 558.39±99.17 694.04±118.65
XZ1516 1028.95±140.69 1472.55±311.42 1559.55±320.79
CB4856 264.81±25.8 471.32±74.8 564.83±99.15
RC301 515.82±96.76 572.24±118.93 676.16±128.82
PD1074 269.52±29.21 518.5±83.42 621.42±110.72
ECA248 171.73±23.93 307.92±49.24 331.75±57.85
ECA36 157.05±6.09 271.17±37.15 285.56±44.67
ECA396 489.11±80.73 543.61±93.74 624.93±97.74
Table: Propoxur Estimates
Strain Weibull Log-Logistic Lognormal
------- ------------- ------------- -------------
PD1074 102.71±17.64 128.4±18.79 135.24±17.89
CB4856 204.62±27.23 227.04±26.01 229.08±24.5
ECA36 147±24.67 172.88±24.52 174.54±23.12
MY16 129.82±15.09 146.53±15.24 148.41±14.36
ECA396 97.45±18.41 121.89±18.14 126.27±17.17
RC301 85.92±11.72 103.31±11.88 108.98±11.35
XZ1516 156.32±21.94 182.46±20.94 185.29±19.86
Table: Propoxur Estimates
Strain Weibull Log-Logistic Lognormal
------- ------------- ------------- -------------
PD1074 462.46±37.45 445.04±41.43 432.96±37.42
CB4856 494.38±28.99 472.34±29.93 468.21±28.86
ECA36 454.63±31.42 438.07±32.39 431.67±31.38
MY16 367.86±17.6 359.19±19.56 352.43±18.96
ECA396 353.17±31.85 336.68±31.64 334.18±29.93
RC301 367.75±22.54 361.68±25.85 352.48±23.76
XZ1516 407.88±25.76 388.23±25.26 386.84±24.42
Table: Propoxur Estimates
Strain Weibull Log-Logistic Lognormal
------- --------------- --------------- ---------------
PD1074 1206.49±150.61 1542.49±324.65 1386.09±248.18
CB4856 867.38±76.98 982.68±122.49 956.97±109.58
ECA36 933.57±107.49 1110.02±175.15 1067.6±151.52
MY16 714.39±54.4 880.49±102.47 836.9±89.71
ECA396 802.36±124.64 929.94±196.43 884.42±164.17
RC301 928.94±98.21 1266.21±212.74 1140.01±168.61
XZ1516 751.59±75.68 826.03±110 807.61±97.65
Table: Pyraclostrobin Estimates
Strain Weibull Log-Logistic Lognormal
------- ----------- ------------- -----------
ECA396 5.42±0.39 6.91±0.42 7.13±0.43
CB4856 8.51±1.14 10.83±1.28 11.03±1.28
ECA36 11.85±0.96 14.98±0.96 15.33±0.94
MY16 7.84±0.77 10.29±0.88 10.69±0.89
XZ1516 9.5±1.03 12.27±1.17 12.67±1.17
RC301 16.55±2.36 20.19±2.38 20.34±2.33
PD1074 9.97±0.87 12.6±0.95 13.04±0.95
ECA248 8.5±1.18 11.21±1.37 11.79±1.41
Table: Pyraclostrobin Estimates
Strain Weibull Log-Logistic Lognormal
------- ------------ ------------- ------------
ECA396 44.72±2.22 49.64±3.35 49.37±3.71
CB4856 68.08±4.73 72.35±6.29 70.32±6.35
ECA36 81.45±3.51 81.7±3.8 80.38±3.72
MY16 81.2±4.85 91.25±7.69 89.48±8.27
XZ1516 102.61±6.99 119.74±12.74 117.61±14.3
RC301 84.31±6.05 82.94±6.28 82.36±6.2
PD1074 81.06±4.14 85.87±5.79 83.61±5.83
ECA248 77.68±5.47 81.55±7.5 78.53±7.29
Table: Pyraclostrobin Estimates
Strain Weibull Log-Logistic Lognormal
------- ------------- --------------- ---------------
ECA396 171.64±14.83 356.9±52.78 341.77±54.86
CB4856 256.12±32.58 483.31±101.09 448.15±93.9
ECA36 278.2±22.11 445.58±49.48 421.41±44.95
MY16 360.29±38.64 808.99±156.16 749.32±154.16
XZ1516 467.63±53.98 1168.56±271.13 1091.33±282.29
RC301 237.91±32.53 340.75±62.22 333.47±58.11
PD1074 308.22±27.54 585.1±90.15 536.2±83.35
ECA248 318.24±40.43 593.43±132.1 523±114.84
Table: Silver nitrate Estimates
Strain Weibull Log-Logistic Lognormal
------- ----------- ------------- ------------
MY16 1.9±0.36 2.56±0.43 2.92±0.6
XZ1516 10.19±1.5 14.17±2.6 18.81±6.5
PD1074 9.19±3.85 13.63±6.26 21.54±16.31
ECA36 7.99±2.19 13.02±4.63 22.86±19.51
ECA396 15.49±4.61 24.6±9.65 34.09±17.11
RC301 8.82±4.57 16.29±10.34 42.07±47.6
ECA248 5.21±0.89 7.75±1.63 10.84±4.12
CB4856 13.38±7.22 24.63±16.23 82.1±109.58
Table: Silver nitrate Estimates
Strain Weibull Log-Logistic Lognormal
------- -------------- ------------- -----------
MY16 34.56±10.76 41±16.16 53.28±28.8
XZ1516 97.71±23.41 158.17±54.42 NA
PD1074 155.84±94.96 NA NA
ECA36 128.52±56.02 NA NA
ECA396 154.96±68.22 NA NA
RC301 189.39±138.95 NA NA
ECA248 82.11±24.12 142.61±59.43 NA
CB4856 217.98±159.86 NA NA
Table: Silver nitrate Estimates
Strain Weibull Log-Logistic Lognormal
------- ------------- ------------- ----------
MY16 219.44±99.15 NA NA
Table: Triphenyl phosphate Estimates
Strain Weibull Log-Logistic Lognormal
------- ---------- ------------- ----------
ECA396 1.74±0.14 2.22±0.16 2.3±0.16
CB4856 2.39±0.24 2.98±0.27 3.12±0.29
ECA36 2.54±0.31 3.17±0.35 3.29±0.37
MY16 0.49±0.07 0.71±0.08 0.77±0.08
XZ1516 4.11±0.63 4.9±0.68 5.09±0.7
RC301 1.1±0.18 1.49±0.21 1.57±0.22
PD1074 3.86±0.35 4.47±0.37 4.58±0.36
ECA248 1.56±0.16 2.02±0.18 2.1±0.18
Table: Triphenyl phosphate Estimates
Strain Weibull Log-Logistic Lognormal
------- ----------- ------------- -----------
ECA396 17.38±0.98 21.94±2.1 22.37±2.72
CB4856 19.96±1.12 23.47±2.25 22.57±2.47
ECA36 20.15±1.26 23.67±2.51 23.13±2.87
MY16 11.81±1.18 17.73±3.3 18.67±4.53
XZ1516 21.57±1.62 22.83±2.35 22.05±2.3
RC301 15.76±1.67 21.97±4.53 23.04±6.53
PD1074 19.98±0.91 20.89±1.29 20.17±1.27
ECA248 17.13±1.13 21.42±2.4 21.79±3.08
Table: Triphenyl phosphate Estimates
Strain Weibull Log-Logistic Lognormal
------- ------------ ------------- -------------
ECA396 75.36±7.25 NA NA
CB4856 77.07±7.48 184.97±40.27 163.42±40.1
ECA36 75.37±8.99 176.65±45.46 162.36±47.94
MY16 89.87±15.5 NA NA
XZ1516 62.06±8.37 106.33±26.68 95.58±24.03
RC301 85.87±16.45 NA NA
PD1074 56.97±4.53 97.55±14.14 88.93±12.82
ECA248 79±9.24 NA NA
Table: 2,4-D Estimates
Strain Weibull Log-Logistic Lognormal
------- -------------- -------------- ----------
MY16 813.53±414.55 906.75±493.35 NA
Table: Zinc dichloride Estimates
Strain Weibull Log-Logistic Lognormal
------- ------------ ------------- ------------
MY16 51.08±2.82 64.58±5.12 83.07±19.79
XZ1516 52.16±3.55 64.9±5.84 77.48±16.39
PD1074 77.82±16.89 120.54±36.25 NA
ECA36 80.79±25.96 121.61±50.47 NA
ECA396 35.12±1.72 41.24±1.71 43.03±1.98
RC301 49.1±3.08 59.8±4.33 69.49±11.07
ECA248 51.52±3.26 62.76±4.68 72.95±12.87
CB4856 59.86±18.14 104.2±46.83 NA
Table: Zinc dichloride Estimates
Strain Weibull Log-Logistic Lognormal
------- -------------- ------------- --------------
MY16 197.78±19.81 289.39±53.79 NA
XZ1516 199.17±23.09 278.8±57.38 NA
PD1074 370.82±116.33 NA NA
ECA36 391.12±177.37 NA NA
ECA396 137.47±5.6 170.3±13.87 193.37±26.96
RC301 183.65±16.31 250.99±40.75 371.7±135.69
ECA248 186.36±17.6 254.84±45.6 368.98±155.29
CB4856 364.74±162.68 NA NA
Table: Zinc dichloride Estimates
Strain Weibull Log-Logistic Lognormal
------- ------------- ------------- ----------
ECA396 328.05±23.34 NA NA [[1]]
NULL
[[2]]
NULL
[[3]]
NULL
[[4]]
NULL
[[5]]
NULL
[[6]]
NULL
[[7]]
NULL
[[8]]
NULL
[[9]]
NULL
[[10]]
NULL
[[11]]
NULL
[[12]]
NULL
[[13]]
NULL
[[14]]
NULL
[[15]]
NULL
[[16]]
NULL
[[17]]
NULL
[[18]]
NULL
[[19]]
NULL
[[20]]
NULL
[[21]]
NULL
[[22]]
NULL
[[23]]
NULL
[[24]]
NULL
[[25]]
NULL
[[26]]
NULL
[[27]]
NULL
[[28]]
NULL
[[29]]
NULL
[[30]]
NULL
[[31]]
NULL
[[32]]
NULL
[[33]]
NULL
[[34]]
NULL
[[35]]
NULL
[[36]]
NULL
[[37]]
NULL
[[38]]
NULL
[[39]]
NULL
[[40]]
NULL
[[41]]
NULL
[[42]]
NULL
[[43]]
NULL
[[44]]
NULL
[[45]]
NULL
[[46]]
NULL
[[47]]
NULL
[[48]]
NULL
[[49]]
NULL
[[50]]
NULL
[[51]]
NULL
[[52]]
NULL
[[53]]
NULL
[[54]]
NULL
[[55]]
NULL
[[56]]
NULL
[[57]]
NULL
[[58]]
NULL
[[59]]
NULL
[[60]]
NULL
[[61]]
NULL
[[62]]
NULL
[[63]]
NULL
[[64]]
NULL
[[65]]
NULL
sessionInfo()R version 4.0.4 (2021-02-15)
Platform: x86_64-apple-darwin17.0 (64-bit)
Running under: macOS Catalina 10.15.7
Matrix products: default
BLAS: /Library/Frameworks/R.framework/Versions/4.0/Resources/lib/libRblas.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/4.0/Resources/lib/libRlapack.dylib
locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8
attached base packages:
[1] stats graphics grDevices utils datasets methods base
other attached packages:
[1] RColorBrewer_1.1-2 RCurl_1.98-1.2 ddpcr_1.15 kableExtra_1.3.4
[5] knitr_1.31 drc_3.0-1 MASS_7.3-53 easyXpress_0.1.0
[9] forcats_0.5.1 stringr_1.4.0 dplyr_1.0.4 purrr_0.3.4
[13] readr_1.4.0 tidyr_1.1.2 tibble_3.1.0 ggplot2_3.3.3
[17] tidyverse_1.3.0 workflowr_1.6.2
loaded via a namespace (and not attached):
[1] TH.data_1.0-10 colorspace_2.0-0 ellipsis_0.3.1
[4] rio_0.5.16 rprojroot_2.0.2 fs_1.5.0
[7] rstudioapi_0.13 farver_2.0.3 fansi_0.4.2
[10] mvtnorm_1.1-1 lubridate_1.7.9.2 xml2_1.3.2
[13] codetools_0.2-18 splines_4.0.4 readbitmap_0.1.5
[16] jsonlite_1.7.2 broom_0.7.5 dbplyr_2.1.0
[19] png_0.1-7 compiler_4.0.4 httr_1.4.2
[22] backports_1.2.1 assertthat_0.2.1 bmp_0.3
[25] Matrix_1.3-2 cli_2.3.1 later_1.1.0.1
[28] htmltools_0.5.1.1 tools_4.0.4 igraph_1.2.6
[31] gtable_0.3.0 glue_1.4.2 rebus.base_0.0-3
[34] Rcpp_1.0.6 carData_3.0-4 cellranger_1.1.0
[37] jquerylib_0.1.3 vctrs_0.3.6 svglite_2.0.0
[40] xfun_0.21 rebus.datetimes_0.0-1 openxlsx_4.2.3
[43] rvest_0.3.6 lifecycle_1.0.0 rebus.numbers_0.0-1
[46] gtools_3.8.2 zoo_1.8-8 scales_1.1.1
[49] hms_1.0.0 promises_1.2.0.1 sandwich_3.0-0
[52] yaml_2.2.1 curl_4.3 sass_0.3.1
[55] stringi_1.5.3 imager_0.42.7 highr_0.8
[58] plotrix_3.8-1 tiff_0.1-6 zip_2.1.1
[61] bitops_1.0-6 rlang_0.4.10 pkgconfig_2.0.3
[64] systemfonts_1.0.1 evaluate_0.14 lattice_0.20-41
[67] labeling_0.4.2 cowplot_1.1.1 tidyselect_1.1.0
[70] magrittr_2.0.1 R6_2.5.0 generics_0.1.0
[73] multcomp_1.4-16 DBI_1.1.1 pillar_1.5.0
[76] haven_2.3.1 whisker_0.4 foreign_0.8-81
[79] withr_2.4.1 rebus_0.1-3 survival_3.2-7
[82] abind_1.4-5 rebus.unicode_0.0-2 modelr_0.1.8
[85] crayon_1.4.1 car_3.0-10 utf8_1.1.4
[88] rmarkdown_2.7 jpeg_0.1-8.1 grid_4.0.4
[91] readxl_1.3.1 data.table_1.14.0 git2r_0.28.0
[94] reprex_1.0.0 digest_0.6.27 webshot_0.5.2
[97] httpuv_1.5.5 munsell_0.5.0 viridisLite_0.3.0
[100] bslib_0.2.4
