Running CAFE on OrthoFinder output

We will be analyzing the gene family expansion and contraction using CAFE5 developed by the Hahn lab. We can use the output files generated by OrthoFinder after a quick manipulation to format the input needed to estimate the gene gain and loss. CAFE5 requires two input: - Input 1: The number of genes per species in each gene family (here orthogroup). - Input 2: An ultrametric time tree with the same species name.

1. Formatting the Gene Count Matrix

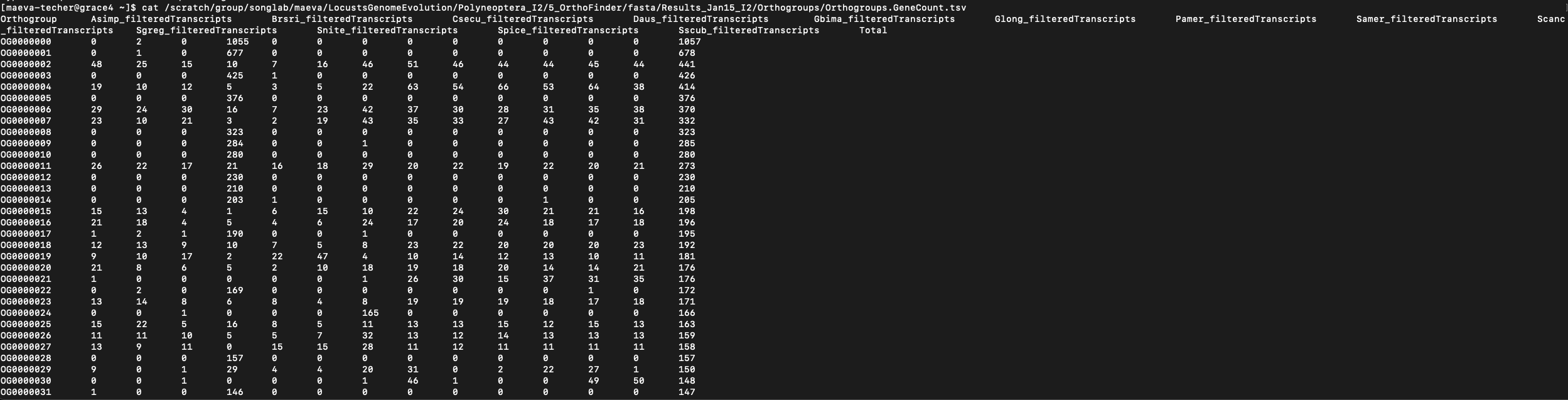

For input 1, we will be using the GeneCount matrix generated by OrthoFinder2 which is located in the Results_DATE/Orthogroups output folder. The file of interest is the Orthogroups.GeneCount.tsv matrix which is formatted as shown below:

module_spider

However, whether it is the Polyneoptera run (13 species) or Schistocerca only (6 species), we encounter an issue for downstream analysis as some orthogroups have too many genes or a too high size variation which can cause difficulty for model convergence. We found a large number of duplication events in several orthogroups which can bias the overal picture. We will then apply some filtering rules:

For Polyneoptera - We remove all orthogroups with > 400 genes - We remove all orthogroups with > 100 size variation

For Schistocerca - We remove all orthogroups with > X genes - We remove all orthogroups with > X size variation

We can do it manually or use the following script python 1_filter_large_variation_OGs.py:

srun --ntasks 1 --cpus-per-task 8 --mem 50G --time 03:00:00 --pty bash

ml GCCcore/14.2.0 Python/3.13.1
#python -m venv --system-site-packages ./venv
#source ./venv/bin/activate
#pip install --upgrade pip
#pip install pandas

import pandas as pd

# Input/Output file paths
input_file = "Orthogroups.GeneCount.tsv"
output_file = "Orthogroups_drop4CAFE.tsv"

# Read TSV (tab-separated)
df = pd.read_csv(input_file, sep="\t")

# Drop orthogroups with more than 450 genes in total
df_filtered = df[df.iloc[:, 1:].sum(axis=1) <= 200] # For Schistocerca
#df_filtered = df[df.iloc[:, 1:].sum(axis=1) <= 300] # For Polyneoptera

# Drop orthogroups where the max difference across species is >100
df_filtered = df_filtered[df_filtered.iloc[:, 1:].max(axis=1) - df_filtered.iloc[:, 1:].min(axis=1) <= 50] # For Schistocerca
#df_filtered = df_filtered[df_filtered.iloc[:, 1:].max(axis=1) - df_filtered.iloc[:, 1:].min(axis=1) <= 100] # For Polyneoptera

# Write the filtered table to a TSV file
df_filtered.to_csv(output_file, sep="\t", index=False)
print(f"Filtered orthogroups written to: {output_file}")

Then we need to format the file more by removing the Total column, adding a column Description with values = null.

# Step 1: Add "(null)" as the first column
awk -F'\t' '{print "(null)\t"$0}' Orthogroups_drop4CAFE.tsv > tmp.tsv

# Step 2: Rename the first header column to "Desc"
sed -i '1s/^(null)/Desc/' tmp.tsv

# Step 3: Remove the last column (Total), even if column numbers vary
awk -F'\t' '{$NF=""; print $0}' tmp.tsv | rev | sed 's/^\s*//g' | rev | tr ' ' '\t' > Orthogroups_readytoCAFE.tsv

# Optional: remove intermediate file
rm tmp.tsv

# We clean the species name so it is easier for plotting later
sed '1s/_filteredTranscripts//g' Orthogroups_readytoCAFE.tsv > Orthogroups_readytoCAFE_cleaned.tsv

2. Formatting the Species Tree

For input 2, we will copy the tree file generated by OrthoFinder unless we specify our own calibrated tree. We will take SpeciesTree_rooted.txt from the Results_DATE/SpeciesTree output folder.

If we modify the header (names of species) of the GeneCount file, this must be reflected in the species tree file as well. For CAFE, the tree must be ultrametric in the past I used directly the script make_ultrametric.py available from Orthofinder:

# Orthofinder needs to be loaded for it
# On Grace we may have to create a virtual environment if numpy is not installed
# python -m venv --system-site-packages ./venv
# source venv/bin/activate
# pip install numpy

#ml GCC/12.3.0  OpenMPI/4.1.5 OrthoFinder/2.5.5
#python ./make_ultrametric.py SpeciesTree_rooted.txt

However, I noticed that the tree does not rescale always properly and also if the branches are too short like for Schistocerca, CAFE will throw the inf error as the model can not converge as there is not enough time for gene family evolution. So now, as we do not have a calibrated tree, I rescale the topology of the tree (which was run with bootstraps) with a factor of 10 and make ultrametric in R:

ml GCC/13.2.0  OpenMPI/4.1.6 R_tamu/4.4.1
export R_LIBS=$SCRATCH/R_LIBS_USER/

We then launch R:

library(ape)

# Set your input/output
input_tree <- "SpeciesTree_rooted.txt"
output_tree <- "rescaled_ultrametric_SpeciesTree.txt"

# Read the tree
tree <- read.tree(input_tree)

# Force ultrametric (can adjust lambda or try other methods if needed)
ultra_tree <- chronos(tree, lambda = 1)

# Optional: check it worked
stopifnot(is.ultrametric(ultra_tree))

# 🔁 RESCALE: Multiply all branch lengths by a factor (e.g., ×100)
scaling_factor <- 10
ultra_tree$edge.length <- ultra_tree$edge.length * scaling_factor

# Write the rescaled ultrametric tree
write.tree(ultra_tree, file = output_tree)

cat("✅ Tree written to:", output_tree, "\n")

As we did earlier for the Orthogroups file, we want to clean the name so it is easier for plotting later:

sed 's/_filteredTranscripts//g' rescaled_ultrametric_SpeciesTree.txt > rescaled_ultrametric_SpeciesTree_cleaned.txt

3. Running CAFE5

module purge
ml GCC/12.2.0 CAFE5/5.0.0

cafe5 -t rescaled_ultrametric_SpeciesTree_cleaned.txt -i Orthogroups_readytoCAFE_cleaned.tsv

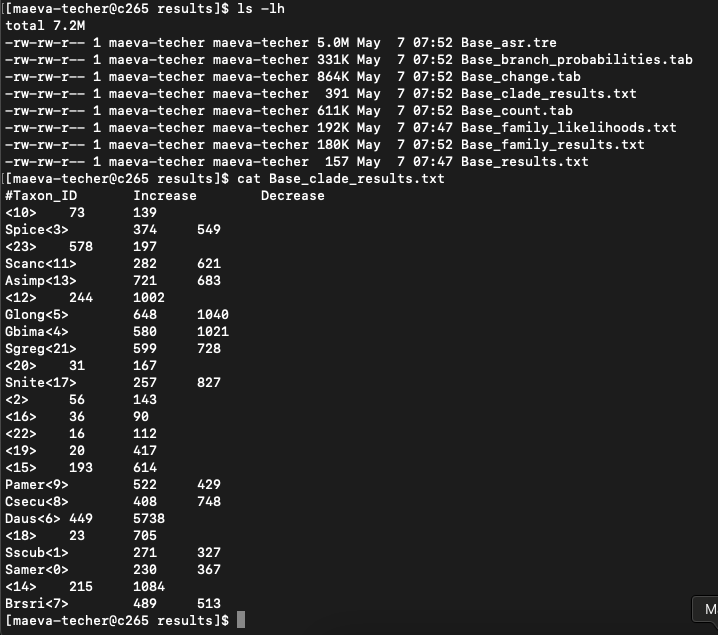

When successful we can look at the results folder and extract the results from Base_clade_results

cafe results

4. Plot results

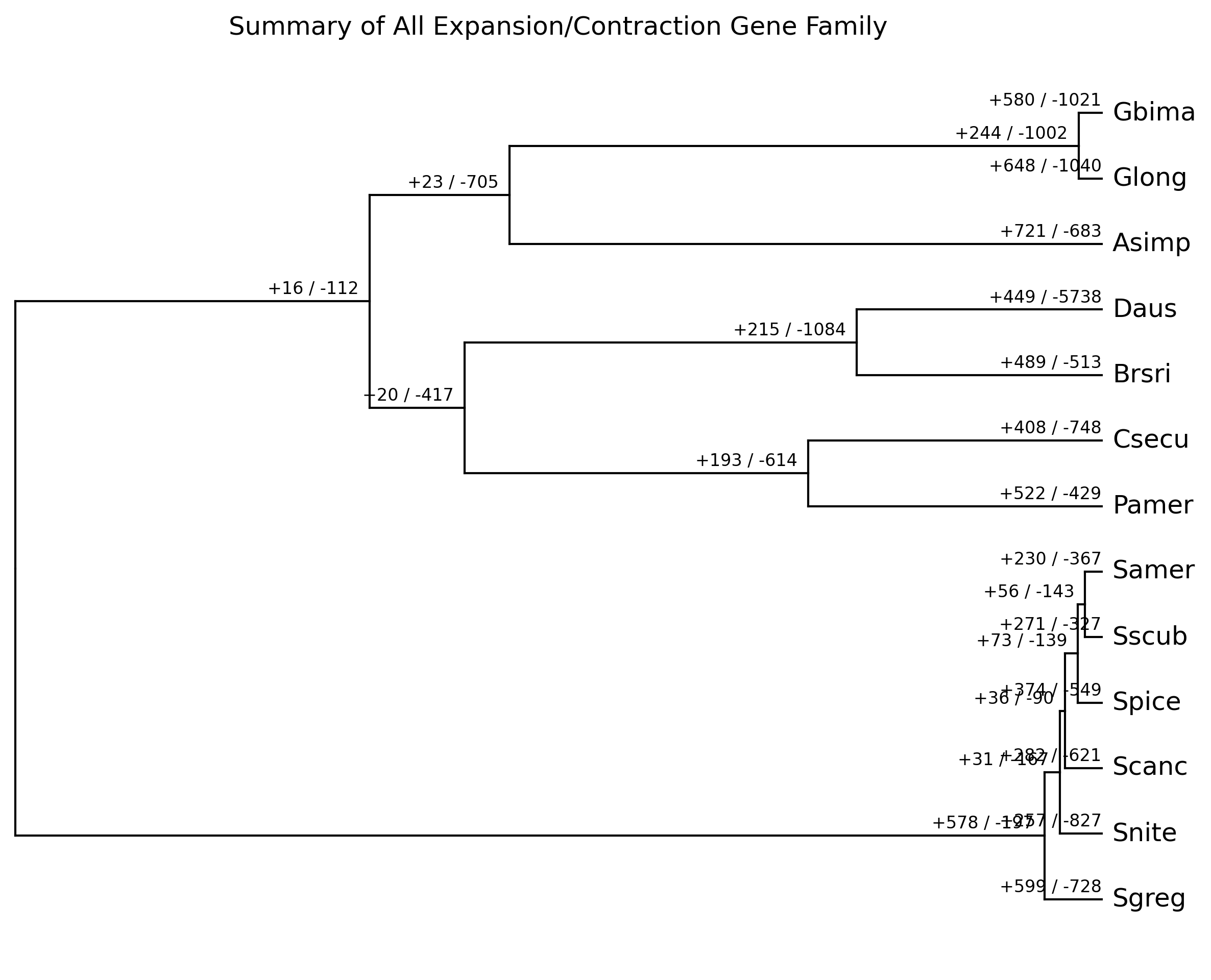

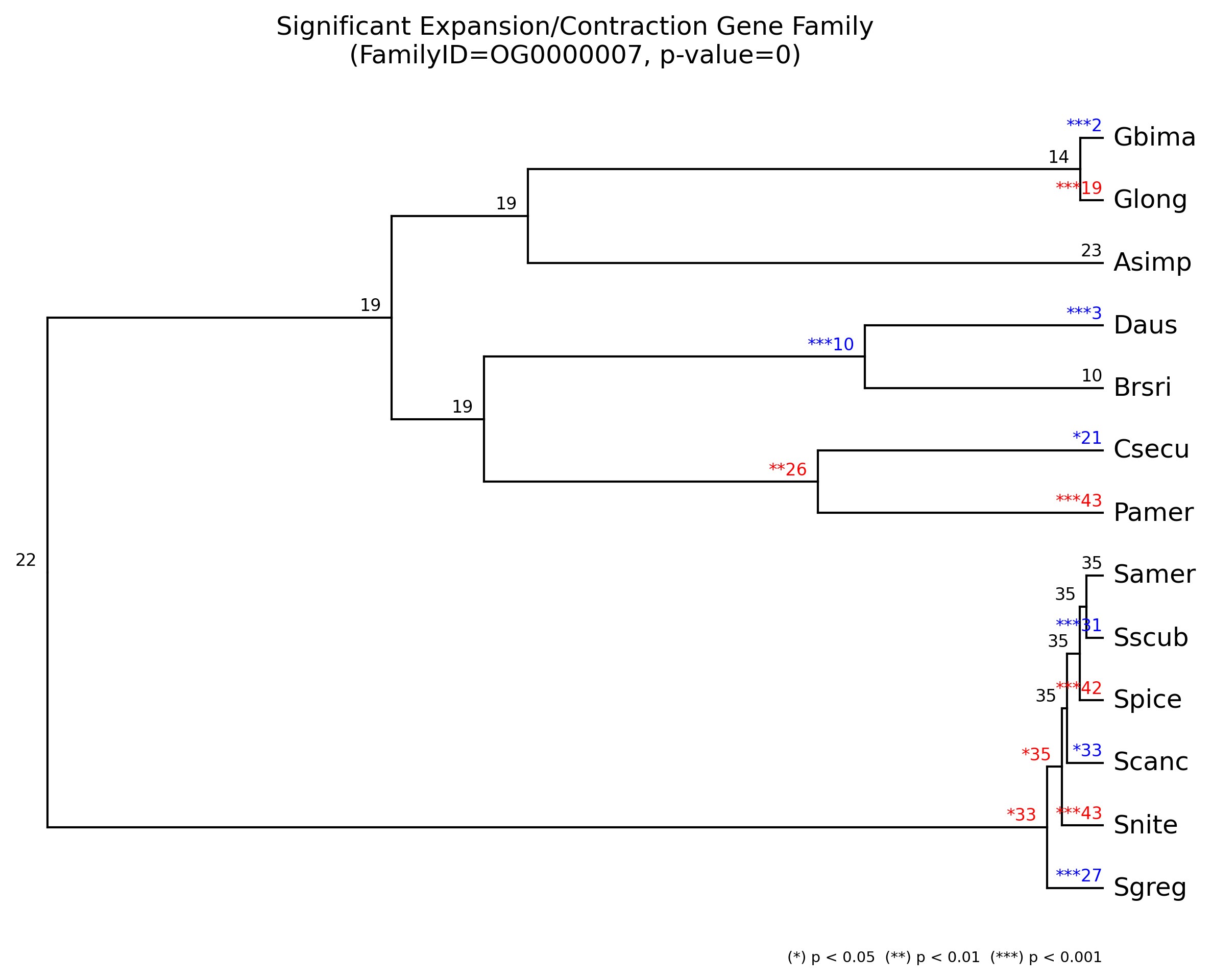

We can plot the results for all families and for each gene family by using cafeplotter.

For that we run the following commands and output examples are shown below:

source /venv/bin/activate
# pip install cafeplotter

cafeplotter -i results -o plots

cafe results

cafe results

4. KEGG pathways

We are interested in knowing the function of the gene family expansion per species. First we need to extract the list of genes expanding for each species. We are working on two different files.

The first file will be looking at each gene family that expanded and those who contracted using the Base_change.tab from CAFE5 which shows the increase and decrease for each node of the tree for each species.

The second file will be the actual gene counts that was used as input Orthogroups.GeneCount.tsv and we will look only at families with at least 10 copies per species.

Base change gain

Step 1

library(dplyr)
library(tidyr)
library(readr)
library(purrr)

# Load files
base_change <- read.delim("/Users/maevatecher/Documents/GitHub/locust-comparative-genomics/data/cafe5_results/Results_26May_iqtree/Base_change.tab", sep="\t", header=TRUE)

# Current names
names(base_change)
 [1] "FamilyID"  "Samer.0."  "Sscub.1."  "X.2."      "Spice.3."  "X.4."
 [7] "Scanc.5."  "X.6."      "Snite.7."  "Gbima.8."  "Glong.9."  "X.10."
[13] "Sgreg.11." "X.12."     "Asimp.13." "Lmigr.14." "X.15."     "X.16."
[19] "X.17."     "Brsri.18." "X.19."     "Csecu.20." "Pamer.21." "X.22."
[25] "X.23."     "X.24."
# Clean up: remove junk "X.*" columns
base_change <- base_change %>%
  dplyr::select(-matches("^X"))  # drop all columns starting with X

# Rename properly
colnames(base_change) <- sub("\\..*", "", colnames(base_change))  # keep only part before first dot


# make sure FamilyID column is consistently called Orthogroup
colnames(base_change)[1] <- "Orthogroup"

# Now FamilyID stays, and others become clean species codes
head(base_change)
  Orthogroup Samer Sscub Spice Scanc Snite Gbima Glong Sgreg Asimp Lmigr Brsri
1  OG0000002    -1     0    -1     2     0    -5    21     0    -4    -1    -2
2  OG0000004     0    -1    -1     0    -1     1    -4     0     1     1     2
3  OG0000005     1     0     0     0    -4    -6     2     1    10    -2    -4
4  OG0000006     0     0     0    -1     0    -4     0     0     0     1    -2
5  OG0000007     0     1     0     2     0    -2     0     6     7    -4     1
6  OG0000009     0     4     3    -1    -1     0     0    -1     0     0     1
  Csecu Pamer
1     6    -7
2    -2    -2
3    -1    -1
4    -7    26
5    -6     7
6     0     0
# -------------------------
# Load orthogroup map
# -------------------------
ortho_dir <- "/Users/maevatecher/Documents/GitHub/locust-comparative-genomics/data/orthofinder/Polyneoptera"
input_file <- file.path(ortho_dir, "Results_I2_iqtree/Orthogroups_genesproteinbiotype_13species_annotated_May2025.csv")
ortho_map <- read.csv(input_file, header = TRUE, stringsAsFactors = FALSE)

# -------------------------
# Species translation
# -------------------------
species_translate <- c(
  Sgreg = "gregaria",
  Scanc = "cancellata",
  Spice = "piceifrons",
  Samer = "americana",
  Sscub = "cubense",
  Snite = "nitens",
  Lmigr = "locusta"
)

# -------------------------
# Build expanded_genes tibble
# -------------------------
# -------------------------
# Build expanded + contracted genes tibble
# -------------------------
cafe_genes <- map_dfr(names(species_translate), function(sp) {
  message("Collecting OGs for ", sp)

  # expansions (>0) and contractions (<0)
  expanded_ogs <- base_change %>%
    filter(!!sym(sp) > 0) %>%
    mutate(ChangeType = "Expansion") %>%
    pull(Orthogroup)

  contracted_ogs <- base_change %>%
    filter(!!sym(sp) < 0) %>%
    mutate(ChangeType = "Contraction") %>%
    pull(Orthogroup)

  all_ogs <- tibble(
    Orthogroup = c(expanded_ogs, contracted_ogs),
    ChangeType = c(rep("Expansion", length(expanded_ogs)),
                   rep("Contraction", length(contracted_ogs)))
  )

  # If Lmigr -> reuse Sgreg’s genes
  if (sp == "Lmigr") {
    proxy_sp <- "Sgreg"
  } else {
    proxy_sp <- sp
  }

  ortho_map %>%
    filter(Species == proxy_sp, Orthogroup %in% all_ogs$Orthogroup) %>%
    left_join(all_ogs, by = "Orthogroup") %>%
    mutate(Species = sp) %>%
    dplyr::select(Species, Orthogroup, GeneID, ChangeType) %>%
    distinct()
})


# Preview
head(cafe_genes)
  Species Orthogroup       GeneID ChangeType
1   Sgreg  OG0000005 LOC126281744  Expansion
2   Sgreg  OG0000005 LOC126281746  Expansion
3   Sgreg  OG0000005 LOC126282022  Expansion
4   Sgreg  OG0000005 LOC126282417  Expansion
5   Sgreg  OG0000005 LOC126335687  Expansion
6   Sgreg  OG0000005 LOC126336625  Expansion

Step 2

Then we use the same function we used for DEGs GO terms and KEGG enrichment:

# === Paths and Constants ===
workDir     <- "/Users/maevatecher/Documents/GitHub/locust-comparative-genomics/data"
GODir       <- file.path(workDir, "list", "GO_Annotations")
RefDir      <- file.path(workDir, "RefSeq")
enrichDir   <- file.path(workDir, "cafe5_results/Base_change_FILE")

species_list <- c("gregaria", "cancellata", "piceifrons", "americana", "cubense", "nitens", "locusta")

# === Load Required Libraries ===
library(data.table)
library(dplyr)
library(readr)
library(clusterProfiler)
library(GO.db)
library(rtracklayer)
library(DesertLocustR)  # Local installation

gff_map <- c(
  gregaria   = "GCF_023897955.1_iqSchGreg1.2_genomic.gff",
  cancellata = "GCF_023864275.1_iqSchCanc2.1_genomic.gff",
  piceifrons = "GCF_021461385.2_iqSchPice1.1_genomic.gff",
  americana  = "GCF_021461395.2_iqSchAmer2.1_genomic.gff",
  cubense    = "GCF_023864345.2_iqSchSeri2.2_genomic.gff",
  nitens     = "GCF_023898315.1_iqSchNite1.1_genomic.gff",
  locusta    = "GCF_023897955.1_iqSchGreg1.2_genomic.gff"
)

annot_map <- c(
  gregaria   = "EggNog_Arthropoda_one2one.emapper.annotations",
  cancellata = "GCF_023864275.1_iqSchCanc2.1_Arthopoda_one2one.emapper.annotations",
  piceifrons = "GCF_021461385.2_iqSchPice1.1_Arthopoda_one2one.emapper.annotations",
  americana  = "GCF_021461395.2_iqSchAmer2.1_Arthopoda_one2one.emapper.annotations",
  cubense    = "GCF_023864345.2_iqSchSeri2.2_Arthopoda_one2one.emapper.annotations",
  nitens     = "GCF_023898315.1_iqSchNite1.1_Arthopoda_one2one.emapper.annotations",
  locusta    = "EggNog_Arthropoda_one2one.emapper.annotations"
)

# GO enrichment
enrich_GO <- function(dge_genes.df, term2gene, term2name, pval, qval){
  genes <- rownames(dge_genes.df)
  enricher(
    genes,
    TERM2GENE = term2gene,
    TERM2NAME = term2name,
    pvalueCutoff = pval,
    pAdjustMethod = "BH",
    qvalueCutoff = qval
  )
}

# KEGG preparation
assign_kegg_ids <- function(sig_genes.df){
  if (is.vector(sig_genes.df)) {
    sig_genes.df <- data.frame(X.query = sig_genes.df, stringsAsFactors = FALSE)
  } else {
    sig_genes.df$X.query <- rownames(sig_genes.df)
  }

  dge_with_kegg_ids <- left_join(sig_genes.df, kegg_final, by = "X.query")
  dge_with_kegg_ids$KEGG_ko[grepl("^K", dge_with_kegg_ids$KEGG_ko)]
}


# KEGG enrichment
enrich_KEGG <- function(dge_genes.df, pval_cutoff = 0.05, qval_cutoff = 0.2) {
  gene_with_kegg_ids <- assign_kegg_ids(dge_genes.df)
  enrichKEGG(
    gene         = gene_with_kegg_ids,
    organism     = "ko",
    pvalueCutoff = pval_cutoff,
    qvalueCutoff = qval_cutoff,
    pAdjustMethod = "BH"
  )
}


run_GO_enrichment_selected <- function(
    gene_list,
    go_table,
    term2name,
    species,
    suffix,
    ontology,
    output_dir,
    show_n = 30,
    top_n = 30
) {
  if (length(gene_list) == 0) return(NULL)

  if (!dir.exists(output_dir)) {
    dir.create(output_dir, recursive = TRUE)
  }

  # Make sure column names are correct for clusterProfiler::enricher()
  go_table_fixed <- go_table[, 1:2]
  colnames(go_table_fixed) <- c("go_id", "gene_id")

  term2name_fixed <- term2name[, 1:2]
  colnames(term2name_fixed) <- c("go_id", "name")

  # Run enrichment
  go_result <- enricher(
    gene = gene_list,
    TERM2GENE = go_table_fixed,
    TERM2NAME = term2name_fixed,
    pvalueCutoff = 0.05,
    qvalueCutoff = 0.2
  )

  if (!is.null(go_result) &&
      inherits(go_result, "enrichResult") &&
      nrow(go_result@result) > 0 &&
      sum(!is.na(go_result@result$Description)) > 0) {

    # Save dotplot
    try({
      pdf(file = file.path(output_dir, paste0("GO_", ontology, "_dotplot_", species, "_", suffix, ".pdf")),
          width = 8, height = 6)
      print(dotplot(go_result, showCategory = min(show_n, nrow(go_result@result))) +
              ggtitle(paste(ontology, suffix)))
      dev.off()
    }, silent = TRUE)

    # Export top terms with log10(p)
    species_enrich_ready <- go_result@result[, c("ID", "p.adjust")]
    species_enrich_ready$logp <- -log10(species_enrich_ready$p.adjust)
    species_enrich_ready <- species_enrich_ready[order(-species_enrich_ready$logp), ]
    species_enrich_ready <- head(species_enrich_ready, n = top_n)[, c("ID", "logp")]

    write.table(species_enrich_ready,
                file = file.path(output_dir, paste0("enrich_", ontology, "_GOs_", species, "_", suffix, ".txt")),
                sep = "\t", quote = FALSE, row.names = FALSE, col.names = FALSE)

    # Also export the full table if needed
    write.csv(go_result@result,
              file = file.path(output_dir, paste0("GO_enrichment_full_", ontology, "_", species, "_", suffix, ".csv")),
              row.names = FALSE)

    # ✅ Return enrichment results with Species + ONTOLOGY
    df <- go_result@result %>%
      dplyr::mutate(Species = species, ONTOLOGY = ontology)
    return(df)

  } else {
    message(paste0("⚠️ No GO enrichment result to plot/export for ", species, " - ", suffix, " [", ontology, "]"))
    return(NULL)
  }
}


run_KEGG_enrichment_selected <- function(gene_list, species, suffix, output_dir,
                                         show_n = 40, top_n = 40) {
  if (length(gene_list) == 0) return(NULL)

  kegg_result <- enrich_KEGG(gene_list, pval_cutoff = 0.05, qval_cutoff = 0.2)

  if (!is.null(kegg_result) && inherits(kegg_result, "enrichResult") &&
      nrow(kegg_result@result) > 0) {
    try({
      pdf(file = file.path(output_dir, paste0("KEGG_dotplot_", species, "_", suffix, ".pdf")),
          width = 8, height = 6)
      print(dotplot(kegg_result, showCategory = min(show_n, nrow(kegg_result@result))) +
              ggtitle(paste("KEGG", suffix)))
      dev.off()
    }, silent = TRUE)

    # Full result
    write.csv(kegg_result@result,
              file = file.path(output_dir, paste0("KEGG_enrichment_", species, "_", suffix, ".csv")),
              row.names = FALSE)

    # Top KEGG terms
    species_enrich_kegg <- kegg_result@result[, c("ID", "p.adjust")]
    species_enrich_kegg$logp <- -log10(species_enrich_kegg$p.adjust)
    species_enrich_kegg <- species_enrich_kegg[order(-species_enrich_kegg$logp), ][1:min(nrow(species_enrich_kegg), top_n), ]
    species_enrich_kegg <- species_enrich_kegg[, c("ID", "logp")]

    write.table(species_enrich_kegg[, c("ID", "logp")],
                file = file.path(output_dir, paste0("enrich_KEGG_", species, "_", suffix, ".txt")),
                sep = "\t", quote = FALSE, row.names = FALSE, col.names = FALSE)

    # ✅ return the full result with Species
    df <- as.data.frame(kegg_result@result)
    df$Species <- species
    return(df)

  } else {
    message(paste("⚠️ No KEGG enrichment result to plot/export for", species, "-", suffix))
    return(NULL)
  }
}

GO_terms_list      <- list()
ontologies_list    <- list()
term2name_list     <- list()
kegg_final_list    <- list()

for (sp in species_list) {
  message("Preparing annotations for ", sp)
  sp_code <- species_translate[sp]
  eggnog_path <- file.path(GODir, annot_map[[sp]])
  gff_path    <- file.path(RefDir,  gff_map[[sp]])

  output_dir <- file.path(enrichDir, sp)
  dir.create(output_dir, recursive = TRUE, showWarnings = FALSE)

  eggnog_annots <- read.delim(eggnog_path, sep = "\t", skip = 4)
  eggnog_annots <- eggnog_annots[1:(nrow(eggnog_annots) - 3), ]

  gff.df <- as.data.frame(import(gff_path))
  protein_2_gene <- unique(gff.df[c("Name", "gene")])
  protein_2_gene_df <- subset(protein_2_gene, grepl("^XP", protein_2_gene$Name))

  eggnog_annots$Name <- eggnog_annots$X.query
  eggnog_annots <- left_join(eggnog_annots, protein_2_gene_df, by = "Name")
  eggnog_annots$X.query <- eggnog_annots$gene

  # GO
  GO_terms <- data.table(eggnog_annots[, c("X.query", "GOs")])
  GO_terms <- GO_terms[, .(GOs = unlist(strsplit(GOs, ","))), by = X.query]
  term2name <- GO_terms[, .(GOs, X.query)]
  term2name$Names <- mapIds(GO.db, keys = term2name$GOs, column = "TERM", keytype = "GOID")
  term2name$Ontology <- mapIds(GO.db, keys = term2name$GOs, column = "ONTOLOGY", keytype = "GOID")
  term2name <- as.data.frame(term2name)

  go_bp <- term2name[term2name$Ontology == "BP", c("GOs", "X.query")]
  go_mf <- term2name[term2name$Ontology == "MF", c("GOs", "X.query")]
  go_cc <- term2name[term2name$Ontology == "CC", c("GOs", "X.query")]
  term2name_filtered <- term2name[!is.na(term2name$Names), c("GOs", "Names")]
  ontologies <- list(BP = go_bp, MF = go_mf, CC = go_cc)

  # KEGG
  KO_terms <- data.table(eggnog_annots[, c("X.query", "KEGG_ko")])
  KO_terms$KEGG_ko <- gsub("ko:", "", as.character(KO_terms$KEGG_ko))
  KO_terms <- KO_terms[, .(KEGG_ko = unlist(strsplit(KEGG_ko, ","))), by = X.query]
  kegg_final <- KO_terms[, .(KEGG_ko, X.query)]

  # Store per species
  GO_terms_list[[sp]]     <- GO_terms
  ontologies_list[[sp]]   <- ontologies
  term2name_list[[sp]]    <- term2name_filtered
  kegg_final_list[[sp]]   <- kegg_final
}

Step 3

We run the loop using the the list of selected genes extracted in step 1:

suffix <- "cafe"

species_translate <- c(
  gregaria   = "Sgreg",
  cancellata = "Scanc",
  piceifrons = "Spice",
  americana  = "Samer",
  cubense    = "Sscub",
  nitens     = "Snite",
  locusta    = "Lmigr"   # proxy annotation from gregaria
)

# ===== Loop through each species =====
go_results_all <- list()
kegg_results_all <- list()

# initialize diagnostic log
diagnostic_log <- data.frame(
  Species = character(),
  ChangeType   = character(),
  CAFE_genes = integer(),
  GO_overlap = integer(),
  KEGG_overlap = integer(),
  stringsAsFactors = FALSE
)

for (sp in species_list) {
  sp_code <- species_translate[sp]

  for (chg in c("Expansion", "Contraction")) {
    message("Processing ", sp, " (", chg, ")")

    output_dir <- file.path(enrichDir, sp, chg)
    dir.create(output_dir, recursive = TRUE, showWarnings = FALSE)

  # 1. Extract cafe GeneIDs for this species
    species_genes <- cafe_genes %>%
      filter(Species == sp_code, ChangeType == chg) %>%
      pull(GeneID) %>%
      unique()

    n_cafe <- length(species_genes)
    message("→ ", n_cafe, " Gene families with ", chg, " in ", sp)

  # 2. Check overlaps with GO and KEGG annotations
  go_annot   <- GO_terms_list[[sp]]$X.query
  kegg_annot <- kegg_final_list[[sp]]$X.query

  go_overlap   <- sum(species_genes %in% go_annot)
  kegg_overlap <- sum(species_genes %in% kegg_annot)

  message("→ Overlap counts: GO = ", go_overlap, ", KEGG = ", kegg_overlap)

  if (kegg_overlap == 0) {
    message("  ⚠️ No KEGG matches for ", sp,
            ". Example missing IDs: ",
            paste(head(setdiff(species_genes, kegg_annot), 5), collapse = ", "))
  }

  # Add to diagnostic log
    diagnostic_log <- rbind(diagnostic_log, data.frame(
      Species      = sp,
      ChangeType   = chg,
      CAFE_genes   = n_cafe,
      GO_overlap   = go_overlap,
      KEGG_overlap = kegg_overlap
    ))


  # 3. Run GO enrichment (BP, MF, CC separately)
  selected_genes_go <- species_genes[species_genes %in% go_annot]
  go_by_onto <- list()

    for (onto in names(ontologies_list[[sp]])) {
      go_res <- run_GO_enrichment_selected(
        gene_list  = selected_genes_go,
        go_table   = ontologies_list[[sp]][[onto]],
        term2name  = term2name_list[[sp]],
        species    = paste0(sp, "_", chg),
        suffix     = suffix,
        ontology   = onto,
        output_dir = output_dir
      )

      if (!is.null(go_res)) {
        go_res <- as.data.frame(go_res) %>%
          mutate(Species = sp, ChangeType = chg, ONTOLOGY = onto)
        go_by_onto[[onto]] <- go_res
      }
    }

    go_results_all[[paste0(sp, "_", chg)]] <- go_by_onto

  # 4. Run KEGG enrichment
    selected_genes_kegg <- species_genes[species_genes %in% kegg_annot]
    kegg_final <<- kegg_final_list[[sp]]
    kegg_res <- run_KEGG_enrichment_selected(
      gene_list  = selected_genes_kegg,
      species    = paste0(sp, "_", chg),
      suffix     = suffix,
      output_dir = output_dir
    )

    if (!is.null(kegg_res)) {
      kegg_results_all[[paste0(sp, "_", chg)]] <- kegg_res %>%
        mutate(Species = sp, ChangeType = chg)
    }
  }
}

# save diagnostic log
write.csv(diagnostic_log,
          file.path(enrichDir, "diagnostic_overlap_log.csv"),
          row.names = FALSE)
print(diagnostic_log)
      Species  ChangeType CAFE_genes GO_overlap KEGG_overlap
1    gregaria   Expansion       1178        927          927
2    gregaria Contraction        123        108          108
3  cancellata   Expansion        831        640          640
4  cancellata Contraction        215        177          177
5  piceifrons   Expansion       1057        793          793
6  piceifrons Contraction        177        150          150
7   americana   Expansion        687        568          568
8   americana Contraction        184        135          135
9     cubense   Expansion        824        623          623
10    cubense Contraction        189        171          171
11     nitens   Expansion        830        599          599
12     nitens Contraction        238        215          215
13    locusta   Expansion       2162       2013         2013
14    locusta Contraction        843        704          704

Step 4

We need to make a heat map with all species:

library(dplyr)
library(tidyr)
library(pheatmap)
library(tibble)

# 1. Flatten all species results
all_go_results <- bind_rows(
  lapply(go_results_all, function(sp_list) bind_rows(sp_list))
)

# 2. Loop through each ontology
for (onto in c("BP", "MF", "CC")) {

  # Filter for this ontology
  onto_res <- all_go_results %>% filter(ONTOLOGY == onto)
  if (nrow(onto_res) == 0) {
    message("⚠️ No results for ", onto)
    next
  }

  # 3. Take top 10 per species
  top_go <- onto_res %>%
    group_by(Species, ChangeType) %>%
    slice_min(order_by = p.adjust, n = 15, with_ties = FALSE) %>%
    ungroup()

    # Add signed score: expansions positive, contractions negative
  top_go <- top_go %>%
    mutate(score = -log10(p.adjust) * ifelse(ChangeType == "Contraction", -1, 1))

  # Build matrix
# Build matrix
heatmap_mat <- top_go %>%
  dplyr::select(Description, Species, ChangeType, score) %>%
  pivot_wider(names_from = Description, values_from = score, values_fill = 0) %>%
  mutate(RowID = paste(Species, ChangeType, sep = "_")) %>%
  column_to_rownames("RowID")

# 🔑 Ensure only numeric columns remain
heatmap_mat <- heatmap_mat %>%
  dplyr::select(where(is.numeric)) %>%
  as.matrix()


# Define desired species order
species_order <- c("locusta", "gregaria", "nitens",
                   "cancellata", "piceifrons", "americana", "cubense")

row_order <- unlist(lapply(species_order, function(sp) c(paste0(sp, "_Expansion"),
                                                          paste0(sp, "_Contraction"))))

heatmap_mat <- heatmap_mat[row_order[row_order %in% rownames(heatmap_mat)], , drop = FALSE]

# Set color scale: 0 = white, gradient for >0
  max_val <- max(abs(heatmap_mat), na.rm = TRUE)
  breaks <- seq(-max_val, max_val, length.out = 101)
  colors <- colorRampPalette(c("blue", "white", "orange"))(100)

# Save heatmap
out_pdf <- file.path(enrichDir, paste0("GO_", onto, "_heatmap_top15_ExpVsCon.pdf"))
pdf(out_pdf, width = 12, height = 6)
pheatmap(
  mat = heatmap_mat,
  cluster_rows = FALSE,  # keep species order fixed
  cluster_cols = FALSE,   # cluster GO terms
  scale = "none",
  fontsize_row = 12,
  fontsize_col = 6,
  angle_col = 90,
  color = colors,
  breaks = breaks,
  main = paste("Top 10 GO",
               ifelse(onto == "BP", "Biological Process",
                      ifelse(onto == "MF", "Molecular Function", "Cellular Component")),
               "terms per species")
)
dev.off()

}

Step 5

This code is to make a KEGG pathway enrichment:

library(dplyr)
library(tidyr)
library(ggplot2)

# === Collect KEGG results ===
all_kegg_results <- bind_rows(
  lapply(names(kegg_results_all), function(sp) {
    kegg_results_all[[sp]]
  })
)

# === Take top 15 per species (expansion + contraction separately) ===
top_kegg <- all_kegg_results %>%
  group_by(Species, ChangeType) %>%
  slice_min(order_by = p.adjust, n = 15, with_ties = FALSE) %>%
  ungroup()

# === Clean dataframe ===
heatmap_df_kegg <- top_kegg %>%
  dplyr::select(Species, category, subcategory, Count, ChangeType) %>%
  filter(!is.na(category), !is.na(subcategory)) %>%
  mutate(Count = as.numeric(Count))

# === Species order ===
species_order <- c("cubense", "americana", "piceifrons",
                   "cancellata", "nitens", "gregaria", "locusta")
heatmap_df_kegg$Species <- factor(heatmap_df_kegg$Species, levels = species_order)

# === Subcategory order within each category ===
heatmap_df_kegg <- heatmap_df_kegg %>%
  group_by(category) %>%
  mutate(subcategory = factor(subcategory, levels = unique(subcategory))) %>%
  ungroup()

# === Shared max value for scales ===
max_val <- max(heatmap_df_kegg$Count, na.rm = TRUE)

# === Expansion heatmap (red) ===
out_pdf_exp <- file.path(enrichDir, "KEGG_subcategory_faceted_heatmap_Expansion.pdf")
pdf(out_pdf_exp, width = 14, height = 8)

ggplot(filter(heatmap_df_kegg, ChangeType == "Expansion"),
       aes(x = subcategory, y = Species, fill = Count)) +
  geom_tile(color = "black", size = 0.3) +
  scale_fill_gradientn(colors = c("white", "turquoise3", "blue"),
                       limits = c(0, 26),
                       name = "# Genes Expanded") +
  facet_wrap(~ category, scales = "free_x", nrow = 1) +
  theme_minimal(base_size = 12) +
  theme(
    axis.text.x = element_text(angle = 90, hjust = 1, vjust = 1, size = 12),
    axis.text.y = element_text(size = 12),
    panel.grid = element_blank(),
    strip.text = element_text(face = "bold", size = 8)
  ) +
  labs(title = "",
       x = "", y = "")

dev.off()
quartz_off_screen
                2
# === Contraction heatmap (blue) ===
out_pdf_con <- file.path(enrichDir, "KEGG_subcategory_faceted_heatmap_Contraction.pdf")
pdf(out_pdf_con, width = 14, height = 8)

ggplot(filter(heatmap_df_kegg, ChangeType == "Contraction"),
       aes(x = subcategory, y = Species, fill = Count)) +
  geom_tile(color = "black", size = 0.3) +
  scale_fill_gradientn(colors = c("white", "orange", "darkred"),
                       limits = c(0, 15),
                       name = "# Genes Contracted") +
  facet_wrap(~ category, scales = "free_x", nrow = 1) +
  theme_minimal(base_size = 12) +
  theme(
    axis.text.x = element_text(angle = 45, hjust = 1, vjust = 1, size = 12),
    axis.text.y = element_text(size = 9),
    panel.grid = element_blank(),
    strip.text = element_text(face = "bold", size = 8)
  ) +
  labs(title = "Top 15 KEGG subcategories per species (Contractions)",
       x = "Subcategory", y = "Species")

dev.off()
quartz_off_screen
                2

Gene count

Step 1

library(dplyr)
library(tidyr)
library(readr)
library(purrr)

# Load files
gene_count <- read.delim("/Users/maevatecher/Documents/GitHub/locust-comparative-genomics/data/cafe5_results/Orthogroups.GeneCount.tsv", sep = "\t", header = TRUE, check.names = FALSE)

# 2. Remove `_filteredTranscripts` suffix from column names
colnames(gene_count) <- gsub("_filteredTranscripts", "", colnames(gene_count))

# 3. Pivot longer for easier handling (Orthogroup–Species–Count format)
gene_count_long <- gene_count %>%
  pivot_longer(
    cols = -Orthogroup,
    names_to = "Species",
    values_to = "Count"
  )

# ✅ Now gene_count_long has clean species names
head(gene_count_long)
# A tibble: 6 × 3
  Orthogroup Species Count
  <chr>      <chr>   <int>
1 OG0000000  Asimp       6
2 OG0000000  Brsri      10
3 OG0000000  Csecu      20
4 OG0000000  Gbima       1
5 OG0000000  Glong      17
6 OG0000000  Lmigr      12
# -------------------------
# Load orthogroup map
# -------------------------
ortho_dir <- "/Users/maevatecher/Documents/GitHub/locust-comparative-genomics/data/orthofinder/Polyneoptera"
input_file <- file.path(ortho_dir, "Results_I2_iqtree/Orthogroups_genesproteinbiotype_13species_annotated_May2025.csv")
ortho_map <- read.csv(input_file, header = TRUE, stringsAsFactors = FALSE)

# -------------------------
# Species translation
# -------------------------
species_translate <- c(
  Sgreg = "gregaria",
  Scanc = "cancellata",
  Spice = "piceifrons",
  Samer = "americana",
  Sscub = "cubense",
  Snite = "nitens",
  Lmigr = "locusta"
)

# -------------------------
# Build expanded_genes tibble
# -------------------------
cafe_genes <- map_dfr(names(species_translate), function(sp) {
  message("Collecting expanded OGs for ", sp)

  expanded_ogs <- gene_count %>%
    filter(!!sym(sp) > 10) %>%
    pull(Orthogroup)

    # If Lmigr -> reuse Sgreg’s genes
  if (sp == "Lmigr") {
    proxy_sp <- "Sgreg"
  } else {
    proxy_sp <- sp
  }

  ortho_map %>%
    filter(Species == proxy_sp, Orthogroup %in% expanded_ogs) %>%
    mutate(Species = sp) %>%  # keep label as Lmigr
    dplyr::select(Species, Orthogroup, GeneID) %>%
    distinct()
})


# Preview
head(cafe_genes)
  Species Orthogroup       GeneID
1   Sgreg  OG0000000 LOC126284328
2   Sgreg  OG0000000 LOC126284627
3   Sgreg  OG0000000 LOC126285012
4   Sgreg  OG0000000 LOC126291426
5   Sgreg  OG0000000 LOC126335618
6   Sgreg  OG0000000 LOC126335743

Step 2

Then we use the same function we used for DEGs GO terms and KEGG enrichment:

# === Paths and Constants ===
workDir     <- "/Users/maevatecher/Documents/GitHub/locust-comparative-genomics/data"
GODir       <- file.path(workDir, "list", "GO_Annotations")
RefDir      <- file.path(workDir, "RefSeq")
enrichDir   <- file.path(workDir, "cafe5_results/Gene_count_FILE")

species_list <- c("gregaria", "cancellata", "piceifrons", "americana", "cubense", "nitens", "locusta")

# === Load Required Libraries ===
library(data.table)
library(dplyr)
library(readr)
library(clusterProfiler)
library(GO.db)
library(rtracklayer)
library(DesertLocustR)  # Local installation

gff_map <- c(
  gregaria   = "GCF_023897955.1_iqSchGreg1.2_genomic.gff",
  cancellata = "GCF_023864275.1_iqSchCanc2.1_genomic.gff",
  piceifrons = "GCF_021461385.2_iqSchPice1.1_genomic.gff",
  americana  = "GCF_021461395.2_iqSchAmer2.1_genomic.gff",
  cubense    = "GCF_023864345.2_iqSchSeri2.2_genomic.gff",
  nitens     = "GCF_023898315.1_iqSchNite1.1_genomic.gff",
  locusta    = "GCF_023897955.1_iqSchGreg1.2_genomic.gff"
)

annot_map <- c(
  gregaria   = "EggNog_Arthropoda_one2one.emapper.annotations",
  cancellata = "GCF_023864275.1_iqSchCanc2.1_Arthopoda_one2one.emapper.annotations",
  piceifrons = "GCF_021461385.2_iqSchPice1.1_Arthopoda_one2one.emapper.annotations",
  americana  = "GCF_021461395.2_iqSchAmer2.1_Arthopoda_one2one.emapper.annotations",
  cubense    = "GCF_023864345.2_iqSchSeri2.2_Arthopoda_one2one.emapper.annotations",
  nitens     = "GCF_023898315.1_iqSchNite1.1_Arthopoda_one2one.emapper.annotations",
  locusta    = "EggNog_Arthropoda_one2one.emapper.annotations"
)

# GO enrichment
# GO enrichment
enrich_GO <- function(dge_genes.df, term2gene, term2name, pval, qval){
  genes <- rownames(dge_genes.df)
  enricher(
    genes,
    TERM2GENE = term2gene,
    TERM2NAME = term2name,
    pvalueCutoff = pval,
    pAdjustMethod = "BH",
    qvalueCutoff = qval
  )
}

# KEGG preparation
assign_kegg_ids <- function(sig_genes.df){
  if (is.vector(sig_genes.df)) {
    sig_genes.df <- data.frame(X.query = sig_genes.df, stringsAsFactors = FALSE)
  } else {
    sig_genes.df$X.query <- rownames(sig_genes.df)
  }

  dge_with_kegg_ids <- left_join(sig_genes.df, kegg_final, by = "X.query")
  dge_with_kegg_ids$KEGG_ko[grepl("^K", dge_with_kegg_ids$KEGG_ko)]
}


# KEGG enrichment
enrich_KEGG <- function(dge_genes.df, pval_cutoff = 0.05, qval_cutoff = 0.2) {
  gene_with_kegg_ids <- assign_kegg_ids(dge_genes.df)
  enrichKEGG(
    gene         = gene_with_kegg_ids,
    organism     = "ko",
    pvalueCutoff = pval_cutoff,
    qvalueCutoff = qval_cutoff,
    pAdjustMethod = "BH"
  )
}


run_GO_enrichment_selected <- function(
    gene_list,
    go_table,
    term2name,
    species,
    suffix,
    ontology,
    output_dir,
    show_n = 30,
    top_n = 30
) {
  if (length(gene_list) == 0) return(NULL)

  if (!dir.exists(output_dir)) {
    dir.create(output_dir, recursive = TRUE)
  }

  # Make sure column names are correct for clusterProfiler::enricher()
  go_table_fixed <- go_table[, 1:2]
  colnames(go_table_fixed) <- c("go_id", "gene_id")

  term2name_fixed <- term2name[, 1:2]
  colnames(term2name_fixed) <- c("go_id", "name")

  # Run enrichment
  go_result <- enricher(
    gene = gene_list,
    TERM2GENE = go_table_fixed,
    TERM2NAME = term2name_fixed,
    pvalueCutoff = 0.05,
    qvalueCutoff = 0.2
  )

  if (!is.null(go_result) &&
      inherits(go_result, "enrichResult") &&
      nrow(go_result@result) > 0 &&
      sum(!is.na(go_result@result$Description)) > 0) {

    # Save dotplot
    try({
      pdf(file = file.path(output_dir, paste0("GO_", ontology, "_dotplot_", species, "_", suffix, ".pdf")),
          width = 8, height = 6)
      print(dotplot(go_result, showCategory = min(show_n, nrow(go_result@result))) +
              ggtitle(paste(ontology, suffix)))
      dev.off()
    }, silent = TRUE)

    # Export top terms with log10(p)
    species_enrich_ready <- go_result@result[, c("ID", "p.adjust")]
    species_enrich_ready$logp <- -log10(species_enrich_ready$p.adjust)
    species_enrich_ready <- species_enrich_ready[order(-species_enrich_ready$logp), ]
    species_enrich_ready <- head(species_enrich_ready, n = top_n)[, c("ID", "logp")]

    write.table(species_enrich_ready,
                file = file.path(output_dir, paste0("enrich_", ontology, "_GOs_", species, "_", suffix, ".txt")),
                sep = "\t", quote = FALSE, row.names = FALSE, col.names = FALSE)

    # Also export the full table if needed
    write.csv(go_result@result,
              file = file.path(output_dir, paste0("GO_enrichment_full_", ontology, "_", species, "_", suffix, ".csv")),
              row.names = FALSE)

    # ✅ Return enrichment results with Species + ONTOLOGY
    df <- go_result@result %>%
      dplyr::mutate(Species = species, ONTOLOGY = ontology)
    return(df)

  } else {
    message(paste0("⚠️ No GO enrichment result to plot/export for ", species, " - ", suffix, " [", ontology, "]"))
    return(NULL)
  }
}


run_KEGG_enrichment_selected <- function(gene_list, species, suffix, output_dir,
                                         show_n = 40, top_n = 40) {
  if (length(gene_list) == 0) return(NULL)

  kegg_result <- enrich_KEGG(gene_list, pval_cutoff = 0.05, qval_cutoff = 0.2)

  if (!is.null(kegg_result) && inherits(kegg_result, "enrichResult") &&
      nrow(kegg_result@result) > 0) {
    try({
      pdf(file = file.path(output_dir, paste0("KEGG_dotplot_", species, "_", suffix, ".pdf")),
          width = 8, height = 6)
      print(dotplot(kegg_result, showCategory = min(show_n, nrow(kegg_result@result))) +
              ggtitle(paste("KEGG", suffix)))
      dev.off()
    }, silent = TRUE)

    # Full result
    write.csv(kegg_result@result,
              file = file.path(output_dir, paste0("KEGG_enrichment_", species, "_", suffix, ".csv")),
              row.names = FALSE)

    # Top KEGG terms
    species_enrich_kegg <- kegg_result@result[, c("ID", "p.adjust")]
    species_enrich_kegg$logp <- -log10(species_enrich_kegg$p.adjust)
    species_enrich_kegg <- species_enrich_kegg[order(-species_enrich_kegg$logp), ][1:min(nrow(species_enrich_kegg), top_n), ]
    species_enrich_kegg <- species_enrich_kegg[, c("ID", "logp")]

    write.table(species_enrich_kegg[, c("ID", "logp")],
                file = file.path(output_dir, paste0("enrich_KEGG_", species, "_", suffix, ".txt")),
                sep = "\t", quote = FALSE, row.names = FALSE, col.names = FALSE)

    # ✅ return the full result with Species
    df <- as.data.frame(kegg_result@result)
    df$Species <- species
    return(df)

  } else {
    message(paste("⚠️ No KEGG enrichment result to plot/export for", species, "-", suffix))
    return(NULL)
  }
}

GO_terms_list      <- list()
ontologies_list    <- list()
term2name_list     <- list()
kegg_final_list    <- list()

for (sp in species_list) {
  message("Preparing annotations for ", sp)
  sp_code <- species_translate[sp]
  eggnog_path <- file.path(GODir, annot_map[[sp]])
  gff_path    <- file.path(RefDir,  gff_map[[sp]])

  output_dir <- file.path(enrichDir, sp)
  dir.create(output_dir, recursive = TRUE, showWarnings = FALSE)

  eggnog_annots <- read.delim(eggnog_path, sep = "\t", skip = 4)
  eggnog_annots <- eggnog_annots[1:(nrow(eggnog_annots) - 3), ]

  gff.df <- as.data.frame(import(gff_path))
  protein_2_gene <- unique(gff.df[c("Name", "gene")])
  protein_2_gene_df <- subset(protein_2_gene, grepl("^XP", protein_2_gene$Name))

  eggnog_annots$Name <- eggnog_annots$X.query
  eggnog_annots <- left_join(eggnog_annots, protein_2_gene_df, by = "Name")
  eggnog_annots$X.query <- eggnog_annots$gene

  # GO
  GO_terms <- data.table(eggnog_annots[, c("X.query", "GOs")])
  GO_terms <- GO_terms[, .(GOs = unlist(strsplit(GOs, ","))), by = X.query]
  term2name <- GO_terms[, .(GOs, X.query)]
  term2name$Names <- mapIds(GO.db, keys = term2name$GOs, column = "TERM", keytype = "GOID")
  term2name$Ontology <- mapIds(GO.db, keys = term2name$GOs, column = "ONTOLOGY", keytype = "GOID")
  term2name <- as.data.frame(term2name)

  go_bp <- term2name[term2name$Ontology == "BP", c("GOs", "X.query")]
  go_mf <- term2name[term2name$Ontology == "MF", c("GOs", "X.query")]
  go_cc <- term2name[term2name$Ontology == "CC", c("GOs", "X.query")]
  term2name_filtered <- term2name[!is.na(term2name$Names), c("GOs", "Names")]
  ontologies <- list(BP = go_bp, MF = go_mf, CC = go_cc)

  # KEGG
  KO_terms <- data.table(eggnog_annots[, c("X.query", "KEGG_ko")])
  KO_terms$KEGG_ko <- gsub("ko:", "", as.character(KO_terms$KEGG_ko))
  KO_terms <- KO_terms[, .(KEGG_ko = unlist(strsplit(KEGG_ko, ","))), by = X.query]
  kegg_final <- KO_terms[, .(KEGG_ko, X.query)]

  # Store per species
  GO_terms_list[[sp]]     <- GO_terms
  ontologies_list[[sp]]   <- ontologies
  term2name_list[[sp]]    <- term2name_filtered
  kegg_final_list[[sp]]   <- kegg_final
}

Step 3

We run the loop using the the list of selected genes extracted in step 1:

suffix <- "cafe"

species_translate <- c(
  gregaria   = "Sgreg",
  cancellata = "Scanc",
  piceifrons = "Spice",
  americana  = "Samer",
  cubense    = "Sscub",
  nitens     = "Snite",
  locusta    = "Lmigr"   # proxy annotation from gregaria
)

# ===== Loop through each species =====
go_results_all <- list()
kegg_results_all <- list()

# initialize diagnostic log
diagnostic_log <- data.frame(
  Species = character(),
  CAFE_genes = integer(),
  GO_overlap = integer(),
  KEGG_overlap = integer(),
  stringsAsFactors = FALSE
)

for (sp in species_list) {
  message("Processing ", sp)
  sp_code <- species_translate[sp]
  output_dir <- file.path(enrichDir, sp)
  dir.create(output_dir, recursive = TRUE, showWarnings = FALSE)

  # 1. Extract cafe GeneIDs for this species
  species_genes <- cafe_genes %>%
    filter(Species == sp_code) %>%
    pull(GeneID) %>%
    unique()

  n_cafe <- length(species_genes)
  message("→ ", n_cafe, " Gene families expanding in ", sp)

  # 2. Check overlaps with GO and KEGG annotations
  go_annot   <- GO_terms_list[[sp]]$X.query
  kegg_annot <- kegg_final_list[[sp]]$X.query

  go_overlap   <- sum(species_genes %in% go_annot)
  kegg_overlap <- sum(species_genes %in% kegg_annot)

  message("→ Overlap counts: GO = ", go_overlap, ", KEGG = ", kegg_overlap)

  if (kegg_overlap == 0) {
    message("  ⚠️ No KEGG matches for ", sp,
            ". Example missing IDs: ",
            paste(head(setdiff(species_genes, kegg_annot), 5), collapse = ", "))
  }

  # Add to diagnostic log
  diagnostic_log <- rbind(diagnostic_log, data.frame(
    Species = sp,
    CAFE_genes = n_cafe,
    GO_overlap = go_overlap,
    KEGG_overlap = kegg_overlap
  ))

  # 3. Run GO enrichment (BP, MF, CC separately)
  selected_genes_go <- species_genes[species_genes %in% go_annot]
  go_by_onto <- list()
  for (onto in names(ontologies_list[[sp]])) {
    go_res <- run_GO_enrichment_selected(
      gene_list  = selected_genes_go,
      go_table   = ontologies_list[[sp]][[onto]],   # term2gene mapping
      term2name  = term2name_list[[sp]],            # term2name mapping
      species    = sp,
      suffix     = suffix,
      ontology   = onto,
      output_dir = output_dir
    )
    if (!is.null(go_res)) {
    go_res <- as.data.frame(go_res) %>%
      mutate(Species = sp, ONTOLOGY = onto)   # 👈 add both species + ontology here
    go_by_onto[[onto]] <- go_res
  }
}
  go_results_all[[sp]] <- go_by_onto

  # 4. Run KEGG enrichment
  selected_genes_kegg <- species_genes[species_genes %in% kegg_annot]
  kegg_final <<- kegg_final_list[[sp]]  # required by assign_kegg_ids()
  kegg_results_all[[sp]] <- run_KEGG_enrichment_selected(
    gene_list  = selected_genes_kegg,
    species    = sp,
    suffix     = suffix,
    output_dir = output_dir
  )
}

# save diagnostic log
write.csv(diagnostic_log, file.path(enrichDir, "diagnostic_overlap_log.csv"), row.names = FALSE)
print(diagnostic_log)
     Species CAFE_genes GO_overlap KEGG_overlap
1   gregaria        817        500          500
2 cancellata        916        569          569
3 piceifrons       1146        588          588
4  americana       1413        825          825
5    cubense        965        620          620
6     nitens       1169        472          472
7    locusta        352        272          272

Step 4

We need to make a heat map with all species:

library(dplyr)
library(tidyr)
library(pheatmap)
library(tibble)

# 1. Flatten all species results
all_go_results <- bind_rows(lapply(go_results_all, bind_rows))

# 2. Loop through each ontology
for (onto in c("BP", "MF", "CC")) {

  # Filter for this ontology
  onto_res <- all_go_results %>% filter(ONTOLOGY == onto)

  # Skip if empty
  if (nrow(onto_res) == 0) {
    message("⚠️ No results for ", onto)
    next
  }

  # 3. Take top 10 per species
  top_go <- onto_res %>%
    group_by(Species) %>%
    slice_min(order_by = p.adjust, n = 15, with_ties = FALSE) %>%
    ungroup()

  # 4. Build matrix of -log10(p.adjust)
  heatmap_mat <- top_go %>%
    mutate(score = -log10(p.adjust)) %>%
    dplyr::select(Description, Species, score) %>%
    pivot_wider(names_from = Species, values_from = score, values_fill = 0) %>%
    column_to_rownames("Description") %>%
    as.matrix()

# Define desired species order
species_order <- c("locusta", "gregaria", "nitens",
                   "cancellata", "piceifrons", "americana", "cubense")

# Flip matrix: species as rows, GO terms as columns
heatmap_mat_flipped <- t(heatmap_mat)

# Reorder rows to match your desired order
heatmap_mat_flipped <- heatmap_mat_flipped[species_order, , drop = FALSE]

# Set color scale: 0 = white, gradient for >0
max_val <- max(heatmap_mat_flipped, na.rm = TRUE)
breaks <- c(0, seq(1e-6, max_val, length.out = 100))
colors <- c("white", colorRampPalette(c("orange", "darkred"))(length(breaks) - 2))

# Save heatmap
out_pdf <- file.path(enrichDir, paste0("GO_", onto, "_heatmap_top15.pdf"))
pdf(out_pdf, width = 12, height = 6)
pheatmap(
  mat = heatmap_mat_flipped,
  cluster_rows = FALSE,  # keep species order fixed
  cluster_cols = FALSE,   # cluster GO terms
  scale = "none",
  fontsize_row = 12,
  fontsize_col = 6,
  angle_col = 90,
  color = colors,
  breaks = breaks,
  main = paste("Top 10 GO",
               ifelse(onto == "BP", "Biological Process",
                      ifelse(onto == "MF", "Molecular Function", "Cellular Component")),
               "terms per species")
)
dev.off()

}

Step 5

This code is to make a KEGG pathway enrichment:

library(dplyr)
library(tidyr)
library(pheatmap)

# === Collect KEGG results ===
all_kegg_results <- bind_rows(
  lapply(names(kegg_results_all), function(sp) {
    kegg_results_all[[sp]]  # now each is already a df with Species
  })
)

# === Take top 10 per species ===
top_kegg <- all_kegg_results %>%
  group_by(Species) %>%
  slice_min(order_by = p.adjust, n = 15, with_ties = FALSE) %>%
  ungroup()


library(dplyr)
library(tidyr)
library(ggplot2)

# === Start from top_kegg ===
heatmap_df_kegg <- top_kegg %>%
  dplyr::select(Species, category, subcategory, Count) %>%
  filter(!is.na(category), !is.na(subcategory)) %>%
  group_by(Species, category, subcategory) %>%
  summarise(Count = max(Count, na.rm = TRUE), .groups = "drop")

# Fix Species order (rows)
species_order <- c( "cubense", "americana","piceifrons","cancellata","nitens", "gregaria","locusta")


heatmap_df_kegg$Species <- factor(heatmap_df_kegg$Species, levels = species_order)

# Optional: order subcategories alphabetically within each category
heatmap_df_kegg <- heatmap_df_kegg %>%
  group_by(category) %>%
  mutate(subcategory = factor(subcategory, levels = unique(subcategory))) %>%
  ungroup()

# === Set color scale (white for 0, gradient for >0) ===
max_val <- max(heatmap_df_kegg$Count, na.rm = TRUE)
colors <- c("white", colorRampPalette(c("orange", "darkred"))(10))


# === Plot with ggplot2 ===
out_pdf <- file.path(enrichDir, "KEGG_subcategory_faceted_heatmap_Count.pdf")
pdf(out_pdf, width = 14, height = 8)

ggplot(heatmap_df_kegg, aes(x = subcategory, y = Species, fill = Count)) +
  geom_tile(color = "black", size = 0.3, na.rm = FALSE) +
  scale_fill_gradientn(colors = colors, limits = c(0, max_val)) +
  facet_wrap(~ category, scales = "free_x", nrow = 1) +
  theme_minimal(base_size = 12) +
  theme(
    axis.text.x = element_text(angle = 45, hjust = 1, vjust = 1, size = 8),
    axis.text.y = element_text(size = 9),
    panel.grid = element_blank(),
    strip.text = element_text(face = "bold", size = 8)
  ) +
  labs(
    title = "Top 20 KEGG subcategories per species (colored by gene count)",
    x = "Subcategory",
    y = "Species",
    fill = "# Genes"
  )

dev.off()
quartz_off_screen
                2

sessionInfo()
R version 4.4.2 (2024-10-31)
Platform: aarch64-apple-darwin20
Running under: macOS Sequoia 15.6.1

Matrix products: default
BLAS:   /Library/Frameworks/R.framework/Versions/4.4-arm64/Resources/lib/libRblas.0.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/4.4-arm64/Resources/lib/libRlapack.dylib;  LAPACK version 3.12.0

locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8

time zone: Asia/Tokyo
tzcode source: internal

attached base packages:
[1] stats4    stats     graphics  grDevices utils     datasets  methods
[8] base

other attached packages:
 [1] ggplot2_3.5.2          tibble_3.3.0           pheatmap_1.0.13
 [4] DesertLocustR_0.1.0    remotes_2.5.0          Biostrings_2.74.1
 [7] XVector_0.46.0         AnnotationHub_3.14.0   BiocFileCache_2.14.0
[10] dbplyr_2.5.0           rtracklayer_1.66.0     GenomicRanges_1.58.0
[13] GenomeInfoDb_1.42.3    GO.db_3.20.0           AnnotationDbi_1.68.0
[16] IRanges_2.40.1         S4Vectors_0.44.0       Biobase_2.66.0
[19] BiocGenerics_0.52.0    clusterProfiler_4.14.6 data.table_1.17.6
[22] purrr_1.0.4            readr_2.1.5            tidyr_1.3.1
[25] dplyr_1.1.4

loaded via a namespace (and not attached):
  [1] RColorBrewer_1.1-3          rstudioapi_0.17.1
  [3] jsonlite_2.0.0              magrittr_2.0.3
  [5] ggtangle_0.0.6              farver_2.1.2
  [7] rmarkdown_2.29              fs_1.6.6
  [9] BiocIO_1.16.0               zlibbioc_1.52.0
 [11] vctrs_0.6.5                 memoise_2.0.1
 [13] Rsamtools_2.22.0            RCurl_1.98-1.17
 [15] ggtree_3.14.0               htmltools_0.5.8.1
 [17] S4Arrays_1.6.0              curl_6.4.0
 [19] SparseArray_1.6.2           gridGraphics_0.5-1
 [21] sass_0.4.10                 bslib_0.9.0
 [23] plyr_1.8.9                  cachem_1.1.0
 [25] GenomicAlignments_1.42.0    whisker_0.4.1
 [27] igraph_2.1.4                lifecycle_1.0.4
 [29] pkgconfig_2.0.3             Matrix_1.7-3
 [31] R6_2.6.1                    fastmap_1.2.0
 [33] gson_0.1.0                  GenomeInfoDbData_1.2.13
 [35] MatrixGenerics_1.18.1       digest_0.6.37
 [37] aplot_0.2.7                 enrichplot_1.26.6
 [39] colorspace_2.1-1            patchwork_1.3.1
 [41] rprojroot_2.0.4             RSQLite_2.4.1
 [43] labeling_0.4.3              filelock_1.0.3
 [45] httr_1.4.7                  abind_1.4-8
 [47] compiler_4.4.2              bit64_4.6.0-1
 [49] withr_3.0.2                 BiocParallel_1.40.2
 [51] DBI_1.2.3                   R.utils_2.13.0
 [53] rappdirs_0.3.3              DelayedArray_0.32.0
 [55] rjson_0.2.23                tools_4.4.2
 [57] ape_5.8-1                   httpuv_1.6.16
 [59] R.oo_1.27.1                 glue_1.8.0
 [61] restfulr_0.0.15             nlme_3.1-168
 [63] GOSemSim_2.32.0             promises_1.3.3
 [65] grid_4.4.2                  reshape2_1.4.4
 [67] fgsea_1.32.4                generics_0.1.4
 [69] gtable_0.3.6                tzdb_0.5.0
 [71] R.methodsS3_1.8.2           hms_1.1.3
 [73] utf8_1.2.6                  BiocVersion_3.20.0
 [75] ggrepel_0.9.6               pillar_1.10.2
 [77] stringr_1.5.1               yulab.utils_0.2.0
 [79] later_1.4.2                 splines_4.4.2
 [81] treeio_1.30.0               lattice_0.22-7
 [83] bit_4.6.0                   tidyselect_1.2.1
 [85] knitr_1.50                  git2r_0.36.2
 [87] SummarizedExperiment_1.36.0 xfun_0.52
 [89] matrixStats_1.5.0           stringi_1.8.7
 [91] UCSC.utils_1.2.0            workflowr_1.7.1
 [93] lazyeval_0.2.2              ggfun_0.1.9
 [95] yaml_2.3.10                 evaluate_1.0.4
 [97] codetools_0.2-20            qvalue_2.38.0
 [99] BiocManager_1.30.26         ggplotify_0.1.2
[101] cli_3.6.5                   jquerylib_0.1.4
[103] dichromat_2.0-0.1           Rcpp_1.0.14
[105] png_0.1-8                   XML_3.99-0.18
[107] parallel_4.4.2              blob_1.2.4
[109] DOSE_4.0.1                  bitops_1.0-9
[111] tidytree_0.4.6              scales_1.4.0
[113] crayon_1.5.3                rlang_1.1.6
[115] cowplot_1.1.3               fastmatch_1.1-6
[117] KEGGREST_1.46.0
