Load the libraries

We start by loading all the required R packages.

#(install first from CRAN or Bioconductor)
library("DESeq2")
library("tximport")
library("txdbmaker")
library("knitr")
library("rmdformats")
library("tidyverse")
library("data.table")
library("DT")  # for making interactive search table
library("plotly") # for interactive plots
library("ggthemes") # for theme_calc
library("reshape2")
library("ComplexHeatmap")
library("RColorBrewer")
library("circlize")
library("apeglm")
library("ggpubr")
library("ggplot2")
library("ggrepel")
library("EnhancedVolcano")
library("SARTools")
library("pheatmap")
library("clusterProfiler")
library("sva")
library("cowplot")
library("ashr")
library("vsn")
library("ggdist")
library("ggConvexHull")
library("kableExtra")
library("plotly")

# Path for all species
workDir <- "/Users/maevatecher/Library/Mobile Documents/com~apple~CloudDocs/Documents/GitHub/locust-comparative-genomics/data"
allspecies_path <- file.path(workDir, "/list/allspecies_geneid.csv")
allspecies_df <- read.table(allspecies_path, sep = ",", header = TRUE, quote = "", fill = TRUE, stringsAsFactors = FALSE)

## PARAMETERS for running DEseq2
tresh_logfold <- 1                    # Treshold for log2(foldchange) in final DE-files
tresh_padj <- 0.05                    # Treshold for adjusted p-valued in final DE-files
alpha_DEseq2 <- 0.05                  # threshold of statistical significance
pAdjustMethod_DEseq2 <- "BH"          # p-value adjustment method: "BH" (default) or "BY"
featuresToRemove <- c(NULL)           # names of the features to be removed, NULL if none or if using Idxstats
varInt <- "RearingCondition"          # factor of interest
condRef <- "Isolated"                 # reference biological condition
batch <- NULL                         # blocking factor: NULL (default) or "batch" for example
fitType <- "parametric"               # mean-variance relationship: "parametric" (default) or "local"
cooksCutoff <- TRUE                   # TRUE/FALSE to perform the outliers detection (default is TRUE)
independentFiltering <- TRUE          # TRUE/FALSE to perform independent filtering (default is TRUE)
typeTrans <- "rlog"                   # transformation for PCA/clustering: "VST" or "rlog"
locfunc <- "median"

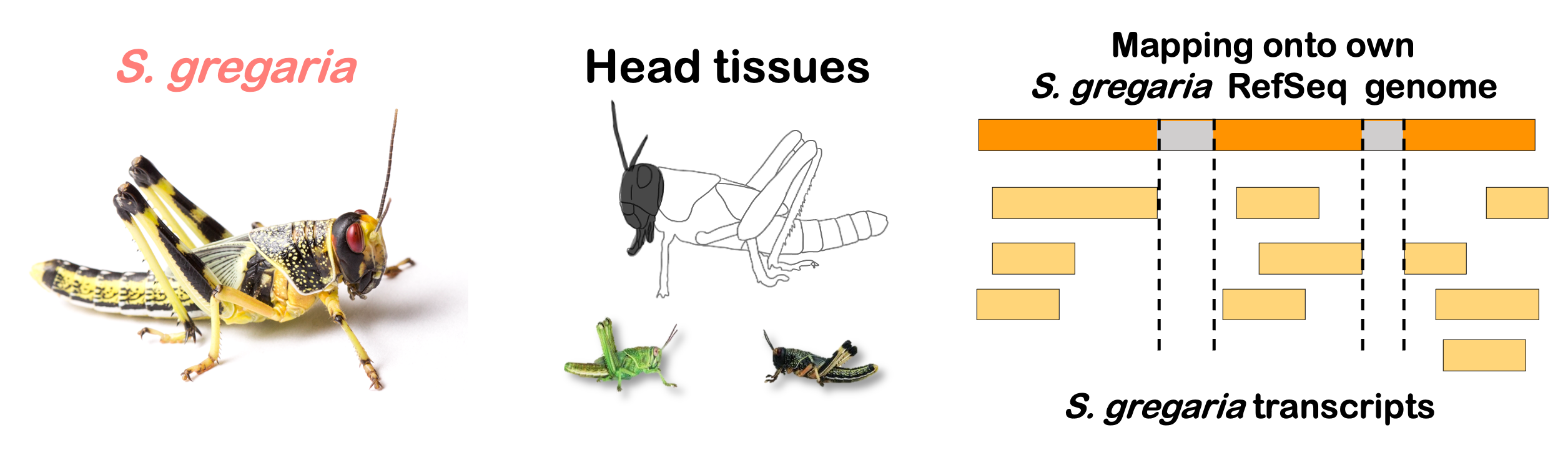

STRATEGY 1: One genome S. gregaria

1. DEGs in bulk Head tissues

gregaria

---

Total DEGs

rawDir <- file.path(workDir, "03-gregaria-DESeq2")

# Path and name of targetfile containing conditions and file names
species <- "gregaria"
targetFile <- file.path(workDir, "list", paste0("Head", "_", species, ".txt"))

sampletable <- fread(targetFile)
rownames(sampletable) <- sampletable$SampleName
sampletable$RearingCondition <- as.factor(sampletable$RearingCondition)
sampletable$Tissue <- as.factor(sampletable$Tissue)

## Import count files
satoshi <- DESeqDataSetFromHTSeqCount(sampleTable = sampletable,
                        directory = rawDir,
                        design = ~ RearingCondition )
#satoshi

smallestGroupSize <- 3
keep <- rowSums(counts(satoshi) >= 5) >= smallestGroupSize
satoshi <- satoshi[keep,]
#nrow(satoshi)
satoshi$RearingCondition <- relevel(satoshi$RearingCondition, ref = "Isolated")

# Fit the statistical model
shigeru <- DESeq(satoshi)
#cbind(resultsNames(shigeru))
res_shigeru <- results(shigeru)
sum(res_shigeru$padj < tresh_padj, na.rm = TRUE)

[1] 5697

A total of 5,697 genes out of the pre-filtered 16,305 features were showing significant (corrected p-value < 0.05) differences in expression levels. However, we will only keep the ones with at least an absolute fold change > 1, so in reality we have 1,476 DEGs. The summary below showed how many were up-regulated and down-regulated in crowded compared to isolated it is possible to scroll it.

brock <- results(shigeru, name = "RearingCondition_Crowded_vs_Isolated", alpha = alpha_DEseq2)
summary(brock)

out of 16305 with nonzero total read count
adjusted p-value < 0.05
LFC > 0 (up)       : 2709, 17%
LFC < 0 (down)     : 2988, 18%
outliers [1]       : 99, 0.61%
low counts [2]     : 0, 0%
(mean count < 1)
[1] see 'cooksCutoff' argument of ?results
[2] see 'independentFiltering' argument of ?results

brock_df <- as.data.frame(brock)
brock_df$GeneID <- rownames(brock_df)

brock_df <- brock_df[!is.na(brock_df$padj) & (brock_df$padj < tresh_padj), ]
outputFile <- file.path(workDir, "DEG-results", paste0("DESeq2_results_Head_togregaria_", species, ".csv"))
write.csv(brock, file = outputFile, row.names = TRUE)

significant_brock_df <- brock_df[!is.na(brock_df$padj) & !is.na(brock_df$log2FoldChange) &
                               (brock_df$padj < tresh_padj & abs(brock_df$log2FoldChange) > tresh_logfold), ]
# Summary similar to summary(brock)
upregulated <- sum(brock$padj < tresh_padj & brock$log2FoldChange > tresh_logfold, na.rm = TRUE)  # Upregulated count
downregulated <- sum(brock$padj < tresh_padj & brock$log2FoldChange < -tresh_logfold, na.rm = TRUE)  # Downregulated count
total_genes <- sum(upregulated, downregulated)  # Total non-zero count genes
cat("Total DEGs p-value < 0.05 and absolute logFoldChange > 1:", total_genes, "\n")

Total DEGs p-value < 0.05 and absolute logFoldChange > 1: 1476

cat("LFC > 0 (up)       :", upregulated, ",", round((upregulated / total_genes) * 100, 2), "%\n")

LFC > 0 (up)       : 814 , 55.15 %

cat("LFC < 0 (down)     :", downregulated, ",", round((downregulated / total_genes) * 100, 2), "%\n")

LFC < 0 (down)     : 662 , 44.85 %

meta_brock_df <- merge(significant_brock_df, allspecies_df, by.x = "GeneID", by.y = "GeneID", all.x = TRUE)
meta_brock_df <- meta_brock_df[, c("GeneID", "GeneType", "Description",  "Species",
                                   "baseMean", "log2FoldChange", "lfcSE", "stat", "pvalue", "padj")]
numeric_cols <- c("baseMean", "log2FoldChange", "lfcSE", "stat", "pvalue", "padj")
meta_brock_df[numeric_cols] <- round(meta_brock_df[numeric_cols], 2)
meta_brock_df$row_color <- ifelse(meta_brock_df$log2FoldChange > 1, "red",
                                  ifelse(meta_brock_df$log2FoldChange < -1, "blue", "black"))
meta_brock_df$row_weight <- ifelse(abs(meta_brock_df$log2FoldChange) > 1, "bold", "normal")
# Display the data table with italic formatting for Species column, color-coded, and bold text rows
datatable(meta_brock_df, options = list(
    pageLength = 10,       # Set initial page length
    scrollX = TRUE,        # Enable horizontal scrolling
    autoWidth = TRUE,      # Adjust column width automatically
    searchHighlight = TRUE # Highlight search matches
  ),
  rownames = FALSE,
  escape = FALSE  # Allows HTML formatting in table cells
) %>%
  formatStyle(
    'Species', target = 'cell',
    fontStyle = 'italic'
  ) %>%
  formatStyle(
    columns = names(meta_brock_df),
    target = 'row',
    color = styleEqual(c("red", "blue", "black"), c("red", "blue", "black")), # Apply row color
    fontWeight = styleEqual(c("bold", "normal"), c("bold", "normal")), # Apply bold font for up/downregulated rows
    backgroundColor = styleEqual(c("red", "blue", "black"), c("white", "white", "white")) # Keep background white
  )

# Define the output file path
outputFile <- file.path(workDir, "DEG-results", paste0("DESeq2_sigresults_Head_togregaria_", species, ".csv"))
write.csv(brock_df, file = outputFile, row.names = TRUE)

---

Normalization and PCA

# Try with the data transformation
shigeru_vst <- vst(shigeru)
shigeru_rlog <- rlog(shigeru)
shigeru_ntd <- normTransform(shigeru)

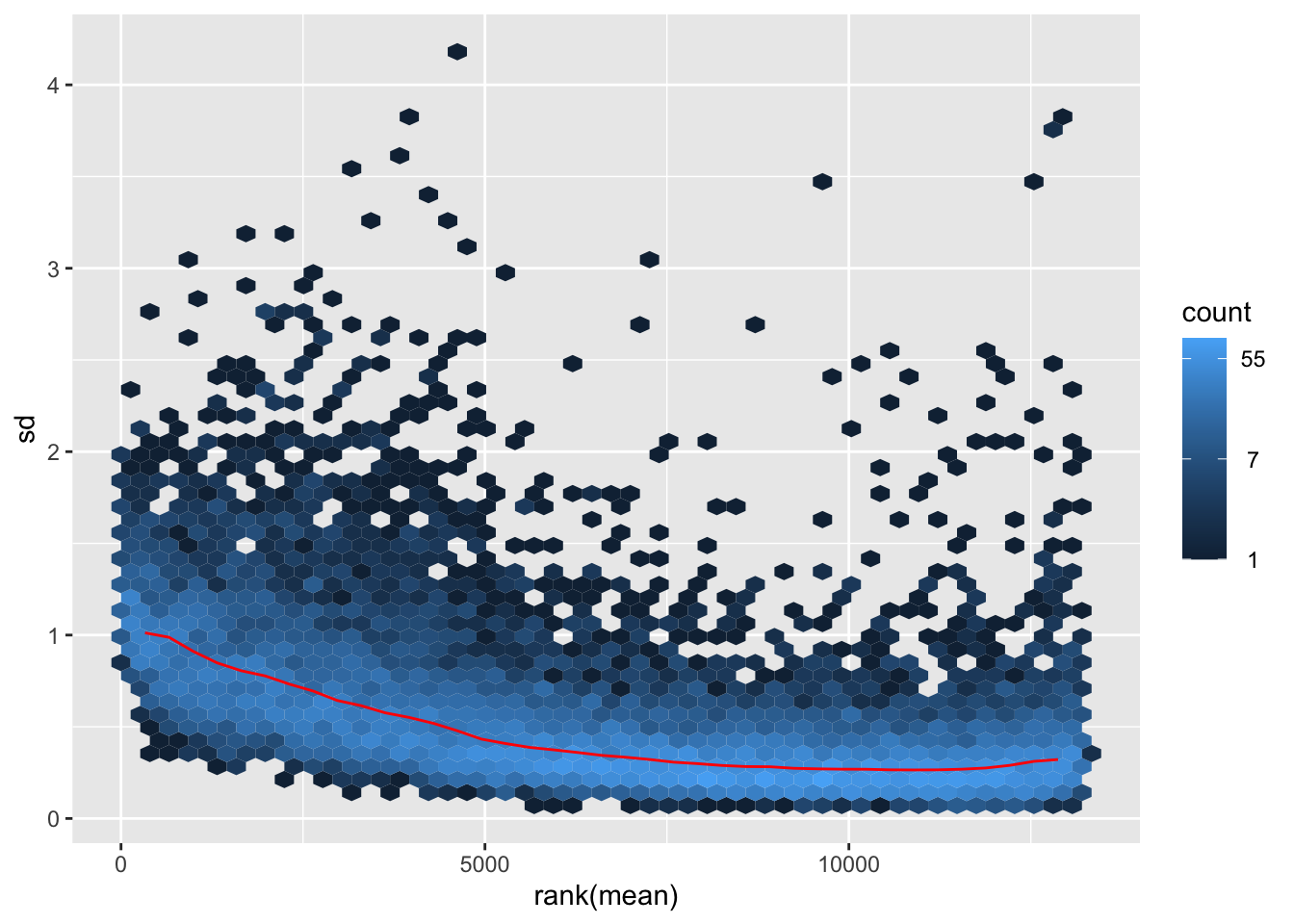

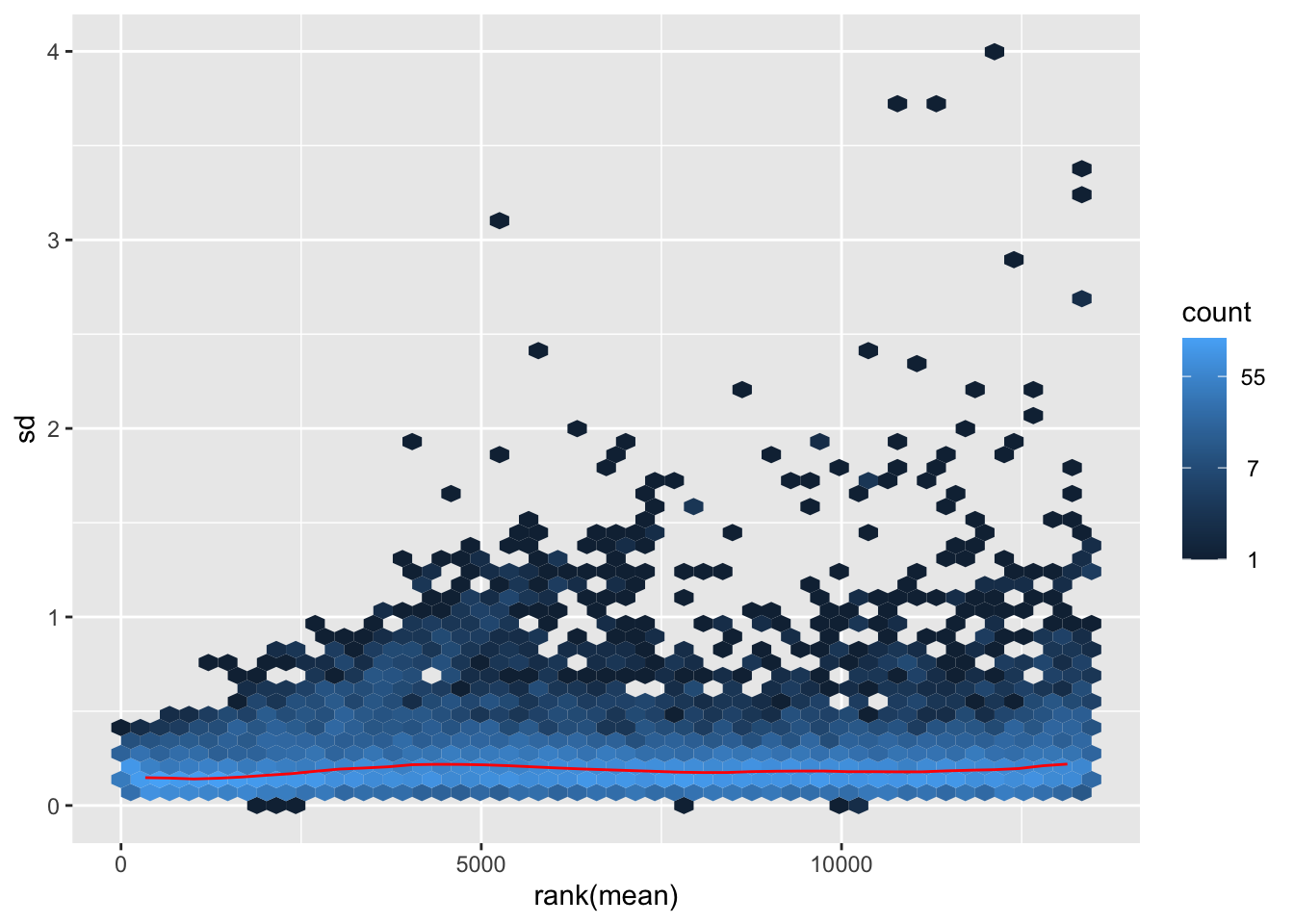

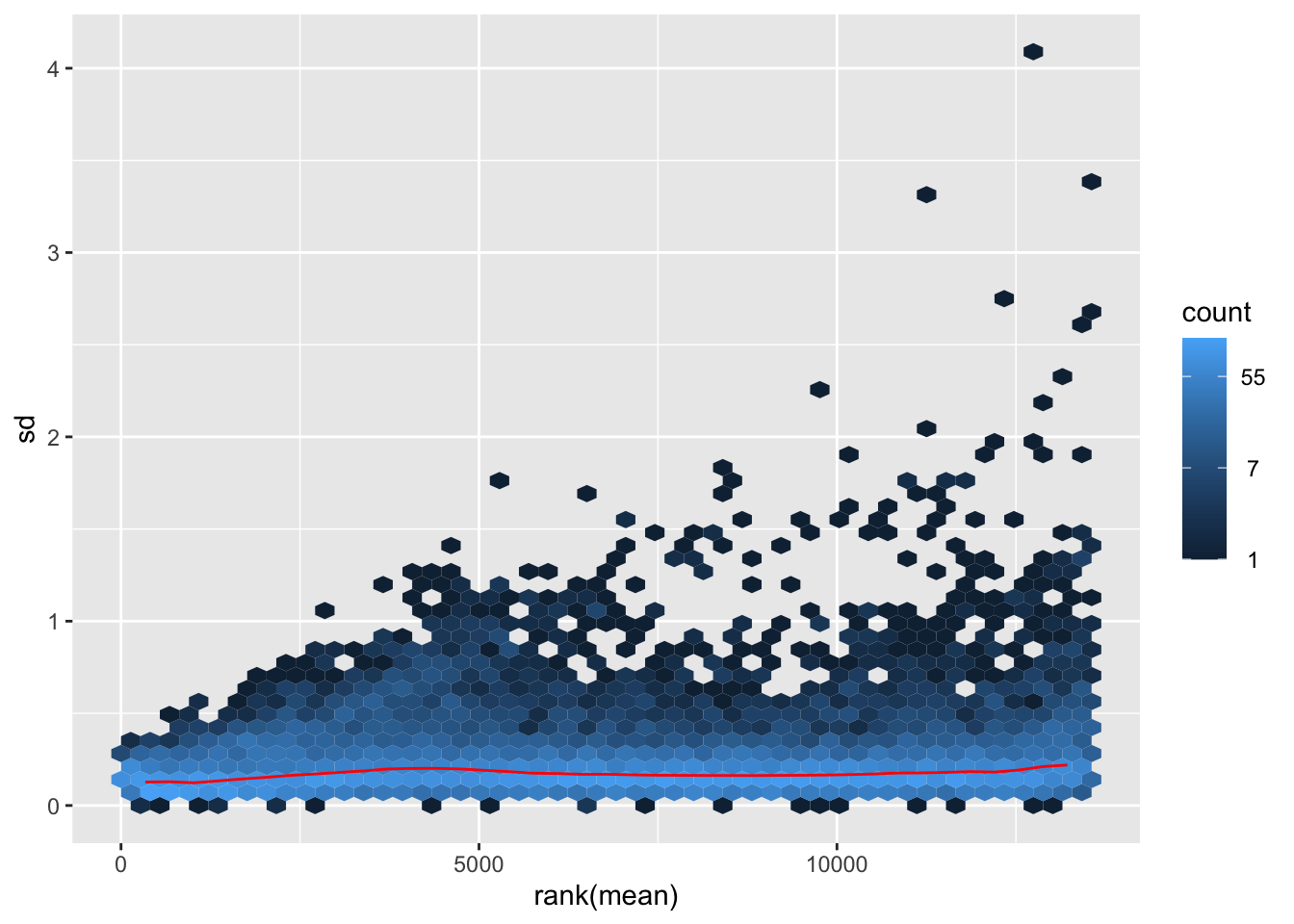

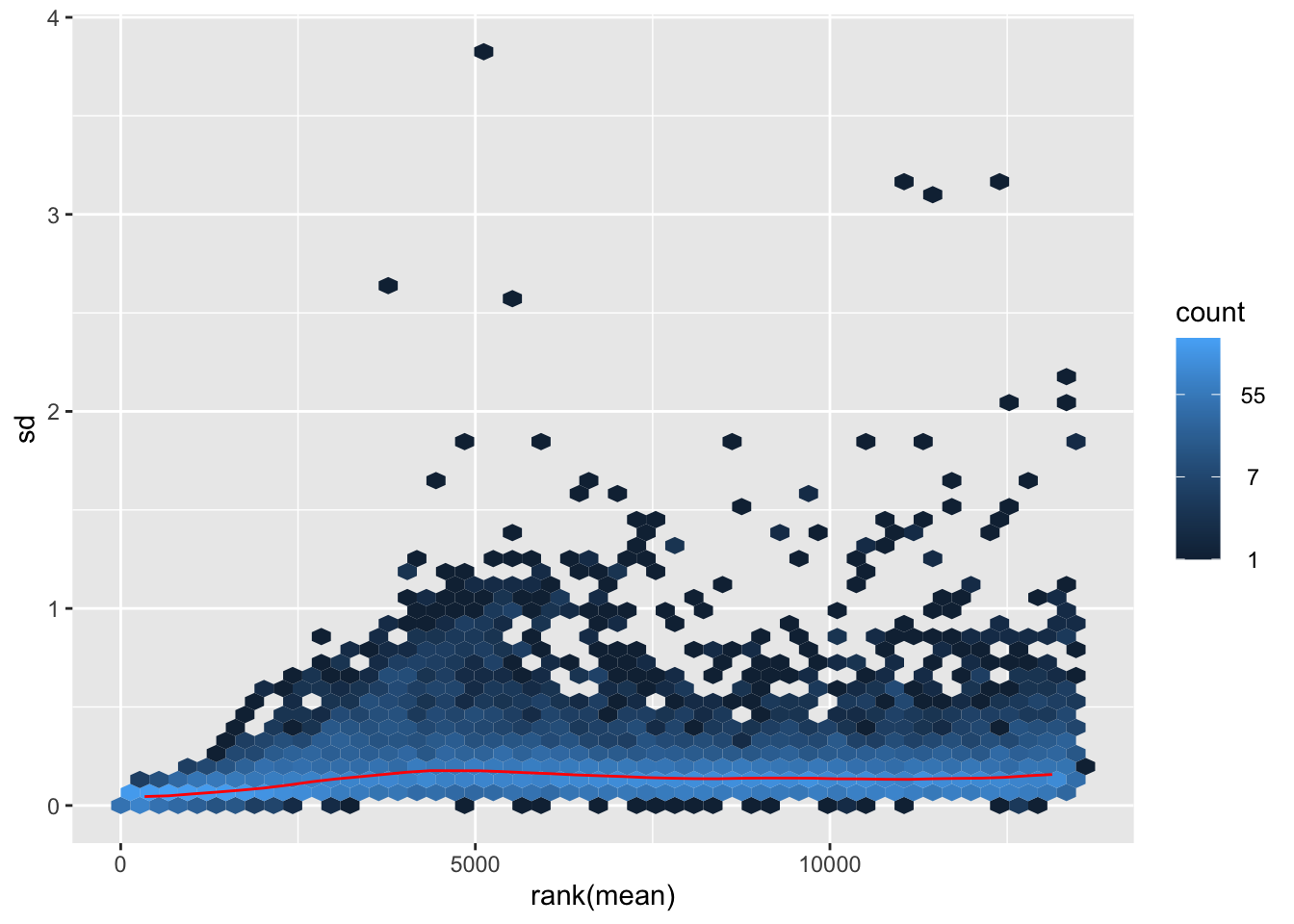

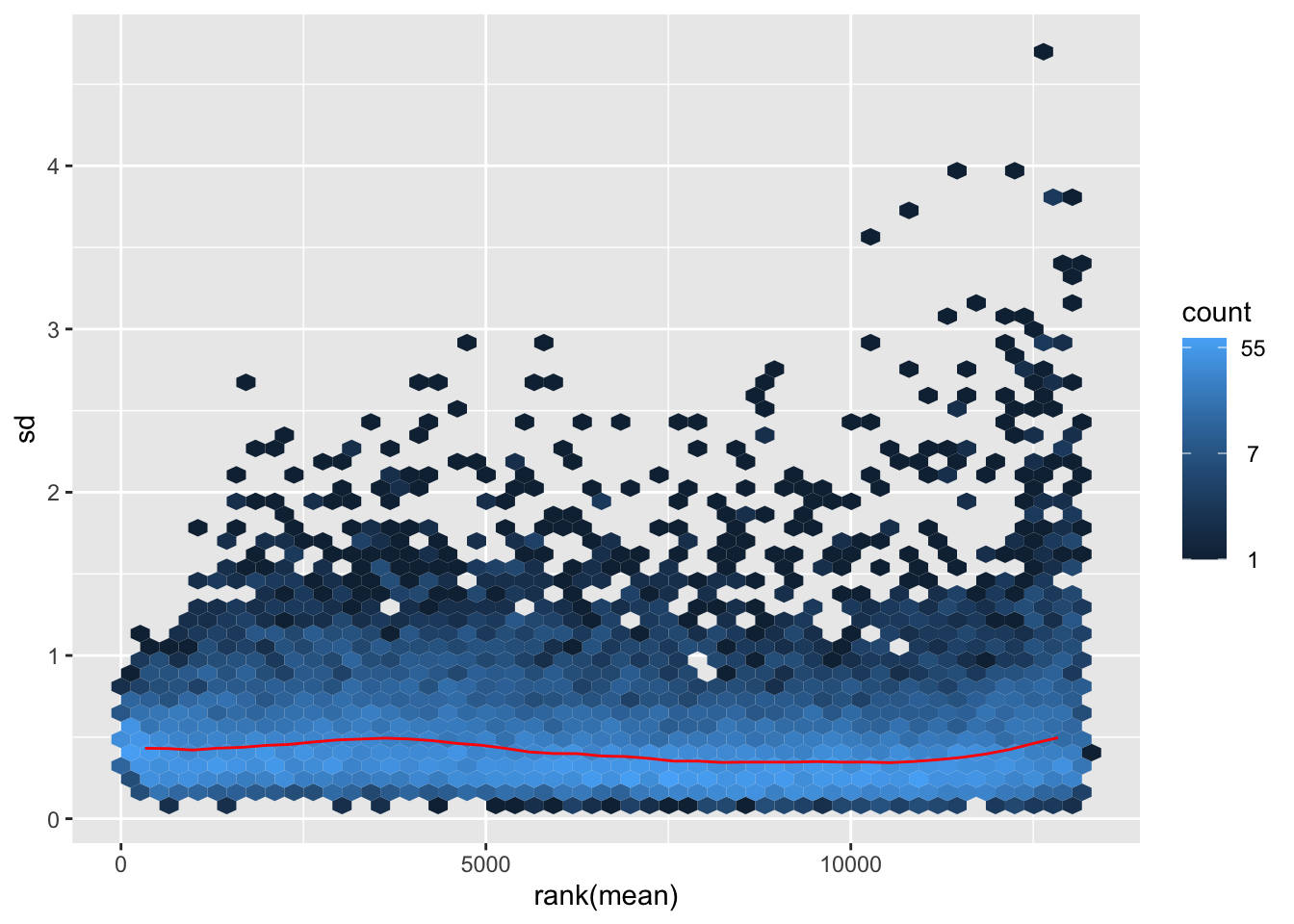

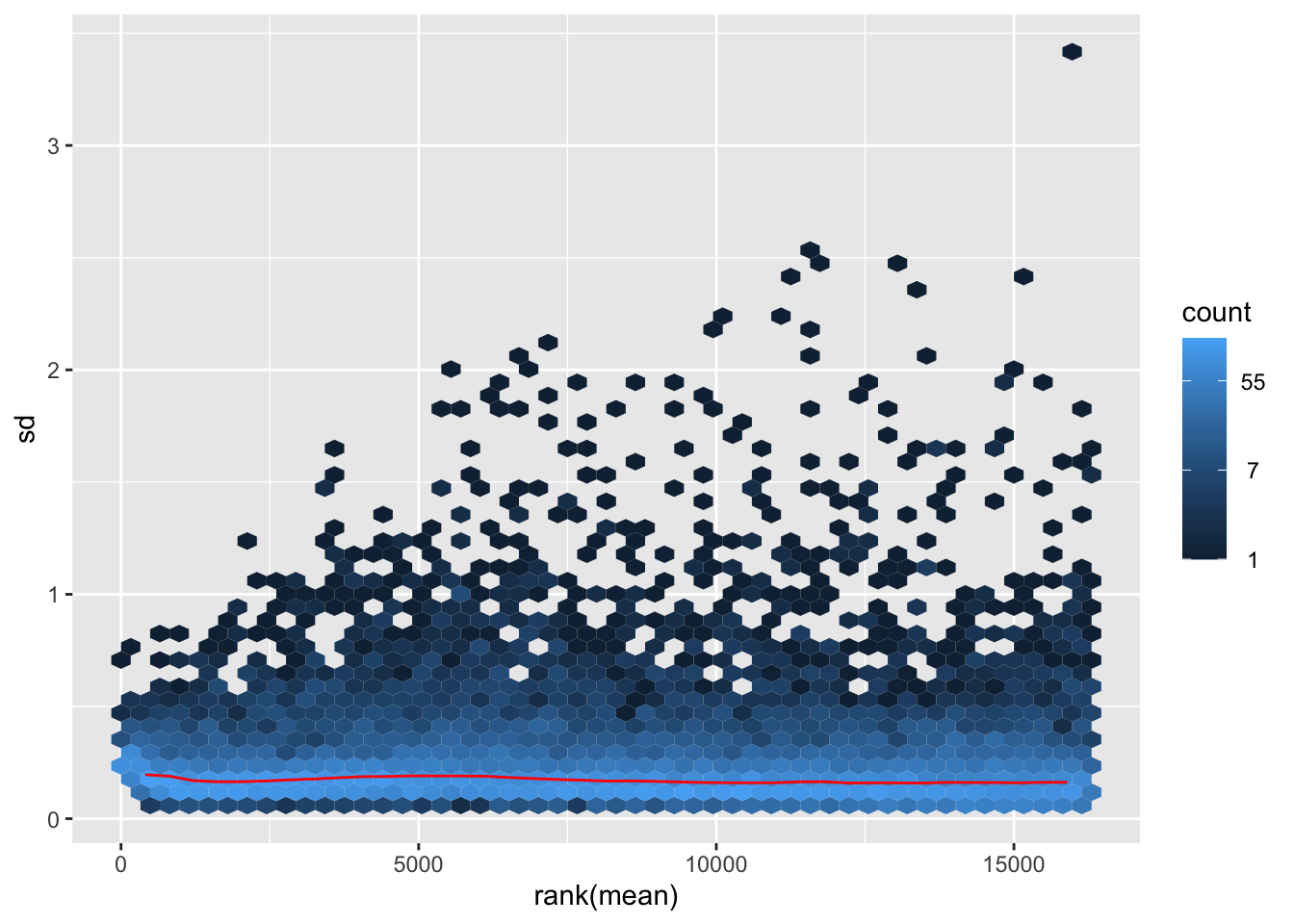

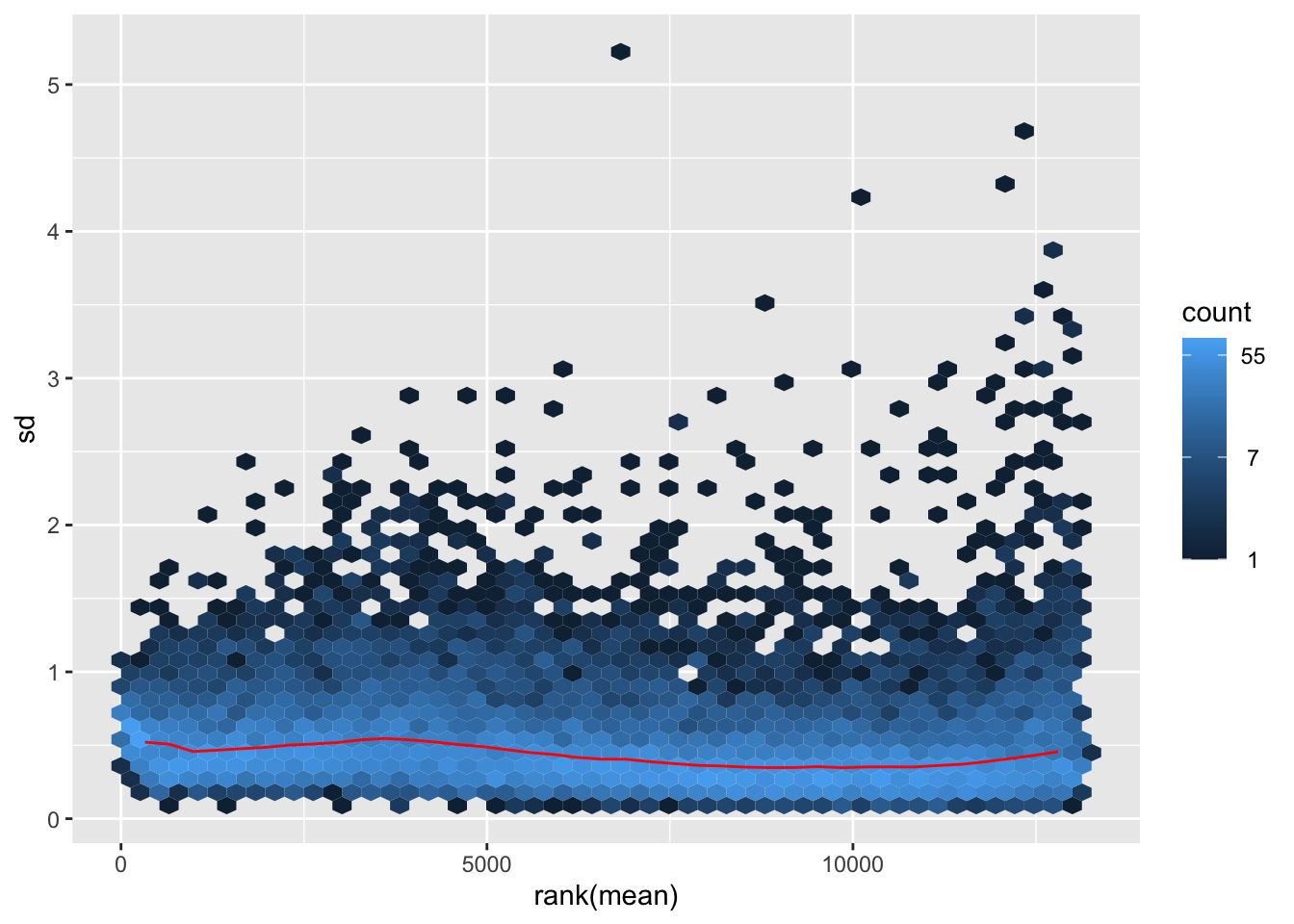

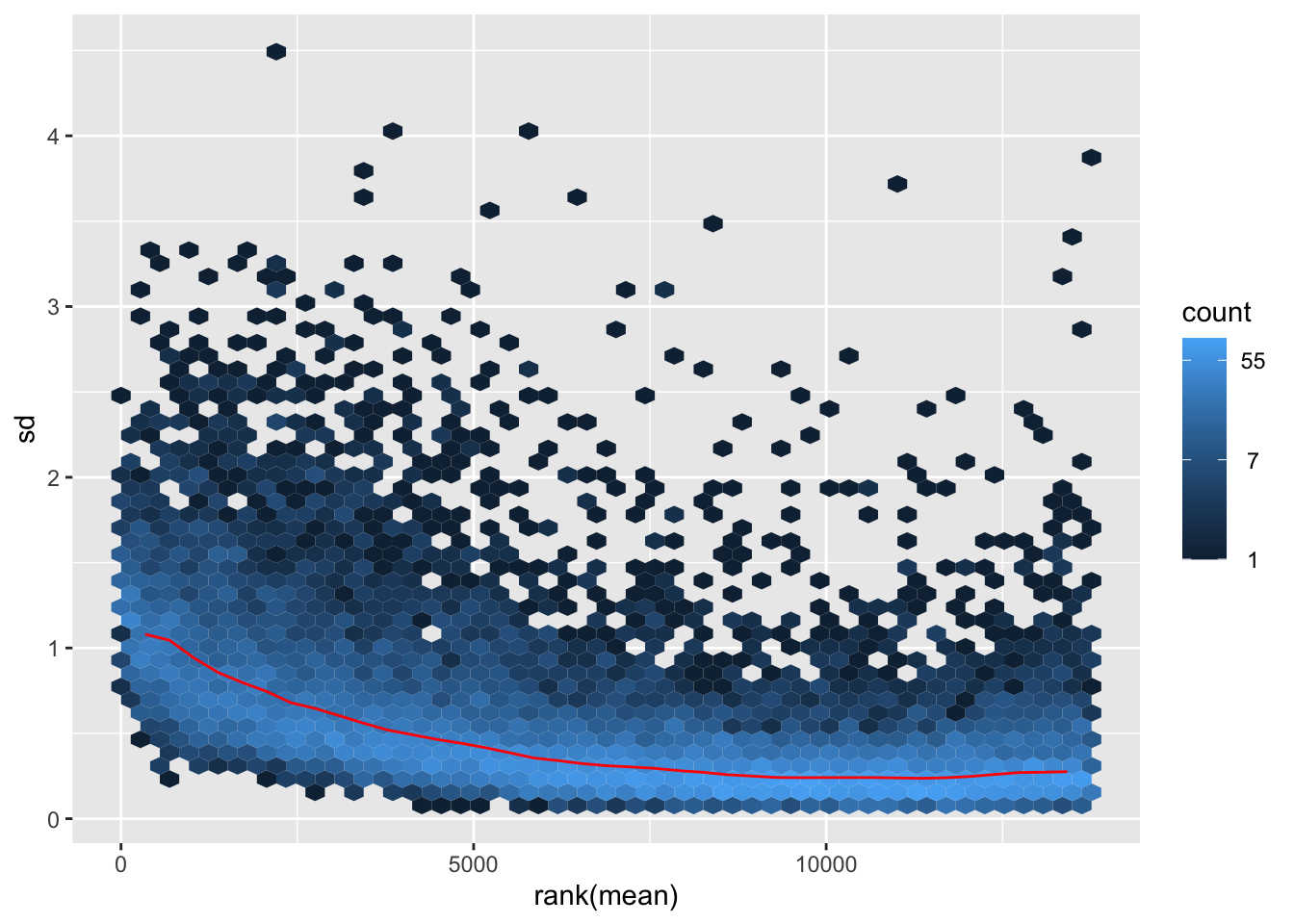

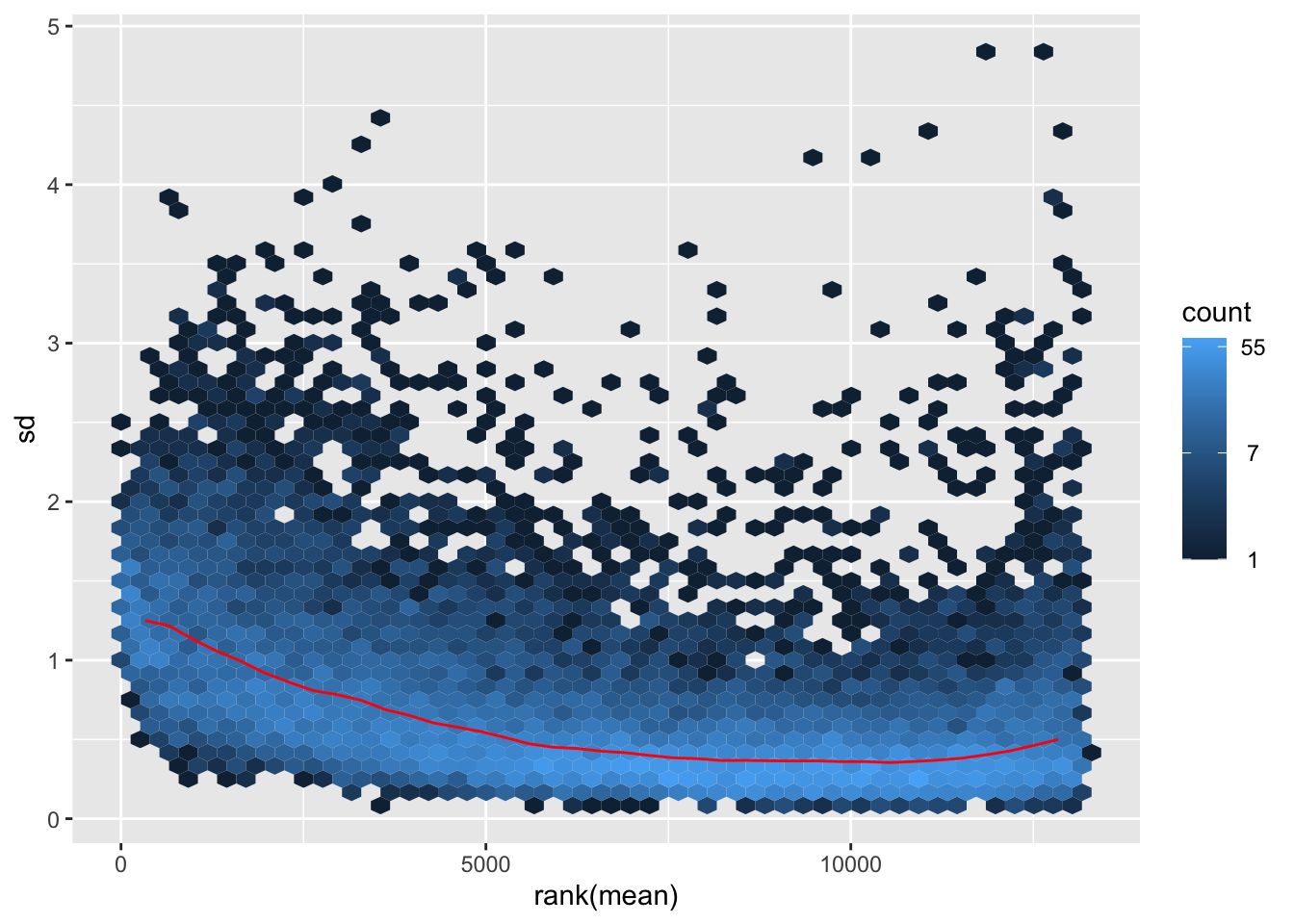

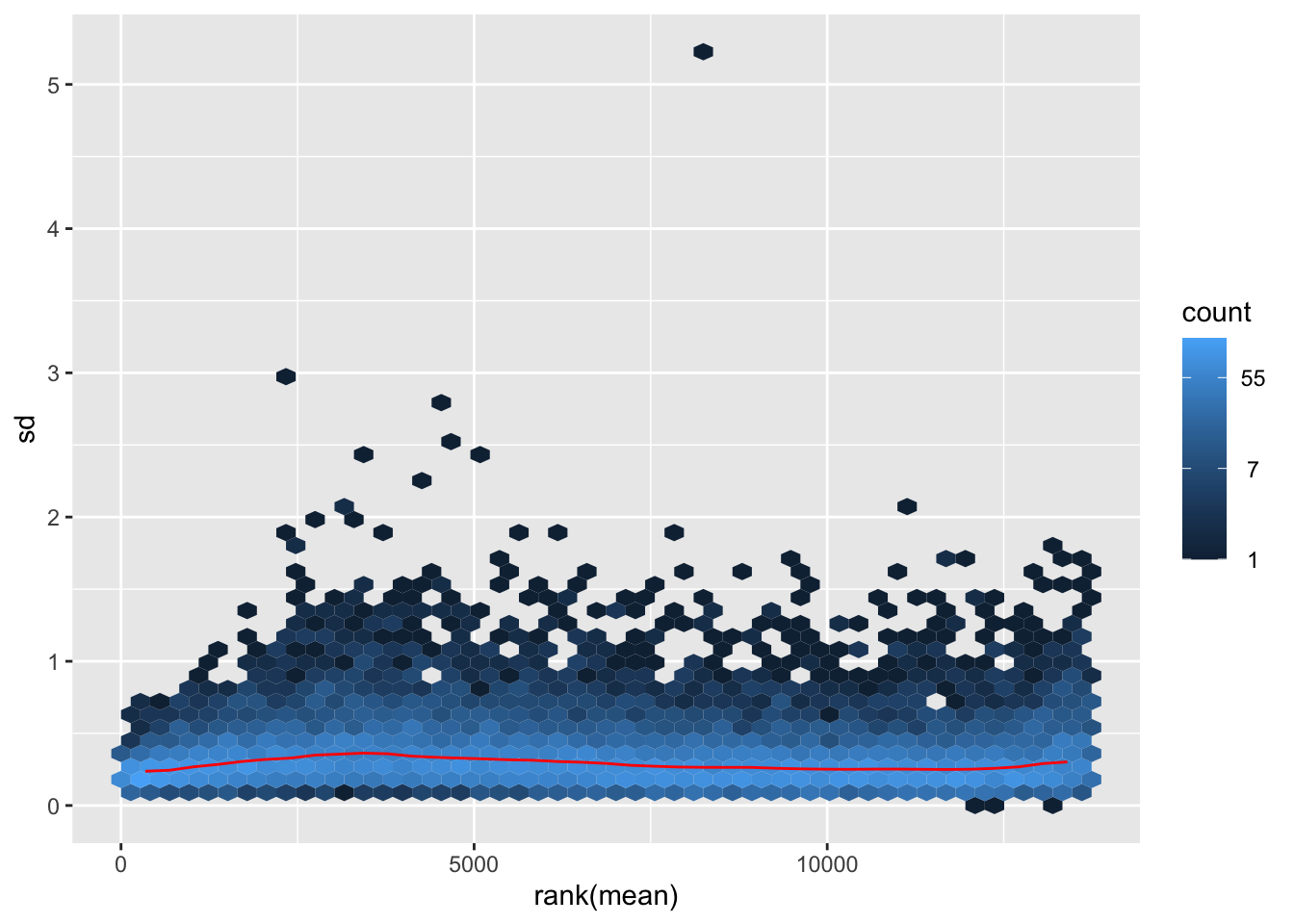

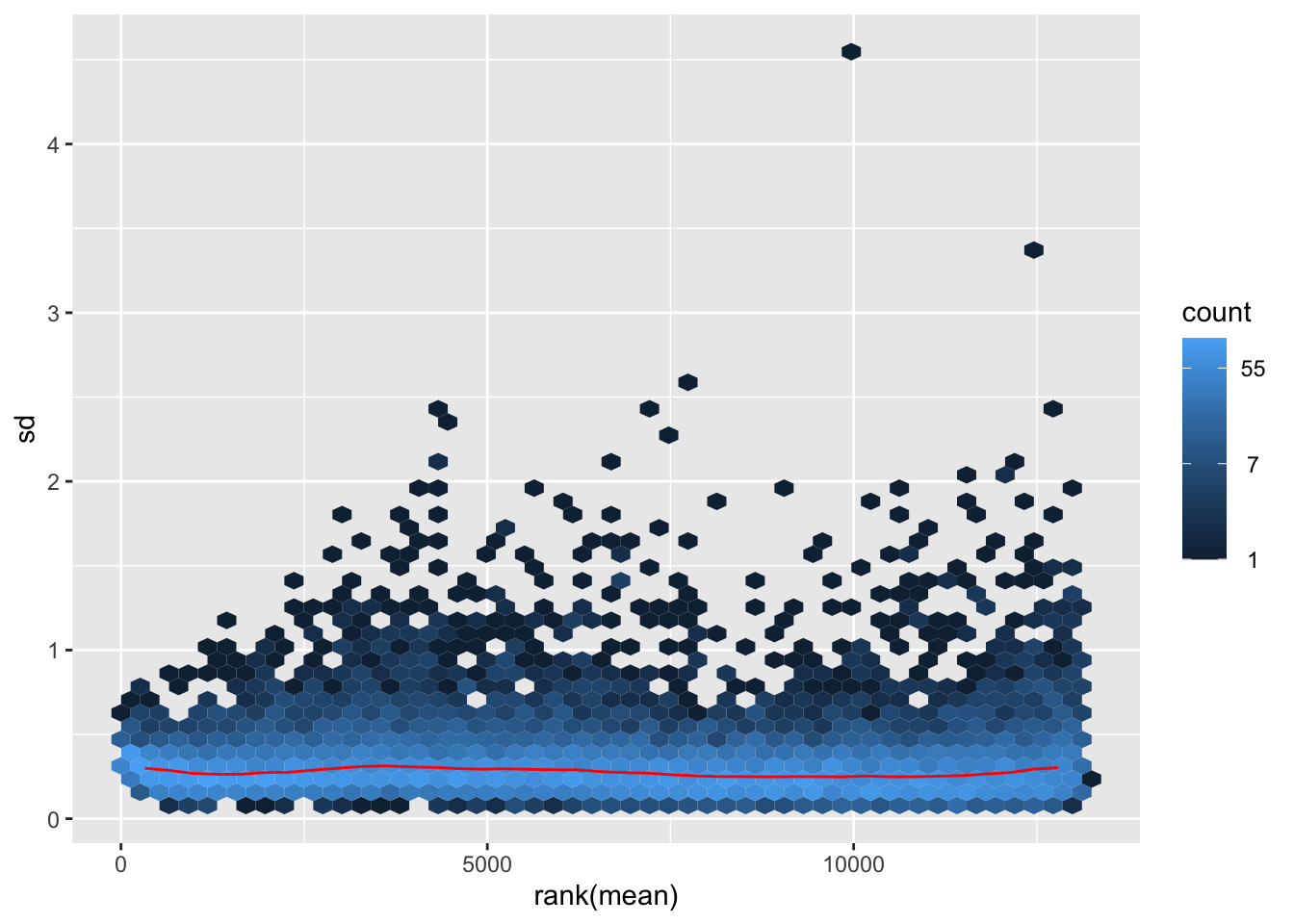

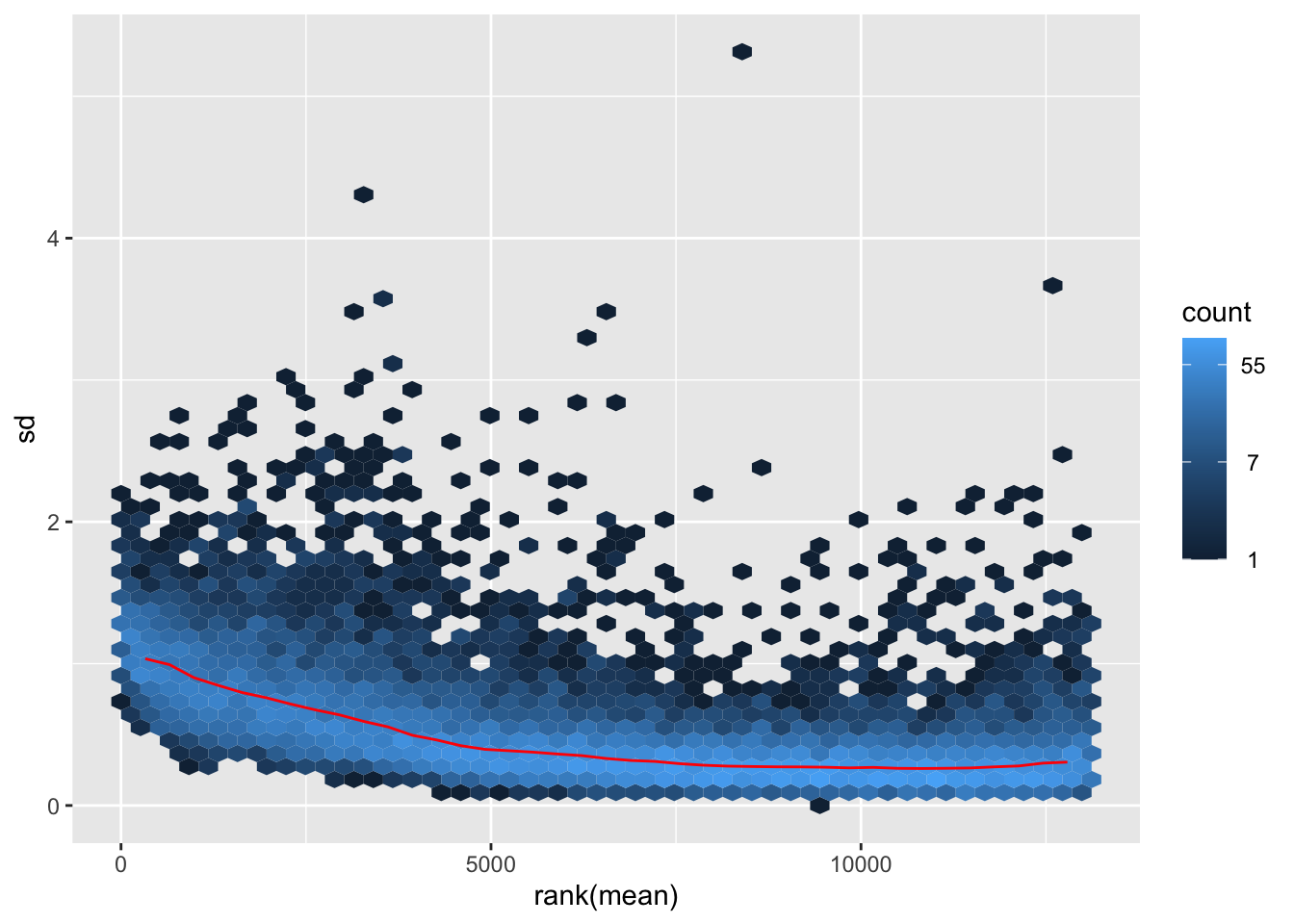

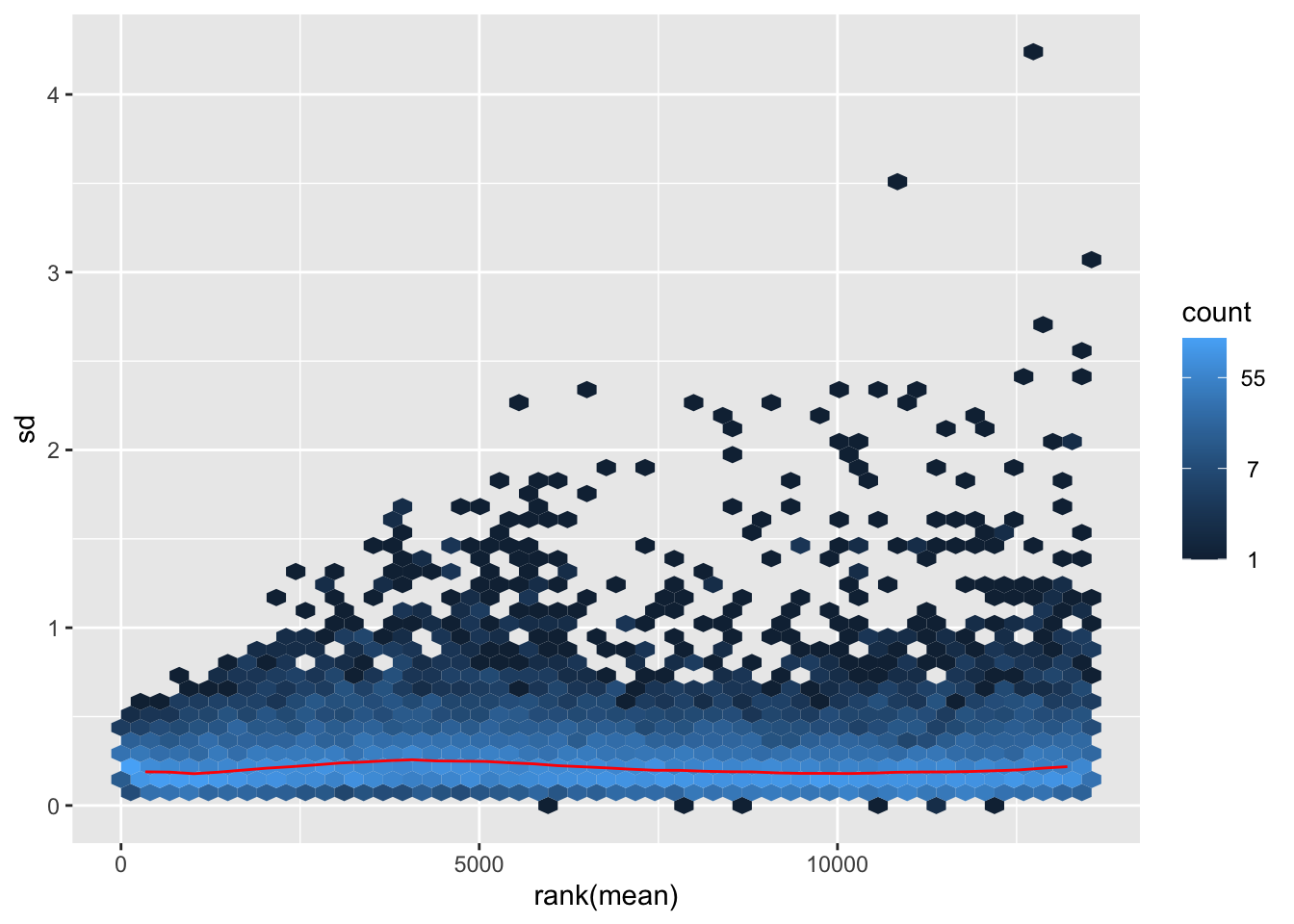

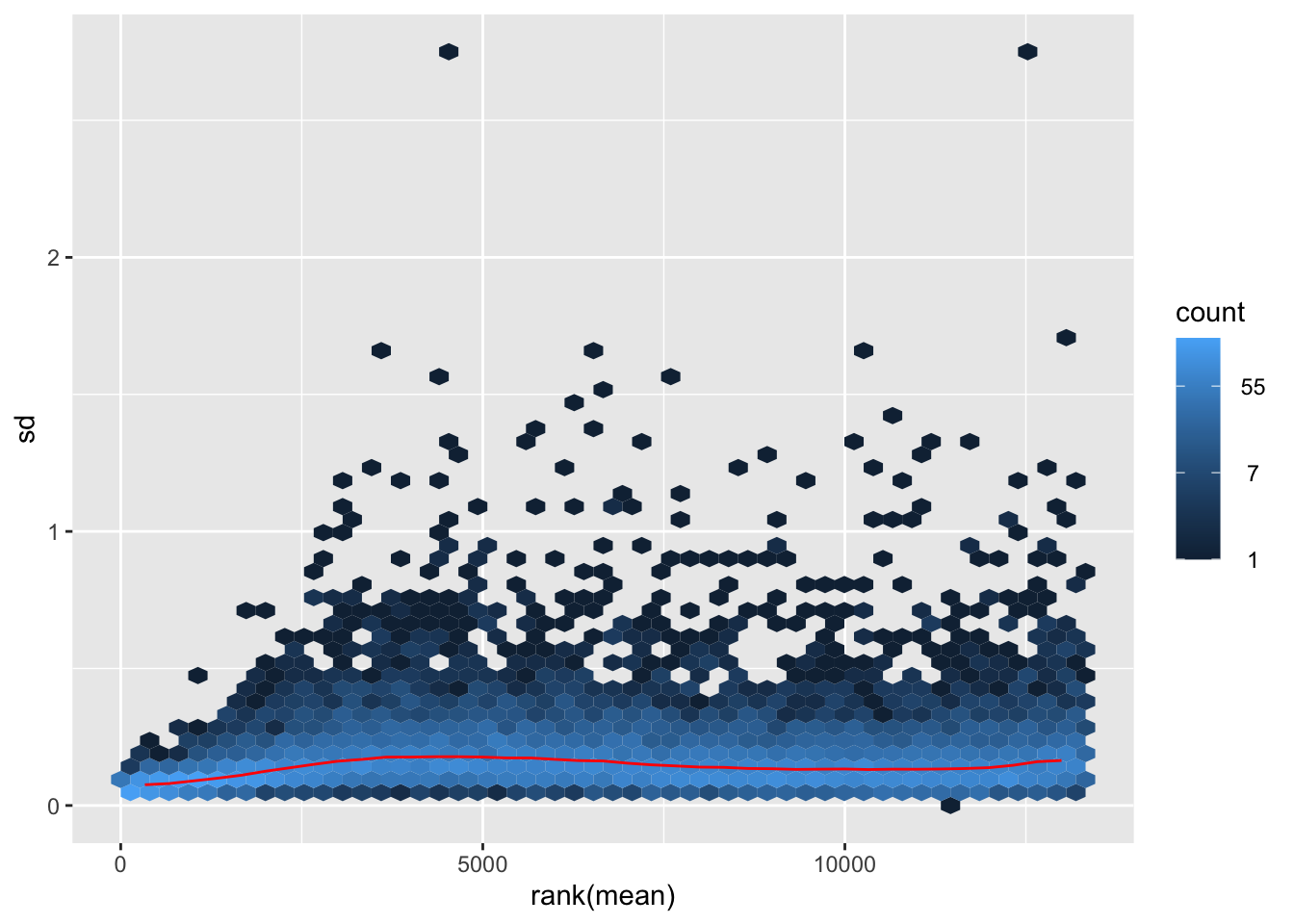

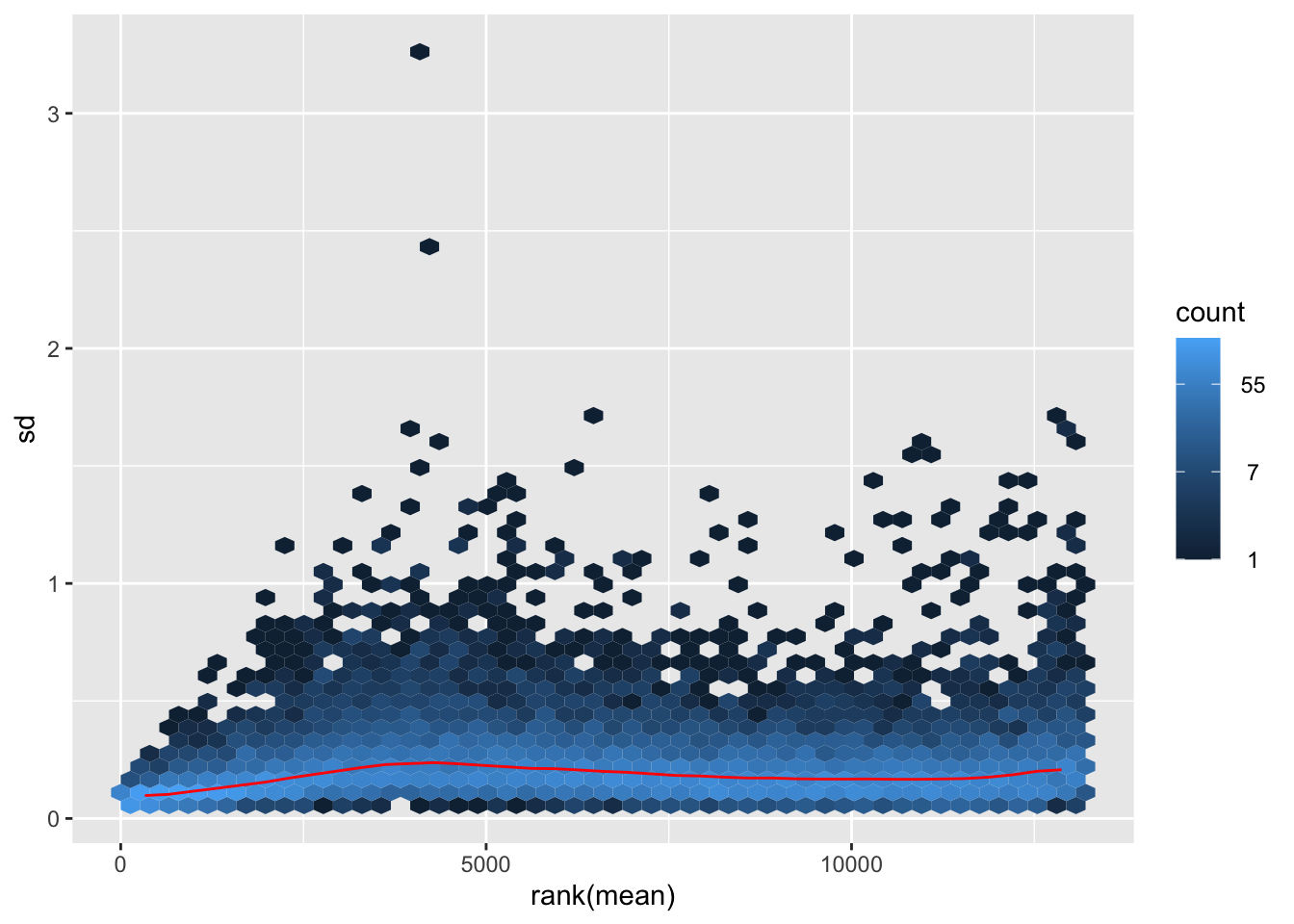

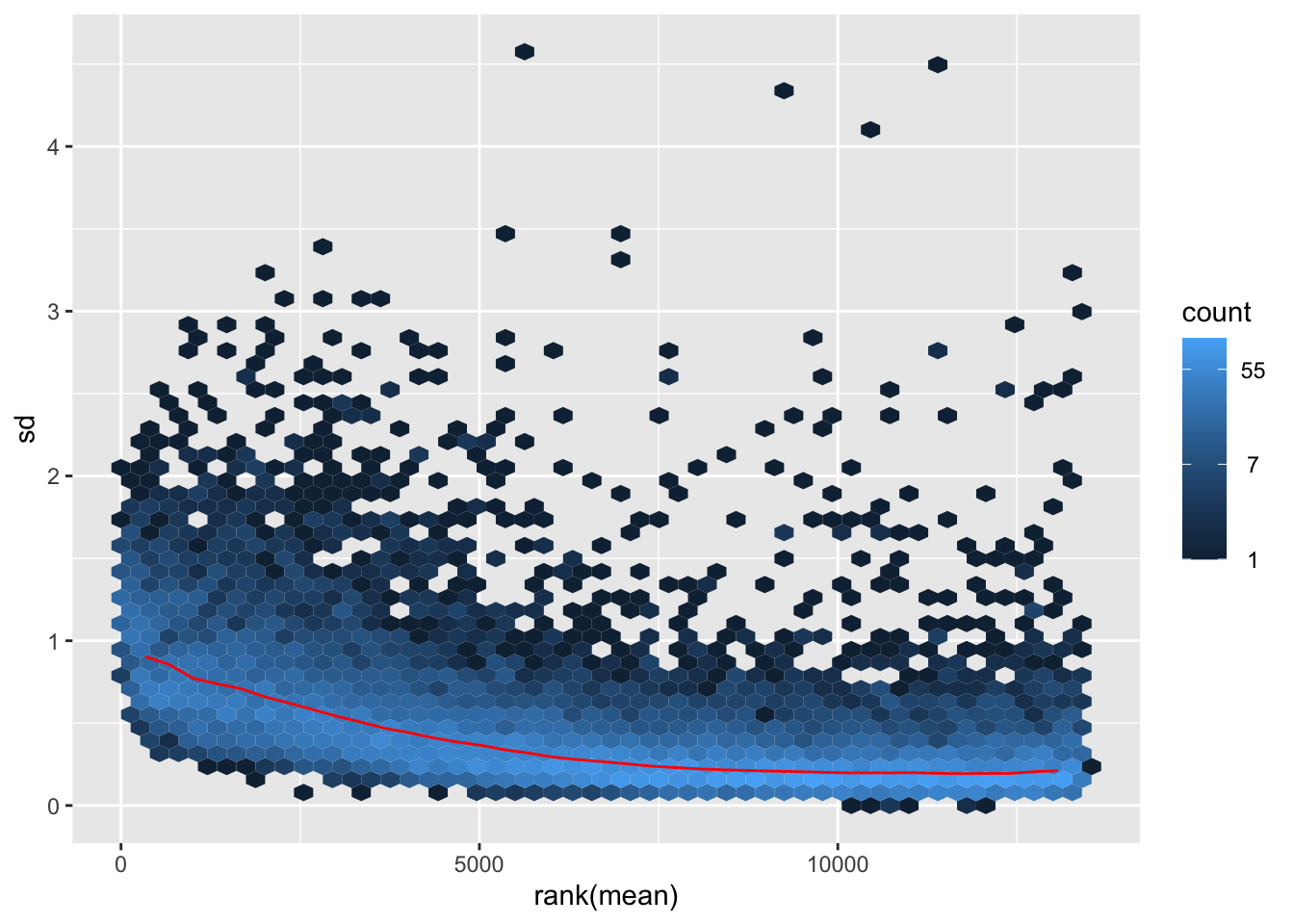

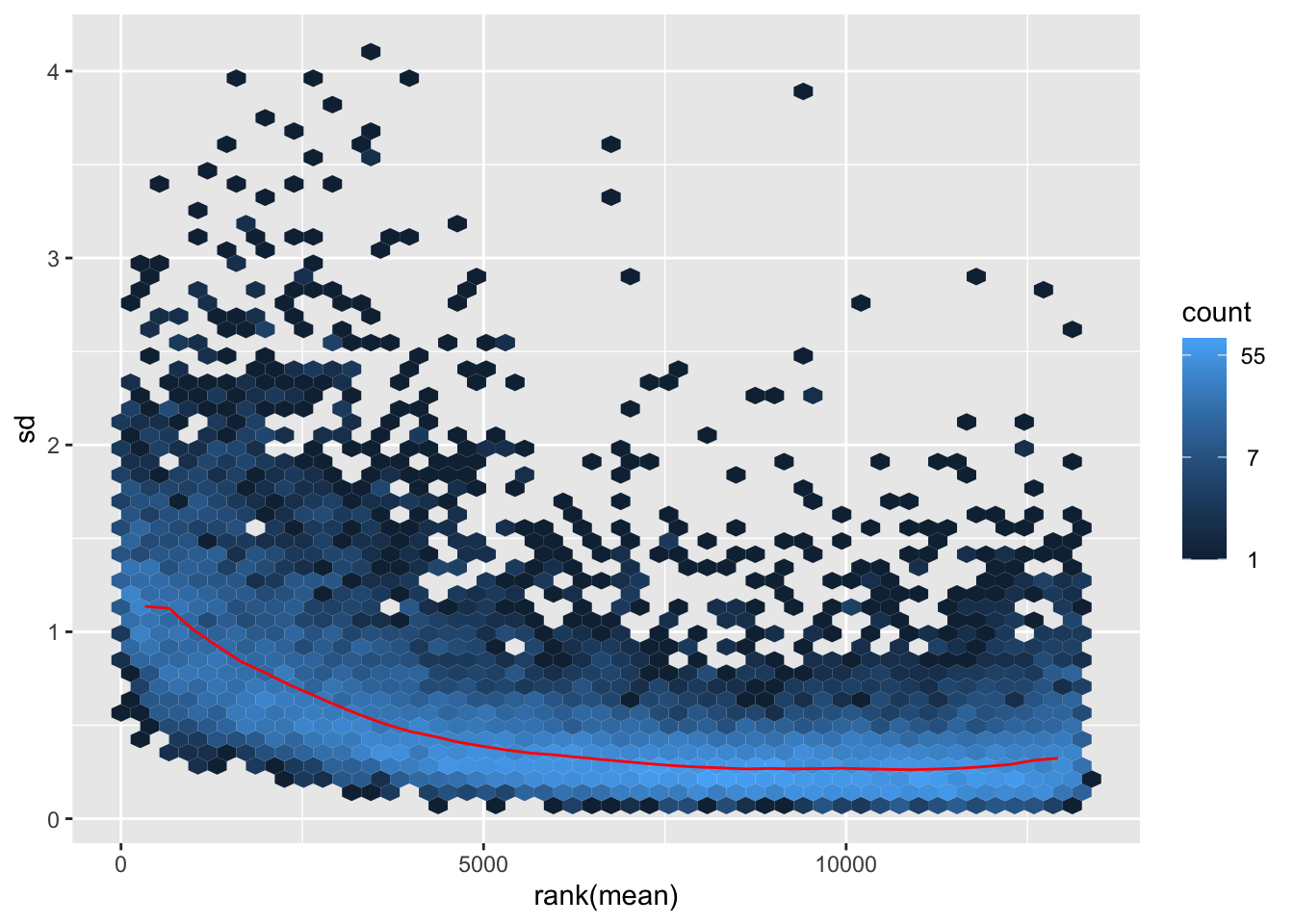

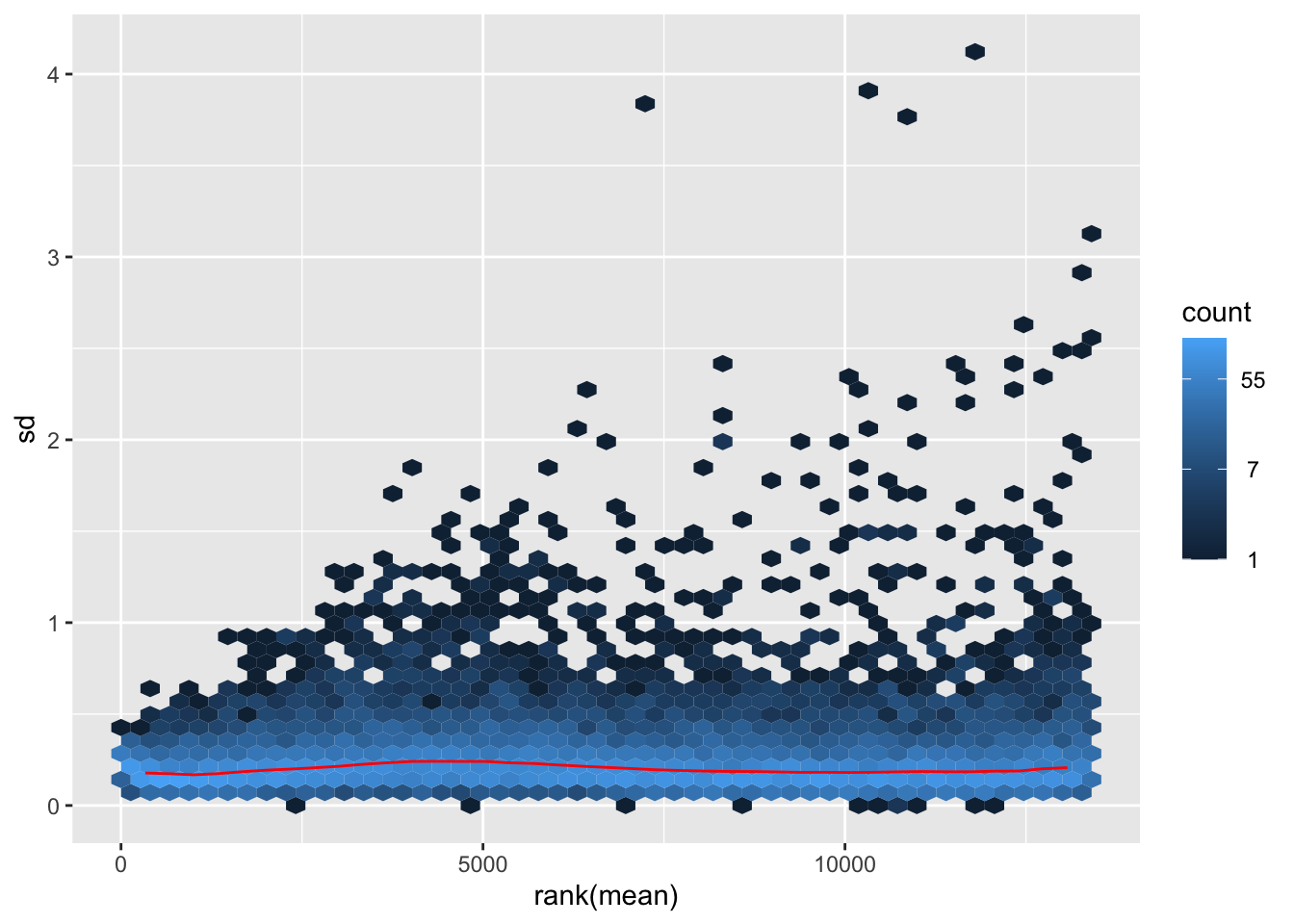

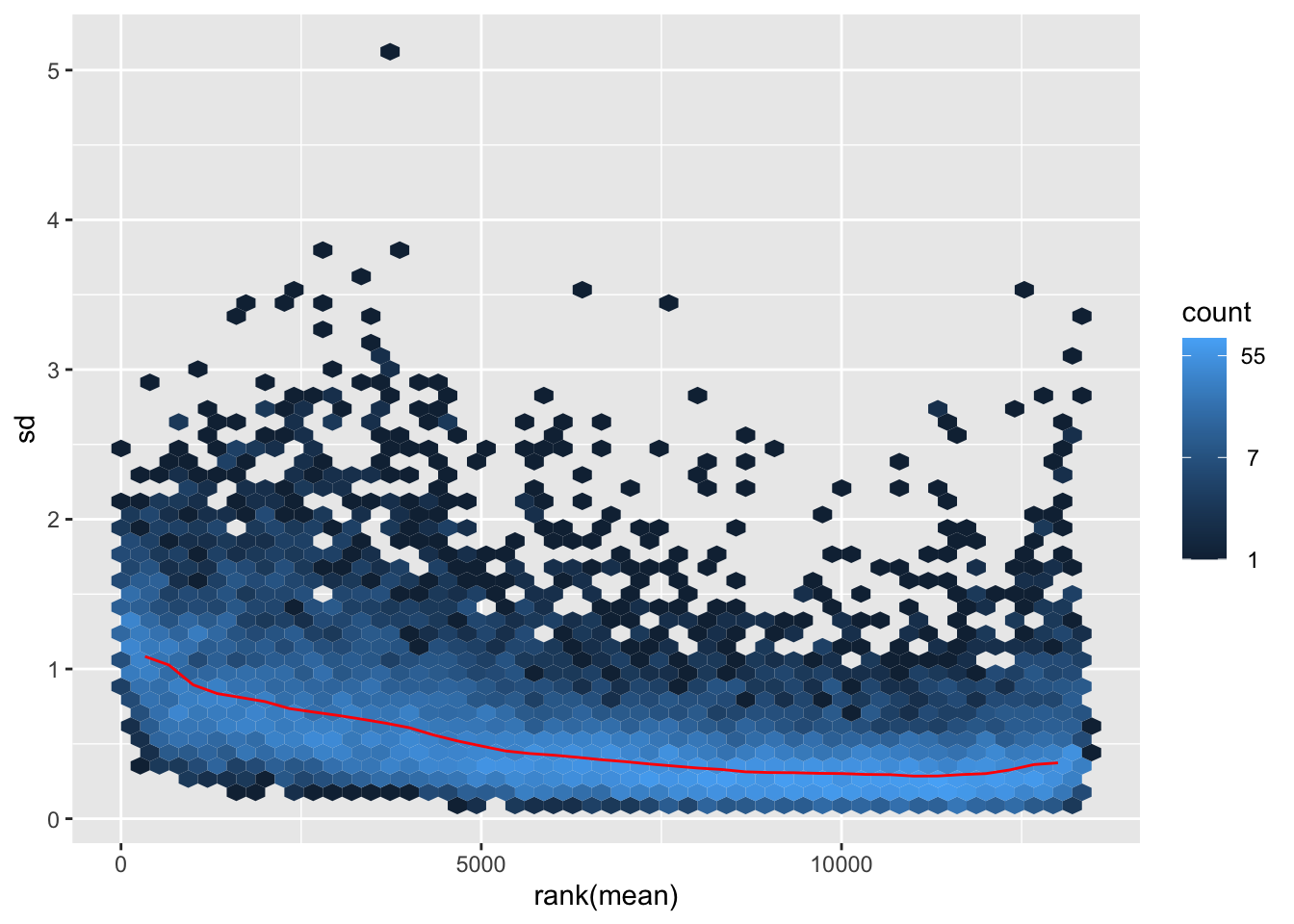

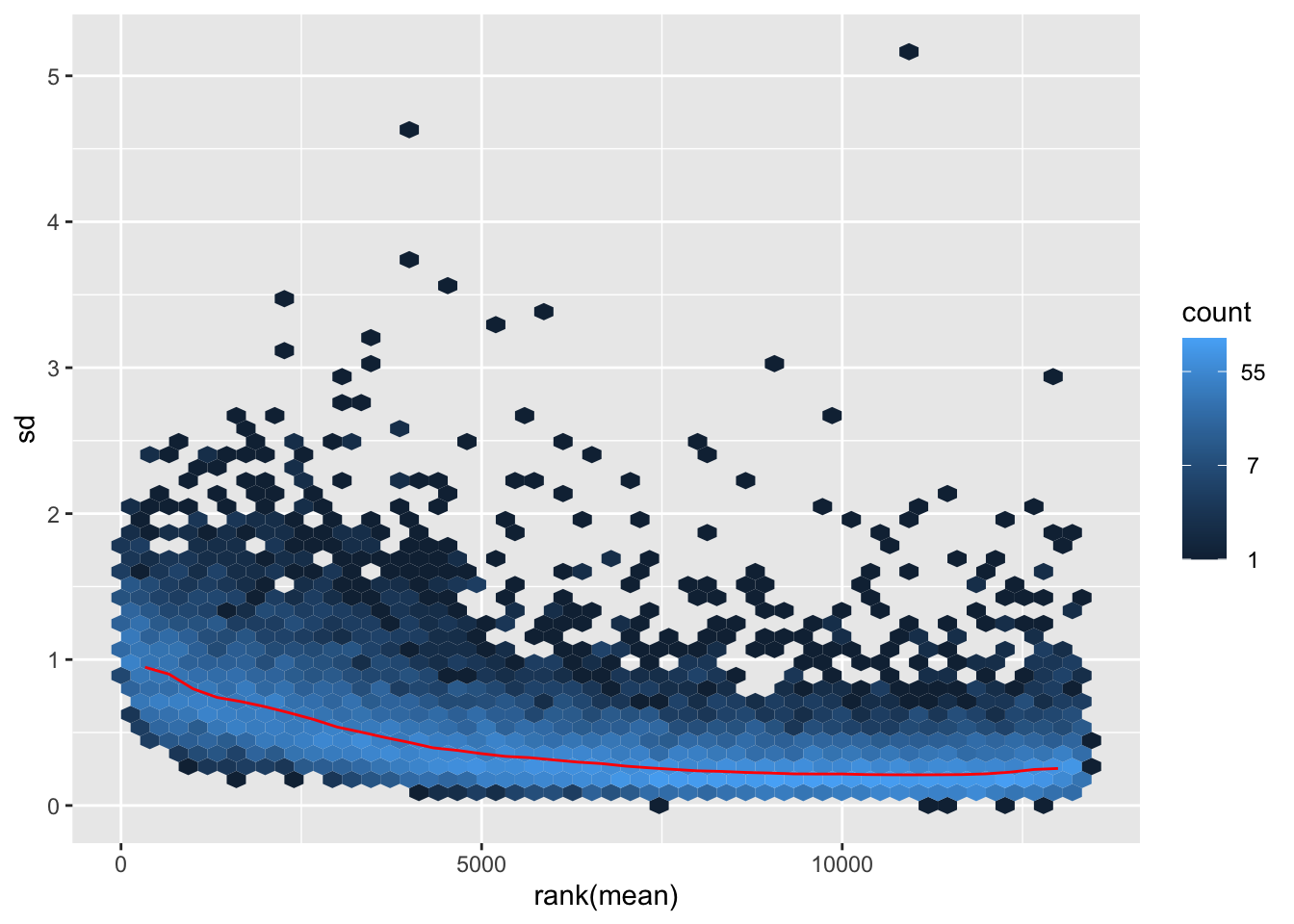

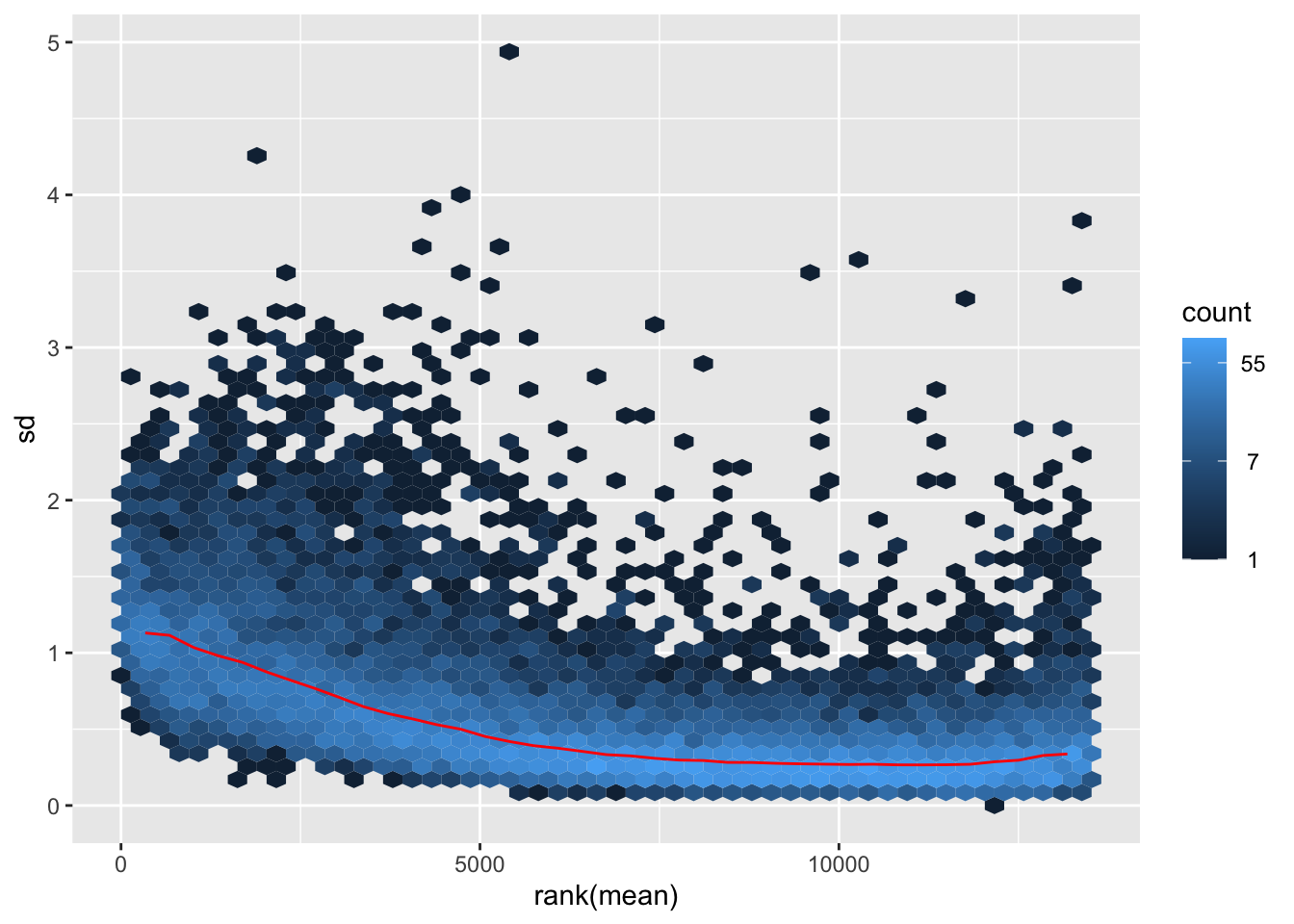

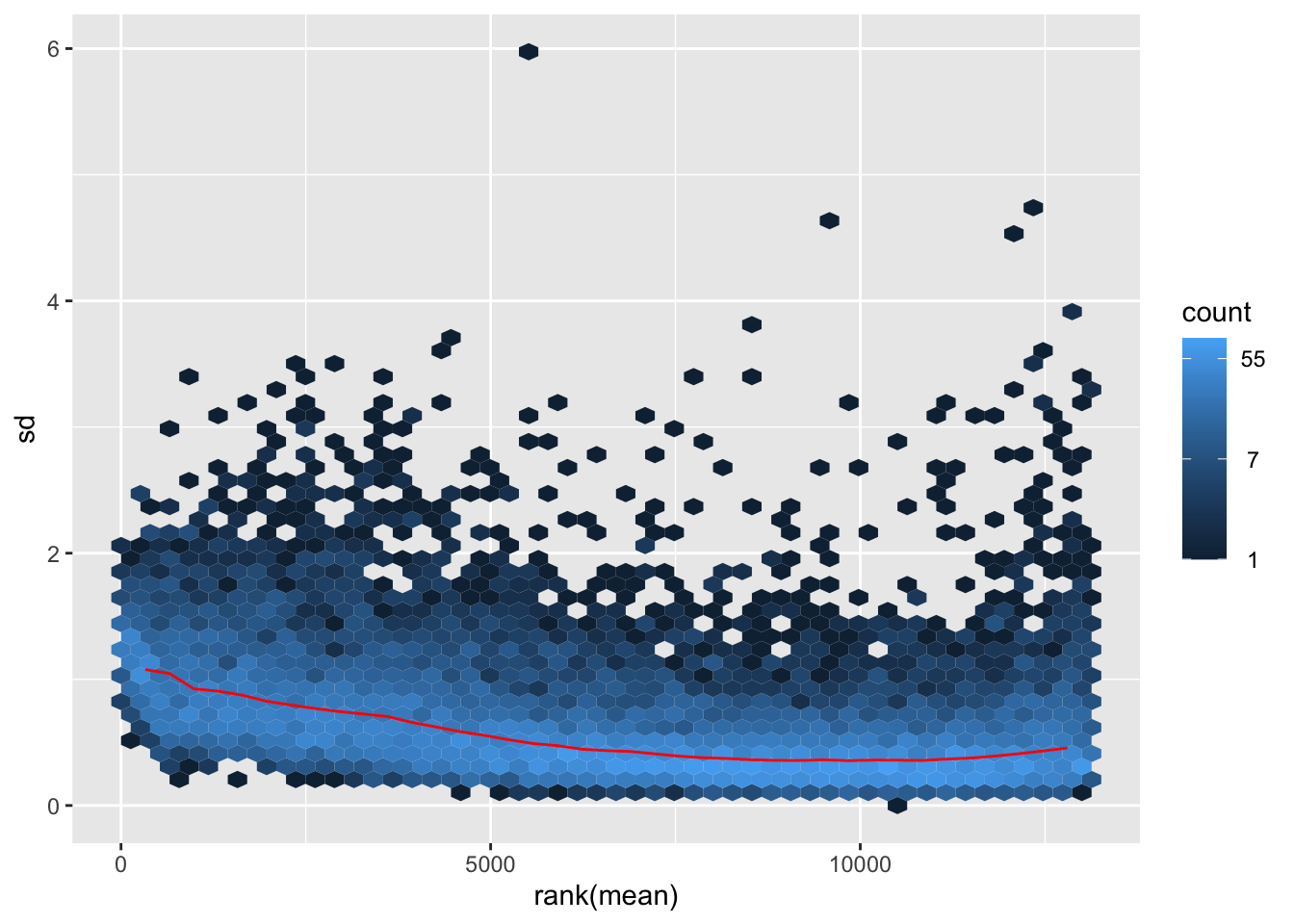

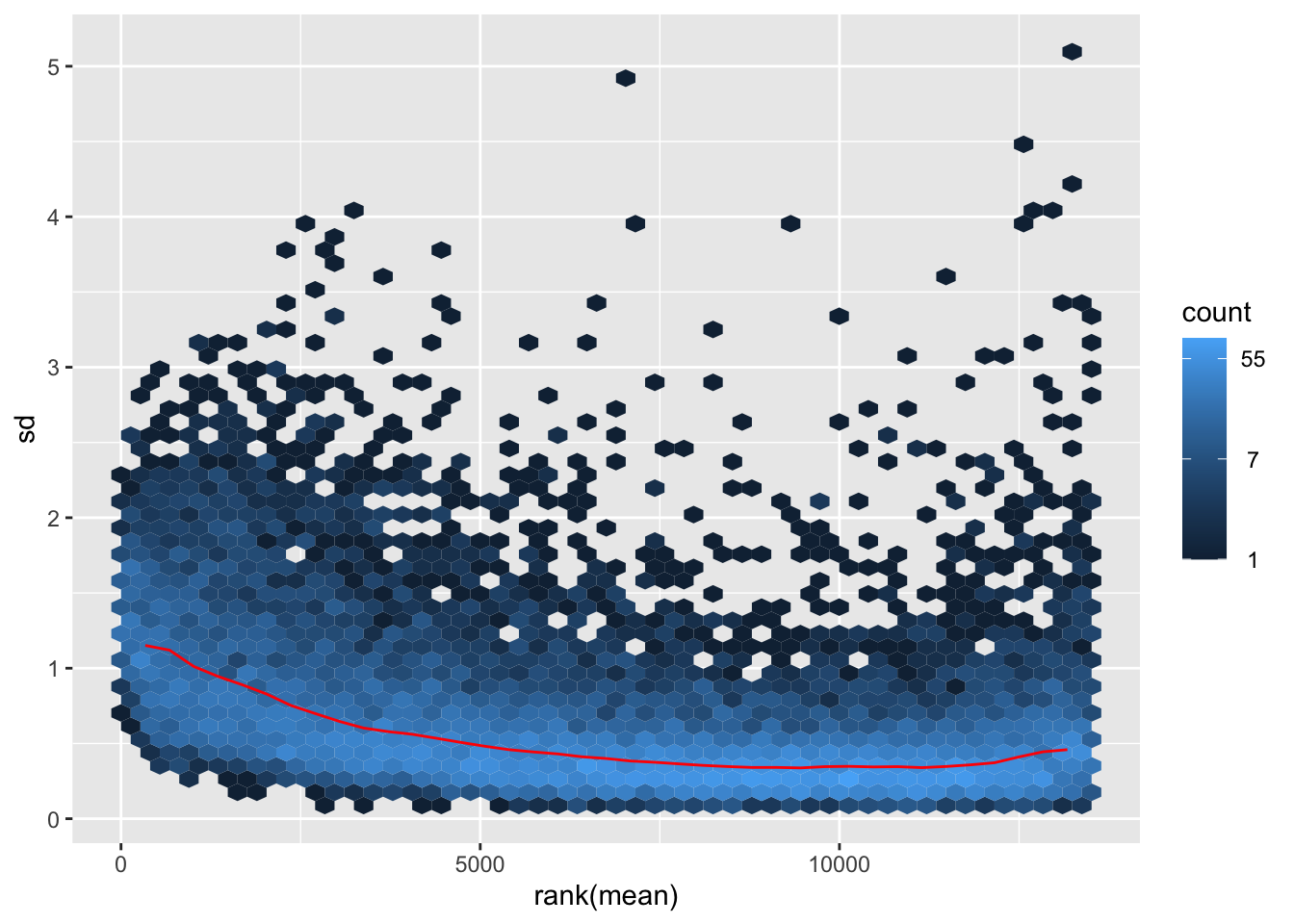

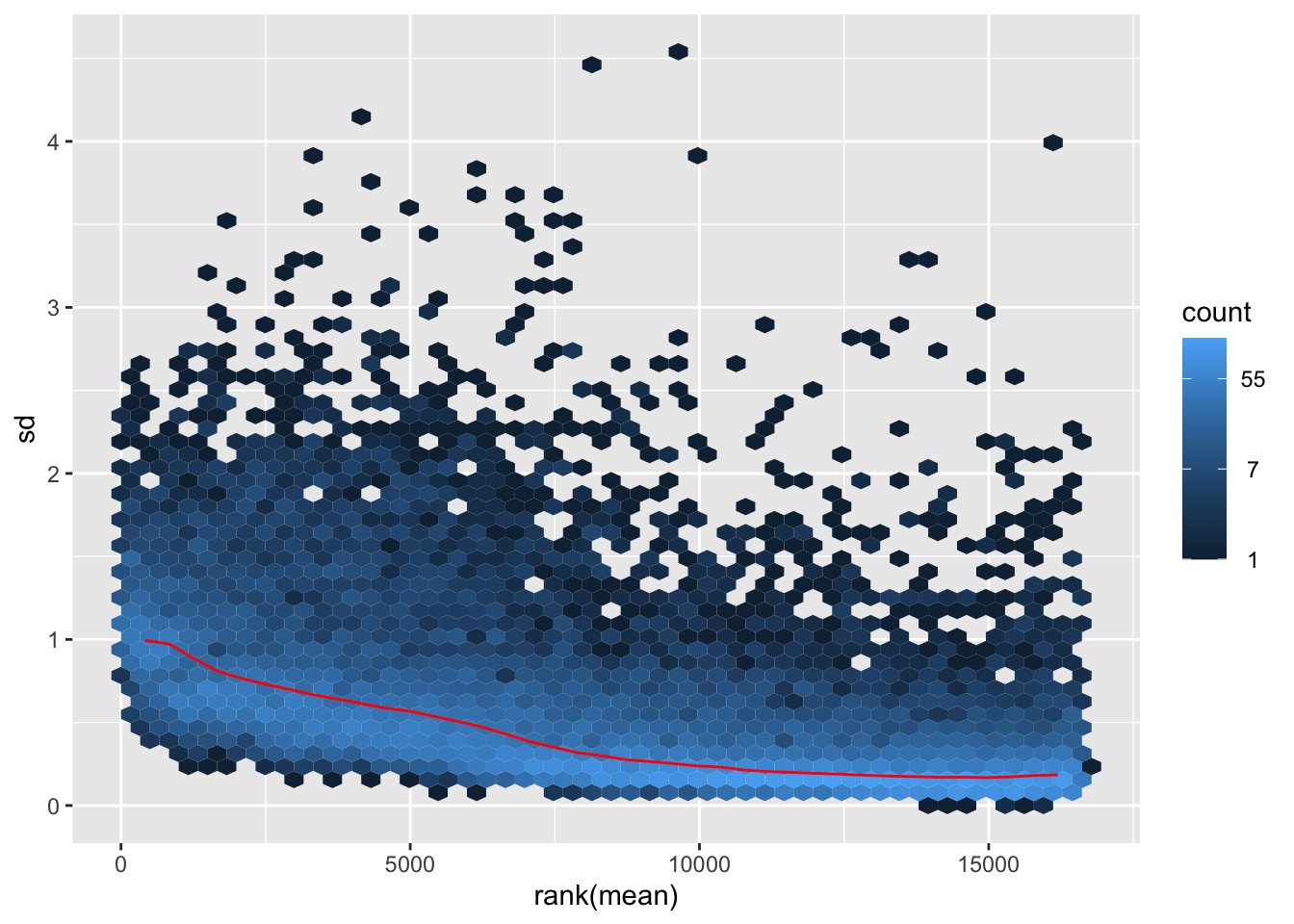

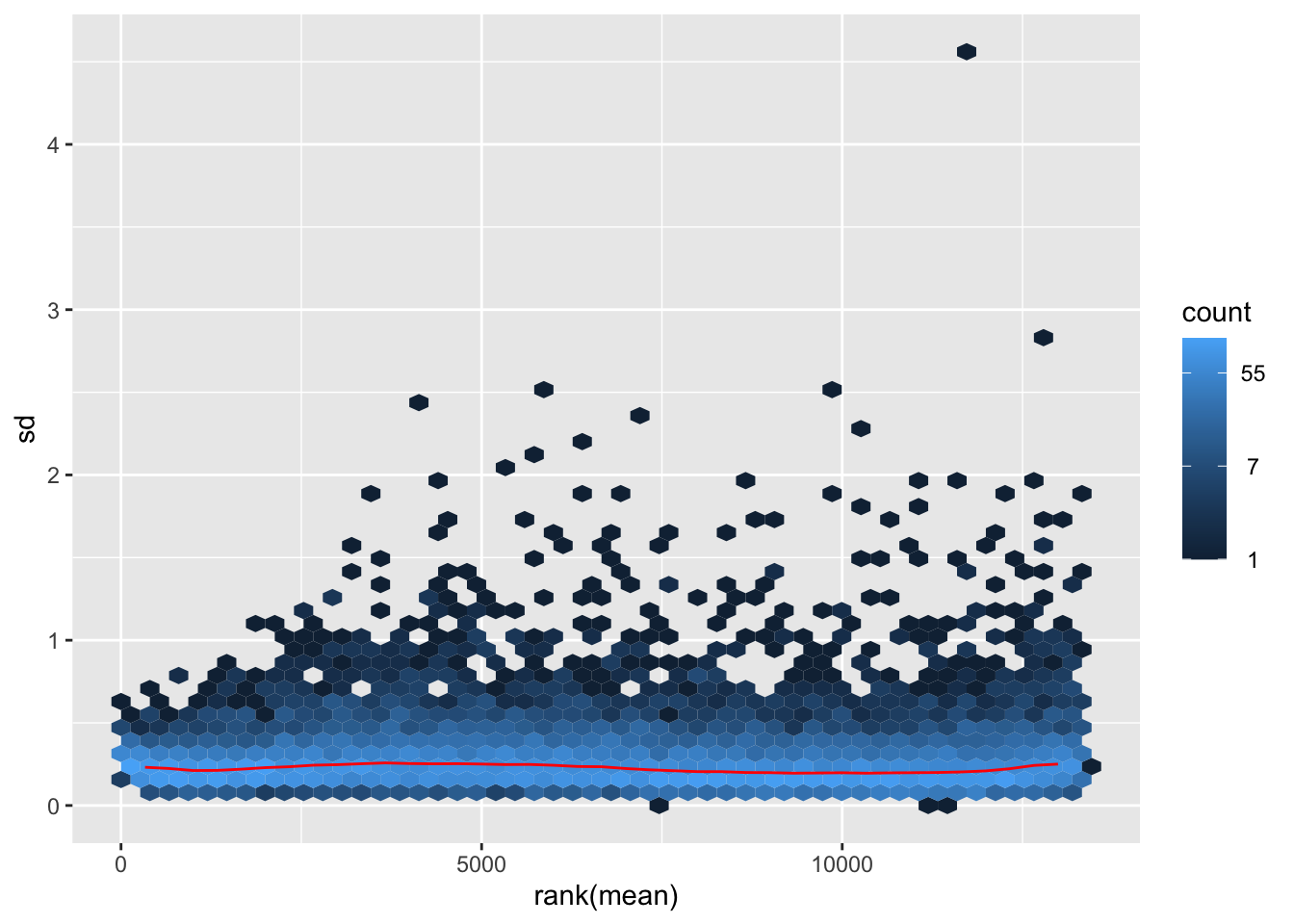

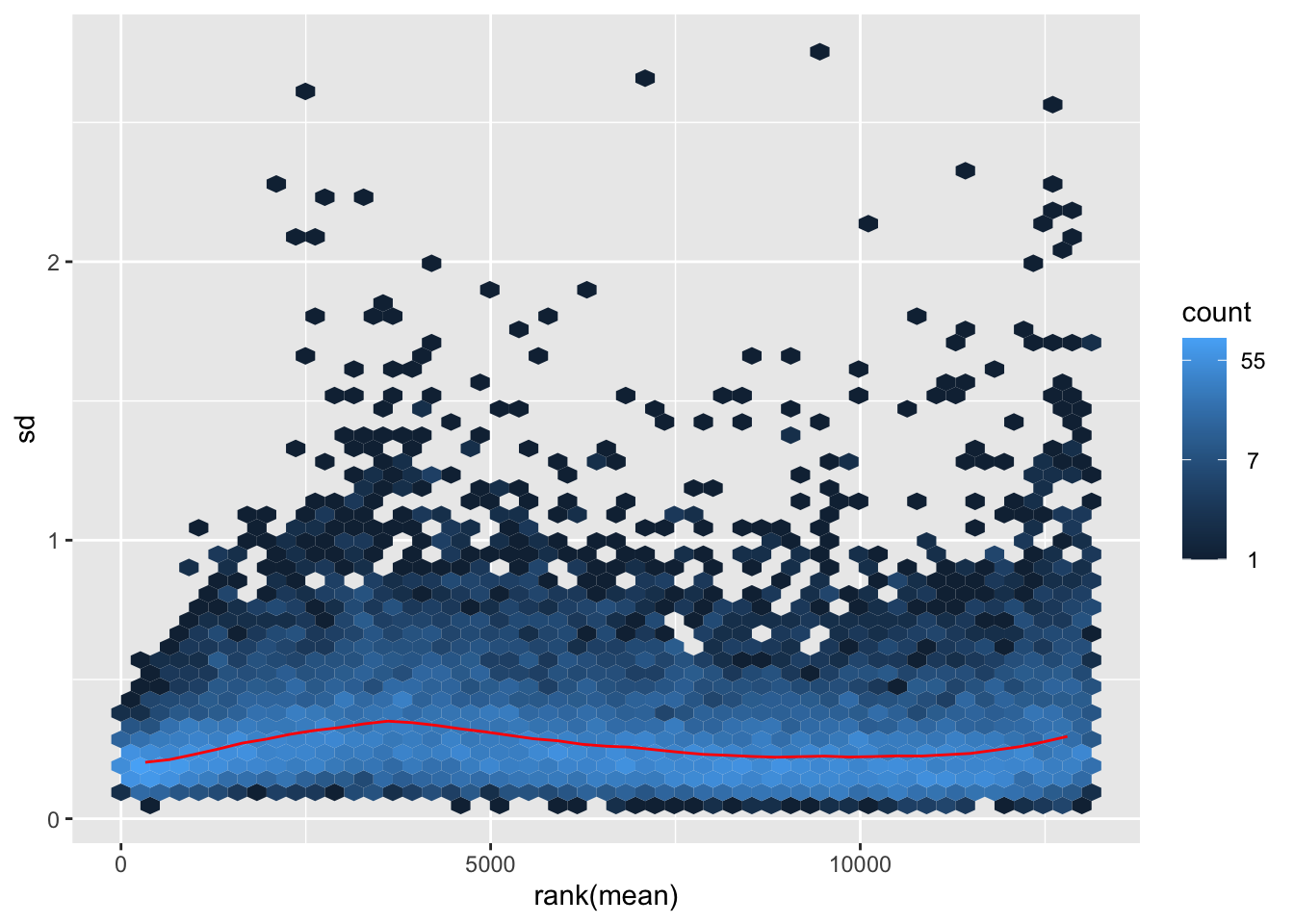

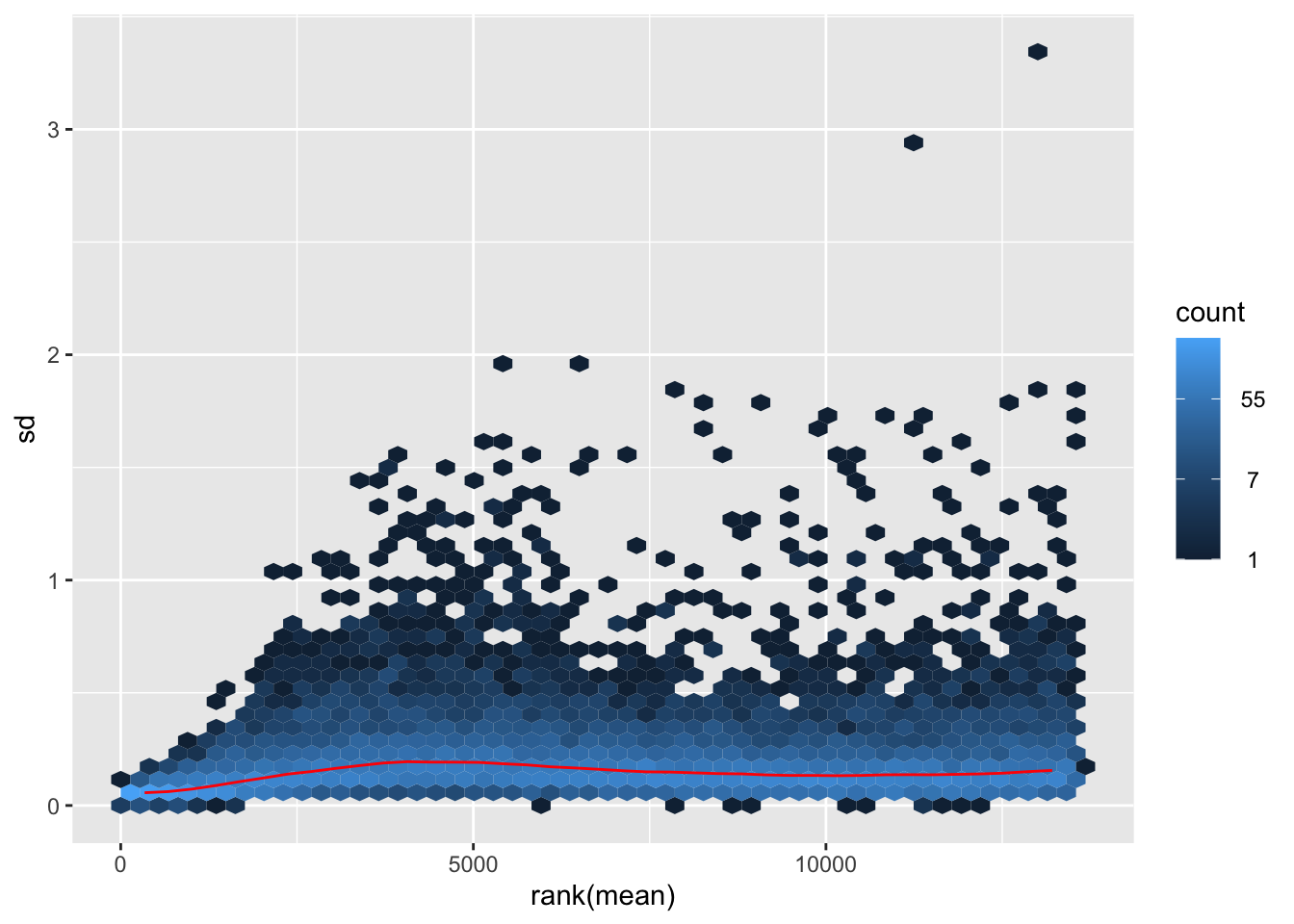

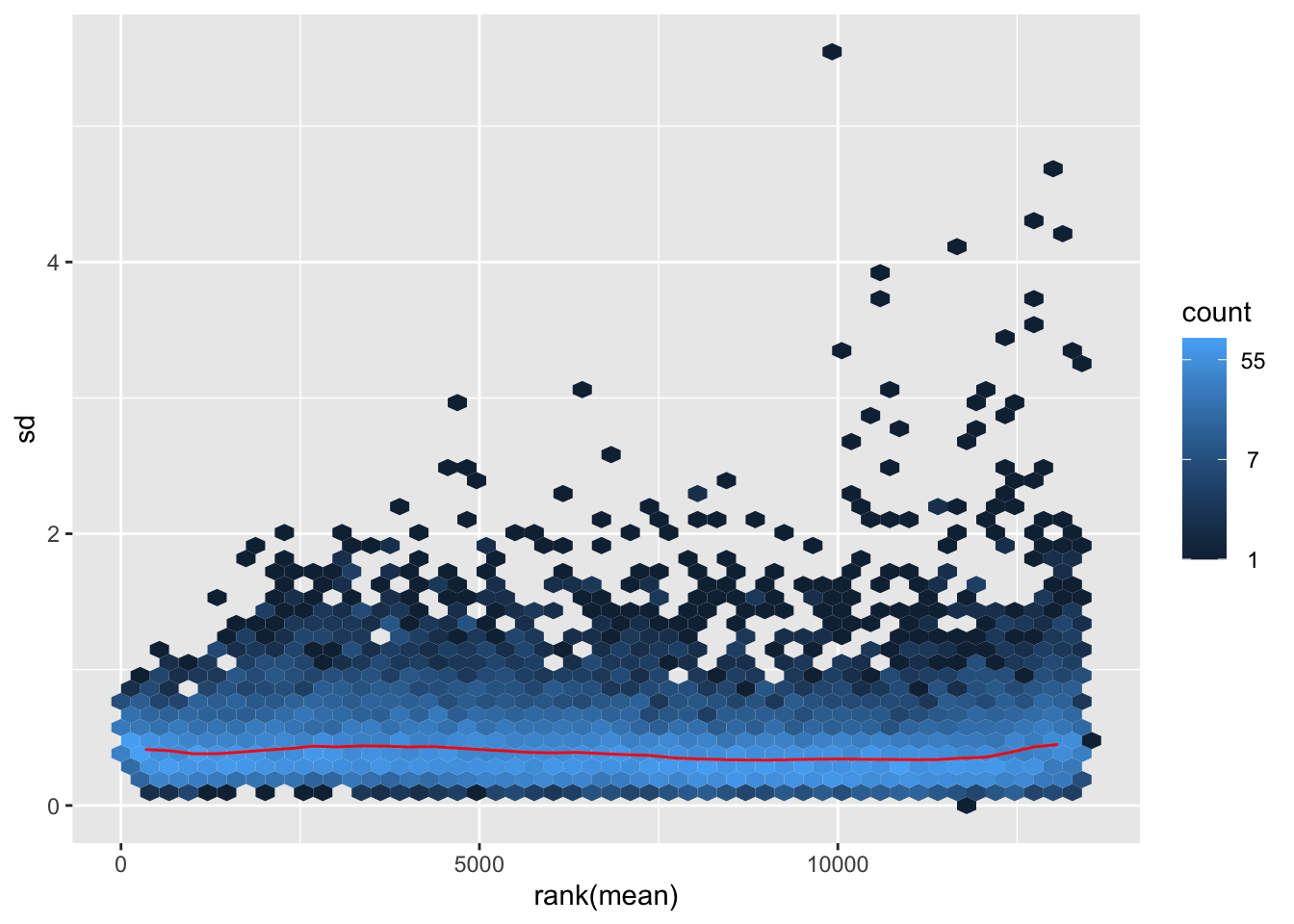

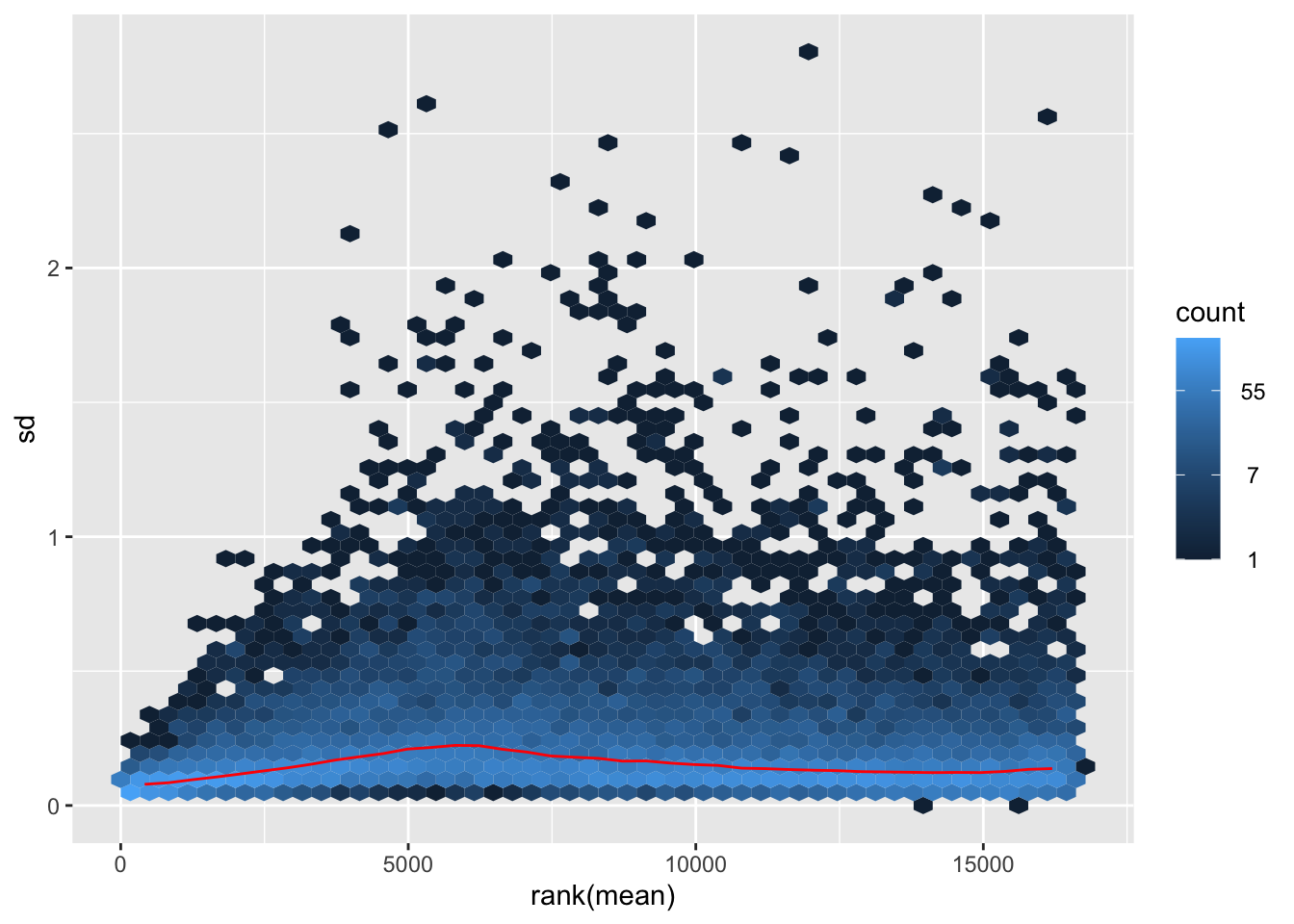

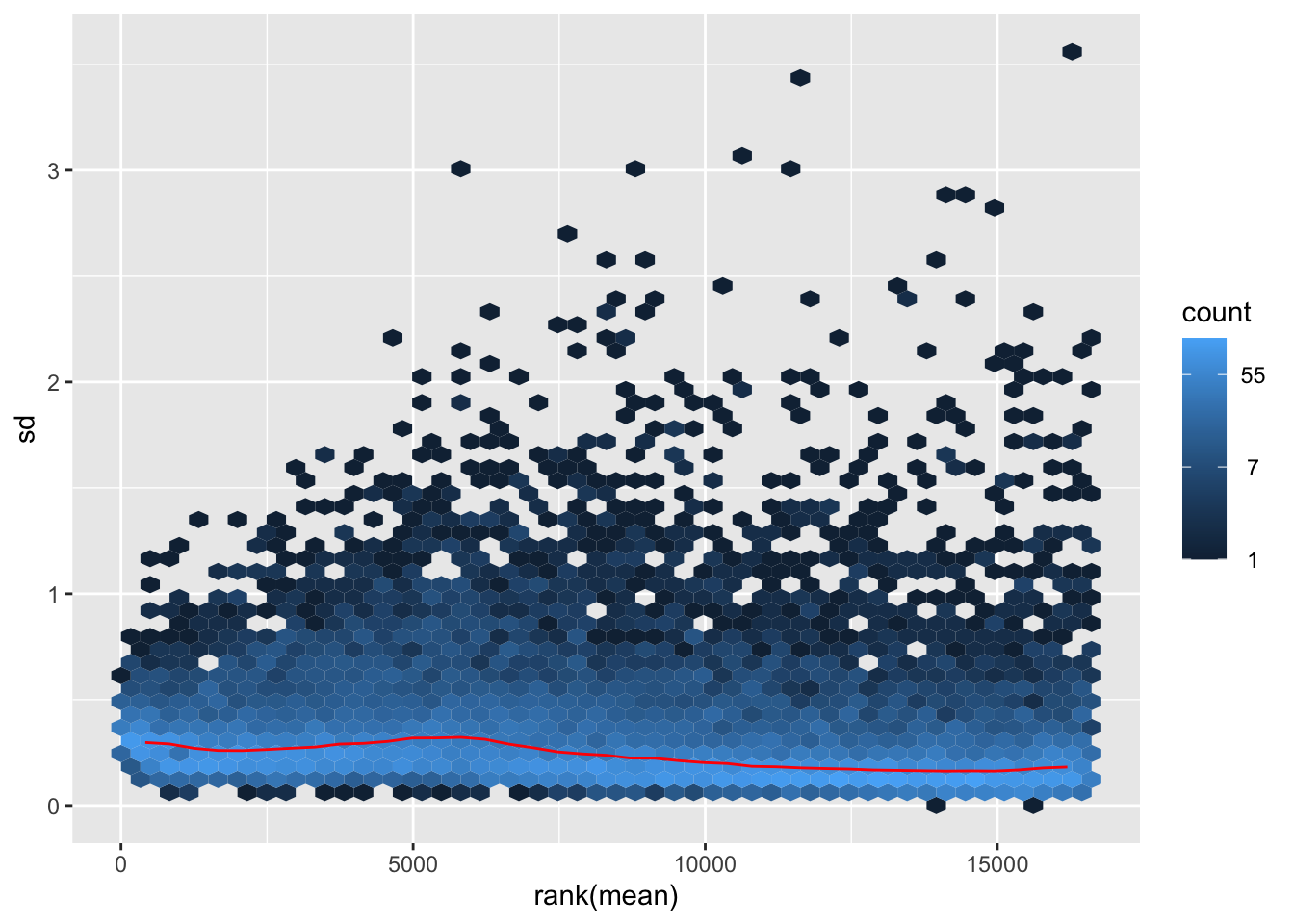

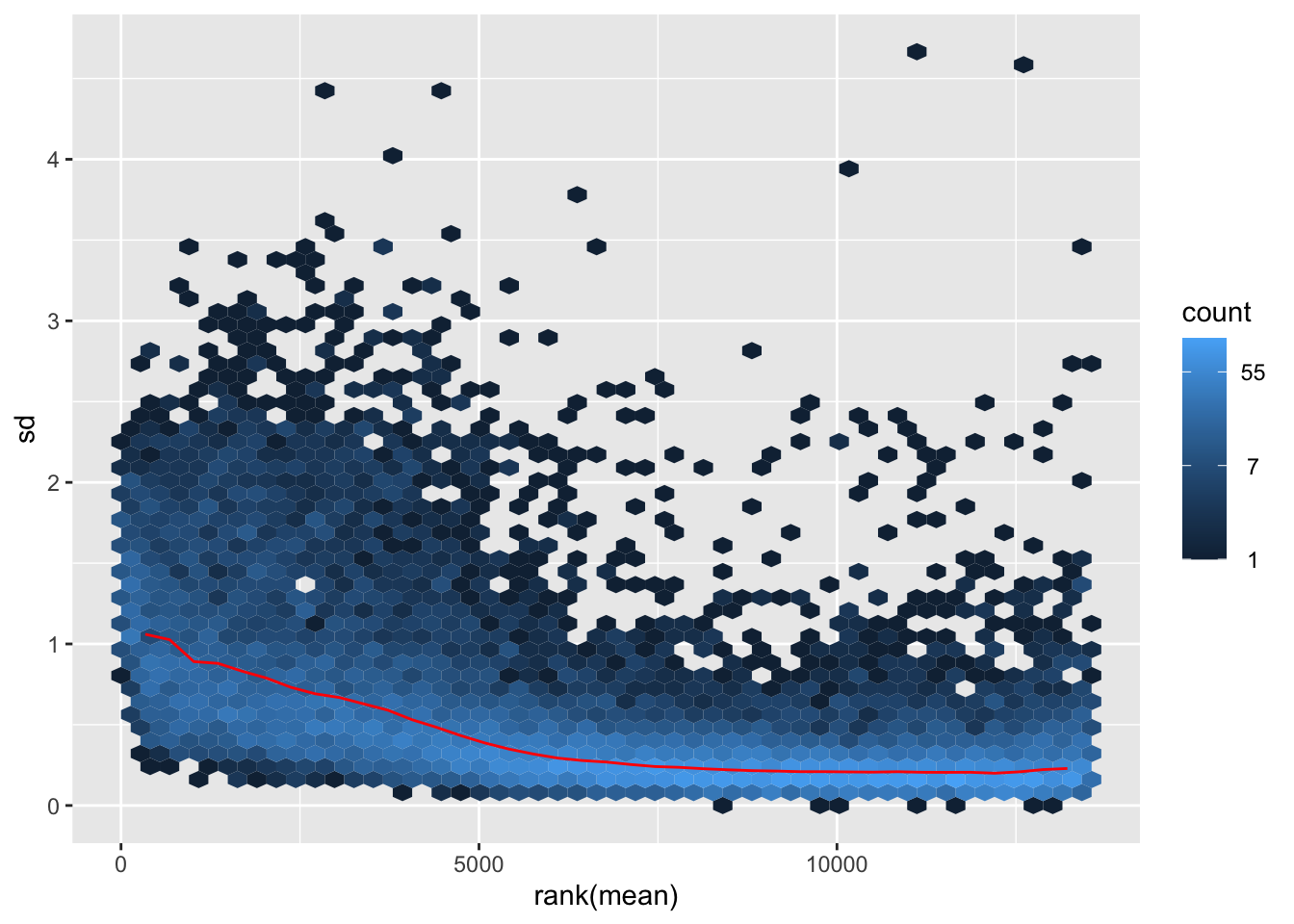

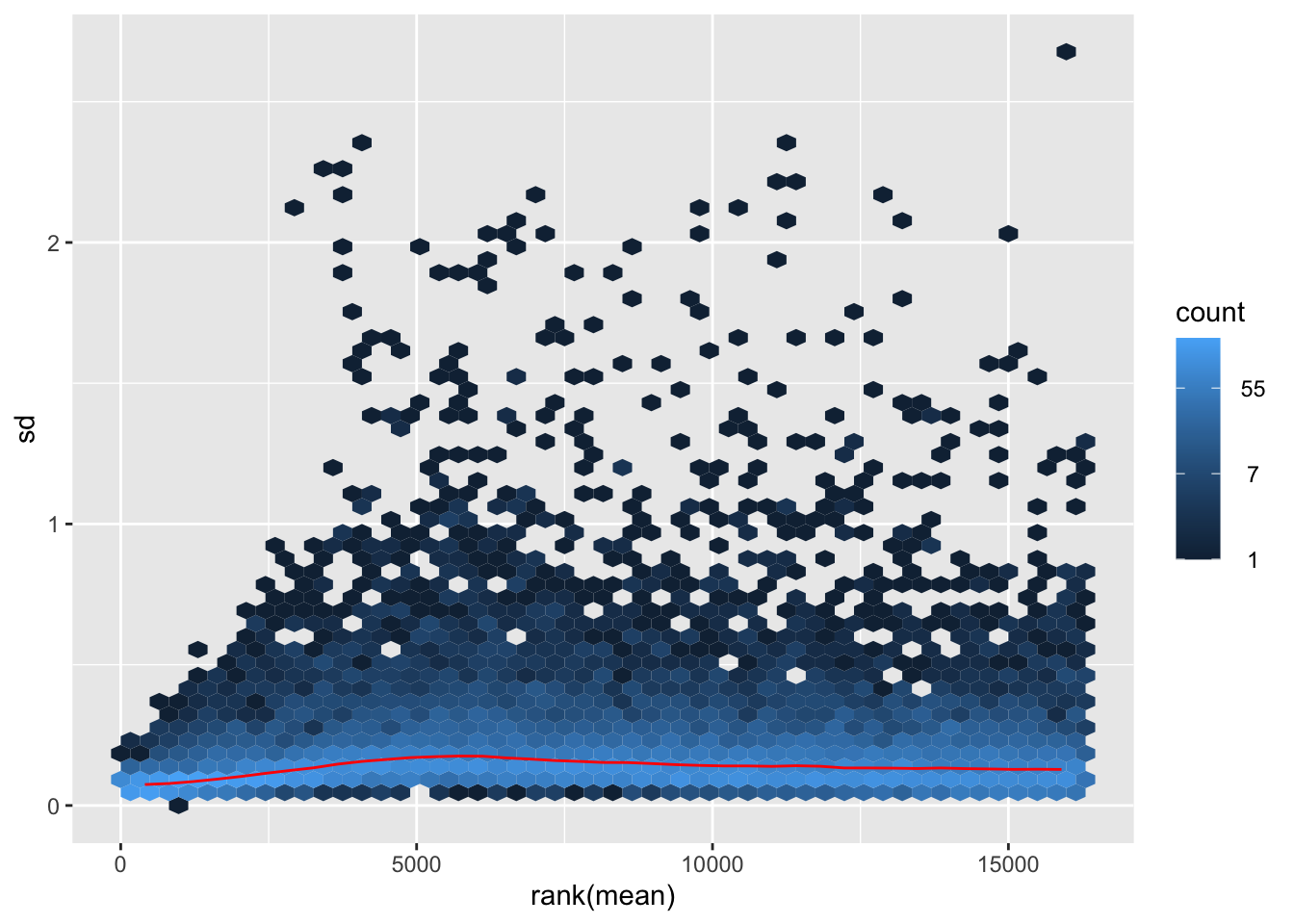

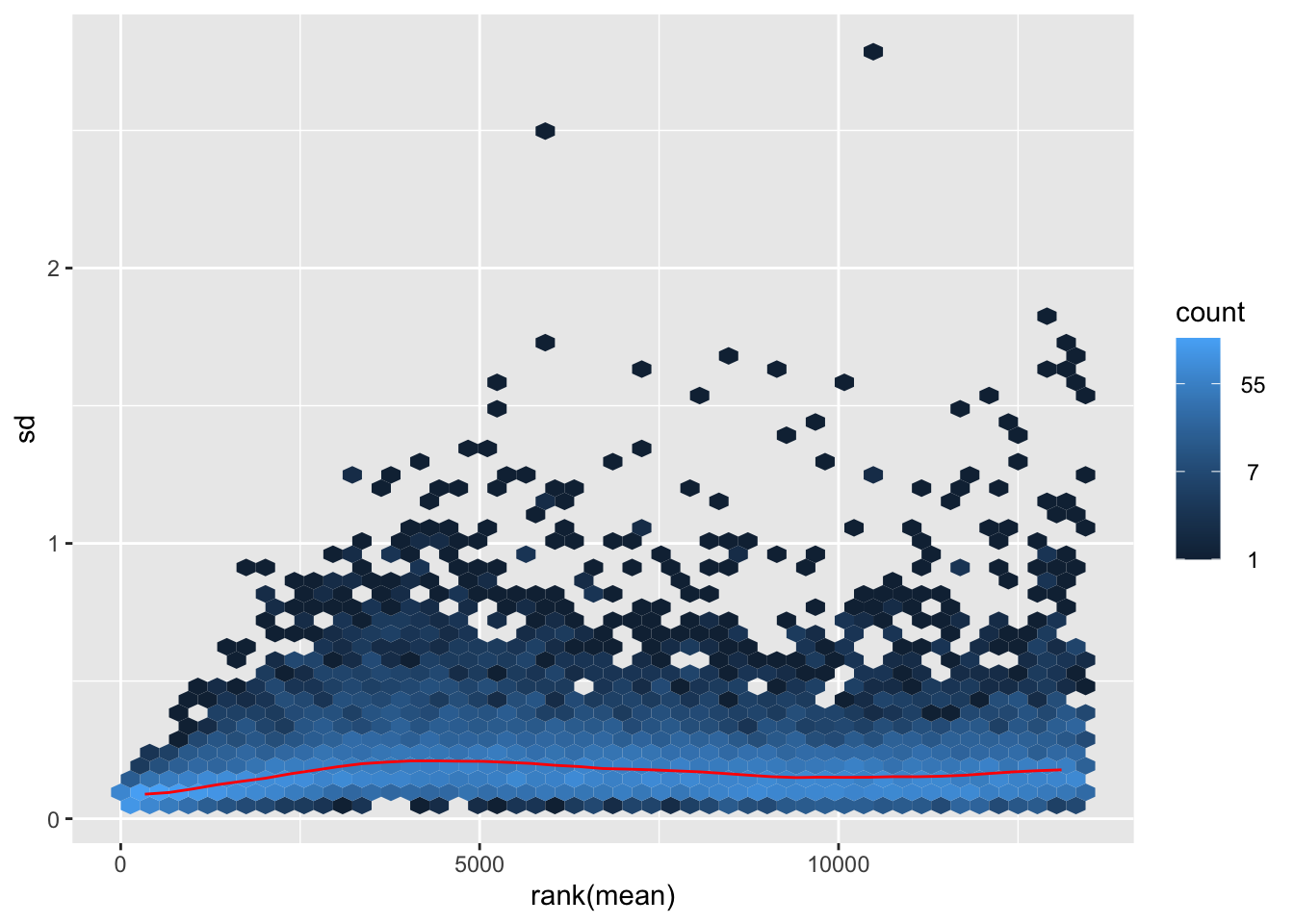

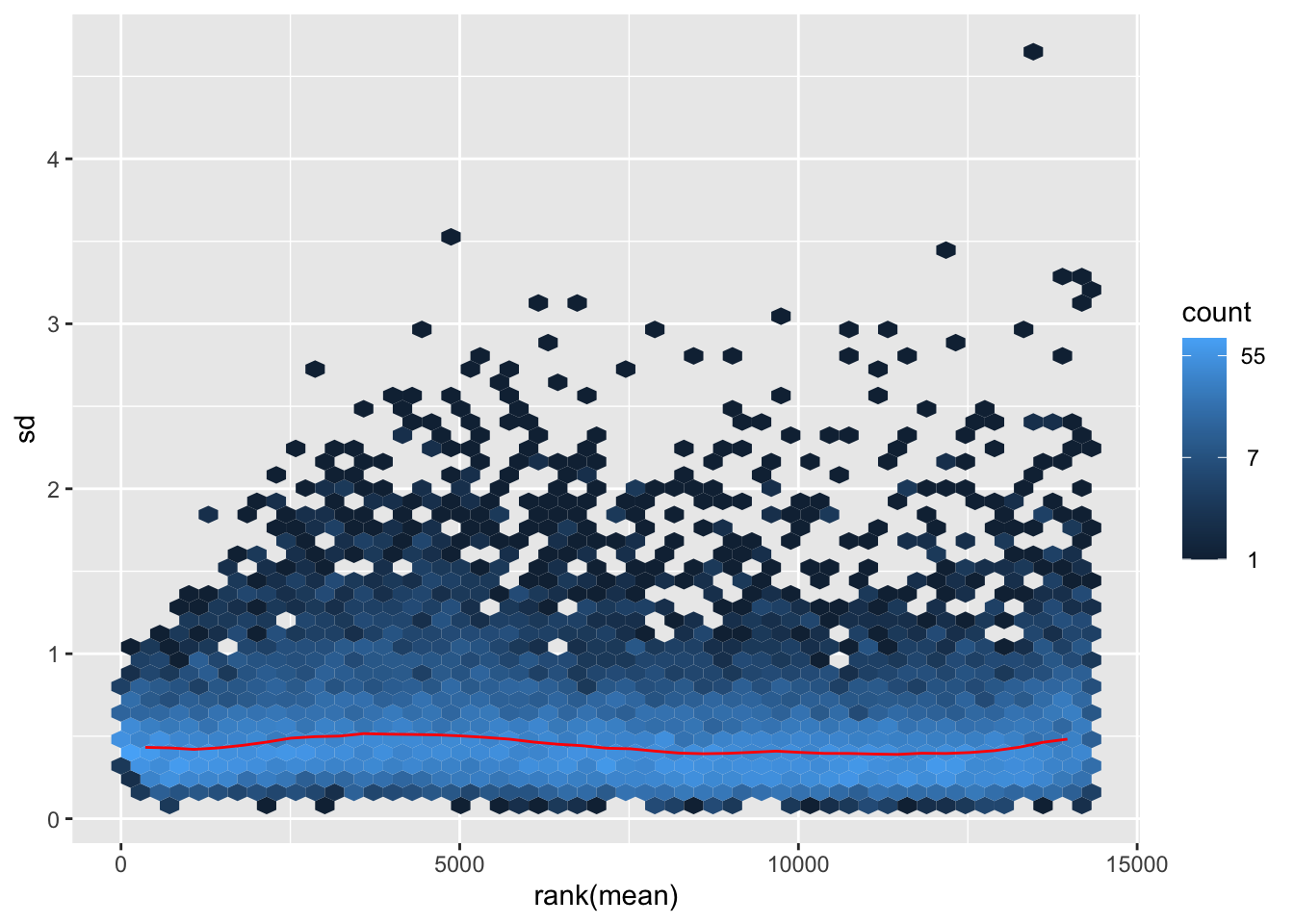

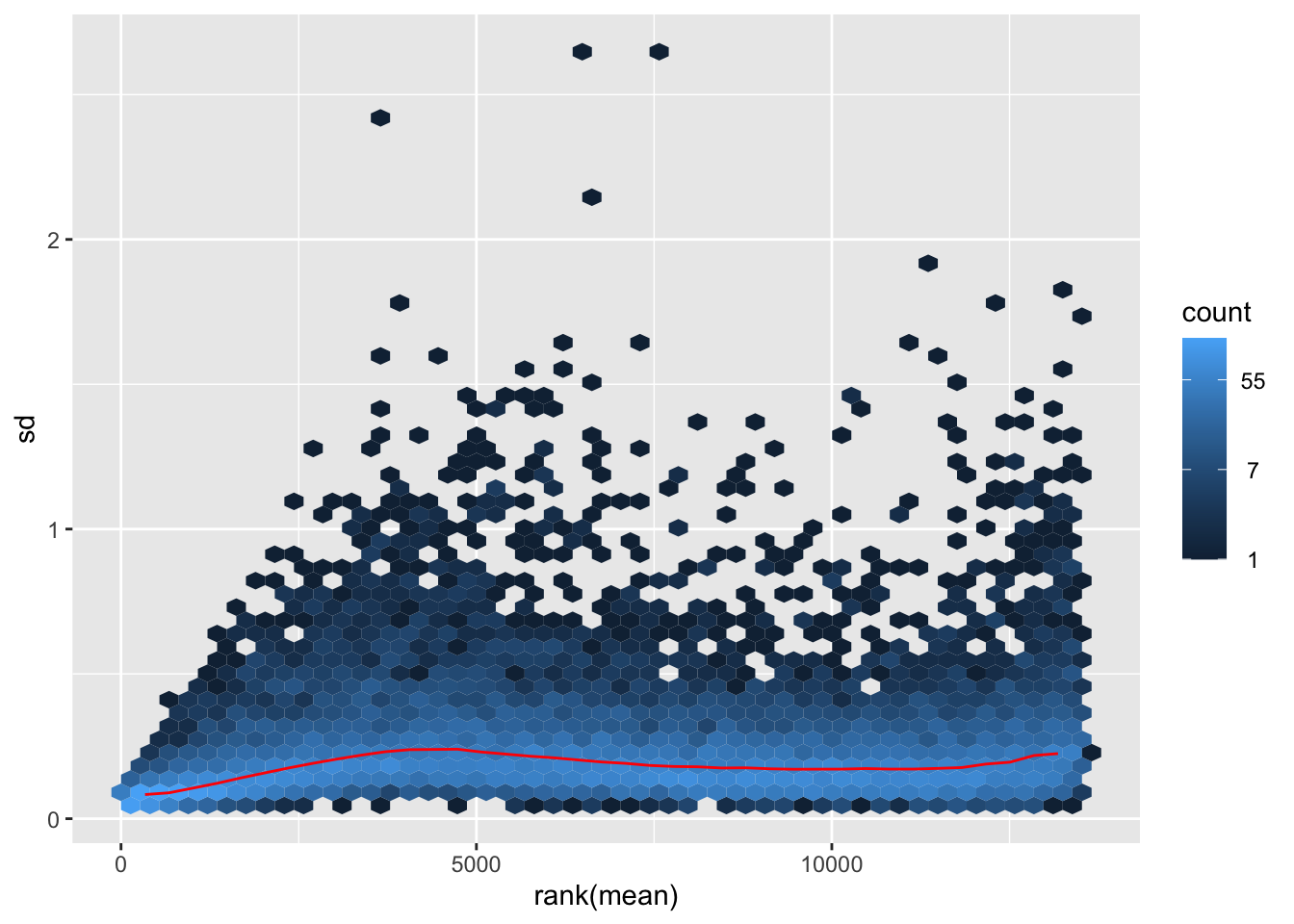

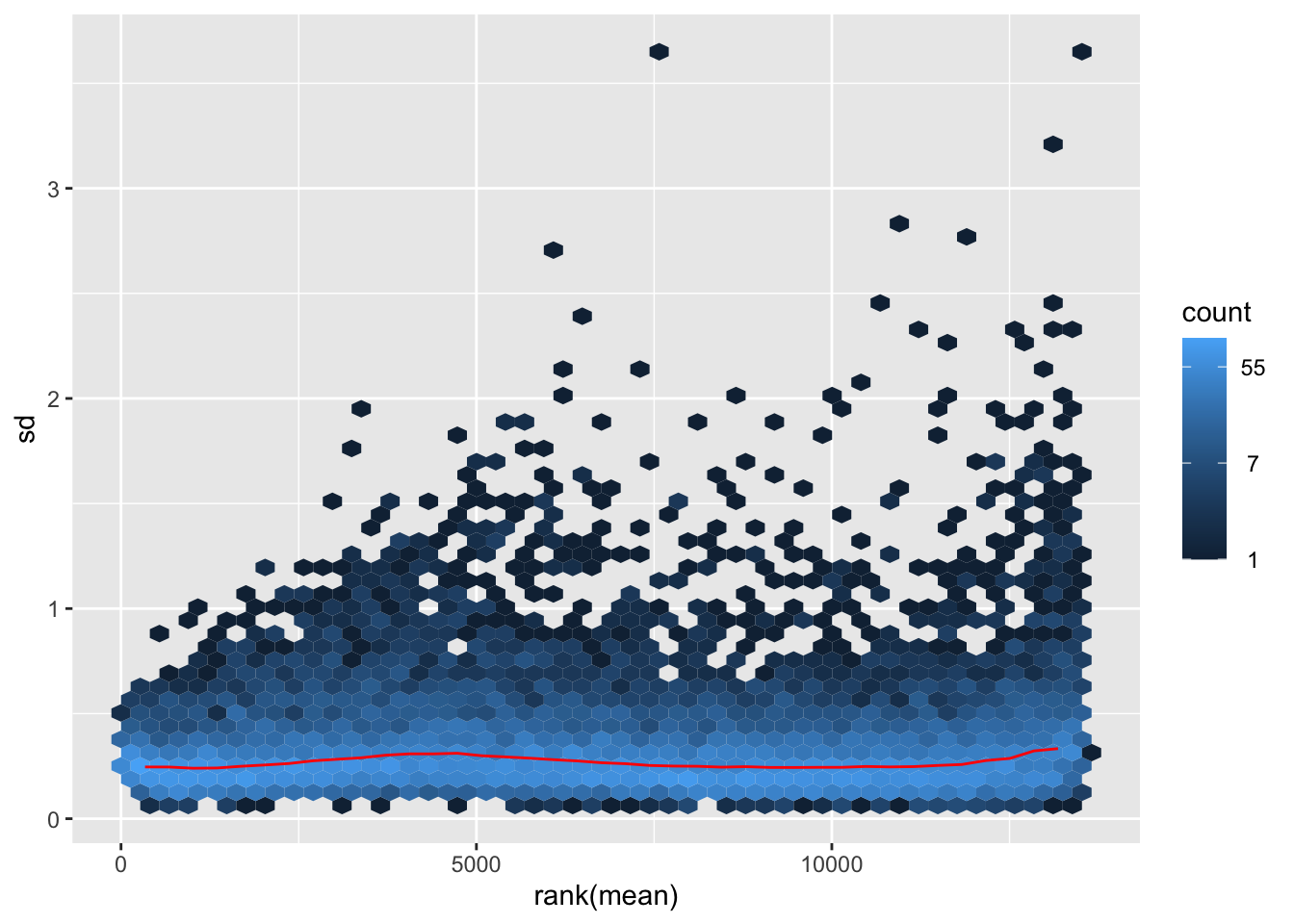

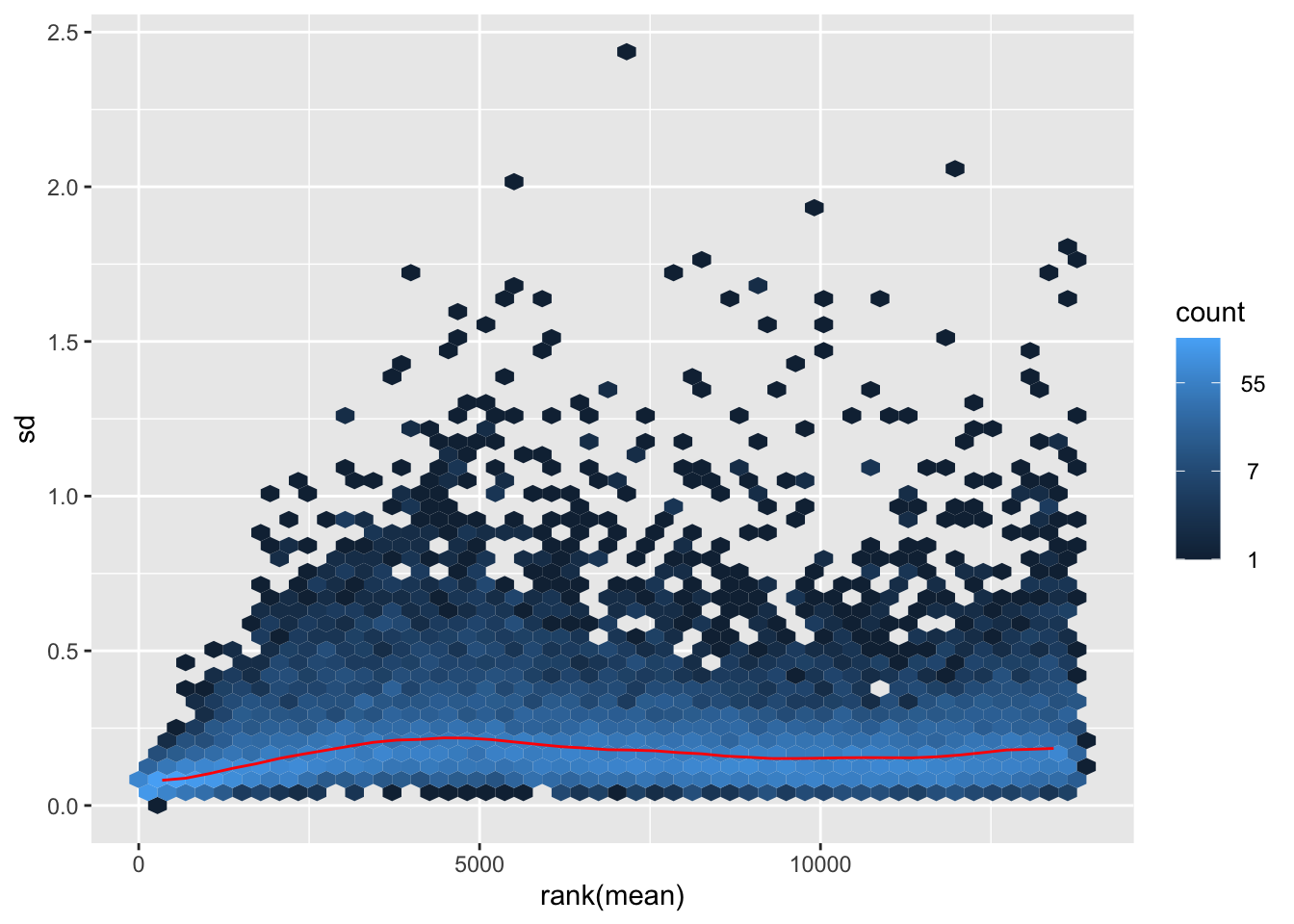

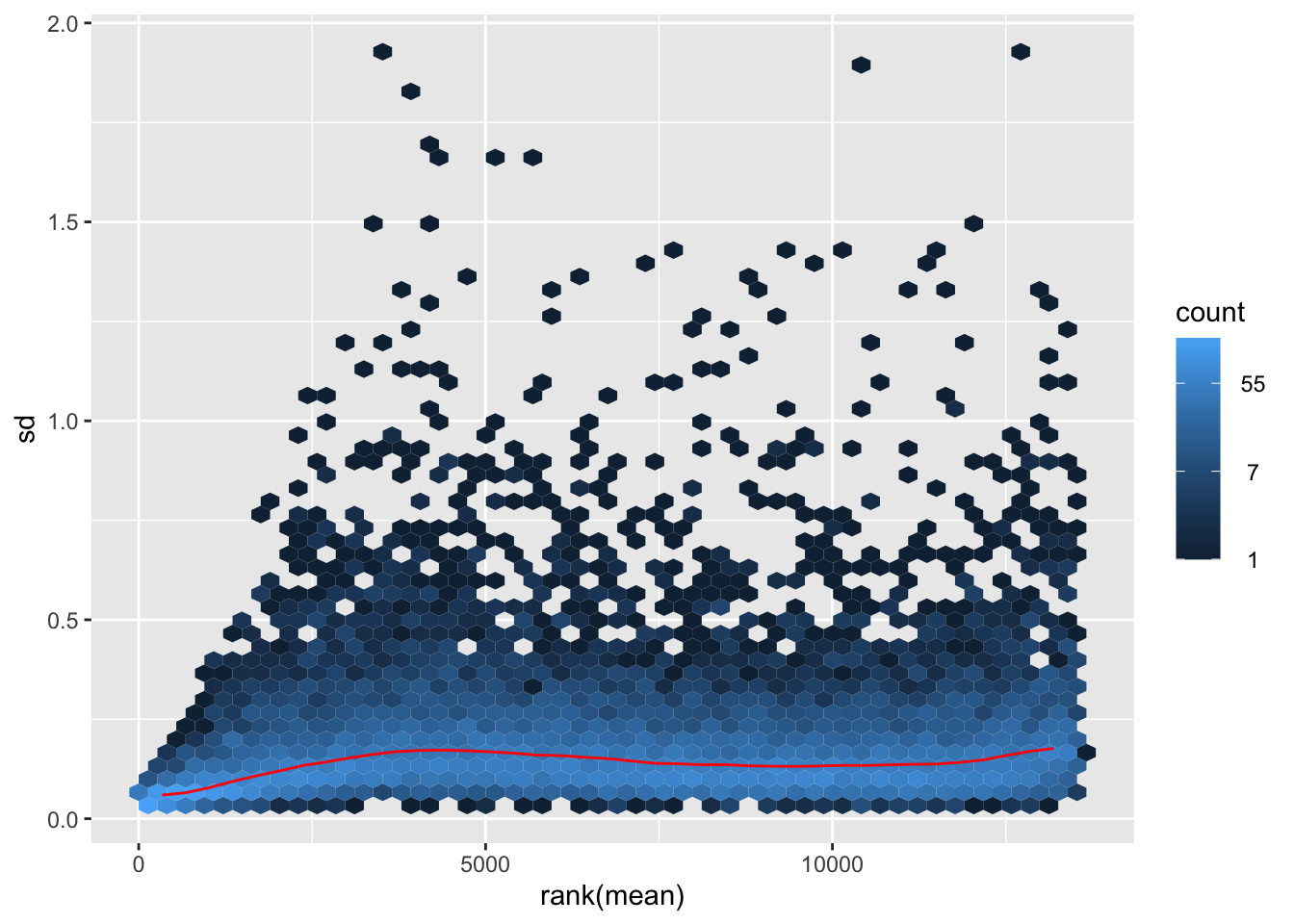

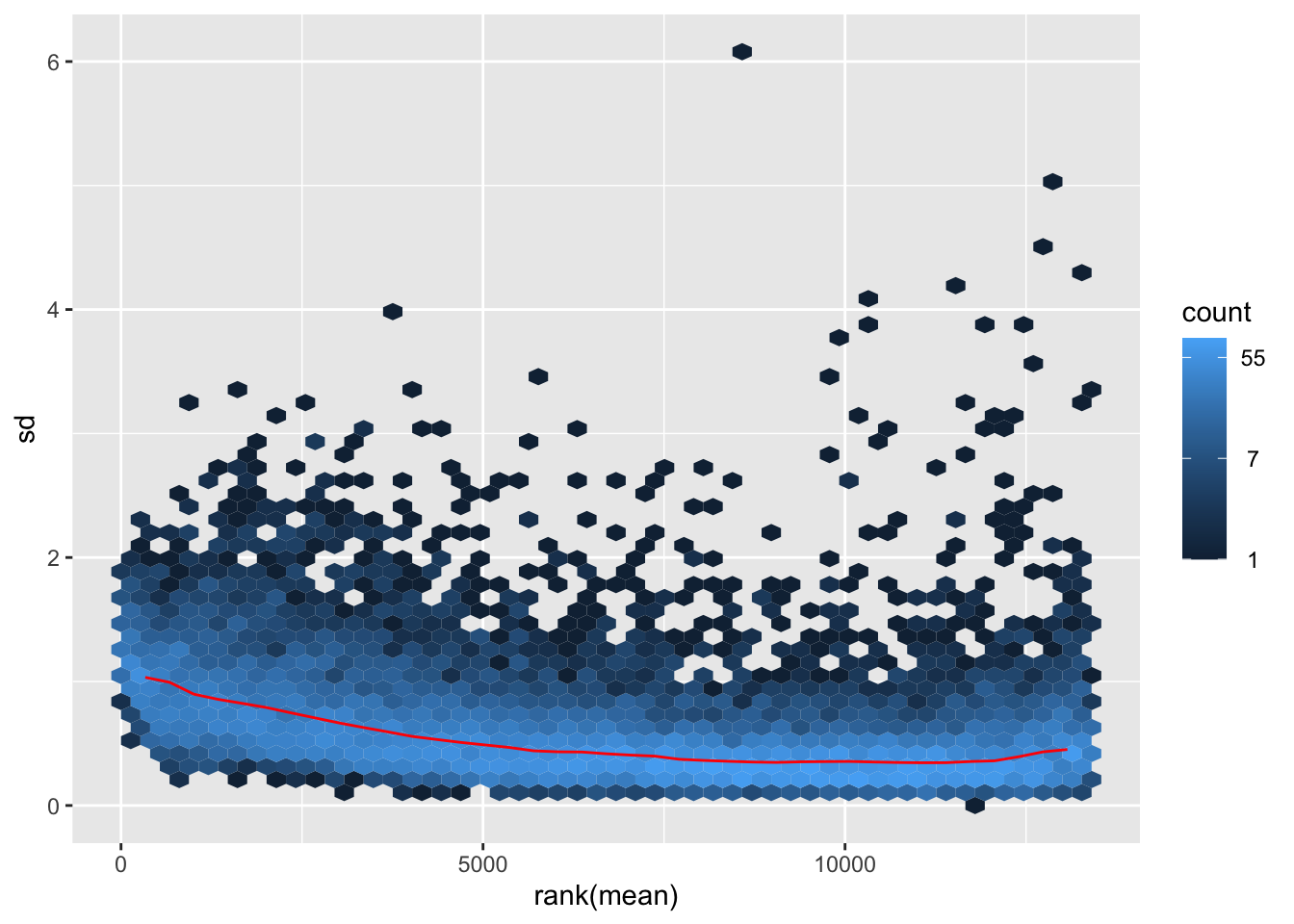

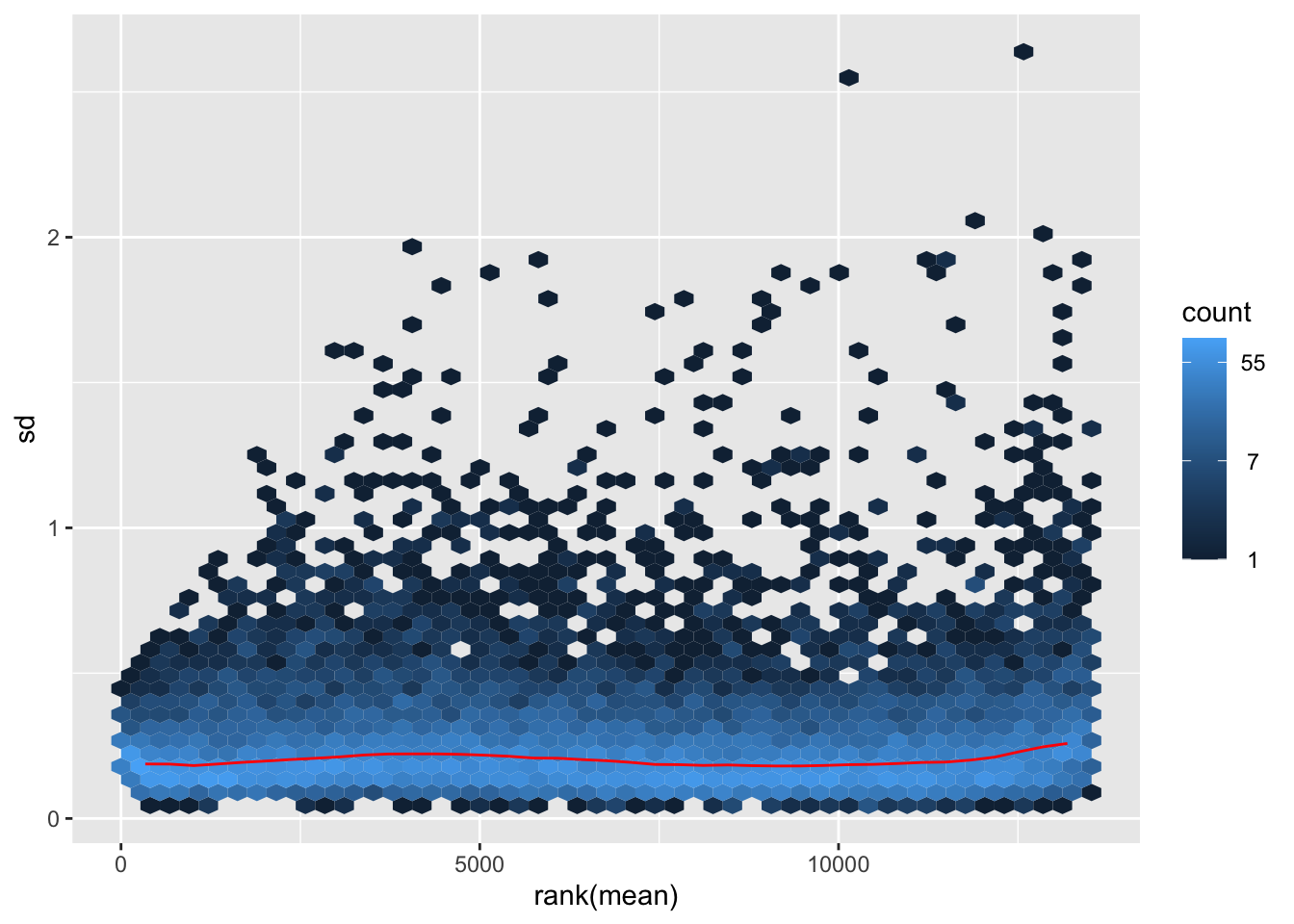

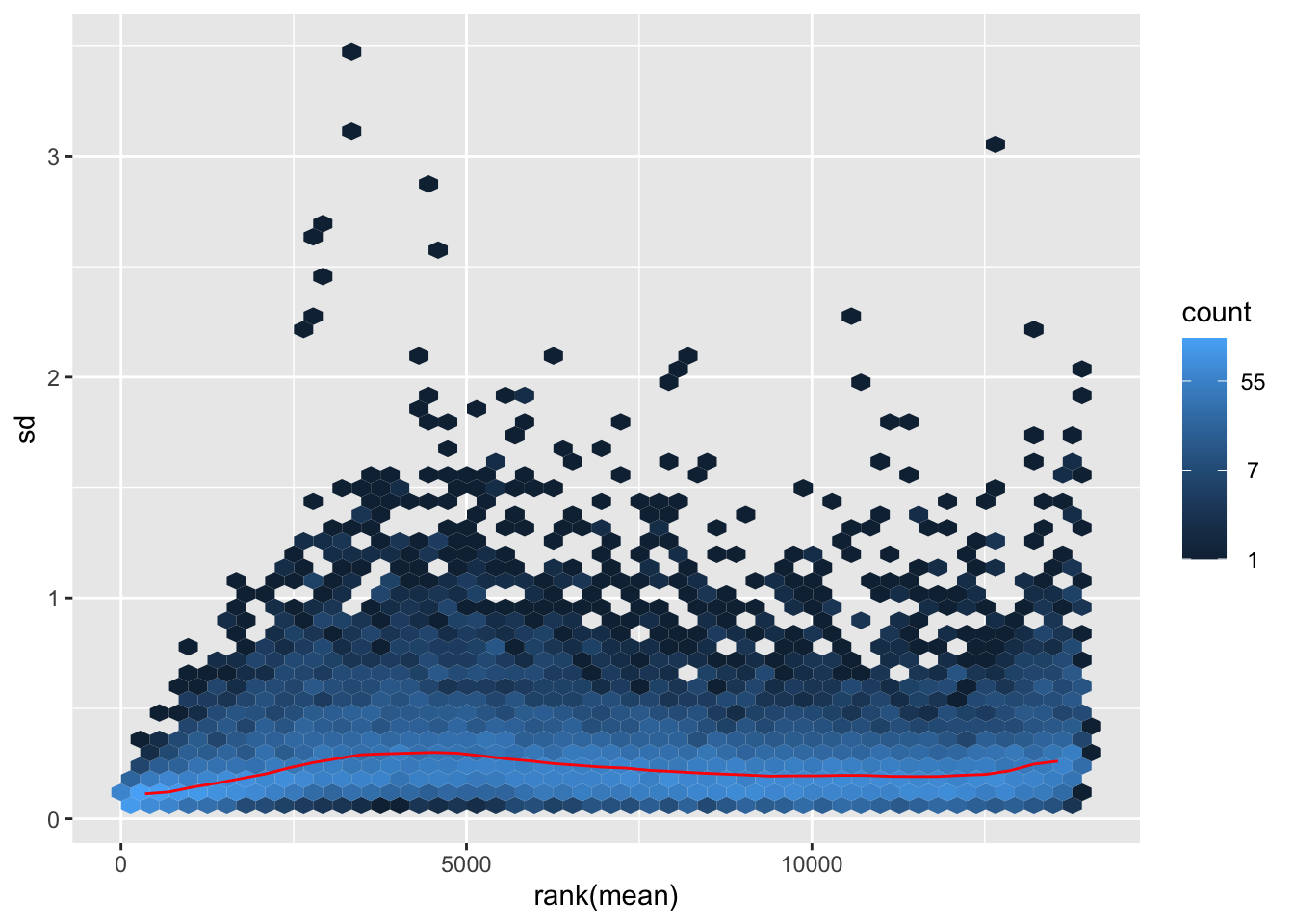

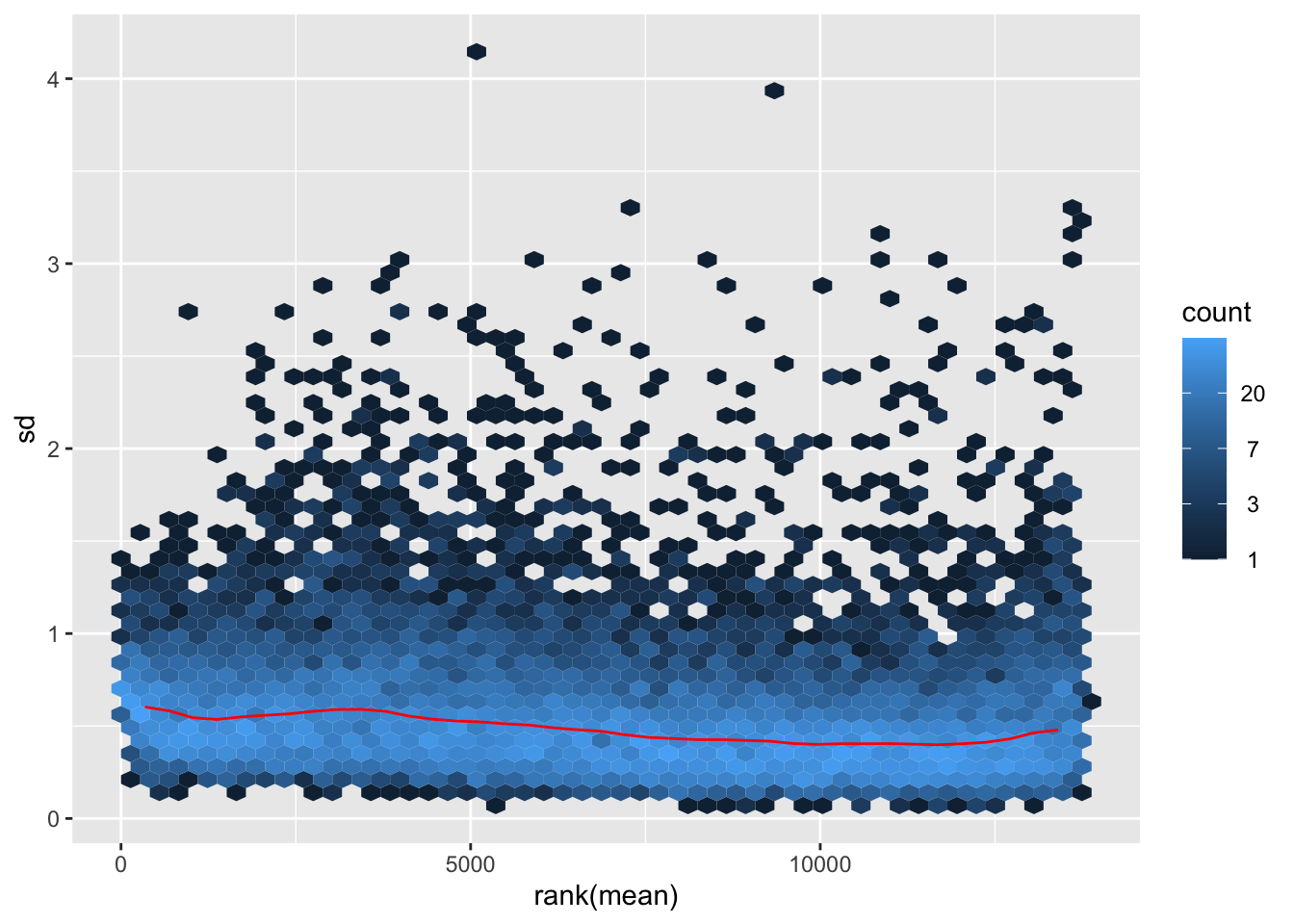

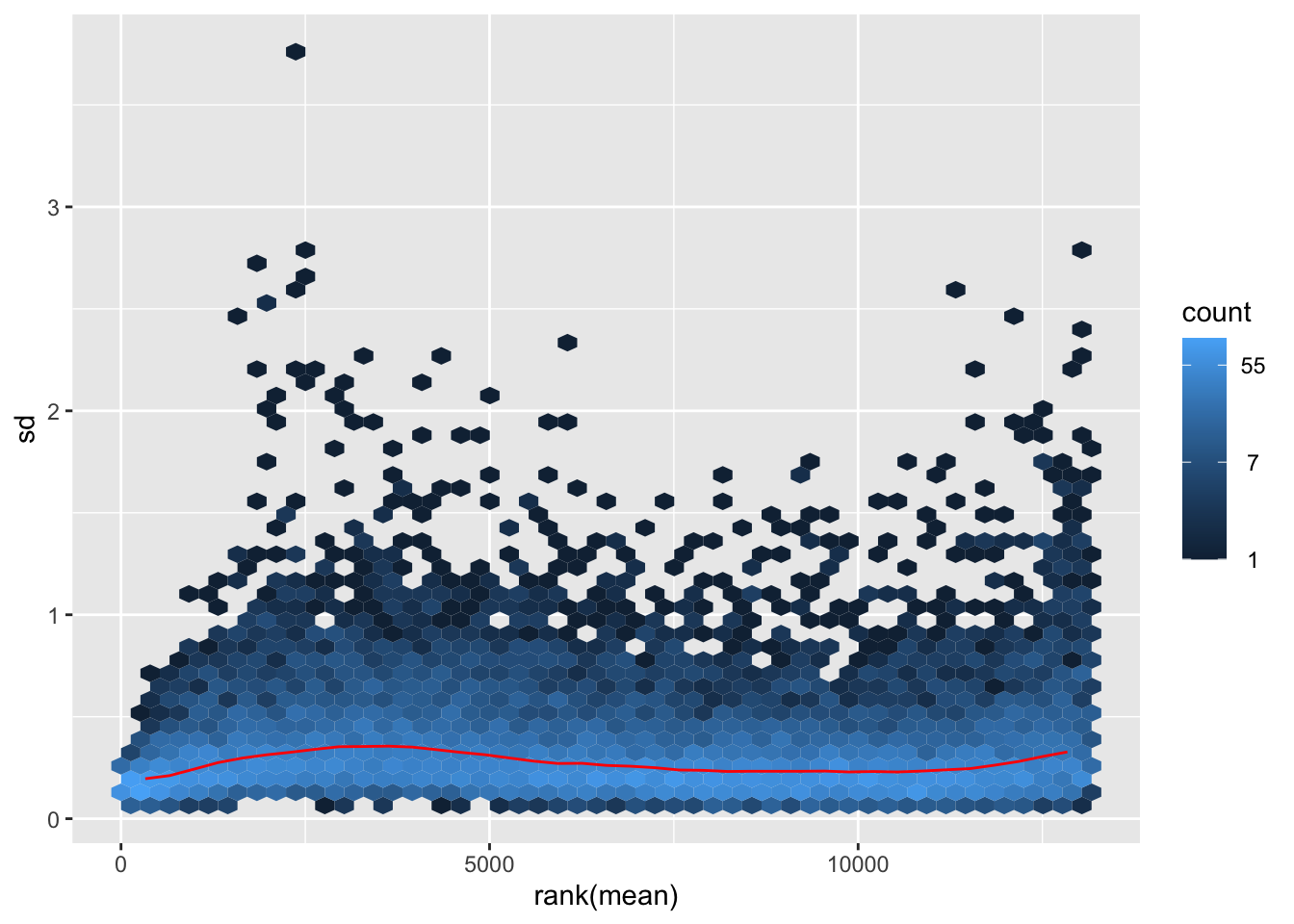

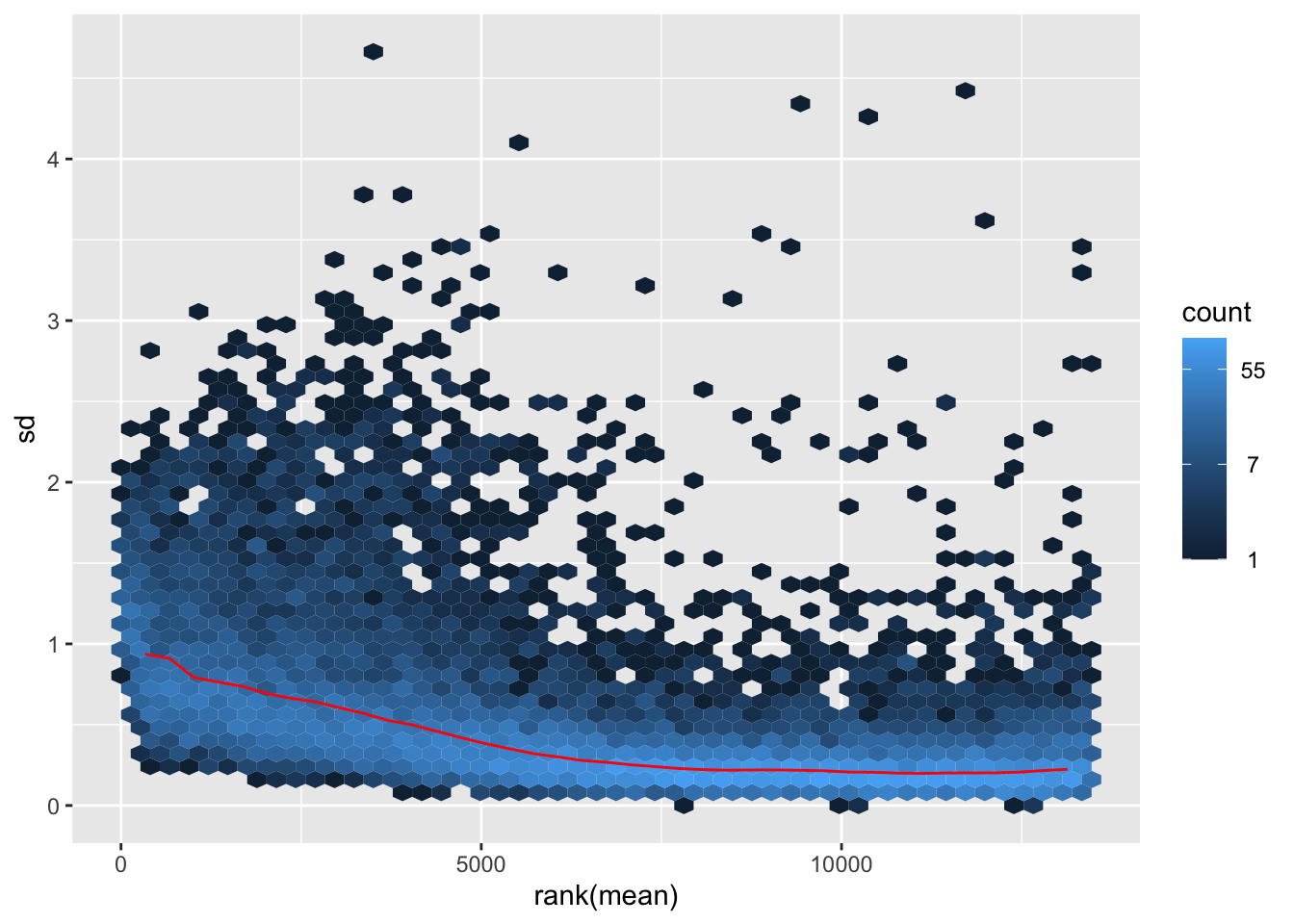

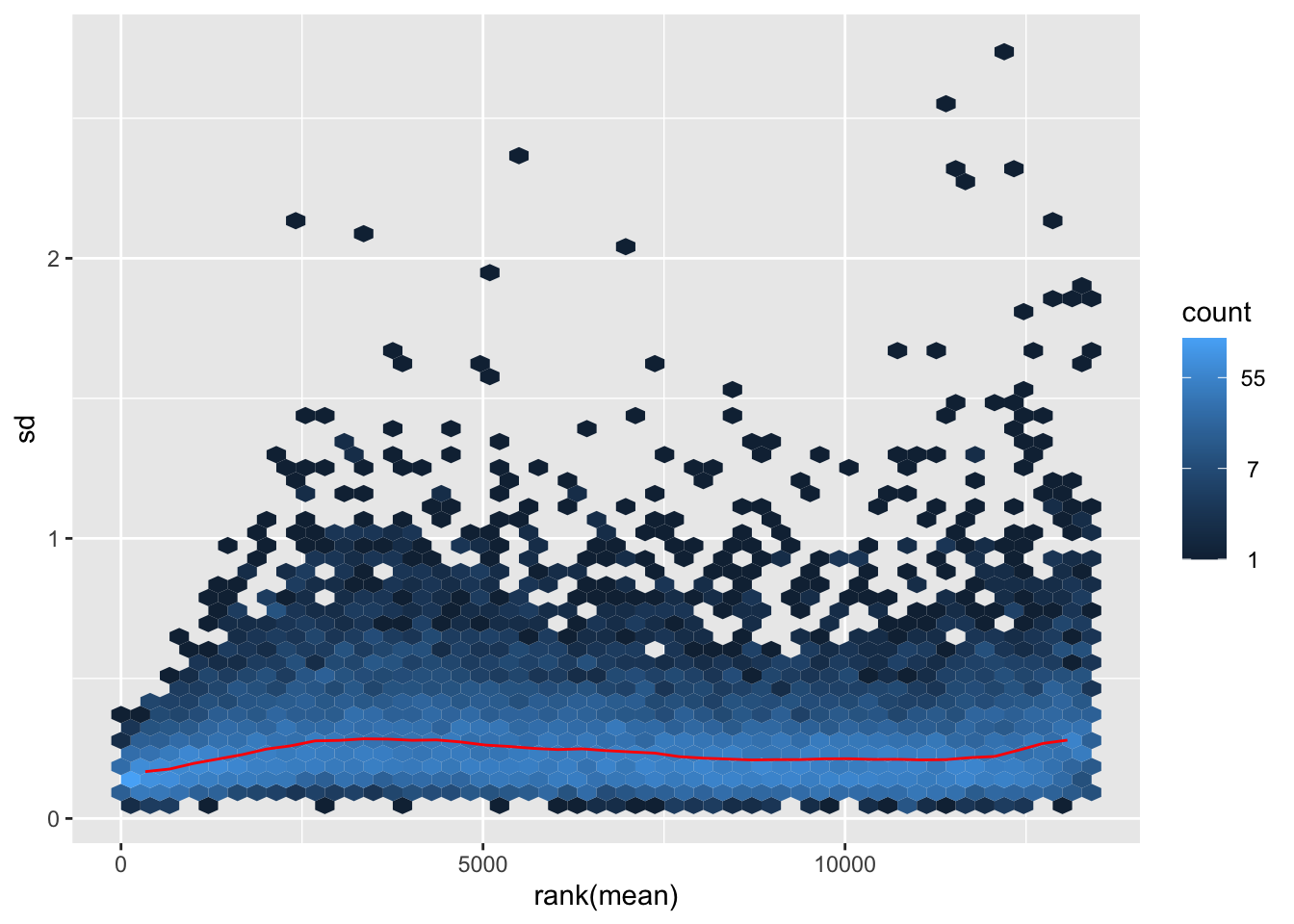

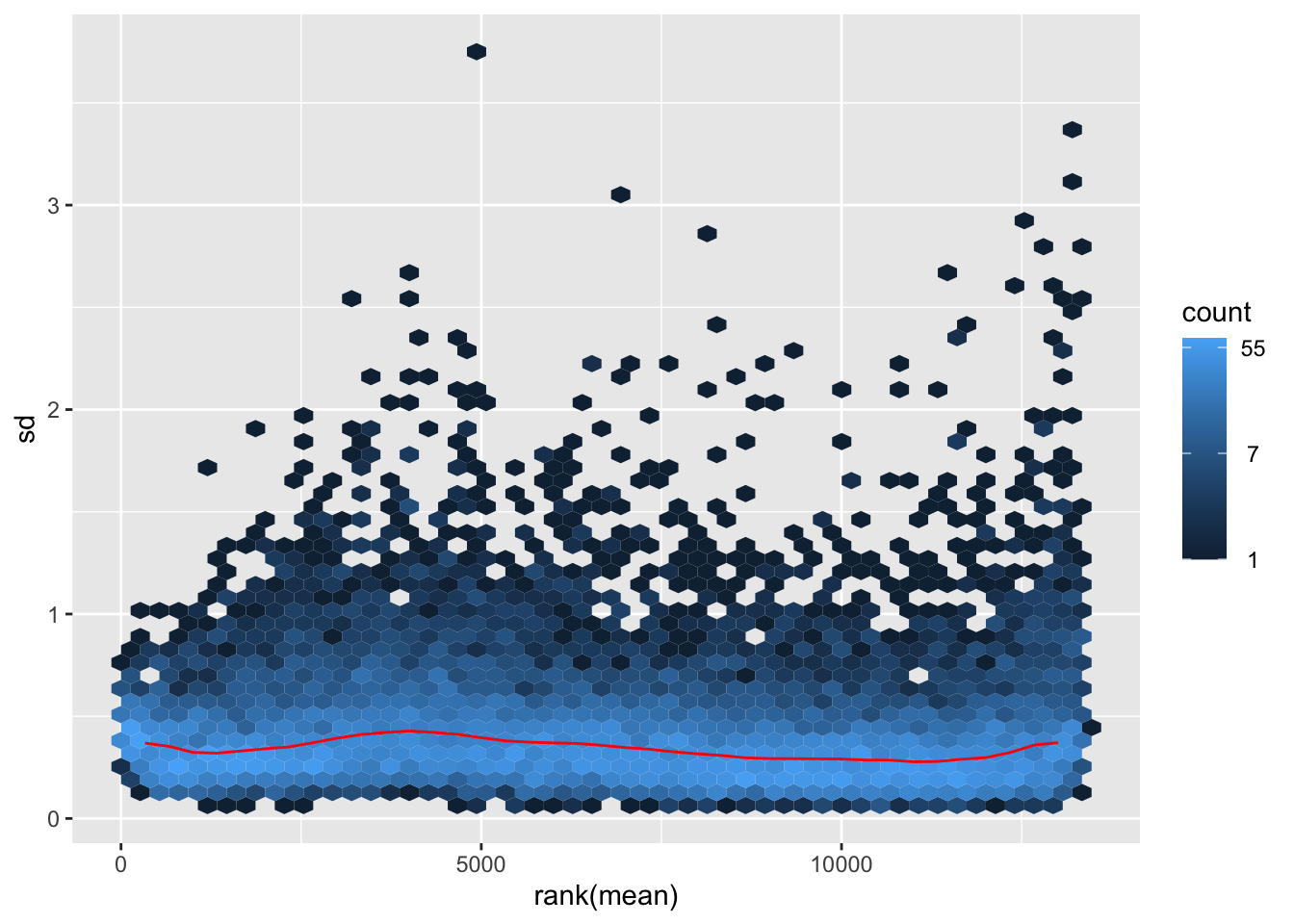

itadori <- meanSdPlot(assay(shigeru_ntd))

itadori2 <- itadori$gg + ggtitle("Transformation with ntd")
megumi <- meanSdPlot(assay(shigeru_vst))

megumi2 <- megumi$gg + ggtitle("Transformation with vst")
nobara <- meanSdPlot(assay(shigeru_rlog))

nobara2 <-nobara$gg + ggtitle("Transformation with rlog")

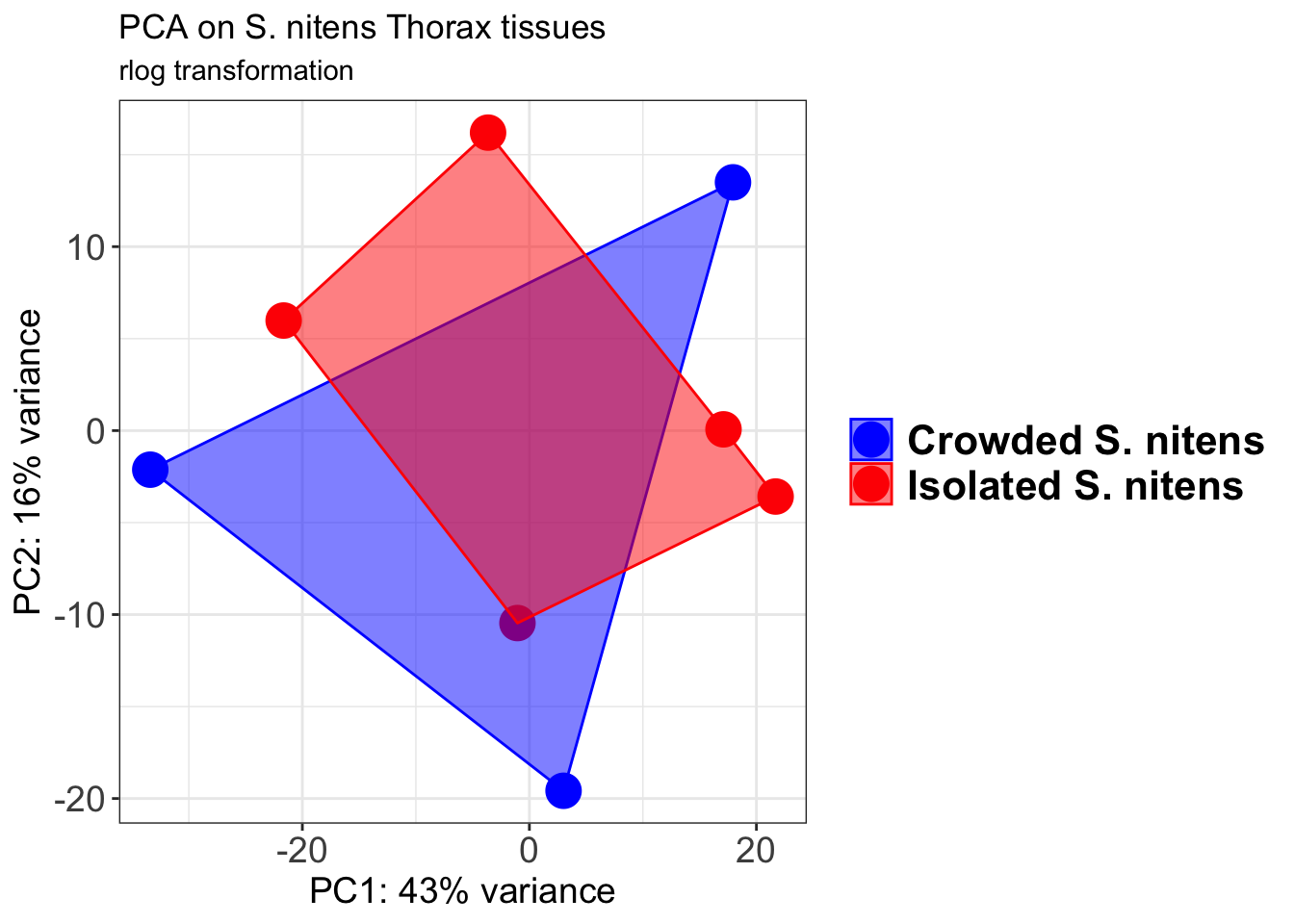

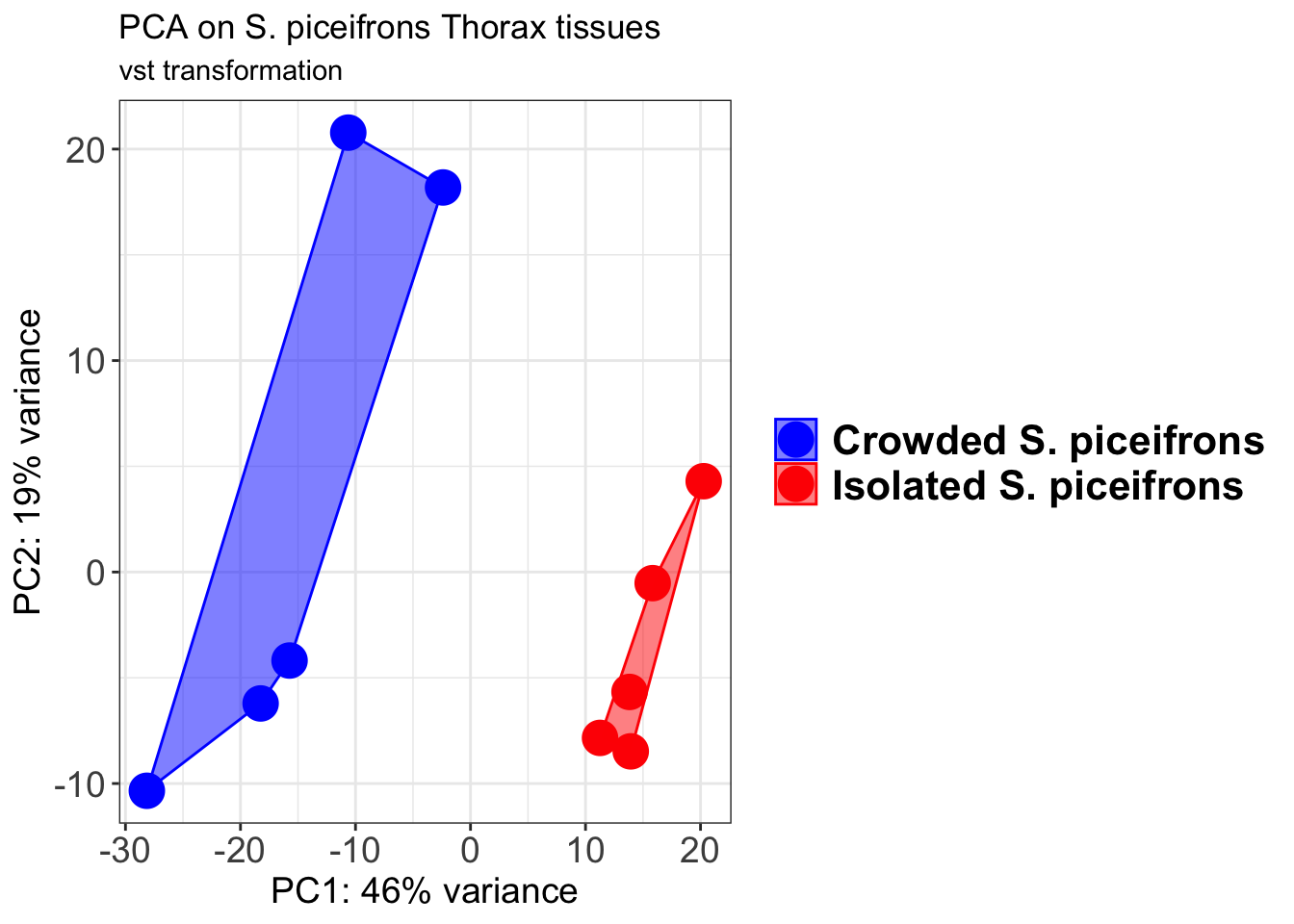

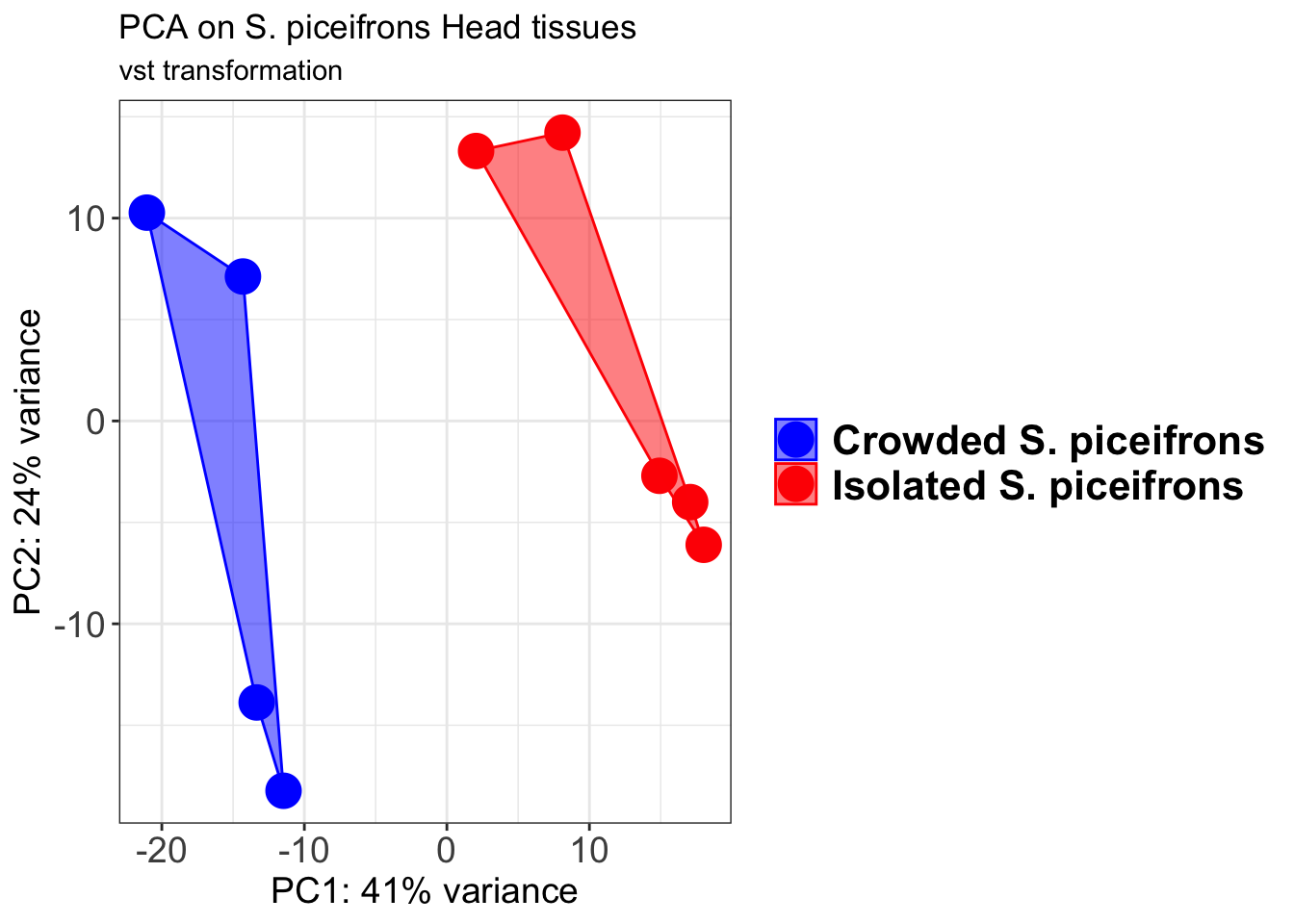

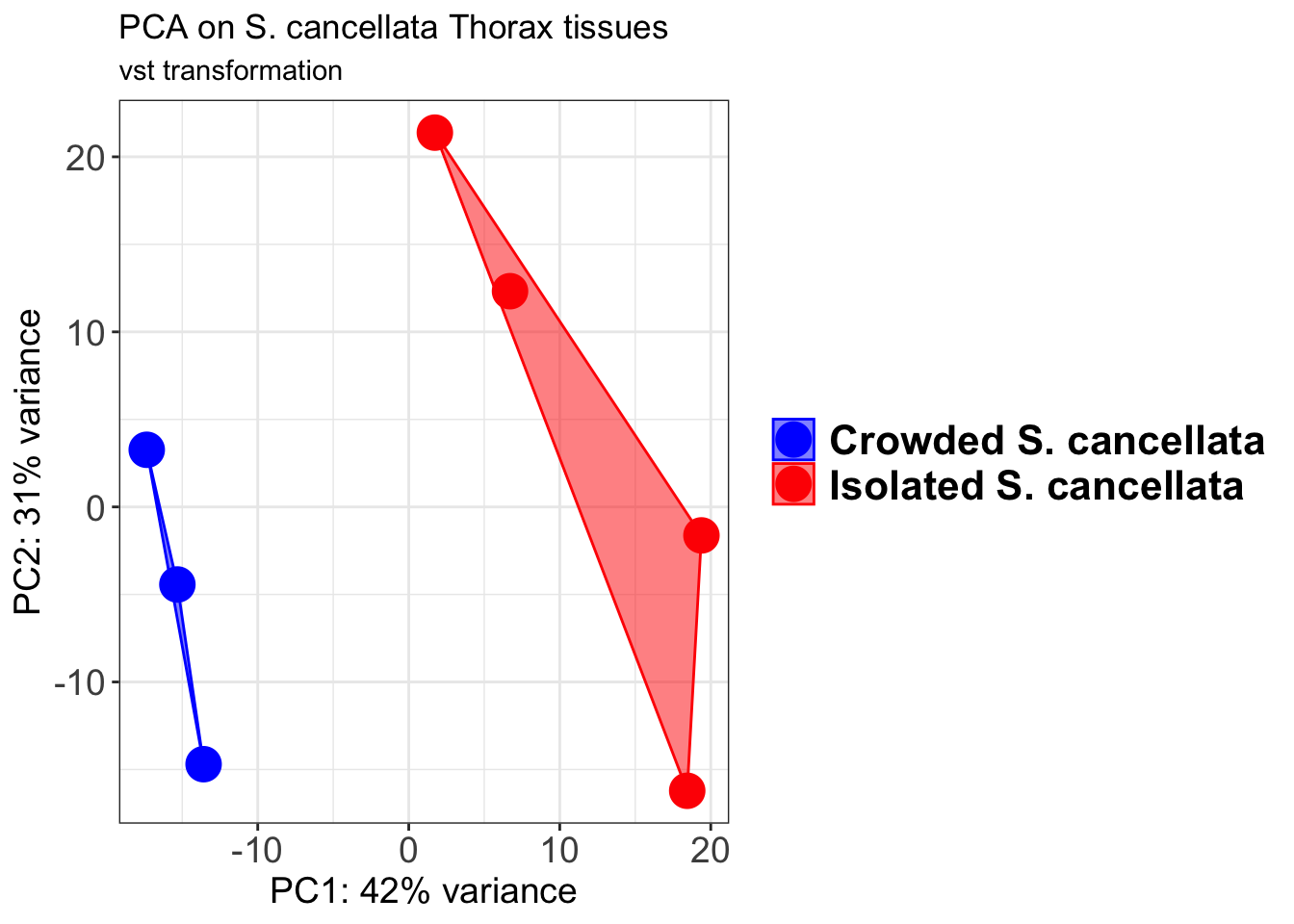

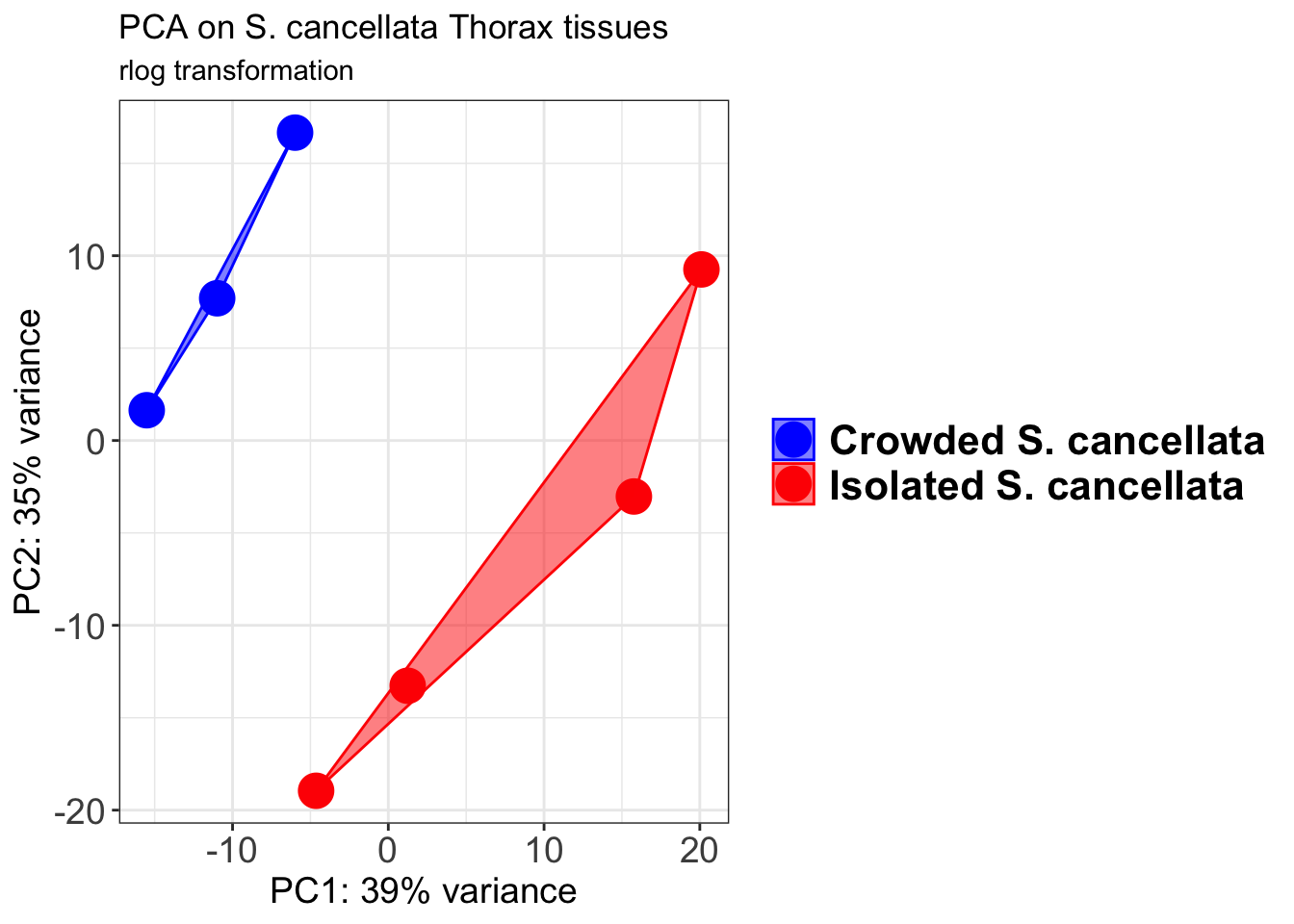

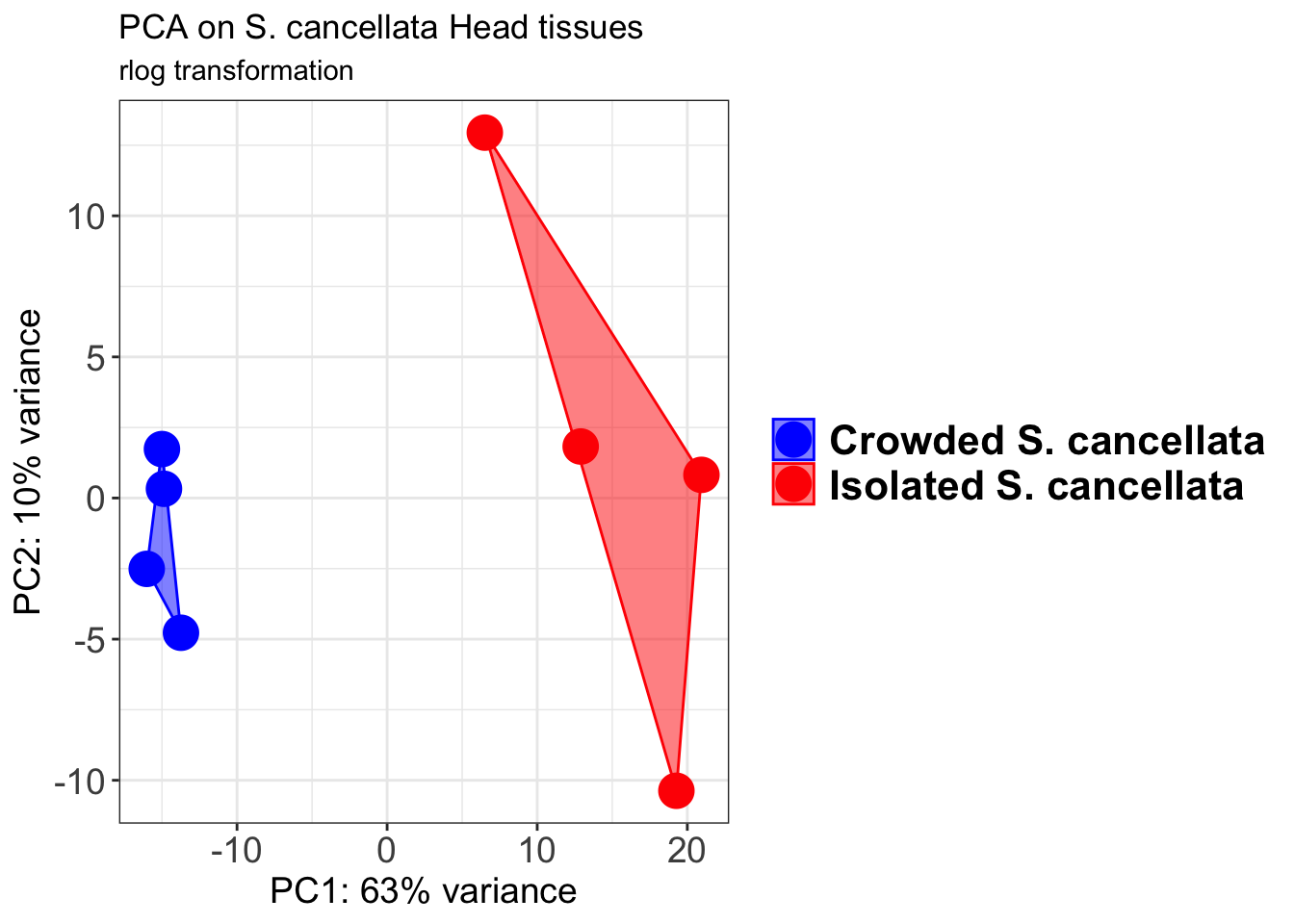

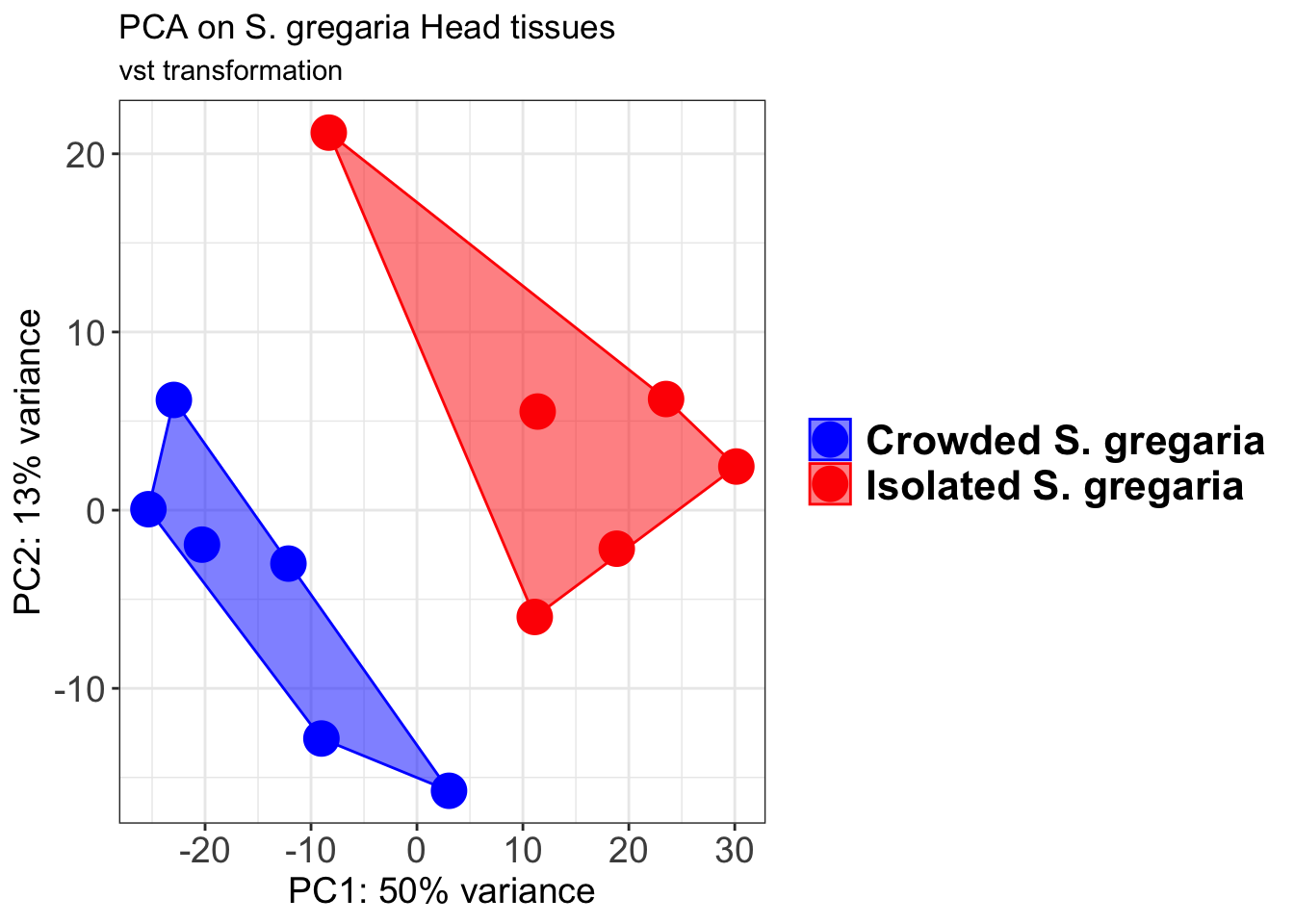

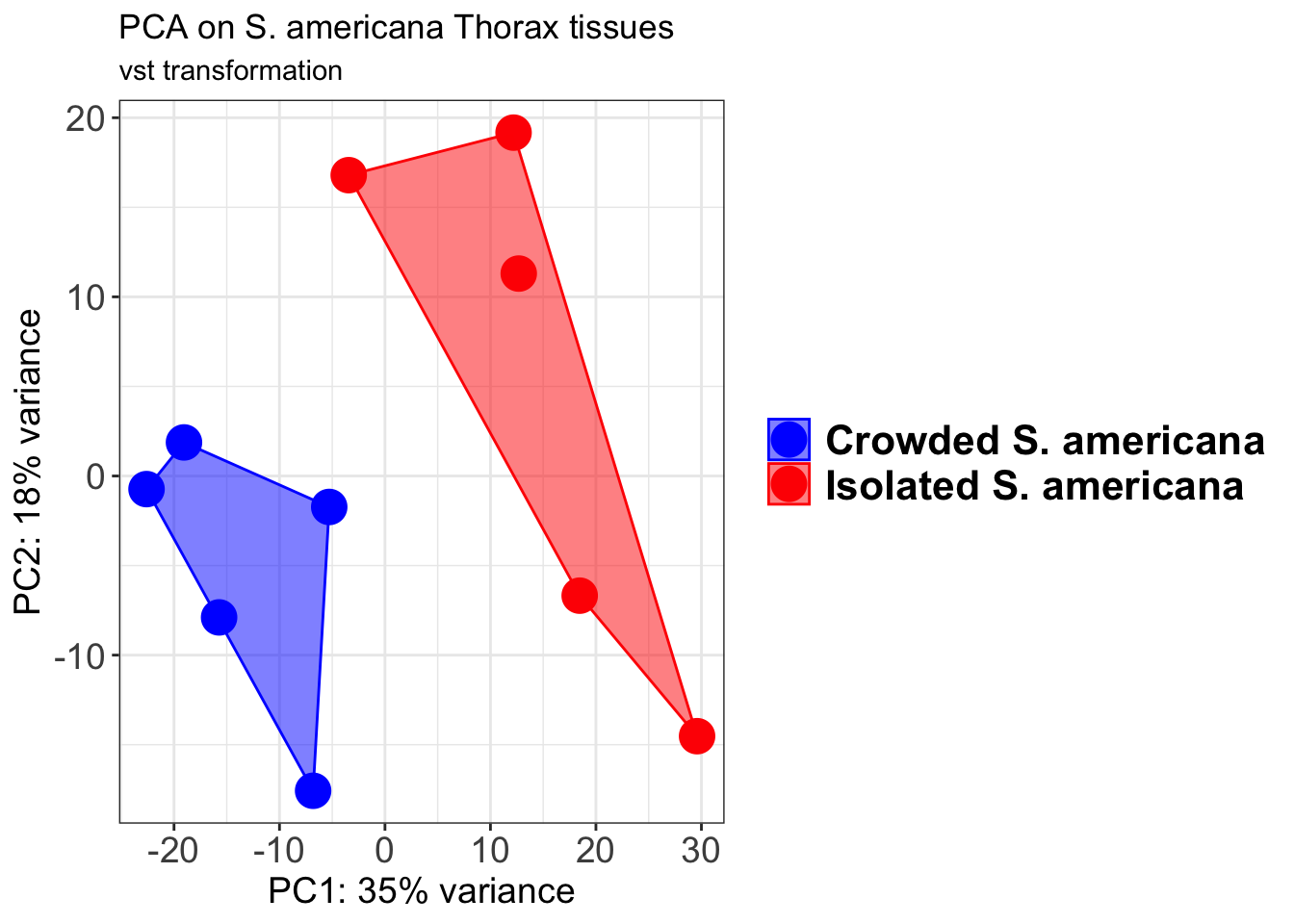

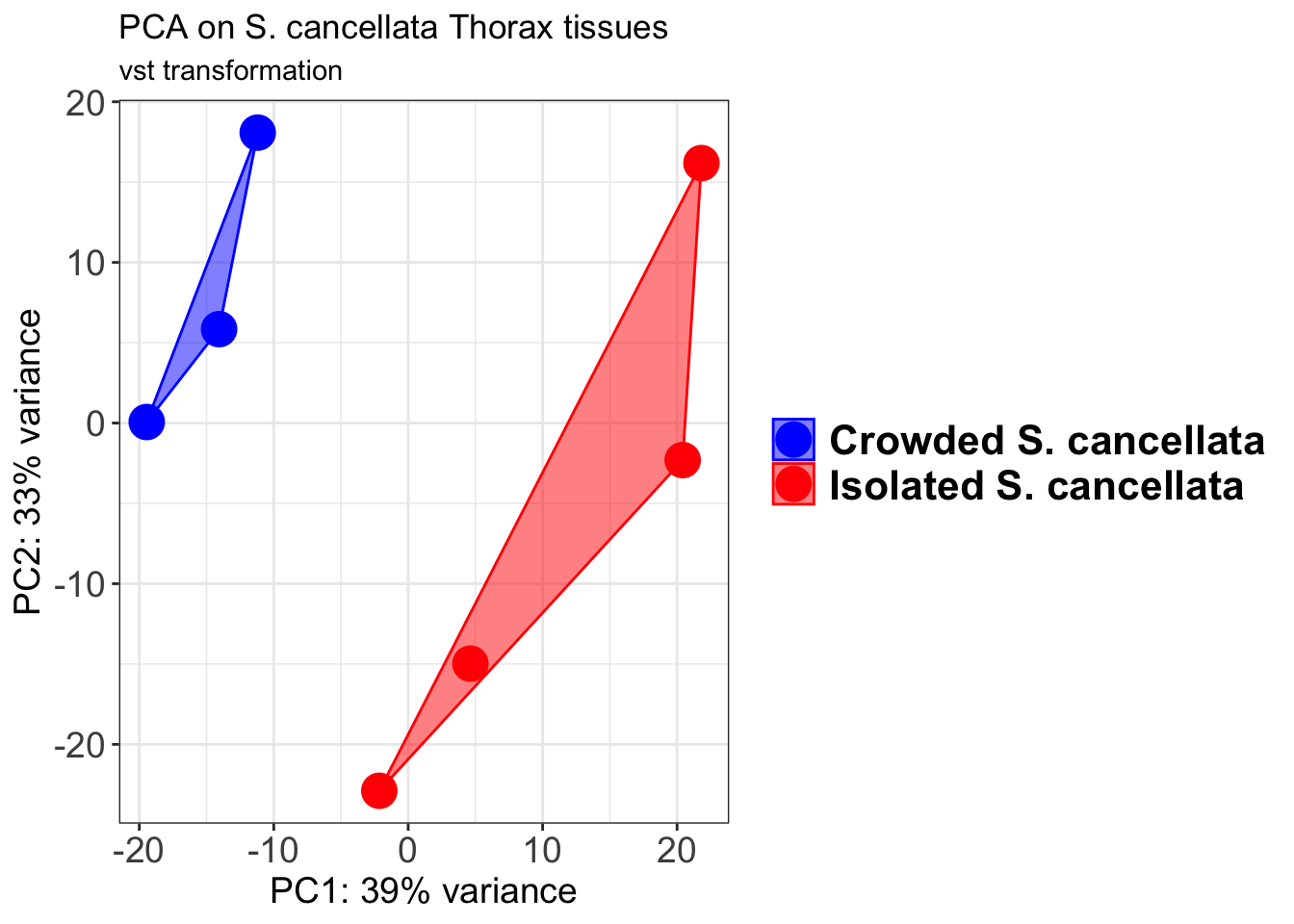

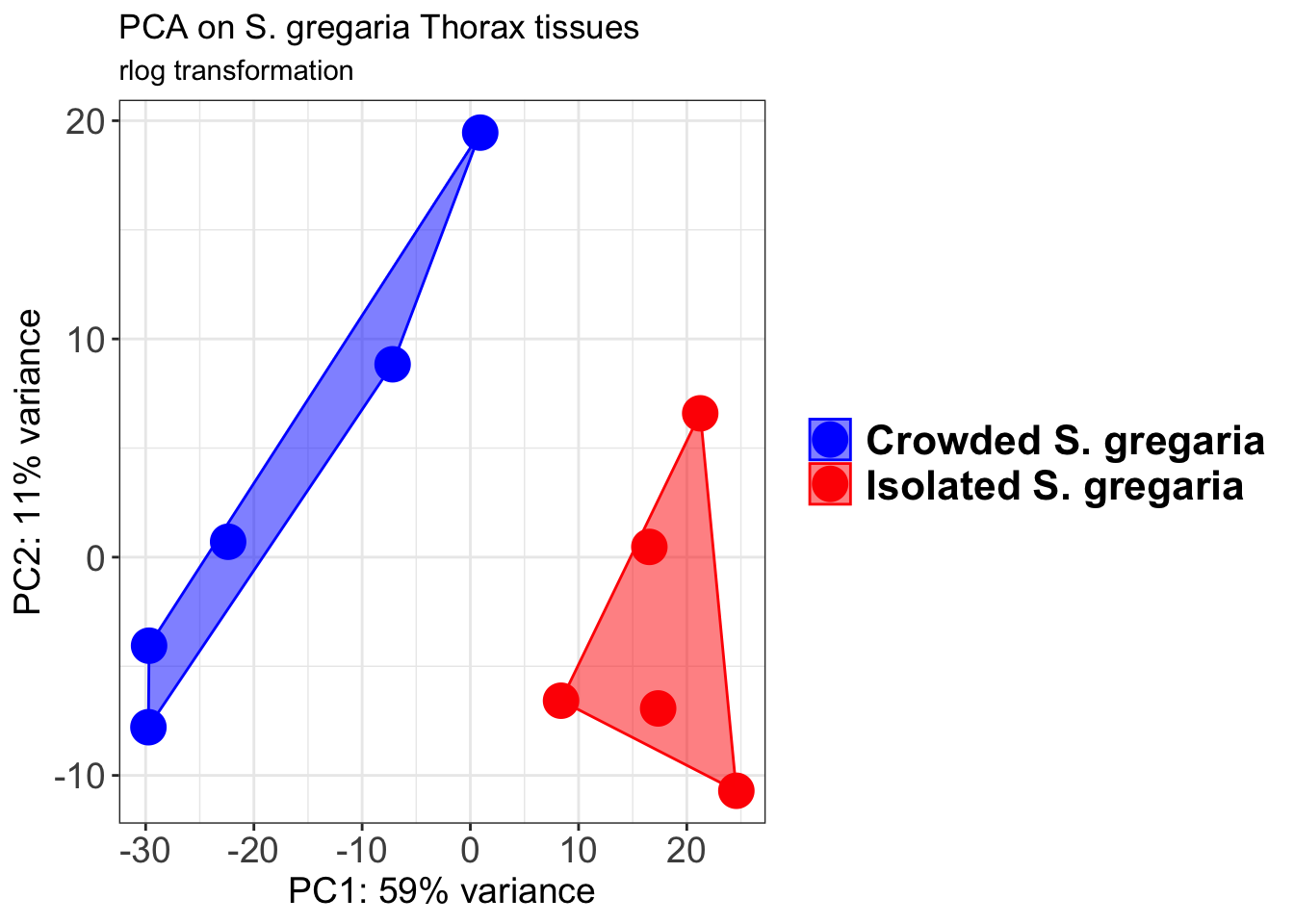

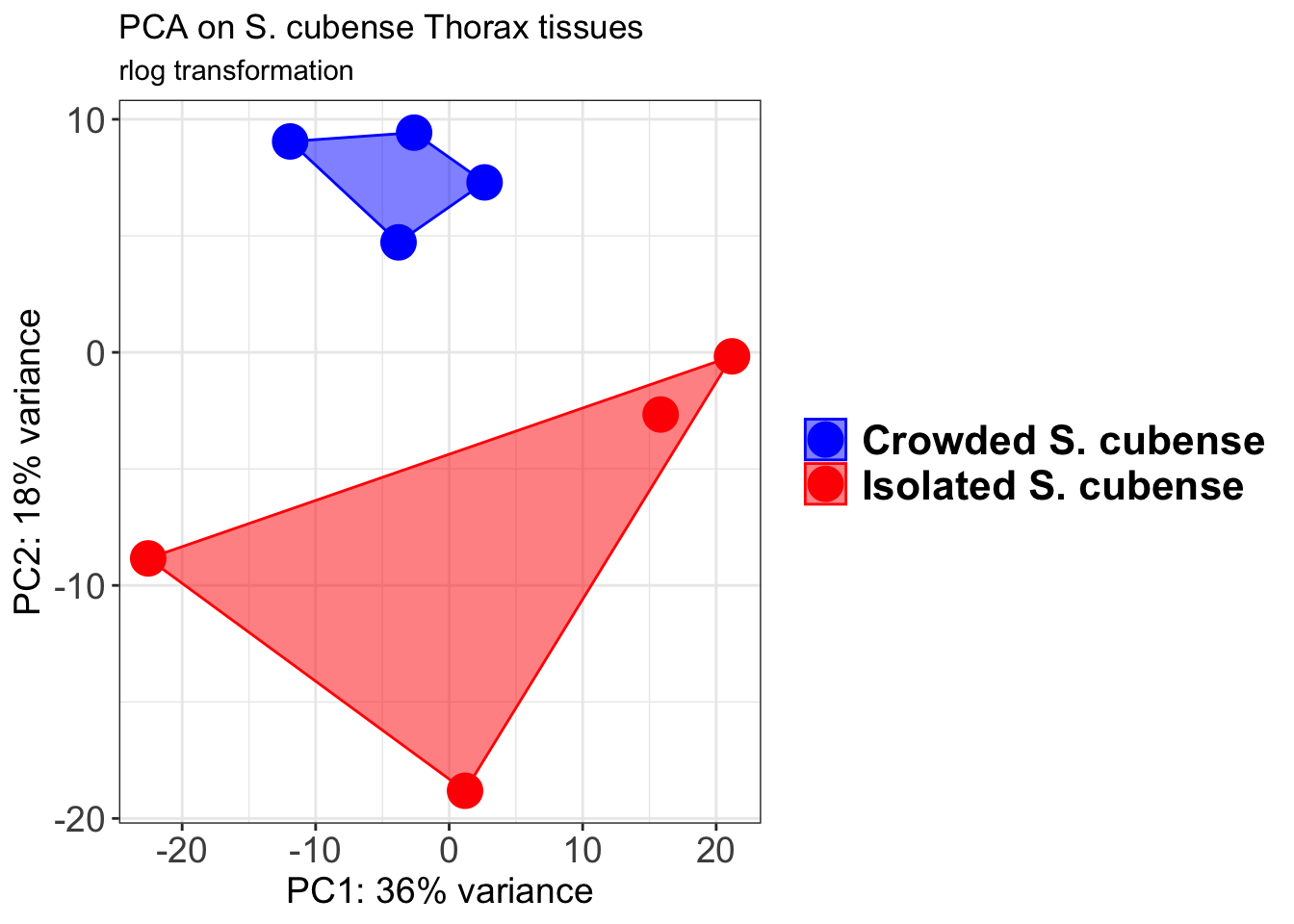

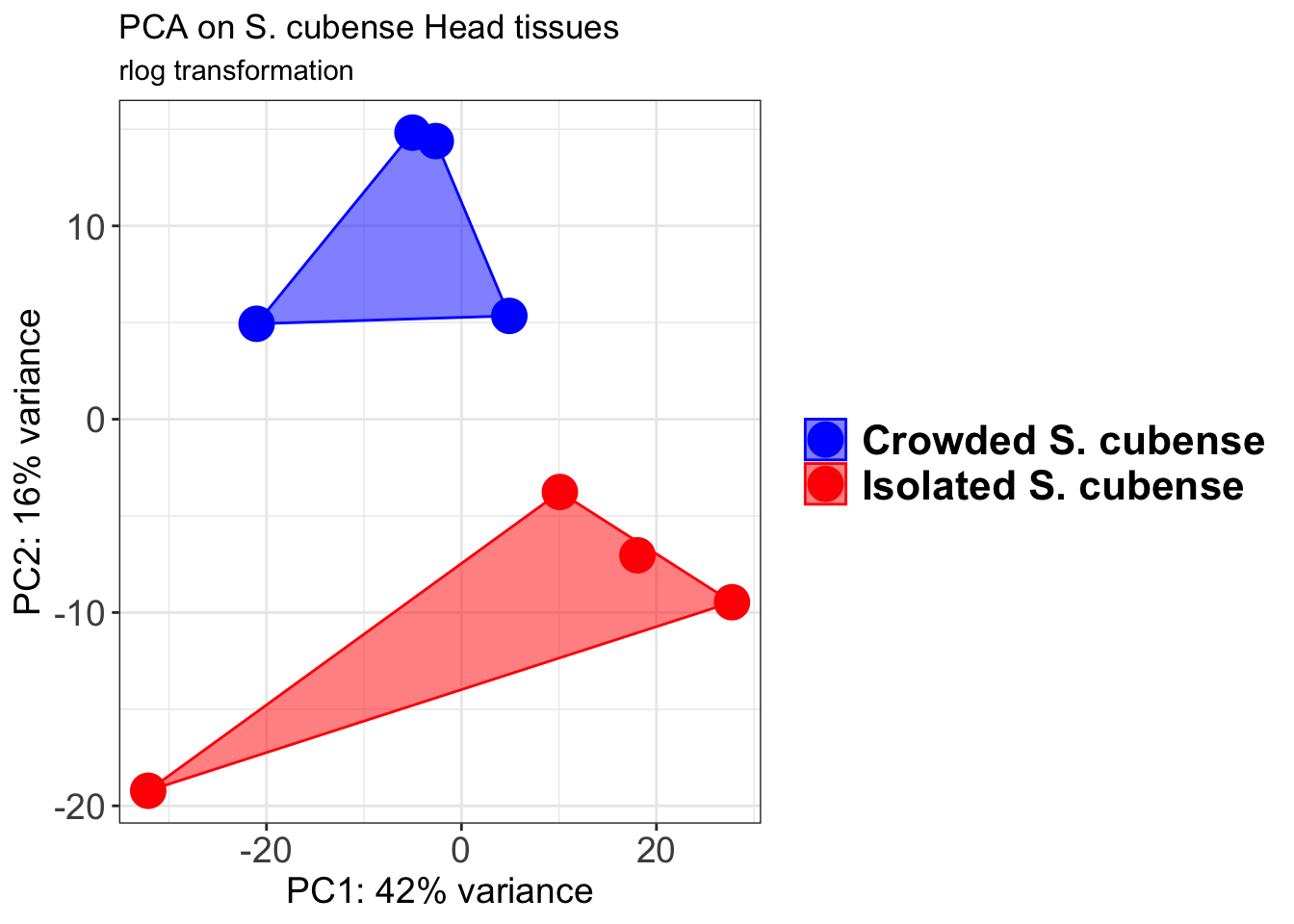

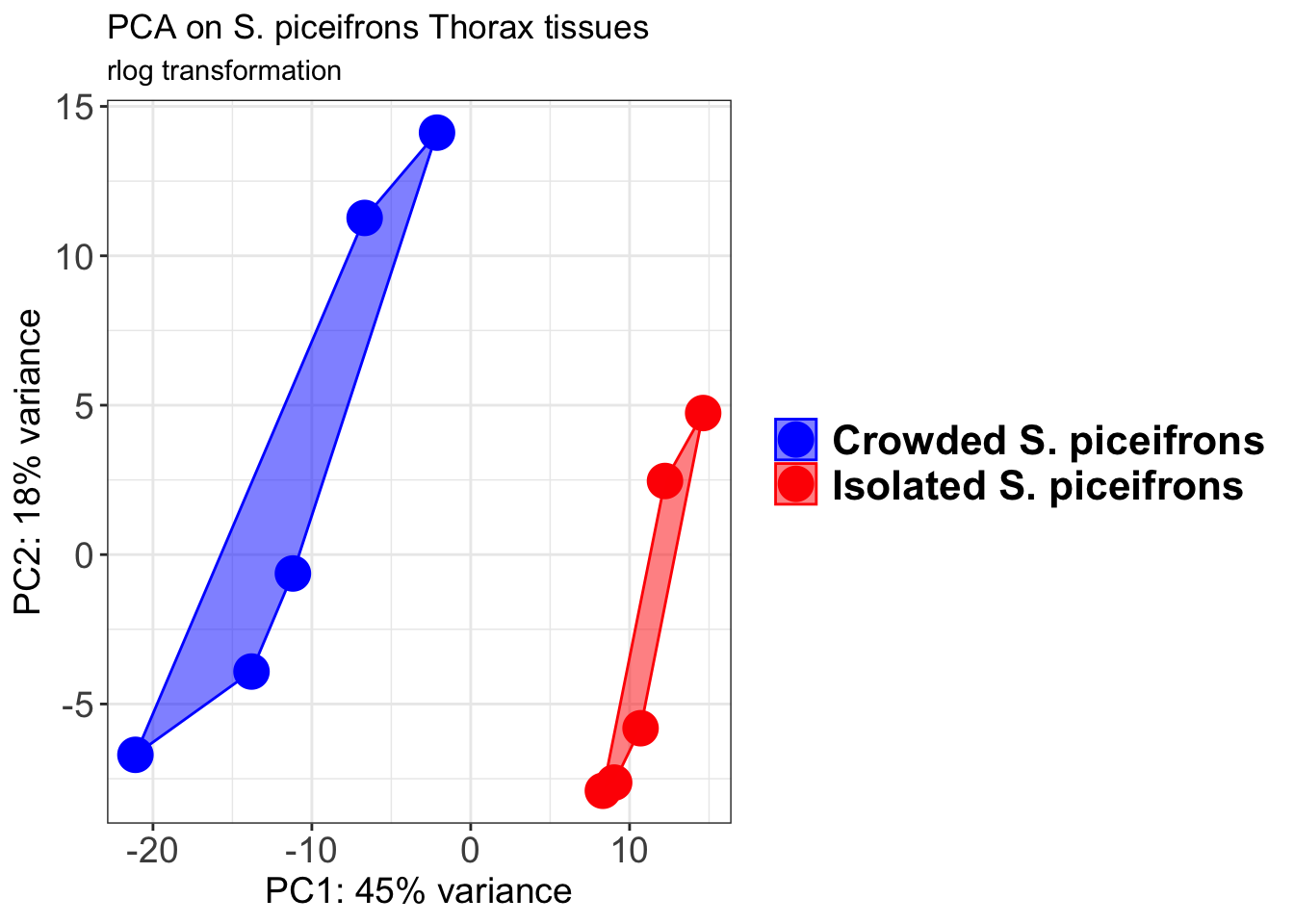

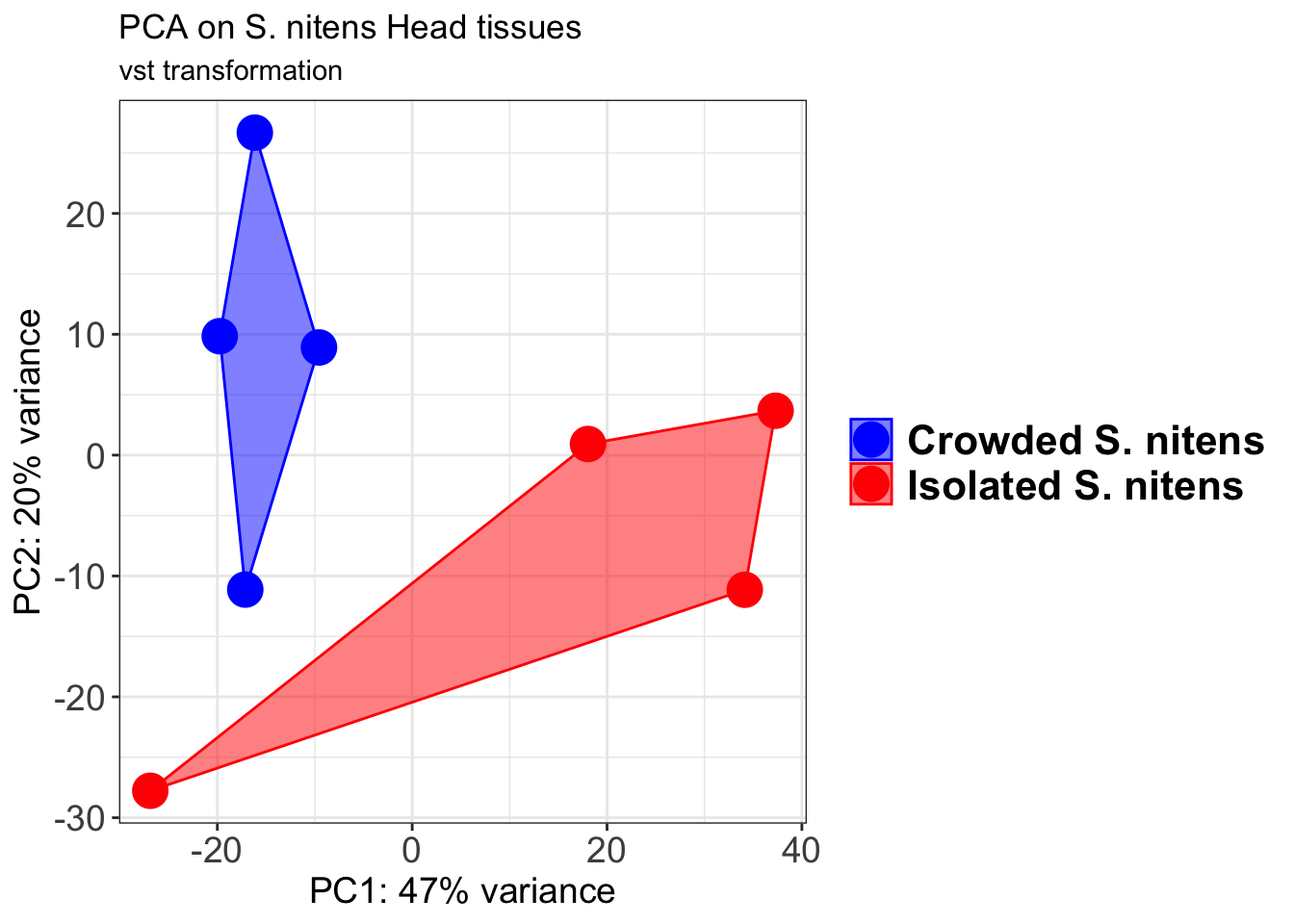

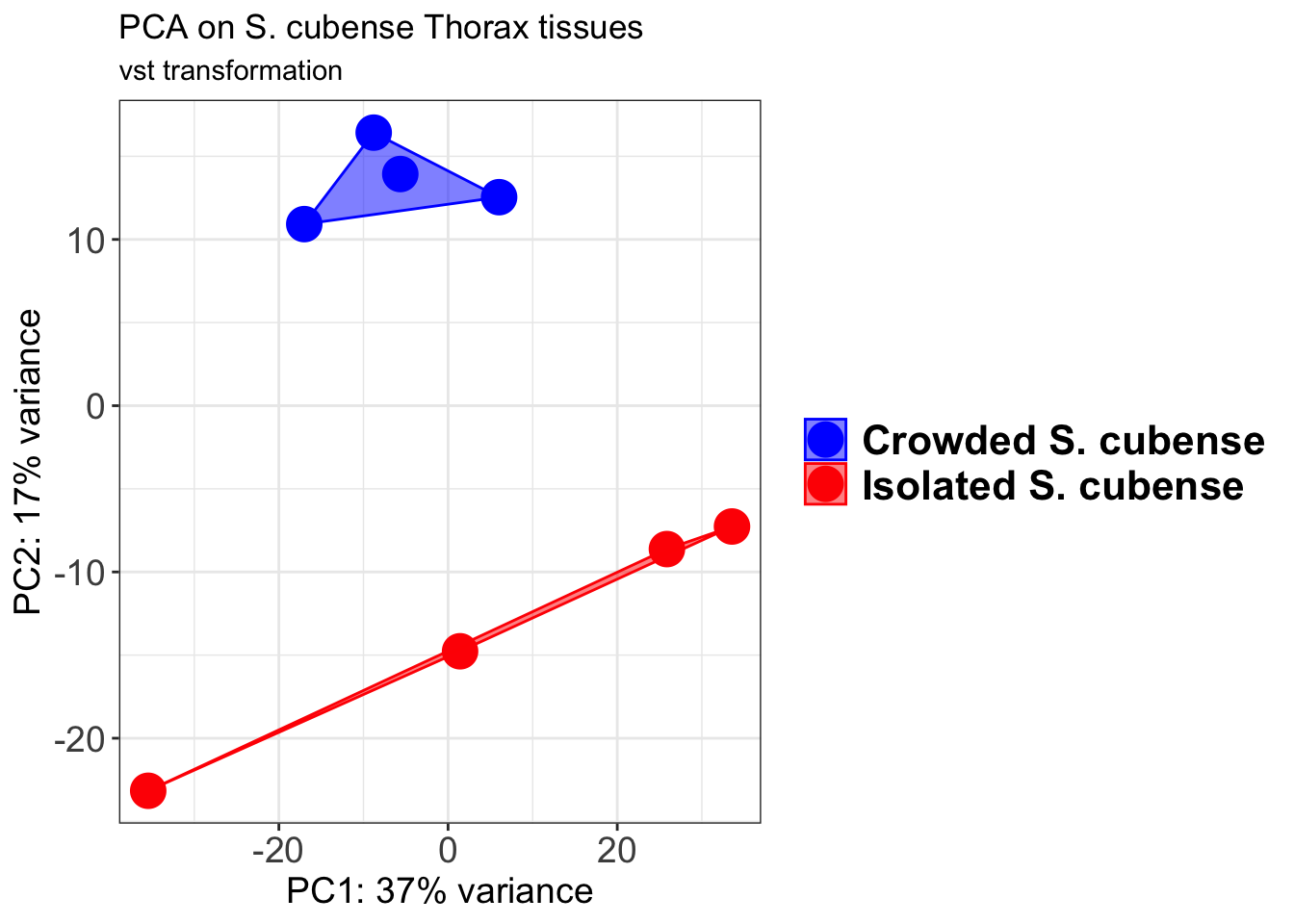

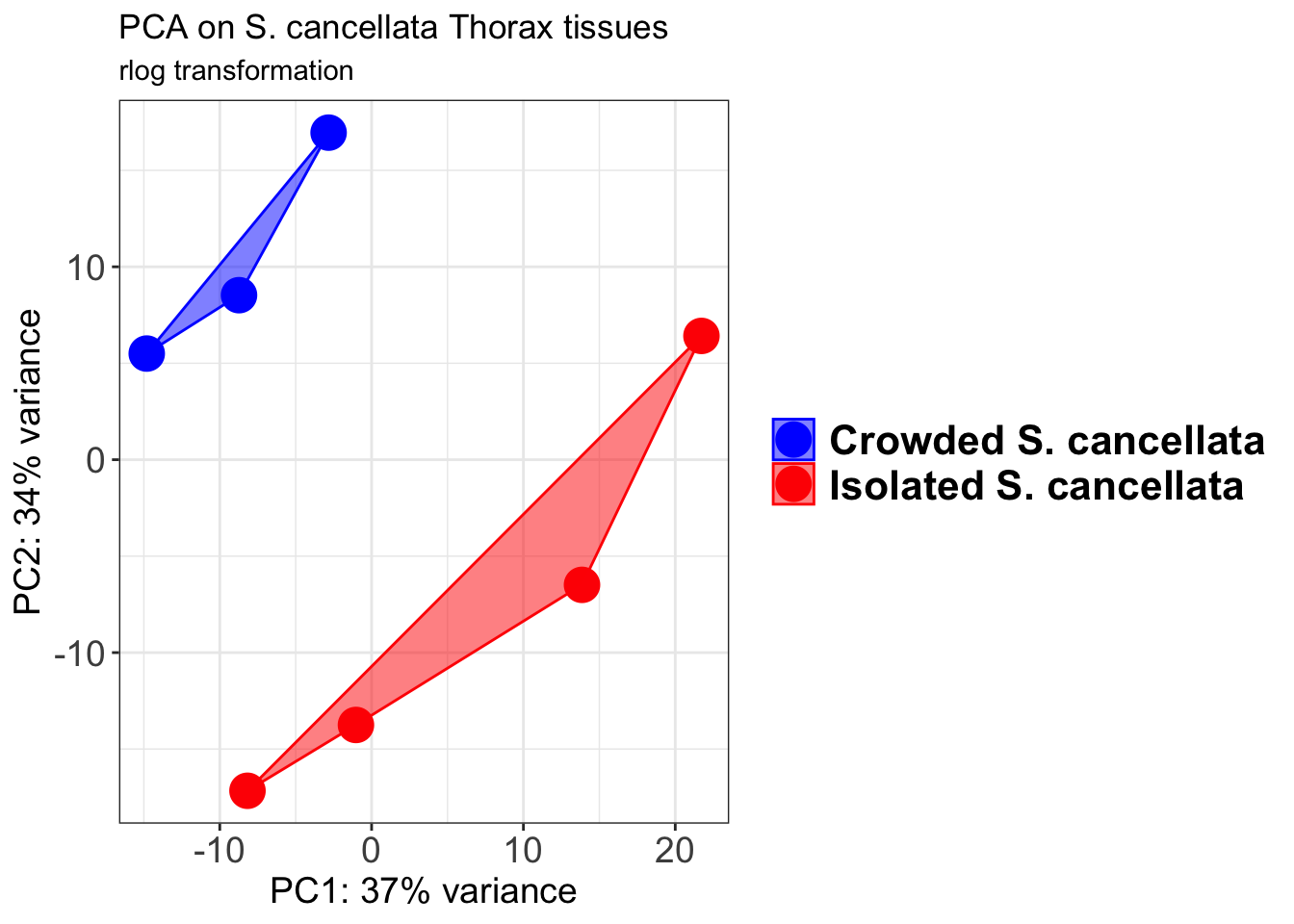

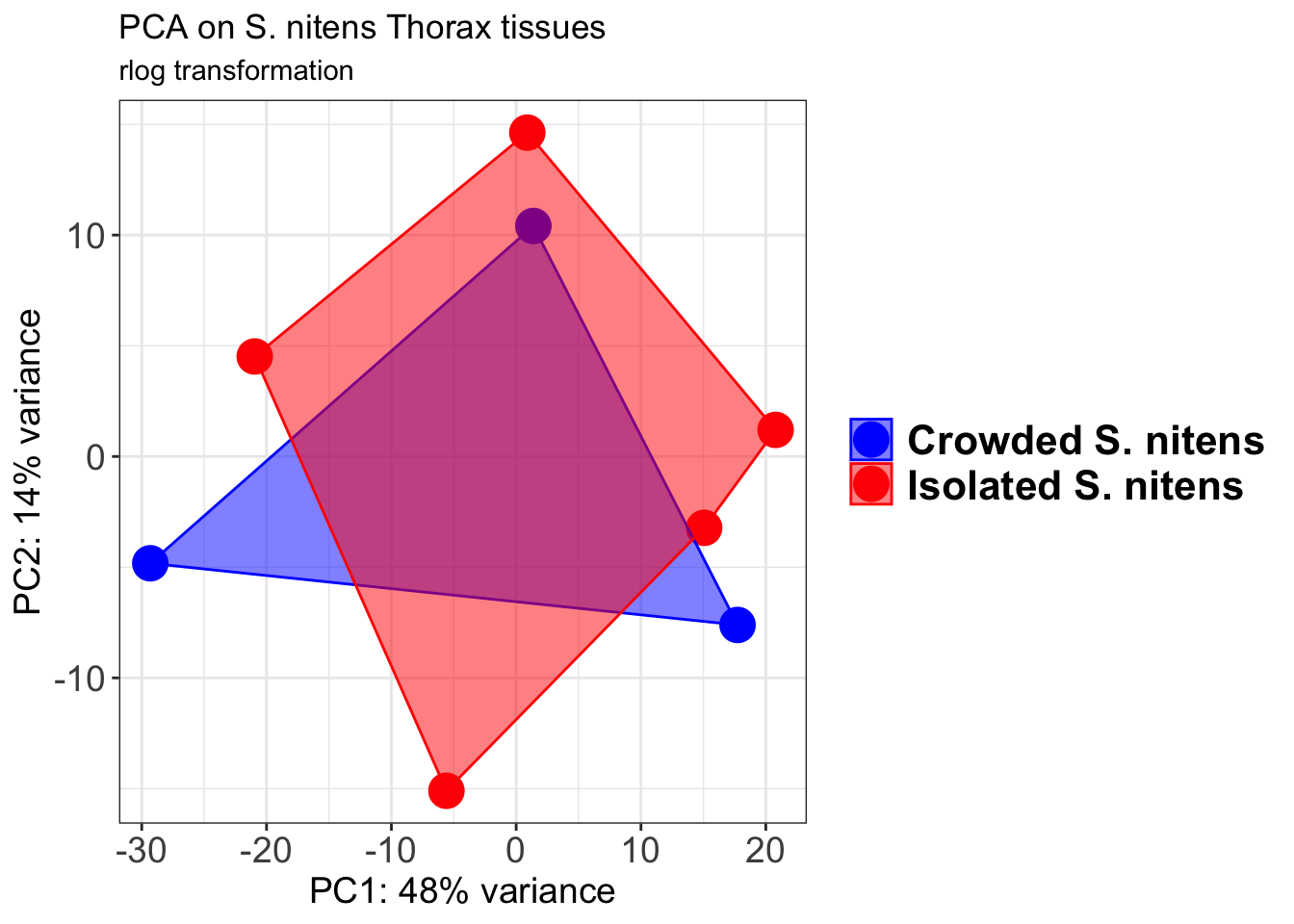

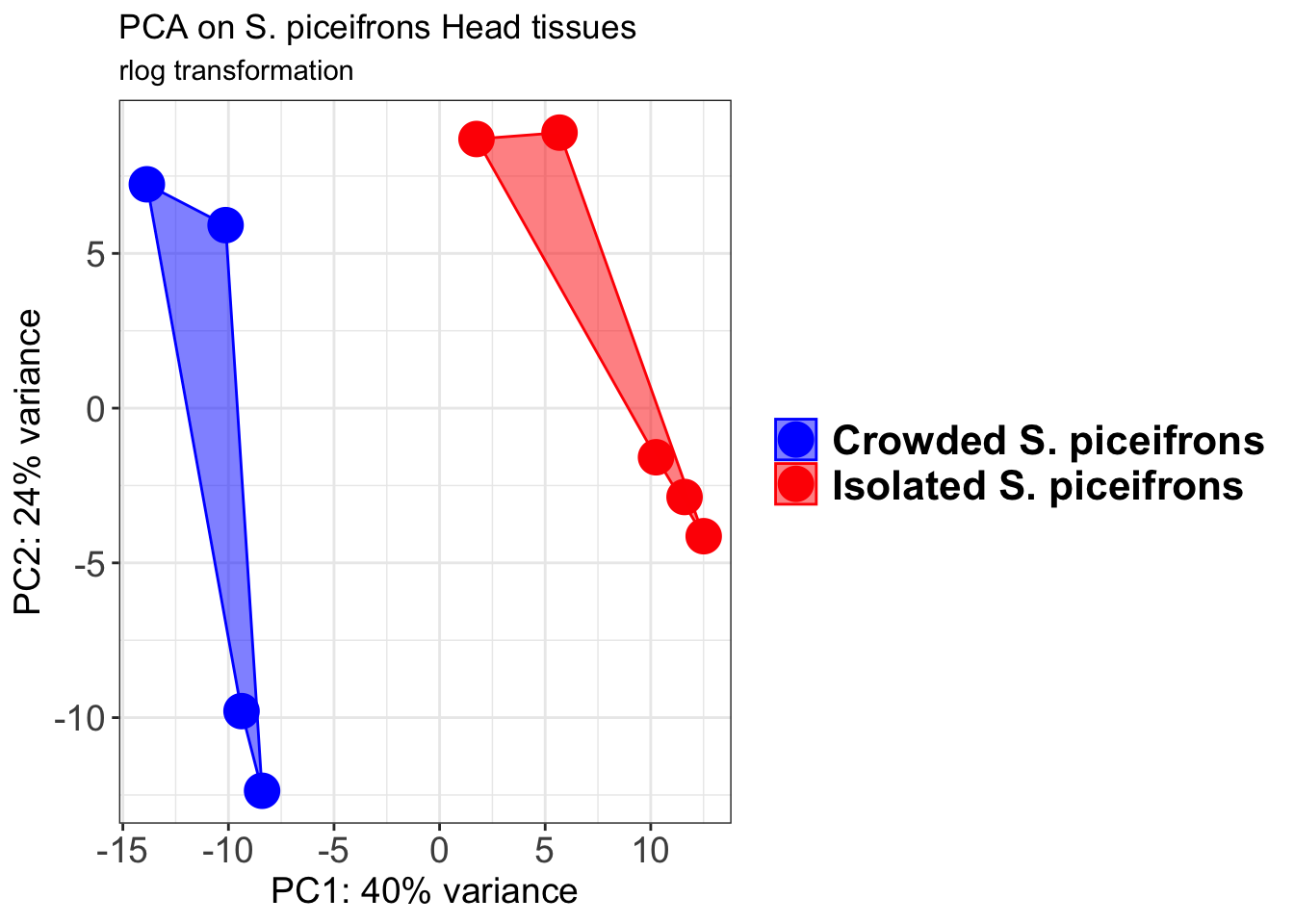

# Create the pca on the defined groups
pcaData1 <- plotPCA(object = shigeru_rlog, intgroup = c("RearingCondition"),returnData=TRUE)
percentVar <- round(100 * attr(pcaData1, "percentVar"))
pcaData1$RearingCondition<-factor(pcaData1$RearingCondition,levels=c("Crowded","Isolated"), labels=c("Crowded S. gregaria","Isolated S. gregaria"))
#levels(pcaData1$RearingCondition)
p1 <- ggplot(pcaData1, aes(PC1, PC2, color= RearingCondition)) +
  geom_point(size=6) +
  xlab(paste0("PC1: ", percentVar[1], "% variance")) +
  ylab(paste0("PC2: ", percentVar[2], "% variance")) +
  scale_color_manual(values = c("blue", "red")) +
  #coord_fixed() +
  theme_bw() +
  theme(legend.title = element_blank()) +
  theme(legend.text = element_text(face="bold", size=16)) +
  theme(axis.text = element_text(size=14)) +
  theme(axis.title = element_text(size=14))
p1 + geom_convexhull(aes(fill = RearingCondition, color = RearingCondition), alpha = 0.5) +
    scale_fill_manual(values = c("blue", "red"))+
    ggtitle("PCA on S. gregaria Head tissues", subtitle = "rlog transformation")

pcaData2 <- plotPCA(object = shigeru_vst, intgroup = c("RearingCondition"),returnData=TRUE)
percentVar <- round(100 * attr(pcaData2, "percentVar"))
pcaData2$RearingCondition<-factor(pcaData2$RearingCondition,levels=c("Crowded","Isolated"), labels=c("Crowded S. gregaria","Isolated S. gregaria"))
#levels(pcaData2$RearingCondition)
p2 <-ggplot(pcaData2, aes(PC1, PC2, color= RearingCondition)) +
  geom_point(size=6) +
  xlab(paste0("PC1: ", percentVar[1], "% variance")) +
  ylab(paste0("PC2: ", percentVar[2], "% variance")) +
  scale_color_manual(values = c("blue", "red")) +
  #coord_fixed() +
  theme_bw() +
  theme(legend.title = element_blank()) +
  theme(legend.text = element_text(face="bold", size=16)) +
  theme(axis.text = element_text(size=14)) +
  theme(axis.title = element_text(size=14))
p2 + geom_convexhull(aes(fill = RearingCondition, color = RearingCondition), alpha = 0.5) +
    scale_fill_manual(values = c("blue", "red"))+
    ggtitle("PCA on S. gregaria Head tissues", subtitle = "vst transformation")

select <- order(rowMeans(counts(shigeru,normalized=TRUE)),
                decreasing=TRUE)[1:12]
df <- as.data.frame(colData(shigeru)[,c("RearingCondition","Tissue")])

---

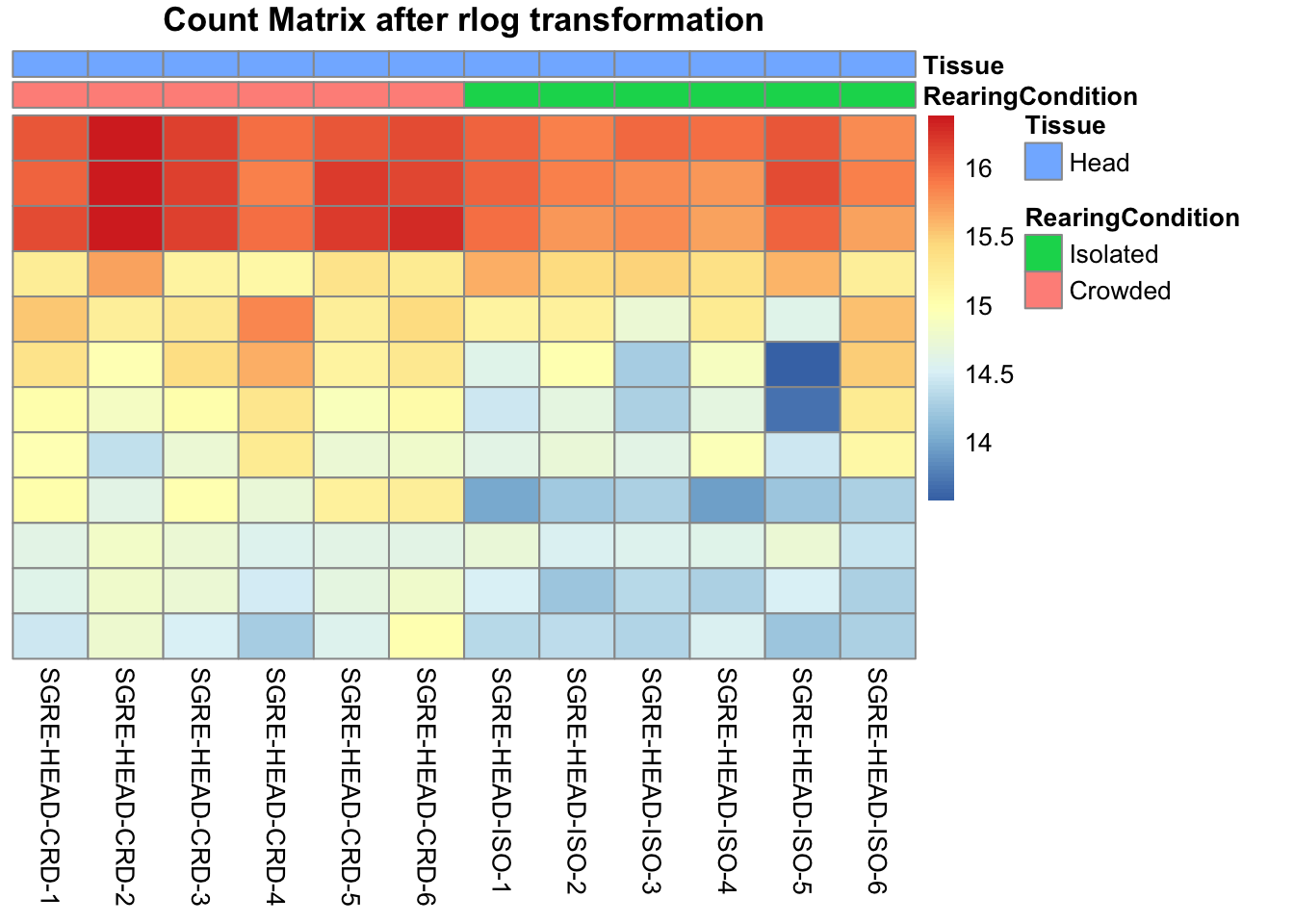

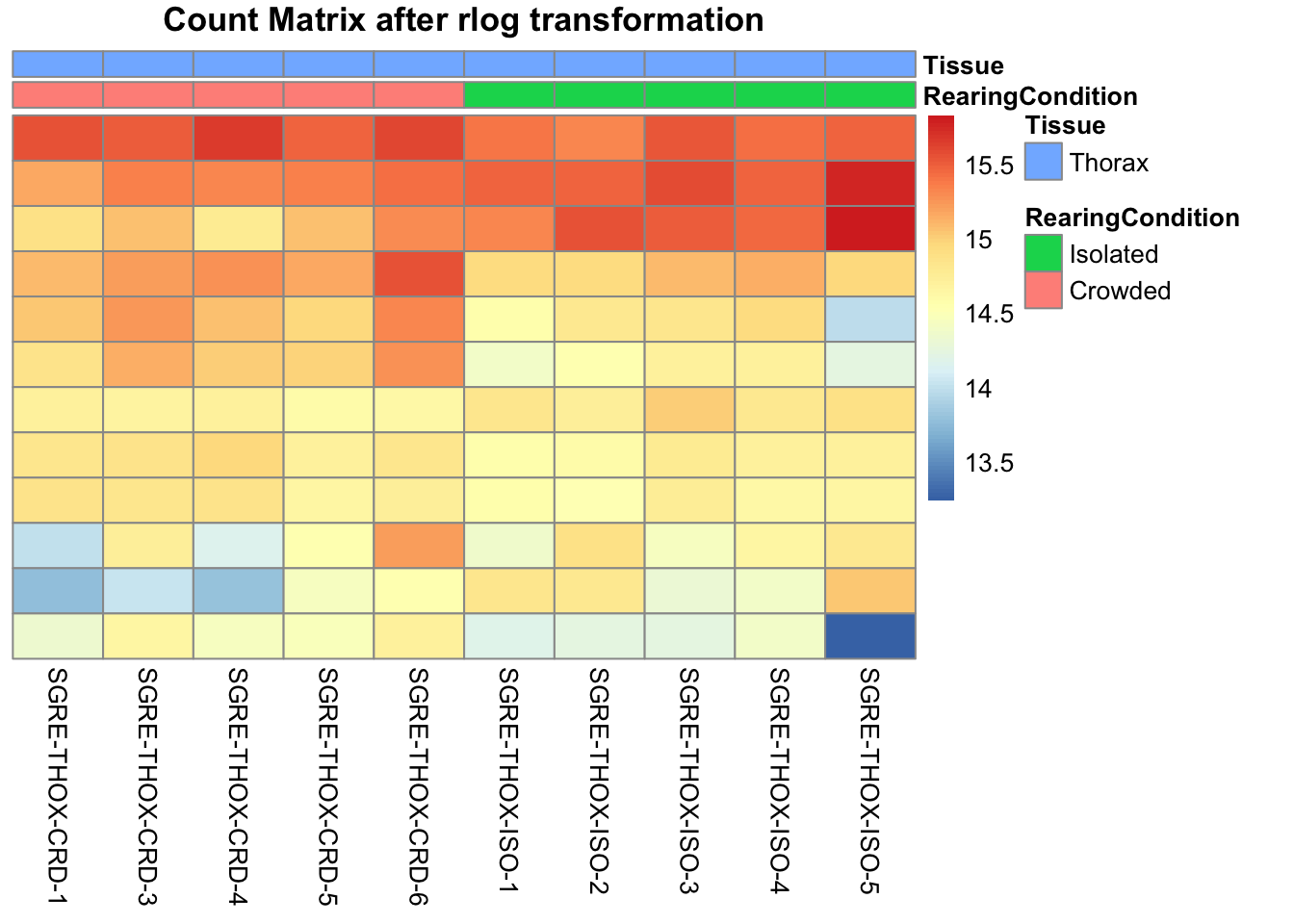

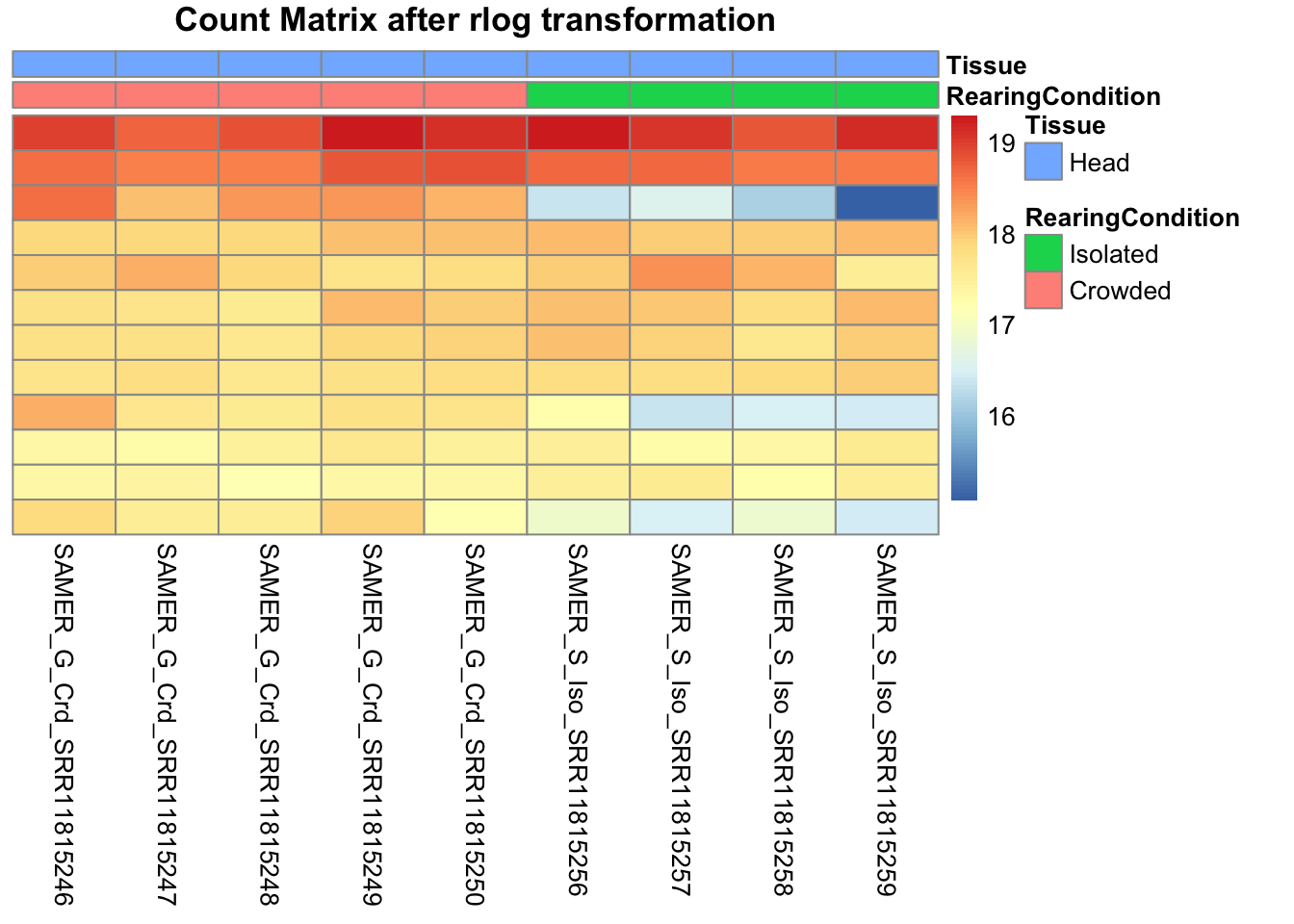

Count matrix heatmap

# Count matrix
pheatmap(assay(shigeru_ntd)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after norm transformation")

pheatmap(assay(shigeru_vst)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after vst transformation")

pheatmap(assay(shigeru_rlog)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after rlog transformation")

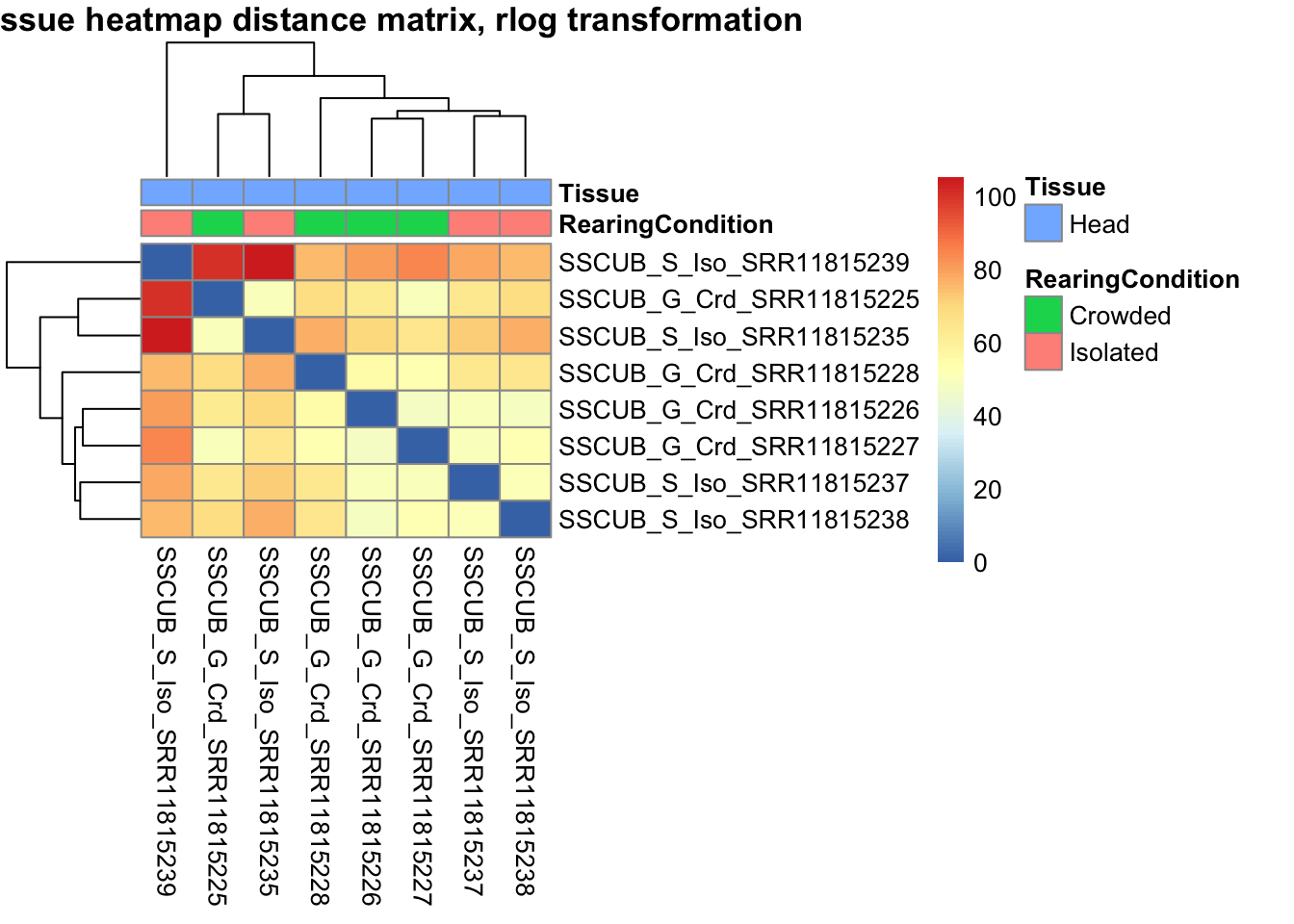

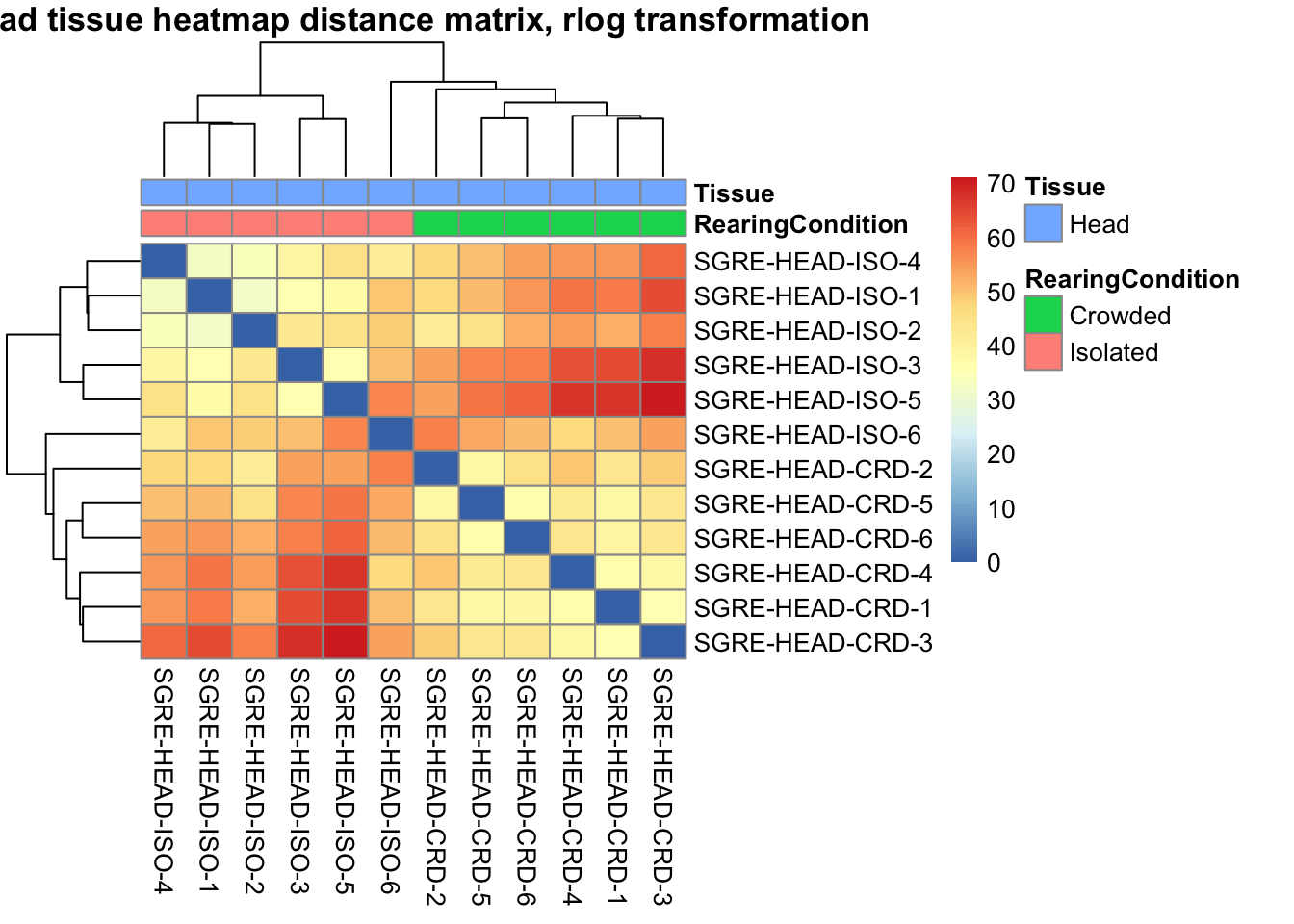

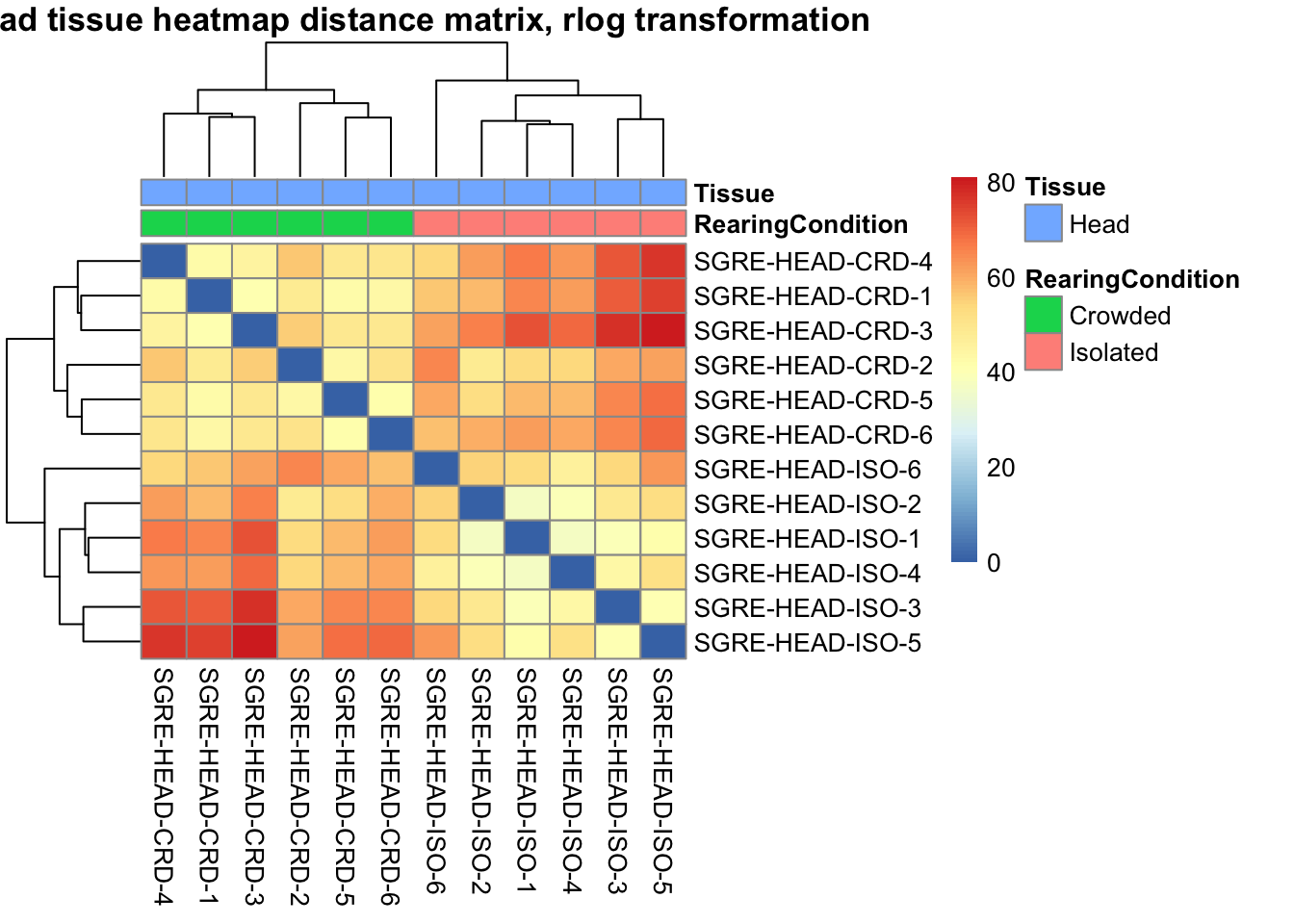

# calculate between-sample distance matrix
metadata <- sampletable[,c("RearingCondition", "Tissue")]
rownames(metadata) <- sampletable$SampleName
sampleDistMatrix.rlog <- as.matrix(dist(t(assay(shigeru_rlog))))
pheatmap(sampleDistMatrix.rlog, annotation_col=metadata, main = "Head tissue heatmap distance matrix, rlog transformation")

sampleDistMatrix.vst<- as.matrix(dist(t(assay(shigeru_vst))))
pheatmap(sampleDistMatrix.vst, annotation_col=metadata, main = "Head tissue heatmap distance matrix, rlog transformation")

---

MA plot

The following plots are interactive and we can hover or Zoom on the locus of interest.

# Ma plot parameters after shrinkage
de_shrink <- lfcShrink(dds = shigeru, coef="RearingCondition_Crowded_vs_Isolated", type="apeglm")
#head(de_shrink)
# Create a new data frame for ggplot
de_shrink_df <- as.data.frame(de_shrink)
de_shrink_df$GeneID <- rownames(de_shrink_df)  # Add gene names as a new column
maplot <-ggmaplot(de_shrink, fdr = 0.05, fc = 1, size = 1, palette = c("#B31B21", "#1465AC", "darkgray"), genenames = de_shrink_df$GeneID, top = 0,legend="top",label.select = NULL) +
  coord_cartesian(xlim = c(0, 20)) +
  scale_y_continuous(limits=c(-12, 12)) +
  theme(axis.text.x = element_text(size=12),axis.text.y = element_text(size=12),axis.title.x = element_text(size=14),axis.title.y = element_text(size=14),axis.line = element_line(size = 1, colour="gray20"),axis.ticks = element_line(size = 1, colour="gray20")) +
  guides(color = guide_legend(override.aes = list(size = c(3,3,3)))) +
  theme(legend.position = c(0.70, 0.12),legend.text=element_text(size=14,face="bold"),legend.background = element_rect(fill="transparent")) +
  theme(plot.title = element_text(size=18, colour="gray30", face="bold",hjust=0.06, vjust=-5)) +
  labs(title="MA-plot for the shrunken log2 fold changes in the Head tissues")
interactive_maplot <- ggplotly(maplot)
interactive_maplot

---

Volcano plot

#Volcano plot
keyvals <-ifelse(
  res_shigeru$log2FoldChange >= 1 & res_shigeru$padj <= 0.05, '#B31B21',
  ifelse(res_shigeru$log2FoldChange <= -1 & res_shigeru$padj <= 0.05, '#1465AC', 'darkgray'))

keyvals[is.na(keyvals)] <-'lightgray'
names(keyvals)[keyvals == "#B31B21"] <-'Upregulated'
names(keyvals)[keyvals == "#1465AC"] <-'Downregulated'
names(keyvals)[keyvals == 'darkgray'] <-'NS'

res_shigeru$color <- keyvals
volcano_plot <- ggplot(res_shigeru, aes(x = log2FoldChange, y = -log10(padj),
                                        color = color,  # Use the color column with keyvals
                                        text = rownames(res_shigeru))) +
  geom_point(size = 3, alpha = 0.8) +
  scale_color_identity() +  # Directly use the color values from `keyvals`
  guides(color = "none") +  # Hide the color legend
  labs(title = "Volcano Plot DEG Head S. gregaria", x = "log2 Fold Change", y = "-log10 Adjusted P-Value") +
  theme_minimal()

# Convert to interactive plot with hover text for gene names
interactive_volcano <- ggplotly(volcano_plot, tooltip = "text") %>%
  layout(hoverlabel = list(namelength = -1))

# Display the interactive plot
interactive_volcano

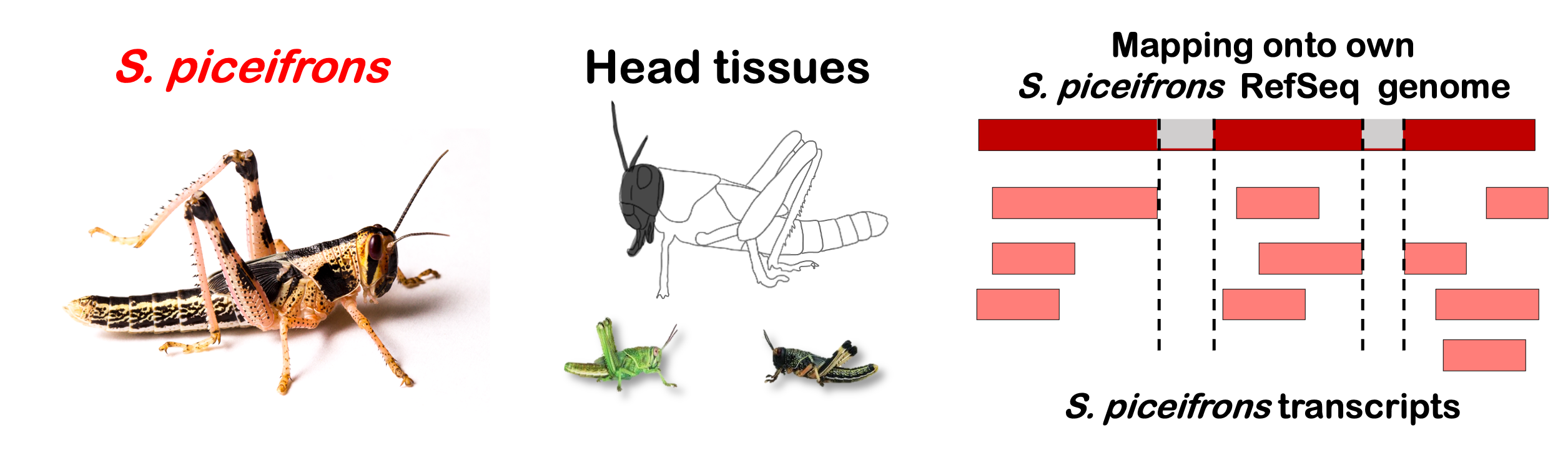

piceifrons

---

Total DEGs

rawDir <- file.path(workDir, "03-piceifrons-DESeq2-togregaria")

# Path and name of targetfile containing conditions and file names
species <- "piceifrons"
targetFile <- file.path(workDir, "list", paste0("Head", "_", species, "_nooutliers.txt"))

sampletable <- fread(targetFile)
rownames(sampletable) <- sampletable$SampleName
sampletable$RearingCondition <- as.factor(sampletable$RearingCondition)
sampletable$Tissue <- as.factor(sampletable$Tissue)

## Import count files
satoshi <- DESeqDataSetFromHTSeqCount(sampleTable = sampletable,
                        directory = rawDir,
                        design = ~ RearingCondition )
#satoshi

smallestGroupSize <- 3
keep <- rowSums(counts(satoshi) >= 5) >= smallestGroupSize
satoshi <- satoshi[keep,]
#nrow(satoshi)
satoshi$RearingCondition <- relevel(satoshi$RearingCondition, ref = "Isolated")

# Fit the statistical model
shigeru <- DESeq(satoshi)
#cbind(resultsNames(shigeru))
res_shigeru <- results(shigeru)
sum(res_shigeru$padj < tresh_padj, na.rm = TRUE)

[1] 750

A total of 750 genes out of the pre-filtered 13,325 features were showing significant (corrected p-value < 0.05) differences in expression levels. However, we will only keep the ones with at least an absolute fold change > 1, so in reality we have 385 DEGs. The summary below showed how many were up-regulated and down-regulated in crowded compared to isolated it is possible to scroll it.

brock <- results(shigeru, name = "RearingCondition_Crowded_vs_Isolated", alpha = alpha_DEseq2)
summary(brock)

out of 13325 with nonzero total read count
adjusted p-value < 0.05
LFC > 0 (up)       : 375, 2.8%
LFC < 0 (down)     : 375, 2.8%
outliers [1]       : 25, 0.19%
low counts [2]     : 0, 0%
(mean count < 2)
[1] see 'cooksCutoff' argument of ?results
[2] see 'independentFiltering' argument of ?results

brock_df <- as.data.frame(brock)
brock_df$GeneID <- rownames(brock_df)

brock_df <- brock_df[!is.na(brock_df$padj) & (brock_df$padj < tresh_padj), ]
outputFile <- file.path(workDir, "DEG-results", paste0("DESeq2_results_Head_togregaria_", species, ".csv"))
write.csv(brock, file = outputFile, row.names = TRUE)

significant_brock_df <- brock_df[!is.na(brock_df$padj) & !is.na(brock_df$log2FoldChange) &
                               (brock_df$padj < tresh_padj & abs(brock_df$log2FoldChange) > tresh_logfold), ]
# Summary similar to summary(brock)
upregulated <- sum(brock$padj < tresh_padj & brock$log2FoldChange > tresh_logfold, na.rm = TRUE)  # Upregulated count
downregulated <- sum(brock$padj < tresh_padj & brock$log2FoldChange < -tresh_logfold, na.rm = TRUE)  # Downregulated count
total_genes <- sum(upregulated, downregulated)  # Total non-zero count genes
cat("Total DEGs p-value < 0.05 and absolute logFoldChange > 1:", total_genes, "\n")

Total DEGs p-value < 0.05 and absolute logFoldChange > 1: 385

cat("LFC > 0 (up)       :", upregulated, ",", round((upregulated / total_genes) * 100, 2), "%\n")

LFC > 0 (up)       : 194 , 50.39 %

cat("LFC < 0 (down)     :", downregulated, ",", round((downregulated / total_genes) * 100, 2), "%\n")

LFC < 0 (down)     : 191 , 49.61 %

meta_brock_df <- merge(significant_brock_df, allspecies_df, by.x = "GeneID", by.y = "GeneID", all.x = TRUE)
meta_brock_df <- meta_brock_df[, c("GeneID", "GeneType", "Description",  "Species",
                                   "baseMean", "log2FoldChange", "lfcSE", "stat", "pvalue", "padj")]
numeric_cols <- c("baseMean", "log2FoldChange", "lfcSE", "stat", "pvalue", "padj")
meta_brock_df[numeric_cols] <- round(meta_brock_df[numeric_cols], 2)
meta_brock_df$row_color <- ifelse(meta_brock_df$log2FoldChange > 1, "red",
                                  ifelse(meta_brock_df$log2FoldChange < -1, "blue", "black"))
meta_brock_df$row_weight <- ifelse(abs(meta_brock_df$log2FoldChange) > 1, "bold", "normal")
# Display the data table with italic formatting for Species column, color-coded, and bold text rows
datatable(meta_brock_df, options = list(
    pageLength = 10,       # Set initial page length
    scrollX = TRUE,        # Enable horizontal scrolling
    autoWidth = TRUE,      # Adjust column width automatically
    searchHighlight = TRUE # Highlight search matches
  ),
  rownames = FALSE,
  escape = FALSE  # Allows HTML formatting in table cells
) %>%
  formatStyle(
    'Species', target = 'cell',
    fontStyle = 'italic'
  ) %>%
  formatStyle(
    columns = names(meta_brock_df),
    target = 'row',
    color = styleEqual(c("red", "blue", "black"), c("red", "blue", "black")), # Apply row color
    fontWeight = styleEqual(c("bold", "normal"), c("bold", "normal")), # Apply bold font for up/downregulated rows
    backgroundColor = styleEqual(c("red", "blue", "black"), c("white", "white", "white")) # Keep background white
  )

# Define the output file path
outputFile <- file.path(workDir, "DEG-results", paste0("DESeq2_sigresults_Head_togregaria_", species, ".csv"))
write.csv(brock_df, file = outputFile, row.names = TRUE)

---

Normalization and PCA

# Try with the data transformation
shigeru_vst <- vst(shigeru)
shigeru_rlog <- rlog(shigeru)
shigeru_ntd <- normTransform(shigeru)
itadori <- meanSdPlot(assay(shigeru_ntd))

itadori2 <- itadori$gg + ggtitle("Transformation with ntd")
megumi <- meanSdPlot(assay(shigeru_vst))

megumi2 <- megumi$gg + ggtitle("Transformation with vst")
nobara <- meanSdPlot(assay(shigeru_rlog))

nobara2 <-nobara$gg + ggtitle("Transformation with rlog")

# Create the pca on the defined groups

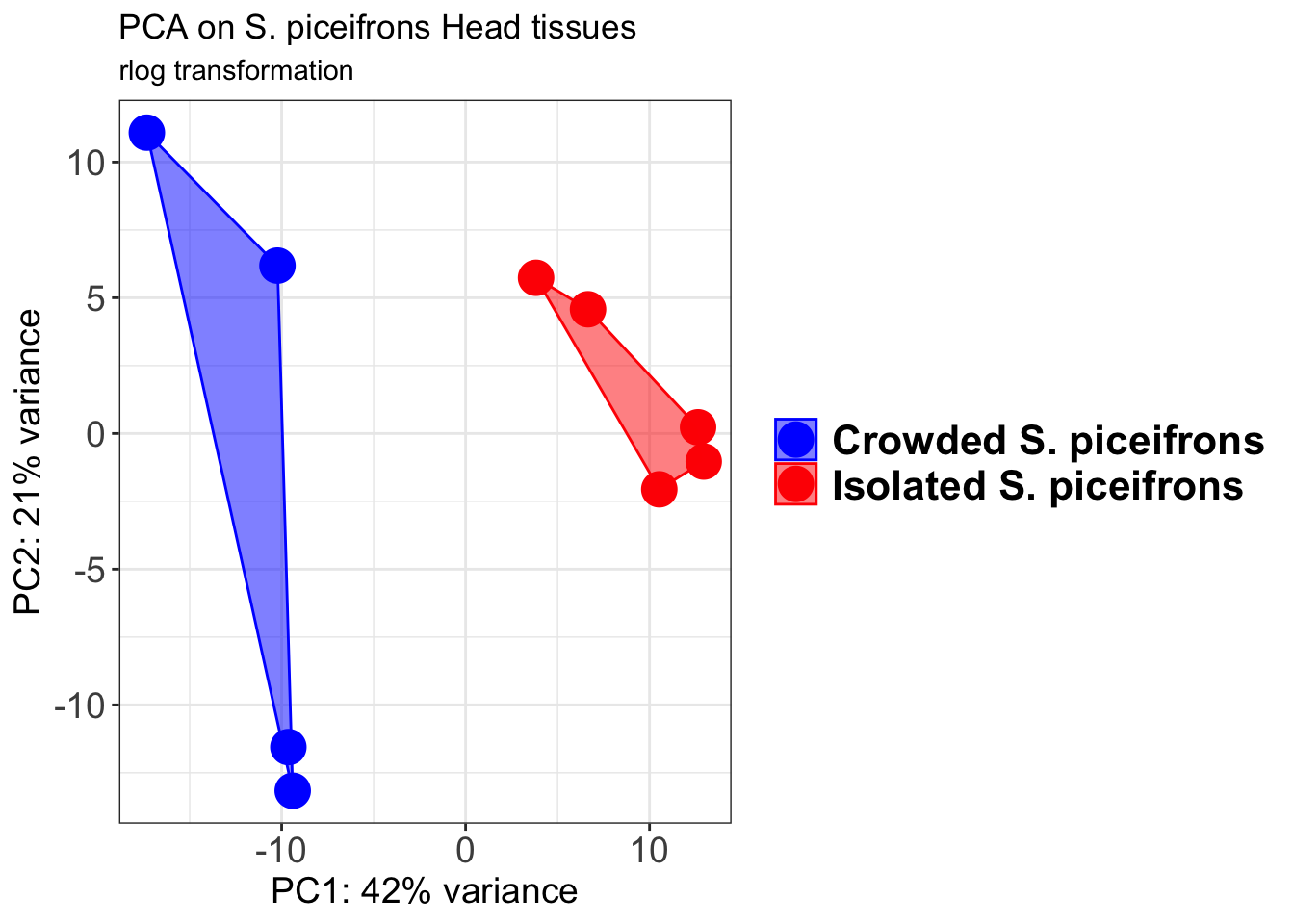

pcaData1 <- plotPCA(object = shigeru_rlog, intgroup = c("RearingCondition"),returnData=TRUE)
percentVar <- round(100 * attr(pcaData1, "percentVar"))
pcaData1$RearingCondition<-factor(pcaData1$RearingCondition,levels=c("Crowded","Isolated"), labels=c("Crowded S. piceifrons","Isolated S. piceifrons"))
#levels(pcaData1$RearingCondition)
p1 <- ggplot(pcaData1, aes(PC1, PC2, color= RearingCondition)) +
  geom_point(size=6) +
  xlab(paste0("PC1: ", percentVar[1], "% variance")) +
  ylab(paste0("PC2: ", percentVar[2], "% variance")) +
  scale_color_manual(values = c("blue", "red")) +
  #coord_fixed() +
  theme_bw() +
  theme(legend.title = element_blank()) +
  theme(legend.text = element_text(face="bold", size=16)) +
  theme(axis.text = element_text(size=14)) +
  theme(axis.title = element_text(size=14))
p1 + geom_convexhull(aes(fill = RearingCondition, color = RearingCondition), alpha = 0.5) +
    scale_fill_manual(values = c("blue", "red"))+
    ggtitle("PCA on S. piceifrons Head tissues", subtitle = "rlog transformation")

pcaData2 <- plotPCA(object = shigeru_vst, intgroup = c("RearingCondition"),returnData=TRUE)
percentVar <- round(100 * attr(pcaData2, "percentVar"))
pcaData2$RearingCondition<-factor(pcaData2$RearingCondition,levels=c("Crowded","Isolated"), labels=c("Crowded S. piceifrons","Isolated S. piceifrons"))
#levels(pcaData2$RearingCondition)
p2 <-ggplot(pcaData2, aes(PC1, PC2, color= RearingCondition)) +
  geom_point(size=6) +
  xlab(paste0("PC1: ", percentVar[1], "% variance")) +
  ylab(paste0("PC2: ", percentVar[2], "% variance")) +
  scale_color_manual(values = c("blue", "red")) +
  #coord_fixed() +
  theme_bw() +
  theme(legend.title = element_blank()) +
  theme(legend.text = element_text(face="bold", size=16)) +
  theme(axis.text = element_text(size=14)) +
  theme(axis.title = element_text(size=14))
p2 + geom_convexhull(aes(fill = RearingCondition, color = RearingCondition), alpha = 0.5) +
    scale_fill_manual(values = c("blue", "red"))+
    ggtitle("PCA on S. piceifrons Head tissues", subtitle = "vst transformation")

select <- order(rowMeans(counts(shigeru,normalized=TRUE)),
                decreasing=TRUE)[1:12]
df <- as.data.frame(colData(shigeru)[,c("RearingCondition","Tissue")])

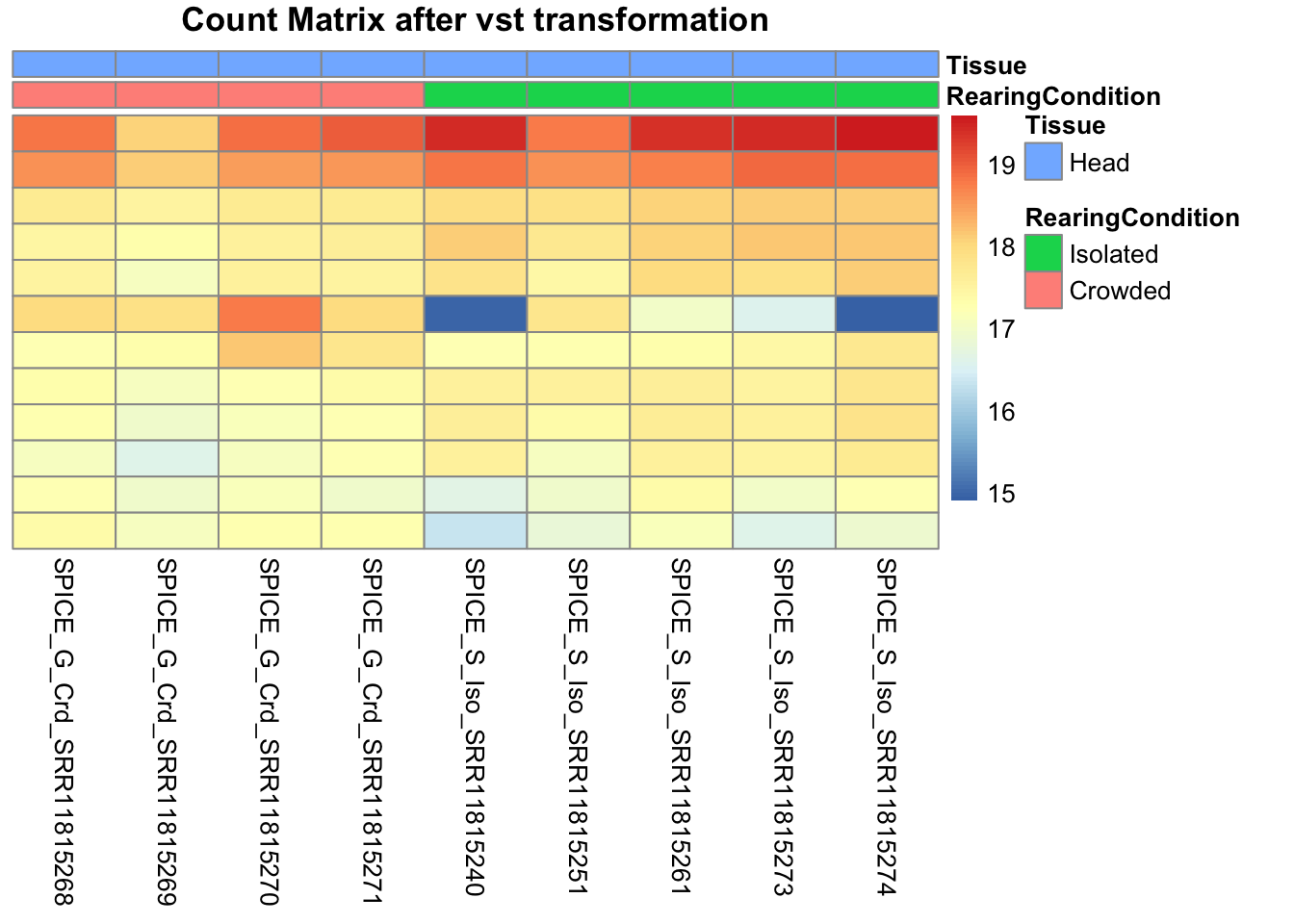

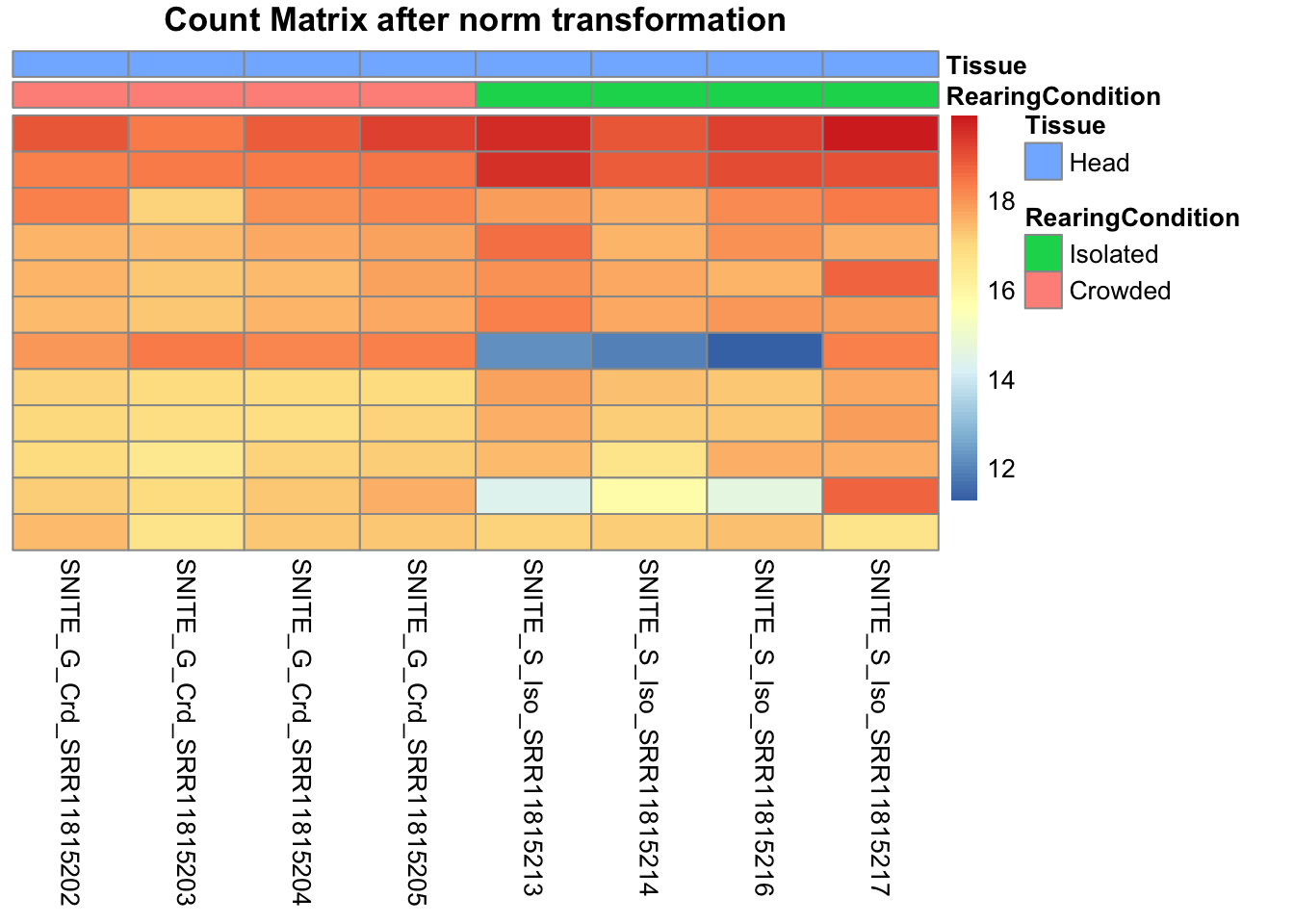

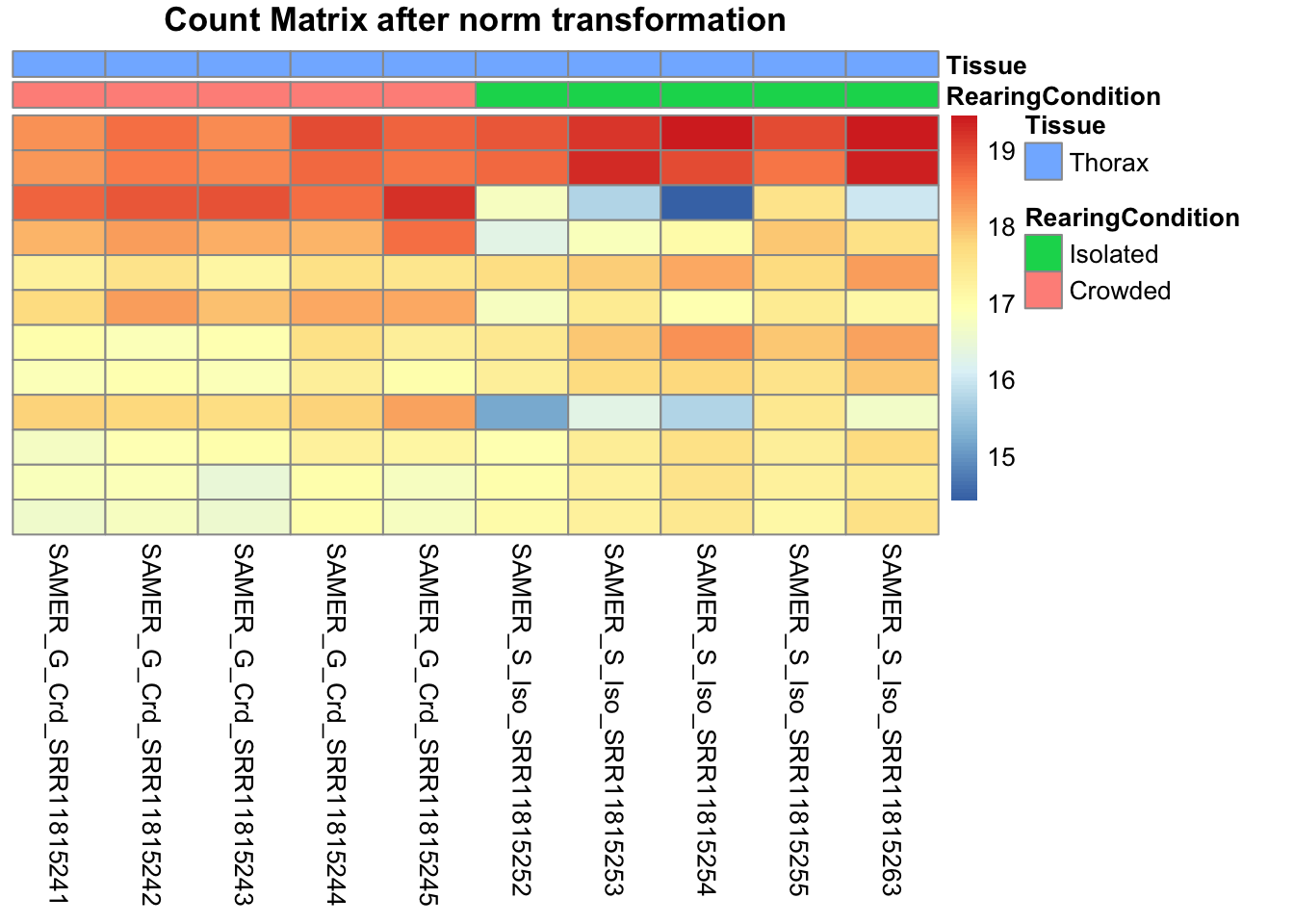

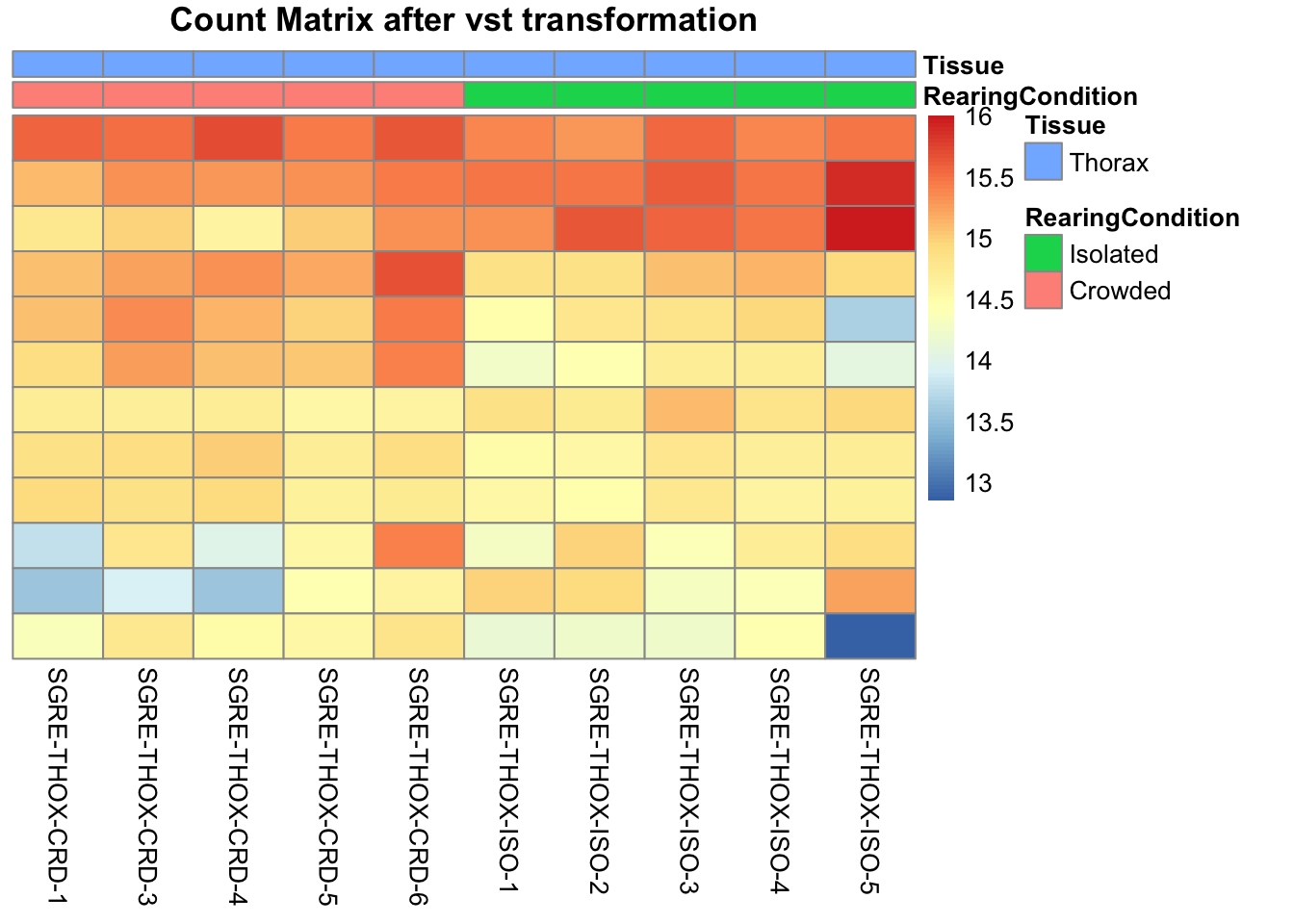

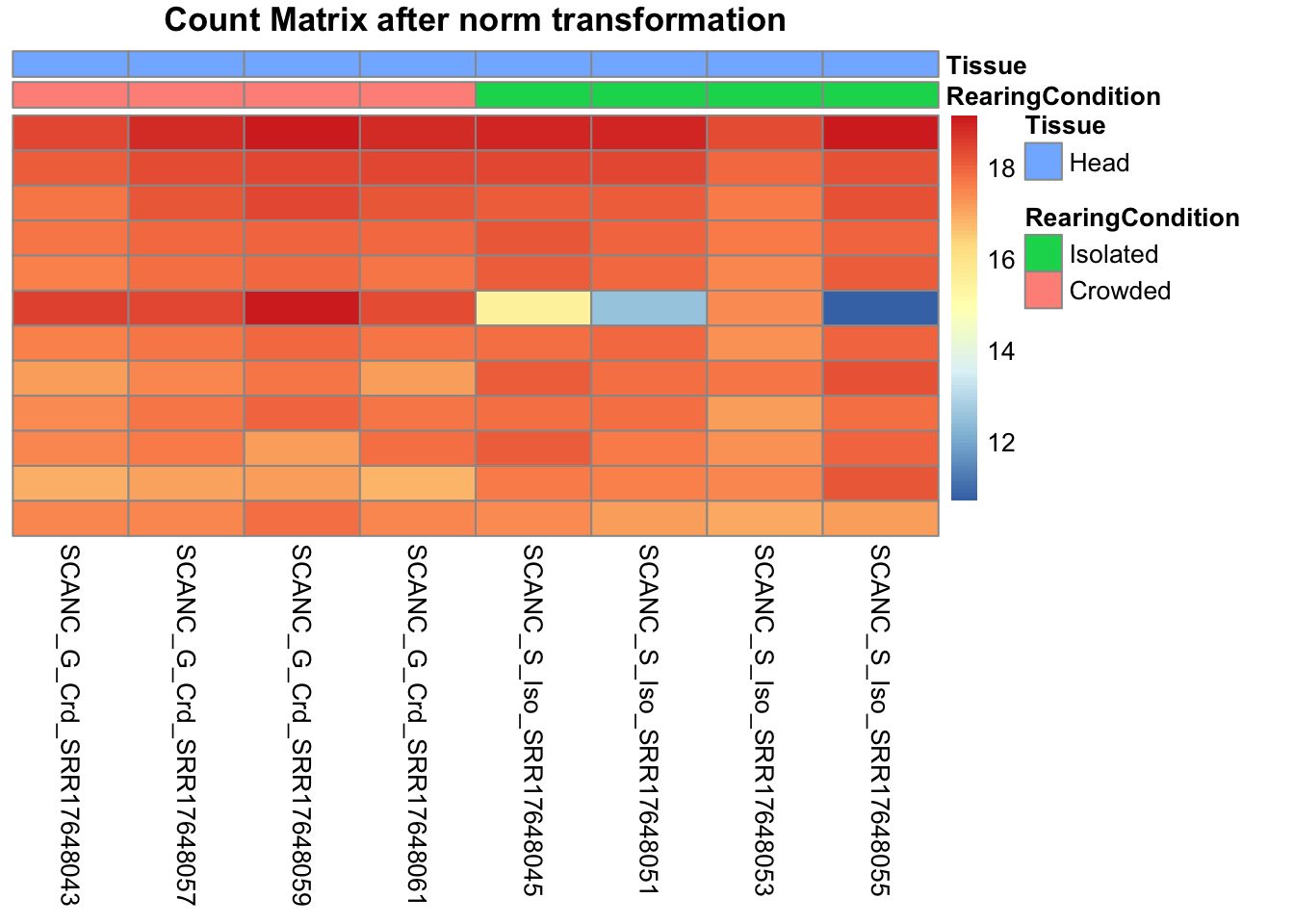

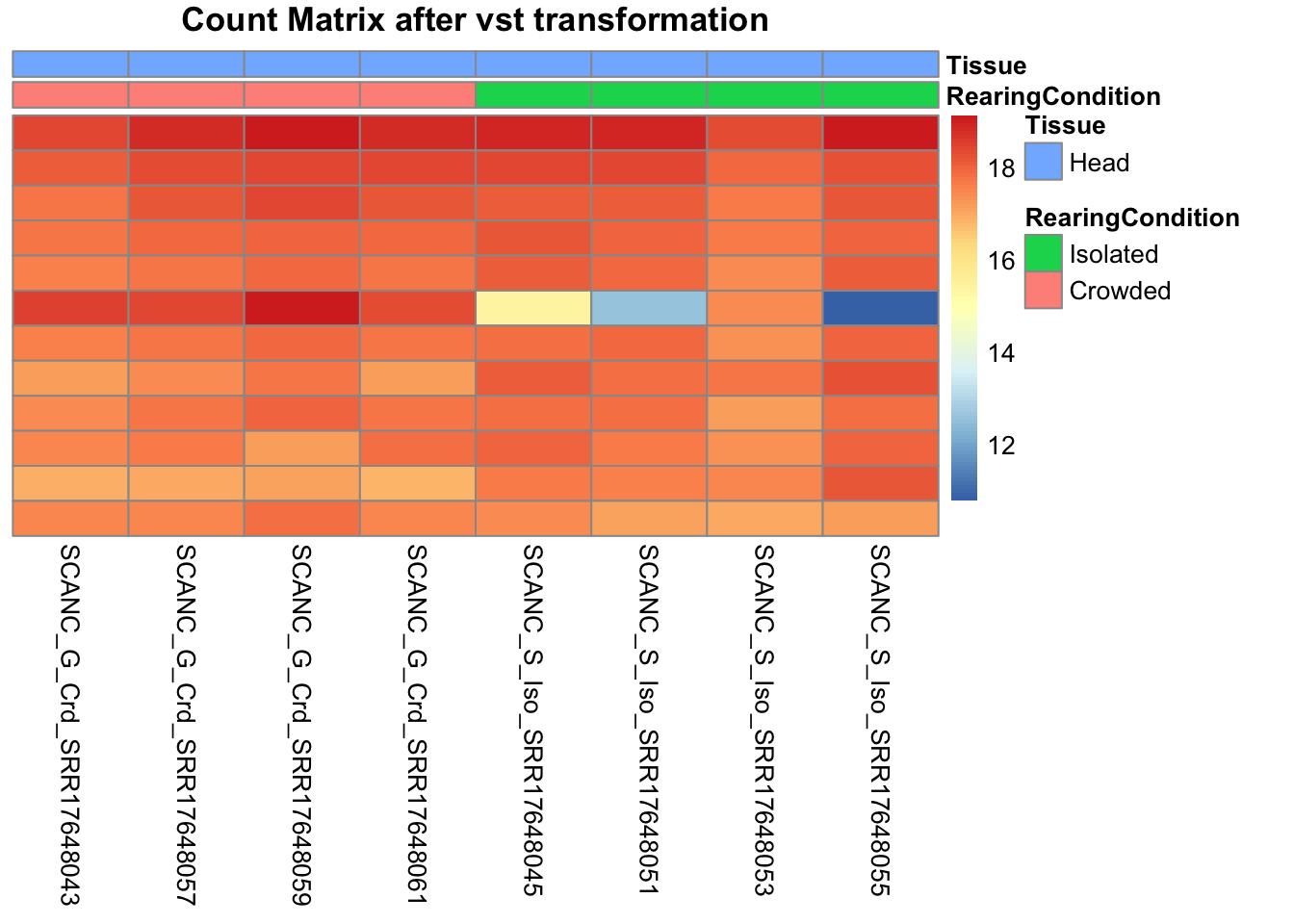

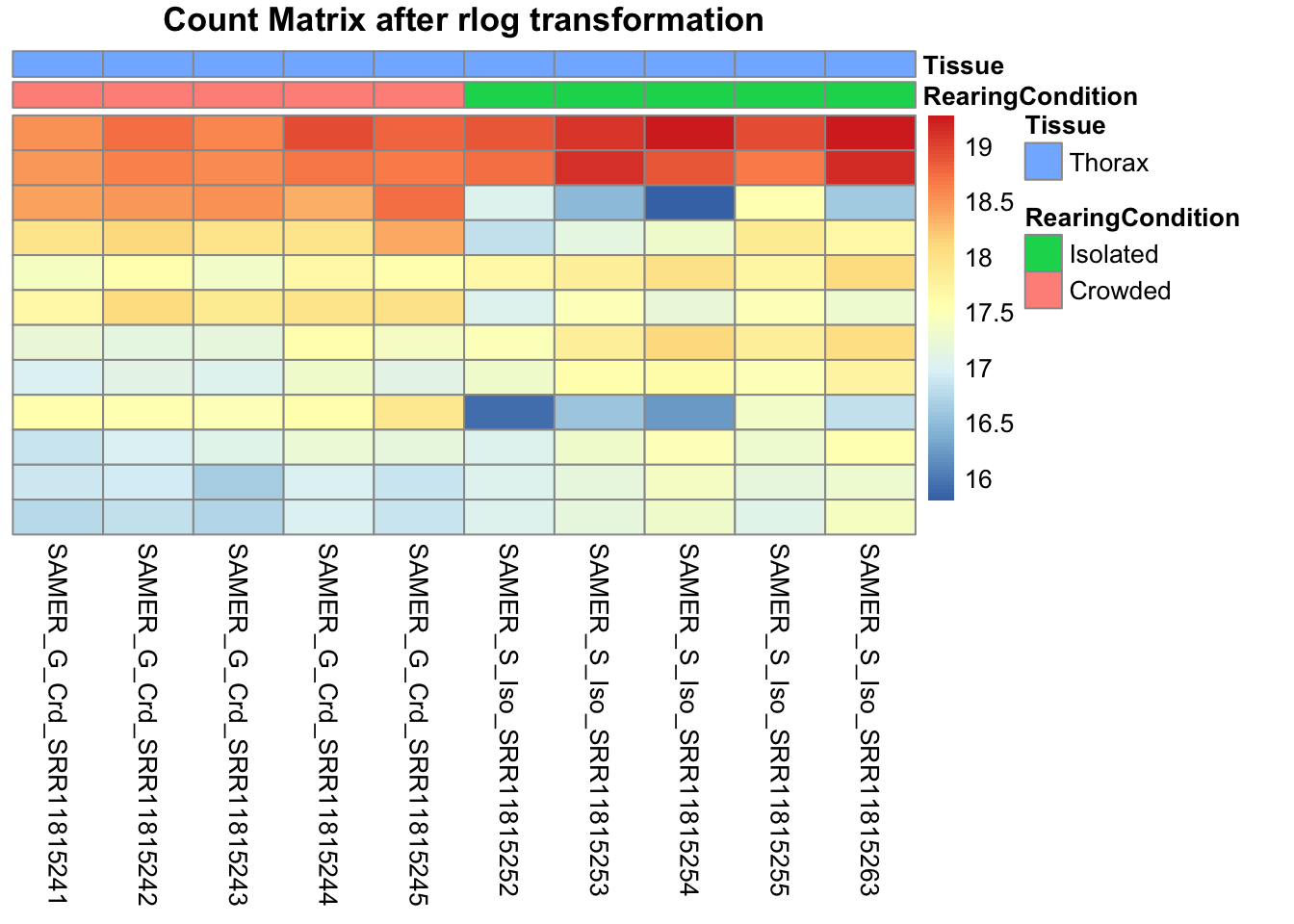

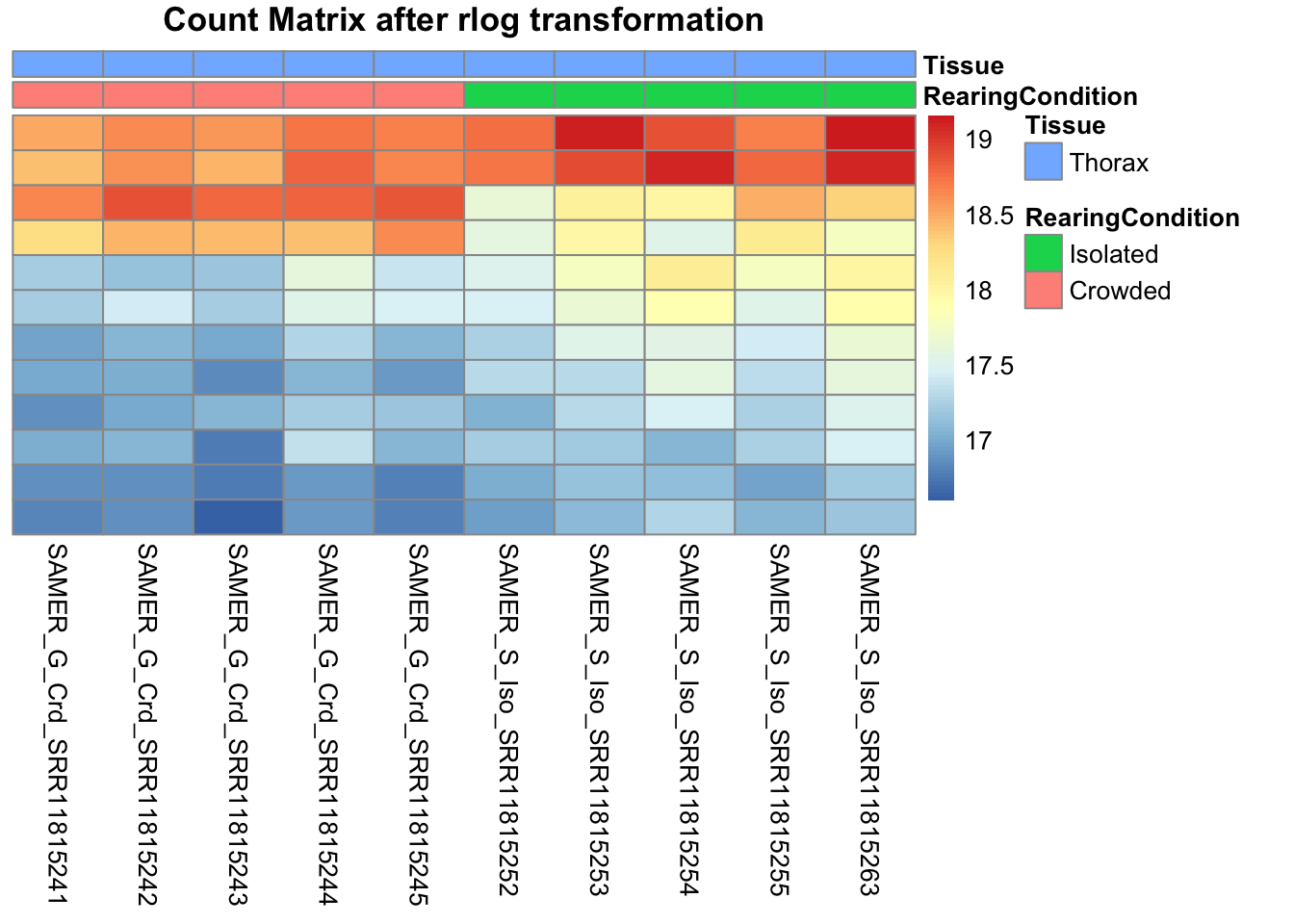

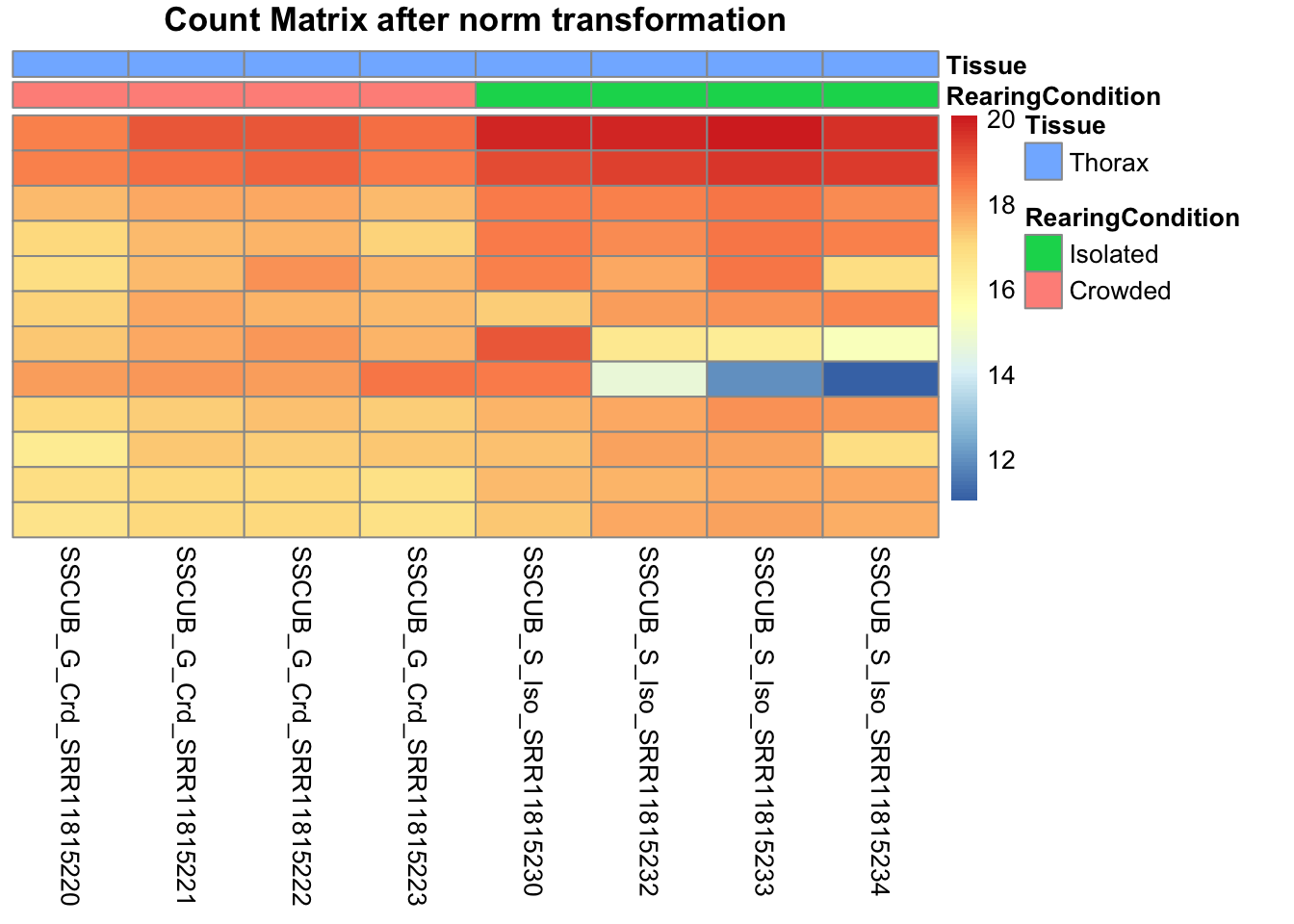

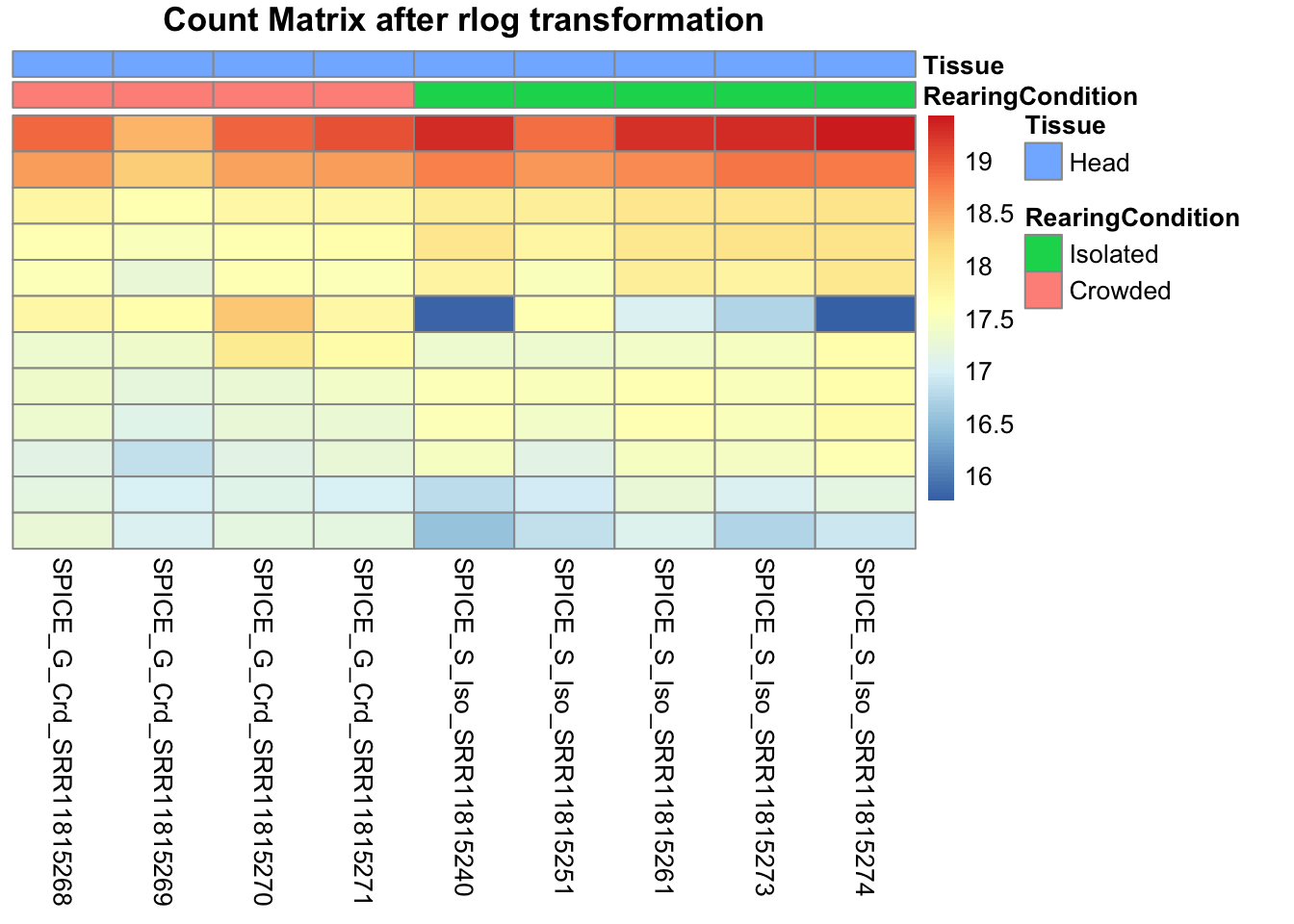

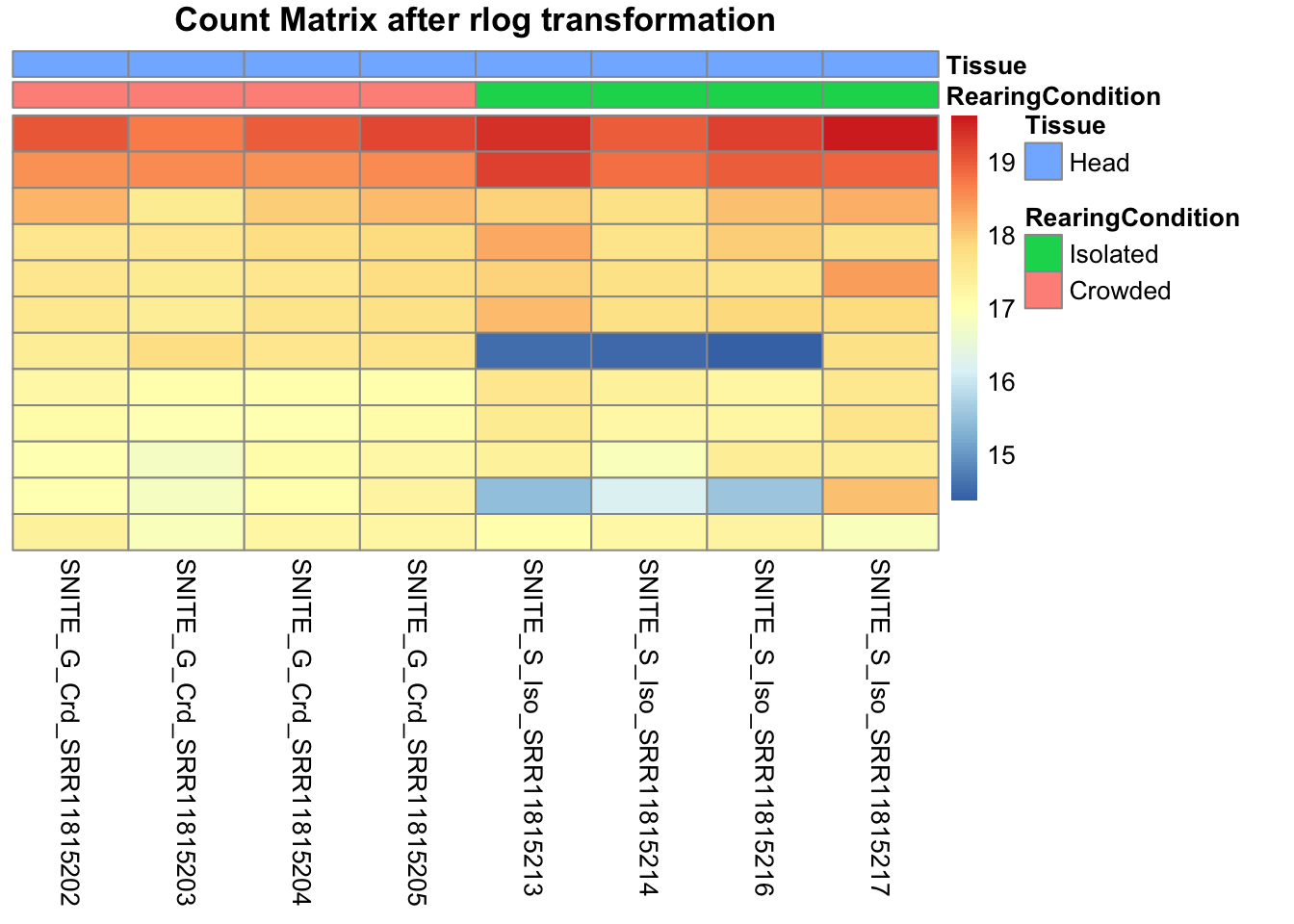

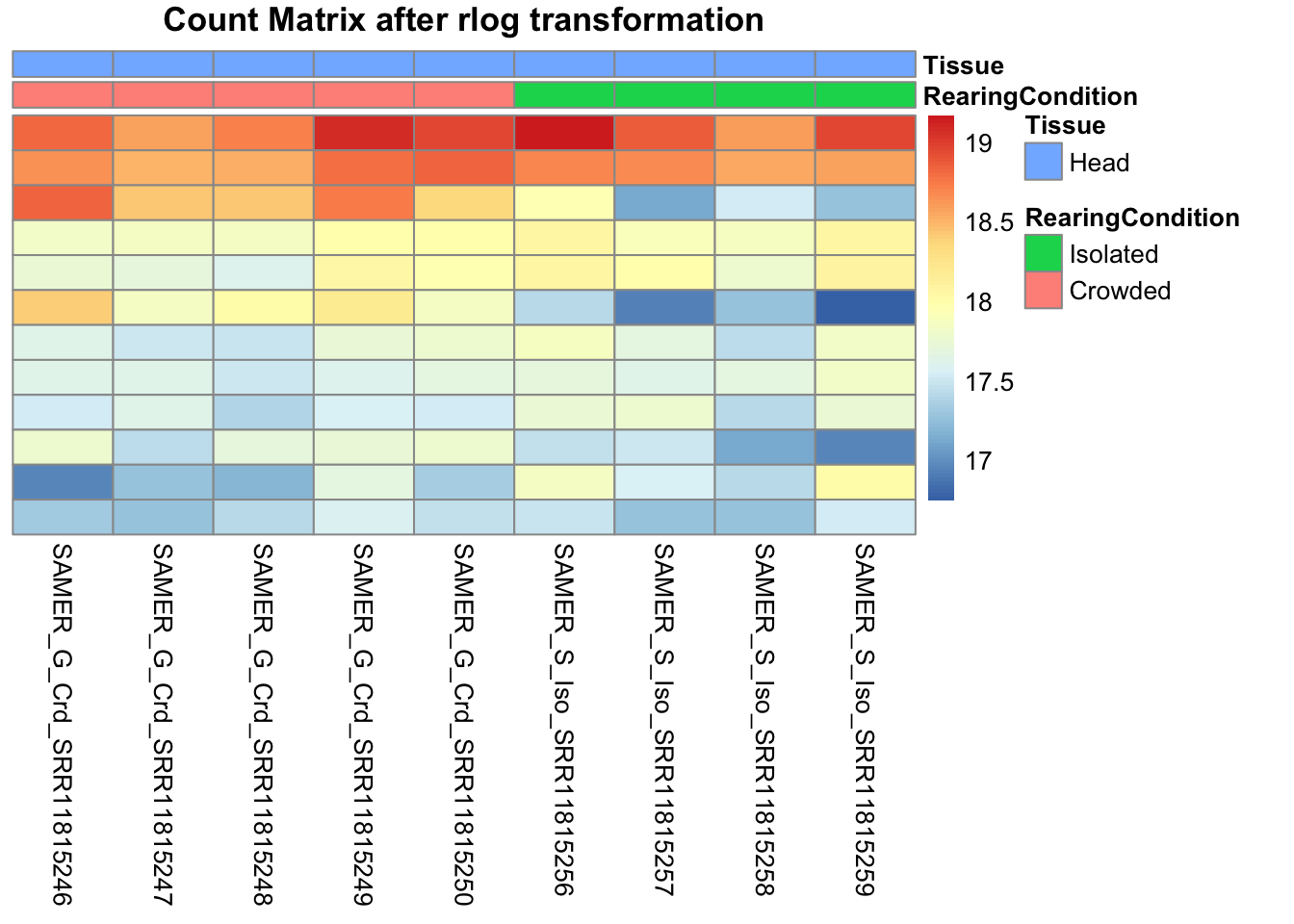

Count matrix heatmap

# Count matrix
pheatmap(assay(shigeru_ntd)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after norm transformation")

pheatmap(assay(shigeru_vst)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after vst transformation")

pheatmap(assay(shigeru_rlog)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after rlog transformation")

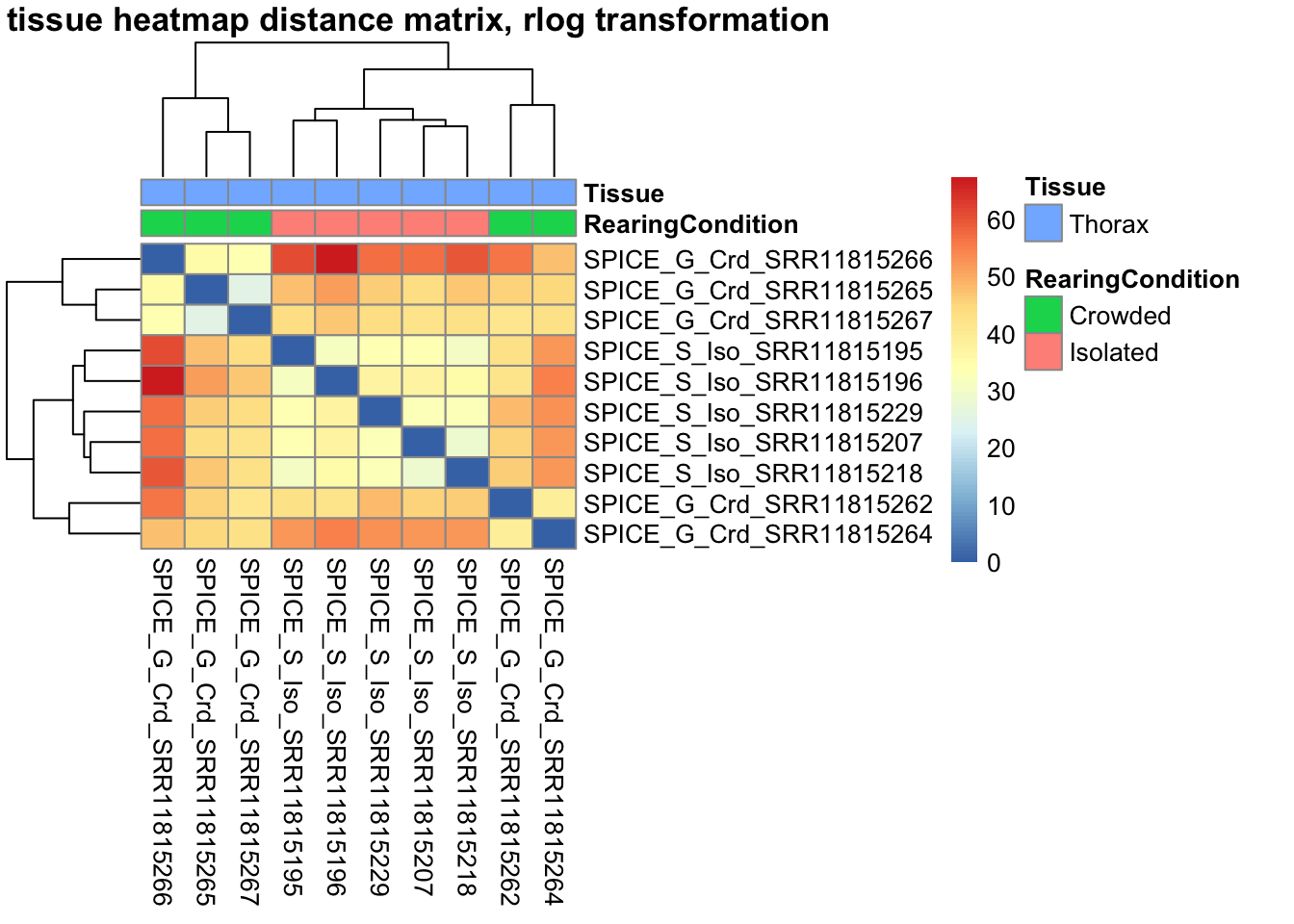

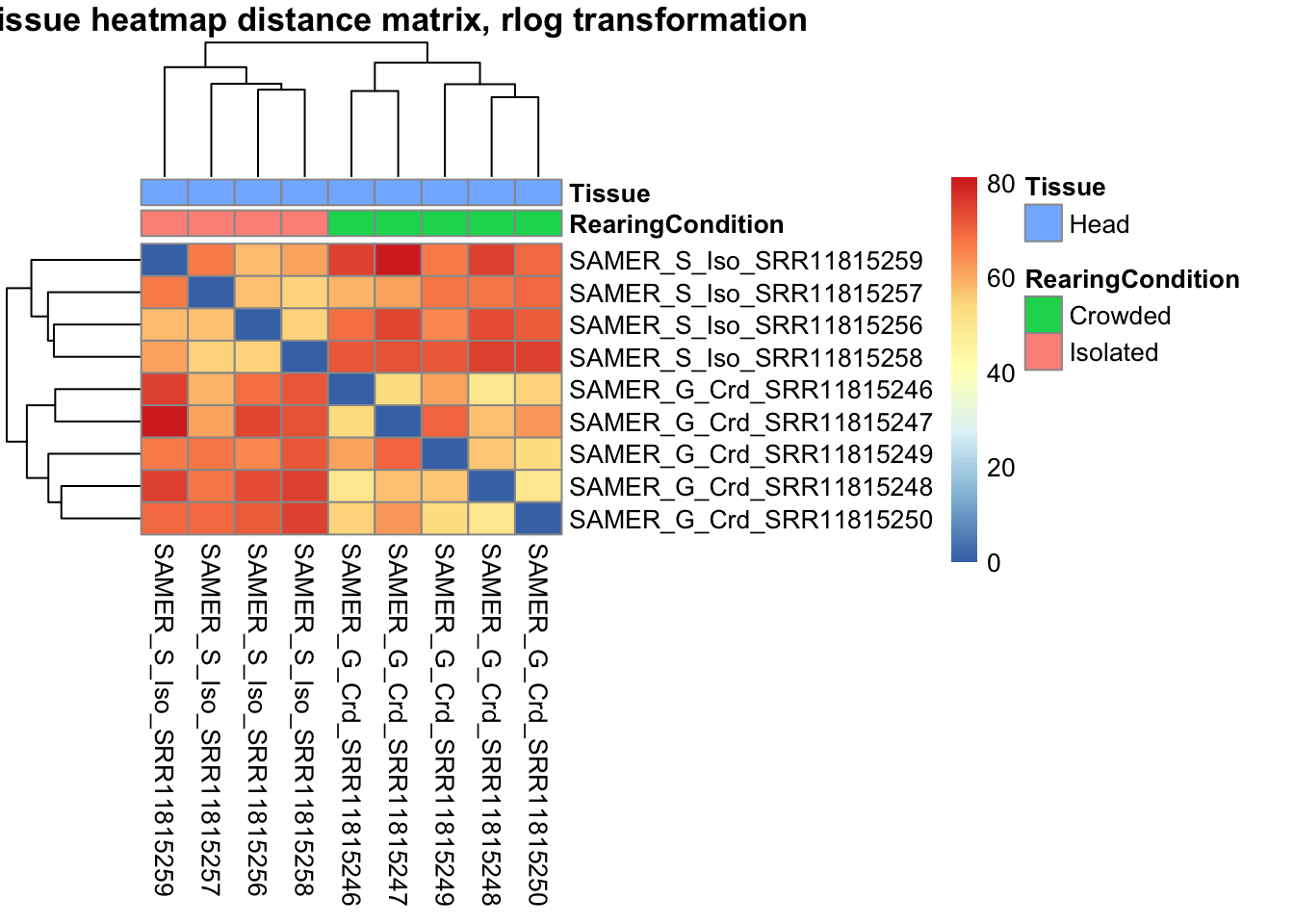

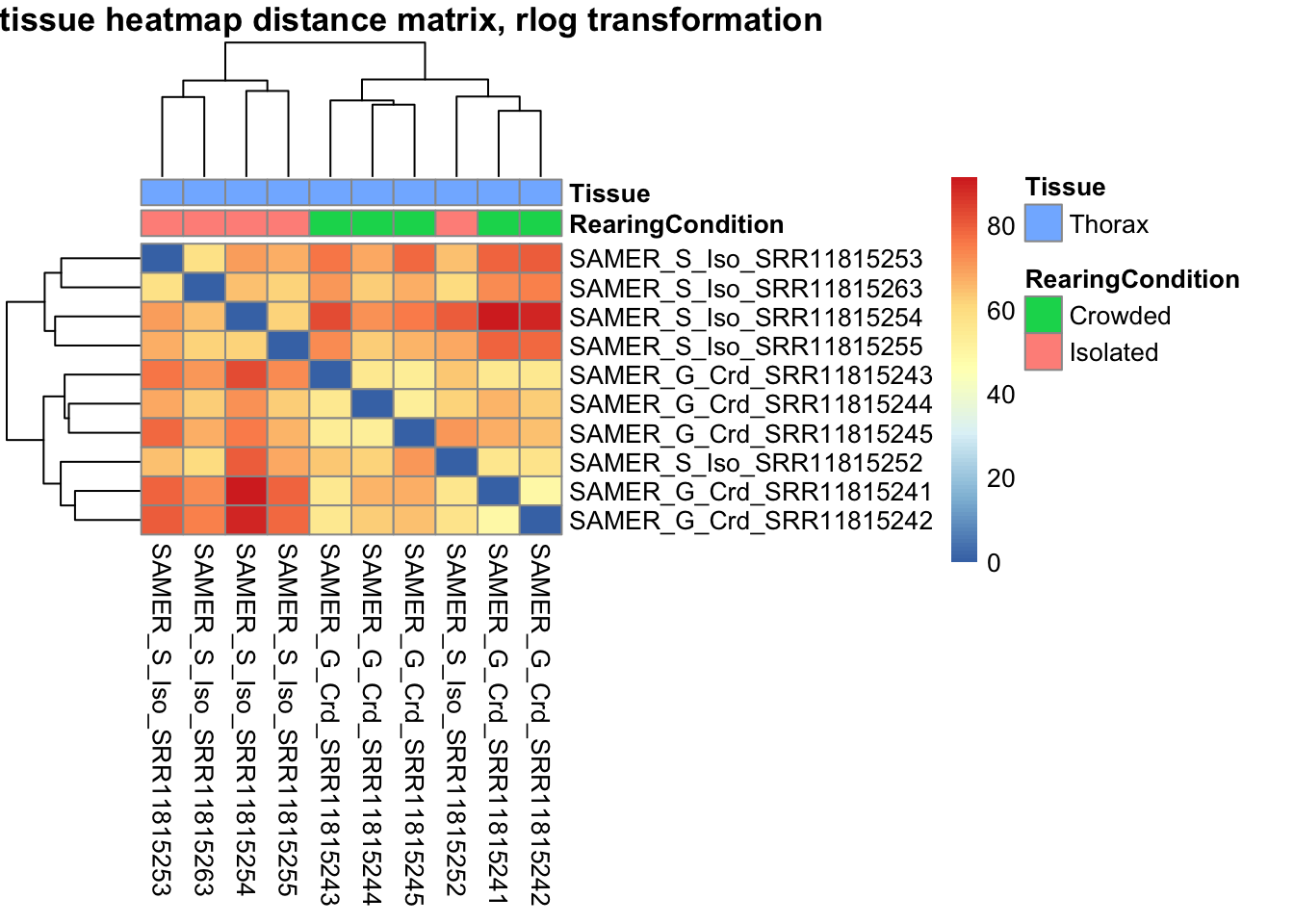

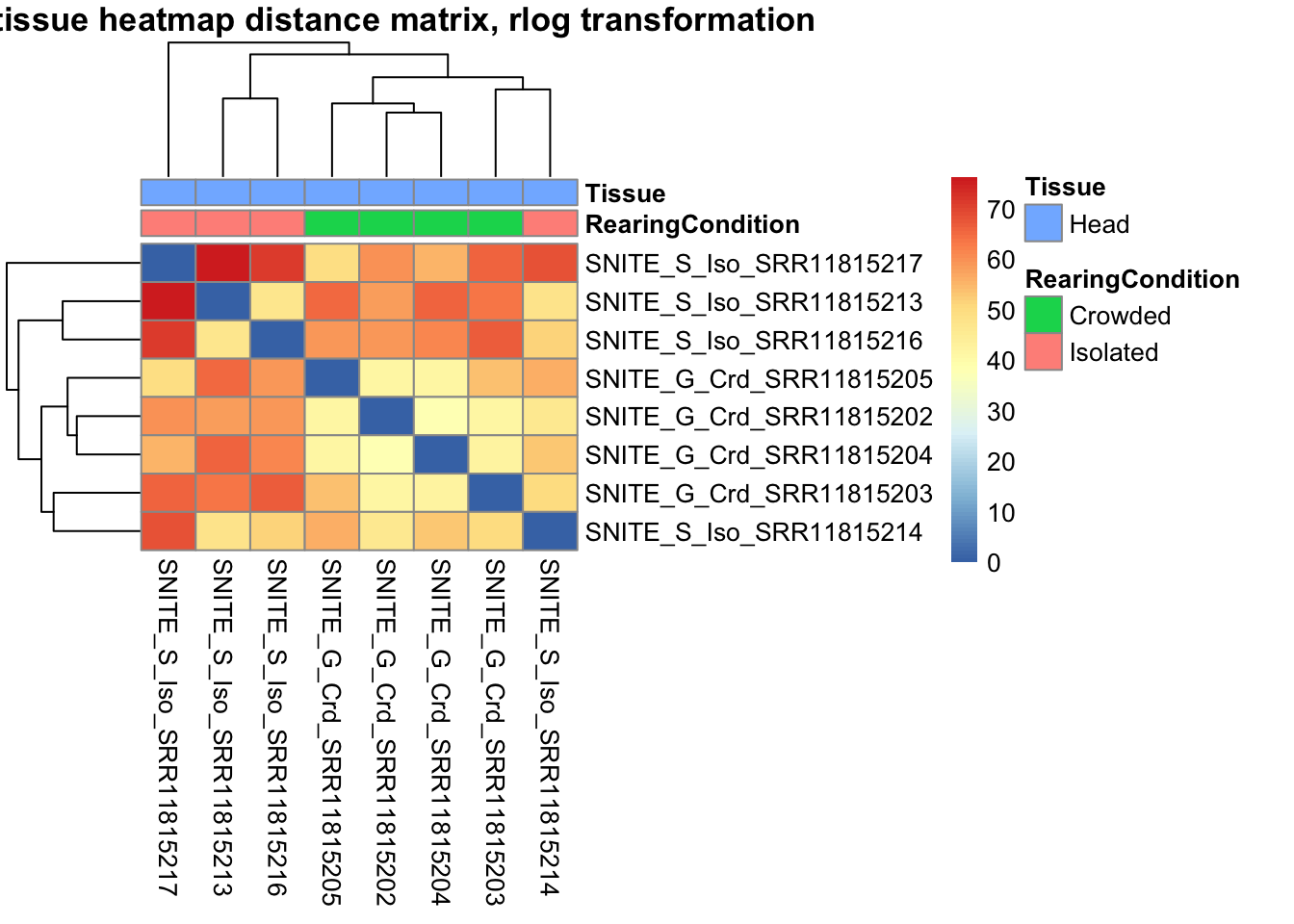

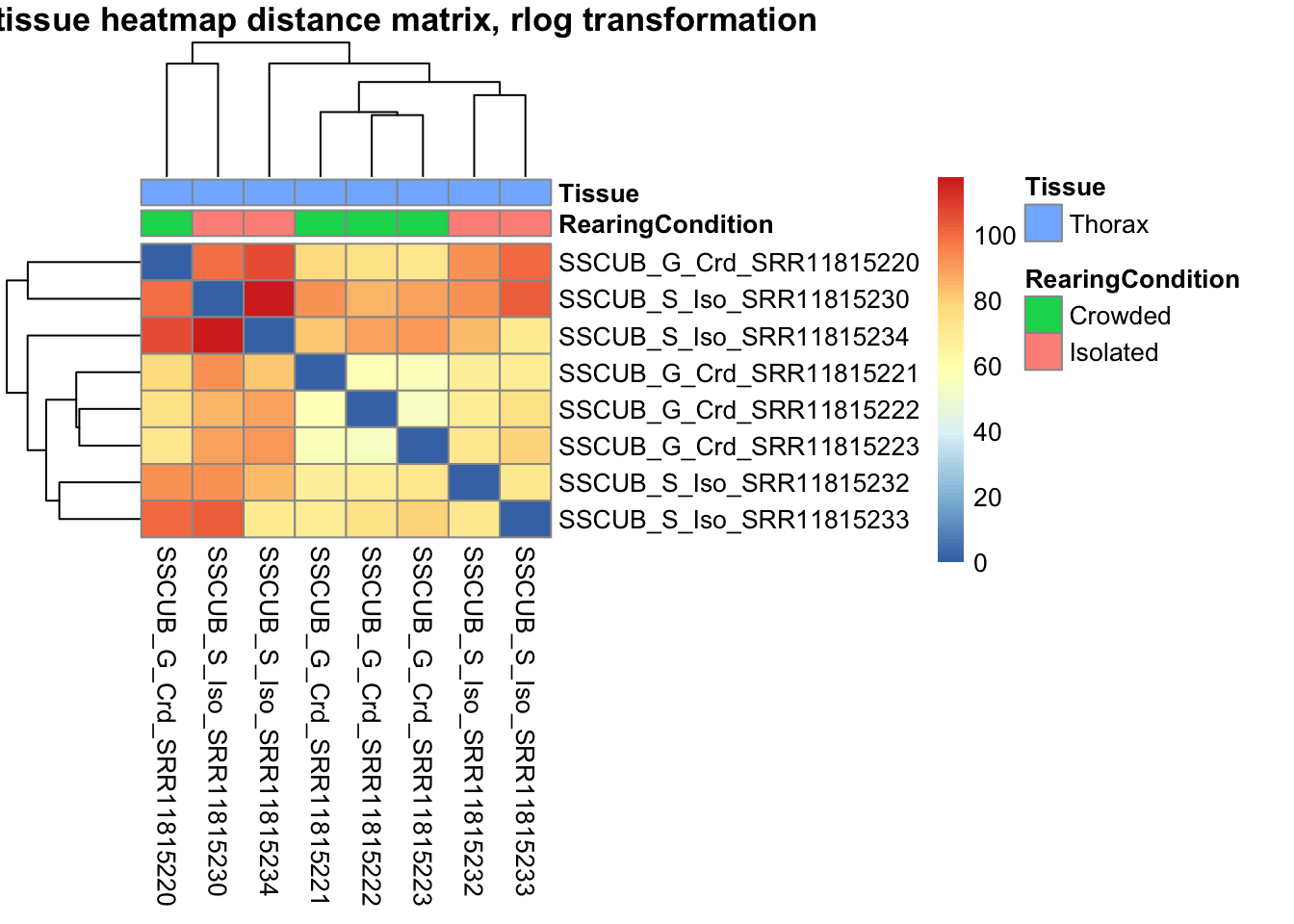

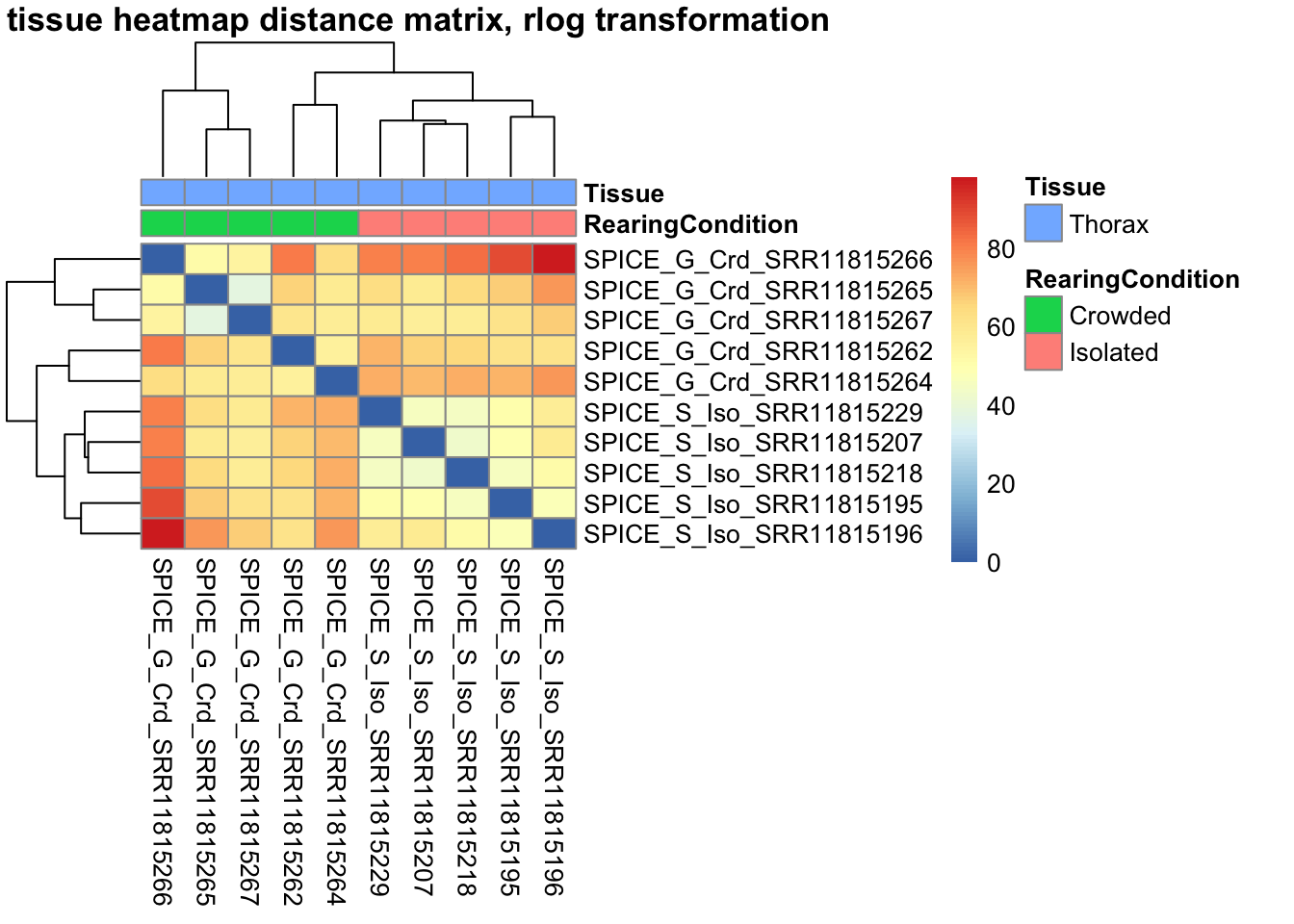

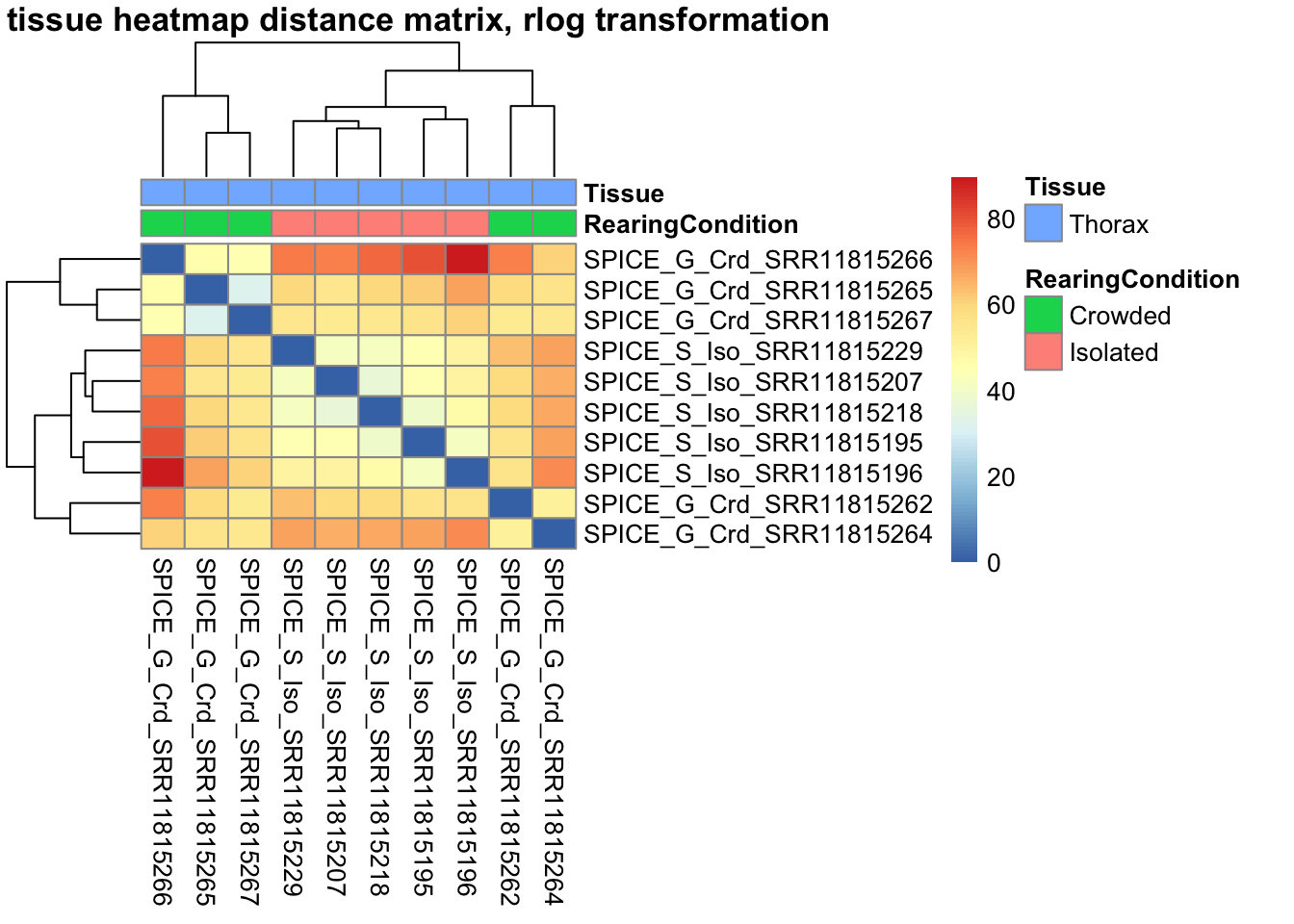

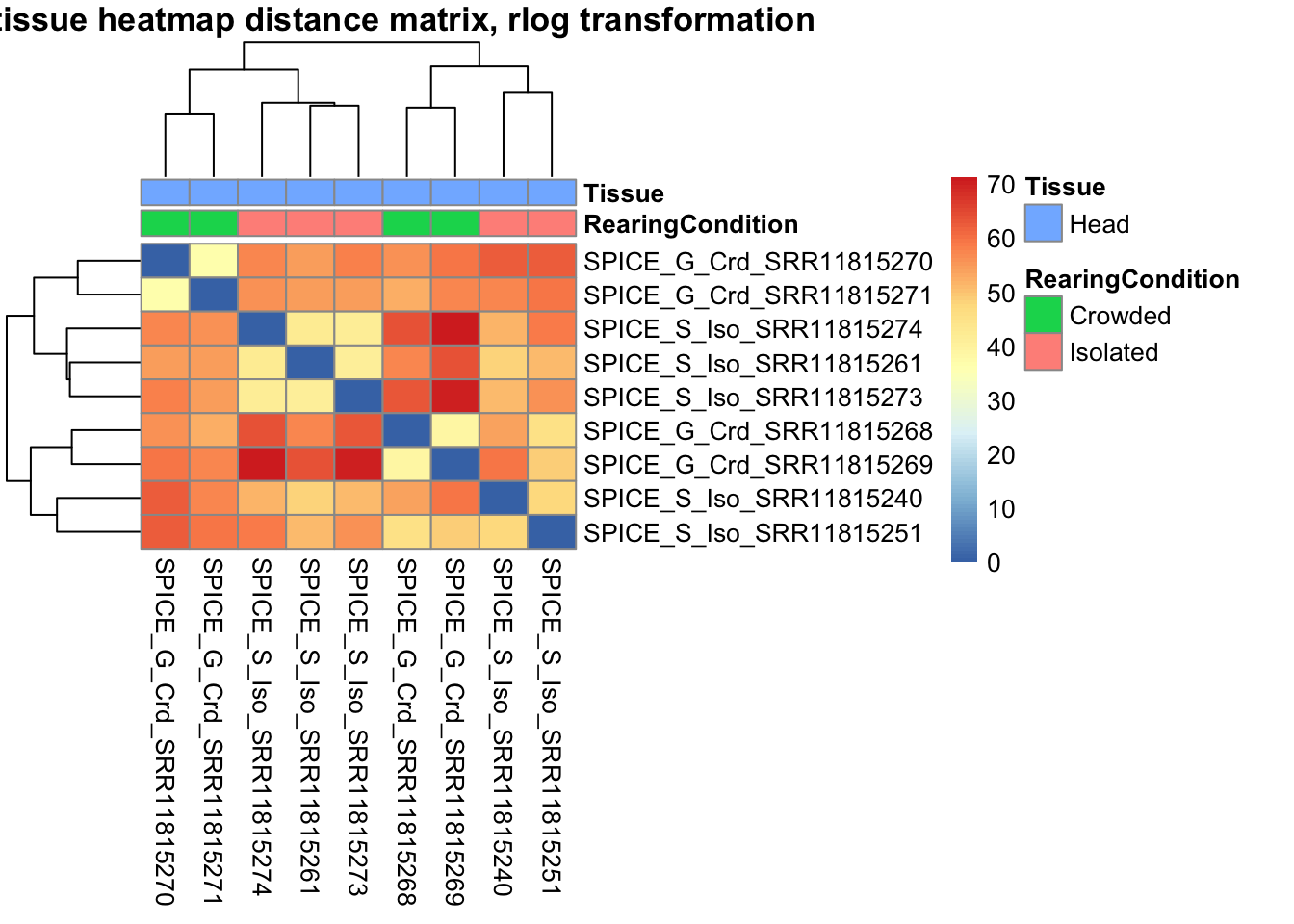

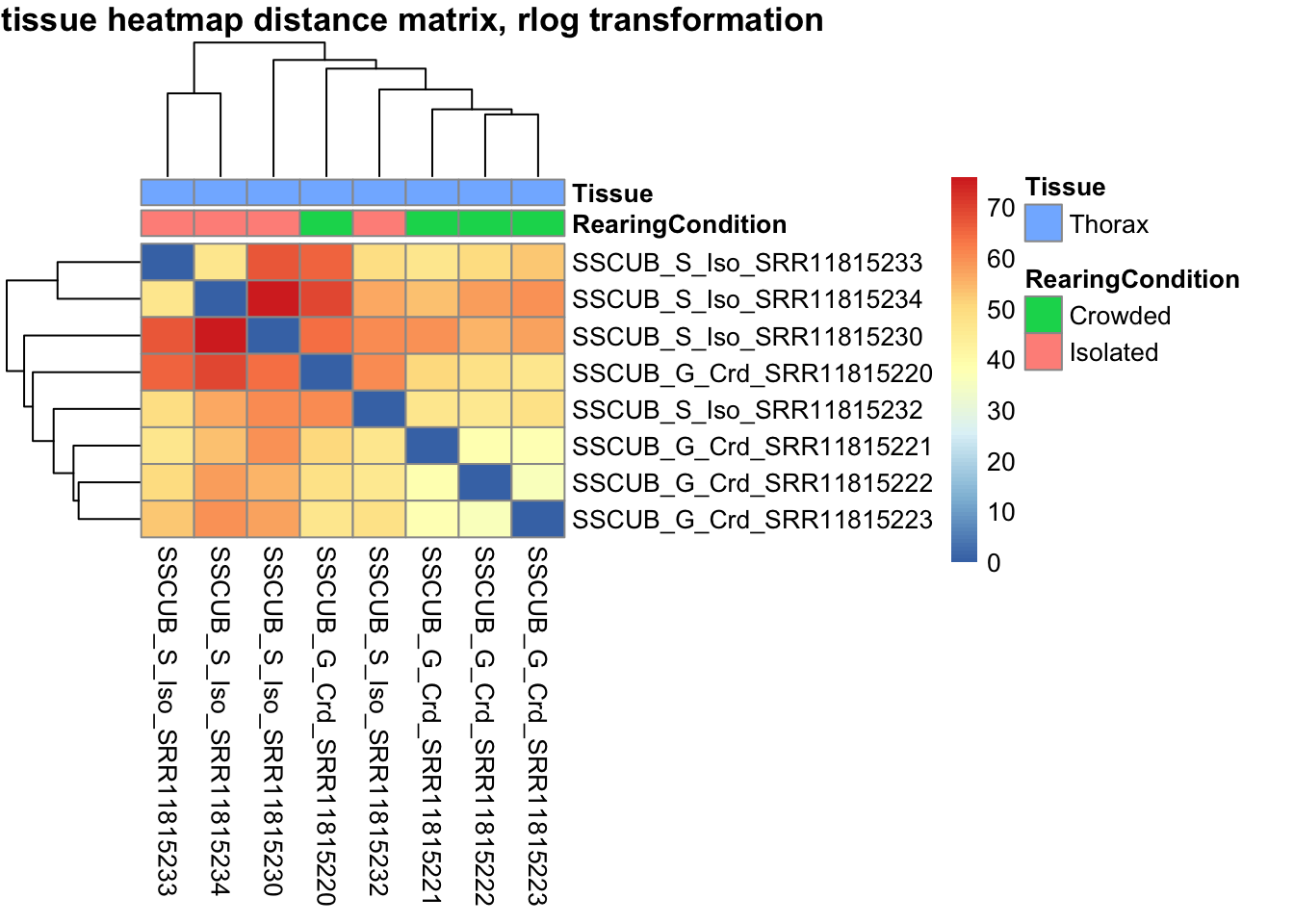

# calculate between-sample distance matrix
metadata <- sampletable[,c("RearingCondition", "Tissue")]
rownames(metadata) <- sampletable$SampleName
sampleDistMatrix.rlog <- as.matrix(dist(t(assay(shigeru_rlog))))
pheatmap(sampleDistMatrix.rlog, annotation_col=metadata, main = "Head tissue heatmap distance matrix, rlog transformation")

sampleDistMatrix.vst<- as.matrix(dist(t(assay(shigeru_vst))))
pheatmap(sampleDistMatrix.vst, annotation_col=metadata, main = "Head tissue heatmap distance matrix, rlog transformation")

---

MA plot

The following plots are interactive and we can hover or Zoom on the locus of interest.

# Ma plot parameters after shrinkage
de_shrink <- lfcShrink(dds = shigeru, coef="RearingCondition_Crowded_vs_Isolated", type="apeglm")
#head(de_shrink)
maplot <-ggmaplot(de_shrink, fdr = 0.05, fc = 1, size = 1, palette = c("#B31B21", "#1465AC", "darkgray"), genenames = as.vector(rownames(de_shrink$name)), top = 0,legend="top",label.select = NULL) +
  coord_cartesian(xlim = c(0, 20)) +
  scale_y_continuous(limits=c(-12, 12)) +
  theme(axis.text.x = element_text(size=12),axis.text.y = element_text(size=12),axis.title.x = element_text(size=14),axis.title.y = element_text(size=14),axis.line = element_line(size = 1, colour="gray20"),axis.ticks = element_line(size = 1, colour="gray20")) +
  guides(color = guide_legend(override.aes = list(size = c(3,3,3)))) +
  theme(legend.position = c(0.70, 0.12),legend.text=element_text(size=14,face="bold"),legend.background = element_rect(fill="transparent")) +
  theme(plot.title = element_text(size=18, colour="gray30", face="bold",hjust=0.06, vjust=-5)) +
  labs(title="MA-plot for the shrunken log2 fold changes in the Head tissues")
interactive_maplot <- ggplotly(maplot)
interactive_maplot

Volcano plot

#Volcano plot
keyvals <-ifelse(
  res_shigeru$log2FoldChange >= 1 & res_shigeru$padj <= 0.05, '#B31B21',
  ifelse(res_shigeru$log2FoldChange <= -1 & res_shigeru$padj <= 0.05, '#1465AC', 'darkgray'))

keyvals[is.na(keyvals)] <-'lightgray'
names(keyvals)[keyvals == "#B31B21"] <-'Upregulated'
names(keyvals)[keyvals == "#1465AC"] <-'Downregulated'
names(keyvals)[keyvals == 'darkgray'] <-'NS'

res_shigeru$color <- keyvals
volcano_plot <- ggplot(res_shigeru, aes(x = log2FoldChange, y = -log10(padj),
                                        color = color,  # Use the color column with keyvals
                                        text = rownames(res_shigeru))) +
  geom_point(size = 3, alpha = 0.8) +
  scale_color_identity() +  # Directly use the color values from `keyvals`
  guides(color = "none") +  # Hide the color legend
  labs(title = "Volcano Plot DEG Head S. piceifrons", x = "log2 Fold Change", y = "-log10 Adjusted P-Value") +
  theme_minimal()

# Convert to interactive plot with hover text for gene names
interactive_volcano <- ggplotly(volcano_plot, tooltip = "text") %>%
  layout(hoverlabel = list(namelength = -1))

# Display the interactive plot
interactive_volcano

cancellata

---

Total DEGs

rawDir <- file.path(workDir, "03-cancellata-DESeq2-togregaria")

# Path and name of targetfile containing conditions and file names
species <- "cancellata"
targetFile <- file.path(workDir, "list", paste0("Head", "_", species, "_nooutliers.txt"))

sampletable <- fread(targetFile)
rownames(sampletable) <- sampletable$SampleName
sampletable$RearingCondition <- as.factor(sampletable$RearingCondition)
sampletable$Tissue <- as.factor(sampletable$Tissue)

## Import count files
satoshi <- DESeqDataSetFromHTSeqCount(sampleTable = sampletable,
                        directory = rawDir,
                        design = ~ RearingCondition )
#satoshi

smallestGroupSize <- 3
keep <- rowSums(counts(satoshi) >= 5) >= smallestGroupSize
satoshi <- satoshi[keep,]
#nrow(satoshi)
satoshi$RearingCondition <- relevel(satoshi$RearingCondition, ref = "Isolated")

# Fit the statistical model
shigeru <- DESeq(satoshi)
#cbind(resultsNames(shigeru))
res_shigeru <- results(shigeru)
sum(res_shigeru$padj < tresh_padj, na.rm = TRUE)

[1] 1445

A total of 1,445 genes out of the pre-filtered 13,407 features were showing significant (corrected p-value < 0.05) differences in expression levels. However, we will only keep the ones with at least an absolute fold change > 1, so in reality we have 687 DEGs. The summary below showed how many were up-regulated and down-regulated in crowded compared to isolated it is possible to scroll it.

brock <- results(shigeru, name = "RearingCondition_Crowded_vs_Isolated", alpha = alpha_DEseq2)
summary(brock)

out of 13407 with nonzero total read count
adjusted p-value < 0.05
LFC > 0 (up)       : 689, 5.1%
LFC < 0 (down)     : 756, 5.6%
outliers [1]       : 26, 0.19%
low counts [2]     : 260, 1.9%
(mean count < 4)
[1] see 'cooksCutoff' argument of ?results
[2] see 'independentFiltering' argument of ?results

brock_df <- as.data.frame(brock)
brock_df$GeneID <- rownames(brock_df)

brock_df <- brock_df[!is.na(brock_df$padj) & (brock_df$padj < tresh_padj), ]
outputFile <- file.path(workDir, "DEG-results", paste0("DESeq2_results_Head_togregaria_", species, ".csv"))
write.csv(brock, file = outputFile, row.names = TRUE)

significant_brock_df <- brock_df[!is.na(brock_df$padj) & !is.na(brock_df$log2FoldChange) &
                               (brock_df$padj < tresh_padj & abs(brock_df$log2FoldChange) > tresh_logfold), ]
# Summary similar to summary(brock)
upregulated <- sum(brock$padj < tresh_padj & brock$log2FoldChange > tresh_logfold, na.rm = TRUE)  # Upregulated count
downregulated <- sum(brock$padj < tresh_padj & brock$log2FoldChange < -tresh_logfold, na.rm = TRUE)  # Downregulated count
total_genes <- sum(upregulated, downregulated)  # Total non-zero count genes
cat("Total DEGs p-value < 0.05 and absolute logFoldChange > 1:", total_genes, "\n")

Total DEGs p-value < 0.05 and absolute logFoldChange > 1: 687

cat("LFC > 0 (up)       :", upregulated, ",", round((upregulated / total_genes) * 100, 2), "%\n")

LFC > 0 (up)       : 301 , 43.81 %

cat("LFC < 0 (down)     :", downregulated, ",", round((downregulated / total_genes) * 100, 2), "%\n")

LFC < 0 (down)     : 386 , 56.19 %

meta_brock_df <- merge(significant_brock_df, allspecies_df, by.x = "GeneID", by.y = "GeneID", all.x = TRUE)
meta_brock_df <- meta_brock_df[, c("GeneID", "GeneType", "Description",  "Species",
                                   "baseMean", "log2FoldChange", "lfcSE", "stat", "pvalue", "padj")]
numeric_cols <- c("baseMean", "log2FoldChange", "lfcSE", "stat", "pvalue", "padj")
meta_brock_df[numeric_cols] <- round(meta_brock_df[numeric_cols], 2)
meta_brock_df$row_color <- ifelse(meta_brock_df$log2FoldChange > 1, "red",
                                  ifelse(meta_brock_df$log2FoldChange < -1, "blue", "black"))
meta_brock_df$row_weight <- ifelse(abs(meta_brock_df$log2FoldChange) > 1, "bold", "normal")
# Display the data table with italic formatting for Species column, color-coded, and bold text rows
datatable(meta_brock_df, options = list(
    pageLength = 10,       # Set initial page length
    scrollX = TRUE,        # Enable horizontal scrolling
    autoWidth = TRUE,      # Adjust column width automatically
    searchHighlight = TRUE # Highlight search matches
  ),
  rownames = FALSE,
  escape = FALSE  # Allows HTML formatting in table cells
) %>%
  formatStyle(
    'Species', target = 'cell',
    fontStyle = 'italic'
  ) %>%
  formatStyle(
    columns = names(meta_brock_df),
    target = 'row',
    color = styleEqual(c("red", "blue", "black"), c("red", "blue", "black")), # Apply row color
    fontWeight = styleEqual(c("bold", "normal"), c("bold", "normal")), # Apply bold font for up/downregulated rows
    backgroundColor = styleEqual(c("red", "blue", "black"), c("white", "white", "white")) # Keep background white
  )

# Define the output file path
outputFile <- file.path(workDir, "DEG-results", paste0("DESeq2_sigresults_Head_togregaria_", species, ".csv"))
write.csv(brock_df, file = outputFile, row.names = TRUE)

---

Normalization and PCA

# Try with the data transformation
shigeru_vst <- vst(shigeru)
shigeru_rlog <- rlog(shigeru)
shigeru_ntd <- normTransform(shigeru)
itadori <- meanSdPlot(assay(shigeru_ntd))

itadori2 <- itadori$gg + ggtitle("Transformation with ntd")
megumi <- meanSdPlot(assay(shigeru_vst))

megumi2 <- megumi$gg + ggtitle("Transformation with vst")
nobara <- meanSdPlot(assay(shigeru_rlog))

nobara2 <-nobara$gg + ggtitle("Transformation with rlog")

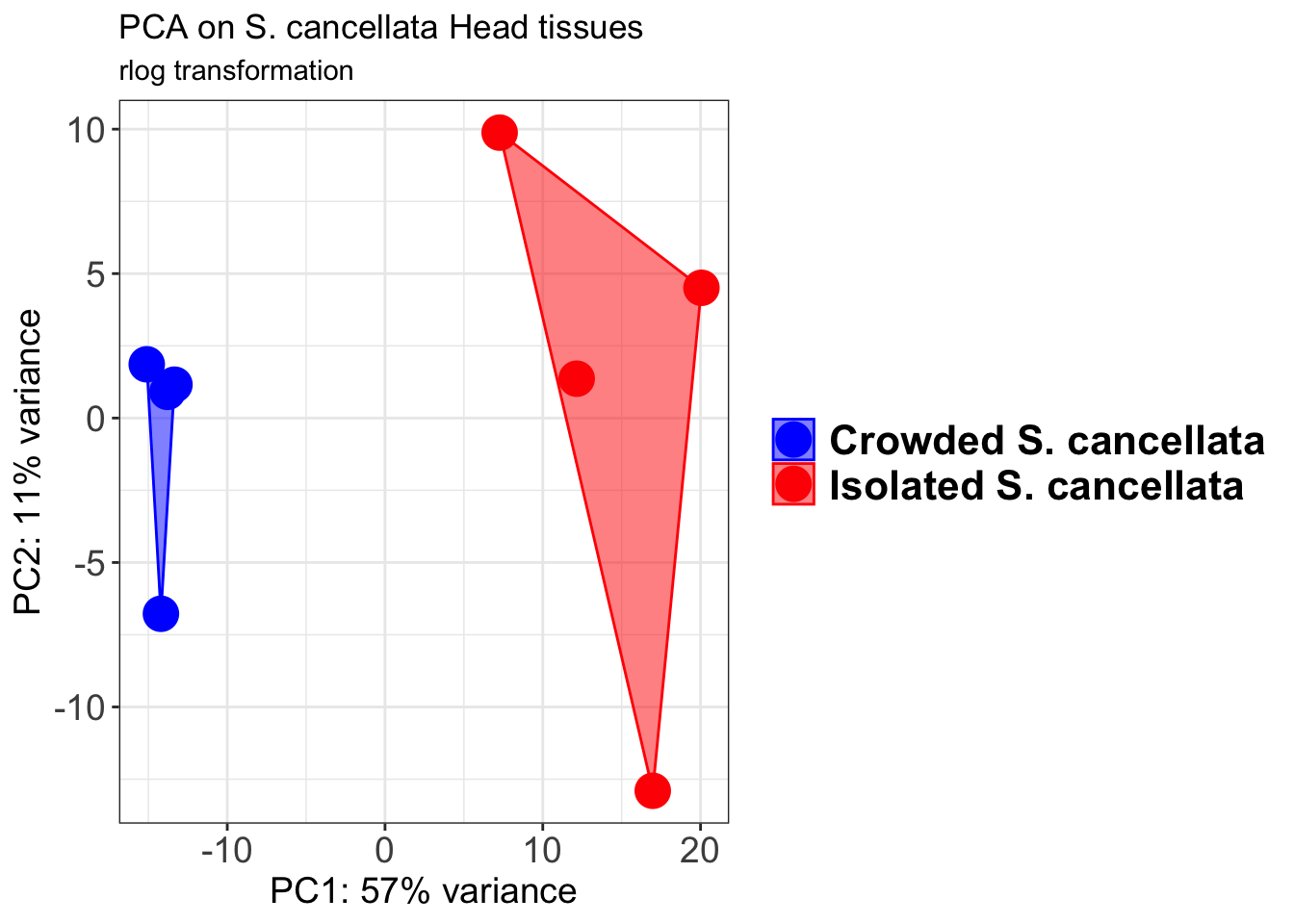

# Create the pca on the defined groups
pcaData1 <- plotPCA(object = shigeru_rlog, intgroup = c("RearingCondition"),returnData=TRUE)
percentVar <- round(100 * attr(pcaData1, "percentVar"))
pcaData1$RearingCondition<-factor(pcaData1$RearingCondition,levels=c("Crowded","Isolated"), labels=c("Crowded S. cancellata","Isolated S. cancellata"))
#levels(pcaData1$RearingCondition)
p1 <- ggplot(pcaData1, aes(PC1, PC2, color= RearingCondition)) +
  geom_point(size=6) +
  xlab(paste0("PC1: ", percentVar[1], "% variance")) +
  ylab(paste0("PC2: ", percentVar[2], "% variance")) +
  scale_color_manual(values = c("blue", "red")) +
  #coord_fixed() +
  theme_bw() +
  theme(legend.title = element_blank()) +
  theme(legend.text = element_text(face="bold", size=16)) +
  theme(axis.text = element_text(size=14)) +
  theme(axis.title = element_text(size=14))
p1 + geom_convexhull(aes(fill = RearingCondition, color = RearingCondition), alpha = 0.5) +
    scale_fill_manual(values = c("blue", "red"))+
    ggtitle("PCA on S. cancellata Head tissues", subtitle = "rlog transformation")

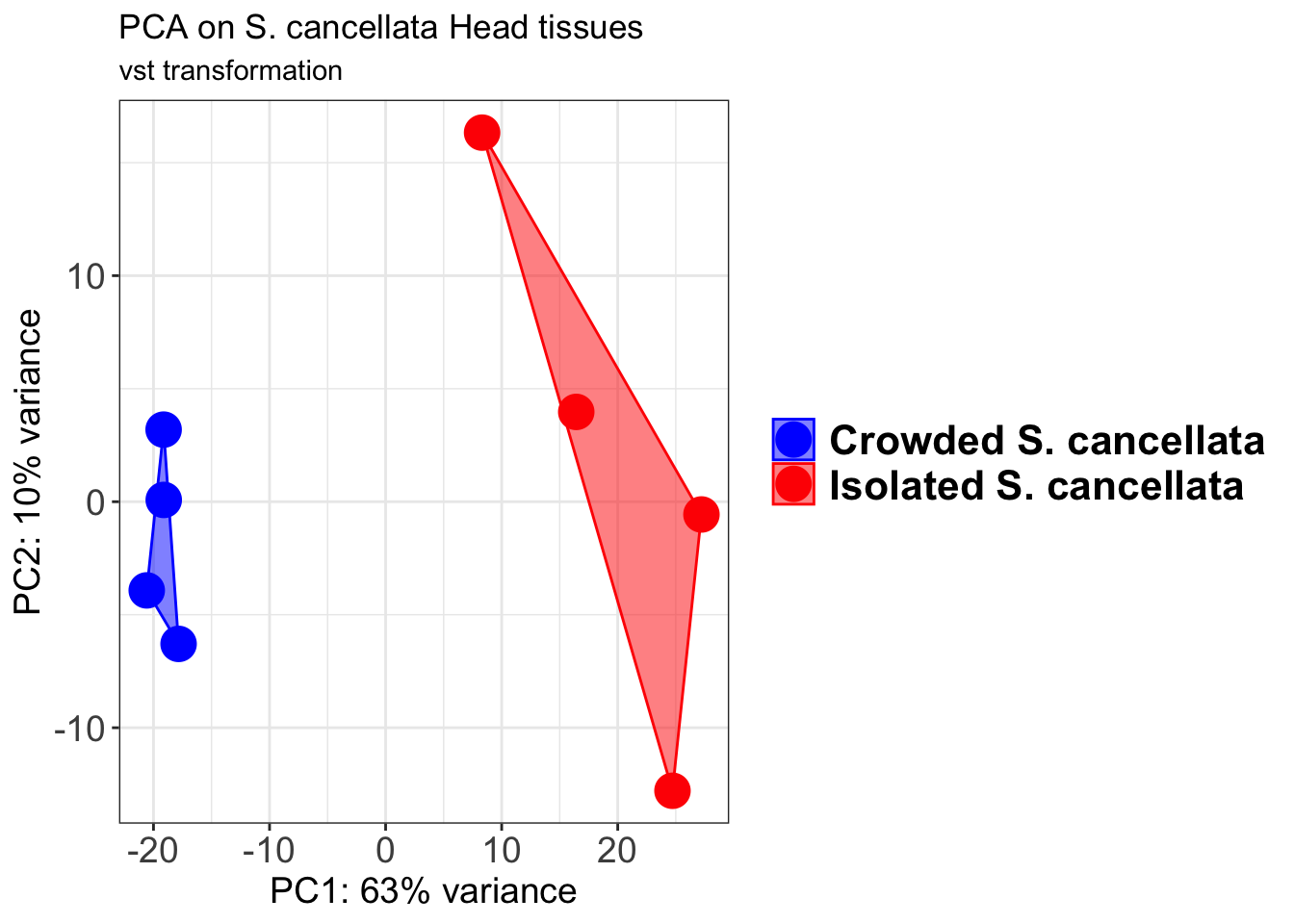

pcaData2 <- plotPCA(object = shigeru_vst, intgroup = c("RearingCondition"),returnData=TRUE)
percentVar <- round(100 * attr(pcaData2, "percentVar"))
pcaData2$RearingCondition<-factor(pcaData2$RearingCondition,levels=c("Crowded","Isolated"), labels=c("Crowded S. cancellata","Isolated S. cancellata"))
#levels(pcaData2$RearingCondition)
p2 <-ggplot(pcaData2, aes(PC1, PC2, color= RearingCondition)) +
  geom_point(size=6) +
  xlab(paste0("PC1: ", percentVar[1], "% variance")) +
  ylab(paste0("PC2: ", percentVar[2], "% variance")) +
  scale_color_manual(values = c("blue", "red")) +
  #coord_fixed() +
  theme_bw() +
  theme(legend.title = element_blank()) +
  theme(legend.text = element_text(face="bold", size=16)) +
  theme(axis.text = element_text(size=14)) +
  theme(axis.title = element_text(size=14))
p2 + geom_convexhull(aes(fill = RearingCondition, color = RearingCondition), alpha = 0.5) +
    scale_fill_manual(values = c("blue", "red"))+
    ggtitle("PCA on S. cancellata Head tissues", subtitle = "vst transformation")

select <- order(rowMeans(counts(shigeru,normalized=TRUE)),
                decreasing=TRUE)[1:12]
df <- as.data.frame(colData(shigeru)[,c("RearingCondition","Tissue")])

---

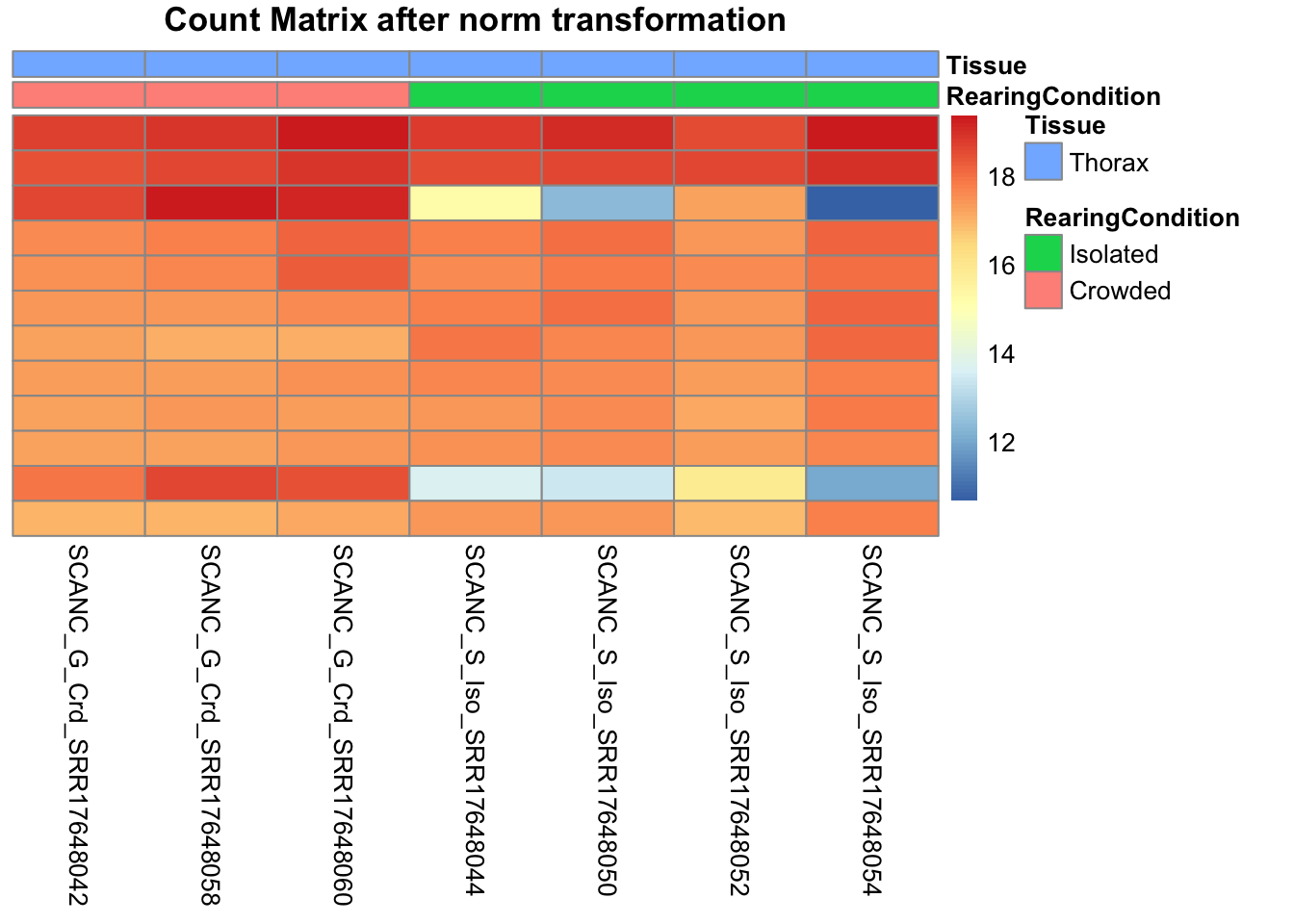

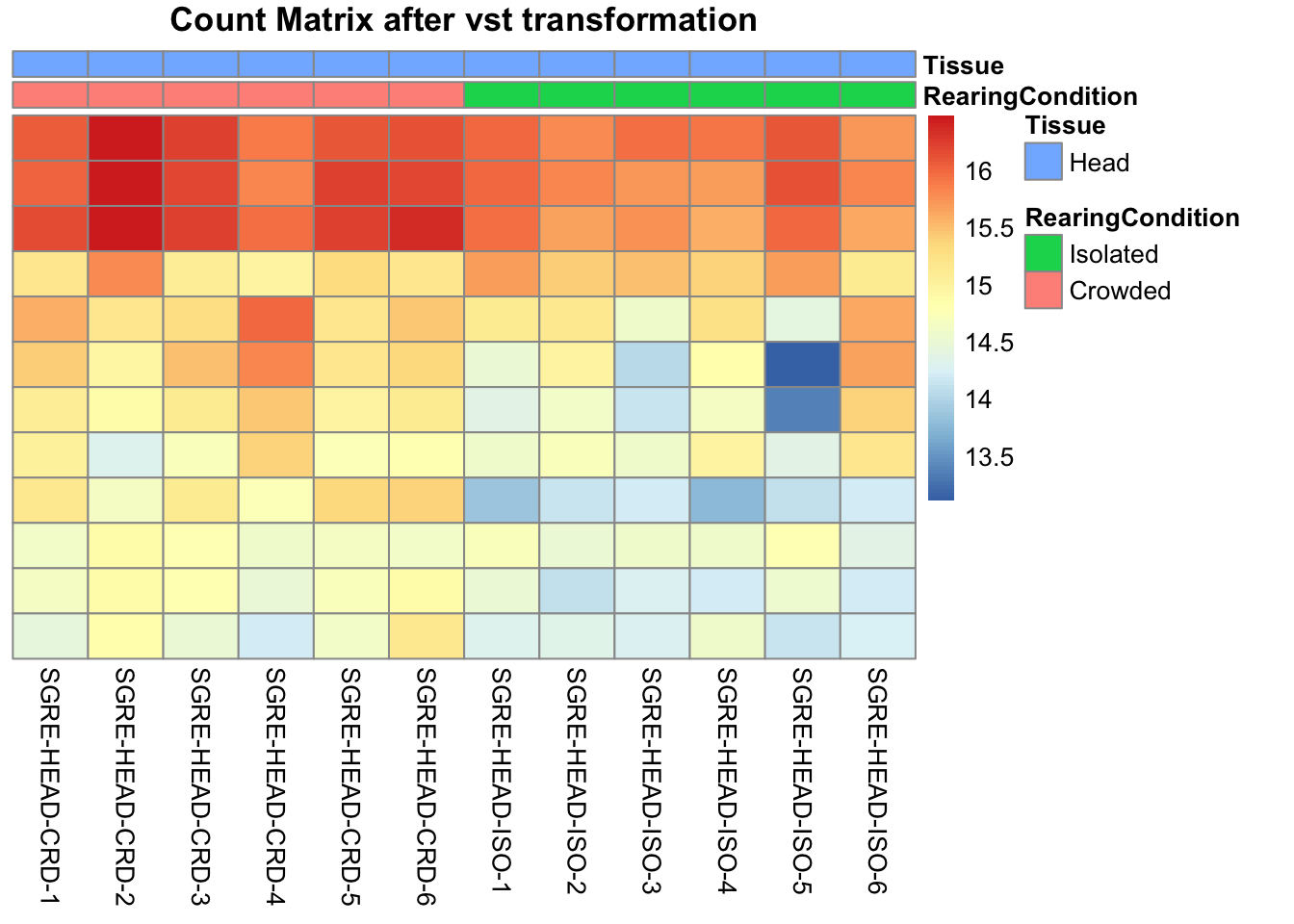

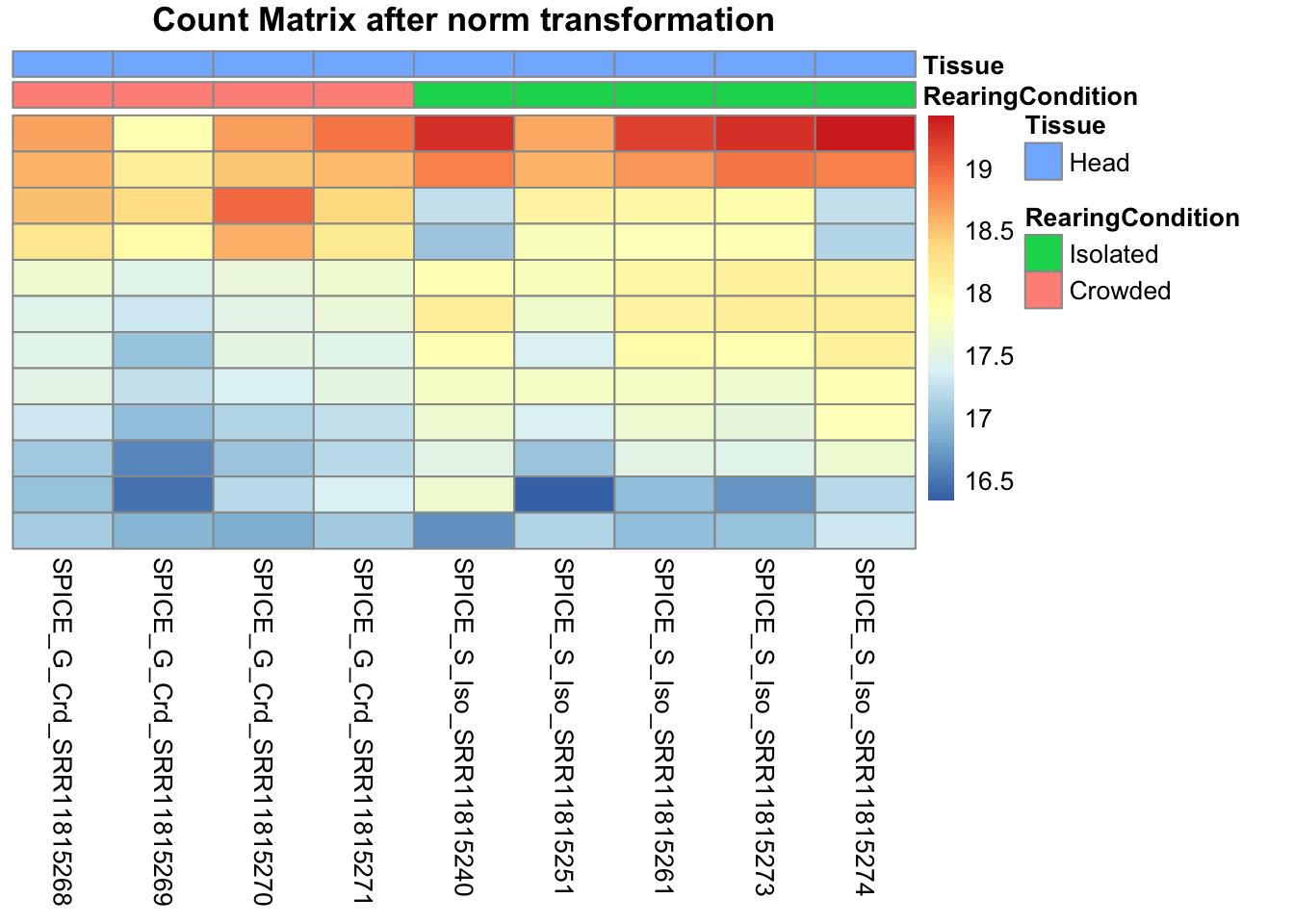

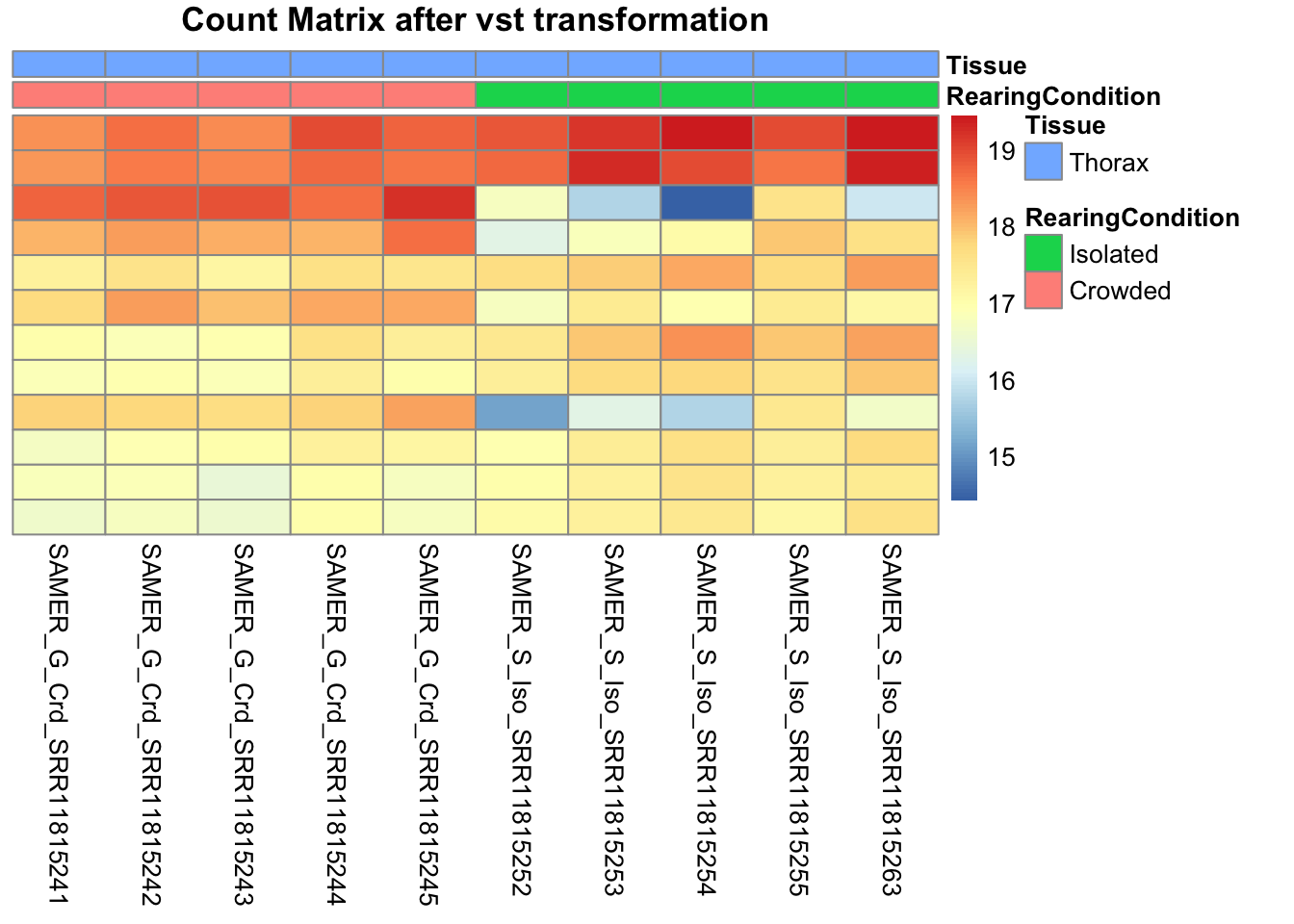

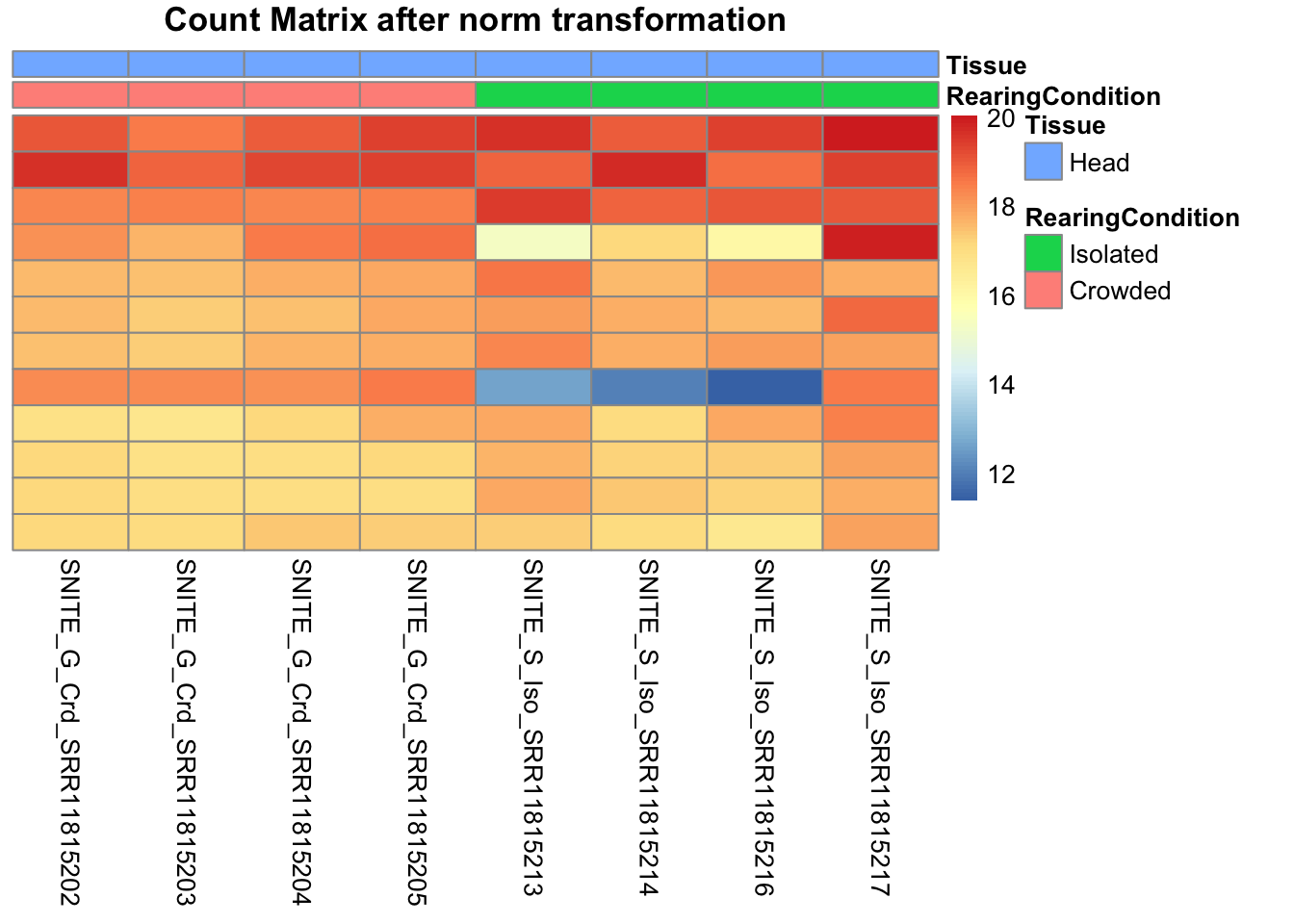

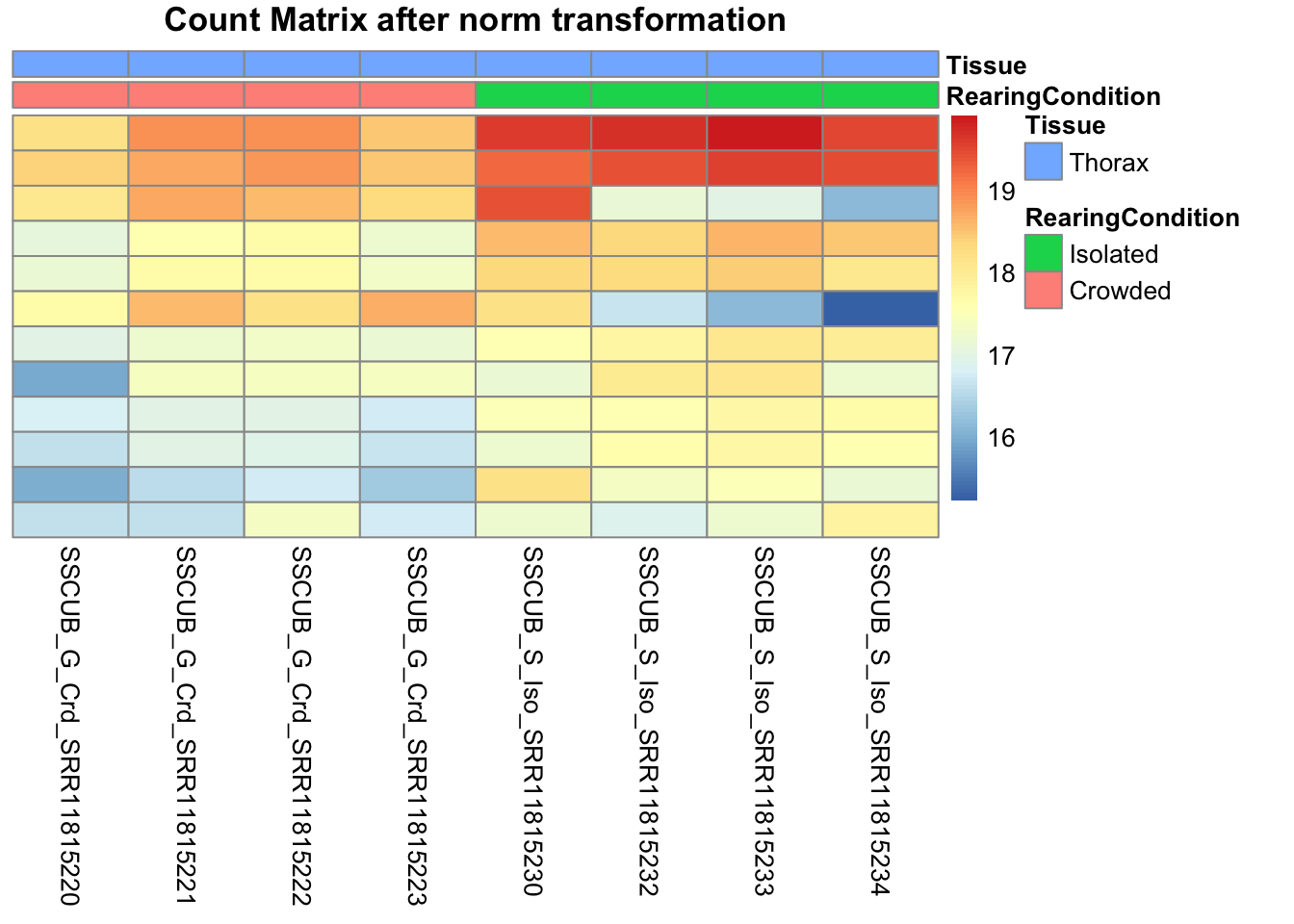

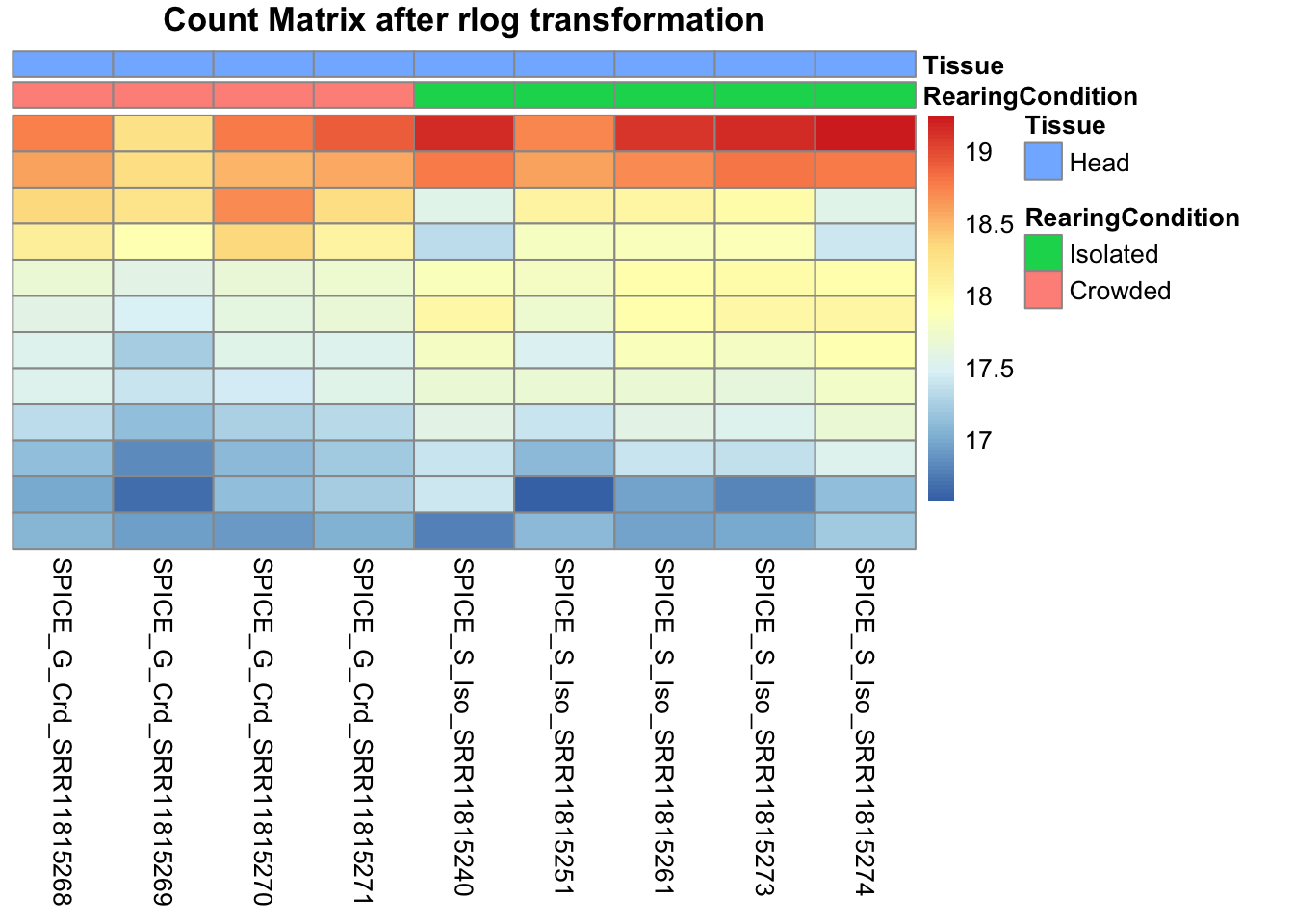

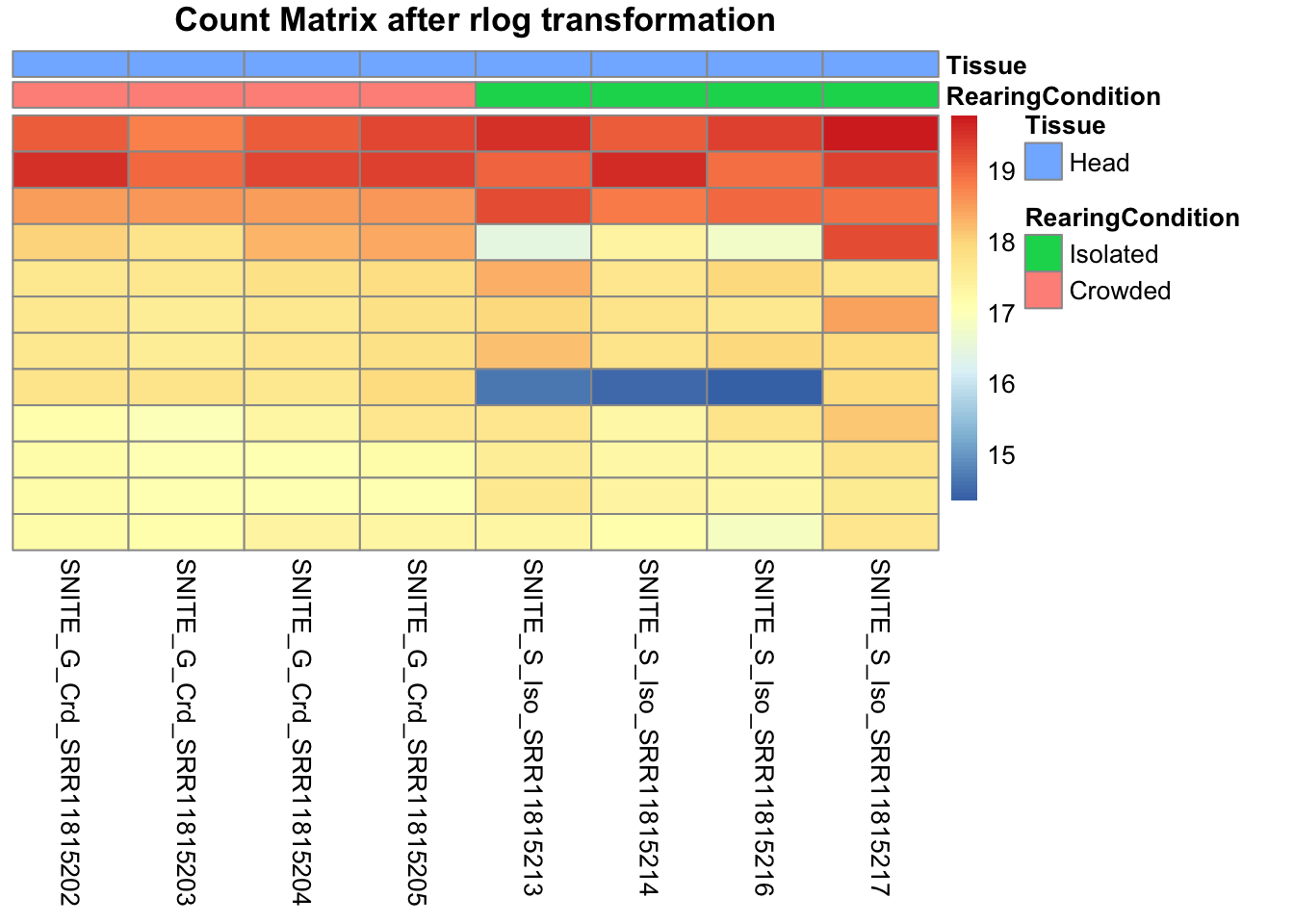

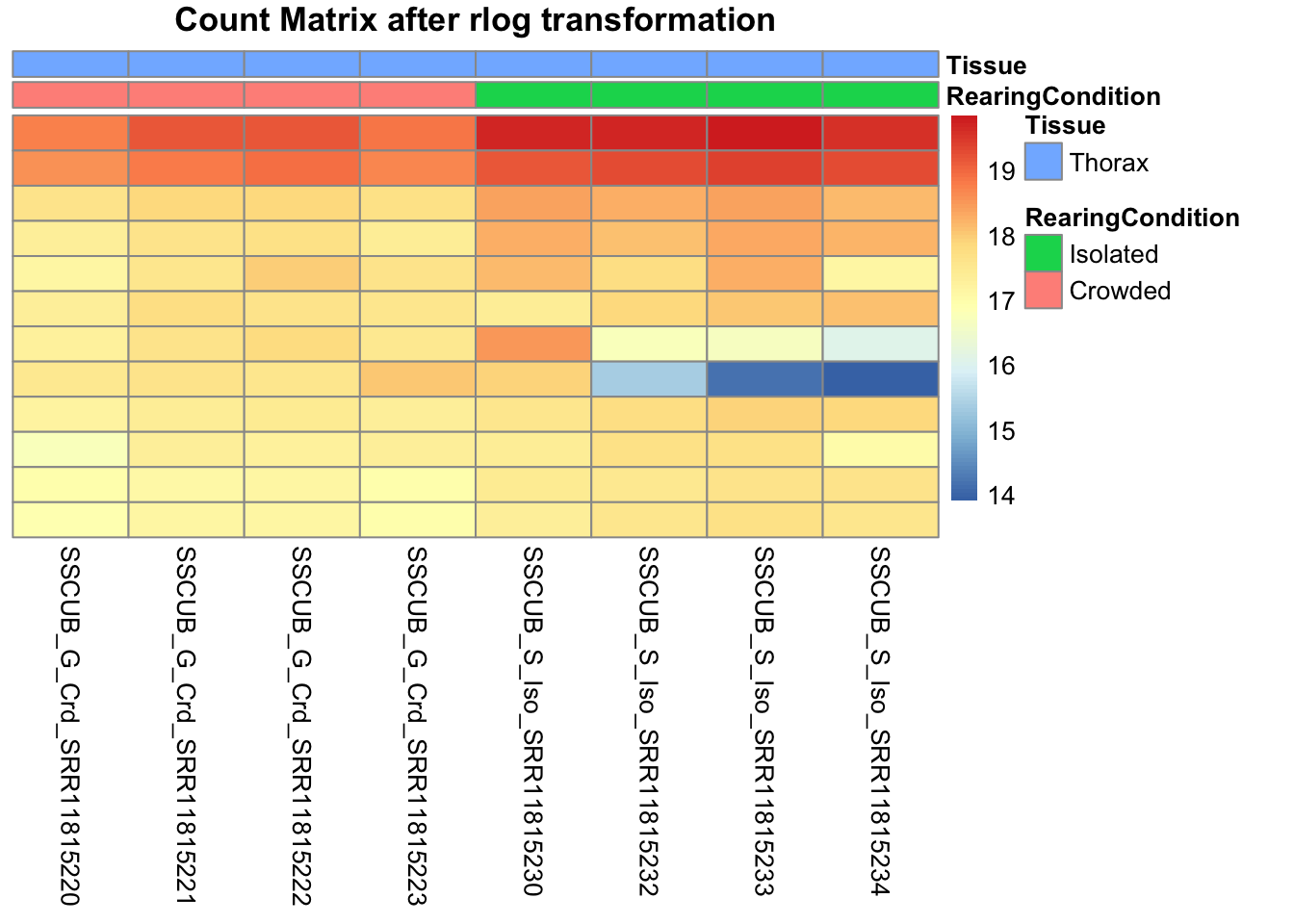

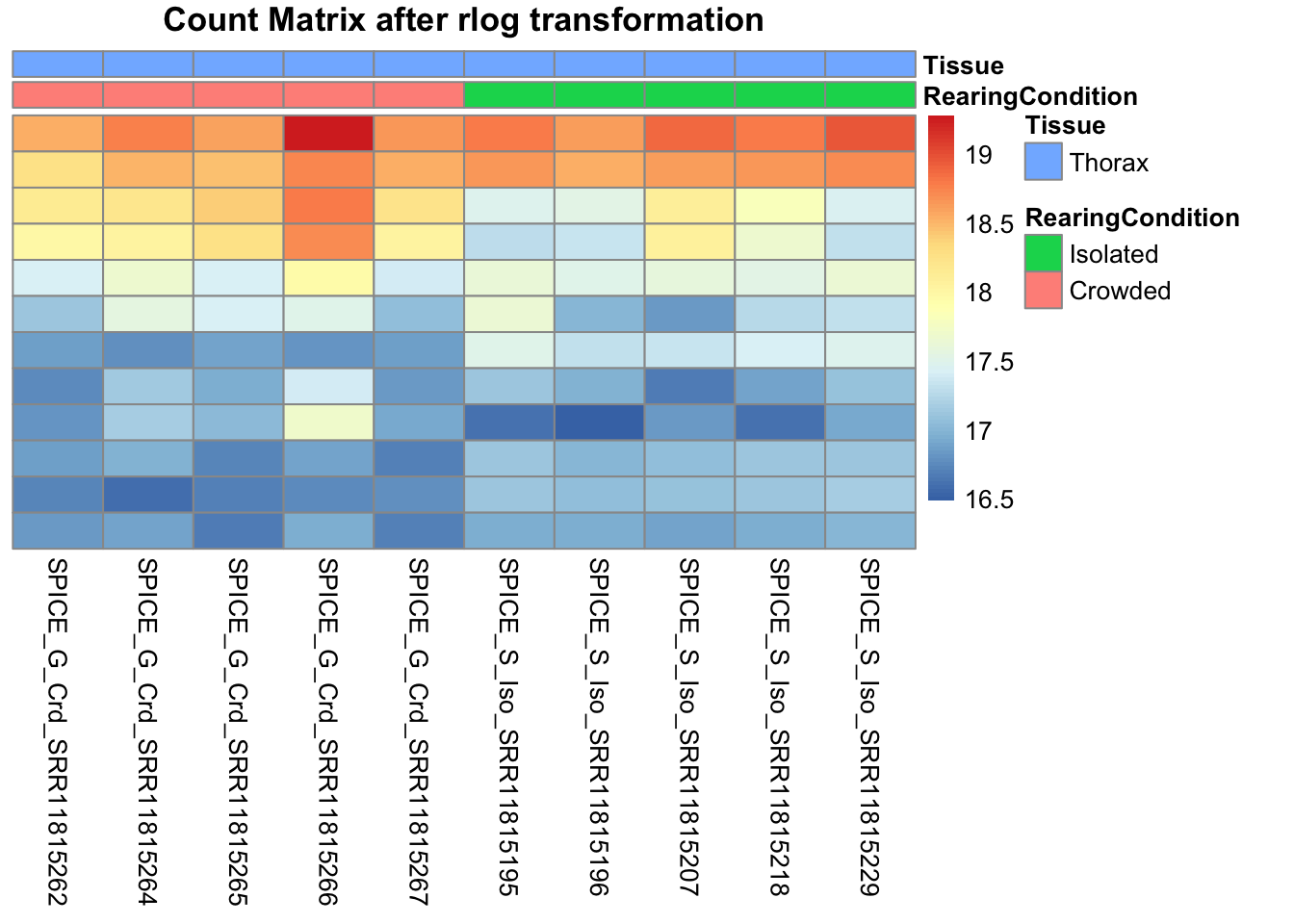

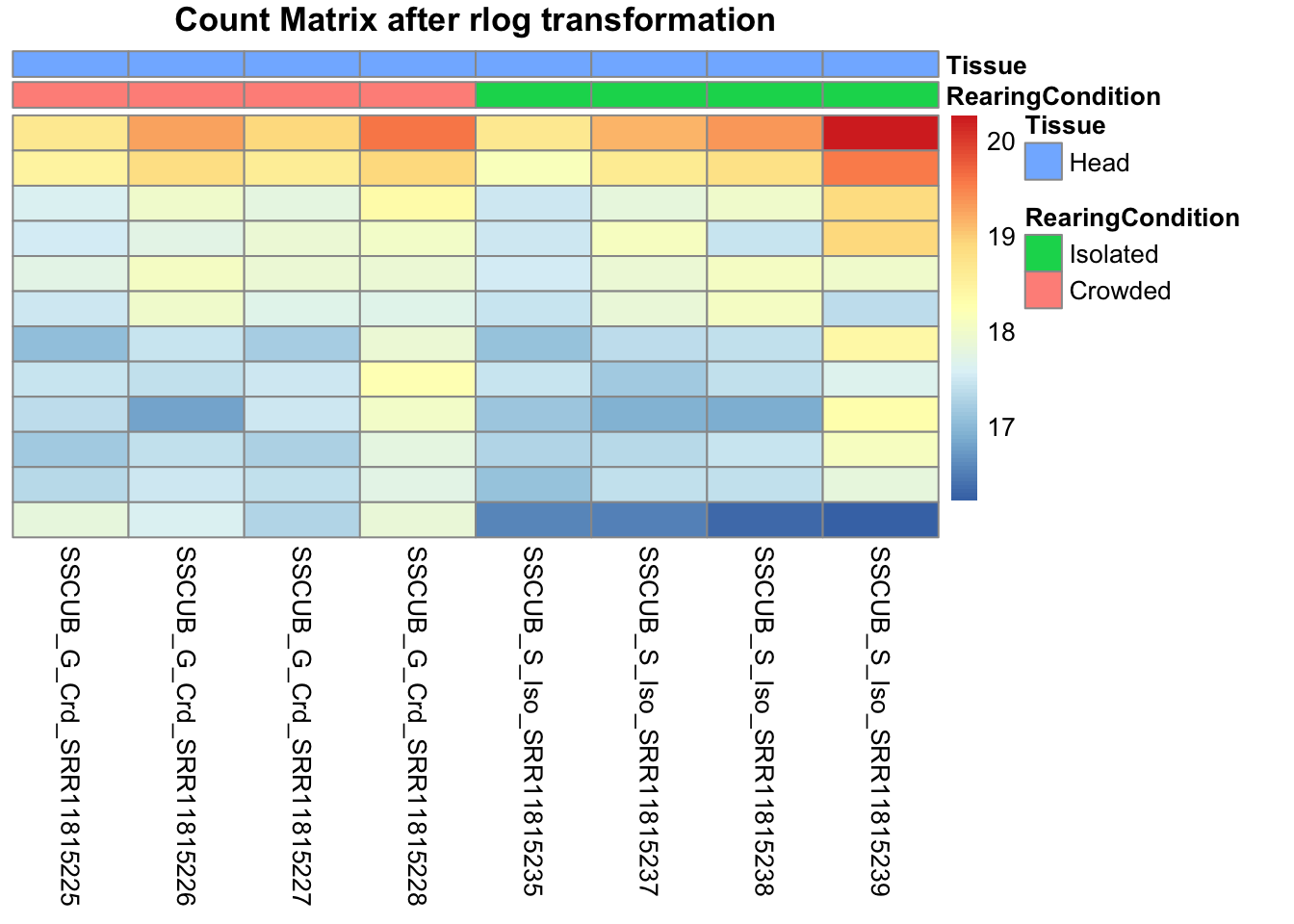

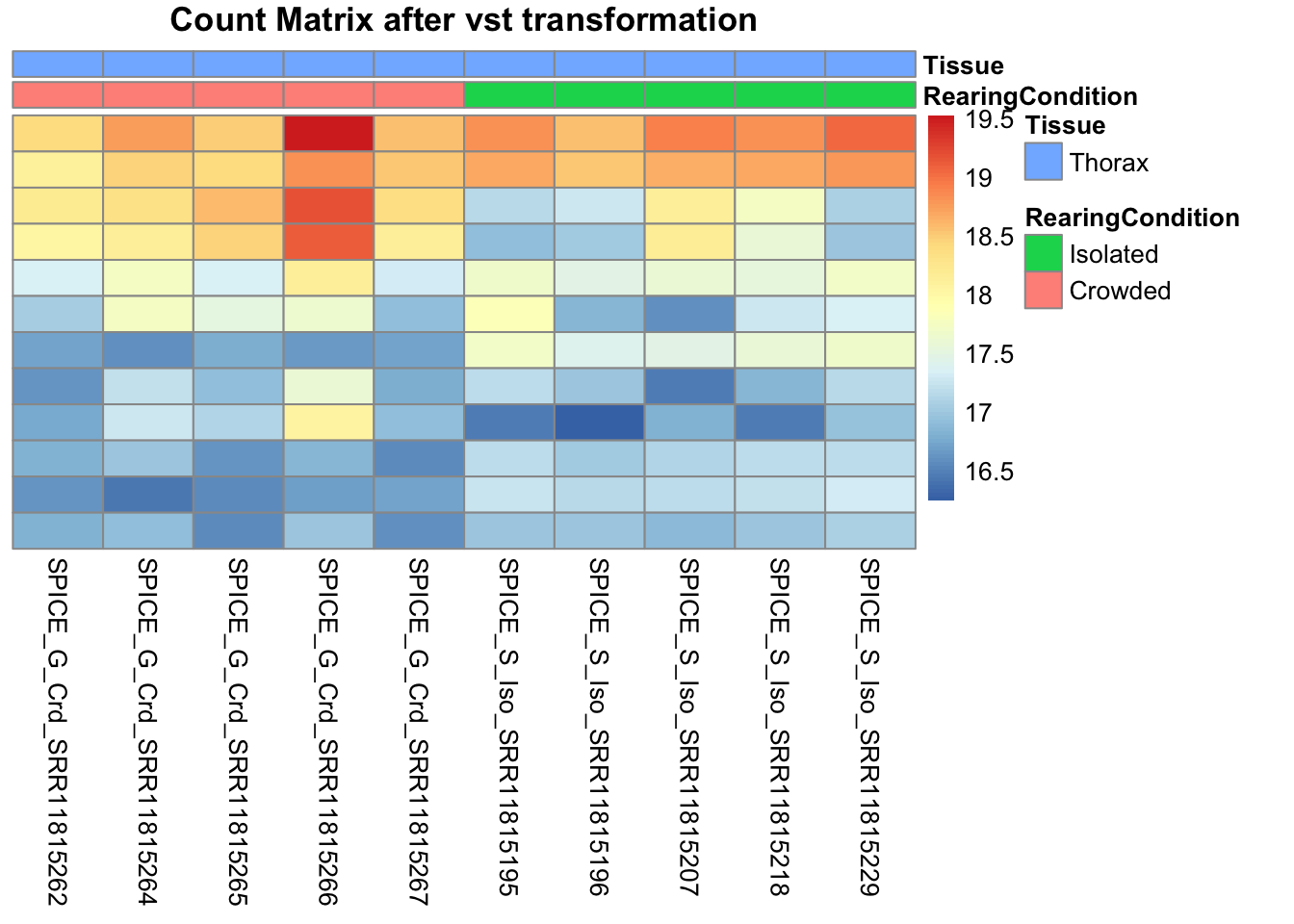

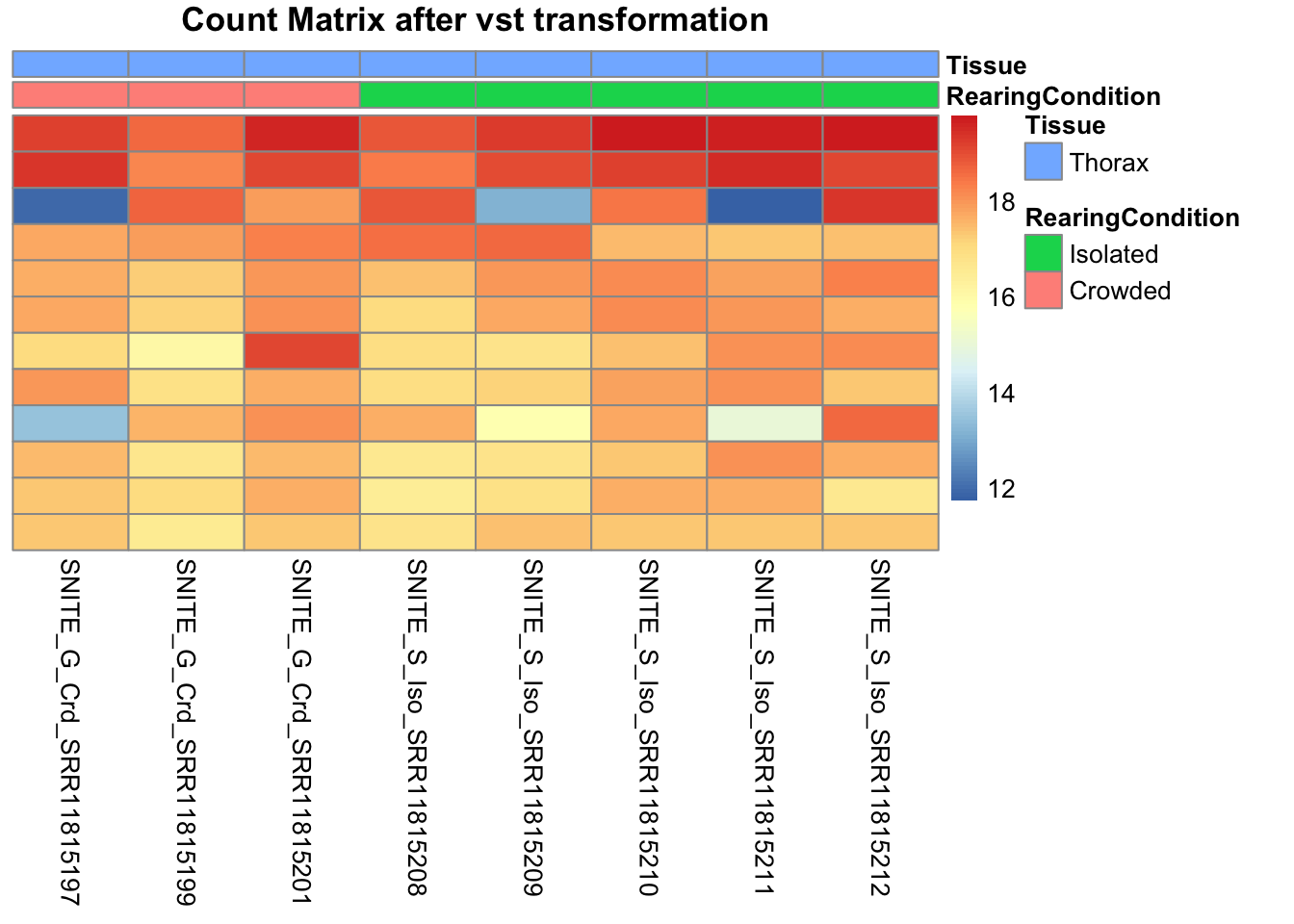

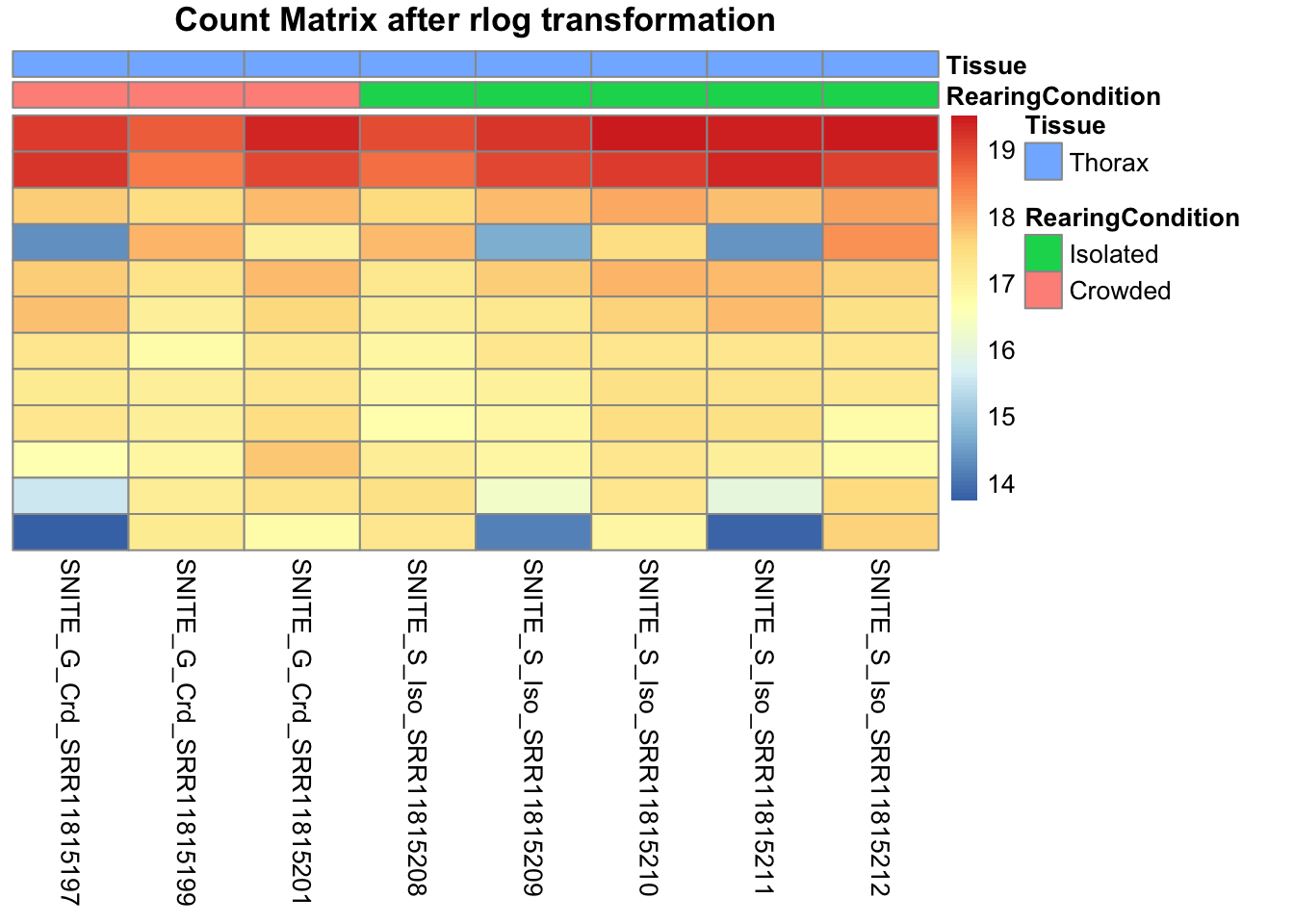

Count matrix heatmap

# Count matrix
pheatmap(assay(shigeru_ntd)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after norm transformation")

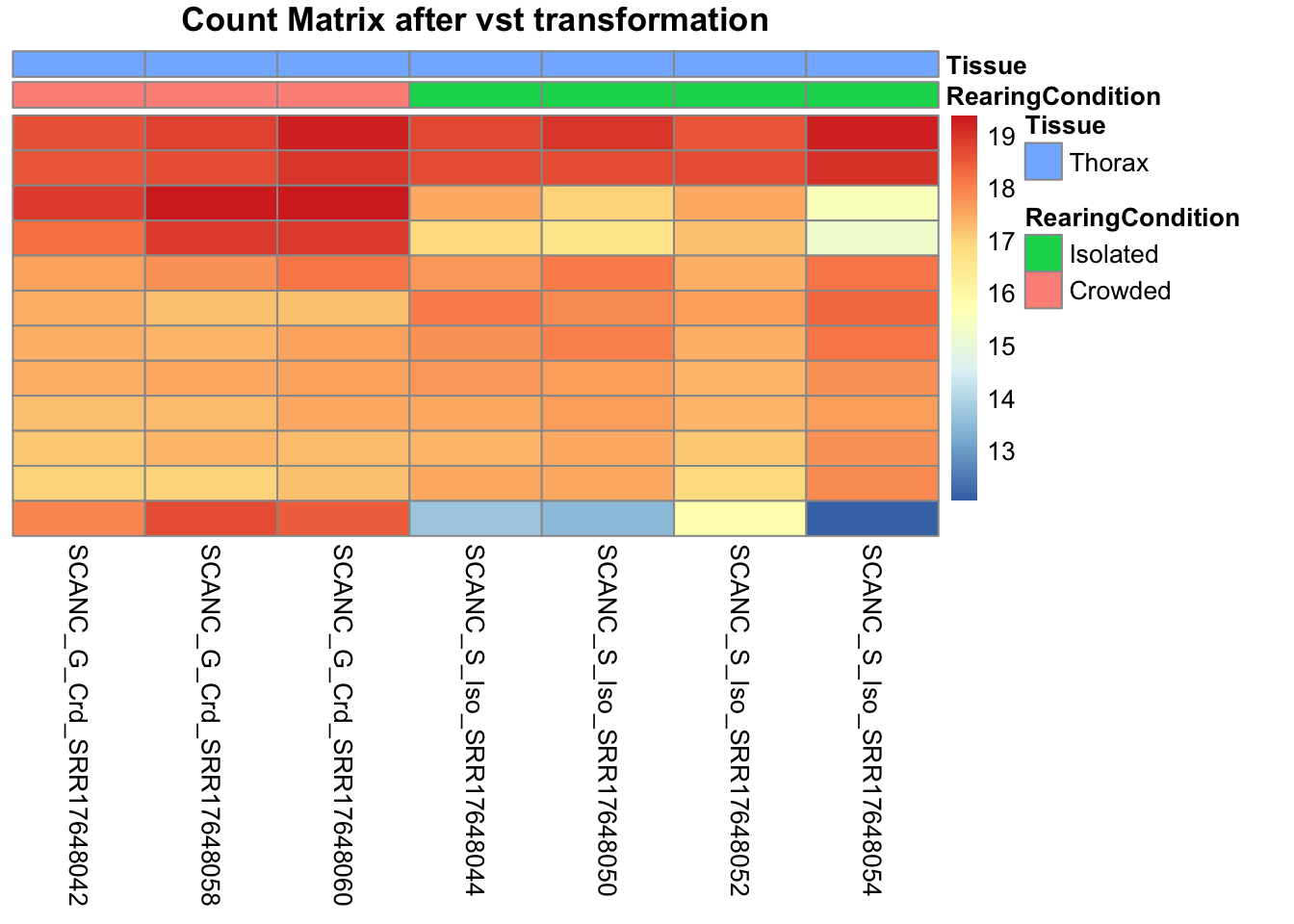

pheatmap(assay(shigeru_vst)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after vst transformation")

pheatmap(assay(shigeru_rlog)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after rlog transformation")

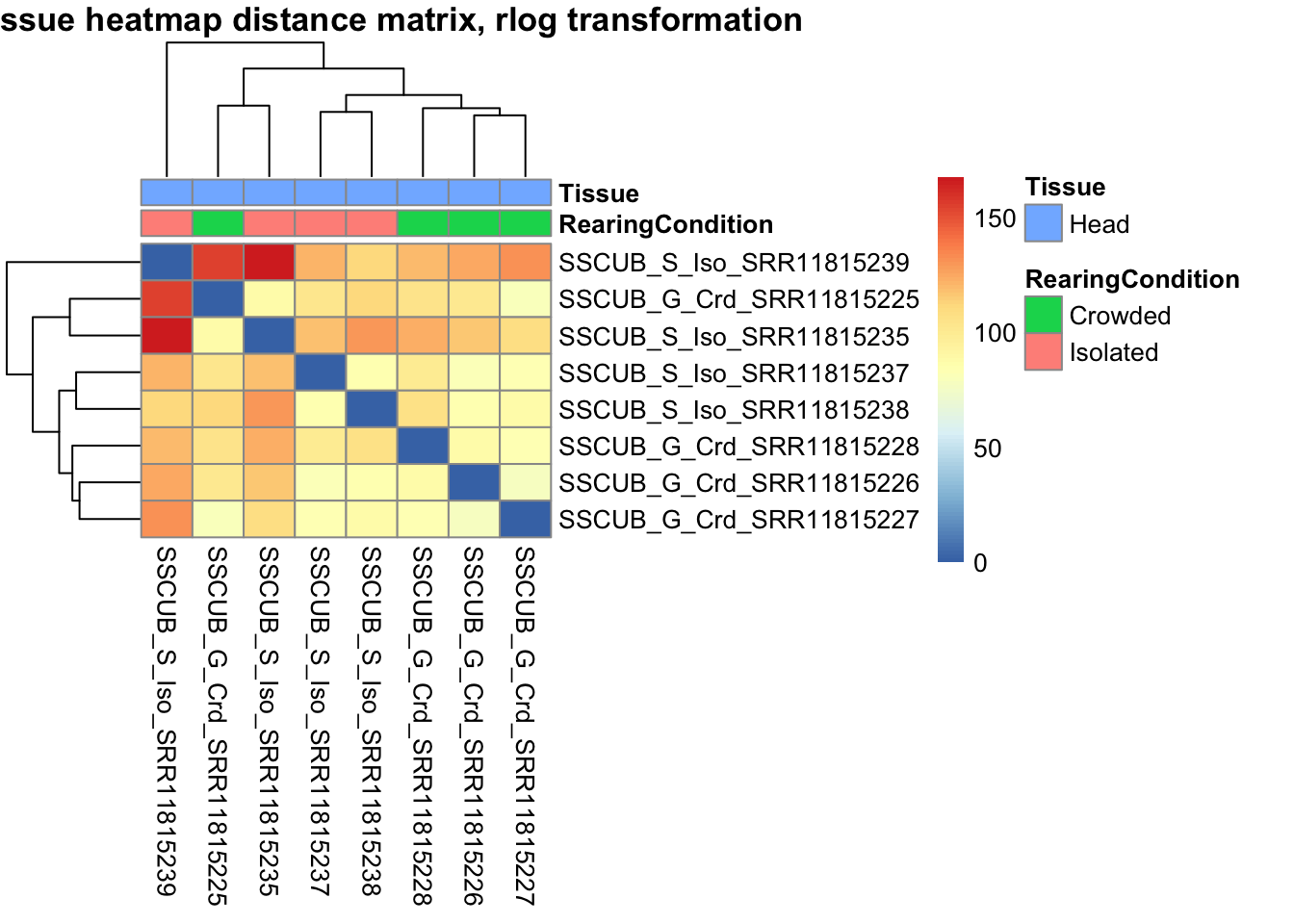

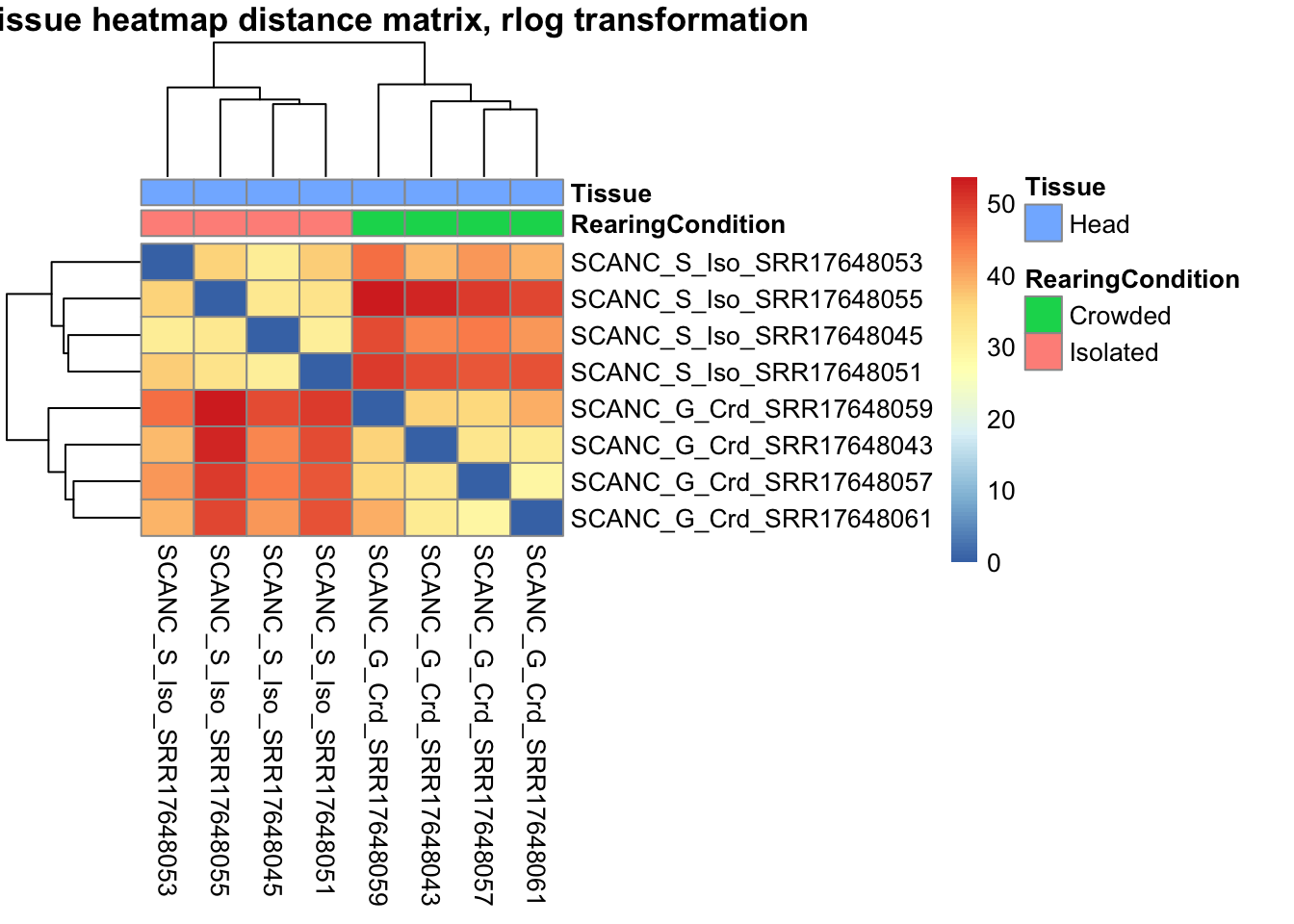

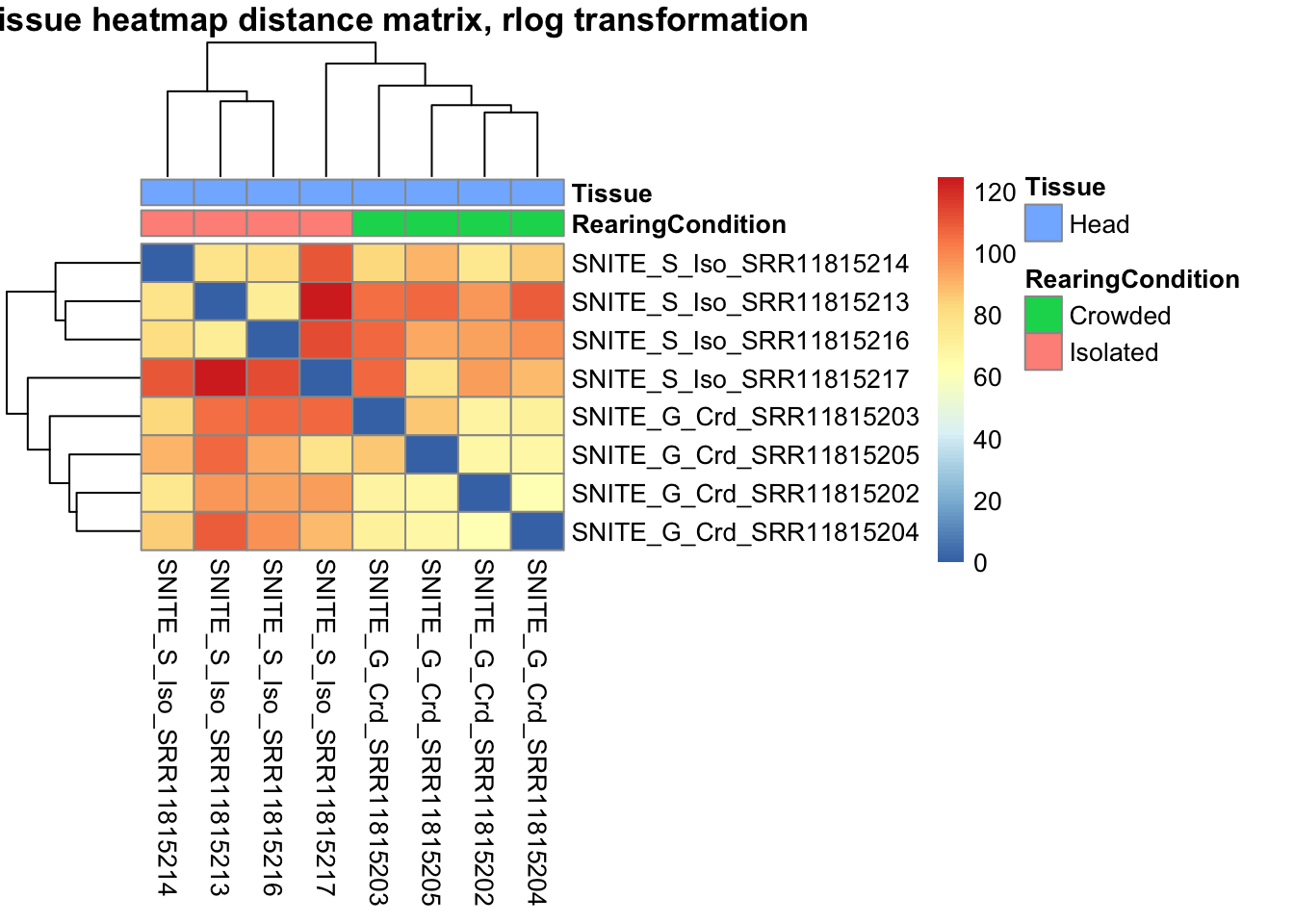

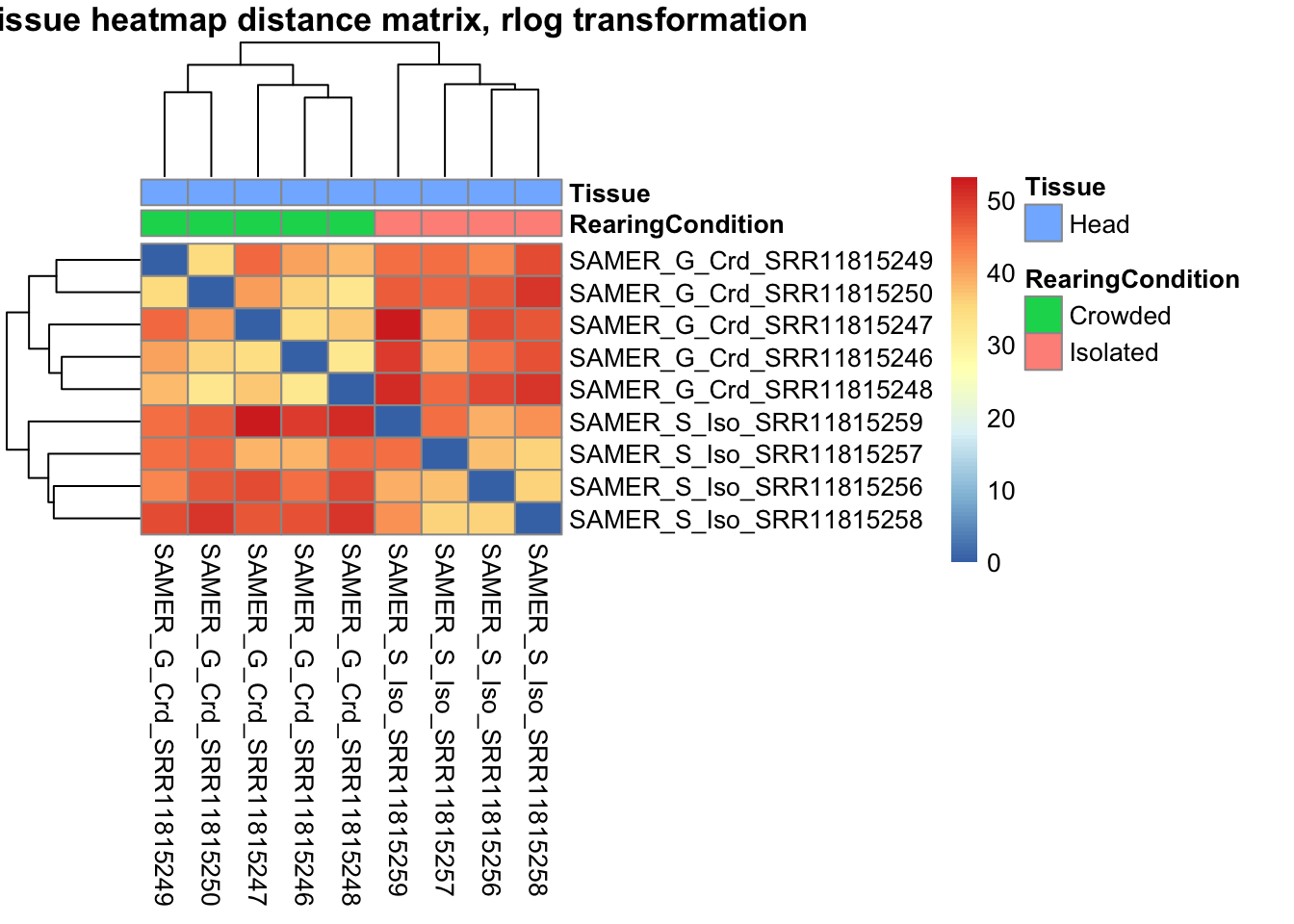

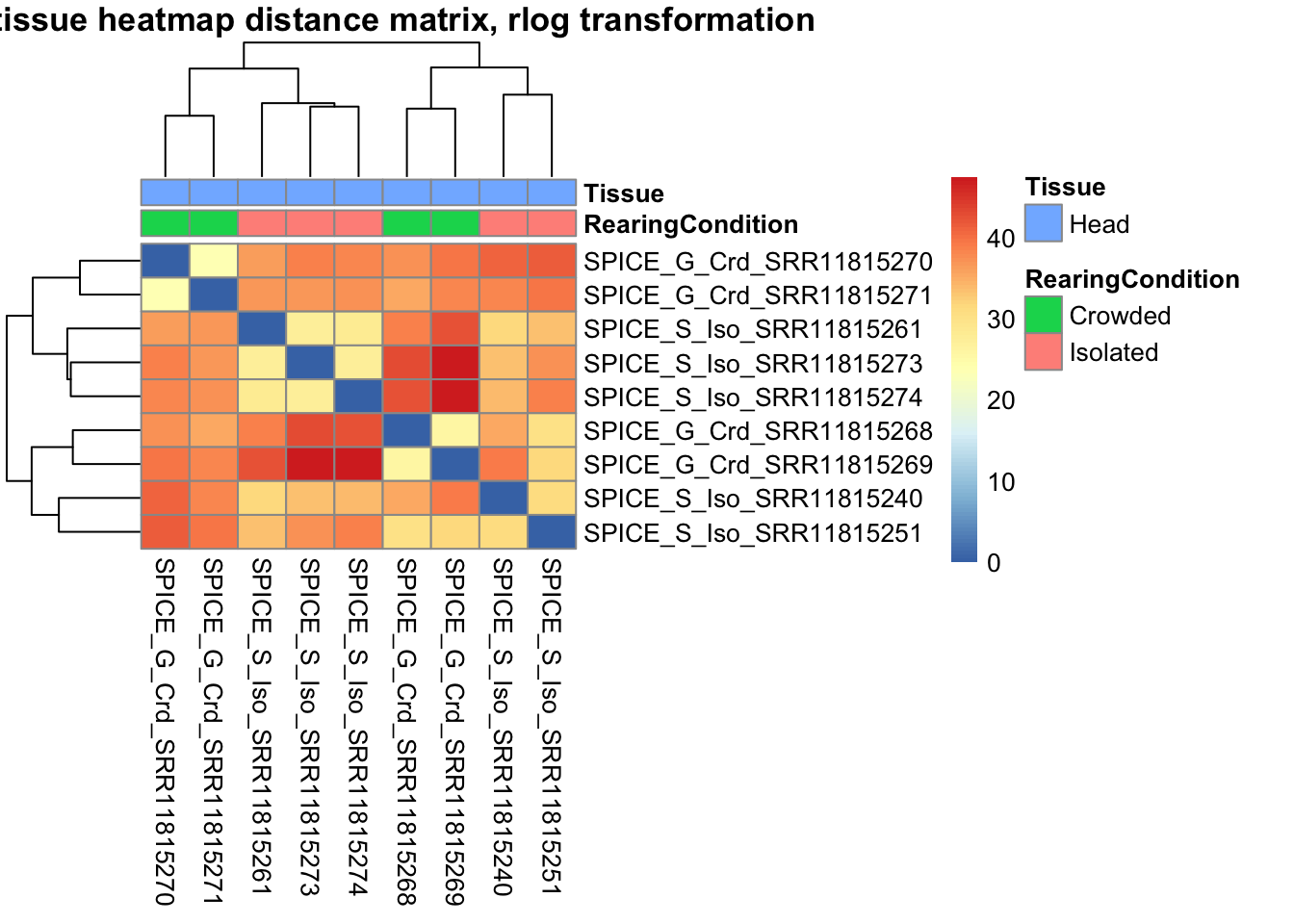

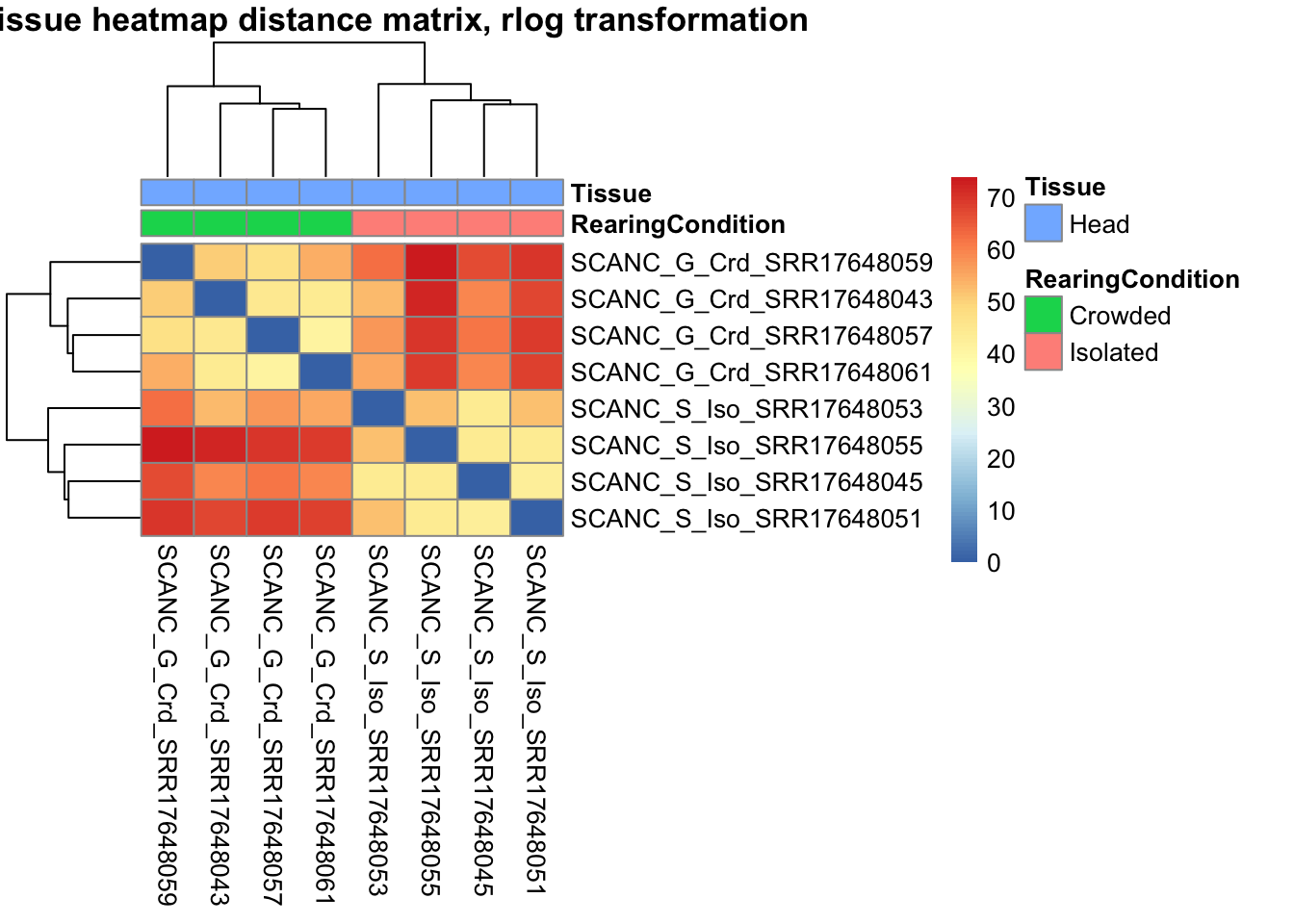

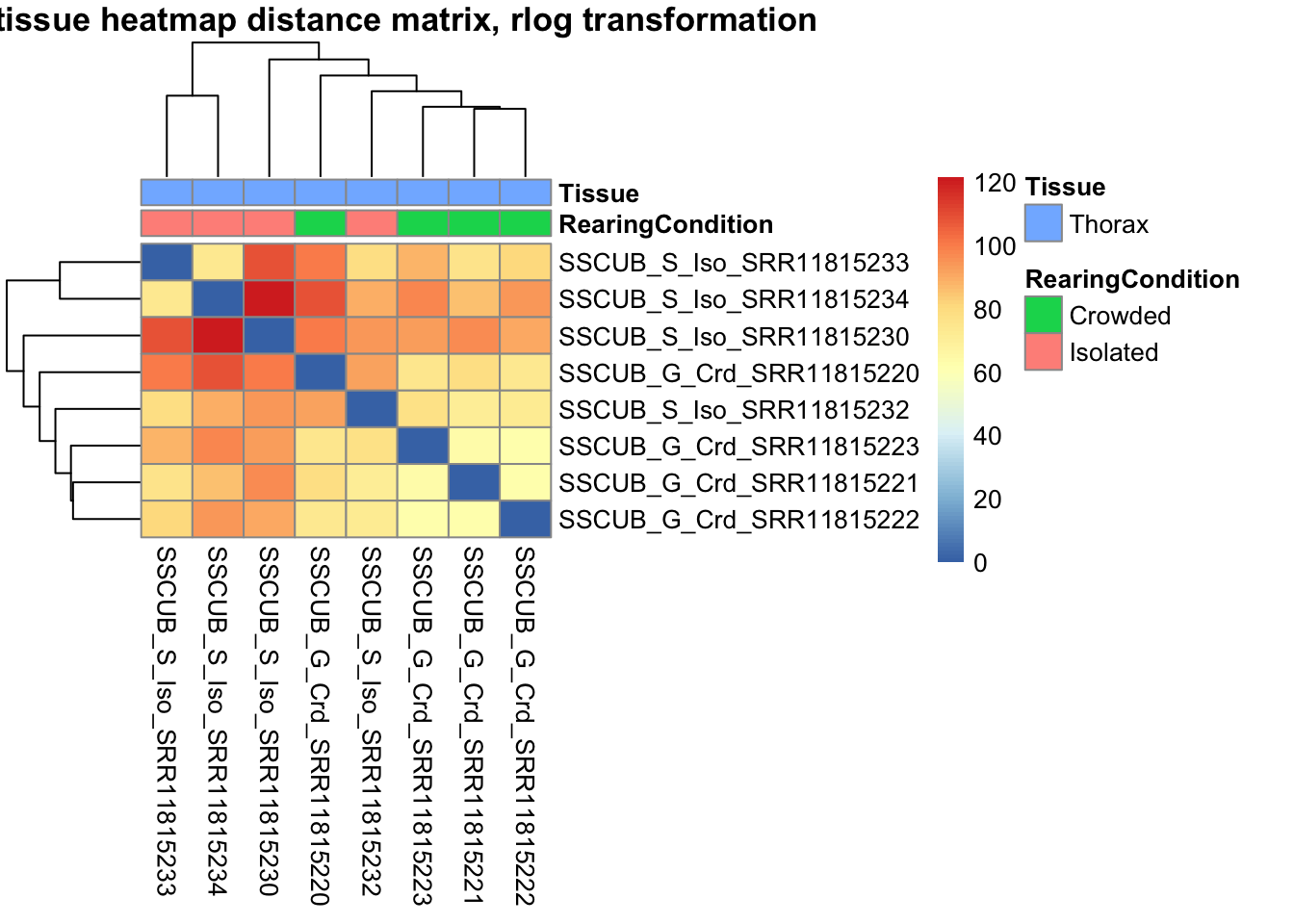

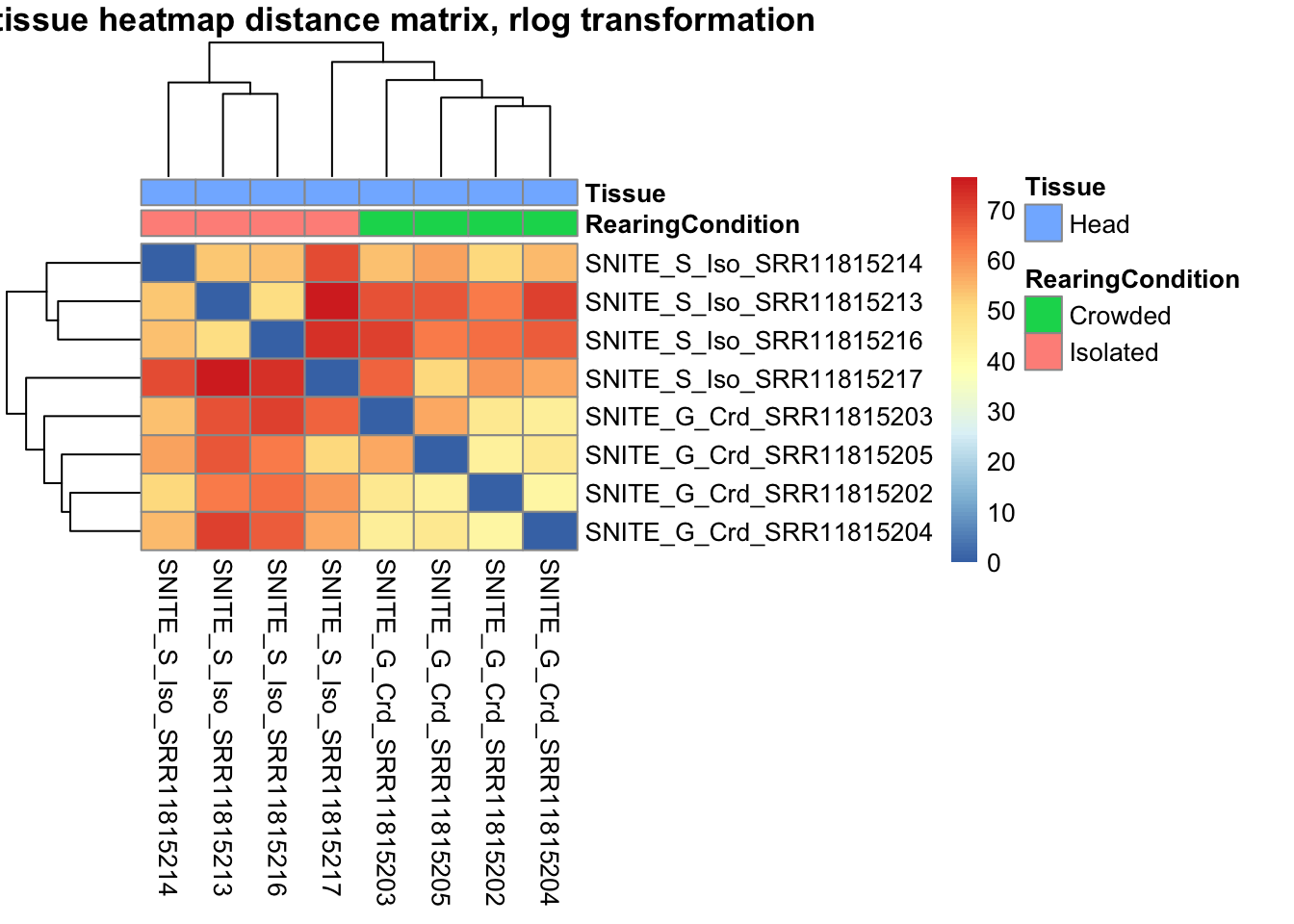

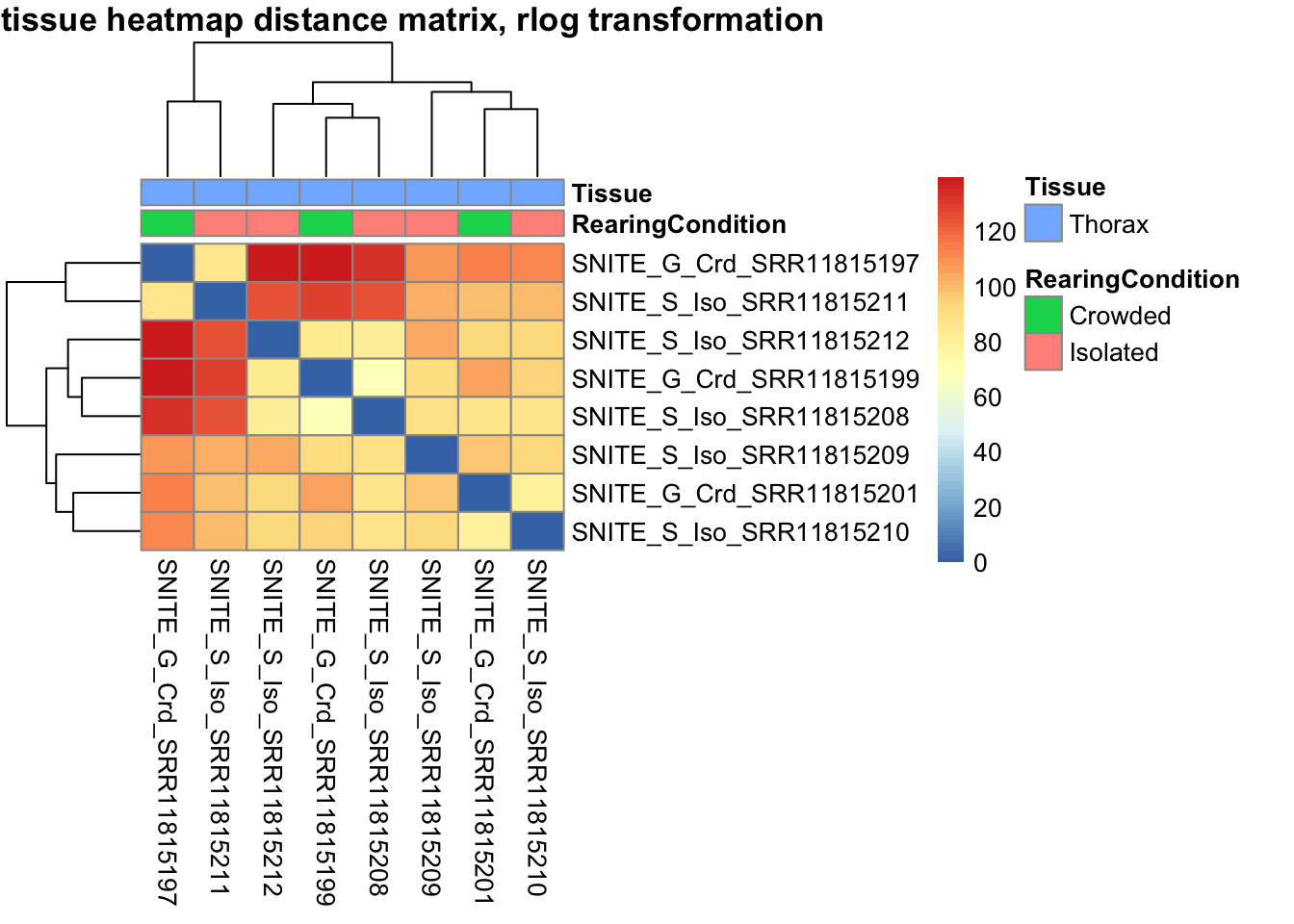

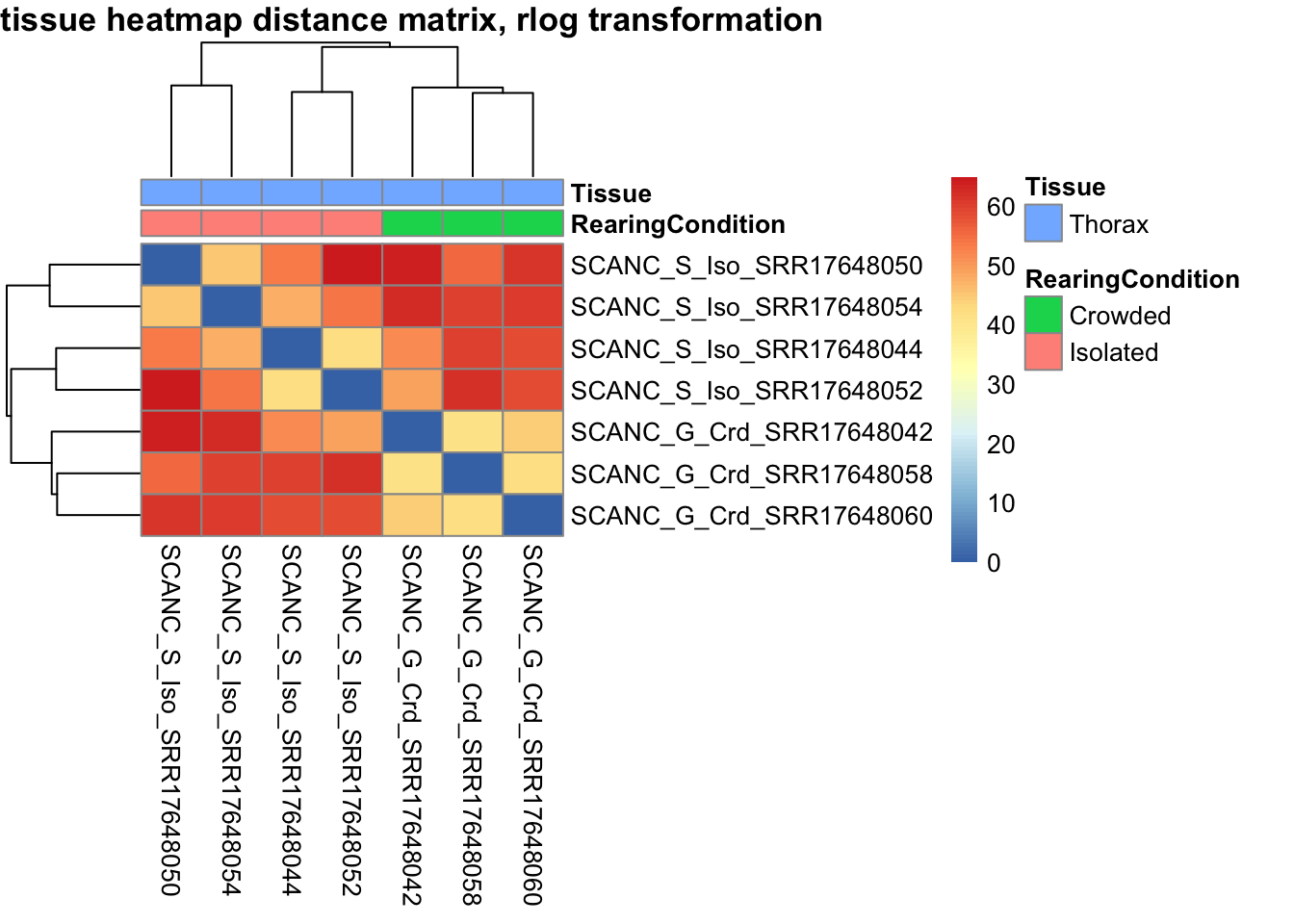

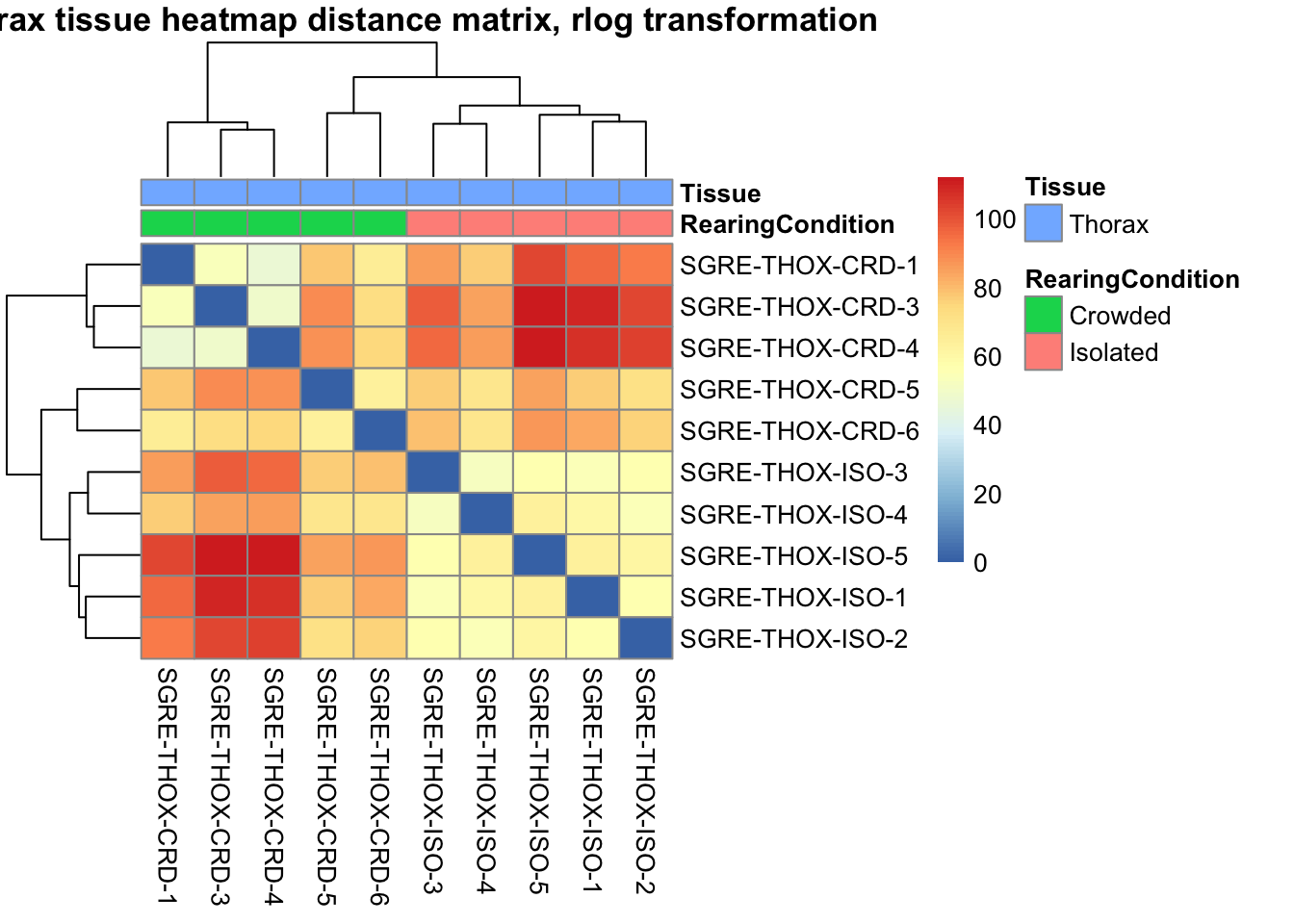

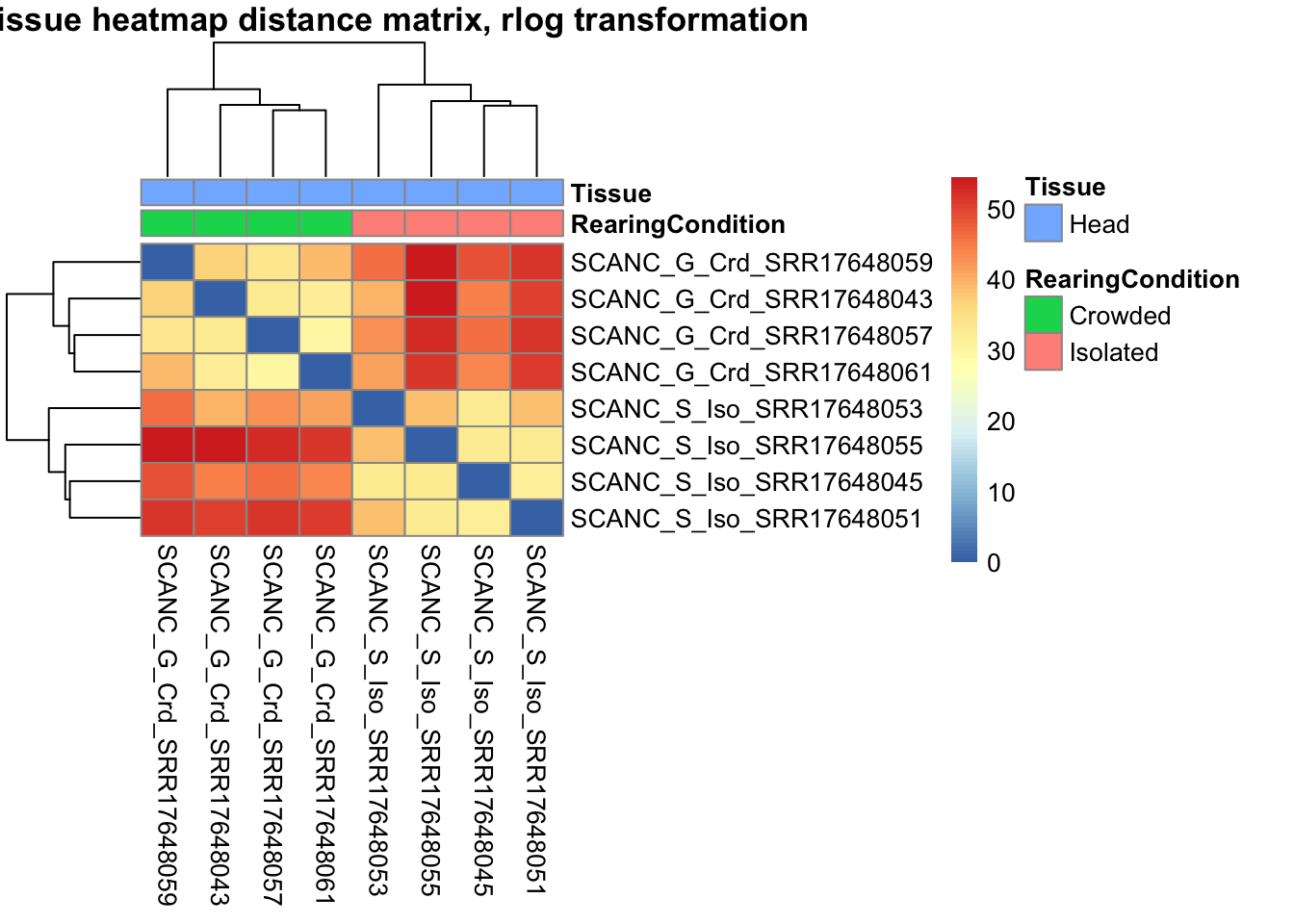

# calculate between-sample distance matrix
metadata <- sampletable[,c("RearingCondition", "Tissue")]
rownames(metadata) <- sampletable$SampleName
sampleDistMatrix.rlog <- as.matrix(dist(t(assay(shigeru_rlog))))
pheatmap(sampleDistMatrix.rlog, annotation_col=metadata, main = "Head tissue heatmap distance matrix, rlog transformation")

sampleDistMatrix.vst<- as.matrix(dist(t(assay(shigeru_vst))))
pheatmap(sampleDistMatrix.vst, annotation_col=metadata, main = "Head tissue heatmap distance matrix, rlog transformation")

---

MA plot

The following plots are interactive and we can hover or Zoom on the locus of interest.

# Ma plot parameters after shrinkage
de_shrink <- lfcShrink(dds = shigeru, coef="RearingCondition_Crowded_vs_Isolated", type="apeglm")
#head(de_shrink)
maplot <-ggmaplot(de_shrink, fdr = 0.05, fc = 1, size = 1, palette = c("#B31B21", "#1465AC", "darkgray"), genenames = as.vector(rownames(de_shrink$name)), top = 0,legend="top",label.select = NULL) +
  coord_cartesian(xlim = c(0, 20)) +
  scale_y_continuous(limits=c(-12, 12)) +
  theme(axis.text.x = element_text(size=12),axis.text.y = element_text(size=12),axis.title.x = element_text(size=14),axis.title.y = element_text(size=14),axis.line = element_line(size = 1, colour="gray20"),axis.ticks = element_line(size = 1, colour="gray20")) +
  guides(color = guide_legend(override.aes = list(size = c(3,3,3)))) +
  theme(legend.position = c(0.70, 0.12),legend.text=element_text(size=14,face="bold"),legend.background = element_rect(fill="transparent")) +
  theme(plot.title = element_text(size=18, colour="gray30", face="bold",hjust=0.06, vjust=-5)) +
  labs(title="MA-plot for the shrunken log2 fold changes in the Head tissues")
interactive_maplot <- ggplotly(maplot)
interactive_maplot

---

Volcano plot

#Volcano plot
keyvals <-ifelse(
  res_shigeru$log2FoldChange >= 1 & res_shigeru$padj <= 0.05, '#B31B21',
  ifelse(res_shigeru$log2FoldChange <= -1 & res_shigeru$padj <= 0.05, '#1465AC', 'darkgray'))

keyvals[is.na(keyvals)] <-'lightgray'
names(keyvals)[keyvals == "#B31B21"] <-'Upregulated'
names(keyvals)[keyvals == "#1465AC"] <-'Downregulated'
names(keyvals)[keyvals == 'darkgray'] <-'NS'

res_shigeru$color <- keyvals
volcano_plot <- ggplot(res_shigeru, aes(x = log2FoldChange, y = -log10(padj),
                                        color = color,  # Use the color column with keyvals
                                        text = rownames(res_shigeru))) +
  geom_point(size = 3, alpha = 0.8) +
  scale_color_identity() +  # Directly use the color values from `keyvals`
  guides(color = "none") +  # Hide the color legend
  labs(title = "Volcano Plot DEG Head S. cancellata", x = "log2 Fold Change", y = "-log10 Adjusted P-Value") +
  theme_minimal()

# Convert to interactive plot with hover text for gene names
interactive_volcano <- ggplotly(volcano_plot, tooltip = "text") %>%
  layout(hoverlabel = list(namelength = -1))

# Display the interactive plot
interactive_volcano

americana

---

Total DEGs

rawDir <- file.path(workDir, "03-americana-DESeq2-togregaria")

# Path and name of targetfile containing conditions and file names
species <- "americana"
targetFile <- file.path(workDir, "list", paste0("Head", "_", species, "_nooutliers.txt"))

sampletable <- fread(targetFile)
rownames(sampletable) <- sampletable$SampleName
sampletable$RearingCondition <- as.factor(sampletable$RearingCondition)
sampletable$Tissue <- as.factor(sampletable$Tissue)

## Import count files
satoshi <- DESeqDataSetFromHTSeqCount(sampleTable = sampletable,
                        directory = rawDir,
                        design = ~ RearingCondition )
#satoshi

smallestGroupSize <- 3
keep <- rowSums(counts(satoshi) >= 5) >= smallestGroupSize
satoshi <- satoshi[keep,]
#nrow(satoshi)
satoshi$RearingCondition <- relevel(satoshi$RearingCondition, ref = "Isolated")

# Fit the statistical model
shigeru <- DESeq(satoshi)
#cbind(resultsNames(shigeru))
res_shigeru <- results(shigeru)
sum(res_shigeru$padj < tresh_padj, na.rm = TRUE)

[1] 1190

A total of 1,190 genes out of the pre-filtered 13,442 features were showing significant (corrected p-value < 0.05) differences in expression levels. However, we will only keep the ones with at least an absolute fold change > 1, so in reality we have 567 DEGs. The summary below showed how many were up-regulated and down-regulated in crowded compared to isolated it is possible to scroll it.

brock <- results(shigeru, name = "RearingCondition_Crowded_vs_Isolated", alpha = alpha_DEseq2)
summary(brock)

out of 13442 with nonzero total read count
adjusted p-value < 0.05
LFC > 0 (up)       : 703, 5.2%
LFC < 0 (down)     : 487, 3.6%
outliers [1]       : 44, 0.33%
low counts [2]     : 782, 5.8%
(mean count < 5)
[1] see 'cooksCutoff' argument of ?results
[2] see 'independentFiltering' argument of ?results

brock_df <- as.data.frame(brock)
brock_df$GeneID <- rownames(brock_df)

brock_df <- brock_df[!is.na(brock_df$padj) & (brock_df$padj < tresh_padj), ]
outputFile <- file.path(workDir, "DEG-results", paste0("DESeq2_results_Head_togregaria_", species, ".csv"))
write.csv(brock, file = outputFile, row.names = TRUE)

significant_brock_df <- brock_df[!is.na(brock_df$padj) & !is.na(brock_df$log2FoldChange) &
                               (brock_df$padj < tresh_padj & abs(brock_df$log2FoldChange) > tresh_logfold), ]
# Summary similar to summary(brock)
upregulated <- sum(brock$padj < tresh_padj & brock$log2FoldChange > tresh_logfold, na.rm = TRUE)  # Upregulated count
downregulated <- sum(brock$padj < tresh_padj & brock$log2FoldChange < -tresh_logfold, na.rm = TRUE)  # Downregulated count
total_genes <- sum(upregulated, downregulated)  # Total non-zero count genes
cat("Total DEGs p-value < 0.05 and absolute logFoldChange > 1:", total_genes, "\n")

Total DEGs p-value < 0.05 and absolute logFoldChange > 1: 567

cat("LFC > 0 (up)       :", upregulated, ",", round((upregulated / total_genes) * 100, 2), "%\n")

LFC > 0 (up)       : 311 , 54.85 %

cat("LFC < 0 (down)     :", downregulated, ",", round((downregulated / total_genes) * 100, 2), "%\n")

LFC < 0 (down)     : 256 , 45.15 %

meta_brock_df <- merge(significant_brock_df, allspecies_df, by.x = "GeneID", by.y = "GeneID", all.x = TRUE)
meta_brock_df <- meta_brock_df[, c("GeneID", "GeneType", "Description",  "Species",
                                   "baseMean", "log2FoldChange", "lfcSE", "stat", "pvalue", "padj")]
numeric_cols <- c("baseMean", "log2FoldChange", "lfcSE", "stat", "pvalue", "padj")
meta_brock_df[numeric_cols] <- round(meta_brock_df[numeric_cols], 2)
meta_brock_df$row_color <- ifelse(meta_brock_df$log2FoldChange > 1, "red",
                                  ifelse(meta_brock_df$log2FoldChange < -1, "blue", "black"))
meta_brock_df$row_weight <- ifelse(abs(meta_brock_df$log2FoldChange) > 1, "bold", "normal")
# Display the data table with italic formatting for Species column, color-coded, and bold text rows
datatable(meta_brock_df, options = list(
    pageLength = 10,       # Set initial page length
    scrollX = TRUE,        # Enable horizontal scrolling
    autoWidth = TRUE,      # Adjust column width automatically
    searchHighlight = TRUE # Highlight search matches
  ),
  rownames = FALSE,
  escape = FALSE  # Allows HTML formatting in table cells
) %>%
  formatStyle(
    'Species', target = 'cell',
    fontStyle = 'italic'
  ) %>%
  formatStyle(
    columns = names(meta_brock_df),
    target = 'row',
    color = styleEqual(c("red", "blue", "black"), c("red", "blue", "black")), # Apply row color
    fontWeight = styleEqual(c("bold", "normal"), c("bold", "normal")), # Apply bold font for up/downregulated rows
    backgroundColor = styleEqual(c("red", "blue", "black"), c("white", "white", "white")) # Keep background white
  )

# Define the output file path
outputFile <- file.path(workDir, "DEG-results", paste0("DESeq2_sigresults_Head_togregaria_", species, ".csv"))
write.csv(brock_df, file = outputFile, row.names = TRUE)

---

Normalization and PCA

# Try with the data transformation
shigeru_vst <- vst(shigeru)
shigeru_rlog <- rlog(shigeru)
shigeru_ntd <- normTransform(shigeru)
itadori <- meanSdPlot(assay(shigeru_ntd))

itadori2 <- itadori$gg + ggtitle("Transformation with ntd")
megumi <- meanSdPlot(assay(shigeru_vst))

megumi2 <- megumi$gg + ggtitle("Transformation with vst")
nobara <- meanSdPlot(assay(shigeru_rlog))

nobara2 <-nobara$gg + ggtitle("Transformation with rlog")

# Create the pca on the defined groups

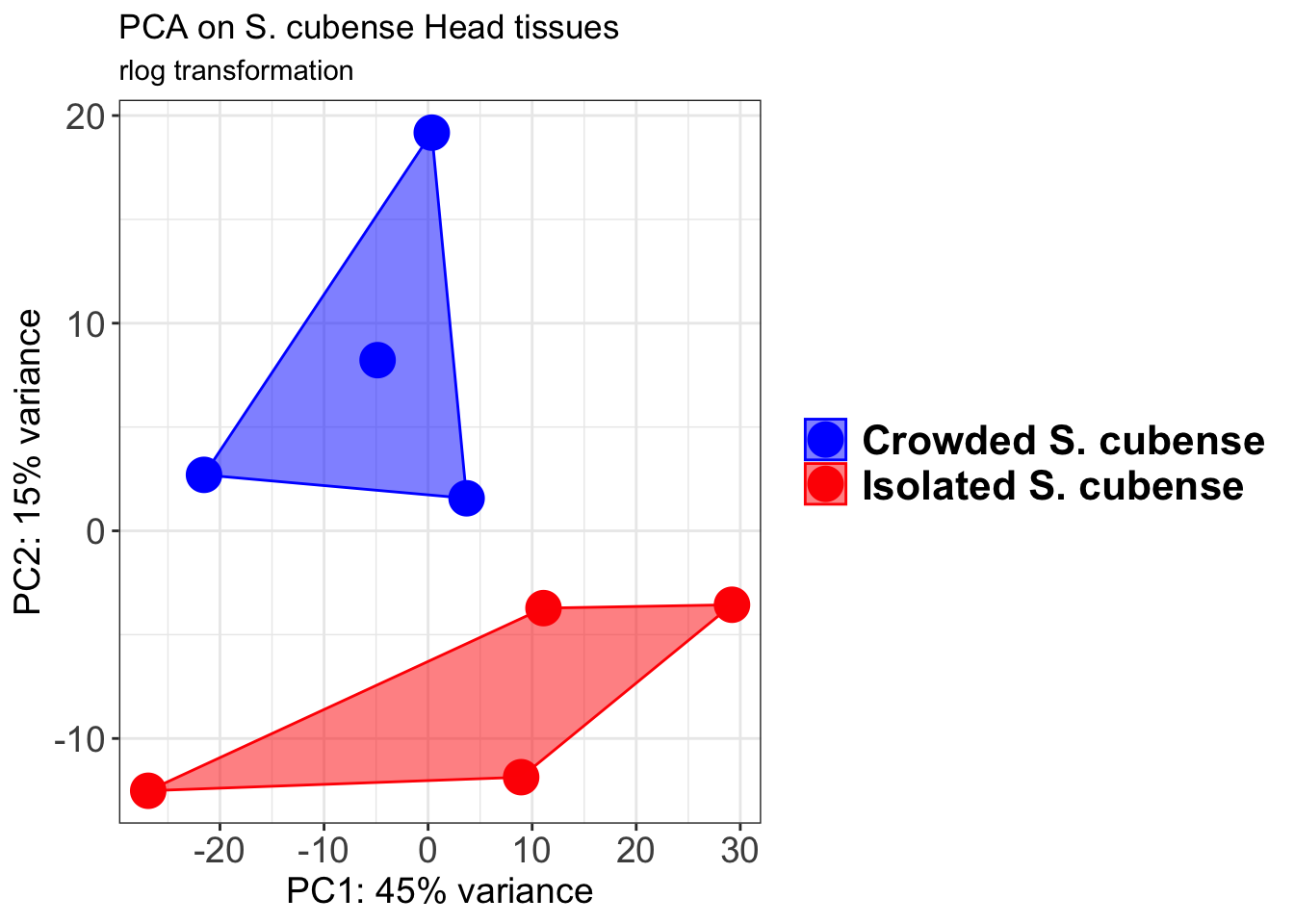

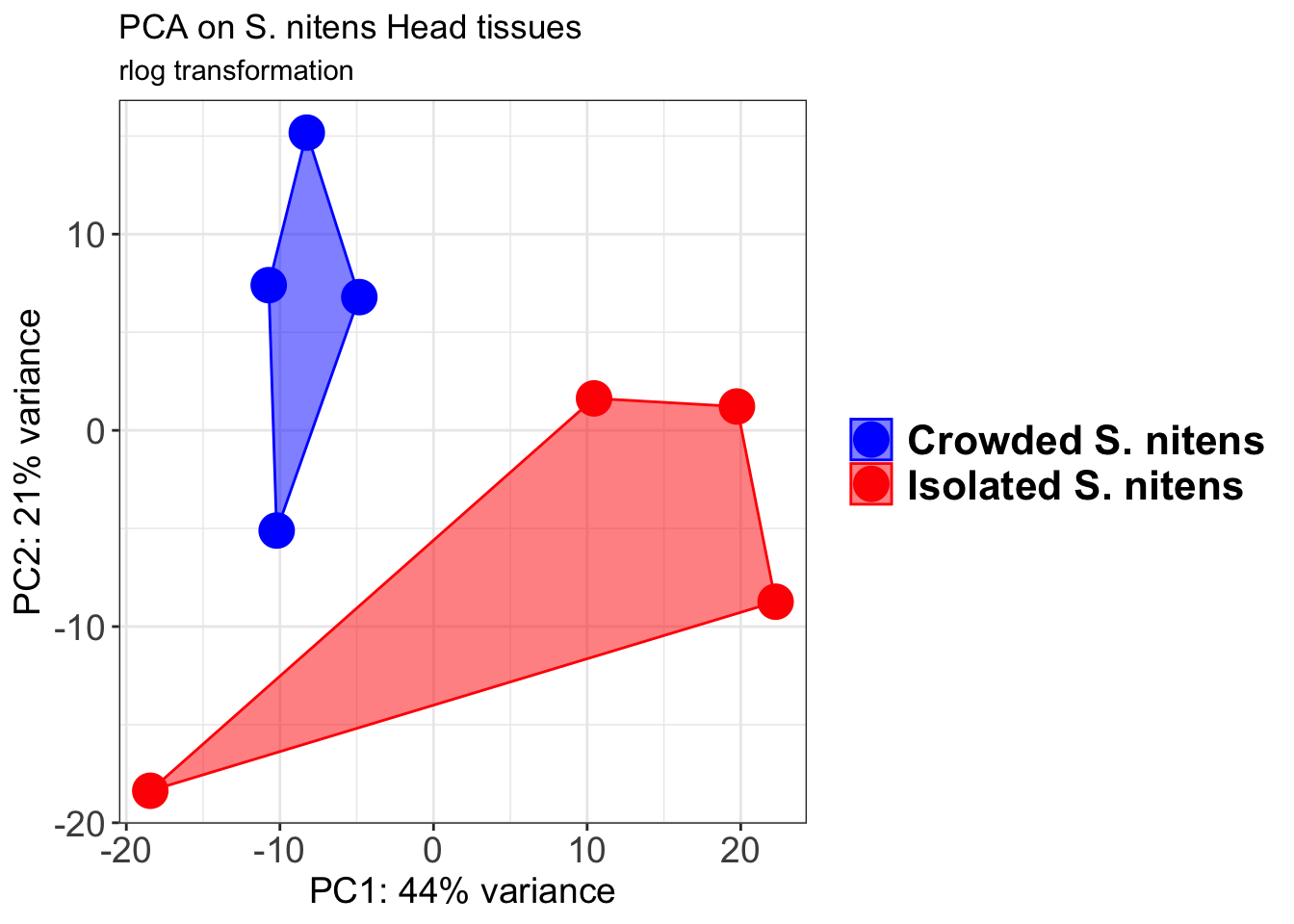

pcaData1 <- plotPCA(object = shigeru_rlog, intgroup = c("RearingCondition"),returnData=TRUE)
percentVar <- round(100 * attr(pcaData1, "percentVar"))
pcaData1$RearingCondition<-factor(pcaData1$RearingCondition,levels=c("Crowded","Isolated"), labels=c("Crowded S. americana","Isolated S. americana"))
#levels(pcaData1$RearingCondition)
p1 <- ggplot(pcaData1, aes(PC1, PC2, color= RearingCondition)) +
  geom_point(size=6) +
  xlab(paste0("PC1: ", percentVar[1], "% variance")) +
  ylab(paste0("PC2: ", percentVar[2], "% variance")) +
  scale_color_manual(values = c("blue", "red")) +
  #coord_fixed() +
  theme_bw() +
  theme(legend.title = element_blank()) +
  theme(legend.text = element_text(face="bold", size=16)) +
  theme(axis.text = element_text(size=14)) +
  theme(axis.title = element_text(size=14))
p1 + geom_convexhull(aes(fill = RearingCondition, color = RearingCondition), alpha = 0.5) +
    scale_fill_manual(values = c("blue", "red"))+
    ggtitle("PCA on S. americana Head tissues", subtitle = "rlog transformation")

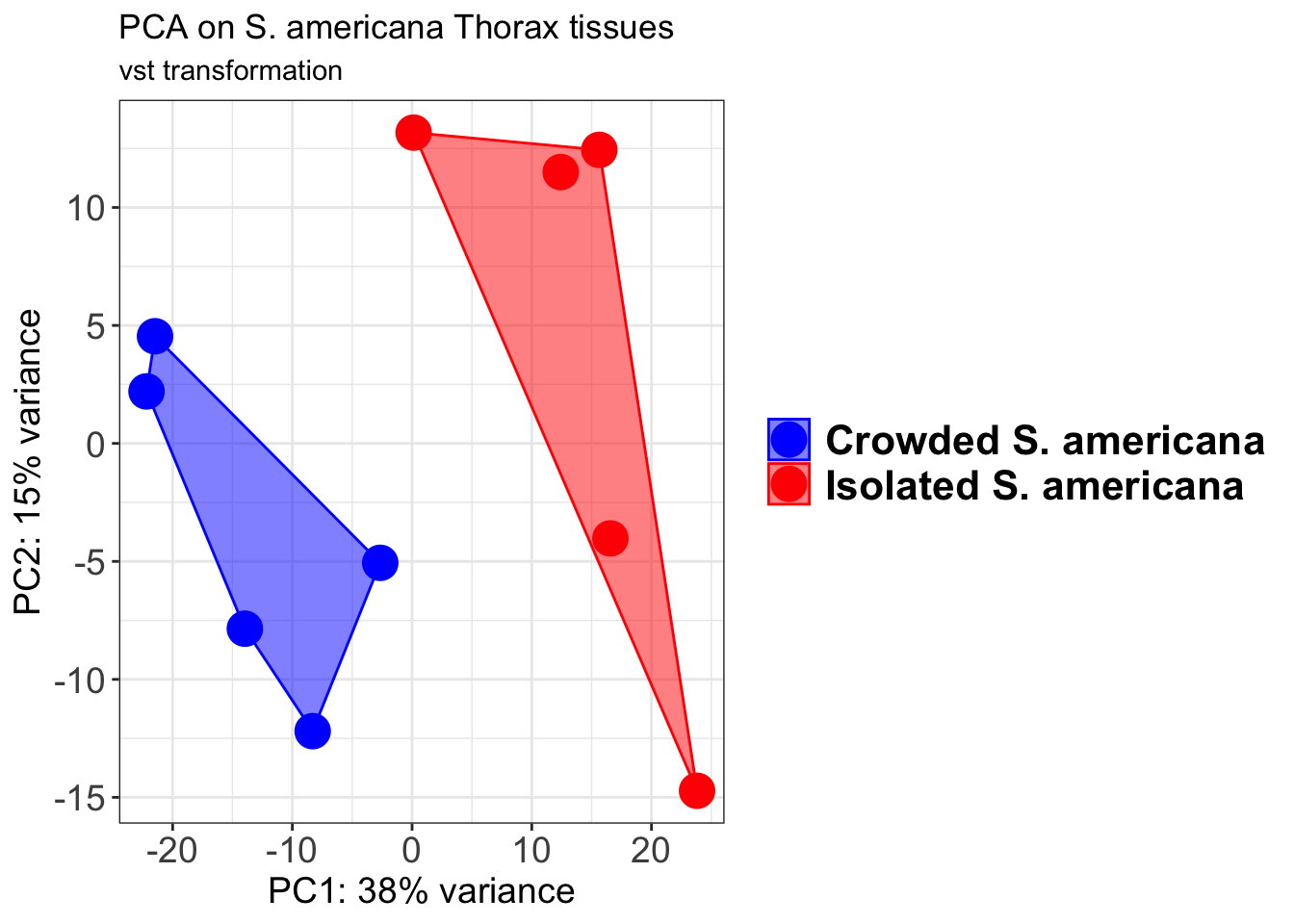

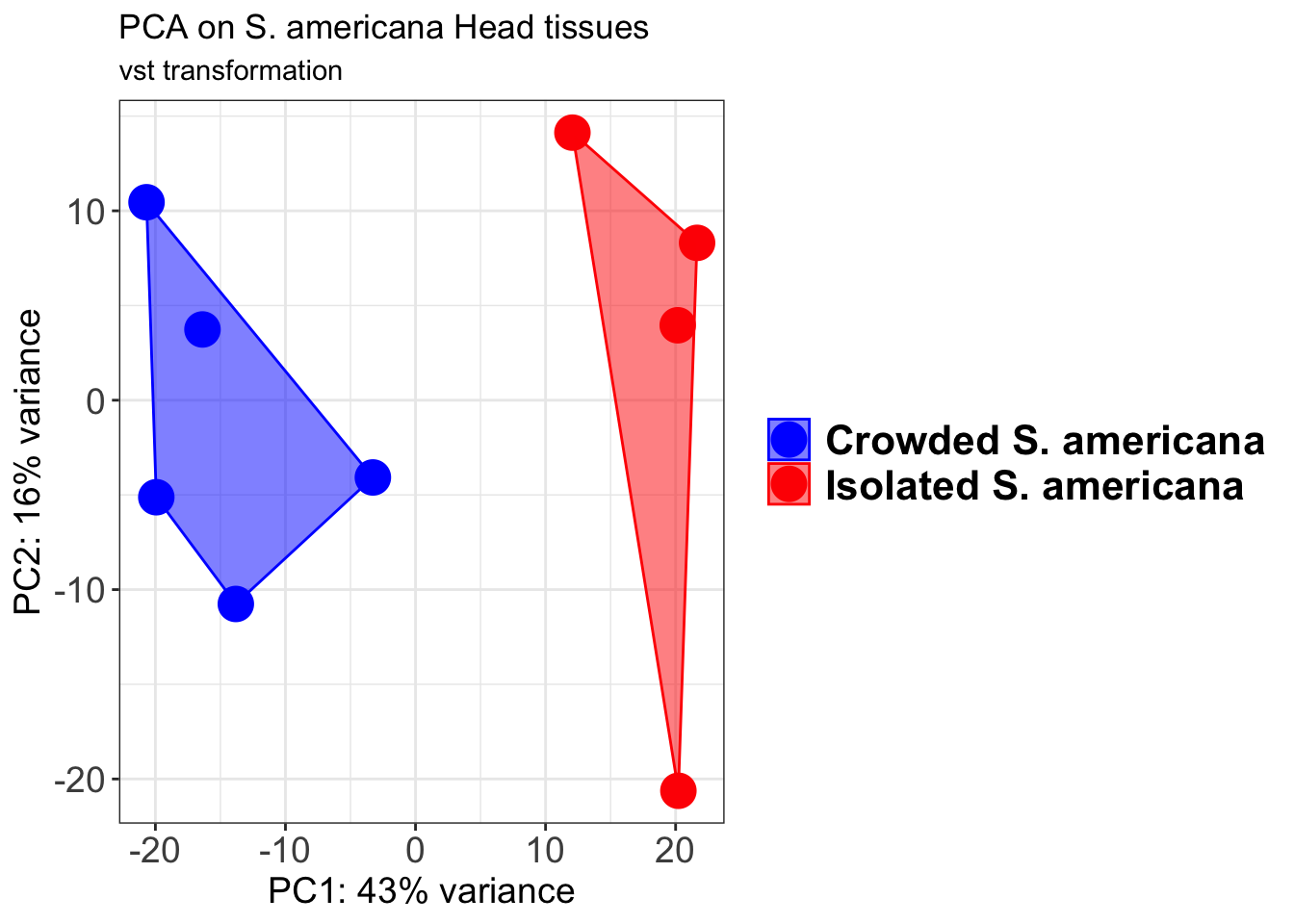

pcaData2 <- plotPCA(object = shigeru_vst, intgroup = c("RearingCondition"),returnData=TRUE)
percentVar <- round(100 * attr(pcaData2, "percentVar"))
pcaData2$RearingCondition<-factor(pcaData2$RearingCondition,levels=c("Crowded","Isolated"), labels=c("Crowded S. americana","Isolated S. americana"))
#levels(pcaData2$RearingCondition)
p2 <-ggplot(pcaData2, aes(PC1, PC2, color= RearingCondition)) +
  geom_point(size=6) +
  xlab(paste0("PC1: ", percentVar[1], "% variance")) +
  ylab(paste0("PC2: ", percentVar[2], "% variance")) +
  scale_color_manual(values = c("blue", "red")) +
  #coord_fixed() +
  theme_bw() +
  theme(legend.title = element_blank()) +
  theme(legend.text = element_text(face="bold", size=16)) +
  theme(axis.text = element_text(size=14)) +
  theme(axis.title = element_text(size=14))
p2 + geom_convexhull(aes(fill = RearingCondition, color = RearingCondition), alpha = 0.5) +
    scale_fill_manual(values = c("blue", "red"))+
    ggtitle("PCA on S. americana Head tissues", subtitle = "vst transformation")

select <- order(rowMeans(counts(shigeru,normalized=TRUE)),
                decreasing=TRUE)[1:12]
df <- as.data.frame(colData(shigeru)[,c("RearingCondition","Tissue")])

---

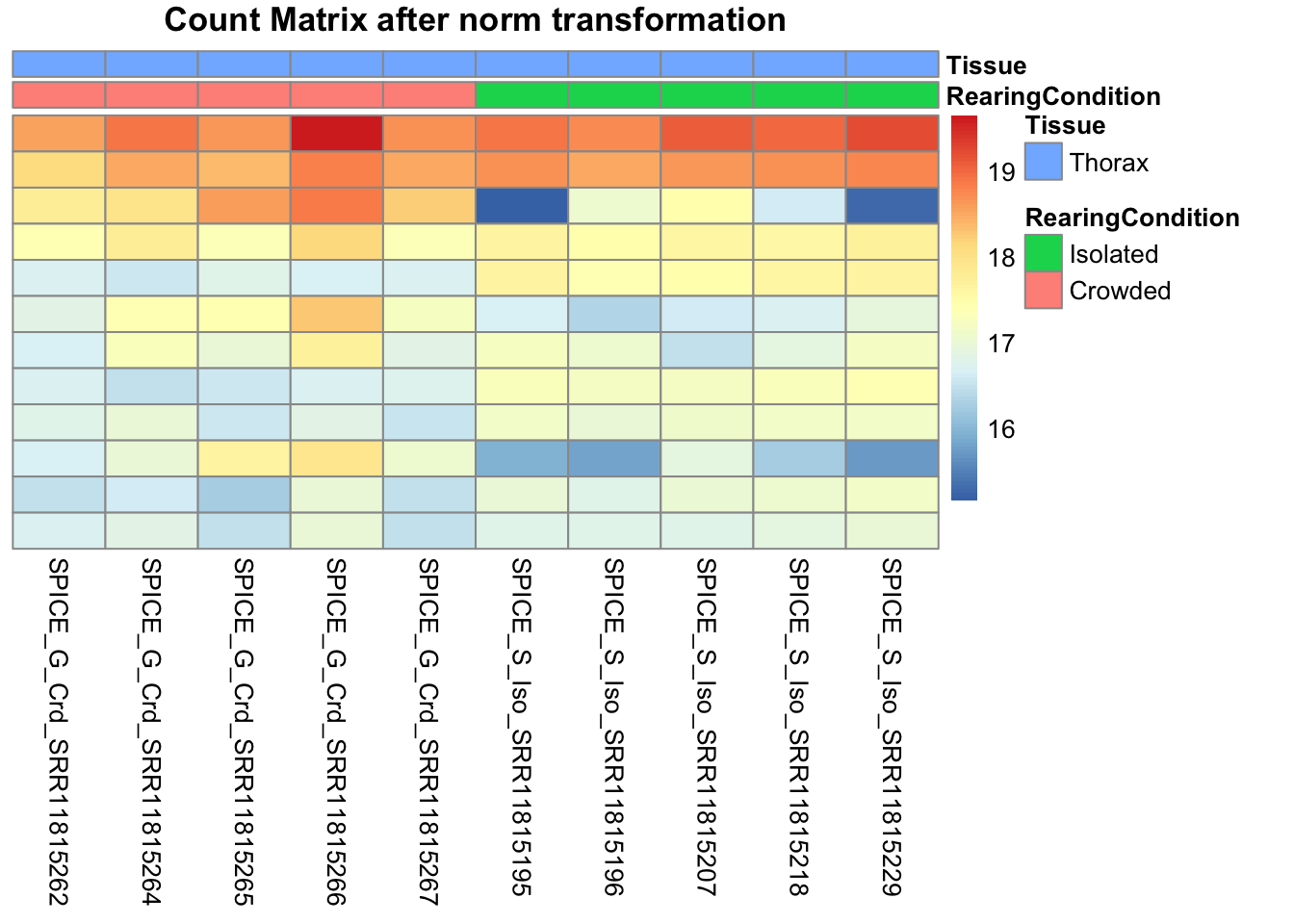

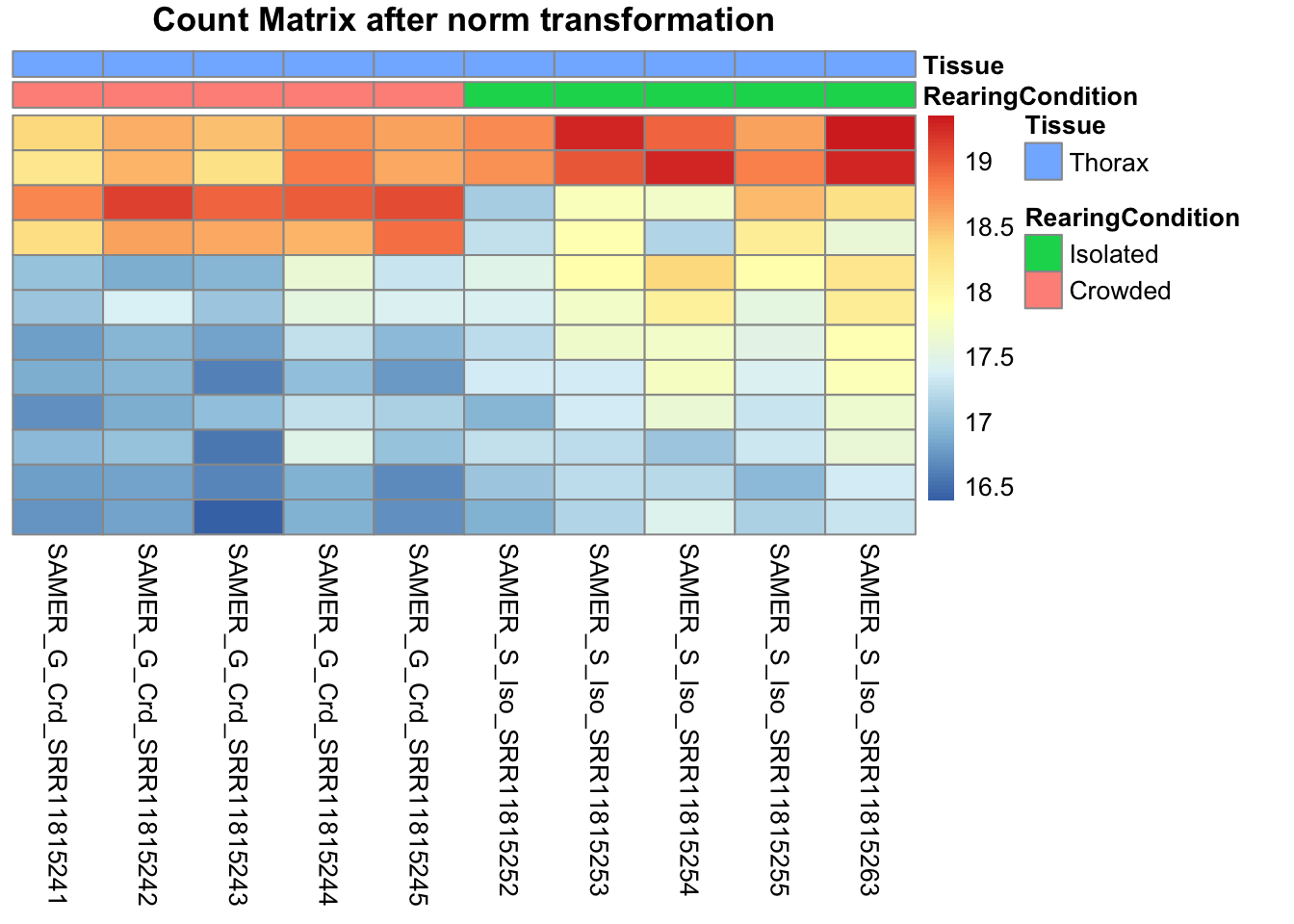

Count matrix heatmap

# Count matrix

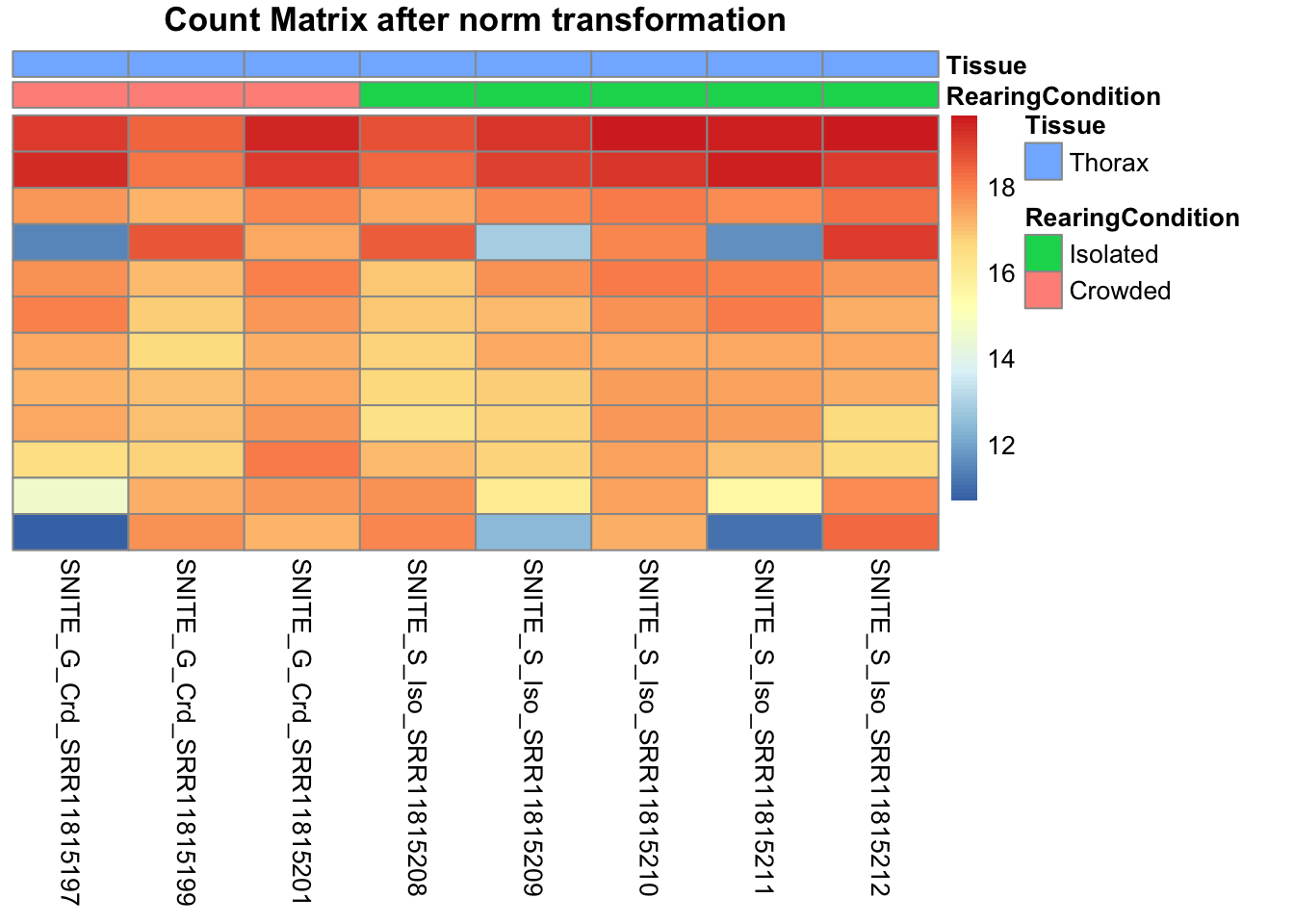

pheatmap(assay(shigeru_ntd)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after norm transformation")

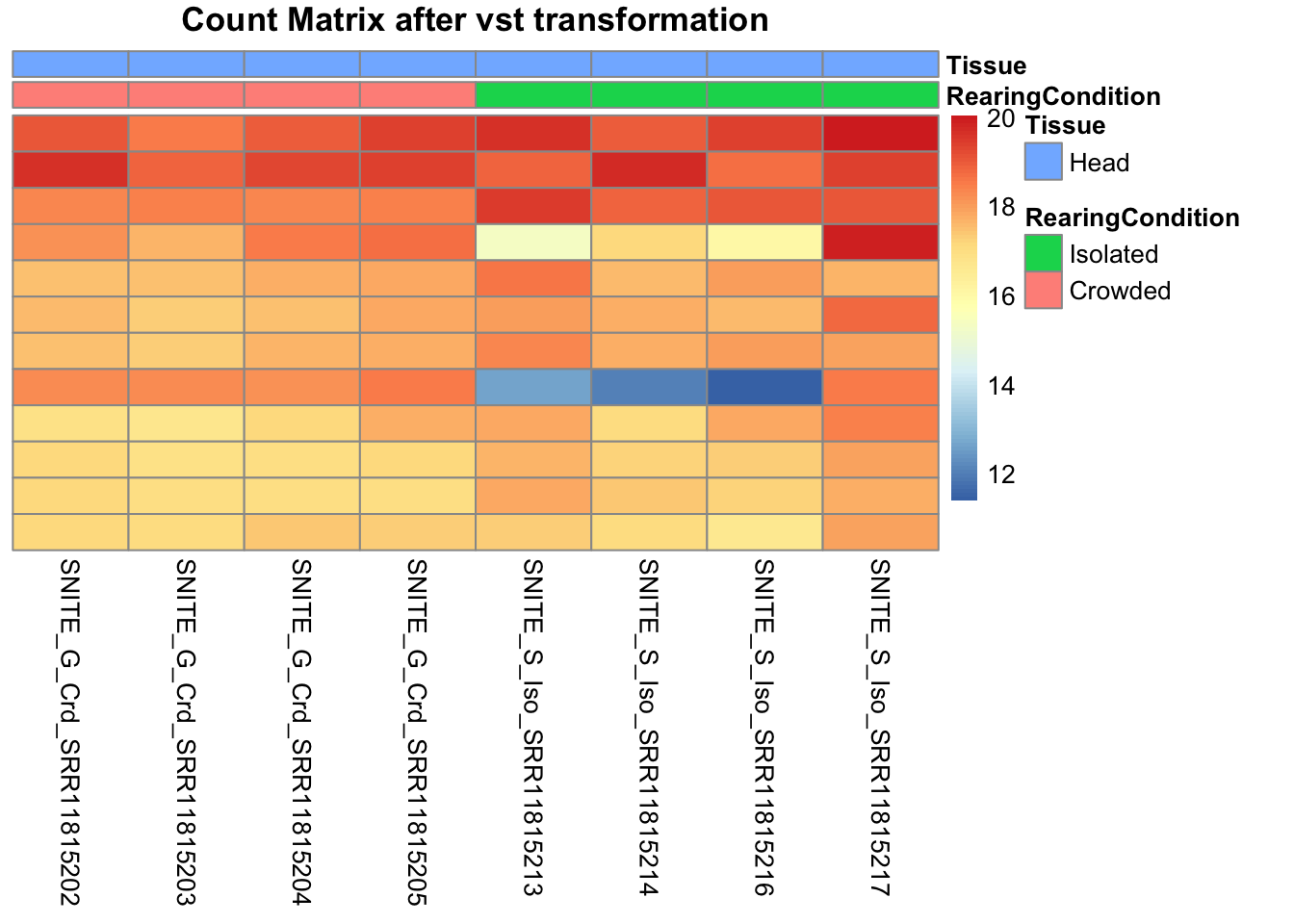

pheatmap(assay(shigeru_vst)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after vst transformation")

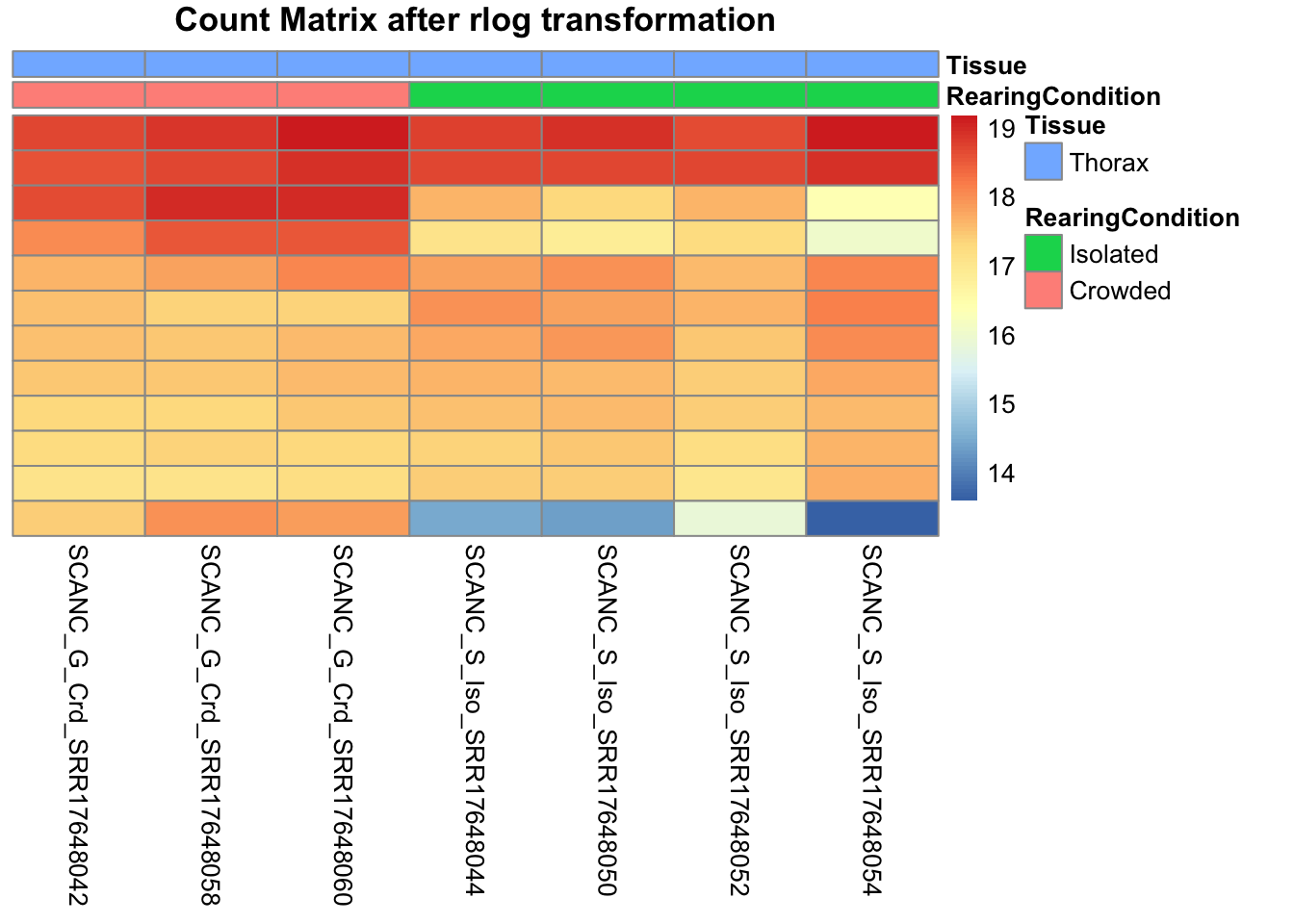

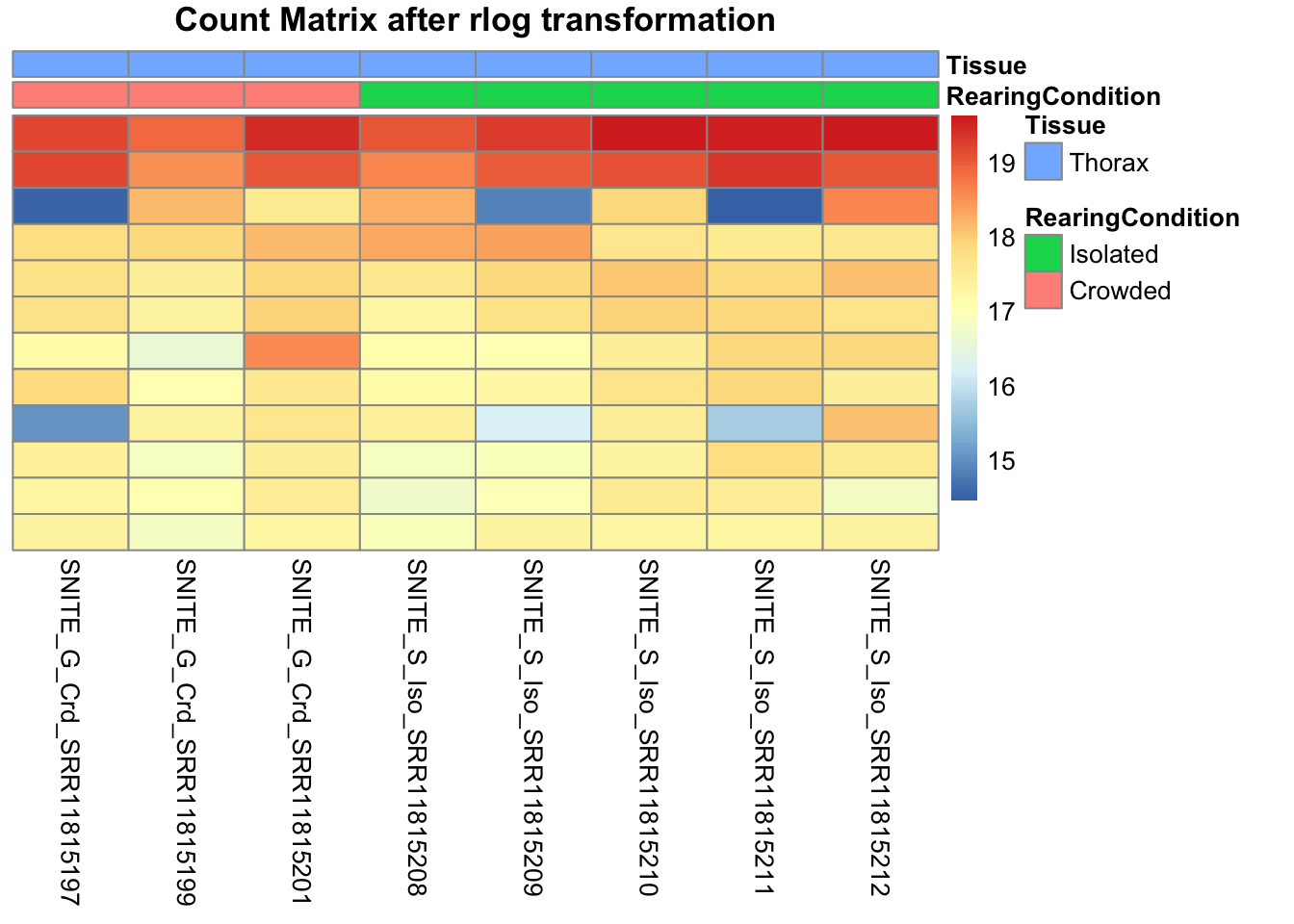

pheatmap(assay(shigeru_rlog)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after rlog transformation")

# calculate between-sample distance matrix
metadata <- sampletable[,c("RearingCondition", "Tissue")]
rownames(metadata) <- sampletable$SampleName

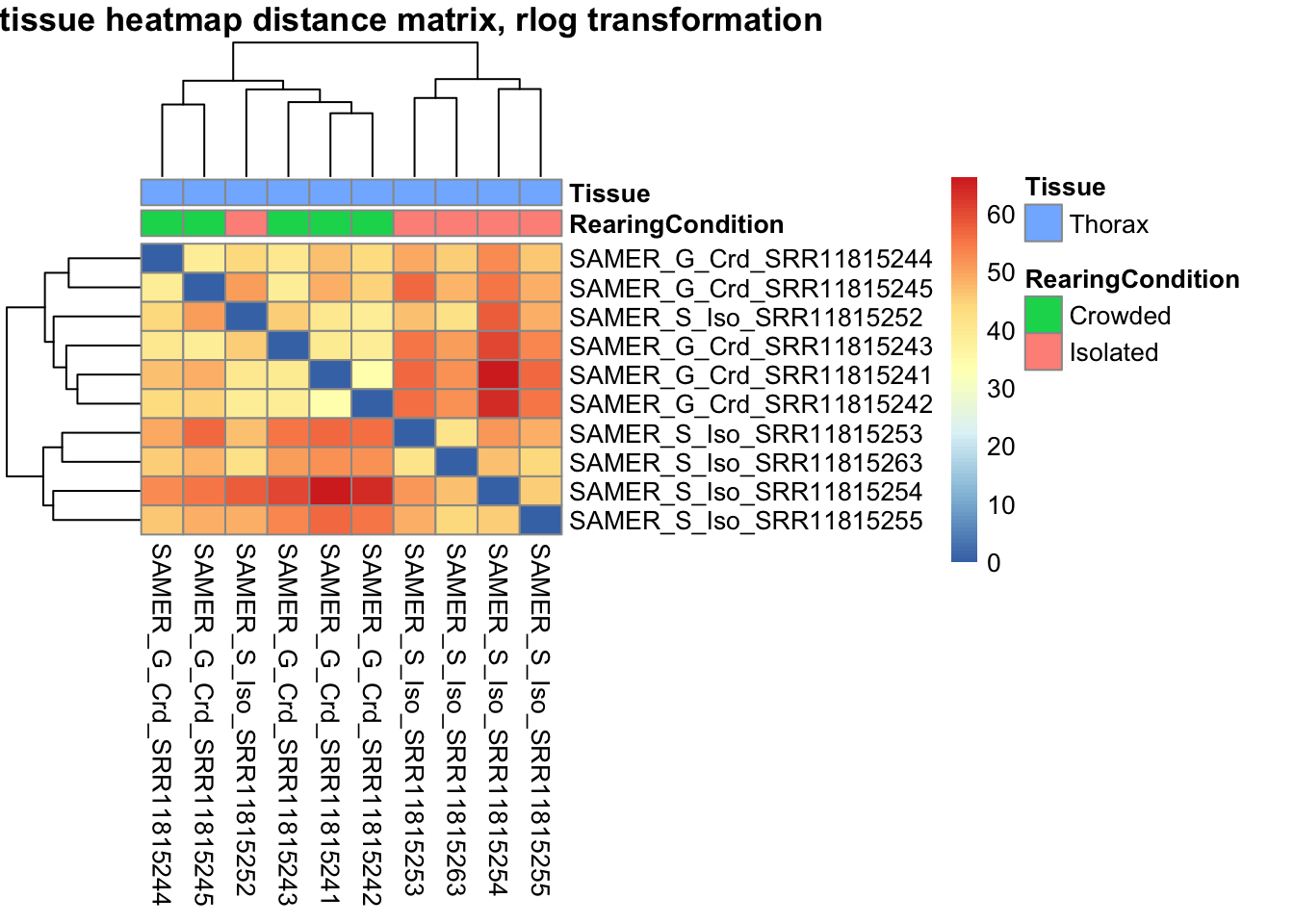

sampleDistMatrix.rlog <- as.matrix(dist(t(assay(shigeru_rlog))))
pheatmap(sampleDistMatrix.rlog, annotation_col=metadata, main = "Head tissue heatmap distance matrix, rlog transformation")

sampleDistMatrix.vst<- as.matrix(dist(t(assay(shigeru_vst))))
pheatmap(sampleDistMatrix.vst, annotation_col=metadata, main = "Head tissue heatmap distance matrix, rlog transformation")

---

MA plot

The following plots are interactive and we can hover or Zoom on the locus of interest.

# Ma plot parameters after shrinkage
de_shrink <- lfcShrink(dds = shigeru, coef="RearingCondition_Crowded_vs_Isolated", type="apeglm")
#head(de_shrink)
maplot <-ggmaplot(de_shrink, fdr = 0.05, fc = 1, size = 1, palette = c("#B31B21", "#1465AC", "darkgray"), genenames = as.vector(rownames(de_shrink$name)), top = 0,legend="top",label.select = NULL) +
  coord_cartesian(xlim = c(0, 20)) +
  scale_y_continuous(limits=c(-12, 12)) +
  theme(axis.text.x = element_text(size=12),axis.text.y = element_text(size=12),axis.title.x = element_text(size=14),axis.title.y = element_text(size=14),axis.line = element_line(size = 1, colour="gray20"),axis.ticks = element_line(size = 1, colour="gray20")) +
  guides(color = guide_legend(override.aes = list(size = c(3,3,3)))) +
  theme(legend.position = c(0.70, 0.12),legend.text=element_text(size=14,face="bold"),legend.background = element_rect(fill="transparent")) +
  theme(plot.title = element_text(size=18, colour="gray30", face="bold",hjust=0.06, vjust=-5)) +
  labs(title="MA-plot for the shrunken log2 fold changes in the Head tissues")
interactive_maplot <- ggplotly(maplot)
interactive_maplot

---

Volcano plot

#Volcano plot
keyvals <-ifelse(
  res_shigeru$log2FoldChange >= 1 & res_shigeru$padj <= 0.05, '#B31B21',
  ifelse(res_shigeru$log2FoldChange <= -1 & res_shigeru$padj <= 0.05, '#1465AC', 'darkgray'))

keyvals[is.na(keyvals)] <-'lightgray'
names(keyvals)[keyvals == "#B31B21"] <-'Upregulated'
names(keyvals)[keyvals == "#1465AC"] <-'Downregulated'
names(keyvals)[keyvals == 'darkgray'] <-'NS'

res_shigeru$color <- keyvals
volcano_plot <- ggplot(res_shigeru, aes(x = log2FoldChange, y = -log10(padj),
                                        color = color,  # Use the color column with keyvals
                                        text = rownames(res_shigeru))) +
  geom_point(size = 3, alpha = 0.8) +
  scale_color_identity() +  # Directly use the color values from `keyvals`
  guides(color = "none") +  # Hide the color legend
  labs(title = "Volcano Plot DEG Head S. americana", x = "log2 Fold Change", y = "-log10 Adjusted P-Value") +
  theme_minimal()

# Convert to interactive plot with hover text for gene names
interactive_volcano <- ggplotly(volcano_plot, tooltip = "text") %>%
  layout(hoverlabel = list(namelength = -1))

# Display the interactive plot
interactive_volcano

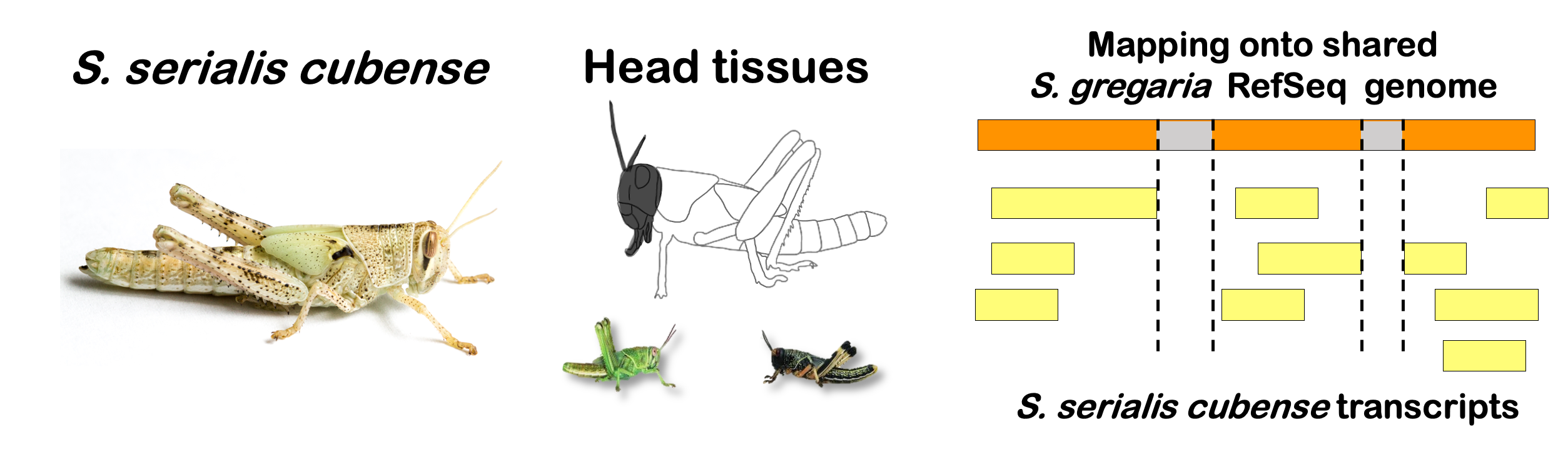

cubense

---

Total DEGs

rawDir <- file.path(workDir, "03-cubense-DESeq2-togregaria")

# Path and name of targetfile containing conditions and file names
species <- "cubense"
targetFile <- file.path(workDir, "list", paste0("Head", "_", species, "_nooutliers.txt"))

sampletable <- fread(targetFile)
rownames(sampletable) <- sampletable$SampleName
sampletable$RearingCondition <- as.factor(sampletable$RearingCondition)
sampletable$Tissue <- as.factor(sampletable$Tissue)

## Import count files
satoshi <- DESeqDataSetFromHTSeqCount(sampleTable = sampletable,
                        directory = rawDir,
                        design = ~ RearingCondition )
#satoshi

smallestGroupSize <- 3
keep <- rowSums(counts(satoshi) >= 5) >= smallestGroupSize
satoshi <- satoshi[keep,]
#nrow(satoshi)
satoshi$RearingCondition <- relevel(satoshi$RearingCondition, ref = "Isolated")

# Fit the statistical model
shigeru <- DESeq(satoshi)
#cbind(resultsNames(shigeru))
res_shigeru <- results(shigeru)
sum(res_shigeru$padj < tresh_padj, na.rm = TRUE)

[1] 61

A total of 61 genes out of the pre-filtered 13,744 features were showing significant (corrected p-value < 0.05) differences in expression levels. However, we will only keep the ones with at least an absolute fold change > 1, so in reality we have 61 DEGs. The summary below showed how many were up-regulated and down-regulated in crowded compared to isolated it is possible to scroll it.

brock <- results(shigeru, name = "RearingCondition_Crowded_vs_Isolated", alpha = alpha_DEseq2)
summary(brock)

out of 13744 with nonzero total read count
adjusted p-value < 0.05
LFC > 0 (up)       : 30, 0.22%
LFC < 0 (down)     : 31, 0.23%
outliers [1]       : 130, 0.95%
low counts [2]     : 0, 0%
(mean count < 2)
[1] see 'cooksCutoff' argument of ?results
[2] see 'independentFiltering' argument of ?results

brock_df <- as.data.frame(brock)
brock_df$GeneID <- rownames(brock_df)

brock_df <- brock_df[!is.na(brock_df$padj) & (brock_df$padj < tresh_padj), ]
outputFile <- file.path(workDir, "DEG-results", paste0("DESeq2_results_Head_togregaria_", species, ".csv"))
write.csv(brock, file = outputFile, row.names = TRUE)

significant_brock_df <- brock_df[!is.na(brock_df$padj) & !is.na(brock_df$log2FoldChange) &
                               (brock_df$padj < tresh_padj & abs(brock_df$log2FoldChange) > tresh_logfold), ]
# Summary similar to summary(brock)
upregulated <- sum(brock$padj < tresh_padj & brock$log2FoldChange > tresh_logfold, na.rm = TRUE)  # Upregulated count
downregulated <- sum(brock$padj < tresh_padj & brock$log2FoldChange < -tresh_logfold, na.rm = TRUE)  # Downregulated count
total_genes <- sum(upregulated, downregulated)  # Total non-zero count genes
cat("Total DEGs p-value < 0.05 and absolute logFoldChange > 1:", total_genes, "\n")

Total DEGs p-value < 0.05 and absolute logFoldChange > 1: 61

cat("LFC > 0 (up)       :", upregulated, ",", round((upregulated / total_genes) * 100, 2), "%\n")

LFC > 0 (up)       : 30 , 49.18 %

cat("LFC < 0 (down)     :", downregulated, ",", round((downregulated / total_genes) * 100, 2), "%\n")

LFC < 0 (down)     : 31 , 50.82 %

meta_brock_df <- merge(significant_brock_df, allspecies_df, by.x = "GeneID", by.y = "GeneID", all.x = TRUE)
meta_brock_df <- meta_brock_df[, c("GeneID", "GeneType", "Description",  "Species",
                                   "baseMean", "log2FoldChange", "lfcSE", "stat", "pvalue", "padj")]
numeric_cols <- c("baseMean", "log2FoldChange", "lfcSE", "stat", "pvalue", "padj")
meta_brock_df[numeric_cols] <- round(meta_brock_df[numeric_cols], 2)
meta_brock_df$row_color <- ifelse(meta_brock_df$log2FoldChange > 1, "red",
                                  ifelse(meta_brock_df$log2FoldChange < -1, "blue", "black"))
meta_brock_df$row_weight <- ifelse(abs(meta_brock_df$log2FoldChange) > 1, "bold", "normal")
# Display the data table with italic formatting for Species column, color-coded, and bold text rows
datatable(meta_brock_df, options = list(
    pageLength = 10,       # Set initial page length
    scrollX = TRUE,        # Enable horizontal scrolling
    autoWidth = TRUE,      # Adjust column width automatically
    searchHighlight = TRUE # Highlight search matches
  ),
  rownames = FALSE,
  escape = FALSE  # Allows HTML formatting in table cells
) %>%
  formatStyle(
    'Species', target = 'cell',
    fontStyle = 'italic'
  ) %>%
  formatStyle(
    columns = names(meta_brock_df),
    target = 'row',
    color = styleEqual(c("red", "blue", "black"), c("red", "blue", "black")), # Apply row color
    fontWeight = styleEqual(c("bold", "normal"), c("bold", "normal")), # Apply bold font for up/downregulated rows
    backgroundColor = styleEqual(c("red", "blue", "black"), c("white", "white", "white")) # Keep background white
  )

# Define the output file path
outputFile <- file.path(workDir, "DEG-results", paste0("DESeq2_sigresults_Head_togregaria_", species, ".csv"))
write.csv(brock_df, file = outputFile, row.names = TRUE)

---

Normalization and PCA

# Try with the data transformation
shigeru_vst <- vst(shigeru)
shigeru_rlog <- rlog(shigeru)
shigeru_ntd <- normTransform(shigeru)
itadori <- meanSdPlot(assay(shigeru_ntd))

itadori2 <- itadori$gg + ggtitle("Transformation with ntd")
megumi <- meanSdPlot(assay(shigeru_vst))

megumi2 <- megumi$gg + ggtitle("Transformation with vst")
nobara <- meanSdPlot(assay(shigeru_rlog))

nobara2 <-nobara$gg + ggtitle("Transformation with rlog")

# Create the pca on the defined groups
pcaData1 <- plotPCA(object = shigeru_rlog, intgroup = c("RearingCondition"),returnData=TRUE)
percentVar <- round(100 * attr(pcaData1, "percentVar"))
pcaData1$RearingCondition<-factor(pcaData1$RearingCondition,levels=c("Crowded","Isolated"), labels=c("Crowded S. cubense","Isolated S. cubense"))
#levels(pcaData1$RearingCondition)
p1 <- ggplot(pcaData1, aes(PC1, PC2, color= RearingCondition)) +
  geom_point(size=6) +
  xlab(paste0("PC1: ", percentVar[1], "% variance")) +
  ylab(paste0("PC2: ", percentVar[2], "% variance")) +
  scale_color_manual(values = c("blue", "red")) +
  #coord_fixed() +
  theme_bw() +
  theme(legend.title = element_blank()) +
  theme(legend.text = element_text(face="bold", size=16)) +
  theme(axis.text = element_text(size=14)) +
  theme(axis.title = element_text(size=14))
p1 + geom_convexhull(aes(fill = RearingCondition, color = RearingCondition), alpha = 0.5) +
    scale_fill_manual(values = c("blue", "red"))+
    ggtitle("PCA on S. cubense Head tissues", subtitle = "rlog transformation")

pcaData2 <- plotPCA(object = shigeru_vst, intgroup = c("RearingCondition"),returnData=TRUE)
percentVar <- round(100 * attr(pcaData2, "percentVar"))
pcaData2$RearingCondition<-factor(pcaData2$RearingCondition,levels=c("Crowded","Isolated"), labels=c("Crowded S. cubense","Isolated S. cubense"))
#levels(pcaData2$RearingCondition)
p2 <-ggplot(pcaData2, aes(PC1, PC2, color= RearingCondition)) +
  geom_point(size=6) +
  xlab(paste0("PC1: ", percentVar[1], "% variance")) +
  ylab(paste0("PC2: ", percentVar[2], "% variance")) +
  scale_color_manual(values = c("blue", "red")) +
  #coord_fixed() +
  theme_bw() +
  theme(legend.title = element_blank()) +
  theme(legend.text = element_text(face="bold", size=16)) +
  theme(axis.text = element_text(size=14)) +
  theme(axis.title = element_text(size=14))
p2 + geom_convexhull(aes(fill = RearingCondition, color = RearingCondition), alpha = 0.5) +
    scale_fill_manual(values = c("blue", "red"))+
    ggtitle("PCA on S. cubense Head tissues", subtitle = "vst transformation")

select <- order(rowMeans(counts(shigeru,normalized=TRUE)),
                decreasing=TRUE)[1:12]
df <- as.data.frame(colData(shigeru)[,c("RearingCondition","Tissue")])

---

Count matrix heatmap

# Count matrix
pheatmap(assay(shigeru_ntd)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after norm transformation")

pheatmap(assay(shigeru_vst)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after vst transformation")

pheatmap(assay(shigeru_rlog)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after rlog transformation")

# calculate between-sample distance matrix
metadata <- sampletable[,c("RearingCondition", "Tissue")]
rownames(metadata) <- sampletable$SampleName
sampleDistMatrix.rlog <- as.matrix(dist(t(assay(shigeru_rlog))))
pheatmap(sampleDistMatrix.rlog, annotation_col=metadata, main = "Head tissue heatmap distance matrix, rlog transformation")

sampleDistMatrix.vst<- as.matrix(dist(t(assay(shigeru_vst))))
pheatmap(sampleDistMatrix.vst, annotation_col=metadata, main = "Head tissue heatmap distance matrix, rlog transformation")

---

MA plot

The following plots are interactive and we can hover or Zoom on the locus of interest.

# Ma plot parameters after shrinkage
de_shrink <- lfcShrink(dds = shigeru, coef="RearingCondition_Crowded_vs_Isolated", type="apeglm")
#head(de_shrink)
maplot <-ggmaplot(de_shrink, fdr = 0.05, fc = 1, size = 1, palette = c("#B31B21", "#1465AC", "darkgray"), genenames = as.vector(rownames(de_shrink$name)), top = 0,legend="top",label.select = NULL) +
  coord_cartesian(xlim = c(0, 20)) +
  scale_y_continuous(limits=c(-12, 12)) +
  theme(axis.text.x = element_text(size=12),axis.text.y = element_text(size=12),axis.title.x = element_text(size=14),axis.title.y = element_text(size=14),axis.line = element_line(size = 1, colour="gray20"),axis.ticks = element_line(size = 1, colour="gray20")) +
  guides(color = guide_legend(override.aes = list(size = c(3,3,3)))) +
  theme(legend.position = c(0.70, 0.12),legend.text=element_text(size=14,face="bold"),legend.background = element_rect(fill="transparent")) +
  theme(plot.title = element_text(size=18, colour="gray30", face="bold",hjust=0.06, vjust=-5)) +
  labs(title="MA-plot for the shrunken log2 fold changes in the Head tissues")
interactive_maplot <- ggplotly(maplot)
interactive_maplot

---

Volcano plot

#Volcano plot
keyvals <-ifelse(
  res_shigeru$log2FoldChange >= 1 & res_shigeru$padj <= 0.05, '#B31B21',
  ifelse(res_shigeru$log2FoldChange <= -1 & res_shigeru$padj <= 0.05, '#1465AC', 'darkgray'))

keyvals[is.na(keyvals)] <-'lightgray'
names(keyvals)[keyvals == "#B31B21"] <-'Upregulated'
names(keyvals)[keyvals == "#1465AC"] <-'Downregulated'
names(keyvals)[keyvals == 'darkgray'] <-'NS'

res_shigeru$color <- keyvals
volcano_plot <- ggplot(res_shigeru, aes(x = log2FoldChange, y = -log10(padj),
                                        color = color,  # Use the color column with keyvals
                                        text = rownames(res_shigeru))) +
  geom_point(size = 3, alpha = 0.8) +
  scale_color_identity() +  # Directly use the color values from `keyvals`
  guides(color = "none") +  # Hide the color legend
  labs(title = "Volcano Plot DEG Head S. cubense", x = "log2 Fold Change", y = "-log10 Adjusted P-Value") +
  theme_minimal()

# Convert to interactive plot with hover text for gene names
interactive_volcano <- ggplotly(volcano_plot, tooltip = "text") %>%
  layout(hoverlabel = list(namelength = -1))

# Display the interactive plot
interactive_volcano

nitens

---

Total DEGs

rawDir <- file.path(workDir, "03-nitens-DESeq2-togregaria")

# Path and name of targetfile containing conditions and file names
species <- "nitens"
targetFile <- file.path(workDir, "list", paste0("Head", "_", species, "_nooutliers.txt"))

sampletable <- fread(targetFile)
rownames(sampletable) <- sampletable$SampleName
sampletable$RearingCondition <- as.factor(sampletable$RearingCondition)
sampletable$Tissue <- as.factor(sampletable$Tissue)

## Import count files
satoshi <- DESeqDataSetFromHTSeqCount(sampleTable = sampletable,
                        directory = rawDir,
                        design = ~ RearingCondition )
#satoshi

smallestGroupSize <- 3
keep <- rowSums(counts(satoshi) >= 5) >= smallestGroupSize
satoshi <- satoshi[keep,]
#nrow(satoshi)
satoshi$RearingCondition <- relevel(satoshi$RearingCondition, ref = "Isolated")

# Fit the statistical model
shigeru <- DESeq(satoshi)
#cbind(resultsNames(shigeru))
res_shigeru <- results(shigeru)
sum(res_shigeru$padj < tresh_padj, na.rm = TRUE)

[1] 454

A total of 454 genes out of the pre-filtered 13,406 features were showing significant (corrected p-value < 0.05) differences in expression levels. However, we will only keep the ones with at least an absolute fold change > 1, so in reality we have 311 DEGs. The summary below showed how many were up-regulated and down-regulated in crowded compared to isolated it is possible to scroll it.

brock <- results(shigeru, name = "RearingCondition_Crowded_vs_Isolated", alpha = alpha_DEseq2)
summary(brock)

out of 13406 with nonzero total read count
adjusted p-value < 0.05
LFC > 0 (up)       : 189, 1.4%
LFC < 0 (down)     : 259, 1.9%
outliers [1]       : 120, 0.9%
low counts [2]     : 780, 5.8%
(mean count < 6)
[1] see 'cooksCutoff' argument of ?results
[2] see 'independentFiltering' argument of ?results

brock_df <- as.data.frame(brock)
brock_df$GeneID <- rownames(brock_df)

brock_df <- brock_df[!is.na(brock_df$padj) & (brock_df$padj < tresh_padj), ]
outputFile <- file.path(workDir, "DEG-results", paste0("DESeq2_results_Head_togregaria_", species, ".csv"))
write.csv(brock, file = outputFile, row.names = TRUE)

significant_brock_df <- brock_df[!is.na(brock_df$padj) & !is.na(brock_df$log2FoldChange) &
                               (brock_df$padj < tresh_padj & abs(brock_df$log2FoldChange) > tresh_logfold), ]
# Summary similar to summary(brock)
upregulated <- sum(brock$padj < tresh_padj & brock$log2FoldChange > tresh_logfold, na.rm = TRUE)  # Upregulated count
downregulated <- sum(brock$padj < tresh_padj & brock$log2FoldChange < -tresh_logfold, na.rm = TRUE)  # Downregulated count
total_genes <- sum(upregulated, downregulated)  # Total non-zero count genes
cat("Total DEGs p-value < 0.05 and absolute logFoldChange > 1:", total_genes, "\n")

Total DEGs p-value < 0.05 and absolute logFoldChange > 1: 311

cat("LFC > 0 (up)       :", upregulated, ",", round((upregulated / total_genes) * 100, 2), "%\n")

LFC > 0 (up)       : 104 , 33.44 %

cat("LFC < 0 (down)     :", downregulated, ",", round((downregulated / total_genes) * 100, 2), "%\n")

LFC < 0 (down)     : 207 , 66.56 %

meta_brock_df <- merge(significant_brock_df, allspecies_df, by.x = "GeneID", by.y = "GeneID", all.x = TRUE)
meta_brock_df <- meta_brock_df[, c("GeneID", "GeneType", "Description",  "Species",
                                   "baseMean", "log2FoldChange", "lfcSE", "stat", "pvalue", "padj")]
numeric_cols <- c("baseMean", "log2FoldChange", "lfcSE", "stat", "pvalue", "padj")
meta_brock_df[numeric_cols] <- round(meta_brock_df[numeric_cols], 2)
meta_brock_df$row_color <- ifelse(meta_brock_df$log2FoldChange > 1, "red",
                                  ifelse(meta_brock_df$log2FoldChange < -1, "blue", "black"))
meta_brock_df$row_weight <- ifelse(abs(meta_brock_df$log2FoldChange) > 1, "bold", "normal")
# Display the data table with italic formatting for Species column, color-coded, and bold text rows
datatable(meta_brock_df, options = list(
    pageLength = 10,       # Set initial page length
    scrollX = TRUE,        # Enable horizontal scrolling
    autoWidth = TRUE,      # Adjust column width automatically
    searchHighlight = TRUE # Highlight search matches
  ),
  rownames = FALSE,
  escape = FALSE  # Allows HTML formatting in table cells
) %>%
  formatStyle(
    'Species', target = 'cell',
    fontStyle = 'italic'
  ) %>%
  formatStyle(
    columns = names(meta_brock_df),
    target = 'row',
    color = styleEqual(c("red", "blue", "black"), c("red", "blue", "black")), # Apply row color
    fontWeight = styleEqual(c("bold", "normal"), c("bold", "normal")), # Apply bold font for up/downregulated rows
    backgroundColor = styleEqual(c("red", "blue", "black"), c("white", "white", "white")) # Keep background white
  )

# Define the output file path
outputFile <- file.path(workDir, "DEG-results", paste0("DESeq2_sigresults_Head_togregaria_", species, ".csv"))
write.csv(brock_df, file = outputFile, row.names = TRUE)

---

Normalization and PCA

# Try with the data transformation
shigeru_vst <- vst(shigeru)
shigeru_rlog <- rlog(shigeru)
shigeru_ntd <- normTransform(shigeru)
itadori <- meanSdPlot(assay(shigeru_ntd))

itadori2 <- itadori$gg + ggtitle("Transformation with ntd")
megumi <- meanSdPlot(assay(shigeru_vst))

megumi2 <- megumi$gg + ggtitle("Transformation with vst")
nobara <- meanSdPlot(assay(shigeru_rlog))

nobara2 <-nobara$gg + ggtitle("Transformation with rlog")

# Create the pca on the defined groups
pcaData1 <- plotPCA(object = shigeru_rlog, intgroup = c("RearingCondition"),returnData=TRUE)
percentVar <- round(100 * attr(pcaData1, "percentVar"))
pcaData1$RearingCondition<-factor(pcaData1$RearingCondition,levels=c("Crowded","Isolated"), labels=c("Crowded S. nitens","Isolated S. nitens"))
#levels(pcaData1$RearingCondition)
p1 <- ggplot(pcaData1, aes(PC1, PC2, color= RearingCondition)) +
  geom_point(size=6) +
  xlab(paste0("PC1: ", percentVar[1], "% variance")) +
  ylab(paste0("PC2: ", percentVar[2], "% variance")) +
  scale_color_manual(values = c("blue", "red")) +
  #coord_fixed() +
  theme_bw() +
  theme(legend.title = element_blank()) +
  theme(legend.text = element_text(face="bold", size=16)) +
  theme(axis.text = element_text(size=14)) +
  theme(axis.title = element_text(size=14))
p1 + geom_convexhull(aes(fill = RearingCondition, color = RearingCondition), alpha = 0.5) +
    scale_fill_manual(values = c("blue", "red"))+
    ggtitle("PCA on S. nitens Head tissues", subtitle = "rlog transformation")

pcaData2 <- plotPCA(object = shigeru_vst, intgroup = c("RearingCondition"),returnData=TRUE)
percentVar <- round(100 * attr(pcaData2, "percentVar"))
pcaData2$RearingCondition<-factor(pcaData2$RearingCondition,levels=c("Crowded","Isolated"), labels=c("Crowded S. nitens","Isolated S. nitens"))
#levels(pcaData2$RearingCondition)
p2 <-ggplot(pcaData2, aes(PC1, PC2, color= RearingCondition)) +
  geom_point(size=6) +
  xlab(paste0("PC1: ", percentVar[1], "% variance")) +
  ylab(paste0("PC2: ", percentVar[2], "% variance")) +
  scale_color_manual(values = c("blue", "red")) +
  #coord_fixed() +
  theme_bw() +
  theme(legend.title = element_blank()) +
  theme(legend.text = element_text(face="bold", size=16)) +
  theme(axis.text = element_text(size=14)) +
  theme(axis.title = element_text(size=14))
p2 + geom_convexhull(aes(fill = RearingCondition, color = RearingCondition), alpha = 0.5) +
    scale_fill_manual(values = c("blue", "red"))+
    ggtitle("PCA on S. nitens Head tissues", subtitle = "vst transformation")

select <- order(rowMeans(counts(shigeru,normalized=TRUE)),
                decreasing=TRUE)[1:12]
df <- as.data.frame(colData(shigeru)[,c("RearingCondition","Tissue")])

---

Count matrix heatmap

# Count matrix
pheatmap(assay(shigeru_ntd)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after norm transformation")

pheatmap(assay(shigeru_vst)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after vst transformation")

pheatmap(assay(shigeru_rlog)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after rlog transformation")

# calculate between-sample distance matrix
metadata <- sampletable[,c("RearingCondition", "Tissue")]
rownames(metadata) <- sampletable$SampleName
sampleDistMatrix.rlog <- as.matrix(dist(t(assay(shigeru_rlog))))
pheatmap(sampleDistMatrix.rlog, annotation_col=metadata, main = "Head tissue heatmap distance matrix, rlog transformation")

sampleDistMatrix.vst<- as.matrix(dist(t(assay(shigeru_vst))))
pheatmap(sampleDistMatrix.vst, annotation_col=metadata, main = "Head tissue heatmap distance matrix, rlog transformation")

---

MA plot

The following plots are interactive and we can hover or Zoom on the locus of interest.

# Ma plot parameters after shrinkage
de_shrink <- lfcShrink(dds = shigeru, coef="RearingCondition_Crowded_vs_Isolated", type="apeglm")
#head(de_shrink)
maplot <-ggmaplot(de_shrink, fdr = 0.05, fc = 1, size = 1, palette = c("#B31B21", "#1465AC", "darkgray"), genenames = as.vector(rownames(de_shrink$name)), top = 0,legend="top",label.select = NULL) +
  coord_cartesian(xlim = c(0, 20)) +
  scale_y_continuous(limits=c(-12, 12)) +
  theme(axis.text.x = element_text(size=12),axis.text.y = element_text(size=12),axis.title.x = element_text(size=14),axis.title.y = element_text(size=14),axis.line = element_line(size = 1, colour="gray20"),axis.ticks = element_line(size = 1, colour="gray20")) +
  guides(color = guide_legend(override.aes = list(size = c(3,3,3)))) +
  theme(legend.position = c(0.70, 0.12),legend.text=element_text(size=14,face="bold"),legend.background = element_rect(fill="transparent")) +
  theme(plot.title = element_text(size=18, colour="gray30", face="bold",hjust=0.06, vjust=-5)) +
  labs(title="MA-plot for the shrunken log2 fold changes in the Head tissues")
interactive_maplot <- ggplotly(maplot)
interactive_maplot

---

Volcano plot

#Volcano plot
keyvals <-ifelse(
  res_shigeru$log2FoldChange >= 1 & res_shigeru$padj <= 0.05, '#B31B21',
  ifelse(res_shigeru$log2FoldChange <= -1 & res_shigeru$padj <= 0.05, '#1465AC', 'darkgray'))

keyvals[is.na(keyvals)] <-'lightgray'
names(keyvals)[keyvals == "#B31B21"] <-'Upregulated'
names(keyvals)[keyvals == "#1465AC"] <-'Downregulated'
names(keyvals)[keyvals == 'darkgray'] <-'NS'

res_shigeru$color <- keyvals
volcano_plot <- ggplot(res_shigeru, aes(x = log2FoldChange, y = -log10(padj),
                                        color = color,  # Use the color column with keyvals
                                        text = rownames(res_shigeru))) +
  geom_point(size = 3, alpha = 0.8) +
  scale_color_identity() +  # Directly use the color values from `keyvals`
  guides(color = "none") +  # Hide the color legend
  labs(title = "Volcano Plot DEG Head S. nitens", x = "log2 Fold Change", y = "-log10 Adjusted P-Value") +
  theme_minimal()

# Convert to interactive plot with hover text for gene names
interactive_volcano <- ggplotly(volcano_plot, tooltip = "text") %>%
  layout(hoverlabel = list(namelength = -1))

# Display the interactive plot
interactive_volcano

2. DEGs in bulk Thorax tissues

gregaria

---

Total DEGs

rawDir <- file.path(workDir, "03-gregaria-DESeq2-togregaria")

# Path and name of targetfile containing conditions and file names
species <- "gregaria"
targetFile <- file.path(workDir, "list", paste0("Thorax", "_", species, "_nooutliers.txt"))

sampletable <- fread(targetFile)
rownames(sampletable) <- sampletable$SampleName
sampletable$RearingCondition <- as.factor(sampletable$RearingCondition)
sampletable$Tissue <- as.factor(sampletable$Tissue)

## Import count files
satoshi <- DESeqDataSetFromHTSeqCount(sampleTable = sampletable,
                        directory = rawDir,
                        design = ~ RearingCondition )
#satoshi

smallestGroupSize <- 3
keep <- rowSums(counts(satoshi) >= 5) >= smallestGroupSize
satoshi <- satoshi[keep,]
#nrow(satoshi)
satoshi$RearingCondition <- relevel(satoshi$RearingCondition, ref = "Isolated")

# Fit the statistical model
shigeru <- DESeq(satoshi)
#cbind(resultsNames(shigeru))
res_shigeru <- results(shigeru)
sum(res_shigeru$padj < tresh_padj, na.rm = TRUE)

[1] 5442

A total of 5,442 genes out of the pre-filtered 16,613 features were showing significant (corrected p-value < 0.05) differences in expression levels. However, we will only keep the ones with at least an absolute fold change > 1, so in reality we have 1,796 DEGs. The summary below showed how many were up-regulated and down-regulated in crowded compared to isolated it is possible to scroll it.

brock <- results(shigeru, name = "RearingCondition_Crowded_vs_Isolated", alpha = alpha_DEseq2)
summary(brock)

out of 16613 with nonzero total read count
adjusted p-value < 0.05
LFC > 0 (up)       : 2751, 17%
LFC < 0 (down)     : 2691, 16%
outliers [1]       : 112, 0.67%
low counts [2]     : 0, 0%
(mean count < 2)
[1] see 'cooksCutoff' argument of ?results
[2] see 'independentFiltering' argument of ?results

brock_df <- as.data.frame(brock)
brock_df$GeneID <- rownames(brock_df)

brock_df <- brock_df[!is.na(brock_df$padj) & (brock_df$padj < tresh_padj), ]
outputFile <- file.path(workDir, "DEG-results", paste0("DESeq2_results_Thorax_togregaria_", species, ".csv"))
write.csv(brock, file = outputFile, row.names = TRUE)

significant_brock_df <- brock_df[!is.na(brock_df$padj) & !is.na(brock_df$log2FoldChange) &
                               (brock_df$padj < tresh_padj & abs(brock_df$log2FoldChange) > tresh_logfold), ]
# Summary similar to summary(brock)
upregulated <- sum(brock$padj < tresh_padj & brock$log2FoldChange > tresh_logfold, na.rm = TRUE)  # Upregulated count
downregulated <- sum(brock$padj < tresh_padj & brock$log2FoldChange < -tresh_logfold, na.rm = TRUE)  # Downregulated count
total_genes <- sum(upregulated, downregulated)  # Total non-zero count genes
cat("Total DEGs p-value < 0.05 and absolute logFoldChange > 1:", total_genes, "\n")

Total DEGs p-value < 0.05 and absolute logFoldChange > 1: 1796

cat("LFC > 0 (up)       :", upregulated, ",", round((upregulated / total_genes) * 100, 2), "%\n")

LFC > 0 (up)       : 622 , 34.63 %

cat("LFC < 0 (down)     :", downregulated, ",", round((downregulated / total_genes) * 100, 2), "%\n")

LFC < 0 (down)     : 1174 , 65.37 %

meta_brock_df <- merge(significant_brock_df, allspecies_df, by.x = "GeneID", by.y = "GeneID", all.x = TRUE)
meta_brock_df <- meta_brock_df[, c("GeneID", "GeneType", "Description",  "Species",
                                   "baseMean", "log2FoldChange", "lfcSE", "stat", "pvalue", "padj")]
numeric_cols <- c("baseMean", "log2FoldChange", "lfcSE", "stat", "pvalue", "padj")
meta_brock_df[numeric_cols] <- round(meta_brock_df[numeric_cols], 2)
meta_brock_df$row_color <- ifelse(meta_brock_df$log2FoldChange > 1, "red",
                                  ifelse(meta_brock_df$log2FoldChange < -1, "blue", "black"))
meta_brock_df$row_weight <- ifelse(abs(meta_brock_df$log2FoldChange) > 1, "bold", "normal")
# Display the data table with italic formatting for Species column, color-coded, and bold text rows
datatable(meta_brock_df, options = list(
    pageLength = 10,       # Set initial page length
    scrollX = TRUE,        # Enable horizontal scrolling
    autoWidth = TRUE,      # Adjust column width automatically
    searchHighlight = TRUE # Highlight search matches
  ),
  rownames = FALSE,
  escape = FALSE  # Allows HTML formatting in table cells
) %>%
  formatStyle(
    'Species', target = 'cell',
    fontStyle = 'italic'
  ) %>%
  formatStyle(
    columns = names(meta_brock_df),
    target = 'row',
    color = styleEqual(c("red", "blue", "black"), c("red", "blue", "black")), # Apply row color
    fontWeight = styleEqual(c("bold", "normal"), c("bold", "normal")), # Apply bold font for up/downregulated rows
    backgroundColor = styleEqual(c("red", "blue", "black"), c("white", "white", "white")) # Keep background white
  )

# Define the output file path
outputFile <- file.path(workDir, "DEG-results", paste0("DESeq2_sigresults_Thorax_togregaria_", species, ".csv"))
write.csv(brock_df, file = outputFile, row.names = TRUE)

---

Normalization and PCA

# Try with the data transformation
shigeru_vst <- vst(shigeru)
shigeru_rlog <- rlog(shigeru)
shigeru_ntd <- normTransform(shigeru)
itadori <- meanSdPlot(assay(shigeru_ntd))

itadori2 <- itadori$gg + ggtitle("Transformation with ntd")
megumi <- meanSdPlot(assay(shigeru_vst))

megumi2 <- megumi$gg + ggtitle("Transformation with vst")
nobara <- meanSdPlot(assay(shigeru_rlog))

nobara2 <-nobara$gg + ggtitle("Transformation with rlog")

# Create the pca on the defined groups
pcaData1 <- plotPCA(object = shigeru_rlog, intgroup = c("RearingCondition"),returnData=TRUE)
percentVar <- round(100 * attr(pcaData1, "percentVar"))
pcaData1$RearingCondition<-factor(pcaData1$RearingCondition,levels=c("Crowded","Isolated"), labels=c("Crowded S. gregaria","Isolated S. gregaria"))
#levels(pcaData1$RearingCondition)
p1 <- ggplot(pcaData1, aes(PC1, PC2, color= RearingCondition)) +
  geom_point(size=6) +
  xlab(paste0("PC1: ", percentVar[1], "% variance")) +
  ylab(paste0("PC2: ", percentVar[2], "% variance")) +
  scale_color_manual(values = c("blue", "red")) +
  #coord_fixed() +
  theme_bw() +
  theme(legend.title = element_blank()) +
  theme(legend.text = element_text(face="bold", size=16)) +
  theme(axis.text = element_text(size=14)) +
  theme(axis.title = element_text(size=14))
p1 + geom_convexhull(aes(fill = RearingCondition, color = RearingCondition), alpha = 0.5) +
    scale_fill_manual(values = c("blue", "red"))+
    ggtitle("PCA on S. gregaria Thorax tissues", subtitle = "rlog transformation")

pcaData2 <- plotPCA(object = shigeru_vst, intgroup = c("RearingCondition"),returnData=TRUE)
percentVar <- round(100 * attr(pcaData2, "percentVar"))
pcaData2$RearingCondition<-factor(pcaData2$RearingCondition,levels=c("Crowded","Isolated"), labels=c("Crowded S. gregaria","Isolated S. gregaria"))
#levels(pcaData2$RearingCondition)
p2 <-ggplot(pcaData2, aes(PC1, PC2, color= RearingCondition)) +
  geom_point(size=6) +
  xlab(paste0("PC1: ", percentVar[1], "% variance")) +
  ylab(paste0("PC2: ", percentVar[2], "% variance")) +
  scale_color_manual(values = c("blue", "red")) +
  #coord_fixed() +
  theme_bw() +
  theme(legend.title = element_blank()) +
  theme(legend.text = element_text(face="bold", size=16)) +
  theme(axis.text = element_text(size=14)) +
  theme(axis.title = element_text(size=14))
p2 + geom_convexhull(aes(fill = RearingCondition, color = RearingCondition), alpha = 0.5) +
    scale_fill_manual(values = c("blue", "red"))+
    ggtitle("PCA on S. gregaria Thorax tissues", subtitle = "vst transformation")

select <- order(rowMeans(counts(shigeru,normalized=TRUE)),
                decreasing=TRUE)[1:12]
df <- as.data.frame(colData(shigeru)[,c("RearingCondition","Tissue")])

---

Count matrix heatmap

# Count matrix
pheatmap(assay(shigeru_ntd)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after norm transformation")

pheatmap(assay(shigeru_vst)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after vst transformation")

pheatmap(assay(shigeru_rlog)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after rlog transformation")

# calculate between-sample distance matrix
metadata <- sampletable[,c("RearingCondition", "Tissue")]
rownames(metadata) <- sampletable$SampleName
sampleDistMatrix.rlog <- as.matrix(dist(t(assay(shigeru_rlog))))
pheatmap(sampleDistMatrix.rlog, annotation_col=metadata, main = "Thorax tissue heatmap distance matrix, rlog transformation")

sampleDistMatrix.vst<- as.matrix(dist(t(assay(shigeru_vst))))
pheatmap(sampleDistMatrix.vst, annotation_col=metadata, main = "Thorax tissue heatmap distance matrix, rlog transformation")

---

MA plot

The following plots are interactive and we can hover or Zoom on the locus of interest.

# Ma plot parameters after shrinkage
de_shrink <- lfcShrink(dds = shigeru, coef="RearingCondition_Crowded_vs_Isolated", type="apeglm")
#Thorax(de_shrink)
maplot <-ggmaplot(de_shrink, fdr = 0.05, fc = 1, size = 1, palette = c("#B31B21", "#1465AC", "darkgray"), genenames = as.vector(rownames(de_shrink$name)), top = 0,legend="top",label.select = NULL) +
  coord_cartesian(xlim = c(0, 20)) +
  scale_y_continuous(limits=c(-12, 12)) +
  theme(axis.text.x = element_text(size=12),axis.text.y = element_text(size=12),axis.title.x = element_text(size=14),axis.title.y = element_text(size=14),axis.line = element_line(size = 1, colour="gray20"),axis.ticks = element_line(size = 1, colour="gray20")) +
  guides(color = guide_legend(override.aes = list(size = c(3,3,3)))) +
  theme(legend.position = c(0.70, 0.12),legend.text=element_text(size=14,face="bold"),legend.background = element_rect(fill="transparent")) +
  theme(plot.title = element_text(size=18, colour="gray30", face="bold",hjust=0.06, vjust=-5)) +
  labs(title="MA-plot for the shrunken log2 fold changes in the Thorax tissues")
interactive_maplot <- ggplotly(maplot)
interactive_maplot

---

Volcano plot

#Volcano plot
keyvals <-ifelse(
  res_shigeru$log2FoldChange >= 1 & res_shigeru$padj <= 0.05, '#B31B21',
  ifelse(res_shigeru$log2FoldChange <= -1 & res_shigeru$padj <= 0.05, '#1465AC', 'darkgray'))

keyvals[is.na(keyvals)] <-'lightgray'
names(keyvals)[keyvals == "#B31B21"] <-'Upregulated'
names(keyvals)[keyvals == "#1465AC"] <-'Downregulated'
names(keyvals)[keyvals == 'darkgray'] <-'NS'

res_shigeru$color <- keyvals
volcano_plot <- ggplot(res_shigeru, aes(x = log2FoldChange, y = -log10(padj),
                                        color = color,  # Use the color column with keyvals
                                        text = rownames(res_shigeru))) +
  geom_point(size = 3, alpha = 0.8) +
  scale_color_identity() +  # Directly use the color values from `keyvals`
  guides(color = "none") +  # Hide the color legend
  labs(title = "Volcano Plot DEG Thorax S. gregaria", x = "log2 Fold Change", y = "-log10 Adjusted P-Value") +
  theme_minimal()

# Convert to interactive plot with hover text for gene names
interactive_volcano <- ggplotly(volcano_plot, tooltip = "text") %>%
  layout(hoverlabel = list(namelength = -1))

# Display the interactive plot
interactive_volcano

piceifrons

---

Total DEGs

rawDir <- file.path(workDir, "03-piceifrons-DESeq2-togregaria")

# Path and name of targetfile containing conditions and file names
species <- "piceifrons"
targetFile <- file.path(workDir, "list", paste0("Thorax", "_", species, ".txt"))

sampletable <- fread(targetFile)
rownames(sampletable) <- sampletable$SampleName
sampletable$RearingCondition <- as.factor(sampletable$RearingCondition)
sampletable$Tissue <- as.factor(sampletable$Tissue)

## Import count files
satoshi <- DESeqDataSetFromHTSeqCount(sampleTable = sampletable,
                        directory = rawDir,
                        design = ~ RearingCondition )
#satoshi

smallestGroupSize <- 3
keep <- rowSums(counts(satoshi) >= 5) >= smallestGroupSize
satoshi <- satoshi[keep,]
#nrow(satoshi)
satoshi$RearingCondition <- relevel(satoshi$RearingCondition, ref = "Isolated")

# Fit the statistical model
shigeru <- DESeq(satoshi)
#cbind(resultsNames(shigeru))
res_shigeru <- results(shigeru)
sum(res_shigeru$padj < tresh_padj, na.rm = TRUE)

[1] 2690

A total of 2,690 genes out of the pre-filtered 13,117 features were showing significant (corrected p-value < 0.05) differences in expression levels. However, we will only keep the ones with at least an absolute fold change > 1, so in reality we have 770 DEGs. The summary below showed how many were up-regulated and down-regulated in crowded compared to isolated it is possible to scroll it.

brock <- results(shigeru, name = "RearingCondition_Crowded_vs_Isolated", alpha = alpha_DEseq2)
summary(brock)

out of 13117 with nonzero total read count
adjusted p-value < 0.05
LFC > 0 (up)       : 1517, 12%
LFC < 0 (down)     : 1200, 9.1%
outliers [1]       : 29, 0.22%
low counts [2]     : 1018, 7.8%
(mean count < 5)
[1] see 'cooksCutoff' argument of ?results
[2] see 'independentFiltering' argument of ?results

brock_df <- as.data.frame(brock)
brock_df$GeneID <- rownames(brock_df)

brock_df <- brock_df[!is.na(brock_df$padj) & (brock_df$padj < tresh_padj), ]
outputFile <- file.path(workDir, "DEG-results", paste0("DESeq2_results_Thorax_togregaria_", species, ".csv"))
write.csv(brock, file = outputFile, row.names = TRUE)

significant_brock_df <- brock_df[!is.na(brock_df$padj) & !is.na(brock_df$log2FoldChange) &
                               (brock_df$padj < tresh_padj & abs(brock_df$log2FoldChange) > tresh_logfold), ]
# Summary similar to summary(brock)
upregulated <- sum(brock$padj < tresh_padj & brock$log2FoldChange > tresh_logfold, na.rm = TRUE)  # Upregulated count
downregulated <- sum(brock$padj < tresh_padj & brock$log2FoldChange < -tresh_logfold, na.rm = TRUE)  # Downregulated count
total_genes <- sum(upregulated, downregulated)  # Total non-zero count genes
cat("Total DEGs p-value < 0.05 and absolute logFoldChange > 1:", total_genes, "\n")

Total DEGs p-value < 0.05 and absolute logFoldChange > 1: 770

cat("LFC > 0 (up)       :", upregulated, ",", round((upregulated / total_genes) * 100, 2), "%\n")

LFC > 0 (up)       : 549 , 71.3 %

cat("LFC < 0 (down)     :", downregulated, ",", round((downregulated / total_genes) * 100, 2), "%\n")

LFC < 0 (down)     : 221 , 28.7 %

meta_brock_df <- merge(significant_brock_df, allspecies_df, by.x = "GeneID", by.y = "GeneID", all.x = TRUE)
meta_brock_df <- meta_brock_df[, c("GeneID", "GeneType", "Description",  "Species",
                                   "baseMean", "log2FoldChange", "lfcSE", "stat", "pvalue", "padj")]
numeric_cols <- c("baseMean", "log2FoldChange", "lfcSE", "stat", "pvalue", "padj")
meta_brock_df[numeric_cols] <- round(meta_brock_df[numeric_cols], 2)
meta_brock_df$row_color <- ifelse(meta_brock_df$log2FoldChange > 1, "red",
                                  ifelse(meta_brock_df$log2FoldChange < -1, "blue", "black"))
meta_brock_df$row_weight <- ifelse(abs(meta_brock_df$log2FoldChange) > 1, "bold", "normal")
# Display the data table with italic formatting for Species column, color-coded, and bold text rows
datatable(meta_brock_df, options = list(
    pageLength = 10,       # Set initial page length
    scrollX = TRUE,        # Enable horizontal scrolling
    autoWidth = TRUE,      # Adjust column width automatically
    searchHighlight = TRUE # Highlight search matches
  ),
  rownames = FALSE,
  escape = FALSE  # Allows HTML formatting in table cells
) %>%
  formatStyle(
    'Species', target = 'cell',
    fontStyle = 'italic'
  ) %>%
  formatStyle(
    columns = names(meta_brock_df),
    target = 'row',
    color = styleEqual(c("red", "blue", "black"), c("red", "blue", "black")), # Apply row color
    fontWeight = styleEqual(c("bold", "normal"), c("bold", "normal")), # Apply bold font for up/downregulated rows
    backgroundColor = styleEqual(c("red", "blue", "black"), c("white", "white", "white")) # Keep background white
  )

# Define the output file path
outputFile <- file.path(workDir, "DEG-results", paste0("DESeq2_sigresults_Thorax_togregaria_", species, ".csv"))
write.csv(brock_df, file = outputFile, row.names = TRUE)

---

Normalization and PCA

# Try with the data transformation
shigeru_vst <- vst(shigeru)
shigeru_rlog <- rlog(shigeru)
shigeru_ntd <- normTransform(shigeru)
itadori <- meanSdPlot(assay(shigeru_ntd))

itadori2 <- itadori$gg + ggtitle("Transformation with ntd")
megumi <- meanSdPlot(assay(shigeru_vst))

megumi2 <- megumi$gg + ggtitle("Transformation with vst")
nobara <- meanSdPlot(assay(shigeru_rlog))

nobara2 <-nobara$gg + ggtitle("Transformation with rlog")

# Create the pca on the defined groups
pcaData1 <- plotPCA(object = shigeru_rlog, intgroup = c("RearingCondition"),returnData=TRUE)
percentVar <- round(100 * attr(pcaData1, "percentVar"))
pcaData1$RearingCondition<-factor(pcaData1$RearingCondition,levels=c("Crowded","Isolated"), labels=c("Crowded S. piceifrons","Isolated S. piceifrons"))
#levels(pcaData1$RearingCondition)
p1 <- ggplot(pcaData1, aes(PC1, PC2, color= RearingCondition)) +
  geom_point(size=6) +
  xlab(paste0("PC1: ", percentVar[1], "% variance")) +
  ylab(paste0("PC2: ", percentVar[2], "% variance")) +
  scale_color_manual(values = c("blue", "red")) +
  #coord_fixed() +
  theme_bw() +
  theme(legend.title = element_blank()) +
  theme(legend.text = element_text(face="bold", size=16)) +
  theme(axis.text = element_text(size=14)) +
  theme(axis.title = element_text(size=14))
p1 + geom_convexhull(aes(fill = RearingCondition, color = RearingCondition), alpha = 0.5) +
    scale_fill_manual(values = c("blue", "red"))+
    ggtitle("PCA on S. piceifrons Thorax tissues", subtitle = "rlog transformation")

pcaData2 <- plotPCA(object = shigeru_vst, intgroup = c("RearingCondition"),returnData=TRUE)
percentVar <- round(100 * attr(pcaData2, "percentVar"))
pcaData2$RearingCondition<-factor(pcaData2$RearingCondition,levels=c("Crowded","Isolated"), labels=c("Crowded S. piceifrons","Isolated S. piceifrons"))
#levels(pcaData2$RearingCondition)
p2 <-ggplot(pcaData2, aes(PC1, PC2, color= RearingCondition)) +
  geom_point(size=6) +
  xlab(paste0("PC1: ", percentVar[1], "% variance")) +
  ylab(paste0("PC2: ", percentVar[2], "% variance")) +
  scale_color_manual(values = c("blue", "red")) +
  #coord_fixed() +
  theme_bw() +
  theme(legend.title = element_blank()) +
  theme(legend.text = element_text(face="bold", size=16)) +
  theme(axis.text = element_text(size=14)) +
  theme(axis.title = element_text(size=14))
p2 + geom_convexhull(aes(fill = RearingCondition, color = RearingCondition), alpha = 0.5) +
    scale_fill_manual(values = c("blue", "red"))+
    ggtitle("PCA on S. piceifrons Thorax tissues", subtitle = "vst transformation")

select <- order(rowMeans(counts(shigeru,normalized=TRUE)),
                decreasing=TRUE)[1:12]
df <- as.data.frame(colData(shigeru)[,c("RearingCondition","Tissue")])

---

Count matrix heatmap

# Count matrix
pheatmap(assay(shigeru_ntd)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after norm transformation")

pheatmap(assay(shigeru_vst)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after vst transformation")

pheatmap(assay(shigeru_rlog)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after rlog transformation")

# calculate between-sample distance matrix
metadata <- sampletable[,c("RearingCondition", "Tissue")]
rownames(metadata) <- sampletable$SampleName
sampleDistMatrix.rlog <- as.matrix(dist(t(assay(shigeru_rlog))))
pheatmap(sampleDistMatrix.rlog, annotation_col=metadata, main = "Thorax tissue heatmap distance matrix, rlog transformation")

sampleDistMatrix.vst<- as.matrix(dist(t(assay(shigeru_vst))))
pheatmap(sampleDistMatrix.vst, annotation_col=metadata, main = "Thorax tissue heatmap distance matrix, rlog transformation")

---

MA plot

The following plots are interactive and we can hover or Zoom on the locus of interest.

# Ma plot parameters after shrinkage
de_shrink <- lfcShrink(dds = shigeru, coef="RearingCondition_Crowded_vs_Isolated", type="apeglm")
#Thorax(de_shrink)
maplot <-ggmaplot(de_shrink, fdr = 0.05, fc = 1, size = 1, palette = c("#B31B21", "#1465AC", "darkgray"), genenames = as.vector(rownames(de_shrink$name)), top = 0,legend="top",label.select = NULL) +
  coord_cartesian(xlim = c(0, 20)) +
  scale_y_continuous(limits=c(-12, 12)) +
  theme(axis.text.x = element_text(size=12),axis.text.y = element_text(size=12),axis.title.x = element_text(size=14),axis.title.y = element_text(size=14),axis.line = element_line(size = 1, colour="gray20"),axis.ticks = element_line(size = 1, colour="gray20")) +
  guides(color = guide_legend(override.aes = list(size = c(3,3,3)))) +
  theme(legend.position = c(0.70, 0.12),legend.text=element_text(size=14,face="bold"),legend.background = element_rect(fill="transparent")) +
  theme(plot.title = element_text(size=18, colour="gray30", face="bold",hjust=0.06, vjust=-5)) +
  labs(title="MA-plot for the shrunken log2 fold changes in the Thorax tissues")
interactive_maplot <- ggplotly(maplot)
interactive_maplot

---

Volcano plot

#Volcano plot
keyvals <-ifelse(
  res_shigeru$log2FoldChange >= 1 & res_shigeru$padj <= 0.05, '#B31B21',
  ifelse(res_shigeru$log2FoldChange <= -1 & res_shigeru$padj <= 0.05, '#1465AC', 'darkgray'))

keyvals[is.na(keyvals)] <-'lightgray'
names(keyvals)[keyvals == "#B31B21"] <-'Upregulated'
names(keyvals)[keyvals == "#1465AC"] <-'Downregulated'
names(keyvals)[keyvals == 'darkgray'] <-'NS'

res_shigeru$color <- keyvals
volcano_plot <- ggplot(res_shigeru, aes(x = log2FoldChange, y = -log10(padj),
                                        color = color,  # Use the color column with keyvals
                                        text = rownames(res_shigeru))) +
  geom_point(size = 3, alpha = 0.8) +
  scale_color_identity() +  # Directly use the color values from `keyvals`
  guides(color = "none") +  # Hide the color legend
  labs(title = "Volcano Plot DEG Thorax S. piceifrons", x = "log2 Fold Change", y = "-log10 Adjusted P-Value") +
  theme_minimal()

# Convert to interactive plot with hover text for gene names
interactive_volcano <- ggplotly(volcano_plot, tooltip = "text") %>%
  layout(hoverlabel = list(namelength = -1))

# Display the interactive plot
interactive_volcano

cancellata

---

Total DEGs

rawDir <- file.path(workDir, "03-cancellata-DESeq2-togregaria")

# Path and name of targetfile containing conditions and file names
species <- "cancellata"
targetFile <- file.path(workDir, "list", paste0("Thorax", "_", species, "_nooutliers.txt"))

sampletable <- fread(targetFile)
rownames(sampletable) <- sampletable$SampleName
sampletable$RearingCondition <- as.factor(sampletable$RearingCondition)
sampletable$Tissue <- as.factor(sampletable$Tissue)

## Import count files
satoshi <- DESeqDataSetFromHTSeqCount(sampleTable = sampletable,
                        directory = rawDir,
                        design = ~ RearingCondition )
#satoshi

smallestGroupSize <- 3
keep <- rowSums(counts(satoshi) >= 5) >= smallestGroupSize
satoshi <- satoshi[keep,]
#nrow(satoshi)
satoshi$RearingCondition <- relevel(satoshi$RearingCondition, ref = "Isolated")

# Fit the statistical model
shigeru <- DESeq(satoshi)
#cbind(resultsNames(shigeru))
res_shigeru <- results(shigeru)
sum(res_shigeru$padj < tresh_padj, na.rm = TRUE)

[1] 1323

A total of 1,323 genes out of the pre-filtered 13,471 features were showing significant (corrected p-value < 0.05) differences in expression levels. However, we will only keep the ones with at least an absolute fold change > 1, so in reality we have 592 DEGs. The summary below showed how many were up-regulated and down-regulated in crowded compared to isolated it is possible to scroll it.

brock <- results(shigeru, name = "RearingCondition_Crowded_vs_Isolated", alpha = alpha_DEseq2)
summary(brock)

out of 13471 with nonzero total read count
adjusted p-value < 0.05
LFC > 0 (up)       : 686, 5.1%
LFC < 0 (down)     : 648, 4.8%
outliers [1]       : 51, 0.38%
low counts [2]     : 1306, 9.7%
(mean count < 9)
[1] see 'cooksCutoff' argument of ?results
[2] see 'independentFiltering' argument of ?results

brock_df <- as.data.frame(brock)
brock_df$GeneID <- rownames(brock_df)

brock_df <- brock_df[!is.na(brock_df$padj) & (brock_df$padj < tresh_padj), ]
outputFile <- file.path(workDir, "DEG-results", paste0("DESeq2_results_Thorax_togregaria_", species, ".csv"))
write.csv(brock, file = outputFile, row.names = TRUE)

significant_brock_df <- brock_df[!is.na(brock_df$padj) & !is.na(brock_df$log2FoldChange) &
                               (brock_df$padj < tresh_padj & abs(brock_df$log2FoldChange) > tresh_logfold), ]
# Summary similar to summary(brock)
upregulated <- sum(brock$padj < tresh_padj & brock$log2FoldChange > tresh_logfold, na.rm = TRUE)  # Upregulated count
downregulated <- sum(brock$padj < tresh_padj & brock$log2FoldChange < -tresh_logfold, na.rm = TRUE)  # Downregulated count
total_genes <- sum(upregulated, downregulated)  # Total non-zero count genes
cat("Total DEGs p-value < 0.05 and absolute logFoldChange > 1:", total_genes, "\n")

Total DEGs p-value < 0.05 and absolute logFoldChange > 1: 592

cat("LFC > 0 (up)       :", upregulated, ",", round((upregulated / total_genes) * 100, 2), "%\n")

LFC > 0 (up)       : 289 , 48.82 %

cat("LFC < 0 (down)     :", downregulated, ",", round((downregulated / total_genes) * 100, 2), "%\n")

LFC < 0 (down)     : 303 , 51.18 %

meta_brock_df <- merge(significant_brock_df, allspecies_df, by.x = "GeneID", by.y = "GeneID", all.x = TRUE)
meta_brock_df <- meta_brock_df[, c("GeneID", "GeneType", "Description",  "Species",
                                   "baseMean", "log2FoldChange", "lfcSE", "stat", "pvalue", "padj")]
numeric_cols <- c("baseMean", "log2FoldChange", "lfcSE", "stat", "pvalue", "padj")
meta_brock_df[numeric_cols] <- round(meta_brock_df[numeric_cols], 2)
meta_brock_df$row_color <- ifelse(meta_brock_df$log2FoldChange > 1, "red",
                                  ifelse(meta_brock_df$log2FoldChange < -1, "blue", "black"))
meta_brock_df$row_weight <- ifelse(abs(meta_brock_df$log2FoldChange) > 1, "bold", "normal")
# Display the data table with italic formatting for Species column, color-coded, and bold text rows
datatable(meta_brock_df, options = list(
    pageLength = 10,       # Set initial page length
    scrollX = TRUE,        # Enable horizontal scrolling
    autoWidth = TRUE,      # Adjust column width automatically
    searchHighlight = TRUE # Highlight search matches
  ),
  rownames = FALSE,
  escape = FALSE  # Allows HTML formatting in table cells
) %>%
  formatStyle(
    'Species', target = 'cell',
    fontStyle = 'italic'
  ) %>%
  formatStyle(
    columns = names(meta_brock_df),
    target = 'row',
    color = styleEqual(c("red", "blue", "black"), c("red", "blue", "black")), # Apply row color
    fontWeight = styleEqual(c("bold", "normal"), c("bold", "normal")), # Apply bold font for up/downregulated rows
    backgroundColor = styleEqual(c("red", "blue", "black"), c("white", "white", "white")) # Keep background white
  )

# Define the output file path
outputFile <- file.path(workDir, "DEG-results", paste0("DESeq2_sigresults_Thorax_togregaria_", species, ".csv"))
write.csv(brock_df, file = outputFile, row.names = TRUE)

---

Normalization and PCA

# Try with the data transformation
shigeru_vst <- vst(shigeru)
shigeru_rlog <- rlog(shigeru)
shigeru_ntd <- normTransform(shigeru)
itadori <- meanSdPlot(assay(shigeru_ntd))

itadori2 <- itadori$gg + ggtitle("Transformation with ntd")
megumi <- meanSdPlot(assay(shigeru_vst))

megumi2 <- megumi$gg + ggtitle("Transformation with vst")
nobara <- meanSdPlot(assay(shigeru_rlog))

nobara2 <-nobara$gg + ggtitle("Transformation with rlog")

# Create the pca on the defined groups
pcaData1 <- plotPCA(object = shigeru_rlog, intgroup = c("RearingCondition"),returnData=TRUE)
percentVar <- round(100 * attr(pcaData1, "percentVar"))
pcaData1$RearingCondition<-factor(pcaData1$RearingCondition,levels=c("Crowded","Isolated"), labels=c("Crowded S. cancellata","Isolated S. cancellata"))
#levels(pcaData1$RearingCondition)
p1 <- ggplot(pcaData1, aes(PC1, PC2, color= RearingCondition)) +
  geom_point(size=6) +
  xlab(paste0("PC1: ", percentVar[1], "% variance")) +
  ylab(paste0("PC2: ", percentVar[2], "% variance")) +
  scale_color_manual(values = c("blue", "red")) +
  #coord_fixed() +
  theme_bw() +
  theme(legend.title = element_blank()) +
  theme(legend.text = element_text(face="bold", size=16)) +
  theme(axis.text = element_text(size=14)) +
  theme(axis.title = element_text(size=14))
p1 + geom_convexhull(aes(fill = RearingCondition, color = RearingCondition), alpha = 0.5) +
    scale_fill_manual(values = c("blue", "red"))+
    ggtitle("PCA on S. cancellata Thorax tissues", subtitle = "rlog transformation")

pcaData2 <- plotPCA(object = shigeru_vst, intgroup = c("RearingCondition"),returnData=TRUE)
percentVar <- round(100 * attr(pcaData2, "percentVar"))
pcaData2$RearingCondition<-factor(pcaData2$RearingCondition,levels=c("Crowded","Isolated"), labels=c("Crowded S. cancellata","Isolated S. cancellata"))
#levels(pcaData2$RearingCondition)
p2 <-ggplot(pcaData2, aes(PC1, PC2, color= RearingCondition)) +
  geom_point(size=6) +
  xlab(paste0("PC1: ", percentVar[1], "% variance")) +
  ylab(paste0("PC2: ", percentVar[2], "% variance")) +
  scale_color_manual(values = c("blue", "red")) +
  #coord_fixed() +
  theme_bw() +
  theme(legend.title = element_blank()) +
  theme(legend.text = element_text(face="bold", size=16)) +
  theme(axis.text = element_text(size=14)) +
  theme(axis.title = element_text(size=14))
p2 + geom_convexhull(aes(fill = RearingCondition, color = RearingCondition), alpha = 0.5) +
    scale_fill_manual(values = c("blue", "red"))+
    ggtitle("PCA on S. cancellata Thorax tissues", subtitle = "vst transformation")

select <- order(rowMeans(counts(shigeru,normalized=TRUE)),
                decreasing=TRUE)[1:12]
df <- as.data.frame(colData(shigeru)[,c("RearingCondition","Tissue")])

---

Count matrix heatmap

# Count matrix
pheatmap(assay(shigeru_ntd)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after norm transformation")

pheatmap(assay(shigeru_vst)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after vst transformation")

pheatmap(assay(shigeru_rlog)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after rlog transformation")

# calculate between-sample distance matrix
metadata <- sampletable[,c("RearingCondition", "Tissue")]
rownames(metadata) <- sampletable$SampleName
sampleDistMatrix.rlog <- as.matrix(dist(t(assay(shigeru_rlog))))
pheatmap(sampleDistMatrix.rlog, annotation_col=metadata, main = "Thorax tissue heatmap distance matrix, rlog transformation")

sampleDistMatrix.vst<- as.matrix(dist(t(assay(shigeru_vst))))
pheatmap(sampleDistMatrix.vst, annotation_col=metadata, main = "Thorax tissue heatmap distance matrix, rlog transformation")

---

MA plot

The following plots are interactive and we can hover or Zoom on the locus of interest.

# Ma plot parameters after shrinkage
de_shrink <- lfcShrink(dds = shigeru, coef="RearingCondition_Crowded_vs_Isolated", type="apeglm")
#Thorax(de_shrink)
maplot <-ggmaplot(de_shrink, fdr = 0.05, fc = 1, size = 1, palette = c("#B31B21", "#1465AC", "darkgray"), genenames = as.vector(rownames(de_shrink$name)), top = 0,legend="top",label.select = NULL) +
  coord_cartesian(xlim = c(0, 20)) +
  scale_y_continuous(limits=c(-12, 12)) +
  theme(axis.text.x = element_text(size=12),axis.text.y = element_text(size=12),axis.title.x = element_text(size=14),axis.title.y = element_text(size=14),axis.line = element_line(size = 1, colour="gray20"),axis.ticks = element_line(size = 1, colour="gray20")) +
  guides(color = guide_legend(override.aes = list(size = c(3,3,3)))) +
  theme(legend.position = c(0.70, 0.12),legend.text=element_text(size=14,face="bold"),legend.background = element_rect(fill="transparent")) +
  theme(plot.title = element_text(size=18, colour="gray30", face="bold",hjust=0.06, vjust=-5)) +
  labs(title="MA-plot for the shrunken log2 fold changes in the Thorax tissues")
interactive_maplot <- ggplotly(maplot)
interactive_maplot

---

Volcano plot

#Volcano plot
keyvals <-ifelse(
  res_shigeru$log2FoldChange >= 1 & res_shigeru$padj <= 0.05, '#B31B21',
  ifelse(res_shigeru$log2FoldChange <= -1 & res_shigeru$padj <= 0.05, '#1465AC', 'darkgray'))

keyvals[is.na(keyvals)] <-'lightgray'
names(keyvals)[keyvals == "#B31B21"] <-'Upregulated'
names(keyvals)[keyvals == "#1465AC"] <-'Downregulated'
names(keyvals)[keyvals == 'darkgray'] <-'NS'

res_shigeru$color <- keyvals
volcano_plot <- ggplot(res_shigeru, aes(x = log2FoldChange, y = -log10(padj),
                                        color = color,  # Use the color column with keyvals
                                        text = rownames(res_shigeru))) +
  geom_point(size = 3, alpha = 0.8) +
  scale_color_identity() +  # Directly use the color values from `keyvals`
  guides(color = "none") +  # Hide the color legend
  labs(title = "Volcano Plot DEG Thorax S. cancellata", x = "log2 Fold Change", y = "-log10 Adjusted P-Value") +
  theme_minimal()

# Convert to interactive plot with hover text for gene names
interactive_volcano <- ggplotly(volcano_plot, tooltip = "text") %>%
  layout(hoverlabel = list(namelength = -1))

# Display the interactive plot
interactive_volcano

americana

---

Total DEGs

rawDir <- file.path(workDir, "03-americana-DESeq2-togregaria")

# Path and name of targetfile containing conditions and file names
species <- "americana"
targetFile <- file.path(workDir, "list", paste0("Thorax", "_", species, "_nooutliers.txt"))

sampletable <- fread(targetFile)
rownames(sampletable) <- sampletable$SampleName
sampletable$RearingCondition <- as.factor(sampletable$RearingCondition)
sampletable$Tissue <- as.factor(sampletable$Tissue)

## Import count files
satoshi <- DESeqDataSetFromHTSeqCount(sampleTable = sampletable,
                        directory = rawDir,
                        design = ~ RearingCondition )
#satoshi

smallestGroupSize <- 3
keep <- rowSums(counts(satoshi) >= 5) >= smallestGroupSize
satoshi <- satoshi[keep,]
#nrow(satoshi)
satoshi$RearingCondition <- relevel(satoshi$RearingCondition, ref = "Isolated")

# Fit the statistical model
shigeru <- DESeq(satoshi)
#cbind(resultsNames(shigeru))
res_shigeru <- results(shigeru)
sum(res_shigeru$padj < tresh_padj, na.rm = TRUE)

[1] 1097

A total of 1,097 genes out of the pre-filtered 13,203 features were showing significant (corrected p-value < 0.05) differences in expression levels. However, we will only keep the ones with at least an absolute fold change > 1, so in reality we have 488 DEGs. The summary below showed how many were up-regulated and down-regulated in crowded compared to isolated it is possible to scroll it.

brock <- results(shigeru, name = "RearingCondition_Crowded_vs_Isolated", alpha = alpha_DEseq2)
summary(brock)

out of 13203 with nonzero total read count
adjusted p-value < 0.05
LFC > 0 (up)       : 398, 3%
LFC < 0 (down)     : 699, 5.3%
outliers [1]       : 34, 0.26%
low counts [2]     : 256, 1.9%
(mean count < 3)
[1] see 'cooksCutoff' argument of ?results
[2] see 'independentFiltering' argument of ?results

brock_df <- as.data.frame(brock)
brock_df$GeneID <- rownames(brock_df)

brock_df <- brock_df[!is.na(brock_df$padj) & (brock_df$padj < tresh_padj), ]
outputFile <- file.path(workDir, "DEG-results", paste0("DESeq2_results_Thorax_togregaria_", species, ".csv"))
write.csv(brock, file = outputFile, row.names = TRUE)


significant_brock_df <- brock_df[!is.na(brock_df$padj) & !is.na(brock_df$log2FoldChange) &
                               (brock_df$padj < tresh_padj & abs(brock_df$log2FoldChange) > tresh_logfold), ]
# Summary similar to summary(brock)
upregulated <- sum(brock$padj < tresh_padj & brock$log2FoldChange > tresh_logfold, na.rm = TRUE)  # Upregulated count
downregulated <- sum(brock$padj < tresh_padj & brock$log2FoldChange < -tresh_logfold, na.rm = TRUE)  # Downregulated count
total_genes <- sum(upregulated, downregulated)  # Total non-zero count genes
cat("Total DEGs p-value < 0.05 and absolute logFoldChange > 1:", total_genes, "\n")

Total DEGs p-value < 0.05 and absolute logFoldChange > 1: 488

cat("LFC > 0 (up)       :", upregulated, ",", round((upregulated / total_genes) * 100, 2), "%\n")

LFC > 0 (up)       : 149 , 30.53 %

cat("LFC < 0 (down)     :", downregulated, ",", round((downregulated / total_genes) * 100, 2), "%\n")

LFC < 0 (down)     : 339 , 69.47 %

meta_brock_df <- merge(significant_brock_df, allspecies_df, by.x = "GeneID", by.y = "GeneID", all.x = TRUE)
meta_brock_df <- meta_brock_df[, c("GeneID", "GeneType", "Description",  "Species",
                                   "baseMean", "log2FoldChange", "lfcSE", "stat", "pvalue", "padj")]
numeric_cols <- c("baseMean", "log2FoldChange", "lfcSE", "stat", "pvalue", "padj")
meta_brock_df[numeric_cols] <- round(meta_brock_df[numeric_cols], 2)
meta_brock_df$row_color <- ifelse(meta_brock_df$log2FoldChange > 1, "red",
                                  ifelse(meta_brock_df$log2FoldChange < -1, "blue", "black"))
meta_brock_df$row_weight <- ifelse(abs(meta_brock_df$log2FoldChange) > 1, "bold", "normal")
# Display the data table with italic formatting for Species column, color-coded, and bold text rows
datatable(meta_brock_df, options = list(
    pageLength = 10,       # Set initial page length
    scrollX = TRUE,        # Enable horizontal scrolling
    autoWidth = TRUE,      # Adjust column width automatically
    searchHighlight = TRUE # Highlight search matches
  ),
  rownames = FALSE,
  escape = FALSE  # Allows HTML formatting in table cells
) %>%
  formatStyle(
    'Species', target = 'cell',
    fontStyle = 'italic'
  ) %>%
  formatStyle(
    columns = names(meta_brock_df),
    target = 'row',
    color = styleEqual(c("red", "blue", "black"), c("red", "blue", "black")), # Apply row color
    fontWeight = styleEqual(c("bold", "normal"), c("bold", "normal")), # Apply bold font for up/downregulated rows
    backgroundColor = styleEqual(c("red", "blue", "black"), c("white", "white", "white")) # Keep background white
  )

# Define the output file path
outputFile <- file.path(workDir, "DEG-results", paste0("DESeq2_sigresults_Thorax_togregaria_", species, ".csv"))
write.csv(brock_df, file = outputFile, row.names = TRUE)

---

Normalization and PCA

# Try with the data transformation
shigeru_vst <- vst(shigeru)
shigeru_rlog <- rlog(shigeru)
shigeru_ntd <- normTransform(shigeru)
itadori <- meanSdPlot(assay(shigeru_ntd))

itadori2 <- itadori$gg + ggtitle("Transformation with ntd")
megumi <- meanSdPlot(assay(shigeru_vst))

megumi2 <- megumi$gg + ggtitle("Transformation with vst")
nobara <- meanSdPlot(assay(shigeru_rlog))

nobara2 <-nobara$gg + ggtitle("Transformation with rlog")

# Create the pca on the defined groups
pcaData1 <- plotPCA(object = shigeru_rlog, intgroup = c("RearingCondition"),returnData=TRUE)
percentVar <- round(100 * attr(pcaData1, "percentVar"))
pcaData1$RearingCondition<-factor(pcaData1$RearingCondition,levels=c("Crowded","Isolated"), labels=c("Crowded S. americana","Isolated S. americana"))
#levels(pcaData1$RearingCondition)
p1 <- ggplot(pcaData1, aes(PC1, PC2, color= RearingCondition)) +
  geom_point(size=6) +
  xlab(paste0("PC1: ", percentVar[1], "% variance")) +
  ylab(paste0("PC2: ", percentVar[2], "% variance")) +
  scale_color_manual(values = c("blue", "red")) +
  #coord_fixed() +
  theme_bw() +
  theme(legend.title = element_blank()) +
  theme(legend.text = element_text(face="bold", size=16)) +
  theme(axis.text = element_text(size=14)) +
  theme(axis.title = element_text(size=14))
p1 + geom_convexhull(aes(fill = RearingCondition, color = RearingCondition), alpha = 0.5) +
    scale_fill_manual(values = c("blue", "red"))+
    ggtitle("PCA on S. americana Thorax tissues", subtitle = "rlog transformation")

pcaData2 <- plotPCA(object = shigeru_vst, intgroup = c("RearingCondition"),returnData=TRUE)
percentVar <- round(100 * attr(pcaData2, "percentVar"))
pcaData2$RearingCondition<-factor(pcaData2$RearingCondition,levels=c("Crowded","Isolated"), labels=c("Crowded S. americana","Isolated S. americana"))
#levels(pcaData2$RearingCondition)
p2 <-ggplot(pcaData2, aes(PC1, PC2, color= RearingCondition)) +
  geom_point(size=6) +
  xlab(paste0("PC1: ", percentVar[1], "% variance")) +
  ylab(paste0("PC2: ", percentVar[2], "% variance")) +
  scale_color_manual(values = c("blue", "red")) +
  #coord_fixed() +
  theme_bw() +
  theme(legend.title = element_blank()) +
  theme(legend.text = element_text(face="bold", size=16)) +
  theme(axis.text = element_text(size=14)) +
  theme(axis.title = element_text(size=14))
p2 + geom_convexhull(aes(fill = RearingCondition, color = RearingCondition), alpha = 0.5) +
    scale_fill_manual(values = c("blue", "red"))+
    ggtitle("PCA on S. americana Thorax tissues", subtitle = "vst transformation")

select <- order(rowMeans(counts(shigeru,normalized=TRUE)),
                decreasing=TRUE)[1:12]
df <- as.data.frame(colData(shigeru)[,c("RearingCondition","Tissue")])

---

Count matrix heatmap

# Count matrix
pheatmap(assay(shigeru_ntd)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after norm transformation")

pheatmap(assay(shigeru_vst)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after vst transformation")

pheatmap(assay(shigeru_rlog)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after rlog transformation")

# calculate between-sample distance matrix
metadata <- sampletable[,c("RearingCondition", "Tissue")]
rownames(metadata) <- sampletable$SampleName
sampleDistMatrix.rlog <- as.matrix(dist(t(assay(shigeru_rlog))))
pheatmap(sampleDistMatrix.rlog, annotation_col=metadata, main = "Thorax tissue heatmap distance matrix, rlog transformation")

sampleDistMatrix.vst<- as.matrix(dist(t(assay(shigeru_vst))))
pheatmap(sampleDistMatrix.vst, annotation_col=metadata, main = "Thorax tissue heatmap distance matrix, rlog transformation")

---

MA plot

The following plots are interactive and we can hover or Zoom on the locus of interest.

# Ma plot parameters after shrinkage
de_shrink <- lfcShrink(dds = shigeru, coef="RearingCondition_Crowded_vs_Isolated", type="apeglm")
#Thorax(de_shrink)
maplot <-ggmaplot(de_shrink, fdr = 0.05, fc = 1, size = 1, palette = c("#B31B21", "#1465AC", "darkgray"), genenames = as.vector(rownames(de_shrink$name)), top = 0,legend="top",label.select = NULL) +
  coord_cartesian(xlim = c(0, 20)) +
  scale_y_continuous(limits=c(-12, 12)) +
  theme(axis.text.x = element_text(size=12),axis.text.y = element_text(size=12),axis.title.x = element_text(size=14),axis.title.y = element_text(size=14),axis.line = element_line(size = 1, colour="gray20"),axis.ticks = element_line(size = 1, colour="gray20")) +
  guides(color = guide_legend(override.aes = list(size = c(3,3,3)))) +
  theme(legend.position = c(0.70, 0.12),legend.text=element_text(size=14,face="bold"),legend.background = element_rect(fill="transparent")) +
  theme(plot.title = element_text(size=18, colour="gray30", face="bold",hjust=0.06, vjust=-5)) +
  labs(title="MA-plot for the shrunken log2 fold changes in the Thorax tissues")
interactive_maplot <- ggplotly(maplot)
interactive_maplot

---

Volcano plot

#Volcano plot
keyvals <-ifelse(
  res_shigeru$log2FoldChange >= 1 & res_shigeru$padj <= 0.05, '#B31B21',
  ifelse(res_shigeru$log2FoldChange <= -1 & res_shigeru$padj <= 0.05, '#1465AC', 'darkgray'))

keyvals[is.na(keyvals)] <-'lightgray'
names(keyvals)[keyvals == "#B31B21"] <-'Upregulated'
names(keyvals)[keyvals == "#1465AC"] <-'Downregulated'
names(keyvals)[keyvals == 'darkgray'] <-'NS'

res_shigeru$color <- keyvals
volcano_plot <- ggplot(res_shigeru, aes(x = log2FoldChange, y = -log10(padj),
                                        color = color,  # Use the color column with keyvals
                                        text = rownames(res_shigeru))) +
  geom_point(size = 3, alpha = 0.8) +
  scale_color_identity() +  # Directly use the color values from `keyvals`
  guides(color = "none") +  # Hide the color legend
  labs(title = "Volcano Plot DEG Thorax S. americana", x = "log2 Fold Change", y = "-log10 Adjusted P-Value") +
  theme_minimal()

# Convert to interactive plot with hover text for gene names
interactive_volcano <- ggplotly(volcano_plot, tooltip = "text") %>%
  layout(hoverlabel = list(namelength = -1))

# Display the interactive plot
interactive_volcano

cubense

---

Total DEGs

rawDir <- file.path(workDir, "03-cubense-DESeq2-togregaria")

# Path and name of targetfile containing conditions and file names
species <- "cubense"
targetFile <- file.path(workDir, "list", paste0("Thorax", "_", species, "_nooutliers.txt"))

sampletable <- fread(targetFile)
rownames(sampletable) <- sampletable$SampleName
sampletable$RearingCondition <- as.factor(sampletable$RearingCondition)
sampletable$Tissue <- as.factor(sampletable$Tissue)

## Import count files
satoshi <- DESeqDataSetFromHTSeqCount(sampleTable = sampletable,
                        directory = rawDir,
                        design = ~ RearingCondition )
#satoshi

smallestGroupSize <- 3
keep <- rowSums(counts(satoshi) >= 5) >= smallestGroupSize
satoshi <- satoshi[keep,]
#nrow(satoshi)
satoshi$RearingCondition <- relevel(satoshi$RearingCondition, ref = "Isolated")

# Fit the statistical model
shigeru <- DESeq(satoshi)
#cbind(resultsNames(shigeru))
res_shigeru <- results(shigeru)
sum(res_shigeru$padj < tresh_padj, na.rm = TRUE)

[1] 333

A total of 333 genes out of the pre-filtered 13,338 features were showing significant (corrected p-value < 0.05) differences in expression levels. However, we will only keep the ones with at least an absolute fold change > 1, so in reality we have 218 DEGs. The summary below showed how many were up-regulated and down-regulated in crowded compared to isolated it is possible to scroll it.

brock <- results(shigeru, name = "RearingCondition_Crowded_vs_Isolated", alpha = alpha_DEseq2)
summary(brock)

out of 13338 with nonzero total read count
adjusted p-value < 0.05
LFC > 0 (up)       : 104, 0.78%
LFC < 0 (down)     : 218, 1.6%
outliers [1]       : 106, 0.79%
low counts [2]     : 518, 3.9%
(mean count < 5)
[1] see 'cooksCutoff' argument of ?results
[2] see 'independentFiltering' argument of ?results

brock_df <- as.data.frame(brock)
brock_df$GeneID <- rownames(brock_df)

brock_df <- brock_df[!is.na(brock_df$padj) & (brock_df$padj < tresh_padj), ]
outputFile <- file.path(workDir, "DEG-results", paste0("DESeq2_results_Thorax_togregaria_", species, ".csv"))
write.csv(brock, file = outputFile, row.names = TRUE)

significant_brock_df <- brock_df[!is.na(brock_df$padj) & !is.na(brock_df$log2FoldChange) &
                               (brock_df$padj < tresh_padj & abs(brock_df$log2FoldChange) > tresh_logfold), ]
# Summary similar to summary(brock)
upregulated <- sum(brock$padj < tresh_padj & brock$log2FoldChange > tresh_logfold, na.rm = TRUE)  # Upregulated count
downregulated <- sum(brock$padj < tresh_padj & brock$log2FoldChange < -tresh_logfold, na.rm = TRUE)  # Downregulated count
total_genes <- sum(upregulated, downregulated)  # Total non-zero count genes
cat("Total DEGs p-value < 0.05 and absolute logFoldChange > 1:", total_genes, "\n")

Total DEGs p-value < 0.05 and absolute logFoldChange > 1: 218

cat("LFC > 0 (up)       :", upregulated, ",", round((upregulated / total_genes) * 100, 2), "%\n")

LFC > 0 (up)       : 64 , 29.36 %

cat("LFC < 0 (down)     :", downregulated, ",", round((downregulated / total_genes) * 100, 2), "%\n")

LFC < 0 (down)     : 154 , 70.64 %

meta_brock_df <- merge(significant_brock_df, allspecies_df, by.x = "GeneID", by.y = "GeneID", all.x = TRUE)
meta_brock_df <- meta_brock_df[, c("GeneID", "GeneType", "Description",  "Species",
                                   "baseMean", "log2FoldChange", "lfcSE", "stat", "pvalue", "padj")]
numeric_cols <- c("baseMean", "log2FoldChange", "lfcSE", "stat", "pvalue", "padj")
meta_brock_df[numeric_cols] <- round(meta_brock_df[numeric_cols], 2)
meta_brock_df$row_color <- ifelse(meta_brock_df$log2FoldChange > 1, "red",
                                  ifelse(meta_brock_df$log2FoldChange < -1, "blue", "black"))
meta_brock_df$row_weight <- ifelse(abs(meta_brock_df$log2FoldChange) > 1, "bold", "normal")
# Display the data table with italic formatting for Species column, color-coded, and bold text rows
datatable(meta_brock_df, options = list(
    pageLength = 10,       # Set initial page length
    scrollX = TRUE,        # Enable horizontal scrolling
    autoWidth = TRUE,      # Adjust column width automatically
    searchHighlight = TRUE # Highlight search matches
  ),
  rownames = FALSE,
  escape = FALSE  # Allows HTML formatting in table cells
) %>%
  formatStyle(
    'Species', target = 'cell',
    fontStyle = 'italic'
  ) %>%
  formatStyle(
    columns = names(meta_brock_df),
    target = 'row',
    color = styleEqual(c("red", "blue", "black"), c("red", "blue", "black")), # Apply row color
    fontWeight = styleEqual(c("bold", "normal"), c("bold", "normal")), # Apply bold font for up/downregulated rows
    backgroundColor = styleEqual(c("red", "blue", "black"), c("white", "white", "white")) # Keep background white
  )

# Define the output file path
outputFile <- file.path(workDir, "DEG-results", paste0("DESeq2_sigresults_Thorax_togregaria_", species, ".csv"))
write.csv(brock_df, file = outputFile, row.names = TRUE)

---

Normalization and PCA

# Try with the data transformation
shigeru_vst <- vst(shigeru)
shigeru_rlog <- rlog(shigeru)
shigeru_ntd <- normTransform(shigeru)
itadori <- meanSdPlot(assay(shigeru_ntd))

itadori2 <- itadori$gg + ggtitle("Transformation with ntd")
megumi <- meanSdPlot(assay(shigeru_vst))

megumi2 <- megumi$gg + ggtitle("Transformation with vst")
nobara <- meanSdPlot(assay(shigeru_rlog))

nobara2 <-nobara$gg + ggtitle("Transformation with rlog")

# Create the pca on the defined groups
pcaData1 <- plotPCA(object = shigeru_rlog, intgroup = c("RearingCondition"),returnData=TRUE)
percentVar <- round(100 * attr(pcaData1, "percentVar"))
pcaData1$RearingCondition<-factor(pcaData1$RearingCondition,levels=c("Crowded","Isolated"), labels=c("Crowded S. cubense","Isolated S. cubense"))
#levels(pcaData1$RearingCondition)
p1 <- ggplot(pcaData1, aes(PC1, PC2, color= RearingCondition)) +
  geom_point(size=6) +
  xlab(paste0("PC1: ", percentVar[1], "% variance")) +
  ylab(paste0("PC2: ", percentVar[2], "% variance")) +
  scale_color_manual(values = c("blue", "red")) +
  #coord_fixed() +
  theme_bw() +
  theme(legend.title = element_blank()) +
  theme(legend.text = element_text(face="bold", size=16)) +
  theme(axis.text = element_text(size=14)) +
  theme(axis.title = element_text(size=14))
p1 + geom_convexhull(aes(fill = RearingCondition, color = RearingCondition), alpha = 0.5) +
    scale_fill_manual(values = c("blue", "red"))+
    ggtitle("PCA on S. cubense Thorax tissues", subtitle = "rlog transformation")

pcaData2 <- plotPCA(object = shigeru_vst, intgroup = c("RearingCondition"),returnData=TRUE)
percentVar <- round(100 * attr(pcaData2, "percentVar"))
pcaData2$RearingCondition<-factor(pcaData2$RearingCondition,levels=c("Crowded","Isolated"), labels=c("Crowded S. cubense","Isolated S. cubense"))
#levels(pcaData2$RearingCondition)
p2 <-ggplot(pcaData2, aes(PC1, PC2, color= RearingCondition)) +
  geom_point(size=6) +
  xlab(paste0("PC1: ", percentVar[1], "% variance")) +
  ylab(paste0("PC2: ", percentVar[2], "% variance")) +
  scale_color_manual(values = c("blue", "red")) +
  #coord_fixed() +
  theme_bw() +
  theme(legend.title = element_blank()) +
  theme(legend.text = element_text(face="bold", size=16)) +
  theme(axis.text = element_text(size=14)) +
  theme(axis.title = element_text(size=14))
p2 + geom_convexhull(aes(fill = RearingCondition, color = RearingCondition), alpha = 0.5) +
    scale_fill_manual(values = c("blue", "red"))+
    ggtitle("PCA on S. cubense Thorax tissues", subtitle = "vst transformation")

select <- order(rowMeans(counts(shigeru,normalized=TRUE)),
                decreasing=TRUE)[1:12]
df <- as.data.frame(colData(shigeru)[,c("RearingCondition","Tissue")])

---

Count matrix heatmap

# Count matrix
pheatmap(assay(shigeru_ntd)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after norm transformation")

pheatmap(assay(shigeru_vst)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after vst transformation")

pheatmap(assay(shigeru_rlog)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after rlog transformation")

# calculate between-sample distance matrix
metadata <- sampletable[,c("RearingCondition", "Tissue")]
rownames(metadata) <- sampletable$SampleName
sampleDistMatrix.rlog <- as.matrix(dist(t(assay(shigeru_rlog))))
pheatmap(sampleDistMatrix.rlog, annotation_col=metadata, main = "Thorax tissue heatmap distance matrix, rlog transformation")

sampleDistMatrix.vst<- as.matrix(dist(t(assay(shigeru_vst))))
pheatmap(sampleDistMatrix.vst, annotation_col=metadata, main = "Thorax tissue heatmap distance matrix, rlog transformation")

---

MA plot

The following plots are interactive and we can hover or Zoom on the locus of interest.

# Ma plot parameters after shrinkage
de_shrink <- lfcShrink(dds = shigeru, coef="RearingCondition_Crowded_vs_Isolated", type="apeglm")
#Thorax(de_shrink)
maplot <-ggmaplot(de_shrink, fdr = 0.05, fc = 1, size = 1, palette = c("#B31B21", "#1465AC", "darkgray"), genenames = as.vector(rownames(de_shrink$name)), top = 0,legend="top",label.select = NULL) +
  coord_cartesian(xlim = c(0, 20)) +
  scale_y_continuous(limits=c(-12, 12)) +
  theme(axis.text.x = element_text(size=12),axis.text.y = element_text(size=12),axis.title.x = element_text(size=14),axis.title.y = element_text(size=14),axis.line = element_line(size = 1, colour="gray20"),axis.ticks = element_line(size = 1, colour="gray20")) +
  guides(color = guide_legend(override.aes = list(size = c(3,3,3)))) +
  theme(legend.position = c(0.70, 0.12),legend.text=element_text(size=14,face="bold"),legend.background = element_rect(fill="transparent")) +
  theme(plot.title = element_text(size=18, colour="gray30", face="bold",hjust=0.06, vjust=-5)) +
  labs(title="MA-plot for the shrunken log2 fold changes in the Thorax tissues")
interactive_maplot <- ggplotly(maplot)
interactive_maplot

---

Volcano plot

#Volcano plot
keyvals <-ifelse(
  res_shigeru$log2FoldChange >= 1 & res_shigeru$padj <= 0.05, '#B31B21',
  ifelse(res_shigeru$log2FoldChange <= -1 & res_shigeru$padj <= 0.05, '#1465AC', 'darkgray'))

keyvals[is.na(keyvals)] <-'lightgray'
names(keyvals)[keyvals == "#B31B21"] <-'Upregulated'
names(keyvals)[keyvals == "#1465AC"] <-'Downregulated'
names(keyvals)[keyvals == 'darkgray'] <-'NS'

res_shigeru$color <- keyvals
volcano_plot <- ggplot(res_shigeru, aes(x = log2FoldChange, y = -log10(padj),
                                        color = color,  # Use the color column with keyvals
                                        text = rownames(res_shigeru))) +
  geom_point(size = 3, alpha = 0.8) +
  scale_color_identity() +  # Directly use the color values from `keyvals`
  guides(color = "none") +  # Hide the color legend
  labs(title = "Volcano Plot DEG Thorax S. cubense", x = "log2 Fold Change", y = "-log10 Adjusted P-Value") +
  theme_minimal()

# Convert to interactive plot with hover text for gene names
interactive_volcano <- ggplotly(volcano_plot, tooltip = "text") %>%
  layout(hoverlabel = list(namelength = -1))

# Display the interactive plot
interactive_volcano

nitens

---

Total DEGs

rawDir <- file.path(workDir, "03-nitens-DESeq2-togregaria")

# Path and name of targetfile containing conditions and file names
species <- "nitens"
targetFile <- file.path(workDir, "list", paste0("Thorax", "_", species, "_nooutliers.txt"))

sampletable <- fread(targetFile)
rownames(sampletable) <- sampletable$SampleName
sampletable$RearingCondition <- as.factor(sampletable$RearingCondition)
sampletable$Tissue <- as.factor(sampletable$Tissue)

## Import count files
satoshi <- DESeqDataSetFromHTSeqCount(sampleTable = sampletable,
                        directory = rawDir,
                        design = ~ RearingCondition )
#satoshi

smallestGroupSize <- 3
keep <- rowSums(counts(satoshi) >= 5) >= smallestGroupSize
satoshi <- satoshi[keep,]
#nrow(satoshi)
satoshi$RearingCondition <- relevel(satoshi$RearingCondition, ref = "Isolated")

# Fit the statistical model
shigeru <- DESeq(satoshi)
#cbind(resultsNames(shigeru))
res_shigeru <- results(shigeru)
sum(res_shigeru$padj < tresh_padj, na.rm = TRUE)

[1] 0

A total of 0 genes out of the pre-filtered 13,130 features were showing significant (corrected p-value < 0.05) differences in expression levels. The summary below showed how many were up-regulated and down-regulated in crowded compared to isolated it is possible to scroll it.

brock <- results(shigeru, name = "RearingCondition_Crowded_vs_Isolated", alpha = alpha_DEseq2)
summary(brock)

out of 13130 with nonzero total read count
adjusted p-value < 0.05
LFC > 0 (up)       : 0, 0%
LFC < 0 (down)     : 0, 0%
outliers [1]       : 98, 0.75%
low counts [2]     : 0, 0%
(mean count < 2)
[1] see 'cooksCutoff' argument of ?results
[2] see 'independentFiltering' argument of ?results

brock_df <- as.data.frame(brock)
brock_df$GeneID <- rownames(brock_df)

brock_df <- brock_df[!is.na(brock_df$padj) & (brock_df$padj < tresh_padj), ]
outputFile <- file.path(workDir, "DEG-results", paste0("DESeq2_results_Thorax_togregaria_", species, ".csv"))
write.csv(brock, file = outputFile, row.names = TRUE)

significant_brock_df <- brock_df[!is.na(brock_df$padj) & !is.na(brock_df$log2FoldChange) &
                               (brock_df$padj < tresh_padj & abs(brock_df$log2FoldChange) > tresh_logfold), ]
# Summary similar to summary(brock)
upregulated <- sum(brock$padj < tresh_padj & brock$log2FoldChange > tresh_logfold, na.rm = TRUE)  # Upregulated count
downregulated <- sum(brock$padj < tresh_padj & brock$log2FoldChange < -tresh_logfold, na.rm = TRUE)  # Downregulated count
total_genes <- sum(upregulated, downregulated)  # Total non-zero count genes
cat("Total DEGs p-value < 0.05 and absolute logFoldChange > 1:", total_genes, "\n")

Total DEGs p-value < 0.05 and absolute logFoldChange > 1: 0

cat("LFC > 0 (up)       :", upregulated, ",", round((upregulated / total_genes) * 100, 2), "%\n")

LFC > 0 (up)       : 0 , NaN %

cat("LFC < 0 (down)     :", downregulated, ",", round((downregulated / total_genes) * 100, 2), "%\n")

LFC < 0 (down)     : 0 , NaN %

meta_brock_df <- merge(significant_brock_df, allspecies_df, by.x = "GeneID", by.y = "GeneID", all.x = TRUE)
meta_brock_df <- meta_brock_df[, c("GeneID", "GeneType", "Description",  "Species",
                                   "baseMean", "log2FoldChange", "lfcSE", "stat", "pvalue", "padj")]
numeric_cols <- c("baseMean", "log2FoldChange", "lfcSE", "stat", "pvalue", "padj")
meta_brock_df[numeric_cols] <- round(meta_brock_df[numeric_cols], 2)
meta_brock_df$row_color <- ifelse(meta_brock_df$log2FoldChange > 1, "red",
                                  ifelse(meta_brock_df$log2FoldChange < -1, "blue", "black"))
meta_brock_df$row_weight <- ifelse(abs(meta_brock_df$log2FoldChange) > 1, "bold", "normal")
# Display the data table with italic formatting for Species column, color-coded, and bold text rows
datatable(meta_brock_df, options = list(
    pageLength = 10,       # Set initial page length
    scrollX = TRUE,        # Enable horizontal scrolling
    autoWidth = TRUE,      # Adjust column width automatically
    searchHighlight = TRUE # Highlight search matches
  ),
  rownames = FALSE,
  escape = FALSE  # Allows HTML formatting in table cells
) %>%
  formatStyle(
    'Species', target = 'cell',
    fontStyle = 'italic'
  ) %>%
  formatStyle(
    columns = names(meta_brock_df),
    target = 'row',
    color = styleEqual(c("red", "blue", "black"), c("red", "blue", "black")), # Apply row color
    fontWeight = styleEqual(c("bold", "normal"), c("bold", "normal")), # Apply bold font for up/downregulated rows
    backgroundColor = styleEqual(c("red", "blue", "black"), c("white", "white", "white")) # Keep background white
  )

# Define the output file path
outputFile <- file.path(workDir, "DEG-results", paste0("DESeq2_sigresults_Thorax_togregaria_", species, ".csv"))
write.csv(brock_df, file = outputFile, row.names = TRUE)

---

Normalization and PCA

# Try with the data transformation
shigeru_vst <- vst(shigeru)
shigeru_rlog <- rlog(shigeru)
shigeru_ntd <- normTransform(shigeru)
itadori <- meanSdPlot(assay(shigeru_ntd))

itadori2 <- itadori$gg + ggtitle("Transformation with ntd")
megumi <- meanSdPlot(assay(shigeru_vst))

megumi2 <- megumi$gg + ggtitle("Transformation with vst")
nobara <- meanSdPlot(assay(shigeru_rlog))

nobara2 <-nobara$gg + ggtitle("Transformation with rlog")

# Create the pca on the defined groups
pcaData1 <- plotPCA(object = shigeru_rlog, intgroup = c("RearingCondition"),returnData=TRUE)
percentVar <- round(100 * attr(pcaData1, "percentVar"))
pcaData1$RearingCondition<-factor(pcaData1$RearingCondition,levels=c("Crowded","Isolated"), labels=c("Crowded S. nitens","Isolated S. nitens"))
#levels(pcaData1$RearingCondition)
p1 <- ggplot(pcaData1, aes(PC1, PC2, color= RearingCondition)) +
  geom_point(size=6) +
  xlab(paste0("PC1: ", percentVar[1], "% variance")) +
  ylab(paste0("PC2: ", percentVar[2], "% variance")) +
  scale_color_manual(values = c("blue", "red")) +
  #coord_fixed() +
  theme_bw() +
  theme(legend.title = element_blank()) +
  theme(legend.text = element_text(face="bold", size=16)) +
  theme(axis.text = element_text(size=14)) +
  theme(axis.title = element_text(size=14))
p1 + geom_convexhull(aes(fill = RearingCondition, color = RearingCondition), alpha = 0.5) +
    scale_fill_manual(values = c("blue", "red"))+
    ggtitle("PCA on S. nitens Thorax tissues", subtitle = "rlog transformation")

pcaData2 <- plotPCA(object = shigeru_vst, intgroup = c("RearingCondition"),returnData=TRUE)
percentVar <- round(100 * attr(pcaData2, "percentVar"))
pcaData2$RearingCondition<-factor(pcaData2$RearingCondition,levels=c("Crowded","Isolated"), labels=c("Crowded S. nitens","Isolated S. nitens"))
#levels(pcaData2$RearingCondition)
p2 <-ggplot(pcaData2, aes(PC1, PC2, color= RearingCondition)) +
  geom_point(size=6) +
  xlab(paste0("PC1: ", percentVar[1], "% variance")) +
  ylab(paste0("PC2: ", percentVar[2], "% variance")) +
  scale_color_manual(values = c("blue", "red")) +
  #coord_fixed() +
  theme_bw() +
  theme(legend.title = element_blank()) +
  theme(legend.text = element_text(face="bold", size=16)) +
  theme(axis.text = element_text(size=14)) +
  theme(axis.title = element_text(size=14))
p2 + geom_convexhull(aes(fill = RearingCondition, color = RearingCondition), alpha = 0.5) +
    scale_fill_manual(values = c("blue", "red"))+
    ggtitle("PCA on S. nitens Thorax tissues", subtitle = "vst transformation")

select <- order(rowMeans(counts(shigeru,normalized=TRUE)),
                decreasing=TRUE)[1:12]
df <- as.data.frame(colData(shigeru)[,c("RearingCondition","Tissue")])

---

Count matrix heatmap

# Count matrix
pheatmap(assay(shigeru_ntd)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after norm transformation")

pheatmap(assay(shigeru_vst)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after vst transformation")

pheatmap(assay(shigeru_rlog)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after rlog transformation")

# calculate between-sample distance matrix
metadata <- sampletable[,c("RearingCondition", "Tissue")]
rownames(metadata) <- sampletable$SampleName
sampleDistMatrix.rlog <- as.matrix(dist(t(assay(shigeru_rlog))))
pheatmap(sampleDistMatrix.rlog, annotation_col=metadata, main = "Thorax tissue heatmap distance matrix, rlog transformation")

sampleDistMatrix.vst<- as.matrix(dist(t(assay(shigeru_vst))))
pheatmap(sampleDistMatrix.vst, annotation_col=metadata, main = "Thorax tissue heatmap distance matrix, rlog transformation")

---

MA plot

The following plots are interactive and we can hover or Zoom on the locus of interest.

# Ma plot parameters after shrinkage
de_shrink <- lfcShrink(dds = shigeru, coef="RearingCondition_Crowded_vs_Isolated", type="apeglm")
#Thorax(de_shrink)
maplot <-ggmaplot(de_shrink, fdr = 0.05, fc = 1, size = 1, palette = c("#B31B21", "#1465AC", "darkgray"), genenames = as.vector(rownames(de_shrink$name)), top = 0,legend="top",label.select = NULL) +
  coord_cartesian(xlim = c(0, 20)) +
  scale_y_continuous(limits=c(-12, 12)) +
  theme(axis.text.x = element_text(size=12),axis.text.y = element_text(size=12),axis.title.x = element_text(size=14),axis.title.y = element_text(size=14),axis.line = element_line(size = 1, colour="gray20"),axis.ticks = element_line(size = 1, colour="gray20")) +
  guides(color = guide_legend(override.aes = list(size = c(3,3,3)))) +
  theme(legend.position = c(0.70, 0.12),legend.text=element_text(size=14,face="bold"),legend.background = element_rect(fill="transparent")) +
  theme(plot.title = element_text(size=18, colour="gray30", face="bold",hjust=0.06, vjust=-5)) +
  labs(title="MA-plot for the shrunken log2 fold changes in the Thorax tissues")
#interactive_maplot <- ggplotly(maplot)
#interactive_maplot

---

Volcano plot

#Volcano plot
keyvals <-ifelse(
  res_shigeru$log2FoldChange >= 1 & res_shigeru$padj <= 0.05, '#B31B21',
  ifelse(res_shigeru$log2FoldChange <= -1 & res_shigeru$padj <= 0.05, '#1465AC', 'darkgray'))

keyvals[is.na(keyvals)] <-'lightgray'
names(keyvals)[keyvals == "#B31B21"] <-'Upregulated'
names(keyvals)[keyvals == "#1465AC"] <-'Downregulated'
names(keyvals)[keyvals == 'darkgray'] <-'NS'

res_shigeru$color <- keyvals
volcano_plot <- ggplot(res_shigeru, aes(x = log2FoldChange, y = -log10(padj),
                                        color = color,  # Use the color column with keyvals
                                        text = rownames(res_shigeru))) +
  geom_point(size = 3, alpha = 0.8) +
  scale_color_identity() +  # Directly use the color values from `keyvals`
  guides(color = "none") +  # Hide the color legend
  labs(title = "Volcano Plot DEG Thorax S. nitens", x = "log2 Fold Change", y = "-log10 Adjusted P-Value") +
  theme_minimal()

# Convert to interactive plot with hover text for gene names
#interactive_volcano <- ggplotly(volcano_plot, tooltip = "text") %>%
#  layout(hoverlabel = list(namelength = -1))

# Display the interactive plot
#interactive_volcano

STRATEGY 2: Own RefSeq genome

3. DEGs in bulk Head tissues

This follows the same code as for STRATEGY 1 except that we will change the RefSeq to the transcript species genome path.

gregaria

---

Total DEGs

rawDir <- file.path(workDir, "03-gregaria-DESeq2")

# Path and name of targetfile containing conditions and file names
species <- "gregaria"
targetFile <- file.path(workDir, "list", paste0("Head", "_", species, ".txt"))

sampletable <- fread(targetFile)
rownames(sampletable) <- sampletable$SampleName
sampletable$RearingCondition <- as.factor(sampletable$RearingCondition)
sampletable$Tissue <- as.factor(sampletable$Tissue)

## Import count files
satoshi <- DESeqDataSetFromHTSeqCount(sampleTable = sampletable,
                        directory = rawDir,
                        design = ~ RearingCondition )
#satoshi

smallestGroupSize <- 3
keep <- rowSums(counts(satoshi) >= 5) >= smallestGroupSize
satoshi <- satoshi[keep,]
#nrow(satoshi)
satoshi$RearingCondition <- relevel(satoshi$RearingCondition, ref = "Isolated")

# Fit the statistical model
shigeru <- DESeq(satoshi)
#cbind(resultsNames(shigeru))
res_shigeru <- results(shigeru)
sum(res_shigeru$padj < tresh_padj, na.rm = TRUE)

[1] 5697

A total of 5,697 genes out of the pre-filtered 16,305 features were showing significant (corrected p-value < 0.05) differences in expression levels. However, we will only keep the ones with at least an absolute fold change > 1, so in reality we have 1,476 DEGs. The summary below showed how many were up-regulated and down-regulated in crowded compared to isolated it is possible to scroll it.

brock <- results(shigeru, name = "RearingCondition_Crowded_vs_Isolated", alpha = alpha_DEseq2)
summary(brock)

out of 16305 with nonzero total read count
adjusted p-value < 0.05
LFC > 0 (up)       : 2709, 17%
LFC < 0 (down)     : 2988, 18%
outliers [1]       : 99, 0.61%
low counts [2]     : 0, 0%
(mean count < 1)
[1] see 'cooksCutoff' argument of ?results
[2] see 'independentFiltering' argument of ?results

brock_df <- as.data.frame(brock)
brock_df$GeneID <- rownames(brock_df)

brock_df <- brock_df[!is.na(brock_df$padj) & (brock_df$padj < tresh_padj), ]
outputFile <- file.path(workDir, "DEG-results", paste0("DESeq2_results_Head_", species, ".csv"))
write.csv(brock, file = outputFile, row.names = TRUE)

significant_brock_df <- brock_df[!is.na(brock_df$padj) & !is.na(brock_df$log2FoldChange) &
                               (brock_df$padj < tresh_padj & abs(brock_df$log2FoldChange) > tresh_logfold), ]
# Summary similar to summary(brock)
upregulated <- sum(brock$padj < tresh_padj & brock$log2FoldChange > tresh_logfold, na.rm = TRUE)  # Upregulated count
downregulated <- sum(brock$padj < tresh_padj & brock$log2FoldChange < -tresh_logfold, na.rm = TRUE)  # Downregulated count
total_genes <- sum(upregulated, downregulated)  # Total non-zero count genes
cat("Total DEGs p-value < 0.05 and absolute logFoldChange > 1:", total_genes, "\n")

Total DEGs p-value < 0.05 and absolute logFoldChange > 1: 1476

cat("LFC > 0 (up)       :", upregulated, ",", round((upregulated / total_genes) * 100, 2), "%\n")

LFC > 0 (up)       : 814 , 55.15 %

cat("LFC < 0 (down)     :", downregulated, ",", round((downregulated / total_genes) * 100, 2), "%\n")

LFC < 0 (down)     : 662 , 44.85 %

meta_brock_df <- merge(significant_brock_df, allspecies_df, by.x = "GeneID", by.y = "GeneID", all.x = TRUE)
meta_brock_df <- meta_brock_df[, c("GeneID", "GeneType", "Description",  "Species",
                                   "baseMean", "log2FoldChange", "lfcSE", "stat", "pvalue", "padj")]
numeric_cols <- c("baseMean", "log2FoldChange", "lfcSE", "stat", "pvalue", "padj")
meta_brock_df[numeric_cols] <- round(meta_brock_df[numeric_cols], 2)
meta_brock_df$row_color <- ifelse(meta_brock_df$log2FoldChange > 1, "red",
                                  ifelse(meta_brock_df$log2FoldChange < -1, "blue", "black"))
meta_brock_df$row_weight <- ifelse(abs(meta_brock_df$log2FoldChange) > 1, "bold", "normal")
# Display the data table with italic formatting for Species column, color-coded, and bold text rows
datatable(meta_brock_df, options = list(
    pageLength = 10,       # Set initial page length
    scrollX = TRUE,        # Enable horizontal scrolling
    autoWidth = TRUE,      # Adjust column width automatically
    searchHighlight = TRUE # Highlight search matches
  ),
  rownames = FALSE,
  escape = FALSE  # Allows HTML formatting in table cells
) %>%
  formatStyle(
    'Species', target = 'cell',
    fontStyle = 'italic'
  ) %>%
  formatStyle(
    columns = names(meta_brock_df),
    target = 'row',
    color = styleEqual(c("red", "blue", "black"), c("red", "blue", "black")), # Apply row color
    fontWeight = styleEqual(c("bold", "normal"), c("bold", "normal")), # Apply bold font for up/downregulated rows
    backgroundColor = styleEqual(c("red", "blue", "black"), c("white", "white", "white")) # Keep background white
  )

# Define the output file path
outputFile <- file.path(workDir, "DEG-results", paste0("DESeq2_sigresults_head_", species, ".csv"))
write.csv(brock_df, file = outputFile, row.names = TRUE)

---

Normalization and PCA

# Try with the data transformation
shigeru_vst <- vst(shigeru)
shigeru_rlog <- rlog(shigeru)
shigeru_ntd <- normTransform(shigeru)
itadori <- meanSdPlot(assay(shigeru_ntd))

itadori2 <- itadori$gg + ggtitle("Transformation with ntd")
megumi <- meanSdPlot(assay(shigeru_vst))

megumi2 <- megumi$gg + ggtitle("Transformation with vst")
nobara <- meanSdPlot(assay(shigeru_rlog))

nobara2 <-nobara$gg + ggtitle("Transformation with rlog")

# Create the pca on the defined groups
pcaData1 <- plotPCA(object = shigeru_rlog, intgroup = c("RearingCondition"),returnData=TRUE)
percentVar <- round(100 * attr(pcaData1, "percentVar"))
pcaData1$RearingCondition<-factor(pcaData1$RearingCondition,levels=c("Crowded","Isolated"), labels=c("Crowded S. piceifrons","Isolated S. piceifrons"))
#levels(pcaData1$RearingCondition)
p1 <- ggplot(pcaData1, aes(PC1, PC2, color= RearingCondition)) +
  geom_point(size=6) +
  xlab(paste0("PC1: ", percentVar[1], "% variance")) +
  ylab(paste0("PC2: ", percentVar[2], "% variance")) +
  scale_color_manual(values = c("blue", "red")) +
  #coord_fixed() +
  theme_bw() +
  theme(legend.title = element_blank()) +
  theme(legend.text = element_text(face="bold", size=16)) +
  theme(axis.text = element_text(size=14)) +
  theme(axis.title = element_text(size=14))
p1 + geom_convexhull(aes(fill = RearingCondition, color = RearingCondition), alpha = 0.5) +
    scale_fill_manual(values = c("blue", "red"))+
    ggtitle("PCA on S. piceifrons Head tissues", subtitle = "rlog transformation")

pcaData2 <- plotPCA(object = shigeru_vst, intgroup = c("RearingCondition"),returnData=TRUE)
percentVar <- round(100 * attr(pcaData2, "percentVar"))
pcaData2$RearingCondition<-factor(pcaData2$RearingCondition,levels=c("Crowded","Isolated"), labels=c("Crowded S. piceifrons","Isolated S. piceifrons"))
#levels(pcaData2$RearingCondition)
p2 <-ggplot(pcaData2, aes(PC1, PC2, color= RearingCondition)) +
  geom_point(size=6) +
  xlab(paste0("PC1: ", percentVar[1], "% variance")) +
  ylab(paste0("PC2: ", percentVar[2], "% variance")) +
  scale_color_manual(values = c("blue", "red")) +
  #coord_fixed() +
  theme_bw() +
  theme(legend.title = element_blank()) +
  theme(legend.text = element_text(face="bold", size=16)) +
  theme(axis.text = element_text(size=14)) +
  theme(axis.title = element_text(size=14))
p2 + geom_convexhull(aes(fill = RearingCondition, color = RearingCondition), alpha = 0.5) +
    scale_fill_manual(values = c("blue", "red"))+
    ggtitle("PCA on S. piceifrons Head tissues", subtitle = "vst transformation")

select <- order(rowMeans(counts(shigeru,normalized=TRUE)),
                decreasing=TRUE)[1:12]
df <- as.data.frame(colData(shigeru)[,c("RearingCondition","Tissue")])

---

Count matrix heatmap

# Count matrix
pheatmap(assay(shigeru_ntd)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after norm transformation")

pheatmap(assay(shigeru_vst)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after vst transformation")

pheatmap(assay(shigeru_rlog)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after rlog transformation")

# calculate between-sample distance matrix
metadata <- sampletable[,c("RearingCondition", "Tissue")]
rownames(metadata) <- sampletable$SampleName
sampleDistMatrix.rlog <- as.matrix(dist(t(assay(shigeru_rlog))))
pheatmap(sampleDistMatrix.rlog, annotation_col=metadata, main = "Head tissue heatmap distance matrix, rlog transformation")

sampleDistMatrix.vst<- as.matrix(dist(t(assay(shigeru_vst))))
pheatmap(sampleDistMatrix.vst, annotation_col=metadata, main = "Head tissue heatmap distance matrix, rlog transformation")

---

MA plot

The following plots are interactive and we can hover or Zoom on the locus of interest.

# Ma plot parameters after shrinkage
de_shrink <- lfcShrink(dds = shigeru, coef="RearingCondition_Crowded_vs_Isolated", type="apeglm")
#head(de_shrink)
maplot <-ggmaplot(de_shrink, fdr = 0.05, fc = 1, size = 1, palette = c("#B31B21", "#1465AC", "darkgray"), genenames = as.vector(rownames(de_shrink$name)), top = 0,legend="top",label.select = NULL) +
  coord_cartesian(xlim = c(0, 20)) +
  scale_y_continuous(limits=c(-12, 12)) +
  theme(axis.text.x = element_text(size=12),axis.text.y = element_text(size=12),axis.title.x = element_text(size=14),axis.title.y = element_text(size=14),axis.line = element_line(size = 1, colour="gray20"),axis.ticks = element_line(size = 1, colour="gray20")) +
  guides(color = guide_legend(override.aes = list(size = c(3,3,3)))) +
  theme(legend.position = c(0.70, 0.12),legend.text=element_text(size=14,face="bold"),legend.background = element_rect(fill="transparent")) +
  theme(plot.title = element_text(size=18, colour="gray30", face="bold",hjust=0.06, vjust=-5)) +
  labs(title="MA-plot for the shrunken log2 fold changes in the Head tissues")
interactive_maplot <- ggplotly(maplot)
interactive_maplot

---

Volcano plot

#Volcano plot
keyvals <-ifelse(
  res_shigeru$log2FoldChange >= 1 & res_shigeru$padj <= 0.05, '#B31B21',
  ifelse(res_shigeru$log2FoldChange <= -1 & res_shigeru$padj <= 0.05, '#1465AC', 'darkgray'))

keyvals[is.na(keyvals)] <-'lightgray'
names(keyvals)[keyvals == "#B31B21"] <-'Upregulated'
names(keyvals)[keyvals == "#1465AC"] <-'Downregulated'
names(keyvals)[keyvals == 'darkgray'] <-'NS'

res_shigeru$color <- keyvals
volcano_plot <- ggplot(res_shigeru, aes(x = log2FoldChange, y = -log10(padj),
                                        color = color,  # Use the color column with keyvals
                                        text = rownames(res_shigeru))) +
  geom_point(size = 3, alpha = 0.8) +
  scale_color_identity() +  # Directly use the color values from `keyvals`
  guides(color = "none") +  # Hide the color legend
  labs(title = "Volcano Plot DEG Head S. piceifrons", x = "log2 Fold Change", y = "-log10 Adjusted P-Value") +
  theme_minimal()

# Convert to interactive plot with hover text for gene names
interactive_volcano <- ggplotly(volcano_plot, tooltip = "text") %>%
  layout(hoverlabel = list(namelength = -1))

# Display the interactive plot
interactive_volcano

piceifrons

---

Total DEGs

rawDir <- file.path(workDir, "03-piceifrons-DESeq2")

# Path and name of targetfile containing conditions and file names
species <- "piceifrons"
targetFile <- file.path(workDir, "list", paste0("Head", "_", species, "_nooutliers.txt"))

sampletable <- fread(targetFile)
rownames(sampletable) <- sampletable$SampleName
sampletable$RearingCondition <- as.factor(sampletable$RearingCondition)
sampletable$Tissue <- as.factor(sampletable$Tissue)

## Import count files
satoshi <- DESeqDataSetFromHTSeqCount(sampleTable = sampletable,
                        directory = rawDir,
                        design = ~ RearingCondition )
#satoshi

smallestGroupSize <- 3
keep <- rowSums(counts(satoshi) >= 5) >= smallestGroupSize
satoshi <- satoshi[keep,]
#nrow(satoshi)
satoshi$RearingCondition <- relevel(satoshi$RearingCondition, ref = "Isolated")

# Fit the statistical model
shigeru <- DESeq(satoshi)
#cbind(resultsNames(shigeru))
res_shigeru <- results(shigeru)
sum(res_shigeru$padj < tresh_padj, na.rm = TRUE)

[1] 1053

A total of 1,053 genes out of the pre-filtered 13,527 features were showing significant (corrected p-value < 0.05) differences in expression levels. However, we will only keep the ones with at least an absolute fold change > 1, so in reality we have 564 DEGs. The summary below showed how many were up-regulated and down-regulated in crowded compared to isolated it is possible to scroll it.

brock <- results(shigeru, name = "RearingCondition_Crowded_vs_Isolated", alpha = alpha_DEseq2)
summary(brock)

out of 13527 with nonzero total read count
adjusted p-value < 0.05
LFC > 0 (up)       : 538, 4%
LFC < 0 (down)     : 518, 3.8%
outliers [1]       : 43, 0.32%
low counts [2]     : 525, 3.9%
(mean count < 5)
[1] see 'cooksCutoff' argument of ?results
[2] see 'independentFiltering' argument of ?results

brock_df <- as.data.frame(brock)
brock_df$GeneID <- rownames(brock_df)

brock_df <- brock_df[!is.na(brock_df$padj) & (brock_df$padj < tresh_padj), ]
outputFile <- file.path(workDir, "DEG-results", paste0("DESeq2_results_Head_", species, ".csv"))
write.csv(brock, file = outputFile, row.names = TRUE)

significant_brock_df <- brock_df[!is.na(brock_df$padj) & !is.na(brock_df$log2FoldChange) &
                               (brock_df$padj < tresh_padj & abs(brock_df$log2FoldChange) > tresh_logfold), ]
# Summary similar to summary(brock)
upregulated <- sum(brock$padj < tresh_padj & brock$log2FoldChange > tresh_logfold, na.rm = TRUE)  # Upregulated count
downregulated <- sum(brock$padj < tresh_padj & brock$log2FoldChange < -tresh_logfold, na.rm = TRUE)  # Downregulated count
total_genes <- sum(upregulated, downregulated)  # Total non-zero count genes
cat("Total DEGs p-value < 0.05 and absolute logFoldChange > 1:", total_genes, "\n")

Total DEGs p-value < 0.05 and absolute logFoldChange > 1: 564

cat("LFC > 0 (up)       :", upregulated, ",", round((upregulated / total_genes) * 100, 2), "%\n")

LFC > 0 (up)       : 301 , 53.37 %

cat("LFC < 0 (down)     :", downregulated, ",", round((downregulated / total_genes) * 100, 2), "%\n")

LFC < 0 (down)     : 263 , 46.63 %

meta_brock_df <- merge(significant_brock_df, allspecies_df, by.x = "GeneID", by.y = "GeneID", all.x = TRUE)
meta_brock_df <- meta_brock_df[, c("GeneID", "GeneType", "Description",  "Species",
                                   "baseMean", "log2FoldChange", "lfcSE", "stat", "pvalue", "padj")]
numeric_cols <- c("baseMean", "log2FoldChange", "lfcSE", "stat", "pvalue", "padj")
meta_brock_df[numeric_cols] <- round(meta_brock_df[numeric_cols], 2)
meta_brock_df$row_color <- ifelse(meta_brock_df$log2FoldChange > 1, "red",
                                  ifelse(meta_brock_df$log2FoldChange < -1, "blue", "black"))
meta_brock_df$row_weight <- ifelse(abs(meta_brock_df$log2FoldChange) > 1, "bold", "normal")
# Display the data table with italic formatting for Species column, color-coded, and bold text rows
datatable(meta_brock_df, options = list(
    pageLength = 10,       # Set initial page length
    scrollX = TRUE,        # Enable horizontal scrolling
    autoWidth = TRUE,      # Adjust column width automatically
    searchHighlight = TRUE # Highlight search matches
  ),
  rownames = FALSE,
  escape = FALSE  # Allows HTML formatting in table cells
) %>%
  formatStyle(
    'Species', target = 'cell',
    fontStyle = 'italic'
  ) %>%
  formatStyle(
    columns = names(meta_brock_df),
    target = 'row',
    color = styleEqual(c("red", "blue", "black"), c("red", "blue", "black")), # Apply row color
    fontWeight = styleEqual(c("bold", "normal"), c("bold", "normal")), # Apply bold font for up/downregulated rows
    backgroundColor = styleEqual(c("red", "blue", "black"), c("white", "white", "white")) # Keep background white
  )

# Define the output file path
outputFile <- file.path(workDir, "DEG-results", paste0("DESeq2_sigresults_head_", species, ".csv"))
write.csv(brock_df, file = outputFile, row.names = TRUE)

---

Normalization and PCA

# Try with the data transformation
shigeru_vst <- vst(shigeru)
shigeru_rlog <- rlog(shigeru)
shigeru_ntd <- normTransform(shigeru)
itadori <- meanSdPlot(assay(shigeru_ntd))

itadori2 <- itadori$gg + ggtitle("Transformation with ntd")
megumi <- meanSdPlot(assay(shigeru_vst))

megumi2 <- megumi$gg + ggtitle("Transformation with vst")
nobara <- meanSdPlot(assay(shigeru_rlog))

nobara2 <-nobara$gg + ggtitle("Transformation with rlog")

# Create the pca on the defined groups
pcaData1 <- plotPCA(object = shigeru_rlog, intgroup = c("RearingCondition"),returnData=TRUE)
percentVar <- round(100 * attr(pcaData1, "percentVar"))
pcaData1$RearingCondition<-factor(pcaData1$RearingCondition,levels=c("Crowded","Isolated"), labels=c("Crowded S. piceifrons","Isolated S. piceifrons"))
#levels(pcaData1$RearingCondition)
p1 <- ggplot(pcaData1, aes(PC1, PC2, color= RearingCondition)) +
  geom_point(size=6) +
  xlab(paste0("PC1: ", percentVar[1], "% variance")) +
  ylab(paste0("PC2: ", percentVar[2], "% variance")) +
  scale_color_manual(values = c("blue", "red")) +
  #coord_fixed() +
  theme_bw() +
  theme(legend.title = element_blank()) +
  theme(legend.text = element_text(face="bold", size=16)) +
  theme(axis.text = element_text(size=14)) +
  theme(axis.title = element_text(size=14))
p1 + geom_convexhull(aes(fill = RearingCondition, color = RearingCondition), alpha = 0.5) +
    scale_fill_manual(values = c("blue", "red"))+
    ggtitle("PCA on S. piceifrons Head tissues", subtitle = "rlog transformation")

pcaData2 <- plotPCA(object = shigeru_vst, intgroup = c("RearingCondition"),returnData=TRUE)
percentVar <- round(100 * attr(pcaData2, "percentVar"))
pcaData2$RearingCondition<-factor(pcaData2$RearingCondition,levels=c("Crowded","Isolated"), labels=c("Crowded S. piceifrons","Isolated S. piceifrons"))
#levels(pcaData2$RearingCondition)
p2 <-ggplot(pcaData2, aes(PC1, PC2, color= RearingCondition)) +
  geom_point(size=6) +
  xlab(paste0("PC1: ", percentVar[1], "% variance")) +
  ylab(paste0("PC2: ", percentVar[2], "% variance")) +
  scale_color_manual(values = c("blue", "red")) +
  #coord_fixed() +
  theme_bw() +
  theme(legend.title = element_blank()) +
  theme(legend.text = element_text(face="bold", size=16)) +
  theme(axis.text = element_text(size=14)) +
  theme(axis.title = element_text(size=14))
p2 + geom_convexhull(aes(fill = RearingCondition, color = RearingCondition), alpha = 0.5) +
    scale_fill_manual(values = c("blue", "red"))+
    ggtitle("PCA on S. piceifrons Head tissues", subtitle = "vst transformation")

select <- order(rowMeans(counts(shigeru,normalized=TRUE)),
                decreasing=TRUE)[1:12]
df <- as.data.frame(colData(shigeru)[,c("RearingCondition","Tissue")])

---

Count matrix heatmap

# Count matrix
pheatmap(assay(shigeru_ntd)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after norm transformation")

pheatmap(assay(shigeru_vst)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after vst transformation")

pheatmap(assay(shigeru_rlog)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after rlog transformation")

# calculate between-sample distance matrix
metadata <- sampletable[,c("RearingCondition", "Tissue")]
rownames(metadata) <- sampletable$SampleName
sampleDistMatrix.rlog <- as.matrix(dist(t(assay(shigeru_rlog))))
pheatmap(sampleDistMatrix.rlog, annotation_col=metadata, main = "Head tissue heatmap distance matrix, rlog transformation")

sampleDistMatrix.vst<- as.matrix(dist(t(assay(shigeru_vst))))
pheatmap(sampleDistMatrix.vst, annotation_col=metadata, main = "Head tissue heatmap distance matrix, rlog transformation")

---

MA plot

The following plots are interactive and we can hover or Zoom on the locus of interest.

# Ma plot parameters after shrinkage
de_shrink <- lfcShrink(dds = shigeru, coef="RearingCondition_Crowded_vs_Isolated", type="apeglm")
#head(de_shrink)
maplot <-ggmaplot(de_shrink, fdr = 0.05, fc = 1, size = 1, palette = c("#B31B21", "#1465AC", "darkgray"), genenames = as.vector(rownames(de_shrink$name)), top = 0,legend="top",label.select = NULL) +
  coord_cartesian(xlim = c(0, 20)) +
  scale_y_continuous(limits=c(-12, 12)) +
  theme(axis.text.x = element_text(size=12),axis.text.y = element_text(size=12),axis.title.x = element_text(size=14),axis.title.y = element_text(size=14),axis.line = element_line(size = 1, colour="gray20"),axis.ticks = element_line(size = 1, colour="gray20")) +
  guides(color = guide_legend(override.aes = list(size = c(3,3,3)))) +
  theme(legend.position = c(0.70, 0.12),legend.text=element_text(size=14,face="bold"),legend.background = element_rect(fill="transparent")) +
  theme(plot.title = element_text(size=18, colour="gray30", face="bold",hjust=0.06, vjust=-5)) +
  labs(title="MA-plot for the shrunken log2 fold changes in the Head tissues")
interactive_maplot <- ggplotly(maplot)
interactive_maplot

---

Volcano plot

#Volcano plot
keyvals <-ifelse(
  res_shigeru$log2FoldChange >= 1 & res_shigeru$padj <= 0.05, '#B31B21',
  ifelse(res_shigeru$log2FoldChange <= -1 & res_shigeru$padj <= 0.05, '#1465AC', 'darkgray'))

keyvals[is.na(keyvals)] <-'lightgray'
names(keyvals)[keyvals == "#B31B21"] <-'Upregulated'
names(keyvals)[keyvals == "#1465AC"] <-'Downregulated'
names(keyvals)[keyvals == 'darkgray'] <-'NS'

res_shigeru$color <- keyvals
volcano_plot <- ggplot(res_shigeru, aes(x = log2FoldChange, y = -log10(padj),
                                        color = color,  # Use the color column with keyvals
                                        text = rownames(res_shigeru))) +
  geom_point(size = 3, alpha = 0.8) +
  scale_color_identity() +  # Directly use the color values from `keyvals`
  guides(color = "none") +  # Hide the color legend
  labs(title = "Volcano Plot DEG Head S. piceifrons", x = "log2 Fold Change", y = "-log10 Adjusted P-Value") +
  theme_minimal()

# Convert to interactive plot with hover text for gene names
interactive_volcano <- ggplotly(volcano_plot, tooltip = "text") %>%
  layout(hoverlabel = list(namelength = -1))

# Display the interactive plot
interactive_volcano

cancellata

---

Total DEGs

rawDir <- file.path(workDir, "03-cancellata-DESeq2")

# Path and name of targetfile containing conditions and file names
species <- "cancellata"
targetFile <- file.path(workDir, "list", paste0("Head", "_", species, "_nooutliers.txt"))

sampletable <- fread(targetFile)
rownames(sampletable) <- sampletable$SampleName
sampletable$RearingCondition <- as.factor(sampletable$RearingCondition)
sampletable$Tissue <- as.factor(sampletable$Tissue)

## Import count files
satoshi <- DESeqDataSetFromHTSeqCount(sampleTable = sampletable,
                        directory = rawDir,
                        design = ~ RearingCondition )
#satoshi

smallestGroupSize <- 3
keep <- rowSums(counts(satoshi) >= 5) >= smallestGroupSize
satoshi <- satoshi[keep,]
#nrow(satoshi)
satoshi$RearingCondition <- relevel(satoshi$RearingCondition, ref = "Isolated")

# Fit the statistical model
shigeru <- DESeq(satoshi)
#cbind(resultsNames(shigeru))
res_shigeru <- results(shigeru)
sum(res_shigeru$padj < tresh_padj, na.rm = TRUE)

[1] 1628

A total of 1,628 genes out of the pre-filtered 13,547 features were showing significant (corrected p-value < 0.05) differences in expression levels. However, we will only keep the ones with at least an absolute fold change > 1, so in reality we have 854 DEGs. The summary below showed how many were up-regulated and down-regulated in crowded compared to isolated it is possible to scroll it.

brock <- results(shigeru, name = "RearingCondition_Crowded_vs_Isolated", alpha = alpha_DEseq2)
summary(brock)

out of 13547 with nonzero total read count
adjusted p-value < 0.05
LFC > 0 (up)       : 751, 5.5%
LFC < 0 (down)     : 877, 6.5%
outliers [1]       : 26, 0.19%
low counts [2]     : 263, 1.9%
(mean count < 4)
[1] see 'cooksCutoff' argument of ?results
[2] see 'independentFiltering' argument of ?results

brock_df <- as.data.frame(brock)
brock_df$GeneID <- rownames(brock_df)

brock_df <- brock_df[!is.na(brock_df$padj) & (brock_df$padj < tresh_padj), ]
outputFile <- file.path(workDir, "DEG-results", paste0("DESeq2_results_Head_", species, ".csv"))
write.csv(brock, file = outputFile, row.names = TRUE)

significant_brock_df <- brock_df[!is.na(brock_df$padj) & !is.na(brock_df$log2FoldChange) &
                               (brock_df$padj < tresh_padj & abs(brock_df$log2FoldChange) > tresh_logfold), ]
# Summary similar to summary(brock)
upregulated <- sum(brock$padj < tresh_padj & brock$log2FoldChange > tresh_logfold, na.rm = TRUE)  # Upregulated count
downregulated <- sum(brock$padj < tresh_padj & brock$log2FoldChange < -tresh_logfold, na.rm = TRUE)  # Downregulated count
total_genes <- sum(upregulated, downregulated)  # Total non-zero count genes
cat("Total DEGs p-value < 0.05 and absolute logFoldChange > 1:", total_genes, "\n")

Total DEGs p-value < 0.05 and absolute logFoldChange > 1: 854

cat("LFC > 0 (up)       :", upregulated, ",", round((upregulated / total_genes) * 100, 2), "%\n")

LFC > 0 (up)       : 378 , 44.26 %

cat("LFC < 0 (down)     :", downregulated, ",", round((downregulated / total_genes) * 100, 2), "%\n")

LFC < 0 (down)     : 476 , 55.74 %

meta_brock_df <- merge(significant_brock_df, allspecies_df, by.x = "GeneID", by.y = "GeneID", all.x = TRUE)
meta_brock_df <- meta_brock_df[, c("GeneID", "GeneType", "Description",  "Species",
                                   "baseMean", "log2FoldChange", "lfcSE", "stat", "pvalue", "padj")]
numeric_cols <- c("baseMean", "log2FoldChange", "lfcSE", "stat", "pvalue", "padj")
meta_brock_df[numeric_cols] <- round(meta_brock_df[numeric_cols], 2)
meta_brock_df$row_color <- ifelse(meta_brock_df$log2FoldChange > 1, "red",
                                  ifelse(meta_brock_df$log2FoldChange < -1, "blue", "black"))
meta_brock_df$row_weight <- ifelse(abs(meta_brock_df$log2FoldChange) > 1, "bold", "normal")
# Display the data table with italic formatting for Species column, color-coded, and bold text rows
datatable(meta_brock_df, options = list(
    pageLength = 10,       # Set initial page length
    scrollX = TRUE,        # Enable horizontal scrolling
    autoWidth = TRUE,      # Adjust column width automatically
    searchHighlight = TRUE # Highlight search matches
  ),
  rownames = FALSE,
  escape = FALSE  # Allows HTML formatting in table cells
) %>%
  formatStyle(
    'Species', target = 'cell',
    fontStyle = 'italic'
  ) %>%
  formatStyle(
    columns = names(meta_brock_df),
    target = 'row',
    color = styleEqual(c("red", "blue", "black"), c("red", "blue", "black")), # Apply row color
    fontWeight = styleEqual(c("bold", "normal"), c("bold", "normal")), # Apply bold font for up/downregulated rows
    backgroundColor = styleEqual(c("red", "blue", "black"), c("white", "white", "white")) # Keep background white
  )

# Define the output file path
outputFile <- file.path(workDir, "DEG-results", paste0("DESeq2_sigresults_head_", species, ".csv"))
write.csv(brock_df, file = outputFile, row.names = TRUE)

---

Normalization and PCA

# Try with the data transformation
shigeru_vst <- vst(shigeru)
shigeru_rlog <- rlog(shigeru)
shigeru_ntd <- normTransform(shigeru)
itadori <- meanSdPlot(assay(shigeru_ntd))

itadori2 <- itadori$gg + ggtitle("Transformation with ntd")
megumi <- meanSdPlot(assay(shigeru_vst))

megumi2 <- megumi$gg + ggtitle("Transformation with vst")
nobara <- meanSdPlot(assay(shigeru_rlog))

nobara2 <-nobara$gg + ggtitle("Transformation with rlog")

# Create the pca on the defined groups
pcaData1 <- plotPCA(object = shigeru_rlog, intgroup = c("RearingCondition"),returnData=TRUE)
percentVar <- round(100 * attr(pcaData1, "percentVar"))
pcaData1$RearingCondition<-factor(pcaData1$RearingCondition,levels=c("Crowded","Isolated"), labels=c("Crowded S. cancellata","Isolated S. cancellata"))
#levels(pcaData1$RearingCondition)
p1 <- ggplot(pcaData1, aes(PC1, PC2, color= RearingCondition)) +
  geom_point(size=6) +
  xlab(paste0("PC1: ", percentVar[1], "% variance")) +
  ylab(paste0("PC2: ", percentVar[2], "% variance")) +
  scale_color_manual(values = c("blue", "red")) +
  #coord_fixed() +
  theme_bw() +
  theme(legend.title = element_blank()) +
  theme(legend.text = element_text(face="bold", size=16)) +
  theme(axis.text = element_text(size=14)) +
  theme(axis.title = element_text(size=14))
p1 + geom_convexhull(aes(fill = RearingCondition, color = RearingCondition), alpha = 0.5) +
    scale_fill_manual(values = c("blue", "red"))+
    ggtitle("PCA on S. cancellata Head tissues", subtitle = "rlog transformation")

pcaData2 <- plotPCA(object = shigeru_vst, intgroup = c("RearingCondition"),returnData=TRUE)
percentVar <- round(100 * attr(pcaData2, "percentVar"))
pcaData2$RearingCondition<-factor(pcaData2$RearingCondition,levels=c("Crowded","Isolated"), labels=c("Crowded S. cancellata","Isolated S. cancellata"))
#levels(pcaData2$RearingCondition)
p2 <-ggplot(pcaData2, aes(PC1, PC2, color= RearingCondition)) +
  geom_point(size=6) +
  xlab(paste0("PC1: ", percentVar[1], "% variance")) +
  ylab(paste0("PC2: ", percentVar[2], "% variance")) +
  scale_color_manual(values = c("blue", "red")) +
  #coord_fixed() +
  theme_bw() +
  theme(legend.title = element_blank()) +
  theme(legend.text = element_text(face="bold", size=16)) +
  theme(axis.text = element_text(size=14)) +
  theme(axis.title = element_text(size=14))
p2 + geom_convexhull(aes(fill = RearingCondition, color = RearingCondition), alpha = 0.5) +
    scale_fill_manual(values = c("blue", "red"))+
    ggtitle("PCA on S. cancellata Head tissues", subtitle = "vst transformation")

select <- order(rowMeans(counts(shigeru,normalized=TRUE)),
                decreasing=TRUE)[1:12]
df <- as.data.frame(colData(shigeru)[,c("RearingCondition","Tissue")])

---

Count matrix heatmap

# Count matrix
pheatmap(assay(shigeru_ntd)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after norm transformation")

pheatmap(assay(shigeru_vst)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after vst transformation")

pheatmap(assay(shigeru_rlog)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after rlog transformation")

# calculate between-sample distance matrix
metadata <- sampletable[,c("RearingCondition", "Tissue")]
rownames(metadata) <- sampletable$SampleName
sampleDistMatrix.rlog <- as.matrix(dist(t(assay(shigeru_rlog))))
pheatmap(sampleDistMatrix.rlog, annotation_col=metadata, main = "Head tissue heatmap distance matrix, rlog transformation")

sampleDistMatrix.vst<- as.matrix(dist(t(assay(shigeru_vst))))
pheatmap(sampleDistMatrix.vst, annotation_col=metadata, main = "Head tissue heatmap distance matrix, rlog transformation")

---

MA plot

The following plots are interactive and we can hover or Zoom on the locus of interest.

# Ma plot parameters after shrinkage
de_shrink <- lfcShrink(dds = shigeru, coef="RearingCondition_Crowded_vs_Isolated", type="apeglm")
#head(de_shrink)
maplot <-ggmaplot(de_shrink, fdr = 0.05, fc = 1, size = 1, palette = c("#B31B21", "#1465AC", "darkgray"), genenames = as.vector(rownames(de_shrink$name)), top = 0,legend="top",label.select = NULL) +
  coord_cartesian(xlim = c(0, 20)) +
  scale_y_continuous(limits=c(-12, 12)) +
  theme(axis.text.x = element_text(size=12),axis.text.y = element_text(size=12),axis.title.x = element_text(size=14),axis.title.y = element_text(size=14),axis.line = element_line(size = 1, colour="gray20"),axis.ticks = element_line(size = 1, colour="gray20")) +
  guides(color = guide_legend(override.aes = list(size = c(3,3,3)))) +
  theme(legend.position = c(0.70, 0.12),legend.text=element_text(size=14,face="bold"),legend.background = element_rect(fill="transparent")) +
  theme(plot.title = element_text(size=18, colour="gray30", face="bold",hjust=0.06, vjust=-5)) +
  labs(title="MA-plot for the shrunken log2 fold changes in the Head tissues")
interactive_maplot <- ggplotly(maplot)
interactive_maplot

---

Volcano plot

#Volcano plot
keyvals <-ifelse(
  res_shigeru$log2FoldChange >= 1 & res_shigeru$padj <= 0.05, '#B31B21',
  ifelse(res_shigeru$log2FoldChange <= -1 & res_shigeru$padj <= 0.05, '#1465AC', 'darkgray'))

keyvals[is.na(keyvals)] <-'lightgray'
names(keyvals)[keyvals == "#B31B21"] <-'Upregulated'
names(keyvals)[keyvals == "#1465AC"] <-'Downregulated'
names(keyvals)[keyvals == 'darkgray'] <-'NS'

res_shigeru$color <- keyvals
volcano_plot <- ggplot(res_shigeru, aes(x = log2FoldChange, y = -log10(padj),
                                        color = color,  # Use the color column with keyvals
                                        text = rownames(res_shigeru))) +
  geom_point(size = 3, alpha = 0.8) +
  scale_color_identity() +  # Directly use the color values from `keyvals`
  guides(color = "none") +  # Hide the color legend
  labs(title = "Volcano Plot DEG Head S. cancellata", x = "log2 Fold Change", y = "-log10 Adjusted P-Value") +
  theme_minimal()

# Convert to interactive plot with hover text for gene names
interactive_volcano <- ggplotly(volcano_plot, tooltip = "text") %>%
  layout(hoverlabel = list(namelength = -1))

# Display the interactive plot
interactive_volcano

americana

---

Total DEGs

rawDir <- file.path(workDir, "03-americana-DESeq2")

# Path and name of targetfile containing conditions and file names
species <- "americana"
targetFile <- file.path(workDir, "list", paste0("Head", "_", species, "_nooutliers.txt"))

sampletable <- fread(targetFile)
rownames(sampletable) <- sampletable$SampleName
sampletable$RearingCondition <- as.factor(sampletable$RearingCondition)
sampletable$Tissue <- as.factor(sampletable$Tissue)

## Import count files
satoshi <- DESeqDataSetFromHTSeqCount(sampleTable = sampletable,
                        directory = rawDir,
                        design = ~ RearingCondition )
#satoshi

smallestGroupSize <- 3
keep <- rowSums(counts(satoshi) >= 5) >= smallestGroupSize
satoshi <- satoshi[keep,]
#nrow(satoshi)
satoshi$RearingCondition <- relevel(satoshi$RearingCondition, ref = "Isolated")

# Fit the statistical model
shigeru <- DESeq(satoshi)
#cbind(resultsNames(shigeru))
res_shigeru <- results(shigeru)
sum(res_shigeru$padj < tresh_padj, na.rm = TRUE)

[1] 1413

A total of 1,413 genes out of the pre-filtered 13,764 features were showing significant (corrected p-value < 0.05) differences in expression levels. However, we will only keep the ones with at least an absolute fold change > 1, so in reality we have 696 DEGs. The summary below showed how many were up-regulated and down-regulated in crowded compared to isolated it is possible to scroll it.

brock <- results(shigeru, name = "RearingCondition_Crowded_vs_Isolated", alpha = alpha_DEseq2)
summary(brock)

out of 13764 with nonzero total read count
adjusted p-value < 0.05
LFC > 0 (up)       : 802, 5.8%
LFC < 0 (down)     : 619, 4.5%
outliers [1]       : 57, 0.41%
low counts [2]     : 534, 3.9%
(mean count < 5)
[1] see 'cooksCutoff' argument of ?results
[2] see 'independentFiltering' argument of ?results

brock_df <- as.data.frame(brock)
brock_df$GeneID <- rownames(brock_df)

brock_df <- brock_df[!is.na(brock_df$padj) & (brock_df$padj < tresh_padj), ]
outputFile <- file.path(workDir, "DEG-results", paste0("DESeq2_results_Head_", species, ".csv"))
write.csv(brock, file = outputFile, row.names = TRUE)

significant_brock_df <- brock_df[!is.na(brock_df$padj) & !is.na(brock_df$log2FoldChange) &
                               (brock_df$padj < tresh_padj & abs(brock_df$log2FoldChange) > tresh_logfold), ]
# Summary similar to summary(brock)
upregulated <- sum(brock$padj < tresh_padj & brock$log2FoldChange > tresh_logfold, na.rm = TRUE)  # Upregulated count
downregulated <- sum(brock$padj < tresh_padj & brock$log2FoldChange < -tresh_logfold, na.rm = TRUE)  # Downregulated count
total_genes <- sum(upregulated, downregulated)  # Total non-zero count genes
cat("Total DEGs p-value < 0.05 and absolute logFoldChange > 1:", total_genes, "\n")

Total DEGs p-value < 0.05 and absolute logFoldChange > 1: 696

cat("LFC > 0 (up)       :", upregulated, ",", round((upregulated / total_genes) * 100, 2), "%\n")

LFC > 0 (up)       : 357 , 51.29 %

cat("LFC < 0 (down)     :", downregulated, ",", round((downregulated / total_genes) * 100, 2), "%\n")

LFC < 0 (down)     : 339 , 48.71 %

meta_brock_df <- merge(significant_brock_df, allspecies_df, by.x = "GeneID", by.y = "GeneID", all.x = TRUE)
meta_brock_df <- meta_brock_df[, c("GeneID", "GeneType", "Description",  "Species",
                                   "baseMean", "log2FoldChange", "lfcSE", "stat", "pvalue", "padj")]
numeric_cols <- c("baseMean", "log2FoldChange", "lfcSE", "stat", "pvalue", "padj")
meta_brock_df[numeric_cols] <- round(meta_brock_df[numeric_cols], 2)
meta_brock_df$row_color <- ifelse(meta_brock_df$log2FoldChange > 1, "red",
                                  ifelse(meta_brock_df$log2FoldChange < -1, "blue", "black"))
meta_brock_df$row_weight <- ifelse(abs(meta_brock_df$log2FoldChange) > 1, "bold", "normal")
# Display the data table with italic formatting for Species column, color-coded, and bold text rows
datatable(meta_brock_df, options = list(
    pageLength = 10,       # Set initial page length
    scrollX = TRUE,        # Enable horizontal scrolling
    autoWidth = TRUE,      # Adjust column width automatically
    searchHighlight = TRUE # Highlight search matches
  ),
  rownames = FALSE,
  escape = FALSE  # Allows HTML formatting in table cells
) %>%
  formatStyle(
    'Species', target = 'cell',
    fontStyle = 'italic'
  ) %>%
  formatStyle(
    columns = names(meta_brock_df),
    target = 'row',
    color = styleEqual(c("red", "blue", "black"), c("red", "blue", "black")), # Apply row color
    fontWeight = styleEqual(c("bold", "normal"), c("bold", "normal")), # Apply bold font for up/downregulated rows
    backgroundColor = styleEqual(c("red", "blue", "black"), c("white", "white", "white")) # Keep background white
  )

# Define the output file path
outputFile <- file.path(workDir, "DEG-results", paste0("DESeq2_sigresults_head_", species, ".csv"))
write.csv(brock_df, file = outputFile, row.names = TRUE)

---

Normalization and PCA

# Try with the data transformation
shigeru_vst <- vst(shigeru)
shigeru_rlog <- rlog(shigeru)
shigeru_ntd <- normTransform(shigeru)
itadori <- meanSdPlot(assay(shigeru_ntd))

itadori2 <- itadori$gg + ggtitle("Transformation with ntd")
megumi <- meanSdPlot(assay(shigeru_vst))

megumi2 <- megumi$gg + ggtitle("Transformation with vst")
nobara <- meanSdPlot(assay(shigeru_rlog))

nobara2 <-nobara$gg + ggtitle("Transformation with rlog")

# Create the pca on the defined groups
pcaData1 <- plotPCA(object = shigeru_rlog, intgroup = c("RearingCondition"),returnData=TRUE)
percentVar <- round(100 * attr(pcaData1, "percentVar"))
pcaData1$RearingCondition<-factor(pcaData1$RearingCondition,levels=c("Crowded","Isolated"), labels=c("Crowded S. americana","Isolated S. americana"))
#levels(pcaData1$RearingCondition)
p1 <- ggplot(pcaData1, aes(PC1, PC2, color= RearingCondition)) +
  geom_point(size=6) +
  xlab(paste0("PC1: ", percentVar[1], "% variance")) +
  ylab(paste0("PC2: ", percentVar[2], "% variance")) +
  scale_color_manual(values = c("blue", "red")) +
  #coord_fixed() +
  theme_bw() +
  theme(legend.title = element_blank()) +
  theme(legend.text = element_text(face="bold", size=16)) +
  theme(axis.text = element_text(size=14)) +
  theme(axis.title = element_text(size=14))
p1 + geom_convexhull(aes(fill = RearingCondition, color = RearingCondition), alpha = 0.5) +
    scale_fill_manual(values = c("blue", "red"))+
    ggtitle("PCA on S. americana Head tissues", subtitle = "rlog transformation")

pcaData2 <- plotPCA(object = shigeru_vst, intgroup = c("RearingCondition"),returnData=TRUE)
percentVar <- round(100 * attr(pcaData2, "percentVar"))
pcaData2$RearingCondition<-factor(pcaData2$RearingCondition,levels=c("Crowded","Isolated"), labels=c("Crowded S. americana","Isolated S. americana"))
#levels(pcaData2$RearingCondition)
p2 <-ggplot(pcaData2, aes(PC1, PC2, color= RearingCondition)) +
  geom_point(size=6) +
  xlab(paste0("PC1: ", percentVar[1], "% variance")) +
  ylab(paste0("PC2: ", percentVar[2], "% variance")) +
  scale_color_manual(values = c("blue", "red")) +
  #coord_fixed() +
  theme_bw() +
  theme(legend.title = element_blank()) +
  theme(legend.text = element_text(face="bold", size=16)) +
  theme(axis.text = element_text(size=14)) +
  theme(axis.title = element_text(size=14))
p2 + geom_convexhull(aes(fill = RearingCondition, color = RearingCondition), alpha = 0.5) +
    scale_fill_manual(values = c("blue", "red"))+
    ggtitle("PCA on S. americana Head tissues", subtitle = "vst transformation")

select <- order(rowMeans(counts(shigeru,normalized=TRUE)),
                decreasing=TRUE)[1:12]
df <- as.data.frame(colData(shigeru)[,c("RearingCondition","Tissue")])

---

Count matrix heatmap

# Count matrix
pheatmap(assay(shigeru_ntd)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after norm transformation")

pheatmap(assay(shigeru_vst)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after vst transformation")

pheatmap(assay(shigeru_rlog)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after rlog transformation")

# calculate between-sample distance matrix
metadata <- sampletable[,c("RearingCondition", "Tissue")]
rownames(metadata) <- sampletable$SampleName
sampleDistMatrix.rlog <- as.matrix(dist(t(assay(shigeru_rlog))))
pheatmap(sampleDistMatrix.rlog, annotation_col=metadata, main = "Head tissue heatmap distance matrix, rlog transformation")

sampleDistMatrix.vst<- as.matrix(dist(t(assay(shigeru_vst))))
pheatmap(sampleDistMatrix.vst, annotation_col=metadata, main = "Head tissue heatmap distance matrix, rlog transformation")

---

MA plot

The following plots are interactive and we can hover or Zoom on the locus of interest.

# Ma plot parameters after shrinkage
de_shrink <- lfcShrink(dds = shigeru, coef="RearingCondition_Crowded_vs_Isolated", type="apeglm")
#head(de_shrink)
maplot <-ggmaplot(de_shrink, fdr = 0.05, fc = 1, size = 1, palette = c("#B31B21", "#1465AC", "darkgray"), genenames = as.vector(rownames(de_shrink$name)), top = 0,legend="top",label.select = NULL) +
  coord_cartesian(xlim = c(0, 20)) +
  scale_y_continuous(limits=c(-12, 12)) +
  theme(axis.text.x = element_text(size=12),axis.text.y = element_text(size=12),axis.title.x = element_text(size=14),axis.title.y = element_text(size=14),axis.line = element_line(size = 1, colour="gray20"),axis.ticks = element_line(size = 1, colour="gray20")) +
  guides(color = guide_legend(override.aes = list(size = c(3,3,3)))) +
  theme(legend.position = c(0.70, 0.12),legend.text=element_text(size=14,face="bold"),legend.background = element_rect(fill="transparent")) +
  theme(plot.title = element_text(size=18, colour="gray30", face="bold",hjust=0.06, vjust=-5)) +
  labs(title="MA-plot for the shrunken log2 fold changes in the Head tissues")
interactive_maplot <- ggplotly(maplot)
interactive_maplot

---

Volcano plot

#Volcano plot
keyvals <-ifelse(
  res_shigeru$log2FoldChange >= 1 & res_shigeru$padj <= 0.05, '#B31B21',
  ifelse(res_shigeru$log2FoldChange <= -1 & res_shigeru$padj <= 0.05, '#1465AC', 'darkgray'))

keyvals[is.na(keyvals)] <-'lightgray'
names(keyvals)[keyvals == "#B31B21"] <-'Upregulated'
names(keyvals)[keyvals == "#1465AC"] <-'Downregulated'
names(keyvals)[keyvals == 'darkgray'] <-'NS'

res_shigeru$color <- keyvals
volcano_plot <- ggplot(res_shigeru, aes(x = log2FoldChange, y = -log10(padj),
                                        color = color,  # Use the color column with keyvals
                                        text = rownames(res_shigeru))) +
  geom_point(size = 3, alpha = 0.8) +
  scale_color_identity() +  # Directly use the color values from `keyvals`
  guides(color = "none") +  # Hide the color legend
  labs(title = "Volcano Plot DEG Head S. americana", x = "log2 Fold Change", y = "-log10 Adjusted P-Value") +
  theme_minimal()

# Convert to interactive plot with hover text for gene names
interactive_volcano <- ggplotly(volcano_plot, tooltip = "text") %>%
  layout(hoverlabel = list(namelength = -1))

# Display the interactive plot
interactive_volcano

cubense

---

Total DEGs

rawDir <- file.path(workDir, "03-cubense-DESeq2")

# Path and name of targetfile containing conditions and file names
species <- "cubense"
targetFile <- file.path(workDir, "list", paste0("Head", "_", species, "_nooutliers.txt"))

sampletable <- fread(targetFile)
rownames(sampletable) <- sampletable$SampleName
sampletable$RearingCondition <- as.factor(sampletable$RearingCondition)
sampletable$Tissue <- as.factor(sampletable$Tissue)

## Import count files
satoshi <- DESeqDataSetFromHTSeqCount(sampleTable = sampletable,
                        directory = rawDir,
                        design = ~ RearingCondition )
#satoshi

smallestGroupSize <- 3
keep <- rowSums(counts(satoshi) >= 5) >= smallestGroupSize
satoshi <- satoshi[keep,]
#nrow(satoshi)
satoshi$RearingCondition <- relevel(satoshi$RearingCondition, ref = "Isolated")

# Fit the statistical model
shigeru <- DESeq(satoshi)
#cbind(resultsNames(shigeru))
res_shigeru <- results(shigeru)
sum(res_shigeru$padj < tresh_padj, na.rm = TRUE)

[1] 105

A total of 105 genes out of the pre-filtered 14,328 features were showing significant (corrected p-value < 0.05) differences in expression levels. However, we will only keep the ones with at least an absolute fold change > 1, so in reality we have 104 DEGs. The summary below showed how many were up-regulated and down-regulated in crowded compared to isolated it is possible to scroll it.

brock <- results(shigeru, name = "RearingCondition_Crowded_vs_Isolated", alpha = alpha_DEseq2)
summary(brock)

out of 14328 with nonzero total read count
adjusted p-value < 0.05
LFC > 0 (up)       : 49, 0.34%
LFC < 0 (down)     : 56, 0.39%
outliers [1]       : 173, 1.2%
low counts [2]     : 0, 0%
(mean count < 2)
[1] see 'cooksCutoff' argument of ?results
[2] see 'independentFiltering' argument of ?results

brock_df <- as.data.frame(brock)
brock_df$GeneID <- rownames(brock_df)

brock_df <- brock_df[!is.na(brock_df$padj) & (brock_df$padj < tresh_padj), ]
outputFile <- file.path(workDir, "DEG-results", paste0("DESeq2_results_Head_", species, ".csv"))
write.csv(brock, file = outputFile, row.names = TRUE)

significant_brock_df <- brock_df[!is.na(brock_df$padj) & !is.na(brock_df$log2FoldChange) &
                               (brock_df$padj < tresh_padj & abs(brock_df$log2FoldChange) > tresh_logfold), ]
# Summary similar to summary(brock)
upregulated <- sum(brock$padj < tresh_padj & brock$log2FoldChange > tresh_logfold, na.rm = TRUE)  # Upregulated count
downregulated <- sum(brock$padj < tresh_padj & brock$log2FoldChange < -tresh_logfold, na.rm = TRUE)  # Downregulated count
total_genes <- sum(upregulated, downregulated)  # Total non-zero count genes
cat("Total DEGs p-value < 0.05 and absolute logFoldChange > 1:", total_genes, "\n")

Total DEGs p-value < 0.05 and absolute logFoldChange > 1: 104

cat("LFC > 0 (up)       :", upregulated, ",", round((upregulated / total_genes) * 100, 2), "%\n")

LFC > 0 (up)       : 49 , 47.12 %

cat("LFC < 0 (down)     :", downregulated, ",", round((downregulated / total_genes) * 100, 2), "%\n")

LFC < 0 (down)     : 55 , 52.88 %

meta_brock_df <- merge(significant_brock_df, allspecies_df, by.x = "GeneID", by.y = "GeneID", all.x = TRUE)
meta_brock_df <- meta_brock_df[, c("GeneID", "GeneType", "Description",  "Species",
                                   "baseMean", "log2FoldChange", "lfcSE", "stat", "pvalue", "padj")]
numeric_cols <- c("baseMean", "log2FoldChange", "lfcSE", "stat", "pvalue", "padj")
meta_brock_df[numeric_cols] <- round(meta_brock_df[numeric_cols], 2)
meta_brock_df$row_color <- ifelse(meta_brock_df$log2FoldChange > 1, "red",
                                  ifelse(meta_brock_df$log2FoldChange < -1, "blue", "black"))
meta_brock_df$row_weight <- ifelse(abs(meta_brock_df$log2FoldChange) > 1, "bold", "normal")
# Display the data table with italic formatting for Species column, color-coded, and bold text rows
datatable(meta_brock_df, options = list(
    pageLength = 10,       # Set initial page length
    scrollX = TRUE,        # Enable horizontal scrolling
    autoWidth = TRUE,      # Adjust column width automatically
    searchHighlight = TRUE # Highlight search matches
  ),
  rownames = FALSE,
  escape = FALSE  # Allows HTML formatting in table cells
) %>%
  formatStyle(
    'Species', target = 'cell',
    fontStyle = 'italic'
  ) %>%
  formatStyle(
    columns = names(meta_brock_df),
    target = 'row',
    color = styleEqual(c("red", "blue", "black"), c("red", "blue", "black")), # Apply row color
    fontWeight = styleEqual(c("bold", "normal"), c("bold", "normal")), # Apply bold font for up/downregulated rows
    backgroundColor = styleEqual(c("red", "blue", "black"), c("white", "white", "white")) # Keep background white
  )

# Define the output file path
outputFile <- file.path(workDir, "DEG-results", paste0("DESeq2_sigresults_head_", species, ".csv"))
write.csv(brock_df, file = outputFile, row.names = TRUE)

---

Normalization and PCA

# Try with the data transformation
shigeru_vst <- vst(shigeru)
shigeru_rlog <- rlog(shigeru)
shigeru_ntd <- normTransform(shigeru)
itadori <- meanSdPlot(assay(shigeru_ntd))

itadori2 <- itadori$gg + ggtitle("Transformation with ntd")
megumi <- meanSdPlot(assay(shigeru_vst))

megumi2 <- megumi$gg + ggtitle("Transformation with vst")
nobara <- meanSdPlot(assay(shigeru_rlog))

nobara2 <-nobara$gg + ggtitle("Transformation with rlog")

# Create the pca on the defined groups
pcaData1 <- plotPCA(object = shigeru_rlog, intgroup = c("RearingCondition"),returnData=TRUE)
percentVar <- round(100 * attr(pcaData1, "percentVar"))
pcaData1$RearingCondition<-factor(pcaData1$RearingCondition,levels=c("Crowded","Isolated"), labels=c("Crowded S. cubense","Isolated S. cubense"))
#levels(pcaData1$RearingCondition)
p1 <- ggplot(pcaData1, aes(PC1, PC2, color= RearingCondition)) +
  geom_point(size=6) +
  xlab(paste0("PC1: ", percentVar[1], "% variance")) +
  ylab(paste0("PC2: ", percentVar[2], "% variance")) +
  scale_color_manual(values = c("blue", "red")) +
  #coord_fixed() +
  theme_bw() +
  theme(legend.title = element_blank()) +
  theme(legend.text = element_text(face="bold", size=16)) +
  theme(axis.text = element_text(size=14)) +
  theme(axis.title = element_text(size=14))
p1 + geom_convexhull(aes(fill = RearingCondition, color = RearingCondition), alpha = 0.5) +
    scale_fill_manual(values = c("blue", "red"))+
    ggtitle("PCA on S. cubense Head tissues", subtitle = "rlog transformation")

pcaData2 <- plotPCA(object = shigeru_vst, intgroup = c("RearingCondition"),returnData=TRUE)
percentVar <- round(100 * attr(pcaData2, "percentVar"))
pcaData2$RearingCondition<-factor(pcaData2$RearingCondition,levels=c("Crowded","Isolated"), labels=c("Crowded S. cubense","Isolated S. cubense"))
#levels(pcaData2$RearingCondition)
p2 <-ggplot(pcaData2, aes(PC1, PC2, color= RearingCondition)) +
  geom_point(size=6) +
  xlab(paste0("PC1: ", percentVar[1], "% variance")) +
  ylab(paste0("PC2: ", percentVar[2], "% variance")) +
  scale_color_manual(values = c("blue", "red")) +
  #coord_fixed() +
  theme_bw() +
  theme(legend.title = element_blank()) +
  theme(legend.text = element_text(face="bold", size=16)) +
  theme(axis.text = element_text(size=14)) +
  theme(axis.title = element_text(size=14))
p2 + geom_convexhull(aes(fill = RearingCondition, color = RearingCondition), alpha = 0.5) +
    scale_fill_manual(values = c("blue", "red"))+
    ggtitle("PCA on S. cubense Head tissues", subtitle = "vst transformation")

select <- order(rowMeans(counts(shigeru,normalized=TRUE)),
                decreasing=TRUE)[1:12]
df <- as.data.frame(colData(shigeru)[,c("RearingCondition","Tissue")])

---

Count matrix heatmap

# Count matrix
pheatmap(assay(shigeru_ntd)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after norm transformation")

pheatmap(assay(shigeru_vst)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after vst transformation")

pheatmap(assay(shigeru_rlog)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after rlog transformation")

# calculate between-sample distance matrix
metadata <- sampletable[,c("RearingCondition", "Tissue")]
rownames(metadata) <- sampletable$SampleName
sampleDistMatrix.rlog <- as.matrix(dist(t(assay(shigeru_rlog))))
pheatmap(sampleDistMatrix.rlog, annotation_col=metadata, main = "Head tissue heatmap distance matrix, rlog transformation")

sampleDistMatrix.vst<- as.matrix(dist(t(assay(shigeru_vst))))
pheatmap(sampleDistMatrix.vst, annotation_col=metadata, main = "Head tissue heatmap distance matrix, rlog transformation")

---

MA plot

The following plots are interactive and we can hover or Zoom on the locus of interest.

# Ma plot parameters after shrinkage
de_shrink <- lfcShrink(dds = shigeru, coef="RearingCondition_Crowded_vs_Isolated", type="apeglm")
#head(de_shrink)
maplot <-ggmaplot(de_shrink, fdr = 0.05, fc = 1, size = 1, palette = c("#B31B21", "#1465AC", "darkgray"), genenames = as.vector(rownames(de_shrink$name)), top = 0,legend="top",label.select = NULL) +
  coord_cartesian(xlim = c(0, 20)) +
  scale_y_continuous(limits=c(-12, 12)) +
  theme(axis.text.x = element_text(size=12),axis.text.y = element_text(size=12),axis.title.x = element_text(size=14),axis.title.y = element_text(size=14),axis.line = element_line(size = 1, colour="gray20"),axis.ticks = element_line(size = 1, colour="gray20")) +
  guides(color = guide_legend(override.aes = list(size = c(3,3,3)))) +
  theme(legend.position = c(0.70, 0.12),legend.text=element_text(size=14,face="bold"),legend.background = element_rect(fill="transparent")) +
  theme(plot.title = element_text(size=18, colour="gray30", face="bold",hjust=0.06, vjust=-5)) +
  labs(title="MA-plot for the shrunken log2 fold changes in the Head tissues")
interactive_maplot <- ggplotly(maplot)
interactive_maplot

---

Volcano plot

#Volcano plot
keyvals <-ifelse(
  res_shigeru$log2FoldChange >= 1 & res_shigeru$padj <= 0.05, '#B31B21',
  ifelse(res_shigeru$log2FoldChange <= -1 & res_shigeru$padj <= 0.05, '#1465AC', 'darkgray'))

keyvals[is.na(keyvals)] <-'lightgray'
names(keyvals)[keyvals == "#B31B21"] <-'Upregulated'
names(keyvals)[keyvals == "#1465AC"] <-'Downregulated'
names(keyvals)[keyvals == 'darkgray'] <-'NS'

res_shigeru$color <- keyvals
volcano_plot <- ggplot(res_shigeru, aes(x = log2FoldChange, y = -log10(padj),
                                        color = color,  # Use the color column with keyvals
                                        text = rownames(res_shigeru))) +
  geom_point(size = 3, alpha = 0.8) +
  scale_color_identity() +  # Directly use the color values from `keyvals`
  guides(color = "none") +  # Hide the color legend
  labs(title = "Volcano Plot DEG Head S. cubense", x = "log2 Fold Change", y = "-log10 Adjusted P-Value") +
  theme_minimal()

# Convert to interactive plot with hover text for gene names
interactive_volcano <- ggplotly(volcano_plot, tooltip = "text") %>%
  layout(hoverlabel = list(namelength = -1))

# Display the interactive plot
interactive_volcano

nitens

---

Total DEGs

rawDir <- file.path(workDir, "03-nitens-DESeq2")

# Path and name of targetfile containing conditions and file names
species <- "nitens"
targetFile <- file.path(workDir, "list", paste0("Head", "_", species, "_nooutliers.txt"))

sampletable <- fread(targetFile)
rownames(sampletable) <- sampletable$SampleName
sampletable$RearingCondition <- as.factor(sampletable$RearingCondition)
sampletable$Tissue <- as.factor(sampletable$Tissue)

## Import count files
satoshi <- DESeqDataSetFromHTSeqCount(sampleTable = sampletable,
                        directory = rawDir,
                        design = ~ RearingCondition )
#satoshi

smallestGroupSize <- 3
keep <- rowSums(counts(satoshi) >= 5) >= smallestGroupSize
satoshi <- satoshi[keep,]
#nrow(satoshi)
satoshi$RearingCondition <- relevel(satoshi$RearingCondition, ref = "Isolated")

# Fit the statistical model
shigeru <- DESeq(satoshi)
#cbind(resultsNames(shigeru))
res_shigeru <- results(shigeru)
sum(res_shigeru$padj < tresh_padj, na.rm = TRUE)

[1] 540

A total of 540 genes out of the pre-filtered 13,510 features were showing significant (corrected p-value < 0.05) differences in expression levels. However, we will only keep the ones with at least an absolute fold change > 1, so in reality we have 367 DEGs. The summary below showed how many were up-regulated and down-regulated in crowded compared to isolated it is possible to scroll it.

brock <- results(shigeru, name = "RearingCondition_Crowded_vs_Isolated", alpha = alpha_DEseq2)
summary(brock)

out of 13510 with nonzero total read count
adjusted p-value < 0.05
LFC > 0 (up)       : 233, 1.7%
LFC < 0 (down)     : 314, 2.3%
outliers [1]       : 124, 0.92%
low counts [2]     : 524, 3.9%
(mean count < 5)
[1] see 'cooksCutoff' argument of ?results
[2] see 'independentFiltering' argument of ?results

brock_df <- as.data.frame(brock)
brock_df$GeneID <- rownames(brock_df)

brock_df <- brock_df[!is.na(brock_df$padj) & (brock_df$padj < tresh_padj), ]
outputFile <- file.path(workDir, "DEG-results", paste0("DESeq2_results_Head_", species, ".csv"))
write.csv(brock, file = outputFile, row.names = TRUE)

significant_brock_df <- brock_df[!is.na(brock_df$padj) & !is.na(brock_df$log2FoldChange) &
                               (brock_df$padj < tresh_padj & abs(brock_df$log2FoldChange) > tresh_logfold), ]
# Summary similar to summary(brock)
upregulated <- sum(brock$padj < tresh_padj & brock$log2FoldChange > tresh_logfold, na.rm = TRUE)  # Upregulated count
downregulated <- sum(brock$padj < tresh_padj & brock$log2FoldChange < -tresh_logfold, na.rm = TRUE)  # Downregulated count
total_genes <- sum(upregulated, downregulated)  # Total non-zero count genes
cat("Total DEGs p-value < 0.05 and absolute logFoldChange > 1:", total_genes, "\n")

Total DEGs p-value < 0.05 and absolute logFoldChange > 1: 367

cat("LFC > 0 (up)       :", upregulated, ",", round((upregulated / total_genes) * 100, 2), "%\n")

LFC > 0 (up)       : 122 , 33.24 %

cat("LFC < 0 (down)     :", downregulated, ",", round((downregulated / total_genes) * 100, 2), "%\n")

LFC < 0 (down)     : 245 , 66.76 %

meta_brock_df <- merge(significant_brock_df, allspecies_df, by.x = "GeneID", by.y = "GeneID", all.x = TRUE)
meta_brock_df <- meta_brock_df[, c("GeneID", "GeneType", "Description",  "Species",
                                   "baseMean", "log2FoldChange", "lfcSE", "stat", "pvalue", "padj")]
numeric_cols <- c("baseMean", "log2FoldChange", "lfcSE", "stat", "pvalue", "padj")
meta_brock_df[numeric_cols] <- round(meta_brock_df[numeric_cols], 2)
meta_brock_df$row_color <- ifelse(meta_brock_df$log2FoldChange > 1, "red",
                                  ifelse(meta_brock_df$log2FoldChange < -1, "blue", "black"))
meta_brock_df$row_weight <- ifelse(abs(meta_brock_df$log2FoldChange) > 1, "bold", "normal")
# Display the data table with italic formatting for Species column, color-coded, and bold text rows
datatable(meta_brock_df, options = list(
    pageLength = 10,       # Set initial page length
    scrollX = TRUE,        # Enable horizontal scrolling
    autoWidth = TRUE,      # Adjust column width automatically
    searchHighlight = TRUE # Highlight search matches
  ),
  rownames = FALSE,
  escape = FALSE  # Allows HTML formatting in table cells
) %>%
  formatStyle(
    'Species', target = 'cell',
    fontStyle = 'italic'
  ) %>%
  formatStyle(
    columns = names(meta_brock_df),
    target = 'row',
    color = styleEqual(c("red", "blue", "black"), c("red", "blue", "black")), # Apply row color
    fontWeight = styleEqual(c("bold", "normal"), c("bold", "normal")), # Apply bold font for up/downregulated rows
    backgroundColor = styleEqual(c("red", "blue", "black"), c("white", "white", "white")) # Keep background white
  )

# Define the output file path
outputFile <- file.path(workDir, "DEG-results", paste0("DESeq2_sigresults_head_", species, ".csv"))
write.csv(brock_df, file = outputFile, row.names = TRUE)

---

Normalization and PCA

# Try with the data transformation
shigeru_vst <- vst(shigeru)
shigeru_rlog <- rlog(shigeru)
shigeru_ntd <- normTransform(shigeru)
itadori <- meanSdPlot(assay(shigeru_ntd))

itadori2 <- itadori$gg + ggtitle("Transformation with ntd")
megumi <- meanSdPlot(assay(shigeru_vst))

megumi2 <- megumi$gg + ggtitle("Transformation with vst")
nobara <- meanSdPlot(assay(shigeru_rlog))

nobara2 <-nobara$gg + ggtitle("Transformation with rlog")

# Create the pca on the defined groups
pcaData1 <- plotPCA(object = shigeru_rlog, intgroup = c("RearingCondition"),returnData=TRUE)
percentVar <- round(100 * attr(pcaData1, "percentVar"))
pcaData1$RearingCondition<-factor(pcaData1$RearingCondition,levels=c("Crowded","Isolated"), labels=c("Crowded S. nitens","Isolated S. nitens"))
#levels(pcaData1$RearingCondition)
p1 <- ggplot(pcaData1, aes(PC1, PC2, color= RearingCondition)) +
  geom_point(size=6) +
  xlab(paste0("PC1: ", percentVar[1], "% variance")) +
  ylab(paste0("PC2: ", percentVar[2], "% variance")) +
  scale_color_manual(values = c("blue", "red")) +
  #coord_fixed() +
  theme_bw() +
  theme(legend.title = element_blank()) +
  theme(legend.text = element_text(face="bold", size=16)) +
  theme(axis.text = element_text(size=14)) +
  theme(axis.title = element_text(size=14))
p1 + geom_convexhull(aes(fill = RearingCondition, color = RearingCondition), alpha = 0.5) +
    scale_fill_manual(values = c("blue", "red"))+
    ggtitle("PCA on S. nitens Head tissues", subtitle = "rlog transformation")

pcaData2 <- plotPCA(object = shigeru_vst, intgroup = c("RearingCondition"),returnData=TRUE)
percentVar <- round(100 * attr(pcaData2, "percentVar"))
pcaData2$RearingCondition<-factor(pcaData2$RearingCondition,levels=c("Crowded","Isolated"), labels=c("Crowded S. nitens","Isolated S. nitens"))
#levels(pcaData2$RearingCondition)
p2 <-ggplot(pcaData2, aes(PC1, PC2, color= RearingCondition)) +
  geom_point(size=6) +
  xlab(paste0("PC1: ", percentVar[1], "% variance")) +
  ylab(paste0("PC2: ", percentVar[2], "% variance")) +
  scale_color_manual(values = c("blue", "red")) +
  #coord_fixed() +
  theme_bw() +
  theme(legend.title = element_blank()) +
  theme(legend.text = element_text(face="bold", size=16)) +
  theme(axis.text = element_text(size=14)) +
  theme(axis.title = element_text(size=14))
p2 + geom_convexhull(aes(fill = RearingCondition, color = RearingCondition), alpha = 0.5) +
    scale_fill_manual(values = c("blue", "red"))+
    ggtitle("PCA on S. nitens Head tissues", subtitle = "vst transformation")

select <- order(rowMeans(counts(shigeru,normalized=TRUE)),
                decreasing=TRUE)[1:12]
df <- as.data.frame(colData(shigeru)[,c("RearingCondition","Tissue")])

---

Count matrix heatmap

# Count matrix
pheatmap(assay(shigeru_ntd)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after norm transformation")

pheatmap(assay(shigeru_vst)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after vst transformation")

pheatmap(assay(shigeru_rlog)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after rlog transformation")

# calculate between-sample distance matrix
metadata <- sampletable[,c("RearingCondition", "Tissue")]
rownames(metadata) <- sampletable$SampleName
sampleDistMatrix.rlog <- as.matrix(dist(t(assay(shigeru_rlog))))
pheatmap(sampleDistMatrix.rlog, annotation_col=metadata, main = "Head tissue heatmap distance matrix, rlog transformation")

sampleDistMatrix.vst<- as.matrix(dist(t(assay(shigeru_vst))))
pheatmap(sampleDistMatrix.vst, annotation_col=metadata, main = "Head tissue heatmap distance matrix, rlog transformation")

---

MA plot

The following plots are interactive and we can hover or Zoom on the locus of interest.

# Ma plot parameters after shrinkage
de_shrink <- lfcShrink(dds = shigeru, coef="RearingCondition_Crowded_vs_Isolated", type="apeglm")
#head(de_shrink)
maplot <-ggmaplot(de_shrink, fdr = 0.05, fc = 1, size = 1, palette = c("#B31B21", "#1465AC", "darkgray"), genenames = as.vector(rownames(de_shrink$name)), top = 0,legend="top",label.select = NULL) +
  coord_cartesian(xlim = c(0, 20)) +
  scale_y_continuous(limits=c(-12, 12)) +
  theme(axis.text.x = element_text(size=12),axis.text.y = element_text(size=12),axis.title.x = element_text(size=14),axis.title.y = element_text(size=14),axis.line = element_line(size = 1, colour="gray20"),axis.ticks = element_line(size = 1, colour="gray20")) +
  guides(color = guide_legend(override.aes = list(size = c(3,3,3)))) +
  theme(legend.position = c(0.70, 0.12),legend.text=element_text(size=14,face="bold"),legend.background = element_rect(fill="transparent")) +
  theme(plot.title = element_text(size=18, colour="gray30", face="bold",hjust=0.06, vjust=-5)) +
  labs(title="MA-plot for the shrunken log2 fold changes in the Head tissues")
interactive_maplot <- ggplotly(maplot)
interactive_maplot

---

Volcano plot

#Volcano plot
keyvals <-ifelse(
  res_shigeru$log2FoldChange >= 1 & res_shigeru$padj <= 0.05, '#B31B21',
  ifelse(res_shigeru$log2FoldChange <= -1 & res_shigeru$padj <= 0.05, '#1465AC', 'darkgray'))

keyvals[is.na(keyvals)] <-'lightgray'
names(keyvals)[keyvals == "#B31B21"] <-'Upregulated'
names(keyvals)[keyvals == "#1465AC"] <-'Downregulated'
names(keyvals)[keyvals == 'darkgray'] <-'NS'

res_shigeru$color <- keyvals
volcano_plot <- ggplot(res_shigeru, aes(x = log2FoldChange, y = -log10(padj),
                                        color = color,  # Use the color column with keyvals
                                        text = rownames(res_shigeru))) +
  geom_point(size = 3, alpha = 0.8) +
  scale_color_identity() +  # Directly use the color values from `keyvals`
  guides(color = "none") +  # Hide the color legend
  labs(title = "Volcano Plot DEG Head S. nitens", x = "log2 Fold Change", y = "-log10 Adjusted P-Value") +
  theme_minimal()

# Convert to interactive plot with hover text for gene names
interactive_volcano <- ggplotly(volcano_plot, tooltip = "text") %>%
  layout(hoverlabel = list(namelength = -1))

# Display the interactive plot
interactive_volcano

4. DEGs in bulk Thorax tissues

gregaria

---

Total DEGs

rawDir <- file.path(workDir, "03-gregaria-DESeq2")

# Path and name of targetfile containing conditions and file names
species <- "gregaria"
targetFile <- file.path(workDir, "list", paste0("Thorax", "_", species, "_nooutliers.txt"))

sampletable <- fread(targetFile)
rownames(sampletable) <- sampletable$SampleName
sampletable$RearingCondition <- as.factor(sampletable$RearingCondition)
sampletable$Tissue <- as.factor(sampletable$Tissue)

## Import count files
satoshi <- DESeqDataSetFromHTSeqCount(sampleTable = sampletable,
                        directory = rawDir,
                        design = ~ RearingCondition )
#satoshi

smallestGroupSize <- 3
keep <- rowSums(counts(satoshi) >= 5) >= smallestGroupSize
satoshi <- satoshi[keep,]
#nrow(satoshi)
satoshi$RearingCondition <- relevel(satoshi$RearingCondition, ref = "Isolated")

# Fit the statistical model
shigeru <- DESeq(satoshi)
#cbind(resultsNames(shigeru))
res_shigeru <- results(shigeru)
sum(res_shigeru$padj < tresh_padj, na.rm = TRUE)

[1] 5442

A total of 5,442 genes out of the pre-filtered 16,613 features were showing significant (corrected p-value < 0.05) differences in expression levels. However, we will only keep the ones with at least an absolute fold change > 1, so in reality we have 1,796 DEGs. The summary below showed how many were up-regulated and down-regulated in crowded compared to isolated it is possible to scroll it.

brock <- results(shigeru, name = "RearingCondition_Crowded_vs_Isolated", alpha = alpha_DEseq2)
summary(brock)

out of 16613 with nonzero total read count
adjusted p-value < 0.05
LFC > 0 (up)       : 2751, 17%
LFC < 0 (down)     : 2691, 16%
outliers [1]       : 112, 0.67%
low counts [2]     : 0, 0%
(mean count < 2)
[1] see 'cooksCutoff' argument of ?results
[2] see 'independentFiltering' argument of ?results

brock_df <- as.data.frame(brock)
brock_df$GeneID <- rownames(brock_df)

brock_df <- brock_df[!is.na(brock_df$padj) & (brock_df$padj < tresh_padj), ]
outputFile <- file.path(workDir, "DEG-results", paste0("DESeq2_results_Thorax_", species, ".csv"))
write.csv(brock, file = outputFile, row.names = TRUE)

significant_brock_df <- brock_df[!is.na(brock_df$padj) & !is.na(brock_df$log2FoldChange) &
                               (brock_df$padj < tresh_padj & abs(brock_df$log2FoldChange) > tresh_logfold), ]
# Summary similar to summary(brock)
upregulated <- sum(brock$padj < tresh_padj & brock$log2FoldChange > tresh_logfold, na.rm = TRUE)  # Upregulated count
downregulated <- sum(brock$padj < tresh_padj & brock$log2FoldChange < -tresh_logfold, na.rm = TRUE)  # Downregulated count
total_genes <- sum(upregulated, downregulated)  # Total non-zero count genes
cat("Total DEGs p-value < 0.05 and absolute logFoldChange > 1:", total_genes, "\n")

Total DEGs p-value < 0.05 and absolute logFoldChange > 1: 1796

cat("LFC > 0 (up)       :", upregulated, ",", round((upregulated / total_genes) * 100, 2), "%\n")

LFC > 0 (up)       : 622 , 34.63 %

cat("LFC < 0 (down)     :", downregulated, ",", round((downregulated / total_genes) * 100, 2), "%\n")

LFC < 0 (down)     : 1174 , 65.37 %

meta_brock_df <- merge(significant_brock_df, allspecies_df, by.x = "GeneID", by.y = "GeneID", all.x = TRUE)
meta_brock_df <- meta_brock_df[, c("GeneID", "GeneType", "Description",  "Species",
                                   "baseMean", "log2FoldChange", "lfcSE", "stat", "pvalue", "padj")]
numeric_cols <- c("baseMean", "log2FoldChange", "lfcSE", "stat", "pvalue", "padj")
meta_brock_df[numeric_cols] <- round(meta_brock_df[numeric_cols], 2)
meta_brock_df$row_color <- ifelse(meta_brock_df$log2FoldChange > 1, "red",
                                  ifelse(meta_brock_df$log2FoldChange < -1, "blue", "black"))
meta_brock_df$row_weight <- ifelse(abs(meta_brock_df$log2FoldChange) > 1, "bold", "normal")
# Display the data table with italic formatting for Species column, color-coded, and bold text rows
datatable(meta_brock_df, options = list(
    pageLength = 10,       # Set initial page length
    scrollX = TRUE,        # Enable horizontal scrolling
    autoWidth = TRUE,      # Adjust column width automatically
    searchHighlight = TRUE # Highlight search matches
  ),
  rownames = FALSE,
  escape = FALSE  # Allows HTML formatting in table cells
) %>%
  formatStyle(
    'Species', target = 'cell',
    fontStyle = 'italic'
  ) %>%
  formatStyle(
    columns = names(meta_brock_df),
    target = 'row',
    color = styleEqual(c("red", "blue", "black"), c("red", "blue", "black")), # Apply row color
    fontWeight = styleEqual(c("bold", "normal"), c("bold", "normal")), # Apply bold font for up/downregulated rows
    backgroundColor = styleEqual(c("red", "blue", "black"), c("white", "white", "white")) # Keep background white
  )

# Define the output file path
outputFile <- file.path(workDir, "DEG-results", paste0("DESeq2_sigresults_Thorax_", species, ".csv"))
write.csv(brock_df, file = outputFile, row.names = TRUE)

---

Normalization and PCA

# Try with the data transformation
shigeru_vst <- vst(shigeru)
shigeru_rlog <- rlog(shigeru)
shigeru_ntd <- normTransform(shigeru)
itadori <- meanSdPlot(assay(shigeru_ntd))

itadori2 <- itadori$gg + ggtitle("Transformation with ntd")
megumi <- meanSdPlot(assay(shigeru_vst))

megumi2 <- megumi$gg + ggtitle("Transformation with vst")
nobara <- meanSdPlot(assay(shigeru_rlog))

nobara2 <-nobara$gg + ggtitle("Transformation with rlog")

# Create the pca on the defined groups
pcaData1 <- plotPCA(object = shigeru_rlog, intgroup = c("RearingCondition"),returnData=TRUE)
percentVar <- round(100 * attr(pcaData1, "percentVar"))
pcaData1$RearingCondition<-factor(pcaData1$RearingCondition,levels=c("Crowded","Isolated"), labels=c("Crowded S. gregaria","Isolated S. gregaria"))
#levels(pcaData1$RearingCondition)
p1 <- ggplot(pcaData1, aes(PC1, PC2, color= RearingCondition)) +
  geom_point(size=6) +
  xlab(paste0("PC1: ", percentVar[1], "% variance")) +
  ylab(paste0("PC2: ", percentVar[2], "% variance")) +
  scale_color_manual(values = c("blue", "red")) +
  #coord_fixed() +
  theme_bw() +
  theme(legend.title = element_blank()) +
  theme(legend.text = element_text(face="bold", size=16)) +
  theme(axis.text = element_text(size=14)) +
  theme(axis.title = element_text(size=14))
p1 + geom_convexhull(aes(fill = RearingCondition, color = RearingCondition), alpha = 0.5) +
    scale_fill_manual(values = c("blue", "red"))+
    ggtitle("PCA on S. gregaria Thorax tissues", subtitle = "rlog transformation")

pcaData2 <- plotPCA(object = shigeru_vst, intgroup = c("RearingCondition"),returnData=TRUE)
percentVar <- round(100 * attr(pcaData2, "percentVar"))
pcaData2$RearingCondition<-factor(pcaData2$RearingCondition,levels=c("Crowded","Isolated"), labels=c("Crowded S. gregaria","Isolated S. gregaria"))
#levels(pcaData2$RearingCondition)
p2 <-ggplot(pcaData2, aes(PC1, PC2, color= RearingCondition)) +
  geom_point(size=6) +
  xlab(paste0("PC1: ", percentVar[1], "% variance")) +
  ylab(paste0("PC2: ", percentVar[2], "% variance")) +
  scale_color_manual(values = c("blue", "red")) +
  #coord_fixed() +
  theme_bw() +
  theme(legend.title = element_blank()) +
  theme(legend.text = element_text(face="bold", size=16)) +
  theme(axis.text = element_text(size=14)) +
  theme(axis.title = element_text(size=14))
p2 + geom_convexhull(aes(fill = RearingCondition, color = RearingCondition), alpha = 0.5) +
    scale_fill_manual(values = c("blue", "red"))+
    ggtitle("PCA on S. gregaria Thorax tissues", subtitle = "vst transformation")

select <- order(rowMeans(counts(shigeru,normalized=TRUE)),
                decreasing=TRUE)[1:12]
df <- as.data.frame(colData(shigeru)[,c("RearingCondition","Tissue")])

---

Count matrix heatmap

# Count matrix
pheatmap(assay(shigeru_ntd)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after norm transformation")

pheatmap(assay(shigeru_vst)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after vst transformation")

pheatmap(assay(shigeru_rlog)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after rlog transformation")

# calculate between-sample distance matrix
metadata <- sampletable[,c("RearingCondition", "Tissue")]
rownames(metadata) <- sampletable$SampleName
sampleDistMatrix.rlog <- as.matrix(dist(t(assay(shigeru_rlog))))
pheatmap(sampleDistMatrix.rlog, annotation_col=metadata, main = "Thorax tissue heatmap distance matrix, rlog transformation")

sampleDistMatrix.vst<- as.matrix(dist(t(assay(shigeru_vst))))
pheatmap(sampleDistMatrix.vst, annotation_col=metadata, main = "Thorax tissue heatmap distance matrix, rlog transformation")

---

MA plot

The following plots are interactive and we can hover or Zoom on the locus of interest.

# Ma plot parameters after shrinkage
de_shrink <- lfcShrink(dds = shigeru, coef="RearingCondition_Crowded_vs_Isolated", type="apeglm")
#Thorax(de_shrink)
maplot <-ggmaplot(de_shrink, fdr = 0.05, fc = 1, size = 1, palette = c("#B31B21", "#1465AC", "darkgray"), genenames = as.vector(rownames(de_shrink$name)), top = 0,legend="top",label.select = NULL) +
  coord_cartesian(xlim = c(0, 20)) +
  scale_y_continuous(limits=c(-12, 12)) +
  theme(axis.text.x = element_text(size=12),axis.text.y = element_text(size=12),axis.title.x = element_text(size=14),axis.title.y = element_text(size=14),axis.line = element_line(size = 1, colour="gray20"),axis.ticks = element_line(size = 1, colour="gray20")) +
  guides(color = guide_legend(override.aes = list(size = c(3,3,3)))) +
  theme(legend.position = c(0.70, 0.12),legend.text=element_text(size=14,face="bold"),legend.background = element_rect(fill="transparent")) +
  theme(plot.title = element_text(size=18, colour="gray30", face="bold",hjust=0.06, vjust=-5)) +
  labs(title="MA-plot for the shrunken log2 fold changes in the Thorax tissues")
interactive_maplot <- ggplotly(maplot)
interactive_maplot

---

Volcano plot

#Volcano plot
keyvals <-ifelse(
  res_shigeru$log2FoldChange >= 1 & res_shigeru$padj <= 0.05, '#B31B21',
  ifelse(res_shigeru$log2FoldChange <= -1 & res_shigeru$padj <= 0.05, '#1465AC', 'darkgray'))

keyvals[is.na(keyvals)] <-'lightgray'
names(keyvals)[keyvals == "#B31B21"] <-'Upregulated'
names(keyvals)[keyvals == "#1465AC"] <-'Downregulated'
names(keyvals)[keyvals == 'darkgray'] <-'NS'

res_shigeru$color <- keyvals
volcano_plot <- ggplot(res_shigeru, aes(x = log2FoldChange, y = -log10(padj),
                                        color = color,  # Use the color column with keyvals
                                        text = rownames(res_shigeru))) +
  geom_point(size = 3, alpha = 0.8) +
  scale_color_identity() +  # Directly use the color values from `keyvals`
  guides(color = "none") +  # Hide the color legend
  labs(title = "Volcano Plot DEG Thorax S. gregaria", x = "log2 Fold Change", y = "-log10 Adjusted P-Value") +
  theme_minimal()

# Convert to interactive plot with hover text for gene names
interactive_volcano <- ggplotly(volcano_plot, tooltip = "text") %>%
  layout(hoverlabel = list(namelength = -1))

# Display the interactive plot
interactive_volcano

piceifrons

---

Total DEGs

rawDir <- file.path(workDir, "03-piceifrons-DESeq2")

# Path and name of targetfile containing conditions and file names
species <- "piceifrons"
targetFile <- file.path(workDir, "list", paste0("Thorax", "_", species, ".txt"))

sampletable <- fread(targetFile)
rownames(sampletable) <- sampletable$SampleName
sampletable$RearingCondition <- as.factor(sampletable$RearingCondition)
sampletable$Tissue <- as.factor(sampletable$Tissue)

## Import count files
satoshi <- DESeqDataSetFromHTSeqCount(sampleTable = sampletable,
                        directory = rawDir,
                        design = ~ RearingCondition )
#satoshi

smallestGroupSize <- 3
keep <- rowSums(counts(satoshi) >= 5) >= smallestGroupSize
satoshi <- satoshi[keep,]
#nrow(satoshi)
satoshi$RearingCondition <- relevel(satoshi$RearingCondition, ref = "Isolated")

# Fit the statistical model
shigeru <- DESeq(satoshi)
#cbind(resultsNames(shigeru))
res_shigeru <- results(shigeru)
sum(res_shigeru$padj < tresh_padj, na.rm = TRUE)

[1] 3002

A total of 3,002 genes out of the pre-filtered 13,253 features were showing significant (corrected p-value < 0.05) differences in expression levels. However, we will only keep the ones with at least an absolute fold change > 1, so in reality we have 984 DEGs. The summary below showed how many were up-regulated and down-regulated in crowded compared to isolated it is possible to scroll it.

brock <- results(shigeru, name = "RearingCondition_Crowded_vs_Isolated", alpha = alpha_DEseq2)
summary(brock)

out of 13253 with nonzero total read count
adjusted p-value < 0.05
LFC > 0 (up)       : 1641, 12%
LFC < 0 (down)     : 1361, 10%
outliers [1]       : 36, 0.27%
low counts [2]     : 0, 0%
(mean count < 2)
[1] see 'cooksCutoff' argument of ?results
[2] see 'independentFiltering' argument of ?results

brock_df <- as.data.frame(brock)
brock_df$GeneID <- rownames(brock_df)

brock_df <- brock_df[!is.na(brock_df$padj) & (brock_df$padj < tresh_padj), ]
outputFile <- file.path(workDir, "DEG-results", paste0("DESeq2_results_Thorax_", species, ".csv"))
write.csv(brock, file = outputFile, row.names = TRUE)

significant_brock_df <- brock_df[!is.na(brock_df$padj) & !is.na(brock_df$log2FoldChange) &
                               (brock_df$padj < tresh_padj & abs(brock_df$log2FoldChange) > tresh_logfold), ]
# Summary similar to summary(brock)
upregulated <- sum(brock$padj < tresh_padj & brock$log2FoldChange > tresh_logfold, na.rm = TRUE)  # Upregulated count
downregulated <- sum(brock$padj < tresh_padj & brock$log2FoldChange < -tresh_logfold, na.rm = TRUE)  # Downregulated count
total_genes <- sum(upregulated, downregulated)  # Total non-zero count genes
cat("Total DEGs p-value < 0.05 and absolute logFoldChange > 1:", total_genes, "\n")

Total DEGs p-value < 0.05 and absolute logFoldChange > 1: 984

cat("LFC > 0 (up)       :", upregulated, ",", round((upregulated / total_genes) * 100, 2), "%\n")

LFC > 0 (up)       : 652 , 66.26 %

cat("LFC < 0 (down)     :", downregulated, ",", round((downregulated / total_genes) * 100, 2), "%\n")

LFC < 0 (down)     : 332 , 33.74 %

meta_brock_df <- merge(significant_brock_df, allspecies_df, by.x = "GeneID", by.y = "GeneID", all.x = TRUE)
meta_brock_df <- meta_brock_df[, c("GeneID", "GeneType", "Description",  "Species",
                                   "baseMean", "log2FoldChange", "lfcSE", "stat", "pvalue", "padj")]
numeric_cols <- c("baseMean", "log2FoldChange", "lfcSE", "stat", "pvalue", "padj")
meta_brock_df[numeric_cols] <- round(meta_brock_df[numeric_cols], 2)
meta_brock_df$row_color <- ifelse(meta_brock_df$log2FoldChange > 1, "red",
                                  ifelse(meta_brock_df$log2FoldChange < -1, "blue", "black"))
meta_brock_df$row_weight <- ifelse(abs(meta_brock_df$log2FoldChange) > 1, "bold", "normal")
# Display the data table with italic formatting for Species column, color-coded, and bold text rows
datatable(meta_brock_df, options = list(
    pageLength = 10,       # Set initial page length
    scrollX = TRUE,        # Enable horizontal scrolling
    autoWidth = TRUE,      # Adjust column width automatically
    searchHighlight = TRUE # Highlight search matches
  ),
  rownames = FALSE,
  escape = FALSE  # Allows HTML formatting in table cells
) %>%
  formatStyle(
    'Species', target = 'cell',
    fontStyle = 'italic'
  ) %>%
  formatStyle(
    columns = names(meta_brock_df),
    target = 'row',
    color = styleEqual(c("red", "blue", "black"), c("red", "blue", "black")), # Apply row color
    fontWeight = styleEqual(c("bold", "normal"), c("bold", "normal")), # Apply bold font for up/downregulated rows
    backgroundColor = styleEqual(c("red", "blue", "black"), c("white", "white", "white")) # Keep background white
  )

# Define the output file path
outputFile <- file.path(workDir, "DEG-results", paste0("DESeq2_sigresults_Thorax_", species, ".csv"))
write.csv(brock_df, file = outputFile, row.names = TRUE)

---

Normalization and PCA

# Try with the data transformation
shigeru_vst <- vst(shigeru)
shigeru_rlog <- rlog(shigeru)
shigeru_ntd <- normTransform(shigeru)
itadori <- meanSdPlot(assay(shigeru_ntd))

itadori2 <- itadori$gg + ggtitle("Transformation with ntd")
megumi <- meanSdPlot(assay(shigeru_vst))

megumi2 <- megumi$gg + ggtitle("Transformation with vst")
nobara <- meanSdPlot(assay(shigeru_rlog))

nobara2 <-nobara$gg + ggtitle("Transformation with rlog")

# Create the pca on the defined groups
pcaData1 <- plotPCA(object = shigeru_rlog, intgroup = c("RearingCondition"),returnData=TRUE)
percentVar <- round(100 * attr(pcaData1, "percentVar"))
pcaData1$RearingCondition<-factor(pcaData1$RearingCondition,levels=c("Crowded","Isolated"), labels=c("Crowded S. piceifrons","Isolated S. piceifrons"))
#levels(pcaData1$RearingCondition)
p1 <- ggplot(pcaData1, aes(PC1, PC2, color= RearingCondition)) +
  geom_point(size=6) +
  xlab(paste0("PC1: ", percentVar[1], "% variance")) +
  ylab(paste0("PC2: ", percentVar[2], "% variance")) +
  scale_color_manual(values = c("blue", "red")) +
  #coord_fixed() +
  theme_bw() +
  theme(legend.title = element_blank()) +
  theme(legend.text = element_text(face="bold", size=16)) +
  theme(axis.text = element_text(size=14)) +
  theme(axis.title = element_text(size=14))
p1 + geom_convexhull(aes(fill = RearingCondition, color = RearingCondition), alpha = 0.5) +
    scale_fill_manual(values = c("blue", "red"))+
    ggtitle("PCA on S. piceifrons Thorax tissues", subtitle = "rlog transformation")

pcaData2 <- plotPCA(object = shigeru_vst, intgroup = c("RearingCondition"),returnData=TRUE)
percentVar <- round(100 * attr(pcaData2, "percentVar"))
pcaData2$RearingCondition<-factor(pcaData2$RearingCondition,levels=c("Crowded","Isolated"), labels=c("Crowded S. piceifrons","Isolated S. piceifrons"))
#levels(pcaData2$RearingCondition)
p2 <-ggplot(pcaData2, aes(PC1, PC2, color= RearingCondition)) +
  geom_point(size=6) +
  xlab(paste0("PC1: ", percentVar[1], "% variance")) +
  ylab(paste0("PC2: ", percentVar[2], "% variance")) +
  scale_color_manual(values = c("blue", "red")) +
  #coord_fixed() +
  theme_bw() +
  theme(legend.title = element_blank()) +
  theme(legend.text = element_text(face="bold", size=16)) +
  theme(axis.text = element_text(size=14)) +
  theme(axis.title = element_text(size=14))
p2 + geom_convexhull(aes(fill = RearingCondition, color = RearingCondition), alpha = 0.5) +
    scale_fill_manual(values = c("blue", "red"))+
    ggtitle("PCA on S. piceifrons Thorax tissues", subtitle = "vst transformation")

select <- order(rowMeans(counts(shigeru,normalized=TRUE)),
                decreasing=TRUE)[1:12]
df <- as.data.frame(colData(shigeru)[,c("RearingCondition","Tissue")])

---

Count matrix heatmap

# Count matrix
pheatmap(assay(shigeru_ntd)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after norm transformation")

pheatmap(assay(shigeru_vst)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after vst transformation")

pheatmap(assay(shigeru_rlog)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after rlog transformation")

# calculate between-sample distance matrix
metadata <- sampletable[,c("RearingCondition", "Tissue")]
rownames(metadata) <- sampletable$SampleName
sampleDistMatrix.rlog <- as.matrix(dist(t(assay(shigeru_rlog))))
pheatmap(sampleDistMatrix.rlog, annotation_col=metadata, main = "Thorax tissue heatmap distance matrix, rlog transformation")

sampleDistMatrix.vst<- as.matrix(dist(t(assay(shigeru_vst))))
pheatmap(sampleDistMatrix.vst, annotation_col=metadata, main = "Thorax tissue heatmap distance matrix, rlog transformation")

---

MA plot

The following plots are interactive and we can hover or Zoom on the locus of interest.

# Ma plot parameters after shrinkage
de_shrink <- lfcShrink(dds = shigeru, coef="RearingCondition_Crowded_vs_Isolated", type="apeglm")
#Thorax(de_shrink)
maplot <-ggmaplot(de_shrink, fdr = 0.05, fc = 1, size = 1, palette = c("#B31B21", "#1465AC", "darkgray"), genenames = as.vector(rownames(de_shrink$name)), top = 0,legend="top",label.select = NULL) +
  coord_cartesian(xlim = c(0, 20)) +
  scale_y_continuous(limits=c(-12, 12)) +
  theme(axis.text.x = element_text(size=12),axis.text.y = element_text(size=12),axis.title.x = element_text(size=14),axis.title.y = element_text(size=14),axis.line = element_line(size = 1, colour="gray20"),axis.ticks = element_line(size = 1, colour="gray20")) +
  guides(color = guide_legend(override.aes = list(size = c(3,3,3)))) +
  theme(legend.position = c(0.70, 0.12),legend.text=element_text(size=14,face="bold"),legend.background = element_rect(fill="transparent")) +
  theme(plot.title = element_text(size=18, colour="gray30", face="bold",hjust=0.06, vjust=-5)) +
  labs(title="MA-plot for the shrunken log2 fold changes in the Thorax tissues")
interactive_maplot <- ggplotly(maplot)
interactive_maplot

---

Volcano plot

#Volcano plot
keyvals <-ifelse(
  res_shigeru$log2FoldChange >= 1 & res_shigeru$padj <= 0.05, '#B31B21',
  ifelse(res_shigeru$log2FoldChange <= -1 & res_shigeru$padj <= 0.05, '#1465AC', 'darkgray'))

keyvals[is.na(keyvals)] <-'lightgray'
names(keyvals)[keyvals == "#B31B21"] <-'Upregulated'
names(keyvals)[keyvals == "#1465AC"] <-'Downregulated'
names(keyvals)[keyvals == 'darkgray'] <-'NS'

res_shigeru$color <- keyvals
volcano_plot <- ggplot(res_shigeru, aes(x = log2FoldChange, y = -log10(padj),
                                        color = color,  # Use the color column with keyvals
                                        text = rownames(res_shigeru))) +
  geom_point(size = 3, alpha = 0.8) +
  scale_color_identity() +  # Directly use the color values from `keyvals`
  guides(color = "none") +  # Hide the color legend
  labs(title = "Volcano Plot DEG Thorax S. piceifrons", x = "log2 Fold Change", y = "-log10 Adjusted P-Value") +
  theme_minimal()

# Convert to interactive plot with hover text for gene names
interactive_volcano <- ggplotly(volcano_plot, tooltip = "text") %>%
  layout(hoverlabel = list(namelength = -1))

# Display the interactive plot
interactive_volcano

cancellata

---

Total DEGs

rawDir <- file.path(workDir, "03-cancellata-DESeq2")

# Path and name of targetfile containing conditions and file names
species <- "cancellata"
targetFile <- file.path(workDir, "list", paste0("Thorax", "_", species, "_nooutliers.txt"))

sampletable <- fread(targetFile)
rownames(sampletable) <- sampletable$SampleName
sampletable$RearingCondition <- as.factor(sampletable$RearingCondition)
sampletable$Tissue <- as.factor(sampletable$Tissue)

## Import count files
satoshi <- DESeqDataSetFromHTSeqCount(sampleTable = sampletable,
                        directory = rawDir,
                        design = ~ RearingCondition )
#satoshi

smallestGroupSize <- 3
keep <- rowSums(counts(satoshi) >= 5) >= smallestGroupSize
satoshi <- satoshi[keep,]
#nrow(satoshi)
satoshi$RearingCondition <- relevel(satoshi$RearingCondition, ref = "Isolated")

# Fit the statistical model
shigeru <- DESeq(satoshi)
#cbind(resultsNames(shigeru))
res_shigeru <- results(shigeru)
sum(res_shigeru$padj < tresh_padj, na.rm = TRUE)

[1] 1475

A total of 1,475 genes out of the pre-filtered 13,557 features were showing significant (corrected p-value < 0.05) differences in expression levels. However, we will only keep the ones with at least an absolute fold change > 1, so in reality we have 700 DEGs. The summary below showed how many were up-regulated and down-regulated in crowded compared to isolated it is possible to scroll it.

brock <- results(shigeru, name = "RearingCondition_Crowded_vs_Isolated", alpha = alpha_DEseq2)
summary(brock)

out of 13557 with nonzero total read count
adjusted p-value < 0.05
LFC > 0 (up)       : 734, 5.4%
LFC < 0 (down)     : 738, 5.4%
outliers [1]       : 37, 0.27%
low counts [2]     : 526, 3.9%
(mean count < 6)
[1] see 'cooksCutoff' argument of ?results
[2] see 'independentFiltering' argument of ?results

brock_df <- as.data.frame(brock)
brock_df$GeneID <- rownames(brock_df)

brock_df <- brock_df[!is.na(brock_df$padj) & (brock_df$padj < tresh_padj), ]
outputFile <- file.path(workDir, "DEG-results", paste0("DESeq2_results_Thorax_", species, ".csv"))
write.csv(brock, file = outputFile, row.names = TRUE)

significant_brock_df <- brock_df[!is.na(brock_df$padj) & !is.na(brock_df$log2FoldChange) &
                               (brock_df$padj < tresh_padj & abs(brock_df$log2FoldChange) > tresh_logfold), ]
# Summary similar to summary(brock)
upregulated <- sum(brock$padj < tresh_padj & brock$log2FoldChange > tresh_logfold, na.rm = TRUE)  # Upregulated count
downregulated <- sum(brock$padj < tresh_padj & brock$log2FoldChange < -tresh_logfold, na.rm = TRUE)  # Downregulated count
total_genes <- sum(upregulated, downregulated)  # Total non-zero count genes
cat("Total DEGs p-value < 0.05 and absolute logFoldChange > 1:", total_genes, "\n")

Total DEGs p-value < 0.05 and absolute logFoldChange > 1: 700

cat("LFC > 0 (up)       :", upregulated, ",", round((upregulated / total_genes) * 100, 2), "%\n")

LFC > 0 (up)       : 324 , 46.29 %

cat("LFC < 0 (down)     :", downregulated, ",", round((downregulated / total_genes) * 100, 2), "%\n")

LFC < 0 (down)     : 376 , 53.71 %

meta_brock_df <- merge(significant_brock_df, allspecies_df, by.x = "GeneID", by.y = "GeneID", all.x = TRUE)
meta_brock_df <- meta_brock_df[, c("GeneID", "GeneType", "Description",  "Species",
                                   "baseMean", "log2FoldChange", "lfcSE", "stat", "pvalue", "padj")]
numeric_cols <- c("baseMean", "log2FoldChange", "lfcSE", "stat", "pvalue", "padj")
meta_brock_df[numeric_cols] <- round(meta_brock_df[numeric_cols], 2)
meta_brock_df$row_color <- ifelse(meta_brock_df$log2FoldChange > 1, "red",
                                  ifelse(meta_brock_df$log2FoldChange < -1, "blue", "black"))
meta_brock_df$row_weight <- ifelse(abs(meta_brock_df$log2FoldChange) > 1, "bold", "normal")
# Display the data table with italic formatting for Species column, color-coded, and bold text rows
datatable(meta_brock_df, options = list(
    pageLength = 10,       # Set initial page length
    scrollX = TRUE,        # Enable horizontal scrolling
    autoWidth = TRUE,      # Adjust column width automatically
    searchHighlight = TRUE # Highlight search matches
  ),
  rownames = FALSE,
  escape = FALSE  # Allows HTML formatting in table cells
) %>%
  formatStyle(
    'Species', target = 'cell',
    fontStyle = 'italic'
  ) %>%
  formatStyle(
    columns = names(meta_brock_df),
    target = 'row',
    color = styleEqual(c("red", "blue", "black"), c("red", "blue", "black")), # Apply row color
    fontWeight = styleEqual(c("bold", "normal"), c("bold", "normal")), # Apply bold font for up/downregulated rows
    backgroundColor = styleEqual(c("red", "blue", "black"), c("white", "white", "white")) # Keep background white
  )

# Define the output file path
outputFile <- file.path(workDir, "DEG-results", paste0("DESeq2_sigresults_Thorax_", species, ".csv"))
write.csv(brock_df, file = outputFile, row.names = TRUE)

---

Normalization and PCA

# Try with the data transformation
shigeru_vst <- vst(shigeru)
shigeru_rlog <- rlog(shigeru)
shigeru_ntd <- normTransform(shigeru)
itadori <- meanSdPlot(assay(shigeru_ntd))

itadori2 <- itadori$gg + ggtitle("Transformation with ntd")
megumi <- meanSdPlot(assay(shigeru_vst))

megumi2 <- megumi$gg + ggtitle("Transformation with vst")
nobara <- meanSdPlot(assay(shigeru_rlog))

nobara2 <-nobara$gg + ggtitle("Transformation with rlog")

# Create the pca on the defined groups
pcaData1 <- plotPCA(object = shigeru_rlog, intgroup = c("RearingCondition"),returnData=TRUE)
percentVar <- round(100 * attr(pcaData1, "percentVar"))
pcaData1$RearingCondition<-factor(pcaData1$RearingCondition,levels=c("Crowded","Isolated"), labels=c("Crowded S. cancellata","Isolated S. cancellata"))
#levels(pcaData1$RearingCondition)
p1 <- ggplot(pcaData1, aes(PC1, PC2, color= RearingCondition)) +
  geom_point(size=6) +
  xlab(paste0("PC1: ", percentVar[1], "% variance")) +
  ylab(paste0("PC2: ", percentVar[2], "% variance")) +
  scale_color_manual(values = c("blue", "red")) +
  #coord_fixed() +
  theme_bw() +
  theme(legend.title = element_blank()) +
  theme(legend.text = element_text(face="bold", size=16)) +
  theme(axis.text = element_text(size=14)) +
  theme(axis.title = element_text(size=14))
p1 + geom_convexhull(aes(fill = RearingCondition, color = RearingCondition), alpha = 0.5) +
    scale_fill_manual(values = c("blue", "red"))+
    ggtitle("PCA on S. cancellata Thorax tissues", subtitle = "rlog transformation")

pcaData2 <- plotPCA(object = shigeru_vst, intgroup = c("RearingCondition"),returnData=TRUE)
percentVar <- round(100 * attr(pcaData2, "percentVar"))
pcaData2$RearingCondition<-factor(pcaData2$RearingCondition,levels=c("Crowded","Isolated"), labels=c("Crowded S. cancellata","Isolated S. cancellata"))
#levels(pcaData2$RearingCondition)
p2 <-ggplot(pcaData2, aes(PC1, PC2, color= RearingCondition)) +
  geom_point(size=6) +
  xlab(paste0("PC1: ", percentVar[1], "% variance")) +
  ylab(paste0("PC2: ", percentVar[2], "% variance")) +
  scale_color_manual(values = c("blue", "red")) +
  #coord_fixed() +
  theme_bw() +
  theme(legend.title = element_blank()) +
  theme(legend.text = element_text(face="bold", size=16)) +
  theme(axis.text = element_text(size=14)) +
  theme(axis.title = element_text(size=14))
p2 + geom_convexhull(aes(fill = RearingCondition, color = RearingCondition), alpha = 0.5) +
    scale_fill_manual(values = c("blue", "red"))+
    ggtitle("PCA on S. cancellata Thorax tissues", subtitle = "vst transformation")

select <- order(rowMeans(counts(shigeru,normalized=TRUE)),
                decreasing=TRUE)[1:12]
df <- as.data.frame(colData(shigeru)[,c("RearingCondition","Tissue")])

---

Count matrix heatmap

# Count matrix
pheatmap(assay(shigeru_ntd)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after norm transformation")

pheatmap(assay(shigeru_vst)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after vst transformation")

pheatmap(assay(shigeru_rlog)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after rlog transformation")

# calculate between-sample distance matrix
metadata <- sampletable[,c("RearingCondition", "Tissue")]
rownames(metadata) <- sampletable$SampleName
sampleDistMatrix.rlog <- as.matrix(dist(t(assay(shigeru_rlog))))
pheatmap(sampleDistMatrix.rlog, annotation_col=metadata, main = "Thorax tissue heatmap distance matrix, rlog transformation")

sampleDistMatrix.vst<- as.matrix(dist(t(assay(shigeru_vst))))
pheatmap(sampleDistMatrix.vst, annotation_col=metadata, main = "Thorax tissue heatmap distance matrix, rlog transformation")

---

MA plot

The following plots are interactive and we can hover or Zoom on the locus of interest.

# Ma plot parameters after shrinkage
de_shrink <- lfcShrink(dds = shigeru, coef="RearingCondition_Crowded_vs_Isolated", type="apeglm")
#Thorax(de_shrink)
maplot <-ggmaplot(de_shrink, fdr = 0.05, fc = 1, size = 1, palette = c("#B31B21", "#1465AC", "darkgray"), genenames = as.vector(rownames(de_shrink$name)), top = 0,legend="top",label.select = NULL) +
  coord_cartesian(xlim = c(0, 20)) +
  scale_y_continuous(limits=c(-12, 12)) +
  theme(axis.text.x = element_text(size=12),axis.text.y = element_text(size=12),axis.title.x = element_text(size=14),axis.title.y = element_text(size=14),axis.line = element_line(size = 1, colour="gray20"),axis.ticks = element_line(size = 1, colour="gray20")) +
  guides(color = guide_legend(override.aes = list(size = c(3,3,3)))) +
  theme(legend.position = c(0.70, 0.12),legend.text=element_text(size=14,face="bold"),legend.background = element_rect(fill="transparent")) +
  theme(plot.title = element_text(size=18, colour="gray30", face="bold",hjust=0.06, vjust=-5)) +
  labs(title="MA-plot for the shrunken log2 fold changes in the Thorax tissues")
interactive_maplot <- ggplotly(maplot)
interactive_maplot

---

Volcano plot

#Volcano plot
keyvals <-ifelse(
  res_shigeru$log2FoldChange >= 1 & res_shigeru$padj <= 0.05, '#B31B21',
  ifelse(res_shigeru$log2FoldChange <= -1 & res_shigeru$padj <= 0.05, '#1465AC', 'darkgray'))

keyvals[is.na(keyvals)] <-'lightgray'
names(keyvals)[keyvals == "#B31B21"] <-'Upregulated'
names(keyvals)[keyvals == "#1465AC"] <-'Downregulated'
names(keyvals)[keyvals == 'darkgray'] <-'NS'

res_shigeru$color <- keyvals
volcano_plot <- ggplot(res_shigeru, aes(x = log2FoldChange, y = -log10(padj),
                                        color = color,  # Use the color column with keyvals
                                        text = rownames(res_shigeru))) +
  geom_point(size = 3, alpha = 0.8) +
  scale_color_identity() +  # Directly use the color values from `keyvals`
  guides(color = "none") +  # Hide the color legend
  labs(title = "Volcano Plot DEG Thorax S. cancellata", x = "log2 Fold Change", y = "-log10 Adjusted P-Value") +
  theme_minimal()

# Convert to interactive plot with hover text for gene names
interactive_volcano <- ggplotly(volcano_plot, tooltip = "text") %>%
  layout(hoverlabel = list(namelength = -1))

# Display the interactive plot
interactive_volcano

americana

---

Total DEGs

rawDir <- file.path(workDir, "03-americana-DESeq2")

# Path and name of targetfile containing conditions and file names
species <- "americana"
targetFile <- file.path(workDir, "list", paste0("Thorax", "_", species, "_nooutliers.txt"))

sampletable <- fread(targetFile)
rownames(sampletable) <- sampletable$SampleName
sampletable$RearingCondition <- as.factor(sampletable$RearingCondition)
sampletable$Tissue <- as.factor(sampletable$Tissue)

## Import count files
satoshi <- DESeqDataSetFromHTSeqCount(sampleTable = sampletable,
                        directory = rawDir,
                        design = ~ RearingCondition )
#satoshi

smallestGroupSize <- 3
keep <- rowSums(counts(satoshi) >= 5) >= smallestGroupSize
satoshi <- satoshi[keep,]
#nrow(satoshi)
satoshi$RearingCondition <- relevel(satoshi$RearingCondition, ref = "Isolated")

# Fit the statistical model
shigeru <- DESeq(satoshi)
#cbind(resultsNames(shigeru))
res_shigeru <- results(shigeru)
sum(res_shigeru$padj < tresh_padj, na.rm = TRUE)

[1] 1264

A total of 1,264 genes out of the pre-filtered 13,520 features were showing significant (corrected p-value < 0.05) differences in expression levels. However, we will only keep the ones with at least an absolute fold change > 1, so in reality we have 608 DEGs. The summary below showed how many were up-regulated and down-regulated in crowded compared to isolated it is possible to scroll it.

brock <- results(shigeru, name = "RearingCondition_Crowded_vs_Isolated", alpha = alpha_DEseq2)
summary(brock)

out of 13520 with nonzero total read count
adjusted p-value < 0.05
LFC > 0 (up)       : 460, 3.4%
LFC < 0 (down)     : 798, 5.9%
outliers [1]       : 48, 0.36%
low counts [2]     : 0, 0%
(mean count < 2)
[1] see 'cooksCutoff' argument of ?results
[2] see 'independentFiltering' argument of ?results

brock_df <- as.data.frame(brock)
brock_df$GeneID <- rownames(brock_df)

brock_df <- brock_df[!is.na(brock_df$padj) & (brock_df$padj < tresh_padj), ]
outputFile <- file.path(workDir, "DEG-results", paste0("DESeq2_results_Thorax_", species, ".csv"))
write.csv(brock, file = outputFile, row.names = TRUE)

significant_brock_df <- brock_df[!is.na(brock_df$padj) & !is.na(brock_df$log2FoldChange) &
                               (brock_df$padj < tresh_padj & abs(brock_df$log2FoldChange) > tresh_logfold), ]
# Summary similar to summary(brock)
upregulated <- sum(brock$padj < tresh_padj & brock$log2FoldChange > tresh_logfold, na.rm = TRUE)  # Upregulated count
downregulated <- sum(brock$padj < tresh_padj & brock$log2FoldChange < -tresh_logfold, na.rm = TRUE)  # Downregulated count
total_genes <- sum(upregulated, downregulated)  # Total non-zero count genes
cat("Total DEGs p-value < 0.05 and absolute logFoldChange > 1:", total_genes, "\n")

Total DEGs p-value < 0.05 and absolute logFoldChange > 1: 608

cat("LFC > 0 (up)       :", upregulated, ",", round((upregulated / total_genes) * 100, 2), "%\n")

LFC > 0 (up)       : 181 , 29.77 %

cat("LFC < 0 (down)     :", downregulated, ",", round((downregulated / total_genes) * 100, 2), "%\n")

LFC < 0 (down)     : 427 , 70.23 %

meta_brock_df <- merge(significant_brock_df, allspecies_df, by.x = "GeneID", by.y = "GeneID", all.x = TRUE)
meta_brock_df <- meta_brock_df[, c("GeneID", "GeneType", "Description",  "Species",
                                   "baseMean", "log2FoldChange", "lfcSE", "stat", "pvalue", "padj")]
numeric_cols <- c("baseMean", "log2FoldChange", "lfcSE", "stat", "pvalue", "padj")
meta_brock_df[numeric_cols] <- round(meta_brock_df[numeric_cols], 2)
meta_brock_df$row_color <- ifelse(meta_brock_df$log2FoldChange > 1, "red",
                                  ifelse(meta_brock_df$log2FoldChange < -1, "blue", "black"))
meta_brock_df$row_weight <- ifelse(abs(meta_brock_df$log2FoldChange) > 1, "bold", "normal")
# Display the data table with italic formatting for Species column, color-coded, and bold text rows
datatable(meta_brock_df, options = list(
    pageLength = 10,       # Set initial page length
    scrollX = TRUE,        # Enable horizontal scrolling
    autoWidth = TRUE,      # Adjust column width automatically
    searchHighlight = TRUE # Highlight search matches
  ),
  rownames = FALSE,
  escape = FALSE  # Allows HTML formatting in table cells
) %>%
  formatStyle(
    'Species', target = 'cell',
    fontStyle = 'italic'
  ) %>%
  formatStyle(
    columns = names(meta_brock_df),
    target = 'row',
    color = styleEqual(c("red", "blue", "black"), c("red", "blue", "black")), # Apply row color
    fontWeight = styleEqual(c("bold", "normal"), c("bold", "normal")), # Apply bold font for up/downregulated rows
    backgroundColor = styleEqual(c("red", "blue", "black"), c("white", "white", "white")) # Keep background white
  )

# Define the output file path
outputFile <- file.path(workDir, "DEG-results", paste0("DESeq2_sigresults_Thorax_", species, ".csv"))
write.csv(brock_df, file = outputFile, row.names = TRUE)

---

Normalization and PCA

# Try with the data transformation
shigeru_vst <- vst(shigeru)
shigeru_rlog <- rlog(shigeru)
shigeru_ntd <- normTransform(shigeru)
itadori <- meanSdPlot(assay(shigeru_ntd))

itadori2 <- itadori$gg + ggtitle("Transformation with ntd")
megumi <- meanSdPlot(assay(shigeru_vst))

megumi2 <- megumi$gg + ggtitle("Transformation with vst")
nobara <- meanSdPlot(assay(shigeru_rlog))

nobara2 <-nobara$gg + ggtitle("Transformation with rlog")

# Create the pca on the defined groups
pcaData1 <- plotPCA(object = shigeru_rlog, intgroup = c("RearingCondition"),returnData=TRUE)
percentVar <- round(100 * attr(pcaData1, "percentVar"))
pcaData1$RearingCondition<-factor(pcaData1$RearingCondition,levels=c("Crowded","Isolated"), labels=c("Crowded S. americana","Isolated S. americana"))
#levels(pcaData1$RearingCondition)
p1 <- ggplot(pcaData1, aes(PC1, PC2, color= RearingCondition)) +
  geom_point(size=6) +
  xlab(paste0("PC1: ", percentVar[1], "% variance")) +
  ylab(paste0("PC2: ", percentVar[2], "% variance")) +
  scale_color_manual(values = c("blue", "red")) +
  #coord_fixed() +
  theme_bw() +
  theme(legend.title = element_blank()) +
  theme(legend.text = element_text(face="bold", size=16)) +
  theme(axis.text = element_text(size=14)) +
  theme(axis.title = element_text(size=14))
p1 + geom_convexhull(aes(fill = RearingCondition, color = RearingCondition), alpha = 0.5) +
    scale_fill_manual(values = c("blue", "red"))+
    ggtitle("PCA on S. americana Thorax tissues", subtitle = "rlog transformation")

pcaData2 <- plotPCA(object = shigeru_vst, intgroup = c("RearingCondition"),returnData=TRUE)
percentVar <- round(100 * attr(pcaData2, "percentVar"))
pcaData2$RearingCondition<-factor(pcaData2$RearingCondition,levels=c("Crowded","Isolated"), labels=c("Crowded S. americana","Isolated S. americana"))
#levels(pcaData2$RearingCondition)
p2 <-ggplot(pcaData2, aes(PC1, PC2, color= RearingCondition)) +
  geom_point(size=6) +
  xlab(paste0("PC1: ", percentVar[1], "% variance")) +
  ylab(paste0("PC2: ", percentVar[2], "% variance")) +
  scale_color_manual(values = c("blue", "red")) +
  #coord_fixed() +
  theme_bw() +
  theme(legend.title = element_blank()) +
  theme(legend.text = element_text(face="bold", size=16)) +
  theme(axis.text = element_text(size=14)) +
  theme(axis.title = element_text(size=14))
p2 + geom_convexhull(aes(fill = RearingCondition, color = RearingCondition), alpha = 0.5) +
    scale_fill_manual(values = c("blue", "red"))+
    ggtitle("PCA on S. americana Thorax tissues", subtitle = "vst transformation")

select <- order(rowMeans(counts(shigeru,normalized=TRUE)),
                decreasing=TRUE)[1:12]
df <- as.data.frame(colData(shigeru)[,c("RearingCondition","Tissue")])

---

Count matrix heatmap

# Count matrix
pheatmap(assay(shigeru_ntd)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after norm transformation")

pheatmap(assay(shigeru_vst)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after vst transformation")

pheatmap(assay(shigeru_rlog)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after rlog transformation")

# calculate between-sample distance matrix
metadata <- sampletable[,c("RearingCondition", "Tissue")]
rownames(metadata) <- sampletable$SampleName
sampleDistMatrix.rlog <- as.matrix(dist(t(assay(shigeru_rlog))))
pheatmap(sampleDistMatrix.rlog, annotation_col=metadata, main = "Thorax tissue heatmap distance matrix, rlog transformation")

sampleDistMatrix.vst<- as.matrix(dist(t(assay(shigeru_vst))))
pheatmap(sampleDistMatrix.vst, annotation_col=metadata, main = "Thorax tissue heatmap distance matrix, rlog transformation")

---

MA plot

The following plots are interactive and we can hover or Zoom on the locus of interest.

# Ma plot parameters after shrinkage
de_shrink <- lfcShrink(dds = shigeru, coef="RearingCondition_Crowded_vs_Isolated", type="apeglm")
#Thorax(de_shrink)
maplot <-ggmaplot(de_shrink, fdr = 0.05, fc = 1, size = 1, palette = c("#B31B21", "#1465AC", "darkgray"), genenames = as.vector(rownames(de_shrink$name)), top = 0,legend="top",label.select = NULL) +
  coord_cartesian(xlim = c(0, 20)) +
  scale_y_continuous(limits=c(-12, 12)) +
  theme(axis.text.x = element_text(size=12),axis.text.y = element_text(size=12),axis.title.x = element_text(size=14),axis.title.y = element_text(size=14),axis.line = element_line(size = 1, colour="gray20"),axis.ticks = element_line(size = 1, colour="gray20")) +
  guides(color = guide_legend(override.aes = list(size = c(3,3,3)))) +
  theme(legend.position = c(0.70, 0.12),legend.text=element_text(size=14,face="bold"),legend.background = element_rect(fill="transparent")) +
  theme(plot.title = element_text(size=18, colour="gray30", face="bold",hjust=0.06, vjust=-5)) +
  labs(title="MA-plot for the shrunken log2 fold changes in the Thorax tissues")
interactive_maplot <- ggplotly(maplot)
interactive_maplot

---

Volcano plot

#Volcano plot
keyvals <-ifelse(
  res_shigeru$log2FoldChange >= 1 & res_shigeru$padj <= 0.05, '#B31B21',
  ifelse(res_shigeru$log2FoldChange <= -1 & res_shigeru$padj <= 0.05, '#1465AC', 'darkgray'))

keyvals[is.na(keyvals)] <-'lightgray'
names(keyvals)[keyvals == "#B31B21"] <-'Upregulated'
names(keyvals)[keyvals == "#1465AC"] <-'Downregulated'
names(keyvals)[keyvals == 'darkgray'] <-'NS'

res_shigeru$color <- keyvals
volcano_plot <- ggplot(res_shigeru, aes(x = log2FoldChange, y = -log10(padj),
                                        color = color,  # Use the color column with keyvals
                                        text = rownames(res_shigeru))) +
  geom_point(size = 3, alpha = 0.8) +
  scale_color_identity() +  # Directly use the color values from `keyvals`
  guides(color = "none") +  # Hide the color legend
  labs(title = "Volcano Plot DEG Thorax S. americana", x = "log2 Fold Change", y = "-log10 Adjusted P-Value") +
  theme_minimal()

# Convert to interactive plot with hover text for gene names
interactive_volcano <- ggplotly(volcano_plot, tooltip = "text") %>%
  layout(hoverlabel = list(namelength = -1))

# Display the interactive plot
interactive_volcano

cubense

---

Total DEGs

rawDir <- file.path(workDir, "03-cubense-DESeq2")

# Path and name of targetfile containing conditions and file names
species <- "cubense"
targetFile <- file.path(workDir, "list", paste0("Thorax", "_", species, "_nooutliers.txt"))

sampletable <- fread(targetFile)
rownames(sampletable) <- sampletable$SampleName
sampletable$RearingCondition <- as.factor(sampletable$RearingCondition)
sampletable$Tissue <- as.factor(sampletable$Tissue)

## Import count files
satoshi <- DESeqDataSetFromHTSeqCount(sampleTable = sampletable,
                        directory = rawDir,
                        design = ~ RearingCondition )
#satoshi

smallestGroupSize <- 3
keep <- rowSums(counts(satoshi) >= 5) >= smallestGroupSize
satoshi <- satoshi[keep,]
#nrow(satoshi)
satoshi$RearingCondition <- relevel(satoshi$RearingCondition, ref = "Isolated")

# Fit the statistical model
shigeru <- DESeq(satoshi)
#cbind(resultsNames(shigeru))
res_shigeru <- results(shigeru)
sum(res_shigeru$padj < tresh_padj, na.rm = TRUE)

[1] 368

A total of 368 genes out of the pre-filtered 13,909 features were showing significant (corrected p-value < 0.05) differences in expression levels. However, we will only keep the ones with at least an absolute fold change > 1, so in reality we have 263 DEGs. The summary below showed how many were up-regulated and down-regulated in crowded compared to isolated it is possible to scroll it.

brock <- results(shigeru, name = "RearingCondition_Crowded_vs_Isolated", alpha = alpha_DEseq2)
summary(brock)

out of 13909 with nonzero total read count
adjusted p-value < 0.05
LFC > 0 (up)       : 127, 0.91%
LFC < 0 (down)     : 251, 1.8%
outliers [1]       : 137, 0.98%
low counts [2]     : 1079, 7.8%
(mean count < 7)
[1] see 'cooksCutoff' argument of ?results
[2] see 'independentFiltering' argument of ?results

brock_df <- as.data.frame(brock)
brock_df$GeneID <- rownames(brock_df)

brock_df <- brock_df[!is.na(brock_df$padj) & (brock_df$padj < tresh_padj), ]
outputFile <- file.path(workDir, "DEG-results", paste0("DESeq2_results_Thorax_", species, ".csv"))
write.csv(brock, file = outputFile, row.names = TRUE)

significant_brock_df <- brock_df[!is.na(brock_df$padj) & !is.na(brock_df$log2FoldChange) &
                               (brock_df$padj < tresh_padj & abs(brock_df$log2FoldChange) > tresh_logfold), ]
# Summary similar to summary(brock)
upregulated <- sum(brock$padj < tresh_padj & brock$log2FoldChange > tresh_logfold, na.rm = TRUE)  # Upregulated count
downregulated <- sum(brock$padj < tresh_padj & brock$log2FoldChange < -tresh_logfold, na.rm = TRUE)  # Downregulated count
total_genes <- sum(upregulated, downregulated)  # Total non-zero count genes
cat("Total DEGs p-value < 0.05 and absolute logFoldChange > 1:", total_genes, "\n")

Total DEGs p-value < 0.05 and absolute logFoldChange > 1: 263

cat("LFC > 0 (up)       :", upregulated, ",", round((upregulated / total_genes) * 100, 2), "%\n")

LFC > 0 (up)       : 78 , 29.66 %

cat("LFC < 0 (down)     :", downregulated, ",", round((downregulated / total_genes) * 100, 2), "%\n")

LFC < 0 (down)     : 185 , 70.34 %

meta_brock_df <- merge(significant_brock_df, allspecies_df, by.x = "GeneID", by.y = "GeneID", all.x = TRUE)
meta_brock_df <- meta_brock_df[, c("GeneID", "GeneType", "Description",  "Species",
                                   "baseMean", "log2FoldChange", "lfcSE", "stat", "pvalue", "padj")]
numeric_cols <- c("baseMean", "log2FoldChange", "lfcSE", "stat", "pvalue", "padj")
meta_brock_df[numeric_cols] <- round(meta_brock_df[numeric_cols], 2)
meta_brock_df$row_color <- ifelse(meta_brock_df$log2FoldChange > 1, "red",
                                  ifelse(meta_brock_df$log2FoldChange < -1, "blue", "black"))
meta_brock_df$row_weight <- ifelse(abs(meta_brock_df$log2FoldChange) > 1, "bold", "normal")
# Display the data table with italic formatting for Species column, color-coded, and bold text rows
datatable(meta_brock_df, options = list(
    pageLength = 10,       # Set initial page length
    scrollX = TRUE,        # Enable horizontal scrolling
    autoWidth = TRUE,      # Adjust column width automatically
    searchHighlight = TRUE # Highlight search matches
  ),
  rownames = FALSE,
  escape = FALSE  # Allows HTML formatting in table cells
) %>%
  formatStyle(
    'Species', target = 'cell',
    fontStyle = 'italic'
  ) %>%
  formatStyle(
    columns = names(meta_brock_df),
    target = 'row',
    color = styleEqual(c("red", "blue", "black"), c("red", "blue", "black")), # Apply row color
    fontWeight = styleEqual(c("bold", "normal"), c("bold", "normal")), # Apply bold font for up/downregulated rows
    backgroundColor = styleEqual(c("red", "blue", "black"), c("white", "white", "white")) # Keep background white
  )

# Define the output file path
outputFile <- file.path(workDir, "DEG-results", paste0("DESeq2_sigresults_Thorax_", species, ".csv"))
write.csv(brock_df, file = outputFile, row.names = TRUE)

---

Normalization and PCA

# Try with the data transformation
shigeru_vst <- vst(shigeru)
shigeru_rlog <- rlog(shigeru)
shigeru_ntd <- normTransform(shigeru)
itadori <- meanSdPlot(assay(shigeru_ntd))

itadori2 <- itadori$gg + ggtitle("Transformation with ntd")
megumi <- meanSdPlot(assay(shigeru_vst))

megumi2 <- megumi$gg + ggtitle("Transformation with vst")
nobara <- meanSdPlot(assay(shigeru_rlog))

nobara2 <-nobara$gg + ggtitle("Transformation with rlog")

# Create the pca on the defined groups
pcaData1 <- plotPCA(object = shigeru_rlog, intgroup = c("RearingCondition"),returnData=TRUE)
percentVar <- round(100 * attr(pcaData1, "percentVar"))
pcaData1$RearingCondition<-factor(pcaData1$RearingCondition,levels=c("Crowded","Isolated"), labels=c("Crowded S. cubense","Isolated S. cubense"))
#levels(pcaData1$RearingCondition)
p1 <- ggplot(pcaData1, aes(PC1, PC2, color= RearingCondition)) +
  geom_point(size=6) +
  xlab(paste0("PC1: ", percentVar[1], "% variance")) +
  ylab(paste0("PC2: ", percentVar[2], "% variance")) +
  scale_color_manual(values = c("blue", "red")) +
  #coord_fixed() +
  theme_bw() +
  theme(legend.title = element_blank()) +
  theme(legend.text = element_text(face="bold", size=16)) +
  theme(axis.text = element_text(size=14)) +
  theme(axis.title = element_text(size=14))
p1 + geom_convexhull(aes(fill = RearingCondition, color = RearingCondition), alpha = 0.5) +
    scale_fill_manual(values = c("blue", "red"))+
    ggtitle("PCA on S. cubense Thorax tissues", subtitle = "rlog transformation")

pcaData2 <- plotPCA(object = shigeru_vst, intgroup = c("RearingCondition"),returnData=TRUE)
percentVar <- round(100 * attr(pcaData2, "percentVar"))
pcaData2$RearingCondition<-factor(pcaData2$RearingCondition,levels=c("Crowded","Isolated"), labels=c("Crowded S. cubense","Isolated S. cubense"))
#levels(pcaData2$RearingCondition)
p2 <-ggplot(pcaData2, aes(PC1, PC2, color= RearingCondition)) +
  geom_point(size=6) +
  xlab(paste0("PC1: ", percentVar[1], "% variance")) +
  ylab(paste0("PC2: ", percentVar[2], "% variance")) +
  scale_color_manual(values = c("blue", "red")) +
  #coord_fixed() +
  theme_bw() +
  theme(legend.title = element_blank()) +
  theme(legend.text = element_text(face="bold", size=16)) +
  theme(axis.text = element_text(size=14)) +
  theme(axis.title = element_text(size=14))
p2 + geom_convexhull(aes(fill = RearingCondition, color = RearingCondition), alpha = 0.5) +
    scale_fill_manual(values = c("blue", "red"))+
    ggtitle("PCA on S. cubense Thorax tissues", subtitle = "vst transformation")

select <- order(rowMeans(counts(shigeru,normalized=TRUE)),
                decreasing=TRUE)[1:12]
df <- as.data.frame(colData(shigeru)[,c("RearingCondition","Tissue")])

---

Count matrix heatmap

# Count matrix
pheatmap(assay(shigeru_ntd)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after norm transformation")

pheatmap(assay(shigeru_vst)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after vst transformation")

pheatmap(assay(shigeru_rlog)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after rlog transformation")

# calculate between-sample distance matrix
metadata <- sampletable[,c("RearingCondition", "Tissue")]
rownames(metadata) <- sampletable$SampleName
sampleDistMatrix.rlog <- as.matrix(dist(t(assay(shigeru_rlog))))
pheatmap(sampleDistMatrix.rlog, annotation_col=metadata, main = "Thorax tissue heatmap distance matrix, rlog transformation")

sampleDistMatrix.vst<- as.matrix(dist(t(assay(shigeru_vst))))
pheatmap(sampleDistMatrix.vst, annotation_col=metadata, main = "Thorax tissue heatmap distance matrix, rlog transformation")

---

MA plot

The following plots are interactive and we can hover or Zoom on the locus of interest.

# Ma plot parameters after shrinkage
de_shrink <- lfcShrink(dds = shigeru, coef="RearingCondition_Crowded_vs_Isolated", type="apeglm")
#Thorax(de_shrink)
maplot <-ggmaplot(de_shrink, fdr = 0.05, fc = 1, size = 1, palette = c("#B31B21", "#1465AC", "darkgray"), genenames = as.vector(rownames(de_shrink$name)), top = 0,legend="top",label.select = NULL) +
  coord_cartesian(xlim = c(0, 20)) +
  scale_y_continuous(limits=c(-12, 12)) +
  theme(axis.text.x = element_text(size=12),axis.text.y = element_text(size=12),axis.title.x = element_text(size=14),axis.title.y = element_text(size=14),axis.line = element_line(size = 1, colour="gray20"),axis.ticks = element_line(size = 1, colour="gray20")) +
  guides(color = guide_legend(override.aes = list(size = c(3,3,3)))) +
  theme(legend.position = c(0.70, 0.12),legend.text=element_text(size=14,face="bold"),legend.background = element_rect(fill="transparent")) +
  theme(plot.title = element_text(size=18, colour="gray30", face="bold",hjust=0.06, vjust=-5)) +
  labs(title="MA-plot for the shrunken log2 fold changes in the Thorax tissues")
interactive_maplot <- ggplotly(maplot)
interactive_maplot

---

Volcano plot

#Volcano plot
keyvals <-ifelse(
  res_shigeru$log2FoldChange >= 1 & res_shigeru$padj <= 0.05, '#B31B21',
  ifelse(res_shigeru$log2FoldChange <= -1 & res_shigeru$padj <= 0.05, '#1465AC', 'darkgray'))

keyvals[is.na(keyvals)] <-'lightgray'
names(keyvals)[keyvals == "#B31B21"] <-'Upregulated'
names(keyvals)[keyvals == "#1465AC"] <-'Downregulated'
names(keyvals)[keyvals == 'darkgray'] <-'NS'

res_shigeru$color <- keyvals
volcano_plot <- ggplot(res_shigeru, aes(x = log2FoldChange, y = -log10(padj),
                                        color = color,  # Use the color column with keyvals
                                        text = rownames(res_shigeru))) +
  geom_point(size = 3, alpha = 0.8) +
  scale_color_identity() +  # Directly use the color values from `keyvals`
  guides(color = "none") +  # Hide the color legend
  labs(title = "Volcano Plot DEG Thorax S. cubense", x = "log2 Fold Change", y = "-log10 Adjusted P-Value") +
  theme_minimal()

# Convert to interactive plot with hover text for gene names
interactive_volcano <- ggplotly(volcano_plot, tooltip = "text") %>%
  layout(hoverlabel = list(namelength = -1))

# Display the interactive plot
interactive_volcano

nitens

---

Total DEGs

rawDir <- file.path(workDir, "03-nitens-DESeq2")

# Path and name of targetfile containing conditions and file names
species <- "nitens"
targetFile <- file.path(workDir, "list", paste0("Thorax", "_", species, "_nooutliers.txt"))

sampletable <- fread(targetFile)
rownames(sampletable) <- sampletable$SampleName
sampletable$RearingCondition <- as.factor(sampletable$RearingCondition)
sampletable$Tissue <- as.factor(sampletable$Tissue)

## Import count files
satoshi <- DESeqDataSetFromHTSeqCount(sampleTable = sampletable,
                        directory = rawDir,
                        design = ~ RearingCondition )
#satoshi

smallestGroupSize <- 3
keep <- rowSums(counts(satoshi) >= 5) >= smallestGroupSize
satoshi <- satoshi[keep,]
#nrow(satoshi)
satoshi$RearingCondition <- relevel(satoshi$RearingCondition, ref = "Isolated")

# Fit the statistical model
shigeru <- DESeq(satoshi)
#cbind(resultsNames(shigeru))
res_shigeru <- results(shigeru)
sum(res_shigeru$padj < tresh_padj, na.rm = TRUE)

[1] 0

A total of 0 genes out of the pre-filtered 16,305 features were showing significant (corrected p-value < 0.05) differences in expression levels. The summary below showed how many were up-regulated and down-regulated in crowded compared to isolated it is possible to scroll it.

brock <- results(shigeru, name = "RearingCondition_Crowded_vs_Isolated", alpha = alpha_DEseq2)
summary(brock)

out of 13168 with nonzero total read count
adjusted p-value < 0.05
LFC > 0 (up)       : 0, 0%
LFC < 0 (down)     : 0, 0%
outliers [1]       : 132, 1%
low counts [2]     : 0, 0%
(mean count < 2)
[1] see 'cooksCutoff' argument of ?results
[2] see 'independentFiltering' argument of ?results

brock_df <- as.data.frame(brock)
brock_df$GeneID <- rownames(brock_df)

brock_df <- brock_df[!is.na(brock_df$padj) & (brock_df$padj < tresh_padj), ]
outputFile <- file.path(workDir, "DEG-results", paste0("DESeq2_results_Thorax_", species, ".csv"))
write.csv(brock, file = outputFile, row.names = TRUE)

significant_brock_df <- brock_df[!is.na(brock_df$padj) & !is.na(brock_df$log2FoldChange) &
                               (brock_df$padj < tresh_padj & abs(brock_df$log2FoldChange) > tresh_logfold), ]
# Summary similar to summary(brock)
upregulated <- sum(brock$padj < tresh_padj & brock$log2FoldChange > tresh_logfold, na.rm = TRUE)  # Upregulated count
downregulated <- sum(brock$padj < tresh_padj & brock$log2FoldChange < -tresh_logfold, na.rm = TRUE)  # Downregulated count
total_genes <- sum(upregulated, downregulated)  # Total non-zero count genes
cat("Total DEGs p-value < 0.05 and absolute logFoldChange > 1:", total_genes, "\n")

Total DEGs p-value < 0.05 and absolute logFoldChange > 1: 0

cat("LFC > 0 (up)       :", upregulated, ",", round((upregulated / total_genes) * 100, 2), "%\n")

LFC > 0 (up)       : 0 , NaN %

cat("LFC < 0 (down)     :", downregulated, ",", round((downregulated / total_genes) * 100, 2), "%\n")

LFC < 0 (down)     : 0 , NaN %

meta_brock_df <- merge(significant_brock_df, allspecies_df, by.x = "GeneID", by.y = "GeneID", all.x = TRUE)
meta_brock_df <- meta_brock_df[, c("GeneID", "GeneType", "Description",  "Species",
                                   "baseMean", "log2FoldChange", "lfcSE", "stat", "pvalue", "padj")]
numeric_cols <- c("baseMean", "log2FoldChange", "lfcSE", "stat", "pvalue", "padj")
meta_brock_df[numeric_cols] <- round(meta_brock_df[numeric_cols], 2)
meta_brock_df$row_color <- ifelse(meta_brock_df$log2FoldChange > 1, "red",
                                  ifelse(meta_brock_df$log2FoldChange < -1, "blue", "black"))
meta_brock_df$row_weight <- ifelse(abs(meta_brock_df$log2FoldChange) > 1, "bold", "normal")
# Display the data table with italic formatting for Species column, color-coded, and bold text rows
datatable(meta_brock_df, options = list(
    pageLength = 10,       # Set initial page length
    scrollX = TRUE,        # Enable horizontal scrolling
    autoWidth = TRUE,      # Adjust column width automatically
    searchHighlight = TRUE # Highlight search matches
  ),
  rownames = FALSE,
  escape = FALSE  # Allows HTML formatting in table cells
) %>%
  formatStyle(
    'Species', target = 'cell',
    fontStyle = 'italic'
  ) %>%
  formatStyle(
    columns = names(meta_brock_df),
    target = 'row',
    color = styleEqual(c("red", "blue", "black"), c("red", "blue", "black")), # Apply row color
    fontWeight = styleEqual(c("bold", "normal"), c("bold", "normal")), # Apply bold font for up/downregulated rows
    backgroundColor = styleEqual(c("red", "blue", "black"), c("white", "white", "white")) # Keep background white
  )

# Define the output file path
outputFile <- file.path(workDir, "DEG-results", paste0("DESeq2_sigresults_Thorax_", species, ".csv"))
write.csv(brock_df, file = outputFile, row.names = TRUE)

---

Normalization and PCA

# Try with the data transformation
shigeru_vst <- vst(shigeru)
shigeru_rlog <- rlog(shigeru)
shigeru_ntd <- normTransform(shigeru)
itadori <- meanSdPlot(assay(shigeru_ntd))

itadori2 <- itadori$gg + ggtitle("Transformation with ntd")
megumi <- meanSdPlot(assay(shigeru_vst))

megumi2 <- megumi$gg + ggtitle("Transformation with vst")
nobara <- meanSdPlot(assay(shigeru_rlog))

nobara2 <-nobara$gg + ggtitle("Transformation with rlog")

# Create the pca on the defined groups
pcaData1 <- plotPCA(object = shigeru_rlog, intgroup = c("RearingCondition"),returnData=TRUE)
percentVar <- round(100 * attr(pcaData1, "percentVar"))
pcaData1$RearingCondition<-factor(pcaData1$RearingCondition,levels=c("Crowded","Isolated"), labels=c("Crowded S. nitens","Isolated S. nitens"))
#levels(pcaData1$RearingCondition)
p1 <- ggplot(pcaData1, aes(PC1, PC2, color= RearingCondition)) +
  geom_point(size=6) +
  xlab(paste0("PC1: ", percentVar[1], "% variance")) +
  ylab(paste0("PC2: ", percentVar[2], "% variance")) +
  scale_color_manual(values = c("blue", "red")) +
  #coord_fixed() +
  theme_bw() +
  theme(legend.title = element_blank()) +
  theme(legend.text = element_text(face="bold", size=16)) +
  theme(axis.text = element_text(size=14)) +
  theme(axis.title = element_text(size=14))
p1 + geom_convexhull(aes(fill = RearingCondition, color = RearingCondition), alpha = 0.5) +
    scale_fill_manual(values = c("blue", "red"))+
    ggtitle("PCA on S. nitens Thorax tissues", subtitle = "rlog transformation")

pcaData2 <- plotPCA(object = shigeru_vst, intgroup = c("RearingCondition"),returnData=TRUE)
percentVar <- round(100 * attr(pcaData2, "percentVar"))
pcaData2$RearingCondition<-factor(pcaData2$RearingCondition,levels=c("Crowded","Isolated"), labels=c("Crowded S. nitens","Isolated S. nitens"))
#levels(pcaData2$RearingCondition)
p2 <-ggplot(pcaData2, aes(PC1, PC2, color= RearingCondition)) +
  geom_point(size=6) +
  xlab(paste0("PC1: ", percentVar[1], "% variance")) +
  ylab(paste0("PC2: ", percentVar[2], "% variance")) +
  scale_color_manual(values = c("blue", "red")) +
  #coord_fixed() +
  theme_bw() +
  theme(legend.title = element_blank()) +
  theme(legend.text = element_text(face="bold", size=16)) +
  theme(axis.text = element_text(size=14)) +
  theme(axis.title = element_text(size=14))
p2 + geom_convexhull(aes(fill = RearingCondition, color = RearingCondition), alpha = 0.5) +
    scale_fill_manual(values = c("blue", "red"))+
    ggtitle("PCA on S. nitens Thorax tissues", subtitle = "vst transformation")

select <- order(rowMeans(counts(shigeru,normalized=TRUE)),
                decreasing=TRUE)[1:12]
df <- as.data.frame(colData(shigeru)[,c("RearingCondition","Tissue")])

---

Count matrix heatmap

# Count matrix
pheatmap(assay(shigeru_ntd)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after norm transformation")

pheatmap(assay(shigeru_vst)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after vst transformation")

pheatmap(assay(shigeru_rlog)[select,], cluster_rows=FALSE, show_rownames=FALSE,
         cluster_cols=FALSE, annotation_col=df, main = "Count Matrix after rlog transformation")

# calculate between-sample distance matrix
metadata <- sampletable[,c("RearingCondition", "Tissue")]
rownames(metadata) <- sampletable$SampleName
sampleDistMatrix.rlog <- as.matrix(dist(t(assay(shigeru_rlog))))
pheatmap(sampleDistMatrix.rlog, annotation_col=metadata, main = "Thorax tissue heatmap distance matrix, rlog transformation")

sampleDistMatrix.vst<- as.matrix(dist(t(assay(shigeru_vst))))
pheatmap(sampleDistMatrix.vst, annotation_col=metadata, main = "Thorax tissue heatmap distance matrix, rlog transformation")

---

MA plot

The following plots are interactive and we can hover or Zoom on the locus of interest.

# Ma plot parameters after shrinkage
de_shrink <- lfcShrink(dds = shigeru, coef="RearingCondition_Crowded_vs_Isolated", type="apeglm")
#Thorax(de_shrink)
maplot <-ggmaplot(de_shrink, fdr = 0.05, fc = 1, size = 1, palette = c("#B31B21", "#1465AC", "darkgray"), genenames = as.vector(rownames(de_shrink$name)), top = 0,legend="top",label.select = NULL) +
  coord_cartesian(xlim = c(0, 20)) +
  scale_y_continuous(limits=c(-12, 12)) +
  theme(axis.text.x = element_text(size=12),axis.text.y = element_text(size=12),axis.title.x = element_text(size=14),axis.title.y = element_text(size=14),axis.line = element_line(size = 1, colour="gray20"),axis.ticks = element_line(size = 1, colour="gray20")) +
  guides(color = guide_legend(override.aes = list(size = c(3,3,3)))) +
  theme(legend.position = c(0.70, 0.12),legend.text=element_text(size=14,face="bold"),legend.background = element_rect(fill="transparent")) +
  theme(plot.title = element_text(size=18, colour="gray30", face="bold",hjust=0.06, vjust=-5)) +
  labs(title="MA-plot for the shrunken log2 fold changes in the Thorax tissues")
#interactive_maplot <- ggplotly(maplot)
#interactive_maplot

---

Volcano plot

#Volcano plot
keyvals <-ifelse(
  res_shigeru$log2FoldChange >= 1 & res_shigeru$padj <= 0.05, '#B31B21',
  ifelse(res_shigeru$log2FoldChange <= -1 & res_shigeru$padj <= 0.05, '#1465AC', 'darkgray'))

keyvals[is.na(keyvals)] <-'lightgray'
names(keyvals)[keyvals == "#B31B21"] <-'Upregulated'
names(keyvals)[keyvals == "#1465AC"] <-'Downregulated'
names(keyvals)[keyvals == 'darkgray'] <-'NS'

res_shigeru$color <- keyvals
volcano_plot <- ggplot(res_shigeru, aes(x = log2FoldChange, y = -log10(padj),
                                        color = color,  # Use the color column with keyvals
                                        text = rownames(res_shigeru))) +
  geom_point(size = 3, alpha = 0.8) +
  scale_color_identity() +  # Directly use the color values from `keyvals`
  guides(color = "none") +  # Hide the color legend
  labs(title = "Volcano Plot DEG Thorax S. nitens", x = "log2 Fold Change", y = "-log10 Adjusted P-Value") +
  theme_minimal()

# Convert to interactive plot with hover text for gene names
#interactive_volcano <- ggplotly(volcano_plot, tooltip = "text") %>%
#  layout(hoverlabel = list(namelength = -1))

# Display the interactive plot
#interactive_volcano

Session information

sessionInfo()

R version 4.4.1 (2024-06-14)
Platform: aarch64-apple-darwin20
Running under: macOS Sonoma 14.7

Matrix products: default
BLAS:   /Library/Frameworks/R.framework/Versions/4.4-arm64/Resources/lib/libRblas.0.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/4.4-arm64/Resources/lib/libRlapack.dylib;  LAPACK version 3.12.0

locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8

time zone: America/Chicago
tzcode source: internal

attached base packages:
[1] grid      stats4    stats     graphics  grDevices utils     datasets
[8] methods   base

other attached packages:
 [1] ggConvexHull_0.1.0          ggdist_3.3.2
 [3] vsn_3.72.0                  cowplot_1.1.3
 [5] sva_3.52.0                  BiocParallel_1.38.0
 [7] genefilter_1.86.0           mgcv_1.9-1
 [9] nlme_3.1-166                clusterProfiler_4.12.6
[11] pheatmap_1.0.12             SARTools_1.8.1
[13] kableExtra_1.4.0            edgeR_4.2.2
[15] limma_3.60.6                ashr_2.2-63
[17] EnhancedVolcano_1.22.0      ggrepel_0.9.6
[19] ggpubr_0.6.0                apeglm_1.26.1
[21] circlize_0.4.16             RColorBrewer_1.1-3
[23] ComplexHeatmap_2.20.0       reshape2_1.4.4
[25] ggthemes_5.1.0              plotly_4.10.4
[27] DT_0.33                     data.table_1.16.2
[29] lubridate_1.9.3             forcats_1.0.0
[31] stringr_1.5.1               dplyr_1.1.4
[33] purrr_1.0.2                 readr_2.1.5
[35] tidyr_1.3.1                 tibble_3.2.1
[37] ggplot2_3.5.1               tidyverse_2.0.0
[39] rmdformats_1.0.4            knitr_1.48
[41] txdbmaker_1.0.1             GenomicFeatures_1.56.0
[43] AnnotationDbi_1.66.0        tximport_1.32.0
[45] DESeq2_1.44.0               SummarizedExperiment_1.34.0
[47] Biobase_2.64.0              MatrixGenerics_1.16.0
[49] matrixStats_1.4.1           GenomicRanges_1.56.2
[51] GenomeInfoDb_1.40.1         IRanges_2.38.1
[53] S4Vectors_0.42.1            BiocGenerics_0.50.0

loaded via a namespace (and not attached):
  [1] fs_1.6.5                 bitops_1.0-9             enrichplot_1.24.4
  [4] httr_1.4.7               doParallel_1.0.17        numDeriv_2016.8-1.1
  [7] tools_4.4.1              backports_1.5.0          utf8_1.2.4
 [10] R6_2.5.1                 lazyeval_0.2.2           GetoptLong_1.0.5
 [13] withr_3.0.2              prettyunits_1.2.0        GGally_2.2.1
 [16] gridExtra_2.3            preprocessCore_1.66.0    cli_3.6.3
 [19] scatterpie_0.2.4         labeling_0.4.3           sass_0.4.9
 [22] SQUAREM_2021.1           mvtnorm_1.3-2            mixsqp_0.3-54
 [25] Rsamtools_2.20.0         systemfonts_1.1.0        yulab.utils_0.1.7
 [28] gson_0.1.0               DOSE_3.30.5              svglite_2.1.3
 [31] R.utils_2.12.3           invgamma_1.1             bbmle_1.0.25.1
 [34] rstudioapi_0.17.1        RSQLite_2.3.7            gridGraphics_0.5-1
 [37] generics_0.1.3           shape_1.4.6.1            BiocIO_1.14.0
 [40] crosstalk_1.2.1          distributional_0.5.0     car_3.1-3
 [43] GO.db_3.19.1             Matrix_1.7-1             fansi_1.0.6
 [46] abind_1.4-8              R.methodsS3_1.8.2        lifecycle_1.0.4
 [49] whisker_0.4.1            yaml_2.3.10              carData_3.0-5
 [52] qvalue_2.36.0            SparseArray_1.4.8        BiocFileCache_2.12.0
 [55] blob_1.2.4               promises_1.3.0           crayon_1.5.3
 [58] bdsmatrix_1.3-7          lattice_0.22-6           annotate_1.82.0
 [61] KEGGREST_1.44.1          pillar_1.9.0             fgsea_1.30.0
 [64] rjson_0.2.23             codetools_0.2-20         fastmatch_1.1-4
 [67] glue_1.8.0               ggfun_0.1.7              treeio_1.28.0
 [70] vctrs_0.6.5              png_0.1-8                gtable_0.3.6
 [73] emdbook_1.3.13           cachem_1.1.0             xfun_0.49
 [76] S4Arrays_1.4.1           tidygraph_1.3.1          coda_0.19-4.1
 [79] survival_3.7-0           iterators_1.0.14         statmod_1.5.0
 [82] ggtree_3.12.0            bit64_4.5.2              progress_1.2.3
 [85] filelock_1.0.3           rprojroot_2.0.4          bslib_0.8.0
 [88] affyio_1.74.0            irlba_2.3.5.1            colorspace_2.1-1
 [91] DBI_1.2.3                tidyselect_1.2.1         bit_4.5.0
 [94] compiler_4.4.1           curl_6.0.0               git2r_0.35.0
 [97] httr2_1.0.6              xml2_1.3.6               ggdendro_0.2.0
[100] DelayedArray_0.30.1      shadowtext_0.1.4         bookdown_0.41
[103] rtracklayer_1.64.0       scales_1.3.0             hexbin_1.28.4
[106] affy_1.82.0              rappdirs_0.3.3           digest_0.6.37
[109] rmarkdown_2.29           XVector_0.44.0           htmltools_0.5.8.1
[112] pkgconfig_2.0.3          highr_0.11               dbplyr_2.5.0
[115] fastmap_1.2.0            rlang_1.1.4              GlobalOptions_0.1.2
[118] htmlwidgets_1.6.4        UCSC.utils_1.0.0         farver_2.1.2
[121] jquerylib_0.1.4          jsonlite_1.8.9           GOSemSim_2.30.2
[124] R.oo_1.27.0              RCurl_1.98-1.16          magrittr_2.0.3
[127] ggplotify_0.1.2          Formula_1.2-5            GenomeInfoDbData_1.2.12
[130] patchwork_1.3.0          munsell_0.5.1            Rcpp_1.0.13-1
[133] ape_5.8                  viridis_0.6.5            stringi_1.8.4
[136] ggraph_2.2.1             zlibbioc_1.50.0          MASS_7.3-61
[139] plyr_1.8.9               ggstats_0.7.0            parallel_4.4.1
[142] graphlayouts_1.2.0       Biostrings_2.72.1        splines_4.4.1
[145] hms_1.1.3                locfit_1.5-9.10          igraph_2.1.1
[148] ggsignif_0.6.4           biomaRt_2.60.1           XML_3.99-0.17
[151] evaluate_1.0.1           BiocManager_1.30.25      tweenr_2.0.3
[154] tzdb_0.4.0               foreach_1.5.2            httpuv_1.6.15
[157] polyclip_1.10-7          clue_0.3-65              ggforce_0.4.2
[160] broom_1.0.7              xtable_1.8-4             restfulr_0.0.15
[163] tidytree_0.4.6           rstatix_0.7.2            later_1.3.2
[166] viridisLite_0.4.2        truncnorm_1.0-9          aplot_0.2.3
[169] memoise_2.0.1            GenomicAlignments_1.40.0 cluster_2.1.6
[172] workflowr_1.7.1          timechange_0.3.0
